Engine Mechanical System

Timing System - Timing Belt

Engine Mechanical System

  2001 > 1.8L DOHC >

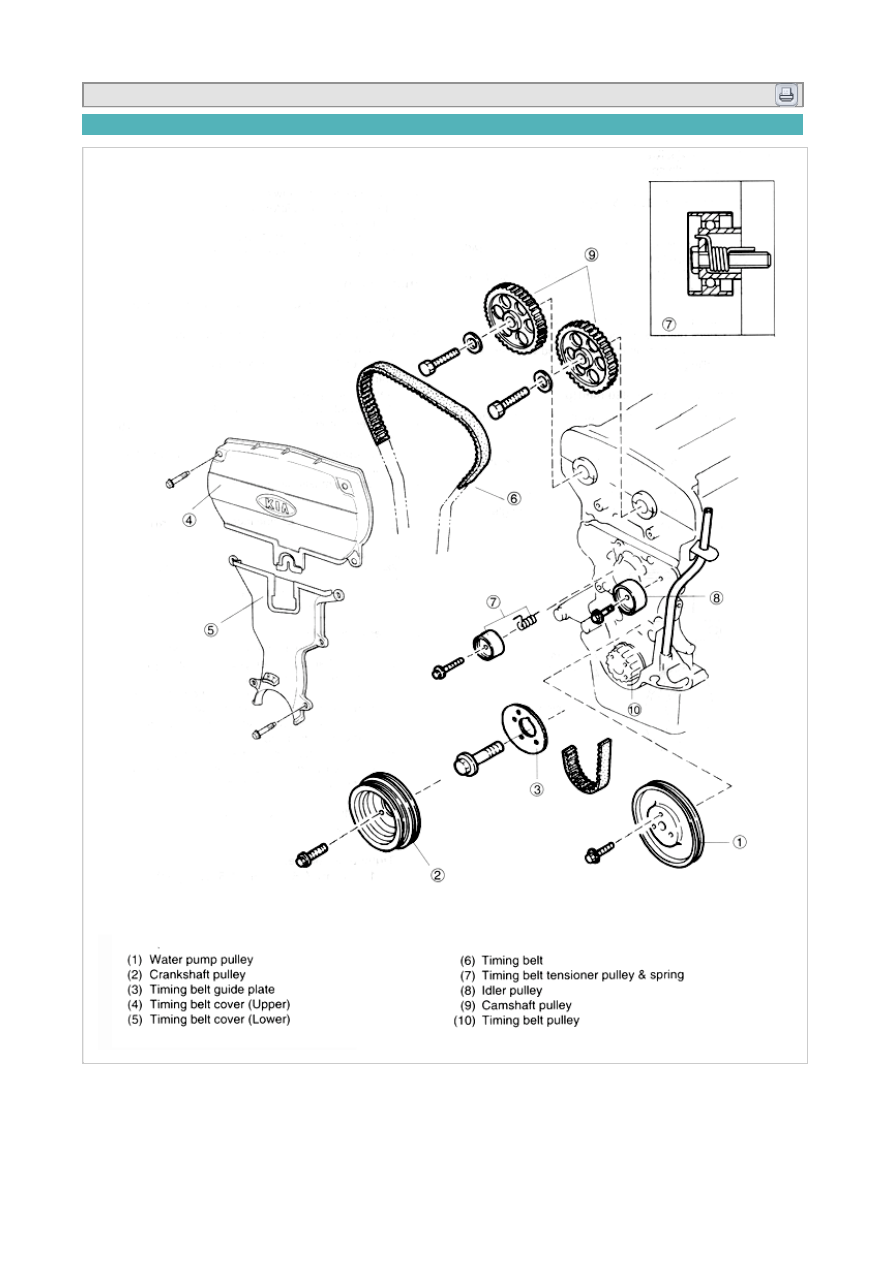

COMPONENTS

  2001 > 1.8L DOHC >



REMOVAL

1. Disconnect negative battery cable.

2. Remove right splash shield with three bolts and three fasteners.

3. Loosen power steering pump lock bolt (A), nuts (B), (C) and remove tension from power steering (P/S)

pump and/or air conditioning (A/C) compressor drive belt by turn adjusting bolt (D).

4. Remove P/S pump and/or A/C compressor drive belt.

5. Loosen water pump pulley bolts.

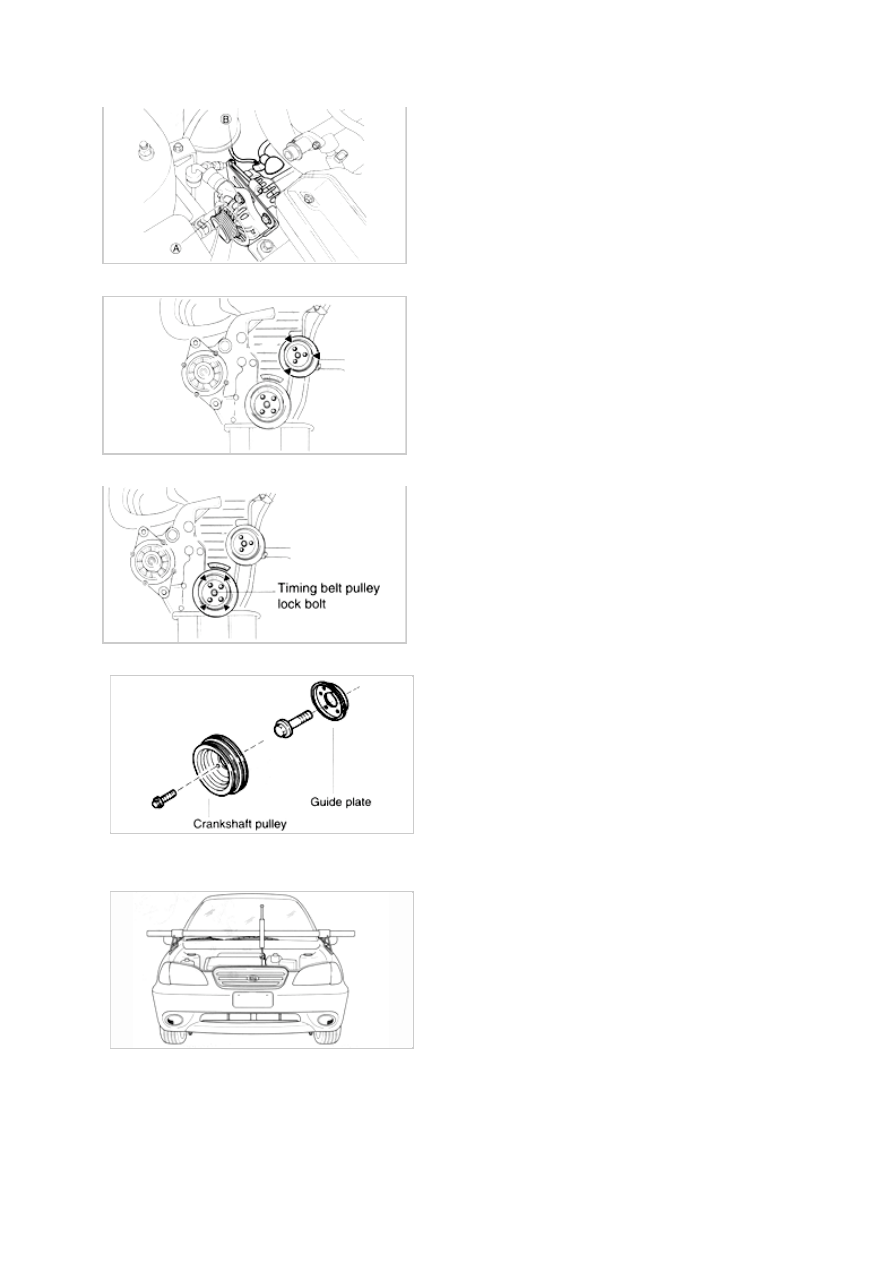

6. Loosen generator mounting bolt (A) and remove tension from generator drive belt by turn adjusting bolt (B).

7. Remove generator drive belt.

8. Remove water pump pulley.

9. Remove four crankshaft pulley bolts and timing belt pulley lock bolt.

10. Remove crankshaft pulley and timing belt guide plate.

11. Reinstall timing belt pulley lock bolt.

12. Support engine with engine support bar SST (OK201 170 AA0).

13. Remove one bolt and one nut, then remove dynamic damper.
