Preface

This document is an update to the optimization recommendations contained in the Intel^® 64 and IA-32

Architectures Optimization Reference Manual, also known as the Software Optimization Manual. This document

is a compilation of device and documentation errata, specification clarifications and changes. It is intended for

hardware system manufacturers and software developers of applications, operating systems, or tools.

Nomenclature

Documentation Changes include typos, errors, or omissions from the current published specifications. These

will be incorporated in any new release of the specification.

Summary Tables of Changes

The following table indicates documentation changes which apply to the Intel^® 64 and IA-32 Architecture

software optimization topics covered by this reference manual.

No.

DOCUMENTATION CHANGES

Updates to Chapter 1

Updates to Chapter 2

Updates to Chapter 3

Updates to Chapter 7

Updates to Chapter 10

Updates to Chapter 11

Updates to Chapter 15

Updates to Chapter 18

Updates to Chapter 20

Documentation Changes

Changes to the Intel^® 64 and IA-32 Architectures Optimization Reference Manual volumes follow, and are listed

by chapter. Only chapters with changes are included in this document.

Intel^® 64 and IA-32 Architectures Optimization Reference Manual Documentation Changes

CHAPTER 1

INTRODUCTION

The Intel® 64 and IA-32 Architectures Optimization Reference Manual describes how to optimize soft-

ware to take advantage of the performance characteristics of IA-32 and Intel 64 architecture processors.

The target audience for this manual includes software programmers and compiler writers. This manual

assumes that the reader is familiar with the basics of the IA-32 architecture and has access to the Intel^®

64 and IA-32 Architectures Software Developer’s Manual. A detailed understanding of Intel 64 and IA-32

processors is often required. In many cases, knowledge of the underlying microarchitectures is required.

The design guidelines discussed in this manual for developing high-performance software generally

apply to current and future IA-32 and Intel 64 processors. In most cases, coding rules apply to software

running in 64-bit mode of Intel 64 architecture, compatibility mode of Intel 64 architecture, and IA-32

modes (IA-32 modes are supported in IA-32 and Intel 64 architectures). Coding rules specific to 64-bit

modes are noted separately.

NOTE

A public repository is available with open source code samples from select chapters of

this manual. These code samples are released under a 0-Clause BSD license. Intel

provides additional code samples and updates to the repository as the samples are

created and verified.

Public repository: https://github.com/intel/optimization-manual.

Link to license: https://github.com/intel/optimization-manual/blob/master/COPYING.

1.1

TUNING YOUR APPLICATION

Tuning an application for high performance on any Intel 64 or IA-32 processor requires understanding

and basic skills in:

• Intel 64 and IA-32 architecture.

• C and Assembly language.

• Hot-spot regions in the application that impact performance.

• Optimization capabilities of the compiler.

• Techniques used to evaluate application performance.

The Intel^® VTune™ Performance Analyzer can help you analyze and locate hot-spot regions in your

applications. On the Intel^® Core™ i7, Intel^® Core™2 Duo, Intel^® Core™ Duo, Intel^® Core™ Solo,

Pentium^® 4, Intel^® Xeon^®, and Intel^®Pentium^® M processors, this tool can monitor an application

through a selection of performance monitoring events and analyze the performance event data that is

gathered during code execution.

This manual also describes data that can be gathered using the performance counters through the

processor’s performance monitoring events.

1.2

ABOUT THIS MANUAL

The Intel^® Core™ i7 processor and Intel^® Xeon^® processor 3400, 5500, 7500 series are based on 45 nm

Nehalem microarchitecture. Westmere microarchitecture is a 32 nm version of the Nehalem microarchi-

tecture. Intel^® Xeon^® processor 5600 series, Intel Xeon processor E7 and various Intel Core i7, i5, i3

processors are based on the Westmere microarchitecture. These processors support Intel 64 architec-

ture.

INTRODUCTION

The Intel^® Xeon^® processor E5 family, Intel^® Xeon^® processor E3-1200 family, Intel^® Xeon^® processor

E7-8800/4800/2800 product families, Intel^® Core™ i7-3930K processor, and 2nd generation Intel^®

Core™ i7-2xxx, Intel^® Core™ i5-2xxx, Intel^® Core™ i3-2xxx processor series are based on the Sandy

Bridge microarchitecture and support Intel 64 architecture.

The Intel^® Xeon^® processor E7-8800/4800/2800 v2 product families, Intel^® Xeon^® processor E3-1200

v2 product family and 3rd generation Intel^® Core™ processors are based on the Ivy Bridge microarchi-

tecture and support Intel 64 architecture.

The Intel^® Xeon^® processor E5-4600/2600/1600 v2 product families, Intel^® Xeon^® processor E5-

2400/1400 v2 product families, and Intel^® Core™ i7-49xx Processor Extreme Edition are based on the

Ivy Bridge-E microarchitecture and support Intel 64 architecture.

The Intel^® Xeon^® processor E3-1200 v3 product family and 4th Generation Intel^® Core™ processors are

based on the Haswell microarchitecture and support Intel 64 architecture.

The Intel^® Xeon^® processor E5-2600/1600 v3 product families and the Intel^® Core™ i7-59xx Processor

Extreme Edition are based on the Haswell-E microarchitecture and support Intel 64 architecture.

The Intel Atom^® processor Z8000 series is based on the Airmont microarchitecture.

The Intel Atom^® processor Z3400 series and the Intel Atom^® processor Z3500 series are based on the

Silvermont microarchitecture.

The Intel^® Core™ M processor family, 5th generation Intel^® Core™ processors, Intel^® Xeon^® processor

D-1500 product family and the Intel^® Xeon^® processor E5 v4 family are based on the Broadwell microar-

chitecture and support Intel 64 architecture.

The Intel^® Xeon^® Scalable processor family, Intel^® Xeon^® processor E3-1500m v5 product family, and

6th generation Intel^® Core™ processors are based on the Skylake microarchitecture and support Intel 64

architecture.

The 7th generation Intel^® Core™ processors are based on the Kaby Lake microarchitecture and support

Intel 64 architecture.

The Intel Atom^® processor C series, the Intel Atom^® processor X series, the Intel^® Pentium^® processor

J series, the Intel^® Celeron^® processor J series, and the Intel^® Celeron^® processor N series are based on

the Goldmont microarchitecture.

The Intel^® Xeon Phi™ Processor 3200, 5200, 7200 Series is based on the Knights Landing microarchitec-

ture and supports Intel 64 architecture.

The Intel^® Pentium^® Silver processor series, the Intel^® Celeron^® processor J series, and the Intel^®

Celeron^® processor N series are based on the Goldmont Plus microarchitecture.

The 8th generation Intel^® Core™ processors, 9th generation Intel^® Core™ processors, and Intel^® Xeon^®

E processors are based on the Coffee Lake microarchitecture and support Intel 64 architecture.

The Intel^® Xeon Phi™ Processor 7215, 7285, 7295 Series is based on the Knights Mill microarchitecture

and supports Intel 64 architecture.

The 2nd generation Intel^® Xeon^® Scalable processor family is based on the Cascade Lake product and

supports Intel 64 architecture.

Some 10th generation Intel^® Core™ processors are based on the Ice Lake microarchitecture, and some

are based on the Comet Lake microarchitecture; both support Intel 64 architecture.

Some 11th generation Intel^® Core™ processors are based on the Tiger Lake microarchitecture, and

some are based on the Rocket Lake microarchitecture; both support Intel 64 architecture.

Some processors in the 3rd generation Intel^® Xeon^® Scalable processor family are based on the Cooper

Lake product, and some are based on the Ice Lake microarchitecture; both support Intel 64 architecture.

The 12th generation Intel^® Core™ processors are based on the Alder Lake performance hybrid architec-

ture and support Intel 64 architecture.

The 13th generation Intel^® Core™ processors are based on the Raptor Lake performance hybrid

architecture and support Intel 64 architecture.

1-2

INTRODUCTION

The 4th generation Intel^® Xeon^® Scalable processor family is based on the Sapphire Rapids microarchi-

tecture and supports Intel 64 architecture.

The chapters in this manual are summarized as follows:

•

Chapter 1: Introduction — Defines the purpose and outlines the contents of this manual.

•

Chapter 2: Intel^® 64 and IA-32 Processor Architectures — Describes the microarchitecture of

recent Intel 64 and IA-32 processor families, and other features relevant to software optimization.

•

Chapter 3: General Optimization Guidelines — Describes general code development and optimi-

zation techniques that apply to all applications designed to take advantage of the common features

of current Intel processors.

•

Chapter 4: Intel Atom^® Processor Architecture — Describes the microarchitecture of recent

Intel Atom processor families, and other features relevant to software optimization.

•

Chapter 5: Coding for SIMD Architectures — Describes techniques and concepts for using the

SIMD integer and SIMD floating-point instructions provided by the MMX™ technology, Streaming

SIMD Extensions, Streaming SIMD Extensions 2, Streaming SIMD Extensions 3, SSSE3, and SSE4.1.

•

Chapter 6: Optimizing for SIMD Integer Applications — Provides optimization suggestions and

common building blocks for applications that use the 128-bit SIMD integer instructions.

•

Chapter 7: Optimizing for SIMD Floating-point Applications — Provides optimization

suggestions and common building blocks for applications that use the single-precision and double-

precision SIMD floating-point instructions.

•

Chapter 8: INT8 Deep Learning Inference — Describes INT8 as a data type for Deep learning

Inference on Intel technology. The document covers both AVX-512 implementations and implemen-

tations using the new Intel® DL Boost Instructions.

•

Chapter 9: Optimizing Cache Usage — Describes how to use the PREFETCH instruction, cache

control management instructions to optimize cache usage, and the deterministic cache parameters.

•

Chapter 10: Introducing Sub-NUMA Clustering — Describes Sub-NUMA Clustering (SNC), a

mode for improving average latency from last level cache (LLC) to local memory.

•

Chapter 11: Multicore and Hyper-Threading Technology — Describes guidelines and

techniques for optimizing multithreaded applications to achieve optimal performance scaling. Use

these when targeting multicore processor, processors supporting Hyper-Threading Technology, or

multiprocessor (MP) systems.

•

Chapter 12: Intel^® Optane™ DC Persistent Memory — Provides optimization suggestions for

applications that use Intel^® Optane™ DC Persistent Memory.

•

Chapter 13: 64-Bit Mode Coding Guidelines — This chapter describes a set of additional coding

guidelines for application software written to run in 64-bit mode.

•

Chapter 14: SSE4.2 and SIMD Programming for Text-Processing/Lexing/Parsing—

Describes SIMD techniques of using SSE4.2 along with other instruction extensions to improve

text/string processing and lexing/parsing applications.

•

Chapter 15: Optimizations for Intel^® AVX, FMA, and Intel^®AVX2— Provides optimization

suggestions and common building blocks for applications that use Intel^® Advanced Vector

Extensions, FMA, and Intel^® Advanced Vector Extensions 2 (Intel^®AVX2).

•

Chapter 16: Intel Transactional Synchronization Extensions — Tuning recommendations to

use lock elision techniques with Intel Transactional Synchronization Extensions to optimize multi-

threaded software with contended locks.

•

Chapter 17: Power Optimization for Mobile Usages — This chapter provides backg11round on

power saving techniques in mobile processors and makes recommendations that developers can

leverage to provide longer battery life.

•

Chapter 18: Software Optimization for Intel^® AVX-512 Instructions— Provides optimization

suggestions and common building blocks for applications that use Intel^® Advanced Vector Extensions

512.

1-3

INTRODUCTION

•

Chapter 19: Intel^® Advanced Vector Extensions 512-FP16 Instruction Set for Intel^® Xeon^®

Processors — Describes the addition of the FP16 ISA for Intel AVX-512 to handle IEEE 754-2019

compliant half-precision floating-point operations.

•

Chapter 20: Intel^® Advanced Matrix Extensions (Intel^® AMX) — Describes best practices to

optimally code to the metal on Intel^® Xeon^® Processors based on Sapphire Rapids SP microarchi-

tecture. It extends the public documentation on Optimizing DL code with DL Boost instructions.

•

Chapter 21: Cryptography & Finite Field Arithmetic Enhancements — Describes the new

instruction extensions designated for acceleration of cryptography flows and finite field arithmetic.

•

Chapter 22: Intel^®QuickAssist Technology — Describes software development guidelines for

the Intel^® QuickAssist Technology (Intel^® QAT) API. This API supports both the Cryptographic and

Data Compression services.

•

Chapter 23: Knights Landing Microarchitecture and Software Optimization — Describes the

microarchitecture of processor families based on the Knights Landing microarchitecture, and

software optimization techniques targeting Intel processors based on the Knights Landing microar-

chitecture.

•

Appendix A: Application Performance Tools — Introduces tools for analyzing and enhancing

application performance without having to write assembly code.

•

Appendix B: Using Performance Monitoring Events — Provides information on the Top-Down

Analysis Method and information on how to use performance events specific to the Intel Xeon

processor 5500 series, processors based on Sandy Bridge microarchitecture, and Intel Core Solo and

Intel Core Duo processors.

•

Appendix C: Intel Architecture Optimization with Large Code Pages — Provides information

on how the performance of runtimes can be improved by using large code pages.

•

Appendix D: IA-32 Instruction Latency and Throughput — Provides latency and throughput

data for the IA-32 instructions. Instruction timing data specific to recent processor families are

provided.

•

Appendix E: Earlier Generations of Intel^® 64 and IA-32 Processor Architectures —

Describes the microarchitecture of earlier generations of Intel 64 and IA-32 processor families, and

other features relevant to software optimization.

•

Appendix F: Earlier Generations of Intel Atom^® Microarchitecture and Software Optimi-

zation — Describes the microarchitecture of earlier generations of processor families based on Intel

Atom microarchitecture, and software optimization techniques targeting Intel Atom microarchi-

tecture.

1.3

RELATED INFORMATION

For more information on the Intel^® architecture, techniques, and the processor architecture terminology,

the following are of particular interest:

• Intel® 64 and IA-32 Architectures Software Developer’s Manual.

• Developing Multi-threaded Applications: A Platform Consistent Approach.

• Get Started with Intel® Fortran Compiler Classic and Intel® Fortran Compiler.

• Intel® C++ Compiler Classic Developer Guide and Reference.

• Intel® Developer Catalog.

• Intel® oneAPI Data Analytics Library.

More relevant links include:

• AI & Machine Learning: Development tools and resources.

• Development Topics & Technologies.

• Intel® 64 Architecture Processor Topology Enumeration.

• Intel® Distribution of OpenVino™ Toolkit.

1-4

2. Updates to Chapter 2

Change bars and violet text show changes to Chapter 2 of the Intel^® 64 and IA-32 Architectures Optimization

Reference Manual: Intel^® 64 and IA-32 Processor Architectures.

------------------------------------------------------------------------------------------

Changes to this chapter:

• Corrected branding and style across chapter.

• Section 2.1:

— Updated title of section from Sapphire Rapids Architecture to Sapphire Rapids Microarchitecture.

— Refined technology features associated with the Sapphire Rapids microarchitecture.

— 2.1.1: Changed: Its I/O to the I/O

• Section 2.3:

— Updated to include new performance recommendations.

— Updated Figure 2-1 and 2-3 to include *H in Port 1

— Update Tables 2-1 and 2-2 to include additional footnote regarding *H performance improvements.

Intel® 64 and IA-32 Architectures Optimization Reference Manual

CHAPTER 2

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

This chapter gives an overview of features relevant to software optimization for current generations of

Intel^® 64 and IA-32 processors¹. These features are:

• Microarchitectures that enable executing instructions with high throughput at high clock speeds, a

high-speed cache hierarchy, and high-speed system bus.

• Intel^® Hyper-Threading Technology² (Intel^® HT Technology) support.

• Intel 64 architecture on Intel 64 processors.

• Single Instruction Multiple Data (SIMD) instruction extensions: MMX™ technology, Streaming SIMD

Extensions (Intel^®SSE), Streaming SIMD Extensions 2 (Intel^®SSE2), Streaming SIMD Extensions 3

(Intel^®SSE3), Supplemental Streaming SIMD Extensions 3 (SSSE3), Intel^®SSE4.1, and Intel^®

SSE4.2.

• Intel^® Advanced Vector Extensions (Intel^® AVX).

• Half-precision floating-point conversion and RDRAND.

• Fused Multiply Add Extensions.

• Intel^® Advanced Vector Extensions 2 (Intel^® AVX2).

• ADX and RDSEED.

• Intel^® Advanced Vector Extensions 512 (Intel^® AVX-512).

• Intel^® Thread Director.

2.1

SAPPHIRE RAPIDS MICROARCHITECTURE

Intel processors based on Sapphire Rapids microarchitecture use Golden Cove cores and support the

following additional features:

• Intel^® Advanced Matrix Extensions (Intel^®AMX) (Chapter 20).

• Intel^®Advanced Vector Extensions 512 (Intel^®AVX-512) (Chapter 19).

• Intel^® Data Streaming Accelerator (Intel^®DSA)³.

• Intel^® In-Memory Analytics Accelerator (Intel^®IAA)⁴.

• Intel^® Quick Assist Technology (Intel^®QAT)(Chapter 22)

2.1.1

4th Generation Intel^® Xeon^® Scalable Family of Processors

Intel's fourth generation Xeon^® Scalable Family of Processors changes from a single-die monolithic

design to multi-die Tiles.

The server products are scalable from dual-socket to eight-socket configurations (Section 3.11).

The I/O is increased with PCI Express 5.0, DDR5 memory, and Compute Express Link 1.1.

1. For previous generations of Intel 64 and IA-32 processors, see Appendix E, “Earlier Generations of Intel® 64 and IA-32

Processor Architectures.” Intel Atom® processors are covered in Chapter 4, “Intel Atom® Processor Architectures.”

2. Intel HT Technology requires a computer system with an Intel processor supporting hyper-threading and an Intel HT

Technology-enabled chipset, BIOS, and operating system. Performance varies depending on the hardware and software

used.

3. Please see the intel® DSA Specification and Intel® DSA User Guide.

4. Please see the Intel® IAA Specification.

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Packaging includes a multi-die chip with up to 4 tiles. Each tile is a 400mm2 SoC, providing both compute

cores and I/O.

Each tile contains 15 Golden Cove cores (see Section 2.3). Its memory controller provides two channels

of DDR5 with a maximum of eight channels across 4 tiles, and 28 PCIe 5.0 lanes for a maximum of 112

across 4 tiles.

2.2

ALDER LAKE PERFORMANCE HYBRID ARCHITECTURE

The Alder Lake performance hybrid architecture combines two Intel architectures, bringing together the

Golden Cove performant cores and the Gracemont efficient Atom cores onto a single SoC. For details on

the Golden Cove microarchitecture, see Section 2.3, “Golden Cove Microarchitecture.” For details on the

Gracemont microarchitecture, see Section 4.1, “Gracemont Microarchitecture.”

2.2.1

12th Generation Intel® Core™ Processors Supporting Performance Hybrid

Architecture

12th Generation Intel^® Core™ processors supporting performance hybrid architecture consist of up to

eight Performance cores (P-cores) and eight Efficient cores (E-cores). These processors also include a

3MB Last Level Cache (LLC) per IDI module, where a module is one P-core or four E-cores. It has

symmetrical ISA and comes in variety of configurations.

P-cores provide single or limited thread performance, while E-cores help provide improved scaling and

multithreaded efficiency. P-cores on these processors can also have Intel Hyper-Threading Technology

enabled. All cores can be active simultaneously when the operating system (OS) decides to schedule on

all processors.

A key OSV requirement for enabling hybrid is symmetric ISA across different core types in a performance

hybrid architecture. In 12th Generation Intel Core processors supporting performance hybrid architec-

ture, ISA is converged to a common baseline between the P-cores and E-cores. In order to maintain

symmetric ISA, the E-cores do not support the following features: Intel AVX-512, Intel AVX-512 FP-16,

and Intel^® TSX. The E-cores do support Intel AVX2 and Intel AVX-VNNI.

2.2.2

Hybrid Scheduling

2.2.2.1

Intel^® Thread Director

Intel^® Thread Director continually monitors software in real-time giving hints to the operating system's

scheduler allowing it to make more intelligent and data-driven decisions on thread scheduling. With Intel

Thread Director, hardware provides runtime feedback to the OS per thread based on various IPC perfor-

mance characteristics, in the form of:

• Dynamic performance and energy efficiency capabilities of P-cores and E-cores based on

power/thermal limits.

• Idling hints when power and thermal are constrained.

Intel Thread Director is first introduced in desktop and mobile variants of the 12th generation Intel Core

processor based on Alder Lake performance hybrid architecture.

A processor containing both P-cores and E-cores with different performance characteristics creates a

challenge for the operating system’s scheduler. Additionally, different software threads see different

performance ratios between the P-cores and E-cores. For example, the performance ratio between the

P-cores and E-cores for highly vectorized floating-point code is higher than the performance ratio for

scalar integer code. So, when the operating system needs to make an optimal scheduling decision it

needs to be aware of the characteristics of the software threads that are candidates for scheduling. If not

enough P-cores are available and there is a mix of software threads with different characteristics, the

2-2

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

operating system should schedule those threads that benefit most from the P-cores onto those cores and

schedule the others on the E-cores.

Intel Thread Director provides the necessary hint to the operating system about the characteristics of the

software thread executing on each of the logical processors. The hint is dynamic and reflects the recent

characteristics of the thread, i.e., it may change over time based on the dynamic instruction mix of the

thread. The processor also considers microarchitecture factors to define the dynamic software thread

characteristics.

Thread specific hardware support is enumerated via the CPUID instruction and enabled by the operating

system via writing to configuration MSRs. The Intel Thread Director implementation on processors based

on Alder Lake performance hybrid architecture defines four thread classes:

0. Non-vectorized integer or floating-point code.

1. Integer or floating-point vectorized code, excluding Intel^® Deep Learning Boost (Intel^® DL Boost)

code.

2. Intel DL Boost code.

3. Pause (spin-wait) dominated code.

The dynamic code does not have to be 100% of the class definition. It should be large enough to be

considered belonging to that class. Also, dynamic microarchitectural metrics such as consumed memory

bandwidth or cache bandwidth may move software threads between classes. Example pseudo-code

sequences for the Intel Thread Director classes available on processors based on Alder Lake performance

hybrid architecture are provided in the examples 2-1 through 2-4.

Intel Thread Director also provides a table in system memory, only accessible to the operating system,

that defines the P-core vs. E-core performance ratio per class. This allows the operating system to pick

and choose the right software thread for the right logical processor.

In addition to the performance ratio between P-cores and E-cores, Intel Thread Director provides the

energy efficiency ratio between those cores. The operating system can then use this information when it

prefers energy savings over maximum performance. For example, a backg11round task such as indexing

can be scheduled on the most energy efficient core since its performance is less critical.

Example 2-1. Class 0 Pseudo-code Snippet

while (1)

{

asm(“xor rax, rax;”

“add rax, 5;”

“inc rax;”

);

}

2-3

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Example 2-2. Class 1 Pseudo-code Snippet

while (1)

{

asm(“vfmaddsub132ps %ymm0, %ymm1, %ymm2;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm3;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm4;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm5;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm6;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm7;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm8;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm9;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm10;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm2;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm3;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm4;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm5;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm6;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm7;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm8;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm9;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm10;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm2;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm3;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm4;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm5;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm6;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm7;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm8;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm9;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm10;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm2;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm3;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm4;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm5;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm6;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm7;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm8;”

“vfmaddsub213ps %ymm0, %ymm1, %ymm9;”

“vfmaddsub231ps %ymm0, %ymm1, %ymm10;”

“vfmaddsub132ps %ymm0, %ymm1, %ymm2;”

);

}

2-4

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Example 2-3. Class 2 Pseudo-code Snippet

while (1)

{

__asm(

vpdpbusd ymm2, ymm0, ymm1

vpdpbusd ymm3, ymm0, ymm1

vpdpbusd ymm4, ymm0, ymm1

vpdpbusd ymm5, ymm0, ymm1

vpdpbusd ymm6, ymm0, ymm1

vpdpbusd ymm7, ymm0, ymm1

vpdpbusd ymm8, ymm0, ymm1

vpdpbusd ymm9, ymm0, ymm1

vpdpbusd ymm10, ymm0, ymm1

vpdpbusd ymm11, ymm0, ymm1

vpdpbusd ymm12, ymm0, ymm1

vpdpbusd ymm13, ymm0, ymm1

);

}

Example 2-4. Class 3 Pseudo-code Snippet

while (1)

{

asm(“PAUSE;”)

);

}

For more detailed information on this technology, refer to the Intel^® 64 and IA-32 Architectures Software

Developer’s Manual.

2.2.2.2

Scheduling with Intel® Hyper-Threading Technology-Enabled on Processors

Supporting x86 Hybrid Architecture

E-cores are designed to provide better performance than a logical P-core with both hardware sibling

hyper-threads busy.

2-5

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.2.2.3

Scheduling with a Multi-E-Core Module

E-cores within an idle module help provide better performance than E-cores in a busy module.

2.2.2.4

Scheduling Background Threads on x86 Hybrid Architecture

In most scenarios, backg11round threads can leverage scalability and multithread efficiency of E-cores.

2.2.3

Recommendations for Application Developers

The following are recommendations when using processors supporting performance hybrid architecture:

• Stay up to date on updates on operating systems and optimized libraries.

• Software needs to avoid setting hard affinities on either threads or processes in order to allow the

operating system to provide the optimal core selection for Intel Hybrid.

• Software should replace active spin-waits with lightweight waits ideally using the new

UMWAIT/TPAUSE and older PAUSE instructions which will allow for better hints to the scheduler on

time spinning.

• Software can utilize the Windows Power Throttling information using process information and thread

information APIs, to give hints to the scheduler on the Quality of Service (QoS) required for a

particular thread or process to improve both performance and energy efficiency.

• Leverage Windows frameworks and media APIs for multimedia application development. Windows

Media Foundation framework is optimized for hybrid architecture and enables media applications to

run efficiently while preventing glitches.

• The Windows IrqPolicyMachineDefault policy enables Windows to optimally target interrupts to the

right core, and more so on hybrid architecture.

For additional recommendations and information on performance hybrid architecture, refer to the white

papers on the Performance Hybrid Architecture page.

2.3

GOLDEN COVE MICROARCHITECTURE

The Golden Cove microarchitecture is the successor of Ice Lake microarchitecture. The Golden Cove

microarchitecture introduces the following enhancements:

• Wider machine: 56 wide allocation, 1012 execution ports, and 48 wide retirement.

• Significant increases in the size of key structures enable deeper OOO execution and expose more

instruction level parallelism.

• Greater capabilities per execution port, e.g., 5th integer ALU execution ports with expanded

capability and a new fast floating-point adder.

• Intel^® Advanced Matrix Extensions (Intel^® AMX)¹: Built-in integrated Tiled Matrix Multiplication /

Machine Learning Accelerator.

• Improved branch prediction.

• Improvements for large code footprint workloads, e.g., larger branch prediction structures, enhanced

code prefetcher, and larger instruction TLB.

• Wider fetch: legacy decode pipeline fetch bandwidth increase to 32B/cycles, 46 decoders,

increased micro-op cache size, and increased micro-op cache bandwidth.

• Maximum load bandwidth increased from 2 loads/cycle to 3 loads/cycle.

• Larger 4K Pages DTLB, increase in the number of outstanding Page Miss handlers.

• Increased number of outstanding misses (16 FB, 3248 Deeper MLC miss queues).

1. Intel AMX are not available on client parts.

2-6

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

• Enhanced data prefetchers for increased memory parallelism.

• Mid-level cache size increased to 2MB on server parts; remains 1.25MB on client parts.

2.3.1

Golden Cove Microarchitecture Overview

The basic pipeline functionality of the Golden Cove microarchitecture is depicted in Figure

2-1.

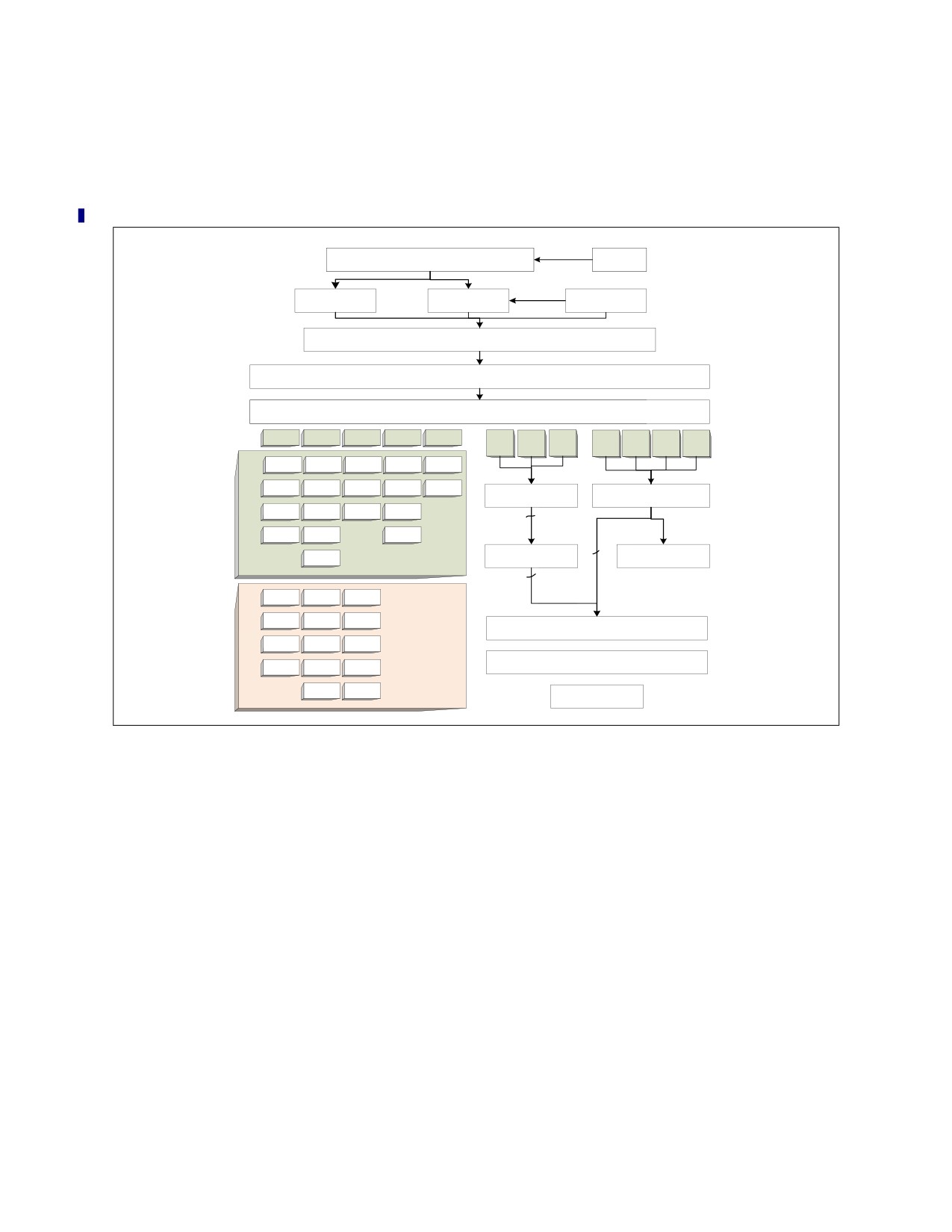

ITLB + 32KB Instruction Cache

BPU

MSROM

Decode

ʅ op Cache

ʅop Queue

Allocate / Rename / Move Elimination / Zero Idiom

Scheduler / Reservation Station

P10

P11

AGU

STD

AGU

ALU

LEA

Load Buffer

Store Buffer

INT

Shift

MUL

MULHi

Shift

3x256

2x512

2x256

JMP1

IDIV

JMP2

1x512

LD DTLB

STA DTLB

3x256

2x512

FMA

FMA512

ALU

48KB DOU

VEC

Shift

AMX

1.25MB Client / 2MB Server MLC

fpDiv

Shuffle

FastADD

SOC

Figure 2-1. Processor Core Pipeline Functionality of the Golden Cove Microarchitecture

The Golden Cove front end is depicted in Figure 2-2. The front end is built to feed the wider and deeper

out-of-order core:

• Legacy decode pipeline fetch bandwidth increased from 16 to 32 bytes/cycle.

• The number of decoders increased from four to six, allowing decode of up to 6 instructions per cycle.

• The micro-op cache size increased, and its bandwidth increased to deliver up to 8 micro-ops per

cycle.

• Improved branch prediction.

2-7

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

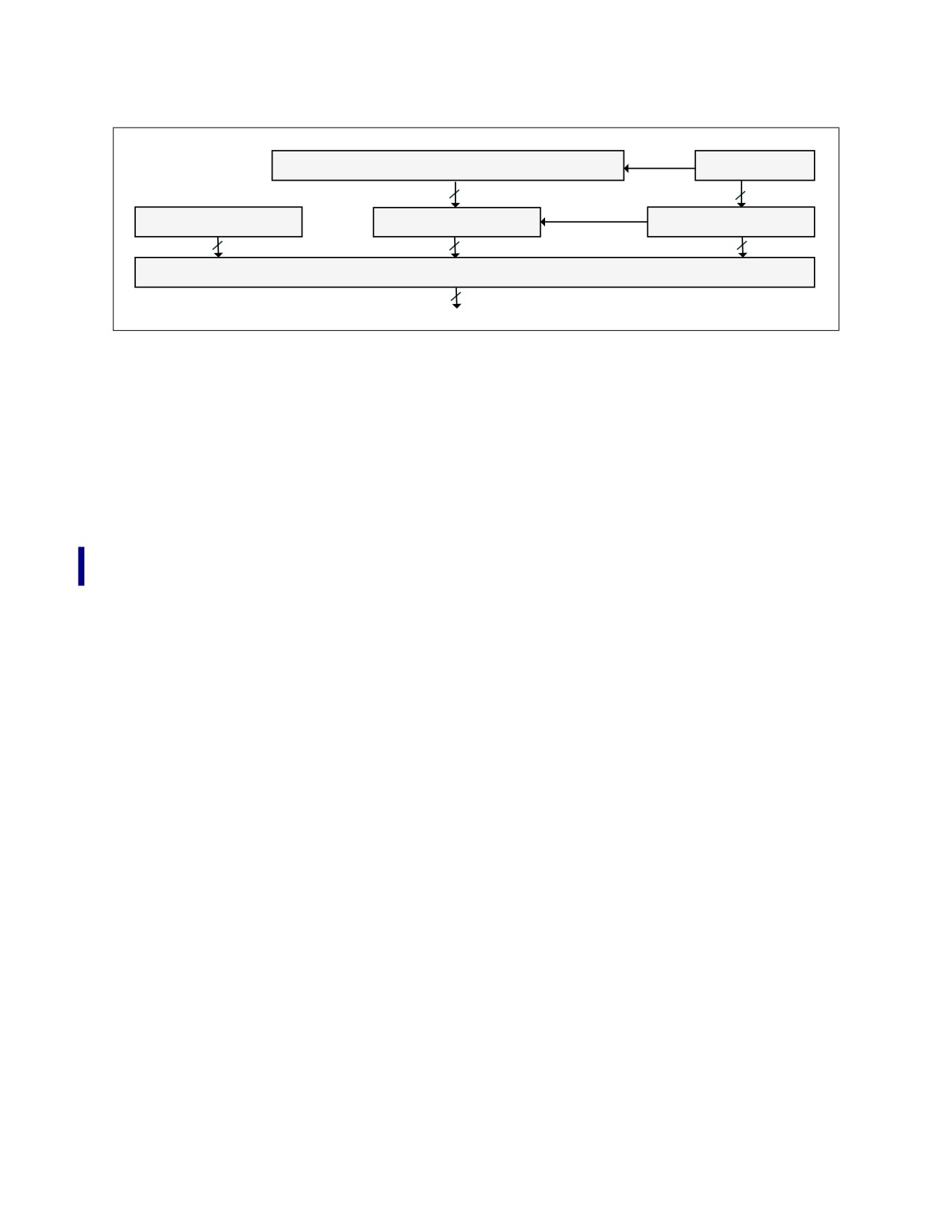

ITLB + 32KB Instruction Cache

BPU

bytes

64 bytes

MSROM

Decode

µop Cache

4 uops

6 uops

8 uops

µop Queue

6 uops

Figure 2-2. Processor Front End of the Golden Cove Microarchitecture

Improvements for large code footprint workloads:

• Double the size of the instruction TLB: 128256 entries for 4K pages, 1632 entries for 2M/4M

pages.

• Bigger branch prediction structures.

• Enhanced code prefetcher.

• Improved LSD coverage.

• The IDQ can hold 144 uops per logical processor in single thread mode, or 72 uops per thread when

SMT is active.

Additional improvements include:

• Significant increase in size of key buffer structures to enable deeper OOO execution and expose more

instruction level parallelism.

• Wider machine:

— Wider allocation (56 uops per cycle) and retirement (48 uops per cycle) width.

— Increase in number of execution ports (1012).

— Greater capabilities per execution port.

Table 2-1 summarizes the OOO engine's capability to dispatch different types of operations to ports.

2-8

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Table 2-1. Dispatch Port and Execution Stacks of the Golden Cove Microarchitecture

Port 0

Port 1¹

Port 2

Port 3

Port 4

Port 5²

Port 6

Ports 7, 8

Port 9

Port 10

Port 11

INT ALU

INT

Load

Store

INT ALU

Store

INT ALU

Load

ALU³

Data

Address

Data

LEA

INT Shift

INT MUL

INT Shift

INT Mul

Jump1

Jump2

INT Div

FMA

FMA*

FMA**

Vec ALU

Fast

Adder*

Adder

Vec

Shift

Vec

Vec ALU

ALU*

FP Div

Shuffle

Vec

Shift*

Shuffle*

NOTES:

1. “*” in this table indicates that these features are not available for 512-bit vectors.

2. “**” in this table indicates that these features are not available for 512-bit vectors in Client parts.

3. The Golden Cove microarchitecture implemented performance improvements requiring constraint of the micro-ops which

use *H partial registers (i.e. AH, BH, CH, DH). See Section 3.5.2.3 for more details.

Table 2-2 lists execution units and common representative instructions that rely on these units.

Throughput improvements across the Intel^® SSE, Intel AVX, and general-purpose instruction sets are

related to the number of units for the respective operations, and the varieties of instructions that execute

using a particular unit.

Table 2-2. Golden Cove Microarchitecture Execution Units and Representative Instructions¹

Execution

# of Unit

Instructions

Unit

add, and, cmp, or, test, xor, movzx, movsx, mov, (v)movdqu, (v)movdqa, (v)movap*,

ALU

5²

(v)movup*

SHFT

2³

sal, shl, rol, adc, sarx, adcx, adox, etc.

Slow Int

mul, imul, bsr, rcl, shld, mulx, pdep, etc.

andn, bextr, blsi, blsmsk, bzhi, etc.

2x256-bit

(v)add, (v)cmp. (v)max, (v)min, (v)sub, (v)cvtps2dq, (v)cvtdq2ps, (v)cvtsd2sl, (v)cvtss2sl

1x512-bit

Vec ALU

3x256-bit

(v)pand, (v)por, (v)pxor, (v)movq, (v)movq, (v)movap*, (v)movup*, (v)andp*, (v)orp*,

2x512-bit

(v)paddb/w/d/q, (v)blendv*, (v)blendp*, (v)pblendd

2x256-bit

Vec_Shft

(v)psllv*, (v)psrlv*, vector shift count in imm8

1x512-bit

VEC Add (in

2x256-bit

(v)add*, (v)cmp*, (v)max*, (v)min*, (v)sub*, (v)padds*, (v)paddus*, (v)psign, (v)pabs,

VEC FMA)

1x512-bit

(v)pavgb, (v)pcmpeq*, (v)pmax, (v)cvtps2dq, (v)cvtdq2ps, (v)cvtsd2si, (v)cvtss2si

2-9

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Table 2-2. Golden Cove Microarchitecture Execution Units and Representative Instructions¹ (Contd.)

Execution

# of Unit

Instructions

Unit

VEC Fast

2x256-bit

(v)add*, (v)addsub*, (v)sub*

Add

1x512-bit

Shuffle

2x256-bit

(v)shufp*, vperm*, (v)pack*, (v)unpck*, (v)punpck*, (v)pshuf*, (v)pslldq, (v)alignr,

(v)pmovzx*, vbroadcast*, (v)pslldq, (v)psrldq, (v)pblendw (new cross lane shuffle on

1x512-bit

both ports)

Vec

2x256-bit

(v)mul*, (v)pmul*, (v)pmadd*

Mul/FMA

(1 or

2)x512-bit

SIMD Misc

STTNI, (v)pclmulqdq, (v)psadw, vector shift count in xmm

FP Mov

(v)movsd/ss, (v)movd gpr

DIVIDE

divp*, divs*, vdiv*, sqrt*, vsqrt*, rcp*, vrcp*, rsqrt*, idiv

NOTES:

1. Execution unit mapping to MMX instructions are not covered in this table. See Section 15.16.5 on MMX instruction

throughput remedy.

2. The Golden Cove microarchitecture implemented performance improvements requiring constraint of the micro-ops which

use *H partial registers (i.e. AH, BH, CH, DH). See Section 3.5.2.3 for more details.

3. ibid.

Table 2-3 describes bypass delay in cycles between producer and consumer operations.

Table 2-3. Bypass Delay Between Producer and Consumer Micro-Ops

TO [EU/PORT/Latency]

SHUF/

FROM

Fast

SIMD/0,1/1

FMA/0,1/4

MUL/0,1/4

SIMD/5/1,3

1,5/1,

V2I/0/3

[EU/Port/Latency]

Adder/1,5/3

SIMD/0,1/1

FMA/0,1/4

MUL/0,1/4

Fast Adder/0,1/3

-1

SIMD/5/1,3

SHUF/1,5/1,3

V2I/0/3

I2V/5/1

The attributes that are relevant to the producer/consumer micro-ops for bypass are a triplet of

abbreviation/one or more port number/latency cycle of the uop. For example:

•

“SIMD/0,1/1” applies to a 1-cycle vector SIMD uop dispatched to either port 0 or port 1.

•

“SIMD/5/1,3” applies to either a 1-cycle or 3-cycle non-shuffle uop dispatched to port 5.

•

“V2I/0/3” applies to a 3-cycle vector-to-integer uop dispatched to port 0.

2-10

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

•

“I2V/5/1” applies to a 1-cycle integer-to-vector uop dispatched to port 5.

•

“Fast Adder/1,5/3” applies to either a 3-cycle 256-bit uop dispatched to either port 1 or port 5, or a

512-bit uop dispatched to port 5. This operation supports two cycles back-to-back between a pair of

Fast Adder operations.

A new Fast Adder¹ unit is added as 512-bit on port 5 in VEC stack, and as 256-bit on ports 1 and 5. The

Fast Adder performs floating-point ADD/SUB operations in 3 cycles.

Back-to-back ADD/SUB operations that are both executed on the Fast Adder unit perform the operations

in two cycles.

• In 128/256-bit, back-to-back ADD/SUB operations executed on the Fast Adder unit perform the

operations in two cycles.

• In 512-bit, back-to-back ADD/SUB operations are executed in two cycles if both operations use the

Fast Adder unit on port 5.

The following instructions are executed by the Fast Adder unit:

•

(V)ADDSUBSS/SD/PS/PD

•

(V)ADDSS/SD/PS/PD

•

(V)SUBSS/SD/PS/PD

2.3.1.1

Cache Subsystem and Memory Subsystem

The cache subsystem and memory subsystem changes in the Golden Cove microarchitecture are:

• Maximum load bandwidth increased from 2 to 3 loads per cycle. Bandwidth of Intel AVX-512 loads,

Intel AMX loads, and MMX/x87 loads remain at a maximum of 2 loads per cycle.

• Simultaneous handling of more loads and stores enabled by enlarged buffers.

• Number of entries for 4K pages in the load DTLB increased from 64 to 96.

• Page Miss handler can handle up to four D-side page walks in parallel instead of two.

• Increased number of outstanding DCU and MLC misses.

• Enhanced data prefetchers for increased memory parallelism.

• Partial store forwarding allowing forwarding data from store to load also when only part of the load

was covered by the store (in case the load's offset matches the store's offset).

2.3.1.2

Avoiding Destination False Dependency

Some SIMD instructions incur false dependency on the destination operand. The following instructions

are affected:

• VFMULCSH, VFMULCPH

• VFCMULCSH, VFCMULCPH

• VPERMD, VPERMQ, VPERMPS, VPERMPD

• VRANGE[SS,PS,SD,PD]

• VGETMANTSH, VGETMANTSS, VGETMANTSD

• VGETMANTPS, VGETMANTPD (memory versions only)

• VPMULLQ

1. The Fast Adder unit is not available on 512-bit vectors in Client parts.

2-11

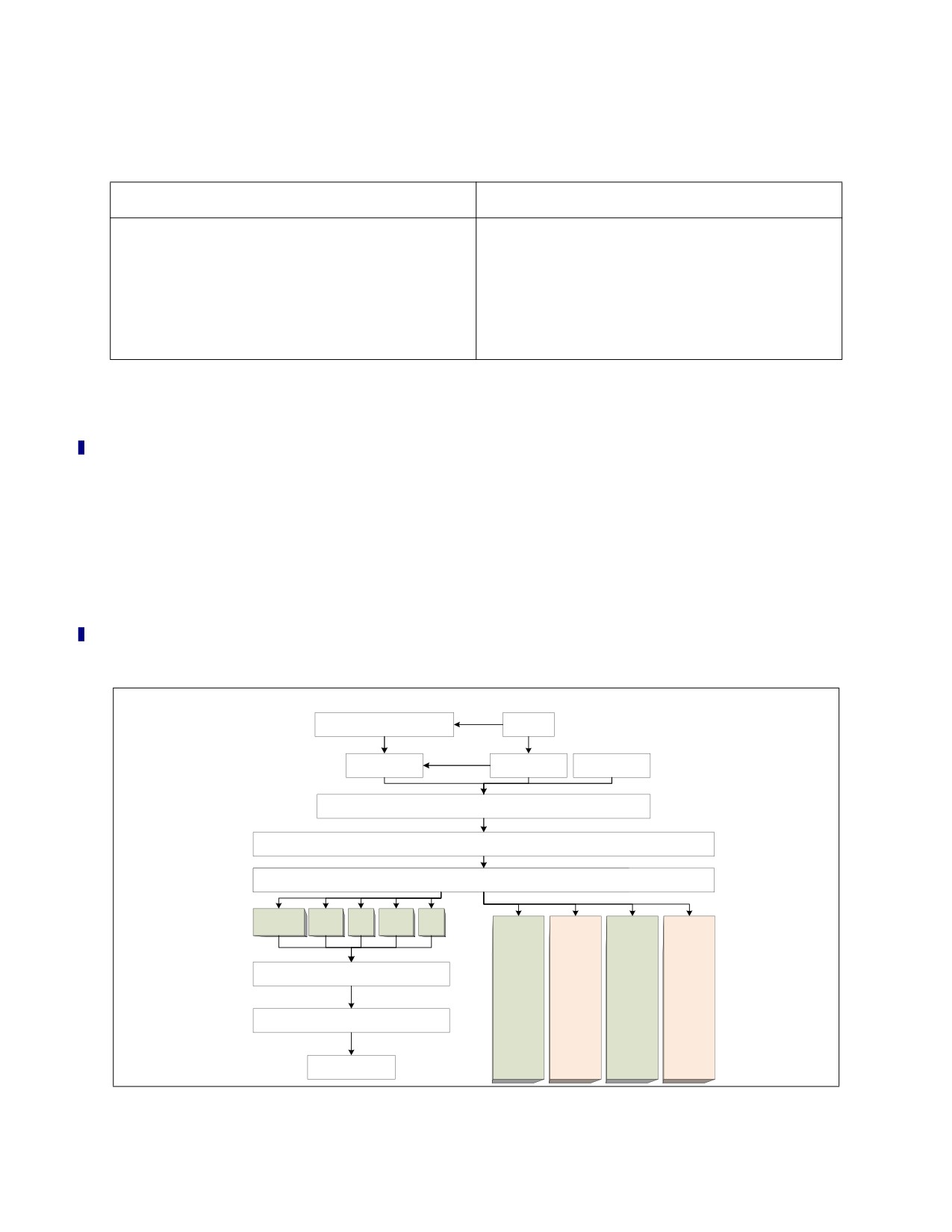

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Recommendation: Use dependency breaking zero idioms on the destination register before the

affected instructions to avoid potential slowdown from the false dependency.

Example 2-5. Breaking False Dependency through Zero Idiom

Code with False Dependency Impact

Mitigation: Break False Dependency with Zero Idiom

vaddps zmm3, zmm4, zmm5

vmovaps [rsi], zmm3

vfmulcph zmm3, zmm2, zmm1

;False dependency on

vpxord zmm3, zmm3, zmm3

;Dependency-breaking

zmm3.

zero idiom.

Will not execute out-of-order

vfmulcph zmm3, zmm2, zmm1

;Execute out-of-order

until vaddps writes zmm3.

without waiting for

vaddps result.

2.4

ICE LAKE CLIENT MICROARCHITECTURE

The Ice Lake client microarchitecture introduces the following new features that allow optimizations of

applications for performance and power consumption:

• Targeted vector acceleration.

• Crypto acceleration.

• Intel^® Software Guard Extensions (Intel^® SGX) enhancements.

• Cache line writeback instruction (CLWB).

2.4.1

Ice Lake Client Microarchitecture Overview

The Ice Lake client microarchitecture builds on the successes of the Skylake client microarchitecture.

The basic pipeline functionality of the Ice Lake Client microarchitecture is depicted in Figure 2-3.

32KB

BPU

Instruction Cache

Legacy Decode

ʅ op Cache

MSROM

Pipeline

ʅop Queue

Allocate / Rename / Move Elimination / Zero Idiom

Scheduler / Reservation Station

P4 + P9

Store Data

Load

STA

Load

STA

Port 0

Port 1

Port 5

Port 6

ALU

ULA

LEA

48KB L1 Data Cache

INT

Shift

MUL

MULHi

Shift

JMP1

IDIV

JMP2

512KB L2 Data Cache

FMA

FMA*

SLU

ALU*

ALU

VEC

Shift

Shift*

SOC

fpDIV

Shuffle*

Shuffle

Figure 2-3. Processor Core Pipeline Functionality of the Ice Lake Client Microarchitecture¹

2-12

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

NOTES:

“*” in the figure above indicates these features are not available for 512-bit vectors.

2. “INT” represents GPR scalar instructions.

3. “VEC” represents floating-point and integer vector instructions.

4. “MULHi” produces the upper 64 bits of the result of an iMul operation that multiplies two 64-bit registers and places the

result into two 64-bits registers.

5. The “Shuffle” on port 1 is new, and supports only in-lane shuffles that operate within the same 128-bit sub-vector.

6. The “IDIV” unit on port 1 is new, and performs integer divide operations at a reduced latency.

7. The Golden Cove microarchitecture implemented performance improvements requiring constraint of the micro-ops which

use *H partial registers (i.e. AH, BH, CH, DH). See Section 3.5.2.3 for more details.

The Ice Lake client microarchitecture introduces the following new features:

• Significant increase in size of key structures enable deeper OOO execution.

• Wider machine: 4 5 wide allocation, 8 10 execution ports.

• Intel AVX-512 (new for client processors): 512-bit vector operations, 512-bit loads and stores to

memory, and 32 new 512-bit registers.

• Greater capabilities per execution port (e.g., SIMD shuffle, LEA), reduced latency Integer Divider.

•

2×BW for AES-NI peak throughput for existing binaries (microarchitectural).

• Rep move string acceleration.

•

50% increase in size of the L1 data cache.

• Reduced effective load latency.

•

2×L1 store bandwidth: 1 2 stores per cycle.

• Enhanced data prefetchers for increased memory parallelism.

• Larger 2nd level TLB.

• Larger uop cache.

• Improved branch predictor.

• Large page ITLB size in single thread mode doubled.

• Larger L2 cache.

The Ice Lake client microarchitecture supports flexible integration of multiple processor cores with a

shared uncore sub-system consisting of a number of components including a ring interconnect to

multiple slices of L3, processor graphics, integrated memory controller, interconnect fabrics, and more.

2.4.1.1

The Front End

The front end changes in Ice Lake Client microarchitecture include:

• Improved branch predictor.

• Large page ITLB in single thread mode increased from 8 to 16 entries.

• Larger uop cache.

• The IDQ can hold 70 uops per logical processor vs. 64 uops per logical processor in previous

generations when two sibling logical processors in the same core are active (2×70 vs. 2×64 per

core). If only one logical processor is active in the core, the IDQ can hold 70 uops vs. 64 uops.

• The LSD in the IDQ can detect loops of up to 70 uops per logical processor irrespective single thread

or multi thread operation.

2-13

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.4.1.2

The Out of Order and Execution Engines

The Out of Order and execution engines changes in Ice Lake Client microarchitecture include:

• A significant increase in size of reorder buffer, load buffer, store buffer, and reservation stations

enable deeper OOO execution and higher cache bandwidth.

• Wider machine: 4 5 wide allocation, 8 10 execution ports.

• Greater capabilities per execution port (e.g., SIMD shuffle, LEA).

• Reduced latency Integer Divider.

• A new iDIV unit was added that significantly reduces the latency and improves the of throughput of

integer divide operations.

Table 2-4 summarizes the OOO engine's capability to dispatch different types of operations to ports.

Table 2-4. Dispatch Port and Execution Stacks of the Ice Lake Client Microarchitecture

Port 0

Port 1¹

Port 2

Port 3

Port 4

Port 5

Port 6

Port 7

Port 8

Port 9

INT ALU

Load

Store

INT ALU

Store

Data

Address

Data

LEA

INT Shift

INT Mul

INT MUL

INT Shift

Jump1

INT Div

Jump2

FMA

FMA*

Vec ALU

Vec ALU*

Vec

Shuffle

Vec Shift

Vec

Shift*

FP Div

Vec

Shuffle*

NOTES:

1. “*” in this table indicates these features are not available for 512-bit vectors.

Table 2-5 lists execution units and common representative instructions that rely on these units.

Throughput improvements across the SSE, Intel AVX, and general-purpose instruction sets are related to

the number of units for the respective operations, and the varieties of instructions that execute using a

particular unit.

Table 2-5. Ice Lake Client Microarchitecture Execution Units and Representative Instructions¹

Execution

# of

Instructions

Unit

ALU

add, and, cmp, or, test, xor, movzx, movsx, mov, (v)movdqu, (v)movdqa, (v)movap*, (v)movup*

SHFT

sal, shl, rol, adc, sarx, adcx, adox, etc.

Slow Int

mul, imul, bsr, rcl, shld, mulx, pdep, etc.

andn, bextr, blsi, blsmsk, bzhi, etc.

Vec ALU

(v)pand, (v)por, (v)pxor, (v)movq, (v)movq, (v)movap*, (v)movup*, (v)andp*, (v)orp*,

(v)paddb/w/d/q, (v)blendv*, (v)blendp*, (v)pblendd

Vec_Shft

(v)psllv*, (v)psrlv*, vector shift count in imm8

Vec Add

(v)addp*, (v)cmpp*, (v)max*, (v)min*, (v)padds*, (v)paddus*, (v)psign, (v)pabs, (v)pavgb,

(v)pcmpeq*, (v)pmax, (v)cvtps2dq, (v)cvtdq2ps, (v)cvtsd2si, (v)cvtss2si

2-14

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Table 2-5. Ice Lake Client Microarchitecture Execution Units and Representative Instructions¹

Execution

# of

Instructions

Unit

Shuffle

(v)shufp*, vperm*, (v)pack*, (v)unpck*, (v)punpck*, (v)pshuf*, (v)pslldq, (v)alignr, (v)pmovzx*,

vbroadcast*, (v)pslldq, (v)psrldq, (v)pblendw

Vec Mul

(v)mul*, (v)pmul*, (v)pmadd*

SIMD Misc

STTNI, (v)pclmulqdq, (v)psadw, vector shift count in xmm

FP Mov

(v)movsd/ss, (v)movd gpr

DIVIDE

divp*, divs*, vdiv*, sqrt*, vsqrt*, rcp*, vrcp*, rsqrt*, idiv

NOTES:

1. Execution unit mapping to MMX instructions are not covered in this table. See Section 15.16.5 on MMX instruction

throughput remedy.

Table 2-6 describes bypass delay in cycles between producer and consumer operations.

Table 2-6. Bypass Delay Between Producer and Consumer Micro-ops

TO [EU/PORT/Latency]

FROM

SIMD/0,1/1

FMA/0,1/4

VIMUL/0,1/4

SIMD/5/1,3

SHUF/5/1,

V2I/0/3

I2V/5/1

[EU/Port/Latency]

SIMD/0,1/1

FMA/0,1/4

VIMUL/0,1/4

SIMD/5/1,3

SHUF/5/1,3

V2I/0/3

I2V/5/1

The attributes that are relevant to the producer/consumer micro-ops for bypass are a triplet of abbrevi-

ation/one or more port number/latency cycle of the uop. For example:

•

“SIMD/0,1/1” applies to 1-cycle vector SIMD uop dispatched to either port 0 or port 1.

•

“SIMD/5/1,3” applies to either a 1-cycle or 3-cycle non-shuffle uop dispatched to port 5.

•

“V2I/0/3” applies to a 3-cycle vector-to-integer uop dispatched to port 0.

•

“I2V/5/1” applies to a 1-cycle integer-to-vector uop to port 5.

2-15

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.4.1.3

Cache and Memory Subsystem

The cache hierarchy changes in Ice Lake Client microarchitecture include:

•

50% increase in size of the L1 data cache.

•

2×L1 store bandwidth: 3 4 AGUs, 1 2 store data.

• Simultaneous handling of more loads and stores enabled by enlarged buffers.

• Higher cache bandwidth compared to previous generations.

• Larger 2nd level TLB: 1.5K entries  2K entries.

• Enhanced data prefetchers for increased memory parallelism.

• L2 cache size increased from 256KB to 512KB.

• L2 cache associativity increased from 4 ways to 8 ways.

• Significant reduction in effective load latency.

Table 2-7. Cache Parameters of the Ice Lake Client Microarchitecture

Capacity /

Line Size

Latency¹

Peak Bandwidth

Sustained Bandwidth

Update

Level

Associativity

(bytes)

(cycles)

(bytes/cycles)

Policy

First Level

48KB/8

2×64B loads + 1x64B

Same as peak

Writeback

(DCU)

or 2x32B stores

Second

512KB/8

Writeback

Level (MLC)

Third Level

Up to 2MB per

xx²

Writeback

(LLC)

core/up to 16 ways

NOTES:

1. Software-visible latency/bandwidth will vary depending on access patterns and other factors.

2. This number depends on core count.

The TLB hierarchy consists of dedicated level one TLB for instruction cache, TLB for L1D, shared L2 TLB

for 4K and 4MB pages and a dedicated L2 TLB for 1GB pages.

Table 2-8. TLB Parameters of the Ice Lake Client Microarchitecture

Per-thread Entries

Level

Page Size

Entries ST

MT Latency

Associativity

Instruction

4KB

128

Instruction

2MB/4MB

First Level Data (loads)

4KB

64 competitively

shared

First Level Data (loads)

2MB/4MB

32 competitively

shared

First Level Data (loads)

1GB

8 competitively shared

First Level Data (stores)

Shared for all page

16 competitively

sizes

shared

Second Level

Shared for all page

2048¹

2048 competitively

sizes

shared

NOTES:

1. 4K pages can use all 2048 entries. 2/4MB pages can use 1024 entries (in 8 ways), sharing them with 4K pages. 1GB

pages can use the other 1024 entries (in 8 ways), also sharing them with 4K pages.

2-16

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Paired Stores

Ice Lake Client microarchitecture includes two store pipelines in the core, with the following features:

• Two dedicated AGU for LDs on ports 2 and 3.

• Two dedicated AGU for STAs on ports 7 and 8.

• Two fully featured STA pipelines.

• Two 256-bit wide STD pipelines (AVX-512 store data takes two cycles to write).

• Second senior store pipeline to the DCU via store merging.

Ice Lake Client microarchitecture can write two senior stores to the cache in a single cycle if these two

stores can be paired together. That is:

• The stores must be to the same cache line.

• Both stores are of the same memory type, WB or USWC.

• None of the stores cross cache line or page boundary.

In order to maximize performance from the second store port try to:

• Align store operations whenever possible.

• Place consecutive stores in the same cache line (not necessarily as adjacent instructions).

As seen in Example 2-6, it is important to take into consideration all stores, explicit or not.

Example 2-6. Considering Stores

Stores are Paired Across Loop Iterations

Stores Not Paired Due to Stack Update in Between

Loop:

compute reg

call function to compute reg

…

store [X], reg

add X, 4

jmp Loop

; stores from different iterations of the

jmp Loop

; stores from different iterations of the

loop can be paired all together because

loop cannot be paired anymore because

they usually would be same line

of the call store to stack

; the call is disturbing pairing

2-17

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

In some cases it is possible to rearrange the code to achieve store pairing. Example 2-7 provides details.

Example 2-7. Rearranging Code to Achieve Store Pairing

Stores to Different Cache Lines - Not Paired

Unrolling May Solve the Problem

Loop:

... compute ymm1 …

vmovaps [x], ymm1

... compute ymm2 …

... compute new ymm1 …

vmovaps [y], ymm2

vmovaps [x+32], ymm1

add x, 32

... compute ymm2 …

add y, 32

vmovaps [y], ymm2

jmp Loop

; this loop cannot pair any store because

... compute new ymm2 …

of alternating store to different cache

vmovaps [y+32], ymm2

lines [x] and [y]

add x, 64

add y, 64

jmp Loop

; the loop was unrolled 2 times and stores

re-arranged to make sure two stores to

the same cache line are placed one after

another. Now stores to addresses [x] and

[x+32] are to the same cache line and

could be paired together and executed in

same cycle

2.4.1.4

New Instructions

New instructions and architectural changes in Ice Lake Client microarchitecture are listed below. Actual

support may be product dependent.

•

Crypto acceleration

— SHA NI for acceleration of SHA1 and SHA256 hash algorithms.

— Big-Number Arithmetic (IFMA): VPMADD52 - two new instructions for big number multiplication

for acceleration of RSA vectorized SW and other Crypto algorithms (Public key) performance.

— Galois Field New Instructions (GFNI) for acceleration of various encryption algorithms, error

correction algorithms, and bit matrix multiplications.

— Vector AES and Vector Carry-less Multiply (PCLMULQDQ) instructions to accelerate AES and

AES-GCM.

•

Security Technologies

— Intel^® SGX enhancements to improve usability and applicability: EDMM, multi-package server

support, support for VMM memory oversubscription, performance, larger secure memory.

•

Sub Page protection for better performance of security VMMs.

•

Targeted Acceleration

— Vector Bit Manipulation Instructions: VBMI1 (permutes, shifts) and VBMI2 (Expand, Compress,

Shifts)- used for columnar database access, dictionary based decompression, discrete mathe-

matics, and data-mining routines (bit permutation and bit-matrix-multiplication).

— VNNI with support for integer 8 and 16 bits data types- CNN/ML/DL acceleration.

— Bit Algebra (POPCNT, Bit Shuffle).

— Cache line writeback instruction (CLWB) enables fast cache-line update to memory, while

retaining clean copy in cache.

•

Platform analysis features for more efficient performance software tuning and debug.

— AnyThread removal.

2-18

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

— 2x general counters (up to 8 per-thread).

— Fixed Counter 3 for issue slots.

— New performance metrics for built-in support for Level 1 Top-Down method (% of Issue slots that

are front-end bound, back-end bound, bad speculation, retiring) while leaving the 8 general

purpose counters free for software use.

2.4.1.5

Ice Lake Client Microarchitecture Power Management

Processors based on Ice Lake Client microarchitecture are the first client processors whose cores may

execute at a different frequency from one another. The frequency is selected based on the specific

instruction mix; the type, width and number of vector instructions of the program that executes on each

core, the ratio between active time and idle time of each core, and other considerations such as how

many cores share similar characteristics.

Most of the power management features of Skylake Server Microarchitecture (see Section 2.5) is appli-

cable to Ice Lake Client microarchitecture as well. The main differences are the following:

• The typical P0n max frequency difference between Intel^® Advanced Vector Extensions (Intel^®

AVX-512) and Intel^® Advanced Vector Extensions 2 (Intel^® AVX2) on Ice Lake Client microarchi-

tecture is much lower than on Skylake Server microarchitecture. Therefore, the negative impact on

overall application performance is much smaller.

• All processors based on Ice Lake Client microarchitecture contain a single 512-bit FMA unit, whereas

some of the processors based on Skylake Server microarchitecture contain two such units. Both

processors contain two 256-bit FMA units. The power consumed by Ice Lake Client FMA units is the

same, whereas on Skylake Server the 512-bit units consume twice as much.

Compute heavy workloads, especially those that span multiple Ice Lake client cores, execute at a lower

frequency than P0n, both under Intel AVX-512 and under Intel AVX2 instruction sets, due to power

limitations. In this scenario, Intel AVX-512 architecture, which requires less dynamic instructions to

complete the same task than Intel AVX2 architecture, consumes less power and thus may achieve higher

frequency. The net result may be higher performance due to the shorter path length and a bit higher

frequency.

There are still some cases where coding to the Intel AVX-512 instruction set yields lower performance

than when coding to the Intel AVX2 instruction set. Sometimes it is due to microarchitecture artifacts of

longer vectors, in other cases the natural vectors are just not long enough. Most compilers are still

maturing their Intel AVX-512 support, and it may take them a few more years to generate optimal code.

The general recommendation in the Skylake Server Power Management section (see Section 2.5.3) still

holds. Developers should code to the Intel AVX-512 instruction set and compare the performance to their

Intel AVX2 workload on Ice Lake Client microarchitecture, before making the decision to proceed with a

complete port.

2.5

SKYLAKE SERVER MICROARCHITECTURE

The Intel^® Xeon^® Processor Scalable Family is based on the Skylake Server microarchitecture. Proces-

sors based on the Skylake microarchitecture can be identified using CPUID’s DisplayFamily_DisplayModel

signature, which can be found in Table 2-1 of CHAPTER 2 of Intel^® 64 and IA-32 Architectures Software

Developer’s Manual, Volume 4.

The Skylake Server microarchitecture introduces the following new features¹ that allow you to optimize

your application for performance and power consumption.

• A new core based on the Skylake Server microarchitecture with process improvements based on the

Kaby Lake microarchitecture.

• Intel AVX-512 support.

• More cores per socket (max 28 vs. max 22).

1. Some features may not be available on all products.

2-19

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

•

6 memory channels per socket in Skylake microarchitecture vs. 4 in the Broadwell microarchitecture.

• Bigger L2 cache, smaller non inclusive L3 cache.

• Intel^® Optane™ support.

• Intel^® Omni-Path Architecture (Intel^® OPA).

• Sub-NUMA Clustering (SNC) support.

The green stars in Figure 2-4 represent new features in Skylake Server microarchitecture compared to

Skylake microarchitecture for client; a 1MB L2 cache and an additional Intel AVX-512 FMA unit on port 5

which is available on some parts.

Since port 0 and port 1 are 256-bits wide, Intel AVX-512 operations that will be dispatched to port 0 will

execute on both port 0 and port 1; however, other operations such as lea can still execute on port 1 in

parallel. See the red block in Figure 2-8 for the fusion of ports 0 and 1.

Notice that, unlike Skylake microarchitecture for client, the Skylake Server microarchitecture has its

front end loop stream detector (LSD) disabled.

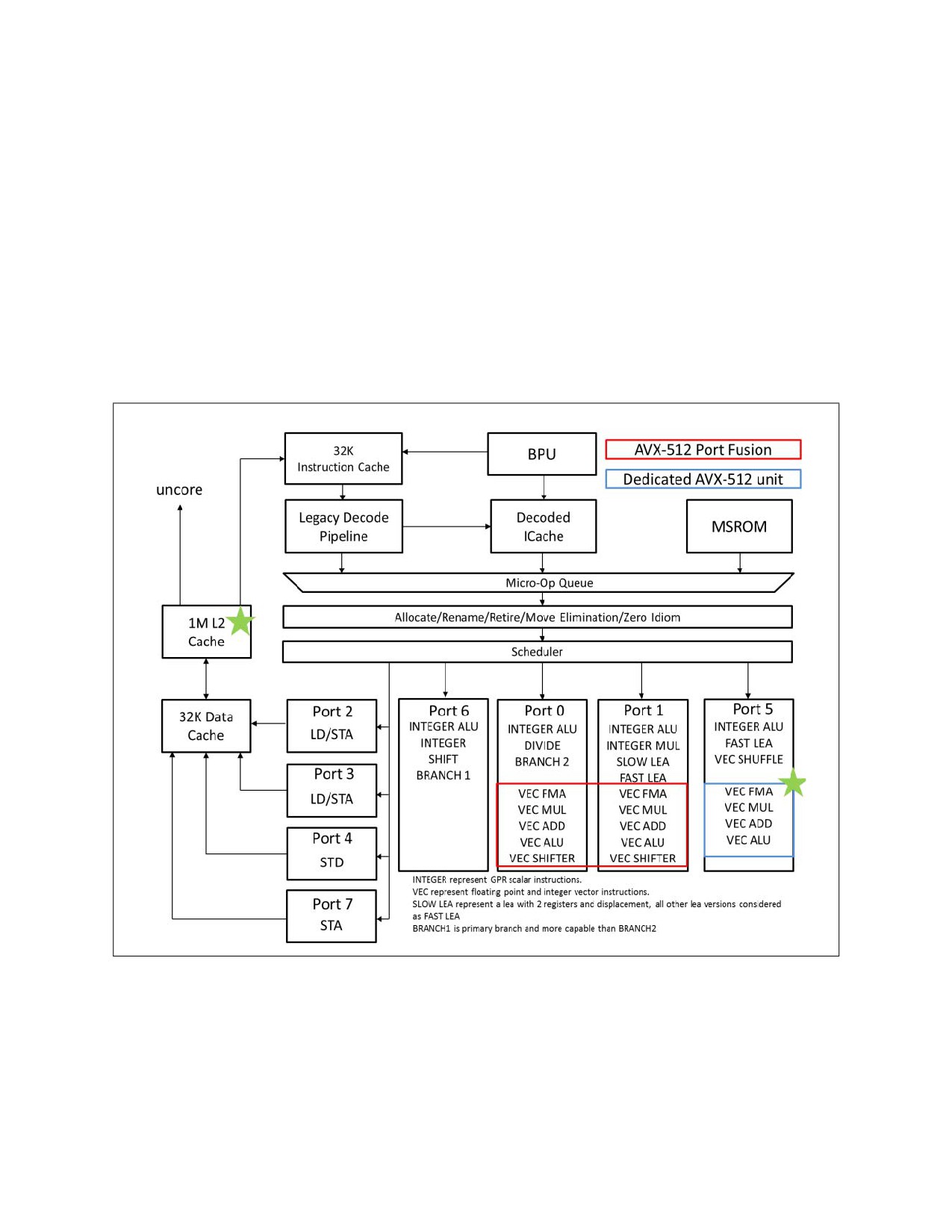

Figure 2-4. Processor Core Pipeline Functionality of the Skylake Server Microarchitecture

2-20

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.5.1

Skylake Server Microarchitecture Cache

The Intel Xeon Processor Scalable Family based on Skylake Server microarchitecture has significant

changes in core and uncore architecture to improve performance and scalability of several components

compared with the previous generation of the Intel Xeon processor family based on Broadwell microar-

chitecture.

2.5.1.1

Larger Mid-Level Cache

Skylake Server microarchitecture implements a mid-level (L2) cache of 1 MB capacity with a minimum

load-to-use latency of 14 cycles. The mid-level cache capacity is four times larger than the capacity in

previous Intel Xeon processor family implementations. The line size of the mid-level cache is 64B and it

is 16-way associative. The mid-level cache is private to each core.

Software that has been optimized to place data in mid-level cache may have to be revised to take advan-

tage of the larger mid-level cache available in Skylake Server microarchitecture.

2.5.1.2

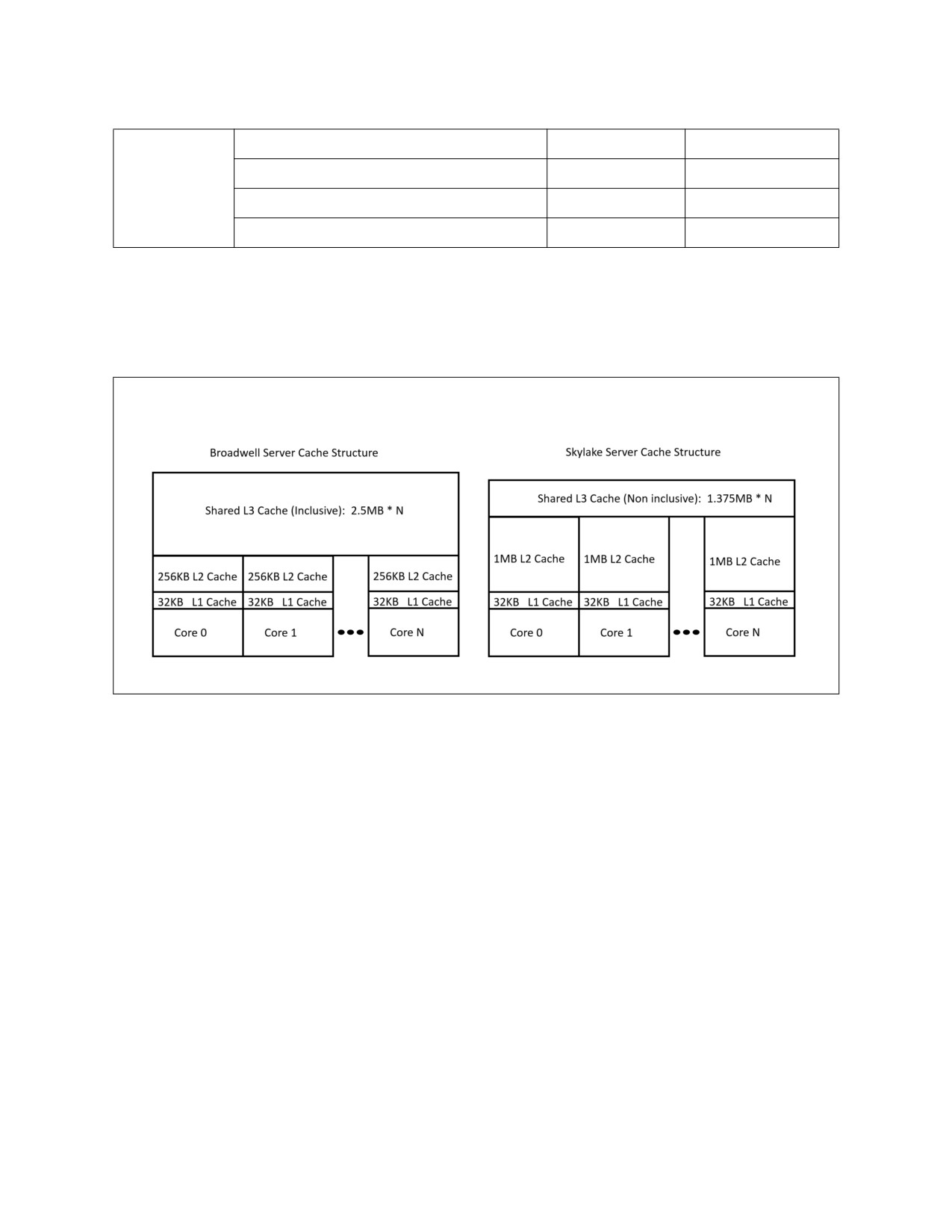

Non-Inclusive Last Level Cache

The last level cache (LLC) in Skylake is a non-inclusive, distributed, shared cache. The size of each of the

banks of last level cache has shrunk to 1.375 MB per bank. Because of the non-inclusive nature of the last

level cache, blocks that are present in the mid-level cache of one of the cores may not have a copy resi-

dent in a bank of last level cache. Based on the access pattern, size of the code and data accessed, and

sharing behavior between cores for a cache block, the last level cache may appear as a victim cache of

the mid-level cache and the aggregate cache capacity per core may appear to be a combination of the

private mid-level cache per core and a portion of the last level cache.

2.5.1.3

Skylake Server Microarchitecture Cache Recommendations

A high-level comparison between Skylake Server microarchitecture cache and the previous generation

Broadwell microarchitecture cache is available in the table below.

Table 2-9. Cache Comparison Between Skylake Microarchitecture and Broadwell Microarchitecture

Cache level

Category

Frequency Level

Max Frequency (P0n)

Instruction Types

Intel® AVX2 light

Highest

Max

Scalar, AVX128, SSE, Intel® AVX2 w/o FP

instructions

or INT MUL/FMA

Intel® AVX2 heavy

Medium

Max Intel® AVX2

Intel® AVX2 FP + INT MUL/FMA, Intel®

instructions +

AVX-512 without FP or INT MUL/FMA

Intel® AVX-512

light instructions

Intel® AVX-512

Lowest

Max Intel® AVX-512

Intel® AVX-512 FP + INT MUL/FMA

heavy instructions

For per SKU max frequency details (reference figure 1-15), refer to the Intel® Xeon® Processor Scalable

Family Technical Resources page.

2-23

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Figure 2-6 is an example for core frequency range in a given system where each core frequency is deter-

mined independently based on the demand of the workload.

Mixed Workloads

P0n

P0n-AVX2

P0n-AVX-512

AVX512

Cores using Intel®AVX-512

P1-AVX2

AVX2

Cores using Intel® AVX2

P1-AVX-512

Non-AVX

Cores not using Intel®AVX

Cores

SOM00060

Figure 2-6. Mixed Workloads

The following performance monitoring events can be used to determine how many cycles were spent in

each of the three frequency levels.

• CORE_POWER.LVL0_TURBO_LICENSE: Core cycles where the core was running in a manner where

the maximum frequency was P0n.

• CORE_POWER.LVL1_TURBO_LICENSE: Core cycles where the core was running in a manner where

the maximum frequency was P0n-AVX2.

• CORE_POWER.LVL2_TURBO_LICENSE: Core cycles where the core was running in a manner where

the maximum frequency was P0n-AVX-512.

When the core requests a higher license level than its current one, it takes the PCU up to 500

micro-seconds to grant the new license. Until then the core operates at a lower peak capability. During

this time period the PCU evaluates how many cores are executing at the new license level and adjusts

their frequency as necessary, potentially lowering the frequency. Cores that execute at other license

levels are not affected.

A timer of approximately 2ms is applied before going back to a higher frequency level. Any condition that

would have requested a new license resets the timer.

NOTES

A license transition request may occur when executing instructions on a mis-speculated

path.

A large enough mix of Intel AVX-512 light instructions and Intel AVX2 heavy instructions

drives the core to request License 2, despite the fact that they usually map to License 1.

The same is true for Intel AVX2 light instructions and Intel SSE heavy instructions that

may drive the core to License 1 rather than License 0. For example, The Intel^® Xeon^®

Platinum 8180 processor moves from license 1 to license 2 when executing a mix of 110

Intel AVX-512 light instructions and 20 256-bit heavy instructions over a window of 65

cycles.

2-24

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Some workloads do not cause the processor to reach its maximum frequency as these workloads are

bound by other factors. For example, the LINPACK benchmark is power limited and does not reach the

processor's maximum frequency. The following graph shows how frequency degrades as vector width

grows, but, despite the frequency drop, performance improves. The data for this graph was collected on

an Intel Xeon Platinum 8180 processor.

LINPACK Performance

3500

3.1

3.5

3259

2.8

3000

3.0

2.5

2500

2.1

2.5

2034

2000

2.0

1500

1178

1.5

760

1000

1.0

500

669

768

791

767

SSE4.2

AVX

AVX2

AVX512

GFLOPs

Power (W)

Frequency (GHz)

SOM00061

Figure 2-7. LINPACK Performance

Workloads that execute Intel AVX-512 instructions as a large proportion of their whole instruction count

can gain performance compared to Intel AVX2 instructions, even though they may operate at a lower

frequency. For example, maximum frequency bound Deep Learning workloads that target Intel AVX-512

heavy instructions at a very high percentage can gain 1.3x-1.5x performance improvement vs. the same

workload built to target Intel AVX2 (both operating on Skylake Server microarchitecture).

It is not always easy to predict whether a program's performance will improve from building it to target

Intel AVX-512 instructions. Programs that enjoy high performance gains from the use of xmm or ymm

registers may expect performance improvement by moving to the use of zmm registers. However, some

programs that use zmm registers may not gain as much, or may even lose performance. It is recom-

mended to try multiple build options and measure the performance of the program.

Recommendation: To identify the optimal compiler options to use, build the application with each of the

following set of options and choose the set that provides the best performance.

•

-xCORE-AVX2 -mtune=skylake-avx512 (Linux* and macOS*)

/QxCORE-AVX2 /tune=skylake-avx512 (Windows*)

•

-xCORE-AVX512 -qopt-zmm-usage=low (Linux* and macOS*)

/QxCORE-AVX512 /Qopt-zmm-usage:low (Windows*)

•

-xCORE-AVX512 -qopt-zmm-usage=high (Linux* and macOS*)

/QxCORE-AVX512 /Qopt-zmm-usage:high (Windows*)

See Section 18.26, “CLDEMOTE” for more information about these options.

2-25

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

The GCC Compiler has the option -mprefer-vector-width=none|128|256|512 to control vector width

preference. While -march=skylake-avx512 is designed to provide the best performance for the Skylake

Server microarchitecture some programs can benefit from different vector width preferences. To identify

the optimal compiler options to use, build the application with each of the following set of options and

choose the set that provides the best performance. -mprefer-vector-width=256 is the default for

skylake-avx512.

•

-march=skylake -mtune=skylake-avx512

•

-march=skylake-avx512

•

-march=skylake-avx512 -mprefer-vector-width=512

Clang/LLVM is currently implementing the option -mprefer-vector-width=none|128|256|512, similar

to GCC. To identify the optimal compiler options to use, build the application with each of the following

set of options and choose the set that provides the best performance.

•

-march=skylake -mtune=skylake-avx512

•

-march=skylake-avx512 (plus -mprefer-vector-width=256, if available)

•

-march=skylake-avx512 (plus -mprefer-vector-width=512, if available)

2.6

SKYLAKE CLIENT MICROARCHITECTURE

The Skylake Client microarchitecture builds on the successes of the Haswell and Broadwell microarchitec-

tures. The basic pipeline functionality of the Skylake Client microarchitecture is depicted in Figure 2-8.

32K L1 Instruction

BPU

Cache

MSROM

Decoded Icache

Legacy Decode

(DSB)

Pipeline

4 uops/cycle

6 uops/cycle

5 uops/cycle

Instruction Decode Queue (IDQ,, or micro-op queue)

Allocate/Rename/Retire/MoveElimination/ZeroIdiom

Scheduler

256K L2 Cache

(Unified)

Port 2

Port 0

Port 1

Port 5

Port 6

LD/STA

Int ALU,

Vec FMA,

Fast LEA,

Port 3

Int Shft,

Vec MUL,

Vec FMA,

Vec SHUF,

LD/STA

Branch1,

Vec Add,

Vec MUL,

Vec ALU,

Vec Add,

CVT

32K L1 Data Cache

Port 4

Vec Shft,

Vec ALU,

STD

Divide,

Vec Shft,

Branch2

Int MUL,

Slow LEA

Port 7

STA

Figure 2-8. CPU Core Pipeline Functionality of the Skylake Client Microarchitecture

The Skylake Client microarchitecture offers the following enhancements:

2-26

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

• Larger internal buffers to enable deeper OOO execution and higher cache bandwidth.

• Improved front end throughput.

• Improved branch predictor.

• Improved divider throughput and latency.

• Lower power consumption.

• Improved SMT performance with Hyper-Threading Technology.

• Balanced floating-point ADD, MUL, FMA throughput and latency.

The microarchitecture supports flexible integration of multiple processor cores with a shared uncore

sub-system consisting of a number of components including a ring interconnect to multiple slices of L3

(an off-die L4 is optional), processor graphics, integrated memory controller, interconnect fabrics, etc. A

four-core configuration can be supported similar to the arrangement shown in Appendix E, “Earlier

Generations of Intel® 64 and IA-32 Processor Architectures,” Figure E-2.

2.6.1

The Front End

The front end in the Skylake Client microarchitecture provides the following improvements over previous

generation microarchitectures:

• Legacy Decode Pipeline delivery of 5 uops per cycle to the IDQ compared to 4 uops in previous gener-

ations.

• The DSB delivers 6 uops per cycle to the IDQ compared to 4 uops in previous generations.

• The IDQ can hold 64 uops per logical processor vs. 28 uops per logical processor in previous

generations when two sibling logical processors in the same core are active (2x64 vs. 2x28 per core).

If only one logical processor is active in the core, the IDQ can hold 64 uops (64 vs. 56 uops in ST

operation).

• The LSD in the IDQ can detect loops up to 64 uops per logical processor irrespective ST or SMT

operation.

• Improved Branch Predictor.

2.6.2

The Out-of-Order Execution Engine

The Out of Order and execution engine changes in Skylake Client microarchitecture include:

• Larger buffers enable deeper OOO execution compared to previous generations.

• Improved throughput and latency for divide/sqrt and approximate reciprocals.

• Identical latency and throughput for all operations running on FMA units.

• Longer pause latency enables better power efficiency and better SMT performance resource utili-

zation.

2-27

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Table 2-11 summarizes the OOO engine’s capability to dispatch different types of operations to various

ports.

Table 2-11. Dispatch Port and Execution Stacks of the Skylake Client Microarchitecture

Port 0

Port 1

Port 2, 3

Port 4

Port 5

Port 6

Port 7

ALU,

STD

ALU,

STA

Vec ALU

Fast LEA,

STA

Fast LEA,

Shft,

Vec ALU

Vec ALU,

Vec Shft,

Vec Shuffle,

Branch1

Vec Add,

Vec Mul,

FMA,

FMA

DIV,

Slow Int

Branch2

Slow LEA

Table 2-12 lists execution units and common representative instructions that rely on these units.

Throughput improvements across the SSE, AVX and general-purpose instruction sets are related to the

number of units for the respective operations, and the varieties of instructions that execute using a

particular unit.

Table 2-12. Skylake Client Microarchitecture Execution Units and Representative Instructions¹

Execution

# of

Instructions

Unit

ALU

add, and, cmp, or, test, xor, movzx, movsx, mov, (v)movdqu, (v)movdqa, (v)movap*, (v)movup*

SHFT

sal, shl, rol, adc, sarx, adcx, adox, etc.

Slow Int

mul, imul, bsr, rcl, shld, mulx, pdep, etc.

andn, bextr, blsi, blsmsk, bzhi, etc

Vec ALU

(v)pand, (v)por, (v)pxor, (v)movq, (v)movq, (v)movap*, (v)movup*,

(v)andp*, (v)orp*, (v)paddb/w/d/q, (v)blendv*, (v)blendp*, (v)pblendd

Vec_Shft

(v)psllv*, (v)psrlv*, vector shift count in imm8

Vec Add

(v)addp*, (v)cmpp*, (v)max*, (v)min*, (v)padds*, (v)paddus*, (v)psign, (v)pabs, (v)pavgb,

(v)pcmpeq*, (v)pmax, (v)cvtps2dq, (v)cvtdq2ps, (v)cvtsd2si, (v)cvtss2si

Shuffle

(v)shufp*, vperm*, (v)pack*, (v)unpck*, (v)punpck*, (v)pshuf*, (v)pslldq, (v)alignr, (v)pmovzx*,

vbroadcast*, (v)pslldq, (v)psrldq, (v)pblendw

Vec Mul

(v)mul*, (v)pmul*, (v)pmadd*,

SIMD Misc

STTNI, (v)pclmulqdq, (v)psadw, vector shift count in xmm,

FP Mov

(v)movsd/ss, (v)movd gpr,

DIVIDE

divp*, divs*, vdiv*, sqrt*, vsqrt*, rcp*, vrcp*, rsqrt*, idiv

NOTES:

1. Execution unit mapping to MMX instructions are not covered in this table. See Section 15.16.5 on MMX instruction

throughput remedy.

2-28

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

A significant portion of the Intel SSE, Intel AVX and general-purpose instructions also have latency

improvements. Appendix C lists the specific details. Software-visible latency exposure of an instruction

sometimes may include additional contributions that depend on the relationship between micro-ops flows

of the producer instruction and the micro-op flows of the ensuing consumer instruction. For example, a

two-uop instruction like VPMULLD may experience two cumulative bypass delays of 1 cycle each from

each of the two micro-ops of VPMULLD.

Table 2-13 describes the bypass delay in cycles between a producer uop and the consumer uop. The

left-most column lists a variety of situations characteristic of the producer micro-op. The top row lists a

variety of situations characteristic of the consumer micro-op.

Table 2-13. Bypass Delay Between Producer and Consumer Micro-ops

SIMD/0,1/1

FMA/0,1/4

VIMUL/0,1/4

SIMD/5/1,3

SHUF/5/1,3

V2I/0/3

I2V/5/1

SIMD/0,1/1

FMA/0,1/4

VIMUL/0,1/4

SIMD/5/1,3

SHUF/5/1,3

V2I/0/3

I2V/5/1

The attributes that are relevant to the producer/consumer micro-ops for bypass are a triplet of abbrevi-

ation/one or more port number/latency cycle of the uop. For example:

•

“SIMD/0,1/1” applies to 1-cycle vector SIMD uop dispatched to either port 0 or port 1.

•

“VIMUL/0,1/4” applies to 4-cycle vector integer multiply uop dispatched to either port 0 or port 1.

•

“SIMD/5/1,3” applies to either 1-cycle or 3-cycle non-shuffle uop dispatched to port 5.

2.6.3

Cache and Memory Subsystem

The cache hierarchy of the Skylake Client microarchitecture has the following enhancements:

• Higher Cache bandwidth compared to previous generations.

• Simultaneous handling of more loads and stores enabled by enlarged buffers.

• Processor can do two page walks in parallel compared to one in Haswell microarchitecture and earlier

generations.

• Page split load penalty down from 100 cycles in previous generation to 5 cycles.

• L3 write bandwidth increased from 4 cycles per line in previous generation to 2 per line.

• Support for the CLFLUSHOPT instruction to flush cache lines and manage memory ordering of flushed

data using SFENCE.

• Reduced performance penalty for a software prefetch that specifies a NULL pointer.

• L2 associativity changed from 8 ways to 4 ways.

2-29

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Table 2-14. Cache Parameters of the Skylake Client Microarchitecture

Capacity /

Line Size

Fastest

Peak Bandwidth

Sustained Bandwidth

Update

Level

Associativity

(bytes)

Latency¹

(bytes/cyc)

Policy

First Level Data

32 KB/ 8

4 cycle

96 (2x32B Load +

~81

Writeback

1*32B Store)

Instruction

32 KB/8

N/A

Second Level

256KB/4

12 cycle

~29

Writeback

Third Level

Up to 2MB

~18

Writeback

(Shared L3)

per core/Up

to 16 ways

NOTES:

1. Software-visible latency will vary depending on access patterns and other factors.

The TLB hierarchy consists of dedicated level one TLB for instruction cache, TLB for L1D, plus unified TLB

for L2. The partition column of Table 2-15 indicates the resource sharing policy when Hyper-Threading

Technology is active.

Table 2-15. TLB Parameters of the Skylake Client Microarchitecture

Level

Page Size

Entries

Associativity

Partition

Instruction

4KB

128

8 ways

dynamic

Instruction

2MB/4MB

8 per thread

fixed

First Level Data

4KB

fixed

First Level Data

2MB/4MB

fixed

First Level Data

1GB

fixed

Second Level

Shared by 4KB and 2/4MB pages

1536

fixed

Second Level

1GB

fixed

2.6.4

Pause Latency in Skylake Client Microarchitecture

The PAUSE instruction is typically used with software threads executing on two logical processors located

in the same processor core, waiting for a lock to be released. Such short wait loops tend to last between

tens and a few hundreds of cycles, so performance-wise it is better to wait while occupying the CPU than

yielding to the OS. When the wait loop is expected to last for thousands of cycles or more, it is preferable

to yield to the operating system by calling an OS synchronization API function, such as WaitForSingleO-

bject on Windows* OS or futex on Linux.

The PAUSE instruction is intended to:

• Temporarily provide the sibling logical processor (ready to make forward progress exiting the spin

loop) with competitively shared hardware resources. The competitively-shared microarchitectural

resources that the sibling logical processor can utilize in the Skylake Client microarchitecture are

listed below.

— Front end slots in the Decode ICache, LSD and IDQ.

— Execution slots in the RS.

• Save power consumed by the processor core compared with executing equivalent spin loop

instruction sequence in the following configurations.

— One logical processor is inactive (e.g., entering a C-state).

— Both logical processors in the same core execute the PAUSE instruction.

2-30

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

— HT is disabled (e.g. using BIOS options).

The latency of the PAUSE instruction in prior generation microarchitectures is about 10 cycles, whereas

in Skylake Client microarchitecture it has been extended to as many as 140 cycles.

The increased latency (allowing more effective utilization of competitively-shared microarchitectural

resources to the logical processor ready to make forward progress) has a small positive performance

impact of 1-2% on highly threaded applications. It is expected to have negligible impact on less threaded

applications if forward progress is not blocked executing a fixed number of looped PAUSE instructions.

There's also a small power benefit in 2-core and 4-core systems.

As the PAUSE latency has been increased significantly, workloads that are sensitive to PAUSE latency will

suffer some performance loss.

The following is an example of how to use the PAUSE instruction with a dynamic loop iteration count.

Notice that in the Skylake Client microarchitecture the RDTSC instruction counts at the machine's guar-

anteed P1 frequency independently of the current processor clock (see the INVARIANT TSC property),

and therefore, when running in Intel^® Turbo-Boost-enabled mode, the delay will remain constant, but

the number of instructions that could have been executed will change.

Use Poll Delay function in your lock to wait a given amount of guaranteed P1 frequency cycles, specified

in the “clocks” variable.

Example 2-8. Dynamic Pause Loop Example

#include <x86intrin.h>

#include <stdint.h>

/* A useful predicate for dealing with timestamps that may wrap.

Is a before b? Since the timestamps may wrap, this is asking whether it's

shorter to go clockwise from a to b around the clock-face, or anti-clockwise.

Times where going clockwise is less distance than going anti-clockwise

are in the future, others are in the past. e.g. a = MAX-1, b = MAX+1 (=0),

then a > b (true) does not mean a reached b; whereas signed(a) = -2,

signed(b) = 0 captures the actual difference */

static inline bool before(uint64_t a, uint64_t b)

{

return ((int64_t)b - (int64_t)a) > 0;

}

void pollDelay(uint32_t clocks)

{

uint64_t endTime = _rdtsc()+ clocks;

for (; before(_rdtsc(), endTime); )

_mm_pause();

}

For contended spinlocks of the form shown in the baseline example below, we recommend an exponen-

tial back off when the lock is found to be busy, as shown in the improved example, to avoid significant

performance degradation that can be caused by conflicts between threads in the machine. This is more

important as we increase the number of threads in the machine and make changes to the architecture

that might aggravate these conflict conditions. In multi-socket Intel server processors with shared

memory, conflicts across threads take much longer to resolve as the number of threads contending for

the same lock increases. The exponential back off is designed to avoid these conflicts between the

threads thus avoiding the potential performance degradation. Note that in the example below, the

2-31

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

number of PAUSE instructions are increased by a factor of 2 until some MAX_BACKOFF is reached which

is subject to tuning.

Example 2-9. Contended Locks with Increasing Back-off Example

/*******************/

/*Baseline Version */

/*******************/

// atomic {if (lock == free) then change lock state to busy}

while (cmpxchg(lock, free, busy) == fail)

{

while (lock == busy)

{

__asm__ ("pause");

}

/*******************/

/*Improved Version */

/*******************/

int mask = 1;

int const max = 64; //MAX_BACKOFF

while (cmpxchg(lock, free, busy) == fail)

{

while (lock == busy)

{

for (int i=mask; i; --i){

__asm__ ("pause");

}

mask = mask < max ? mask<<1 : max;

}

2.7

INTEL^® HYPER-THREADING TECHNOLOGY (INTEL^® HT TECHNOLOGY)

Intel® Hyper-Threading Technology (Intel^®HT Technology) enables software to take advantage of

task-level, or thread-level parallelism by providing multiple logical processors within a physical processor

package, or within each processor core in a physical processor package. In its first implementation in the

Intel Xeon processor, Hyper-Threading Technology makes a single physical processor (or a processor

core) appear as two or more logical processors. Intel Xeon Phi processors based on the Knights Landing

microarchitecture support 4 logical processors in each processor core; see Chapter 23 for detailed infor-

mation of Intel HT Technology that is implemented in the Knights Landing microarchitecture.

Most Intel Architecture processor families support Hyper-Threading Technology with two logical proces-

sors in each processor core, or in a physical processor in early implementations. The rest of this section

describes features of the early implementation of Hyper-Threading Technology. Most of the descriptions

also apply to later Hyper-Threading Technology implementations supporting two logical processors. The

microarchitecture sections in this chapter provide additional details to individual microarchitecture and

enhancements to Hyper-Threading Technology.

The two logical processors each have a complete set of architectural registers while sharing one single

physical processor's resources. By maintaining the architecture state of two processors, an Intel HT

2-32

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

Technology capable processor looks like two processors to software, including operating system and

application code.

By sharing resources needed for peak demands between two logical processors, Intel HT Technology is

well suited for multiprocessor systems to provide an additional performance boost in throughput when

compared to traditional MP systems.

Figure 2-9 shows a typical bus-based symmetric multiprocessor (SMP) based on processors supporting

Intel HT Technology. Each logical processor can execute a software thread, allowing a maximum of two

software threads to execute simultaneously on one physical processor. The two software threads execute

simultaneously, meaning that in the same clock cycle an “add” operation from logical processor 0 and

another “add” operation and load from logical processor 1 can be executed simultaneously by the execu-

tion engine.

In the first implementation of Intel HT Technology, the physical execution resources are shared and the

architecture state is duplicated for each logical processor. This minimizes the die area cost of imple-

menting Intel HT Technology while still achieving performance gains for multithreaded applications or

multitasking workloads.

Architectural

State

Execution Engine

Local APIC

Bus Interface

System Bus

OM15152

Figure 2-9. Hyper-Threading Technology on an SMP

The performance potential due to HT Technology is due to:

• The fact that operating systems and user programs can schedule processes or threads to execute

simultaneously on the logical processors in each physical processor.

• The ability to use on-chip execution resources at a higher level than when only a single thread is

consuming the execution resources; higher level of resource utilization can lead to higher system

throughput.

2.7.1

Processor Resources and HT Technology

The majority of microarchitecture resources in a physical processor are shared between the logical

processors. Only a few small data structures were replicated for each logical processor. This section

describes how resources are shared, partitioned or replicated.

2-33

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.7.1.1

Replicated Resources

The architectural state is replicated for each logical processor. The architecture state consists of registers

that are used by the operating system and application code to control program behavior and store data

for computations. This state includes the eight general-purpose registers, the control registers, machine

state registers, debug registers, and others. There are a few exceptions, most notably the memory type

range registers (MTRRs) and the performance monitoring resources. For a complete list of the architec-

ture state and exceptions, see the Intel^® 64 and IA-32 Architectures Software Developer’s Manual,

Volumes 3A, 3B, 3C, & 3D.

Other resources such as instruction pointers and register renaming tables were replicated to simultane-

ously track execution and state changes of the two logical processors. The return stack predictor is repli-

cated to improve branch prediction of return instructions.

In addition, a few buffers (for example, the 2-entry instruction streaming buffers) were replicated to

reduce complexity.

2.7.1.2

Partitioned Resources

Several buffers are shared by limiting the use of each logical processor to half the entries. These are

referred to as partitioned resources. Reasons for this partitioning include:

• Operational fairness.

• Permitting the ability to allow operations from one logical processor to bypass operations of the other

logical processor that may have stalled.

For example: a cache miss, a branch misprediction, or instruction dependencies may prevent a logical

processor from making forward progress for some number of cycles. The partitioning prevents the stalled

logical processor from blocking forward progress.

In general, the buffers for staging instructions between major pipe stages are partitioned. These buffers

include µop queues after the execution trace cache, the queues after the register rename stage, the

reorder buffer which stages instructions for retirement, and the load and store buffers.

In the case of load and store buffers, partitioning also provided an easier implementation to maintain

memory ordering for each logical processor and detect memory ordering violations.

2.7.1.3

Shared Resources

Most resources in a physical processor are fully shared to improve the dynamic utilization of the resource,

including caches and all the execution units. Some shared resources which are linearly addressed, like

the DTLB, include a logical processor ID bit to distinguish whether the entry belongs to one logical

processor or the other.

2.7.2

Microarchitecture Pipeline and Intel® HT Technology

This section describes the Intel HT Technology microarchitecture and how instructions from the two

logical processors are handled between the front end and the back end of the pipeline.

Although instructions originating from two programs or two threads execute simultaneously and not

necessarily in program order in the execution core and memory hierarchy, the front end and back end

contain several selection points to select between instructions from the two logical processors. All selec-

tion points alternate between the two logical processors unless one logical processor cannot make use of

a pipeline stage. In this case, the other logical processor has full use of every cycle of the pipeline stage.

Reasons why a logical processor may not use a pipeline stage include cache misses, branch mispredic-

tions, and instruction dependencies.

2-34

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.7.3

Execution Core

The core can dispatch up to six µops per cycle, provided the µops are ready to execute. Once the µops

are placed in the queues waiting for execution, there is no distinction between instructions from the two

logical processors. The execution core and memory hierarchy is also oblivious to which instructions

belong to which logical processor.

After execution, instructions are placed in the re-order buffer. The re-order buffer decouples the execu-

tion stage from the retirement stage. The re-order buffer is partitioned such that each uses half the

entries.

2.7.4

Retirement

The retirement logic tracks when instructions from the two logical processors are ready to be retired. It

retires the instruction in program order for each logical processor by alternating between the two logical

processors. If one logical processor is not ready to retire any instructions, then all retirement bandwidth

is dedicated to the other logical processor.

Once stores have retired, the processor needs to write the store data into the level-one data cache.

Selection logic alternates between the two logical processors to commit store data to the cache.

2.8

SIMD TECHNOLOGY

SIMD computations (see Figure 2-10) were introduced to the architecture with MMX technology. MMX

technology allows SIMD computations to be performed on packed byte, word, and doubleword integers.

The integers are contained in a set of eight 64-bit registers called MMX registers (see Figure 2-11).

The Pentium III processor extended the SIMD computation model with the introduction of the Streaming

SIMD Extensions (SSE). SSE allows SIMD computations to be performed on operands that contain four

packed single-precision floating-point data elements. The operands can be in memory or in a set of eight

128-bit XMM registers (see Figure 2-11). SSE also extended SIMD computational capability by adding

additional 64-bit MMX instructions.

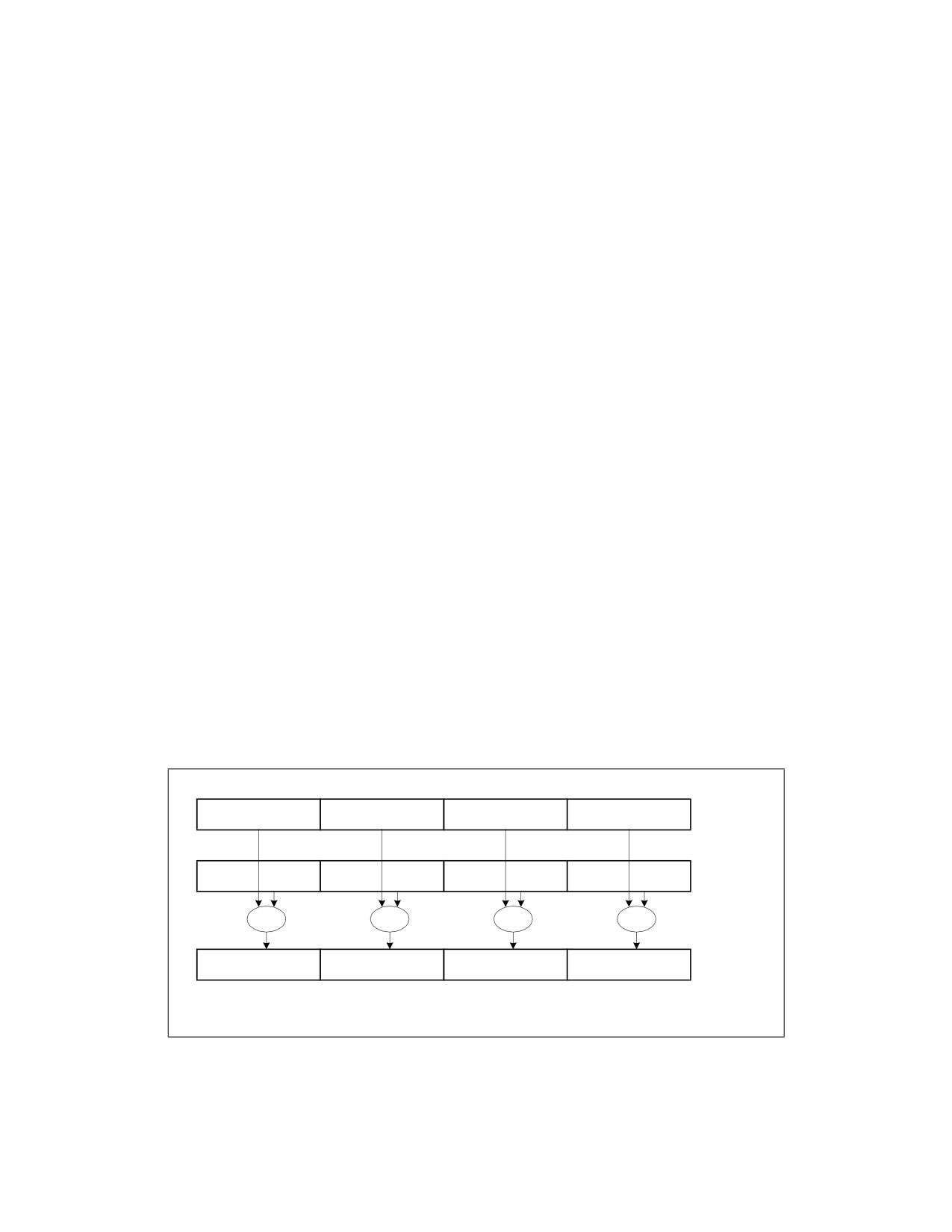

Figure 2-10 shows a typical SIMD computation. Two sets of four packed data elements (X1, X2, X3, and

X4, and Y1, Y2, Y3, and Y4) are operated on in parallel, with the same operation being performed on each

corresponding pair of data elements (X1 and Y1, X2 and Y2, X3 and Y3, and X4 and Y4). The results of

the four parallel computations are sorted as a set of four packed data elements.

X4 op Y4

X3 op Y3

X2 op Y2

X1 op Y1

OM15148

Figure 2-10. Typical SIMD Operations

2-35

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

The Pentium 4 processor further extended the SIMD computation model with the introduction of

Streaming SIMD Extensions 2 (SSE2), Streaming SIMD Extensions 3 (SSE3), and Intel Xeon processor

5100 series introduced Supplemental Streaming SIMD Extensions 3 (SSSE3).

SSE2 works with operands in either memory or in the XMM registers. The technology extends SIMD

computations to process packed double-precision floating-point data elements and 128-bit packed inte-

gers. There are 144 instructions in SSE2 that operate on two packed double-precision floating-point data

elements or on 16 packed byte, 8 packed word, 4 doubleword, and 2 quadword integers.

SSE3 enhances x87, SSE and SSE2 by providing 13 instructions that can accelerate application perfor-

mance in specific areas. These include video processing, complex arithmetics, and thread synchroniza-

tion. SSE3 complements SSE and SSE2 with instructions that process SIMD data asymmetrically,

facilitate horizontal computation, and help avoid loading cache line splits. See Figure 2-11.

SSSE3 provides additional enhancement for SIMD computation with 32 instructions on digital video and

signal processing.

SSE4.1, SSE4.2 and AESNI are additional SIMD extensions that provide acceleration for applications in

media processing, text/lexical processing, and block encryption/decryption.

The SIMD extensions operates the same way in Intel 64 architecture as in IA-32 architecture, with the

following enhancements:

•

128-bit SIMD instructions referencing XMM register can access 16 XMM registers in 64-bit mode.

• Instructions that reference 32-bit general purpose registers can access 16 general purpose registers

in 64-bit mode.

64-bit MMX Registers

128-bit XMM Registers

MM7

XMM7

MM6

XMM6

MM5

XMM5

MM4

XMM4

MM3

XMM3

MM2

XMM2

MM1

XMM1

MM0

XMM0

OM15149

Figure 2-11. SIMD Instruction Register Usage

SIMD improves the performance of 3D graphics, speech recognition, image processing, scientific applica-

tions and applications that have the following characteristics:

• Inherently parallel.

• Recurring memory access patterns.

• Localized recurring operations performed on the data.

• Data-independent control flow.

2-36

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

2.9

SUMMARY OF SIMD TECHNOLOGIES AND APPLICATION LEVEL

EXTENSIONS

SIMD floating-point instructions fully support the IEEE Standard 754 for Binary Floating-Point Arithmetic.

They are accessible from all IA-32 execution modes: protected mode, real address mode, and Virtual

8086 mode.

SSE, SSE2, and MMX technologies are architectural extensions. Existing software will continue to run

correctly, without modification on Intel microprocessors that incorporate these technologies. Existing

software will also run correctly in the presence of applications that incorporate SIMD technologies.

SSE and SSE2 instructions also introduced cacheability and memory ordering instructions that can

improve cache usage and application performance.

For more on SSE, SSE2, SSE3 and MMX technologies, see the following chapters in the Intel® 64 and

IA-32 Architectures Software Developer’s Manual, Volume 1:

• Chapter 9, “Programming with Intel^® MMX^™ Technology.”

• Chapter 10, “Programming with Intel^®Streaming SIMD Extensions (Intel^®SSE).”

• Chapter 11, “Programming with Intel^®Streaming SIMD Extensions 2 (Intel^®SSE2).”

• Chapter 12, “Programming with Intel^® SSE3, SSSE3, Intel^® SSE4, and Intel^® AES-NI.”

• Chapter 14, “Programming with Intel^®AVX, FMA, and Intel^®AVX2.”

• Chapter 15, “Programming with Intel® AVX-512.”

• Chapter 16, “Programming with Intel^® Transactional Synchronization Extensions.”

2.9.1

MMX™ Technology

MMX Technology introduced:

•

64-bit MMX registers.

• Support for SIMD operations on packed byte, word, and doubleword integers.

Recommendation: Integer SIMD code written using MMX instructions should consider more efficient

implementations using SSE/Intel AVX instructions.

2.9.2

Streaming SIMD Extensions

Streaming SIMD extensions introduced:

•

128-bit XMM registers.

•

128-bit data type with four packed single-precision floating-point operands.

• Data prefetch instructions.

• Non-temporal store instructions and other cacheability and memory ordering instructions.

• Extra 64-bit SIMD integer support.

SSE instructions are useful for 3D geometry, 3D rendering, speech recognition, and video encoding and

decoding.

2.9.3

Streaming SIMD Extensions 2

Streaming SIMD extensions 2 add the following:

•

128-bit data type with two packed double-precision floating-point operands.

•

128-bit data types for SIMD integer operation on 16-byte, 8-word, 4-doubleword, or 2-quadword

integers.

• Support for SIMD arithmetic on 64-bit integer operands.

2-37

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

• Instructions for converting between new and existing data types.

• Extended support for data shuffling.

• Extended support for cacheability and memory ordering operations.

SSE2 instructions are useful for 3D graphics, video decoding/encoding, and encryption.

2.9.4

Streaming SIMD Extensions 3

Streaming SIMD extensions 3 add the following:

• SIMD floating-point instructions for asymmetric and horizontal computation.

• A special-purpose 128-bit load instruction to avoid cache line splits.

• An x87 FPU instruction to convert to integer independent of the floating-point control word (FCW).

• Instructions to support thread synchronization.

SSE3 instructions are useful for scientific, video and multi-threaded applications.

2.9.5

Supplemental Streaming SIMD Extensions 3

The Supplemental Streaming SIMD Extensions 3 introduces 32 new instructions to accelerate eight

types of computations on packed integers. These include:

•

12 instructions that perform horizontal addition or subtraction operations.

•

6 instructions that evaluate the absolute values.

•

2 instructions that perform multiply and add operations and speed up the evaluation of dot products.

•

2 instructions that accelerate packed-integer multiply operations and produce integer values with

scaling.

•

2 instructions that perform a byte-wise, in-place shuffle according to the second shuffle control

operand.

•

6 instructions that negate packed integers in the destination operand if the signs of the corre-

sponding element in the source operand is less than zero.

•

2 instructions that align data from the composite of two operands.

2.9.6

SSE4.1

SSE4.1 introduces 47 new instructions to accelerate video, imaging and 3D applications. SSE4.1 also

improves compiler vectorization and significantly increase support for packed dword computation. These

include:

• Two instructions perform packed dword multiplies.

• Two instructions perform floating-point dot products with input/output selects.

• One instruction provides a streaming hint for WC loads.

• Six instructions simplify packed blending.

• Eight instructions expand support for packed integer MIN/MAX.

• Four instructions support floating-point round with selectable rounding mode and precision exception

override.

• Seven instructions improve data insertion and extractions from XMM registers

• Twelve instructions improve packed integer format conversions (sign and zero extensions).

• One instruction improves SAD (sum absolute difference) generation for small block sizes.

• One instruction aids horizontal searching operations of word integers.

• One instruction improves masked comparisons.

2-38

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

• One instruction adds qword packed equality comparisons.

• One instruction adds dword packing with unsigned saturation.

2.9.7

SSE4.2

SSE4.2 introduces 7 new instructions. These include:

• A 128-bit SIMD integer instruction for comparing 64-bit integer data elements.

• Four string/text processing instructions providing a rich set of primitives, these primitives can

accelerate:

— Basic and advanced string library functions from strlen, strcmp, to strcspn.

— Delimiter processing, token extraction for lexing of text streams.

— Parser, schema validation including XML processing.

• A general-purpose instruction for accelerating cyclic redundancy checksum signature calculations.

• A general-purpose instruction for calculating bit count population of integer numbers.

2.9.8

AESNI and PCLMULQDQ

AESNI introduces 7 new instructions, six of them are primitives for accelerating algorithms based on AES

encryption/decryption standard, referred to as AESNI.

The PCLMULQDQ instruction accelerates general-purpose block encryption, which can perform carry-less

multiplication for two binary numbers up to 64-bit wide.

Typically, algorithm based on AES standard involve transformation of block data over multiple iterations

via several primitives. The AES standard supports cipher key of sizes 128, 192, and 256 bits. The respec-

tive cipher key sizes correspond to 10, 12, and 14 rounds of iteration.

AES encryption involves processing 128-bit input data (plain text) through a finite number of iterative

operation, referred to as “AES round”, into a 128-bit encrypted block (ciphertext). Decryption follows the

reverse direction of iterative operation using the “equivalent inverse cipher” instead of the “inverse

cipher”.

The cryptographic processing at each round involves two input data, one is the “state”, the other is the

“round key”. Each round uses a different “round key”. The round keys are derived from the cipher key

using a “key schedule” algorithm. The “key schedule” algorithm is independent of the data processing of

encryption/decryption, and can be carried out independently from the encryption/decryption phase.

The AES extensions provide two primitives to accelerate AES rounds on encryption, two primitives for

AES rounds on decryption using the equivalent inverse cipher, and two instructions to support the AES

key expansion procedure.

2.9.9

Intel® Advanced Vector Extensions (Intel® AVX)

Intel^® Advanced Vector Extensions (Intel^® AVX) offers comprehensive architectural enhancements over

previous generations of Streaming SIMD Extensions. Intel AVX introduces the following architectural

enhancements:

• Support for 256-bit wide vectors and SIMD register set.

•

256-bit floating-point instruction set enhancement with up to 2X performance gain relative to 128-bit

Streaming SIMD extensions.

• Instruction syntax support for generalized three-operand syntax to improve instruction programming

flexibility and efficient encoding of new instruction extensions.

• Enhancement of legacy 128-bit SIMD instruction extensions to support three-operand syntax and to

simplify compiler vectorization of high-level language expressions.

2-39

INTEL® 64 AND IA-32 PROCESSOR ARCHITECTURES

• Support flexible deployment of 256-bit AVX code, 128-bit AVX code, legacy 128-bit code and scalar

code.

Intel AVX instruction set and 256-bit register state management detail are described in Intel® 64 and

IA-32 Architectures Software Developer’s Manual, Volumes 2A, 2B, 2C, & 2D. Optimization techniques

for Intel AVX are discussed in Chapter 15, “Optimizations for Intel® AVX, Intel® AVX2, and Intel® FMA.”

2.9.10 Half-Precision Floating-Point Conversion (F16C)

VCVTPH2PS and VCVTPS2PH are two instructions supporting half-precision floating-point data type

conversion to and from single-precision floating-point data types. These two instruction extends on the

same programming model as Intel AVX.

2.9.11 RDRAND

The RDRAND instruction retrieves a random number supplied by a cryptographically secure, determin-

istic random bit generator (DBRG). The DBRG is designed to meet NIST SP 800-90A standard.

2.9.12 Fused-Multiply-ADD (FMA) Extensions

FMA extensions enhances Intel AVX with high-throughput, arithmetic capabilities covering fused

multiply-add, fused multiply-subtract, fused multiply add/subtract interleave, signed-reversed multiply

on fused multiply-add and multiply-subtract operations. FMA extensions provide 36 256-bit

floating-point instructions to perform computation on 256-bit vectors and additional 128-bit and scalar

FMA instructions.

2.9.13 Intel® AVX2

Intel AVX2 extends Intel AVX by promoting most of the 128-bit SIMD integer instructions with 256-bit

numeric processing capabilities. AVX2 instructions follow the same programming model as AVX instruc-

tions.

In addition, AVX2 provide enhanced functionalities for broadcast/permute operations on data elements,

vector shift instructions with variable-shift count per data element, and instructions to fetch

non-contiguous data elements from memory.

2.9.14 General-Purpose Bit-Processing Instructions

The fourth generation Intel Core processor family introduces a collection of bit processing instructions

that operate on the general purpose registers. The majority of these instructions uses the VEX-prefix

encoding scheme to provide non-destructive source operand syntax.

There instructions are enumerated by three separate feature flags reported by CPUID. For details, see

Section 5.1 of Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 1 and chapters

3, 4 and 5 of the Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volumes 2A, 2B, 2C,

& 2D.

2.9.15 Intel® Transactional Synchronization Extensions

The fourth generation Intel Core processor family introduces Intel^® Transactional Synchronization Exten-

sions (Intel^® TSX), which aim to improve the performance of lock-protected critical sections of multi-

threaded applications while maintaining the lock-based programming model.

For backg11round and details, see Chapter 16, “Programming with Intel® Transactional Synchronization

Extensions” of Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 1.

2-40

Updates to Chapter 3

Change bars and violet text show changes to Chapter 3of the Intel^® 64 and IA-32 Architectures Optimization

Reference Manual: General Optimization Guidelines.

------------------------------------------------------------------------------------------

Changes to this chapter:

• Updated capitalization of headings throughout chapter.

• Updated branding throughout chapter.

• Typo and punctuation corrections as necessary.

• Section 3.4.2.1:

— Changed Micro-fusion to Microfusion in heading to match Macrofusion.

• Section 3.5.2.3:

— Removed outdated technologies references, focusing on information starting from Skylake microarchi-

tecture.

— Provided latest information regarding *H micro-operations.

— Provided a new figure showing location of *H in Port one.

• Section 3.11:

— Updated various items for clarity.

— Section 3.11.2: Added corrected recipes.

— Table 3-8: Changed column orientation to be more legible.

— Table 3-11: Config section now includes workers field.

• Section 3.12: Updated for clarity.

Intel^® 64 and IA-32 Architectures Optimization Reference Manual Documentation Changes

CHAPTER 3

GENERAL OPTIMIZATION GUIDELINES

This chapter discusses general optimization techniques that can improve the performance of applications

running on Intel^® processors. These techniques take advantage of microarchitectural features described

in Chapter 2, “Intel® 64 and IA-32 Processor Architectures.” Optimization guidelines focusing on Intel

multi-core processors, Hyper-Threading Technology, and 64-bit mode applications are discussed in

Chapter 11, “Multicore and Intel® Hyper-Threading Technology (intel® HT),” and Chapter 13, “64-bit

Mode Coding Guidelines.”

Practices that optimize performance focus on three areas:

• Tools and techniques for code generation.

• Analysis of the performance characteristics of the workload and its interaction with microarchitec-

tural sub-systems.

• Tuning code to the target microarchitecture (or families of microarchitecture) to improve perfor-

mance.

Some hints on using tools are summarized first to simplify the first two tasks. The rest of the chapter will

focus on recommendations for code generation or code tuning to the target microarchitectures.

This chapter explains optimization techniques for the Intel^® C++ Compiler, the Intel^® Fortran Compiler,

and other compilers.

3.1

PERFORMANCE TOOLS

Intel offers several tools to help optimize application performance, including compilers, performance

analysis, and multithreading tools.

3.1.1

Intel^®C++ and Fortran Compilers

Intel compilers support multiple operating systems (Windows*, Linux*, Mac OS*, and embedded). The

Intel compilers optimize performance and give application developers access to advanced features,

including:

• Flexibility to target 32-bit or 64-bit Intel processors for optimization.

• Compatibility with many integrated development environments or third-party compilers.

• Automatic optimization features to take advantage of the target processor’s architecture.

• Automatic compiler optimization reduces the need to write different code for different processors.

• Common compiler features that are supported across Windows, Linux, and Mac OS include:

— General optimization settings.

— Cache-management features.

— Interprocedural optimization (IPO) methods.

— Profile-guided optimization (PGO) methods.

— Multithreading support.

— Floating-point arithmetic precision and consistency support.

— Compiler optimization and vectorization reports.

GENERAL OPTIMIZATION GUIDELINES

3.1.2

General Compiler Recommendations

Generally speaking, a compiler tuned for a target microarchitecture can be expected to match or outper-

form hand-coding. However, if performance problems are noted with the compiled code, some compilers

(like Intel C++ and Fortran compilers) allow the coder to insert intrinsics or inline assembly to exert

control over generated code. If inline assembly is used, the user must verify that the code generated is

high quality and yields good performance.

Default compiler switches are targeted for common cases. An optimization may be made to the compiler

default if it benefits most programs. If the root cause of a performance problem is a poor choice on the

part of the compiler, using different switches or compiling the targeted module with a different compiler

may be the solution. See the “Quick Reference Guide to Optimization with Intel® C++ and Fortran

Compilers” for additional suggestions on compiler Optimization Options, including processor-specific

ones.

3.1.3

VTune™ Performance Analyzer

VTune uses performance monitoring hardware to collect statistics and coding information about your

application and its interaction with the microarchitecture. This allows software engineers to measure

performance characteristics of the workload for a given microarchitecture. VTune supports all current

and past Intel processor families.

The VTune Performance Analyzer provides two kinds of feedback:

• Indication of a performance improvement gained by using a specific coding recommendation or

microarchitectural feature.

• Information on whether a change in the program has improved or degraded performance with

respect to a particular metric.

The VTune Performance Analyzer also provides measures for a number of workload characteristics,

including:

• Retirement throughput of instruction execution as an indication of the degree of extractable

instruction-level parallelism in the workload.

• Data traffic locality as an indication of the stress point of the cache and memory hierarchy.

• Data traffic parallelism as an indication of the degree of effectiveness of amortization of data access

latency.

NOTE

Improving performance in one part of the machine does not necessarily bring significant

gains to overall performance. It is possible to degrade overall performance by improving

performance for some particular metric.

Where appropriate, coding recommendations in this chapter include descriptions of the VTune Perfor-

mance Analyzer events that provide measurable data on the performance gain achieved by following the

recommendations. For more on using the VTune analyzer, refer to the application’s online help.

3.2

PROCESSOR PERSPECTIVES

Many coding recommendations work well across current microarchitectures. However, there are situa-

tions where a recommendation may benefit one microarchitecture more than another.

3.2.1

CPUID Dispatch Strategy and Compatible Code Strategy

When optimum performance on all processor generations is desired, applications can take advantage of

the CPUID instruction to identify the processor generation and integrate processor-specific instructions

3-2

GENERAL OPTIMIZATION GUIDELINES

into the source code. The Intel C++ Compiler supports the integration of different versions of the code

for different target processors. The selection of which code to execute at runtime is made based on the

CPU identifiers. Binary code targeted for different processor generations can be generated under the

control of the programmer or by the compiler. Refer to the “Intel® C++ Compiler Classic Developer

Guide and Reference” cpu_dispatch and cpu_specific sections for more information on CPU dispatching

(a.k.a function multi-versioning).

For applications that target multiple generations of microarchitectures, and where minimum binary code

size and single code path is important, a compatible code strategy is the best. Optimizing applications

using techniques developed for the Intel Core microarchitecture combined with Nehalem microarchitec-

ture are likely to improve code efficiency and scalability when running on processors based on current

and future generations of Intel 64 and IA-32 processors.

3.2.2

Transparent Cache-Parameter Strategy

If the CPUID instruction supports function leaf 4, also known as deterministic cache parameter leaf, the

leaf reports cache parameters for each level of the cache hierarchy in a deterministic and

forward-compatible manner across Intel 64 and IA-32 processor families.

For coding techniques that rely on specific parameters of a cache level, using the deterministic cache

parameter allows software to implement techniques in a way that is forward-compatible with future

generations of Intel 64 and IA-32 processors, and cross-compatible with processors equipped with

different cache sizes.

3.2.3

Threading Strategy and Hardware Multithreading Support

Intel 64 and IA-32 processor families offer hardware multithreading support in two forms: multi-core

technology and HT Technology.

To fully harness the performance potential of hardware multithreading in current and future generations

of Intel 64 and IA-32 processors, software must embrace a threaded approach in application design. At

the same time, to address the widest range of installed machines, multithreaded software should be able

to run without failure on a single processor without hardware multithreading support and should achieve

performance on a single logical processor that is comparable to an unthreaded implementation (if such

comparison can be made). This generally requires architecting a multithreaded application to minimize

the overhead of thread synchronization. Additional guidelines on multithreading are discussed in Chapter

11, “Multicore and Intel® Hyper-Threading Technology (intel® HT).”

3.3

CODING RULES, SUGGESTIONS, AND TUNING HINTS

This section includes rules, suggestions, and hints. They are targeted for engineers who are:

• Modifying source code to enhance performance (user/source rules).

• Writing assemblers or compilers (assembly/compiler rules).

• Doing detailed performance tuning (tuning suggestions).

Coding recommendations are ranked in importance using two measures:

• Local impact (high, medium, or low) refers to a recommendation’s affect on the performance of a

given instance of code.

• Generality (high, medium, or low) measures how often such instances occur across all application

domains. Generality may also be thought of as “frequency.”

These recommendations are approximate. They can vary depending on coding style, application domain,

and other factors.

The purpose of the high, medium, and low (H, M, and L) priorities is to suggest the relative level of

performance gain one can expect if a recommendation is implemented.

3-3

GENERAL OPTIMIZATION GUIDELINES

Because it is not possible to predict the frequency of a particular code instance in applications, priority

hints cannot be directly correlated to application-level performance gain. In cases in which applica-

tion-level performance gain has been observed, we have provided a quantitative characterization of the

gain (for information only). In cases in which the impact has been deemed inapplicable, no priority is

assigned.

3.4

OPTIMIZING THE FRONT END

Optimizing the front end covers two aspects:

• Maintaining steady supply of micro-ops to the execution engine — Mispredicted branches can disrupt

streams of micro-ops, or cause the execution engine to waste execution resources on executing

streams of micro-ops in the non-architected code path. Much of the tuning in this respect focuses on

working with the Branch Prediction Unit. Common techniques are covered in Section 3.4.1, “Branch

Prediction Optimization.”

• Supplying streams of micro-ops to utilize the execution bandwidth and retirement bandwidth as

much as possible — For Intel Core microarchitecture and Intel Core Duo processor family, this aspect

focuses maintaining high decode throughput. In Sandy Bridge microarchitecture, this aspect focuses

on keeping the hot code running from Decoded ICache. Techniques to maximize decode throughput

for Intel Core microarchitecture are covered in Section 3.4.2, “Fetch and Decode Optimization.”

3.4.1

Branch Prediction Optimization

Branch optimizations have a significant impact on performance. By understanding the flow of branches

and improving their predictability, you can increase the speed of code significantly.

Optimizations that help branch prediction are:

• Keep code and data on separate pages. This is very important; see Section 3.6, “Optimizing Memory

Accesses,” for more information.

• Eliminate branches whenever possible.

• Arrange code to be consistent with the static branch prediction algorithm.

• Use the PAUSE instruction in spin-wait loops.

• Inline functions and pair up calls and returns.

• Unroll as necessary so that repeatedly-executed loops have sixteen or fewer iterations (unless this

causes an excessive code size increase).

• Avoid putting multiple conditional branches in the same 8-byte aligned code block (i.e, have their last

bytes' addresses within the same 8-byte aligned code) if the lower 6 bits of their target IPs are the

same. This restriction has been removed in Ice Lake Client and later microarchitectures.

3.4.1.1

Eliminating Branches

Eliminating branches improves performance because:

• It reduces the possibility of mispredictions.

• It reduces the number of required branch target buffer (BTB) entries. Conditional branches that are

never taken do not consume BTB resources.

There are four principal ways of eliminating branches:

• Arrange code to make basic blocks contiguous.

• Unroll loops, as discussed in Section 3.4.1.6, “Loop Unrolling.”

• Use the CMOV instruction.

• Use the SETCC instruction.

3-4

GENERAL OPTIMIZATION GUIDELINES

The following rules apply to branch elimination:

Assembly/Compiler Coding Rule 1. (MH impact, M generality) Arrange code to make basic blocks

contiguous and eliminate unnecessary branches.

Assembly/Compiler Coding Rule 2. (M impact, ML generality) Use the SETCC and CMOV

instructions to eliminate unpredictable conditional branches where possible. Do not do this for

predictable branches. Do not use these instructions to eliminate all unpredictable conditional branches

(because using these instructions will incur execution overhead due to the requirement for executing

both paths of a conditional branch). In addition, converting a conditional branch to SETCC or CMOV

trades off control flow dependence for data dependence and restricts the capability of the out-of-order

engine. When tuning, note that all Intel 64 and IA-32 processors usually have very high branch

prediction rates. Consistently mispredicted branches are generally rare. Use these instructions only if

the increase in computation time is less than the expected cost of a mispredicted branch.

Consider a line of C code that has a condition dependent upon one of the constants:

X = (A < B)  CONST1 : CONST2;

This code conditionally compares two values, A and B. If the condition is true, X is set to CONST1; other-

wise it is set to CONST2. An assembly code sequence equivalent to the above C code can contain

branches that are not predictable if there are no correlation in the two values.

Example 3-1 shows the assembly code with unpredictable branches. The unpredictable branches can be

removed with the use of the SETCC instruction. Example 3-2 shows optimized code that has no

branches.

Example 3-1. Assembly Code with an Unpredictable Branch

cmp a, b

; Condition

jbe L30

; Conditional branch

mov ebx const1

; ebx holds X

jmp L31

; Unconditional branch

L30:

mov ebx, const2

L31:

Example 3-2. Code Optimization to Eliminate Branches

xor ebx, ebx

; Clear ebx (X in the C code)

cmp A, B

setge bl

; When ebx = 0 or 1

; OR the complement condition

sub ebx, 1

; ebx=11...11 or 00...00

and ebx, CONST3; CONST3 = CONST1-CONST2

add ebx, CONST2; ebx=CONST1 or CONST2

The optimized code in Example 3-2 sets EBX to zero, then compares A and B. If A is greater than or equal

to B, EBX is set to one. Then EBX is decreased and AND’d with the difference of the constant values. This

sets EBX to either zero or the difference of the values. By adding CONST2 back to EBX, the correct value

is written to EBX. When CONST2 is equal to zero, the last instruction can be deleted.

Another way to remove branches is to use the CMOV and FCMOV instructions. Example 3-3 shows how to

change a TEST and branch instruction sequence using CMOV to eliminate a branch. If the TEST sets the

equal flag, the value in EBX will be moved to EAX. This branch is data-dependent, and is representative

of an unpredictable branch.

3-5

Intel 64 and IA-32 Architectures. Software Developer’s Manual (Collection, 2023) - page 140
