Rear Cross-Traffic Collision Warning (RCCW)

NOTICE

If the engine is restarted, Warning Tim

ing and Warning Volume will maintain
the last setting.

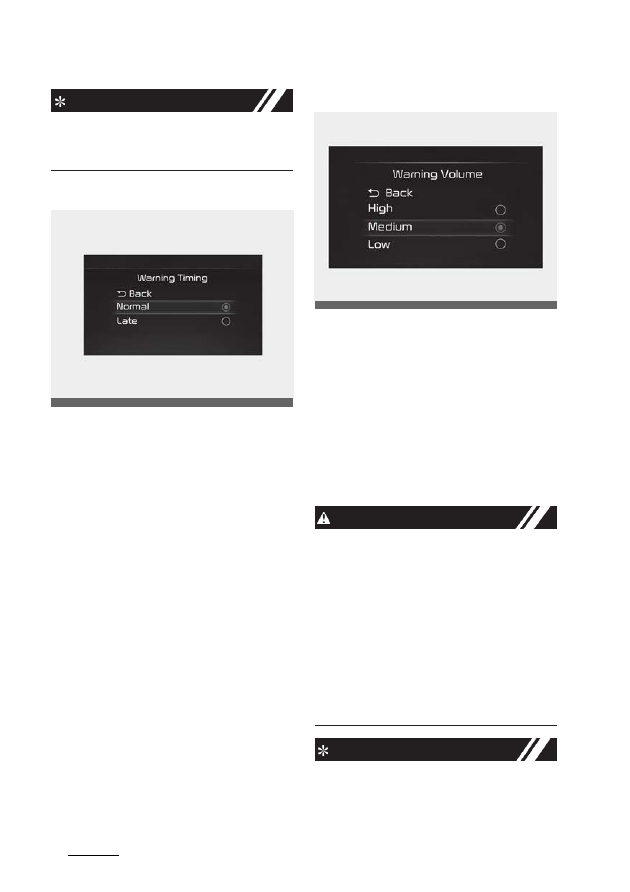

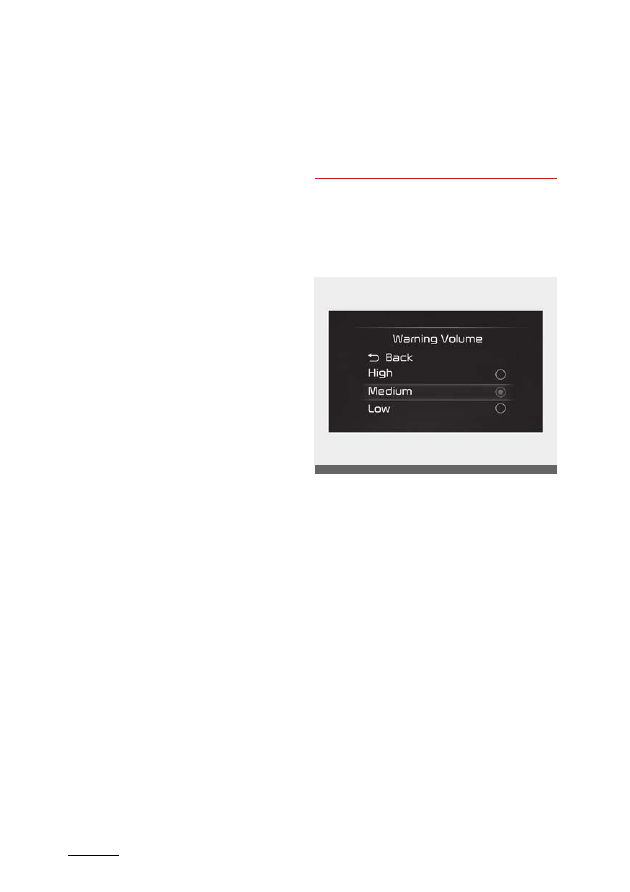

Warning Timing

With the ignition switch or ENGINE
START/STOP button in the ON position,
select 'Driver Assistance

→ Warning

Timing' from the 'User Settings (LCD dis

play) or Setup

→ Vehicle (Infotainment

System screen)' to change the initial
warning activation time for Rear Cross-
Traffic Collision Warning.

When the vehicle is first delivered, Warn

ing Timing is set to

‘Normal’. If you

change the Warning Timing, the Warn

ing Timing of other Driver Assistance
systems may change.

Warning Volume

With the ignition switch or ENGINE

START/STOP button in the ON position,
select

‘Driver Assistance → Warning Vol

ume’ from the 'User Settings (LCD dis

play) or Setup

→ Vehicle (Infotainment

System screen)' to change the Warning
Volume to

‘High’, ‘Medium’, ‘Low’ for

Rear Cross-Traffic Collision Warning.

If you change the Warning Volume, the
Warning Volume of other Driver Assis

tance systems may change.

CAUTION

• The setting of the Warning Timing

and Warning Volume applies to all
functions of Rear Cross-Traffic Colli

sion Warning.

• Even though ‘Normal’ is selected for

Warning Timing, if a vehicle from the
left or right side approaches at high
speed, the warning may seem late.

• Select ‘Late’ for Warning Timing when

traffic is light and when driving speed
is slow.

NOTICE

If the ENGINE START/STOP button
is changed to the ON position,
Warning

OMQ4AH050334

OBD041619L

Driving assistance system

Rear Cross-Traffic Collision Warning (RCCW)

Timing and Warning Volume will main

tain the last setting.

Rear Cross-Traffic Collision
Warning

Rear Cross-Traffic Collision Warning will
warning the driver when a collision is
imminent.

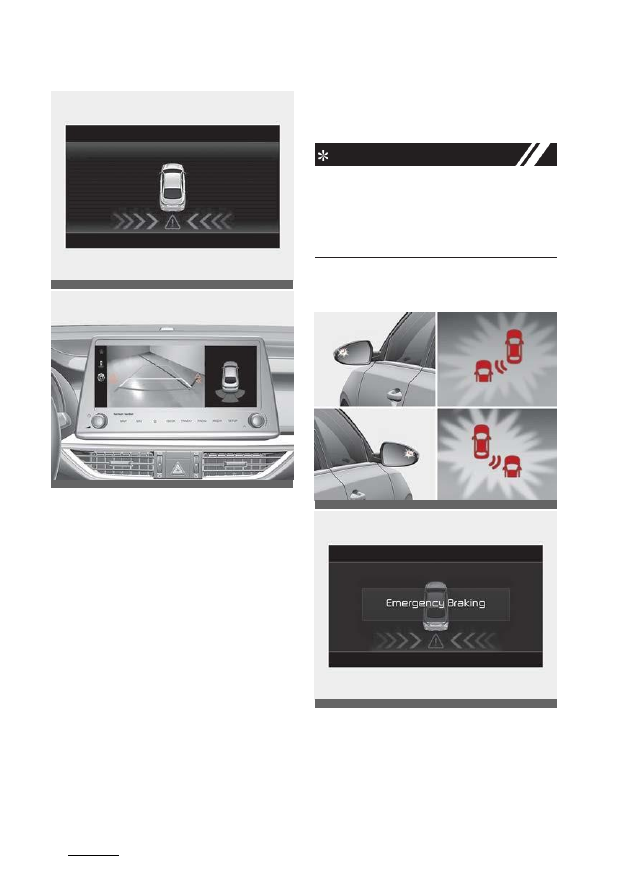

Collision warning

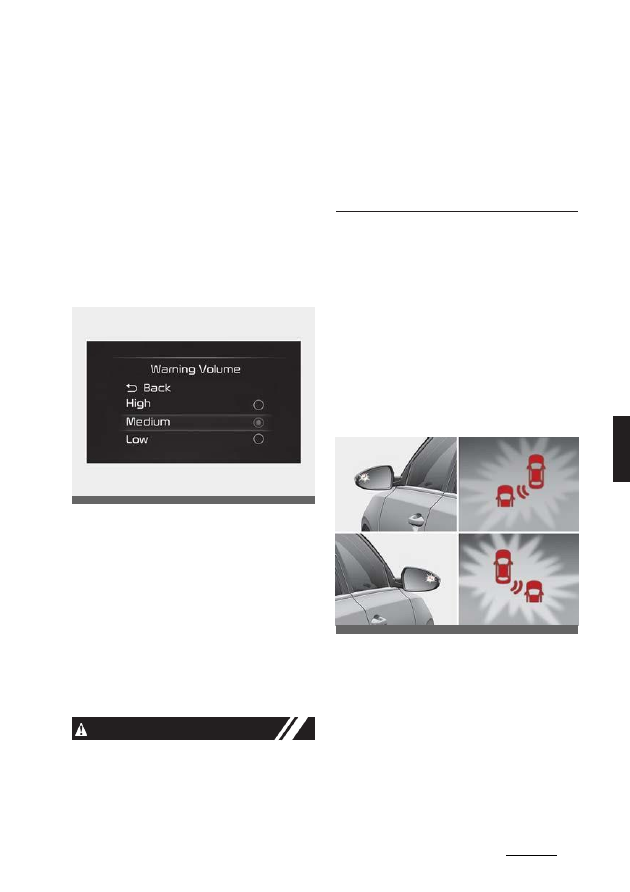

To warn the driver of an approaching
vehicle from the rear left/right side of your
vehicle, the side view mirror will blink and
a warning will appear on the cluster. At
the same time, an audible warning will
sound. If Rear View Monitor is operating,
a warning will also appear on the
infotainment screen.

Rear Cross-Traffic Collision Warning will
operate when the following conditions
are satisfied:
• Your vehicle gear is shifted to R

(Reverse)

• Your vehicle speed is below 5 mph (8

km/h)

• The approaching vehicle is within

approximately 82 feet (25 m) from the
left or right side of your vehicle

• The speed of the vehicle approaching

from the left or right side is above 3
mph (5 km/h)

NOTICE

If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).

Rear Cross-Traffic Collision
Warning malfunction and limita

tions

Rear Cross-Traffic Collision
Warning malfunction

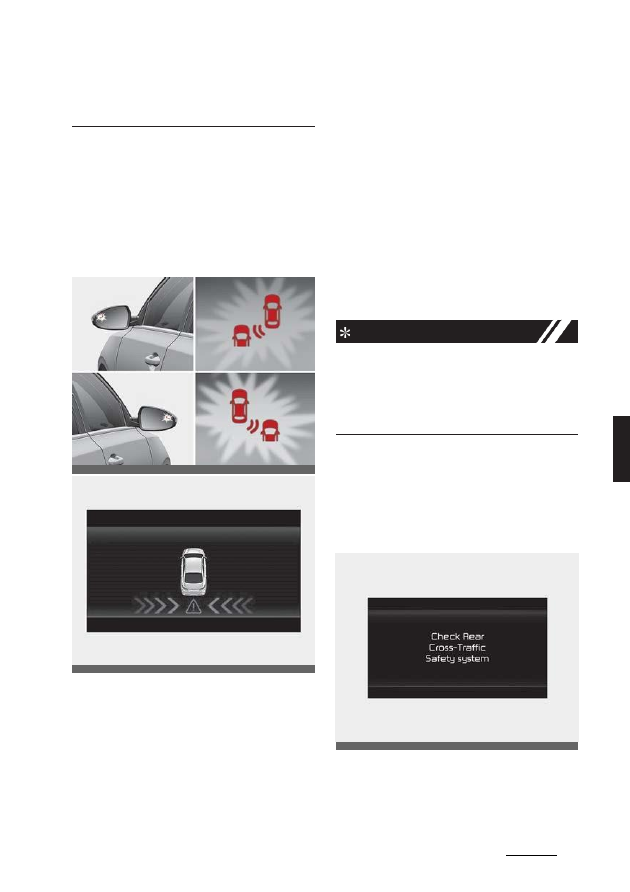

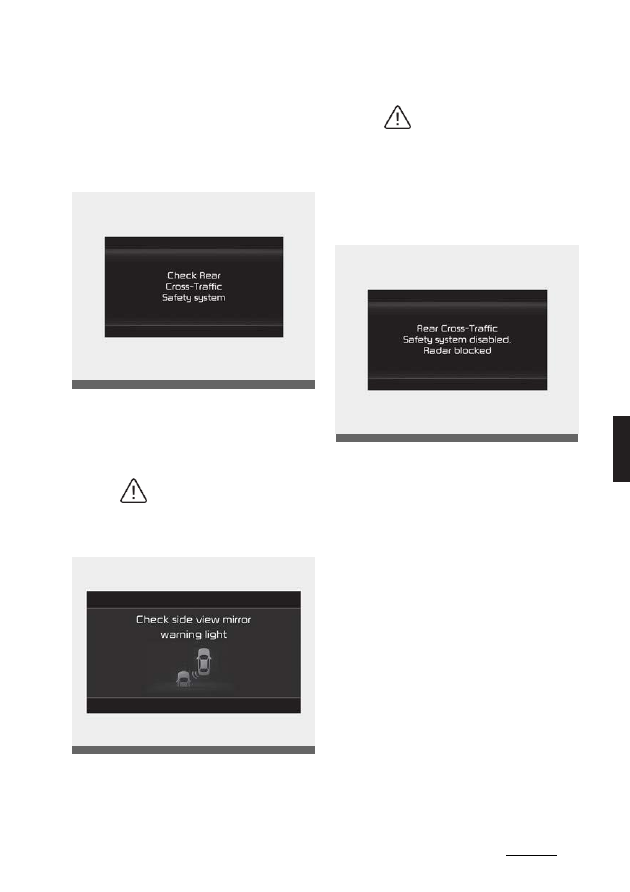

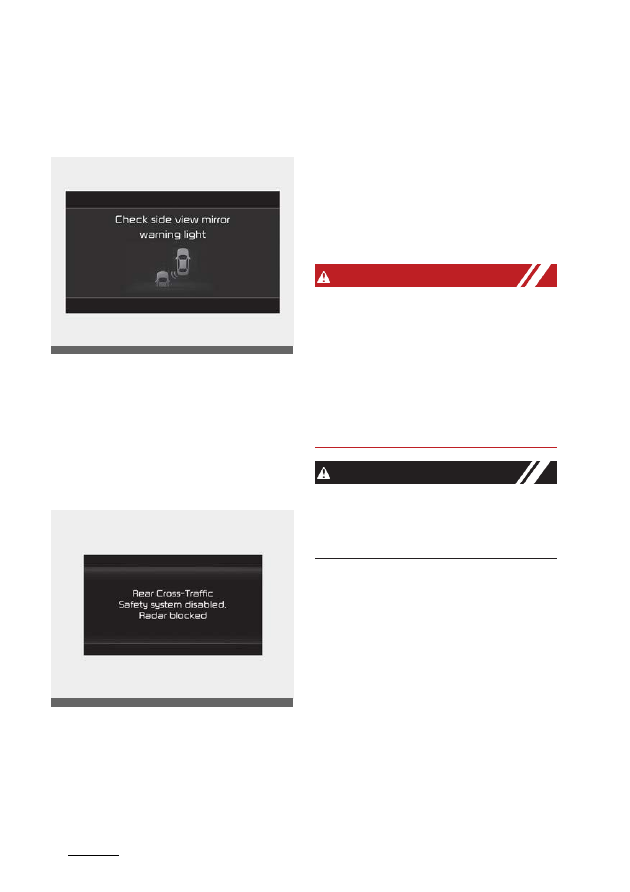

When Rear Cross-Traffic Collision Warn

ing is not working properly, the 'Check
Rear Cross-Traffic Safety system' warn

ing message will appear on the cluster,

OBD051385L

OBD041269

OMQ4050290L

Driving assistance system

Rear Cross-Traffic Collision Warning (RCCW)

and the function will turn off automati

cally, or the function will be limited. In this
case, have your vehicle inspected by an
authorized Kia dealer.

When the side view mirror warning light
is not working properly, the 'Check side
view mirror warning light' warning mes

sage will appear on the cluster. In this
case, have your vehicle inspected by an
authorized Kia dealer.

Rear Cross-Traffic Collision
Warning disabled

When the rear bumper around the rear-
side radar or sensor is covered with for

eign matters, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and tempo

rarily limit or disable Rear Cross-Traffic
Collision Warning.

If this occurs, the 'Rear Cross-Traffic
Safety disabled. Radar blocked' warning
message will appear on the cluster.

Rear Cross-Traffic Collision Warning will
operate properly when such foreign
matters or trailer, etc. is removed.

If Rear Cross-Traffic Collision Warning
does not operate properly after it is
removed, have the function be
inspected by an authorized Kia dealer.

W ARNING

• Even though the warning message

does not appear on the cluster, Rear
Cross-Traffic Collision Warning may
not properly operate.

• Rear Cross-Traffic Collision Warning

may not properly operate in an area
(for example, open terrain), where any
objects are not detected after turning
ON the engine.

CAUTION

Turn off Rear Cross-Traffic Collision
Warning to install a trailer, carrier, etc., or
remove the trailer, carrier, etc. to use
Rear Cross-Traffic Collision Warning.

Limitations of Rear Cross-Traffic
Collision Warning

Rear Cross-Traffic Collision Warning
may not operate properly or it may
operate unexpectedly under the follow

ing circumstances:
• Departing from where trees or grass

is overgrown

• Departing from where roads are wet

僅

Speed of the approaching vehicle is
fast or slow

OBD041240L

OMQ4050292L

Driving assistance system

Rear Cross-Traffic Collision Warning (RCCW)

CAUTION

For more details on the limitations of the
rear corner radar, refer to "Blind-Spot
Collision Warning (BCW) (if equipped)"
on page 6-32.

W ARNING

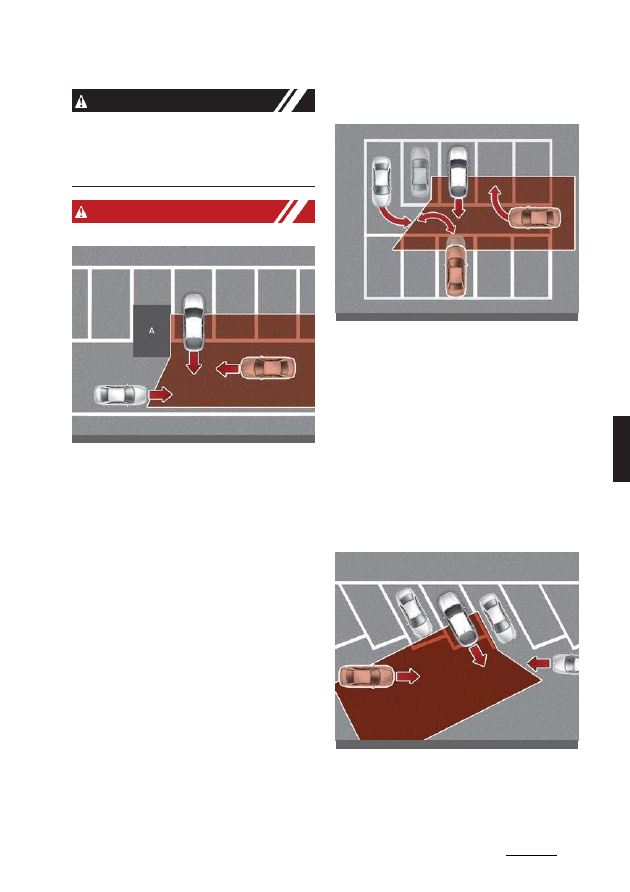

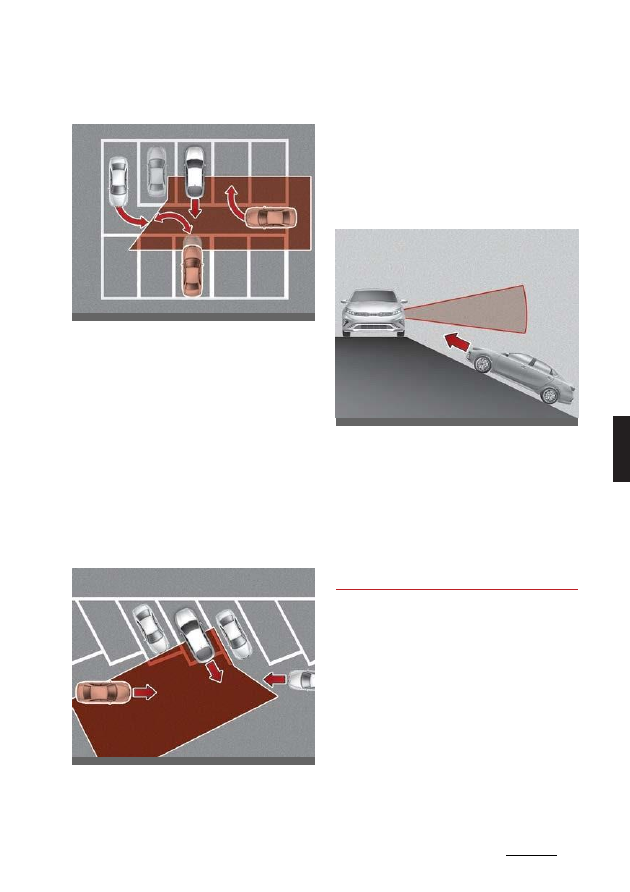

• Driving near a vehicle or structure

[A]: Structure
Rear Cross-Traffic Collision Warning
may be limited when driving near a vehi

cle or structure, and may not detect the
vehicle approaching from the left or right.
If this occurs, the function may not warn
the driver.

Always check your surroundings while
backing up.

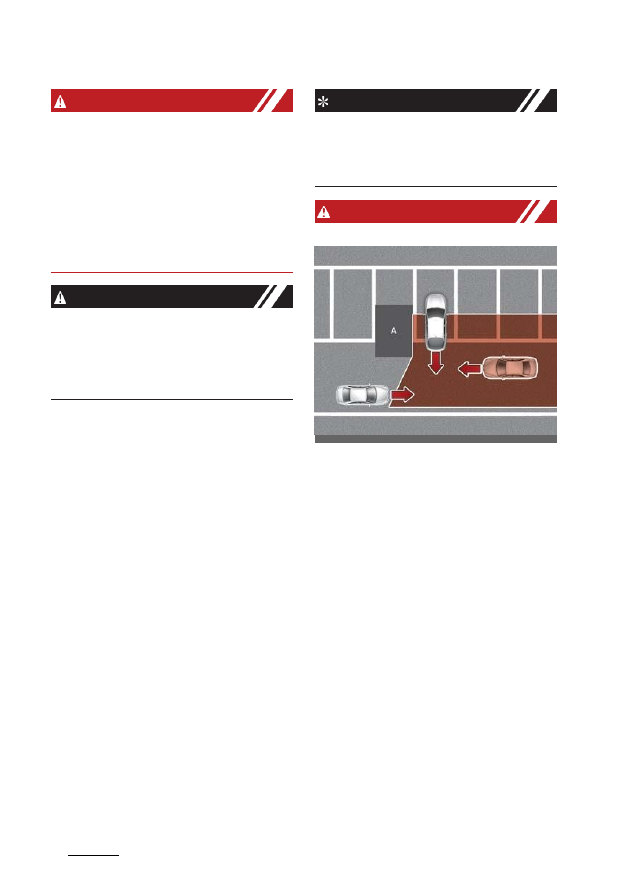

• When the vehicle is in a complex

parking environment

Rear Cross-Traffic Collision Warning
may detect vehicles which are parking
or pulling out near your vehicle (for
example, a vehicle leaving beside your
vehicle, a vehicle parking or pulling out
in the rear area, a vehicle approaching
your vehicle making a turn, etc.). If this
occurs, the function may unnecessarily
warn the driver.

Always check your surroundings while
backing up.

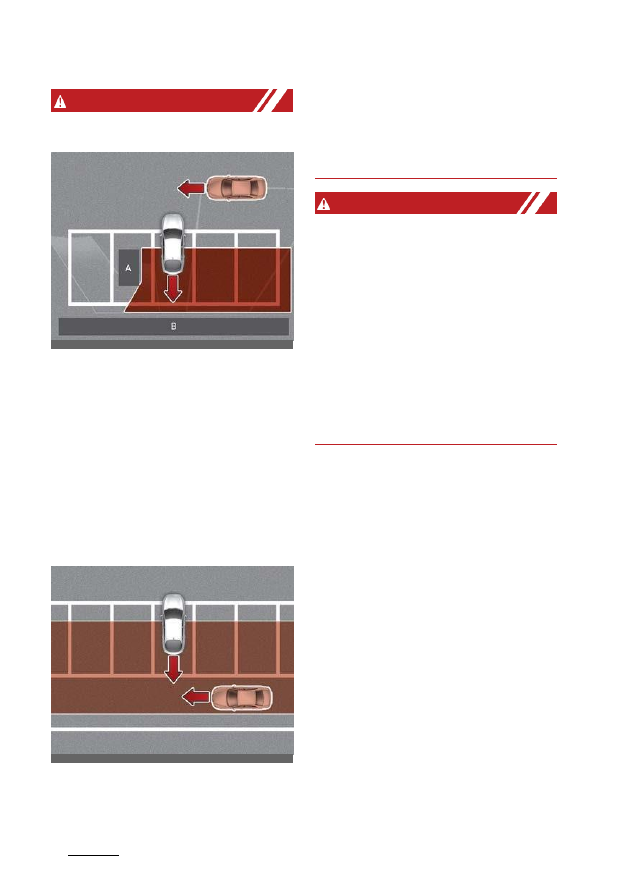

• When the vehicle is parked diago

nally

[A]: Vehicle
Rear Cross-Traffic Collision Warning
may be limited when backing up diago

nally, and may not detect the vehicle

ODL3A052407

ODL3A052408

ODL3A052409

Driving assistance system

100

Rear Cross-Traffic Collision Warning (RCCW)

approaching from the left or right. If this
occurs, the function may not warn the
driver.

Always check your surroundings while
backing up.

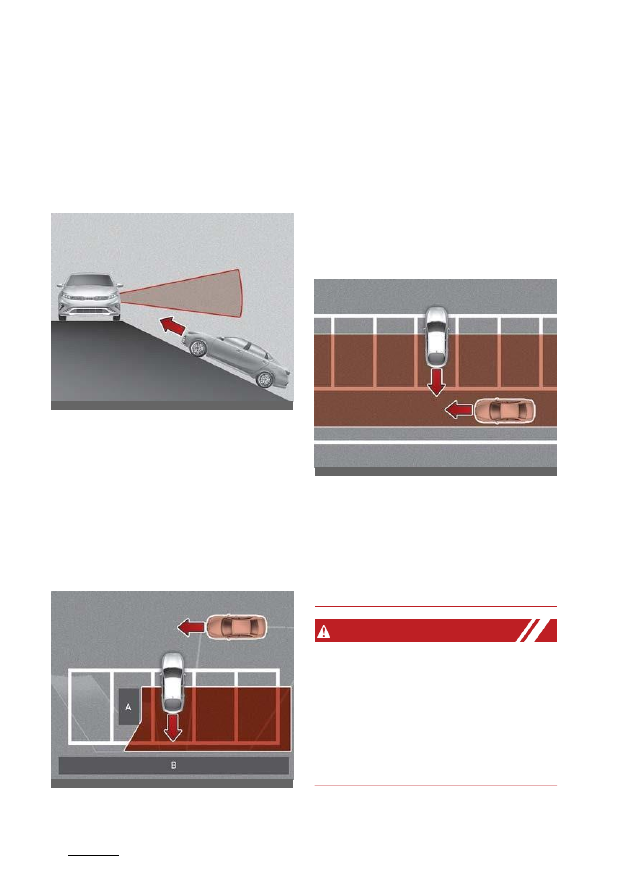

• When the vehicle is on or near a

slope

Rear Cross-Traffic Collision Warning
may be limited when the vehicle is on a
uphill or downhill slope, or near it, and
may not detect the vehicle approaching
from the left or right. If this occurs, the
function may not warn the driver.

Always check your surroundings while
backing up.

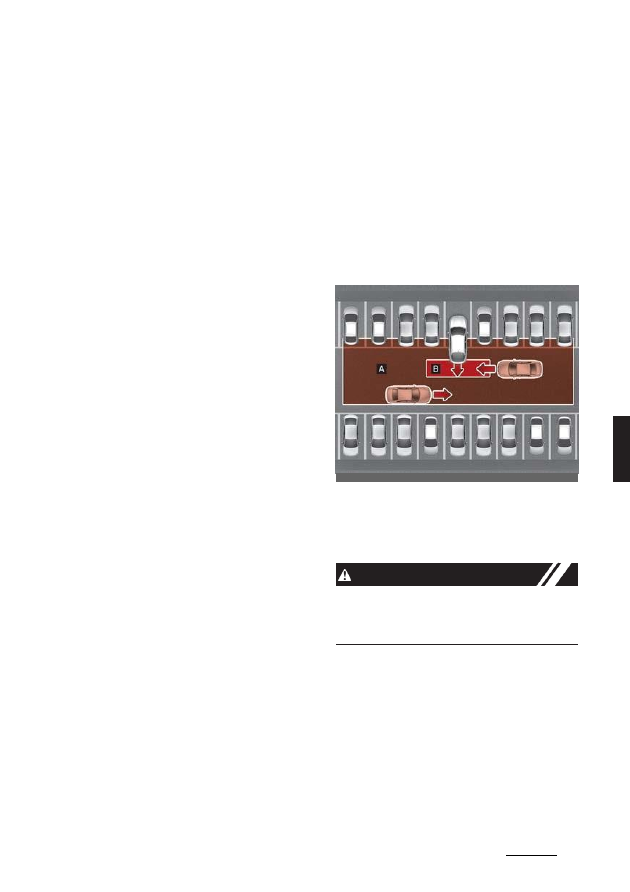

• Pulling into the parking space

where there is a structure

[A]: Structure, [B]: Wall

Rear Cross-Traffic Collision Warning
may detect vehicles passing by in front
of you when parking backwards into a
parking space with a wall or structure in
the rear or side area. If this occurs, the
function may unnecessarily warn the
driver.

Always check your surroundings while
backing up.
• When the vehicle is parked rear

ward

Rear Cross-Traffic Collision Warning
may detect vehicles passing by behind
you when parking backwards into a
parking space. If this occurs, the func

tion may unnecessarily warn the driver.

Always check your surroundings while
backing up.

W ARNING

• Rear Cross-Traffic Collision Warning

may not operate properly if interfered
with by strong electromagnetic
waves.

• Rear Cross-Traffic Collision Warning

may not operate for 3 seconds after
the vehicle is started, or the rear cor

ner radars are initialized.

OBDM052399N

ODL3A052410

ODL3A052411

101

Driving assistance system

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

This device complies with Part 15
of the FCC rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interfer

ence received, including interference
that may cause undesired operation.

3. Changes or modifications not

expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.

Radio frequency radiation expo

sure information:

This equipment complies with FCC radi

ation exposure limits set forth for an
uncontrolled environment.

This equipment should be installed and
operated with minimum distance of 8 in
(20 cm) between the radiator and your
body.

This transmitter must not be co-located
or operating in conjunction with any other
antenna or transmitter.

Rear Cross-Traffic Collision-
Avoidance Assist (RCCA) (if
equipped)

Rear Cross-Traffic Collision-Avoidance
Assist is designed to detect vehicles
approaching from the rear left and right
side while your vehicle is reversing, and
warning the driver that a collision is
imminent with a warning message and an
audible warning. Also, to help prevent
collisions, braking assist may be applied.

: Rear Cross-Traffic Collision Warning

operating range

: Rear Cross-Traffic Collision-Avoid

ance Assist operating range

CAUTION

Warning Timing may vary depending on
vehicle speed of the approaching vehi

cle.

OBDM052417N

Driving assistance system

102

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

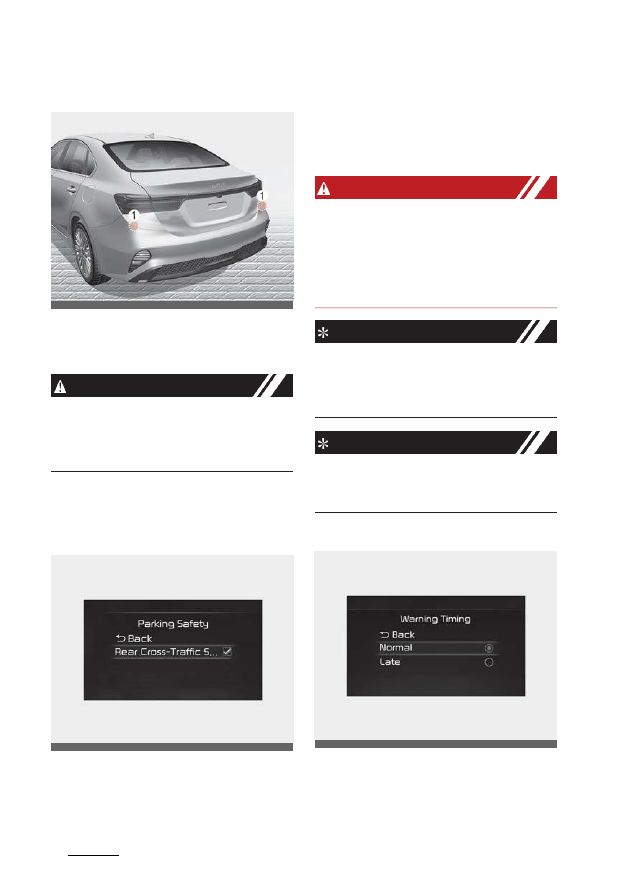

Detecting sensor

[1]: Rear corner radar
Refer to the picture above for the detailed
location of the detecting sensor.

CAUTION

For more details on the precautions of
the rear corner radar, refer to "Blind- Spot
Collision-Avoidance Assist (BCA) (if
equipped)" on page 6-41.

Rear Cross-Traffic Collision-
Avoidance Assist setting

Rear Cross-Traffic Safety

With the ignition switch or ENGINE
START/STOP button in the ON
position, select 'Driver Assistance

→

Parking Safety

→ Rear Cross-Traffic

Safety' from

the 'User Settings (LCD display) or Setup

→ Vehicle (Infotainment System screen)'

menu to turn on Rear Cross-Traffic Colli

sion-Avoidance Assist and deselect to
turn off the function.

W ARNING

When the engine is restarted, Rear
Cross-Traffic Collision-Avoidance Assist
will always turn on. However, if 'Off' is
selected after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.

NOTICE

Settings for Rear Cross-Traffic Collision-
Avoidance Assist include Rear Cross-
Traffic Collision Warning and Rear
Cross-Traffic Collision-Avoidance Assist.

NOTICE

If the engine is restarted, Warning Tim

ing and Warning Volume will maintain
the last setting.

Warning Timing

With the ignition switch or ENGINE
START/STOP button in the ON position,
select 'Driver Assistance

→ Warning

Timing' from the 'User Settings (LCD dis

OBDM052367N

OBD041259L

OMQ4AH050334

103

Driving assistance system

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

play) or Setup

→ Vehicle (Infotainment

System screen)' menu to change the ini

tial warning activation time for Rear
Cross-Traffic Collision-Avoidance Assist.

When the vehicle is first delivered, warn

ing timing is set to Normal. If you change
the Warning Timing, the Warning Timing
of other Driver Assist systems may
change.

Always be aware before changing the
Warning Timing.

Warning Volume

With the ignition switch or ENGINE
START/STOP button in the ON position,
select 'Driver Assistance

→ Warning Vol

ume' from the 'User Settings (LCD dis

play) or Setup

→ Vehicle (Infotainment

System screen)' menu to change the
Warning Volume to 'High', 'Medium' or
'Low' for Rear Cross-Traffic Collision-
Avoidance Assist.

If you change the Warning Volume, the
Warning Volume of other Driver Assis

tance systems may change.

CAUTION

• The setting of the Warning Timing

and Warning Volume applies to all
functions of Rear Cross-Traffic Colli

sion-Avoidance Assist.

• Even though ‘Normal’ is selected for

Warning Timing, if a vehicle from the
left or right side approaches at high
speed, the warning may seem late.

• Select ‘Late’ for Warning Timing when

traffic is light and when driving speed
is slow.

Rear Cross-Traffic Collision-
Avoidance Assist operation

Warning and control

Rear Cross-Traffic Collision-Avoidance
Assist will provide a warning and control
the vehicle depending on collision level:
'Collision warning', 'Emergency braking'
and 'Stopping vehicle and ending brake
control'.

Collision warning

OBD041619L

OBD051385L

Driving assistance system

104

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

• To warn the driver of an approaching

vehicle from the rear left/right side of
your vehicle, the warning light on the
side view mirror will blink and a warn

ing message will appear on the clus

ter. At the same time, an audible
warning will sound.

• Rear Cross-Traffic Collision-Avoid

ance Assist will operate when the fol

lowing conditions are satisfied:

- Your vehicle gear is shifted to R

(Reverse)

- Your vehicle speed is below 5 mph

(8 km/h)

- The approaching vehicle is within

approximately 82 ft. (25 m) from the
left or right side of your vehicle

- The speed of the vehicle approach

ing from the left or right side is
above 3 mph (5 km/h)

NOTICE

If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).

Emergency Braking

OBD041269

OBDM043676N

OBD051385L

OBD041246L

105

Driving assistance system

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

• Your vehicle, the warning light on the

side view mirror will blink and a warn

ing message will appear on the clus

ter. At the same time, an audible
warning will sound.

• Rear Cross-Traffic Collision-Avoid

ance Assist will operate when the fol

lowing conditions are satisfied:

- Your vehicle gear is shifted to R

(Reverse)

- Your vehicle speed is below 5 mph

(8 km/h)

- The approaching vehicle is within

approximately 5 ft. (1.5 m) from the
left or right side of your vehicle

- The speed of the vehicle approach

ing from the left or right side is
above 3 mph (5 km/h)

• Emergency braking will be assisted to

help prevent collision with approach

ing vehicles from the left and right.

W ARNING

• Brake control will end when:

- The approaching vehicle is out of

the detecting range

- The approaching vehicle passes

behind your vehicle

- The approaching vehicle does not

drive toward your vehicle

- The approaching vehicle speed

slows down

- The driver depresses the brake

pedal with sufficient power

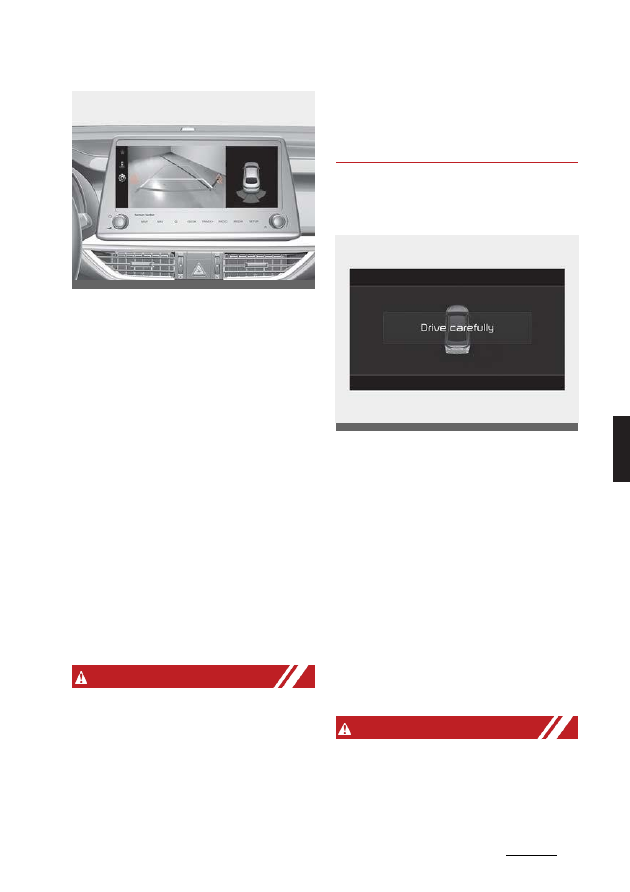

Stopping vehicle and ending
brake control

• When the vehicle is stopped due to

emergency braking, the 'Drive care

fully' warning message will appear on
the cluster.

• For your safety, the driver should

depress the brake pedal immediately
and check the surroundings.

• Brake control will end after the vehicle

is stopped by emergency braking for
approximately 2 seconds.

• During emergency braking, braking

control by Rear Cross-Traffic Colli

sion-Avoidance Assist will automati

cally cancel when the driver
excessively depresses the brake
pedal.

W ARNING

• For your safety, change the settings

after parking the vehicle at a safe
location.

• If any other function’s warning mes

sage is displayed or audible warning

OBDM043676N

OBD041247L

Driving assistance system

106

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

is generated, Rear Cross-Traffic
Colli

sion-Avoidance Assist warning

mes

sage may not be displayed and

audible warning may not be gener

ated.

• You may not hear the warning sound

of Rear Cross-Traffic Collision-Avoid

ance Assist if the surrounding is noisy.

• Rear Cross-Traffic Collision-Avoid

ance Assist may not operate if the
driver applies the brake pedal to avoid
collision.

• During Rear Cross-Traffic Collision-

Avoidance Assist operation, the vehi

cle may stop suddenly injuring pas

sengers and shifting loose objects.
Always have the seat belt on and keep
loose objects secured.

• Even if there is a problem with Rear

Cross-Traffic Collision-Avoidance
Assist, the vehicle's basic braking per

formance will operate normally.

W ARNING

• During emergency braking, braking

control by the function will automati

cally cancel when the driver exces

sively depresses the accelerator
pedal.

• Rear Cross-Traffic Collision-Avoid

ance Assist does not operate in all sit

uations and cannot avoid all collisions.

• Rear Cross-Traffic Collision-Avoid

ance Assist may warn the driver late or
may not warn the driver depending on
the road and driving conditions.

• The driver should hold the responsi

bility to control the vehicle. Do not
solely depend on Rear Cross-Traffic
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal

to reduce driving speed or to stop the
vehicle.

• Never deliberately test Rear Cross-

Traffic Collision-Avoidance Assist on
people, animal, objects, etc. It may
cause serious injury or death.

CAUTION

The brake control may not operate
properly depending on the status of ESC
(Electronic Stability Control). There will
only be a warning when:
• The ESC (Electronic Stability

Control) warning light is on

• ESC (Electronic Stability Control)

is engaged in a different function

NOTICE

The driver must immediately depress
the brake pedal and check vehicle sur

roundings.
• Brake control will end when the driver

depresses the brake pedal with suffi

cient power.

• After shifting the gear to R (Reverse),

braking control will operate once for
left and right vehicle approach.

107

Driving assistance system

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

Rear Cross-Traffic Collision-
Avoidance Assist malfunction
and limitations

Rear Cross-Traffic Collision-
Avoidance Assist malfunction

When Rear Cross-Traffic Collision-
Avoidance Assist is not working prop

erly, the 'Check Rear Cross-Traffic
Safety system' warning message will
appear (turns off after a certain time),

and the

warning light will illuminate

on the cluster. In this case, have your
vehicle inspected by an authorized Kia
dealer.

When the warning light on the side view
mirror (outside mirror) is not working
properly, the 'Check side view mirror
warning light' warning message will

appear (turns off after a certain time),

and the

warning light will illuminate

on the cluster. In this case, have your
vehicle inspected by an authorized Kia
dealer.

Rear Cross-Traffic Collision-
Avoidance Assist disabled

When the rear bumper around the rear
corner radar or sensor is covered with
foreign matters, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and tempo

rarily limit or disable Rear Cross-Traffic
Collision-Avoidance Assist.

If this occurs, the 'Rear Cross-Traffic
Safety system disabled. Radar blocked'
warning message will appear on the
cluster. It is not a malfunction.

Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when such
foreign matters or trailer, etc. is
removed.

Always keep the rear view camera and
rear ultrasonic sensors clean.

If Rear Cross-Traffic Collision-Avoid

ance Assist does not operate properly
after it is removed, have the function be
inspected by an authorized Kia dealer.

OMQ4050290L

OBD041240L

OMQ4050292L

Driving assistance system

108

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

W ARNING

• Even though the warning message

does not appear on the cluster, Rear
Cross-Traffic Collision-Avoidance
Assist may not properly operate.

• Rear Cross-Traffic Collision-Avoid

ance Assist may not properly operate
in an area (for example, open terrain),
where any objects are not detected
after turning ON the engine.

CAUTION

Turn off Rear Cross-Traffic Collision-
Avoidance Assist to install a trailer, car

rier, etc., and remove the trailer, carrier,
etc. to use Rear Cross-Traffic Collision-
Avoidance Assist.

Limitations of Rear Cross-Traffic
Collision-Avoidance Assist

Rear Cross-Traffic Collision-Avoidance
Assist may not operate properly or it
may operate unexpectedly under the
following circumstances:
• Departing from where trees or grass

is overgrown

• Departing from where roads are wet

僅

Speed of the approaching vehicle is
fast or slow

Braking control may not work in the fol

lowing circumstances:
• The vehicle severely vibrates while

driving over a bumpy road, uneven
road or concrete patch

• Driving on a slippery surface due to

snow, water puddle, ice, etc.

• The tire pressure is low or a tire is

damaged

• The brake is reworked

NOTICE

For more details on the limitations of the
rear corner radar, refer to "Blind-Spot
Collision-Avoidance Assist (BCA) (if
equipped)" on page 6-41.

W ARNING

• Driving near a vehicle or structure

[A]: Structure
Rear Cross-Traffic Collision-Avoidance
Assist may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching from the
left or right. If this occurs, the function
may not warn the driver or control the
brakes.

Always check your surroundings while
backing up.

ODL3A052407

109

Driving assistance system

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

• When the vehicle is in a complex

parking environment

Rear Cross-Traffic Collision-Avoidance
Assist may detect vehicles which are
parking or pulling out near your vehicle
(for example, a vehicle leaving beside
your vehicle, a vehicle parking or pulling
out in the rear area, a vehicle approach

ing your vehicle making a turn, etc.). If
this occurs, the function may unneces

sarily warn the driver and control the
brake.

Always check your surroundings while
backing up.
• When the vehicle is parked diago

nally

[A]: Vehicle
Rear Cross-Traffic Collision-Avoidance
Assist may be limited when backing up

diagonally, and may not detect the vehi

cle approaching from the left or right. If
this occurs, the function may not warn
the driver or control the brakes.

Always check your surroundings while
backing up.
• When the vehicle is on or near a

slope

Rear Cross-Traffic Collision-Avoidance
Assist may be limited when the vehicle is
on a uphill or downhill slope, or near it,
and may not detect the vehicle
approaching from the left or right. If this
occurs, the function may not warn the
driver or control the brakes.

Always check your surroundings while
backing up.

ODL3A052408

ODL3A052409

OBDM052399N

Driving assistance system

110

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

W ARNING

• Pulling into the parking space

where there is a structure

: Structure, [B]: Wall

Rear Cross-Traffic Collision-Avoidance
Assist may detect vehicles passing by in
front of you when parking backwards into
a parking space with a wall or struc

ture

in the rear or side area. If this occurs, the
function may unnecessarily warn the
driver and control the brake.

Always check your surroundings while
backing up.
• When the vehicle is parked rear

ward

Rear Cross-Traffic Collision-Avoidance
Assist may detect vehicles passing by
behind you when parking backwards

into a parking space. If this occurs, the
function may unnecessarily warn the
driver and control the brake.

Always check your surroundings while
backing up.

W ARNING

• When you are towing a trailer or

another vehicle, we recommend that
Rear Cross-Traffic Collision-Avoid

ance Assist is turned off due to safety
reasons.

• Rear Cross-Traffic Collision-Avoid

ance Assist may not operate normally
if interfered with by strong electro

magnetic waves.

• Rear Cross-Traffic Collision-Avoid

ance Assist may not operate for 3 sec

onds after the vehicle is started, or the
rear corner radars are initialized.

This device complies with Part 15
of the FCC rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interfer

ence received, including interference
that may cause undesired operation.

3. Changes or modifications not

expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.

Radio frequency radiation expo

sure information:

This equipment complies with FCC radi

ation exposure limits set forth for an
uncontrolled environment.

ODL3A052410

ODL3A052411

111

Driving assistance system

Reverse Parking Distance Warning (PDW)

This equipment should be installed and
operated with minimum distance of 8 in
(20 cm) between the radiator and your
body.

This transmitter must not be co-located
or operating in conjunction with any other
antenna or transmitter.

Reverse Parking Distance
Warning (PDW) (if equipped)

Reverse Parking Distance Warning will
warn the driver if an obstacle is detected
when the vehicle is backing up at low
speeds.

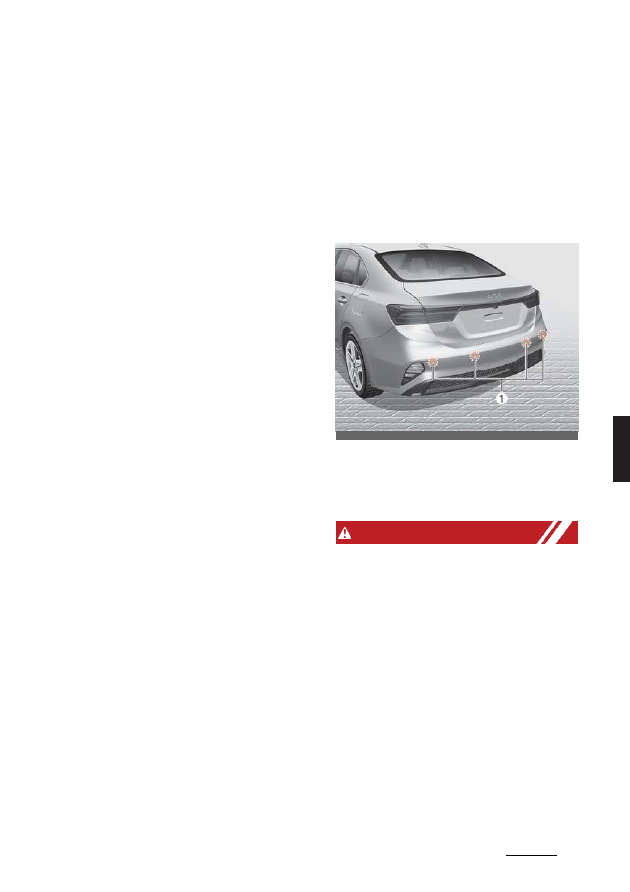

Detecting sensors

[1] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting sen

sors.

W ARNING

• Reverse Parking Distance Warning

may not operate normally when:

- Moisture is frozen on the sensor
- Sensor is covered with foreign mat

ters, such as snow or water

- Outside air temperature is

extremely hot or cold.

- Sensor components are arbitrarily

removed.

- The sensor is pushed, scratched or

stuck with any hard and sharp
objects that could damage the sur

face.

- High pressure water is directly

applied to ultrasonic sensor.

OBDM042001N

Driving assistance system

112

Reverse Parking Distance Warning (PDW)

• Reverse Parking Distance

Warning may malfunction when:

- Driving on uneven road, gravel

roads or bushes

- Objects that generate ultrasonic

waves such as vehicle horns, loud
motorcycle engine sound or truck
air brakes are near the sensor

- Heavy rain or water spray is pres

ent

- Wireless transmitters or mobile

phones are present near the sensor

- The sensor is covered with snow
- Affected by another vehicle's sen

sors

- Water flows on the surface of the

sensor

- Installing the license plate differ

ently from the original location

- The vehicle bumper height or sen

sor installation has been modified.

- Any non-factory equipment or

accessories have been installed.

• The function will operate normally

when such foreign matters are
removed.

• The following objects may not be

detected:

- Sharp or slim objects, such as

ropes, chains or small poles

- Objects, which tend to absorb sen

sor frequency, such as clothes,
spongy material or snow

- Objects smaller than 40 inches

(100 cm) in length and narrower
than 6 inches (14 cm) in diameter

- People, animal or objects located

very close to the sensor.

• The indicator may operate differently

when the people, animal or obstacle is
located between sensors.

• Parking Distance Warning may not

occur sequentially depending on vehi

cle speed or obstacle shape.

• Have your vehicle inspected by an

authorized Kia dealer.

Reverse Parking Distance Warn

ing setting

Warning Volume

With the ignition switch or the ENGINE
START/STOP button in the ON position,
select 'Driver Assistance

→ Warning Vol

ume' from the Settings menu to change
the Warning Volume to 'High',

‘Medium’

‘Low’ for Reverse Parking Distance

Warning.

If you change the Warning Volume, the
Warning Volume of other Driver Assis

tance functions may change.

Reverse Parking Distance Warn

ing operation

Operating conditions

• Reverse Parking Distance Warning

activates when the gear is R
(Reverse) position.

• Reverse Parking Distance Warning

assists the driver during reverse
movement of the vehicle by chiming if

OBD041619L

113

Driving assistance system

Reverse Parking Distance Warning (PDW)

any people, animal, or object is
sensed when the vehicle speed is
below 6 mph (10 km/h).

• When an obstacle is detected, it is dis

played on the cluster and infotain

ment system screen.

• When more than two objects are

detected at the same time, the closest
one will be alerted with an audible
warning.

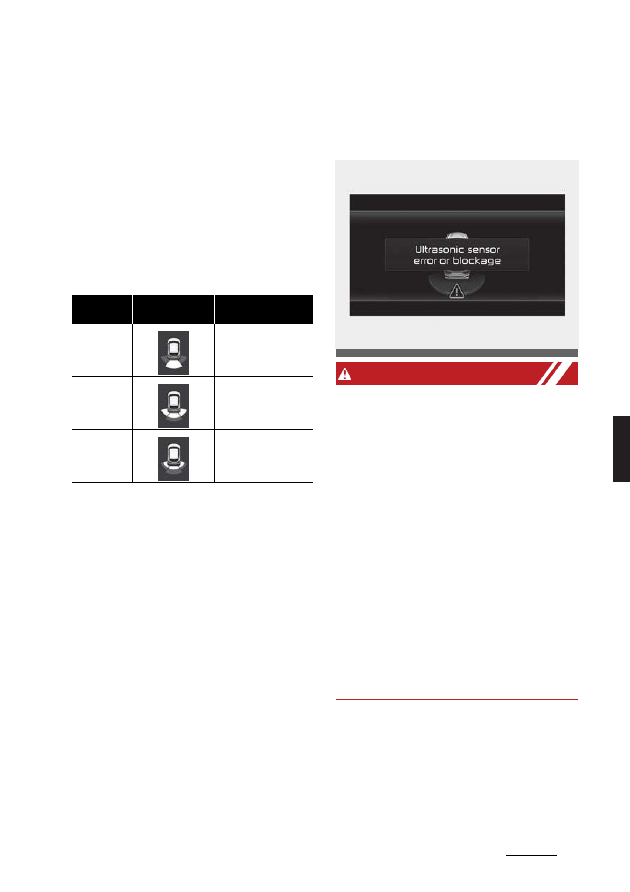

Types of warning sound and indicator

The shape of the indicator in the illustra

tion may differ from the actual vehicle.

Reverse Parking Distance Warn

ing malfunction and precautions

Reverse Parking Distance Warn

ing malfunction

After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate the function is
operating normally.

However, if one or more of the following
occurs, first check whether the ultra

sonic senior is damaged or whether the
function is in a non-operating condition. If
it still does not work properly, We rec

ommend that you have your vehicle
inspected by an authorized Kia dealer.
• The audible warning does not sound.

• The buzzer sounds intermittently.
• The 'Ultrasonic sensor error or block

age' warning message appears on the
cluster.

W ARNING

• Reverse Parking Distance Warning is

a supplemental function. The opera

tion of the function can be affected by
several factors (including environ

mental conditions). It is the responsi

bility of the driver to always check the
rear view before and while parking.

• Pay close attention when driving near

objects, pedestrians, and especially
children.

• Some objects may not be detected by

the ultrasonic sensors due to the
objects distance, size or material, all of
which can limit the effectiveness of the
sensor.

• Your new vehicle warranty does not

cover any accidents or damage to the
vehicle or injuries to its occupants.

Distance

from object

Warning indicator

Warning sound

24~48
inches

(60~120 cm)

Buzzer beeps inter

mittently

12~24

inches

(30~60 cm)

Buzzer beeps fre

quently

within 12

inches (30

cm)

Buzzer beeps contin

uously

OBD041550L

What to do in an emergency

Road warning................................................................................. 7-3

•

Hazard warning flasher................................................................................. 7-
3

In case of an emergency while driving ....................................... 7-3

•

If the engine stalls at a crossroad or crossing..................................... 7-3

僅

If you have a flat tire while driving........................................................... 7-3

•

If engine stalls while driving ........................................................................ 7-
4

If the engine will not start ............................................................ 7-4

•

If engine doesn't turn over or turns over slowly................................. 7-4

•

If engine turns over normally but does not start ............................... 7-4

Emergency

starting ....................................................................... 7-5

•

Jump

starting .....................................................................................................

7-5

•

Push-starting......................................................................................................
7-6

If the engine overheats................................................................. 7-7

Tire Pressure Monitoring System (TPMS) .................................. 7-8

•

Check tire pressure ......................................................................................... 7-
8

•

Low tire pressure telltale............................................................................... 7-
9

•

TPMS malfunction indicator .................................................................... 7-
10

•

Changing a tire with TPMS ........................................................................ 7-
10

If you have a flat tire (with spare tire)...................................... 7-12

•

Jack and tools ...................................................................................................7-
12

•

Removing and storing the spare tire......................................................7-

僅

Changing tires

..................................................................................................7-13

•

Jack label ...........................................................................................................
7-18

If you have a flat tire (with Tire Mobility Kit (TMK)) .............. 7-19

僅

Introduction

......................................................................................................7-20

僅

Notes on the safe use of the TMK ..........................................................7-20

•

Components of the TMK (For 15/16 inch tire) ................................... 7-22

What to do in an emergency

•

Checking the tire inflation pressure ...................................................... 7-26

僅

Technical Data................................................................................................. 7-26

Towing........................................................................................... 7-27

•

Towing service ................................................................................................ 7-
27

•

Removable towing hook ............................................................................. 7-
28

•

Emergency

towing......................................................................................... 7-

What to do in an emergency

Road warning

What to do in an emergency

Road warning

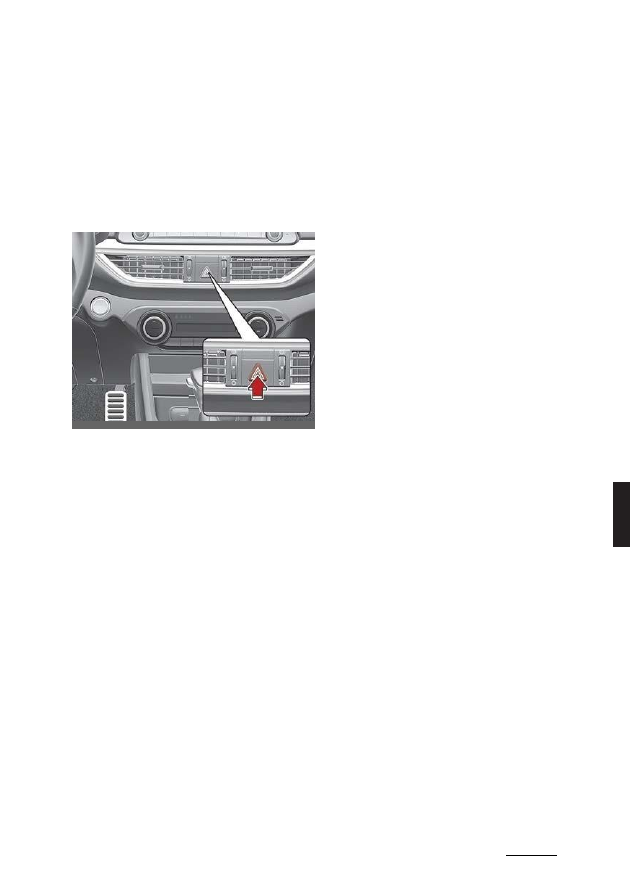

Hazard warning flasher

The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.

It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.

Press the flasher switch with the ignition
switch or ENGINE START/STOP button
in any position. The flasher switch is in
the center console switch panel. All turn
signal lights will flash simultaneously.
• The hazard warning flasher operates

whether your vehicle is running or not.

• The turn signals do not work when the

hazard flasher is on.

• Care must be taken when using the

hazard warning flasher while the vehi

cle is being towed.

In case of an emergency while
driving

If the engine stalls at a crossroad
or crossing

If the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the
vehicle to a safe place.

If you have a flat tire while driv

ing

If a tire goes flat while you are driving:
1. Take your foot off the accelerator

pedal and let the vehicle slowdown
while driving straight ahead.

Do not apply the brakes immediately
or attempt to pull off the road as this
may cause a loss of control. When the
vehicle has slowed down to such a
speed that it is safe to do so, brake
carefully and pull off the road. Drive off
the road as far as possible and park
on a firm level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

2. When the vehicle is stopped, turn on

your emergency hazard flashers, set
the parking brake and put the trans

mission in P (for Intelligent Variable
Transmission) or in reverse (for Man

ual Transmission).

3. Have all passengers exit the vehicle.

Be sure they all get out on the side of
the vehicle that is away from traffic.

4. When changing a flat tire, follow the

instruction provided later in this sec

tion.

OBD061001

What to do in an emergency

If the engine will not start

If engine stalls while driving

1. Reduce your speed gradually, keep

ing a straight line. Move cautiously off
the road to a safe place.

2. Turn on your emergency flashers.
3. Try to start the engine again. If your

vehicle does not start, contact an
authorized Kia dealer or seek other
qualified assistance.

If the engine will not start

If engine doesn't turn over or
turns over slowly

1. If your vehicle has an Intelligent Vari

able Transmission (IVT), be sure the
shift lever is in N (Neutral) or P (Park)
and the emergency brake is set.

2. Check the battery connections to be

sure they are clean and tight.

3. Turn on the interior light. If the light

dims or goes out when you operate
the starter, the battery is discharged.

4. Check the starter connections to be

sure they are securely tightened.

5. Do not push or pull the vehicle to start

it. See instructions for "Jump starting"
on page 7-5.

W ARNING

If the engine will not start, do not push or
pull the vehicle to start it. This could
result in a collision or cause other dam

age. In addition, push or pull starting may
cause the catalytic converter to be
overloaded and create a fire hazard.

If engine turns over normally but
does not start

1. Check the fuel level.
2. With the ignition switch or ENGINE

START/STOP button in the
LOCK/OFF position, check all
connectors at the ignition coils and
spark plugs. Recon

nect any that

may be disconnected or loose.

3. Check the fuel line in the engine com

partment.

4. If the engine still does not start, call an

authorized Kia dealer or seek other
qualified assistance.

What to do in an emergency

Emergency starting

Connect cables in numerical order and
disconnect in reverse order.

(Gasoline) 1.6 MPI

Jump starting

Jump starting can be dangerous if done
incorrectly. Therefore, to avoid harm to
your or damage to your vehicle or bat

tery, follow the jump starting proce

dures. If in doubt, have a competent
technician or towing service jump start
your vehicle.

CAUTION

Use only a 12-volt jumper system. You
can damage a 12-volt starting motor,
ignition system, and other electrical parts
beyond repair by use of a 24-volt power
supply (either two 12-volt batter

ies in

series or a 24-volt motor generator set)

W ARNING

Battery
Never attempt to check the electrolyte
level of the battery as this may cause the
battery to rupture or explode causing
serious injury.

W ARNING

Battery
• Keep all flames or sparks away from

the battery. The battery produces
hydrogen gas which may explode if
exposed to flame or sparks.

If these instructions are not followed
exactly, serious personal injury and
damage to the vehicle may occur! If
you are not sure how to follow this
procedure, seek qualified assistance.
Automobile batteries contain sulfuric
acid.

This is poisonous and highly corrosive.
When jump starting, wear protective
glasses and be careful not to get acid
on yourself, your clothing or on the
vehicle.

• Do not attempt to jump start the vehi

cle if the discharged battery is frozen
or if the electrolyte level is low; the
battery may rupture or explode.

• Do not allow the (+) and (-) jumper

cables to touch. It may cause sparks.

• The battery may rupture or explode

when you jump start with a low or fro

zen battery.

OBDM061108

What to do in an emergency

Emergency starting

Jump starting procedure

1. Make sure the booster battery is 12-

volt and that its negative terminal is
grounded.

2. If the booster battery is in another

vehicle, do not allow the vehicles to
come into contact.

3. Turn off all unnecessary electrical

loads.

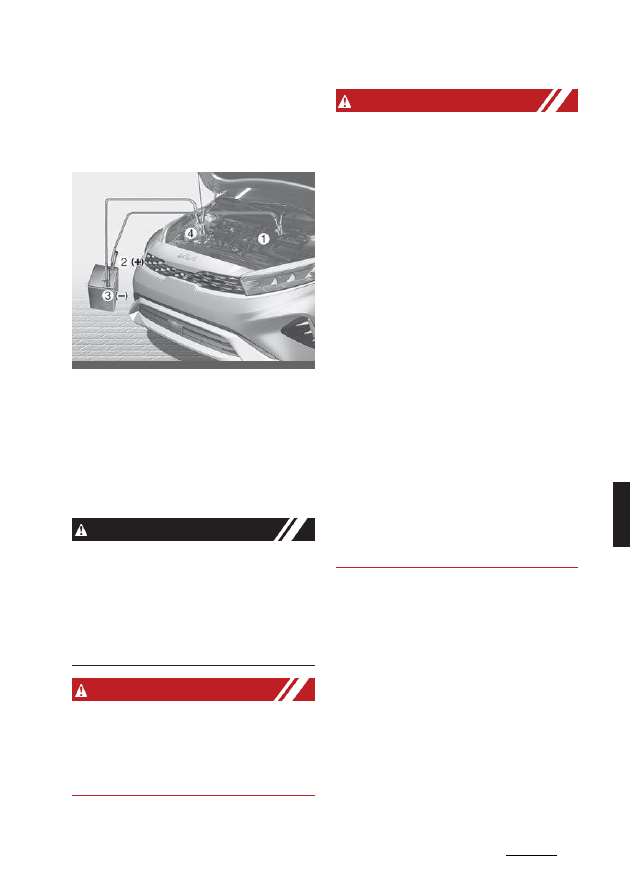

4. Connect the jumper cables in the

exact sequence shown in the illustra

tion. First connect one end of a
jumper cable to the positive terminal
of the discharged battery (1), then
connect the other end to the positive
terminal on the booster battery (2).

Proceed to connect one end of the
other jumper cable to the negative
terminal of the booster battery (3), then
the other end to a ground - a solid,
stationary, metallic point (for example,
the engine lifting bracket) away from
the battery (4). Do not con

nect it to or

near any part that moves when the
engine is cranked.

Do not allow the jumper cables to
contact anything except the correct
battery terminals or the correct
ground. Do not lean over the battery
when making connections.

CAUTION

Battery cables
Do not connect the jumper cable from the
negative terminal of the booster bat

tery

to the negative terminal of the dis

charged battery. This can cause the
discharged battery to overheat and
crack, releasing battery acid. Make sure
to connect one end of the jumper cable to
the negative terminal of the booster

battery, and the other end to a metallic
point, far away from the battery.

5. Start the engine of the vehicle with

the booster battery and let it run at
2,000 rpm, then start the engine of
the vehicle with the discharged bat

tery.

If the cause of your battery discharging
is not apparent, you should have your
vehicle checked by an authorized Kia
dealer.

Push-starting

Your manual transmission-equipped
vehicle should not be push-started
because it might damage the emission
control system.

Vehicles equipped with Dual Clutch
Transmission/IVT cannot be push-
started.

Follow the directions in this section for
jump-starting.

W ARNING

Never tow a vehicle to start it because
the sudden surge forward when the
engine starts could cause a collision with
the tow vehicle.

What to do in an emergency

If the engine overheats

If your temperature gauge indicates
overheating, experience a loss of power,
or hear loud pinging or knocking, the
engine is probably too hot. If this hap

pens, you should:

1. Pull off the road and stop as soon as it

is safe to do so.

2. Place the shift lever in P (Park) (for

Dual Clutch Transmission/IVT or in N
(Neutral) (for Manual Transmission)
and set the parking brake. If the air
conditioning is on, turn it off.

3. If engine coolant is leakingrunning

under the vehicle or steam is coming
from the hood, stop the engine. Do not
open the hood until the coolant has
stopped leaking or the steam has
stopped. If there is no visible loss of
engine coolant and no steam, leave
the engine running and check to be
sure the engine cooling fan is operat

ing. If the fan is not operating, turn the
engine off.

4. Check to see if the water pump drive

belt is missing. If it is not missing,
check to see that it is tight.

If the drive belt seems to be satisfac

tory, check for coolant leaking from
the radiator, hoses or under the vehi

cle. (If the air conditioning had been in
use, it is normal for cold water to be
draining from it when you stop).

W ARNING

僅

While the engine is running,

keep hair, hands and cloth

ing away from moving parts
such as the fan and drive
belts to prevent injury.

僅

Do not remove the radiator

cap when the engine is hot.
This may result in coolant
blowing out of the opening
and cause serious burns.

5. If the water pump drive belt is broken

or engine coolant is leaking out, stop
the engine immediately and call the
nearest authorized Kia dealer for
assistance.

6. If you cannot find the cause of the

overheating, wait until the engine
temperature has returned to normal.
If coolant has been lost, carefully add
coolant to the reservoir to bring the
fluid level in the reservoir up to the
halfway mark.

7. Proceed with caution, keeping alert

for further signs of overheating. If
overheating reoccurs, call an autho

rized Kia dealer for assistance.

CAUTION

• Loss of coolant indicates there is a

leak in the cooling system and this
should be checked as soon as possi

ble by an authorized Kia dealer.

• When the engine overheats from low

engine coolant, suddenly adding
engine coolant may cause cracks in
the engine. Add engine coolant slowly
in small quantities to prevent damage.

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

Tire Pressure Monitoring Sys

tem (TPMS) (if equipped)

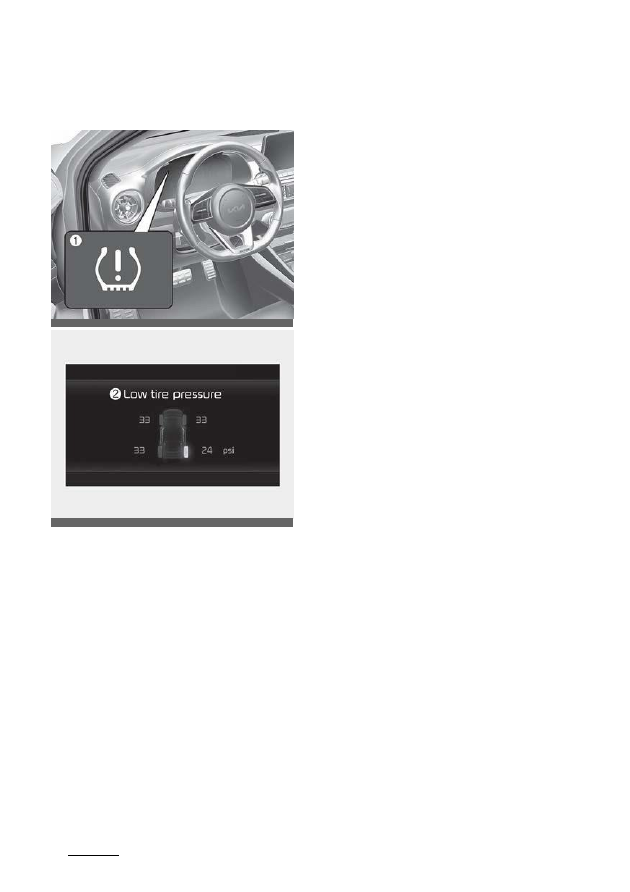

1. Low tire pressure indicator/TPMS

malfunction indicator

2. Low tire pressure position telltale

(Shown on the LCD display)

Check tire pressure

• You can check the tire pressure in the

information mode on the cluster.

- Refer to "LCD display modes" on

page 4-58.

• Tire pressure is displayed 1~2 minutes

later after driving.

• If tire pressure is not displayed when

the vehicle is stopped,

“Drive to dis

play” message displays. After driving,
check the tire pressure.

• You can change the tire pressure unit

in the user settings mode on the clus

ter.

psi, kPa, bar (Refer to "LCD

display modes" on page 4-58).

Each tire, including the spare (if pro

vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard or
tire inflation pressure label.

(If your vehicle has tires of a different
size than the size indicated on the vehi

cle placard or tire inflation pressure
label, you should determine the proper
tire inflation pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illumi

nates a low tire pressure telltale when one
or more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a signifi

cantly

under-inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel effi

ciency and tire tread life, and may affect
the

vehicle’s handling and stopping abil

ity.

Please note that the TPMS is not a sub

stitute for proper tire maintenance, and it
is the

driver’s responsibility to maintain

correct tire pressure, even if under-infla

tion has not reached the level to trigger
illumination of the TPMS low tire pres

sure telltale.

Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not operat

ing properly.The TPMS malfunction indi

OBDM061005

OBDM062112N

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

cator is combined with the low tire
pressure telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon subse

quent vehicle start-ups as long as the
malfunction exists. When the malfunc

tion indicator is illuminated, the system
may not be able to detect or signal low
tire pressure as intended.

TPMS malfunctions may occur for a vari

ety of reasons, including the installation
of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS
from functioning properly. Always check
the TPMS malfunction telltale after
replacing one or more tires or wheels on
your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

NOTICE

If the TPMS, Low Tire Pressure indicator
does not illuminate for 3 seconds when
the ignition switch or ENGINE START/
STOP button is turned to the ON posi

tion, or if it they remain illuminated after
coming on for approximately 3 seconds,
take your vehicle to your nearest autho

rized Kia dealer and have the system
checked.

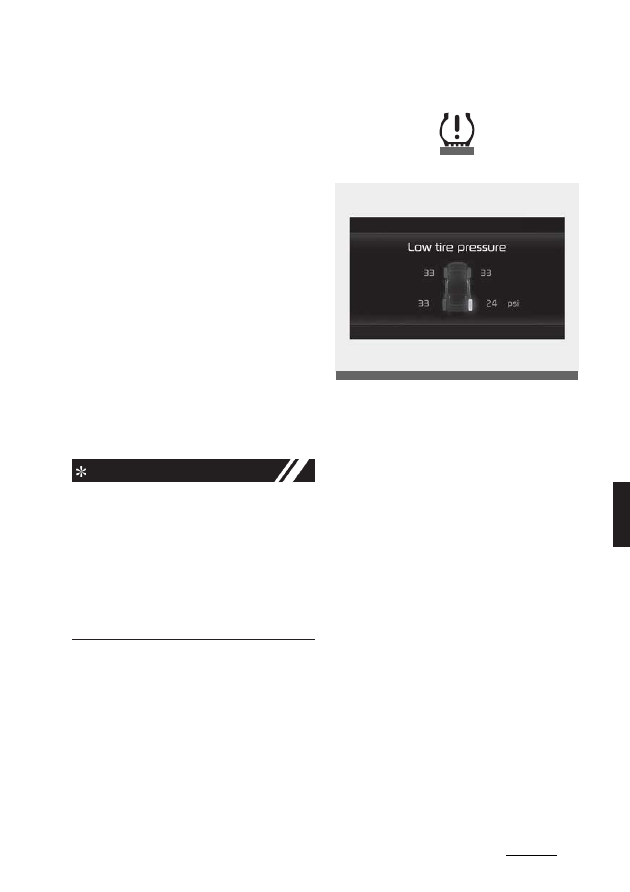

Low tire pressure telltale

Low tire pressure position information

When the TPMS warning indicators are
illuminated and warning message dis

played on the instrument cluster LCD
display, one or more of your tires is sig

nificantly under-inflated.

If the telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping dis

tances. Stop and check your tires as
soon as possible.

Inflate the tires to the proper pressure as
indicated on the

vehicle’s placard or tire

inflation pressure label located on the
driver’s side center pillar outer panel. If
you cannot reach a service station or if
the tire cannot hold the newly added air,
replace the low pressure tire with the
spare tire.

The TPMS malfunction indicator and the
Low Tire Pressure telltale may turn on
and illuminate after restarting and about
20 minutes of continuous driving before
you have the low pressure tire repaired
and replaced on the vehicle.

In winter or cold weather, the low tire
pressure telltale may be illuminated if

WBH-11

OBDM062113N

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

the tire pressure was adjusted to the rec

ommended tire inflation pressure in warm
weather. It does not mean your TPMS is
malfunctioning because the decreased
temperature leads to a pro

portional

lowering of tire pressure.

When you drive your vehicle from a warm
area to a cold area or from a cold area to
a warm area, or the outside tem

perature

is much higher or lower, check the tire
inflation pressure and adjust the tires to
the recommended tire inflation pressure.

When filling tires with more air, condi

tions to turn off the low tire pressure tell

tale may not be met. This is because a
tire inflator has a margin of error in per

formance. The low tire pressure telltale
will turn off if the tire pressure is above the
recommended tire inflation pressure.

W ARNING

Low pressure damage
Do not drive on low pressure tires. Sig

nificantly low tire pressure can cause the
tires to overheat and fail making the
vehicle unstable and result in increased
braking distances and a loss of control.

TPMS malfunction indicator

The low tire pressure telltale will illumi

nate after it blinks for approximately one
minute when there is a problem with the
TPMS. If the system correctly detects an
underinflation warning at the same time
as a system failure then it will illuminate
both the TPMS malfunction and low tire
pressure position telltales (e.g., if Front
Left sensor fails, the TPMS malfunction
indicator illuminates, but if the Front
Right, Rear Left, or Rear Right tire is
under-inflated, the low tire pressure

position telltales may illuminate together
with the TPMS malfunction indicator).

Have the system checked by an autho

rized Kia dealer as soon as possible.
• The TPMS malfunction indicator may

be illuminated if the vehicle is moving
around electric power supply cables or
radios transmitters such as at police
stations, government and pub

lic

offices, broadcasting stations, mili

tary installations, airports, or
transmitting towers, etc. This can
interfere with normal operation of the
TPMS.

• The TPMS malfunction indicator may

be illuminated if snow chains are used
or a separate electronic device such
as a notebook computer, mobile char

ger, remote starter or navigation etc., is
used in the vehicle. This can inter

fere

with normal operation of the TPMS.

Changing a tire with TPMS

If you have a flat tire, the Low Tire Pres

sure telltale will come on. Have the flat
tire repaired by an authorized Kia dealer
as soon as possible or replace the flat tire
with the spare tire.

CAUTION

Repair Agents
Never use a puncture-repairing agent
not approved by Kia to repair and/or
inflate a low pressure tire. A sealant not
approved by Kia may damage the tire
pressure sensor.

Each wheel is equipped with a tire pres

sure sensor mounted inside the tire
behind the valve stem. You must use
TPMS specific wheels. Always have
your tires serviced by an authorized Kia
dealer.

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

Even if you replace the low pressure tire
with the spare tire, the Low Tire Pressure
telltale will remain on until the low pres

sure tire is repaired and placed on the
vehicle.

After you replace the low pressure tire
with the spare tire, the TPMS malfunc

tion indicator may illuminate after a few
minutes because the TPMS sensor
mounted on the spare wheel is not acti

vated..

Once the low pressure tire is inflated to
the recommended pressure and installed
on the vehicle or the TPMS sen

sor

mounted on the replaced spare wheel is
by an authorized Kia dealer, the TPMS
malfunction indicator and the low tire
pressure telltale will turn off within a few
minutes of driving.

If the indicator has not disappeared after a
few minutes of driving, please visit an
authorized Kia dealer.

If an original mounted tire is replaced with
the spare tire, the TPMS sensor on the
replaced spare wheel should be and the
TPMS sensor on the original mounted
wheel should be deactivated. If the
TPMS sensor on the original mounted
wheel located in the spare tire carrier still
activates, the tire pressure monitoring
system may not operate properly. Have
the tire with TPMS ser

viced or replaced

by an authorized Kia dealer.

You may not be able to identify a low
pressure tire by simply looking at it.
Always use a good quality tire pressure
gauge to measure the tire's inflation
pressure. A tire that is hot (from being
driven) will have a higher pressure mea

surement than a tire that is cold (sitting
stationary for at least 3 hours driven less
than 1 mile (1.6 km) during that 3 hour
period).

Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the rec

ommended pressure.

A cold tire means the vehicle has been
sitting for 3 hours or driven for less than 1
mile (1.6 km) in that 3 hour period.

Never use tire sealant if your vehicle is
equipped with a TPMS. A liquid sealant
not approved by Kia may damage the
tire pressure sensors.
• The TPMS cannot alert you to

severe and sudden tire damage
caused by external factors such as
nails or road debris.

• If you feel any vehicle instability,

immediately take your foot off the
accelerator, apply the brakes gradu

ally and with light force, and slowly
move to a safe position off the road.

NOTICE

Protecting TPMS
Tampering with, modifying, or disabling
the (TPMS) components may interfere
with the system's ability to warn the driver
of low tire pressure conditions and/or
TPMS malfunctions. Tampering with,
modifying, or disabling the (TPMS)
components may void the warranty for
that portion of the vehicle.

This device complies with Part 15 of
the FCC rules.

Operation is subject to the following two
conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interfer

ence received, including interference
that may cause undesired operation.

Kia Forte (2024 year). Manual in english - page 12
