FANUC Series 0i-MODEL F. For Lathe System OPERATOR'S MANUAL (B-64604EN-1/01) - page 21

 B-64604EN-1/01

 OPERATION

1.DATA INPUT/OUTPUT



- 315 -

3

Press soft key [ALL IO] to display the ALL IO screen.


The subsequent steps to select data from the ALL IO screen will be explained for each type of data.


Displaying the ALL IO screen (for 15-inch display unit)

Procedure

1

Press function key

.

2

Press vertical soft key [NEXT PAGE] several times until vertical soft key [ALL IO] is displayed.

3

Press vertical soft key [ALL IO] to display the ALL IO screen.


The subsequent steps to select data from the ALL IO screen will be explained for each type of data.


1.2.1

Inputting and Outputting Y-axis Offset Data

With the lathe system, Y-axis offset data can be input and output using the ALL IO screen.


NOTE



When bit 1 (YOF) of parameter No.8132 is 1, "Y-axis offset" can be used.



Inputting Y-axis offset data (for 8.4/10.4-inch display unit)

Procedure

1

Press the continuous menu key

  on the ALL IO screen several times until soft key [Y OFFSET]

is displayed.

2

Press soft key [Y OFFSET].

3

Select EDIT mode.

4

Press soft key [(OPRT)].

5

Press soft key [N INPUT].

6

Set the name of the file that you want to input.
Type a file name, and press soft key [F NAME].
If the input file name is omitted, default file name "TOOLOFST.TXT" is assumed.

7

Press soft key [EXEC].
This starts inputting the Y-axis offset data, and "INPUT" blinks in the lower right part of the screen.
When the input operation ends, the "INPUT" indication disappears.
To cancel the input, press soft key [CANCEL].



Inputting Y-axis offset data (for 15-inch display unit)

Procedure

1

Press vertical soft key [NEXT PAGE] on the ALL IO screen several times until vertical soft key [Y
OFFSET] is displayed.

2

Press vertical soft key [Y OFFSET].

3

Select EDIT mode.

4

Press horizontal soft key [N INPUT].

5

Set the name of the file that you want to input.
Type a file name, and press soft key [F NAME].
If the input file name is omitted, default file name "TOOLOFST.TXT" is assumed.

6

Press horizontal soft key [EXEC].
This starts inputting the Y-axis offset data, and "INPUT" blinks in the lower right part of the screen.
When the input operation ends, the "INPUT" indication disappears.
To cancel the input, press horizontal soft key [CANCEL].



1.DATA INPUT/OUTPUT

 OPERATION

 B-64604EN-1/01



- 316 -

Outputting Y-axis offset data (for 8.4/10.4-inch display unit)

Procedure

1

Press the continuous menu key

  on the ALL IO screen several times until soft key [Y OFFSET]

is displayed.

2

Press soft key [Y OFFSET].

3

Select EDIT mode.

4

Press soft key [(OPRT)].

5

Press soft key [F OUTPUT].

6

Set the file name to be output.
Type a file name, and press soft key [F NAME].
If the file name is omitted, default file name "TOOLOFST.TXT" is assumed.

7

Press soft key [EXEC].
This starts outputting the Y-axis offset data, and “OUTPUT” blinks in the lower right part of the
screen.    When the output operation ends, the “OUTPUT” indication disappears.
To cancel the output, press soft key [CANCEL].



Outputting Y-axis offset data (for 15-inch display unit)

Procedure

1

Press vertical soft key [NEXT PAGE] on the ALL IO screen several times until vertical soft key [Y
OFFSET] is displayed.

2

Press vertical soft key [Y OFFSET].

3

Select EDIT mode.

4

Press horizontal soft key [F OUTPUT].

5

Set the file name to be output.
Type a file name, and press soft key [F NAME].
If the file name is omitted, default file name "TOOLOFST.TXT" is assumed.

6

Press horizontal soft key [EXEC].
This starts outputting the Y-axis offset data, and “OUTPUT” blinks in the lower right part of the
screen.    When the output operation ends, the “OUTPUT” indication disappears.
To cancel the output, press horizontal soft key [CANCEL].



1.2.2

Inputting and Outputting Tool Offset / 2nd Geometry Tool
Offset

With the lathe system, tool offset / 2nd geometry tool offset can be input and output using the ALL IO
screen.


NOTE



"2nd Geometry Tool Offset" is an optional function.
To use the "2nd Geometry Tool Offset", this option and "Tool geometry offset
and Tool wear offset" are required. "Tool geometry offset and Tool wear offset"
can be used, when bit 6 (NGW) of parameter No.8136 is 0.



Inputting tool offset / 2nd geometry tool offset (for 8.4/10.4-inch display unit)

Procedure

1

Press the continuous menu key

  on the ALL IO screen several times until soft key [GEOM.2] is

displayed.

2

Press soft key [GEOM.2].

3

Select EDIT mode.

4

Press soft key [(OPRT)].

 B-64604EN-1/01

 OPERATION

1.DATA INPUT/OUTPUT



- 317 -

5

Press soft key [N INPUT].

6

Set the name of the file that you want to input.
Type a file name, and press soft key [F NAME].
If the input file name is omitted, default input file name "SEC_GEOM.TXT" is assumed.

7

Press soft key [EXEC].
This starts inputting the 2nd geometry tool offset, and "INPUT" blinks in the lower right part of the
screen.    When the input operation ends, the "INPUT" indication disappears.
To cancel the input, press soft key [CANCEL].



Inputting tool offset / 2nd geometry tool offset (for 15-inch display unit)

Procedure

1

Press vertical soft key [NEXT PAGE] on the ALL IO screen several times until vertical soft key
[2ND GEOM] is displayed.

2

Press vertical soft key [2ND GEOM

]

.

3

Select EDIT mode.

4

Press horizontal soft key [N INPUT].

5

Set the name of the file that you want to input.
Type a file name, and press soft key [F NAME].
If the input file name is omitted, default input file name "SEC_GEOM.TXT" is assumed.

6

Press horizontal soft key [EXEC].
This starts inputting the 2nd geometry tool offset, and "INPUT" blinks in the lower right part of the
screen.    When the input operation ends, the "INPUT" indication disappears.
To cancel the input, press horizontal soft key [CANCEL].



Outputting tool offset / 2nd geometry tool offset (for 8.4/10.4-inch display unit)

Procedure

1

Press the continuous menu key

  on the ALL IO screen several times until soft key [GEOM.2] is

displayed.

2

Press soft key [GEOM.2].

3

Select EDIT mode.

4

Press soft key [(OPRT)].

5

Press soft key [F OUTPUT].

6

Set the file name to be output.
Type a file name, and press soft key [F NAME].
If the file name is omitted, default file name "SEC_GEOM.TXT" is assumed.

7

Press soft key [EXEC].
This starts outputting the 2nd geometry tool offset, and "OUTPUT" blinks in the lower right part of
the screen.    When the output operation ends, the "OUTPUT" indication disappears.
To cancel the output, press soft key [CANCEL].



Outputting tool offset / 2nd geometry tool offset (for 15-inch display unit)

Procedure

1

Press vertical soft key [NEXT PAGE] on the ALL IO screen several times until vertical soft key
[2ND GEOM] is displayed.

2

Press vertical soft key [2ND GEOM

]

.

3

Select EDIT mode.

4

Press horizontal soft key [F OUTPUT].

5

Set the file name to be output.
Type a file name, and press soft key [F NAME].
If the file name is omitted, default file name "SEC_GEOM.TXT" is assumed.

1.DATA INPUT/OUTPUT

 OPERATION

 B-64604EN-1/01



- 318 -

6

Press soft key [EXEC].
This starts outputting the 2nd geometry tool offset, and "OUTPUT" blinks in the lower right part of
the screen.    When the output operation ends, the "OUTPUT" indication disappears.
To cancel the output, press soft key [CANCEL].



 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 319 -

2

SETTING AND DISPLAYING DATA

Chapter 2, "SETTING AND DISPLAYING DATA", consists of the following sections:


2.1  SCREENS DISPLAYED BY FUNCTION KEY

 ................................................................319

2.1.1  Setting and Displaying the Tool Offset Value ........................................................................319
2.1.2  Direct Input of Tool Offset Value ...........................................................................................324
2.1.3  Direct Input of Tool Offset Value Measured B.......................................................................327
2.1.4  Counter Input of Offset value..................................................................................................329
2.1.5  Setting the Workpiece Coordinate System Shift Value...........................................................330
2.1.6  Setting Tool Offset / 2nd Geometry Tool Offset Values.........................................................334
2.1.7  Setting the Y-Axis Offset ........................................................................................................337
2.1.8  Setting the 4th/5th Axis Offset ................................................................................................343
2.1.9  Chuck and Tail Stock Barriers ................................................................................................348



2.1

SCREENS DISPLAYED BY FUNCTION KEY



Press function key

  to display or set tool offset values and other data.

This section describes how to display or set the following data:
1.

Tool offset value

2.

Workpiece coordinate system shift value

3.

Tool offset / 2nd geometry tool offset

4.

Y-axis offset value

5.

4th/5th axis offset value

6.

Chuck and tail stock barriers



2.1.1

Setting and Displaying the Tool Offset Value

Dedicated screens are provided for displaying and setting tool offset values and tool nose radius
compensation values.


Setting and displaying the tool offset value and the tool nose radius compensation
value (for 8.4/10.4-inch display unit)

Procedure

1

Press function key

.

When using a multi-path system, select, in advance, a path for which a tool offset value is to be set,
by using the path selection switch.

2

Press chapter selection soft key [OFFSET] or press function key

  several times until the tool

offset screen is displayed.



Different screens are displayed depending on whether tool geometry offset, wear offset, or neither is
applied.



2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 320 -

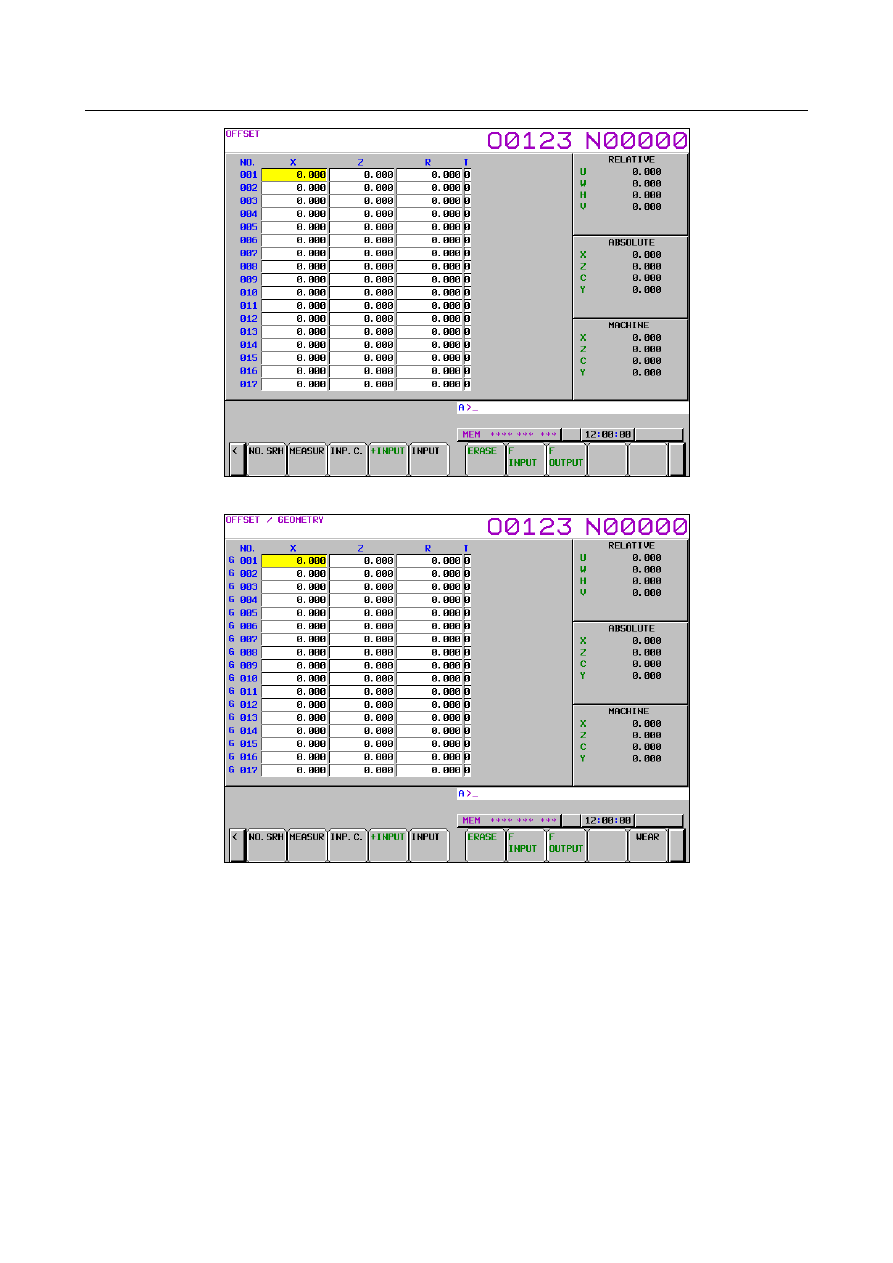

Fig. 2.1.1 (a) Without tool geometry/wear offset (10.4-inch display unit)





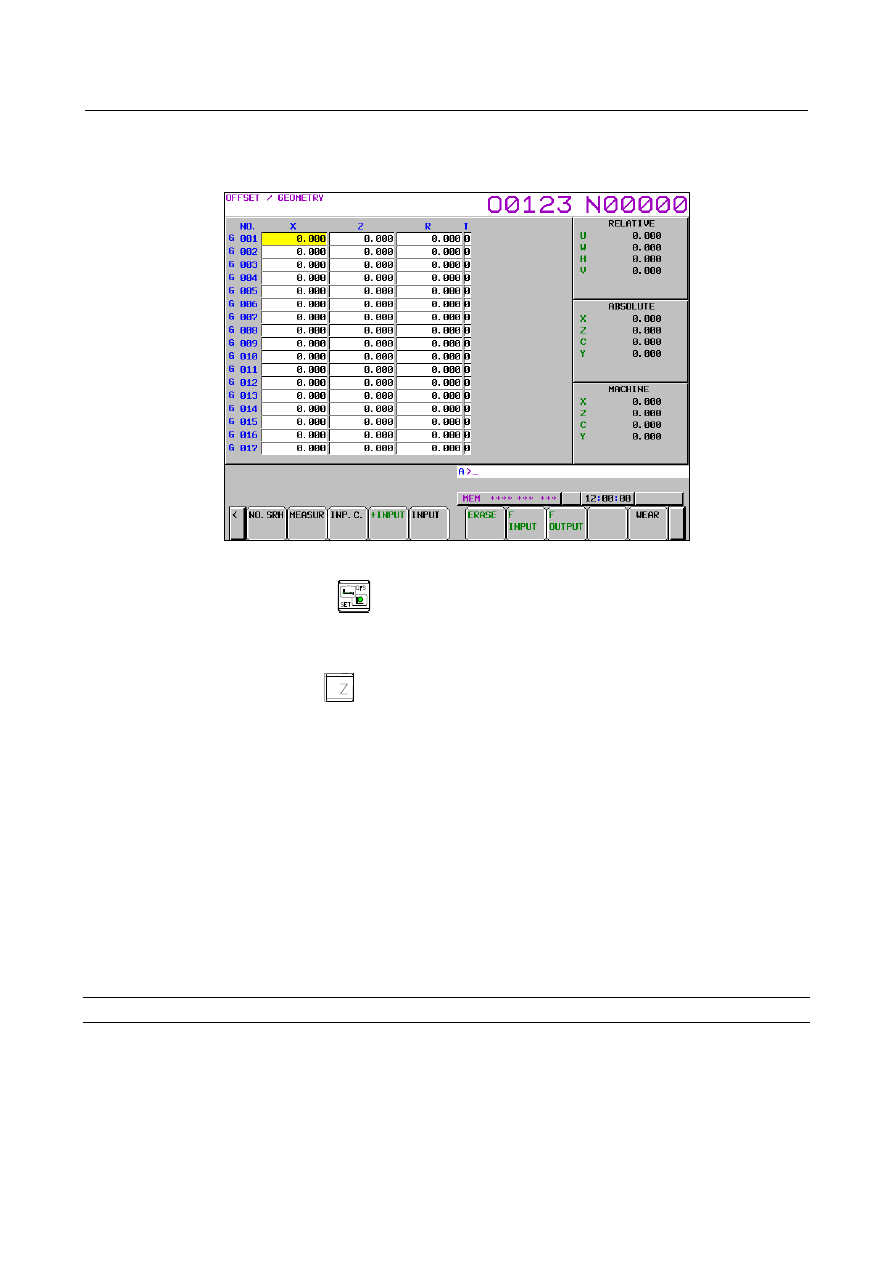

Fig. 2.1.1 (b) With tool geometry offset (10.4-inch display unit)



 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 321 -



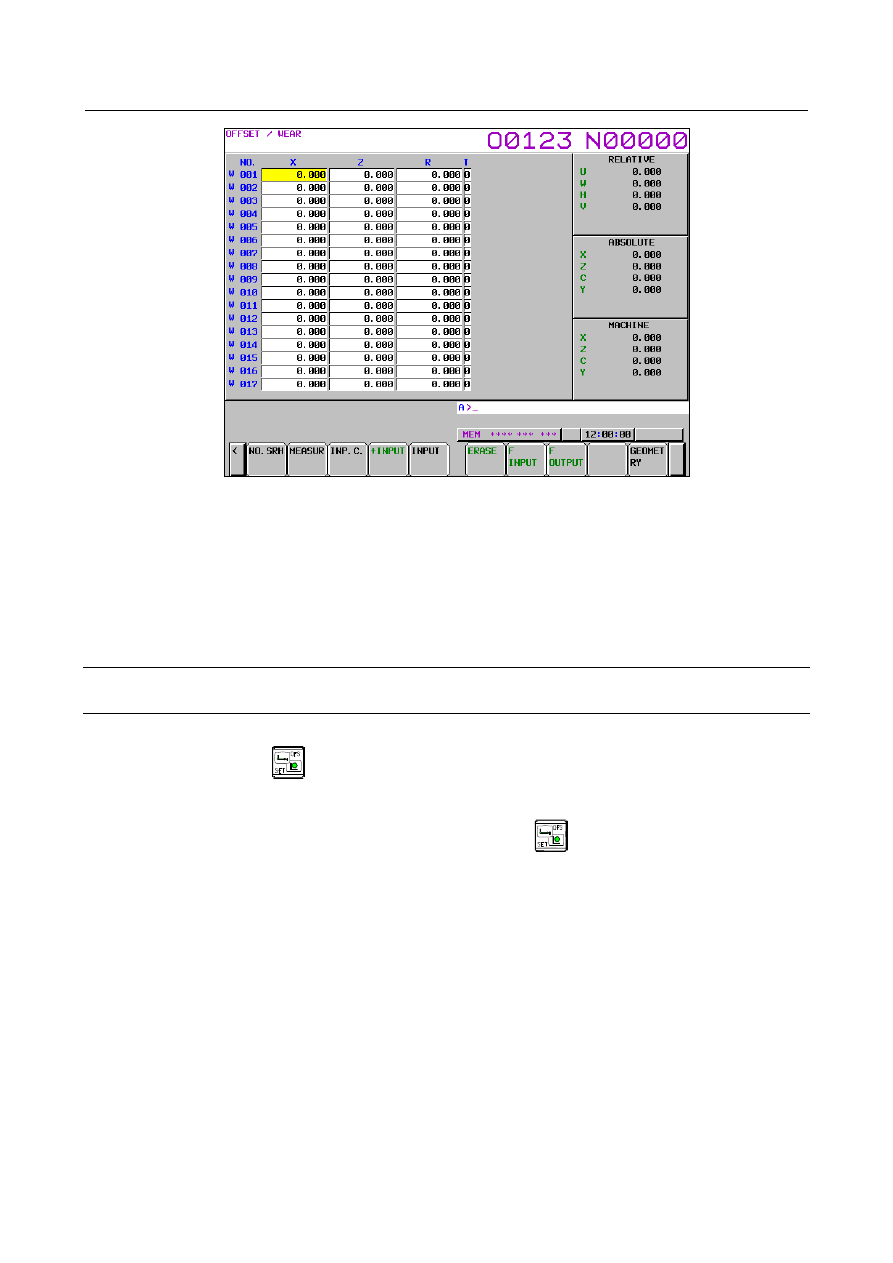

Fig. 2.1.1 (c) With tool wear offset (10.4-inch display unit)


3

Move the cursor to the offset value to be set or changed using page keys and cursor keys, or enter
the offset number for the offset value to be set or changed and press soft key [NO.SRH].

4

To set a offset value, enter a value and press soft key [INPUT]. To change the offset value, enter a
value to add to the current value (a negative value to reduce the current value) and press soft key
[+INPUT].



T is the number of the imaginary tool nose.



T may be specified on the geometry offset screen or on the wear offset screen.



Setting and displaying the tool offset value and the tool nose radius compensation
value (for 15-inch display unit)

Procedure

1

Press function key

.

When using a multi-path system, select, in advance, a path for which a tool offset value is to be set,
by using the path selection switch.

2

Press vertical soft key [OFFSET] or press function key

 several times until the tool offset

screen is displayed.
Different screens are displayed depending on whether tool geometry offset, wear offset, or neither is
applied.

2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 322 -

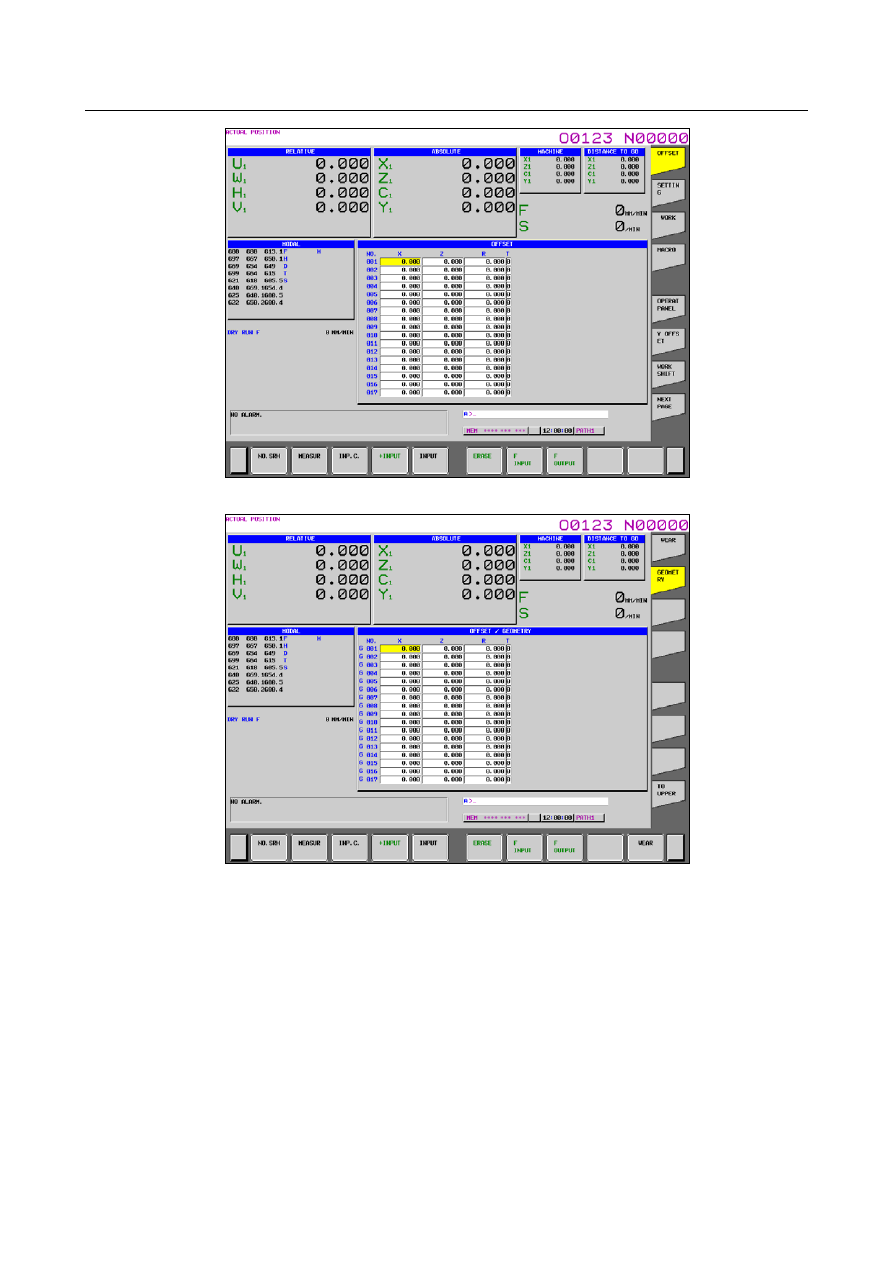

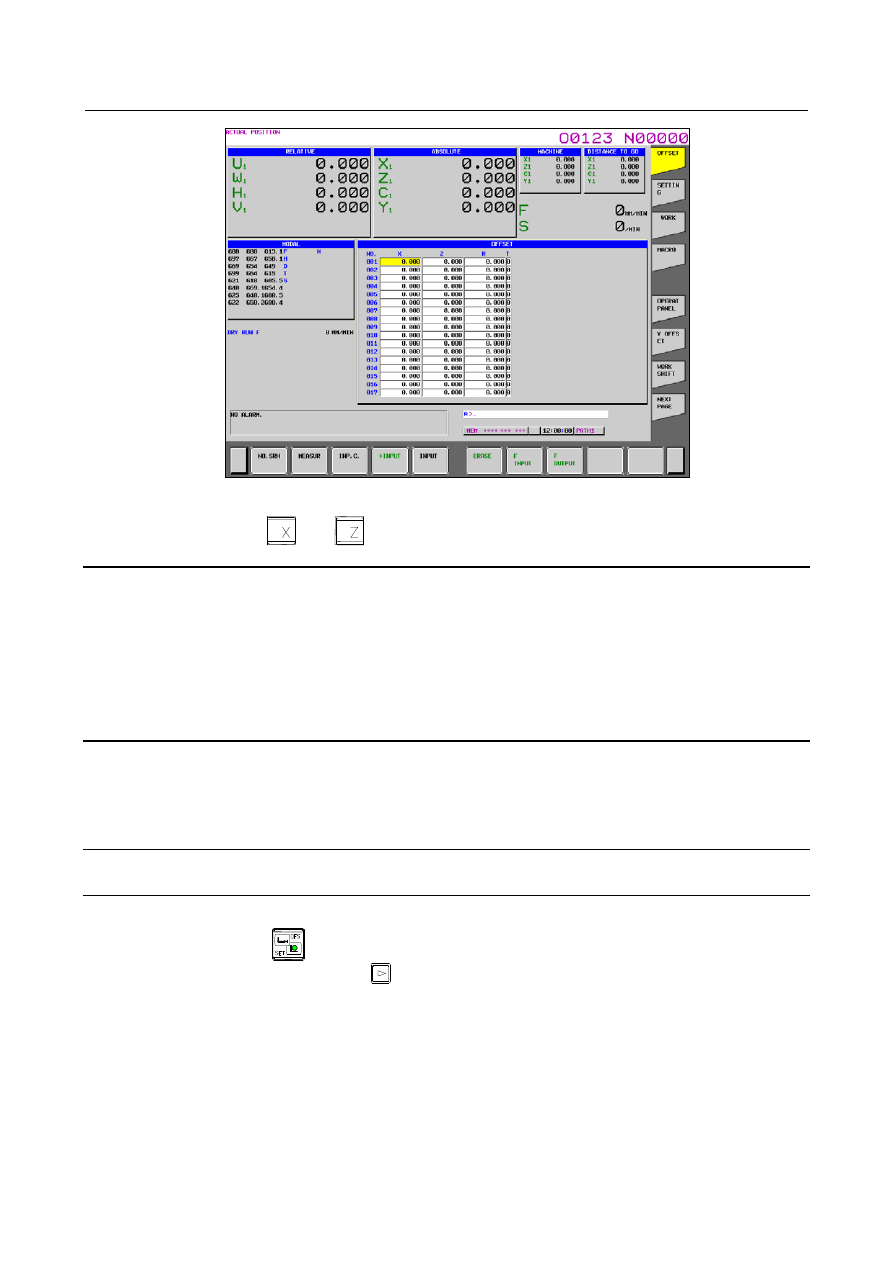

Fig. 2.1.1 (d) Without tool geometry/wear offset (15-inch display unit)





Fig. 2.1.1 (e) With tool geometry offset (15-inch display unit)

 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 323 -

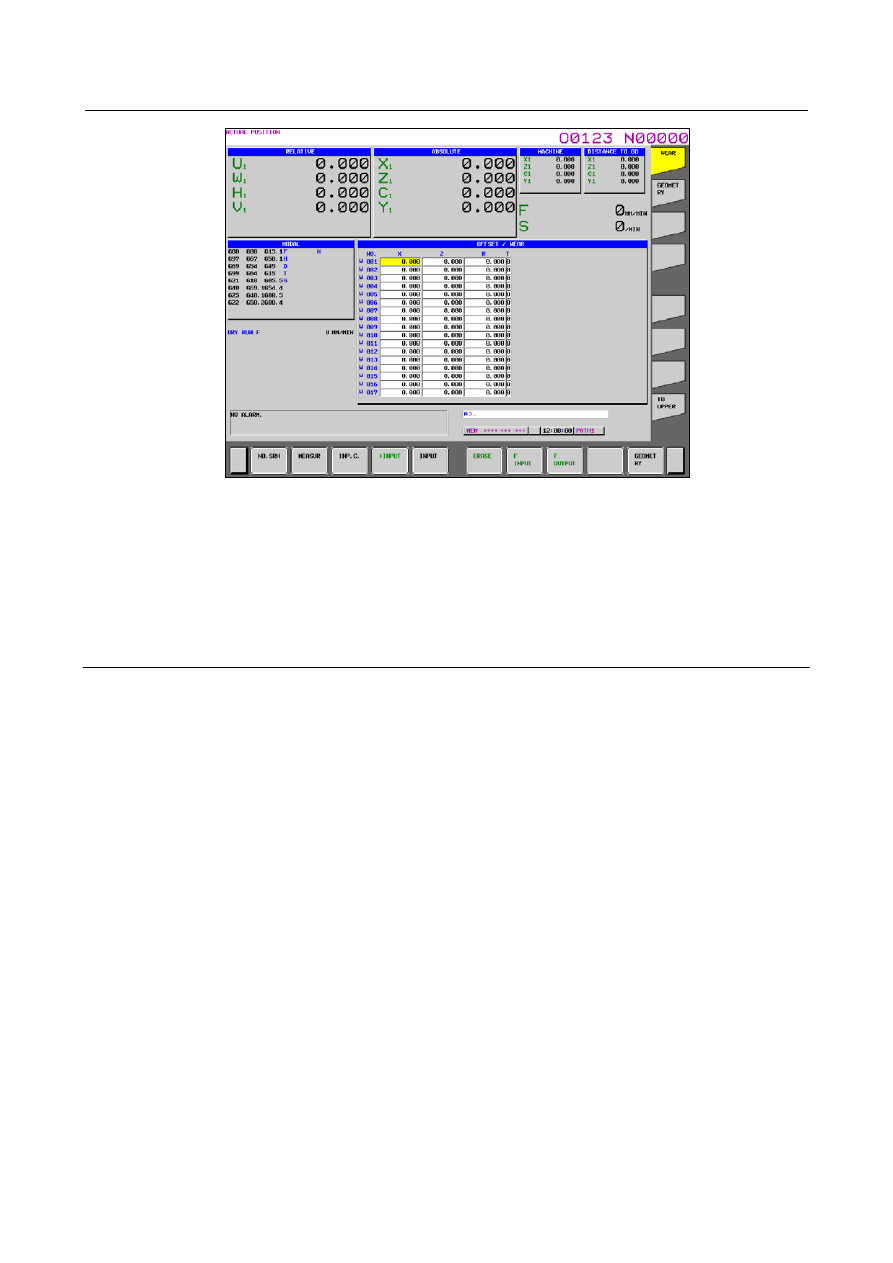

Fig. 2.1.1 (f) With tool wear offset (15-inch display unit)


3

Move the cursor to the offset value to be set or changed using page keys and cursor keys, or enter
the offset number for the offset value to be set or changed and press horizontal soft key [NO.SRH].

4

To set a offset value, enter a value and press horizontal soft key [INPUT]. To change the offset value,

enter a value to add to the current value (a negative value to reduce the current value) and press
horizontal soft key [+INPUT].



T is the number of the imaginary tool nose.



T may be specified on the geometry offset screen or on the wear offset screen.



Explanation

  -

Decimal point input



A decimal point can be used when entering a offset value.



 -  Other method



An external input/output device can be used to input or output a tool offset value. See Chapter III-8
“Data Input/Output” in the OPERATOR’S MANUAL (Common to Lathe System/Machining Center
System) (B-64604EN).



Tool length offset values can be set using the following functions described in subsequent
subsections: direct input of tool offset value measured, direct input of tool offset value measured B,
and counter input of offset value.



  -

Number of tool offset values



128 pairs are provided for tool offset. The number of groups can be optionally extended to 200. For
the multi-path control, the above number of groups can be used for each path. Tool geometry offset
or wear offset can be selected for each pair.



  -

Disabling input of offset values



In some cases, tool wear offset or tool geometry offset values cannot be input because of the settings
in bits 0 (WOF) and 1 (GOF) of parameter No.3290. The input of tool offset values from the MDI
can be inhibited for a specified range of offset numbers. The first offset number for which the input
of a value is inhibited is set in parameter No. 3294. The number of offset numbers, starting from the
specified first number, for which the input of a value is inhibited is set in parameter No. 3295.



Consecutive input values are set as follows:

2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 324 -

1)

When values are input for offset numbers, starting from one for which input is not inhibited to
one for which input is inhibited, a warning is issued and values are set only for those offset
numbers for which input is not inhibited.

2)

When values are input for offset numbers, starting from one for which input is inhibited to one
for which input is not inhibited, a warning is issued and no values are set.



  -

Displaying radius and T



The radius and T are not displayed if the tool nose radius compensation is not available (bit 7 (NCR)
of parameter No.8136 is 1).



  -

Changing offset values during automatic operation



When offset values have been changed during automatic operation, bits 4 (LGT) and 6 (LWM) of
parameter No.5002 can be used for specifying whether new offset values become valid in the next
move command or in the next T code command.



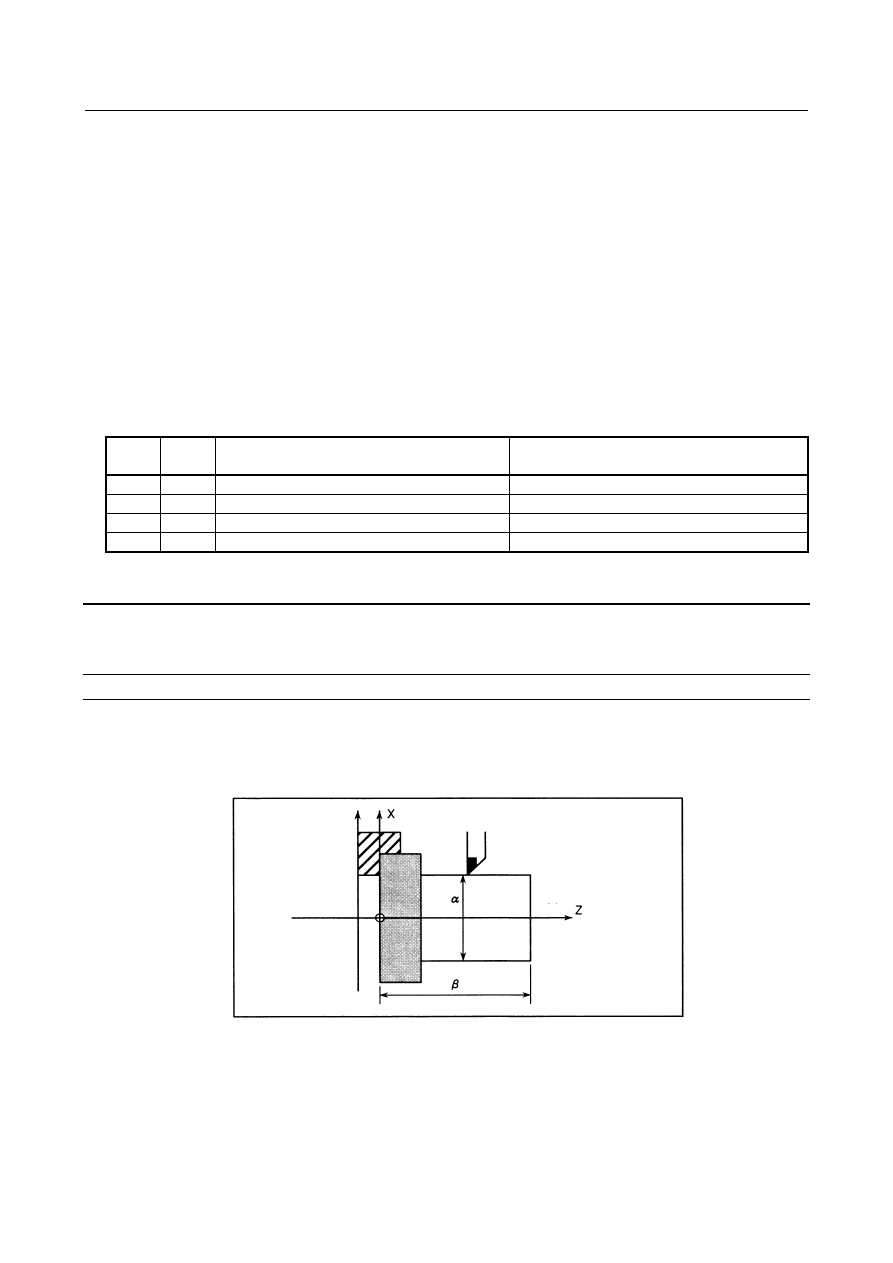

Table 2.1.1 (a)

LGT LWM

When geometry tool offset values and wear

tool offset values are separately specified

When geometry tool offset values and wear

tool offset values are not separately specified

0

0

Become valid in the next T code block

Become valid in the next T code block

1

0

Become valid in the next T code block

Become valid in the next T code block

0

1

Become valid in the next T code block

Become valid in the next move command

1

1

Become valid in the next move command

Become valid in the next move command



2.1.2

Direct Input of Tool Offset Value

To set the difference between the tool reference position used in programming (the nose of the standard
tool, turret center, etc.) and the tool nose position of a tool actually used as an offset value.


Direct input of tool offset value (for 8.4/10.4-inch display unit)

Procedure

  -

Setting of Z axis offset value

1

Cut surface A in manual mode with an actual tool.



Suppose that a workpiece coordinate system has been set.

Surface B

Surface A



Fig. 2.1.2 (a)

2

Release the tool in X-axis direction only, without moving Z-axis and stop the spindle.

 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 325 -

3 Measure

distance

β

 from the origin in the workpiece coordinate system to surface A.



Set this value as the measured value along the Z-axis for the desired offset number, using the
following procedure:

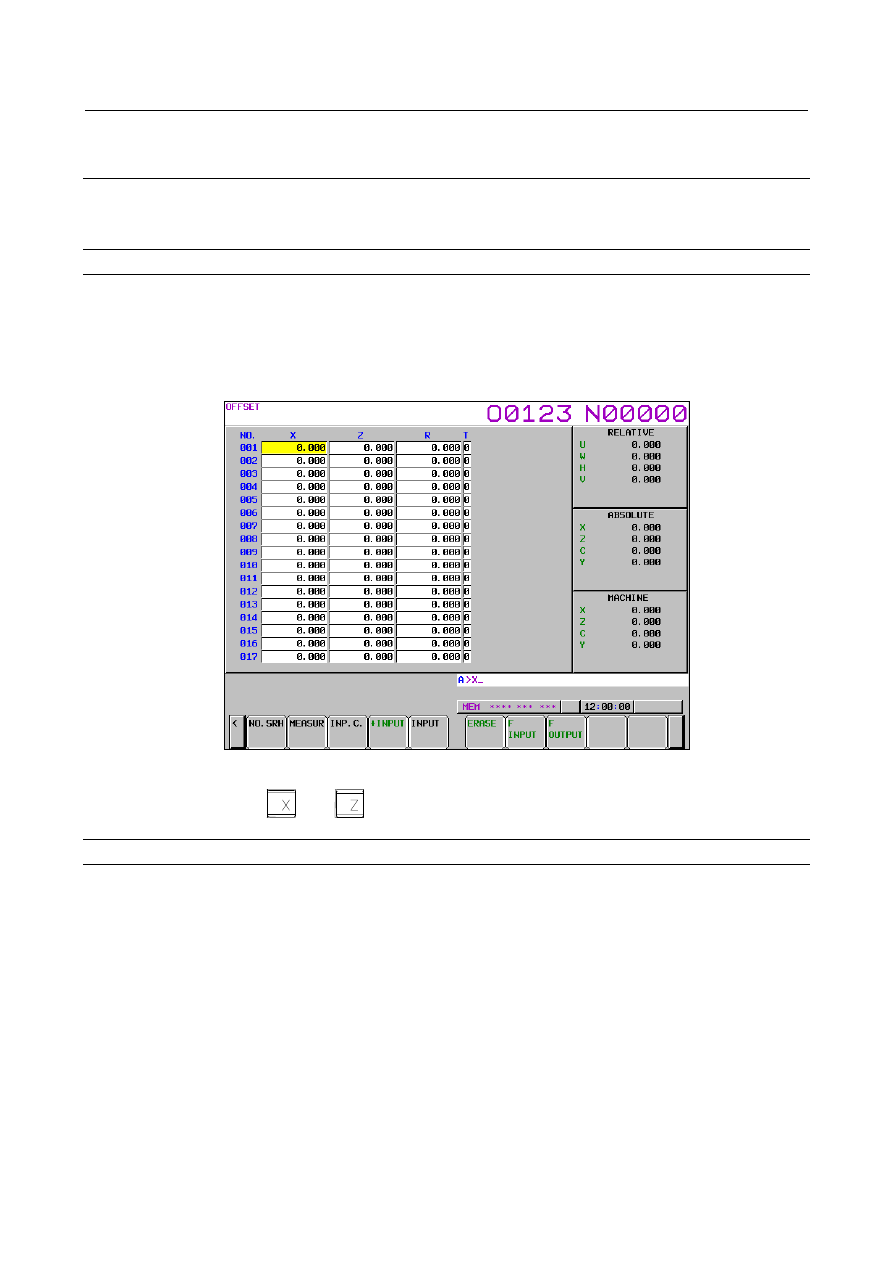

Fig. 2.1.2 (b) Tool offset screen (10.4-inch display unit)



3-1  Press the function key

  or the soft key [OFFSET] to display the tool offset screen. If

geometry offset values and wear offset values are separately specified, display the screen for
either of them.

3-2  Move the cursor to the set offset number using cursor keys.

3-3  Press the address key

  to be set.

3-4  Key in the measured value (

β

).

3-5  Press the soft key [MESURE].

The difference between measured value

β

 and the coordinate is set as the offset value.



  -

Setting of X axis offset value

4

Cut surface B in manual mode.

5

Release the tool in the Z-axis direction without moving the X-axis and stop the spindle.

6

Measure the diameter

α

 of surface B.



Set this value as the measured value along the X-axis for the desired offset number in the same way
as when setting the value along the Z-axis.

7

Repeat above procedure the same time as the number of the necessary tools.

The offset value is automatically calculated and set.
For example, in case

α

=69.0 and the coordinate value of surface B is 70.0 in the Fig 2.1.2(a). If you set

69.0 [MEASURE] at offset No. 2, 1.0 is set as the X-axis offset value to offset No. 2.


Direct input of tool offset value (for 15-inch display unit)

Procedure

  -

Setting of Z axis offset value

1

Cut surface A in manual mode with an actual tool.



Suppose that a workpiece coordinate system has been set.

2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 326 -

Surface B

Surface A

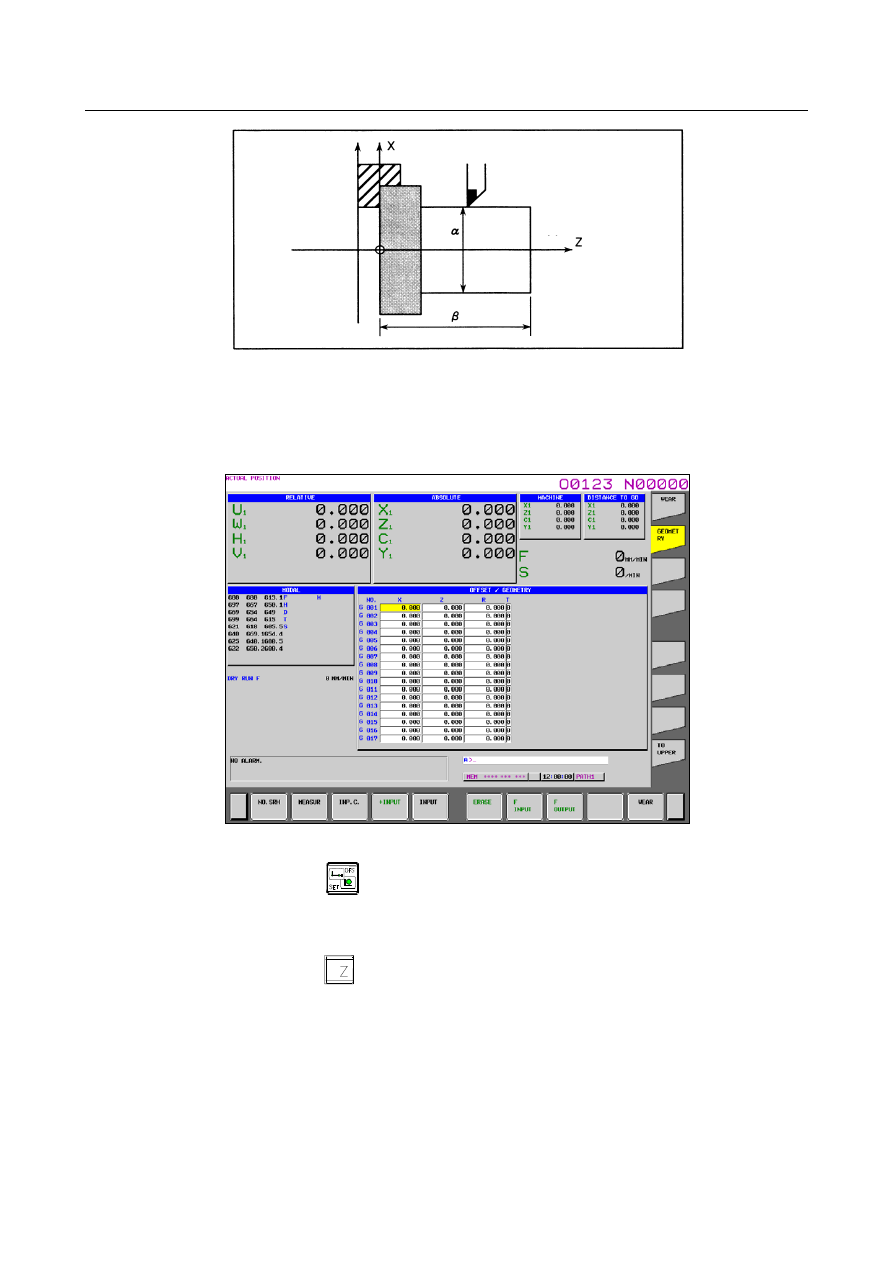

Fig. 2.1.2 (c)


2

Release the tool in X-axis direction only, without moving Z-axis and stop the spindle.

3 Measure

distance

β

 from the origin in the workpiece coordinate system to surface A.



Set this value as the measured value along the Z-axis for the desired offset number, using the
following procedure:



Fig. 2.1.2 (d) Tool offset screen (15-inch display unit)



3-1  Press the function key

  or the vertical soft key [OFFSET] to display the tool offset screen.

If geometry offset values and wear offset values are separately specified, display the screen for
either of them.

3-2  Move the cursor to the set offset number using cursor keys.

3-3  Press the address key

  to be set.

3-4  Key in the measured value (

β

).

3-5  Press the horizontal soft key [MESURE].

The difference between measured value

β

 and the coordinate is set as the offset value.



-

Setting of X axis offset value

4

Cut surface B in manual mode.

5

Release the tool in the Z-axis direction without moving the X-axis and stop the spindle.

6

Measure the diameter

α

 of surface B.

 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 327 -



Set this value as the measured value along the X-axis for the desired offset number in the same way
as when setting the value along the Z-axis.

7

Repeat above procedure the same time as the number of the necessary tools.

The offset value is automatically calculated and set.
For example, in case

α

=69.0 and the coordinate value of surface B is 70.0 in the Fig 2.1.2(c). If you set

69.0 [MEASURE] at offset No. 2, 1.0 is set as the X-axis offset value to offset No. 2.


Explanation

  -

Offset values for a program created in diameter programming



Enter diameter values for the offset values for axes for which diameter programming is used.



  -

Tool geometry offset value and tool wear offset value



If measured values are set on the tool geometry offset screen, all offset values become geometry
offset values and all wear offset values are set to 0. If measured values are set on the tool wear offset
screen, the differences between the measured offset values and the current wear offset values
become the new offset values.



  -

Release of both axes



When the record button is provided on the machine side, the tool can be released in the directions of
the two axes by setting bit 2 (PRC) of parameter No. 5005 or using the position record signal PRC.
For details on the position record signal PRC, refer to the manual issued by the machine tool builder.



2.1.3

Direct Input of Tool Offset Value Measured B

Explanation

  -

Basic procedure to set tool offset value



To use the direct input of offset value measured B for 2 spindle lathe, first specify the spindle to be
measured, using the spindle measurement selection signal S2TLS.



(1)  Execute manual reference position return.


By executing manual reference position return, a machine coordinate system is established.



The tool offset value is computed on the machine coordinate system.

(2)  Select manual handle mode or manual continuous feed mode and set the tool offset write mode

selection signal GOQSM to “1”. The screen is automatically changed to the tool offset screen
(geometry), and the “OFST” indicator starts blinking in the status indication area at the bottom
of the screen, which indicates that the tool offset writing mode is ready. When the direct input
of offset value measured B for 2 spindle lathe is in use, the spindle measurement selection
signal S1MES or S2MES, whichever is applicable, becomes “1”.



 CAUTION



After this, it is impossible to switch the spindle measurement selection signal
S2TLS until the tool offset write mode selection signal GOQSM becomes “0”.



(3)  Select a tool to be measured.
(4)  When the cursor does not focus on the tool offset number desired to be set, move the cursor to

the desired offset number using the page key and cursor key.



The cursor can also be focused on the tool offset number desired to be set automatically by the
tool offset number selection signals OFN0 to OFN5 an OFN6 to OFN9 (when bit 5 (QNI) of
parameter No. 5005=1).



In this case, the position of the cursor cannot be changed on the tool offset screen using page
keys or cursor keys.

(5)  Near the tool to the sensor by manual operation.
(6)  Place the tool edge to a contacting surface of the sensor by manual handle feed.

2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 328 -



Bring the tool edge in contact with the sensor. This causes the tool offset writing signals to
input to be CNC.



The following tool offset write signals are set up according to the setting of the bit 3 (TS1)of
parameter No. 5004.



When the parameter is 0: +MIT1, –MIT1, +MIT2, –MIT2



When the parameter is 1: +MIT1 only



If the tool offset writing signal is set to “1”:
i)

The axis is interlocked in this direction and its feed is stopped.

ii)  The tool offset value extracted by the tool offset memory (tool geometry offset value)

which corresponds to the offset number is indicated by the cursor.

(7)  For both X-axis and Z-axis, their offset values are set by operations (5) and (6).
(8)  Repeat operations (3) to (7) for all necessary tools.
(9)  Set the tool offset writing mode signal GOQSM to “0”.


The writing mode is canceled and the blinking “OFST” indicator light goes off.



When the direct input of offset value measured B for 2 spindle lathe is in use, the spindle
measurement selection signal S1MES or S2MES for the spindle being measured becomes “0”.



  -

Basic procedure to set workpiece coordinate shift value

To use the direct input of offset value measured B for 2 spindle lathe, first specify the spindle to be
measured, using the spindle measurement selection signal S2TLS.
(1)  Set the tool geometry offset values of each tool in advance.
(2)  Execute manual reference position return.


By executing manual reference position return, the machine coordinate system is established.



The workpiece coordinate system shift amount is computed based on the machine coordinate system
of the tool.

(3)  Set the workpiece coordinate system shift value writing mode selection signal WOQSM to “1”.


The screen automatically switches to the workpiece shifting screen, the “WFST” indicator starts
blinking at the status indicator area in the bottom of the screen, which indicates that the workpiece
coordinate system shift value writing mode is ready.



When the direct input of offset value measured B for 2 spindle lathe is in use, the workpiece
coordinate system screen is selected, and the S1MES or S2MES (spindle measurement select) signal,
whichever is applicable, becomes “1”.



 CAUTION



After this, it is impossible to switch the spindle measurement selection signal
S2TLS until the workpiece coordinate system shift value write mode selection
signal WOQSM becomes “0”.


(4)  Select a tool to be measured.
(5)  Check tool offset numbers.


The tool offset number corresponding to the tool required for measurement, shall be set in the
parameter No.5020 in advance.



The tool offset number can also be set automatically by setting the tool offset number selection
signals OFN0 to OFN5 and OFN6 to OFN9 (with bit 5 (QNI) of parameter No. 5005=1).

(6)  Manually approach the tool to an end face of the workpiece.
(7)  Place the tool edge to the end face (sensor) of the workpiece using manual handle feed.


When the tool edge contacts the end face of the workpiece, input the workpiece coordinate system
shift value write signal WOSET.



The workpiece coordinate system shift value on the Z–axis is automatically set.

(8)  Release the tool.
(9)  Set the workpiece coordinate system shift value write mode selection signal WOQSM to “0”.


The writing mode is canceled and the blinking “WSFT” indicator light goes off.



When the direct input of offset value measured B for 2 spindle lathe is in use, the S1MES or S2MES
(spindle measurement select) signal, whichever is applicable, becomes “0”.



 B-64604EN-1/01

 OPERATION

2.SETTING AND DISPLAYING DATA



- 329 -



2.1.4

Counter Input of Offset value

By moving the tool until it reaches the desired reference position, the corresponding tool offset value can
be set.


Counter input of offset value (for 8.4/10.4-inch display unit)

Procedure

1

Manually move the reference tool to the reference position.

2

Reset the relative coordinates along the axes to 0.

3

Move the tool for which offset values are to be set to the reference position.

4

Select the tool offset screen. Move the cursor to the offset value to be set using cursor keys.





Fig. 2.1.4 (a) Tool offset screen (10.4-inch display unit)



5

Press address key

 (or

) and the soft key [INP.C.].



Counter input of offset value (for 15-inch display unit)

Procedure

1

Manually move the reference tool to the reference position.

2

Reset the relative coordinates along the axes to 0.

3

Move the tool for which offset values are to be set to the reference position.

4

Select the tool offset screen. Move the cursor to the offset value to be set using cursor keys.



2.SETTING AND DISPLAYING DATA

 OPERATION

 B-64604EN-1/01



- 330 -



Fig. 2.1.4 (b) Tool offset screen (15-inch display unit)



5

Press address key

 (or

) and the horizontal soft key [INP.C.].



Explanation

  -

Geometry offset and wear offset

When the above operations are performed on the tool geometry offset screen, tool geometry offset values
are input and tool wear offset values do not change.
When the above operations are performed on the tool wear offset screen, tool wear offset values are input
and tool geometry offset values do not change.


2.1.5

Setting the Workpiece Coordinate System Shift Value

The set coordinate system can be shifted when the coordinate system which has been set by a G50
command (or G92 command for G code system B or C) or automatic coordinate system setting is
different from the workpiece coordinate system assumed at programming.
When a lathe system is used, the workpiece coordinate system shift screen is displayed.


Setting the workpiece coordinate system shifting amount (for 8.4/10.4-inch display
unit)

Procedure

1

Press function key

.

2

Press the continuous menu key

 several times until the screen with soft key [W.SHFT] is

displayed.
