FANUC Series 0i-MODEL F. For Lathe System OPERATOR'S MANUAL (B-64604EN-1/01) - page 2

1.GENERAL



GENERAL



 B-64604EN-1/01



- 6 -

Decide the cutting method in every cutting process.

1 2

3

Cutting process

Cutting procedure

End face cutting

Outer diameter cutting

Grooving

1. Cutting method :
 Rough
 Semi
 Finish







2. Cutting tools







3. Cutting conditions :
  Feedrate
 Cutting

depth







4. Tool path









Grooving

Outer
diameter
cutting

End face cutting

Workpiece



Prepare the program of the tool path and cutting condition according to the workpiece figure, for each
cutting.


1.2

NOTES ON READING THIS MANUAL

 CAUTION

1  The function of an CNC machine tool system depends not only on the CNC, but on

the combination of the machine tool, its magnetic cabinet, the servo system, the
CNC, the operator's panels, etc. It is too difficult to describe the function,
programming, and operation relating to all combinations. This manual generally
describes these from the stand-point of the CNC. So, for details on a particular
CNC machine tool, refer to the manual issued by the machine tool builder, which
should take precedence over this manual.

2  In the header field of each page of this manual, a chapter title is indicated so that

the reader can reference necessary information easily.
By finding a desired title first, the reader can reference necessary parts only.

3  This manual describes as many reasonable variations in equipment usage as

possible. It cannot address every combination of features, options and commands
that should not be attempted.



If a particular combination of operations is not described, it should not be
attempted.



 B-64604EN-1/01

 GENERAL

1.GENERAL



- 7 -

1.3

NOTES ON VARIOUS KINDS OF DATA

 CAUTION

1  Machining programs, parameters, offset data, etc. are stored in the CNC unit

internal non-volatile memory. In general, these contents are not lost by the
switching ON/OFF of the power. However, it is possible that a state can occur
where precious data stored in the non-volatile memory has to be deleted,
because of deletions from a maloperation, or by a failure restoration. In order to
restore rapidly when this kind of mishap occurs, it is recommended that you
create a copy of the various kinds of data beforehand.

2  The number of times to write machining programs to the non-volatile memory is

limited.
You must use "High-speed program management" when registration and the
deletion of the machining programs are frequently repeated in such case that the
machining programs are automatically downloaded from a personal computer at
each machining.
In "High-speed program management", the program is not saved to the
non-volatile memory at registration, modification, or deletion of programs.



 B-64604EN-1/01

 PROGRAMMING

1.GENERAL



- 11 -

1

GENERAL

Chapter 1, "GENERAL", consists of the following sections:

1.1 OFFSET ..............................................................................................................................................11


1.1

OFFSET

Explanation

 -  Tool offset

Usually, several tools are used for machining one workpiece. The tools have different tool length. It is
very troublesome to change the program in accordance with the tools.
Therefore, the length of each tool used should be measured in advance. By setting the difference between
the length of the standard tool and the length of each tool in the CNC (see Chapter, “Setting and
Displaying Data” in the OPERATOR’S MANUAL (Common to Lathe System/Machining Center
System)), machining can be performed without altering the program even when the tool is changed. This
function is called tool offset.

Workpiece

Standard
tool

Rough
cutting
tool

Finishing
tool

Grooving
tool

Threading
tool



Fig. 1.1 (a) Tool offset





PROGRAMMING



 B-64604EN-1/01



- 12 -

2. PREPARATORY FUNCTION

(G FUNCTION)

2

PREPARATORY FUNCTION (G FUNCTION)

A number following address G determines the meaning of the command for the concerned block.
G codes are divided into the following two types.


Type Meaning

One-shot G code

The G code is effective only in the block in which it is specified.

Modal G code

The G code is effective until another G code of the same group is specified.



(Example)
G01 and G00 are modal G codes in group 01.
G01 X_

;

Z_ ;

G01 is effective in this range.

X_ ;

G00

Z_ ;

G00 is effective in this range.

X_ ;

G01 X_

;

      :



There are three G code systems in the lathe system : A,B, and C (Table 2 (a)). Select a G code system
using bits 6 (GSB) and 7 (GSC) parameter No. 3401. Generally, OPERATOR’S MANUAL describes the
use of G code system A, except when the described item can use only G code system B or C. In such
cases, the use of G code system B or C is described.


Explanation

1.

When the clear state (bit 6 (CLR) of parameter No. 3402) is set at power-up or reset, the modal G
codes are placed in the states described below.
(1)  The modal G codes are placed in the states marked with

  as indicated in Table.

(2)  G20 and G21 remain unchanged when the clear state is set at power-up or reset.
(3)  Which status G22 or G23 at power on is set by bit 7 (G23) of parameter No. 3402. However,

G22 and G23 remain unchanged when the clear state is set at reset.

(4)  The user can select G00 or G01 by setting bit 0 (G01) of parameter No. 3402.
(5)  The user can select G90 or G91 by setting bit 3 (G91) of parameter No. 3402.


When G code system B or C is used in the lathe system, setting bit 3 (G91) of parameter No.
3402 determines which code, either G90 or G91, is effective.

2.

G codes other than G10 and G11 are one-shot G codes.

3.

When a G code not listed in the G code list is specified, or a G code that has no corresponding
option is specified, alarm PS0010, “IMPROPER G-CODE” occurs.

4.

Multiple G codes can be specified in the same block if each G code belongs to a different group. If
multiple G codes that belong to the same group are specified in the same block, only the last G code
specified is valid.

5.  If a G code belonging to group 01 is specified in a for drilling, the canned cycle for drilling is

cancelled. This means that the same state set by specifying G80 is set. Note that the G codes in
group 01 are not affected by a G code specifying a canned cycle.

6.

When G code system A is used, absolute or incremental programming is specified not by a G code
(G90/G91) but by an address word (X/U, Z/W, C/H, Y/V). Only the initial level is provided at the
return point of the canned cycle for drilling..

7.

G codes are indicated by group.



 B-64604EN-1/01

 PROGRAMMING



- 13 -

2.PREPARATORY FUNCTION

(G FUNCTION)

Table 2 (a) G code list

G code system

A B C

Group Function

G00 G00 G00

Positioning

(Rapid

traverse)

G01 G01 G01

Linear

interpolation (Cutting feed)

G02 G02 G02

Circular

interpolation

CW or helical interpolation CW

G03 G03 G03

01

Circular interpolation CCW or helical interpolation CCW

G04

G04

G04

Dwell

G04.1 G04.1 G04.1

G

code preventing buffering

G05.1 G05.1 G05.1

AI contour control

G05.4 G05.4 G05.4 HRV3

on/off

G07.1

(G107)

G07.1

(G107)

G07.1

(G107)

Cylindrical interpolation

G08 G08 G08

AI contour control (advanced preview control compatible
command)

G09 G09 G09

Exact

stop

G10 G10 G10

Programmable data input

G10.6 G10.6 G10.6

Tool retract and recover

G11 G11 G11

00

Programmable data input mode cancel

G12.1

(G112)

G12.1

(G112)

G12.1

(G112)

Polar coordinate interpolation mode

G13.1

(G113)

G13.1

(G113)

G13.1

(G113)

21

Polar coordinate interpolation cancel mode

G17 G17 G17

XpYp

plane

selection

G18 G18 G18

ZpXp

plane

selection

G19 G19 G19

16

YpZp plane selection

G20 G20 G70

Input

in

inch

G21 G21 G71

06

Input in mm

G22 G22 G22

Stored

stroke check function on

G23 G23 G23

09

Stored stroke check function off

G25 G25 G25

Spindle

speed

fluctuation detection off

G26 G26 G26

08

Spindle speed fluctuation detection on

G27 G27 G27

Reference

position return check

G28

G28

G28

Return to reference position

G28.2 G28.2 G28.2

In-position check disable reference position return

G29 G29 G29

Movement

from reference position

G30 G30 G30

2nd,

3rd and 4th reference position return

G30.2 G30.2 G30.2

In-position check disable 2nd, 3rd, or 4th reference position
return

G31 G31 G31

00

Skip function

G32 G33 G33

Threading

G34 G34 G34

Variable

lead

threading

G35 G35 G35

Circular

threading

CW

G36 G36 G36

Circular threading CCW (When bit 3 (G36) of parameter No.
3405 is set to 1) or Automatic tool offset (X axis) (When bit 3
(G36) of parameter No. 3405 is set to 0)

G37 G37 G37

Automatic tool offset (Z axis) (When bit 3 (G36) of parameter
No. 3405 is set to 0)

G37.1 G37.1 G37.1

Automatic tool offset (X axis) (When bit 3 (G36) of parameter
No. 3405 is set to 1)

G37.2 G37.2 G37.2

Automatic tool offset (Z axis) (When bit 3 (G36) of parameter
No. 3405 is set to 1)

G38 G38 G38

Tool

radius/tool nose radius compensation: with vector held

G39 G39 G39

01

Tool radius/tool nose radius compensation: corner rounding
interpolation



PROGRAMMING



 B-64604EN-1/01



- 14 -

2. PREPARATORY FUNCTION

(G FUNCTION)

Table 2 (a) G code list

G code system

A B C

Group Function

G40 G40 G40

Tool

radius/tool

nose radius compensation : cancel

G41 G41 G41

Tool

radius/tool

nose radius compensation : left

G42

G42

G42

Tool radius/tool nose radius compensation : right

G43.7

(G44.7)

G43.7

(G44.7)

G43.7

(G44.7)

Tool offset
(Bit 3 (TCT) of parameter No. 5040 must be "1".)

G49

(G49.1)

G49

(G49.1)

G49

(G49.1)

07

Tool length compensation cancel
(Bit 3 (TCT) of parameter No. 5040 must be "1".)

G50 G92 G92

Coordinate

system

setting or max spindle speed clamp

G50.3 G92.1 G92.1

00

Workpiece coordinate system preset

G50.1 G50.1 G50.1

Programmable mirror image cancel

G51.1 G51.1 G51.1

22

Programmable mirror image

G50.2

(G250)

G50.2

(G250)

G50.2

(G250)

Polygon turning cancel

G51.2

(G251)

G51.2

(G251)

G51.2

(G251)

20

Polygon turning

G50.4 G50.4 G50.4

Cancel synchronous control

G50.5 G50.5 G50.5

Cancel composite control

G50.6 G50.6 G50.6

Cancel superimposed control

G51.4 G51.4 G51.4

Start synchronous control

G51.5 G51.5 G51.5

Start composite control

G51.6 G51.6 G51.6

Start superimposed control

G52 G52 G52

Local

coordinate system setting

G53 G53 G53

00

Machine coordinate system setting

G54

(G54.1)

G54

(G54.1)

G54

(G54.1)

Workpiece coordinate system 1 selection

G55

G55

G55

Workpiece coordinate system 2 selection

G56 G56 G56

Workpiece

coordinate system 3 selection

G57 G57 G57

Workpiece

coordinate system 4 selection

G58 G58 G58

Workpiece

coordinate system 5 selection

G59 G59 G59

14

Workpiece coordinate system 6 selection

G61 G61 G61

Exact

stop

mode

G62

G62

G62

Automatic corner override mode

G63 G63 G63

Tapping

mode

G64 G64 G64

15

Cutting mode

G65 G65 G65  00

Macro

call

G66

G66

G66

Macro modal call A

G66.1 G66.1 G66.1

Macro modal call B

G67 G67 G67

12

Macro modal call A/B cancel

G68

G68

G68

04

Mirror image on for double turret or balance cutting mode

G68.1 G68.1 G68.1

17

Coordinate system rotation start or 3-dimensional coordinate
system conversion mode on

G69 G69 G69

04

Mirror image off for double turret or balance cutting mode
cancel

G69.1 G69.1 G69.1

17

Coordinate system rotation cancel or 3-dimensional
coordinate system conversion mode off

 B-64604EN-1/01

 PROGRAMMING



- 15 -

2.PREPARATORY FUNCTION

(G FUNCTION)

Table 2 (a) G code list

G code system

A B C

Group Function

G70 G70 G72

Finishing

cycle

G71

G71

G73

Stock removal in turning

G72

G72

G74

Stock removal in facing

G73 G73 G75

Pattern

repeating

cycle

G74

G74

G76

End face peck drilling cycle

G75 G75 G77

Outer

diameter/internal diameter drilling cycle

G76 G76 G78

00

Multiple-thread cutting cycle

G71 G71 G72

Traverse

grinding

cycle

G72 G72 G73

Traverse

direct sizing/grinding cycle

G73 G73 G74

Oscillation

grinding

cycle

G74 G74 G75

01

Oscillation direct sizing/grinding cycle

G80

G80

G80

10

Canned cycle cancel for drilling

G81.1

G81.1

G81.1

00

High precision oscillation function

G81 G81 G81

Spot

drilling (FS10/11-T format)

G82 G82 G82

Counter

boring (FS10/11-T format)

G83

G83

G83

Cycle for face drilling

G83.1 G83.1 G83.1

High-speed peck drilling cycle (FS10/11-T format)

G83.5 G83.5 G83.5

High-speed peck drilling cycle

G83.6 G83.6 G83.6

Peck drilling cycle

G84

G84

G84

Cycle for face tapping

G84.2 G84.2 G84.2

Rigid tapping cycle (FS10/11-T format)

G85

G85

G85

Cycle for face boring

G87

G87

G87

Cycle for side drilling

G87.5 G87.5 G87.5

High-speed peck drilling cycle

G87.6 G87.6 G87.6

Peck drilling cycle

G88

G88

G88

Cycle for side tapping

G89 G89 G89

10

Cycle for side boring

G90 G77 G20

Outer

diameter/internal diameter cutting cycle

G92 G78 G21

Threading

cycle

G94 G79 G24

01

End face turning cycle

G91.1 G91.1 G91.1

00

Maximum specified incremental amount check

G96 G96 G96

Constant

surface speed control

G97 G97 G97

02

Constant surface speed control cancel

G96.1 G96.1 G96.1

Spindle indexing execution (waiting for completion)

G96.2 G96.2 G96.2

Spindle indexing execution (not waiting for completion)

G96.3 G96.3 G96.3

Spindle indexing completion check

G96.4 G96.4 G96.4

00

SV speed control mode ON

G98 G94 G94

Feed

per

minute

G99 G95 G95

05

Feed per revolution

- G90

G90

Absolute

programming

- G91

G91

03

Incremental programming

-

G98

G98

Canned cycle : return to initial level

- G99

G99

11

Canned cycle : return to R point level



3.INTERPOLATION FUNCTION

 PROGRAMMING

 B-64604EN-1/01



- 16 -

3

INTERPOLATION FUNCTION

Chapter 3, "INTERPOLATION FUNCTION", consists of the following sections:

3.1  POLAR COORDINATE INTERPOLATION (G12.1, G13.1)...........................................................16
3.2  CONSTANT LEAD THREADING (G32) .........................................................................................24
3.3  VARIABLE LEAD THREADING (G34) ..........................................................................................27
3.4  CIRCULAR THREADING (G35, G36).............................................................................................28
3.5 CONTINUOUS THREADING...........................................................................................................31
3.6 MULTIPLE THREADING.................................................................................................................32


3.1

POLAR COORDINATE INTERPOLATION (G12.1, G13.1)

Overview

Polar coordinate interpolation is a function that exercises contour control in converting a command
programmed in a Cartesian coordinate system to the movement of a linear axis (movement of a tool) and
the movement of a rotary axis (rotation of a workpiece). This function is useful for grinding a cam shaft.


NOTE



When bit 5 (NPI) of parameter No.8137 is 0, this function can be used.



Format

G12.1;

Starts polar coordinate interpolation mode (enables polar coordinate
interpolation).



Specify linear or circular interpolation using coordinates in a Cartesian
coordinate system consisting of a linear axis and rotary axis (hypothetical
axis).



G13.1;

Polar coordinate interpolation mode is cancelled (for not performing polar
coordinate interpolation).



Specify G12.1 and G13.1 in Separate Blocks.



Explanation

  -  Polar coordinate interpolation mode (G12.1)

The axes of polar coordinate interpolation (linear axis and rotary axis) should be specified in advance,
with corresponding parameters. Specifying G12.1 places the system in the polar coordinate interpolation
mode, and selects a plane (called the polar coordinate interpolation plane) formed by one linear axis and a
hypothetical axis intersecting the linear axis at right angles. The linear axis is called the first axis of the
plane, and the hypothetical axis is called the second axis of the plane. Polar coordinate interpolation is
performed in this plane.
In the polar coordinate interpolation mode, both linear interpolation and circular interpolation can be
specified by absolute or incremental programming.
Tool radius compensation can also be performed. The polar coordinate interpolation is performed for a
path obtained after tool radius compensation.
The tangential velocity in the polar coordinate interpolation plane (Cartesian coordinate system) is
specified as the feedrate, using F.


  -  Polar coordinate interpolation cancel mode (G13.1)

Specifying G13.1 cancels the polar coordinate interpolation mode.

 B-64604EN-1/01

 PROGRAMMING

3.INTERPOLATION FUNCTION



- 17 -



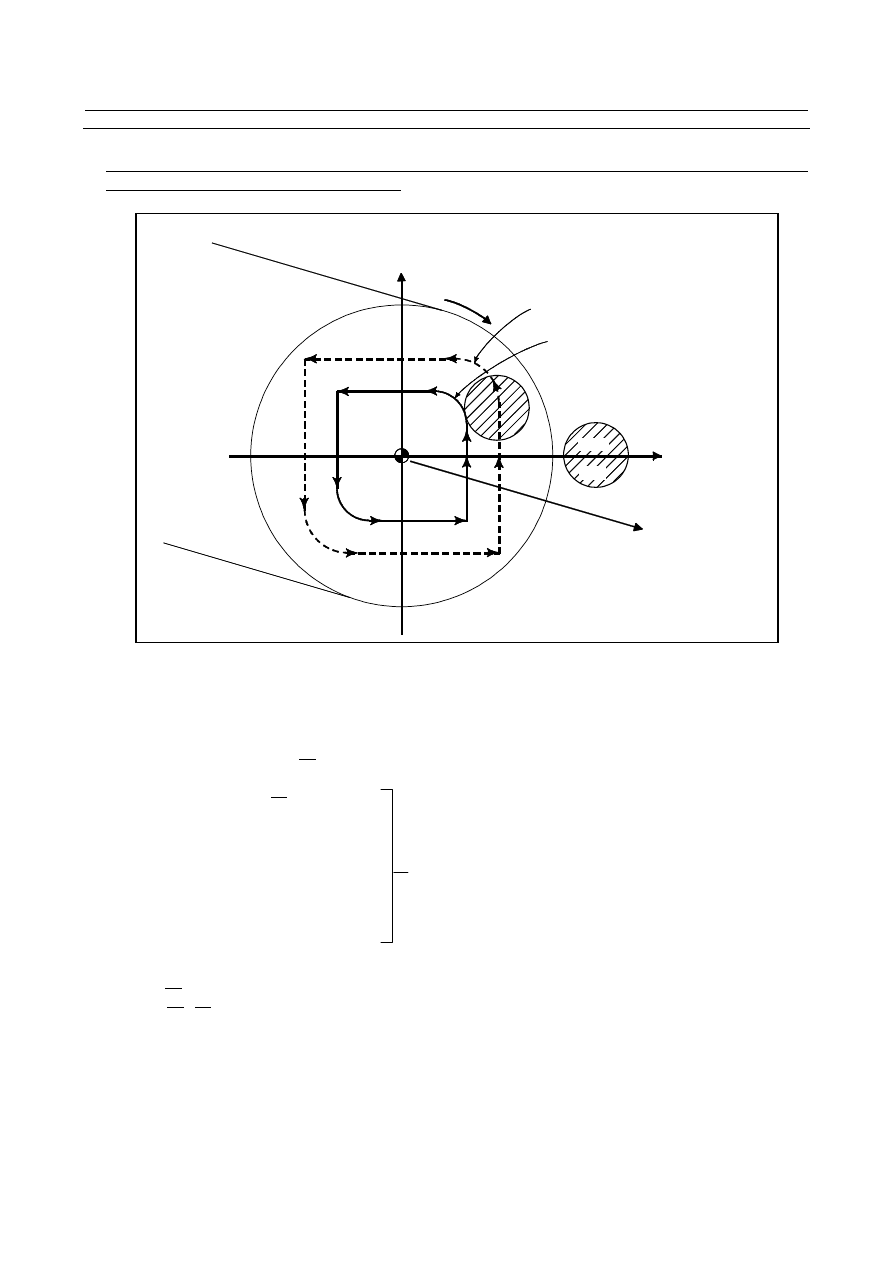

  -  Polar coordinate interpolation plane

G12.1 starts the polar coordinate interpolation mode and selects a polar coordinate interpolation plane
(Fig. 3.1 (a)). Polar coordinate interpolation is performed on this plane.

Rotary axis (hypothetical axis)

(unit: mm or inch)

Linear axis
(unit: mm or inch)

Origin of the local coordinate system (G52 command)
(Or origin of the workpiece coordinate system)



Fig. 3.1 (a) Polar coordinate interpolation plane


When the power is turned on or the system is reset, polar coordinate interpolation is canceled (G13.1).
The linear and rotation axes for polar coordinate interpolation must be set in parameters Nos. 5460 and
5461 beforehand.


 CAUTION



The plane used before G12.1 is specified (plane selected by G17, G18, or G19)
is canceled. It is restored when G13.1 (canceling polar coordinate interpolation)
is specified.



When the system is reset, polar coordinate interpolation is canceled and the
plane specified by G17, G18, or G19 is used.



  -  Distance moved and feedrate for polar coordinate interpolation

•



The unit for coordinates on the hypothetical axis is the same as the unit for the linear axis (mm/inch).



In the polar coordinate interpolation mode, program commands are specified with Cartesian
coordinates on the polar coordinate interpolation plane. The axis address for the rotary axis is used
as the axis address for the second axis (hypothetical axis) in the plane. Whether a diameter or radius
is specified for the first axis in the plane is the same as for the rotary axis regardless of the
specification for the first axis in the plane.



The hypothetical axis is at coordinate 0 immediately after G12.1 is specified. Polar interpolation is
started assuming the rotation angle of 0 for the position of the tool when G12.1 is specified.
Example)


When a value on the X-axis (linear axis) is input in millimeters

 G12.1;


G01 X10.0 F1000. ; ......A 10.0-mm movement is made on the Cartesian coordinate system.



C20.0 ;...........................A 20.0-mm movement is made on the Cartesian coordinate system.

 G13.1;



When a value on the X-axis (linear axis) is input in inches

 G12.1;


G01 X10.0 F1000. ;  ....A 10.0-inch movement is made on the Cartesian coordinate system.



C20.0 ;...........................A 20.0-inch movement is made on the Cartesian coordinate system.

 G13.1;


•



The unit for the feedrate is mm/min or inch/min.

3.INTERPOLATION FUNCTION

 PROGRAMMING

 B-64604EN-1/01



- 18 -



Specify the feedrate as a speed (relative speed between the workpiece and tool) tangential to the
polar coordinate interpolation plane (Cartesian coordinate system) using F.



  -  G codes which can be specified in the polar coordinate interpolation mode

G01.......................Linear interpolation
G02, G03..............Circular interpolation
G04.......................Dwell, Exact stop
G40, G41, G42 .....Tool  radius  compensation  (Polar  coordinate interpolation is applied to the path

after tool radius compensation.)

G65, G66, G67 .....Custom macro command
G90, G91..............Absolute programming, incremental programming (For G code system B or C)
G94, G95..............Feed per minute, feed per revolution



  -  Circular interpolation in the polar coordinate plane

The addresses for specifying the radius of an arc for circular interpolation (G02 or G03) in the polar
coordinate interpolation plane depend on the first axis in the plane (linear axis).

•



I and J in the Xp-Yp plane when the linear axis is the X-axis or an axis parallel to the X-axis.

•



J and K in the Yp-Zp plane when the linear axis is the Y-axis or an axis parallel to the Y-axis.

•



K and I in the Zp-Xp plane when the linear axis is the Z-axis or an axis parallel to the Z-axis.

The radius of an arc can be specified also with an R command.


NOTE



The parallel axes U, V, and W can be used in the G code system B or C.



  -  Movement along axes not in the polar coordinate interpolation plane in the

polar coordinate interpolation mode

The tool moves along such axes normally, independent of polar coordinate interpolation.


  -  Current position display in the polar coordinate interpolation mode

Actual coordinates are displayed. However, the remaining distance to move in a block is displayed based
on the coordinates in the polar coordinate interpolation plane (Cartesian coordinates).


  -  Coordinate system for the polar coordinate interpolation

Basically, before G12.1 is specified, a local coordinate system (or workpiece coordinate system) where
the center of the rotary axis is the origin of the coordinate system must be set.
In the G12.1 mode, the coordinate system must not be changed (G50, G52, G53, relative coordinate reset,
G54 through G59, etc.).


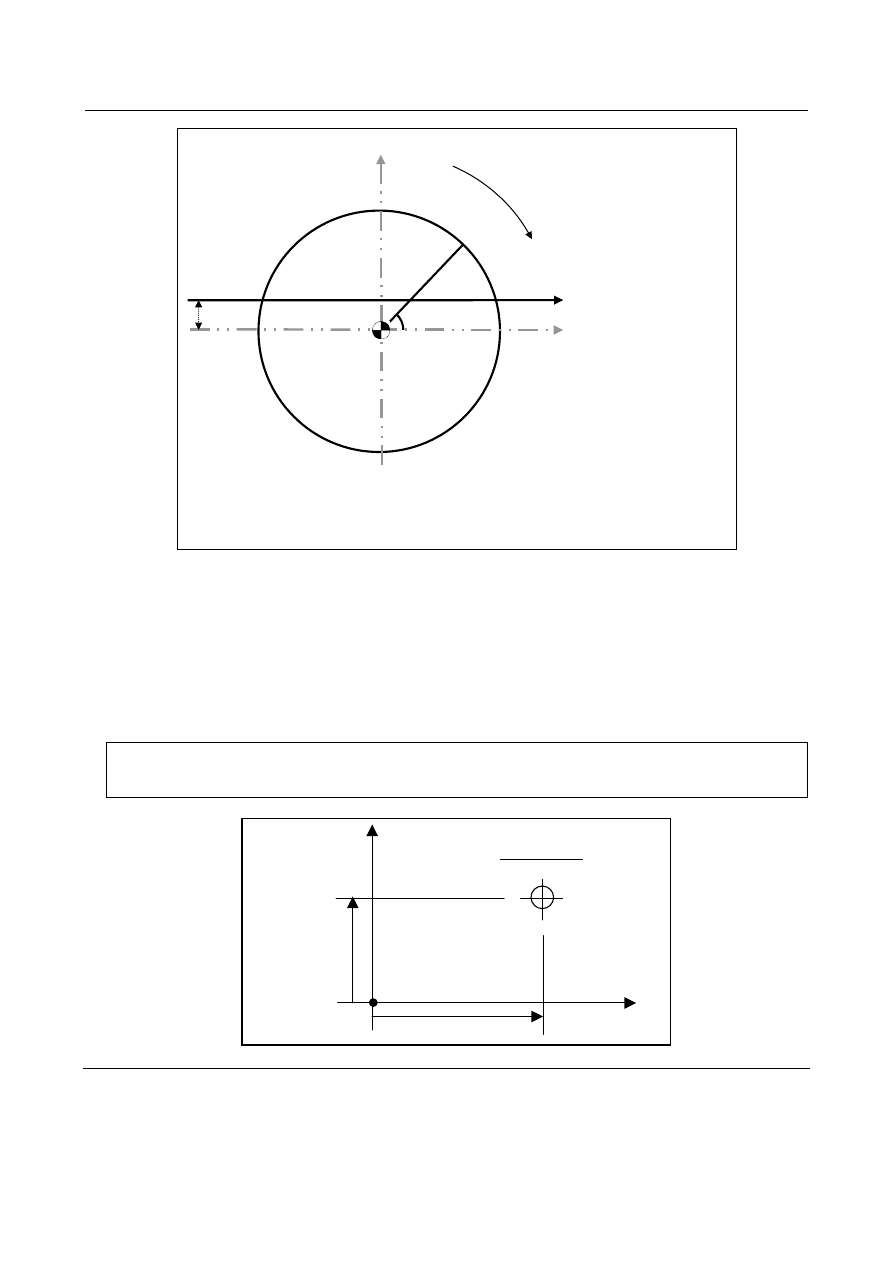

  -  Compensation in the direction of the hypothetical axis in polar coordinate

interpolation

If the first axis of the plane has an error from the center of the rotary axis in the hypothetical axis
direction, in other words, if the rotary axis center is not on the X-axis, the hypothetical axis direction
compensation function in the polar coordinate interpolation mode is used. With the function, the error is
considered in polar coordinate interpolation. The amount of error is specified in parameter No. 5464.

 B-64604EN-1/01

 PROGRAMMING

3.INTERPOLATION FUNCTION



- 19 -

(X, C)

Hypothetical axis (C-axis)



Error in the direction of

hypothetical axis (P)



Center of rotary axis

X-axis

Rotary axis



(X, C)  :  Point in the X-C plane (The center of the rotary axis is considered to be the origin of

the X-C plane.)

X

:  X coordinate in the X-C plane

C

:  Hypothetical axis coordinate in the X-C plane

P

:  Error in the direction of the hypothetical axis (specified in parameter No. 5464)





  -  Shifting the coordinate system in polar coordinate interpolation

In the polar coordinate interpolation mode, the workpiece coordinate system can be shifted. The current
position display function shows the position viewed from the workpiece coordinate system before the
shift. The function to shift the coordinate system is enabled when bit 2 (PLS) of parameter No. 5450 is
specified accordingly.
The shift can be specified in the polar coordinate interpolation mode, by specifying the position of the
center of the rotary axis C (A, B) in the X-C (Y-A, Z-B) interpolation plane with reference to the origin of
the workpiece coordinate system, in the following format.


G12.1 X_ C_ ;    (Polar coordinate interpolation for the X-axis and C-axis)
G12.1 Y_ A_ ;  (Polar coordinate interpolation for the Y-axis and A-axis)
G12.1 Z_ B_ ;  (Polar coordinate interpolation for the Z-axis and B-axis)



X

C

x

c

Center of C-axis

G12.1 Xx Cc ;

Origin of workpiece

coordinate system





Limitation

  -  Changing the coordinate system during polar coordinate interpolation

In the G12.1 mode, the coordinate system must not be changed (G92, G52, G53, relative coordinate reset,
G54 through G59, etc.).


3.INTERPOLATION FUNCTION

 PROGRAMMING

 B-64604EN-1/01



- 20 -

  -  Tool radius/tool nose radius compensation

The polar coordinate interpolation mode (G12.1 or G13.1) cannot be started or terminated in the tool
radius/tool nose radius compensation mode (G41 or G42). G12.1 or G13.1 must be specified in the tool
radius/tool nose radius compensation canceled mode (G40).
For the tool radius/tool nose radius compensation canceled mode (G40) command, be sure to specify the
polar coordinate axis to cancel the offset vector.
If the polar coordinate interpolation mode (G12.1 or G13.1) is switched without canceling the offset
vector, the alarm PS0037, “CAN NOT CHANGE PLANE IN G41/G42” is occurred.


  -  Tool offset command

A tool offset must be specified before the G12.1 mode is set. No offset can be changed in the G12.1
mode.


 -  Program restart

For a block in the G12.1 mode, the program and the block cannot be restarted.


  -  Cutting feedrate for the rotary axis

Polar coordinate interpolation converts the tool movement for a figure programmed in a Cartesian
coordinate system to the tool movement in the rotary axis (C-axis) and the linear axis (X-axis). When the
tool comes close to the center of the workpiece, the C-axis velocity component increases. If the maximum
cutting feedrate for the C-axis (parameter No. 1430) is exceeded, the automatic feedrate override function
and automatic speed clamp function are enabled.
If the maximum cutting feedrate for the X-axis is exceeded, the automatic feedrate override function and
automatic speed clamp function are enabled.


 B-64604EN-1/01

 PROGRAMMING

3.INTERPOLATION FUNCTION



- 21 -

 WARNING

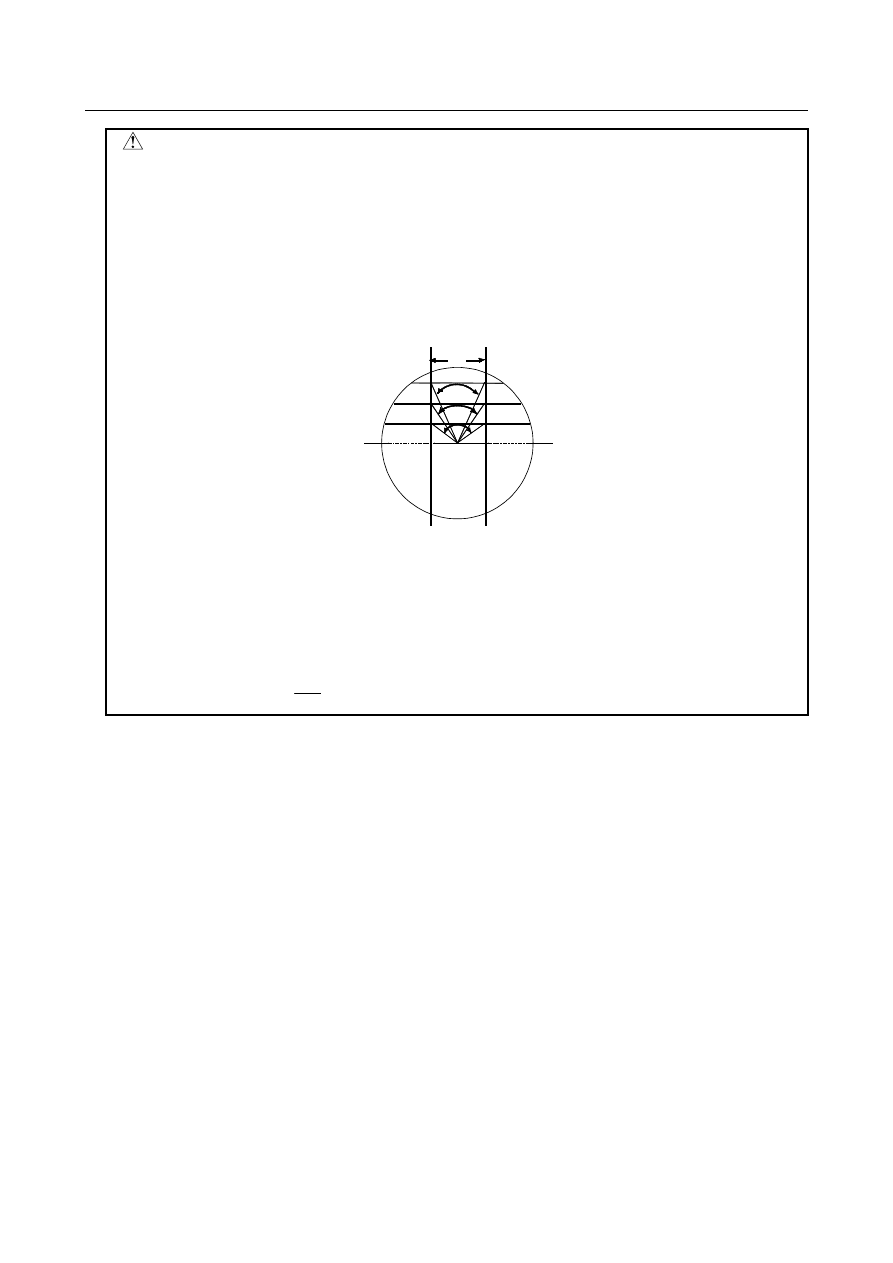

1  Consider lines L1, L2, and L3.

Δ

X is the distance the tool moves per time unit at

the feedrate specified with address F in the Cartesian coordinate system. As the
tool moves from L1 to L2 to L3, the angle at which the tool moves per time unit
corresponding to

Δ

X in the Cartesian coordinate system increases from

θ

1 to

θ

2

to

θ

3. In other words, the C-axis component of the feedrate becomes larger as

the tool moves closer to the center of the workpiece. The C component of the
feedrate may exceed the maximum cutting feedrate for the C-axis because the
tool movement in the Cartesian coordinate system has been converted to the
tool movement for the C-axis and the X-axis.

L1

L2

L3



θ

3



θ

2



θ

1

Δ

X



L:  Distance (in mm) between the tool center and workpiece center when the

tool center is the nearest to the workpiece center

R:  Maximum cutting feedrate (deg/min) of the C axis



Then, a speed specifiable with address F in polar coordinate interpolation can be
given by the formula below. If the maximum cutting feedrate for the C-axis is
exceeded, the automatic speed control function for polar coordinate interpolation
automatically controls the feedrate.



F < L

×

 R

×



180

π

 (mm/min)



  -  Automatic speed control for polar coordinate interpolation

If the velocity component of the rotary axis exceeds the maximum cutting feedrate in the polar coordinate
interpolation mode, the speed is automatically controlled.


 -  Automatic override

If the velocity component of the rotary axis exceeds the permissible velocity (maximum cutting feedrate
multiplied by the permission factor specified in parameter No. 5463), the feedrate is automatically
overridden as indicated below.
Override = (Permissible velocity)

÷

 (Velocity component of rotary axis)

×

 100(%)



  -  Automatic speed clamp

If the velocity component of the rotary axis after automatic override still exceeds the maximum cutting
feedrate, the speed of the rotary axis is automatically clamped. As a result, the velocity component of the
rotary axis will not exceed the maximum cutting feedrate.
The automatic speed clamp function works only when the center of the tool is very close to the center of
the rotary axis.

3.INTERPOLATION FUNCTION

 PROGRAMMING

 B-64604EN-1/01



- 22 -

C-axis

A

B

C

D

X-axis

-10.

+10.

[Example]

G90 G00 X10.0 C0. ;
G12.1 ;
G01 C0.1 F1000 ;
X-10.0 :
G13.1 ;





Automatic speed control for polar coordinate interpolation


Suppose that the maximum cutting feedrate of the rotary axis is 360 (3600 deg/min) and that the
permission factor of automatic override for polar coordinate interpolation (parameter No. 5463) is 0
(90%). If the program indicated above is executed, the automatic override function starts working when
the X coordinate becomes 2.273 (point A). The automatic speed clamp function starts working when the
X coordinate becomes 0.524 (point B).
The minimum value of automatic override for this example is 3%. The automatic speed clamp function
continues working until the X coordinate becomes -0.524 (point C). Then, the automatic override
function works until the X coordinate becomes -2.273 (point D).
(The coordinates indicated above are the values in the Cartesian coordinate system.)


NOTE

1  While the automatic speed clamp function is working, the machine lock or

interlock function may not be enabled immediately.

2  If a feed hold stop is made while the automatic speed clamp function is working,

the automatic operation halt signal *SP is output. However, the operation may
not stop immediately.

3  The clamped speed may exceed the clamp value by a few percent.



 B-64604EN-1/01

 PROGRAMMING

3.INTERPOLATION FUNCTION



- 23 -

Example

Sample program for polar coordinate interpolation in a Cartesian coordinate system consisting of the
X-axis (a linear axis) and a hypothetical axis


N204

N205

N206

N203

N202

N201

N208

N207

N200

Tool

C axis

Hypothetical axis

Path after cutter compensation

Path before cutter compensation

X axis

Z axis




O0001;
    .
N010 T0101
    .
N0100 G90 G00 X60.0 C0 Z    ;

Positioning to start point

N0200 G12.1;

Start of polar coordinate interpolation

N0201 G42 G01 X20.0F    ;
N0202 C10.0;
N0203 G03 X10.0 C20.0 R10.0;
N0204 G01 X-20.0;

Geometry program

N0205 C-10.0;

(program based on cartesian coordinates on

N0206 G03 X-10.0 C-20.0 I10.0 J0;

X axis-hypothetical axis plane)

N0207 G01 X20.0;
N0208 C0;
N0209 G40 X60.0;
N0210 G13.1;

Cancellation of polar coordinate interpolation

N0300 Z    ;
N0400 X    C  ;
    .
N0900M30;



3.INTERPOLATION FUNCTION

 PROGRAMMING

 B-64604EN-1/01



- 24 -

3.2

CONSTANT LEAD THREADING (G32)

Tapered screws and scroll threads in addition to equal lead straight threads can be cut by using a G32
command.
The spindle speed is read from the position coder on the spindle in real time and converted to a cutting
feedrate for feed-per minute mode, which is used to move the tool.

L

Straight thread

L

L

Tapered screw

Scroll thread



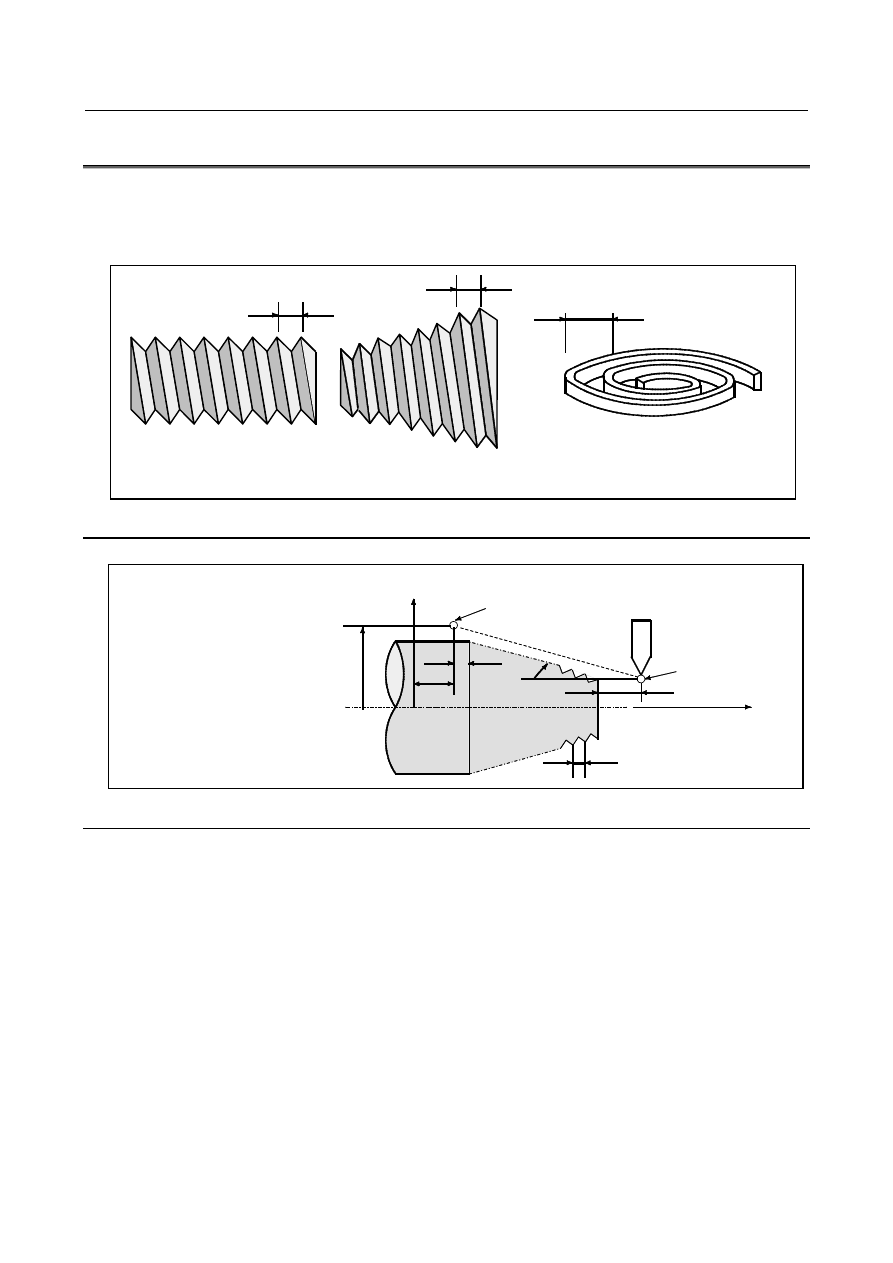

Fig. 3.2 (a) Thread types



Format



X

X axis

Z

δ

2

α

Start point

L

δ

1



End point_

0

Z axis

G32

IP

_F_;



IP

_: End point

F _: Lead of the long axis

        (always radius programming)



Fig. 3.2 (b) Example of threading



Explanation

In general, threading is repeated along the same tool path in rough cutting through finish cutting for a
screw. Since threading starts when the position coder mounted on the spindle outputs a
one-spindle-rotation signal, threading is started at a fixed point and the tool path on the workpiece is
unchanged for repeated threading. Note that the spindle speed must remain constant from rough cutting
through finish cutting. If not, incorrect thread lead will occur.
