FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356Q)

Communications Modules

IC693BEM320

Installation, Configuration, User’s Guide: GFK-0631

I/O Link Interface Module

(slave)

IC693BEM321

Installation, Configuration, User’s Guide: GFK-0823

I/O Link Master Module

IC693BEM330

Installation, Configuration, User’s Guide: GFK-1037

FIP Remote I/O Scanner

Related Publications:

Module

Interfacing to Series 90-70: GFK-1038

Hand Held Programmer User’s Manual: GFK-0402

FIP Bus Controller User’s Manual: GFK-1213

IC693BEM340

Installation, Configuration, User’s Guide: GFK-1213

FIP Bus Controller Module

Related Publications:

Hand Held Programmer User’s Manual: GFK-0402

FIP Bus Interface Unit: GFK-1175

FIP Remote I/O Scanner: GFK-1037

IC693CMM311

Installation, Configuration, User’s Guide: GFK-0582

Comm. Coprocessor Module

IC693CMM321

Installation, Configuration, User’s Guide: GFK-1541

Ethernet Module

Programming Options:

Ethernet Station Manager: GFK-1186

Host Communications Toolkit, C/C++: GFK-0870

Host Communications Drivers, MS Windows: GFK-1026

Host Communications Toolkit, Visual Basic: GFK-1063

CPU Modules, CPU311-CPU341

Series 90-30 CPUs

Installation: GFK-0356

(IC693CPU311 -

Configuration and Programming Options:

IC693CPU341)

Configuration and Programming (HHP): GFK-0402

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration (CIMPLICITY Machine Edition Logic Developer-

PLC: GFK-1868

GFK-0356Q

Appendix G Catalog Number to Publication Cross-Reference

G-3

CPU Modules, CPU350 - CPU374

IC693CPU350

Installation: GFK-0356

CPU Module

Configuration and Programming Options:

Configuration / Programming (HHP): GFK-0402

Configuration (Control): GFK-1295

Programming (Control): GFK-1411

SFC Programming (Control): GFK-1385

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration/Programming CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

IC693CPU351

Installation: GFK-0356

IC693CPU352

Serial Communications: GFK-0582

CPU Modules

Configuration and Programming Options:

Configuration / Programming (HHP): GFK-0402

Configuration (Control): GFK-1295

Programming (Control): GFK-1411

SFC Programming (Control): GFK-1385

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration/Programming (CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

IC693CPU360

Installation: GFK-0356

CPU modules

Configuration and Programming Options:

Configuration / Programming (HHP): GFK-0402

Configuration (Control): GFK-1295

Programming (Control): GFK-1411

SFC Programming (Control): GFK-1385

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration/Programming (CIMPLICITY Machine Edition Logic

Developer^- PLC: GFK-1868

G-4

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

IC693CPU363

Installation: GFK-0356P or later

CPU Module

Configuration and Programming Options:

Configuration and Programming (HHP): GFK-0402

Configuration/Programming (Control): GFK-1295

SFC Programming (Control): GFK-1385

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration/Programming (CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

Serial Communications: GFK-0582

IC693CPU364

Installation, Configuration, User’s Guide: GFK-1541

IC693CPU374

Specifications: GFK-0356

CPU Module

Configuration and Programming Options:

Configuration (Control): GFK-1295

Programming (Control): GFK-1411

SFC Programming (Control): GFK-1385

Configuration (LM90): GFK-0466

Programming (LM90): GFK-0467

SFC Programming (LM90): GFK-0854

Configuration / Programming (VersaPro): GFK-1670

Configuration/Programming (CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

Ethernet Station Manager: GFK-1186

Host Communications Toolkit, C/C++: GFK-0870

Host Communications Drivers, MS Windows: GFK-1026

Host Communications Toolkit, Visual Basic:

GFK-1063

Digital Valve Driver Module

IC693DVM300

Installation and Specifications: GFK-0356P or later

Configuration Options:

This module does not connect to PLC backplane; therefore, it mounts

in an unconfigured slot.

Discrete I/O Modules

All Discrete Input, Output,

Installation and Specifications: GFK-0898

and Combination Modules

Configuration Options:

(IC693MDLxxx)

Configuration (HHP): GFK-0402

Configuration (LM90): GFK-0466

Configuration (Control): GFK-1295

Configuration (VersaPro): GFK-1670

Configuration (CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

GFK-0356Q

Appendix G Catalog Number to Publication Cross-Reference

G-5

Genius Modules

IC693BEM331

Installation, Configuration, User Guide: GFK-1034

Genius Bus Controller

Related Publication:

Genius I/O System User’s Manual: GEK-90486-1

Genius Blocks User’s Manual: GEK-90486-2

IC693CMM301

Installation, Configuration, User Guide: GFK-0412

Genius Comm. Module

Related Publication:

Genius I/O System User’s Manual: GEK-90486-1

IC693CMM302

Installation, Configuration, User Guide: GFK-0695

Genius Comm. Module +

Related Publication:

(Enhanced)

Genius I/O System User’s Manual: GEK-90486-1

Motion Modules

IC693APU300

Installation, Configuration, User Guide: GFK-0293

High Speed Counter

IC693APU301

Installation, Configuration, User’s Guide:

IC693APU302

Standard Mode: GFK-0840

Axis Positioning Modules

Follower Mode: GFK-0781

Motion Programming: GFK-0664

IC693DSM302

Installation, Configuration, User’s Guide (standard and follower modes):

Digital Servo Module

GFK-1464

Motion Programming: GFK-0664

IC693DSM314

Installation, Configuration, Local Logic, Motion Programming User’s Guide

(standard and follower modes): GFK-1742

Digital Servo Module

Other Option Modules

IC693ADC311

Installation, Configuration, User’s Guide: GFK-0499

Alphanumeric Coprocessor

Programming Options:

Module

Programming, PCOP Development Software: GFK-0487

ADS Display System Reference Manual: GFK-0641

IC693TCM302

Installation, Configuration, User’s Guide: GFK-1466

Temperature Control Module

IC693APU305

Installation, Configuration, User’s Guide: GFK-1028

I/O Processor Module

G-6

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

IC693PCM300

Installation, Configuration, User’s Guide: GFK-0255

IC693PCM301

Programming Options:

IC693PCM311

Programming, PCOP Development Software: GFK-0487

Programmable Coprocessor

Programming, MegaBasic: GFK-0256

Modules

Programming, C Language: GFK-0771

PCM C Function Library Reference: GFK-0772

PCM Quick Reference Guide: GFK-0260

PCOP Quick Reference Guide: GFK-0657

TERMF Quick Reference Guide: GFK-0655

IC693PTM100

Installation, configuration, user’s guide: GFK-1734

Power Transducer Module

(Not available until late 1999.)

(PTM)

(Not available until late 1999.)

Power Supply Modules

All Series 90-30 Power

Installation: GFK-0356

Supply Modules

Configuration Options:

(IC693PWRxxx)

Configuration (HHP): GFK-0402

Configuration (LM90): GFK-0466

Configuration (Control): GFK-1295

Configuration (VersaPro): GFK-1670

Configuration(CIMPLICITY Machine Edition Logic

Developer-PLC: GFK-1868

Programming Device

IC693PRG300

User’s Manual (using the HHP for configuration and programming):

GFK-0402

Hand-Held Programmer

State Logic Products

IC693CSE311

Installation, Configuration, User’s Guide: GFK-1056

IC693CSE313

Programming Options:

IC693CSE323

ECLiPS English Control Language: GFK-0732

IC693CSE331

OnTOP User’s Guide: GFK-0747

IC693CSE340

OnTOP Troubleshooting Manual: GFK-0750

State Logic CPUs

AD693SLP300

Installation, Configuration, User’s Guide: GFK-0726

State Logic Processor (SLP)

Software Options:

Module

ECLiPS English Control Language: GFK-0732

OnTOP Troubleshooting Manual: GFK-0750

AD693CMM301

Installation, Configuration, User’s Information Data Sheet: GFK-1529

State Logic Serial

See also: GFK-1056

Communications (SCM)

Module

GFK-0356Q

Appendix G Catalog Number to Publication Cross-Reference

G-7

Publication Revision Letters

When a GE Fanuc publication is revised, a letter is placed at the end of the publication number. For

example, in the publication number GFK-0356Q, the letter Q at the end indicates the version of the

manual. Manuals are revised when there are changes or additions to the products or product lines

covered in the manual. Since this is a continual process revision letters are not included in this

appendix, except in a few special cases. Therefore, when ordering these publications, ask for the latest

version.

Note: If a publication number does not have an ending letter (suffix), such as GFK-1581, the

publication has never been revised.

Other Sources of Information

■ GE Fanuc InfoLink PLC CD. This CD contains a collection of GE Fanuc PLC manuals for

Series 90-30, Series 90-70, Genius, VersaMax, etc.

■ GE Fanuc web site. This web site, at http://www.gefanuc.com , contains recently revised

publications, product revision histories, and an online catalog.

Note: The information in this appendix is based on Data Sheet GFK-1661.

G-8

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Publication No.

Titles of Series 90-30 Publications Cited in this Appendix

GFK-0255

Series 90 Programmable Coprocessor Module and Support Software User’s Manual

GFK-0256

MegaBasic Language Reference and Programmer’s Guide Reference Manual

GFK-0260

Programmable Coprocessor Module Quick Reference Guide

GFK-0293

Series 90-30 PLC High Speed Counter User’s Manual

GFK-0356

Series 90-30 PLC Installation Manual

GFK-0402

Hand-Held Programmer for Series 90-30/20/Micro PLC User’s Manual

GFK-0412

Series 90-30 Genius Communications Module User’s Manual

GFK-0466

Logicmaster 90, Series 90-30/20/Micro Programming Software User’s Manual

GFK-0467

Series 90-30/20/Micro PLC Reference Manual

GFK-0487

Series 90 PCM Development Software (PCOP) User’s Manual

GFK-0499

CIMPLICITY 90-ADS Alphanumeric Display System User’s Manual

GFK-0582

Series 90 PLC Serial Communications Driver User’s Manual

GFK-0631

Series 90-30 I/O Link Slave Interface User’s Manual

GFK-0641

CIMPLICITY 90-ADS Alphanumeric Display System Reference Manual

GFK-0655

Series 90 PCM Support Software (TERMF) Quick Reference Guide

GFK-0657

Series 90 PCM Development Software (PCOP) Quick Reference Guide

GFK-0664

Series 90-30 Axis Positioning Module Programmer’s Manual

GFK-0695

Series 90-30 Enhanced Genius Communications Module User’s Manual

GFK-0726

State Logic Processor For Series 90-30 PLC User’s Guide

GFK-0732

ECLiPS English Control Language Prog. System for Series 90-30 PLC User’s Guide

GFK-0750

OnTOP for Series 90-30 Online Troubleshooting and Operator Prog. User’s Manual

GFK-0771

C Programmer’s Toolkit for Series 90 PCMs User’s Manual

GFK-0772

PCM C Function Library Reference Manual

GFK-0781

Motion Mate APM for Series 90-30 PLC Follower Mode User’s Manual

GFK-0823

Series 90-30 I/O Link Master Module User’s Guide

GFK-0840

Power Mate APM for Series 90-30 PLC Standard Mode User’s Manual

GFK-0854

Series 90 Sequential Function Chart Programming Language User’s Manual

GFK-0870

Host Communications Toolkit for C/C++ Applications User’s Manual

GFK-0898

Series 90-30 PLC I/O Module Specifications Manual

GFK-1026

Host Drivers &Comm. Config. Software for Windows Environments User’s Manual

GDK-1028

Series 90-30 I/O Processor Module User’s Manual

GFK-1034

Series 90-30 Genius Bus Controller User’s Manual

GFK-1037

Series 90-30 FIP Remote I/O Scanner User’s Manual

GFK-1038

Series 90-70 FIP Bus Controller’s User’s Manual

GFK-1056

Series 90-30 State Logic Control System User’s Manual

GFK-1063

Host Communications Toolkit for Visual Basic Applications User’s Manual

GFK-1175

Field Control Distributed I/O & Control Sys. FIP Bus Interface Unit User’s Manual

GFK-1179

Installation Requirements for Conformance to Standards

GFK-1186

TCP/IP Ethernet Communications for the Series 90 PLC Station Manager Manual

GFK-1213

Series 90-30 FIP Bus Controller User’s Manual

GFK-1295

Using GE Fanuc Control

GFK-1385

GE Fanuc Control: Using the Sequential Function Chart Editor

GFK-1411

Series 90-30 System Manual

GFK-1464

Motion Mate DSM 302 for Series 90-30 PLCs User’s Manual

GFK-0356Q

Appendix G Catalog Number to Publication Cross-Reference

G-9

Appendix

Terminal Block Quick Connect Components

This appendix describes the optional terminal block components for Series 90-30 discrete I/O

modules. This system is referred to as the Terminal Block Quick Connect (TBQC) system. The

advantage of this system, is that it allows the listed discrete I/O modules to be quickly connected to

TBQC terminal blocks. In this system, the TBQC terminal block (shown below) is snapped onto a

standard DIN-rail. Then, a factory-made cable is connected between the terminal block’s

connector and the I/O module’s connector. An I/O module that has a terminal board instead of a

connector is converted into a connector type using an adapter faceplate.

The TBQC system is not recommended for use with Analog modules because it does not meet the

shielding recommendations for Analog module connections. (See the Series 90-30 PLC I/O

Module Specifications Manual, GFK-0898, for Analog module wiring information.)

This appendix contains two sections, one for discrete 16-point I/O modules and one for discrete 32-

point I/O modules.

Connector (Male Pins)

a45586A

“Box” Terminals

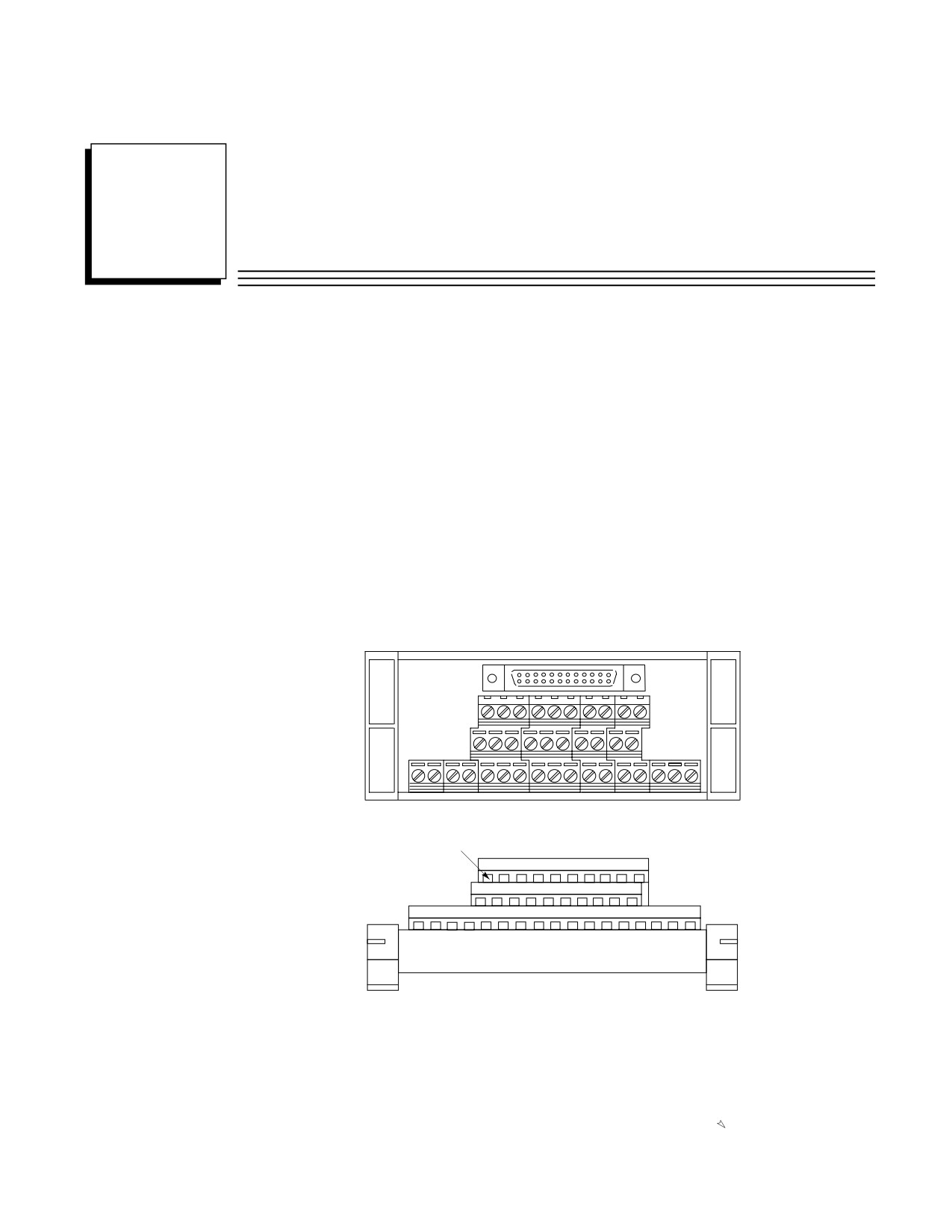

Figure H-1. Typical TBQC Terminal Block

GFK-0356Q

H-1

Terminal Block Quick Connect Components for 16-Point Modules

Installing a 16 point module typically takes 2 1/2 hours to wire from a PLC to a terminal blocks or

strip. With the TBQC, you simply snap the terminal block onto a DIN rail, remove the I/O

module’s terminal assembly, snap in the I/O faceplate, and connect the cable. This reduces wiring

time to about two minutes, thereby reducing wiring costs and errors. A complete assembly consists

of a terminal block, an I/O Face Plate, and a cable.

Terminal Blocks

Terminal blocks have three rows of terminals, arranged in three levels, as shown in Figure H-1.

These terminal blocks feature an easy to use captive-screw, “rising cage” type connection system.

Catalog numbers for the terminal blocks and the modules they can be used with are listed below.

Table H-1. TBQC Terminal Block Selection Table

Catalog

Use With

Module

Number

These Modules

Description

IC693ACC329*

IC693MDL240

Input, 120 VAC - 16 points

IC693MDL645

Input, 24 VDC Pos./Neg Logic- 16 points

IC693MDL646

Input, 24 VDC Pos./Neg, Logic, FAST - 16 points

IC693ACC330

IC693MDL740

Output, 12/24 VDC Pos Logic, 0.5A - 16 points

IC693MDL742

Output, 12/24 VDC Pos Logic ESCP, 1A- 16 points

IC693ACC331

IC693MDL741

Output, 12/24 VDC Neg Logic, 0.5A- 16 points

IC693ACC332

IC693MDL940

Output, Relay, N.O. - 16 points

IC693ACC333

IC693MDL340

Output, 120 VAC, 0.5A - 16 points

* This Terminal Block may be used with most I/O modules that have up to 16 I/O points (can

not be used with 32 point modules). Jumpers may have to be added; for details of required

wiring connections, refer to module specifications in GFK-0898.

Cable Current Rating

Each conductor in these 24-conductor cables has a current rating of 1.2 Amps. If using these cables

with a 16-point Output module with a higher output current rating, you must use the lower value of

1.2 Amps for the maximum load current rating . If you have field devices that require more than

1.2 Amps, do not use a TBQC assembly - use the standard Terminal Board that comes with the

module instead.

H-2

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

Cable Selection and Cross-Reference

Three cables are available for connecting between the module’s faceplate connector and the

terminal block. The only difference in these cables is their length. These cables have right-angle

connectors on the module end to minimize the space required in front of the modules. These three

cables replace three obsolete cables that had straight connectors. Use the following table to select

the correct cable.

Cable Catalog

Description

Replaces Obsolete

Number

Cable Number

IC693CBL330

CBL Assembly, 24-pin, 90 Deg, Right Side, 1.0 Meter

IC693CBL321

length

IC693CBL332

CBL Assembly, 24-pin, 90 Deg, Right Side, 2.0 Meter

IC693CBL322

length

IC693CBL334

CBL Assembly, 24-pin, 90 Deg, Right Side, 0.5 Meter

IC693CBL323

length

I/O Face Plate for 16-Point Modules

The I/O Face Plate (catalog number IC693ACC334) has a 24-pin connector, which provides the

connection to the applicable terminal block through a 0.5, 1, or 2 meter cable. This face plate

replaces the standard terminal board on the listed modules.

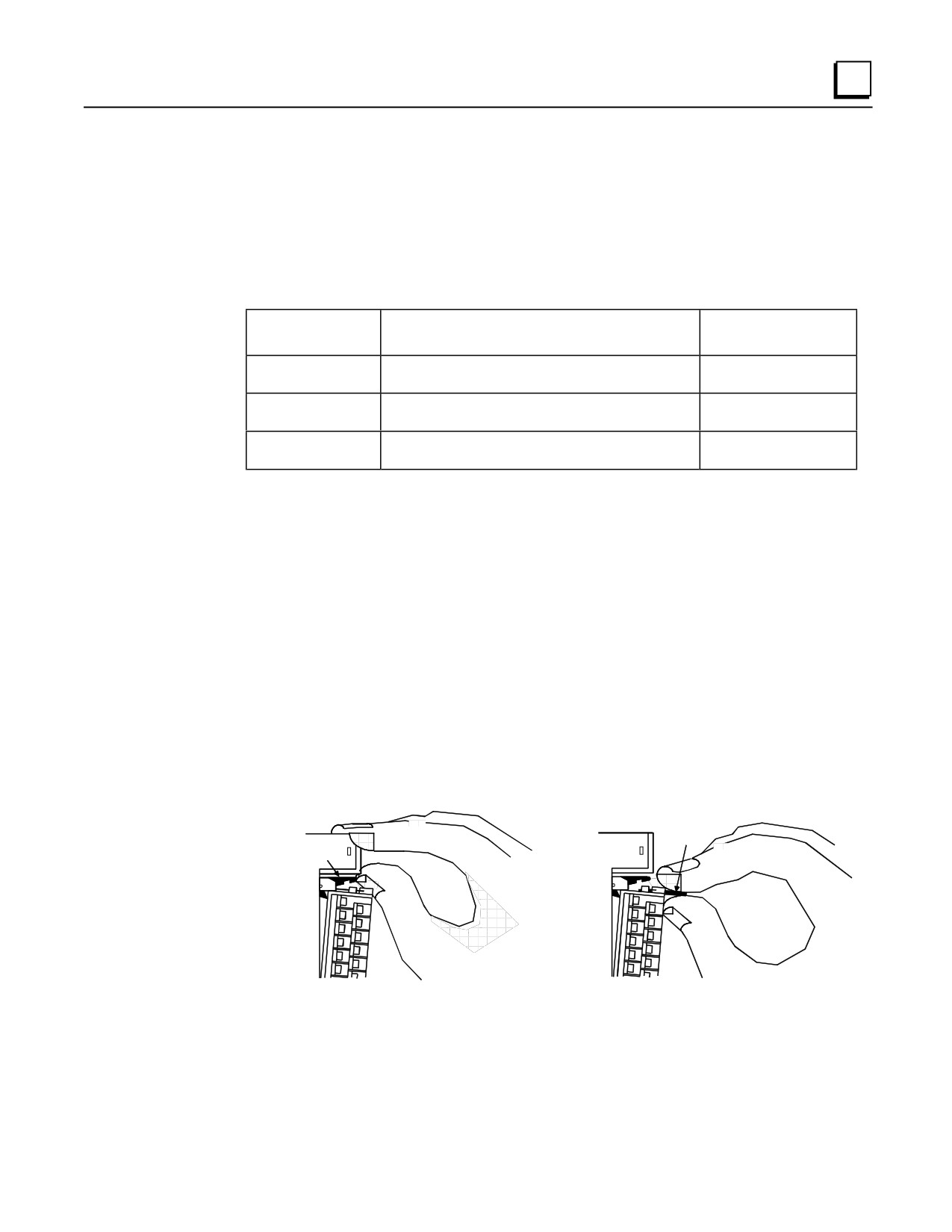

I/O Face Plate Installation

Step 1: Install terminal block assembly on DIN rail

Place the terminal block over the desired location on the DIN rail and snap into place.

Step 2: Remove 20-pin terminal assembly from module

PULL

TAB

JACKING

LEVER

Open the plastic terminal board

Grasp pull-tab towards you until contacts

Push up on the jacking lever to release

separated from module housing and hook

the terminal block.

disengaged for full removal.

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-3

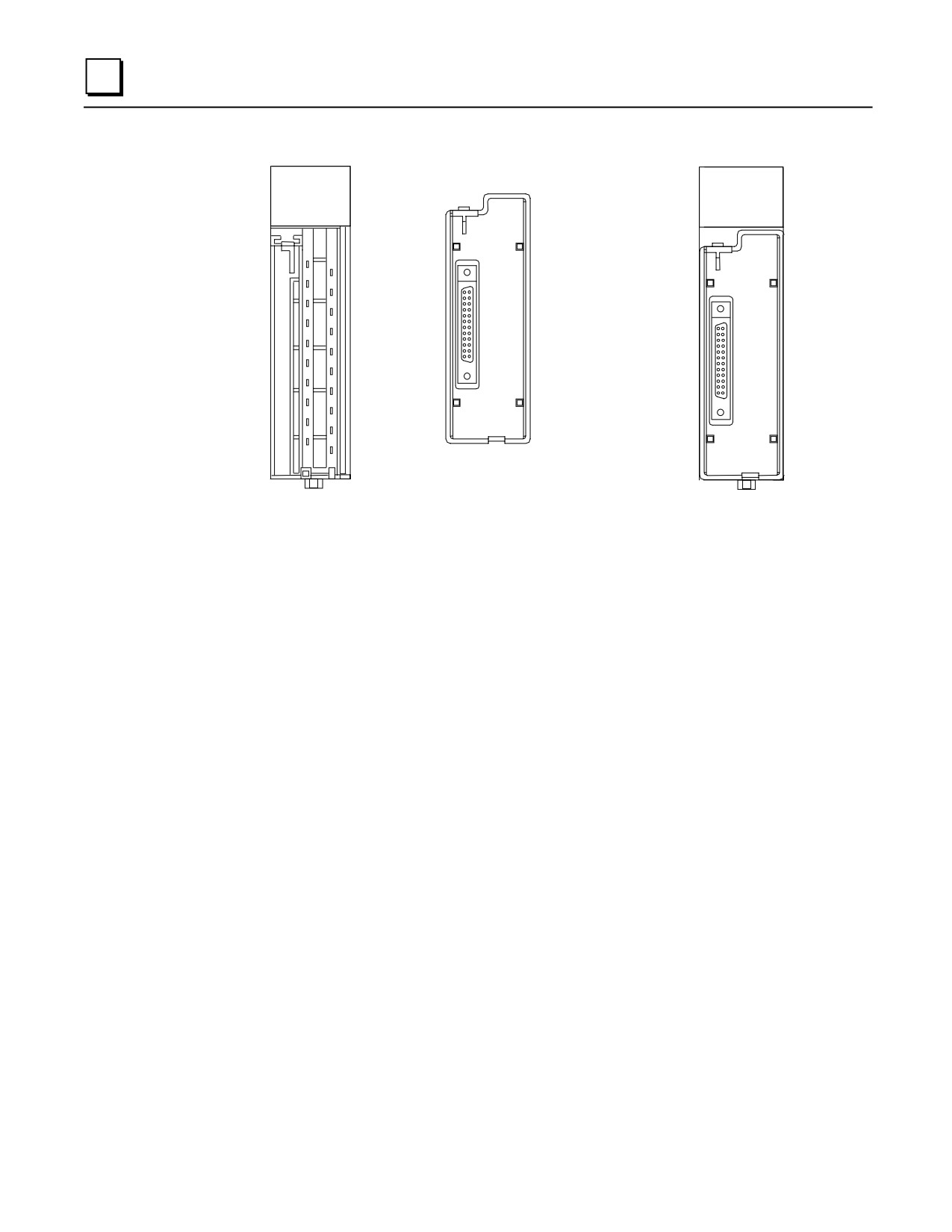

Step 3: Snap I/O Face Plate assembly on module

a47118

A1 2 3 4 5 6 7 8

B1 2 3 4 5 6 7 8

Installing the I/O Face Plate

Module with I/O Face Plate Installed

Step 4: Connect cable to connector on terminal block

Finally, connect the selected length cable from the connector on the I/O Face Plate to the connector

on the interposing terminal block.

Module Wiring Information

Refer to GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for wiring connections

for each module.

Cable Information

Data sheets for the cables are found in the “Cables” chapter of this manual.

H-4

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

Connector Pin Orientation and Connection to Module Terminal

a47119

Module

Connector

Terminal #

Pin#

A1 2 3 4 5 6 7 8

B1 2 3 4 5 6 7 8

. . . . . . . . B6 (N.C.)

Pin B1

Pin A1

. . . . . . . . A6 (N.C.)

. . . . . . . . B7 (N.C.)

. . . . . . . . A7 (N.C.)

B10

Pin A12

A10

Pin B12

B11

A11

B12

A12

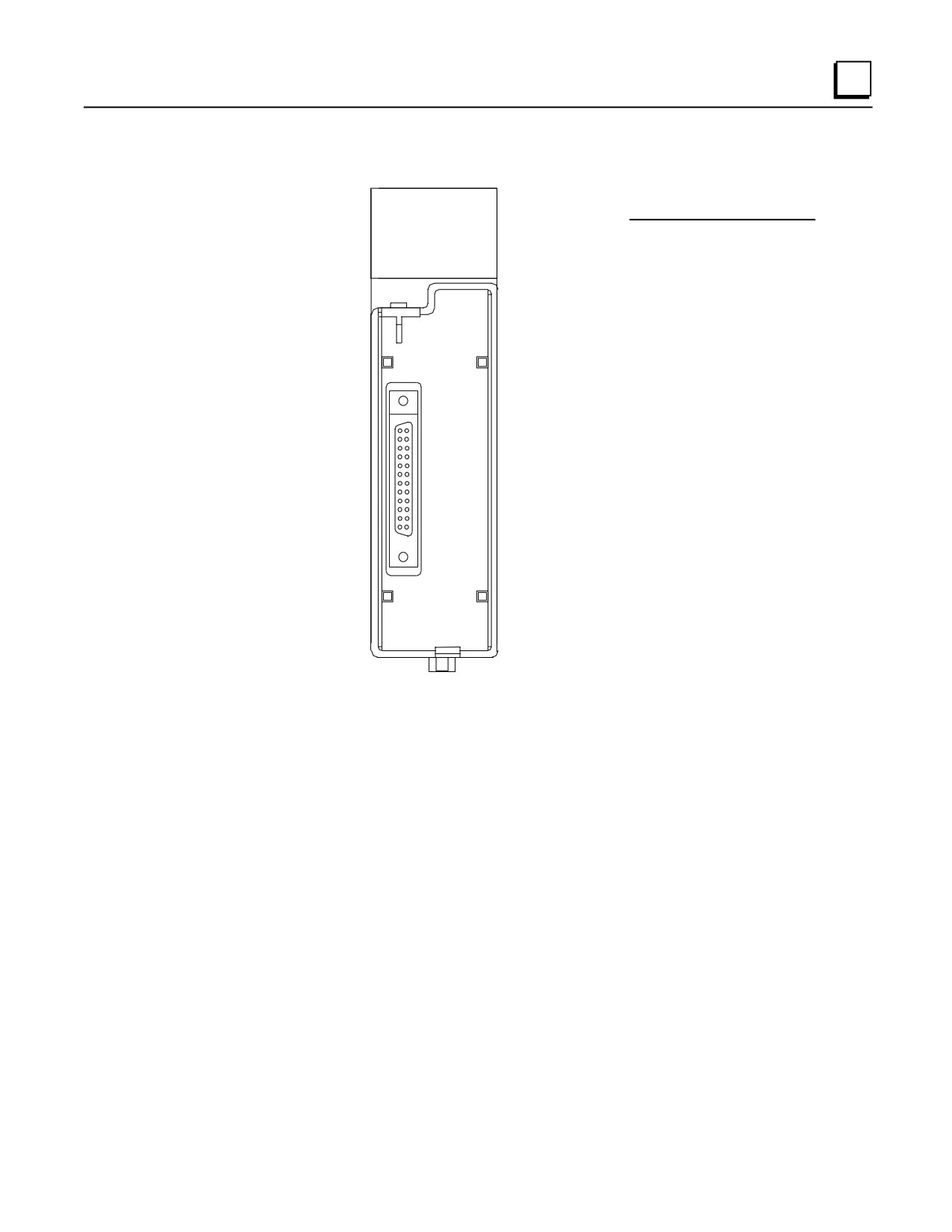

Connector Pin Orientation

Figure H-2. TBQC Faceplate

Terminal Block Information

Terminal block data sheets are found on the next several pages.

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-5

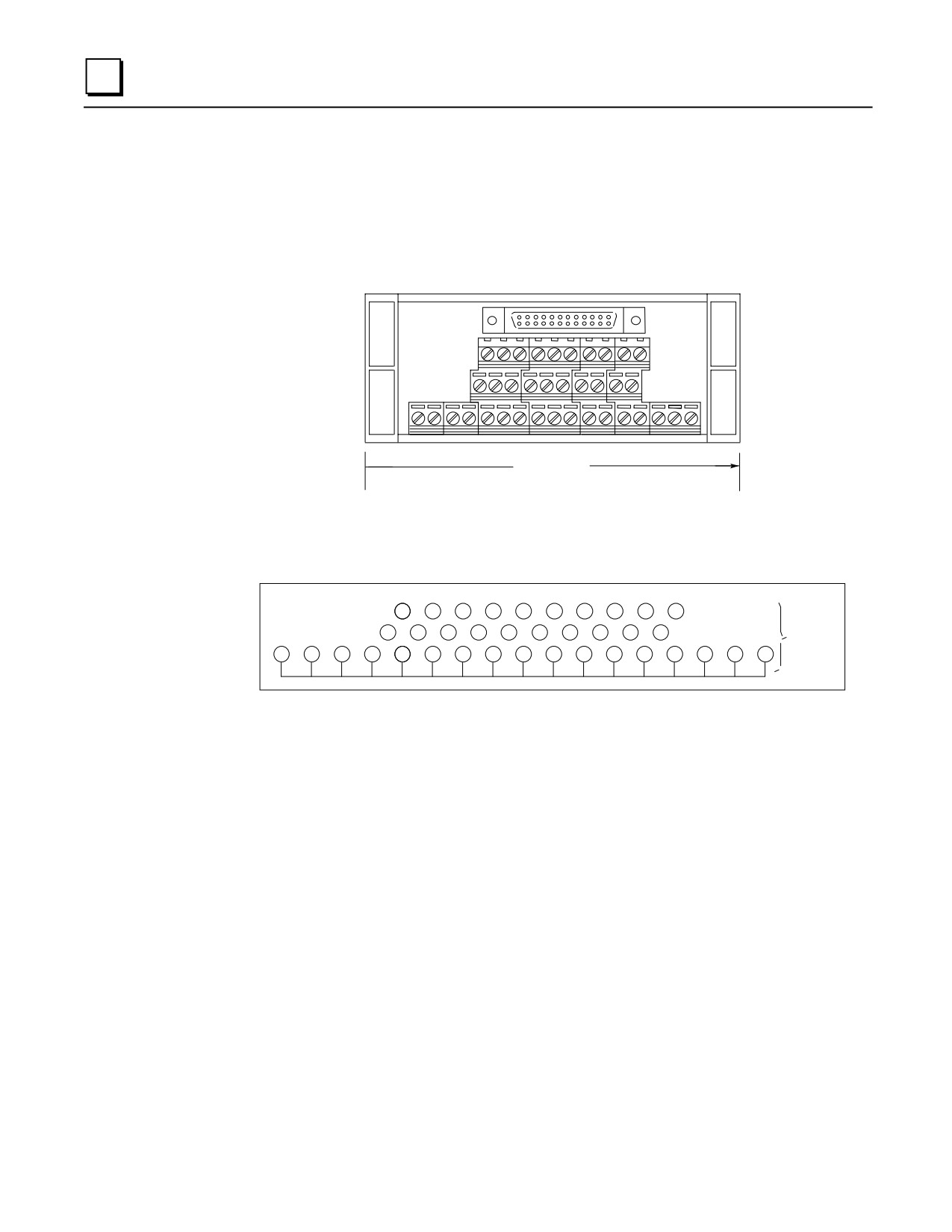

IC693ACC329 TBQC Terminal Block

Use with the following 16-point I/O modules:

IC693MDL240

IC693MDL645

IC693MDL646

a45586

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

4.44” (112mm)

Height (all blocks)

2.25” (57mm)

Depth (all blocks)

1.7716” (45mm)

TERMINAL

BLOCK

(See Note 1

Below)

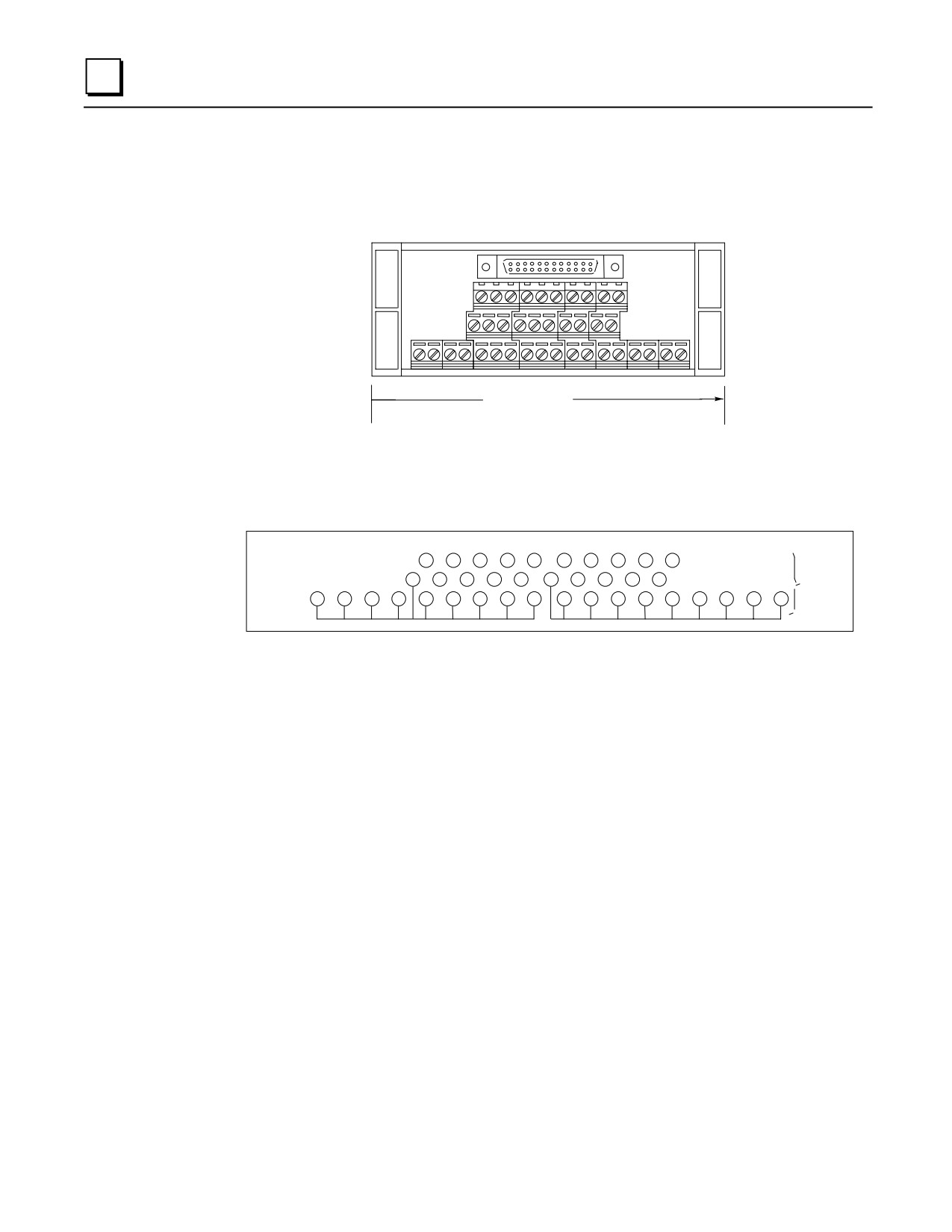

Figure H-3. IC693ACC329 TBQC Terminal Block

Note

The common row terminals (labeled with the letter C) are provided for wiring

convenience. Their use is optional. They are electrically isolated from the numbered

terminals. You may use them as is, or jumper them to a numbered terminal. Refer to

GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for wiring diagrams of

the modules.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

H-6

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

IC693ACC330 TBQC Terminal Block

Use with the following 16-point I/O modules:

IC693MDL740

IC693MDL742

a45587

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

4.64” (117.86mm)

Height (all blocks)

2.25” (57mm)

Depth (all blocks)

1.7716” (45mm)

TERMINAL

BLOCK

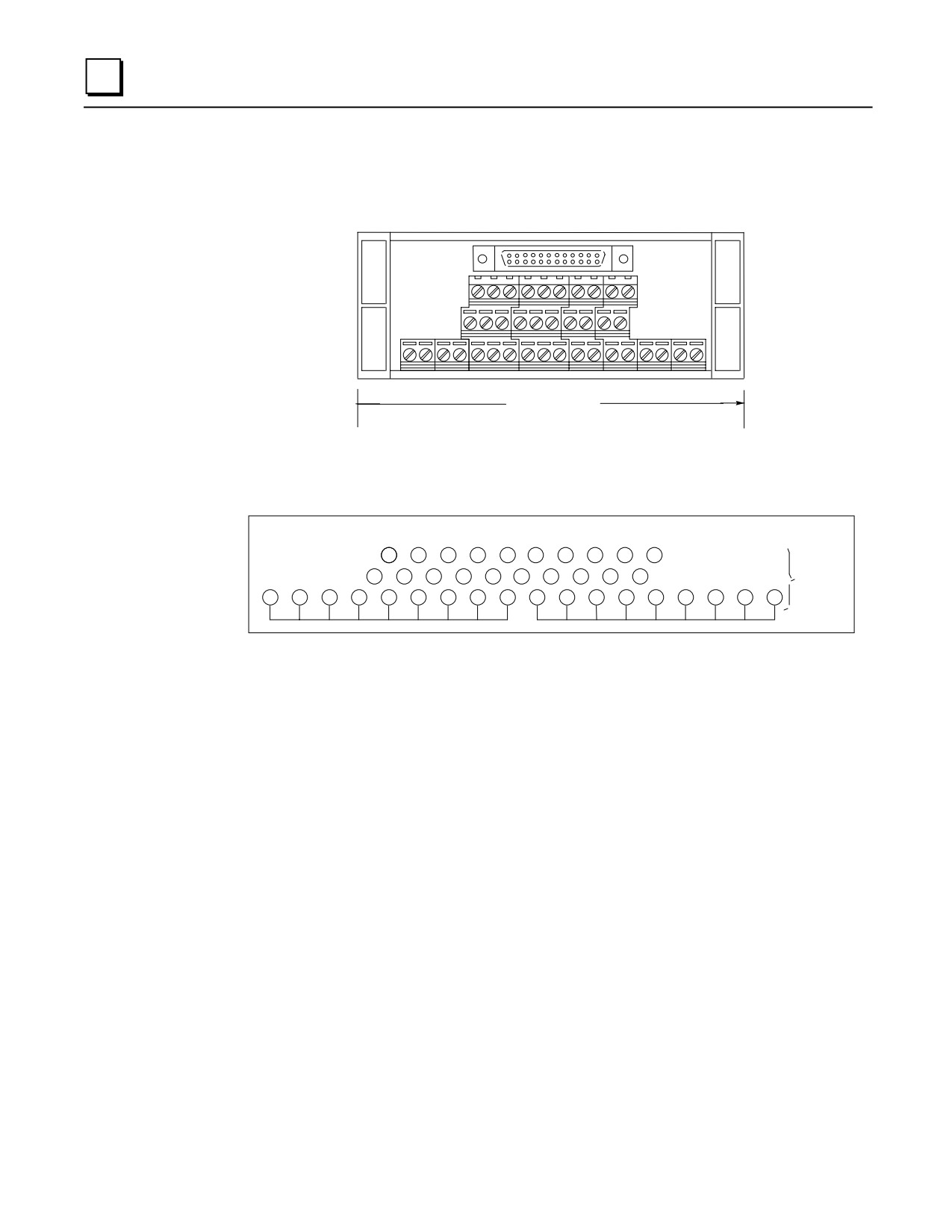

Figure H-4. IC693ACC330 TBQC Terminal Block

Note

Refer to GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for required

wiring connections.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-7

IC693ACC331 TBQC Terminal Block

Use with the following 16-point I/O module: IC693MDL741

a45588

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

4.64” (117.86mm)

Height (all blocks)

2.25” (57mm)

Depth (all blocks)

1.7716” (45mm)

TERMINAL

BLOCK

Figure H-5. IC693ACC331 TBQC Terminal Block

Note

Refer to GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for required

wiring connections.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

H-8

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

IC693ACC332 TBQC Terminal Block

Use with the following 16-point I/O module: IC693MDL940

a45589

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

5.04” (128mm)

Height (all blocks)

2.25” (57mm)

Depth (all blocks)

1.7716” (45mm)

TERMINAL

BLOCK

(See Note 1

Below)

Figure H-6. IC693ACC332 TBQC Terminal Block

Note

The common row terminals (labeled with the letter C) are provided for wiring

convenience. Their use is optional. They are electrically isolated from the numbered

terminals. You may use them as is, or jumper them to a numbered terminal. Refer to

GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for wiring diagrams of

the modules.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-9

IC693ACC333 TBQC Terminal Block

Use with the following 16-point I/O module: IC693MDL340

a45590

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

4.64” (117.86mm)

Height (all blocks)

2.25” (57mm)

Depth (all blocks)

1.7716” (45mm)

TERMINAL

BLOCK

(See Note 1

Below)

Figure H-7. IC693ACC333 TBQC Terminal Block

Note

The neutral row terminals (labeled with the letter N) are provided for wiring convenience.

Their use is optional. They are electrically isolated from the numbered terminals. You

may use them as is, or jumper them to a numbered terminal. Refer to GFK-0898, Series

90-30 PLC I/O Module Specifications Manual for wiring diagrams of the modules.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

H-10

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

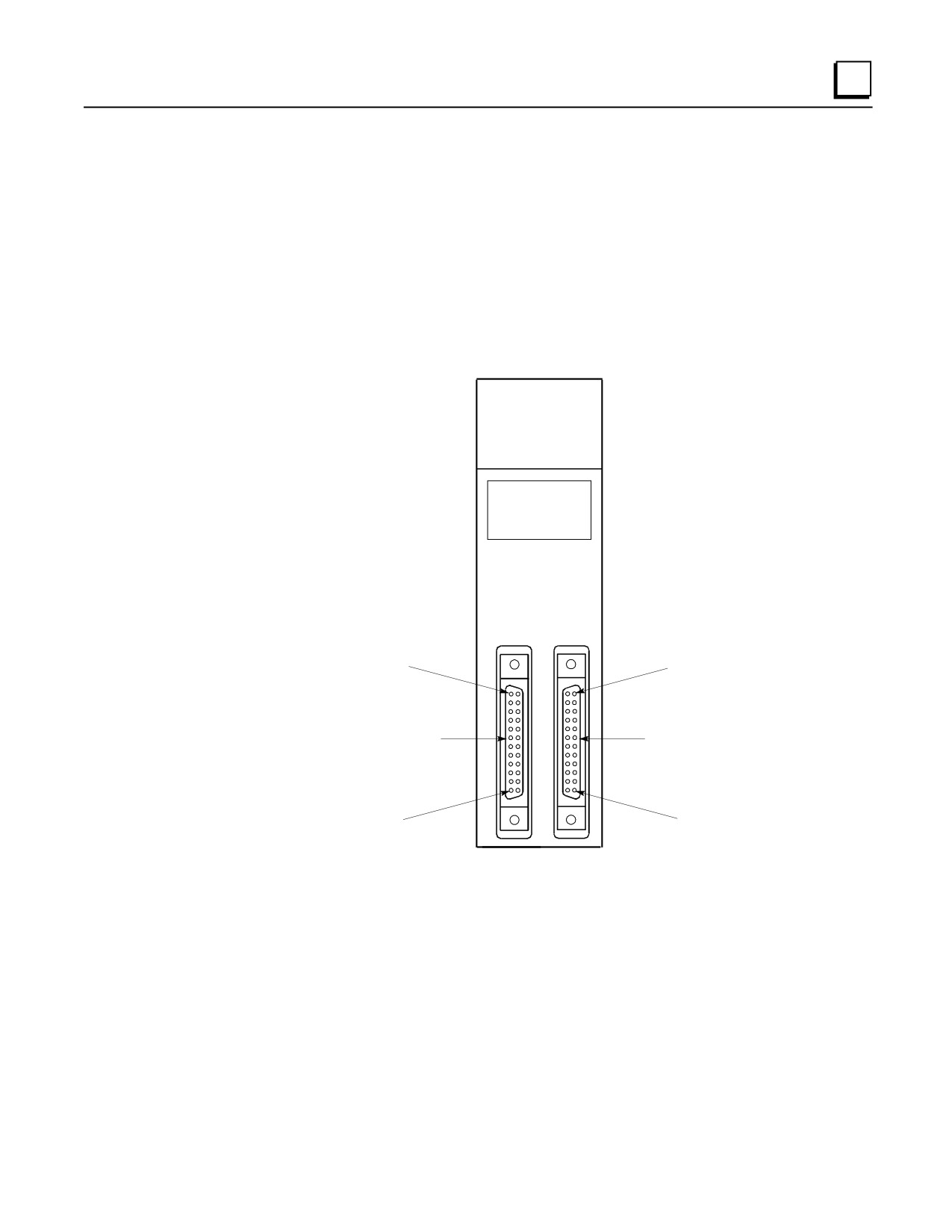

Terminal Block Quick Connect Components for 32-Point Modules

The 32-point modules do not require a new faceplate since they are equipped with a dual-connector

faceplate as a standard feature. Since each module has two 24-pin connectors, they each require

two cables and two terminal blocks. Also, since the modules’ two connectors are oriented

differently (see example in figure below), the two cables are different. One is called a “right side”

cable and the other, a “left side” cable.

Note: These terminal blocks will not work with the 32-point I/O modules that have 50-pin

connectors.

A1 2 3 4 5 6 7 8

B1 2 3 4 5 6 7 8

C1 2 3 4 5 6 7 8

D1 2 3 4 5 6 7 8

INPUT

5/12 VDC

POS/NEG LOGIC

3.0 mA/Pt at 5VDC

8.5 mA/Pt at 12VDC

Pin B12

Pin B1

Left Side

Right Side

Connector

Pin B1

Pin B12

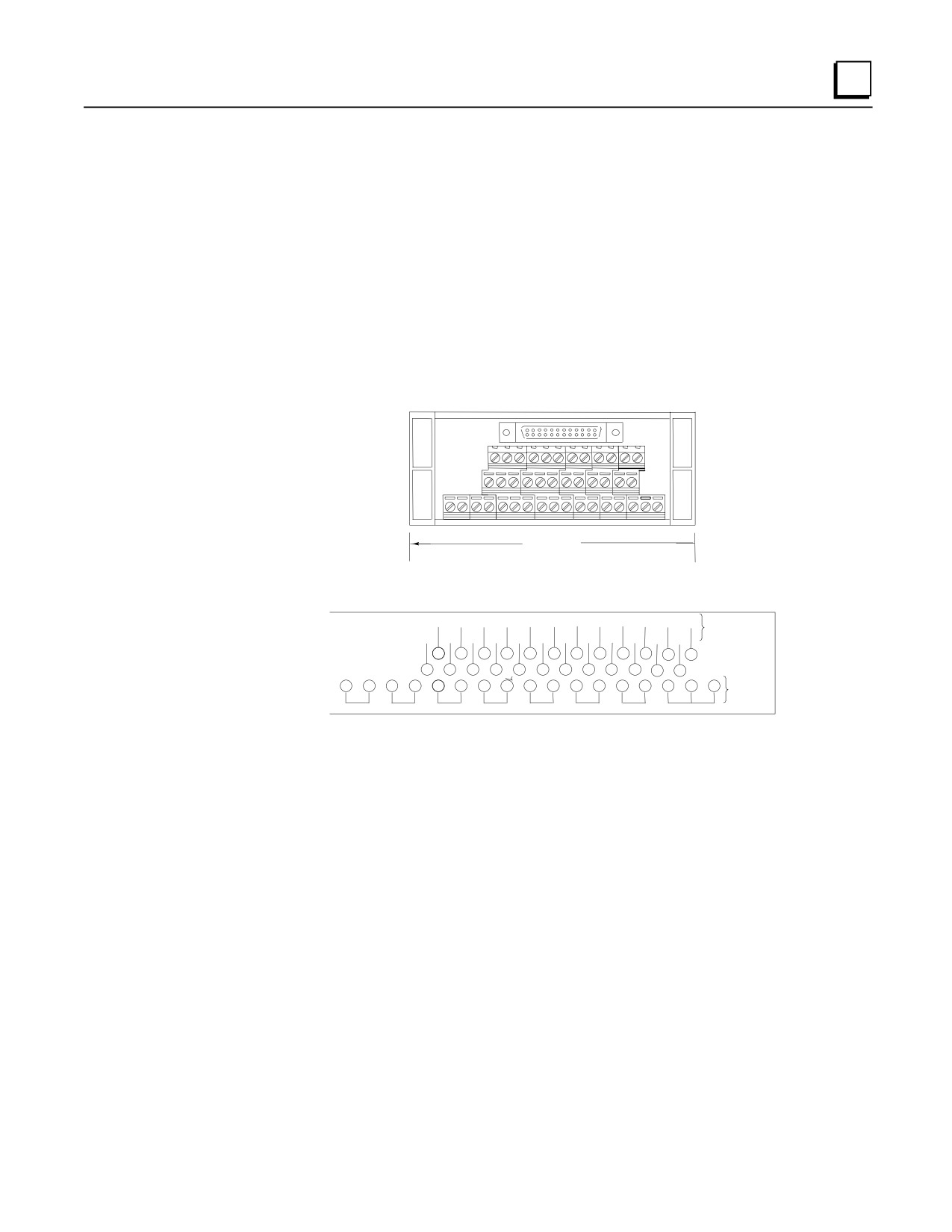

Figure H-8. IC693MDL654 32-Point Module

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-11

Terminal Block

Terminal blocks have three rows of terminals, arranged in three levels, as shown in Figure H-1.

The terminals feature an easy to use captive-screw, “rising cage” type connection system. Catalog

numbers for the terminal block and the modules it can be used with are listed below.

Catalog

Use With

Module

Number

These Modules

Description

IC693ACC337

IC693MDL654

Input, 5/12 VDC (TTL) Pos/Neg Logic- 32 points

IC693MDL655

Input, 24 VDC Pos/Neg Logic - 32 points

IC693MDL752

Output, 5/24 VDC Neg Logic-32 points

IC693MDL753

Output, 12/24 VDC Pos Logic, 0.5A - 32 points

Cable Selection and Cross-Reference

Six cables are available for connecting between the modules’ faceplate connectors and the terminal

blocks. These cables have right-angle connectors on the module end to minimize the space

required in front of the modules. These six cables replace three obsolete cables that had straight

connectors. Since the modules’ two connectors are oriented differently (see previous figure), a

right-side and left-side cable is required. Use the following table to select the correct cables. The

table also lists cable kits that consist of a pair of same length, right side and left side cables.

Cable Current Rating

Each conductor in these 24-conductor cables has a current rating of 1.2 Amps, which is more than

adequate to handle the current requirement of any of the 32-point I/O modules listed in the previous

table.

Replaces Obsolete

Catalog Number

Cable Description and Length

Cable Number

IC693CBL329

Dual 24-pin, 90 deg. connectors, Left Side

IC693CBL321

Cable length = 1.0 Meter

IC693CBL330

Dual 24-pin, 90 deg. connectors, Right Side

IC693CBL321

Cable length = 1.0 Meter

IC693CBL331

Dual 24-pin, 90 deg. connectors, Left Side

IC693CBL322

Cable length = 2.0 Meters

IC693CBL332

Dual 24-pin, 90 deg. connectors, Right Side

IC693CBL322

Cable length = 2.0 Meters

IC693CBL333

Dual 24-pin, 90 deg. connectors, Left Side

IC693CBL323

Cable length = 0.5 Meter

IC693CBL334

Dual 24-pin, 90 deg. connectors, Right Side

IC693CBL323

Cable length = 0.5 Meter

Cable Kits

IC693CBK002

Cable Kit. Includes both the IC693CBL329 (left side) and IC693CBL330 (right

side) cables

IC693CBK003

Cable Kit. Includes both the IC693CBL331 (left side) and IC693CBL332 (right

side) cables

IC693CBK004

Cable Kit. Includes both the IC693CBL333 (left side) and IC693CBL334 (right

side) cables

H-12

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

TBQC Components

Cable Data

Data sheets for these cables are found in the “Cables” chapter of this manual.

Terminal Block Data

IC693ACC337 TBQC Terminal Block

Use with the following 32-point I/O modules (2 required per module):

IC693MDL654, IC693MDL655

IC693MDL752, IC693MDL753

Maximum wire size

per terminal: one

#14 AWG (2.10 mm²⁾

Width

4.45” (112mm)

Height (all blocks)

2.15” (57mm)

Depth (all blocks)

1.7716” (45mm)

A10

A11

A12

24-Pin

Connector

B10

B11

B12

TERM INAL

BLOCK

(See Note 1

Below)

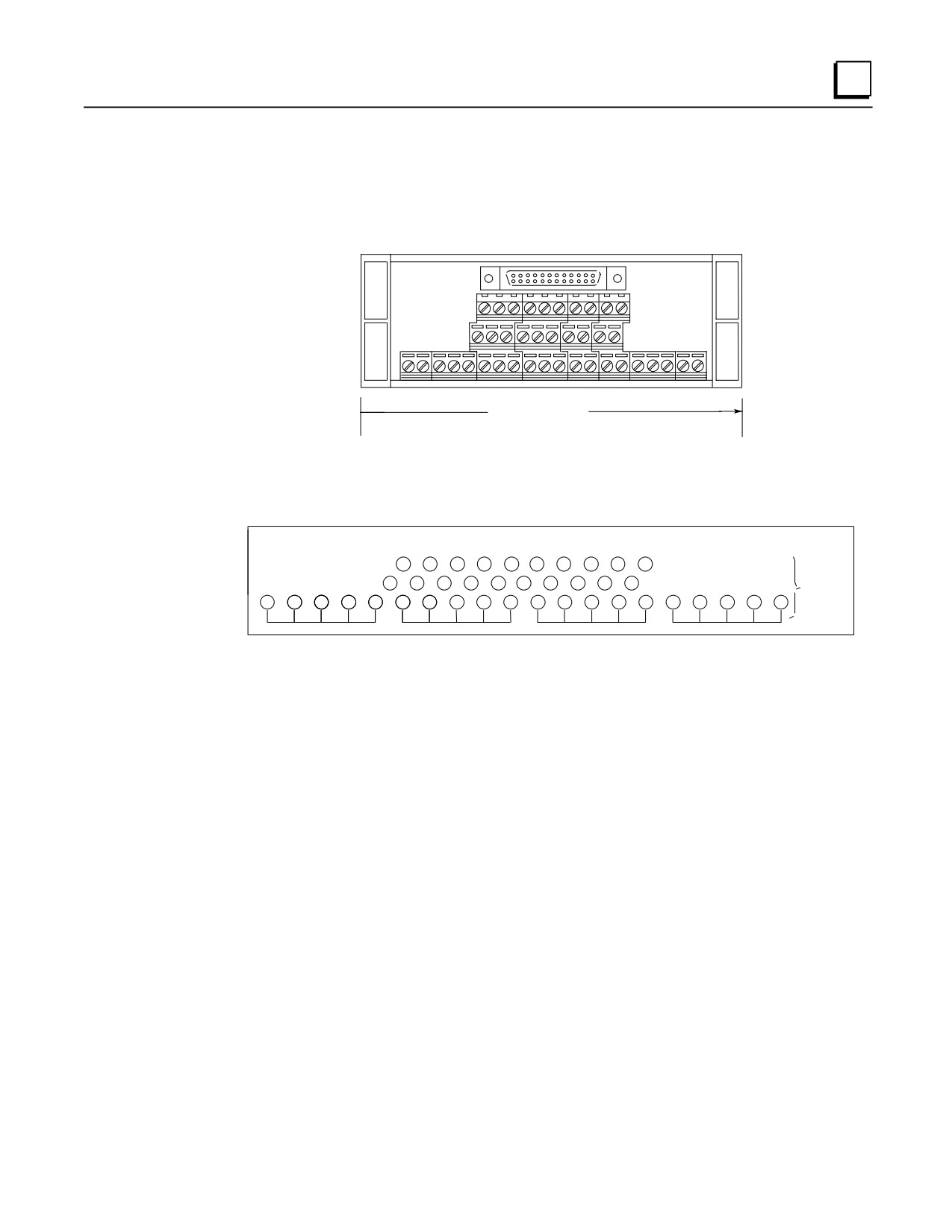

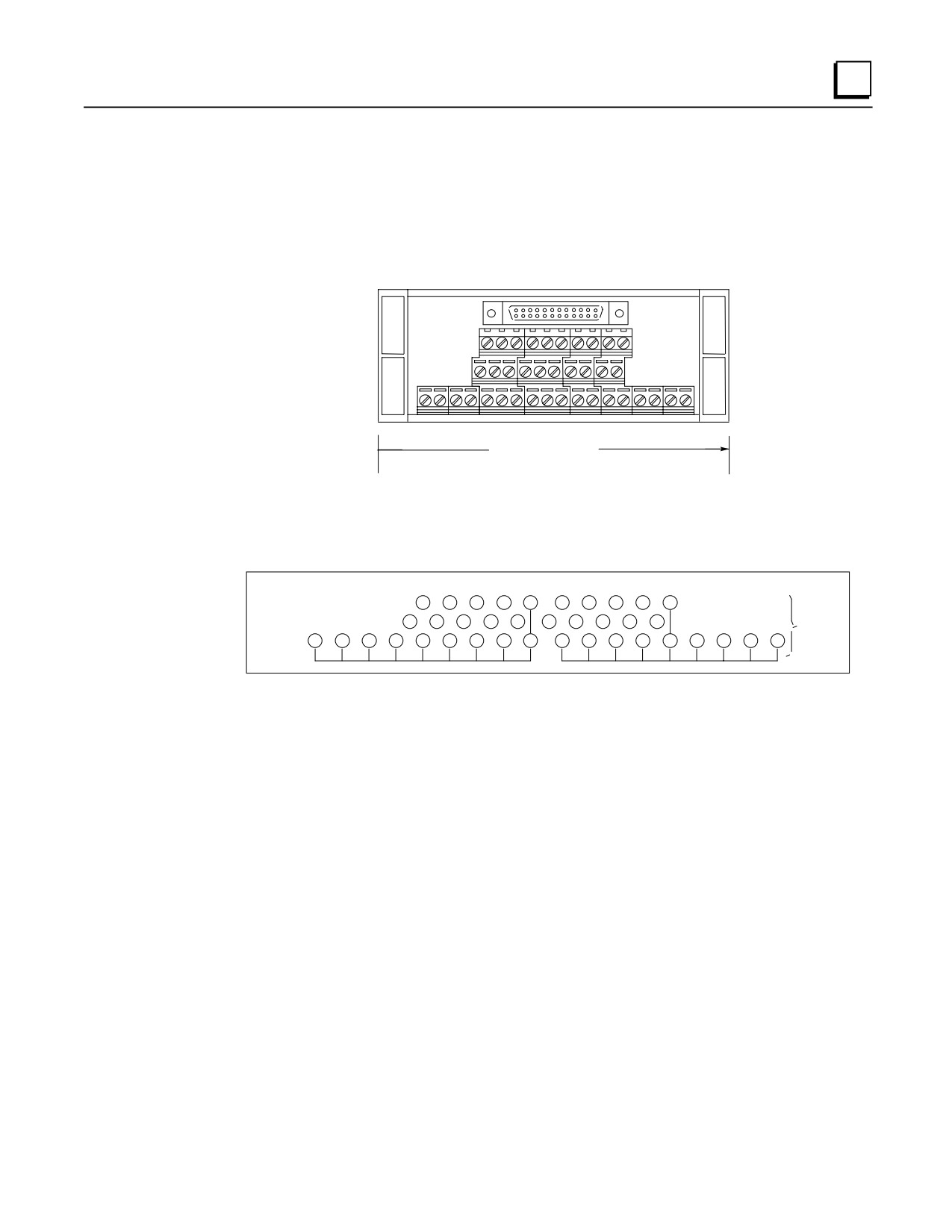

Figure H-9. IC693ACC337 TBQC Terminal Block

Note

The common row terminals (labeled with the letter C) are provided for wiring

convenience. Their use is optional. They are electrically isolated from the numbered

terminals. You may use them as is, or jumper them to a numbered terminal. Refer to

GFK-0898, Series 90-30 PLC I/O Module Specifications Manual for wiring diagrams of

the modules.

Mounting

These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.

GFK-0356Q

Appendix H Terminal Block Quick Connect Components

H-13

Appendix

SNP Multidrop

SNP Multidrop Overview

As used in this appendix, the term “SNP Multidrop” refers to a system that allows a programmer

(called the “master or host”), such as a personal computer running GE Fanuc programming

software, to connect to two or more PLCs or intelligent Option modules (called “slaves“) via a

single connection. In this arrangement the programmer is able to program, configure, test,

troubleshoot, etc., any one of the multidropped devices from one connection point.

Physically, a typical SNP multidrop system consists of a programmer and two or more PLCs

interconnected by a “daisy-chain“ type cabling arrangement, as shown in the figure below. It is

necessary to assign each slave device (PLC or Option module) a unique SNP (Series Ninety

Protocol) address, using programming software such as Logicmaster, VersaPro, or Logic

Developer-PLC. The SNP address is used by the programmer to designate which PLC it will

communicate with. The SNP protocol uses the RS-422 communications standard. Note that the

PLCs or Option modules do not communicate with each other over the multidrop system. They

only communicate with the programmer. And only one device, the one designated by the

programmer, can communicate with the programmer at a time.

Multidrop Connector

15-pin Male

Series 90-30 PLC (slave)

Multidrop

Connector

15-pin Female

Multidrop Cable

IC690ACC901

Serial Cable

Programmer (master)

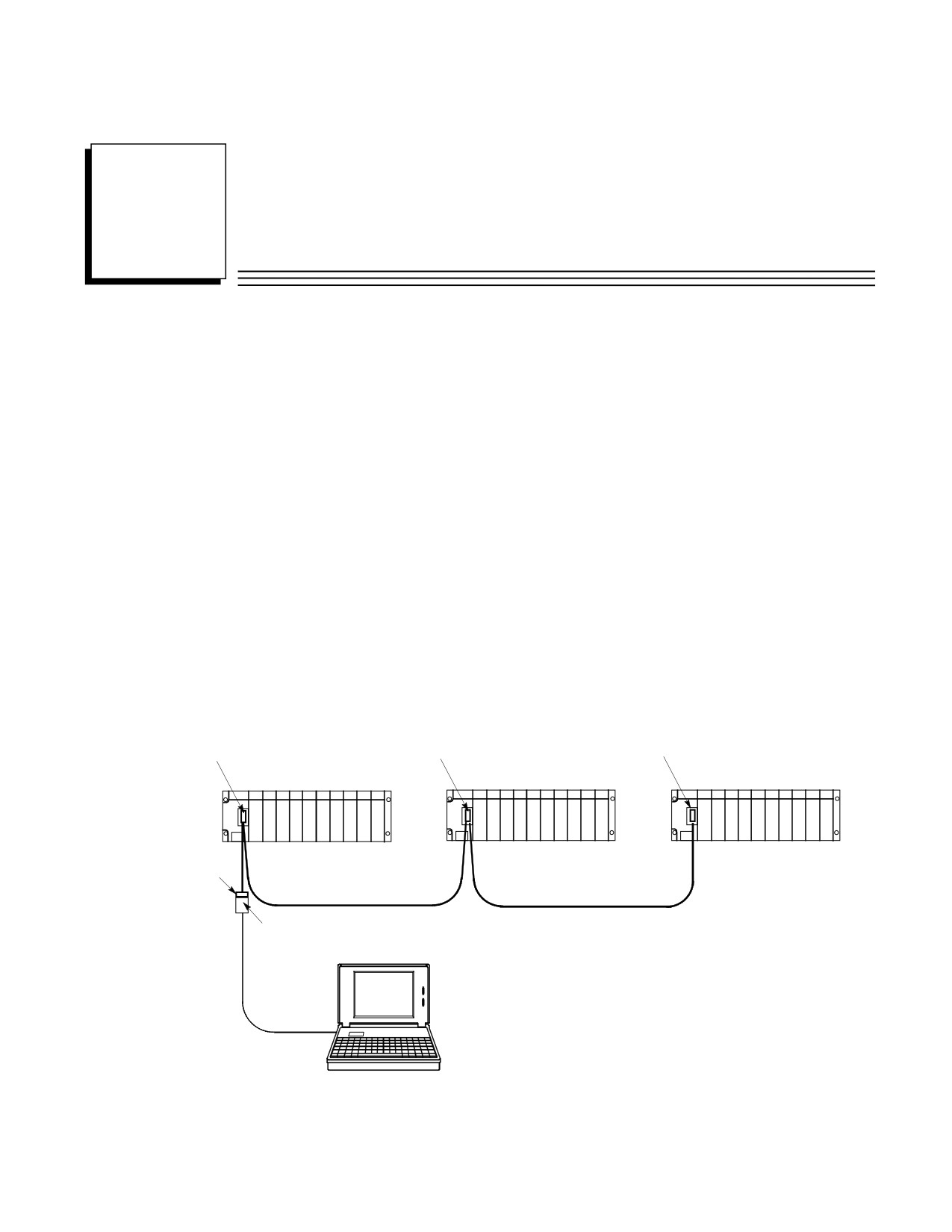

Figure I-1. Series 90-30 Multidrop Example

GFK-0356Q

I-1

Multidrop Cables

There are two sources of multidrop cables:

■ GE Fanuc cable, catalog number IC690CBL714A - This pre-made cable can be purchased

for applications where the PLCs are mounted in the same cabinet, such as in the case of

redundant systems. The length of this cable is 40 inches (1 meter).

■ Custom built - For PLCs that are more than 40 inches (1 meter) apart, it is necessary to build a

custom length cable. The specifications are provide below.

Limitations

■ The maximum cable length between a master (programmer) and slave device (PLC or Option

module) in a multidrop system is 4,000 feet (1,219 meters).

■ The maximum number of slave devices is limited to eight.

Cable and Connector Specifications

The cable assembly presents one of the most common causes of communication failure. For best

performance, construct the cable assemblies using the recommended connector parts and

specifications.

Table I-1. Connector and Cable Specifications

Item

Description

Series 90 PLC: Serial (RS-422) port with metric hardware

Connectors

Connector: 15-pin male, D-Subminiature Type, Cannon DA15S (solder pot) Hood: AMP

207470-1 connector shell

Hardware Kit: AMP 207871-1 Kit includes 2 metric screws and 2 screw clips

Miniconverter: For connecting to IC690ACC901 miniconverter

Connector:

15-pin female, DB15F,

Hood: AMP #207470-1 or equivalent

M3 Latchblocks: AMP #208101 or equivalent

Computer grade, 24 AWG (.22 mm²), minimum with overall shield

Catalog Numbers: Belden 9505, Belden 9306, Belden 9832

Cable

These cables provide acceptable operation for data rates up to 19.2 Kbps as follows:

RS-422/RS-422:

4000 feet (1200 meters) maximum length. Must not exceed the

maximum RS-422 Common Mode specification of +7V to -7V.

Isolation at the remote end may be used to reduce or eliminate Common

Mode voltages.

When using RS-422/RS-422, the twisted pairs should be matched so that both transmit signals

make up one twisted pair and both receive signals make up the other twisted pair. If this is

ignored, cross-task resulting from the mismatching will affect the performance of the

communications system.

When routing communication cables outdoors, transient suppression devices can be used to

reduce the possibility of damage due to lightning or static discharge.

Care should be exercised that all connected devices are grounded to a common point.

Failure to do so could result in damage to the equipment.

I-2

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

MultiDrop Cable Wiring Diagram

RS-422

MAKE CONNECTIONS

INSIDE D-CONNECTORS

DCD ( A )

SD ( A )

DCD ( B )

SD ( B )

RD ( A' )

RD ( B' )

SD ( A )

SD ( B )

RTS ( A )

To Miniconverter on

RTS ( B )

Programmer Serial

CTS ( A' )

Cable

CTS ( B' )

To First Slave PLC

RTS ( A )

+5V

RTS ( B )

+5V

SHLD

15- PIN

FEMALE

MALE

NOTE

WHEN WIRING RS-422 /485 MULTIDROP CABLES, REFLECTIONS ON THE

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE IN A

DAISY CHAIN FASHION, AS SHOWN BELOW.

SD ( A )

SD ( B )

RD ( A' )

RD ( B' )

MINI-

FIRST SLAVE

LAST SLAVE

RTS ( A )

PROGRAMMER

CONVERTER

STATION (PLC)

RTS ( B )

CTS ( A' )

To Second Slave PLC

PLC 15-PIN CONNECTOR

CTS ( B' )

SERIES 90-30 LOCATED

+5V

ON POWER SUPPLY

SERIES 90-70 LOCATED

SHLD

ON THE CPU BOARD

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLC's

MALE

If applicable

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE

ON THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES

90-70 PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

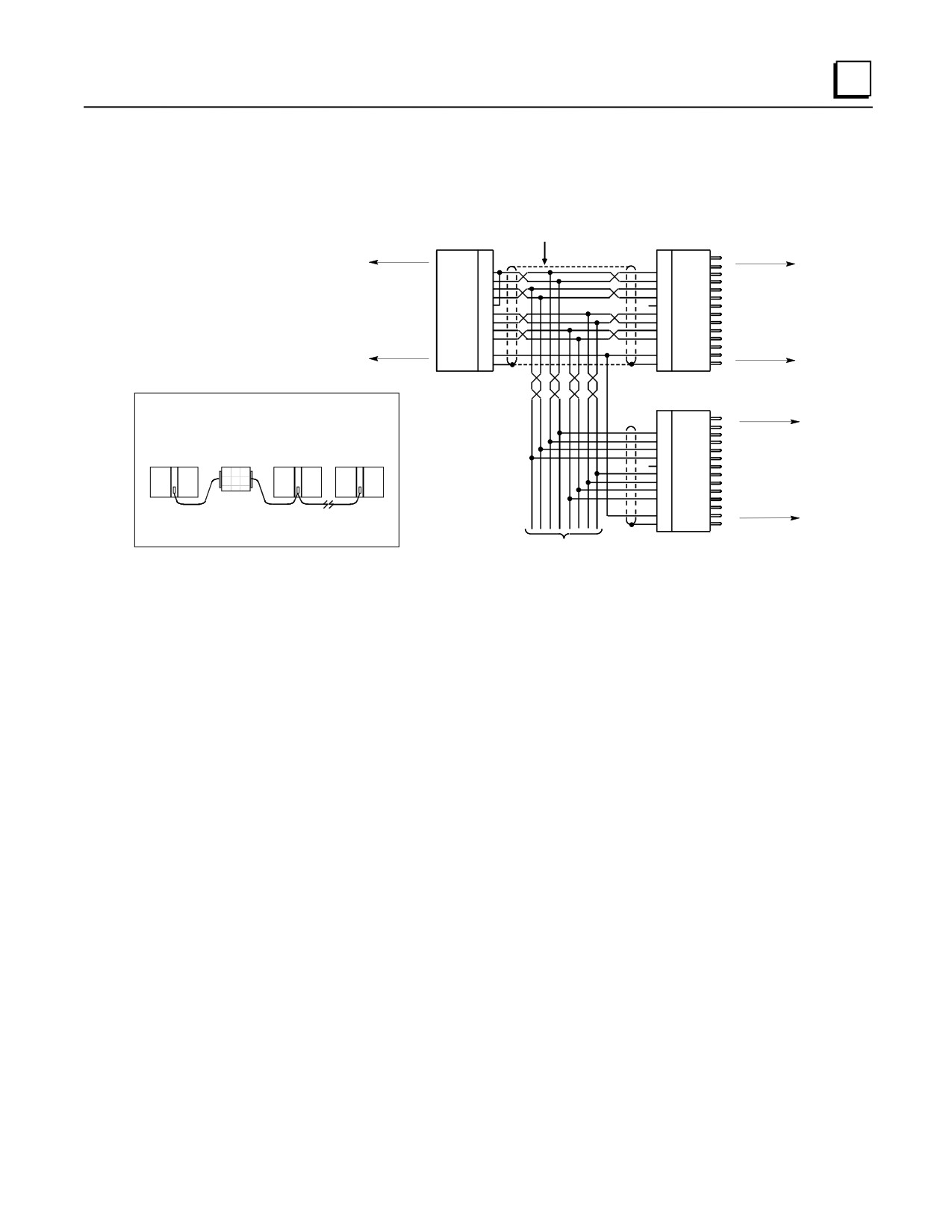

Figure I-2. Multidrop Cable Wiring Diagram

GFK-0356Q

Appendix I SNP Multidrop

I-3

Conn. B

Conn. C

Series 90-30 PLC

Conn. A

IC690CBL714A Cable

IC690ACC90

Serial Cable

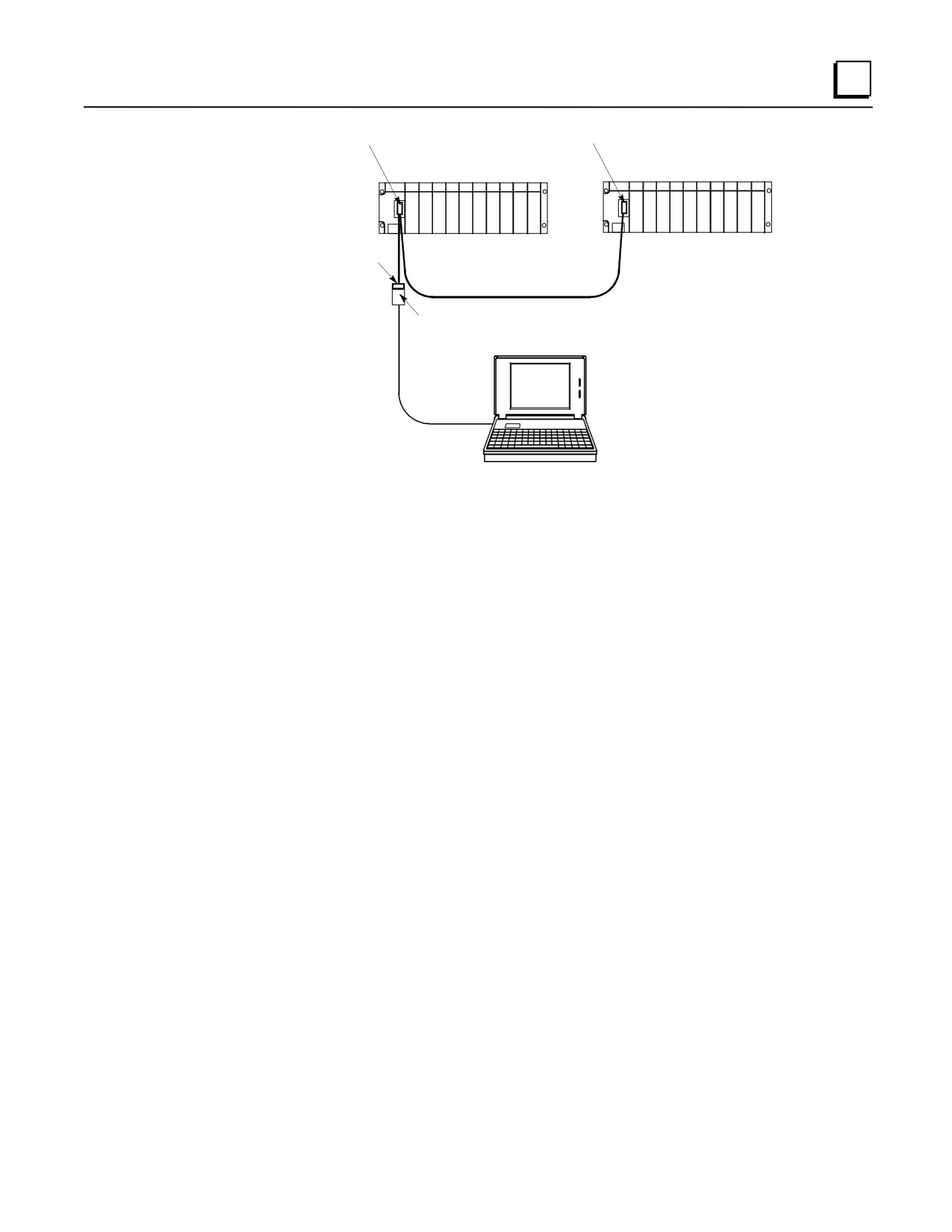

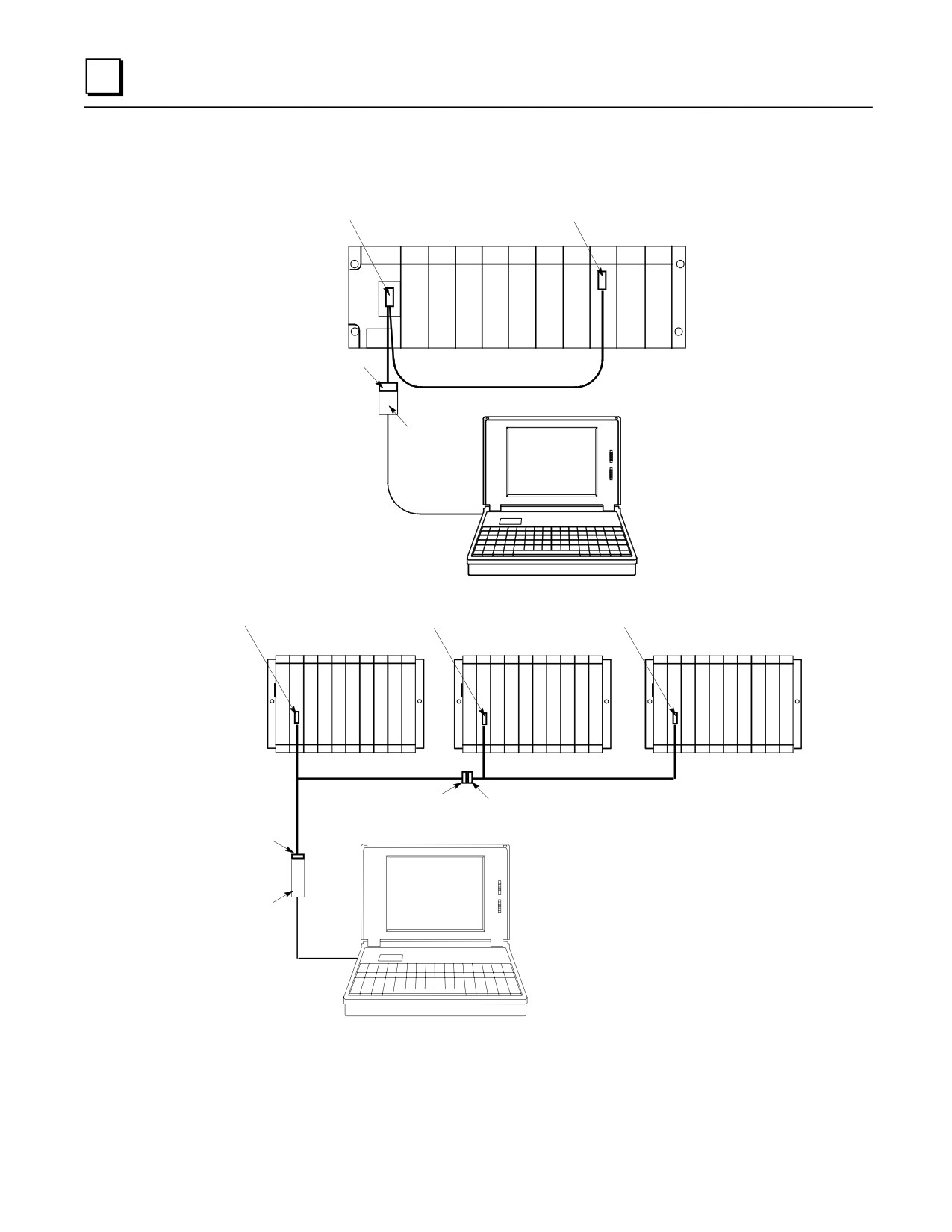

Figure I-5. Multidrop Arrangement for Series 90-30 Redundant System

Configuring and Connecting a Programmer to a Multidrop Network

Each slave device on a multidrop system must have its own unique SNP ID (identification). The

SNP ID assignment is made with a programmer running GE Fanuc programming software, or with

the Hand Held Programmer. Logicmaster, Control, or Versa Pro software packages all can be used

for this purpose. The following example uses Logicmaster. Please see your software user’s

manual or on-line help screens for instructions. Regardless of what software you use, the basic

steps are:

■ Connect your programmer to each individual PLC or module on the multidrop system and

assign each one a unique SNP ID.

■ Connect your programmer to the multidrop system and select Multidrop for the programmer’s

connection method.

■ In the programming software, select the SNP ID of the PLC or module you wish to connect to.

GFK-0356Q

Appendix I SNP Multidrop

I-5

Assigning a PLC SNP ID to a PLC with Logicmaster

■ Take your programmer to the first PLC to be assigned, and connect directly to its programmer

port.

■ From the Logicmaster Main Menu, select F2, “Logicmaster 90 Configuration Package.“

■ Select F2, “CPU Configuration.”

■ Put the software in the ONLINE mode.

■ Select F3, “Assign PLC ID.” On the ASSIGN PLC ID screen, the CURRENT PLC ID field

will display an ID if the PLC has one. If the PLC does not currently have an SNP ID, this field

will be blank. (In the OFFLINE mode it will display a series of asterisks.)

■ Key in the new PLC ID. For newer CPUs, it may be from one to seven alpha-numeric

characters long. For older CPUs, it is limited to a maximum of six characters. For example, it

could be PLC1, APM001, A1, B00001, etc.

■ Press the Enter key. The new SNP ID will be written to the PLC and the CURRENT PLC ID

field on your screen will update to show this new SNP ID.

■ Repeat the above steps for each PLC that is on the multidrop system. If assigning an SNP ID

to a module, you must use the appropriate software. See the user’s manual for the module for

instructions.

Connecting your Logicmaster Programmer to a PLC on a Multidrop System

■ Connect your programmer to the programmer connection for the multidrop system.

■ From the Logicmaster Main Menu, select F2, “Logicmaster 90 Configuration Package.”

■ Select F7, “Programmer Mode and Setup.”

■ Select F3, “Select PLC Connections.”

■ In the SELECTED SNP ID field, enter the SNP ID of the PLC or device you wish to

communicate with.

■ In the PORT CONNECTION field, select MULTIDROP.

■ Press F6, “setup,” to connect to the selected PLC. You should connect to the selected PLC

within a few seconds. If you cannot connect, see the next section.

I-6

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

SNP Multidrop Troubleshooting

If you are having trouble connecting to a PLC or module over the multidrop system, check the

following:

■

Is there a problem with all PLCs or only one? Try connecting to other PLCs over the

multidrop system. If you cannot connect to any, check for a common problem such as a

defective cable. If you can connect to all but one PLC, use the direct connection method

described in the next paragraph. Also, if you only have a problem with the last PLC on the

multidrop link, the last section of cable may have a problem. Or, perhaps you can connect to

all PLCs up to a certain point, but none beyond that point. This would also strongly suggest

that there is a problem in a section of cable.

■

SNP ID may be incorrect. You may not be able to connect because you are specifying the

wrong SNP ID. If you are not sure of a PLC’s correct SNP ID and would like to check it, you

can connect your programmer directly to the PLC’s programmer port and read its SNP ID from

the software’s ASSIGN PLC ID screen, (as described in “Assigning an SNP ID to a PLC with

Logicmaster,” above). Make sure you change the programming software’s connection method

to Direct for this test. When set for Direct connection, the software will communicate with a

directly connected PLC without regard to its SNP ID.

■

Communications settings may not match. If the PLC’s serial port communication settings

and the programming software’s communication settings do not match, they will not be able to

communicate. These settings include such things as BAUD Rate, Parity, Stop Bits, etc. If you

suspect this to be the problem, try connecting directly to the PLC as described above in “SNP

ID may be incorrect.” If you cannot connect directly, there may be a communication settings

mismatch. If so, try setting the programming software to its default communication settings.

■

Multidrop may not be selected as the connection method. The default connection method

in the programming software is Direct, which requires that you be connected directly to a PLC

or module’s programmer port. If this default setting is not changed to Multidrop, you will not

be able to connect to a selected SNP ID over a multidrop system.

■

You may have a hardware problem. Inspect the multidrop cable; it may be wired

incorrectly, damaged, or disconnected. A wire may be loose on one of the connectors. Also

check the status of the PLC you are trying to connect to. It may not be powered up; it may be

stopped; or it may have some other problem. Eliminate the PLC itself as a possible problem

by connecting your programmer directly to the PLC’s programmer port. You should be able to

communicate with a PLC using this direct connection even if the programming software is

configured for Multidrop, as long as the SNP IDs match.

GFK-0356Q

Appendix I SNP Multidrop

I-7

Appendix

Ethernet Transceivers

IC649AEA102 Ethernet 10BASE-T Transceiver

• Compliant with the IEEE 802.3 Ethernet specification for 10BASE-T.

• Connector on transceiver body is standard RJ-45 type for connection to unshielded twisted

pair (UTP) Ethernet cable. .

• This unit has an attached 40" (1 meter) cable with standard 14-pin AAUI connector for

connecting to a Series 90-30 Ethernet module (IC693CMM321) or CPU with Ethernet

interface (IC693CPU364/CPU374).

• SQE option is enabled.

• Power and Link Integrity LED indicator lights.

(25mm)

3.5" (89 mm)

40 inches (1 meter)

1.8"

(46mm)

7 6 5 4 3 2

14-Pin AAUI

8-Pin RJ-45

Connector

10111213 14

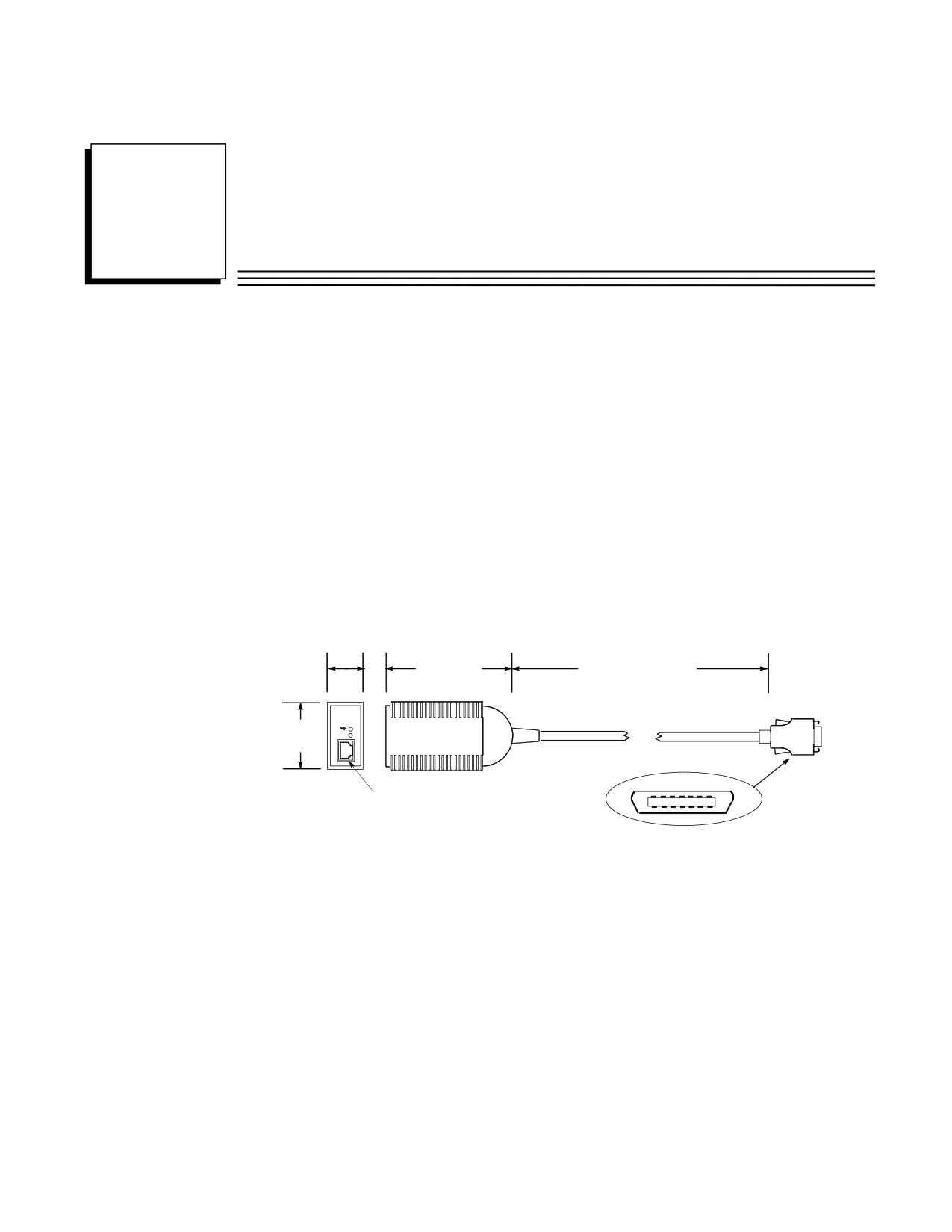

Figure J-1. IC649AEA102 Ethernet 10BASE-T Transceiver

Power Requirement

This unit draws 60 mA @ 5Vdc from the Ethernet interface via the AAUI connector.

LED Indicator Lights

These are located on the end of the unit next to the RJ-45 connector. The one labeled LI stays on

as long as Link Integrity is maintained. The one marked with a “jagged arrow” symbol indicates

the presence of 5Vdc power to the unit.

GFK-0356Q

J-1

IC649AEA103 Ethernet 10BASE2 Transceiver

Note: This transceiver replaces obsolete catalog number IC649AEA101

• Compliant with the IEEE 802.3 Ethernet specification for 10BASE2.

• A standard BNC connector is mounted on the body of the transceiver for connection to thin

coaxial Ethernet cable.

• This unit has an attached 10” (254 mm) cable with standard 14-pin AAUI connector for

connecting to a Series 90-30 Ethernet module (IC693CMM321) or CPU with Ethernet

interface (IC693CPU364).

• SQE slide switch is set to enabled position at the factory. It must be in this position for proper

operation with GE Fanuc Ethernet products IC693CMM321 and IC693CPU364 (see figure

below).

• Power LED indicator light.

3.2 inches (81 mm)

10 inches (254mm)

0.9"

(23 mm)

Slide Switch in this Direction to Enable SQE.

SQE Slide Switch (recessed in housing)

14-Pin AAUI

Connector

2 inches

(51 mm)

6 5

Green LED

BNC Connector

101112 13 14

Power Indicator

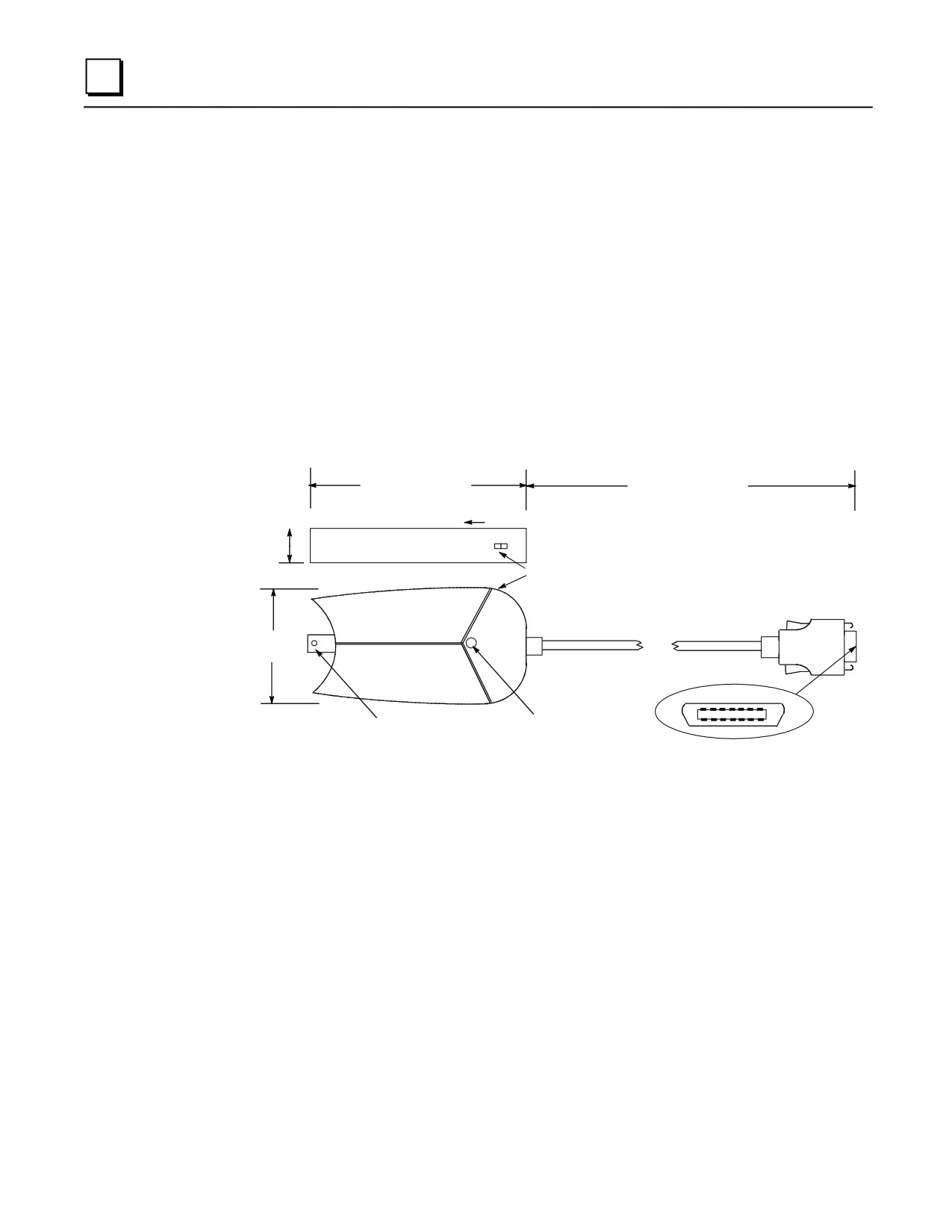

Figure J-2. IC649AEA103 Ethernet 10BASE2 Transceiver

Power Requirement

This unit draws 400 mA @ 5Vdc from the Ethernet Interface via the AAUI connector.

LED Indicator Light

Located on the side of the unit as shown in the figure. This green LED turns on to indicate the

presence of 5Vdc power to the unit.

J-2

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q
