FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356P)

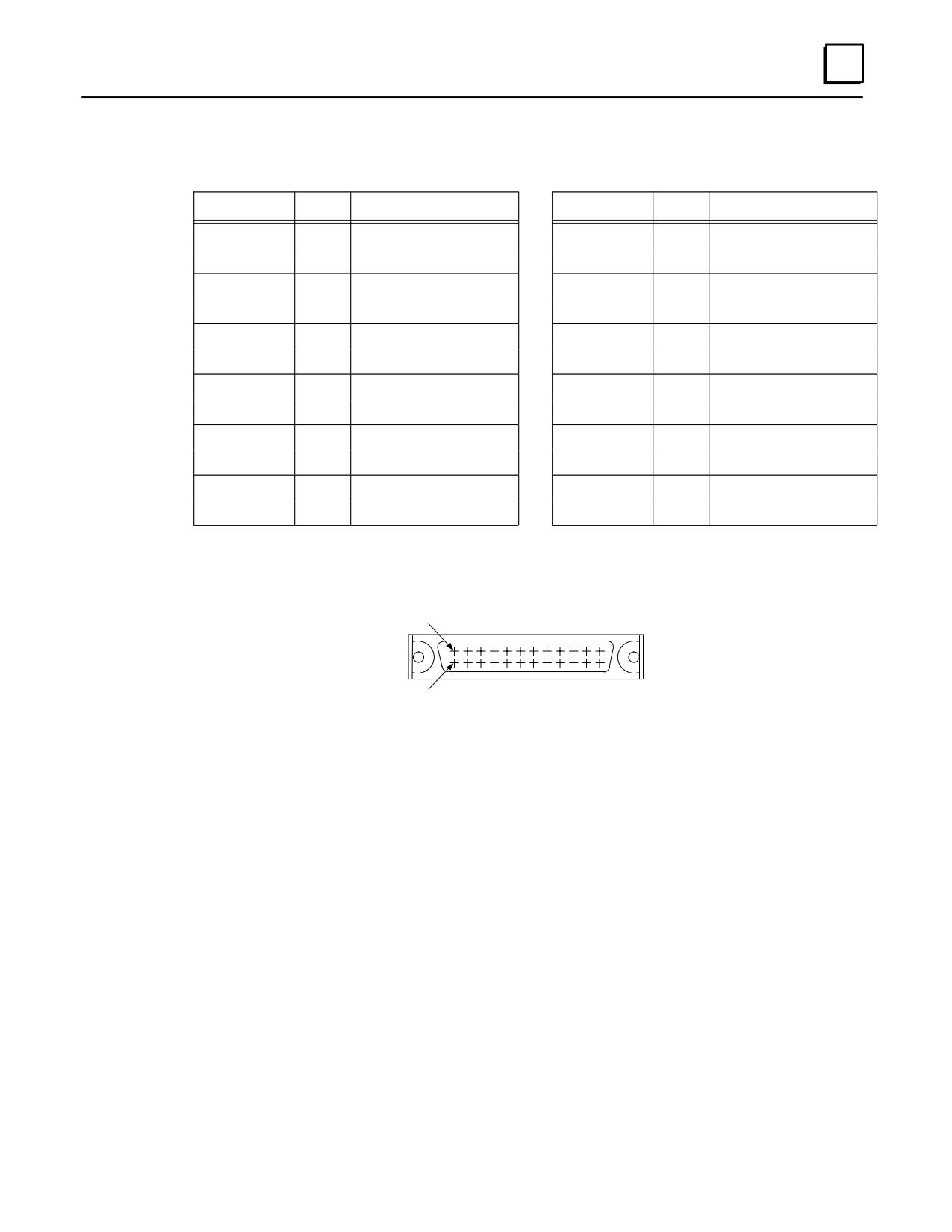

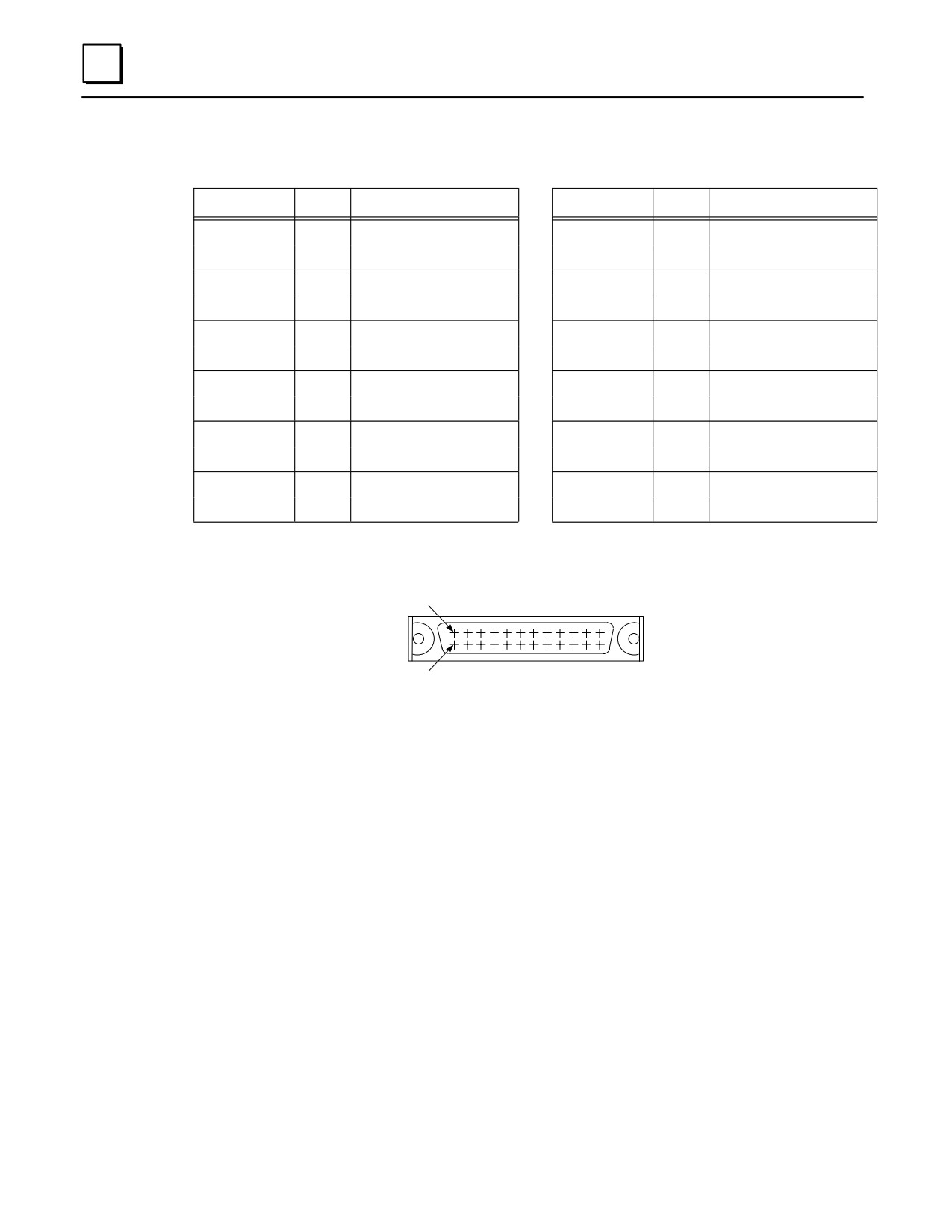

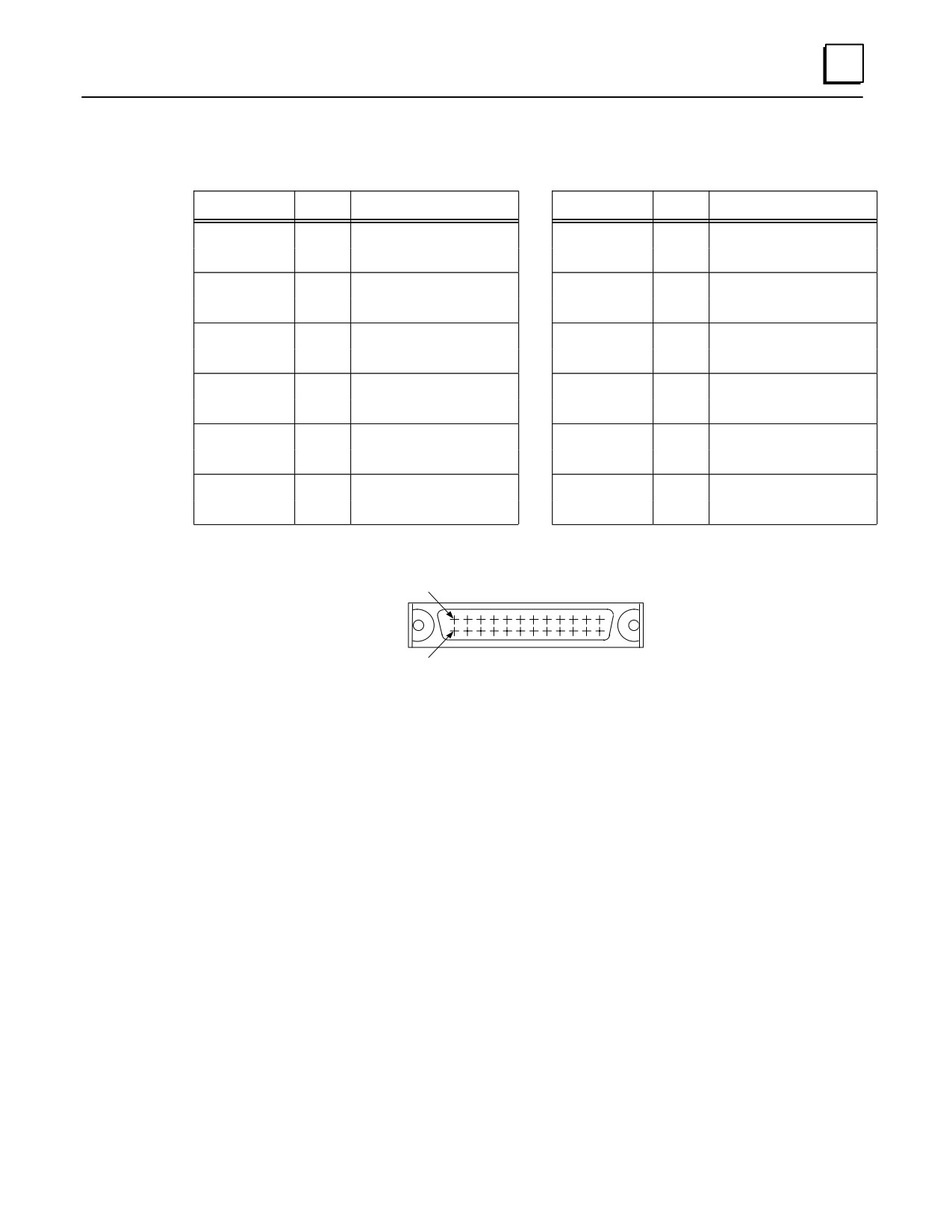

Table 10-4. Wire List for 24-Pin Connectors

Pin Number

Pair #

Wire Color Code

Pin Number

Pair #

Wire Color Code

BLACK

BLUE

WHITE

BROWN

VIOLET

WHITE

RED

GRAY

WHITE

ORANGE

BROWN

WHITE

BLACK

YELLOW

RED

A10

WHITE

B10

BLACK

A11

GREEN

B11

ORANGE

A12

WHITE

B12

BLACK

a45144

B ROW

3 2 1

CONNECTOR

3 2 1

A ROW

NOTE

Each pair of wires should be tied together with heat

shrink tubing for identification purposes. For example,

a short piece of heat shrink tubing should be placed

around the BLACK and WHITE wire pair (Pair #1)

that connect to Pins A1 and A2, etc.

Replacement/Obsolescence Information

This cable became obsolete and was replaced by cable IC693CBL315 (now obsolete

also). The only difference between these two cables is in the wire color coding.

When cable IC693CBL315 became obsolete, the replacement for these cables became

IC693CBL327 and IC693CBL328. Cables IC693CBL310/315 have straight connectors.

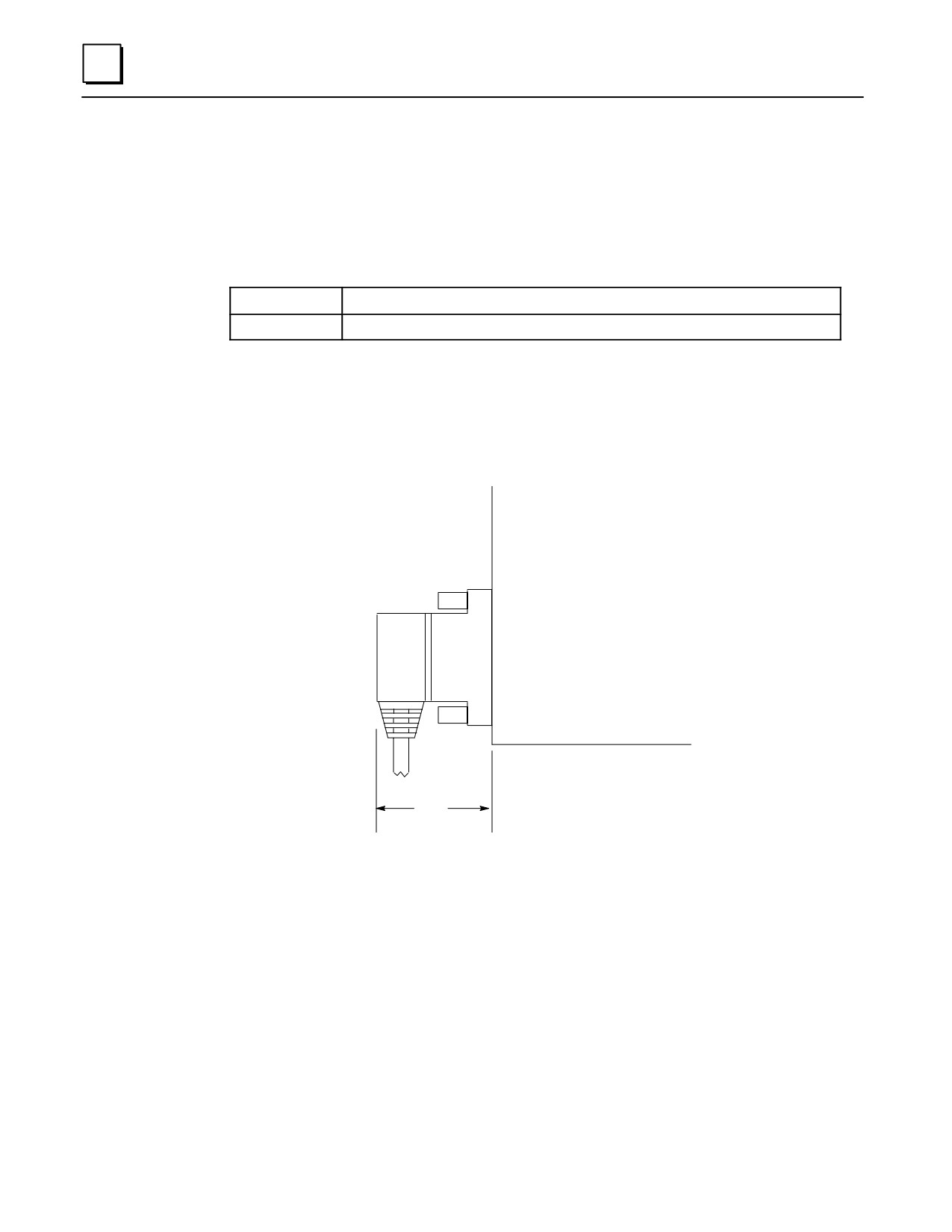

Cables IC693CBL327/328 have right angle connectors. The right angle connectors

require less depth in front of the PLC, so allow the use of a smaller enclosure in some

applications.

Data sheets for cables IC693CBL315 and IC693CBL327/328 can be found in this

chapter.

GFK-0356P

Chapter 10 Cables

10-43

IC693CBL311/317/319/320

I/O Interface Cables for Power Mate APM Modules

Function of cable

The I/O Interface Cable assembly consists of a 24-pin I/O connector, a cable, and a 25-pin

D-type terminal block connector. This cable is used to connect the Power Mate APM

Modules (IC693APU301 and IC693APU302) to drives and machines. There are two male

24-pin connectors mounted on the front of each Power Mate APM. Two of these I/O

Interface cables are required for connections to and from the drive and machine. Catalog

number IC693CBL311 is 10 feet (3 meters) in length and IC693CBL319 is 3 feet (1 meter) in

length. The cable wire code list for these cables is provided in Table H-4.

An I/O cable assembly similar to IC693CBL311 and IC693CBL319, but with the drain shield

wire disconnected from pin B12 and brought outside of the cable housing through an 8”

pigtail, is also available in two lengths. Catalog number IC693CBL317 is 10 feet (3 meters)

in length and IC693CBL320 is 3 feet (1 meter) in length. This cable improves the Power Mate

APM’s noise immunity. The cable wire code list for these cables is provided in Table 10-5.

To make wiring to the drive and machine easier, each connector on the module is

typically connected by a a short cable (the I/O Interface cable) to a terminal block. The

cable that connects from the I/O connector to an external terminal block can be

shortened to meet the requirements of your installation. See manuals GFK-0840

(standard moed) or GFK-0781 (follower mode) for details on APM terminal blocks.

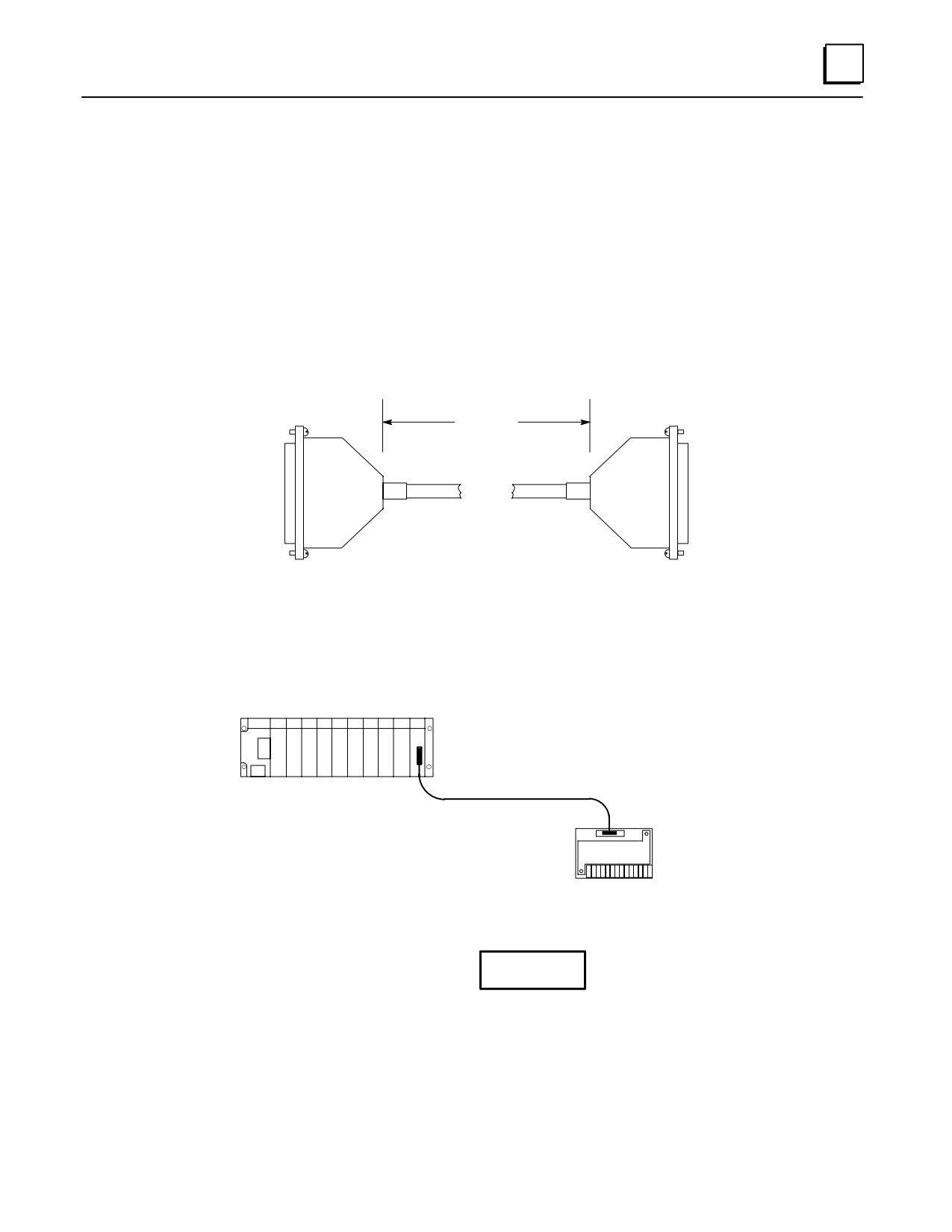

a45119

1 or 3 METERS

ÎÎ

ÎÎÎ

ÎÎ

B12

A12

ÎÎ

I/O

TERMINAL BLOCK

ÎÎ

CONNECTOR

* Cable for IC693CBL311/319 shown. Cables IC693CBL317/320 have 8” external wire connected to drain shield.

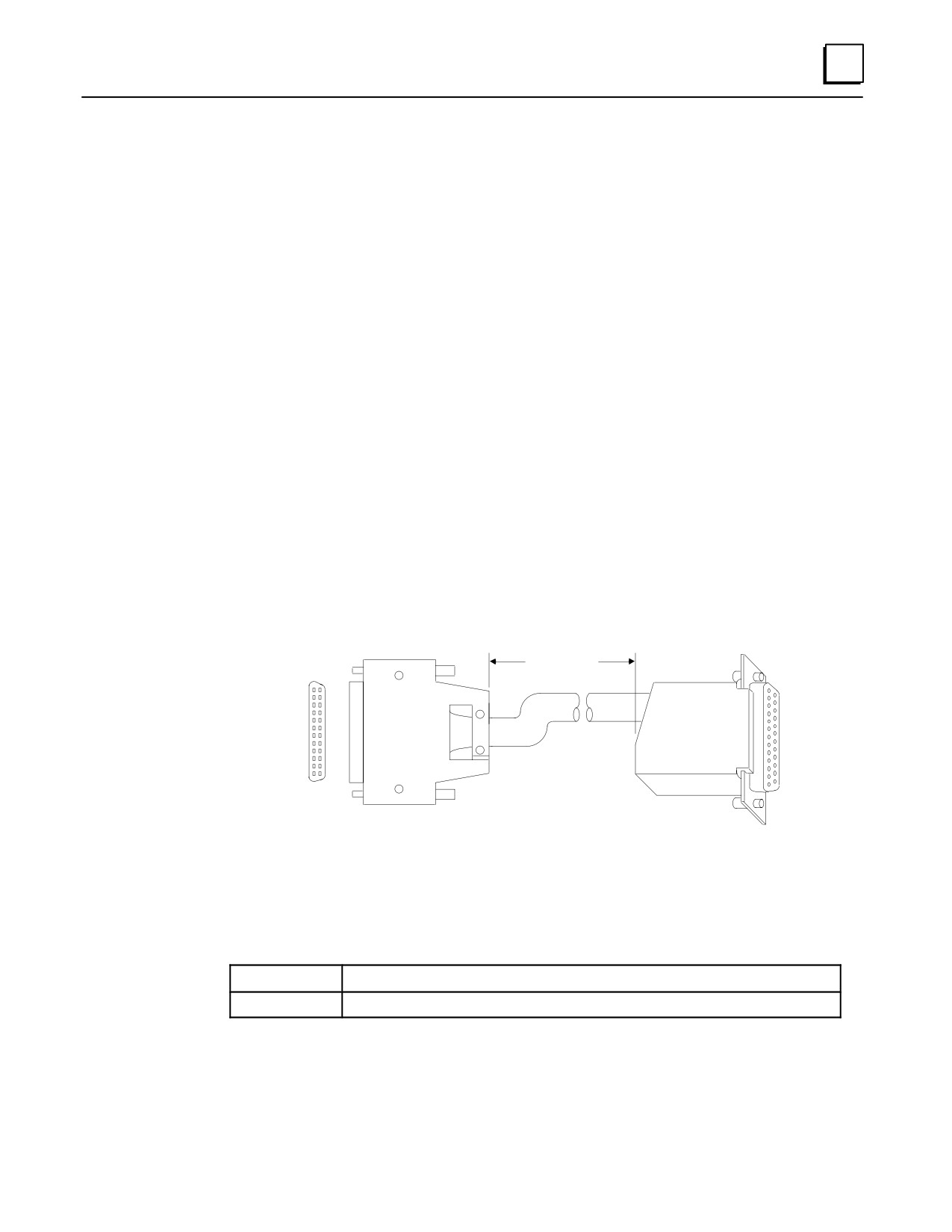

Figure 10-30. I/O Connector Cable Specifications

Specifications

Cable Length

10 feet (3 meters) and 3 feet (1 meter)

Connector

24-pin female, Fujitsu part number FCN-363J024 (crimp wire type.

GFK-0356P

Chapter 10 Cables

10-45

Wiring Information

You must purchase the mating female (socket type) 24-pin connectors (which mate with

the I/O Connector on the faceplate of the APM). This connector is available under catalog

number IC693ACC317. This connector has a solder eyelet receptacle and is part of an

accessory kit. Optionally, other types of the 24-pin connector (for different physical

connections) are also available.

Catalog numbers for these connectors and their associated parts are listed in the following

table. The list includes catalog numbers for three types of connectors: solder pin, crimp pin,

and ribbon cable. Each accessory kit contains enough components (D-connectors, backshells, contact

pins, etc.) to assemble ten single-ended cables of the type specified for each kit.

Table 10-5. Catalog Numbers for 24-Pin Connector Kits

GE Fanuc

Vendor

Catalog Number

Description

IC693ACC316

FCN-361J024-AU

Solder eyelet receptacle

(Solder Eyelet Type)

FCN-360C024-B

Backshell (for above)

IC693ACC317

FCN-363J024

Crimp wire receptacle

(Crimp Type)

FCN-363J-AU

Crimp pin (for above, 24 needed)

FCN-360C024-B

Backshell (for above)

IC693ACC318

FCN-367J024-AUF

IDC (ribbon) receptacle, closed cover

(Ribbon or IDC Type)

FCN-367J024-AUH

IDC (ribbon) receptacle, open cover

NOTE: Wire for cables is 12 twisted pairs, #24 AWG (0.22mm²).

Additional tools from Fujitsu are required to properly assemble the crimped contact and

ribbon cable type connectors. The solder eyelet connectors (as provided in IC693ACC316) do

not require any special tooling.

Crimped Contact Connectors (as provided in IC693ACC317) require :

Hand Crimping Tool

FCN-363T-T005/H

Contact Extraction Tool

FCN-360T-T001/H

Ribbon Cable Connectors (as provided in IC693ACC318) require :

Cable Cutter

FCN-707T-T001/H

Hand Press

FCN-707T-T101/H

Locator Plate

FCN-367T-T012/H

These tools need to be ordered from an authorized Fujitsu distributor. Three of the

largest US distributors for Fujitsu connectors are Marshall at (800)522-0084, Milgray at

(800)MILGRAY, and Vantage at (800)843-0707. If none of these distributors service your

area, then contact Fujitsu Microelectronics in San Jose, California, USA via telephone at

(408) 922-9000 or via fax at (408) 954-0616 for further information.

It is recommended that you order any necessary connector tooling with sufficient lead

time to meet your assembly requirements for these connectors. These tools are generally

not stock items and can have significant lead times from distribution. If you have any

further questions about this issue, please feel free to contact the GE Fanuc PLC Hotline

at 1-800-GE FANUC (1-800-433-2682) or 804-978-6036.

10-46

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

The following tables provides wiring information for the I/O Interface cables:

Table 10-6. I/O Cable Wire Coding for IC693CBL311 and IC693CBL319

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

Á5-ÁÁÁÁÁÁ

/O Connector

Pin Connector

Cable Wire

Terminal Number*

ÁÁÁÁÁÁÁÁ_{no connection} ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 1}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A1ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 1}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B1ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 2}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A2ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 2}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B2ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 3}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A3ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 3}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B3ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 4}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A4ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 4}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B4ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 5}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A5ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 5}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B5ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 6}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A6ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 6}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B6ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 7}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A7ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 7}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B7ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 8}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A8ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 8}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B8ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 9}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A9ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 9}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B9ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 10}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A10ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 10}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B10ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 11}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A11ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 11}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_B11ÁÁÁÁÁÁÁÁÁÁ_{Wire 1 Pair 12}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ_A12ÁÁÁÁÁÁÁÁÁÁ_{Wire 2 Pair 12}

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

B12

Drain Wire (Shield)

ÁÁÁÁÁÁÁÁ

* Same as Terminal Block Terminal Number. See manuals GFK-0840 (standard mode) or GFK- 0781 (follower

mode) for terminal block details.

GFK-0356P

Chapter 10 Cables

10-47

Table 10-7. I/O Cable Wire Coding for IC693CBL317 and IC693CBL320

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

Á5-ÁÁÁÁÁÁ

/O Connector

Pin Connector

Pin Number ÁÁCable Wire Color CodesÁÁ

Terminal Number ¹

ÁÁ

no connection

ÁÁ

Wire 1 Pair1(Brown/Black) ÁÁÁ

ÁÁÁ

ÁÁ

Wire 2 Pair 1 (Brown)

ÁÁÁ

ÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

AÁ

ÁÁÁÁ

ÁÁÁ Á

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Wire 1 Pair3(Orange/Black)

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

re 2 Pair 3 (Orange)

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Wire 1 Pair 4 (Yellow/Black)

ÁÁÁ

ÁÁ

Wire 2 Pair 4 (Yellow)

ÁÁÁÁ

ÁÁÁ

ÁÁ

Wire 1 Pair5(Green/Black)

ÁÁÁ

ÁÁ

Wire 2 Pair 5 (Green)

ÁÁÁÁ

Wire 1 Pair 6 (Blue/Black)

ÁÁÁ

ÁÁ

ÁÁÁ

AÁ

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Wire 1 Pair 7 (Violet/Black)

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

re 2 Pair 7 (Violet)

ÁÁÁÁÁÁÁÁ

ÁWire 1 Pair 8 (White/Black)ÁÁÁÁÁÁÁÁ

ÁÁÁÁA7

ÁÁ

ÁÁÁ

Wire 2 Pair 8 (White)

ÁÁÁ

ÁÁ

Wire 1 Pair9(Gray/Black)

ÁÁÁ

ÁÁ

Wire 2 Pair 9 (Gray)

ÁÁÁÁ

Wire 1 Pair 10 (Pink/Black)_ÁÁÁ

ÁÁÁ

ÁÁ

ÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Wire 1 Pair 11 (LightBlue/

ÁÁÁB10ÁÁÁÁÁ

ÁÁÁ

Black)

ÁÁÁ

A11

ÁÁ

Wire 2 Pair 11 (Light Blue)

ÁÁÁÁ

ÁÁÁB11ÁÁÁÁÁ

Wire 1 Pair 12 (Light Green/

ÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

A12

Wire 2 Pair 12 (Light Green)

ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

xternal Ring Terminal

rain Wire (Shield) ²

ÁÁ

Same as Terminal Block Terminal Number.

16 gauge wire, green w/yellow tracer. 8” length (from back of connector), terminates with a

#10 ring terminal.

10-48

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

IC693CBL315

I/O Interface Cable (24-Pin) for 32 Point Modules

Note: This cable became obsolete in late 1998. It was replaced by two cables:

IC693CBL327 and IC693CBL328. See the data sheet for these cables for details.

The replacement cables have right-angle connectors to reduce the clearance

space required in front of the PLC.

Function of cable

This prewired cable is available for use with all Series 90-30 high-density (32 point) I/O

modules that use the Fujitsu 24-pin user I/O connector. Each of these modules has two of

these connectors mounted side-by-side. I/O Interface cables have a 24-pin connector on one

end for connection to the module, and stripped and tinned wires on the other end. Catalog

numbers for 32 point modules having two 24-pin connectors are: IC693MDL654,

IC693MDL655, IC693MDL752, and IC693MDL753.

Connections to input circuits are made from the user’s input devices to two male (pin-type)

24-pin connectors (Fujitsu FCN-365P024-AU) mounted on the front of the module. The

connector mounted on the right of the module (front view) interfaces with groups A and B;

the connector on the left side of the module interfaces with groups C and D. If a different

length cable is required for connections to these modules, you can build your own cable.

A12

B12

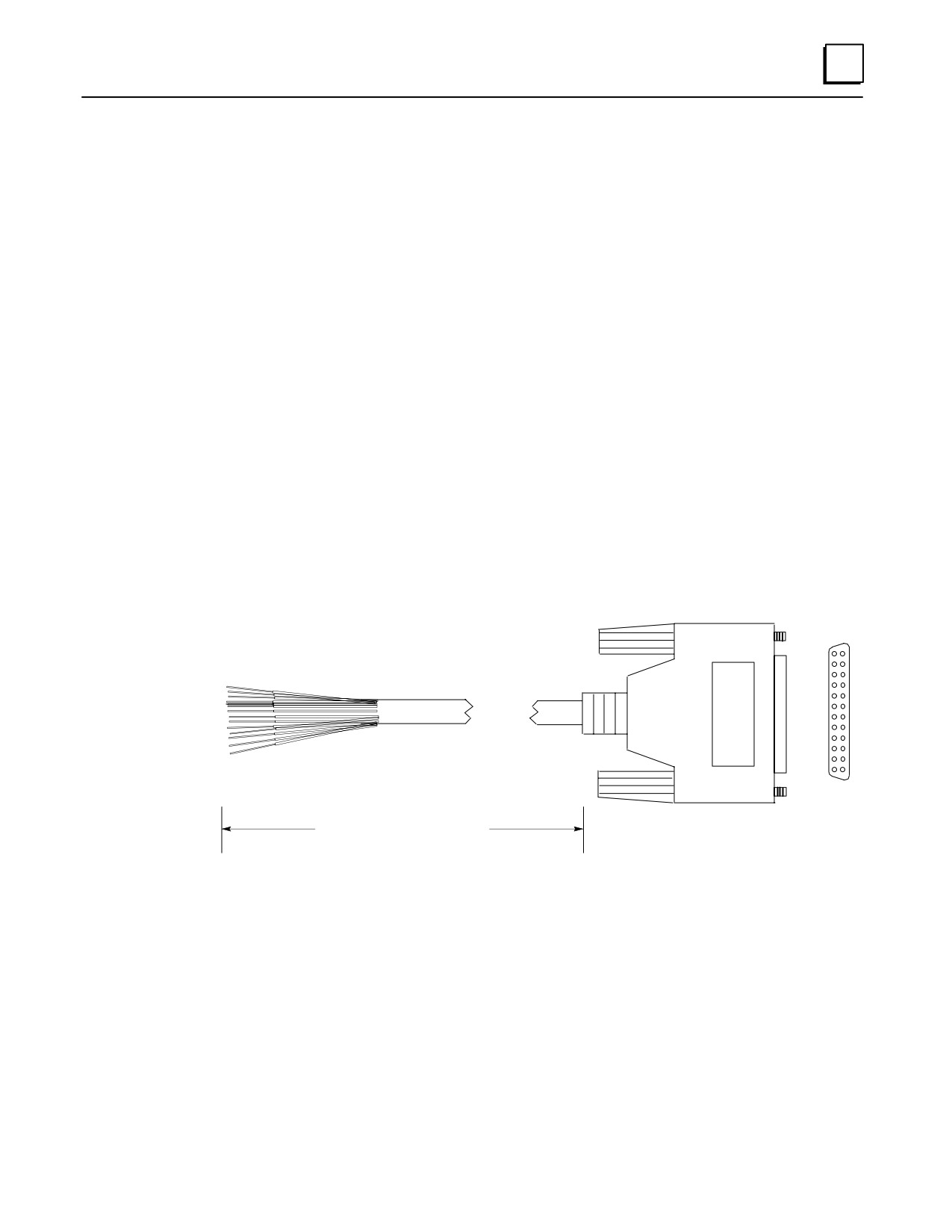

Length = 10’ (3 meters)

Connector: FujitsuFCN-365S024-AU

Figure 10-31. IC693CBL315 Cable

GFK-0356P

Chapter 10 Cables

10-49

Building Custom Length Cables for 24-Pin Connectors

Cables connecting the module to field devices can be built to length as required for

individual applications. You must purchase the mating female (socket type) 24-pin

connectors. The 24-pin connector kit can be ordered as an accessory kit from GE Fanuc.

Catalog numbers for these connectors and their associated parts are listed in the following

table. The list includes catalog numbers for three types of connectors: solder pin, crimp pin,

and ribbon cable. Each accessory kit contains enough components (D-connectors, backshells, contact

pins, etc.) to assemble ten single-ended cables of the type specified for each kit.

Table 10-8. Catalog Numbers for 24-Pin Connector Kits

GE Fanuc

Vendor

Catalog Number

Description

IC693ACC316

FCN-361J024-AU

Solder eyelet receptacle

(Solder Eyelet Type)

FCN-360C024-B

Backshell (for above)

IC693ACC317

FCN-363J024

Crimp wire receptacle

(Crimp Type)

FCN-363J-AU

Crimp pin (for above, 24 needed)

FCN-360C024-B

Backshell (for above)

IC693ACC318

FCN-367J024-AUF

IDC (ribbon) receptacle, closed cover

(Ribbon or IDC Type)

FCN-367J024-AUH

IDC (ribbon) receptacle, open cover

Additional tools from Fujitsu are required to properly assemble the crimped contact and

ribbon cable type connectors. The solder eyelet connectors (as provided in IC693ACC316) do

not require any special tooling.

Crimped Contact Connectors (as provided in IC693ACC317) require :

Hand Crimping Tool

FCN-363T-T005/H

Contact Extraction Tool

FCN-360T-T001/H

Ribbon Cable Connectors (as provided in IC693ACC318) require :

Cable Cutter

FCN-707T-T001/H

Hand Press

FCN-707T-T101/H

Locator Plate

FCN-367T-T012/H

These tools need to be ordered from an authorized Fujitsu distributor. Three of the

largest US distributors for Fujitsu connectors are Marshall at (800)522-0084, Milgray at

(800)MILGRAY, and Vantage at (800)843-0707. If none of these distributors service your

area, then contact Fujitsu Microelectronics in San Jose, California, USA via telephone at

(408) 922-9000 or via fax at (408) 954-0616 for further information.

It is recommended that you order any necessary connector tooling with sufficient lead time

to meet your assembly requirements for these connectors. These tools are generally not

stock items and can have significant lead times from distribution. If you have any further

questions about this issue, please feel free to contact the GE Fanuc PLC Technical Support

Hotline at 1-800-GE FANUC (1-800-433-2682), or International dial direct 804-978-6036.

Pin connections with color codes are shown in the following table. Cables are made of 12

twisted pairs; wire size is #24 AWG (0.22mm²).

10-50

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Table 10-9. Wire List for 24-Pin Connectors

Pin Number

Pair #

Wire Color Code

Pin Number

Pair #

Wire Color Code

BROWN

VIOLET

BROWN/BLACK

VIOLET/BL

RED

WHITE

RED/BLACK

WHITE/BLACK

ORANGE

GRAY

ORANGE/BL

GRAY/BLACK

YELLOW

PINK

YELLOW/BLACK

PINK/BLACK

DARK GREEN

LIGHT BLUE

A10

DARKGREEN/BLACK

B10

LIGHT BLUE/BL

A11

DARK BLUE

B11

LIGHTGREEN

A12

DARK BLUE/BLACK

B12

LIGHT GREEN/BLACK

a45144

B ROW

3 2 1

Î_CONNECTOR

3 2 1

A ROW

NOTE

Each wire pair has a solid color wire and that same

color wire with a black tracer. For example, Pair 1 has

a solid brown wire paired with a brown wire with a

black tracer.

Replacement/Obsolescence Information

Cable IC693CBL315 (now obsolete also) replaced cable IC693CBL310 when that

cable became obsolete. The only difference between these two cables is in the wire

color coding.

When cable IC693CBL315 became obsolete, the replacement for these cables became

IC693CBL327 and IC693CBL328. Cables IC693CBL310/315 have straight connectors.

Cables IC693CBL327/328 have right angle connectors. The right angle connectors

require less depth in front of the PLC, so allow the use of a smaller enclosure in some

applications.

GFK-0356P

Chapter 10 Cables

10-51

IC693CBL316

Serial Cable, 9-Pin D-Shell to RJ-11 Connector

Description

The IC693CBL316 cable is a 3-feet (1 meter) long, shielded cable with a 9-pin D-shell

connector one one end and a 6-pin RJ-11 connector on the other. This cable is also

known as a “Station Manager Cable.” This cable can interconnect RS-232 ports without

the need for a converter.

Typical Applications

Connect a Personal Computer ’s 9-pin serial port to the RJ-11 faceplate serial port on

CPUs 351, 352, and 363 for programming, configuring, firmware updating, and

monitoring purposes.

Connect a Personal Computer ’s 9-pin serial port to the Station Manager port on an

IC693CMM321 Ethernet module or on an IC693CPU364 CPU module, which has a

built-in Ethernet interface.

Connect a Personal Computer ’s 9-pin serial port to an IC693DSM302 module’s RJ-11

COMM port for loading motion programs (1 - 10) and firmware.

Connect a Personal Computer ’s 9-pin serial port to an IC693DSM314 module’s RJ-11

COMM port for loading firmware (motion programs for this module are loaded

across the PLC backplane).

a45485

RJ-11

CONNECTOR

9-PIN

FEMALE

CONNECTOR

9-Pin Connector

RJ-11Connector

PinNumber

1 (Red)

2 (Yellow)

3 (Green)

4 (Brown)

5 (Black)

6 (Orange)

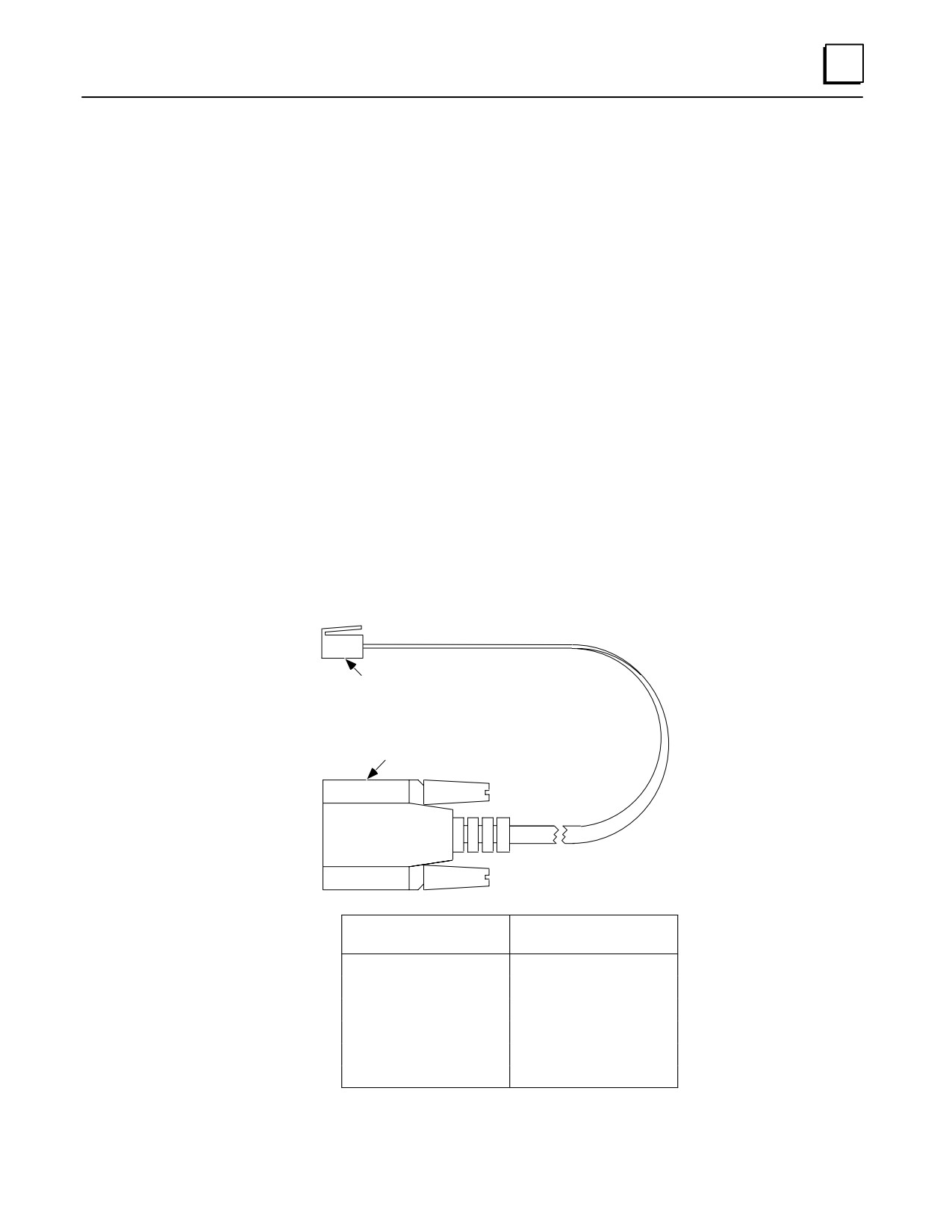

Figure 10-33. IC693CBL316A Serial Cable Illustration and Connector Pinouts

GFK-0356P

Chapter 10 Cables

10-53

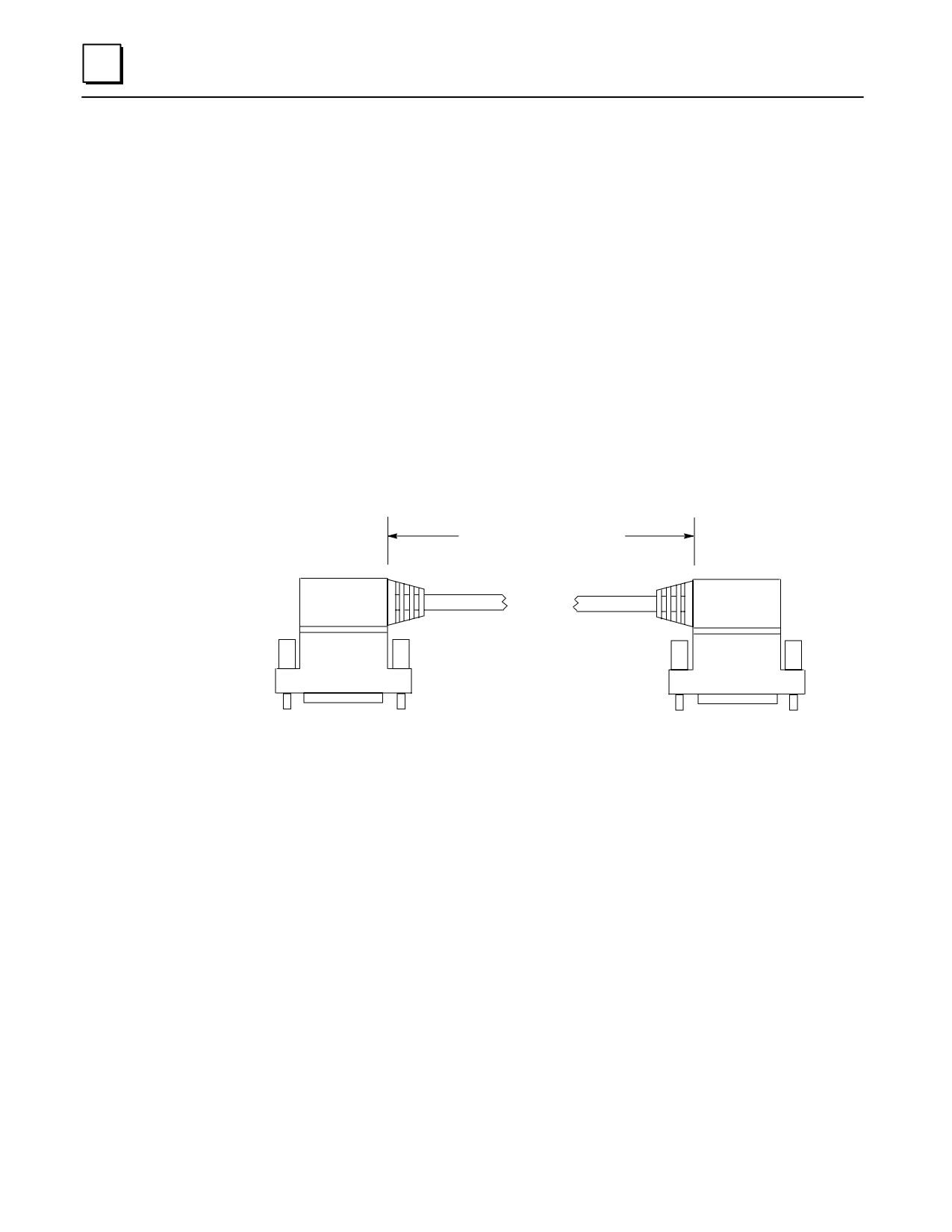

IC693CBL321/322/323

I/O Faceplate Connector to Terminal Block Connector, 24-Pin

Note: These cables became obsolete in late 1998. They were replaced by six

cables: IC693CBL329, IC693CBL330, IC693CBL331, IC693CBL332,

IC693CBL333, and IC693CBL334. See the data sheet for these cables for details.

The replacement cables have right-angle connectors to reduce the clearance

space required in front of the PLC.

Function of cable

These cables are used with 16-point I/O modules that are equipped with a TBQC I/O

faceplate adaptor. Each cable has a straight 24-pin female connector on both ends. Each

cable provides a connection from the module to a connector mounted on a terminal

block assembly. These cables are wired pin-to-pin (that is, pin A1 to pin A1, pin A2 to

pin A2, etc.). An I/O faceplate assembly (catalog number IC693ACC334) is required

which snaps onto the module in place of the module’s standard 20-pin terminal block

assembly. Five different terminal blocks are available to allow a variety of I/O modules

to use this accessory (see Appendix J for details on the TBQC assemblies).

Cable Specifications

Item

Description

Cable Length

IC693CBL321

3 feet (1 meter),

IC693CBL322

6 feet (2 meters)

IC693CBL323

1.5 feet (0.5 meters)

Cable Type:

12 twisted pairs with overall aluminum polyester shield and #24

AWG drain wire.

24 Pin Female Connectors (2):

Equivalent to Fujitsu FCN-363J024, or equivalent.

Length of cable is measured from backs of connector shells as shown in figure on next page.

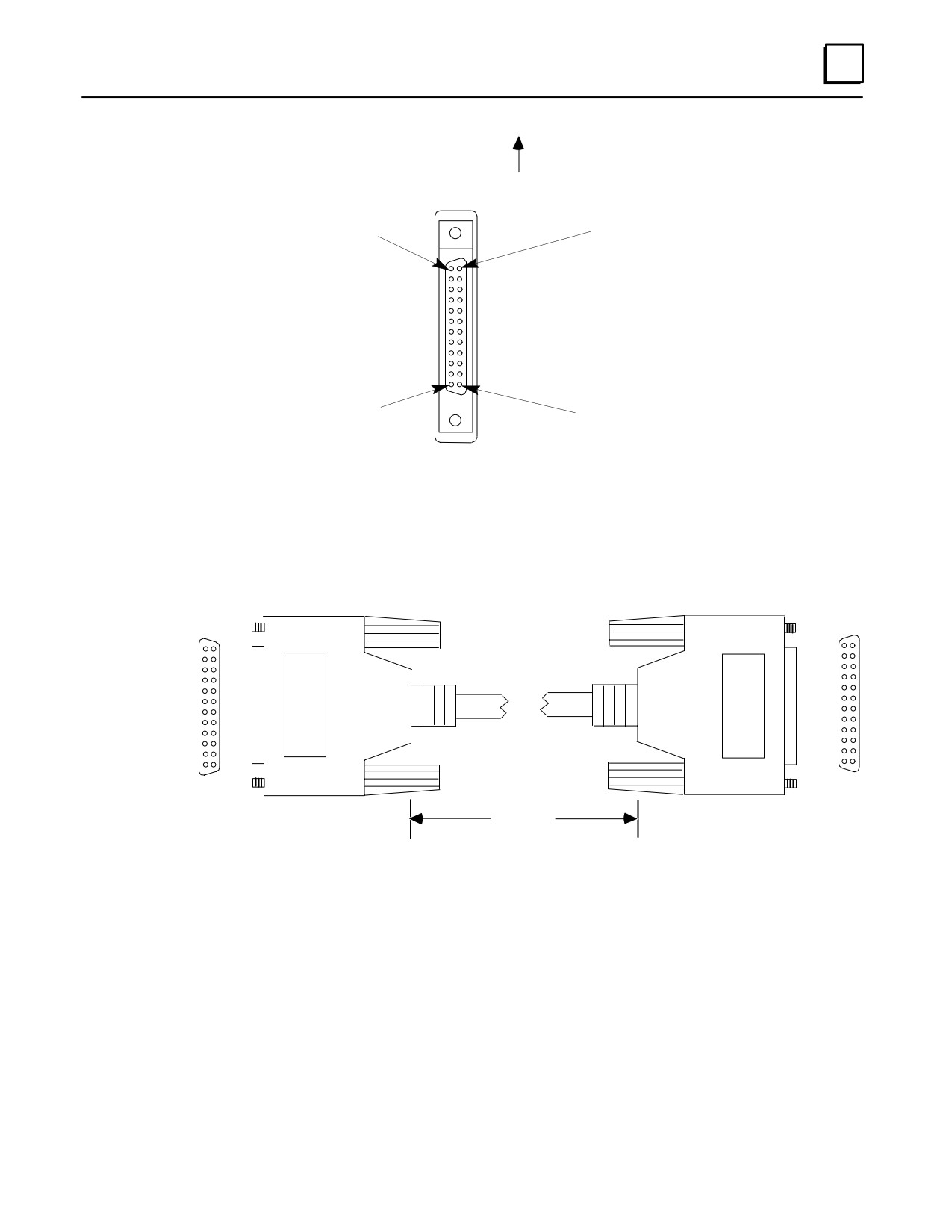

The connector on the I/O faceplate is oriented as shown below, with the rows labeled

A1-A12 and B1-B12. A1 and B1 are towards top of module faceplate.

10-54

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

IC693CBL327/328

I/O Interface Cables with Right Angle 24-Pin Connector

Note: These cables replace obsolete I/O Interface cable IC693CBL315. These

replacement cables have right-angle connectors to reduce the clearance space

required in front of the PLC. These replacement cables use the same pin-outs as

the obsolete cables.

Description

These cables each have a right-angle 24-pin connector on one end and a set of stripped

wire ends on the other. These two cables are identical except for their opposite

connector orientations. This difference in the cables’ connector orientations is for the

purpose of matching the opposing connector orientations on the dual-connector type of

32-point I/O modules.

10 Feet (3 Meters)

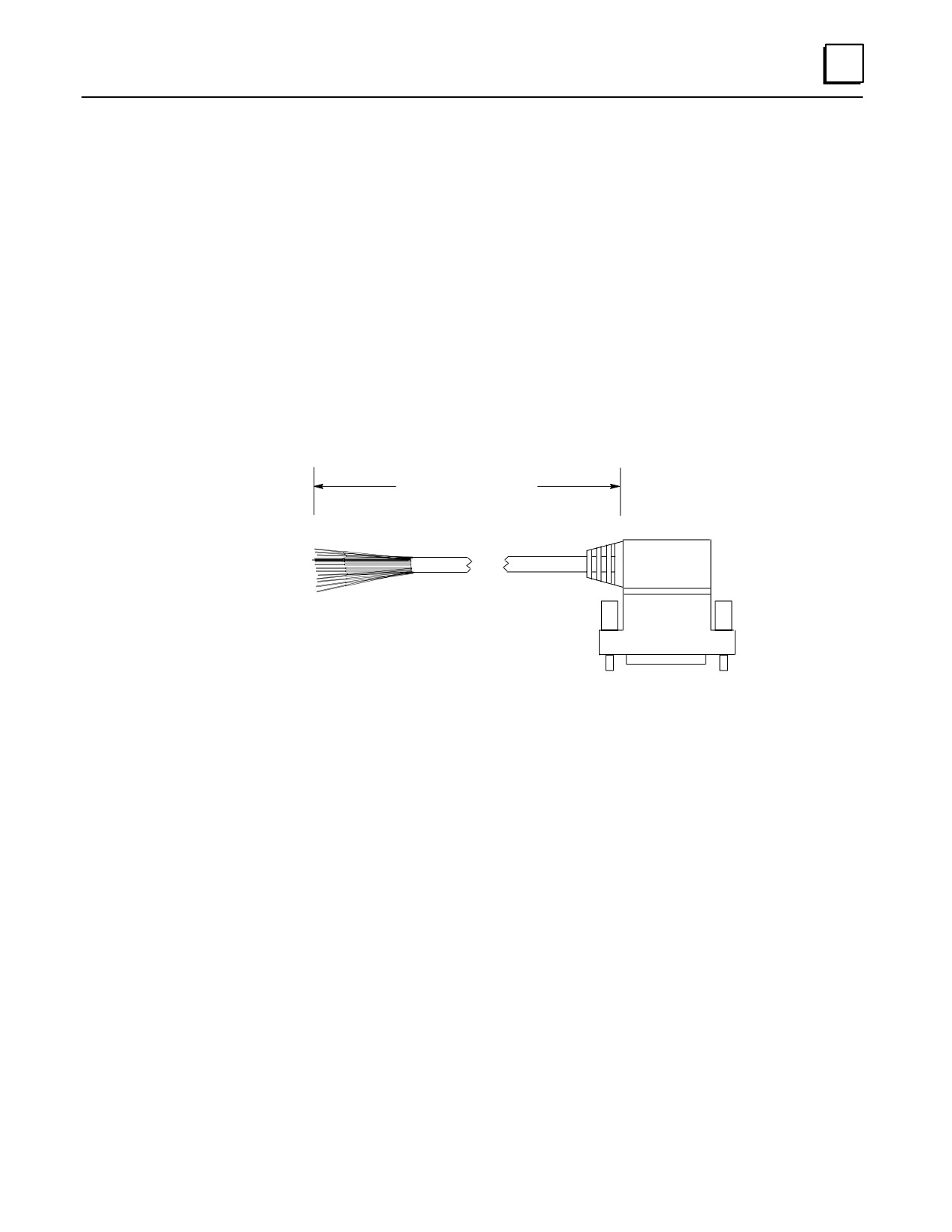

Figure 10-37. IC693CBL327/328 Cables

Note

Each conductor in these 24-conductor cables has a current rating of 1.2

Amps. If using these cables with a 16-point Output module with a

higher output current rating, you must use the lower value of 1.2 for the

maximum load current rating . If you have field devices that require

more than 1.2 Amps, do not use a TBQC assembly. Use the standard

Terminal Board instead.

Applications

These cables are for use with Series 90-30 I/O modules that have the Fujitsu 24-pin user I/O

connector. There are two categories of these modules:

32 point modules with two 24-pin connectors (IC693MDL654, IC693MDL655,

IC693MDL752, and IC693MDL753). The IC693CBL327 cable is for the modules’ left side

connector (front view), and the IC693CBL328 cable is for the modules’ right side

connector. The modules’ right side connector interfaces with I/O circuit groups A and B;

the modules’ left side connector interfaces with groups C and D. See Chapter 7, “Input

and Output Modules” for a drawing of these modules. See GFK-0898, the Series 90-30

PLC I/O Module Specifications Manual, for details about these modules.

GFK-0356P

Chapter 10 Cables

10-57

16-point modules that are equipped with the TBQC I/O faceplate adaptor. See

Appendix J for information on the TBQC (Terminal Block Quick Connector). Use the

IC693CBL328 right side cable for this application.

If a different length cable is required, you can build your own cable, but only straight

connector kits are currently available. See “Building Custom Length Cables” below.

Specifications

Cable Length

10 feet (3 meters)

Connector

FujitsuFCN-365S024-AU

Connector Depth for Cables IC693CBL327/328

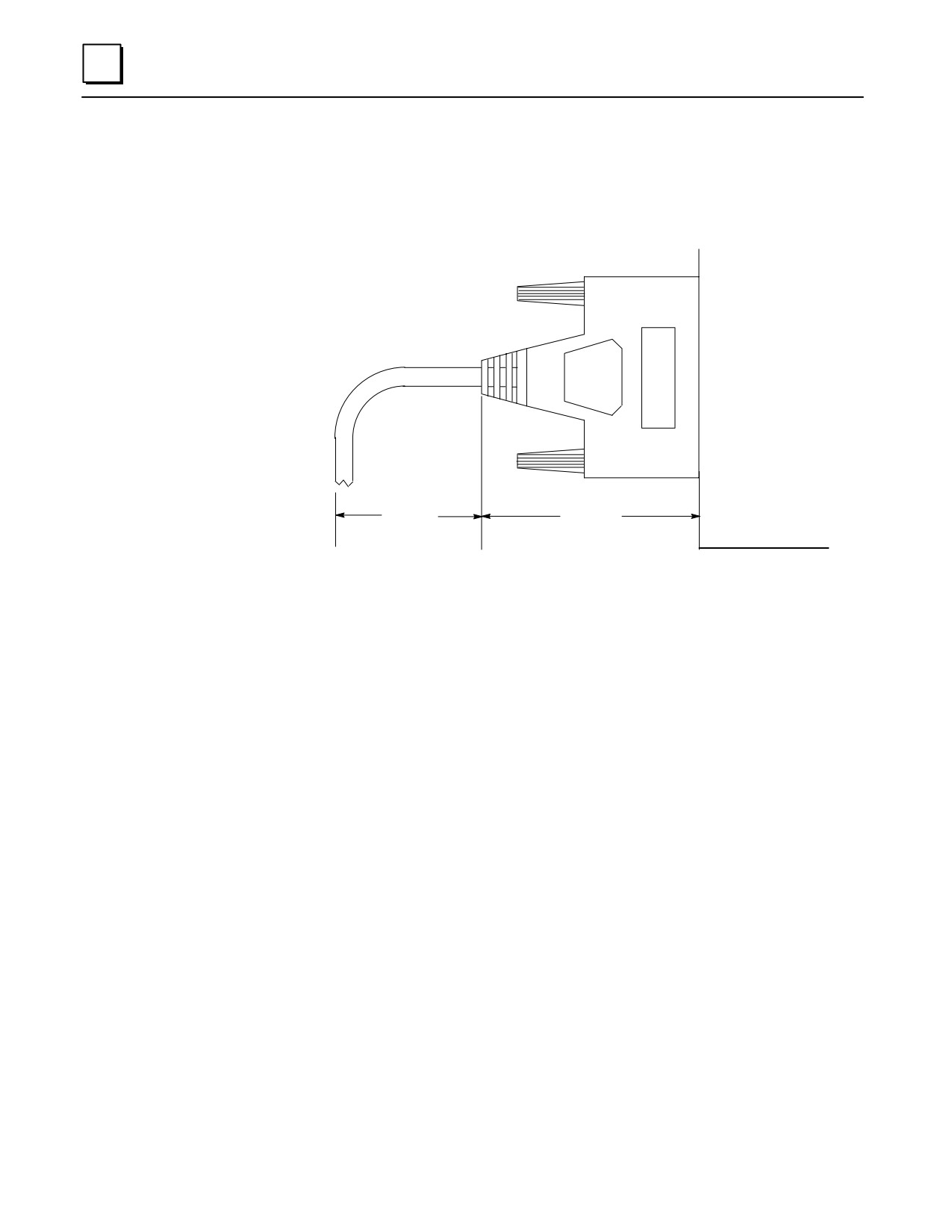

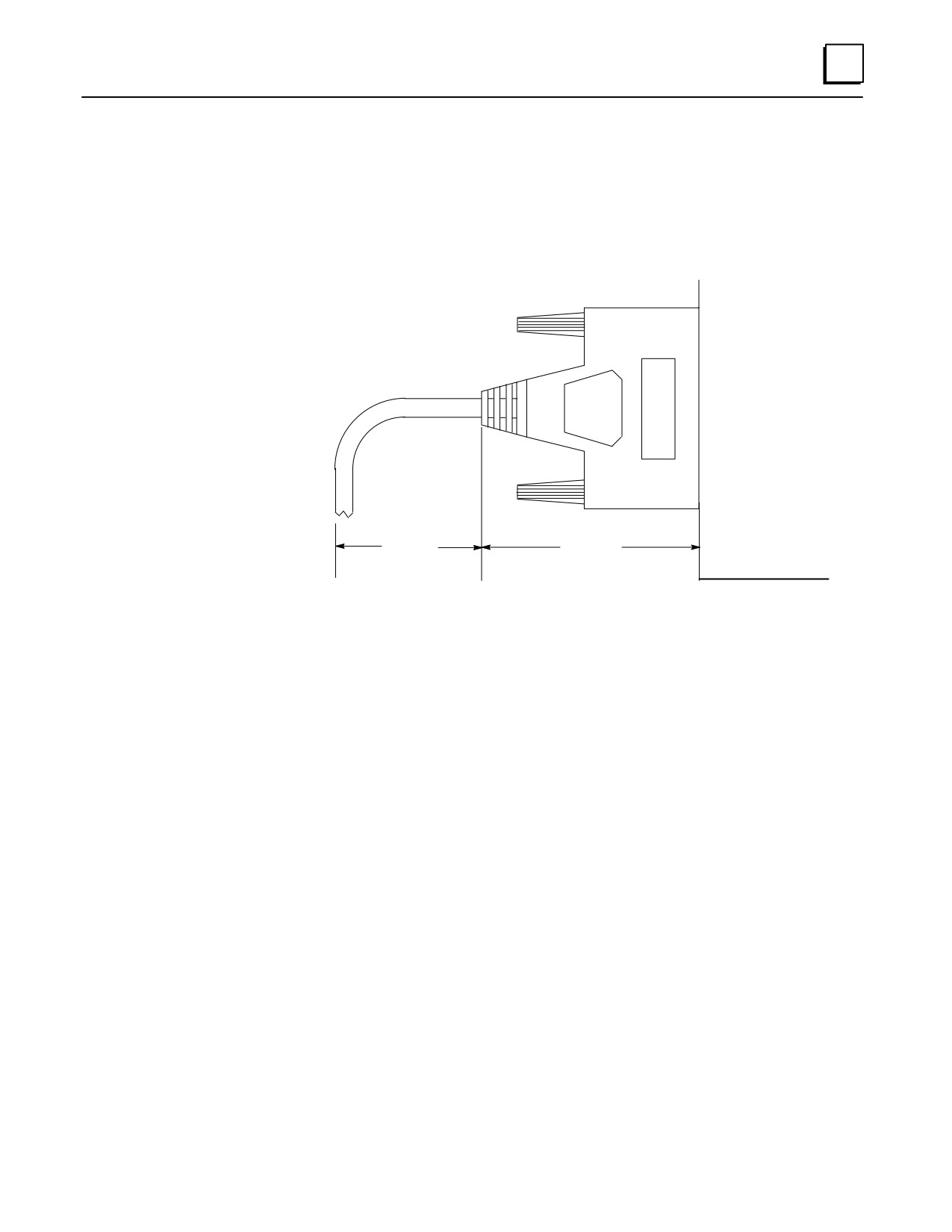

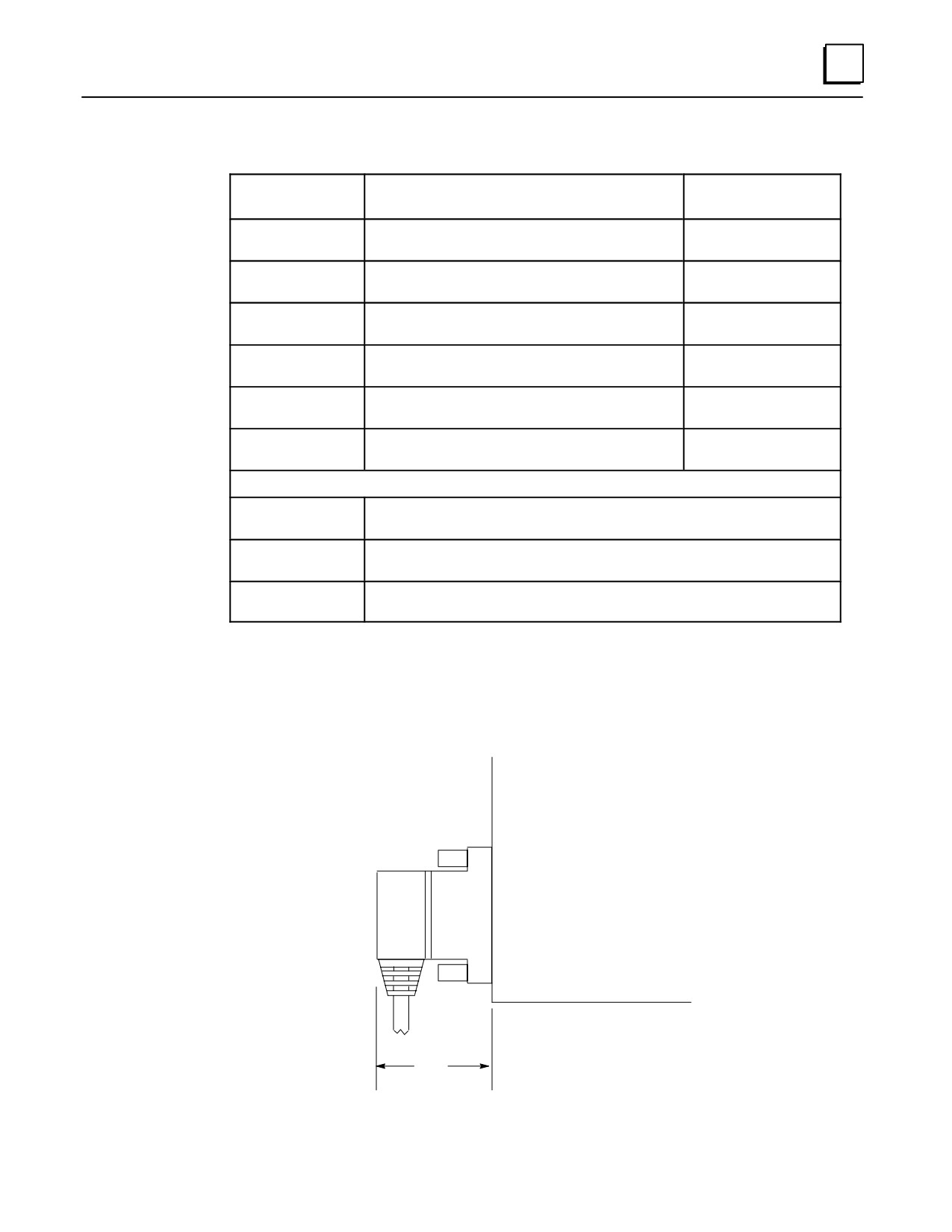

The following figure shows that these cables extend 2” out from the face of the modules

they are connected to. The depth of the cabinet that the PLC is mounted in should allow

for the 2” depth added by this connector.

Series 90-30

I/O Module

2.0”

Figure 10-38. Dimension for Depth of Connector for IC693CBL327/328

10-58

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Building Custom Length 24-pin Connector Cables

Cables connecting the module to field devices can be built to length as required for

individual applications. You must purchase the mating female (socket type) 24-pin

connectors. The 24-pin connector kit can be ordered as an accessory kit from GE Fanuc.

Catalog numbers for these connectors and their associated parts are listed in the following

table. The list includes catalog numbers for three types of connectors: solder pin, crimp pin,

and ribbon cable. Each accessory kit contains enough components (D-connectors, backshells, contact

pins, etc.) to assemble ten single-ended cables of the type specified for each kit.

Table 10-10. Catalog Numbers for 24-Pin Connector Kits
