5. FOCAS1/ETHERNET PARAMETER SETTING

B-64115EN/02

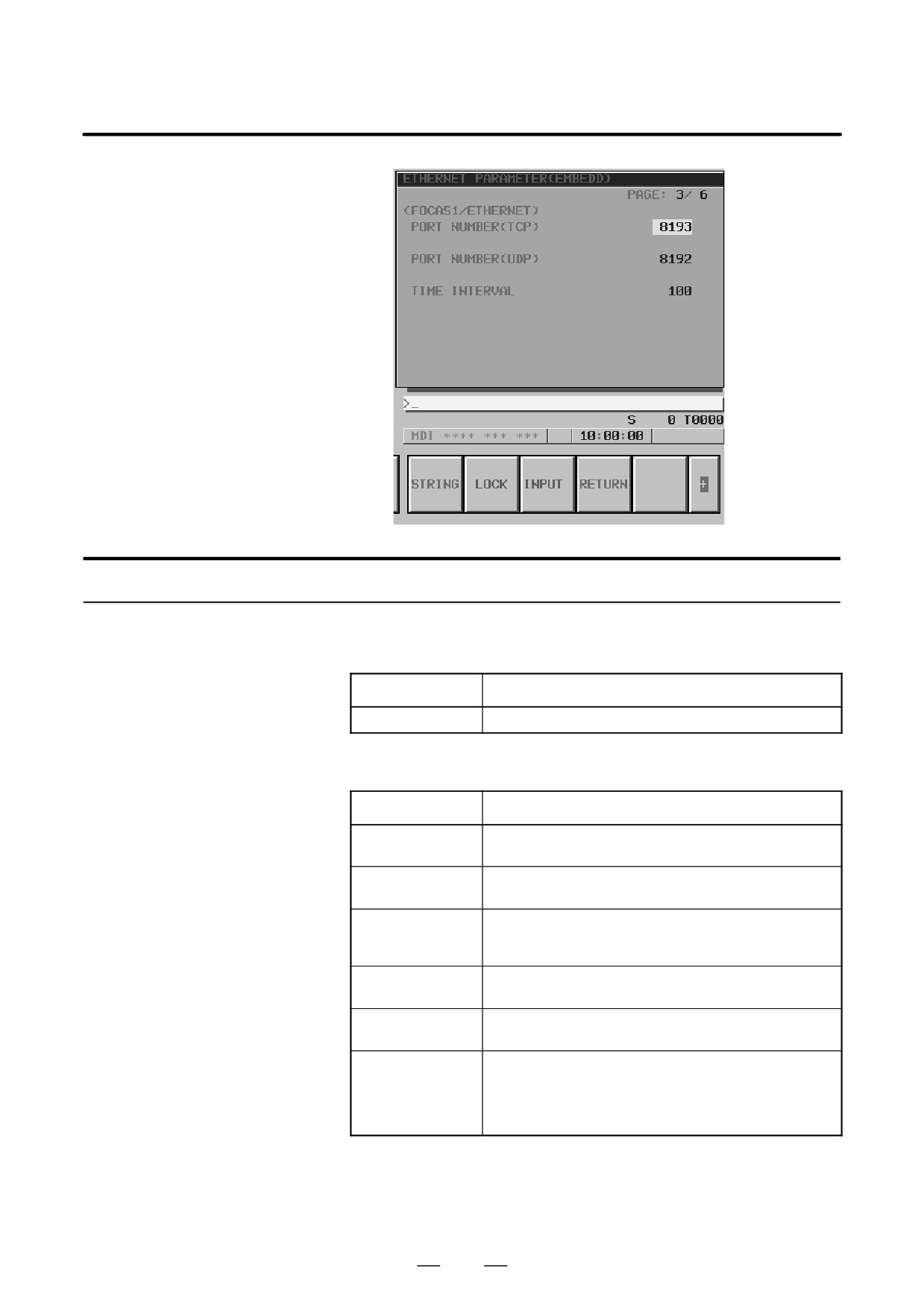

Display item and setting items

Display item

The item related to the PCMCIA LAN card is displayed.

Item

Description

MAC ADDRESS

PCMCIA LAN card MAC address

Setting items

Set the TCP/IP-related items of the embedded Ethernet.

Item

Description

IP ADDRESS

Specify the IP address.

(Example of specification format: “192.168.1.1”)

SUBNET MASK

Specify a mask address for the IP addresses of the network.

(Example of specification format: “255.255.255.0”)

ROUTER IP

Specify the IP address of the router.

ADDRESS

Specify this item when the network contains a router.

(Example of specification format: “192.168.1.254”)

PORT NUMBER

Specify a port number. The valid input range is 5001 to 65535.

(TCP)

Usually set 8193.

PORT NUMBER

Specify a UDP port number for transmitting UDP broadcast

(UDP)

data. The valid input range is 5001 to 65535. Set 0.

TIME INTERVAL

Specify a time interval at which UDP broadcast data specified

above with a UDP port number is transmitted.

The unit is 10 ms. The valid input range is 10 to 65535. This

means that a value less than 100 ms cannot be specified. Set

400

6. DIGITAL SERVO

B-64115EN/02

This section describes how to set initial servo parameters, which is used

6.1

for field adjustment of machine tool.

INITIAL SETTING

1. Turn on power at the emergency stop condition.

SERVO

2. Set the parameter to display the servo tuning screen.

PARAMETERS

3111

SVS

#0 (SVS)

0 : Servo tuning screen is not displayed.

1 : Servo tuning screen is displayed.

3. Turn off the power once then turn it on again.

4. Display the servo parameter setting screen by the following

operation:

SYSTEM

key

[SV.PARA].

5. Input data required for initial setting using the cursor and page key.

SERVO SETTING

X-AXIS

Y-AXIS

(1)INITIAL SET BIT

00000000

PRM

2000

(2)MOTOR ID NO.

PRM

2020

(3)amr

00000000

PRM

2001

(4)cmr

PRM

1820

(5)FEED GEAR N

PRM

2084

(6)

(N/M) M

125

PRM

2085

(7)DIRECTION SET

111

PRM

2022

(8)VELOCITY PULSE NO.

8192

PRM

2023

(9)POSITION PULSE NO.

12500

PRM

2024

(10)REF.COUNTER

8000

PRM

1821

(1) Initial set bit

2000

PRMCAL

DGPRM

PLC01

#3 (PRMCAL)

1 : Turns to 1 when the initial setting is done.

The following parameters are set automatically in

accordance with the no. of pulses of pulse coder:

PRM 2043(PK1V), PRM 2044(PK2V), PRM 2047(POA1),

PRM 2053(PPMAX),PRM 2054(PDDP),

PRM 2056(EMFCMP),

PRM 2057(PVPA), PRM 2059(EMFBAS),

PRM 2074(AALPH),PRM 2076(WKAC)

#1 (DGPRM)l

0 : Initial setting of digital servo parameter is done.

1 : Initial setting of digital servo parameter is not done.

#0 (PLC01)

0 : Values of parameter 2023 and 2024 are used as they are:

1 : Values of parameter 2023 and 2024 are multiplied by 10.

402

6. DIGITAL SERVO

B-64115EN/02

(2) Motor ID No.

Select the motor ID No. of the servo motor to be used, according to the

motor model and drawing number

(the middle four digits of

A06B-XXXX-BXXX).

For the motor ID No. of the servo motor, refer to the parameter manual

for servo motors.

NOTE

Servo axes are controlled in groups of two axes. So, for

successive servo control numbers (odd number and even

number), motor type number unified for servo HRV1 or for

servo HRV2 or HRV3 must be specified.

(3) Arbitrary AMR function

PRM

2001

AMR7

AMR6

AMR5

AMR4

AMR3

AMR2

AMR1

For each axis

NOTE

Set “00000000”.

(4) CMR

PRM

1820

Command multiply ratio

1) When CMR is 1/2 to 1/27

Set value=

+100

CMR

2) When CMR is 0.5 to 48

Set value=2×CMR

(5) Turn off the power then back on.

(6) N/M of feed gear (F⋅FG)

PRM

2084

n for flexible feed gear

PRM

2085

m for flexible feed gear

Setting for the α pulse coder in the semi-closed mode

(Note 1)

Necessary position feedback pulses

F⋅FG numerator (v 32767)

per motor revolution

(as irreducible fraction)

F⋅FG

denominator (v 32767)

1,000,000

(Note 2)

NOTE

For both F⋅FG number and denominator, the maximum

setting value (after reduced) is 32767.

αi pulse coders assume one million pulses per motor

revolution, irrespective of resolution, for the flexible feed

gear setting.

If the calculation of the number of pulses required per motor

revolution involves π, such as when a rack and pinion are

used, assume π to be approximately 355/113.

403

6. DIGITAL SERVO

B-64115EN/02

[Example]

For detection in 1 µm units, specify as follows:

Number of necessary

Ball screw lead

position pulses

F⋅FG

(mm/rev)

(pulses/rev)

10000

1/100

20000

2/100 or 1/50

30000

3/100

[Example]

If the machine is set to detection in 1,000 degree units with a gear

reduction ratio of 10:1 for the rotation axis, the table rotates by 360/10

degrees each time the motor makes one turn.

1000 position pulses are necessary for the table to rotate through one

degree.

The number of position pulses necessary for the motor to make one turn

is:

360/10

1000 = 36000 with reference counter = 36000

F⋅FG numerator

36000

F⋅FG denominator

⁼ 1,000,000

1000

Setting for use of a separate detector (full-closed)

Number of position pulses corresponding

F⋅FG

numerator (v 32767)

to a predetermined amount of travel

(as irreducible fraction)

F⋅FG denominator (v 32767)

Number of position pulses corresponding

to a predetermined amount of travel from

a separate detector

[Example]

To detect a distance of 1-µm using a 0.5-µm scale, set the following:

Numerator of F⋅FG

L/1

Denominator of F⋅FG

⁼ L/0.5

<<Examples of calculation>>

1/1000 mm

1/10000 mm

One revolution 8mm

n=1/m=125

n=2/m=25

of motor

10mm

n=1/m=100

n=1/m=10

12mm

n=3/m=250

n=3/m=25

(7) Direction of travel

PRM

2022

Rotational direction of motor

111 : Normal (clockwise)

-111 : Reverse (counterclockwise)

404

6. DIGITAL SERVO

B-64115EN/02

(8) Number of velocity pulses and position pulses

1) For serial αi pulse coder, or serial a pulse coder

Increment system : 1/1000mm

Increment system : 1/10000mm

Paramter No.

Closed loop

Semi-closed loop

Closed loop

Semi-closed loop

High resolution setting

2000

xxxx xxx 0

xxxx xxx 1

Separate detector

1815

0010 0010

0010 0000

0010 0010

0010 0000

No. of velocity feedback pulses

2023

8192

819

No. of position feedback pulses

2024

12500

NS/10

1250

NOTE

NS is the number of position feedback pulses per one

revolution of the motor (multiplied by four)

Even if the system employs a closed loop, bit 3 of parameter

2002 is 1 and bit 4 is 0.

(9) Reference counter

PRM

1821

Reference counter capacity for each axis (0 - 99999999)

6. Turn off the power then back on.

(10) FSSB display and setting screen

Connecting the CNC control unit to servo amplifiers via

high-speed serial bus (FANUC Serial Servo Bus, or FSSB), which

uses only one fiber optics cable, can significantly reduce the amount

of cabling in machine tool electrical sections.

Axis settings are calculated automatically according to the

interrelationships between axes and amplifiers entered on the FSSB

setting screen. Parameter Nos. 1023, 1905, 1910 to 1919, 1936, and

1937 are specified automatically according to the results of the

calculation.

D Display

The FSSB setting screen displays FSSB-based amplifier and axis

information. This information can also be specified by the operator.

1. Press function key

SYSTEM

2. To display [FSSB], press continuous menu key

several times.

3. Pressing soft key

[FSSB] causes the AMP SET screen (or the

previously selected FSSB setting screen) to appear, with the following

soft keys displayed.

AMP

AXIS

MAINTE

(OPRT)

The FSSB setting screens include: AMP SET, AXIS SET, and AMP

MAINTENANCE.

Pressing soft key [AMP] causes the AMP SET screen to appear.

Pressing soft key [AXIS] causes the AXIS SET screen to appear.

Pressing soft key [MAINTE] causes the AMP MAINTENANCE

screen to appear.

405

6. DIGITAL SERVO

B-64115EN/02

1) Amplifier setting screen

The amplifier setting screen consists of two sections: the first section

displays information about the slave, while the second section

displays information about the pulse modules.

AMPLIFIER SETTING

O1000 N00001

NO. AMP

SERIES UNIT

CUR. AXIS NAME

A1-L

SVM-HV

40AL

A1-M

SVM

12A

A2-L

SVM

40A

A3-L

SVM

20A

NO. EXTRA

TYPE PCB ID

0000 DETECTOR(8AXES)

12AB

MDI **** *** ***

13:11:56

[ AMP

][ AXIS

][ MAINTE ][

][(OPRT)]

The amplifier setting screen consists of the following items:

NO. (slave number)

The numbers of up to ten slaves (up to eight amplifiers and up to two

pulse modules) connected via the FSSB are displayed sequentially,

with the one nearest to the CNC being number 1.

AMP (amplifier type)

The amplifier type display consists of the letter A, which stands for

“amplifier,” a number that indicates the placing of the amplifier, as

counted from that nearest to the CNC, and a letter such as L (first axis)

or M (second axis) indicating the placing of the axis in the amplifier.

AXIS NO. (controlled axis number)

The axis number of each controlled axis specified in parameters (Nos.

1920 to 1929) is displayed. If a number specified in these parameters

falls outside the range of between 1 and the maximum number of

controlled axes, 0 is displayed.

NAME (controlled axis name)

The axis name assigned to a parameter (No. 1020) corresponding to

a particular controlled axis number is displayed. If the controlled axis

number is 0, - is displayed.

The following items are displayed as amplifier information:

⋅ UNIT (servo amplifier unit type)

⋅ SERIES (servo amplifier name)

⋅ CURRENT (maximum rating)

The following items are displayed as pulse module information:

⋅ SEPARATE

This display consists of the letter M, which stands for “pulse

module” and a number indicating the placing of the pulse module,

as counted from that nearest to the CNC.

⋅ TYPE

This display is a letter indicating the type of the pulse module.

406

6. DIGITAL SERVO

B-64115EN/02

⋅ PCB ID

This display consists of four digits indicating the pulse module ID

(hexadecimal). The pulse module ID is followed by DETECTOR

(8-AXES) for the eight-axis separate detector module or

DETECTOR (4-AXES) for the four-axis separate detector module.

2) Axis setting screen

The axis setting screen displays the information shown below:

AXIS SETTING

O1000 N00001

AXIS NAME AMP

M1 M2

1-DSF Cs

TNDM

X A1-L

Y A1-M

Z A2-L

A A3-L

MDI **** *** ***

13:11:56

[ AMP

][ AXIS

][ MAINTE ][

][(OPRT)]

This axis setting screen displays the following items:

D AXIS (controlled axis number)

This item is the placing of the NC controlled axis.

D NAME (controlled axis name)

D AMP (type of the amplifier connected to each axis)

D M1 (connector number for pulse module 1)

This item is the number of the connector for pulse module 1, specified

in parameter No. 1931.

D M2 (connector number for pulse module 2)

This item is the number of the connector for pulse module 2, specified

in parameter No. 1932.

D 1-DSF

This item is the value specified in bit 0 (parameter 1 DSP) of parameter

No. 1904. It is 1 for an axis (such as a high-speed current loop axis,

or high-speed interface axis) that exclusively uses a DSP, which is

usually shared by two-axes.

D Cs: Cs contour controlled axis

This item is the value specified in parameter No. 1933. It is 1 for the

Cs contour controlled axis.

407

6. DIGITAL SERVO

B-64115EN/02

3) Amplifier maintenance screen

The amplifier maintenance screen displays maintenance information

for servo amplifiers. This screen consists of the following two pages,

either of which can be selected by pressing the

key.

AMPLIFIER MAINTENANCE

O1000 N00001

AXIS NAME AMP

SERIES

UNIT AXES CUR.

X A1-L

α SVM-HV

40AL

Y A1-M

SVM

12A

Z A2-L

SVM

40A

A A3-L

SVM

20A

MDI **** *** ***

13:11:56

[ AMP

][ AXIS

][ MAINTE ][

][

]

AMPLIFIER MAINTENANCE

O1000 N00001

AXIS

NAME EDITION

TEST

MAINTE-NO.

01A

020123

01A

020123

01A

020123

02B

020123

MDI **** *** ***

13:11:56

[ AMP

][ AXIS

][ MAINTE ][

][

]

The amplifier maintenance screen displays the following items:

D AXIS (controlled axis number)

D NAME (controlled axis name)

D AMP (type of amplifier connected to each axis)

D SERIES (servo amplifier series of an amplifier connected to each axis)

D UNIT (unit type of a servo amplifier connected to each axis)

D AXES (maximum number of axes controlled by an amplifier

connected to each axis)

D CUR. (maximum rating for amplifiers connected to each axis)

D EDITION (unit version number of an amplifier connected to each axis)

D TEST (date of test performed on an amplifier connected to each axis)

Example) 010123 = January 23, 2001

D MAINTE-NO.

(engineering change number for an amplifier

connected to each axis)

408

6. DIGITAL SERVO

B-64115EN/02

D Setting

On an FSSB setting screen (other than the amplifier maintenance screen),

pressing soft key [(OPRT)] displays the following soft keys:

SET

READ

INPUT

To enter data, place the machine in MDI mode or the emergency stop state,

position the cursor to the point where a desired item is to be input, then

enter the desired data and press soft key [INPUT] (or the

INPUT

key on the

MDI panel).

When soft key [SET] is pressed after data has been entered, a warning

message is displayed if the entered data contains an error. When the data

is satisfactory, the corresponding parameter is set up.

To restore the previous value of a parameter if, for example, an entered

value is incorrect, press soft key [READ].

When the power is turned on, values are read from the parameters and

displayed on the screen.

CAUTION

For the parameters to be specified on the FSSB setting

screen, do not attempt to enter values on the parameter

screen using the MDI or a G10 command. Use only the

FSSB screen to enter values for these parameters.

If pressing soft key [SET] results in a warning message

being displayed, retry data entry, or press soft key [READ]

to clear the warning message. Note that pressing the reset

key does not clear the warning message.

1) Amplifier setting screen

AMPLIFIER SETTING

O1000 N00001

NO. AMP

SERIES UNIT

CUR. AXIS NAME

A1-L

SVM-HV

40AL

A1-M

SVM

12A

A2-L

SVM

40A

A3-L

SVM

20A

NO. EXTRA

TYPE PCB ID

0000 DETECTOR(8AXES)

12AB

MDI **** *** ***

13:11:56

[SETTING][

][ READ ][

][ INPUT ]

409

6. DIGITAL SERVO

B-64115EN/02

The amplifier setting screen displays the following items:

D NO. (controlled axis number)

For this item, enter a value of between 1 and the maximum number of

controlled axes. If a number that falls outside this range is entered, the

warning message “INVALID FORMAT” appears. If the entered

controlled axis number is duplicate or

0, the warning message

“SPECIFIED DATA IS OUT OF RANGE” appears when soft key

[SET] is pressed to assert the entered value. In this case, no value can

be entered for the parameter.

2) Axis setting screen

AXIS SETTING

O1000 N00001

AXIS NAME AMP

M1 M2

1-DSF Cs

TNDM

X A1-L

Y A1-M

Z A2-L

A A3-L

MDI **** *** ***

13:11:56

[SETTING][

][ READ ][

][ INPUT ]

On the axis setting screen, the following items can be specified:

M1 (connector number for pulse module 1)

For an axis that uses pulse module 1, enter a connector number using

a number in the range of between 1 and the maximum number of axes

for pulse module 1. When pulse module 1 need not be used, enter 0.

If a number that falls outside the valid range is entered, the warning

message “INVALID FORMAT” is displayed.

M2 (connector number for pulse module 2)

For an axis that uses pulse module 2, enter a connector number using

a number in the range of between 1 and the maximum number of axes

for pulse module 2. When pulse module 2 need not be used, enter 0.

If a number that falls outside the valid range is entered, the warning

message “INVALID FORMAT” is displayed.

1-DSF

Enter 1 for the following axes, each of which exclusively uses a DSP,

which is usually shared by two-axes. If a number other than 0 or 1 is

entered, the warning message “INVALID FORMAT” is displayed.

⋅ Learning control axis

⋅ High-speed current loop axis

⋅ High-speed interface axis

Cs (Cs contour controlled axis)

Enter 1 for the Cs contour controlled axis. If a number other than 0

or 1 is entered, the warning message “INVALID FORMAT” is

displayed.

410

6. DIGITAL SERVO

B-64115EN/02

When soft key [SET] is pressed on the axis setting screen after data entry,

the warning message “SPECIFIED DATA IS OUT OF RANGE” is

displayed if any of the following conditions is satisfied.

D Both M1 and M2 are nonzero for an axis.

D Any two of TWO-AXES, Cs, and TANDEM are nonzero for an axis.

D A duplicate value is specified for M1.

D A duplicate value is specified for M2.

D A duplicate value is specified for Cs.

D A duplicate value is specified for TANDEM.

D An invalid master/slave axis pair is specified for TANDEM.

411

6. DIGITAL SERVO

B-64115EN/02

6.2

SERVO TUNING

SCREEN

6.2.1

Set a parameter to display the servo tuning screen.

Parameter Setting

3111

SVS

#0 (SVS)

0 : Servo tuning screen is not displayed.

1 : Servo tuning screen is displayed.

6.2.2

1. Press

SYSTEM

key

and soft key [SV. PARA] in this order.

Displaying Servo

2. Press soft key [SV.TUN] to select the servo tuning screen.

Tuning Screen

SERVO TUNING

01234 N12345

(PAMAMETER)

(MONITOR)

(1)

FUN.BIT

00000000

ALARM 1

00000000

(9)

(2)

LOOP GAIN

3000

ALARM 2

00000000

(10)

(3)

TURNING SET.

ALARM 3

10000000

(11)

(4)

SET PERIOD

ALARM 4

00000000

(12)

(5)

INT.GAIN

113

ALARM 5

00000000

(13)

(6)

PROP.GAIN

-1015

LOOP GAIN

2999

(14)

(7)

FILER

POS ERROR

556

(15)

(8)

VELOC.GAIN

125

CURRENT%

(16)

SPEED RPM

100

(17)

SV SET

SV TUN

OPE

(1)

Function bit

: PRM 2003

(2)

Loop gain : PRM 1825

(3)

Tuning start :

(4)

Set period :

(5)

Integral gain

: PRM 2043

(6)

Proportional gain

: PRM 2044

(7)

Filter

: PRM 2067

(PRM 2021)+256

(8)

Velocity gain

Set value=

×100

256

(9)

Alarm 1 : DGN 200 (Details of alarm 400 and 414)

(10) Alarm 2 : DGN 201 (Details of disconnection alarm, overload)

(11)

Alarm 3 : DGN 202 (Details of alarm 319)

(12) Alarm 4 : DGN 203 (Details of alarm 319)

(13) Alarm 5 : DGN 204 (Details of alarm 414)

(14) Loop gain : Actual loop gain

(15) Position error : Actual position error(DGN 300)

(16) Current(%) : Indicate current with % to the rated value.

(17) Current(A) : Indicate current with A.

(18) Speed RPM : Number of motor actual rotation

412

6. DIGITAL SERVO

B-64115EN/02

Alarm1

OVL

OVC

HCA

HVA

DCA

FBA

OFA

DGN (200)

#7 (OVL)

Overload alarm

#6 (LV)

Insufficient voltage alarm

#5 (OVC)

Overcurrent alarm

#4 (HCA)

Abnormal current alarm

#3 (HVA)

Excessive voltage alarm

#2 (DCA)

Discharge alarm

#1 (FBA)

Disconnection alarm

#0 (OFA)

Overflow alarm

Alarm2

ALD

EXP

DGN (201) ⇓

Over-

—

Amplifier overheat

load

alarm

—

Motor overheat

Discon-

—

Separate type pulse coder disconnec-

nection

tion (Hardware)

alarm

—

Pulse coder disconnection (software)

Alarm3

CSA

BLA

PHA

RCA

BZA

CKA

SPH

DGN (202)

#6 (CSA)

Hardware of serial pulse coder is abnormal.

#5 (BLA)

Battery voltage is in low (warning).

#4 (PHA)

Serial pulse coder or feedback cable is abnormal.

Counting the feedback signal is in error.

#3 (RCA)

Serial pulse coder is faulty.

Counting is in error.

If the RCA bit is set to 1 when both the FBA bit (bit 1 of alarm 1) and

ALD bit of alarm 2 are set to 1 and the EXP bit of alarm 2 (internal

hardware disconnection) is set to 1, a count miss alarm (CMAL)

occurs in the α pulse coder.

#2 (BZA)

Battery voltage becomes 0.

Replace batteries and set the reference position.

#1 (CKA)

Serial pulse coder is faulty.

Internal clock has stopped.

#0 (SPH)

Serial pulse coder or feedback cable is faulty.

Counting the feedback signal is in error.

413

6. DIGITAL SERVO

B-64115EN/02

Alarm4

DTE

CRC

STB

PRM

DGN (203)

#7 (DTE)

Communication error of serial pulse coder.

There is no response.

Generally, a leading cause is a break in a wire.

#6 (CRC)

Communication error of serial pulse coder.

Transmitted data is in error.

#5 (STB)

Communication error of serial pulse coder.

Transmitted data is in error.

#4 (PRM)

The alarm is detected by the digital servo, the values specified in the

parameter is not correct.

Alarm5

OFS

MCC

LDM

PMS

DGN (204)

#6 (OFS)

A/D conversion of current value of digital servo is abnormal.

#5 (MCC)

Contacts of electro-magnetic contactor of servo amplifier is blown

#4 (LDM)

LED of α pulse coder is abnormal.

#3 (PMS)

No. of feedback pulses are in error because α pulse coder or feedback

cable is faulty.

414

6. DIGITAL SERVO

B-64115EN/02

6.3

ADJUSTING

REFERENCE

POSITION

(DOG METHOD)

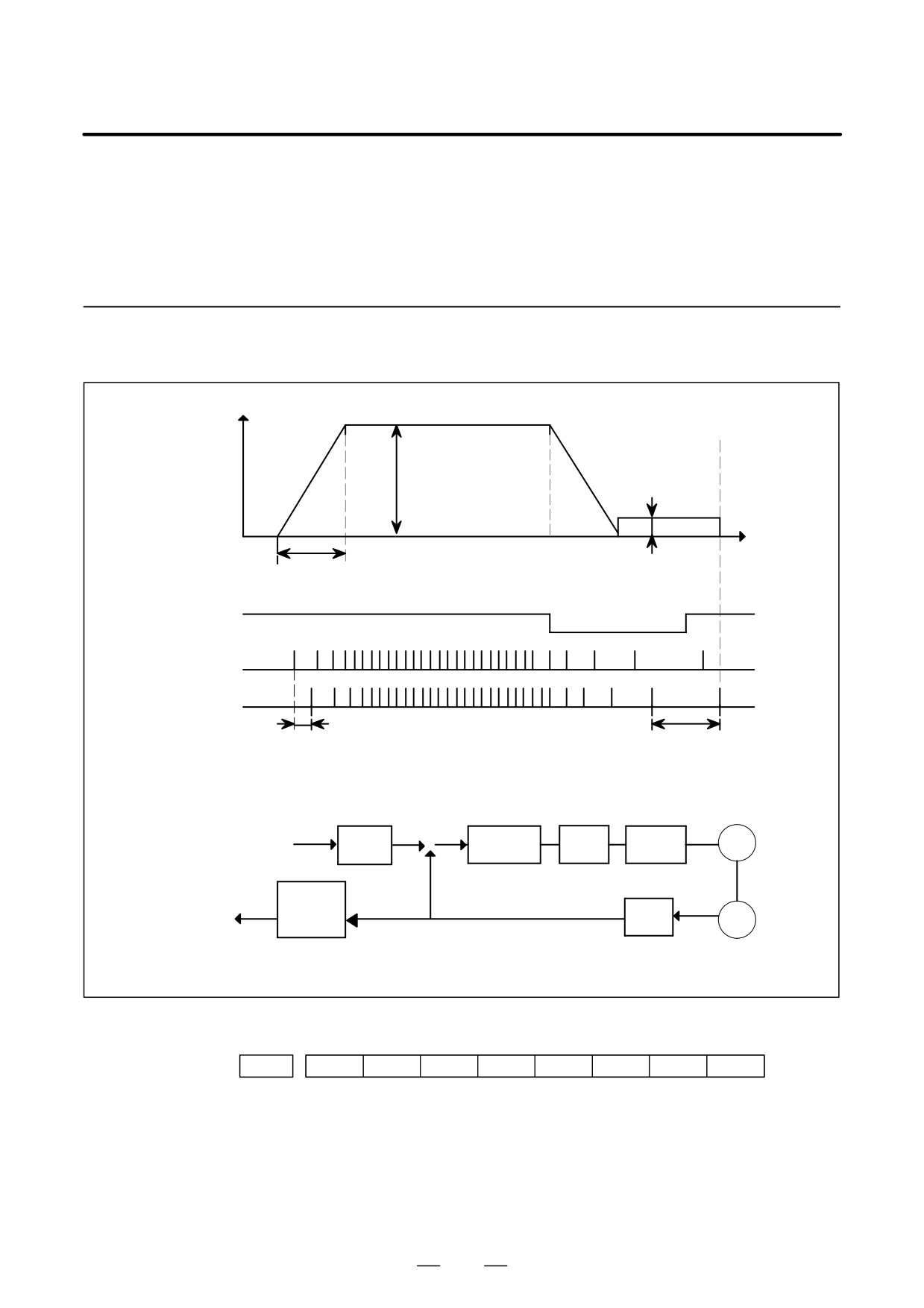

6.3.1

General

Speed

Rapid traverse

(PRM1420α)

FL rate

(PRM1425 α )

Time

Rapid traverse acc./dec. time constant (PRM1620 α )

*DECα

PCZ

Grid

Grid shift amount

Reference counter capacity

(PRM1850)

(PRM1821)

10mm/rev

10000P

Error

Proportion

Speed

CMR

gain

Command

counter

loop

(Serial)

Refere

GRID

count.

FFG

10000P/rev

Counter capacity

(Flexible feed gear)

10000P

D Parameter

PRM

1002

DLZ

#1(DLZ)

0 : Reference position return method is normal (dog).

1 : Dogless reference position setting is used.

415

6. DIGITAL SERVO

B-64115EN/02

PRM

1005

DLZ

#1(DLZ)

0 : The normal method (dog) is used for reference position return.

1 : Reference position setting without dogs is used (axis by axis).

NOTE

A reference position can be set axis by axis by setting bit 1

of parameter No. 1002 to 0 and setting bit 1 of parameter

No. 1005. Reference position setting without dogs cannot

be used for a spindle positioning axis and Cs contour axis.

When these axes are involved, use bit 1 of parameter No.

1005.

PRM

1821

Reference counter capacity

[P]

No. of feedback pulses or its division by an integer is set.

PRM

1850

Grid shift amount per axis

[P]

When the resolution is 0.0001mm, set the value in the unit ten times

the detection unit.

PRM

1815

APC

APZ

OPT

#5(APC)

0 : Position detector is other than absolute pulse coder.

1 : Position detector is absolute pulse coder.

#4(APZ)

Zero position of absolute pulse coder is :

0 : Not established

1 : Established

(Turns to 1 after establishment)

To manually change the value of the APZ bit from 0 to 1 without first

returning to the reference position

when using serial pulse coder α , follow this procedure: Back up the

data with the battery and give the motor one or more turns.

Turn the power off then on again, then change the APZ bit setting

from 0 to 1.

#1(OPT)

0 : Position detection is performed by the pulse coder built in the motor.

1 : Separate type pulse coder or linear scale is used.

416

6. DIGITAL SERVO

B-64115EN/02

D Separate Type Pulse

Coder or Linear Scale is

Used

PRM

1821

Reference counter capacity per axis

[P]

Normally, the number of feedback pulses per motor revolution is set to

the reference counter capacity.

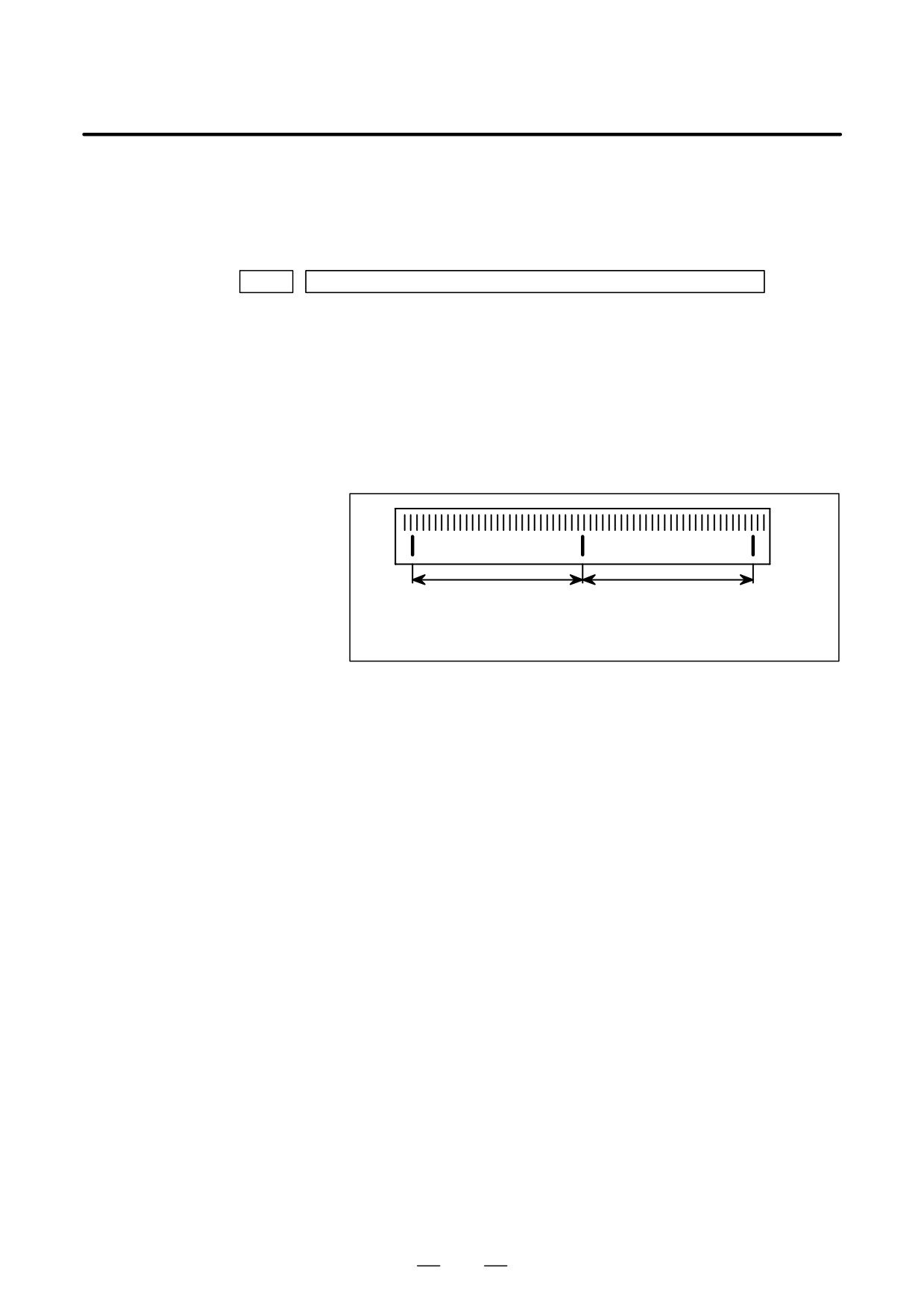

When plural reference marks are on a linear scale, a quotient of the

distance between the reference marks divided by an interfer may be used

as a reference counter capacity:

Example)

(1µ m)

300mm ⇒ reference counter

30000

20000

15000

10000 etc

417

6. DIGITAL SERVO

B-64115EN/02

When there are no dog nor limit switch for reference position return, this

6.4

function enables the tool to return the reference position that is set by

DOGLESS

MTB.

REFERENCE

When the absolute position detector is used, the reference position once

POSITION SETTING

set remains also during power off. When the absolute detector is replaced

or absolute position is lost, perform this setting.

6.4.1

General

Speed

Reference position return

FL rate (PRM 1425)

Time

JOG

ZRN

+Jα

GRID

ZP α

6.4.2

Move the tool near the reference position using a manual operation.

Operation

Select the reference position return mode or switch.

Press a button for an axis-and-direction-select-signal + or -, and the

machine moves to the next grid, then stops.

(This position is set as the reference position).

: After the reference position has been set, select the reference position

return mode(ZRN signal is 1) and turn on an axis-and-direction-

select signal, then the tool returns to the reference position.

418

6. DIGITAL SERVO

B-64115EN/02

6.4.3

Associated Parameters

PRM

1002

DLZ

#1(DLZ)

0 : Dog is used for reference position return

1 : Dogless reference position setting (all axes)

PRM

1005

DLZ

#1(DLZ)

0 : The normal method (dog) is used for reference position return.

1 : Reference position setting without dogs is used (axis by axis).

NOTE

A reference position can be set axis by axis by setting bit 1

of parameter No. 1002 to 0 and setting bit 1 of parameter

No. 1005. Reference position setting without dogs cannot

be used for a spindle positioning axis and Cs contour axis.

When these axes are involved, use bit 1 of parameter No.

1005.

PRM

1006

ZMI

#5(ZMI)

0 : Reference position return and backlash initial direction is +.

1 : Reference position return and backlash initial direction is -.

: After ZRN signal becomes 1, manual feed direction is always the

direction set by this parameter irrespective of an axis selection signal.

419

6. DIGITAL SERVO

B-64115EN/02

6.5

αi SERVO WARNING

INTERFACE

General

The αi servo system can report the warning status before one of the

following target alarms occurs.

When the warning status is entered, a report to the PMC is issued.

For example, this signal can be used by the machine for retracting tools

from the time a warning occurs by the time a servo alarm occurs.

Signal

Servo warning detail

signals

SVWRN1 to 4

<F093#4 to #7>

[Classification] Output signal

[Function] Reports the warning signal corresponding to the state of the servo

amplifier.

[Output condition] The following table shows the warning statuses of the servo amplifier and

their corresponding warning signals.

Warning status signals (F93)

Time from when a

warning state signal is

Corresponding alarm messages

SVWRN4

SVWRN3

SVWRN2

SVWRN1

issued to until an alarm

(#7)

(#6)

(#5)

(#4)

occurs

444 n AXIS: INV. COOLING FAN FAILURE

One minute

601 n AXIS: INV. RADIATOR FAN FAILURE

Until overheat occurs

(inconstant)

443 n AXIS: CNV. COOLING FAN FAILURE

One minute

606 n AXIS: CNV. RADIATOR FAN FAILURE

Until overheat occurs

(inconstant)

431 n AXIS: CNV. OVERLOAD

One minute

607 n AXIS: CNV. SINGLE PHASE FAILURE

PSMR: Five seconds,

PSM: One minute

420

6. DIGITAL SERVO

B-64115EN/02

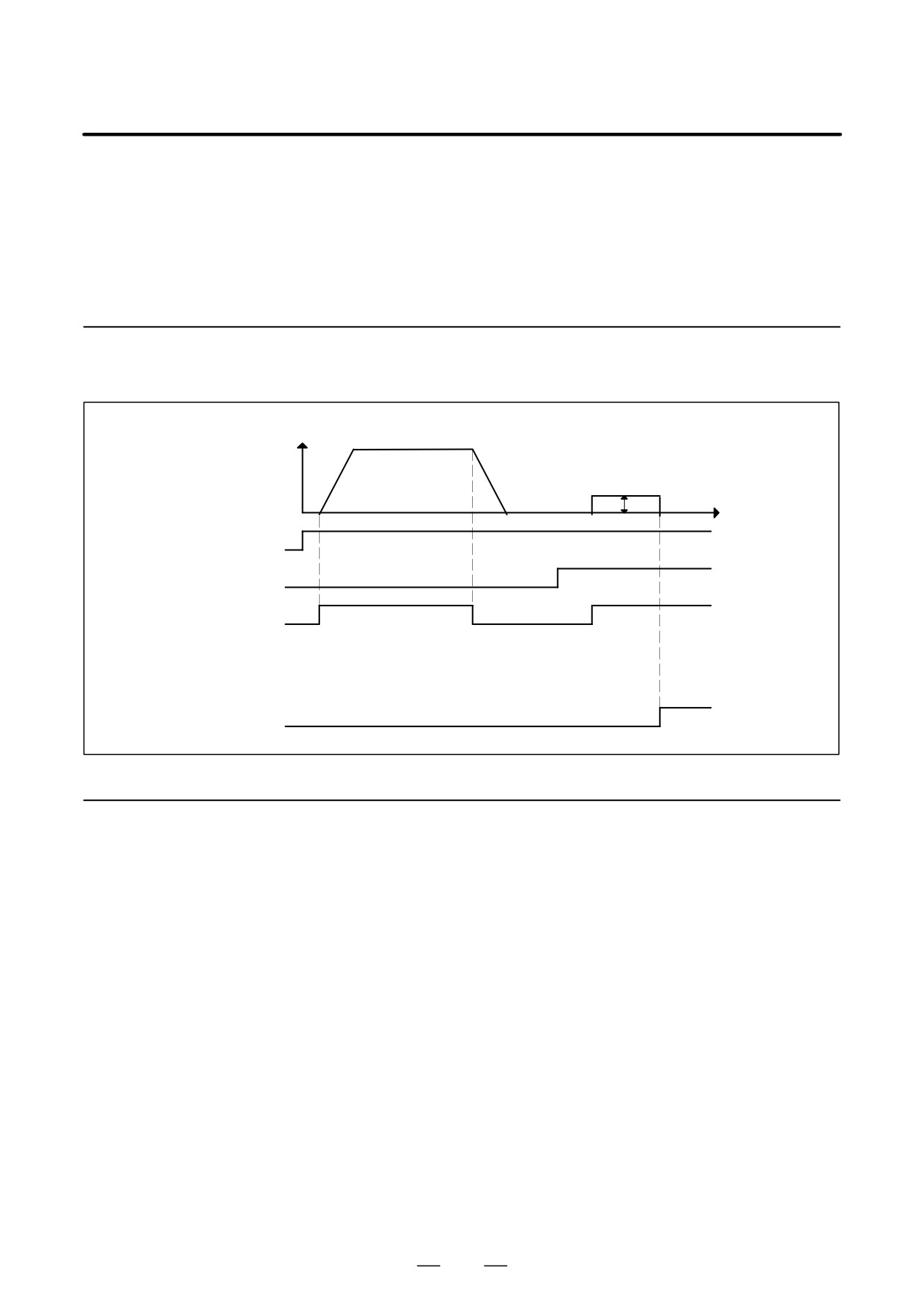

A timing chart for handling a warning is shown below.

Occurrence of a warning

Servo amplifier

SVWRN1-4

(Warning)

Perform deceleration stop or block stop

during this time period with the PMC to

stop the machine without damage. The

time period varies with the warning type.

Activation

Occurrence and stop of the

alarm corresponding to a

warning

Signal address

F093

SVWRN4

SVWRN3

SVWRN2

SVWRN1

Alarms with the αi servo

If SWP parameter (bit 2 of parameter No. 1807) = 0, a servo alarm, in

amplifier in the warning

addition to a warning signal, is issued when the αi servo amplifier gets

state

in the warning state.

The servo alarms listed below place automatic operation on feed hold,

thus decelerating all controlled axes (including the PMC axis) until they

stop.

These alarms will not de-energize the servo motors.

Alarm No. with the servo

Alarm message

amplifier in the warning state

amplifier in the alarm state

608

444

n axis : The inverter’s internal cooling fan stopped.

609

601

n axis : The inverter radiator cooling fan stopped.

610

443

n axis : The converter cooling fan stopped.

611

606

n axis : The converter radiator cooling fan stopped.

612

431

n axis : The converter main circuit was overloaded.

613

607

n axis : The converter main power supply encountered

n axis : an open-phase condition.

If the αi servo amplifier actually gets in the alarm state after any of the

above servo alarms with the servo amplifier in the warning state has

occurred, the servo motors are de-energized, resulting in an alarm with

the servo amplifier in the alarm state being displayed.

If SWP (bit 2 of parameter No. 1807) = 1, a warning signal, rather than

an alarm with the servo amplifier in the warning state, is issued when the

αi servo amplifier gets in the warning state. If the servo amplifier gets in

the warning state during automatic operation, the automatic operation

continues. In this case, decelerate each axis until they stop, using the

warning state signal before the servo motors are de-energized.

Otherwise, the motors may get de-energized in the middle of axis

movement.

421

6. DIGITAL SERVO

B-64115EN/02

6.6

αi SERVO

INFORMATION

SCREEN

General

In the αi servo system, ID information output from each of the connected

units is obtained and output to the CNC screen.

The units that have ID information are shown below.

(Remark: Some instances of these units do not have ID information.)

S Servo motor

S Pulse coder

S Servo amplifier module

S Power supply module

ID information is automatically read from each of the connected units

during first startup of the CNC and then recorded. During the second or

later startup, the ID information recorded during first startup can be

compared with the ID information read this time on the screen to check

whether the configuration of the connected units is changed. (If there is

a difference between them, the alarm mark (*) appears.)

The recorded ID information can be edited. Therefore, the ID information

of an unit that does not have ID information can be displayed. (However,

the alarm mark (*) indicating a difference between these IDs appears.)

Parameter

1807

SWP

[Data type]

Bit

SWP

Specifies what to perform when the αi servo amplifier is in the warning

state (such as a fan stop).

0 : An alarm is issued when the amplifier is in the warning state.

Automatic operation is placed on feed hold, causing the servo axes to

decelerate until they stop.

1 : No alarm is issued when the amplifier is in the warning state.

Automatic operation continues.

The servo motors are de-energized when state transition occurs from

warning to alarm.

13112

SVI

IDW

[Data type]

Bit

IDW

The edit of the servo information screen or the spindle information screen

is:

0 : Prohibited

1 : Allowed

SVI

The servo information screen is:

0 : Displayed

1 : Not displayed

422

6. DIGITAL SERVO

B-64115EN/02

Additional Information

Even if replacement is performed reasonably such as for

repairing, this function incorrectly indicates the * mark when

it detects the replacement.

To clear the * mark, follow the steps below to update the

registered data, as described in the editing section later.

(1)Make the registered data editable. (Parameter IDW (No.

13112#0) = 1)

(2)On the edit screen, place the cursor on the item from

which you want to delete the * mark.

(3)Operate the soft keys [CHANGE], [INPUT], and [SAVE]

in that order.

Editing the servo ID screen

Assume that parameter No.13112#0(IDW) = 1.

Press the MDI switch on the machine operator’s panel.

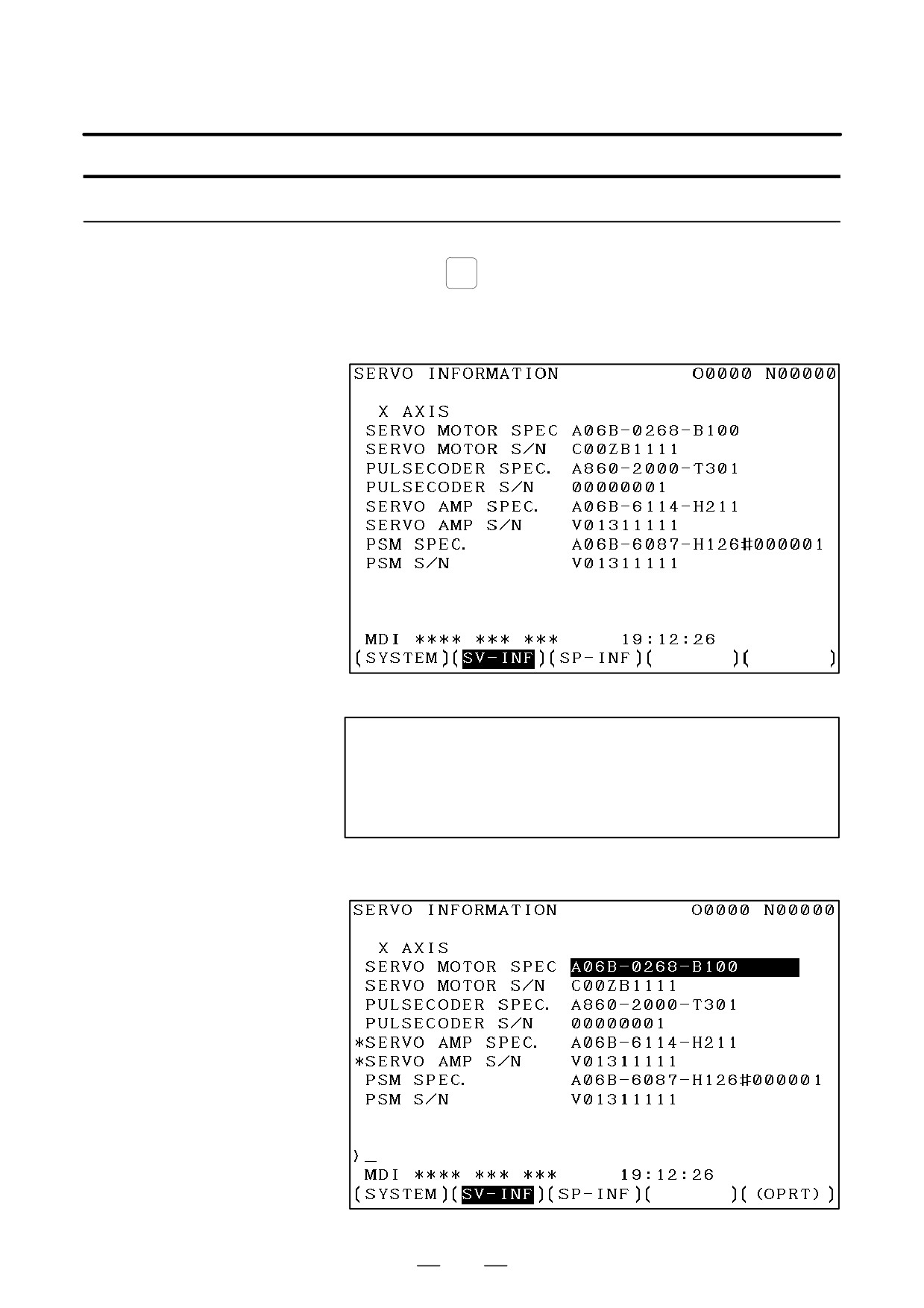

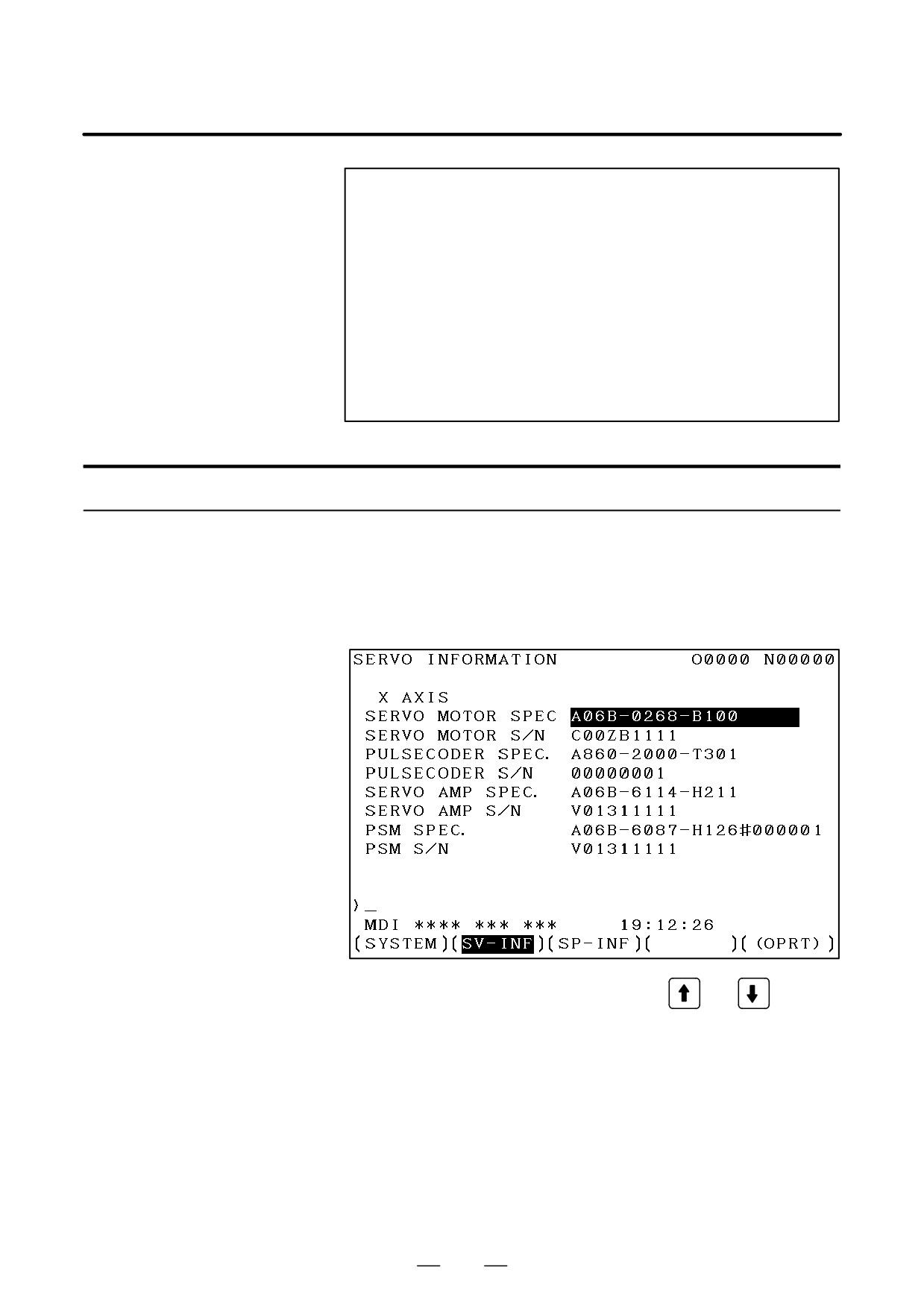

Follow the steps shown in ”Displaying the servo ID screen” to display

the screen as shown below.

To move the cursor on the screen, use the

and

keys.

424

6. DIGITAL SERVO

B-64115EN/02

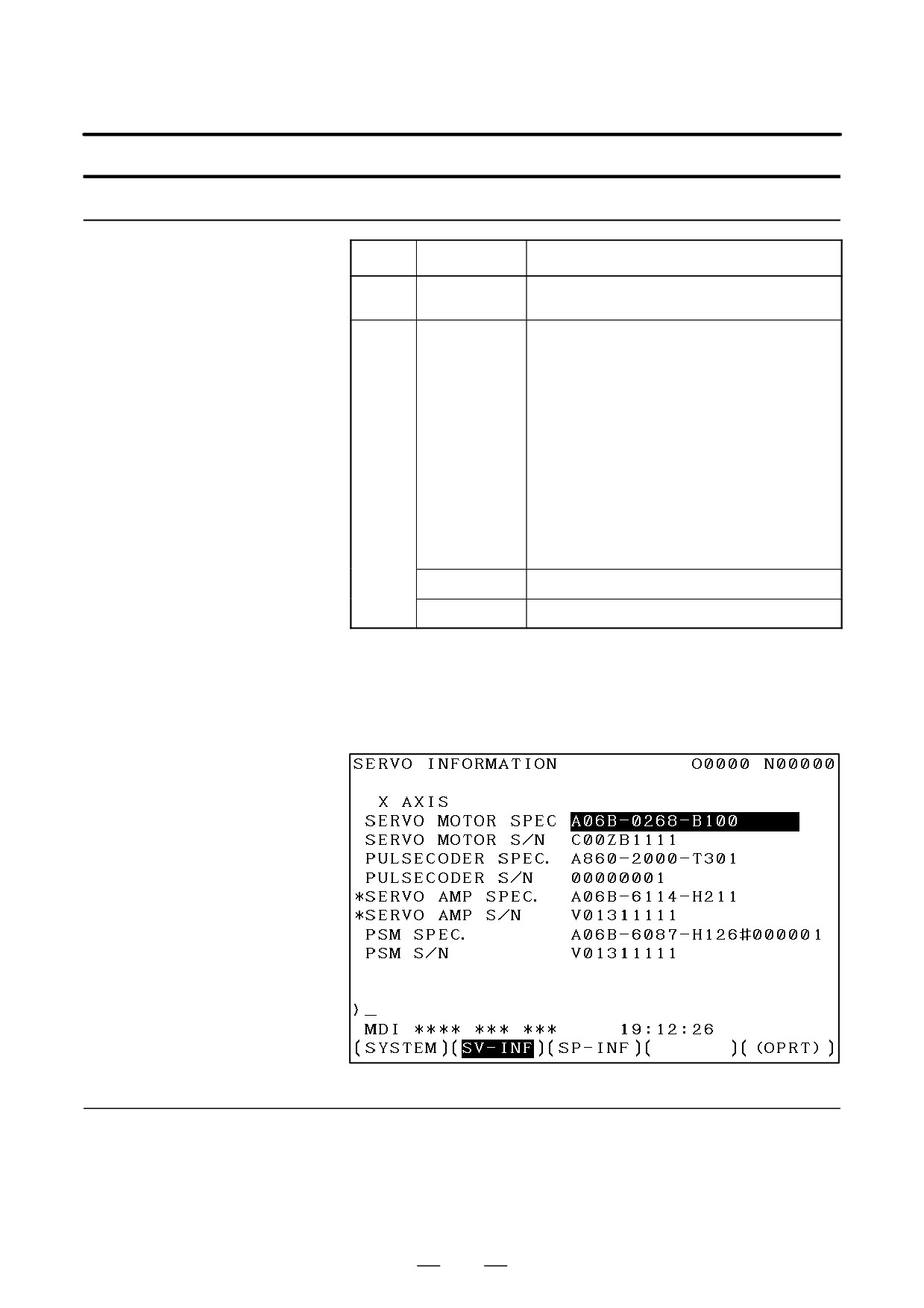

Screen operation

Mode

Key operation

Use

Viewing

Page key

Scrolls up or down on a screen-by-screen basis.

(*1)

Editing

Soft key

(*2)

[INPUT]

Replace the selected ID information at the cursor posi-

tion with the character string in key-in buffer.

[CANCEL]

Deletes the character string in key-in buffer.

[CHANGE]

Transfers the selected ID information at the cursor posi-

tion that was sent by the servo, to key-in buffer. Only

the items preceded by * (*3) are valid.

[SAVE]

Saves the ID information that has been changed on the

servo information screen in flash ROM.

[RELOAD]

Cancels the ID information that has been changed on

the servo information screen and loads ID information

from flash ROM.

Page key

Scrolls up or down on a screen-by-screen basis.

Cursor key

Scrolls up or down the selection of ID information.

*1 Viewing mode: when parameter No.13112#0 = 0

*2 Editing mode: when parameter No.13112#0 = 1

*3 Servo information is stored in flash ROM. If there is a difference

between the servo information in flash ROM and the actual servo

information, the corresponding items are preceded by *.

Note

For axes that are not used by the αi servo system, ID information of

connected units cannot be obtained.

425

7. AC SPINDLE (SERIAL INTERFACE)

B-64115EN/02

AC SPINDLE (SERIAL INTERFACE)

This chapter outlines the serial interface and analog interface spindle

amplifiers and explains related parameters.

7.1

AC SPINDLE (SERIAL INTERFACE)

427

7.1.1

Outline of Spindle Control

427

7.1.2

Spindle Setting and Tuning Screen

430

7.1.3

Automatic Setting of Standard Parameters

438

7.1.4

Warning Interface for the αi Spindle

440

7.1.5

αi Spindle Error State Messages

442

7.1.6

αi Spindle Information Screen

443

7.2

AC SPINDLE (ANALOG INTERFACE)

447

7.2.1

Outline of Spindle Control

447

426

7. AC SPINDLE (SERIAL INTERFACE)

B-64115EN/02

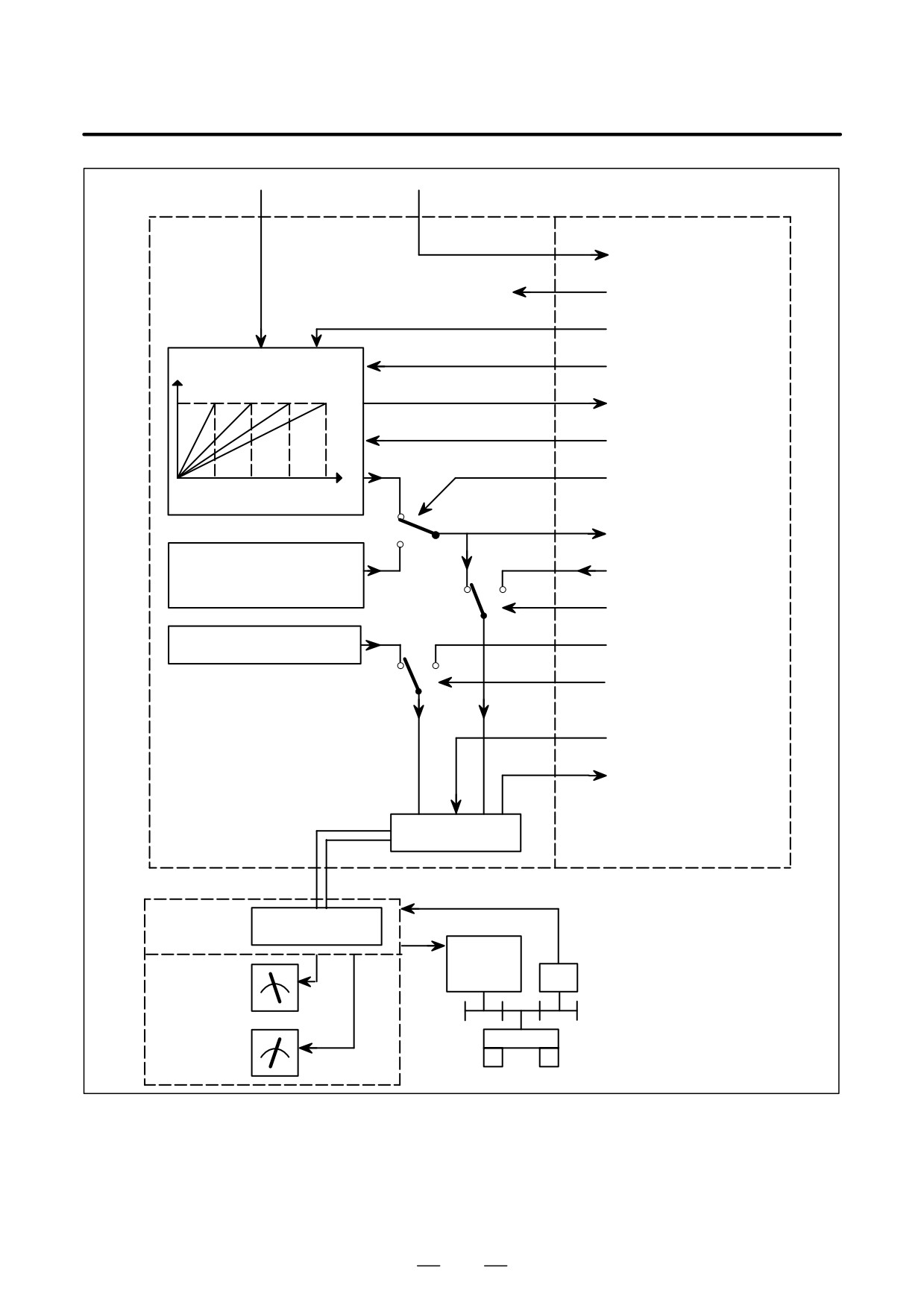

S instruction

M instruction

PMC

M03,M04,M05,M19

FIN

*SSTP(Spindle stop)

SOVx( Spindle override)

Motor speed

SF,GR1O,GR2O,GR3O

(For machining center)

GR1,GR2 (For lathe)

SOR( Orientation)

(PRM 3735 to 3752)

R01O to R12O

Orientation speed

(PRM 3705#1, 3732,

R01I to R12I

3706#5)

SIND

Output polarity

SGN(0=+,1=-)

(PRM 3706#7,6)

SSIN

*ESP,MRDY,

SFR,SRV,ORCM

etc.

SST, SDT, SAR, LDT1,

LDT2, ORAR, ALM etc.

Communication

function

Communication cable

Serial spindle

Communication

amplifier

function

Spindle

Operator’s

motor

panel

Load meter

Speedometer

Spindle

428

7. AC SPINDLE (SERIAL INTERFACE)

B-64115EN/02

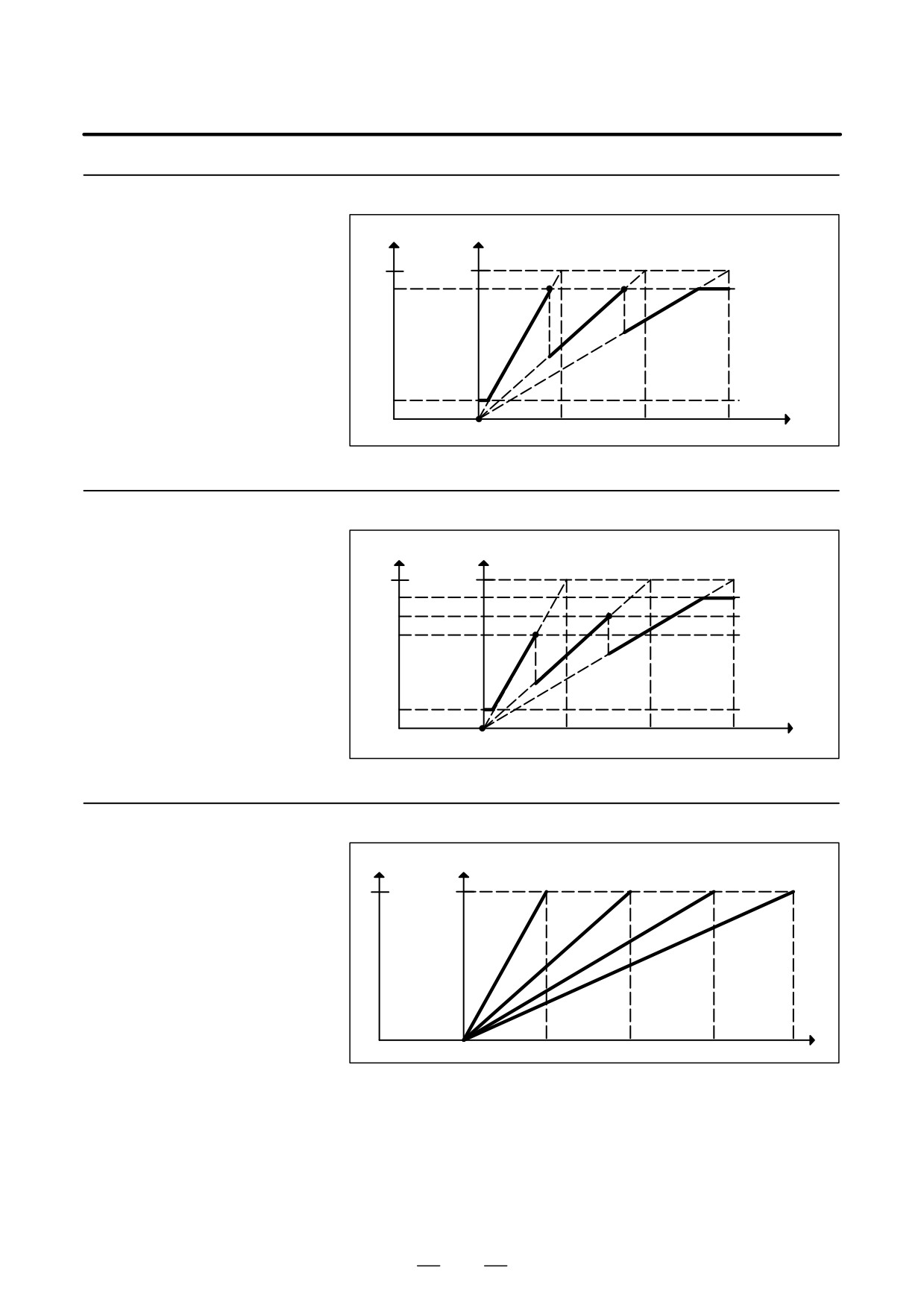

7.1.1.1

Method A of gear change

Output

Motor speed

for machining center

(PRM 3705#2=0)

4095

Max

PRM 3736

Gear 2

Gear 3

Gear 1

PRM 3735

S code

PRM 3741

PRM 3742

PRM 3743

(min^-1)

7.1.1.2

Method B of gear change

Output

Motor speed

for machining center

4095

Max

(PRM 3705#2=1)

PRM 3736

PRM 3752

PRM 3751

Gear 1

Gear 2

Gear 3

PRM 3735

S code

PRM 3741

PRM 3742

PRM 3743

(min^-1)

7.1.1.3

T series

Output Motor speed

4095

Max

Gear 2

Gear 3

Gear 1

Gear 4

S code

PRM 3741

PRM 3742

PRM 3743

PRM 3744

429

FANUC Series 0i-MODEL C, Series 0i Mate-MODEL C. MAINTENANCE MANUAL - page 15
