FANUC Series 16i/160i/160is-MB, Series 18i/180i/180is-MB5, Series 18i/180i/180is-MB. Operator's Manual - page 28

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

Programs are registered in memory in advance. When one of these

4.1

programs is selected and the cycle start switch on the machine operator’s

MEMORY

panel is pressed, automatic operation starts, and the cycle start LED goes

OPERATION

on.

When the feed hold switch on the machine operator’s panel is pressed

during automatic operation, automatic operation is stopped temporarily.

When the cycle start switch is pressed again, automatic operation is

restarted.

When the

RESET

key on the MDI panel is pressed, automatic operation

terminates and the reset state is entered.

For the two-path control, the programs for the two tool posts can be

executed simultaneously so the two tool posts can operate independently

at the same time.

The following procedure is given as an example. For actual operation,

refer to the manual supplied by the machine tool builder.

Procedure for Memory Operation

Procedure

1

Press the MEMORY mode selection switch.

2

Select a program from the registered programs. To do this, follow the

steps below.

2-1 Press

PROG

to display the program screen.

2-2 Press address

O

2-3 Enter a program number using the numeric keys.

2-4 Press the [O SRH] soft key.

3

For the two-path control, select the tool post to be operated with the

tool post selection switch on the machine operator’s panel.

4

Press the cycle start switch on the machine operator’s panel.

Automatic operation starts, and the cycle start LED goes on. When

automatic operation terminates, the cycle start LED goes off.

5

To stop or cancel memory operation midway through, follow the

steps below.

a. Stopping memory operation

Press the feed hold switch on the machine operator’s panel. The

feed hold LED goes on and the cycle start LED goes off. The

machine responds as follows:

(i) When the machine was moving, feed operation decelerates

and stops.

(ii) When dwell was being performed, dwell is stopped.

(iii) When M, S, or T was being executed, the operation is stopped

after M, S, or T is finished.

When the cycle start switch on the machine operator’s panel is

pressed while the feed hold LED is on, machine operation restarts.

790

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

In the MDI mode, a program consisting of up to 10 lines can be created

4.2

in the same format as normal programs and executed from the MDI panel.

MDI OPERATION

MDI operation is used for simple test operations.

The following procedure is given as an example. For actual operation,

refer to the manual supplied by the machine tool builder.

Procedure for MDI Operation

Procedure

1

Press the MDI mode selection switch.

For the two-path control, select the tool post for which a program is to

be created with the tool post selection switch. Create a separate

program for each tool post.

2

Press the

PROG

function key on the MDI panel to select the program

screen. The following screen appears:

PROGRAM ( MDI )

0010

00002

O0000;

G00

G90

G94

G40

G80

G50

G54

G69

G17

G22

G21

G49

G98

G67

G64

G15

B HM

T

D

F

S

>_

MDI

* * * *

* * *

* * *

20 : 40 : 05

PRGRM

MDI

CURRNT

NEXT

(OPRT)

Program number O0000 is entered automatically.

3

Prepare a program to be executed by an operation similar to normal

program editing. M99 specified in the last block can return control to

the beginning of the program after operation ends. Word insertion,

modification, deletion, word search, address search, and program

search are available for programs created in the MDI mode. For

program editing, see III-9.

4

To entirely erase a program created in MDI mode,use one of the

following methods:

a. Enter address

O

, then press the

DELETE

key on the MDI panel.

b. Alternatively, press the

RESET

key. In this case, set bit 7 of

parameter MCL No. 3203 to 1 in advance.

793

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

5

To execute a program, set the cursor on the head of the program. (Start

from an intermediate point is possible.) Push Cycle Start button on

the operator’s panel. By this action, the prepared program will start.

(For the two-path control, select the tool post to be operated with the

tool post selection switch on the machine operator’s panel

beforehand.) When the program end (M02, M30) or ER(%) is

executed, the prepared program will be automatically erased and the

operation will end.

By command of M99, control returns to the head of the prepared

program.

PROGRAM ( MDI )

O0001 N00003

O0000

G00 X100.0 Y200. ;

M03 ;

G01 Z120.0 F500 ;

M93 P9010 ;

G00 Z0.0 ;

%

G00

G90

G94

G40

G80

G50

G54

G69

G17

G22

G21

G49

G98

G67

G64

G15

B HM

T

D

F

S

>_

MDI

****

***

***

12 : 42 : 39

PRGRM

MDI

CURRNT

NEXT

(OPRT)

6

To stop or terminate MDI operation in midway through, follow the

steps below.

a. Stopping MDI operation

Press the feed hold switch on the machine operator’s panel. The

feed hold LED goes on and the cycle start LED goes off. The

machine responds as follows:

(i) When the machine was moving, feed operation decelerates

and stops.

(ii) When dwell was being performed, dwell is stopped.

(iii) When M, S, or T was being executed, the operation is stopped

after M, S, or T is finished.

When the cycle start switch on the machine operator’s panel is

pressed, machine operation restarts.

b. Terminating MDI operation

Press the

RESET

key on the MDI panel.

Automatic operation is terminated and the reset state is entered.

When a reset is applied during movement, movement decelerates

then stops.

794

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Explanation

The previous explanation of how to execute and stop memory operation

also applies to MDI operation, except that in MDI operation, M30 does

not return control to the beginning of the program (M99 performs this

function).

D Erasing the program

Programs prepared in the MDI mode will be erased in the following cases:

S In MDI operation, if M02, M30 or ER(%) is executed.

(If bit 6 (MER) of parameter No. 3203 is set to 1, however, the

program is erased when execution of the last block of the program

is completed by single-block operation.)

S In MEMORY mode, if memory operation is performed.

S In EDIT mode, if any editing is performed.

S Background editing is performed.

S When the

O

and

DELETE

keys are pressed.

S Upon reset when bit 7 (MCL) of parameter No. 3203 is set to 1

D Restart

After the editing operation during the stop of MDI operation was done,

operation starts from the current cursor position.

D Editing a program during

A program can be edited during MDI operation. The editing of a program,

MDI operation

however, is disabled until the CNC is reset, when bit 5 (MIE) of parameter

No. 3203 is set accordingly.

Limitations

D Program registration

Programs created in MDI mode cannot be registered.

D Number of lines in a

A program can have as many lines as can fit on one page of the screen.

program

A program consisting of up to six lines can be created. When parameter

MDL (No. 3107 #7) is set to 0 to specify a mode that suppresses the

display of continuous-state information, a program of up to 10 lines can

be created.

If the created program exceeds the specified number of lines, % (ER) is

deleted (prevents insertion and modification).

D Subprogram nesting

Calls to subprograms (M98) can be specified in a program created in the

MDI mode. This means that a program registered in memory can be

called and executed during MDI operation. In addition to the main

program executed by automatic operation, up to two levels of subprogram

nesting are allowed (when the custom macro option is provided, up to four

levels are allowed).

Main program

Subprogram

Subprogram

O0000;

O1000;

O2000;

M98P 1000;

M98P 2000;

M98P 3000;

M30;

M99;

M99;

One-level nesting

Two-level nesting

Fig. 4.2 (a) Nesting Level of Subprograms Called from the MDI Program

795

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

4.3

By activating automatic operation during the DNC operation mode

(RMT), it is possible to perform machining (DNC operation) while a

DNC OPERATION

program is being read in via reader/puncher interface, or remote buffer.

If the floppy cassette directory display option is available, it is possible

to select files (programs) saved in an external input/output unit of a floppy

format (Handy File, Floppy Cassettes, or FA card) and specify (schedule)

the sequence and frequency of execution for automatic operation.

(see III-4.6)

To use the DNC operation function, it is necessary to set the parameters

related to the reader/punch interface, and remote buffer in advance.

DNC OPERATION

Procedure

1

Search for the program (file) to be executed.

2

Press the REMOTE switch on the machine operator’s panel to set

RMT mode, then press the cycle start switch. The selected file is

executed. For details of the use of the REMOTE switch, refer to the

relevant manual supplied by the machine tool builder.

D Program check screen

PROGRAM CHECK

O0001 N00020

(Seven soft key type

LCD)

N020 X100.0 Z100.0 (DNC-PROG) ;

N030 X200.0 Z200.0 ;

N050 X400.0 Z400.0 ;

(RELATIVE)

(DIST TO GO) G00

G17

G90

X

100.000

X

0.000

G22

G94

G21

Y

100.000

Y

0.000

G41

G49

G80

Z

0.000 Z

0.000

G98

G50

G67

A

0.000 A

0.000

B

C

0.000 C

0.000 H

M

HD.T

NX.T

D M

F

S

M

ACT.F

SACT

REPEAT

RMT STRT MTN *** ***

21:20:05

[ ABS

]

[ REL

]

[

]

[

]

[

(OPRT) ]

797

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

D Program screen

PROGRAM

O0001 N00020

(Seven soft key type LCD)

N020 X100.0 Z100.0 (DNC-PROG) ;

N030

X200.0

Z200.0 ;

N040

X300.0

Z300.0 ;

N050

X400.0

Z400.0 ;

N060

X500.0

Z500.0 ;

N070

X600.0

Z600.0 ;

N080

X700.0

Z400.0 ;

N090

X800.0

Z400.0 ;

N100

x900.0

z400.0 ;

N110

x1000.0

z1000.0 ;

N120

x800.0

z800.0 ;

RMT STRT MTN *** ***

21:20:05

[

PRGRM ] [ CHECK ] [

]

[

]

[

(OPRT) ]

D Program screen

(Twelve soft key type LCD)

PROGRAM

F0001 N00020

N020 X100.0 (DNC-PROG) ;

N180 Z50.0 ;

N030 X90.0 ;

N190 Z40.0 ;

N040 X80.0 ;

N200 Z30.0 ;

N050 X70.0 ;

N210 Z20.0 ;

N060 X60.0 ;

N220 Z10.0 ;

N070 X50.0 ;

N230 Z0.0 ;

N080 X40.0 ;

N240 M02 ;

N090 X30.0 ;

%

N100 X20.0 ;

N110 X10.0 ;

N120 X0.0 ;

N130 Z100.0 ;

N140 Z90.0 ;

N150 Z80.0 ;

N160 Z70.0 ;

N170 Z60.0 ;

RMT STRT MTN *** *** 22:23:24

PRGR CHEC

(OPR

+

M

K

T)

During DNC operation, the program currently being executed

is

displayed on the program check screen and program screen.

The number of displayed program blocks depends on the program being

executed.

Any comment enclosed between a control-out mark (() and control-in

mark ()) within a block is also displayed.

Explanations

D During DNC operation, programs stored in memory can be called.

D During DNC operation, macro programs stored in memory can be

called.

798

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Limitations

D Limit on number of

In program display, no more than 256 characters can be displayed.

characters

Accordingly, character display may be truncated in the middle of a block.

D M198 (command for

In DNC operation, M198 cannot be executed. If M198 is executed, P/S

calling a program from

alarm No. 210 is issued.

within an external

input/output unit)

D Custom macro

In DNC operation, custom macros can be specified, but no repeat

instruction and branch instruction can be programmed. If a repeat

instruction or branch instruction is executed, P/S alarm No. 123 is issued.

When reserved words (such as IF, WHILE, COS, and NE) used with

custom macros in DNC operation are displayed during program display,

a blank is inserted between adjacent characters.

Example

[During DNC operation]

#102=SIN[#100] ;

→

#102 = S I N[#100] ;

IF[#100NE0]GOTO5 ;

→

I F[#100NE0] G O T O 5 ;

D M99

When control is returned from a subprogram or macro program to the

calling program during DNC operation, it becomes impossible to use a

return command (M99P****) for which a sequence number is specified.

Alarm

Number

Message

Contents

086

DR SIGNAL OFF

When entering data in the memory by

using Reader / Puncher interface, the

ready signal (DR) of reader / puncher

was turned off.

Power supply of I/O unit is off or cable is

not connected or a P.C.B. is defective.

123

CAN NOT USE MACRO

Macro control command is used during

COMMAND IN DNC

DNC operation.

Modify the program.

210

CAN NOT COMAND

Or M198 is executed in the DNC opera-

M198/M199

tion. Modify the program.

799

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

4.4

While an automation operation is being performed, a program input from

an I/O device connected to the reader/punch interface can be executed and

SIMULTANEOUS

output through the reader/punch interface at the same time.

INPUT/OUTPUT

Simultaneous Input/Output

Procedure

D Basic simultaneous

1

Search for the program (file) to be output and executed.

input procedure

2

Press the REMOTE switch on the machine operator’s panel to set

RMT mode. For details of the use of the REMOTE switch, refer to the

relevant manual supplied by the machine tool builder.

3

Set the simultaneous output operation mode select signal to 1.

4

Press the cycle start switch.

5

Program output and execution is performed on a block-by-block

basis.

Program check screen

PROGRAM CHECK

F0001 N00100

N100 X100. Y100. ;

N200 G01 X50. Y50. ;

N300 G00 X0 Y0 ;

(RELATIVE)

(DIST TO GO) G00 G17 G90

X

100.000 X

0.000

G22 G94 G21

Y

100.000 Y

0.000

G40 G49 G80

Z

0.000 Z

0.000

G98 G50 G67

A

0.000 A

0.000

B

C

0.000 C

0.000

H M

HD.T

NX.T

D M

F

S

M

ACT.F

SACT

REPEAT

RMT STRT MTN *** ***

21:20:05

[

ABS

]

[

REL

]

[

]

[

]

[

(OPRT) ]

When a program is displayed, three blocks are displayed: the block

currently being executed and the next two to be executed. When the single

block function is selected, only the block currently being executed is

displayed.

Any comment enclosed between a control-out mark (() and control-in

mark ()) within a block is not displayed.

D Basic simultaneous output

1

Search for the program (file) to be output and executed.

procedure

2

Press the REMOTE switch on the machine operator’s panel to set

RMT mode. For details of the use of the REMOTE switch, refer to the

relevant manual supplied by the machine tool builder.

3

Set the simultaneous output operation mode select signal to 1.

4

Press the cycle start switch.

5

Program output and execution is performed on a block-by-block

basis.

800

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Limitations

D M198 (command for

M198 cannot be executed in the input, output and run simultaneous mode.

calling a program from

An attempt to do so results in alarm No. 210.

within an external

input/output unit)

A macro control command cannot be executed in the input, output and run

D Macro control command

simultaneous mode. An attempt to do so results in P/S alarm No. 123.

D Alarm

If an alarm condition occurs during the input, output and run simultaneous

mode, a block being processed when the alarm condition occurs and all

blocks before that are input or output.

D File name

In the output and run simultaneous mode, if a device used is a floppy disk

drive or FA card, the file name is the execution program number.

D Sub program call

When a program is being executed in the output and run simultaneous

mode, if a subprogram is called, only the main program is output.

Alarm

Number

Message

Contents

CAN NOT USE MACRO

Macro control command is used during

123

COMMAND IN DNC

DNC operation.

Modify the program.

CAN NOT COMMAND

M198 or M199 is executed in the DNC

210

M198/M199

operation. M198 is executed in the

DNC operation. Modify the program.

DNC OP. NOT AL-

Input and output are executed at a time

222

LOWED IN BG.-EDIT

in the background edition.

Execute a correct operation.

801

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

This function specifies Sequence No. of a block to be restarted when a tool

4.5

is broken down or when it is desired to restart machining operation after

PROGRAM RESTART

a day off, and restarts the machining operation from that block. It can also

be used as a high-speed program check function.

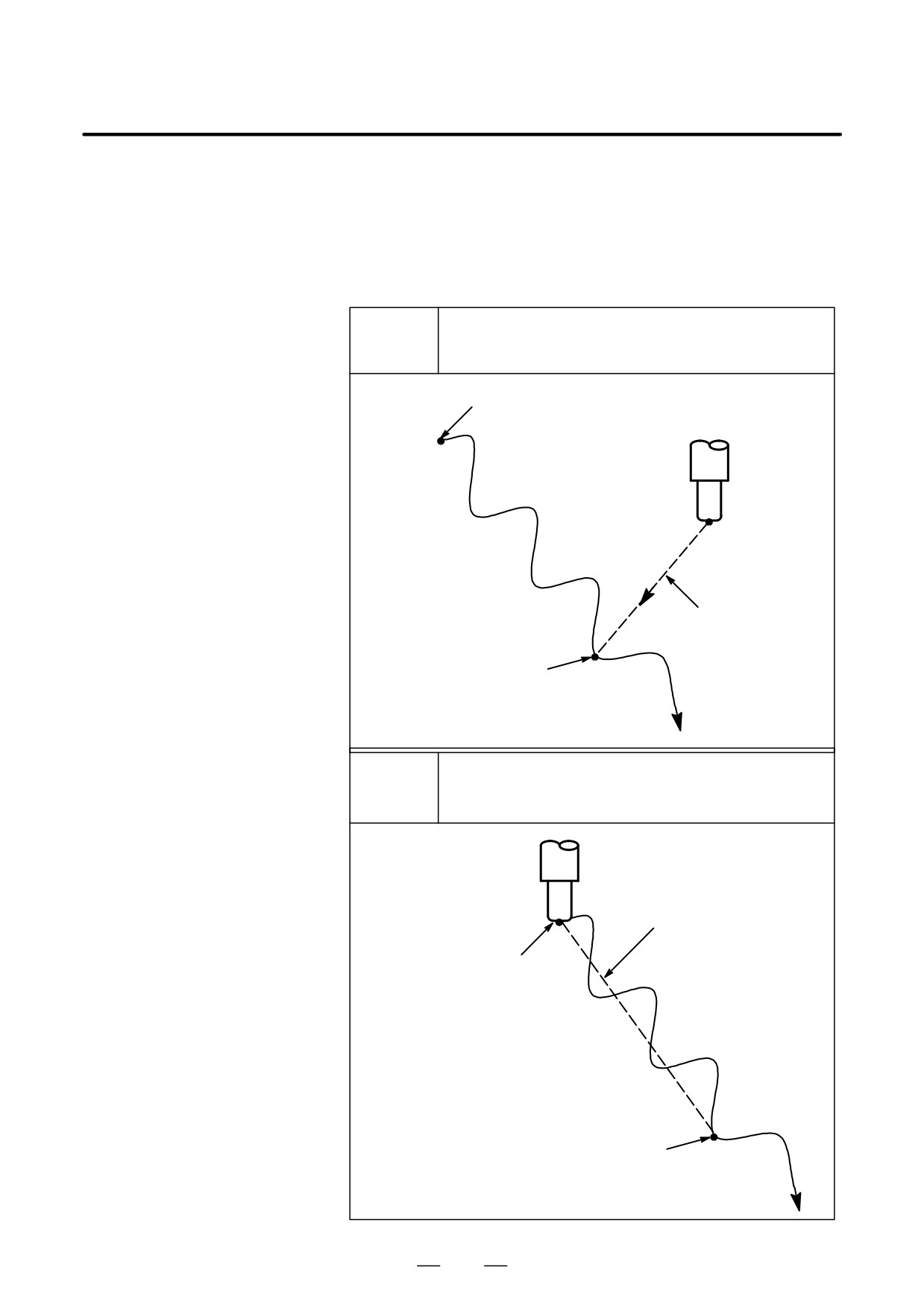

There are two restart methods: the P-type method and Q-type method.

Operation can be restarted anywhere. This restart method is

P TYPE

used when operation is stopped because of a broken tool.

Program start point (machining start point)

ÇÇ

ÇÇ

Return operation

Restart position

Before operation can be restarted, the machine must be moved

Q TYPE

to the programmed start point (machining start point)

ÇÇ

ÇÇ

Return operation

ÇÇ

Program start point

(machining start point)

Restart position

802

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Procedure for Program Restart by Specifying a Sequence Number

Procedure 1

[ P TYPE ]

1

Retract the tool and replace it with a new one. When necessary,

change the offset.

(Go to step 2.)

[ Q TYPE ]

1

When power is turned ON or emergency stop is released, perform all

necessary operations at that time, including the reference position

return.

2

Move the machine manually to the program starting point (machining

start point), and keep the modal data and coordinate system in the

same conditions as at the machining start.

3

If necessary, modify the offset amount.

Procedure 2

[COMMON TO P TYPE /

1

Turn the program restart switch on the machine operator’s panel ON.

Q TYPE]

2

Press

PROG

key to display the desired program.

3

Find the program head.

[Q TYPE]

4

Enter the sequence number of the block to be restarted, then press th

[P TYPE] or [Q TYPE] soft key.

N

fffff or

[P TYPE]

Sequence number

[Q TYPE]

If the same sequence number appears more than once, the location of

N

fff

fffff

or

the target block must be specified. Specify a frequency and a

sequence number.

[P TYPE]

Frequency

Sequence number

803

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

5

The sequence number is searched for, and the program restart screen

appears on the LCD display.

PROGRAM RESTART

O0002 N01000

DESTINATION

M

1

2

X 57. 096

1

2

Y 56. 877

1

2

Z 56. 943

1

2

1

2

1 ********

********

********

DISTANCE TO GO

1 X 1. 459

T********

********

2 Y 10. 309

S *****

3 Z 7. 320

S

0 T0000

MEM * * * *

***

***

10 : 10 : 40

RSTR

FL.SDL

(OPRT)

DESTINATION shows the position at which machining is to restart.

DISTANCE TO GO shows the distance from the current tool position

to the position where machining is to restart. A number to the left of

each axis name indicates the order of axes (determined by parameter

setting) along which the tool moves to the restart position.

The coordinates and amount of travel for restarting the program can

be displayed for up to five axes. If your system supports six or more

axes, pressing the [RSTR] soft key again displays the data for the

sixth and subsequent axes. (The program restart screen displays only

the data for CNC-controlled axes.)

M: Fourteen most recently specified M codes

T: Two most recently specified T codes

S: Most recently specified S code

B: Most recently specified B code

Codes are displayed in the order in which they are specified. All

codes are cleared by a program restart command or cycle start in the

reset state.

6

Turn the program re-start switch OFF. At this time, the figure at the

left side of axis name DISTANCE TO GO blinks.

7

Check the screen for the M, S, T, and B codes to be executed. If they

are found, enter the MDI mode, then execute the M, S, T, and B

functions. After execution, restore the previous mode.

These codes are not displayed on the program restart screen.

8

Check that the distance indicated under DISTANCE TO GO is correct.

Also check whether there is the possibility that the tool might hit a

workpiece or other objects when it moves to the machining restart

position. If such a possibility exists, move the tool manually to a

position from which the tool can move to the machining restart

position without encountering any obstacles.

9

Press the cycle start button. The tool moves to the machining restart

position at the dry run feedrate sequentially along axes in the order

specified by parameter settings (No. 7310). Machining is then

restarted.

804

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Procedure for Program Restart by Specifying a Block Number

Procedure 1

[ P TYPE ]

1

Retract the tool and replace it with a new one. When necessary,

change the offset.

(Go to step 2.)

[ Q TYPE ]

1

When power is turned ON or emergency stop is released, perform all

necessary operations at that time, including the reference position

return.

2

Move the machine manually to the program starting point (machining

start point), and keep the modal data and coordinate system in the

same conditions as at the machining start.

3

If necessary, modify the offset amount.

Procedure 2

[COMMON TO P TYPE /

1

Turn the program restart switch on the machine operator’s panel ON.

Q TYPE]

2

Press

PROG

key to display the desired program.

3

Find the program head. Press function

RESET

key.

[Q TYPE]

4

Enter the number of the block to be restarted then press the [P TYPE]

or [Q TYPE] soft key. The block number cannot exceed eight digits.

B

f f f f f f f f

or

[P TYPE]

5

The block number is searched for, and the program restart screen

appears on the CRT display.

Block number

PROGRAM RESTART

O0002 N01000

DESTINATION

M

1

2

X 57. 096

1

2

Y 56. 877

1

2

Z 56. 943

1

2

1

2

1 ********

DISTANCE TO GO

********

********

X 1. 459

T********

********

Y 10. 309

Z 7. 320

S *****

S

0 T0000

MEM * * * *

***

***

10 : 10 : 40

RSTR

FL.SDL

(OPRT)

DESTINATION shows the position at which machining is to restart.

DISTANCE TO GO shows the distance from the current tool position

to the position where machining is to restart. A number to the left of

each axis name indicates the order of axes (determined by parameter

setting) along which the tool moves to the restart position.

805

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

The coordinates and amount of travel for restarting the program can

be displayed for up to five axes. If your system supports six or more

axes, pressing the [RSTR] soft key again displays the data for the

sixth and subsequent axes. (The program restart screen displays only

the data for CNC-controlled axes.)

M: Fourteen most recently specified M codes

T: Two most recently specified T codes

S: Most recently specified S code

B: Most recently specified B code

Codes are displayed in the order in which they are specified. All

codes are cleared by a program restart command or cycle start in the

reset state.

6

Turn the program re-start switch OFF. At this time, the figure at the

left side of axis name DISTANCE TO GO blinks.

7

Check the screen for the M, S, T, and B codes to be executed. If they

are found, enter the MDI mode, then execute the M, S, T, and B

functions. After execution, restore the previous mode.

These codes are not displayed on the program restart screen.

8

Check that the distance indicated under DISTANCE TO GO is correct.

Also check whether there is the possibility that the tool might hit a

workpiece or other objects when it moves to the machining restart

position. If such a possibility exists, move the tool manually to a

position from which the tool can move to the machining restart

position without encountering any obstacles.

9

Press the cycle start button. The tool moves to the machining restart

position at the dry run feedrate sequentially along axes in the order

specified by parameter settings (No. 7310). Machining is then

restarted.

Explanations

D Block number

When the CNC is stopped, the number of executed blocks is displayed on

the program screen or program restart screen. The operator can specify

the number of the block from which the program is to be restarted, by

referencing the number displayed on the CRT. The displayed number

indicates the number of the block that was executed most recently. For

example, to restart the program from the block at which execution

stopped, specify the displayed number, plus one.

The number of blocks is counted from the start of machining, assuming

one NC line of a CNC program to be one block.

< Example 1 >

CNC Program

Number of blocks

O 0001 ;

1

G90 G92 X0 Y0 Z0 ;

2

G01 X100. F100 ;

3

G03 X01 -50. F50 ;

4

M30 ;

5

806

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

< Example 2 >

CNC Program

Number of blocks

O 0001 ;

1

G90 G92 X0 Y0 Z0 ;

2

G90 G00 Z100. ;

3

G81 X100. Y0. Z-120. R-80. F50. ;

4

#1 = #1 + 1 ;

4

#2 = #2 + 1 ;

4

#3 = #3 + 1 ;

4

G00 X0 Z0 ;

5

M30 ;

6

Macro statements are not counted as blocks.

D Storing / clearing the

The block number is held in memory while no power is supplied. The

block number

number can be cleared by cycle start in the reset state.

D Block number when a

The program screen usually displays the number of the block currently

program is halted or

being executed. When the execution of a block is completed, the CNC

stopped

is reset, or the program is executed in single-block stop mode, the

program screen displays the number of the program that was executed

most recently.

When a CNC program is halted or stopped by feed hold, reset, or

single-block stop, the following block numbers are displayed:

Feed hold : Block being executed

Reset : Block executed most recently

Single-block stop : Block executed most recently

For example, when the CNC is reset during the execution of block 10, the

displayed block number changes from 10 to 9.

D MDI intervention

When MDI intervention is performed while the program is stopped by

single-block stop, the CNC commands used for intervention are not

counted as a block.

D Block number exceeding

When the block number displayed on the program screen exceeds eight

eight digits

digits, the block number is reset to 0 and counting continues.

Limitations

D P-type restart

Under any of the following conditions, P-type restart cannot be

performed:

⋅

When automatic operation has not been performed since the power

was turned on

⋅

When automatic operation has not been performed since an

emergency stop was released

⋅

When automatic operation has not been performed since the

coordinate system was changed or shifted (change in an external

offset from the workpiece reference point)

D Restart block

The block to be restarted need not be the block which was interrupted;

operation can restart with any block. When P-type restart is performed,

the restart block must use the same coordinate system as when operation

was interrupted.

807

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

D Single block

When single block operation is ON during movement to the restart

position, operation stops every time the tool completes movement along

an axis. When operation is stopped in the single block mode, MDI

intervention cannot be performed.

D Manual intervention

During movement to the restart position, manual intervention can be used

to perform a return operation for an axis if it has not yet been performed

for the axis. A return operation cannot be done further on axes for which

a return has already been completed.

D Reset

Never reset during the time from the start of a search at restart until

machining is restarted. Otherwise, restart must be performed again from

the first step.

D Manual absolute

Regardless of whether machining has started or not, manual operation

must be performed when the manual absolute mode is on.

D Reference position return

If no absolute-position detector (absolute pulse coder) is provided, be

sure to perform reference position return after turning on the power and

before performing restart.

Alarm

Alarm No.

Contents

The specified block number for restarting the program is not

071

found.

After interruption, a coordinate system was set, then P-type

094

restart was specified.

After interruption, the coordinate system shift was changed,

095

then P-type restart was specified.

After interruption, the coordinate system was changed, then

096

P-type restart was specified.

When automatic operation has not been performed since

the power was turned on, emergency stop was released, or

097

P/S alarm 094 to 097 was reset, P-type restart was speci-

fied.

After the power was turned on, restart operation was per-

098

formed without reference position return, but a G28 com-

mand was found in the program.

A move command was specified from the MDI panel during

099

a restart operation.

An erroneous parameter was specififed for restarting a pro-

5020

gram.

WARNING

As a rule, the tool cannot be returned to a correct position under the following conditions.

Special care must be taken in the following cases since none of them cause an alarm:

S Manual operation is performed when the manual absolute mode is OFF.

S Manual operation is performed when the machine is locked.

S When the mirror image is used.

S When manual operation is performed in the course of axis movement for returning operation.

S When the program restart is commanded for a block between the block for skip cutting and

subsequent absolute command block.

808

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

4.6

The schedule function allows the operator to select files (programs)

SCHEDULING

registered on a floppy-disk in an external input/output device (Handy

FUNCTION

File, Floppy Cassette, or FA Card) and specify the execution order and

number of repetitions (scheduling) for performing automatic operation.

It is also possible to select only one file from the files in the external

input/output device and execute it during automatic operation.

This function is effective, when the floppy cassette directory display

option is avairable and the floppy cassette is selected as the valid I/O

device.

FILE DIRECTORY

FILE NO.

FILE NAME

0001

O0010

0002

O0020

0003

O0030

0004

O0040

List of files in an external input/output device

Set file number and

number of repetitions.

ORDER FILE NO REPETITION

01

0002

2

02

0003

1

03

0004

3

04

0001

2

Scheduling screen

Executing automatic operation

809

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

Procedure for Scheduling Function

Procedure

D Procedure for executing

1

Press the MEMORY switch on the machine operator’s panel, then

one file

press the

PROG

function key on the MDI panel.

2

Press the rightmost soft key (continuous menu key), then press the

[FL. SDL] soft key. A list of files registered in the Floppy Cassette is

displayed on screen No. 1. To display more files that are not

displayed on this screen, press the page key on the MDI panel. Files

registered in the Floppy Cassette can also be displayed successively.

FILE DIRECTORY

O0001 N00000

CURRENT SELECTED : SCHEDULE

NO. FILE NAME

(METER) VOL

0000

SCHEDULE

0001

PARAMETER

58.5

0002

ALL PROGRAM

11.0

0003

O0001

1.9

0004

O0002

1.9

0005

O0010

1.9

0006

O0020

1.9

0007

O0040

1.9

0008

O0050

1.9

MEM * * * *

***

***

19 : 14 : 47

PRGRM

DIR

SCHDUL

(OPRT)

Screen No.1

3

Press the [(OPRT)] and [SELECT] soft keys to display “SELECT

FILE NO.” (on screen No. 2). Enter a file number, then press the [F

SET] and [EXEC] soft keys. The file for the entered file number is

selected, and the file name is indicated after

“CURRENT

SELECTED:”.

FILE DIRECTORY

O0001 N00000

CURRENT SELECTED:O0040

NO. FILE NAME

(METER) VOL

0000

SCHEDULE

0001

PARAMETER

58.5

0002

ALL PROGRAM

11.0

0003

O0001

1.9

0004

O0002

1.9

0005

O0010

1.9

0006

O0020

1.9

0007

O0040

1.9

0008

O0050

1.9

SELECT FILE NO.=7

>_

MEM * * * *

***

***

19 : 17 : 10

F SET

EXEC

Screen No.2

810

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

4

Press the REMOTE switch on the machine operator’s panel to enter

the RMT mode, then press the cycle start switch. The selected file is

executed. For details on the REMOTE switch, refer to the manual

supplied by the machine tool builder. The selected file number is

indicated at the upper right corner of the screen as an F number

(instead of an O number).

FILE DIRECTORY

F0007 N00000

CURRENT SELECTED:O0040

RMT

****

***

***

13 : 27 : 54

PRGRM

DIR

SCHDUL

(OPRT)

Screen No.3

D Procedure for executing

1

Display the list of files registered in the Floppy Cassette. The display

the scheduling function

procedure is the same as in steps 1 and 2 for executing one file.

2

On screen No. 2, press the [(OPRT)] and [SELECT] soft keys to

display “SELECT FILE NO.”

3

Enter file number 0, and press the [F SET], and [EXEC] soft keys.

“SCHEDULE” is indicated after “CURRENT SELECTED:”.

4

Press the leftmost soft key (return menu key) and the [SCHDUL] soft

key. Screen No. 4 appears.

FILE DIRECTORY

F0000 N02000

ORDER FILE NO. REQ.REP CUR.REP

01

02

03

04

05

06

07

08

09

10

>_

MEM * * * *

***

***

22 : 07 : 00

PRGRM

DIR

SCHDUL

(OPRT)

Screen No.4

811

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

Move the cursor and enter the file numbers and number of repetitions

in the order in which to execute the files. At this time, the current

number of repetitions “CUR.REP” is 0.

5

Press the REMOTE switch on the machine operator’s panel to enter

the RMT mode, then press the start switch. The files are executed in

the specified order. When a file is being executed, the cursor is

positioned at the number of that file.

The current number of repetitions CUR.REP is increased when M02

or M30 is executed in the program being run.

FILE DIRECTORY

O0000 N02000

ORDER FILE NO.

REQ.REP CUR.REP

01

0007

5

5

02

0003

23

23

03

0004

9999

156

04

0005

LOOP

0

05

06

07

08

09

10

RMT

****

***

***

10 : 10 : 40

PRGRM

DIR

SCHDUL

(OPRT)

Screen No.5

Explanations

D Specifying no file

If no file number is specified on screen No. 4 (the file number field is left

number

blank), program execution is stopped at that point. To leave the file

number field blank, press numeric key

0

then

INPUT

D Endless repetition

If a negative value is set as the number of repetitions, <LOOP> is

displayed, and the file is repeated indefinitely.

D Clear

When the [(OPRT)], [CLEAR], and [EXEC] soft keys are pressed on

screen No. 4, all data is cleared. However, these keys do not function

while a file is being executed.

D Return to the program

When the soft key [PRGRM] is pressed on screen No. 1, 2, 3, 4, or 5, the

screen

program screen is displayed.

Restrictions

D Number of repetitions

Up to 9999 can be specified as the number of repetitions. If 0 is set for a

file, the file becomes invalid and is not executed.

D Number of files

By pressing the page key on screen No. 4, up to 20 files can be registered.

registered

D M code

When M codes other than M02 and M30 are executed in a program, the

current number of repetitions is not increased.

812

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

D Displaying the floppy

During the execution of file, the floppy directory display of background

disk directory during file

editing cannot be referenced.

execution

D Restarting automatic

To resume automatic operation after it is suspended for scheduled

operation

operation, press the reset button.

D Scheduling function for

The scheduling function can be used only for a single tool post.

the two-path control

Alarm

Alarm No.

Description

086

An attempt was made to execute a file that was not regis-

tered in the floppy disk.

210

M198 and M099 were executed during scheduled opera-

tion, or M198 was executed during DNC operation.

813

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

4.7

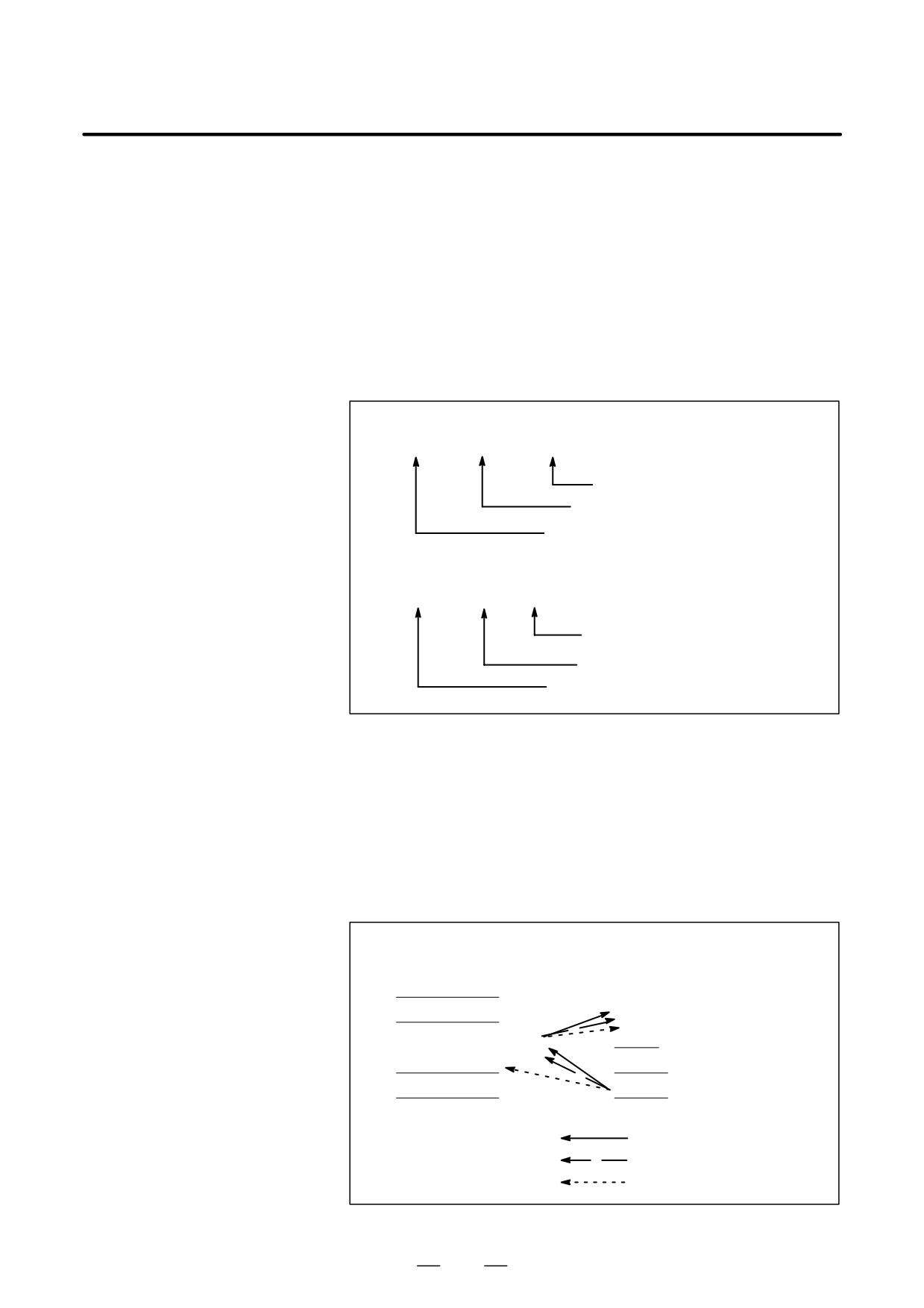

The subprogram call function is provided to call and execute subprogram

SUBPROGRAM CALL

files stored in an external input/output device(Handy File, FLOPPY

FUNCTION (M198)

CASSETTE, FA Card)during memory operation.

When the following block in a program in CNC memory is executed, a

subprogram file in the external input/output device is called:

To use this function, the Floppy Cassette directory display option must

be installed.

Format

1. FS15 tape format

M198 Pffff L∆∆∆∆ ;

Number of repetitions

File number for a file in the I/O device

I/O devices call instruction

2. Other than FS15 tape format

M198 Pfff ∆∆∆∆ ;

File number for a file

in the I/O device

Number of repetitions

I/O devices call instruction

Explanation

The subprogram call function is enabled when parameter No.0102 for the

input/output device is set to 3. When the custom macro option is provided,

either format 1 or 2 can be used. A different M code can be used for a

subprogram call depending on the setting of parameter No.6030. In this

case, M198 is executed as a normal M code. The file number is specified

at address P. If the SBP bit (bit 2) of parameter No.3404 is set to 1, a

program number can be specified. When a file number is specified at

address P, Fxxxx is indicated instead of Oxxxx.

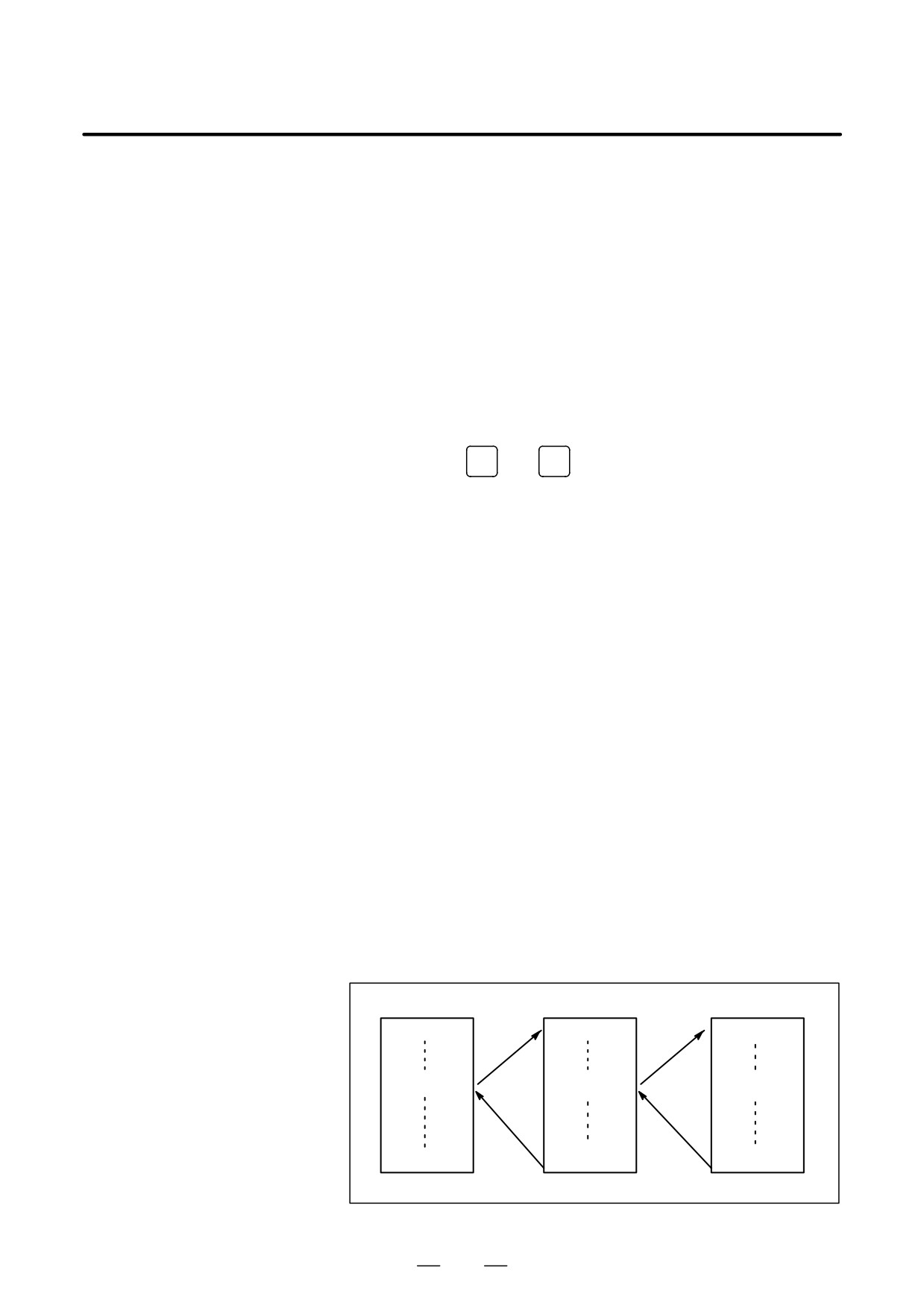

Programs in memory

Program in the external

execution mode

input/output device

N1

;

N2

;

0123

File number

N3 M198 P0003 0123 ;

N4

;

N5

;

: First call/return

: Second call/return

: Third call/return

Fig. 4.7 (a) Program Flow When M198 is Specified

814

OPERATION

4. AUTOMATIC OPERATION

B-63534EN/02

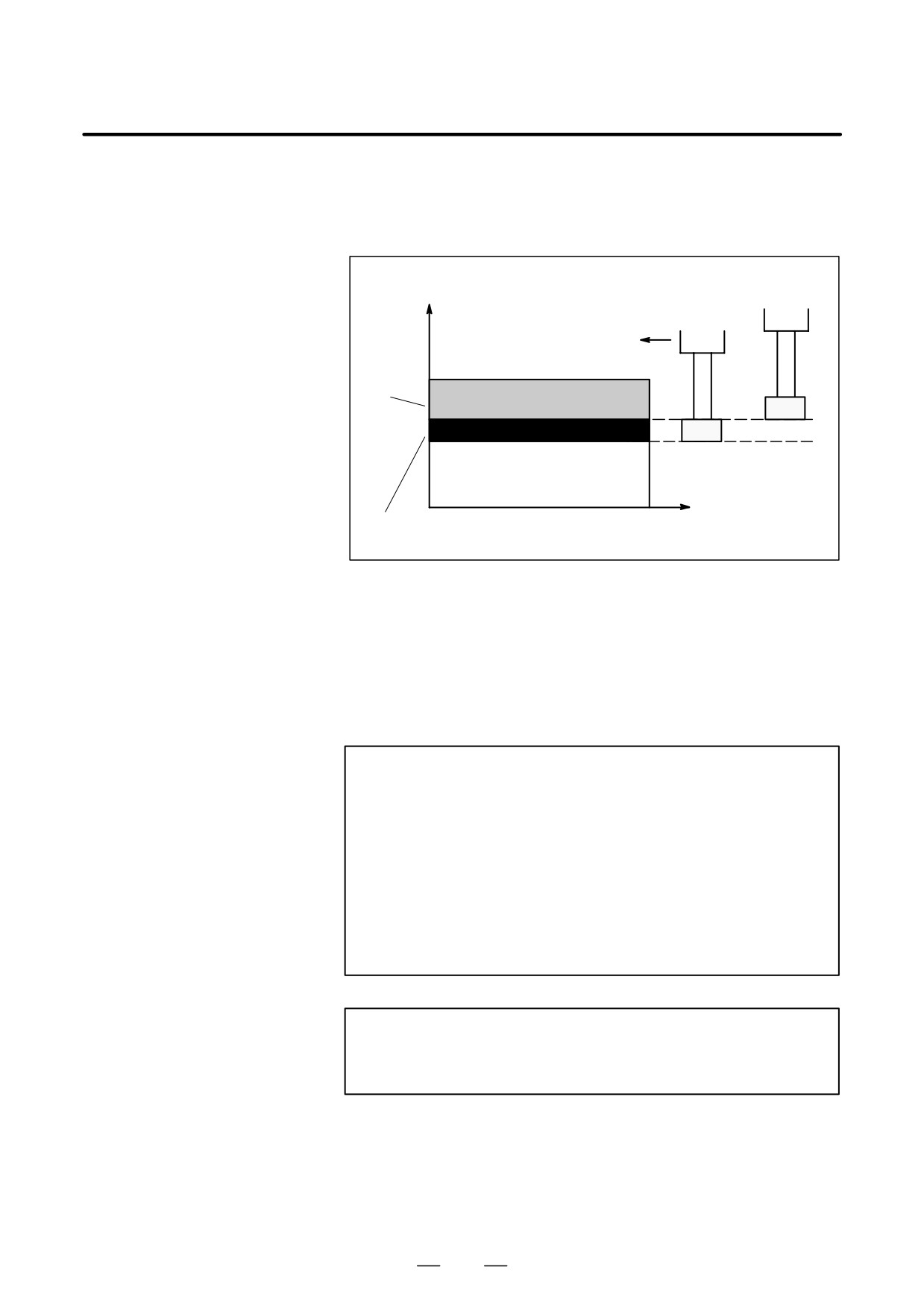

The movement by manual handle operation can be done by overlapping

4.8

it with the movement by automatic operation in the automatic operation

MANUAL HANDLE

mode.

INTERRUPTION

Tool position during

Z

automaticoperation

Tool position after

handleinterruption

Programmed

depth of cut

X

Depth of cut by

handleinterruption

Fig 4.8 Manual Handle Interruption

D Handle interruption axis selection signals

For the handle interruption axis selection signals, refer to the manual

supplied by the machine tool builder.

During automatic operation, handle interruption is enabled for an axis

if the handle interruption axis selection signal for that axis is on.

Handle interruption is performed by turning the handle of the manual

pulse generator.

WARNING

The travel distance by handle interruption is determined

according to the amount by which the manual pulse

generator is turned and the handle feed magnification (x1,

x10, xM, xN).

Since this movement is not accelerated or decelerated, it is

very dangerous to use a large magnification value for

handle interruption.

The move amount per scale at x1 magnification is 0.001 mm

(metric output) or 0.0001 inch (inch output).

NOTE

Handle interruption is disabled when the machine is locked

during automatic operation.

816

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

Explanations

D Relation with other

The following table indicates the relation between other functions and the

functions

movement by handle interrupt.

Display

Relation

Machine lock

Machine lock is effective. The tool does not move

even when this signal turns on.

Interlock

Interlock is effective. The tool does not move even

when this signal turns on.

Mirror image

Mirror image is not effective. Interrupt functions on

the plus direction by plus direction command, even if

this signal turns on.

D Position display

The following table shows the relation between various position display

data and the movement by handle interrupt.

Display

Relation

Absolute

Handle interruption does not change absolute

coordinate value

coordinates.

Relative

Handle interruption does not change relative

coordinate value

coordinates.

Machine

Machine coordinates are changed by the travel

coordinate value

distance specified by handle interruption.

D Travel distance display

Press the function key

POS

, then press the chapter selection soft key

[HNDL].

The move amount by the handle interrupt is displayed. The following 4

kinds of data are displayed concurrently.

HANDLE INTERRUPTION

O0000 N02000

(INPUT UNIT)

(OUTPUT UNIT)

X

69.594

X

69.594

Y

137.783

Y

137.783

Z

-61.439

Z

-61.439

(RELATIVE)

(DISTANCE TO GO)

X

0.000

X

0.000

Y

0.000

Y

0.000

Z

0.000

Z

0.000

PART COUNT 287

RUN TIME

1H 12M CYCLE TIME 0H 0M 0S

MDI

****

***

***

10 : 29 : 51

ABS

REL

ALL

HNDL

(OPRT)

817

OPERATION

B-63534EN/02

4. AUTOMATIC OPERATION

4.9

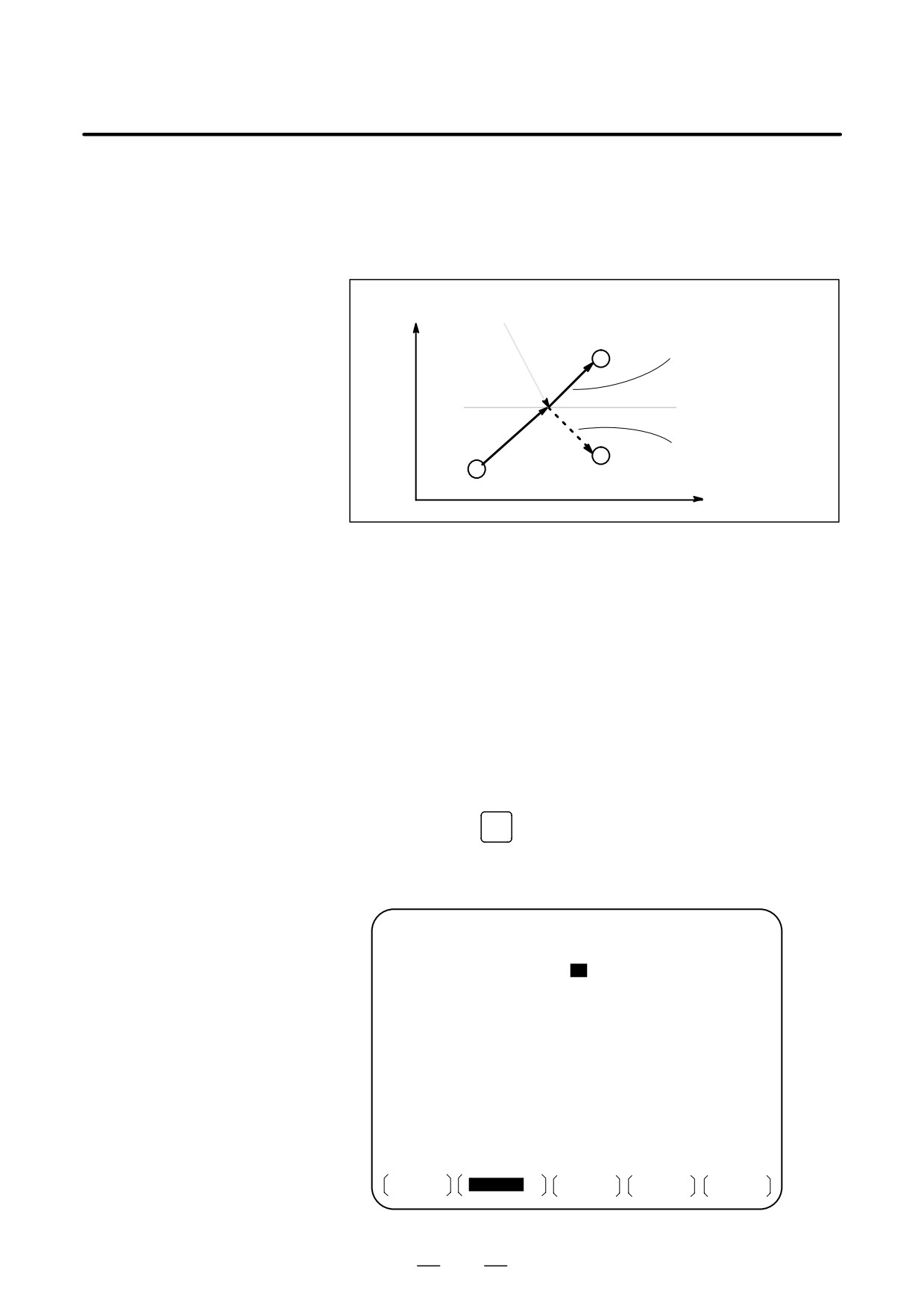

During automatic operation, the mirror image function can be used for

MIRROR IMAGE

movement along an axis. To use this function, set the mirror image switch

to ON on the machine operator’s panel, or set the mirror image setting to

ON from the MDI panel.

Y Y-axis mirror image goes on.

Programmed tool path

Tool path after the mirror

image function is used

Tool

X

Fig 4.9 Mirror Image

Procedure

The following procedure is given as an example. For actual operation,

refer to the manual supplied by the machine tool builder.

1

Press the single block switch to stop automatic operation. When the

mirror image function is used from the begining of operation, this step

is omitted.

2

Press the mirror image switch for the target axis on the machine

operator’s panel.

Alternatively, turn on the mirror image setting by following the steps

below:

2-1 Set the MDI mode.

OFFSET

2-2 Press the

SETTING

function key.

2-3 Press the [SETING] soft key for chapter selection to display the

setting screen.

SETTING (MIRROR IMAGE)

O0020 N00001

MIRROR IMAGE X =

1

(0 : OFF 1 : ON)

MIRROR IMAGE Y = 0 (0 : OFF 1 : ON)

MIRROR IMAGE Z = 0 (0 : OFF 1 : OM)

>_

MEM * * * *

***

***

14 : 47 : 57

OFFSET

SETING

WORK

(OPRT)

819

Content      ..     26      27      28      29     ..
