FANUC Series 16i/160i/160is-MB, Series 18i/180i/180is-MB5, Series 18i/180i/180is-MB. Operator's Manual

1. GENERAL

OPERATION

B-63534EN/02

1.1

MANUAL

OPERATION

Explanations

D Manual reference

The CNC machine tool has a position used to determine the machine

position return

position.

(See Section III-3.1)

This position is called the reference position, where the tool is replaced

or the coordinate are set. Ordinarily, after the power is turned on, the tool

is moved to the reference position.

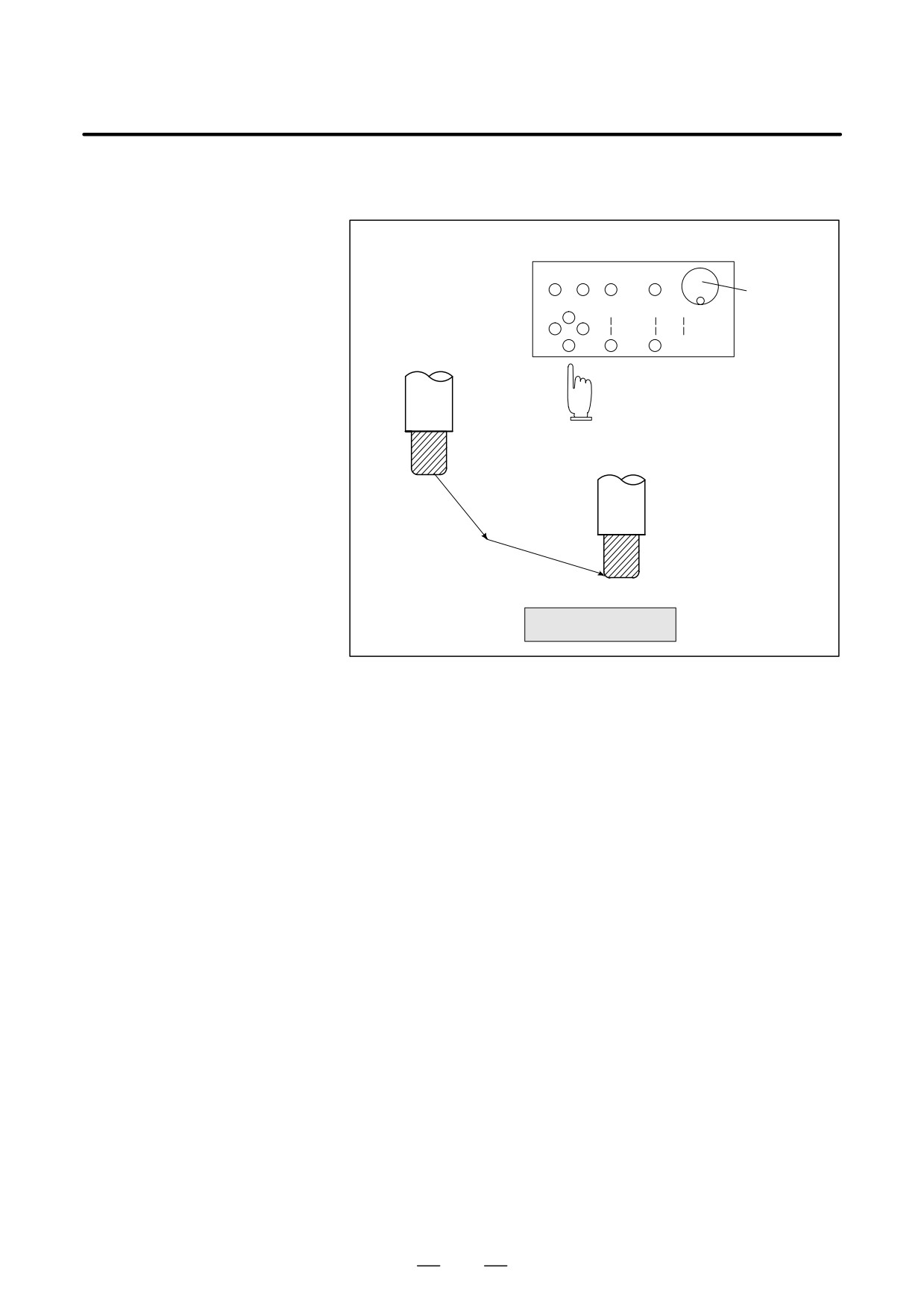

Manual reference position return is to move the tool to the reference

position using switches and pushbuttons located on the operator’s panel.

Reference position

Tool

Machine operator’s panel

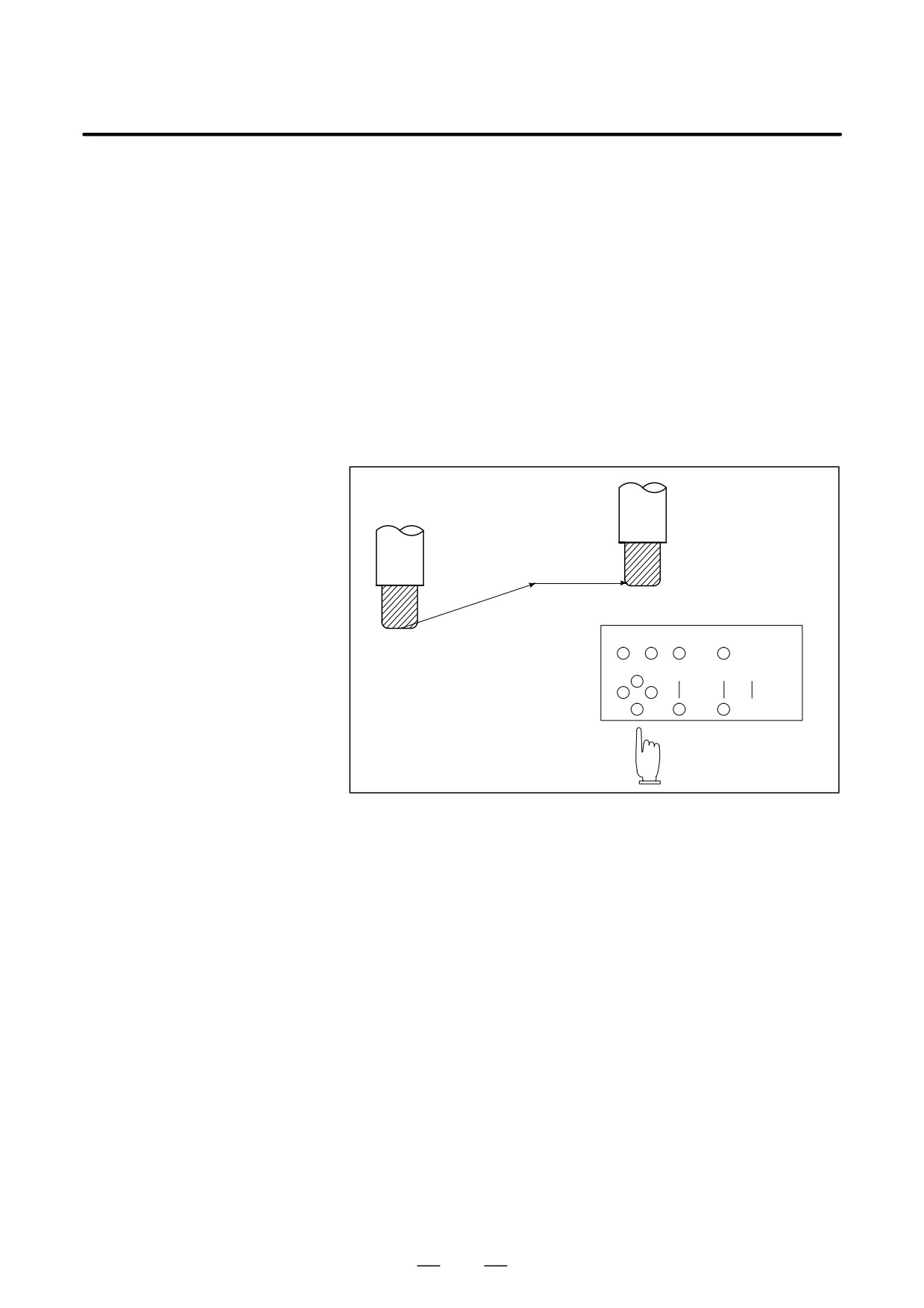

Fig. 1.1 (a) Manual reference position return

The tool can be moved to the reference position also with program

commands.

This operation is called automatic reference position return (See Section

II-6).

702

B-63534EN/02

OPERATION

1. GENERAL

D The tool movement by

Using machine operator’s panel switches, pushbuttons, or the manual

manual operation

handle, the tool can be moved along each axis.

Machine operator’s panel

Manual

pulse

generator

Tool

Workpiece

Fig. 1.1 (b) The tool movement by manual operation

The tool can be moved in the following ways:

(i) Jog feed (See Section III-3.2)

The tool moves continuously while a pushbutton remains pressed.

(ii) Incremental feed (See Section III-3.3)

The tool moves by the predetermined distance each time a button is

pressed.

(iii) Manual handle feed (See Section III-3.4)

By rotating the manual handle,the tool moves by the distance

corresponding to the degree of handle rotation.

703

1. GENERAL

OPERATION

B-63534EN/02

1.2

Automatic operation is to operate the machine according to the created

program. It includes memory, MDI and DNC operations. (See Section

TOOL MOVEMENT

III-4).

BY PROGRAMING-

Program

AUTOMATIC

01000

;

OPERATION

M_S_T

;

Tool

G92_X_ ;

G00...

;

G01

;

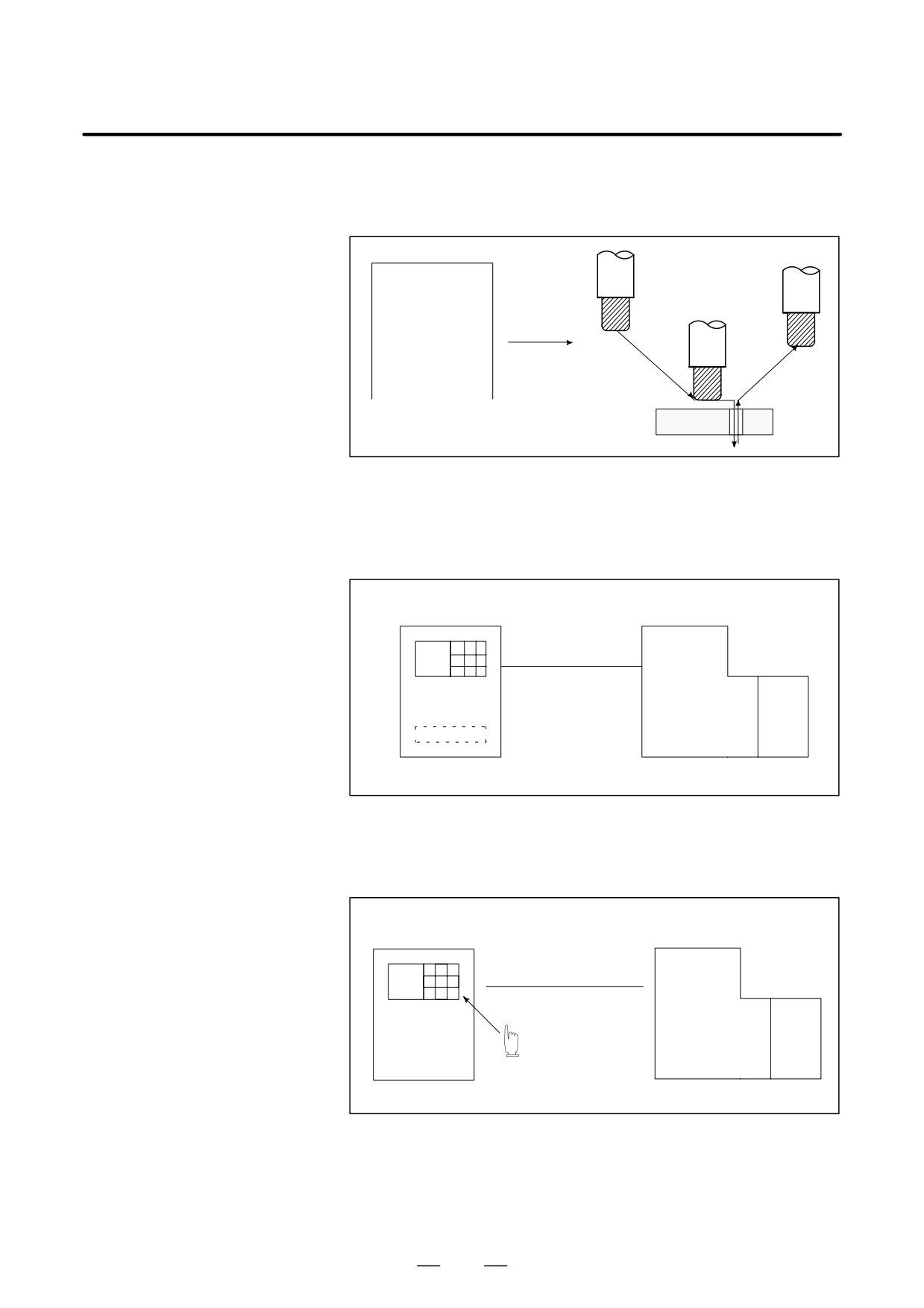

Fig. 1.2 (a) Tool Movement by Programming

Explanations

D Memory operation

After the program is once registered in memory of CNC, the machine can

be run according to the program instructions. This operation is called

memory operation.

CNC

Machine

Memory

Fig. 1.2 (b) Memory Operation

D MDI operation

After the program is entered, as an command group, from the MDI

keyboard, the machine can be run according to the program. This

operation is called MDI operation.

CNC MDI keyboard

Machine

Manual program

input

Fig. 1.2 (c) MDI operation

D DNC operation

In this mode of operation, the program is not registered in the CNC

memory. It is read from the external input/output devices instead. This

is called DNC operation. This mode is useful when the program is too

large to fit the CNC memory.

704

B-63534EN/02

OPERATION

1. GENERAL

1.3

AUTOMATIC

OPERATION

Explanations

D Program selection

Select the program used for the workpiece. Ordinarily, one program is

prepared for one workpiece. If two or more programs are in memory,

select the program to be used, by searching the program number (Section

III-9.3).

In memory or on a tape

O1001

Program number

G92

------

Work-1 program

M30

O1002

Program number

G92

------

Work-2 program

Automat-

ic opera-

tion

M30

O1003

Program number

G92

------

Work-3 program

M30

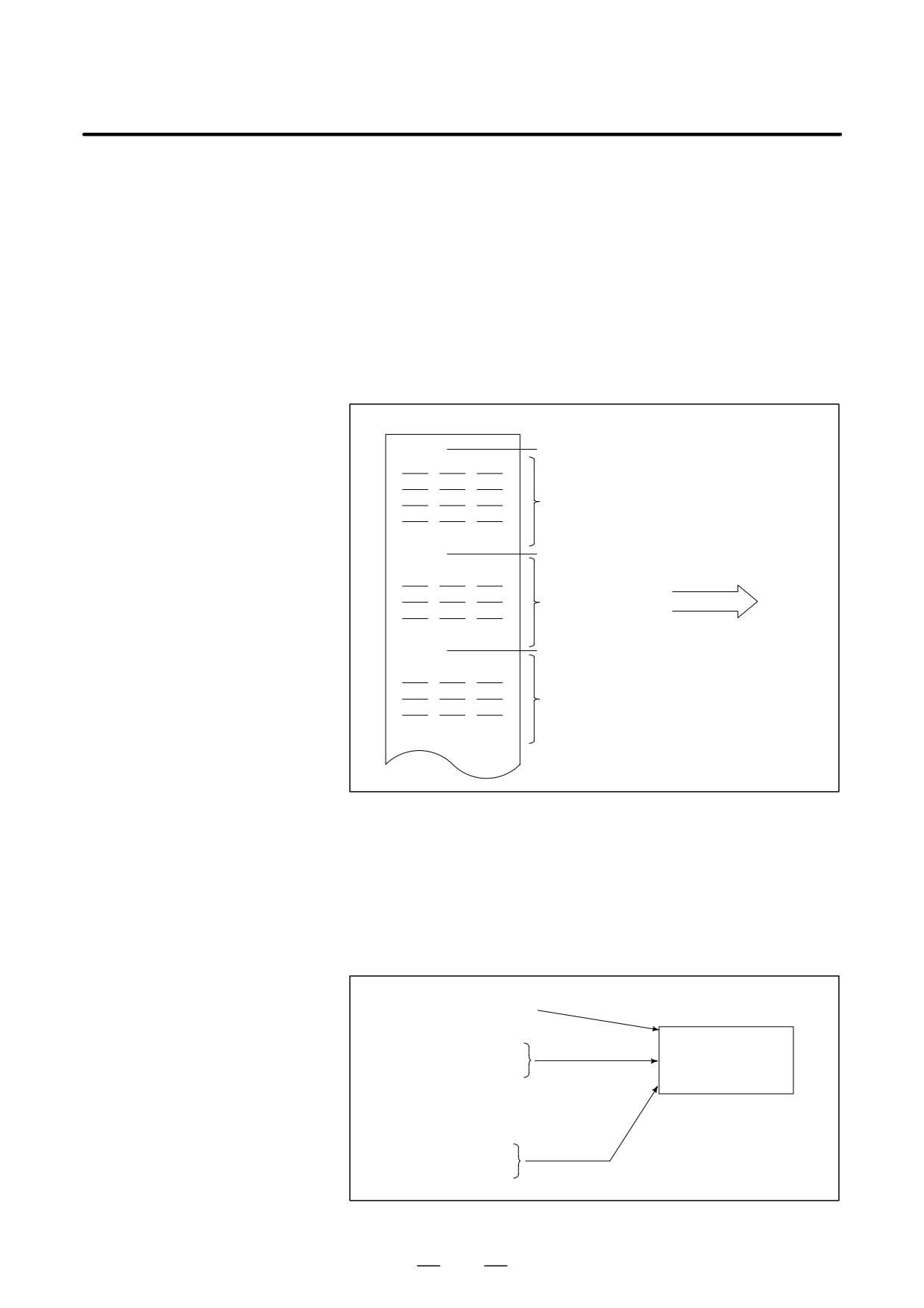

Fig. 1.3 (a) Program Selection for Automatic Operation

D Start and stop

Pressing the cycle start pushbutton causes automatic operation to start.

By pressing the feed hold or reset pushbutton, automatic operation pauses

or stops. By specifying the program stop or program termination

command in the program, the running will stop during automatic

operation. When one process machining is completed, automatic

operation stops.

(See Section III-4)

Start

Cycle start

Stop

Feed hold

Automatic operation

Reset

Program stop Stop caused

Program end

by program

Fig. 1.3 (b) Start and Stop for Automatic Operation

705

1. GENERAL

OPERATION

B-63534EN/02

D Handle interruption

While automatic operation is being executed, tool movement can overlap

automatic operation by rotating the manual handle. (See Section III-4.8)

Tool position during

automatic operation

Tool position after

handle interruption

Programmed

depth of cut

Depth of cut by

handle interruption

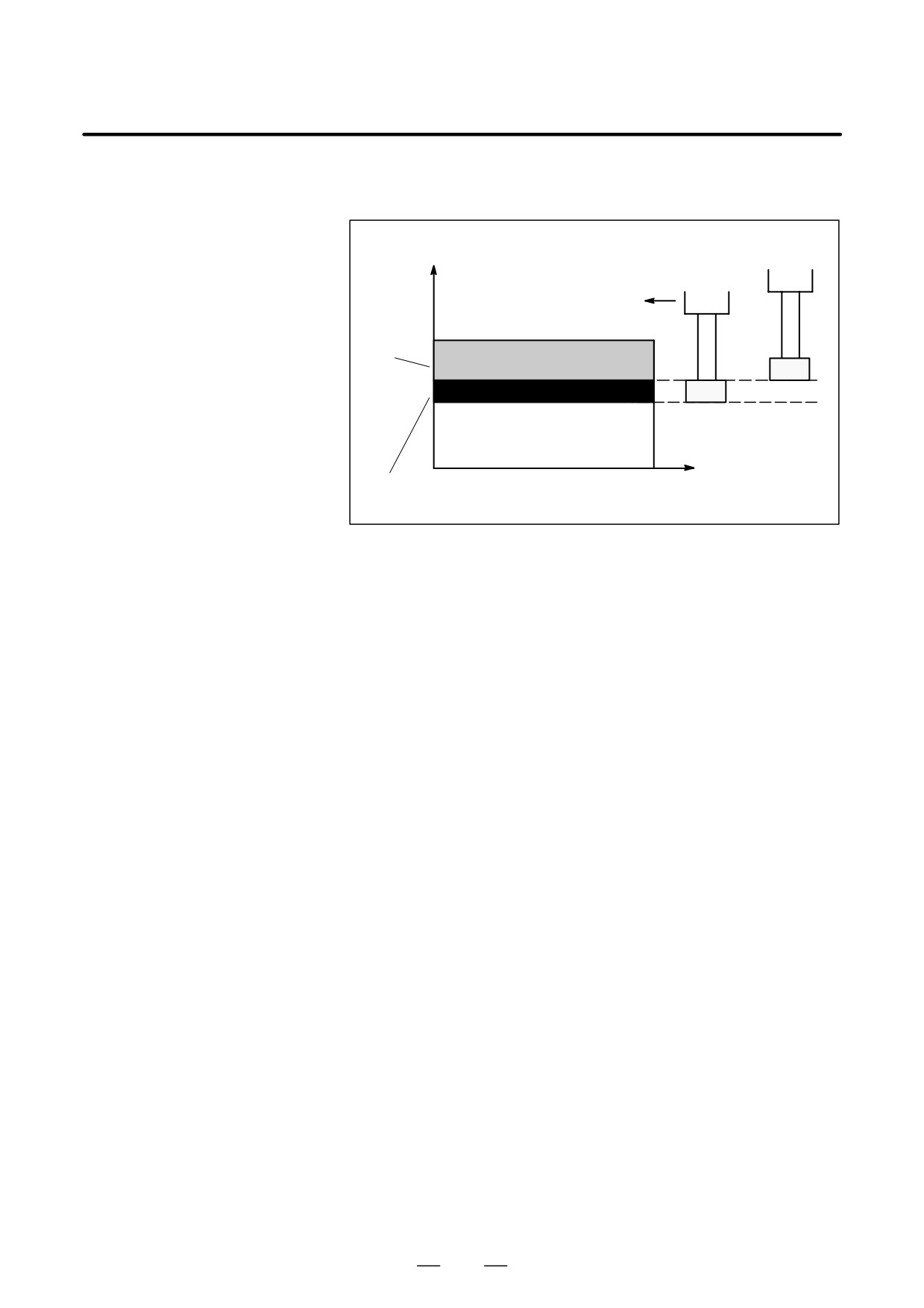

Fig. 1.3 (c) Handle Interruption for Automatic Operation

706

B-63534EN/02

OPERATION

1. GENERAL

1.4

Before machining is started, the automatic running check can be

executed. It checks whether the created program can operate the machine

TESTING A

as desired. This check can be accomplished by running the machine

PROGRAM

actually or viewing the position display change (without running the

machine) (See Section III-5).

1.4.1

Check by Running the

Machine

Explanations

D Dry run

Remove the workpiece, check only movement of the tool. Select the tool

movement rate using the dial on the operator’s panel.

(See Section

III-5.4)

Tool

Table

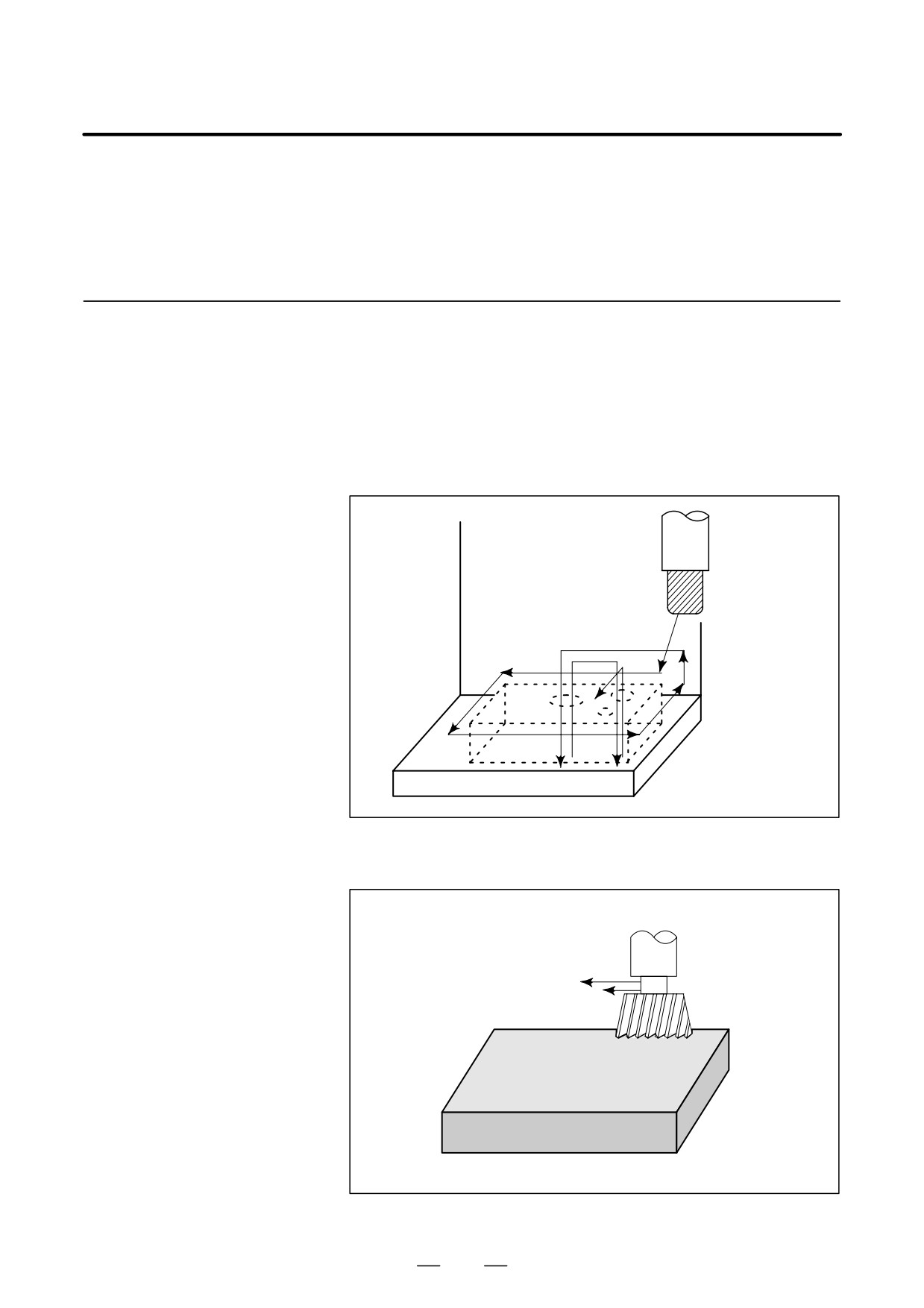

Fig. 1.4.1 (a) Dry run

D Feedrate override

Check the program by changing the feedrate specified in the program.

(See Section III-5.2)

Feed rate specified by program :

100 mm/min.

Tool

Feed rate after feed rate override (20%) :

20 mm/min.

Workpiece

Fig. 1.4.1 (b) Feedrate Override

707

1. GENERAL

OPERATION

B-63534EN/02

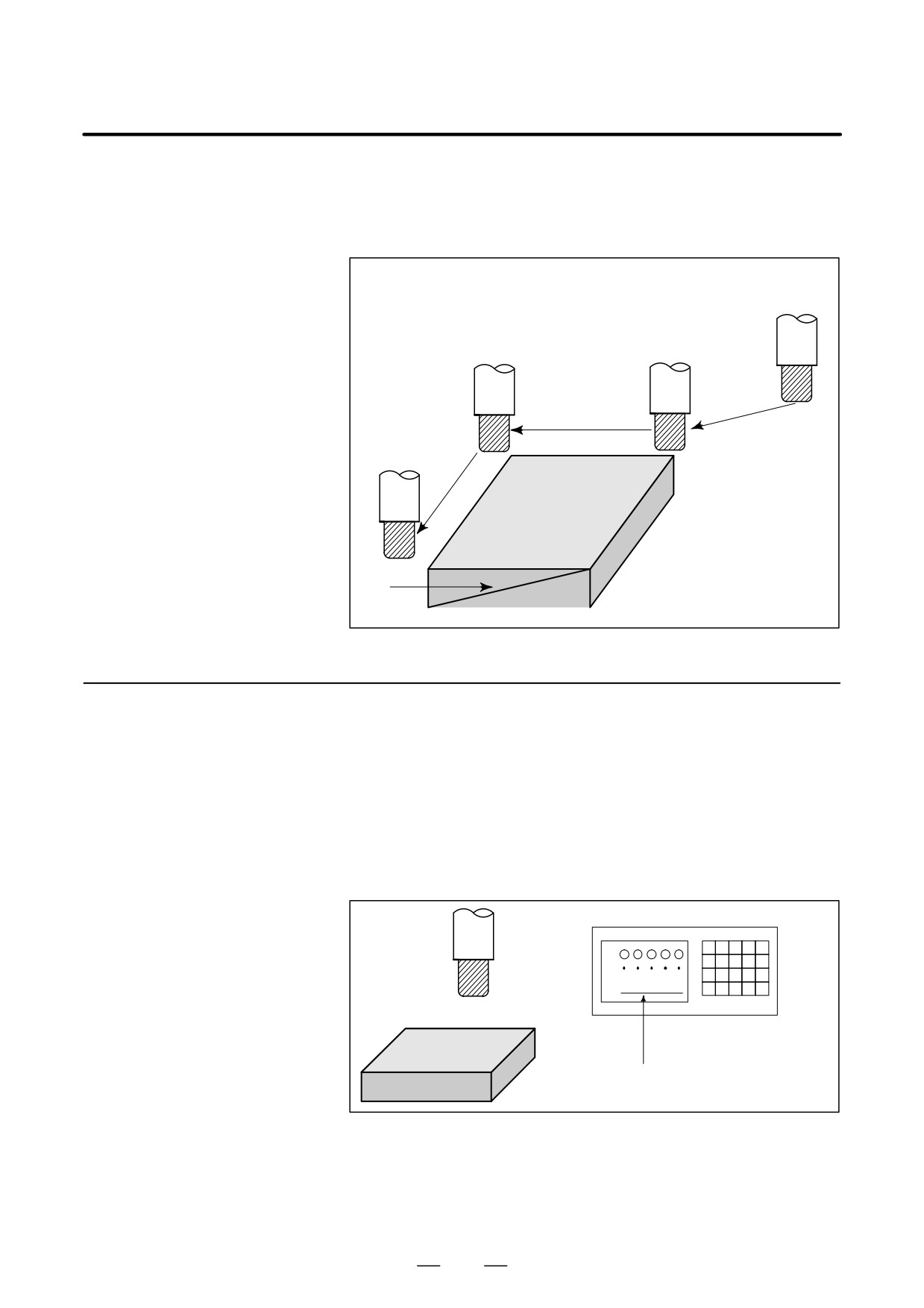

D Single block

When the cycle start pushbutton is pressed, the tool executes one

operation then stops. By pressing the cycle start again, the tool executes

the next operation then stops. The program is checked in this manner.

(See Section III-5.5)

Cycle start

Tool

Stop

Cycle start

Workpiece

Stop

Fig. 1.4.1 (c) Single Block

1.4.2

How to View the

Position Display

Change without

Running the Machine

Explanations

D Machine lock

MDI

Tool

Workpiece

The tool remains stopped, and only the

positional displays of the axes change.

Fig. 1.4.2 Machine Lock

When automatic running is placed into the auxiliary function lock mode

D Auxiliary function lock

during the machine lock mode (See Sections III-5.1), all auxiliary

functions (spindle rotation, tool replacement, coolant on/off, etc.) (See

Section III-5.1) are disabled.

708

B-63534EN/02

OPERATION

1. GENERAL

1.5

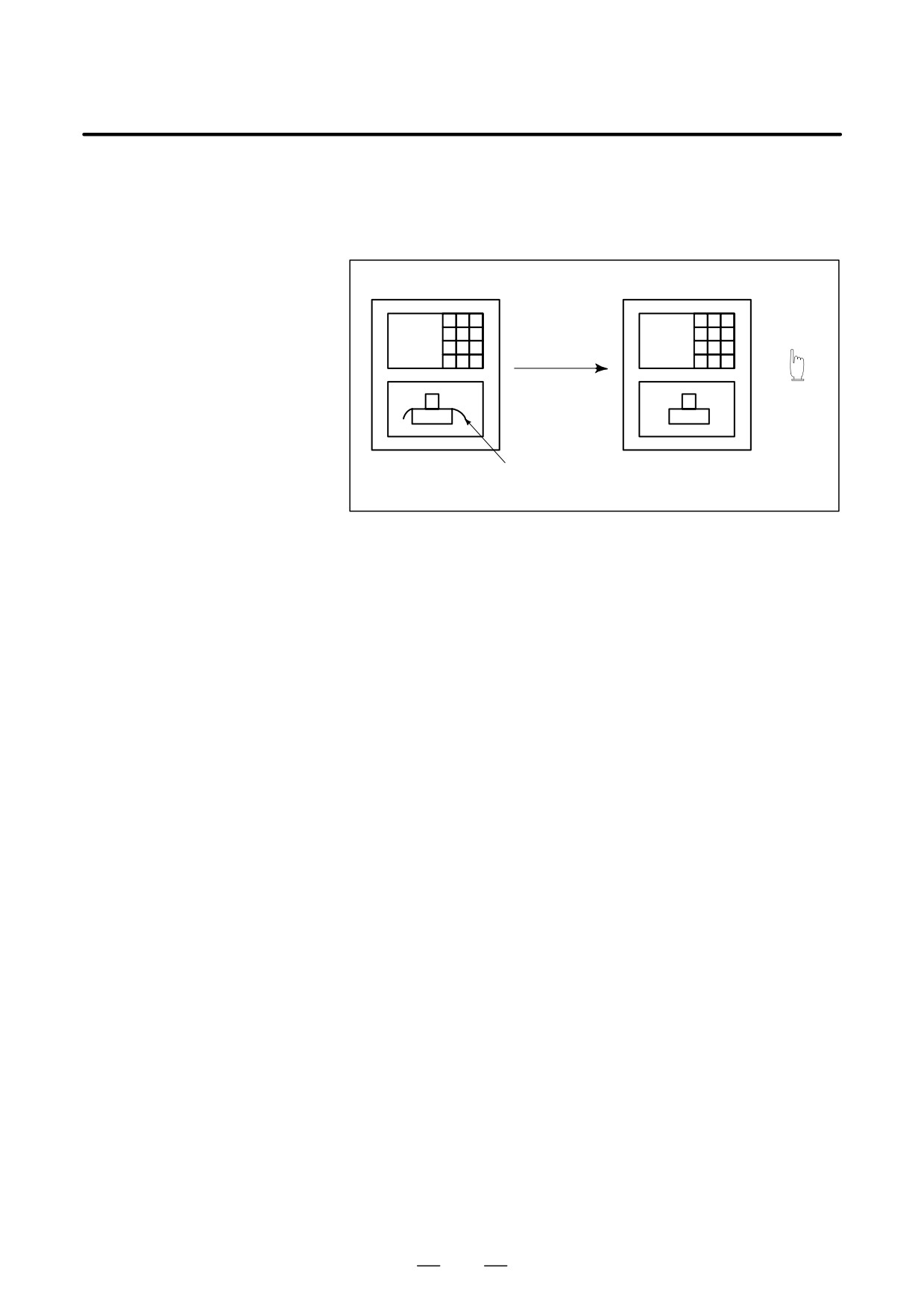

After a created program is once registered in memory, it can be corrected

or modified from the MDI panel (See Section III-9).

EDITING A PART

This operation can be executed using the part program storage/edit

PROGRAM

function.

Program registration

Program correction or modification

MDI

Tape reader

CNC

CNC tape (program)

Fig. 1.5 (a) Part Program Editing

709

1. GENERAL

OPERATION

B-63534EN/02

1.6

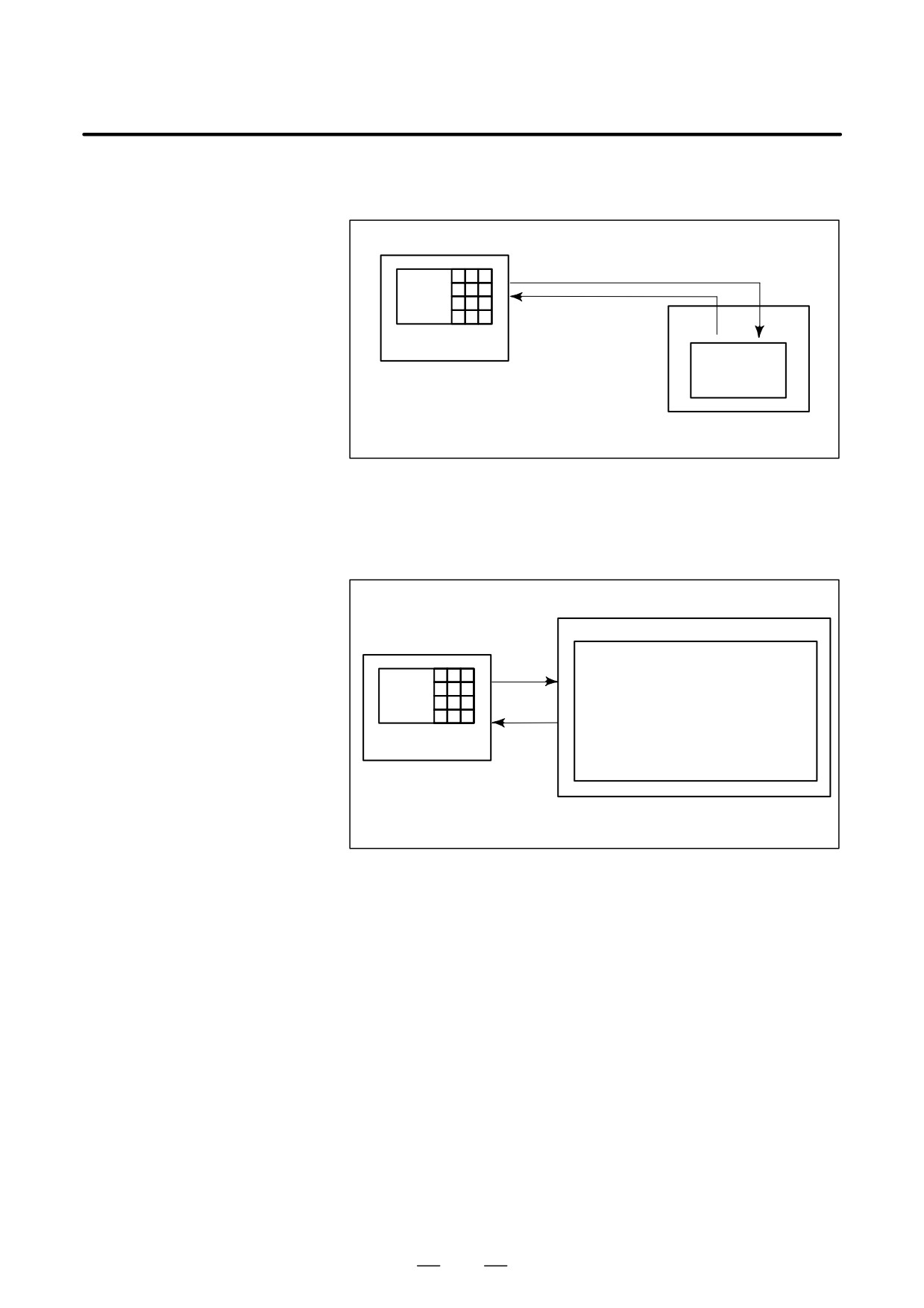

The operator can display or change a value stored in CNC internal

memory by key operation on the MDI screen (See III-11).

DISPLAYING AND

SETTING DATA

Data setting

Data display

Screen Keys

MDI

CNC memory

Fig. 1.6 (a) Displaying and Setting Data

Explanations

D Offset value

Geometry

Wear com-

compensation

pensation

Setting

Tool compensation

number1

12.3

25.0

Tool compensation

number2

20.0

40.0

Tool compensation

number3

⋅ ⋅ ⋅

Screen Keys

Display

⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅

⋅ ⋅ ⋅

⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅

⋅ ⋅ ⋅

MDI

CNC memory

Fig. 1.6 (b) Displaying and Setting Offset Values

The tool has the tool dimension (length, diameter). When a workpiece is

machined, the tool movement value depends on the tool dimensions.

By setting tool dimension data in CNC memory beforehand,

automatically generates tool routes that permit any tool to cut the

workpiece specified by the program. Tool dimension data is called the

offset value

(See Section III-11.4.1).

710

B-63534EN/02

OPERATION

1. GENERAL

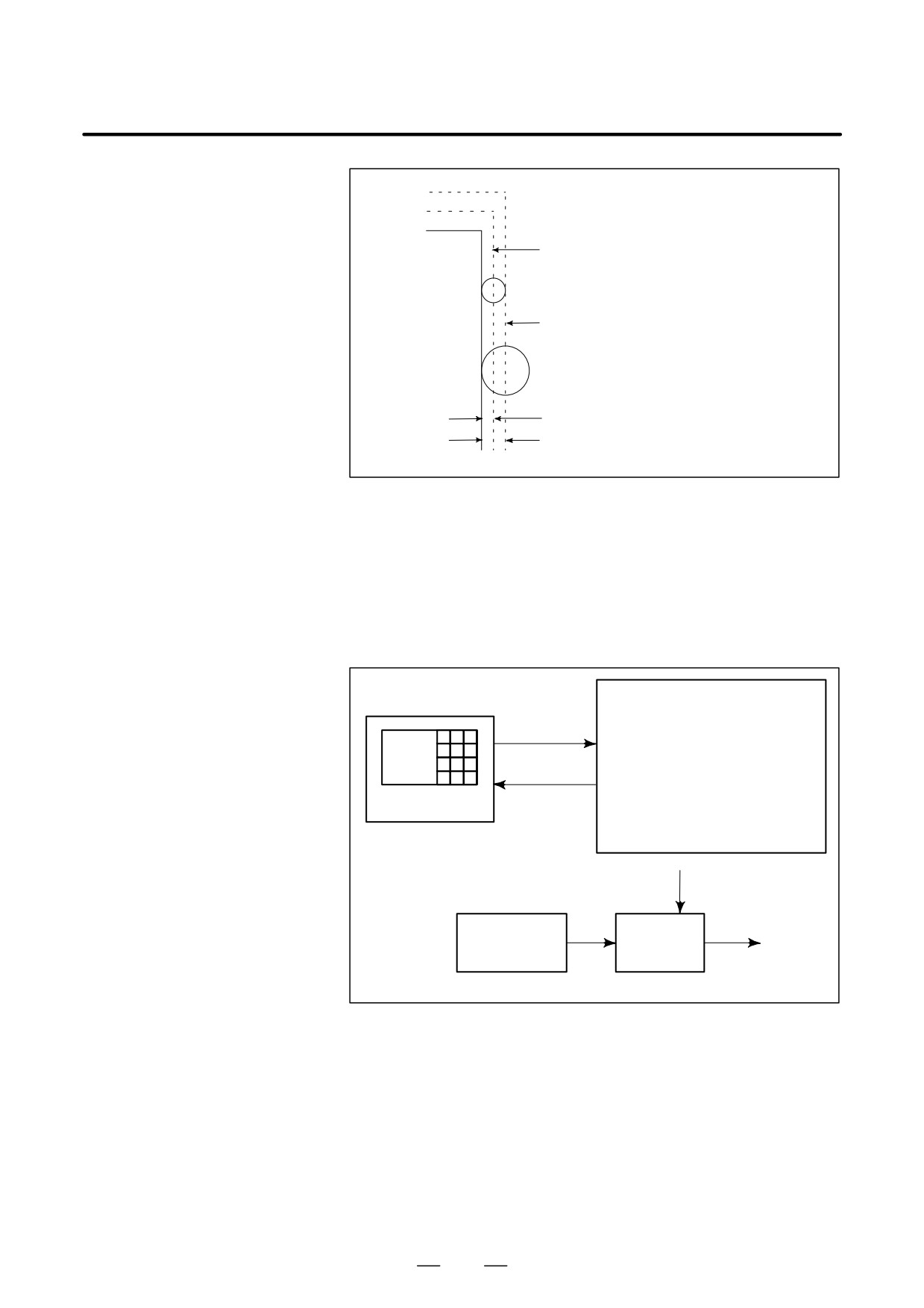

1st tool path

Machined

shape

2nd tool path

Offset value of the 1st tool

Offset value of the 2nd tool

Fig. 1.6 (c) Offset Value

D Displaying and setting

Apart from parameters, there is data that is set by the operator in

operator’s setting data

operation. This data causes machine characteristics to change.

For example, the following data can be set:

S Inch/Metric switching

S Selection of I/O devices

S Mirror image cutting on/off

The above data is called setting data (See Section III-11.4.3).

Setting data

Setting

⋅Inch/Metric switching

⋅Selection of I/O device

⋅Mirror image ON/OFF setting

⋅

Screen Keys

Displaying

⋅

CNC Memory

Operational

characteristics

Program

Automatic

operation

Movement of

the machine

Fig. 1.6 (d) Displaying and Setting Operator’s setting data

711

1. GENERAL

OPERATION

B-63534EN/02

D Displaying and setting

The CNC functions have versatility in order to take action in

parameters

characteristics of various machines.

For example, CNC can specify the following:

S Rapid traverse rate of each axis

S Whether increment system is based on metric system or inch system.

S How to set command multiply/detect multiply (CMR/DMR)

Data to make the above specification is called parameters (See Section

III-11.5.1).

Parameters differ depending on machine tool.

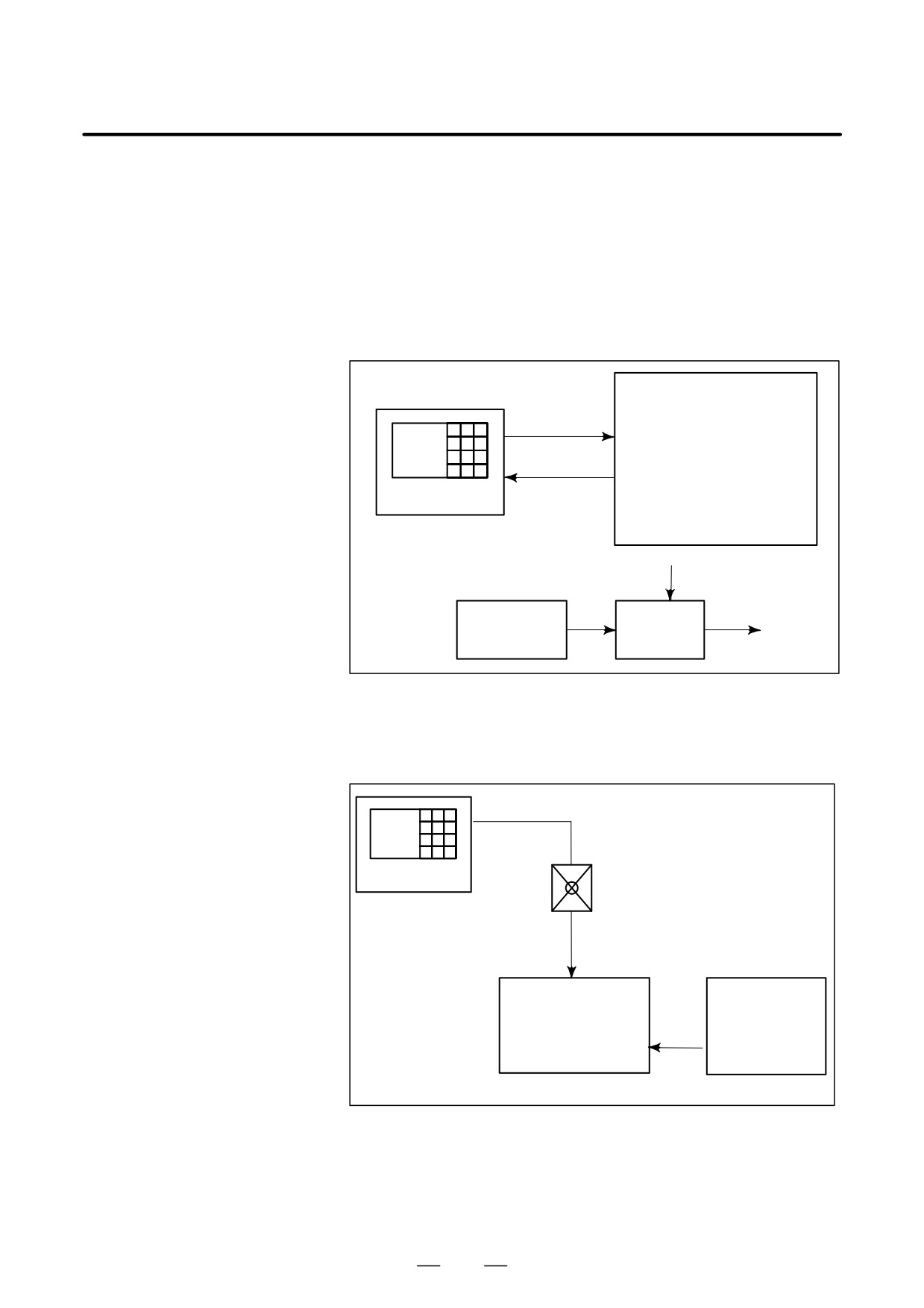

Parameter

Rapid traverse rate

Setting

Position control

Reference position return

Backlash compensation data

Pitch error compensation

Screen Keys

Display

data

⋅

MDI

⋅

CNC memory

Operational

characteristics

Movement

Program

Automatic

of the

operation

machine

Fig. 1.6 (e) Displaying and setting parameters

D Data protection key

A key called the data protection key can be defined. It is used to prevent

part programs, offset values, parameters, and setting data from being

registered, modified, or deleted erroneously

(See Section III-11).

Data Setting

Screen Keys

Protection Key

MDI

Registration / modification inhibition

Machine operator’s

panel

Program

Offset value

Data protection

Signal

Parameters

key

Setting data

CNC memory

Fig. 1.6 (f) Data Protection Key

712

B-63534EN/02

OPERATION

1. GENERAL

1.7

DISPLAY

1.7.1

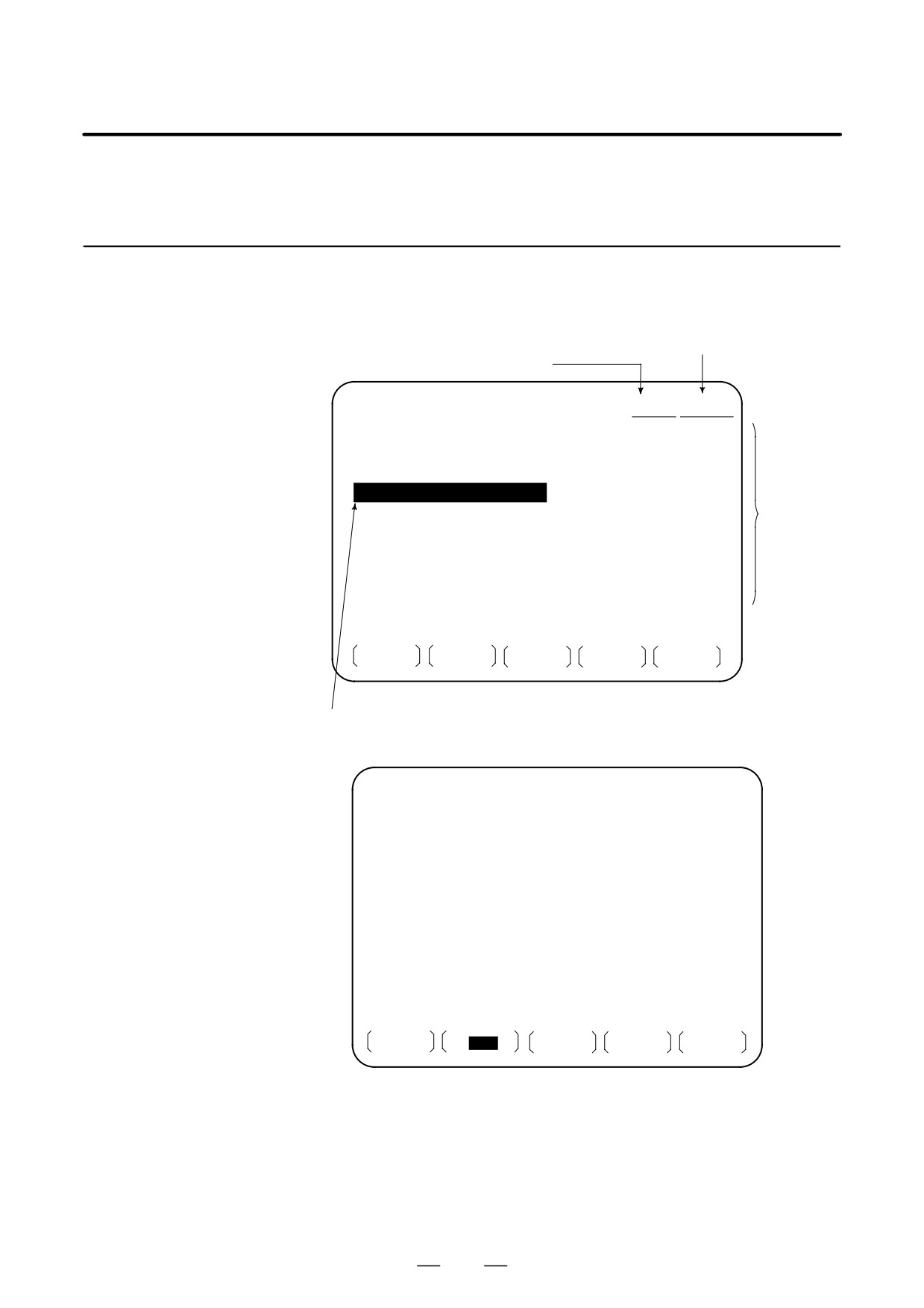

The contents of the currently active program are displayed. In addition,

the programs scheduled next and the program list are displayed.

Program Display

(See Section III-11.2.1)

Active sequence number

Active program number

PROGRAM

O1100 N00005

G90 G17 G00 G41 D07 X250.0 Y550.0 ;

G01 Y900.0 F150 ;

X450.0 ;

G03 X500.0 Y1150.0 R650.0 ;

N5 G02 X900.0 R-250.0 ;

Program

G03 X950.0 Y900.0 R650.0 ;

content

G01 X1150.0 ;

Y550.0 ;

X700.0 Y650.0 ;

N10 X250.0 Y550.0 ;

N11 G00 G40 X0 Y0 ;

MEM STOP * * *

* * *

13 : 18 : 14

PRGRM

CHECK

CURRNT

(OPRT)

Currently executed program

The cursor indicates the currently executed location

PROGRAM

O1100 N00003

SYSTEM EDITION B0A1 - 03

PROGRAM NO. USED ’

10 FREE ’

MEMORY AREA USED ’ 960 FREE ’ 5280

PROGRAM LIBRARY LIST

O0001 O0002 O0010 O0020 O0040 O0050

O0100 O0200 O1000 O1100

EDIT

****

***

13 : 18 : 14

PRGRM

LIB

JOPRTK

713

1. GENERAL

OPERATION

B-63534EN/02

1.7.2

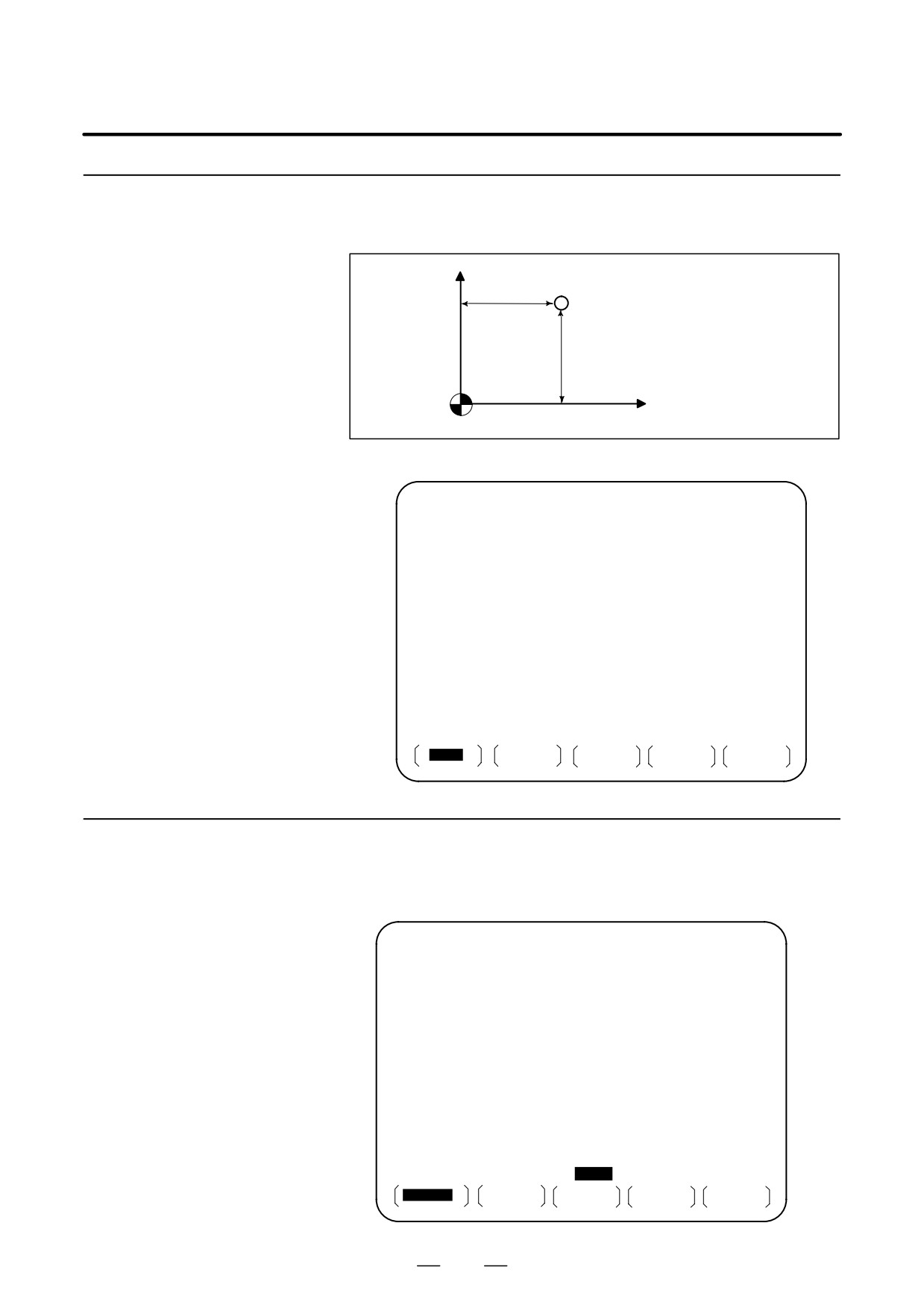

The current position of the tool is displayed with the coordinate values.

The distance from the current position to the target position can also be

Current Position

displayed. (See Section III-11.1.1 to 11.1.3)

Display

Workpiece coordinate system

ACTUAL POSITION (ABSOLUTE)

O0003 N00003

X 150.000

Y 300.000

Z 100.000

PART COUNT 30

RUN TIME

0H41M CYCLE TIME 0H 0M22S

MEM

* * * *

* * *

19 : 47 : 45

ABS

REL

ALL

(OPRT)

1.7.3

When a trouble occurs during operation, error code and alarm message are

displayed on the screen. (See Section III-7.1)

Alarm Display

See APPENDIX G for the list of error codes and their meanings.

ALARM MESSAGE

O1000 N00003

010

IMPROPER G-CODE

MEM STOP

* * *

ALM

19 : 55 : 22

ALARM

MSG

HISTRY

714

B-63534EN/02

OPERATION

1. GENERAL

1.7.4

When this option is selected, two types of run time and number of parts

are displayed on the screen. (See Section lll-11.4.5)

Parts Count Display,

Run Time Display

ACTUAL POSITION (ABSOLUTE)

O0003 N00003

X 150.000

Y 300.000

Z 100.000

PART COUNT 18

RUN TIME

0H16M CYCLE TIME 0H 1M 0S

MEM STRT

FIN

* * * *

20 : 22 : 23

ABS

REL

ALL

(OPRT)

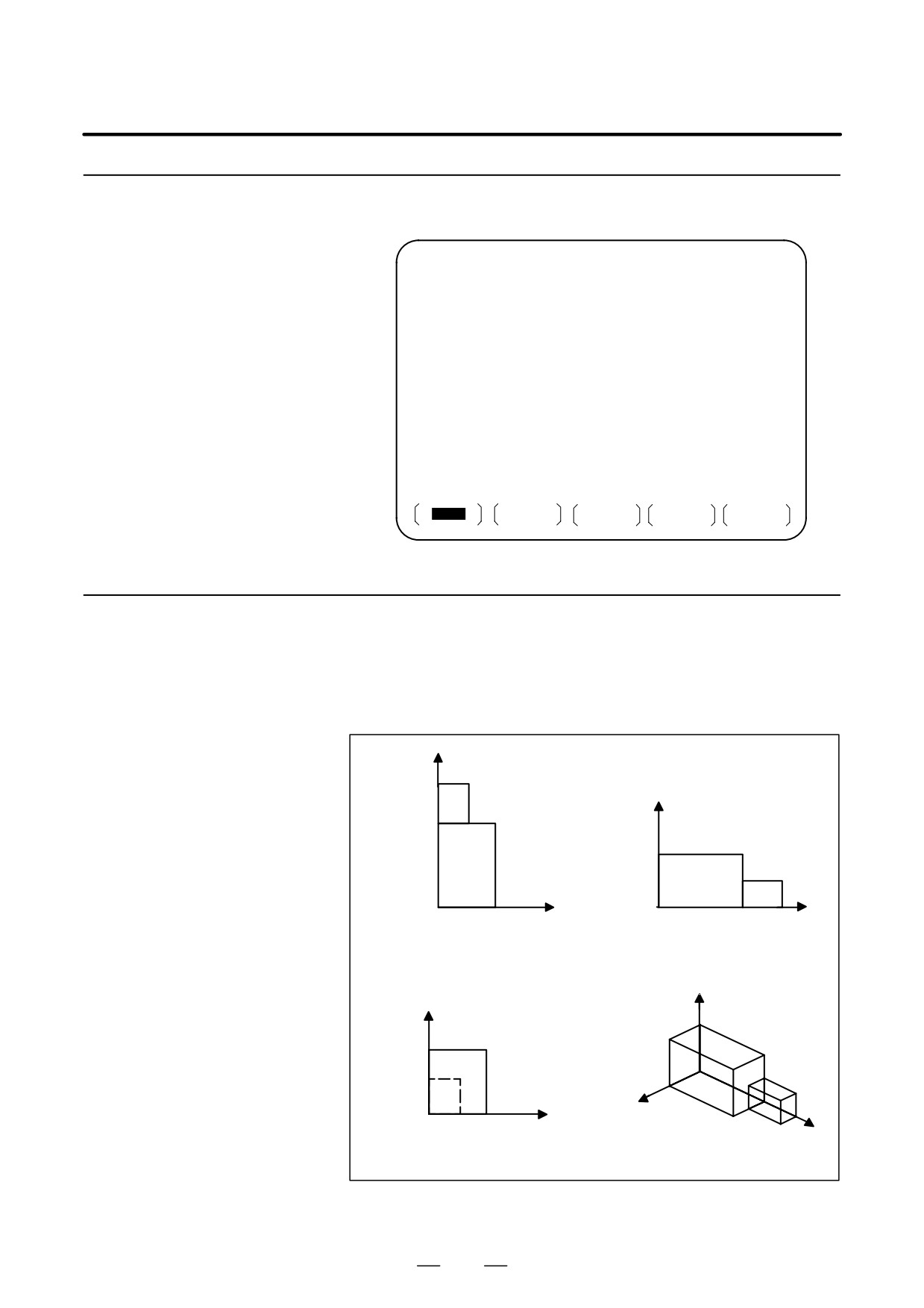

1.7.5

Programmed tool movement can be displayed on the following planes:

(See Section III-12)

Graphic Display

1) XY plane

2) YZ plane

3) XZ plane

4) Three dimensional display

(1)

(2)

Display on the XY plane

Display on the YZ plane

(3)

(4)

Display on the XZ plane

Three dimensional display (isometric)

Fig. 1.7.5 (a) Graphic display

715

1. GENERAL

OPERATION

B-63534EN/02

1.8

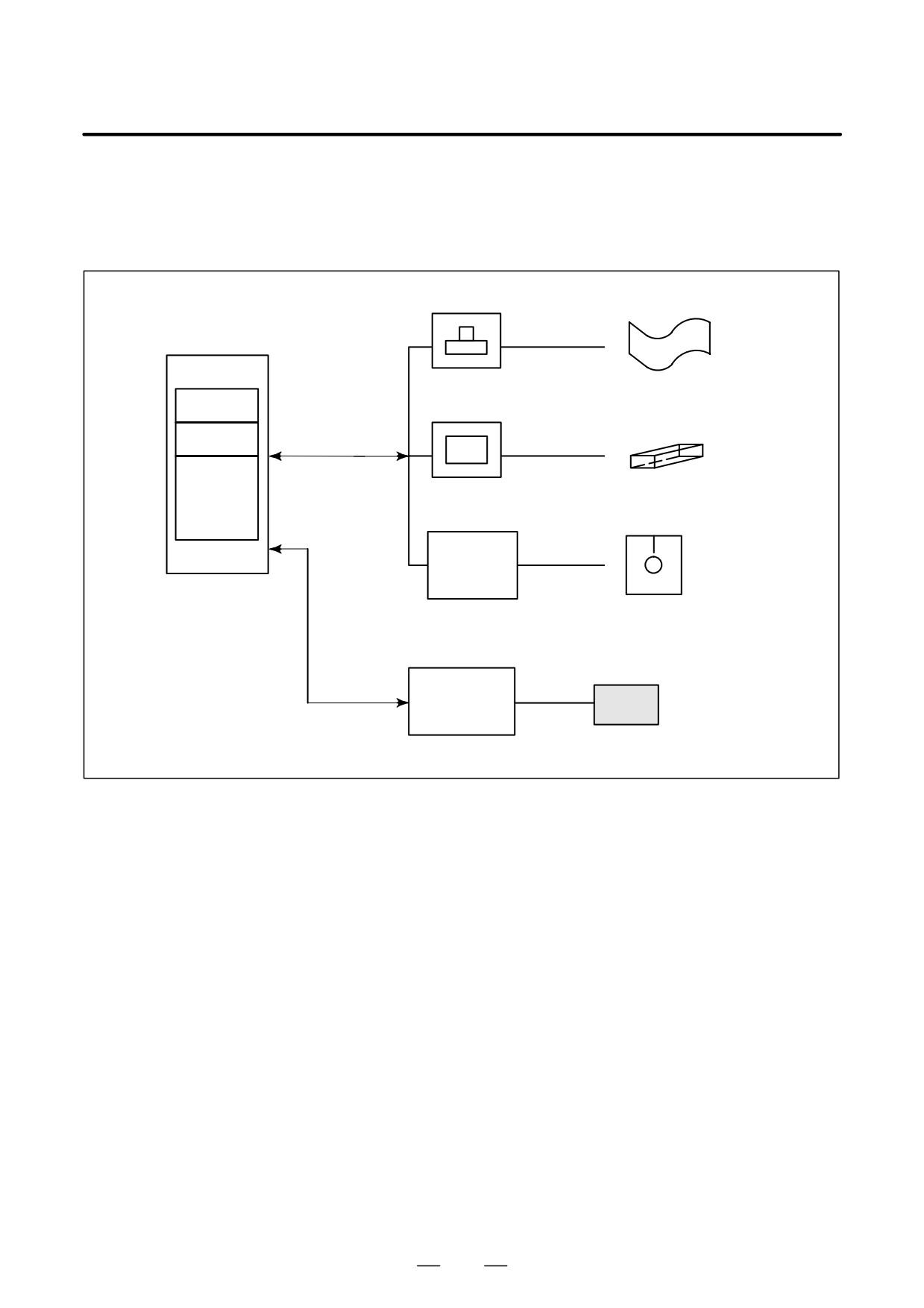

Programs, offset values, parameters, etc. input in CNC memory can be

output to paper tape, cassette, or a floppy disk for saving. After once

DATA INPUT/OUTPUT

output to a medium, the data can be input into CNC memory.

Portable tape reader

FANUC PPR

Memory

Paper tape

Program

FANUC Floppy Cassette

Reader/puncher

FANUC Floppy

Offset

interface

cassette adaptor

Parameters

Floppy disk

SYSTEM P

CNC

Automatic programming system

Memory card

adapter

(incorporated CNC)

Fig. 1.8 (a) Data Output

716

OPERATION

2. OPERATIONAL DEVICES

B-63534EN/02

2.1

The setting and display units are shown in Subsections 2.1.1 to 2.1.5 of

Part III.

SETTING AND

DISPLAY UNITS

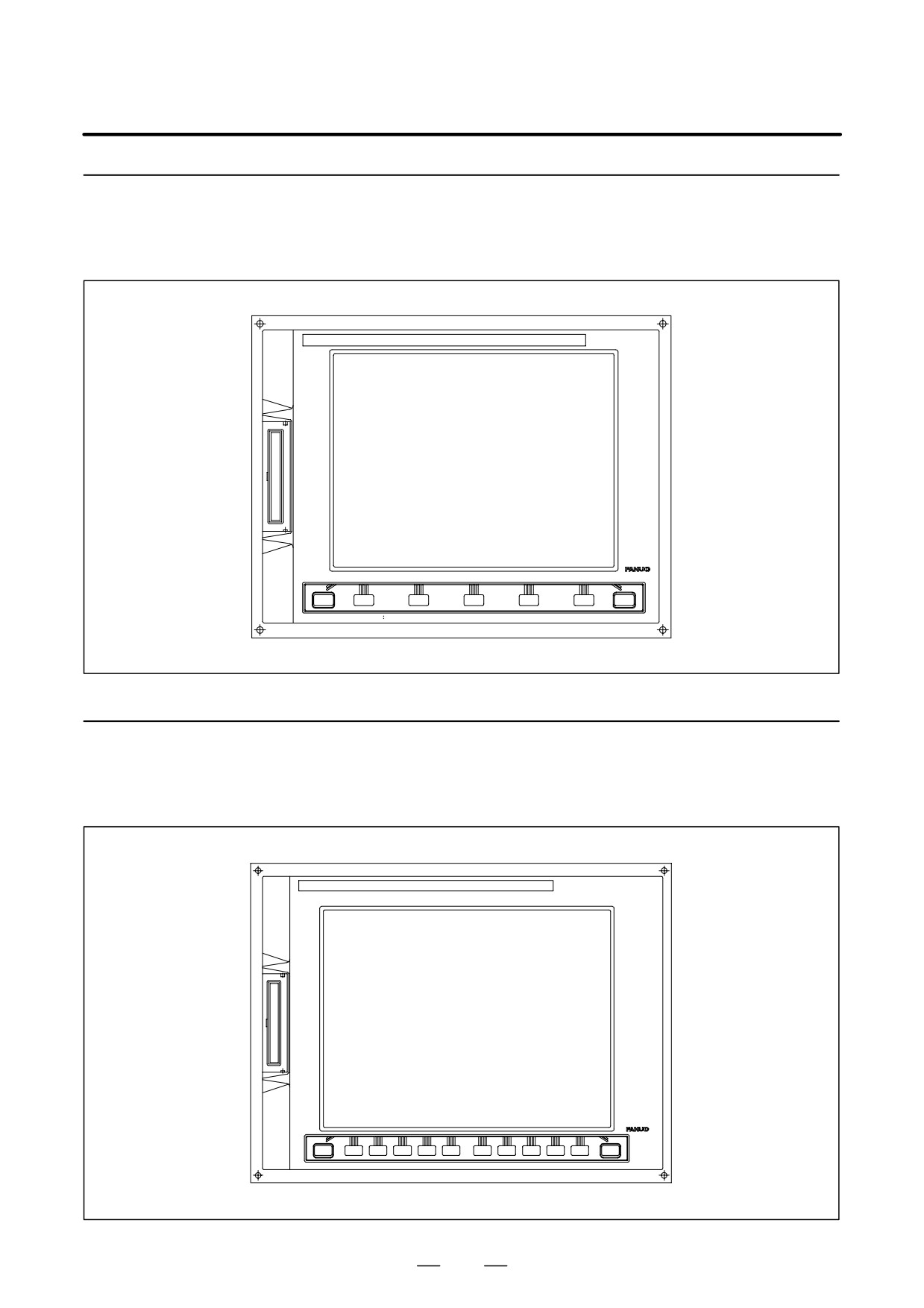

7.2”/8.4” LCD-Mounted type CNC Control Unit

III-2.1.1

9.5”/10.4” LCD-Mounted type CNC Control Unit

III-2.1.2

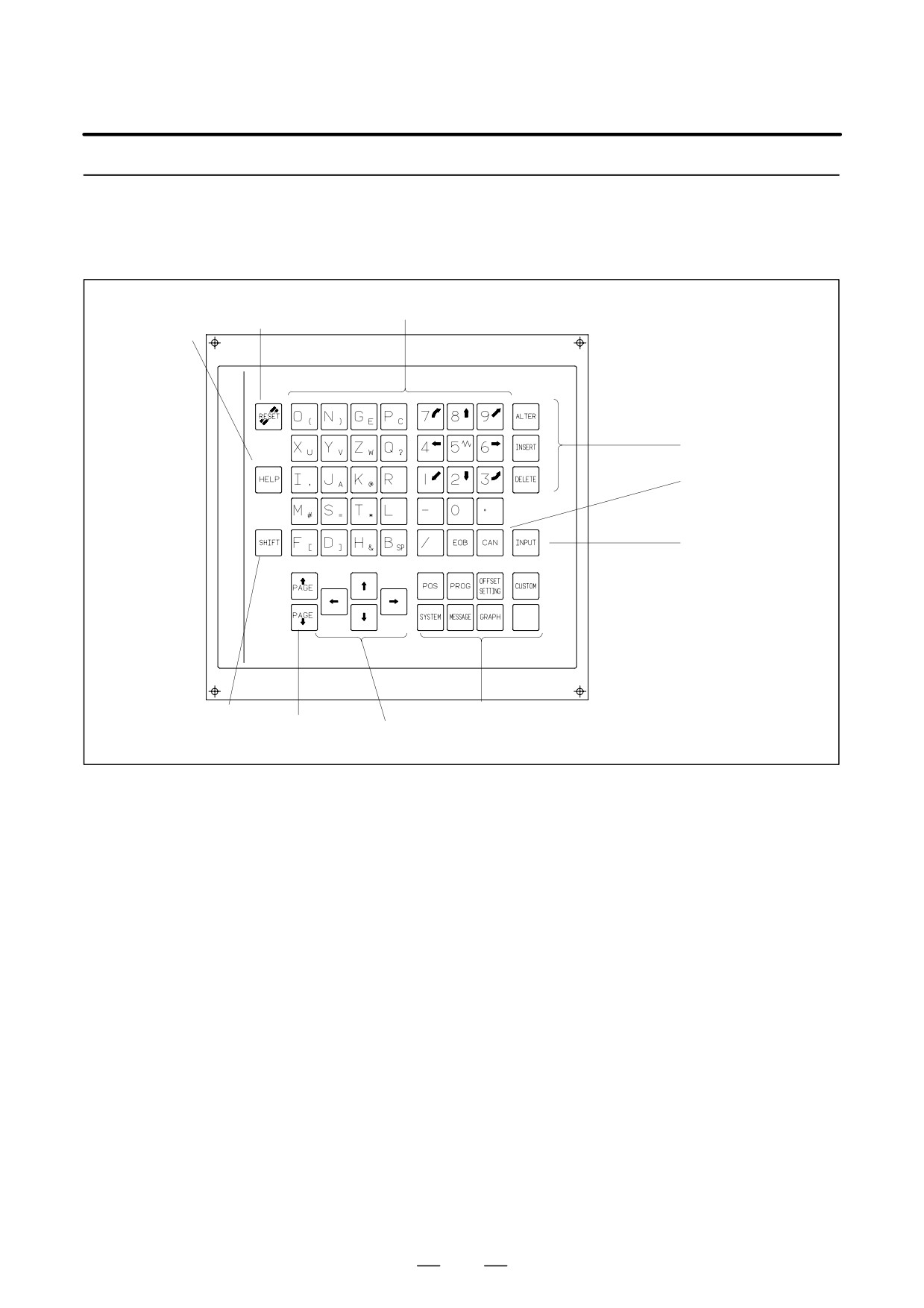

Stand-Alone Type Small MDI Unit

III-2.1.3

Stand-Alone Type Standard MDI Unit

III-2.1.4

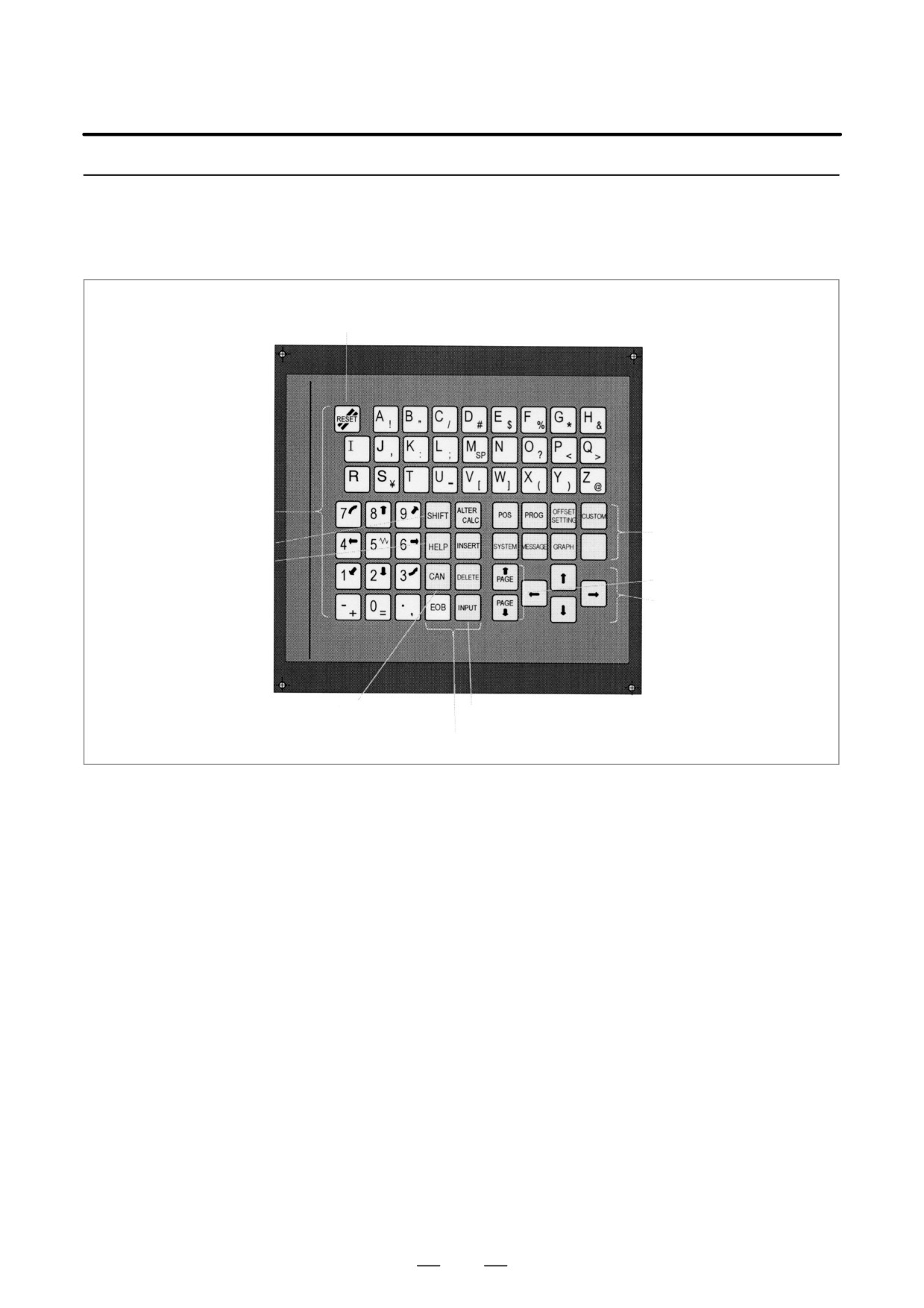

Stand-Alone Type 61 Full Key MDI Unit

III-2.1.5

718

B-63534EN/02

OPERATION

2. OPERATIONAL DEVICES

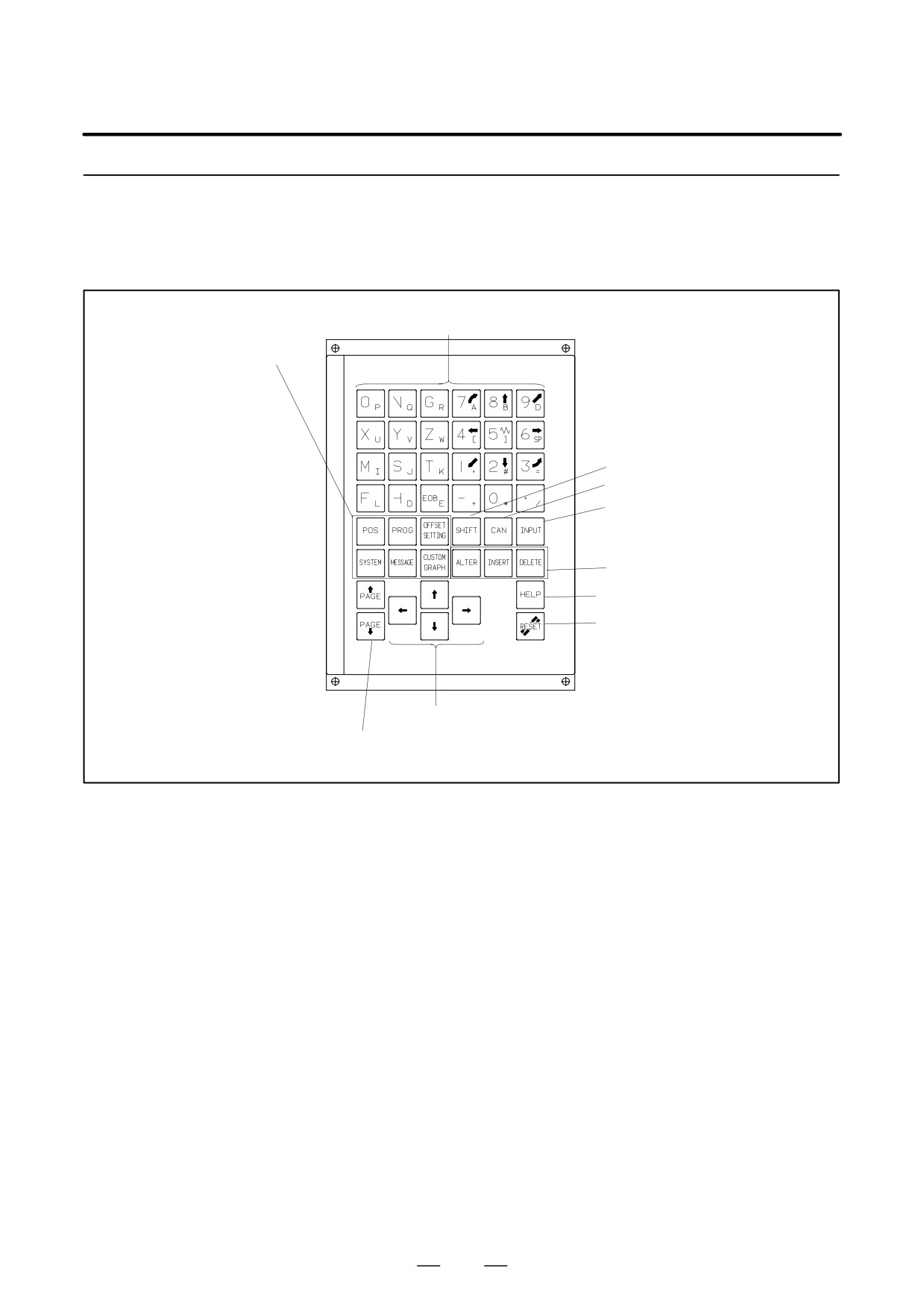

2.2

EXPLANATION OF

THE KEYBOARD

Table 2.2 Explanation of the MDI keyboard

Number

Name

Explanation

RESET key

Press this key to reset the CNC, to cancel an alarm, etc.

RESET

HELP key

Press this button to use the help function when uncertain about the operation of

an MDI key (help function).

HELP

In case of 160i/180i/160is/180is, this key is assigned to “Esc” key of the personal

computer.

Soft keys

The soft keys have various functions, according to the Applications. The soft key

functions are displayed at the bottom of the screen.

Address and numeric keys

Press these keys to input alphabetic, numeric, and other characters.

…

(

SHIFT key

Some keys have two characters on their keytop. Pressing the <SHIFT> key

switches the characters. Special character Ê is displayed on the screen when a

SHIFT

character indicated at the bottom right corner on the keytop can be entered.

INPUT key

When an address or a numerical key is pressed, the data is input to the buffer,

and it is displayed on the screen. To copy the data in the key input buffer to the

INPUT

offset register, etc., press the

INPUT

key. This key is equivalent to the [INPUT]

key of the soft keys, and either can be pressed to produce the same result.

Cancel key

Press this key to delete the last character or symbol input to the key input buffer.

When the key input buffer displays

CAN

>N001X100Z_

and the cancel

CAN

key is pressed, Z is canceled and

>N001X100_

is displayed.

Program edit keys

Press these keys when editing the program.

ALTER

(In case of 160i/180i/160is/180is, this key is assigned

ALTER

INSERT

DELETE

: Alteration

to “Tab” key of the personal computer.)

INSERT

: Insertion

DELETE

: Deletion

Function keys

Press theses keys to switch display screens for each function.

See lll - 2.3 for detailas of the function keys.

…

POS

PROG

723

OPERATION

2. OPERATIONAL DEVICES

B-63534EN/02

Table 2.2 Explanation of the MDI keyboard

Number

Name

Explanation

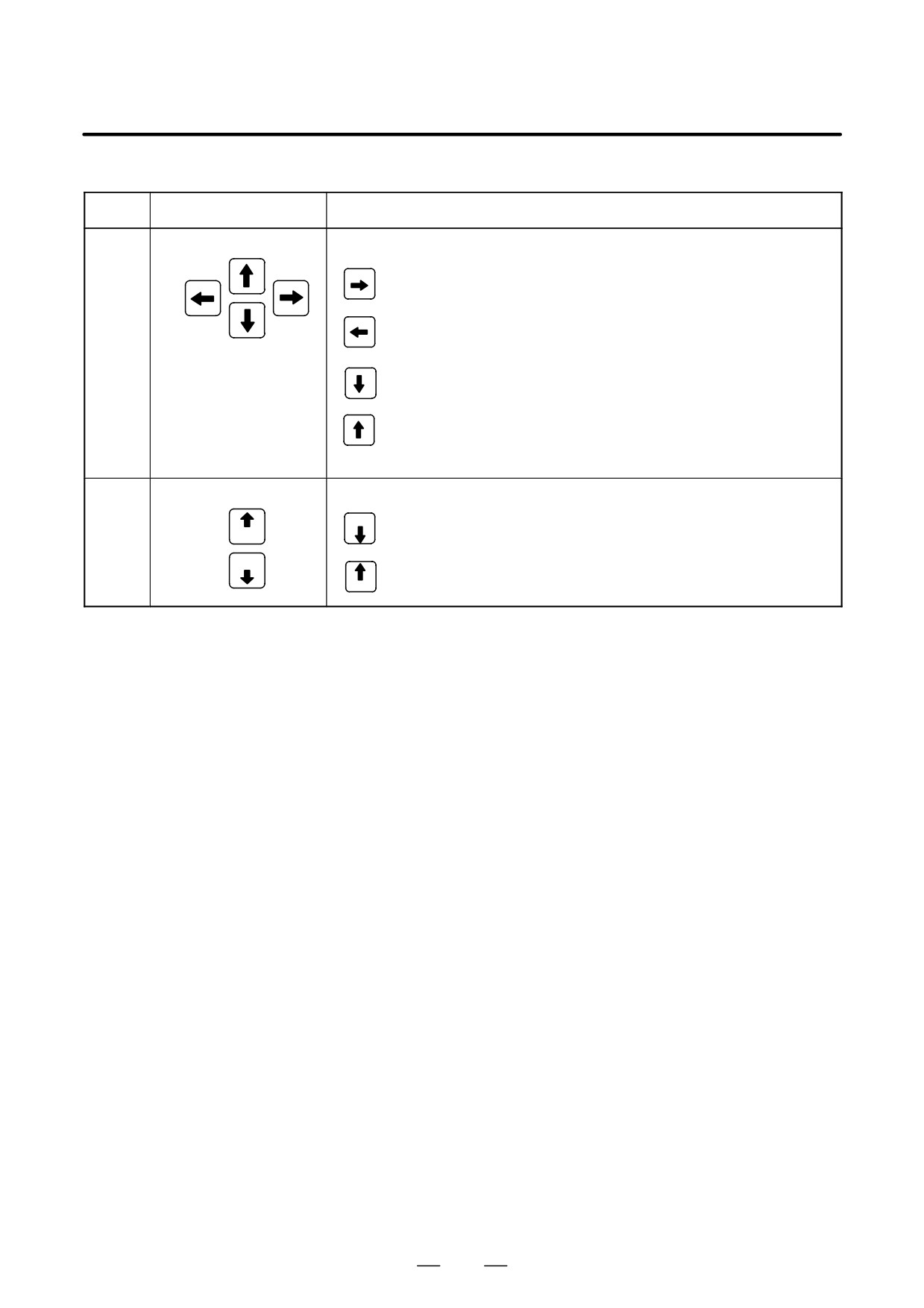

Cursor move keys

There are four different cursor move keys.

This key is used to move the cursor to the right or in the forward

direction. The cursor is moved in short units in the forward direction.

This key is used to move the cursor to the left or in the reverse

direction. The cursor is moved in short units in the reverse direction.

This key is used to move the cursor in a downward or forward

direction. The cursor is moved in large units in the forward direction.

This key is used to move the cursor in an upward or reverse direction.

The cursor is moved in large units in the reverse direction.

Page change keys

Two kinds of page change keys are described below.

PAGE

This key is used to changeover the page on the screen in the

PAGE

forward direction.

PAGE

This key is used to changeover the page on the screen in the

PAGE

reverse direction.

Explanations

D Key operation with

In the 2-path control, be sure to select the tool post for which data is

2-path control

specified, using the path selection switch on the machine operator’s panel.

Then, perform keyboard operation, such as displaying or specifying

various data items, and editing a program.

724

B-63534EN/02

OPERATION

2. OPERATIONAL DEVICES

2.3

The function keys are used to select the type of screen (function) to be

displayed. When a soft key

(section select soft key) is pressed

FUNCTION KEYS

immediately after a function key, the screen (section) corresponding to the

AND SOFT KEYS

selected function can be selected.

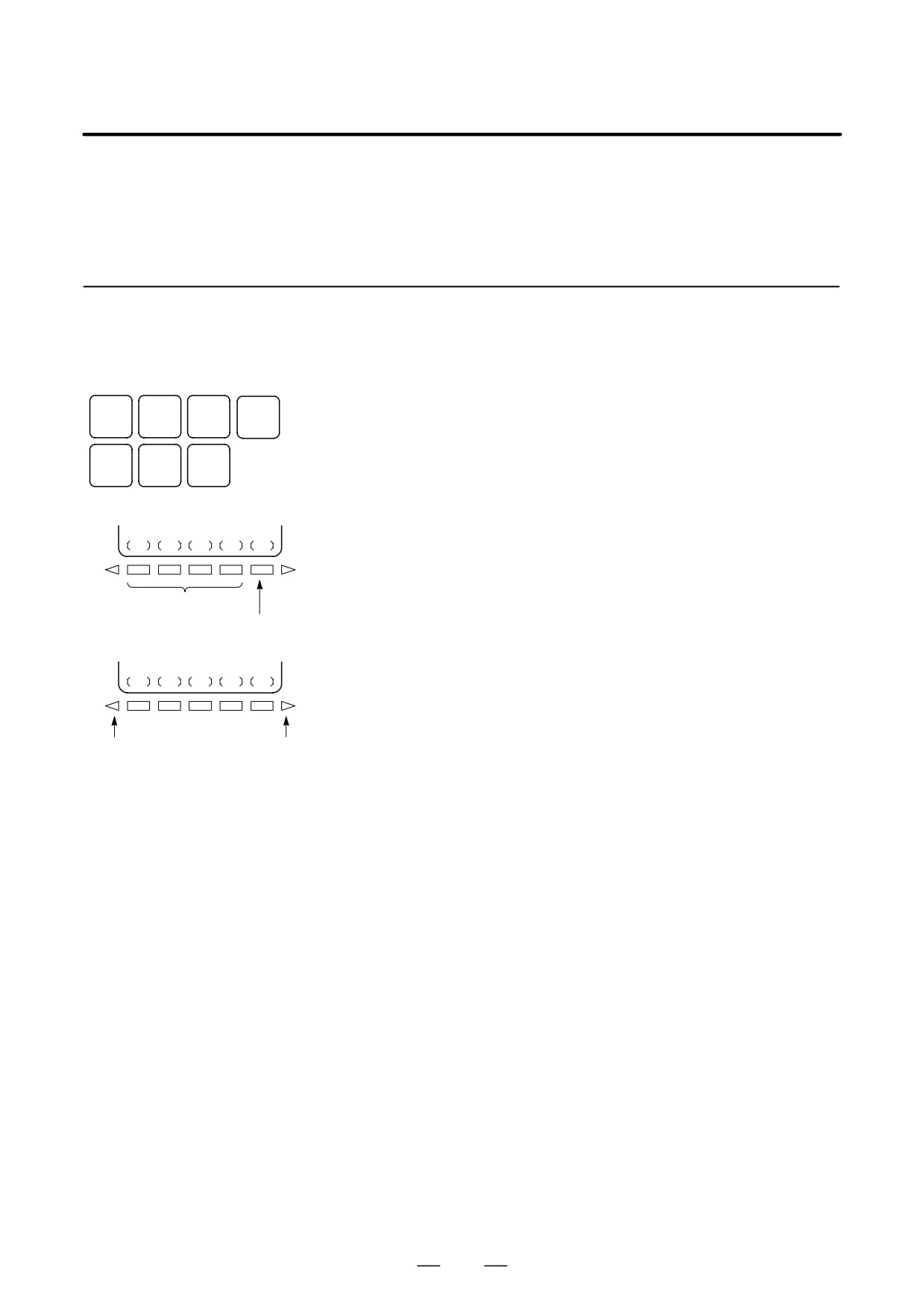

2.3.1

General Screen

Operations

Press a function key on the MDI panel. The chapter selection soft

OFFSET

POS

PROG

CUSTOM

keys that belong to the selected function appear.

SETTING

Press one of the chapter selection soft keys. The screen for the

SYSTEM

MESSAGE

GRAPH

selected chapter appears. If the soft key for a target chapter is not

displayed, press the continuous menu key (next-menu key).

Function keys

In some cases, additional chapters can be selected within a chapter.

(OPRT)

When the target chapter screen is displayed, press the operation

selection key to display data to be manipulated.

To redisplay the chapter selection soft keys, press the return menu

Chapter selection

key.

soft keys

Operation

selection

key

The general screen display procedure is explained above. However,

the actual display procedure varies from one screen to another. For

details, see the description of individual operations.

Return menu key

Continuous menu key

725

OPERATION

2. OPERATIONAL DEVICES

B-63534EN/02

2.3.2

Function keys are provided to select the type of screen to be displayed.

The following function keys are provided on the MDI panel:

Function Keys

POS

Press this key to display the position screen.

PROG

Press this key to display the program screen.

OFFSET

Press this key to display the offset/setting screen.

SETTING

Press this key to display the system screen.

SYSTEM

MESSAGE

Press this key to display the message screen.

GRAPH

Press this key to display the graphics screen.

CUSTOM

Press this key to display the custom screen (conversational macro

screen).

In case of 160i/180i/160is/180is, this key is assigned to “Ctrl” key of the

personal computer.

In case of 160i/180i/160is/180is, this key is assigned to “Alt” key of the

personal computer.

726

B-63534EN/02

OPERATION

2. OPERATIONAL DEVICES

2.3.3

To display a more detailed screen, press a function key followed by a soft

key. Soft keys are also used for actual operations.

Soft Keys

The following illustrates how soft key displays are changed by pressing

each function key.

The symbols in the following figures mean as shown below :

: Indicates screens

: Indicates a screen that can be displayed by pressing a

function key(*1)

[

]

: Indicates a soft key(*2)

(

)

: Indicates input from the MDI panel.

[

]

: Indicates a soft key displayed in green.

: Indicates the continuous menu key (rightmost soft key)(*3).

*1 Press function keys to switch between screens that are used frequently.

*2 Some soft keys are not displayed depending on the option

configuration.

*3 In some cases, the continuous menu key is omitted when the 12 soft

keys display unit is used.

727

OPERATION

2. OPERATIONAL DEVICES

B-63534EN/02

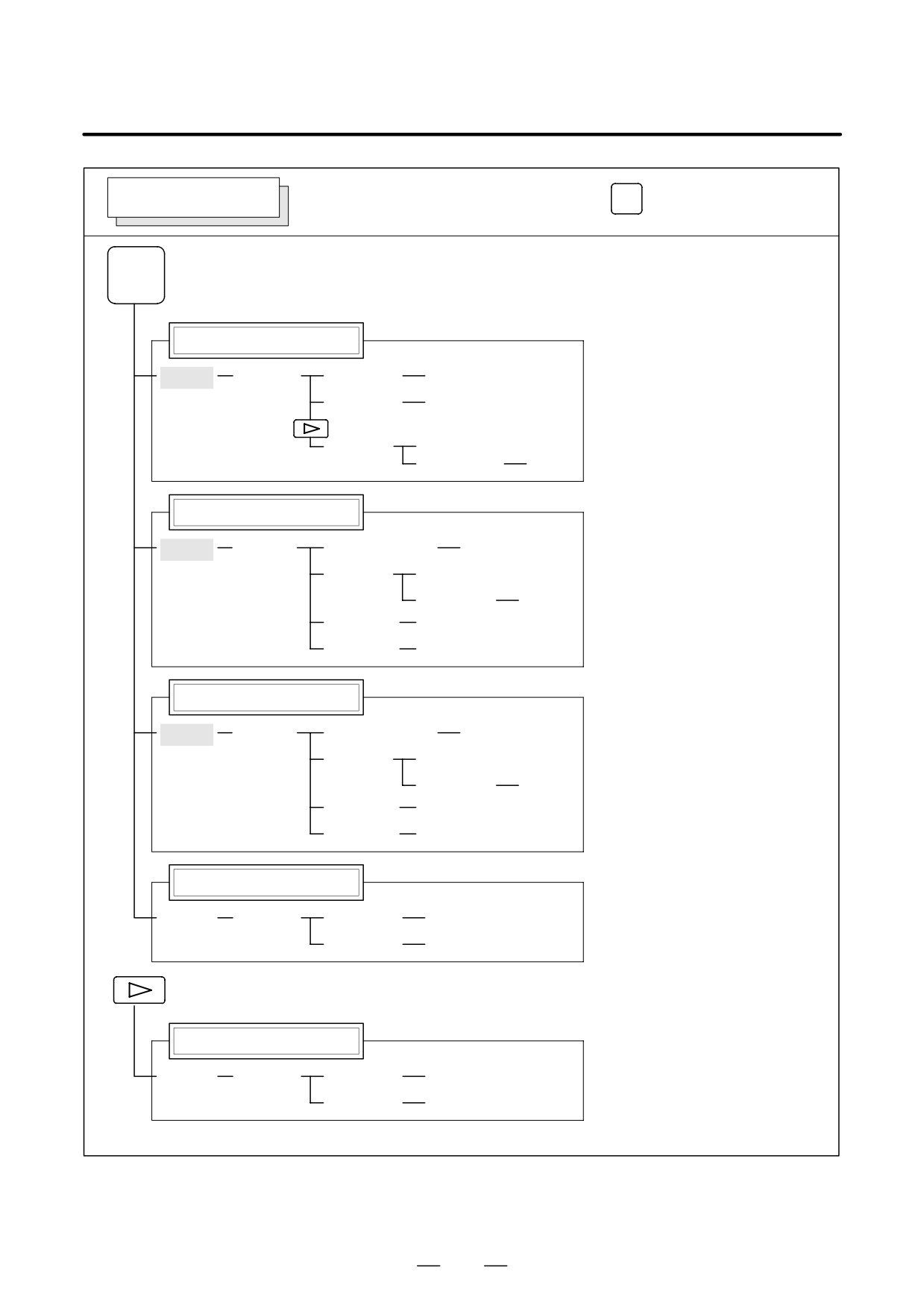

POSITION SCREEN

Soft key transition triggered by the function key

POS

Absolute coordinate display

[ABS]

[(OPRT)]

[PTSPRE]

[EXEC]

[RUNPRE]

[EXEC]

[WORK]

[ALLEXE]

(Axis name)

[EXEC]

Relative coordinate display

[REL]

[(OPRT)]

(Axis or numeral)

[PRESET]

[ORIGIN]

[ALLEXE]

(Axis name)

[EXEC]

[PTSPRE]

[EXEC]

[RUNPRE]

[EXEC]

Current position display

[ALL]

[(OPRT)]

(Axis or numeral)

[PRESET]

[ORIGIN]

[ALLEXE]

(Axis name)

[EXEC]

[PTSPRE]

[EXEC]

[RUNPRE]

[EXEC]

Handle interruption

[HNDL]

[(OPRT)]

[PTSPRE]

[EXEC]

[RUNPRE]

[EXEC]

Monitor screen

[MONI]

[(OPRT)]

[PTSPRE]

[EXEC]

[RUNPRE]

[EXEC]

728

B-63534EN/02

OPERATION

2. OPERATIONAL DEVICES

Soft key transition triggered by the function key

PROG

PROGRAM SCREEN

in the MEM mode

1/2

PROG

Program display screen

[PRGRM]

[(OPRT)]

[BG-EDT]

See “When the soft key [BG-EDT] is pressed”

(O number)

[O SRH]

(1)

(N number)

[N SRH]

[REWIND]

[P TYPE]

[Q TYPE]

[F SRH]

[CAN]

(N number)

[EXEC]

Program check display screen

[CHECK]

[ABS]

[(OPRT)]

[BG-EDT]

See “When the soft key [BG-EDT] is pressed”

[REL]

(O number)

[O SRH]

(N number)

[N SRH]

[REWIND]

[P TYPE]

[Q TYPE]

[F SRH]

[CAN]

(N number)

[EXEC]

Current block display screen

[CURRNT]

[(OPRT)]

[BG-EDT]

See “When the soft key [BG-EDT] is pressed”

Next block display screen

[NEXT]

[(OPRT)]

[BG-EDT]

See “When the soft key [BG-EDT] is pressed”

Program restart display screen

[RSTR]

[(OPRT)]

[BG-EDT]

See “When the soft key [BG-EDT] is pressed”

(2)(Continued on the next page)

729

FANUC Series 16i/160i/160is-MB, Series 18i/180i/180is-MB5, Series 18i/180i/180is-MB. Operator's Manual - page 25
