12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1652 -

- Usage

When the command of M02 or M30 is executed, the total number of
machined parts and the number of machined parts are incremented by
one. Therefore, create the program so that M02 or M30 is executed
every time the processing of one part is completed. Furthermore, if an
M code set to the parameter No. 6710 is executed, counting is made in
the similar manner. Also, it is possible to disable counting even if
M02 or M30 is executed (bit 0 (PCM) of parameter No. 6700 is set to
1). For details, see the manual issued by machine tool builders.

Limitation
- Run time and part count settings

Negative value cannot be set. Also, the setting of "M" and "S" of run
time is valid from 0 to 59.
Negative value may not be set to the total number of machined parts.

- Time settings

Neither negative value nor the value exceeding the value in the
following table can be set.

Table 12.3.18 (a)

Item Maximum

value

Item Maximum

value

Year 2096 Hour 23

Month 12 Minute 59

Day 31

Second

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1653 -

12.3.19

Displaying and Setting the Workpiece Origin Offset Value

(15-inch Display Unit)

Displays the workpiece origin offset for each workpiece coordinate
system (G54 to G59, G54.1 P1 to G54.1 P48 and G54.1 P1 to G54.1
P300) and external workpiece origin offset.
The workpiece origin offset value and external workpiece origin offset
value can be set on this screen.

Procedure for displaying and setting the workpiece origin offset value

Procedure

Press function key

Press vertical soft key [WORK].
The workpiece coordinate system setting screen is displayed.

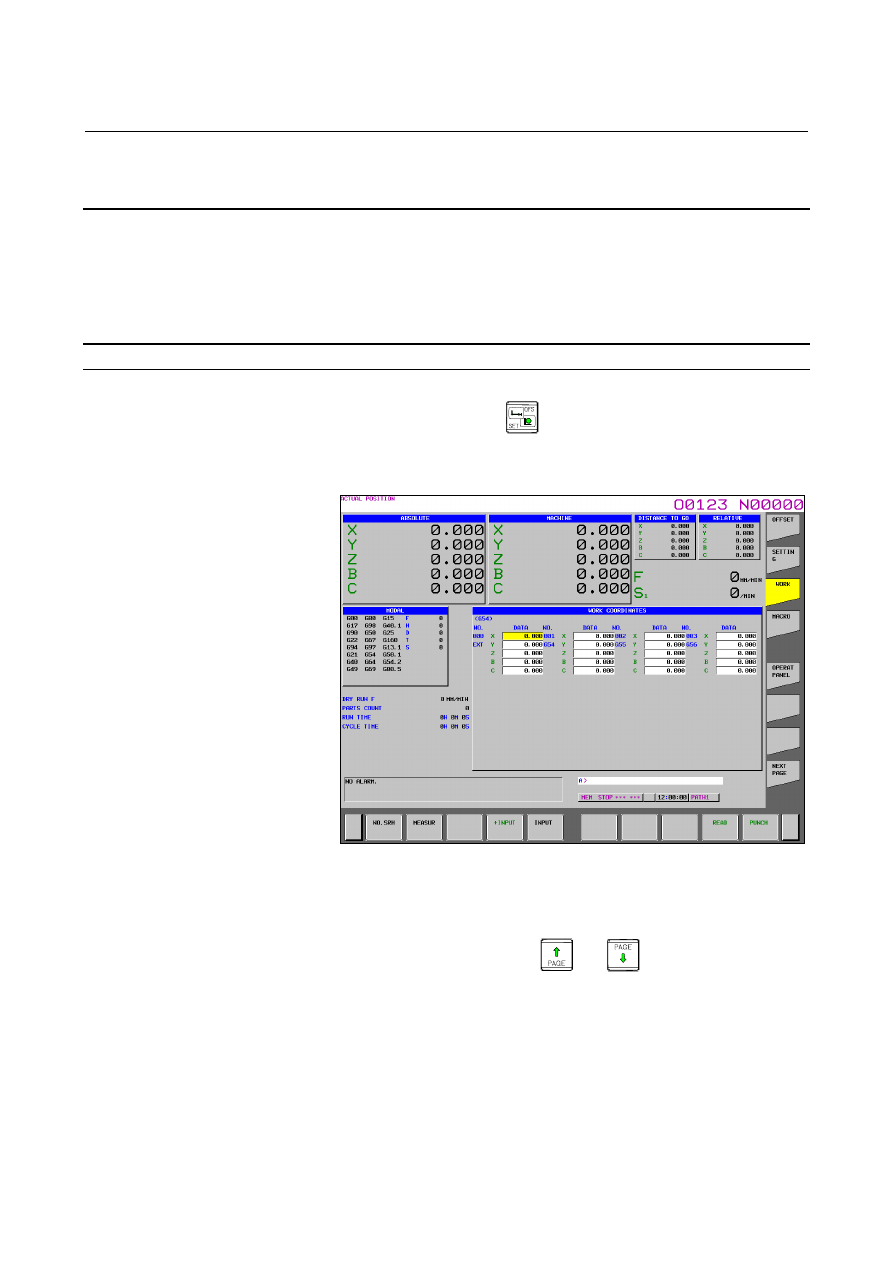

Fig. 12.3.19 (a) WORK COORDINATES screen (15-inch)

3 The screen for displaying the workpiece origin offset values

consists of two or more pages.

Display a desired page in either of the following two ways:

•

Press the page key

•

Enter the workpiece coordinate system number (0 : external
workpiece origin offset, 1 to 6: workpiece coordinate
systems G54 to G59, P1 to P48 : workpiece coordinate
systems G54.1 P1 to G54.1 P48, P1 to P300 : workpiece
coordinate systems G54.1 P1 to G54.1 P300) and press
horizontal soft key [NO.SRH].

Turn off the data protection key to enable writing.

Move the cursor to the workpiece origin offset to be changed.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1654 -

6 Enter a desired value by pressing numeric keys, then press

horizontal soft key [INPUT]. The entered value is specified in the
workpiece origin offset value. Or, by entering a desired value
with numeric keys and pressing horizontal soft key [+INPUT],
the entered value can be added to the previous offset value.

Repeat steps 5 and 6 to change other offset values.

Turn on the data protection key to disable writing.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1655 -

12.3.20

Direct Input of Workpiece Origin Offset Value Measured

(15-inch Display Unit)

This function is used to compensate for the difference between the
programmed workpiece coordinate system and the actual workpiece
coordinate system. The measured offset for the origin of the
workpiece coordinate system can be input on the screen such that the
command values match the actual dimensions.
Selecting the new coordinate system matches the programmed
coordinate system with the actual coordinate system.

Procedure for direct input of workpiece origin offset value measured

Procedure

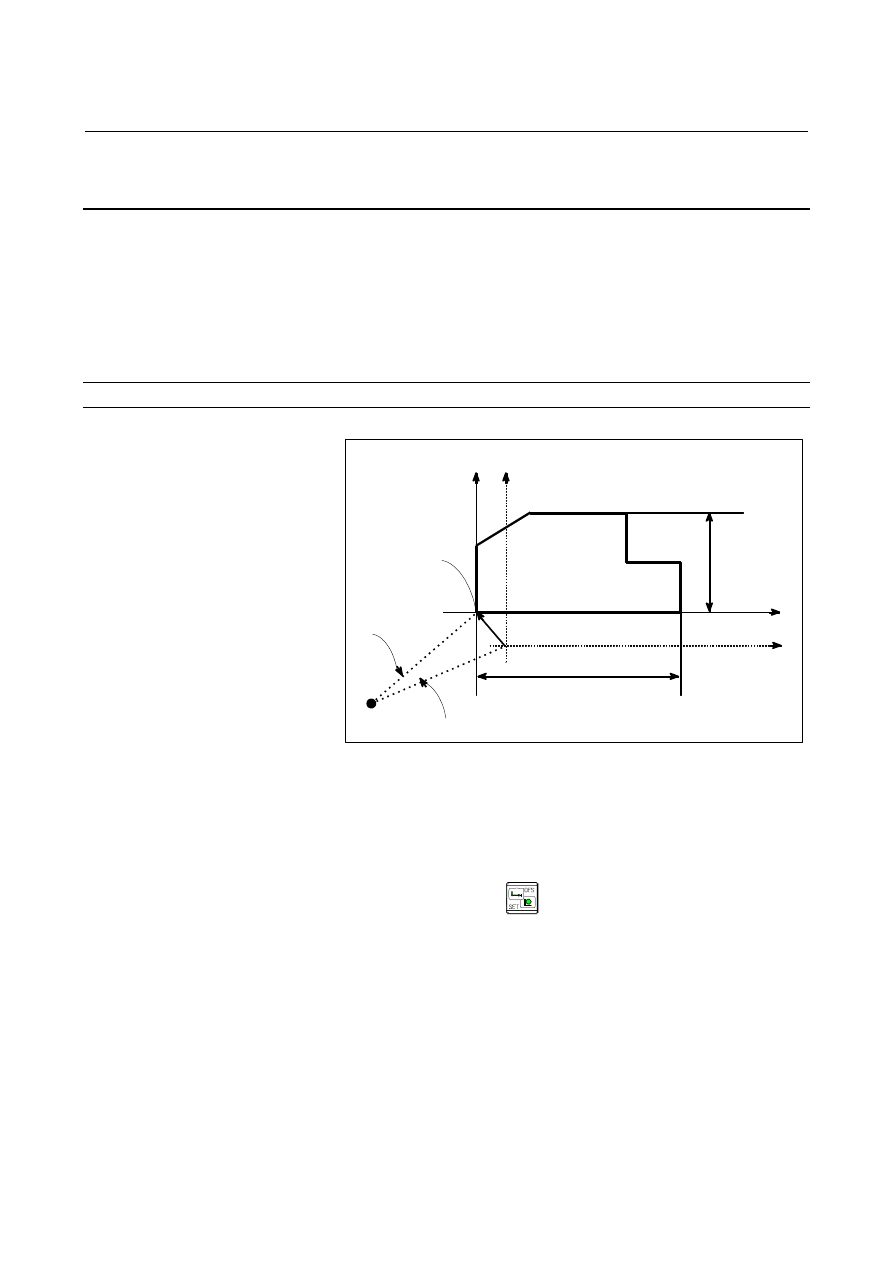

Programmed workpiece
origin

New offset

Previous offset

Origin

Surface A

Surface B

1 When the workpiece is shaped as shown above, position the

reference tool manually until it touches surface A of the
workpiece.

Retract the tool without changing the Y coordinate.

3 Measure

distance

between surface A and the programmed

origin of the workpiece coordinate system as shown above.

Press function key

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1656 -

5 To display the WORK COORDINATES screen, press vertical soft

key [WORK].

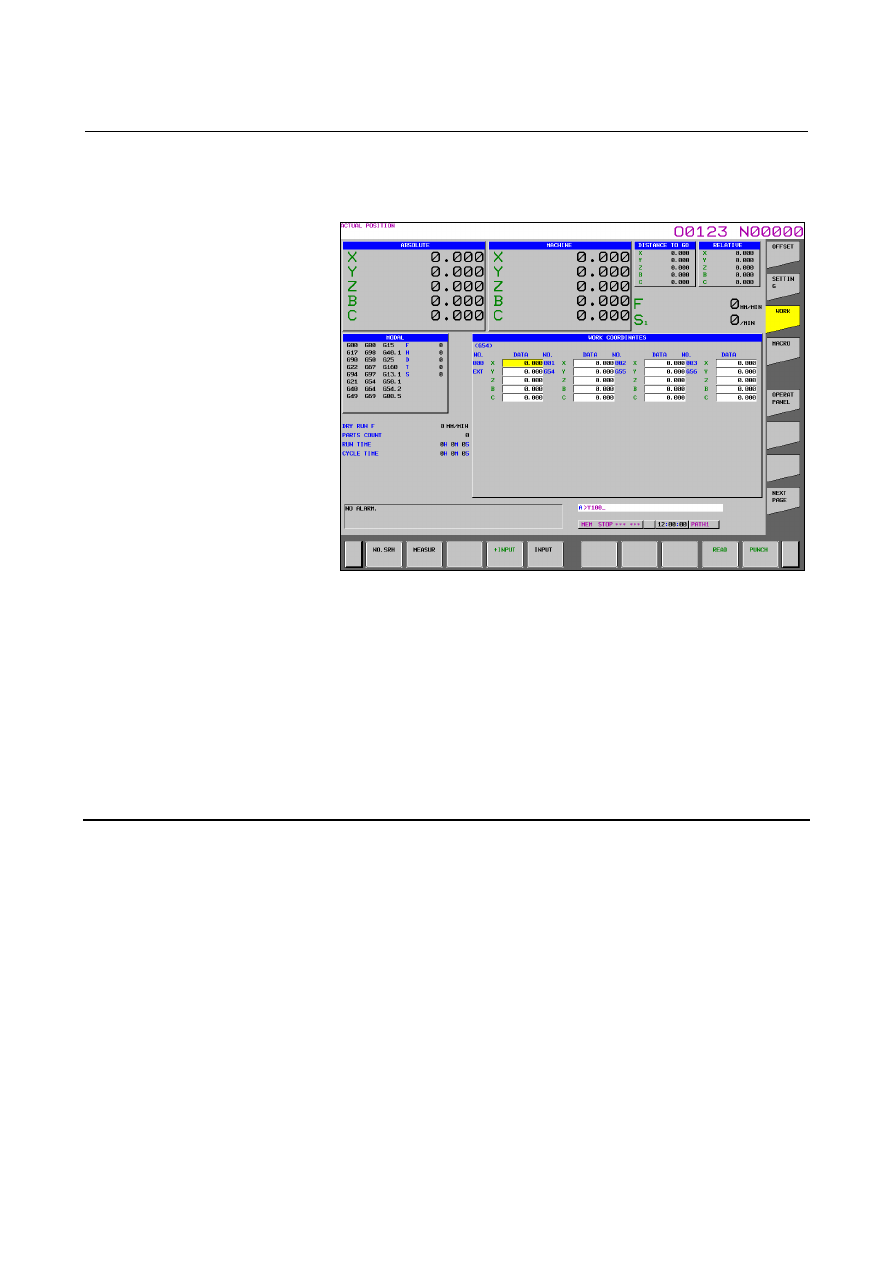

Fig. 12.3.20 (a) WORK COORDINATES screen (15-inch)

Position the cursor to the workpiece origin offset value to be set.

Press the address key for the axis along which the offset is to be
set (Y-axis in this example).

8 Enter the measured value (

) then press horizontal soft key

[MEASUR].

Move the reference tool manually until it touches surface B of
the workpiece.

10 Retract the tool without changing the X coordinate.
11 Enter the measured value of distance (

) to surface B as an X

value as with steps 7 and 8.

Limitation
- Consecutive input

Offsets for two or more axes cannot be input at the same time.

- During program execution

This function cannot be used while a program is being executed.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1657 -

12.3.21

Displaying and Setting Custom Macro Common Variables

(15-inch Display Unit)

Displays common variables (#100 to #149 or #100 to #199, and #500
to #531 or #500 to #999) on the screen.
The values for variables can be set on this screen.
Relative coordinates can also be set to variables.

Procedure for displaying and setting custom macro common variables

Procedure

Press function key

Press vertical soft key [MACRO].
The following screen is displayed.

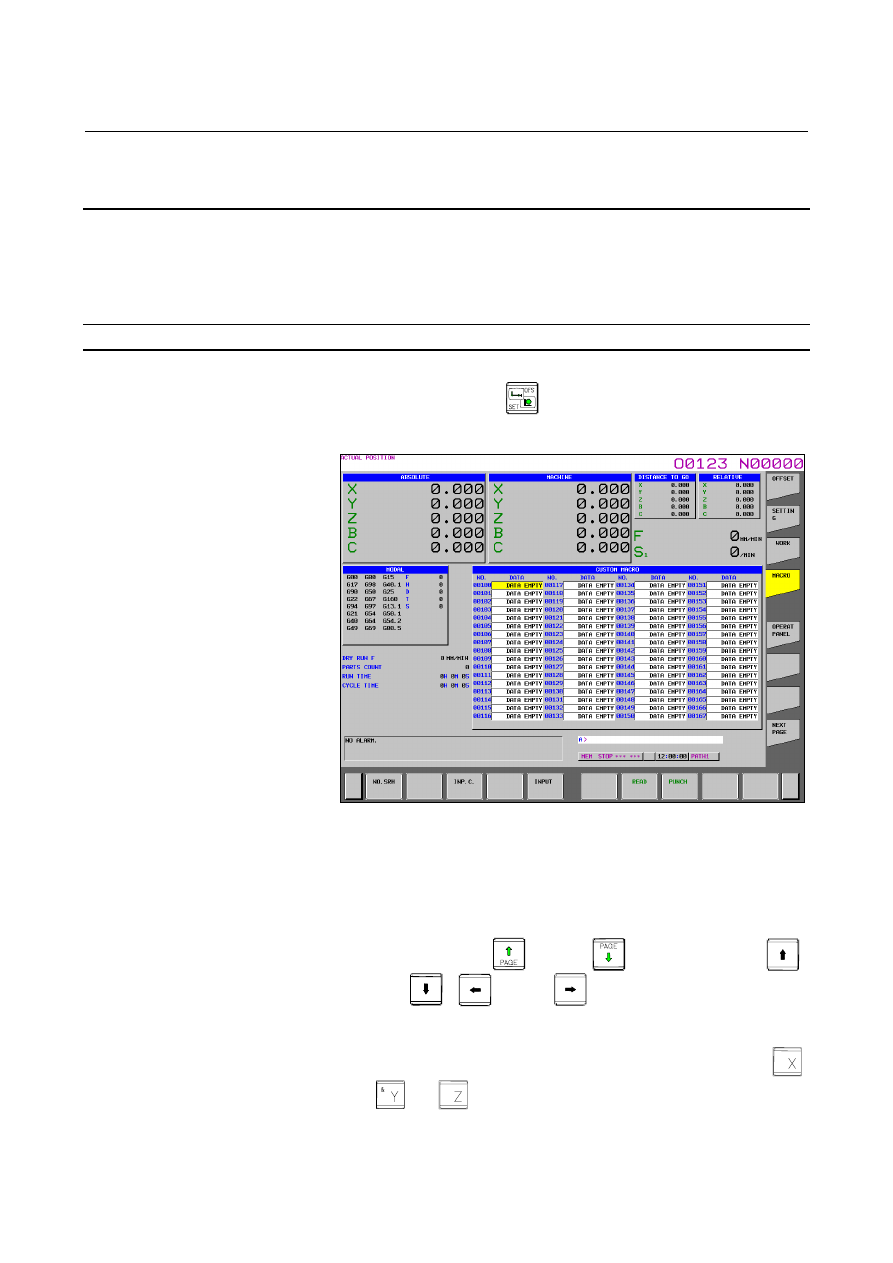

Fig. 12.3.21 (a) CUSTOM MACRO screen (15-inch)

3 Move the cursor to the variable number to set using either of the

following methods:

•

Enter the variable number and press horizontal soft key

[NO.SRH].

•

Move the cursor to the variable number to set by pressing

page keys

and/or

and cursor keys

, and/or

4 Enter data with numeric keys and press horizontal soft key

[INPUT].

5 To set a relative coordinate in a variable, press address key

, or

, then press horizontal soft key [INP.C.].

6 To set a blank in a variable, just press horizontal soft key

[INPUT]. The value field for the variable becomes blank.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1658 -

Explanation

If the value of a variable produced by an operation is not displayable,
an indication below is provided.
When the significant number of digits is 12 (with bit 0 (F16) of
parameter No. 6008 set to 0):

Variable value range

Variable value indication

0 < Variable value < +0.00000000001

+Underflow

0 > Variable value > -0.00000000001

-Underflow

Variable value > 999999999999

+Overflow

Variable value < -999999999999

-Overflow

When the significant number of digits is 8 (with bit 0 (F16) of
parameter No. 6008 set to 1):

Variable value range

Variable value indication

0 < Variable value < +0.0000001

+Underflow

0 > Variable value > -0.0000001

-Underflow

Variable value > 99999999

+Overflow

Variable value < -99999999

-Overflow

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1659 -

12.3.22

Displaying and Setting Real Time Custom Macro Data

(15-inch Display Unit)

Real time macro variables (RTM variables) are dedicated to real time
custom macros.
RTM variables are divided into temporary real time macro variables
(temporary RTM variables) and permanent real time macro variables
(permanent RTM variables).
The values of permanent RTM variables are kept stored after the
power is turned off.
Temporary RTM variables are cleared to 0 when the power is turned
off.

System variables (DI/DO variables) dedicated to real time custom
macros are used to read and write PMC interface signals. Data can be
read and written in bit and byte units. Before writing a signal, release
the protection of the corresponding variable on the PMC signal protect
screen.

Displaying and setting real time custom macro variables

Procedure

Press function key

2 Press vertical soft key [NEXT PAGE] several times and then

vertical soft key [R.TIME MACRO]. The screen shown below
appears.

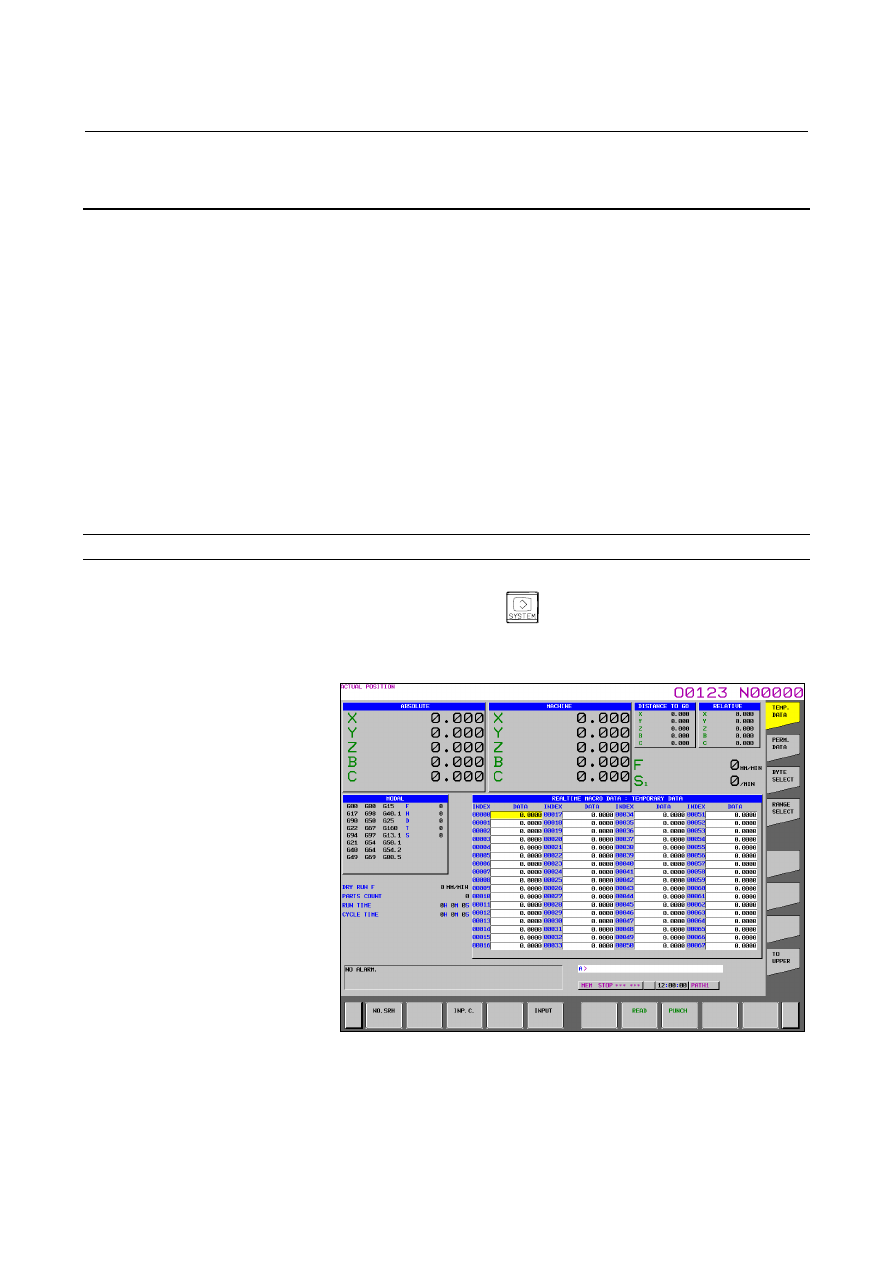

Fig. 12.3.22 (a) REAL TIME MACRO screen (15-inch)

3 To display or set real time custom macro variables of which

values are not stored at power-off, press vertical soft key [TEMP.
DATA].
