12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1572 -

12.3.29 Displaying and Setting Workpiece Setting Error

Compensation Data (15-inch Display Unit).......................1716

12.3.30 Displaying and Setting Pattern Data Inputs

(15-inch Display Unit) .......................................................1718



Screens of a 7.2/8.4/10.4-inch display unit

Press function key

  to display or set tool compensation values

and other data.
This section describes how to display or set the following data:
1.  Tool compensation value
2. Settings
3.  Sequence number comparison and stop
4.  Run time and part count
5.  Workpiece origin offset value
6.  Custom macro common variables
7.  Software operator’s panel
8.  Tool management data
9.  Display language switching
10.  Protection of data at eight levels
11.  Precision level selection
12.  Tool life management data
13.  Workpiece setting error compensation data
14.  Pattern data input

The software operator’s panel, display language switching, precision
level selection, and pattern data input depend on the specifications of
the machine tool builder. See the manual issued by the machine tool
builder for details.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1573 -

12.3.1

Displaying and Entering Setting Data


Data such as the TV check flag and punch code is set on the setting
data screen. On this screen, the operator can also enable/disable
parameter writing, enable/disable the automatic insertion of sequence
numbers in program editing, and perform settings for the sequence
number comparison and stop function.
See III-9.2 for automatic insertion of sequence numbers.
See III-12.3.2 for the sequence number comparison and stop function.
This subsection describes how to set data.


Procedure for setting the setting data

Procedure

1

Select the MDI mode.

2

Press function key

.

3

Press soft key [SETTING] to display the setting data screen.

This screen consists of several pages.
Press page key

 or

  until the desired screen is displayed.

An example of the setting data screen is shown below.



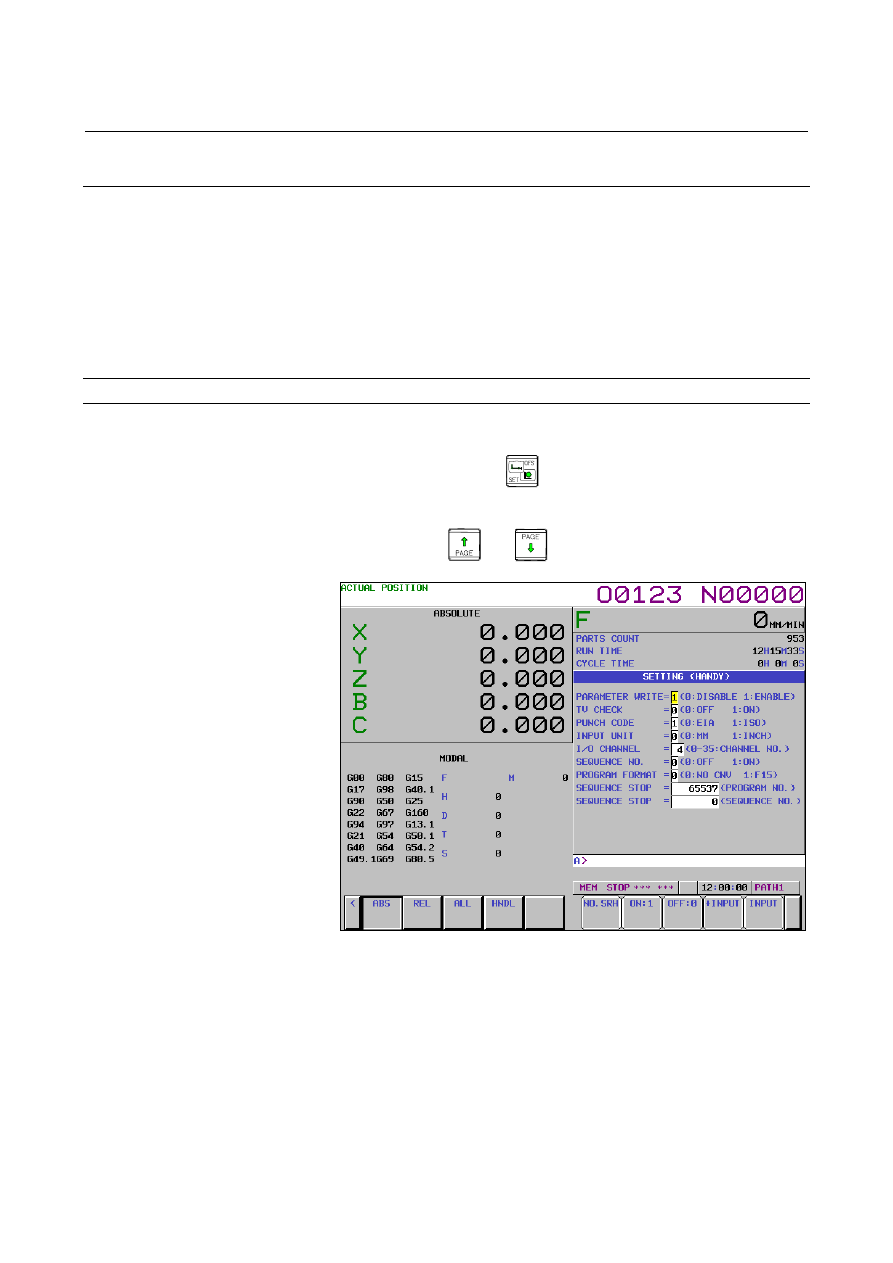

Fig. 12.3.1 (a) SETTING (HANDY) screen (10.4-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1574 -



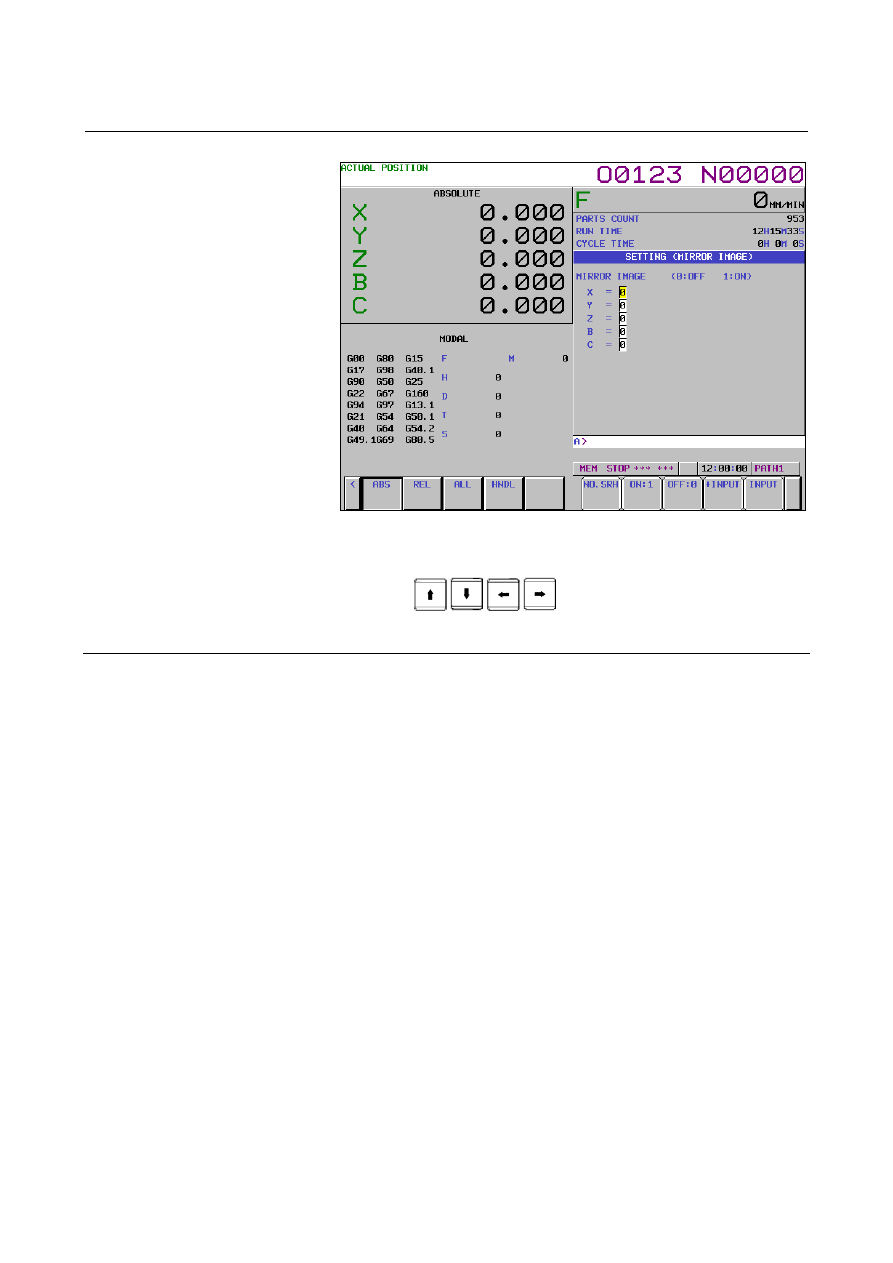

Fig. 12.3.1 (b) SETTING (MIRROR IMAGE) screen (10.4-inch)


4

Move the cursor to the item to be changed by pressing cursor

keys

.

5

Enter a new value and press soft key [INPUT].



Explanation
 - PARAMETER WRITE

Setting whether parameter writing is enabled or disabled.
0 : Disabled
1 : Enabled


 - TV CHECK

Setting to perform TV check.
0 : No TV check
1 : Perform TV check


 - PUNCH CODE

Setting code when data is output through reader/puncher interface.
0 : EIA code output
1 : ISO code output



 - INPUT UNIT

Setting a program input unit, inch or metric system
0 :  Metric
1 :  Inch


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1575 -

 - I/O CHANNEL

Using channel of reader/puncher interface.
0 :  Channel 0
1 :  Channel 1
2 :  Channel 2


 - SEQUENCE NO.

Setting of whether to perform automatic insertion of the sequence
number or not at program edit in the EDIT mode.
0 : Does not perform automatic sequence number insertion.
1 : Perform automatic sequence number insertion.

 - PROGRAM FORMAT

Setting of whether to use the Series 15 format.
0:    Uses the standard format.
1:    Uses the Series 15 format.
For the Series 15 format, refer to Chapter II-6 in the User’s Manual (T
series) or Chapter II-7 of Part II in the User’s Manual (M series).

 - SEQUENCE STOP

Setting the sequence number with which the operation stops for the
sequence number comparison and stop function and the number of the
program to which the sequence number belongs

 - MIRROR IMAGE

Setting of mirror image ON/OFF for each axes.
0 : Mirror image off
1 : Mirror image on


 - Others

Page key

 or

 can also be pressed to display the

SETTING (TIMER) screen. See III-12.3.3 for this screen.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1576 -

12.3.2

Sequence Number Comparison and Stop


If a block containing a specified sequence number appears in the
program being executed, operation enters single block mode after the
block is executed.


Procedure for sequence number comparison and stop

Procedure

1

Select the MDI mode.

2

Press function key

.

3

Press chapter selection soft key [SETTING].

4

Press page key

 or

  several times until the following

screen is displayed.



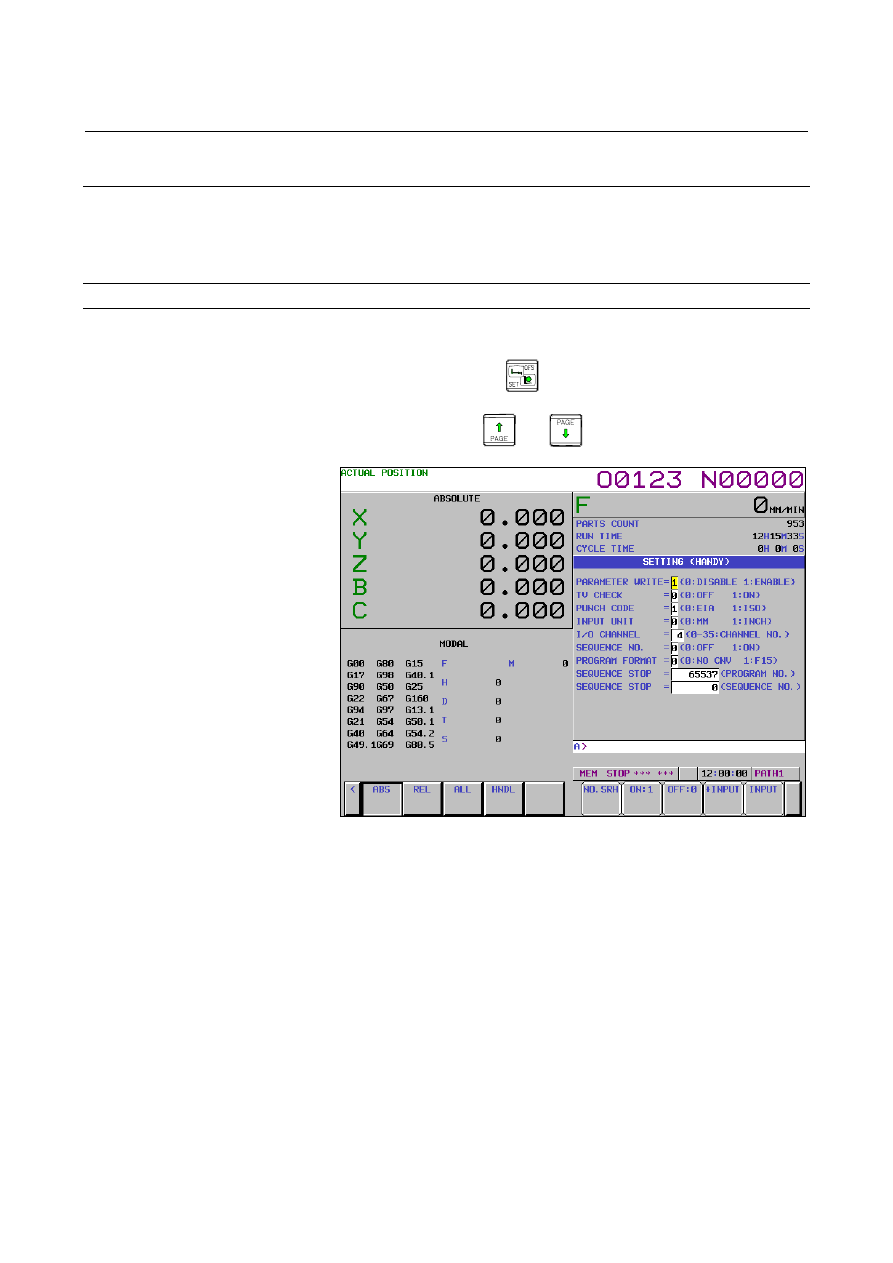

Fig. 12.3.2 (a) SETTING (HANDY) screen (10.4-inch)


5

Enter in (PROGRAM NO.) for SEQUENCE STOP the number
(1 to 99999999) of the program containing the sequence number
with which operation stops.

6

Enter in (SEQUENCE NO.) for SEQUENCE STOP (with eight
or less digits) the sequence number with which operation is
stopped.

7

When automatic operation is executed, operation enters single
block mode at the block containing the sequence number which
has been set.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1577 -

Explanation
  - Sequence number after the program is executed

After the specified sequence number is found during the execution of
the program, the sequence number settting for sequence number
compensation and stop becomes “-1”.


 - Exceptional blocks

If the predetermined sequence number is found in a block in which all
commands are those to be processed within the CNC control unit, the
execution does not stop at that block.

[Example]  N1 #1=1 ;
N2 IF[#1 EQ 1]GOTO 08 ;
N3 GOTO 09 ;
N4 M98 P1000 ;
N5 M99 ;



In the example shown above, if the predetermined sequence number is
found, the execution of the program does not stop.


  - Stop in the canned cycle

If the predetermined sequence number is found in a block which has a
canned cycle command, the execution of the program stops after the
return operation is completed.


  - When the same sequence number is found several times in the program

If the predetermined sequence number appears twice or more in a
program, the execution of the program stops after the block in which
the predetermined sequence number is found for the first time is
executed.


  - Block to be repeated a specified number of times

If the predetermined sequence number is found in a block which is to
be executed repeatedly, the execution of the program stops after the
block is executed specified times.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1578 -

12.3.3

Displaying and Setting Run Time, Parts Count, and Time


Various run times, the total number of machined parts, number of
parts required, and number of machined parts can be displayed.
This data can be set by parameters or on this screen (except for the
total number of machined parts and the time during which the power
is on, which can be set only by parameters).
This screen can also display the clock time. The time can be set on the
screen.


Procedure for Displaying and Setting Run Time, Parts Count and Time

Procedure

1

Select the MDI mode.

2

Press function key

.

3

Press chapter selection soft key [SETTING].

4

Press page key

 or

  several times until the following

screen is displayed.





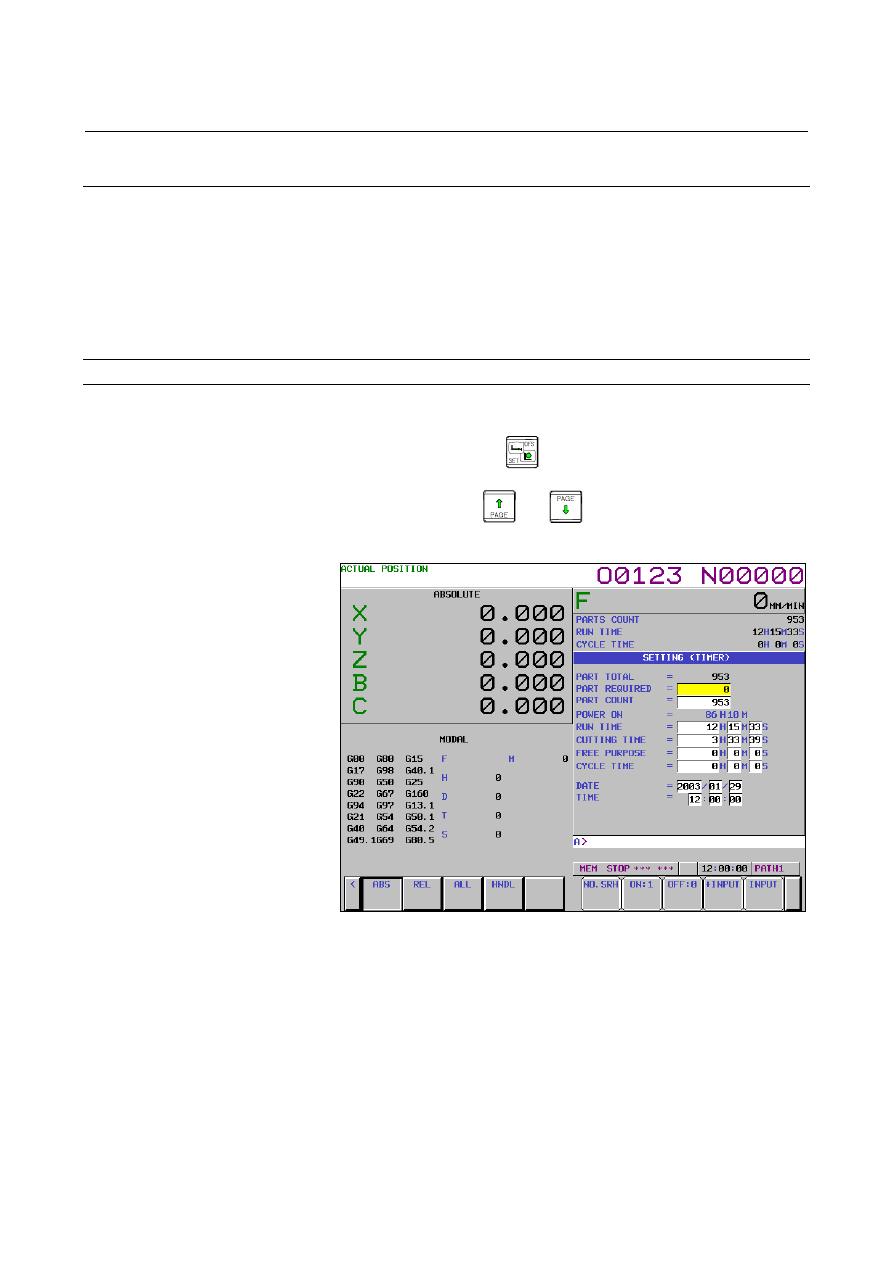

Fig. 12.3.3 (a) SETTING (TIMER) screen (10.4-inch)


5

To set the number of parts required, move the cursor to PARTS
REQUIRED and enter the number of parts to be machined.

6

To set the clock, move the cursor to DATE or TIME, enter a new
date or time, then press soft key [INPUT].



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1579 -

Explanation
 - PARTS TOTAL

This value is incremented by one when M02, M30, or an M code
specified by parameter No. 6710 is executed. This value cannot be set
on this screen. Set the value in parameter No. 6712.


 - PARTS REQUIRED

It is used for setting the number of machined parts required.
When the “0” is set to it, there is no limitation to the number of parts.
Also, its setting can be made by the parameter No 6713.


 - PARTS COUNT

This value is incremented by one when M02, M30, or an M code
specified by parameter No. 6710 is executed. The value can also be set
by parameter No. 6711. In general, this value is reset when it reaches
the number of parts required. Refer to the manual issued by the
machine tool builder for details.


 - POWER ON

Displays the total time which the power is on. This value cannot be set
on this screen but can be preset in parameter No. 6750.


 - RUN TIME

Indicates the total run time during automatic operation, excluding the
stop and feed hold time.
This value can be preset in parameter No. 6751 or No. 6752.


 - CUTTING TIME

Displays the total time taken by cutting that involves cutting feed such
as linear interpolation (G01) and circular interpolation (G02 or G03).
This value can be preset in parameter No. 6753 or No. 6754.


 - FREE PURPOSE

This value can be used, for example, as the total time during which
coolant flows. Refer to the manual issued by the machine tool builder
for details.


 - CYCLE TIME

Indicates the run time of one automatic operation, excluding the stop
and feed hold time. This is automatically preset to 0 when a cycle start
is performed at reset state. It is preset to 0 even when power is
removed.


  - DATA and TIME

Displays the current date and time. The date and time can be set on
this screen.
