5.TEST OPERATION

 OPERATION

B-63944EN/03





- 1188 -

 WARNING

1  If the machine coordinate system is not

established, a stroke limit check is not performed
correctly.    When a reference position return is
completed after power-on, perform a high speed
program check.

2  When the width of the prohibited area is small in a

stored stroke limit 2 and 3 check and rotation area
interference check, if a command to intersect the
prohibited area in one block is issued, the stroke
limit may not be detected.    This means that a
program not causing a stroke check alarm in a high
speed program check may cause an alarm in
actual operation.



  - Program Check Feedrate

During the high speed program check mode, the feedrate of program
execution becomes the maximum feedrate of CNC system regardless
of the specified feedrate.
The feedrate clamp, override and dry run are not effective.

The execution speed of circular interpolation, involute interpolation,
spiral/conical interpolation, and NURBS interpolation can be selected
by bit 7 (PGF) of parameter No. 1490 from the maximum speed and
dry run speed.


NOTE

1  The execution time of dwell is the same as a

normal operation.

2  The PS011 alarm occurs when there is no F

command in a normal operation. However, it is
executed at maximum speed without the alarm in
the high speed program check mode even if there
is no F command.



  - Workpiece Coordinate System Preset

Upon completion of the high speed program check mode, the
workpiece coordinate system is automatically preset.  This enables
program operation without making a reference position return upon
completion of a program check.  For details, refer to the manual
provided by the machine tool builder.


B-63944EN/03

 OPERATION

5.TEST OPERATION





- 1189 -

 WARNING



When the coordinate system is set before the high
speed program check mode is turned on by the
work coordinate system setting G92 (machining
center system and G code system B or C of the
lathe system), G50 (G code system A of the lathe
system) and the local coordinate system setting
G52, their setting values are deleted by the
execution of the work coordinate system preset.



  - Machine Coordinate Display For Program Check

During the high speed program check mode, it is possible to change
the display of machine coordinates from the actual machine
coordinates to the machine coordinates for the program check by
setting bit 7 (PGM) of parameter No.11320.
And it is possible to change the display of machine coordinate for
each axis from the actual machine coordinate to the machine
coordinate for the program check by setting bit 4 (PGA) of parameter
No.3115.


 - Tool life

If tool life management command or tool management command is
specified during the high speed program check mode, tool life is not
counted.



 - Unavailable command

Following functions can not be specified during the high speed
program check mode. If the following functions are specified, the
alarm PS5364 occurs.

•



High speed cycle cutting

•

 Chopping



As for the chopping by the input signal:



The alarm PS5364 occurs when the program check is started
during the chopping by the input signal.



The alarm PS5364 occurs when the chopping by the input signal
is started at the program check execution.

•



Simple electronic gear box



・

Commands not covered by a high speed program check

Auxiliary functions and other commands are not covered by a high
speed program check.  For details, refer to the manual provided by
the machine tool builder.



6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1190 -

6

SAFETY FUNCTIONS


To immediately stop the machine for safety, press the Emergency stop
button. To prevent the tool from exceeding the stroke ends, Overtravel
check and Stored stroke check are available. This chapter describes
emergency stop, overtravel check, and stored stroke check.

Chapter 6, "SAFETY FUNCTIONS", consists of the following
sections:

6.1 EMERGENCY STOP .............................................................1191
6.2 OVERTRAVEL ......................................................................1192
6.3  STORED STROKE CHECK ..................................................1193
6.4  STROKE LIMIT CHECK BEFORE MOVE..........................1198
6.5  WRONG OPERATION PREVENTION FUNCTIONS.........1201


B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1191 -

6.1

EMERGENCY STOP


If you press Emergency Stop button on the machine operator's panel,
the machine movement stops in a moment.

EMERGENCY STOP

Red



Fig. 6.1 (a)    Emergency stop


This button is locked when it is pressed. Although it varies with the
machine tool builder, the button can usually be unlocked by twisting
it.


Explanation

EMERGENCY STOP interrupts the current to the motor.
Causes of trouble must be removed before the button is released.


6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1192 -

6.2

OVERTRAVEL


When the tool tries to move beyond the stroke end set by the machine
tool limit switch, the tool decelerates and stops because of working the
limit switch and an OVER TRAVEL is displayed.

Deceleration
and stop

Stroke end

Limit
switch

Y

X



Fig. 6.2 (a)    Overtravel



Explanation
  - Overtravel during automatic operation

When the tool touches a limit switch along an axis during automatic
operation, the tool is decelerated and stopped along all axes and an
overtravel alarm is displayed.


  - Overtravel during manual operation

In manual operation, the tool is decelerated and stopped only along the
axis for which the tool has touched a limit switch.  The tool still
moves along the other axes.


 - Releasing overtravel

Press the reset button to reset the alarm after    moving the tool to the
safety direction by manual operation.    For details on operation, refer
to the operator's manual of the machine tool builder.


Alarm

Table6.2 (a)

Alarm No.

Message

Description

OT0506

+ OVERTRAVEL ( HARD )

The stroke limit switch in the positive direction was triggered.
This alarm is generated when the machine reaches the stroke end.
When this alarm is not generated, feed of all axes is stopped during
automatic operation. During manual operation, only the feed of the axis
on which the alarm occurred is stopped.

OT0507

- OVERTRAVEL ( HARD )

The stroke limit switch in the negative direction was triggered.
This alarm is generated when the machine reaches the stroke end.
When this alarm is not generated, feed of all axes is stopped during
automatic operation. During manual operation, only the feed of the axis
on which the alarm occurred is stopped.



B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1193 -

6.3

STORED STROKE CHECK


Three areas which the tool cannot enter can be specified with stored
stroke check 1, stored stroke check 2, and stored stroke check 3.

Stored stroke check 1

Stored
stroke
check 2

Stored stroke check 3

  : Forbidden area for the tool



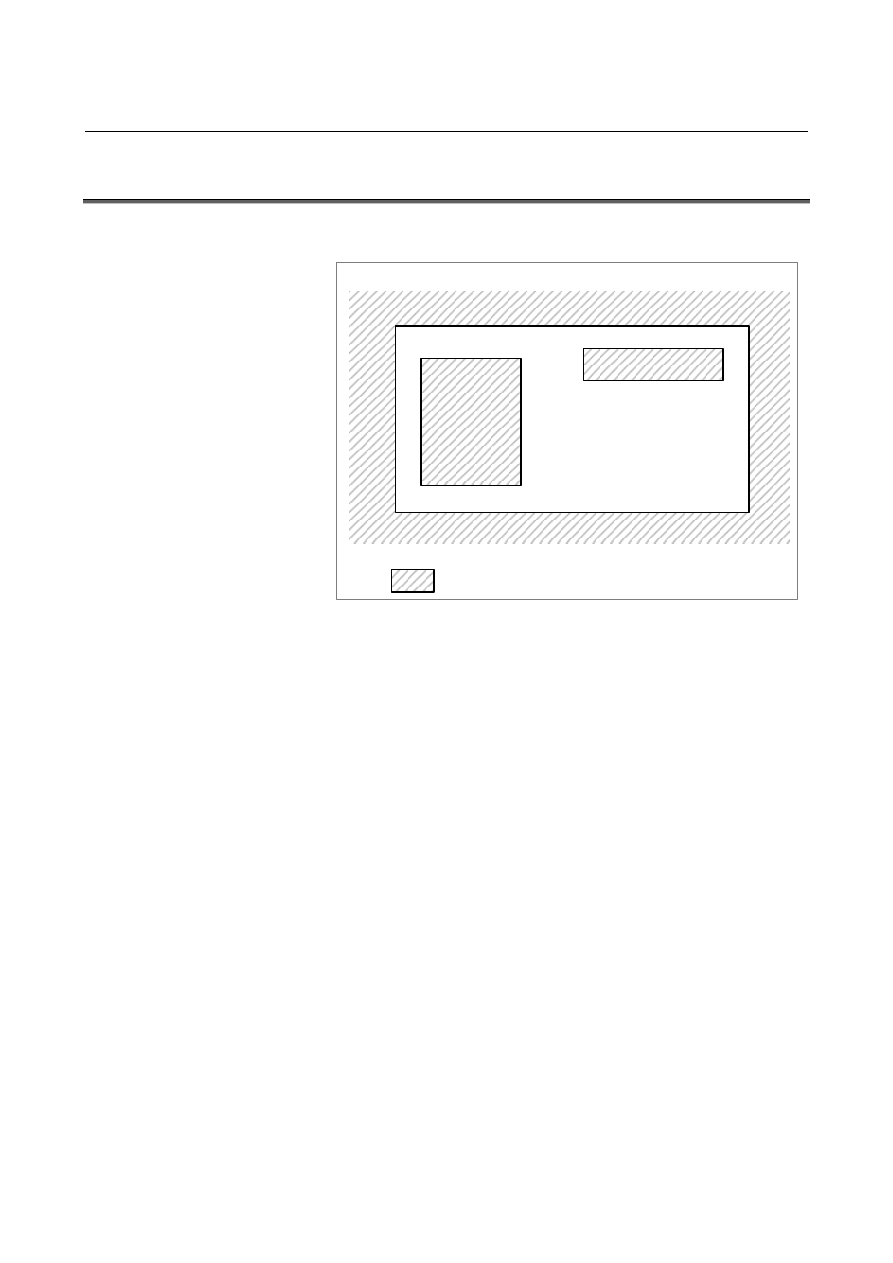

Fig. 6.3 (a)    Stroke check


The following shows the areas which the tool cannot enter for each
stored stroke check.

•

  Stored stroke check 1:    Outside

•

  Stored stroke check 2:    Outside or inside (switchable)

•

  Stored stroke check 3:    Inside

When the tool moves into the forbidden area, an alarm is displayed
and the tool is decelerated and stopped.
When the tool enters a forbidden area and an alarm is generated, the
tool can be moved in the reverse direction from which the tool came.
The stored stroke check 2 and 3 functions are optional.

6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1194 -

Explanation

  - Stored stroke check 1

Parameters (Nos. 1320, 1321 or Nos. 1326, 1327) set boundary.
Outside the area of the set limits is a forbidden area. The machine tool
builder usually sets this area as the maximum stroke.
When the tool enters a forbidden area and an alarm is generated, the
tool can be moved in the reverse direction from which the tool came.
At this time, a signal (overtravel alarm signal) can be output to the
PMC if bit 6 (OTS) of parameter No. 1301 is set to 1. In addition,
when the tool enters the forbidden area during manual operation, the
signal (overtravel alarm signal) can be output to the PMC without
generating the alarm by setting bit 1 (NAL) of parameter No. 1300 to
1. With this parameter setting, the alarm is generated when the tool
enters the forbidden area during automatic operation.


 CAUTION

1  If the two points for specifying a forbidden area are

identical, all areas are handled as forbidden areas
for stored stroke check 1.

2  The size of a forbidden area must be set carefully.

If the size is set incorrectly, the stroke becomes
infinite.



  - Stored stroke check 2

Parameters (Nos. 1322, 1323) or commands set these boundaries.
Inside or outside the area of the limit can be set as the forbidden area.
Parameter    OUT (No. 1300#0) selects either inside or outside as the
forbidden area.
In case of program command a G22 command forbids the tool to enter
the forbidden area, and a G23 command permits the tool to enter the
forbidden area.
Each of G22; and G23; should be commanded independently of
another commands in a block.
The command below creates or changes the forbidden area:

(I, J, K)

(X, Y, Z)

X>I, Y>J, Z>K

G 22X_Y_Z_I_J_K_;



Fig. 6.3 (b)    Creating or changing the forbidden area using a program



B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1195 -

When setting the area by parameters, points A and B in the figure
below must be set.

X1>X2, Y1>Y2, Z1>Z2

A(X1, Y1, Z1)

B(X2, Y2, Z2)



Fig. 6.3 (c)    Creating or changing the forbidden area using a parameters


The values X1, Y1, Z1, X2, Y2, and Z2, which are set by parameters
No. 1322 and No. 1323, must be specified by the distance from the
machine coordinate system (machine unit).    The values X, Y, Z, I, J,
and K, which are set by a G22 command, must be specified by the
distance in the least input increment (input unit).
Values set by a program are then converted in the machine increment
and the values are set as the parameters.


  - Stored stroke check 3

Set the boundary with parameters No. 1324 and 1325.  The area
inside the boundary becomes the forbidden area. The values X1, Y1,
Z1, X2, Y2, and Z2 must be set as coordinates (machine unit) in the
machine coordinate system.


 CAUTION

1  If the two points for specifying a forbidden area are

identical, all areas are handled as movable areas
for stored stroke check 2/3.

2  Even if the two points for specifying a forbidden

area are erroneously set, the rectangular
parallelepiped having the points as vertices is
assumed as a boundary.

3  Since an axis without the reference position return

function has no forbidden areas, there are no
alarms about forbidden areas for the axis.



  - Checkpoints in the forbidden area

The parameter setting or programmed value (XYZIJK) depends on
which part of the tool or tool holder is checked for entering the
forbidden area.
If point A (the top of the tool) is checked in Fig. 6.3(d), the distance
"a" should be set as the data for the stored stroke limit function.    If
point B (the tool chuck) is checked, the distance "b" must be set.
When checking the tool tip (like point A), and if the tool length varies
for each tool, setting the forbidden area for the longest tool requires no
re-setting and results in safe operation.















Content      ..     152      153      154      155     ..
