22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 924 -

  - Block immediately before the offset cancel command (G40)

In the block immediately before the offset cancel command (G40), a
compensation vector is created from the movement vector of that
block and the tool vector at the end point of the block as shown below.



Tool center path (path after compensation)

Programmed path

V

M1

V

M2

V

T1

V

C1

V

C2

V

T2

G40





Fig. 22.5.1.2 (f)   Block immediately before G40


The compensation vector (VC2) of block 2 is created in a plane
formed by the tool vector (VT2) at the end point of block 2 and the
movement vector (VM2) of block 2.    VC2 is perpendicular to VT2.


B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 925 -

  - Compensation performed when

θ

 is approximately 0

°

, 90

°

, or 180

°



When the included angle

θ

 between VMn+1 and VTn is regarded as

0

°

, 180

°

, or 90

°

, the compensation vector is created in a different way.

So, when creating a program, note the following points:

<1>  Setting a variation range for determining

θ

 to be 0

°

, 180

°

, or 90

°





When the included angle (

θ

) between the tool vector (VTn) and

movement vector (VMn+1) becomes approximately 0

°

, 180

°

, or

90

°

, the system regards

θ

 as 0

°

, 180

°

, or 90

°

, respectively, then

creates a compensation vector which is different from the normal
compensation vector.    The variation range used for determining

θ

  to  be  0

°

, 180

°

, and 90

°

 is set in parameter No. 19631.  For

example, let the angle set in this parameter be

∆θ

.  Then, the

system regards

θ

 as follows:



(1) If 0

≤



θ



≤



∆θ

 ,

θ

 is regarded as 0

°

.



θ

∆θ

V



Tn



V



Mn+1





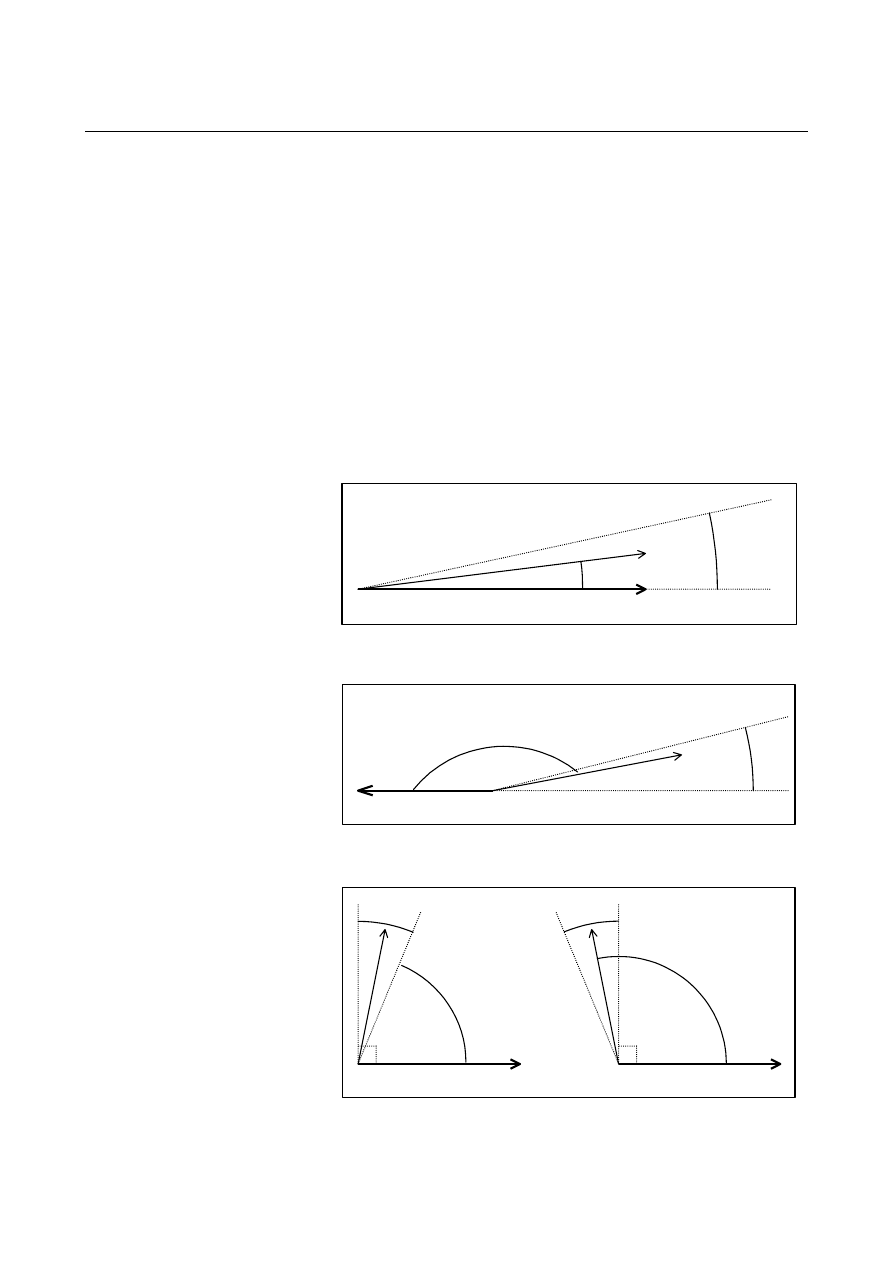

Fig. 22.5.1.2 (g)  Determination of

θ

 = 0

°





(2)  If (180 -

∆θ

)

≤



θ



≤

 180,

θ

 is regarded as 180

°

.



θ

∆θ

V



Tn



V

Mn+1



Fig. 22.5.1.2 (h)  Determination of

θ

 = 180

°





(3) If

(90

−



∆θ

)

≤



θ



≤

 (90 +

∆θ

),

θ

 is regarded as 90

°

.



θ

∆θ

V



Tn

V

Mn+1

θ



∆θ

V

Tn

V



Mn+1





Fig. 22.5.1.2 (i)    Determination of

θ

 = 90

°





22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 926 -

<2>  Compensation vector when

θ

 is regarded as 0

°

 or 180

°





At startup (when G41.3 is specified), alarm PS5408 is issued.



This means that the tool vector of a block and the movement
vector of the next block must not point in the same direction or in
opposite directions at startup.



At other than startup, the previously created compensation vector
is maintained without change.



If the included angles between VT2 and VM3, VT3 and VM4,
and VT4 and VM5 are regarded as 0

°

, compensation vector VC1

of block 1 is maintained as compensation vectors VC2, VC3, and
VC4 of blocks 2, 3, and 4, respectively.

Tool center path

(path after compensation)

Programmed
path

V

M

V

M

V

T1

V

C

V

C

V

T2

V

M

3

V

T3

V

M

V

C

V

C

V

M

V

M

V

T4

V

C

V

T5



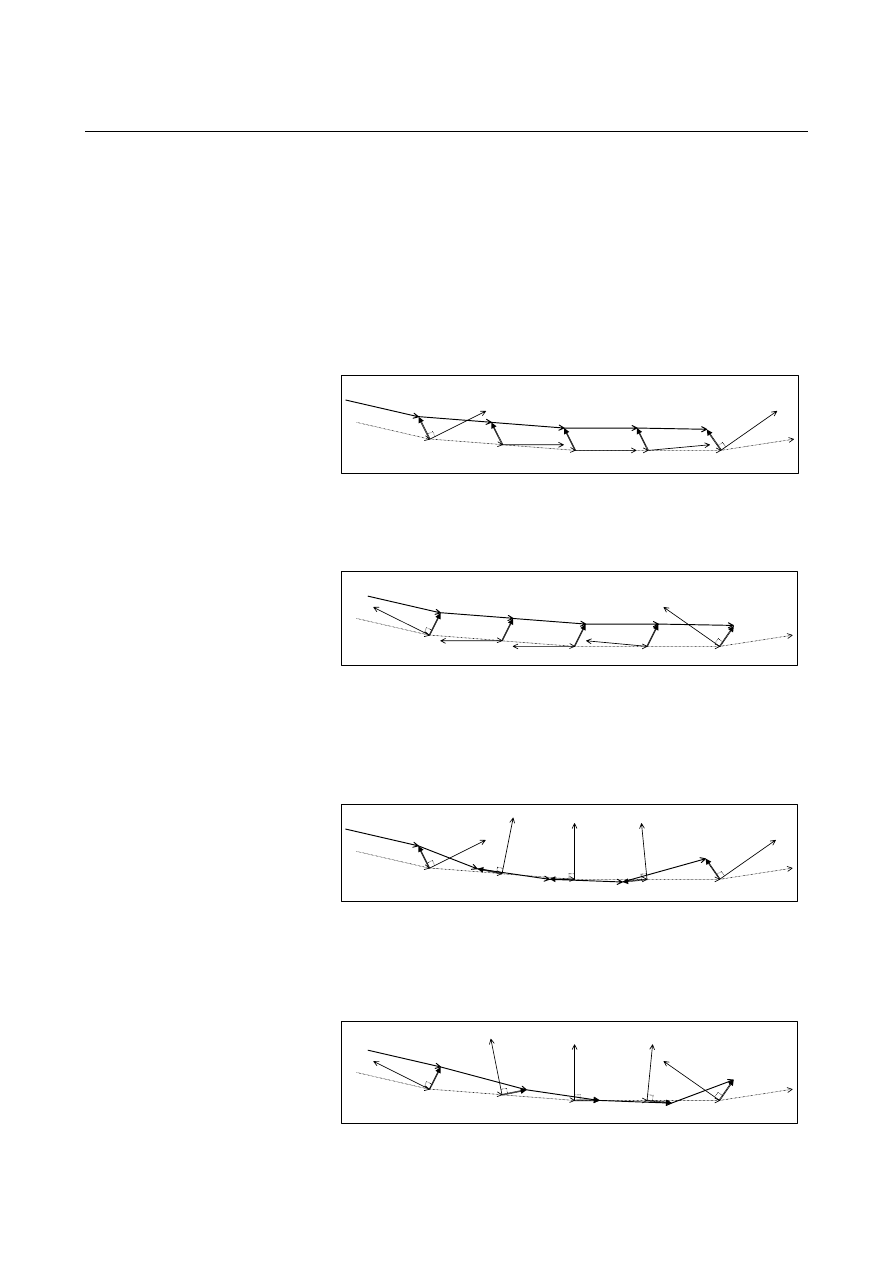

Fig. 22.5.1.2 (j)    When

θ

 = 0

°

 is determined



If the included angles between VT2 and VM3, VT3 and VM4,
and VT4 and VM5 are regarded as 180

°

, compensation vector

VC1 of block 1 is maintained as compensation vectors VC2,
VC3, and VC4 of blocks 2, 3, and 4, respectively.

Tool center path

(path after compensation)

Programmed
path

V

M

V

M

V

T1

V

C

V

C

V

T2

V

M

V

T3

V

M

V

C

V

C

V

M

V

M

V

T4

V

C

V

T5



Fig. 22.5.1.2 (k)  When

θ

 = 180

°

 is determined

<3>  Compensation vector when

θ

 is regarded as 90

°





If the previous compensation vector (VCn-1) points in the
opposite direction ((VMn

×

 VTn-1)

×

 VTn-1 direction) to VMn

with respect to VTn-1, the current compensation vector (VCn) is
created so that it also points in the (VMn+1

×

 VTn)

×

 VTn

direction.

Tool center path

(path after compensation)

Programmed
path

V

M

V

M

V

T1

V

C

V

C

V

T2

V

M

V

T3

V

M

V

C

V

C

V

M

V

M

6

V

T4

V

C

V

T5



Fig. 22.5.1.2 (l)  When

θ

 = 90

°

 is determined 1



If the previous compensation vector (VCn-1) points in the same
direction (-(VMn

×

 VTn-1)

×

 VTn-1 direction) as VMn with

respect to VTn-1, the current compensation vector (VCn) is
created so that it also points in the -(VMn+1

×

 VTn)

×

 VTn

direction.

Tool center path

(path after compensation)

Programmed
path

V

M

V

M

V

T1

V

C

V

C

V

T2

V

M

V

T3

V

M

V

C

V

C

V

M

V

M

V

T4

V

C

V

T5



Fig. 22.5.1.2 (m)  When

θ

 = 90

°

 is determined 2

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 927 -

22.5.1.3

Tool tip position (cutting point) command



Overview

For machines having a rotary axis for rotating a tool, this function
performs 3-dimensional cutter compensation at the tool tip position if
a programmed point is specified with a pivot point.
When this function is used, the programmed point (pivot point) is
converted into a tool tip position (cutting point) and a vector of
3-dimensional cutter compensation is calculated for the position
obtained by the conversion.  Then, the programmed point (pivot
point) is compensated for with the vector of 3-dimensional cutter
compensation.
If the tool side offset (G41.2/G42.2) of 3-dimensional cutter
compensation is performed, the operation of this function is as
follows:

(1)  If parameter No. 19632 is 0

The vector of 3-dimensional cutter compensation is calculated at
the programmed point (pivot point).

(2)  If parameter No. 19632 is not 0 (this function)

The vector of 3-dimensional cutter compensation is calculated at
the tool tip position (cutting point).



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 928 -

Explanation
 - Operation explanation

This function calculates a vector at the tool tip position for the
3-dimensional cutter compensation function as described below.

(1)  Convert the programmed coordinates from a programmed point

(pivot point) to a tool tip position (cutting point).    Parameter No.
19632 is used to store the distance from the programmed point
(pivot point) to the tool tip position (cutting point).

(2)  Calculate a vector of 3-dimensional cutter compensation at the

tool tip position (cutting point).

(3)  Add the cutter compensation vector to the programmed point

(pivot point).

Programmed point (pivot point)

Workpiece

Tool center

Tool side

Distance from programmed point
(pivot point) to cutting point
(parameter setting)

Vector from programmed point (pivot
point) to cutting point

Cutting point

Vector of three-dimensional cutter compensation conforming to this specification

Tool

Vector of conventional three-dimensional
cutter compensation conforming

Vector of
three-dimensional cutter
compensation conforming
to this specification



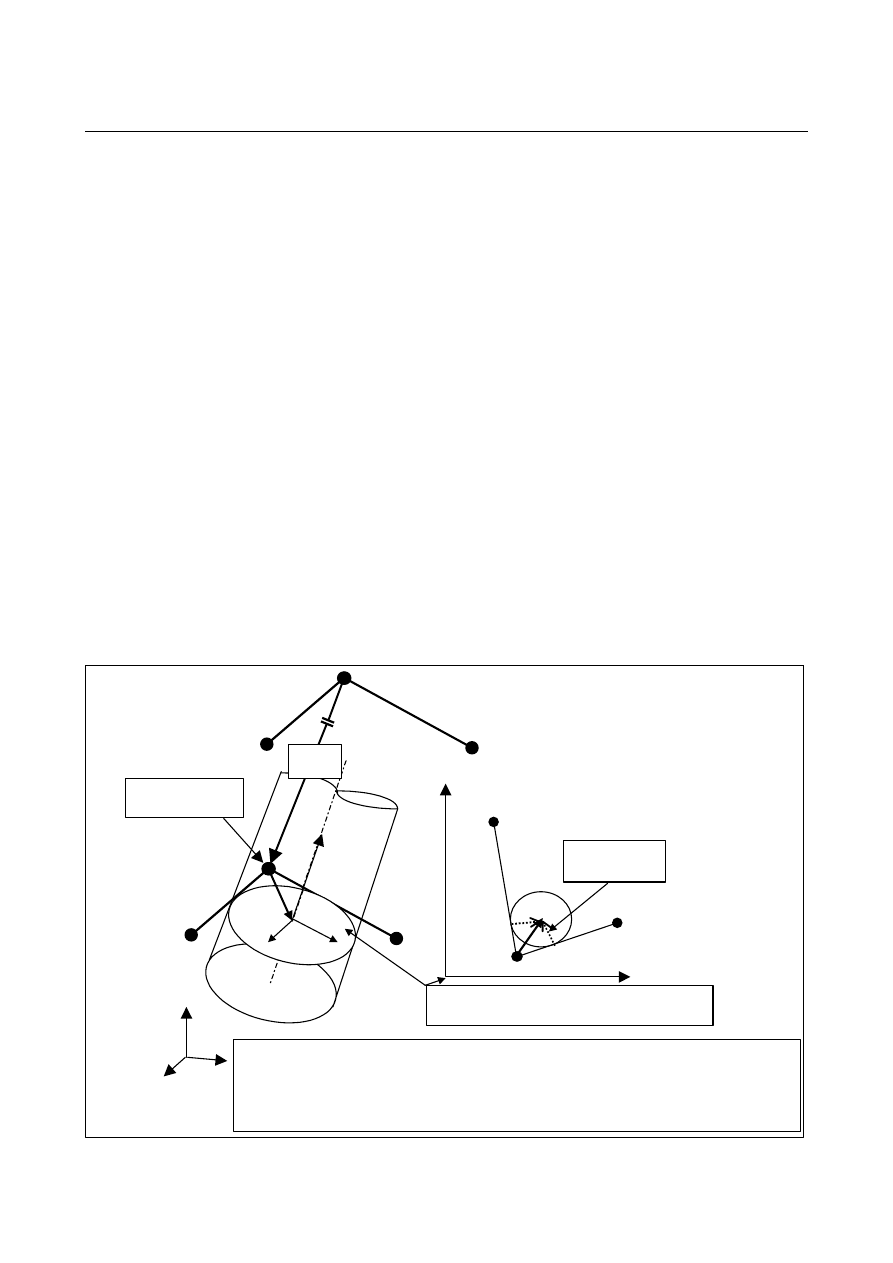

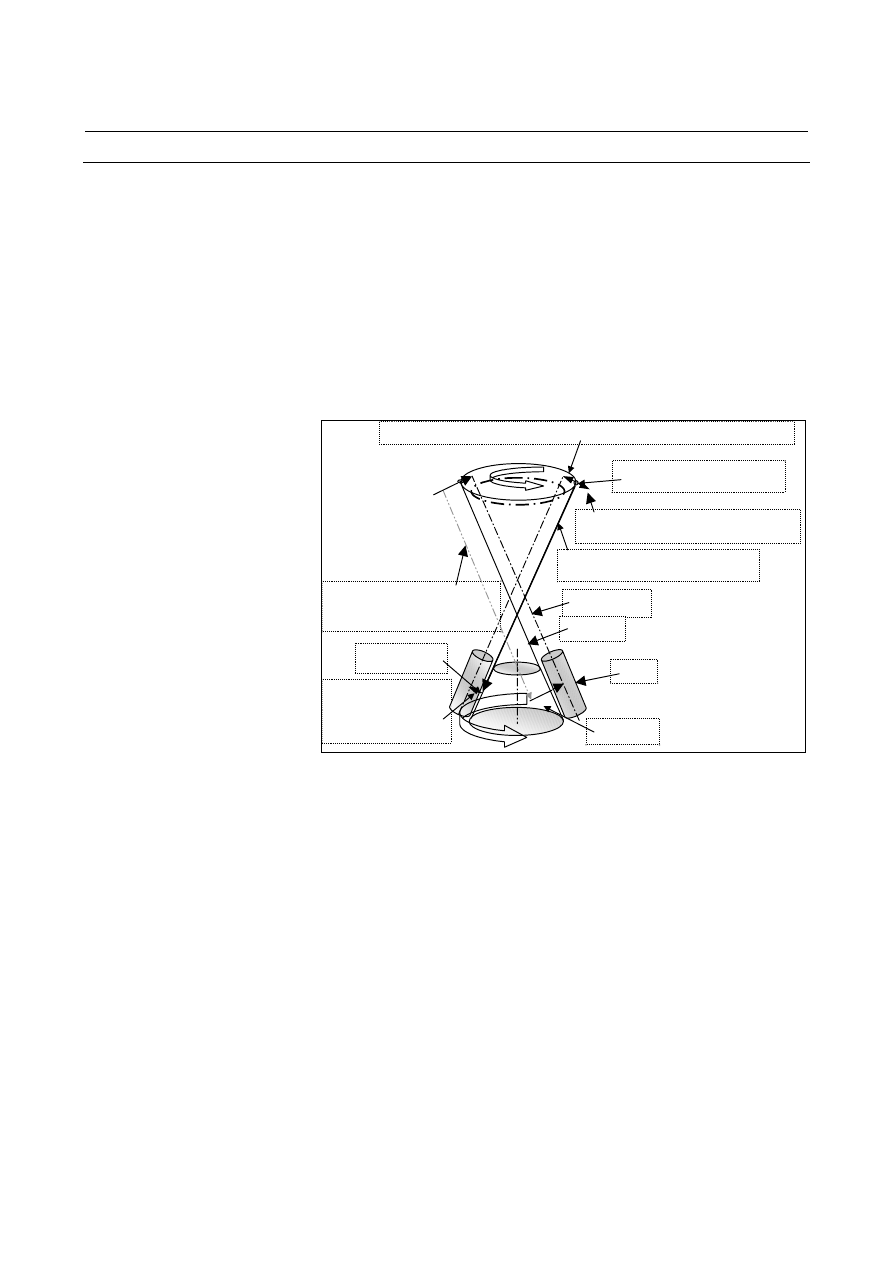

Fig. 22.5.1.3 (a)    Basic operation (for G42.2)



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 929 -

 - Operation example

For a machine configuration in which the tool axis direction is along
the Z-axis and the rotary axes are the B and C axes (Fig. 22.5.1.3 (b))
LC: Parameter (No. 19632) specifying the distance from the

programmed point (pivot point) to the tool tip position (cutting
point)

b: Specified B-axis value, c: Specified C-axis value
Q = (Qx,Qy,Qz): Programmed point (pivot point)
P, R:

 Programmed points (pivot points) in the preceding and

succeeding blocks

QT = (QTx,QTy,QTz):  Tool position (tool tip position (cutting point))

resulting from conversion

PT, RT:  Tool positions (tool tip positions (cutting positions)) in the

preceding and succeeding blocks

Then,
<1>  Convert programmed points (pivot points) P, Q, and R to tool tip

positions (cutting points) PT, QT, and RT.
      QTx = LC

×

 sin(b)

×

 cos(c) + Qx

      QTy = LC

×

 sin(b)

×

 sin(c) + Qy

      QTz    LC

×

 cos(b) + Qz

      (The same applies to PT and RT.)

<2> Calculate vector VD of 3-dimensional cutter compensation from

tool tip positions (cutting points) PT, QT, and RT and tool
gradient VT.

<3> Add cutter vector VD to programmed point (pivot point) Q and

set the result as the end point position.

Cutter compensation vector (VD') is calculated on a compensation plane perpendicular to
the tool axis direction.
The cutter compensation vector (VD') on the compensation plane is converted to the
original Cartesian coordinate system, and the resulting vector is regarded as the cutter
compensation vector (VD).

P’

R’

Q’

VD

VD’

e2

e3

e3

e2

V

T

Coordinate system of compensation plane

Tool tip position

LC

Tool radius

e1



Fig. 22.5.1.3 (b)    Operation

22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 930 -



NOTE

1  This function is disabled for leading edge offset.
2  With a command for a rotary axis only, this function

does not calculate a cutter compensation vector.

3  This function cannot be used in the

three-dimensional coordinate system conversion
mode.

4  In addition to the cautions given here, the cautions

on the 3-dimensional cutter compensation function
apply to this function.



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 931 -

22.5.2

Cutter Compensation in Table Rotation Type Machine



Overview

Cutter compensation can be performed for a 5-axis machine having a
rotary table as shown in Fig. 22.5.2 (a).
Shown below is a 5-axis machine that has table rotation axis A on the
X-axis and table rotation axis B on the Y-axis.
This machine configuration is used as a sample configuration in the
following explanation unless otherwise noted:





















B

A

Z

X

Y

X

Y

Z

Machine coordinate system

Indicates the direction of machine operation.

This machine configuration is used as a sample

configuration in the explanation.

The table coordinate system is rotated according to the

table rotation.    It is possible to specify whether to create

a part program in the workpiece coordinate system or in

the table coordinate system, using an appropriate

parameter.

Table coordinate

system

Workpiece

coordinate system



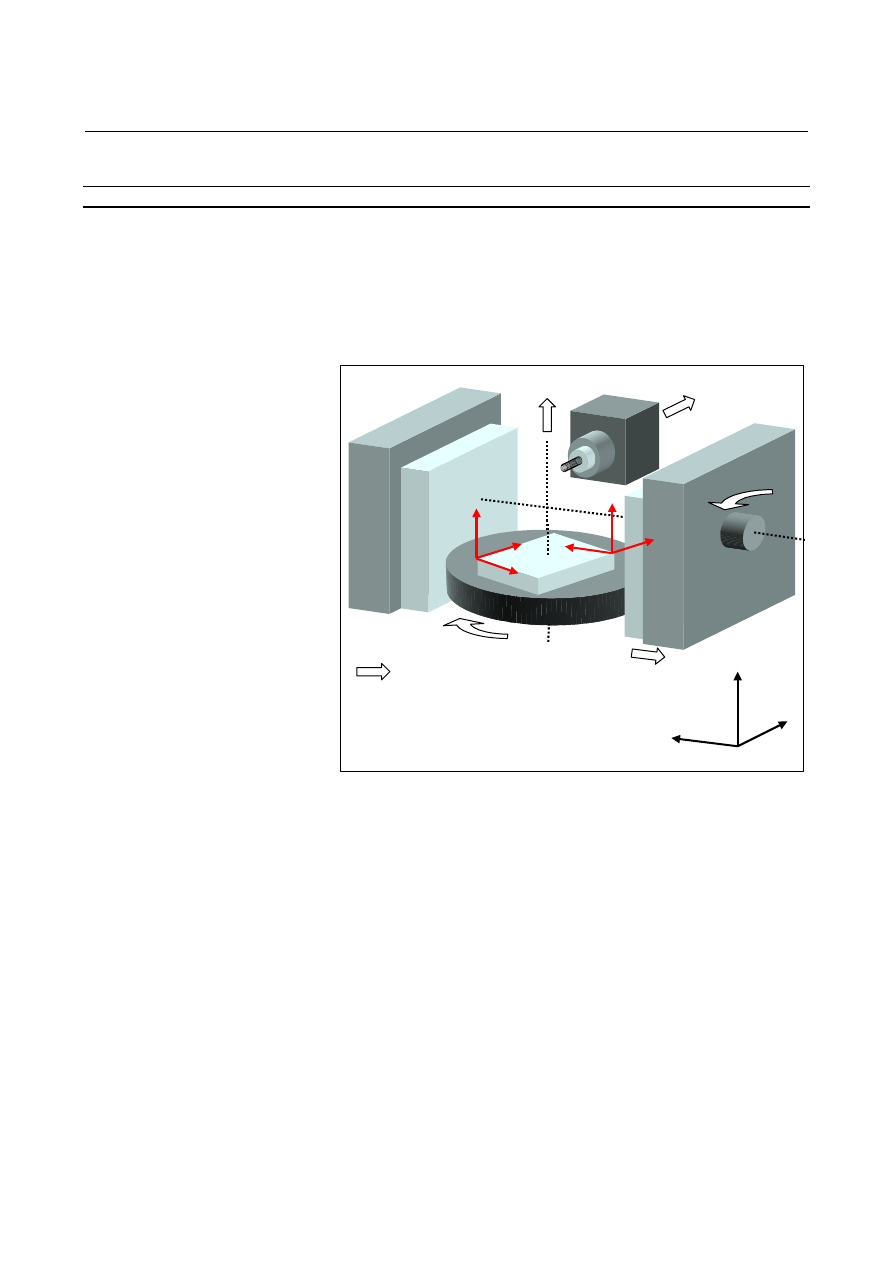

Fig. 22.5.2 (a)    Machine having a rotary table
