  - Constant surface speed control

Constant surface speed control is exercised by using, as the reference,
the machine axis specified in address P in a G96 block or the machine
axis (not in the feature coordinate system but in the actually operating
workpiece coordinate system) set in parameter No. 3770.


  - Tool rotation type machine

The following paragraphs describe several cases of the tool rotation
type machine operation.


B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 845 -

  Operation description 1:  When G43 (tool length compensation) is specified for a

machine with its axes crossing one another


The G53.1 command, when specified after the G68.2 command,
automatically controls the rotary axis in such a way that the tool axis
will be oriented in the +Z direction of the feature coordinate system.

Example)

O100 (Sample Program1) ;
N1 G55 ;
N2 G90 G01 X0 Y0 Z30.0 F1000 ;
N3 G68.2 X100.0 Y100.0 Z50.0 I30.0 J15.0 K20.0 ;
N4 G01 X0 Y0 Z30.0 F1000 ;
N5 G53.1 ;
N6 G43 H01 X0 Y0 Z0 ;
N7 . . .




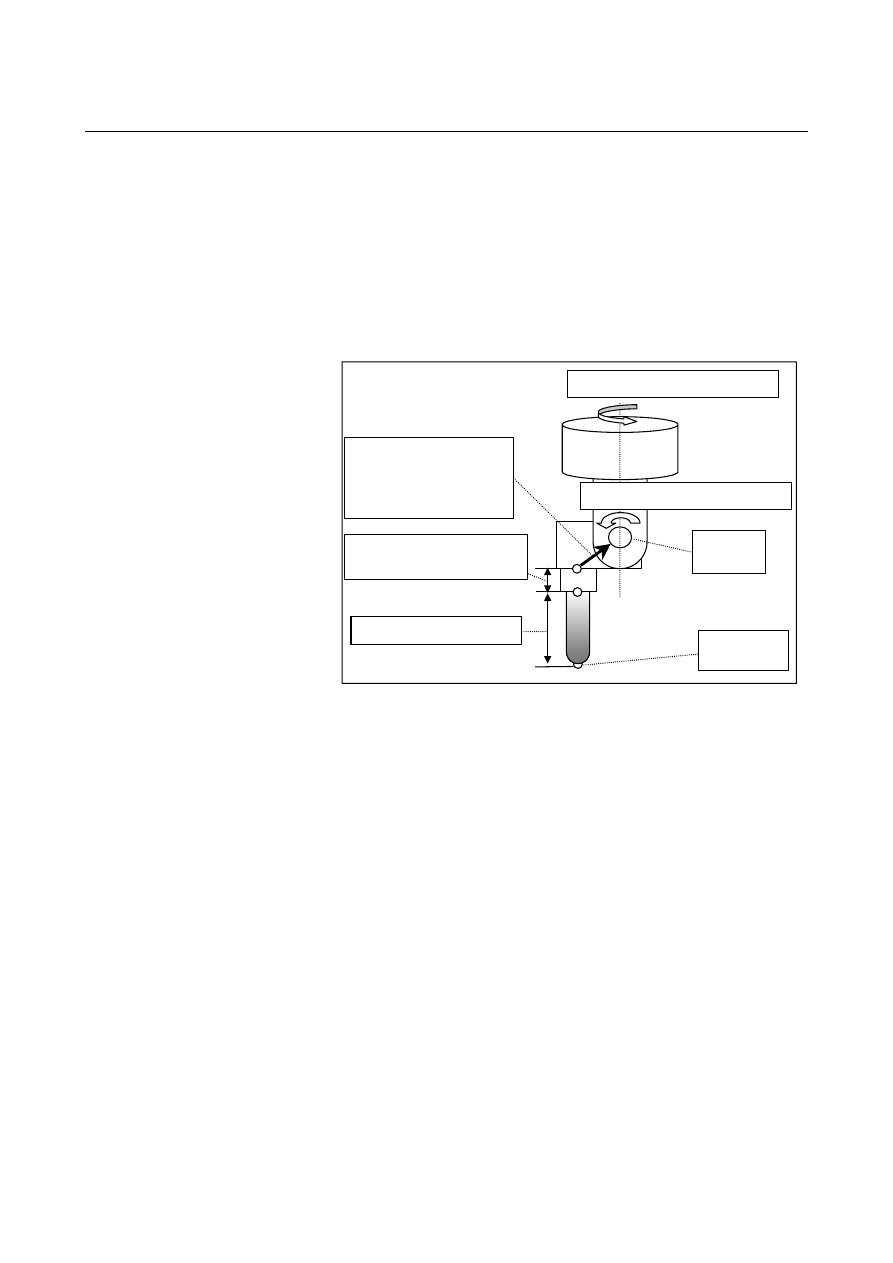

In this example, the "BC type tool axis Z-axis" is used



as the machine

configuration.
In addition, the tool axis, tool rotation axis B, and tool rotation axis C
cross one another.


B : Second rotation axis (slave)

C : First rotation axis (master)

Control
point

Tool holder offset value =
Parameter No.19666

Tool length offset = H01

BC type tool axis Z-axis
(with the axes crossing
one another)

Tool center
point


Block N3 :  Defines a feature coordinate system in the workpiece

coordinate system.

Block N4 :  Shifts the control point to point Z30.0 in the feature

coordinate system.



Block N5 :  Exerts automatic control over the rotary axes.
Block

N6

: Performs tool length compensation in the feature

coordinate system.



  The tool center point is shifted to the origin of the feature

coordinate system.



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 846 -

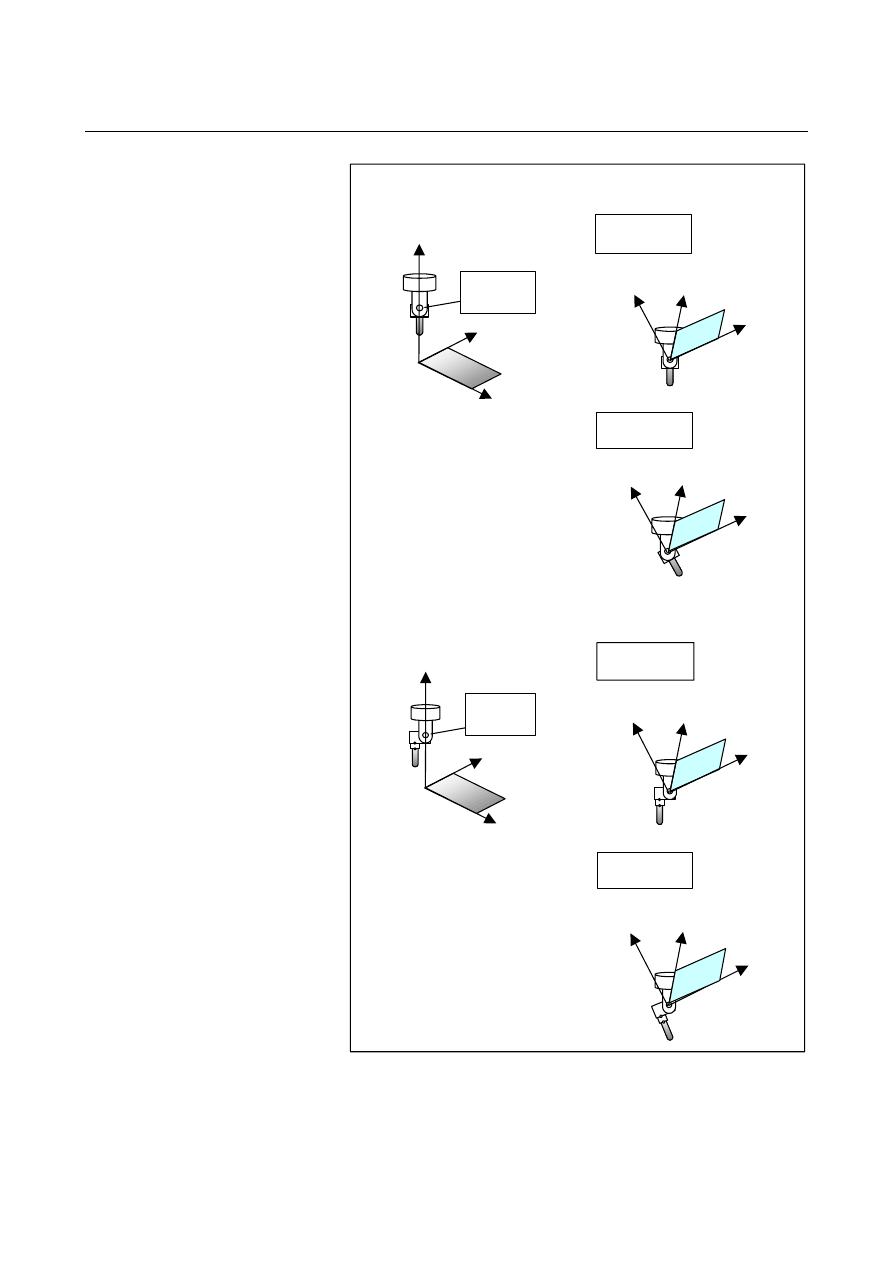

Fig. 22.3 (f) shows the behavior of the machine when it runs sample
program 1.


N3 command

Feature coordinate

system

Xc-Yc-Zc

Xc

Yc

Zc

•

    Sample program 1 (with axes crossing one another)

Xc

Yc

Zc

Xc

Yc

Zc

Xc

Yc

Zc

N4 command

N5 command

N6 command

Workpiece
coordinate

system

X-Y-Z

X

Y

Z

Control
point



Fig. 22.3 (f)    Tool axis direction control 1



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 847 -

  Operation description 2:  When G43 (tool length compensation) is specified for a

machine with no axis crossing

Here is the case where no axis of the machine crosses any other axis.
It is assumed that sample program 1 is used.

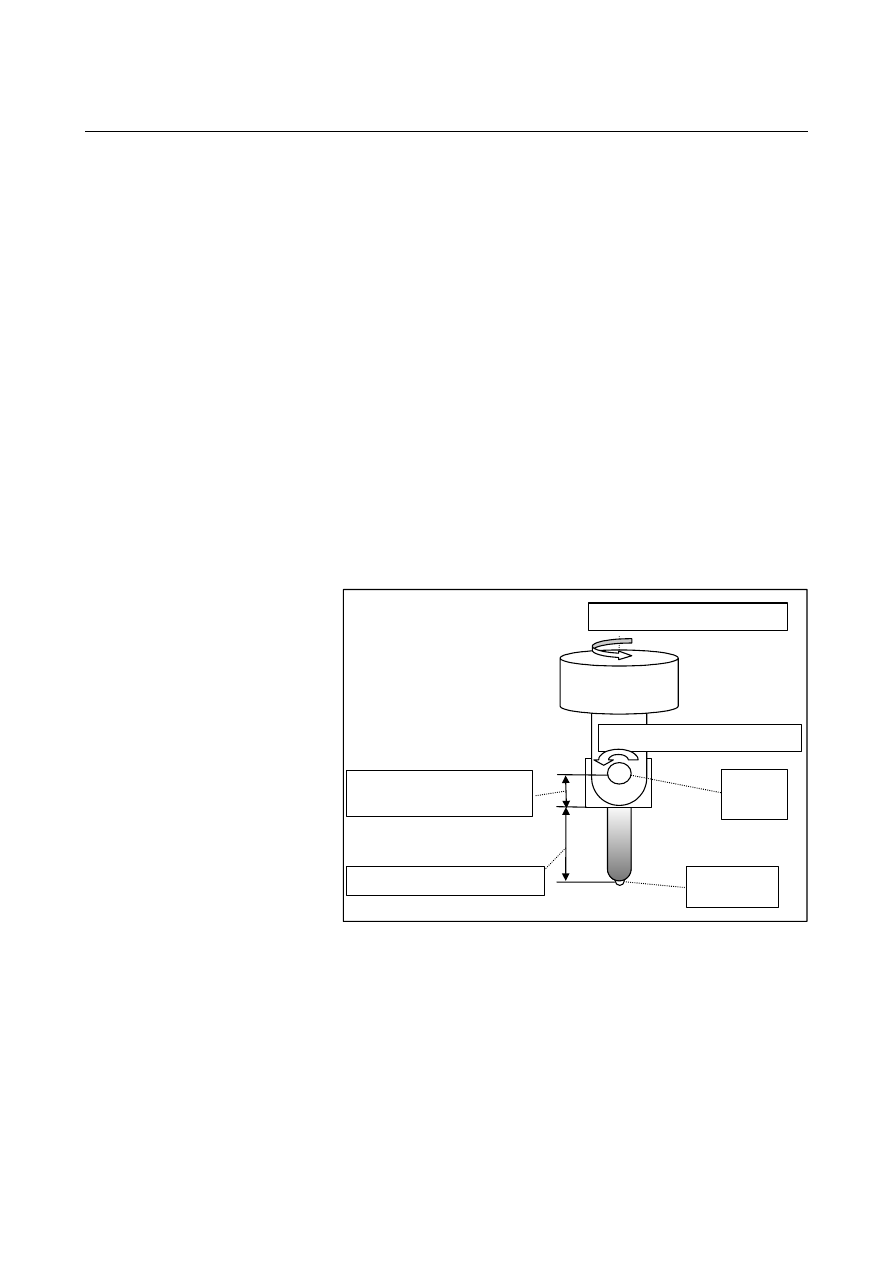

In this example, the "BC type tool axis Z-axis" is used as the machine
configuration.
It is assumed, however, that the tool axis does not cross the B-axis
while the B-axis and C-axis cross each other.


C:    First rotation axis (master)



Control
point



Tool holder offset value =
Parameter No.19666



Tool length offset = H01

•

  BC type tool axis Z-axis

(no axis crossing)



Tool center
point

B:  Second rotation axis (slave)



Intersection offset vector
between tool axis and
B-axis = Parameters
No.19709 - No.19711




Block N4 :  Shifts the control point to point Z30.0 in the feature

coordinate system.

Block N5 :  Exerts automatic control over the rotary axes.
Block N6 :  An intersection offset vector between the tool axis and

the B-axis with automatic control for rotary axes taken
into consideration is output in the feature coordinate
system.



  Performs tool length compensation in the feature

coordinate system.



  The tool center point is shifted to the origin of the feature

coordinate system.


This is also true when the B-axis does not cross the C-axis.
For explanations about the offset to be applied when the B-axis does
not cross the C-axis, see the descriptions about parameters No.19712,
No.19713, and No.19714.

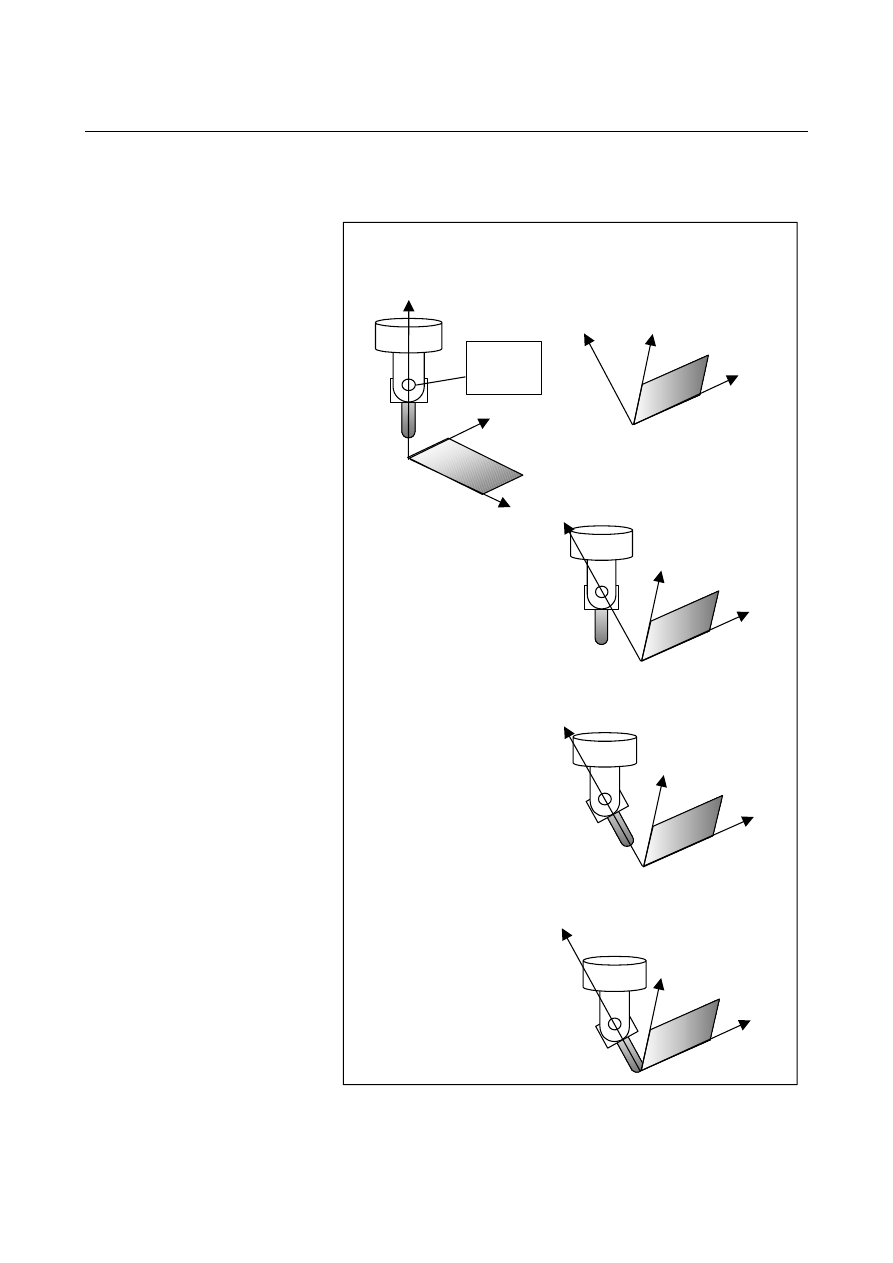

Fig. 22.3 (g) shows the behavior of the machine when it runs sample
program 1.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 848 -

N3 command

•

  Sample program 1

 (no axis crossing)

N4 command

N5 command

N6 command

Workpiece

coordinate system

X-Y-Z

X

Y

Z

Control
point

Xc

Yc

Zc

Zc

Feature coordinate

system

Xc-Yc-Zc

Xc

Yc

Xc

Yc

Zc

Xc

Yc

Zc

An intersection offset vector
between the tool axis and the B-
axis with automatic control for
rotation axes taken into
consideration is output in the
feature coordinate system. Tool
length compensation is also
performed.

The tool center point is controlled
so that it returns to the Xc-Yc-Zc
origin.

Xc

Yc

Zc

Zc 30.0

Zc 30.0



Fig. 22.3 (g)    Tool axis direction control 2



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 849 -

  Operation description 3:  When no G43 (tool length compensation) command is

specified or if no G53.1 (tool axis direction control)
command is specified


Sample program 2 of O200 is equivalent to sample program 1 except
that sample program 2 has no tool length compensation command
(G43).
Example)

O200 (Sample Program2) ;
N1 G55 ;
N2 G90 G01 X0 Y0 Z30.0 F1000 ;
N3 G68.2 X100.0 Y100.0 Z50.0 I30.0 J15.0 K20.0 ;
N4 G01 X0 Y0 Z0 F1000 ;
N5 G53.1 ;
N6 . . . ;




In this example, the "BC type tool axis Z-axis" is used as the machine
configuration.
The case in which the axes cross one another and the case in which no
axis crosses any other axis are described.

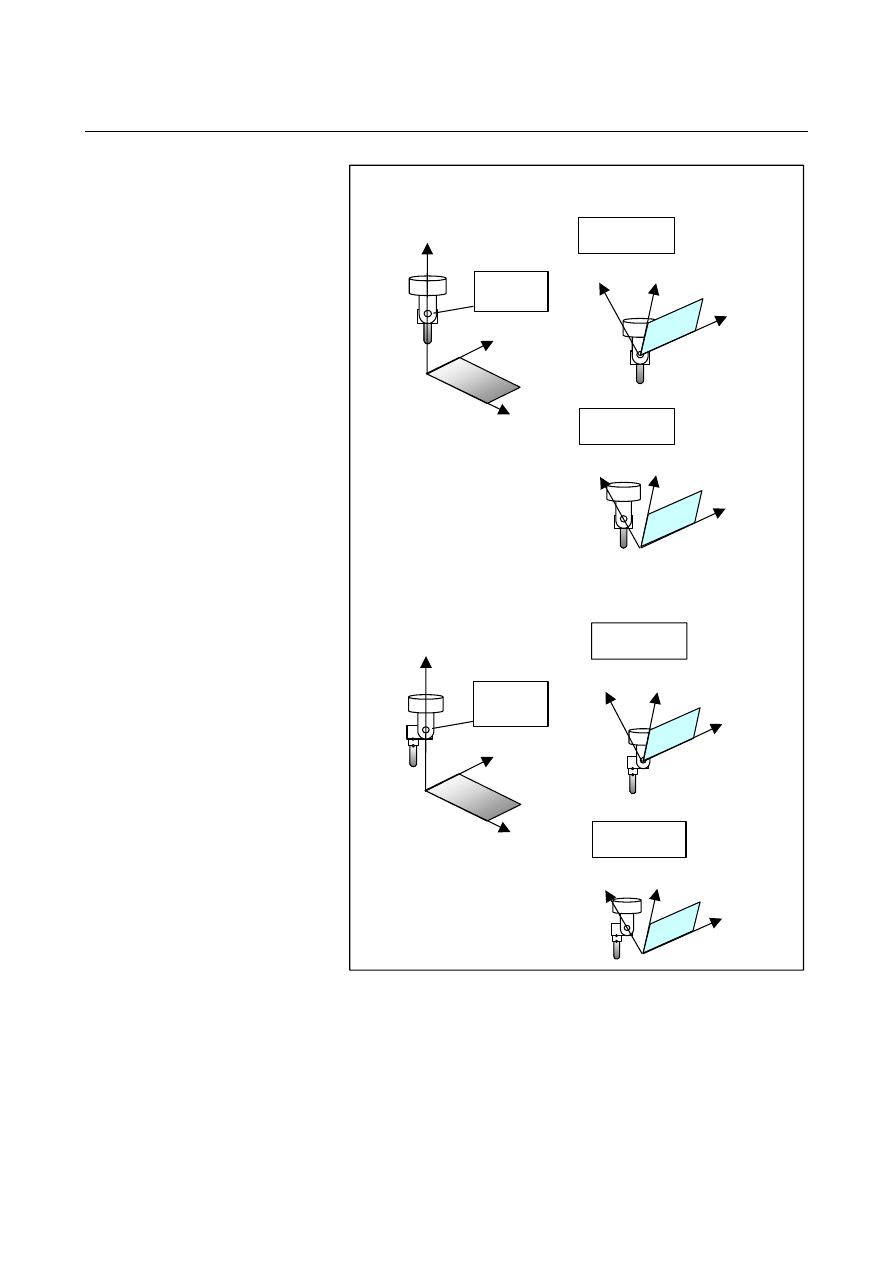

Fig. 22.3 (h) shows the behavior of the machine when it runs sample
program 2.


Sample program 3 of O300 is equivalent to sample program 1 except
that sample program 3 has no tool axis direction control command
(G53.1).
Example)

O300 (Sample Program3) ;
N1 G55 ;
N2 G90 G01 X0 Y0 Z30.0 F1000 ;
N3 G68.2 X100.0 Y100.0 Z50.0 I30.0 J15.0 K20.0 ;
N4 G01 X0 Y0 Z0 F1000 ;
N5 G43 H01 ;
N6 . . . ;




In this example, the "BC type tool axis Z-axis" is used as the machine
configuration.
The case in which the axes cross one another and the case in which no
axis crosses any other axis are described.
Tool length compensation is applied in the +Z-axis direction of the
feature coordinate system.

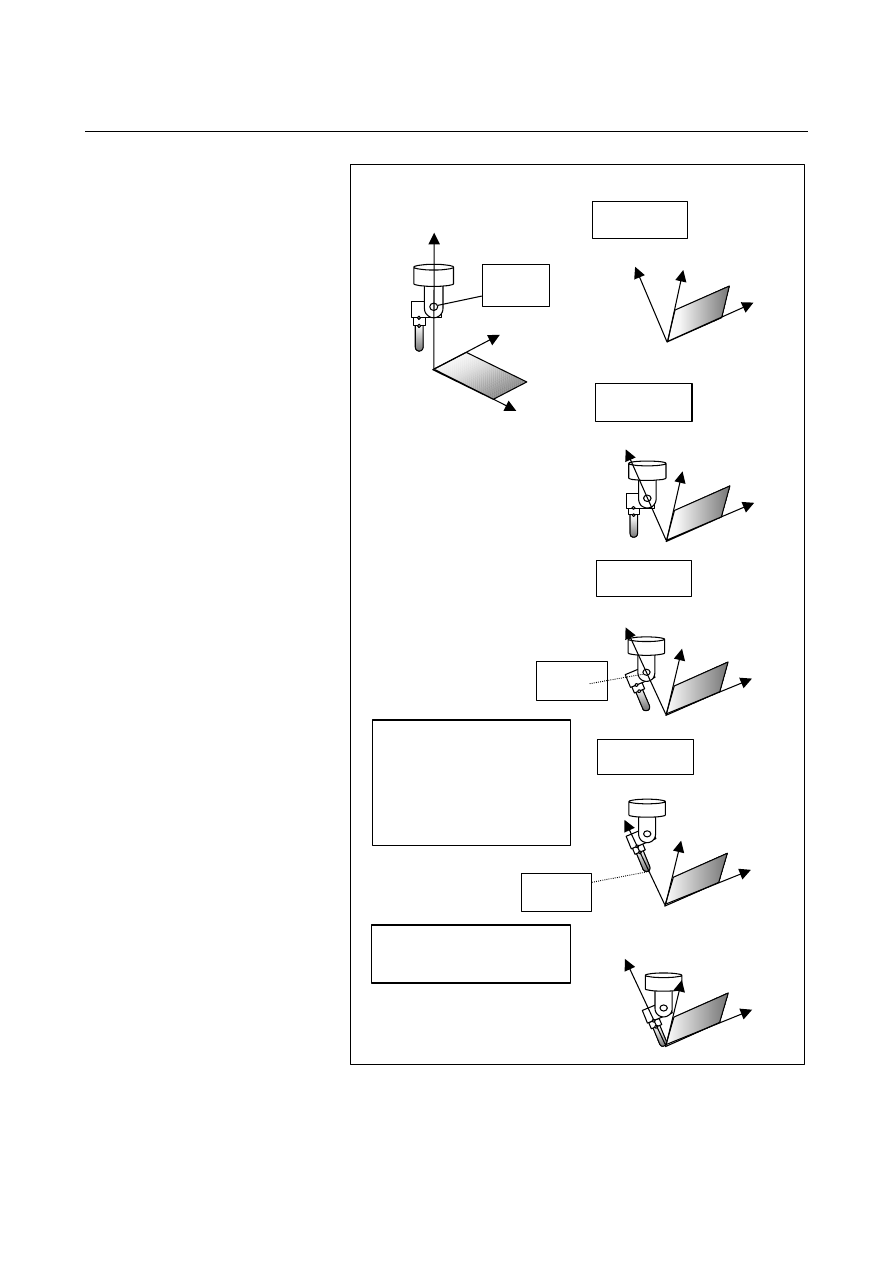

Fig. 22.3 (i) shows the behavior of the machine when it runs sample
program 3.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 850 -



Feature coordinate

system

Xc-Yc-Zc

N4 command

Xc

Yc

Zc

•

    Sample program 2 (with axes crossing one another)



Yc

N4 command

Workpiece

coordinate system

X-Y-Z

X

Y

Z

Control
point

Xc

Zc

N4 command

Feature coordinate

system

Xc-Yc-Zc

Xc

Yc

Zc

•

    Sample program 2 (no axis crossing)

N5 command

Workpiece

coordinate system

X-Y-Z

X

Y

Z

Control
point

Xc

Yc

Zc



Fig. 22.3 (h)    When the tool length compensation command is not

specified



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 851 -

N4 command

Feature coordinate

system

Xc-Yc-Zc

Xc

Yc

Zc

•

    Sample program 3 (with axes crossing one another)

N5 command

Workpiece

coordinate system

X-Y-Z

X

Y

Z

Control
point

Xc

Yc

Zc

N4 command

Z

Feature coordinate

system

Xc-Yc-Zc

Xc

Yc

Zc

•

    Sample program 3 (no axis crossing)

N5 command

Workpiece

coordinate system

X-Y-Z

X

Y

Control
point

Xc

Yc

Zc



Fig. 22.3 (i)    When the tool axis direction control command is not

specified
