  - Angle of the rotary axis for type 2 (when the movement range is specified)

If the upper and lower limits of the movement range of the rotary axis
is specified using parameters No.19741 to No.19744, the rotary axis
will move only within the specified range when the direction is
specified using I, J, K, Q command for type 2 control.



Although the procedure for determining the angles is the same as that
used "when the movement range is not specified," the "output angles"
need to be selected from

those computed angles that are within the

specified movement range for both axes

.



"Output judgment conditions"

Tool rotation type or table rotation type machine

<1>  Of the angle pairs whose master and slave axis angles are both within

the specified movement range, the rotary axis angle pair whose
master axis (first rotary axis) moving angle is smaller represents the
"output angles."



↓





↓

 When the master axis moving angle is the same



↓



<2>  The "output angles" are represented by the computed rotary axis

angle pair whose slave axis (second rotary axis) moving angle is
smaller.



↓





↓

 When the slave axis moving angle is the same



↓



<3>  The "output angles" are represented by the computed rotary axis

angle pair whose master axis (first rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).



↓





↓

 When the master axis angle is equally near to 0 degree



↓



<4>  The "output angles" are represented by the computed rotary axis

angle pair whose slave axis (second rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).

Composite type machine

<1>  Of the angle pairs whose master and slave axis angles are both within

the specified movement range, the rotary axis angle pair whose table
(second rotary axis) moving angle is smaller represents the "output
angles."



↓





↓

 When the table moving angle is the same



↓



<2>  The "output angles" are represented by the computed rotary axis

angle pair whose tool (first rotary axis) moving angle is smaller.



↓





↓

 When the tool moving angle is the same



↓



<3>  The "output angles" are represented by the computed rotary axis

angle pair whose table (second rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).



↓





↓

 When the table angle is equally near to 0 degree



↓



<4>  The "output angles" are represented by the computed rotary axis

angle pair whose tool (first rotary axis) angle is nearer to 0 degree
(multiple of 360 degrees).

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 805 -


When bit 5 (PRI) of parameter No.19608 is 1, the movement
judgements for the first rotary axis and second rotary axis are made in
reverse order.


 CAUTION

1  If the lower limit of the movement range is larger

than the upper limit, alarm PS5459 occurs when
G43.5 is specified.

2  If no "computed angle" is found within the

movement range because the range is too small,
alarm PS5459 occurs.

3  If 0 is set for both parameters that specify the

upper and lower limits of the movement range, the
tool operates assuming that there is no range
specification.

4  When the rotary axis rollover function or rotary axis

control function is used (in which case, set
parameter No.1260 (amount of movement per
rotation of the rotary axis) to 360 degrees), the tool
does not move beyond 0 degree (360 degrees)
(does not take the shortcut) if the movement range
is set between 0 and 360 degrees.    Also, do not
specify a negative value or a value larger than 360
degrees for the movement range.


An example of the "movement judgement" process is given below.
Assume that a tool rotation type or table rotation type machine has
rotary axis A (master) and rotary axis B (slave) and that there are two
pairs of basic computed angles as follows:
(A

θ

1 degree; B

φ

1 degree)

(A

θ

2 degrees; B

φ

2 degrees)   where

θ

1

≤



θ

2.

The "computed angle" is obtained from either of the following
expressions:  "basic computed angle" + 360 degrees

×

 N or "basic

computed angle" - 360 degrees

×

 N.

Assume that the current positions and movement ranges of rotary axis
A (master) and rotary axis B (slave) are as shown in the following
figure.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 806 -



360

×

 (N + 1) degrees

360

×

 N degrees

•

  Computed angle A

Current position A

Movement range A

θ

1 + 360

×

 N

θ

2 + 360

×

 N

θ

2 + 360

×

 (N - 1)

θ

1 + 360

×

 (N + 1)



"Computed angle of rotary axis A and its current position and movement

range"



360

×

 (N + 1) degrees

360

×

 N degrees

•

  Computed angle B

Current position B

Movement range B

φ

2 + 360

×

 N

φ

1 + 360

×

 N

φ

1 + 360

×

 (N - 1)

φ

2 + 360

×

 (N + 1)



"Computed angle of rotary axis B and its current position and movement

range"


When the two axes have a positional relationship as shown in the
figure, the output angle of rotary axis A is (

θ

2 + 360

×

 N) degrees and

that of rotary axis B is (

φ

2 + 360

×

 N) degrees (when bit 5 (PRI) of

parameter No.19608 is set to 0).
More concretely, from the computed angles obtained for rotary axis A,
the nearest angle within the movement range, i.e.

θ

2 + 360

×

 N

degrees, is first adopted.    Then, from the computed angles obtained
for rotary axis B, the angle belonging to the same group as

θ

2, i.e.

φ

2

+ 360

×

 N, is adopted.


Note that, in this example, the output angles and moving direction
differ depending on whether the movement range is specified or not (0
to 360 degrees), even if N is set to 0 and coordinates are rounded to 0
to 360 degrees.
Namely, if the movement range is not specified,

θ

1 + 360 degrees

nearest to the current position is adopted as the computed angle for
rotary axis A and, from the computed angles belonging to the same
group as

θ

1,

φ

1 degrees nearest to the current position is adopted as

the computed angle for rotary axis B.  Rotary axis A moves in the
plus direction.  As its coordinate is rounded to 360 degrees, rotary
axis A reaches

θ

1 degrees while moving in the plus direction.

By contrast, when the movement range is set to 0 to 360 degrees, the
output angles are (A

θ

2 degrees; B

φ

2 degrees).    Neither rotary axis

A nor B moves in a way that it exceeds 0 degree (360 degrees).


B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 807 -

Operation examples
  - In the case of a tool rotation type machine

Explanations are given below assuming a machine configuration in
which a tool rotation axis that turns around the Y-axis is located
beneath another tool rotation axis that turns around the Z-axis.    (See
Fig. 22.1 (j).)

If linear interpolation is specified for the X-, Y-, and Z-axes when a
workpiece coordinate system is used as the programming coordinate
system, control is exerted in such a way that the tool center point
moves along a specified straight line with respect to the table
(workpiece) as the tool rotates.
Also, speed control is exerted so that the tool center point moves at the
specified speed with respect to the table (workpiece).

In the case of a machine having two tool rotation axes, the table does
not rotate with respect to the workpiece coordinate system even if the
rotary axes move.  Therefore, the programming coordinate system
always matches the workpiece coordinate system, regardless of
whether bit 5 (WKP) of parameter No.19696 is set to 0 or 1.

Examples)
For type 1:

O100 (Sample Program1) ;
N1 G00 G90 B0 C0 ;
N2 G55 ;

Prepares the programming coordinate
system.

N3 G43.4 H01 ;

Starts tool center point control.





H01 is the tool compensation number.

N4 G00 X200.0 Y150.0 Z20.0 ;

Moves to the start point.

N5 G01 X5.0 Y5.0 Z5.0 C60.0 B45.0 F500 ; Linear interpolation
N6 G49;

Cancels tool center point control.

N7 M30;




For type 2:

O100 (Sample Program1) ;
N1 G00 G90 B0 C0 ;
N2 G55 ;

Prepares the programming coordinate system.

N3 G43.5 H01 ;

Starts tool center point control.









H01 is the tool compensation number.

N4 G00 X200.0 Y150.0 Z20.0 ; Moves to the start point.
N5 G01 X5.0 Y5.0 Z5.0 I1.0 J1.732 K2.0 F500 ; Linear interpolation
N6 G49;

Cancels tool center point control.



N7 M30;



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 808 -

X'

Y'

Z'

C

Control point path (of the machine
coordinate system)

Tool center point path (of the programming coordinate system)

B

X'

Y'

Z'

X'

Y'

Z'



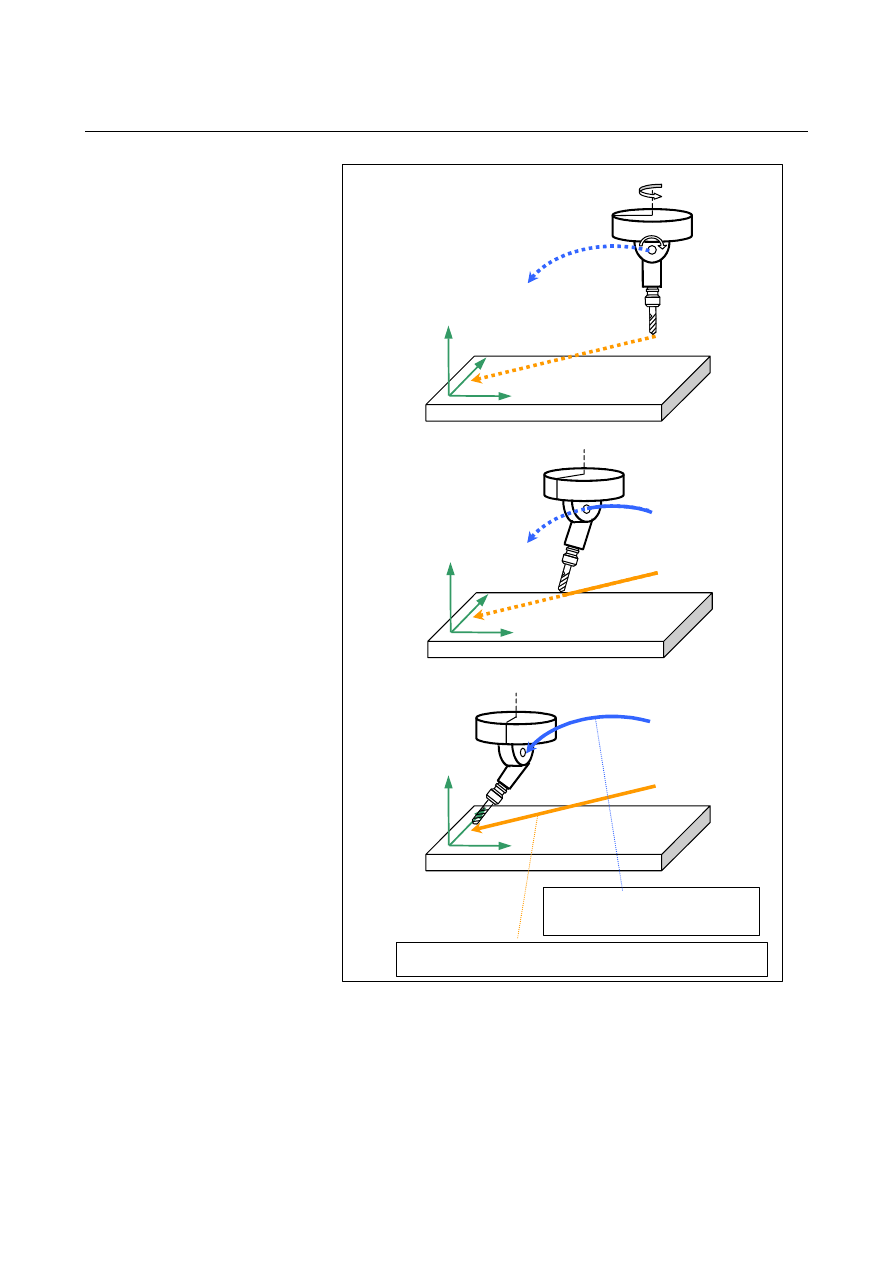

Fig. 22.1 (j)    Example for a tool rotation type machine
