NOTE

1  During axis synchronous control, a movement based

on the reference position return check (G27), automatic
reference position return (G28), 2nd/3rd/4th reference
position return (G30), or machine coordinate system
selection (G53) command is made as described below
according to the setting of bit 7 (SRF) of parameter No.
8304.
<1>  When SRF = 0, the same movement as made

along the master axis is made along the slave
axis.

<2>  When SRF = 1, a movement is made along the

slave axis to the specified position independently
of a movement made along the master axis to the
specified position.

2  A command not involving a movement along an axis

such as the workpiece coordinate system setting
command (G92) and local coordinate system setting
command (G52) is set with the master axis according
to the master axis programming.

3  During synchronous operation, the axis-by-axis signals

such as for external deceleration, interlock, and
machine lock are enabled for the master axis only.
During synchronous operation, those signals for the
slave axis are ignored.

4  When switching the synchronization state in a program,

be sure to specify M codes (parameter No. 8337 and
No. 8338) for turning synchronization on and off.    By
switching between the input signals SYNCx <G138>
and SYNCJx <G140> from the PMC with the M codes,
the synchronization state can be switched in the
program.

5  When controlled axis removal is performed, the

synchronization state is cancelled.    When performing
controlled axis removal, perform removal for the master
axis and slave axis at the same time.

6  If a programmed command is specified for the slave

axis during synchronous operation, an alarm PS0213 is
issued.



A programmed command can be specified for the slave
axis when switching between synchronous operation
and normal operation is set to 0 (with bit 5 (SCA) of
parameter No. 8304 set to 0) to select normal
operation.

7  Axis synchronous control and PMC axis control cannot

be used at the same time.

B-63944EN/03

 PROGRAMMING

21.AXIS CONTROL FUNCTIONS





- 709 -

21.2

POLYGON TURNING (G50.2, G51.2)


Polygon turning means machining a workpiece to a polygonal figure
by rotating the workpiece and tool at a certain ratio.


Workpiece

Workpiece

Tool



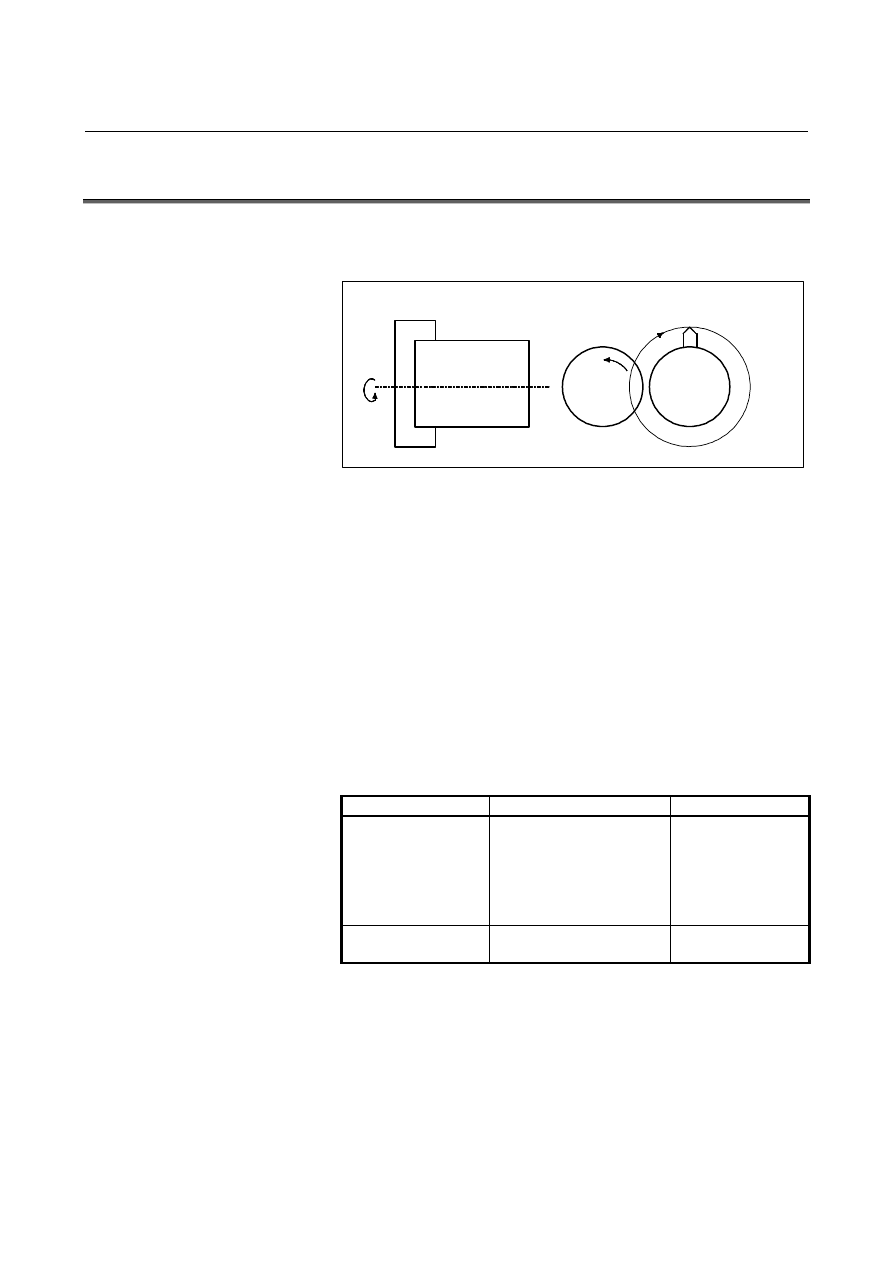

Fig. 21.2 (a)    Polygon turning


By changing conditions which are rotation ratio of workpiece and tool
and number of cutters, the workpiece can be machined to a square or
hexagon.  The machining time can be reduced as compared with
polygonal figure machining using the polar coordinate interpolation.
The machined figure, however, is not exactly polygonal.    Generally,
polygon turning is used for the heads of square and/or hexagon bolts
or hexagon nuts.
As the tool rotary axis, one of the following can be used:

•



CNC controlled axis (servo axis)

•



Second spindle (Two serial spindles are connected.)

Polygonal machining performed using a servo axis as the tool rotary
axis is referred to as polygon turning.  Polygonal machining
performed using the second spindle as the tool rotary axis is referred
to as polygon turning with two spindles.


Function name



Workpiece axis



Tool rotary axis



Polygon turning

Spindle
(Either an analog spindle or
serial spindle is usable.
However, a detector
equivalent to a position
coder is required.)

Servo axis

Polygon turning with
two spindles

Spindle
(Serial spindle)

Spindle
(Serial spindle)



21.AXIS CONTROL FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 710 -

Explanation

A CNC controlled axis (servo axis) is assigned to the tool rotary axis.
This rotary axis of tool is called Y-axis in the following description.
As the workpiece axis (spindle), either a serial spindle or analog
spindle can be used.
The Y-axis is controlled by the G51.2 command, so that the ratio of
the rotation speeds of the spindle (previously specified by
S-command) and the tool becomes the specified ratio.
When simultaneous start is specified by G51.2, the one-rotation signal
sent from the position codes set on the spindle is detected.  After
one-rotation signal detection, the Y-axis is controlled using the
rotation ratio of the spindle and Y-axis specified by P and Q.    So, a
position coder needs to be attached to the spindle.    This control will
be maintained until the polygon turning cancel command is executed
(G50.2).  Polygon turning is cancelled by any of the following in
addition to the G50.2 command:
(1) Power

off

(2) Emergency

stop

(3) Servo

alarm

(4)  Reset (external reset signal ERS, reset/rewind signal RRW, and

RESET key on the MDI panel)

(5)  Occurrence of alarms PS0217 to PS0221, PS0314, and PS05018


NOTE

1  Before polygon turning, reference position return

operation on the Y-axis needs to be specified to
determine the rotation start position of the tool.
This reference position return operation is
performed by detecting a deceleration limit as in the
case of manual reference position return operation.
(By setting bit 7 (PLZ) of parameter No. 7600,
reference position return operation can be
performed without detecting a deceleration limit.)

2  The rotation direction on the Y-axis is determined

by the sign of Q, and is not affected by the rotation
direction of the position coder.

3  Among Y-axis position indications, the indication of

a machine coordinate (MACHINE) changes within
the amount of movement for 0 to 1 revolution as a
movement is made on the Y-axis.    The absolute
coordinate and relative coordinate are not updated.
So, when specifying an absolute-position command
for the Y-axis after polygon turning mode
cancellation, set a workpiece coordinate system
after reference position return operation.

B-63944EN/03

 PROGRAMMING

21.AXIS CONTROL FUNCTIONS





- 711 -



NOTE

4  For the Y-axis engaged in polygon turning, jog feed

and handle feed are disabled.

5  For the Y-axis not engaged in polygon turning, a

move command can be specified as in the case of
other controlled axes.

6  The Y-axis engaged in polygon turning is not

counted in the number of simultaneously controlled
axes.

7  One workpiece must be machined using a fixed

spindle speed until the workpiece is finished.

8  Polygon turning with two spindles cannot be used at

the same time.

9  G50.2 is the G code for suppressing buffering.



 CAUTION

1  During polygon turning, threading cannot be

performed.

2  For the Y-axis engaged in synchronous operation,

the signals below are valid or invalid:
Signals valid for the Y-axis

•

 Machine lock

•

 Servo-off

Signals invalid for the Y-axis

•

 Feed hold

•

 Interlock

•

 Override

•

 Dry run

(At dry run time, however, the one-rotation
signal is not awaited in a G51.2 block.)



21.AXIS CONTROL FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 712 -

Format

G50.2

Polygon turning cancel





G51.2  P_ Q_ ;



P,Q: Rotation ratio of spindle and Y-axis
Specify range:
P:    Integer from 1 to 999
Q:    Integer from -999 to -1 or from 1 to 999


When Q is a positive value, Y-axis makes positive
rotation.



When Q is a negative value, Y-axis makes
negative rotation.



NOTE



Specify G50.2 and G51.2 in a single block.



Example

G00 X100. 0 Z20.0 S1000.0 M03 ;


(Workpiece rotation speed 1000 (min

-1

))



G51.2 P1 Q2 ;

(Tool rotation start (tool rotation speed
2000 (min

-1

))



G01 X80.0 F10.0 ;

(X-axis infeed)



G04 X2.0 ;

(Waiting 2 seconds)



G00 X100.0 ;

(X-axis escape)



G50.2 ;

(Tool rotation stop)



M05 S0 ;

(Spindle stop )





  - Principle of polygon turning

The principle of polygon turning is explained below.  In the figure
below the radius of tool and workpiece are A and B, and the angular
speeds of tool and workpiece are

α

 and

β

.  The origin of XY

Cartesian coordinates is assumed to be the center of the workpiece.
Simplifying the explanation, consider that the tool center exists at the
position
P

o

 (A, 0) on the workpiece periphery, and the tool nose starts from

position P

to

 (A-B, 0).



B-63944EN/03

 PROGRAMMING

21.AXIS CONTROL FUNCTIONS





- 713 -

Y

X

A

(0,0)

P

to

P

o



B

Angular speed

α

A : Workpiece radius

B : Rool radius

Angular

speed

β



Workpiece

Tool

α

 : Workpiece angular speed

β

 : Tool angular speed

Po  (A, 0)

Pto (A-B, 0)



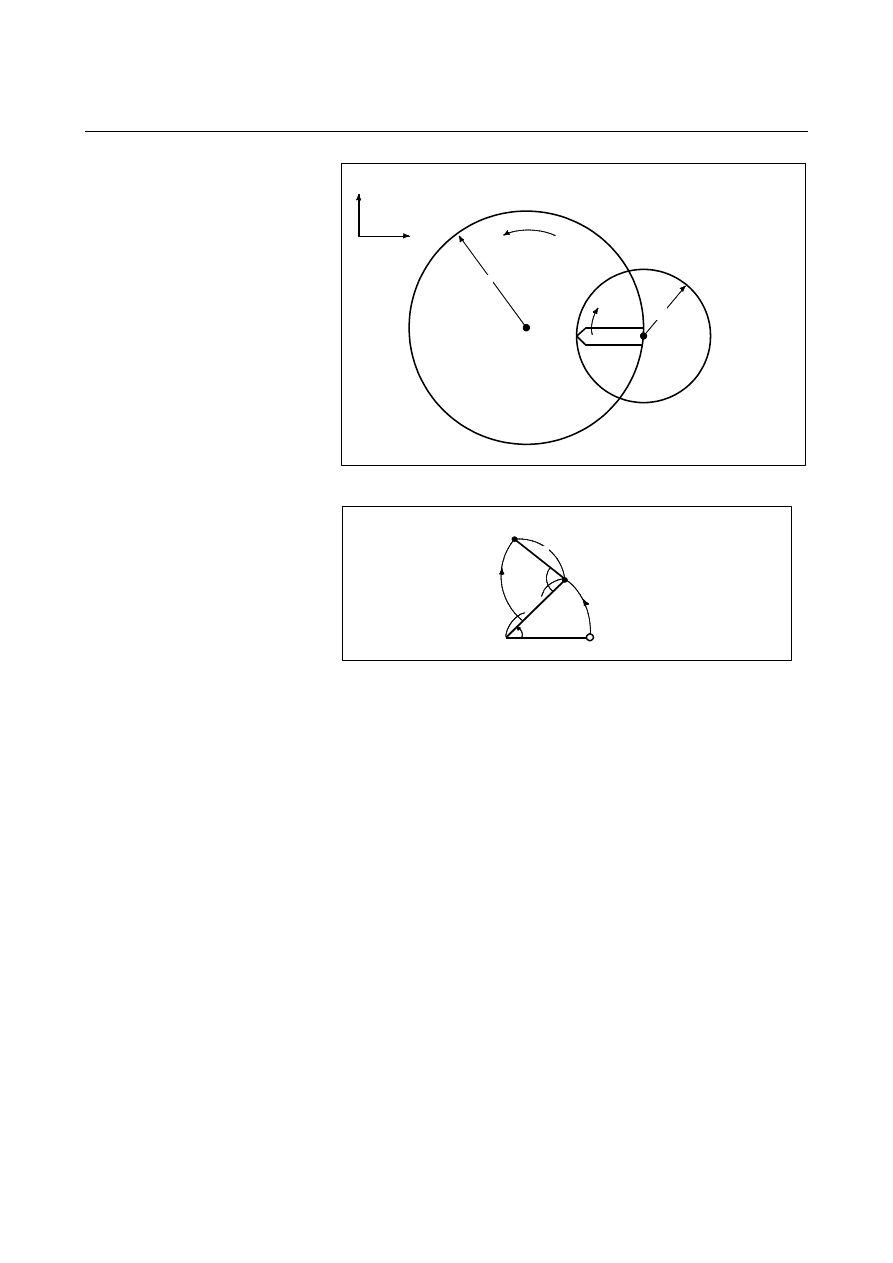

Fig. 21.2 (b)    Principle of polygon turning



(0, 0)

α

t

β

t

A

P

Start point

B

Pt (Xt, Yt)



Fig. 21.2 (c)    Tool nose position


In this case, the tool nose position Pt (Xt, Yt) after time t is expressed
by equations 1 and 2:


Xt

=

A

cos

α

t

-

B

cos(

β

-

α

)

t

 (Equation

1)



Yt

=

A

sin

α

t

+

B

sin(

β

-

α

)

t

 (Equation

2)

Assuming that the rotation ration of workpiece to tool is 1:2, namely,

β

=2

α

, equations 1 and 2 are modified as follows:



Xt

=

A

cos

α

t

-Bcos

α

t

=(

A-B

)cos

α

t

 (Equation

1)'



Xt

=

A

sin

α

t

+Bsin

α

t

=(

A+B

)sin

α

t

 (Equation

2)'

These equations indicate that the tool nose path draws an ellipse with
longer diameter A+B and shorter diameter A-B.

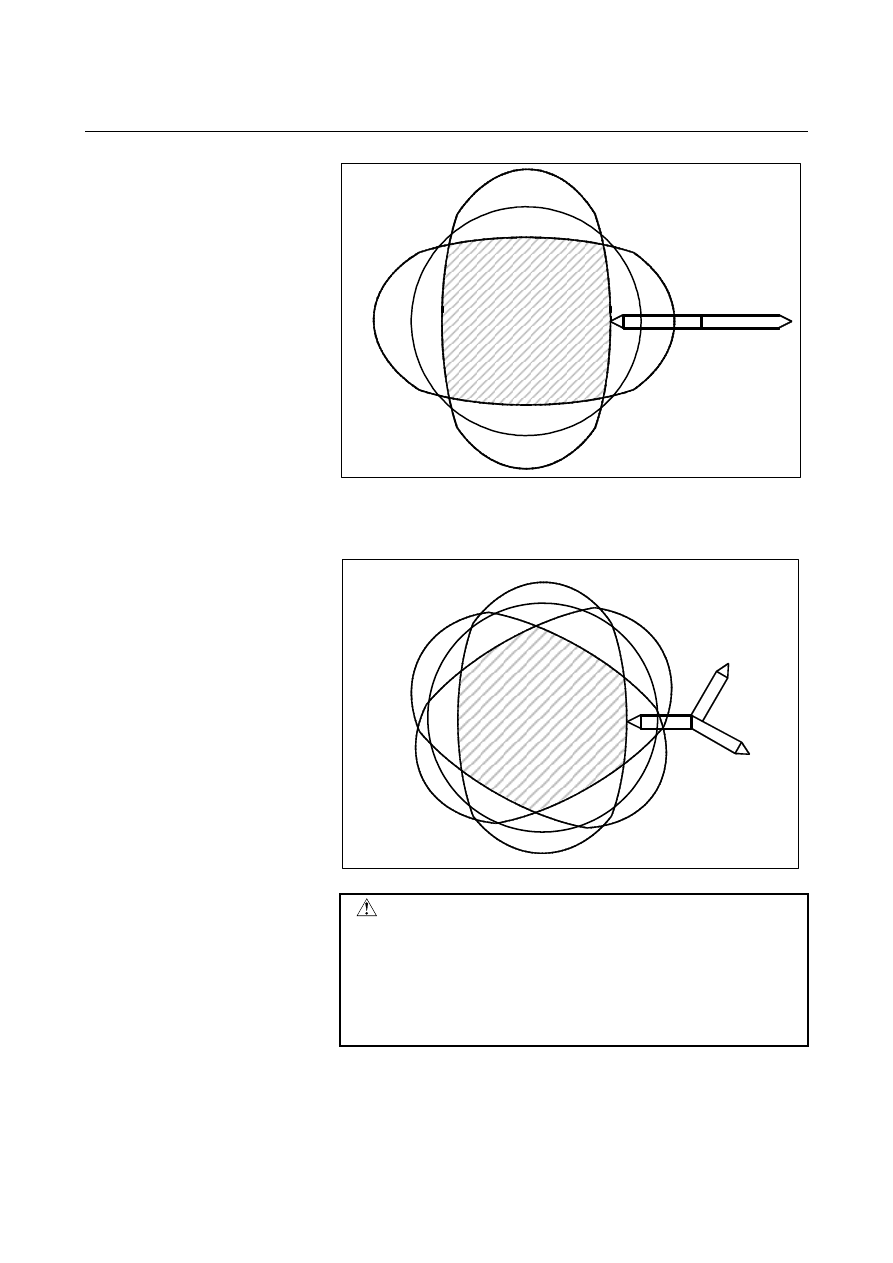

Then consider the case when one tool is set at 180

°

 symmetrical

positions, for a total of two.    A square can be machined with these
tools as shown below.


21.AXIS CONTROL FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 714 -




If three tools are set at every 120

°

, the machining figure will be a

hexagon as shown below.






 WARNING



For the maximum rotation speed of the tool, see
the instruction manual supplied with the machine.
Do not specify a spindle speed higher than the
maximum tool speed or a ratio to the spindle speed
that results in a speed higher than the maximum
tool speed.



B-63944EN/03

 PROGRAMMING

21.AXIS CONTROL FUNCTIONS





- 715 -

21.3

SYNCHRONOUS, COMPOSITE AND SUPERIMPOSED
CONTROL BY PROGRAM COMMAND (G50.4, G51.4,
G50.5, G51.5, G50.6, AND G51.6)


Synchronous control, composite control, and superimposed control
can be started or canceled using a program command instead of a DI
signal. Synchronous control, composite control, and superimposed
control based on a DI signal is also possible.

For the basic operations of synchronous control, composite control,
and superimposed control, see Section 8.5, "SYNCHRONOUS
CONTROL AND COMPOSITE CONTROL", and Section 8.6,
"SUPERIMPOSED CONTROL" in the CONNECTION MANUAL
(FUNCTION) (B-63943EN-1).


Format

G51.4    P_ Q_    (L_) ;  Synchronous control start (L is omissible.)
G50.4    Q_ ;

Synchronous control cancel



P:  Synchronous master axis ID number
Q:  Synchronous slave axis ID number

L: Parking

command



1: Master parking (slave parking cancel)



2: Slave parking (master parking cancel)



0: No parking (parking cancel)



(When L is omitted, the specification of L0 is assumed.)



G51.5    P_ Q_ ;

Composite control start

G50.5    P_ Q_ ;

Composite control cancel



P:  Composite axis 1 ID number
Q:  Composite axis 2 ID number



G51.6    P_ Q_ ;

Superimposed control start

G50.6    Q_ ;

Superimposed control cancel



P:  Superimposed master axis ID number
Q:  Superimposed slave axis ID number

As an ID number, set a unique value for identifying each axis in parameter
No. 12600 for both of P and Q.


G51.4/G50.4, G51.5/G50.5, and G51.6/G50.6 are one-shot G codes of
group 00.
