20. HIGH-SPEED CUTTING

FUNCTIONS

 CAUTION

1  The speed control with the cutting feed is effective

only when the tool is parallel with the Z-axis.
Thus, it may not be possible to apply this function,
depending on the structure of the machine used.

2  In the speed control with the cutting feed, the travel

direction on the Z-axis is determined with the
appropriate NC command.    If, therefore, manual
intervention is performed on the Z-axis with manual
absolute on, or if a mirror image is applied on the
Z-axis, the direction on the Z-axis cannot be
determined.    When using the speed control with
the cutting load, do not use these functions.

3  When performing three-dimensional coordinate

conversion, determine the descent angle on the
Z-axis using the converted coordinate system.

4  Speed control with the cutting load is enabled for

all interpolations in the AI contour control mode.
This function, however, can be made valid only for
linear interpolations by setting bit 4 (ZOL) of
parameter No. 19503 to 1.



  - Ignoring feedrate commands

In a block in which AI contour control is enabled, all feedrate
commands (F commands) can be ignored by setting bit 7 (NOF) of
parameter No. 8451.
The term feedrate commands, as used here, refer to the following
commands:

<1>  Modal F commands before the block in which AI contour control

is enabled

<2> F commands and modal F commands in the block in which AI

contour control is enabled


When the feedrate commands are ignored, it is assumed that the upper
feedrate limit specified for parameter No. 8465 is specified.
Note, however, that any issued F commands and modal F commands
are stored within the CNC.
Thus, in a block in which AI contour control changes from the
enabled state to the disabled state, the modal values of the F
commands described in <1> and <2> described above are used as
modal F commands, instead of the modal values of the F commands
calculated by AI contour control.


  - Another example of determining the feedrate

If a specified feedrate exceeds the upper feedrate limit of AI contour
control (in parameter No. 8465), the feedrate is clamped at the upper
feedrate.  The upper feedrate limit is clamped at the maximum
cutting feedrate (parameter No. 1432).


B-63944EN/03

 PROGRAMMING





- 669 -

20.HIGH-SPEED CUTTING

FUNCTIONS

Limitation
  - Conditions for temporarily canceling the AI contour control mode

If one of the commands listed below is issued in the AI contour
control mode, the AI contour control mode is canceled temporarily.
If the system becomes ready for AI contour control after it is canceled,
the AI contour control mode is restored automatically.

•

  Positioning (rapid traverse)

•

  Single direction positioning

•

 Spindle

positioning

•

 Rigid

tapping

•

  Hypothetical axis interpolation

•

  Threading (single type, combined type)

•

  Electronic gear box

•

 Superimposed

control

•

  When no move command is specified

•

  One-shot G code other than the following:

Tool offset
Cutter compensation vector retention
Cutter compensation corner rounding
Exact stop



  - Functions that cannot be specified in the AI contour control mode

In the AI contour control mode, the functions listed below cannot be
specified.    Before specifying these functions, turn off the AI contour
control mode; after the command ends, turn on the mode again.

•

 Threading

•

 Circular

threading

•

  Variable lead threading

Threading, circular threading, and variable lead threading can be
specified in the AI contour control mode by setting bit 1 (THA) of
parameter No. 1611.  However, the AI contour control mode is
automatically canceled.


Notes



  - About processing macro statements



In AI contour control mode, the NC statements of multiple blocks are
looked ahead. Macro statements such as



arithmetic expressions and

conditional branches



are processed as soon as they are read into the

buffer. Therefore, the timing of the macro statement execution is not
always the specified order.
In case that you need to execute the macro statement after completing
the NC block just before the macro statement, specify M code or G
code that is not buffered just before the macro statement. Specially, in
case of reading/writing the system variables to control signals,
coordinates, offset value, etc., it may be different system variable data
by the timing of the NC statement execution. To avoid this
phenomenon, specify such M codes or G codes before the macro
statement, if necessary.





 PROGRAMMING

B-63944EN/03





- 670 -

20. HIGH-SPEED CUTTING

FUNCTIONS

20.2

MACHINING CONDITION SELECTING FUNCTION



Overview

By setting a speed- or precision-focused parameter set in an AI
contour control function and specifying a precision level in
accordance with the machining conditions during machining,
parameters suitable to the conditions can be automatically calculated
so that machining can be performed.
This function is an optional one.


Format
  - Changing the precision level using a program


In addition to being switched on the precision level selection screen,
the precision level can be changed using a program in the format
below.


G05.1 Q1 Rx ;

x .......Level (1 to 10)


The precision level can also be changed in the format used with
conventional "advanced preview control", "high precision contour
control", and "AI high precision contour control".


G05 P10000 Rx ;

x .......Level (1 to 10)

G08 P1 Rx ;

x .......Level (1 to 10)



 CAUTION

    Once specified, a level remains effective even if the

AI contour control mode is canceled.



B-63944EN/03

 PROGRAMMING





- 671 -

20.HIGH-SPEED CUTTING

FUNCTIONS

20.3

JERK CONTROL

20.3.1

Speed Control with Change of Acceleration on Each Axis



Overview

In portions in which acceleration changes largely, such as a portion
where a programmed figure changes from a straight line to curve,
vibration or shock on the machine may occur.  Speed control with
change of acceleration on each axis is a function to suppress
machining errors due to vibration and machine shock generated by
change of acceleration.  This function obtains a feedrate so that
change of acceleration is within the parameter-set permissible accel-
eration change amount for each axis, and performs deceleration by
using acceleration/deceleration before interpolation.


 CAUTION



Before speed control with change of acceleration
on each axis can be used, the options for jerk
control and AI contour control are required.



Explanation

In the following example, the Y-axis acceleration changes largely at
the contact point between a linear interpolation and circular interpo-
lation, so deceleration is performed.


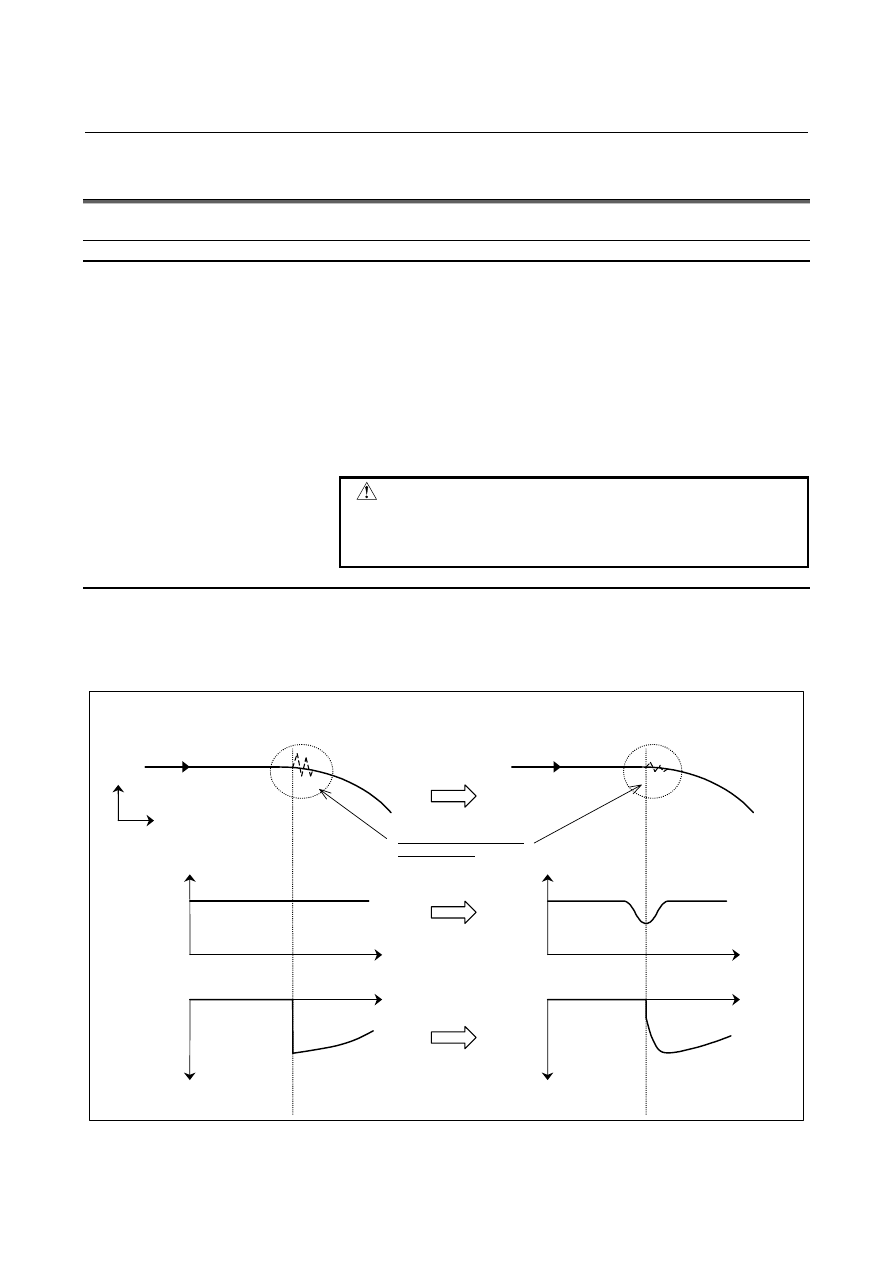

From linear interpolation (N1) to circular interpolation (N2)

Y

X

Vibration due to change

of acceleration

N1

N2

Tangential

feedrate

Y-axis

acceleration

Feedrate

Time

N1

N2

Time

Feedrate

Acceleration

Time

Acceleration

Time



 PROGRAMMING

B-63944EN/03





- 672 -

20. HIGH-SPEED CUTTING

FUNCTIONS

  - Setting the permissible acceleration change amount

The permissible acceleration change amount for each axis is set in
parameter No. 1788.  When 0 is set in this parameter for a certain
axis, speed control with change of acceleration is not performed for
that axis.


•



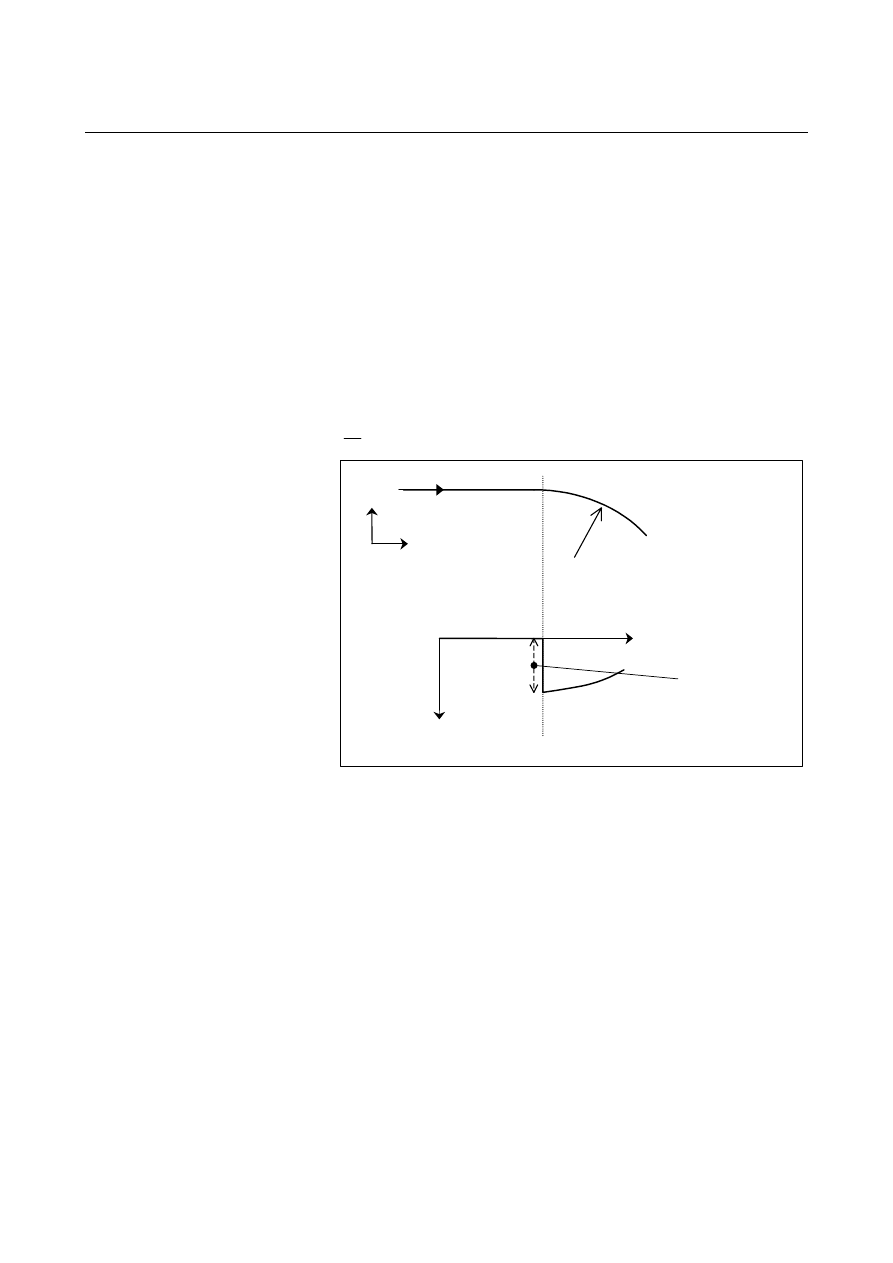

Parameter setting example

Suppose a figure shown below in which a straight line is followed by
an arc.    Let the specified feedrate and the arc radius be 6000 mm/min
and 10 mm, respectively.  Then, the Y-axis acceleration change
amount at the contact point of the linear and arc portions is obtained
as follows:

Y

X

Y-axis

acceleration

Acceleration

Time

From straight line to arc

Specified feedrate:  6000 mm/min

Acceleration
change amount:

 1000 mm/s

2

Arc radius:    10 mm




To suppress the change of acceleration to 300 mm/s

2

, set 300 mm/s

2



for the Y-axis in parameter No. 1788.
Note that the change of acceleration is determined from the
interpolation data of the CNC, so it may differ from the theoretical
value.
The actual machine is affected by acceleration/deceleration and other
factors, so the value to be set in the parameter should be determined
after adjustments are made.


2

2

/

1000

s

mm

r

v

=

B-63944EN/03

 PROGRAMMING





- 673 -

20.HIGH-SPEED CUTTING

FUNCTIONS

  - For successive linear interpolations

When there are successive linear interpolations, speed control with
change of acceleration obtains the deceleration feedrate from the
change in acceleration between the start point and end point of a
specified block.
When a curve is specified using successive minute straight lines,
programmed values are rounded to the least input increment before
issued, so the machining profile is approximated with a broken line.
The error due to rounding may increase change of acceleration, and
especially when the line segments specified by blocks are short,
deceleration is performed frequently.  As a result, the machining
speed cannot increase enough.  In such a case, a relatively large
value should be set in parameter No. 1789 as the permissible
acceleration change amount for each axis in successive linear
interpolations to improve the machining speed.
When a value other than 0 is set in parameter No. 1789 for an axis for
which deceleration with change of acceleration is enabled, this setting
is regarded as the permissible acceleration change amount at corners
in which linear interpolations meet.  (For portions where a linear
interpolation and circular interpolation meet and where circular
interpolations meet, the setting in parameter No. 1788 is used.)
When 0 is set in parameter No. 1789 for an axis, the setting in
parameter No. 1788 specifying the ordinary permissible acceleration
change amount is used even at a corner in which linear interpolations
meet.
When smooth speed control is used in speed control with permissible
acceleration in AI contour control (named temporarily), the
deceleration feedrate is obtained from the change of acceleration
calculated by smooth speed control.
Therefore, the deceleration feedrate may be higher than the ordinary
deceleration feedrate.


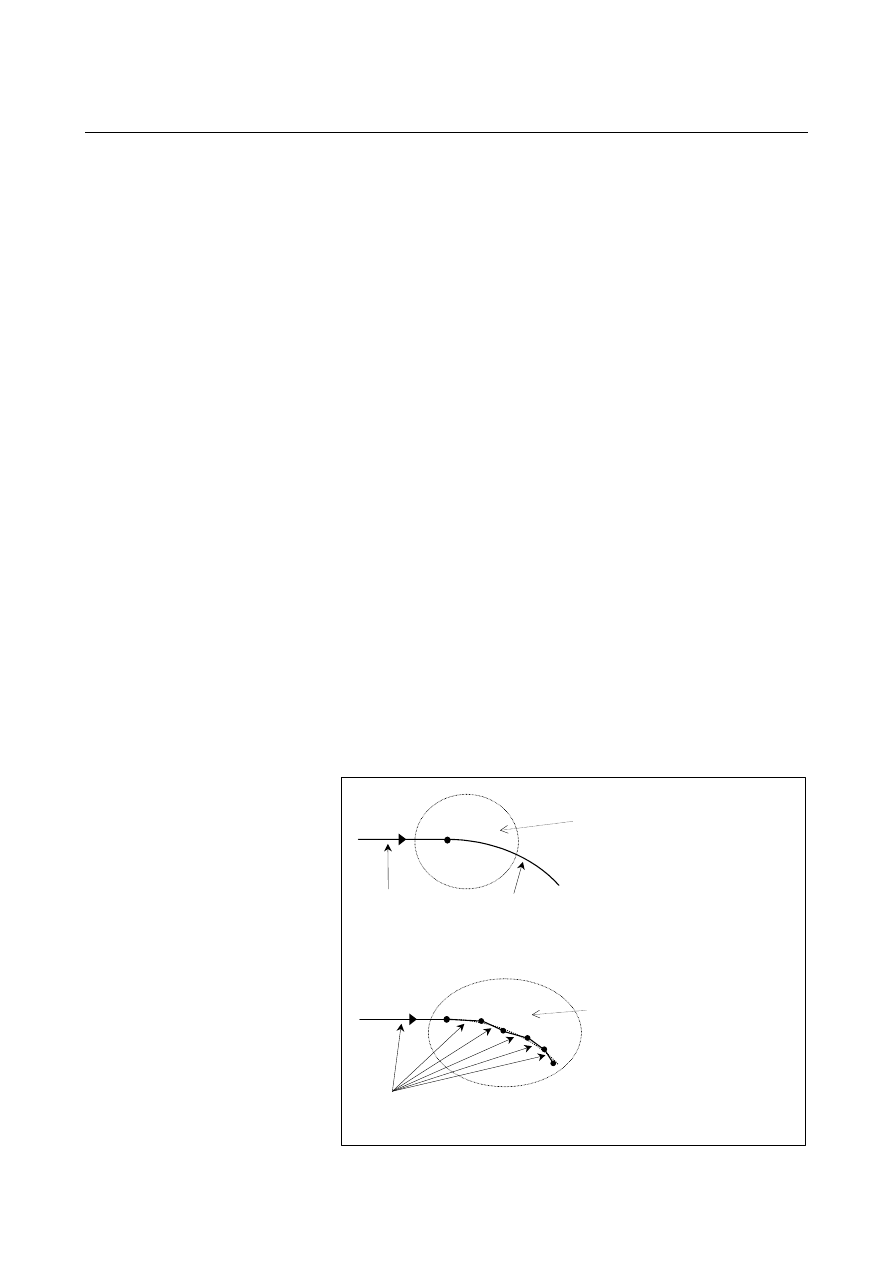

When linear interpolation is followed
by circular interpolation, speed
control is performed using the
permissible acceleration change

amount set in parameter No. 1788.

Linear
interpolation

Circular
interpolation

For successive linear interpolations,
speed control is performed using the
permissible acceleration change

amount set in parameter No. 1789.

Linear
interpolation



 PROGRAMMING

B-63944EN/03





- 674 -

20. HIGH-SPEED CUTTING

FUNCTIONS

20.3.2

Look-Ahead Smooth Bell-Shaped Acceleration/Deceleration

before Interpolation



Overview

In look-ahead bell-shaped acceleration/deceleration before interpo-
lation performs smooth acceleration/deceleration by changing the
acceleration at a constant rate in specified acceleration change time.
In look-ahead smooth bell-shaped acceleration/deceleration before
interpolation, the jerk change time is specified in parameter No. 1790
by using the percentage to the acceleration change time for look-ahead
bell-shaped acceleration/deceleration before interpolation, and change
of acceleration is also controlled so that the change is bell-shaped.
This enables smoother acceleration/deceleration, therefore reducing
machine vibration and shock due to acceleration/ deceleration.



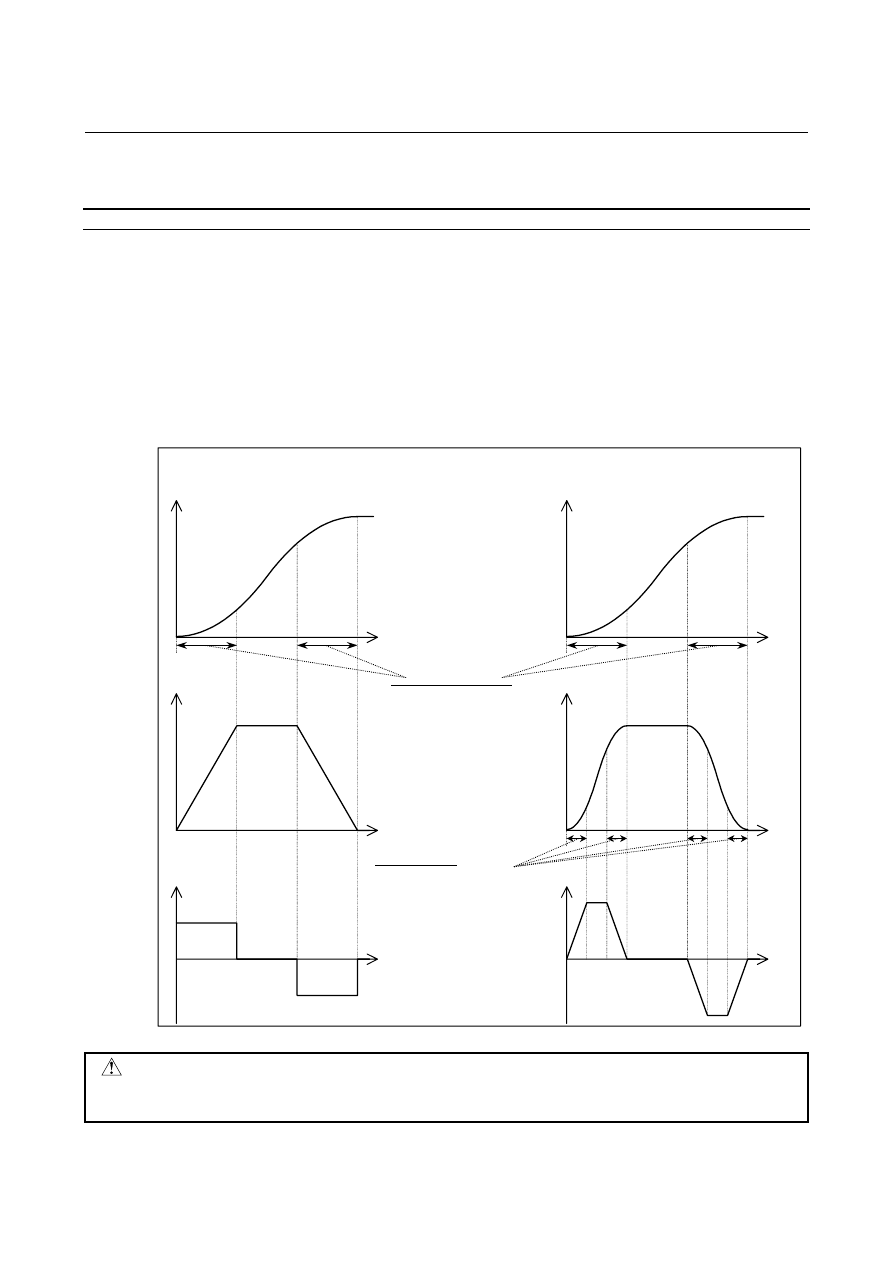

(Look-ahead bell-shaped
acceleration/deceleration before interpolation)

(Look-ahead smooth bell-shaped

acceleration/deceleration before interpolation)

Time

Tangential feedrate

Acceleration

Jerk

acceleration

Jerk

acceleration

Acceleration change time
Time set in parameter No.

1772

Jerk change time
Time set in parameter No.
1790 by using the
percentage to the

acceleration change time

Tangential feedrate

Time

Time

Time

Time

Time

Acceleration





 CAUTION

  Before look-ahead smooth bell-shaped acceleration/deceleration before interpolation

can be used, the option for jerk control and AI contour control II is required.

B-63944EN/03

 PROGRAMMING





- 675 -

20.HIGH-SPEED CUTTING

FUNCTIONS

Explanation
  - Setting the jerk change time

The jerk change time is set in parameter No. 1790 by using the
percentage to the acceleration change time.
The actual jerk change time is represented by the percentage to the
acceleration change time set in parameter No. 1772.
The jerk change time must be within a half of the acceleration change
time, so the value to be set in the parameter ranges 0 to 50 (percent).
If 0 or a value beyond the specifiable range is specified in parameter
No. 1790, look-ahead smooth bell-shaped acceleration/deceleration
before interpolation is not enabled.


  - Acceleration/deceleration before interpolation for linear type rapid traverse

When bell-shaped acceleration/deceleration is used in acceleration/
deceleration before interpolation for linear type rapid traverse,
enabling look-ahead smooth bell-shaped acceleration/deceleration
before interpolation applies smooth bell-shaped acceleration/decel-
eration to acceleration/deceleration before interpolation for linear type
rapid traverse.
In this case, the jerk change time is represented by the percentage set
in parameter No. 1790 to the acceleration change time set in parameter
No. 1672.


  - Optimum torque acceleration/deceleration

When bell-shaped acceleration/deceleration is used in optimum torque
acceleration/deceleration, enabling look-ahead smooth bell-shaped
acceleration/deceleration before interpolation applies smooth
bell-shaped acceleration/deceleration to optimum torque acceleration/
deceleration.
In this case, the jerk change time is represented by the percentage set
in parameter No. 1790 to the acceleration change time set in parameter
No. 1672.
