8.COORDINATE VALUE AND DIMENSION

 PROGRAMMING

B-63944EN/03





- 212 -

8.2

INCH/METRIC CONVERSION (G20, G21)


Either inch or metric input (least input increment) can be selected by
G code.


Format

G20 ;

 Inch

input

G21 ;

 Metric

input


This G code must be specified in an independent block before setting
the coordinate system at the beginning of the program. After the G
code for inch/metric conversion is specified, the unit of input data is
switched to the least inch or metric input increment of increment
system (II-2.3). The unit of data input for degrees remains unchanged.
The unit systems for the following values are changed after
inch/metric conversion:

•

 Feedrate commanded by F code

•

 Positional command

•

 Workpiece origin offset value

•

 Tool compensation value

•

 Unit of scale for manual pulse generator

•

 Movement distance in incremental feed

•

 Some parameters

When the power is turned on, the G code is the same as that held
before the power was turned off.


 WARNING



G20 and G21 must not be switched during a
program.



NOTE

1  When the least input increment and the least

command increment systems are different, the
maximum error is half of the least command
increment. This error is not accumulated.

2  The inch and metric input can also be switched

using settings (see III-12.3.1).

3  If a function selected using bit 2 (IRF) of parameter

No. 14000 or bit 0 (NIM) of parameter No. 11222 is
not used, be sure to perform inch/metric conversion
at the reference position (machine coordinate
system origin).



B-63944EN/03

 PROGRAMMING

8.COORDINATE VALUE AND DIMENSION





- 213 -

Performing inch/metric conversion in the reference position (parameter No. 1240 is
not 0)


Conventionally, inch/metric conversion must be performed at the
machine coordinate system origin.  However, setting bit 2 (IRF) of
parameter No. 14000 to 1 enables inch/metric conversion to be
performed in the reference position (parameter No. 1240).

If an attempt is made to perform inch/metric conversion when an axis
with this function enabled is not in the reference position, alarm
PS5362 is issued to cancel the attempt.
Before trying to perform inch/metric conversion, be sure to set the
axis of interest to the reference position, using the G28 command, for
example.

In addition, if the workpiece coordinate system has been shifted from
the machine coordinate system, using the following commands or
operations, bit 1 (CIM) of parameter No. 11222 can be used to select
whether to issue alarm PS1298 or to clear the offset.

•



Manual intervention performed with the manual absolute signal
being off

•



Move command issued with the machine locked

•



Move command issued using a handle interrupt

•



Mirror image-based operation

•



Workpiece coordinate system shift caused by local coordinate
system setting (G52) or workpiece coordinate system setting
(G92)



Switching conditions

Performing inch/metric conversion in any position other than the
reference position requires satisfying all of the following conditions.
Failing to satisfy any of the conditions results in alarm PS1298 being
issued.    For electronic gear box 2 pair synchronization or electronic
gear box synchronization, alarm PS1595 is issued.

•



Positioning or linear interpolation

•



Polar coordinate interpolation cancel mode

•



Polar coordinate command cancel

•



Spindle Speed fluctuation detection off

•

 Tool

radius

⋅

 tool nose radius compensation cancel /

3-dimensional tool compensation cancel

•



Normal direction control cancel

•



Tool length offset cancel

•

 Scaling

cancel

•



Programmable mirror image cancel

•



Polygon turning cancel

•



Macro modal call A/B cancel

•



Coordinate system rotation or 3-dimensional coordinate system
conversion mode off

•



Mirror image for double turret or balanced cutting mode cancel
(T series only)

•



Canned cycle cancel

8.COORDINATE VALUE AND DIMENSION

 PROGRAMMING

B-63944EN/03





- 214 -

•



Electronic gear box 2 pair synchronization cancel

•



Electronic gear box synchronization cancel

•



Constant surface speed control cancel


In addition, performing inch/metric conversion in any position other
than the reference position requires the following options.



•

 Inch/metric

conversion

•



Workpiece coordinate system



Restrictions

When performing the following operations, make sure that the axis of
interest is in the reference position (machine coordinate system
origin).

•



Inch/metric conversion based on bit 2 (INI) of setting parameter
No. 0

•



Inch/metric conversion based on programmable parameter input
(G10)

•

  Inch/metric conversion based on custom macro variable No.

3005



Performing inch/metric conversion in positions other than the reference position

Setting bit 0 (NIM) of parameter No. 11222 enables inch/metric
conversion to be performed even in positions other than the reference
position.

In addition, if the workpiece coordinate system has been shifted from
the machine coordinate system, using the following commands or
operations, bit 1 (CIM) of parameter No. 11222 can be used to select
whether to issue alarm PS1298 or to clear the offset.

•



Manual intervention performed with the manual absolute signal
being off

•



Move command issued with the machine locked

•



Move command issued using a handle interrupt

•



Mirror image-based operation

•



Workpiece coordinate system shift caused by local coordinate
system setting (G52) or workpiece coordinate system setting
(G92)


If an axis is under any of the following controls, however, no
automatic coordinate system conversion based on this function can be
carried out for the axis.

•



Axis control by PMC

•



Axis synchronous control (for slave axes when the master axis is
a PMC axis)

•



Flexible synchronous control (for slave axes when the master
axis is a PMC axis)

•

 Chopping

•



Spindle control with servo motor

•



Spindle control with Cs contour control

•



Servo/spindle synchronous control



B-63944EN/03

 PROGRAMMING

8.COORDINATE VALUE AND DIMENSION





- 215 -

Switching conditions

Performing inch/metric conversion in any position other than the
reference position requires satisfying all of the following conditions.
Failing to satisfy any of the conditions results in alarm PS1298 being
issued.    For electronic gear box 2 pair synchronization or electronic
gear box synchronization, alarm PS1595 is issued.

•



Positioning or linear interpolation

•



Polar coordinate interpolation cancel mode

•



Polar coordinate command cancel

•



Spindle Speed fluctuation detection off

•

 Tool

radius

⋅

 tool nose radius compensation cancel /

3-dimensional tool compensation cancel

•



Normal direction control cancel

•



Tool length offset cancel

•

 Scaling

cancel

•



Programmable mirror image cancel

•



Polygon turning cancel

•



Macro modal call A/B cancel

•



Coordinate system rotation or 3-dimensional coordinate system
conversion mode off

•



Mirror image for double turret or balanced cutting mode cancel
(T series only)

•



Canned cycle cancel

•



Electronic gear box 2 pair synchronization cancel

•



Electronic gear box synchronization cancel

•



Constant surface speed control cancel


In addition, performing inch/metric conversion in any position other
than the reference position requires the following options.



•

 Inch/metric

conversion

•



Workpiece coordinate system

•



Workpiece coordinate system preset



Restrictions

When performing the following operations, make sure that the axis of
interest is in the reference position (machine coordinate system
origin).

•



Inch/metric conversion based on bit 2 (INI) of setting parameter
No. 0

•



Inch/metric conversion based on programmable parameter input
(G10)

•

  Inch/metric conversion based on custom macro variable No.

3005



8.COORDINATE VALUE AND DIMENSION

 PROGRAMMING

B-63944EN/03





- 216 -

8.3

DECIMAL POINT PROGRAMMING


Numerical values can be entered with a decimal point. A decimal
point can be used when entering a distance, time, or speed. Decimal
points can be specified with the following addresses:


M



X, Y, Z, U, V, W, A, B, C, I, J, K, Q, R, F



T



X, Y, Z, U, V, W, A, B, C, I, J, K, R, F



Explanation

There are two types of decimal point notation: calculator-type notation
and standard notation.
When calculator-type decimal notation is used, a value without
decimal point is considered to be specified in millimeters inch, or deg.
When standard decimal notation is used, such a value is considered to
be specified in least input increments.  Select either calculator-type
or standard decimal notation by using the bit 0 (DPI) of parameter
No.3401.Values can be specified both with and without decimal point
in a single program.


Example

Program command

Pocket calculator

type decimal point

programming

Standard type decimal point

programming

X1000
Command value
without decimal point

1000mm
Unit :mm

1mm
Unit : Least input increment
(0.001mm)

X1000.0
Command value with
decimal point

1000mm
Unit :mm

1000mm
Unit :mm



 CAUTION



When specifying a dimension word for a command
G code in a block, be sure to place the dimension
word after the command G code.



B-63944EN/03

 PROGRAMMING

8.COORDINATE VALUE AND DIMENSION





- 217 -

NOTE

1  A specified value less than the minimum unit is

treated as described below.

Example 1)
  When a value is specified directly at an address

(in the case of IS-B)
 X1.2345 ;    Treated as X1.235
 X-1.2345 ;   Treated as X-1.234

Example 2)
  When a value is assigned to a macro variable (in

the case of IS-B)
 #100=1.2345;
 X#100 ;     Treated as X1.235
 #100=-1.2345;
 X#100 ;     Treated as X-1.234

2  When more than eight digits are specified, an

alarm occurs. If a value is entered with a decimal
point, the number of digits is also checked after the
value is converted to an integer according to the
least input increment.

Examples:
 X1.23456789;

Alarm PS0003 occurs because more than
eight digits are specified.

 X123456.7;

If the least input increment is 0.001 mm, the
value is converted to integer 123456700.
Because the integer has more than eight
digits, an alarm occurs.



8.COORDINATE VALUE AND DIMENSION

 PROGRAMMING

B-63944EN/03





- 218 -

8.4

DIAMETER AND RADIUS PROGRAMMING


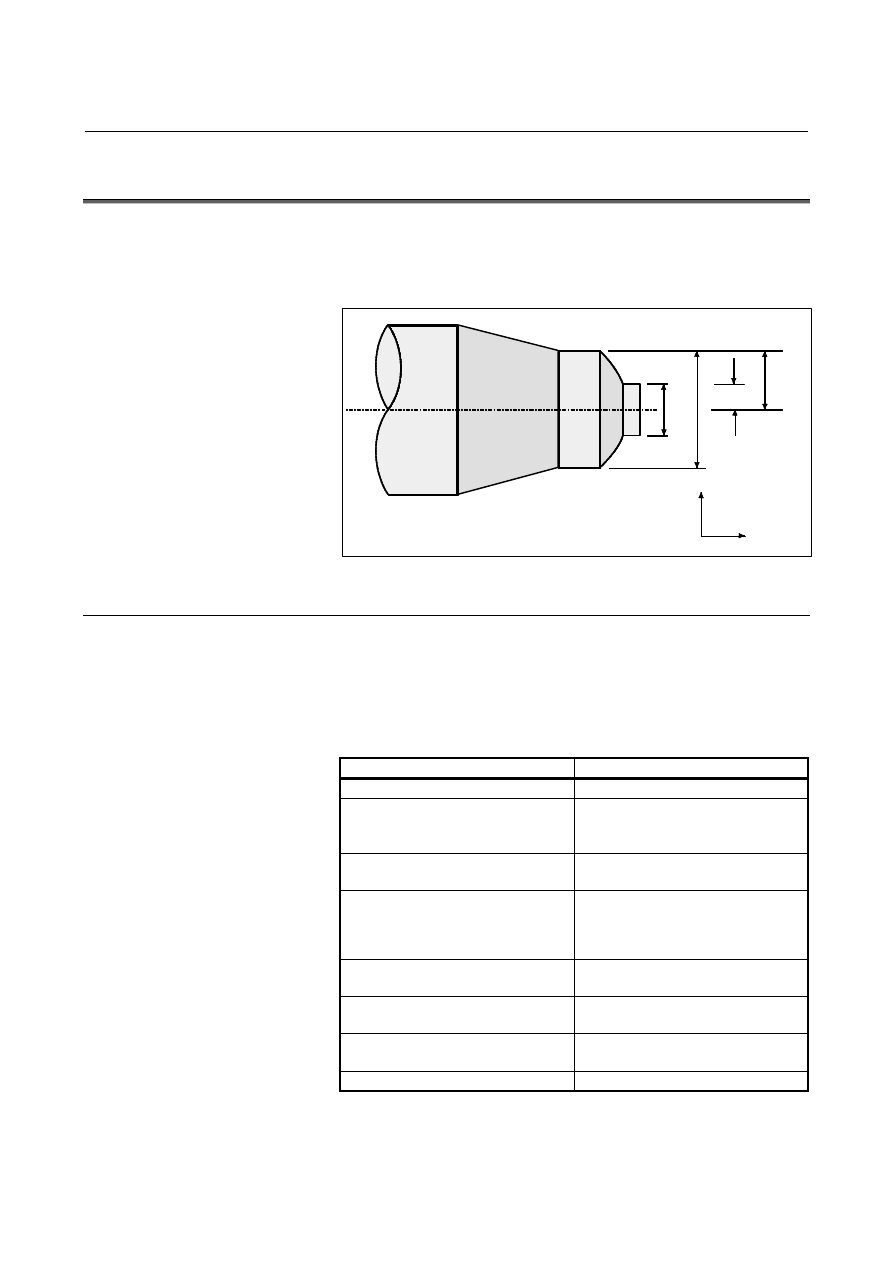

Since the workpiece cross section is usually circular in CNC lathe
control programming, its dimensions can be specified in two ways :
Diameter and Radius


Z axis

A

B

D

1

X axis

D

2

R

1

R

2

D1, D2 : Diameter programming

R1, R2 : Radius programming

When the diameter is specified, it is called diameter programming and
when the radius is specified, it is called radius programming.


Explanation
  - Notes on diameter programming/radius programming for each command

Radius programming or diameter programming can be specified by bit
3 (DIA) of parameter No.1006. When using diameter programming,
note the conditions listed in the Table 8.4 (a).


Table 8.4 (a)    Notes on specifying diameter value

Item Notes

X axis command

Specified with a diameter value

Incremental command

Specified with a diameter value
In the above figure, specifies D2
minus D1 for tool path B to A.

Coordinate system setting (G50)

Specifies a coordinate value with a
diameter value

Component of tool offset value

Bit 1 of parameter No.5004
determines either diameter or radius
value

Parameters in canned cycle, such
as cutting depth along X axis. (R)

Specifies a radius value

Radius designation in circular
interpolation (R, I, K, and etc.)

Specifies a radius value

Feedrate along axis

Specifies change of radius/rev. or
change of radius/min.

Display of axis position

Displayed as diameter value



B-63944EN/03

 PROGRAMMING

8.COORDINATE VALUE AND DIMENSION





- 219 -

8.5

DIAMETER AND RADIUS SETTING SWITCHING
FUNCTION



Overview

Usually, whether to use diameter specification or radius specification
to specify a travel distance on each axis is uniquely determined by the
setting of bit 3 (DIAx) of parameter No. 1006.  However, this
function enables switching between diameter specification and radius
specification by using a signal or G code.
Thus, a coordinate, program, and so forth can be specified by
switching between diameter specification and radius specification for
each controlled axis.


Explanation
  - Selection of a diameter/radius specification switching method

Two methods are available for switching between diameter
specification and radius specification:
1)  Signal
2)  G code
Use bit 5 (PGD) of parameter No. 3400 to determine which method to
use.


  - Switching method using a signal

For switching between diameter specification and radius specification,
set the diameter/radius specification switch signal from DI1 to DI8
(input signals) corresponding to a desired axis, from 0 to 1.



If an input signal is set from 0 to 1, and radius specification is selected
(with bit 3 (DIAx) of parameter No. 1006 = 0) for the axis
corresponding to the input signal, the specification method switches to
diameter specification; the specification method switches to radius
specification if diameter specification is selected (with bit 3 (DIAx) of
parameter No. 1006 = 1).



During switching, the diameter/radius specification switching
in-progress signal from DM1 to DM8 (output signals) corresponding
to a switched axis is output.



To return the diameter/radius specification of an axis to the original
state, set the setting of the corresponding diameter/radius specification
switch signal from DI1 to DI8, from 1 to 0.
