FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 12

4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 52 -

Limitation

The rapid traverse rate cannot be specified in the address F.
Even if linear interpolation type positioning is specified, nonlinear
type interpolation positioning is used in the following cases. Therefore,
be careful to ensure that the tool does not foul the workpiece.

•

  G28 specifying positioning between the reference and

intermediate positions.

•

 G53



B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 53 -

4.2

SINGLE DIRECTION POSITIONING (G60)


For accurate positioning without play of the machine (backlash), final
positioning from one direction is available.

Start point

Temporary stop

End point

Overrun

Start point





Format

G60

IP_ ;



IP_ :

For an absolute programming, the coordinates of an
end point, and for an incremental programming, the
distance the tool moves.



Explanation

An overrun and a positioning direction are set by the parameter No.
5440. Even when a commanded positioning direction coincides with
that set by the parameter, the tool stops once before the end point.
G60, which is a one-shot G-code, can be used as a modal G-code in
group 01 by setting 1 to the bit 0 (MDL) of parameter No. 5431.
This setting can eliminate specifying a G60 command for every block.
Other specifications are the same as those for a one-shot G60
command. When a one-shot G code is specified in the single direction
positioning mode, the one-shot G command is effective like G codes
in group 01.

(Example)

When one-shot G60 commands are used.

G90;
G60 X0Y0;
G60 X100;
G60 Y100;
G04 X10;
G00 X0Y0;



Single direction positioning


When modal G60 command is used.

G90G60;
X0Y0;
X100;
Y100;
G04X10;
G00X0 Y0;

Single direction positioning mode start

Single direction positioning


Single direction positioning mode cancel

4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 54 -

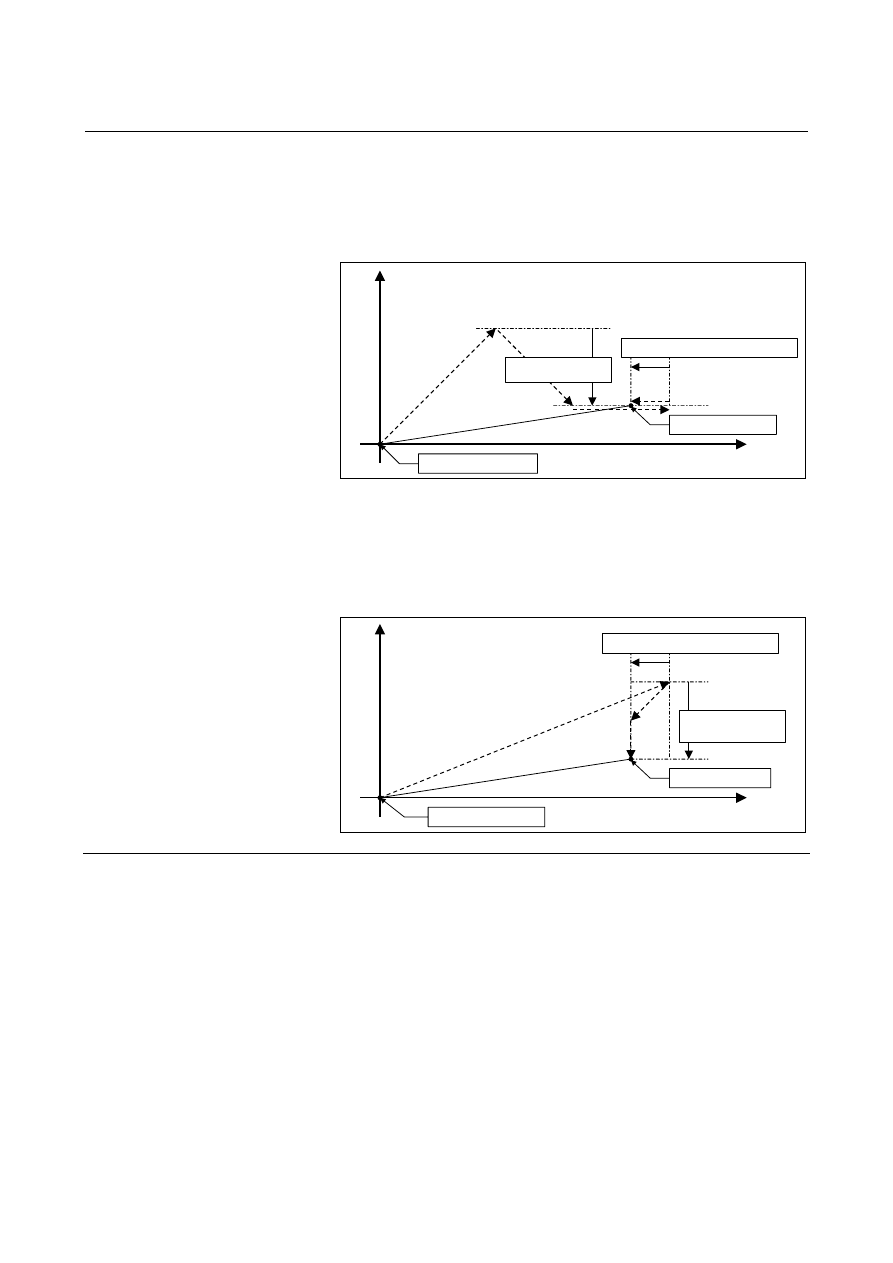

  - Overview of operation

•



In the case of positioning of non-linear interpolation type (bit
1 (LRP) of parameter No. 1401 = 0)



As shown below, single direction positioning is performed
independently along each axis.



Programmed end point

Programmed start point

Overrun distance in the
X-axis direction

Overrun distance in the Z-axis direction

Z

X





•



In the case of positioning of linear interpolation type (bit 1
(LRP) of parameter No. 1401 = 1)



Positioning of interpolation type is performed until the tool once
stops before or after a specified end point. Then, the tool is
positioned independently along each axis until the end point is
reached.



Programmed end point

Programmed start point

Overrun distance in the
X-axis direction

Overrun distance in the Z-axis direction

Z

X





Limitation



•

  Single direction positioning is not performed along an axis for

which no overrun distance is set in parameter No. 5440.



•

  Single direction positioning is not performed along an axis for

which travel distance 0 is specified.



•

  The mirror image function is not applied in a parameter-set

direction. Even in the mirror image mode, the direction of single
direction positioning remains unchanged. If positioning of linear
interpolation type is used, and the state of mirror image when a
single direction positioning block is looked ahead differs from
the state of mirror image when the execution of the block is
started, an alarm is issued. When switching mirror image in the
middle of a program, disable looking ahead by specifying a
non-buffering M code. Then, switch mirror image when there is
no look-ahead block.

B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 55 -



•

  In the cylindrical interpolation mode (G07.1), single direction

positioning cannot be used.



•

  In the polar coordinate interpolation mode (G12.1), single

direction positioning cannot be used.



•

  When specifying single direction positioning on a machine that

uses arbitrary angular axis control, first position the angular axis
then specify the positioning of the Cartesian axis. If the reverse
specification order is used, or the angular axis and Cartesian axis
are specified in the same block, an incorrect positioning direction
can result.



•

  In positioning at a restart position by program restart function,

single direction positioning is not performed.




M



•



During canned cycle for drilling, no single direction positioning
is effected in drilling axis.

•

  The single direction positioning does not apply to the shift

motion in the canned cycles of G76 and G87.



T



•



The G-code for single direction positioning is always G60, if
G-code system is A or B or C in all case.

•



The single direction positioning can not be commanded during
the multiple repetitive cycle (G70-G76).

•

  No single direction positioning is effected in the drilling or

patting axis, during canned cycle for drilling (G83-G89) and the
rigid tapping (G84, G88). However, it can be commanded for
positioning.

•



The single direction positioning can not be commanded during
the canned cycle (G90, G92, G94).

•

  During the single direction positioning mode (G60), the

following G-code can not be commanded.



G07.1, G12.1, G70-G76, G90-G94.





4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 56 -

4.3

LINEAR INTERPOLATION (G01)


Tools can move along a line.


Format

G01

IP_

F_ ;

IP_ :

For an absolute programming, the coordinates of an
end point, and for an incremental programming, the
distance the tool moves.

F_ :  Speed of tool feed (Feedrate)



Explanation

A tools move along a line to the specified position at the feedrate
specified in F.
The feedrate specified in F is effective until a new value is specified.
It need not be specified for each block.
The feedrate commanded by the F code is measured along the tool
path. If the F code is not commanded, the feedrate is regarded as zero.
The feedrate of each axis direction is as follows.

G01

α

α



β

β



γ

γ



ζ

ζ

 Ff ;

Feed rate of

α

 axis direction :

f

L

F

×

=

α

α



Feed rate of

β

 axis direction :

f

L

F

×

=

β

β



Feed rate of

γ

 axis direction :



f

L

F

×

=

γ

γ



Feed rate of

ζ

 axis direction :



f

L

F

×

=

ζ

ζ



2

2

2

2

ζ

γ

β

α

+

+

+

=

L




The feedrate of the rotary axis is commanded in the unit of deg/min
(the unit is decimal point position).
When the straight line axis

α

 (such as X, Y, or Z) and the rotating axis

β

 (such as A, B, or C) are linearly interpolated, the feedrate is that in

which the tangential feedrate in the

α

 and

β

 cartesian coordinate

system is commanded by F (mm/min).

β

-axis feedrate is obtained ; at first, the time required for distribution

is calculated by using the above formula, then the

β

-axis feedrate unit

is changed to deg/min.

B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 57 -

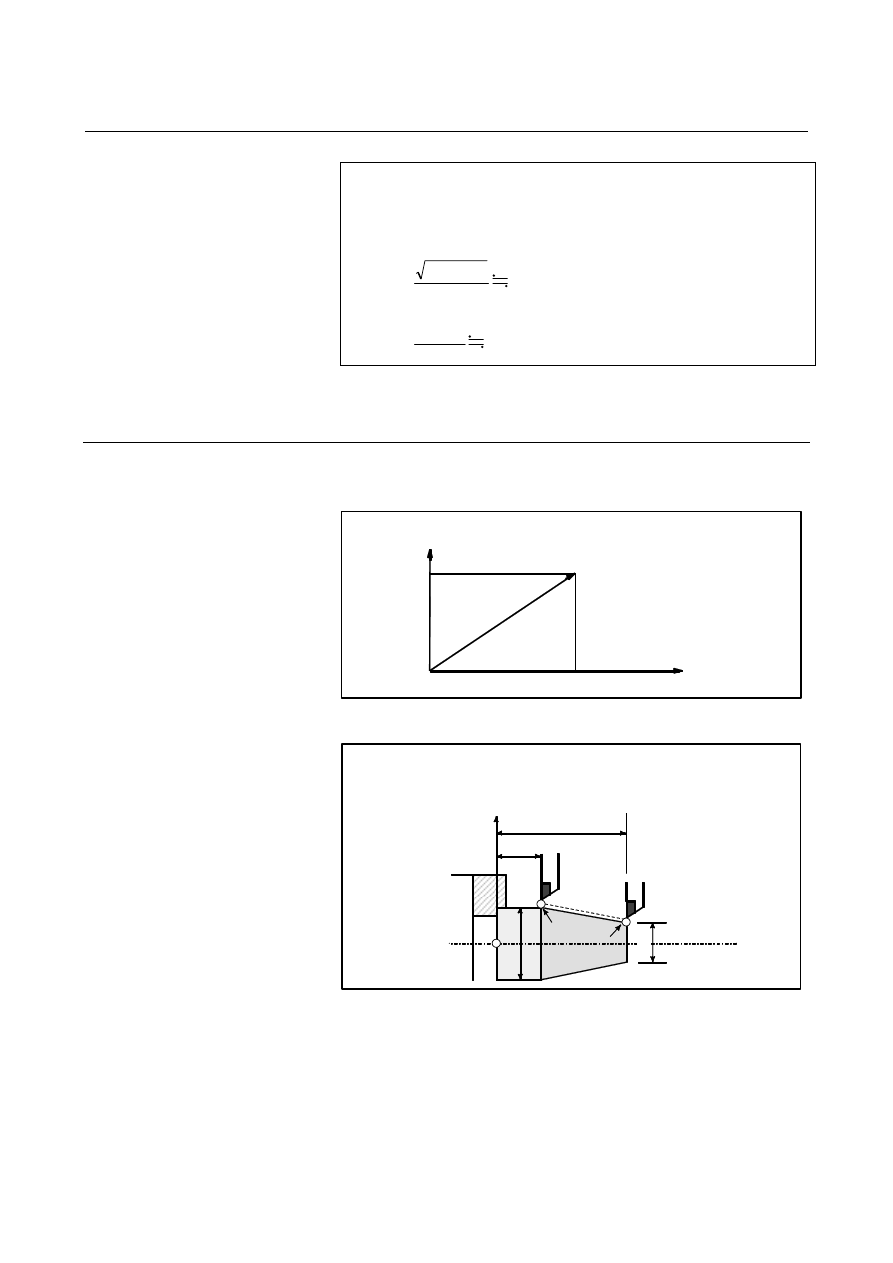

A calculation example is as follows.
G91 G01 X20.0B40.0 F300.0 ;
This changes the unit of the C axis from 40.0 deg to 40mm
with metric input. The time required for distribution is
calculated as follows:



300

40

20

2

2

+

)

(

14907

.

0

mm



The feedrate for the C axis is



14907

.

0

40

min

deg/

3

.

268




In simultaneous 3 axes control, the feedrate is calculated the same way
as in 2 axes control.


Example
 - Linear interpolation

•



For milling machining



(G91) G01X200.0Y100.0F200.0;

Y axis

100.0

200.0

0 (Start point)

(End point)

X axis





•



For lathe cutting

(Diameter programming)
   G01X40.0Z20.1F20; (Absolute programming)
      or
   G01U20.0W-25.9F20; (Incremental programming)

Z

20.1

46.0

φ

20.0

X

φ

40.0

Start
point

End
point





4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 58 -

  - Feedrate for the rotary axis

90

°

(Start point)

(End point)

Feedrate is 300 deg/min

G91G01C-90.0 F300.0 ;Feed rate of 300deg/min





B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 59 -

4.4

CIRCULAR INTERPOLATION (G02, G03)


The command below will move a tool along a circular arc.


Format

Arc in the XpYp plane

G02 I_

J_

G17

G03

Xp_ Yp_

R_

F_ ;

Arc in the ZpXp plane

G02 I_

K_

G18

G03

Zp_ Xp_

R_

F_ ;

Arc in the YpZp plane

G02 J_

K_

G19

G03

Yp_ Zp_

R_

F_ ;



Command Description

G17 Specification

of arc on XpYp plane

G18 Specification

of arc on ZpXp plane

G19

Specification of arc on YpZp plane

G02

Circular Interpolation : Clockwise direction (CW)

G03

Circular Interpolation : Counterclockwise direction (CCW)

Xp

_



Command values of X axis or its parallel axis
(set by parameter No. 1022)

Yp

_

Command values of Y axis or its parallel axis
(set by parameter No. 1022)

Zp

_

Command values of Z axis or its parallel axis
(set by parameter No. 1022)

I_

Xp axis distance from the start point to the center of an arc
with sign

J_

Yp axis distance from the start point to the center of an arc
with sign

K_

Zp axis distance from the start point to the center of an arc
with sign

R_

Arc radius (with sign, radius value for lathe cutting)

F_

Feedrate along the arc



T



NOTE



The U-, V-, and W-axes can be used with G-codes
B and C.
