FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 7

B-63944EN/03

 PROGRAMMING

1.GENERAL



- 13 -

1

GENERAL


Chapter 1, "GENERAL", consists of the following sections:

1.1  TOOL MOVEMENT ALONG WORKPIECE PARTS FIGURE-

INTERPOLATION .....................................................................14

1.2 FEED-FEED FUNCTION ..........................................................16
1.3  PART DRAWING AND TOOL MOVEMENT.........................17
1.4  CUTTING SPEED - SPINDLE FUNCTION .............................27
1.5  SELECTION OF TOOL USED FOR VARIOUS MACHINING -

TOOL FUNCTION.....................................................................28

1.6  COMMAND FOR MACHINE OPERATIONS - AUXILIARY

FUNCTION ................................................................................29

1.7 PROGRAM CONFIGURATION ...............................................30
1.8  TOOL MOVEMENT RANGE - STROKE ................................33


1.GENERAL



PROGRAMMING



B-63944EN/03





- 14 -

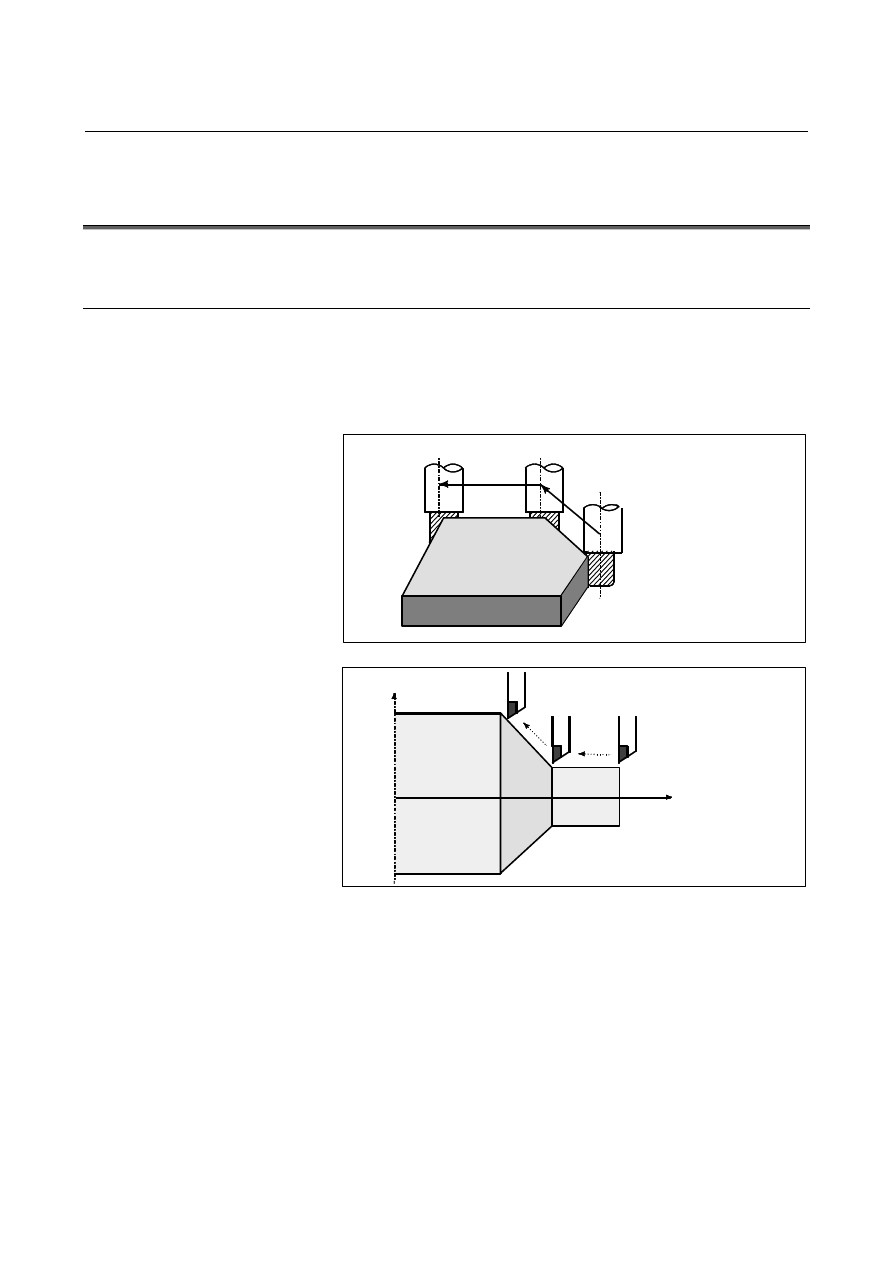

1.1

TOOL MOVEMENT ALONG WORKPIECE PARTS FIGURE-
INTERPOLATION


The tool moves along straight lines and arcs constituting the
workpiece parts figure (See II-4).



Explanation

The function of moving the tool along straight lines and arcs is called
the interpolation.


 -  Tool movement along a straight line

•

 For

milling

machining

Workpiece

Program

G01X_Y_ ;

X_ ;

Tool



•



For lathe cutting



Program
G01Z_ ;

Tool

Workpiece

Z

X

G01X_Z_ ;

Fig. 1.1 (a)  Tool movement along a straight line



B-63944EN/03

 PROGRAMMING

1.GENERAL



- 15 -

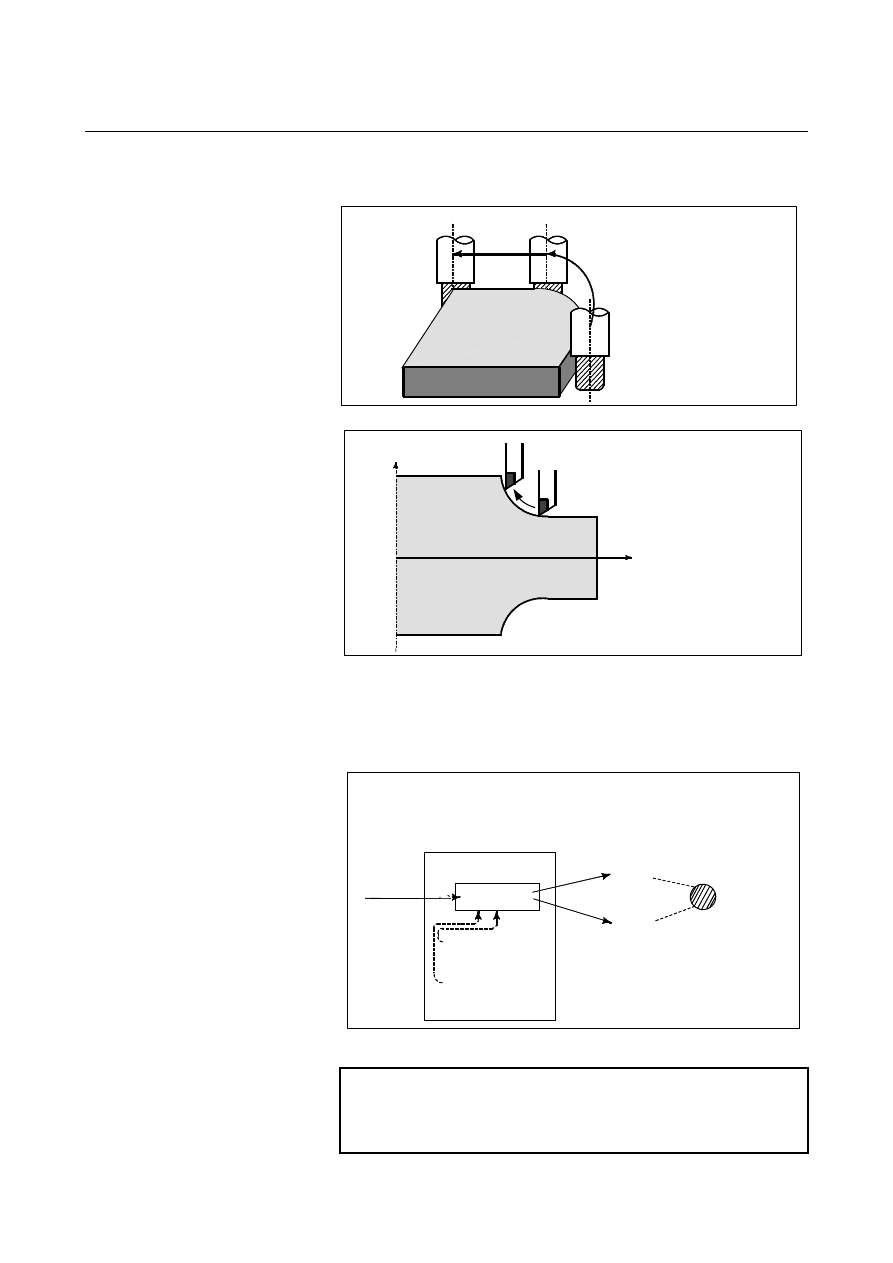

 -  Tool movement along an arc

•

 For

milling

machining

Workpiece

Tool

Program
G03 X_ Y_ R_ ;



•



For lathe cutting





Program

G02 X_ Z_ R_ ;

or

G03 X_ Z_ R_ ;

Workpiece

Z



X



Fig. 1.1 (b)  Tool movement along an arc

The term interpolation refers to an operation in which the tool moves
along a straight line or arc in the way described above.
Symbols of the programmed commands G01, G02, ... are called the
preparatory function and specify the type of interpolation conducted in
the control unit.

(a) Movement along straight line

G01 Y_ ;

X_ Y_ ;

(b) Movement along arc

G03X_ Y_ R_ ;

CNC

X axis

Y axis

Tool
movement

Interpolation

a)Movement
  along straight

 line

b)Movement

  along arc



Fig. 1.1 (c)  Interpolation function



NOTE



Some machines move tables instead of tools but
this manual assumes that tools are moved against
workpieces.

1.GENERAL



PROGRAMMING



B-63944EN/03





- 16 -

1.2

FEED-FEED FUNCTION


Movement of the tool at a specified speed for cutting a workpiece is
called the feed.


•

 For

milling

machining

Tool

Workpiece

Table

F

mm/min



•



For lathe cutting

Tool

Workpiece

Chuck

F

mm/min



Fig. 1.2 (a)  Feed function


Feedrates can be specified by using actual numerics. For example, to
feed the tool at a rate of 150 mm/min, specify the following in the
program:
F150.0
The function of deciding the feed rate is called the feed function (See
II-5).


B-63944EN/03

 PROGRAMMING

1.GENERAL



- 17 -

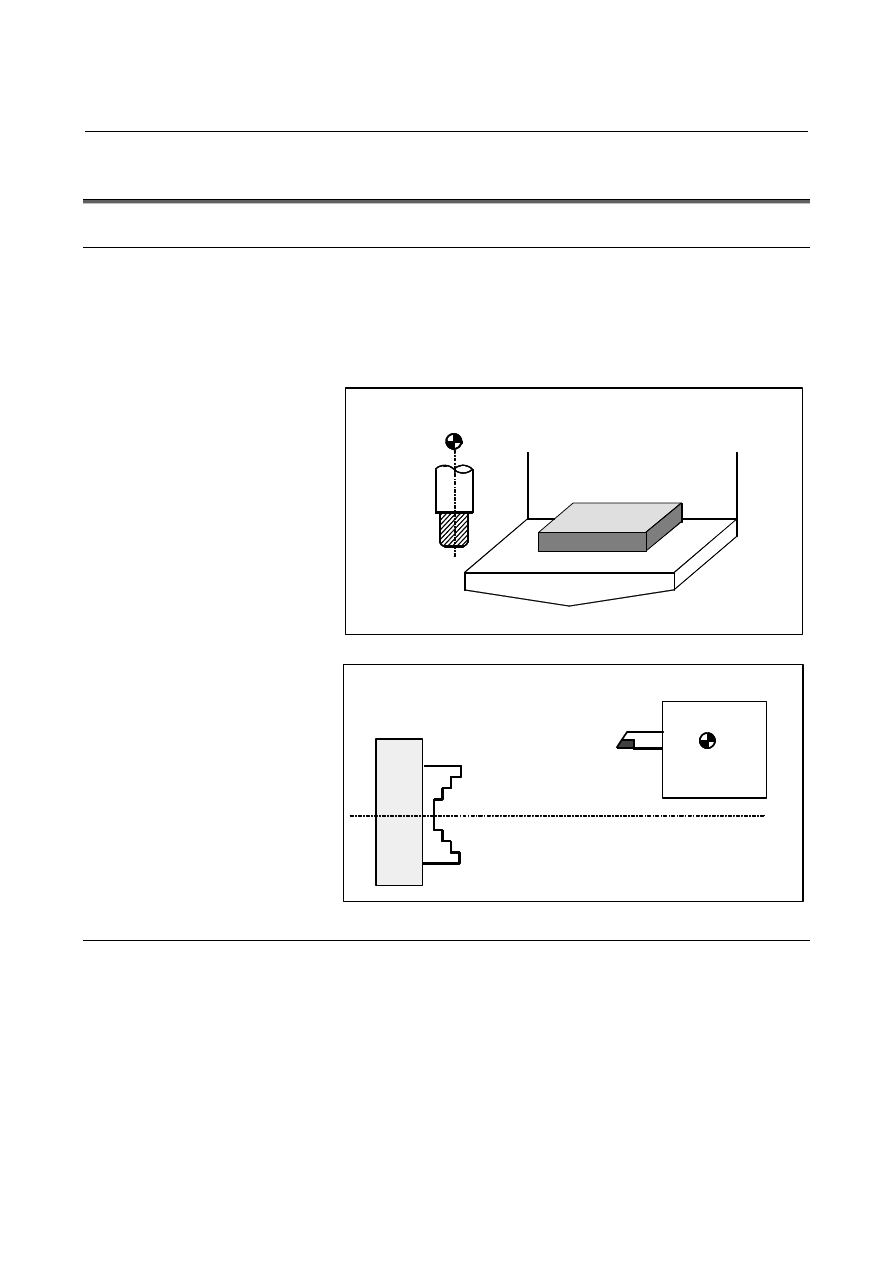

1.3

PART DRAWING AND TOOL MOVEMENT



1.3.1

Reference Position (Machine-specific Position)


A CNC machine tool is provided with a fixed position. Normally, tool
change and programming of absolute zero point as described later are
performed at this position. This position is called the reference
position.


•

 For

milling

machining

Reference position

Tool

Workpiece

Table



•



For lathe cutting

Tool post

Reference
position

Chuck



Fig. 1.3.1 (a)  Reference position



Explanation

The tool can be moved to the reference position in two ways:
1.  Manual reference position return (See III-3.1)


Reference position return is performed by manual button
operation.

2.  Automatic reference position return (See II-6)


In general, manual reference position return is performed first
after the power is turned on. In order to move the tool to the
reference position for tool change thereafter, the function of
automatic reference position return is used.



1.GENERAL



PROGRAMMING



B-63944EN/03





- 18 -

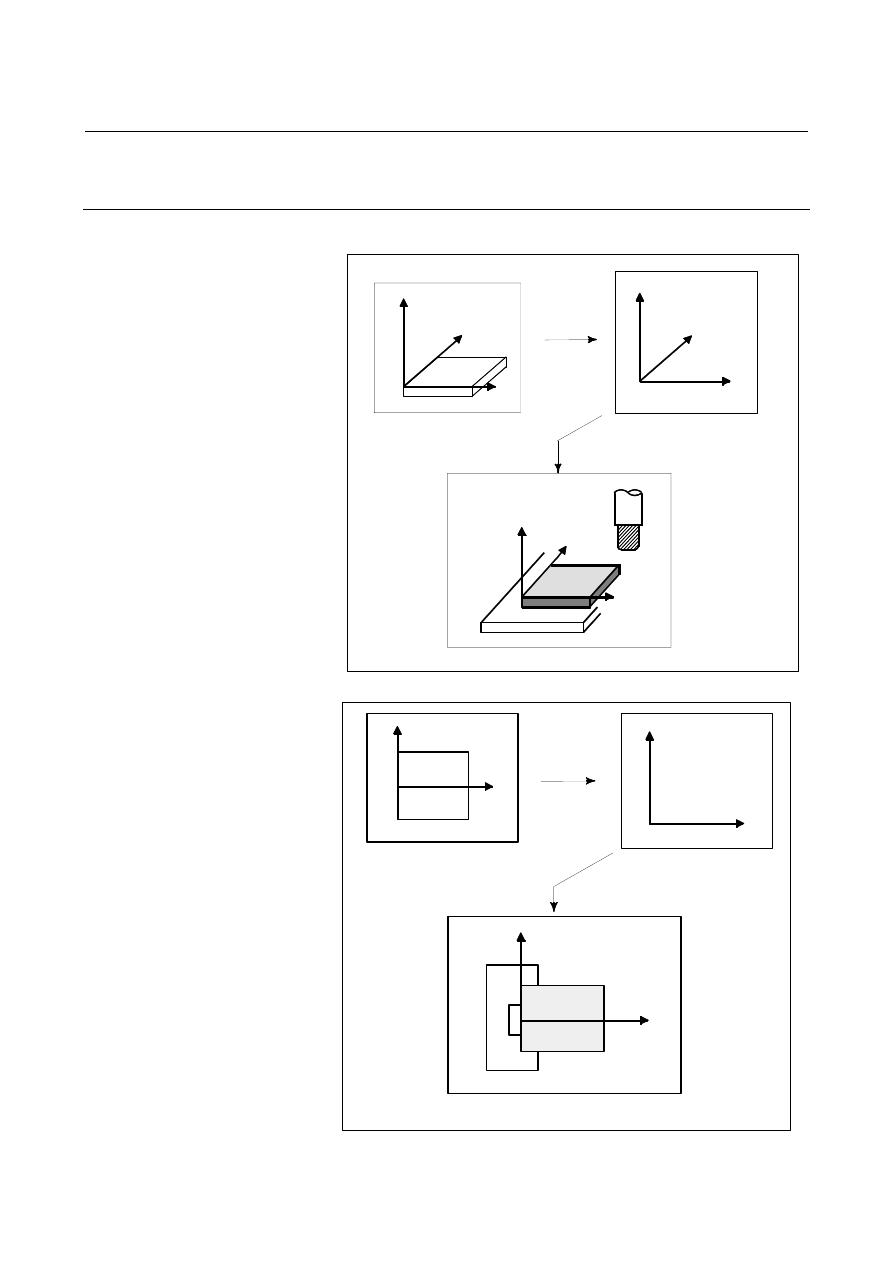

1.3.2

Coordinate System on Part Drawing and Coordinate System

Specified by CNC - Coordinate System



•

 For

milling

machining



Z

Y

X

Part drawing

Z

Y

X

Coordinate system

Z

Y

X

Tool

Workpiece

Machine tool

Program

Command

CNC

Tool



•



For lathe cutting



Part drawing

Machine tool

Program

Command

CNC

X

Z

X

Z

Coordinate system

Workpiece

X

Z



Fig. 1.3.2 (a)  Coordinate system

B-63944EN/03

 PROGRAMMING

1.GENERAL



- 19 -

Explanation
 -  Coordinate system

The following two coordinate systems are specified at different
locations: (See II-7)
1

Coordinate system on part drawing



The coordinate system is written on the part drawing. As the
program data, the coordinate values on this coordinate system are
used.

2.  Coordinate system specified by the CNC


The coordinate system is prepared on the actual machine tool
table. This can be achieved by programming the distance from
the current position of the tool to the zero point of the coordinate
system to be set.



230

300

Program

origin

Distance to the zero point of a coor-

dinate system to be set

Present tool position

X

X

Y



Fig. 1.3.2 (b)  Coordinate system specified by the CNC


Concrete programming methods for setting coordinate systems
specified by the CNC are explained in II-7, "COORDINATE
SYSTEM".
