12. PROGRAM COMMAND

B-64693EN-1/01

- 2106 -

[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)
This parameter sets the clearance in a small-hole peck drilling cycle.

Alarm and message

Number

Message

Description

PS0044

G27-G30 NOT ALLOWED IN FIXED
CYC

The command which relates to the reference position return is
commanded in canned cycle mode for drilling. Modify the
program.

PS0045

ADDRESS Q NOT FOUND
(G73/G83)

In a high-speed peck drilling cycle or peck drilling cycle, the
amount of each-time cutting is not specified. Modify the
program.

PS0566

DRILLING AXIS IS NOT
COMMANDED

When the parameter DNC (No.5160#6) is set to 1, drilling axis
is not commanded in the canned cycle command block for
lathe system. Modify the program.

PS5329

M98 AND NC COMMAND IN SAME
BLOCK

A subprogram call which is not a single block was
commanded during canned cycle mode. Modify the program.

Diagnosis data

520

Total number of retract operations during cutting after G83 is specified

521

Total number of retract operations based on reception of the overload torque detection signal during

cutting after G83 is specified

NOTE

The total number of retract operations output to Nos. 520 and 521
is cleared to zero by the G83 command after the small-hole peck
drilling cycle mode is set.

522

Coordinate on the drilling axis where a retract operation was started (least input increment)

523

Difference between the coordinate on the drilling axis where the previous retract operation was started

and the coordinate on the drilling axis where the current retract operation was started (least input

increment: previous value - current value)

Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Canned cycle for drilling

12.7.2

Canned Cycle Overlap for Drilling

Overview

With this function, during the canned cycle mode for drilling, the command can overlap with the next
block for the settime of the time constant of the acceleration/deceleration after interpolation.
This speeds up the operation of the canned cycle for drilling and shortens the cycle time.

Explanation

This function is valid when bit 0 (HDCx) of parameter No.1680 is set to 1.

Operations in which overlap is valid

Fig. 12.7.2 (a) Operations in which overlap is shows the operations in which overlap is valid in the
operation sequence of canned cycle for drilling.
When bits 0 to 5 of parameter No.1681 are set to 1, overlap is invalid in each operation.

B-64693EN-1/01

12. PROGRAM COMMAND

- 2107 -

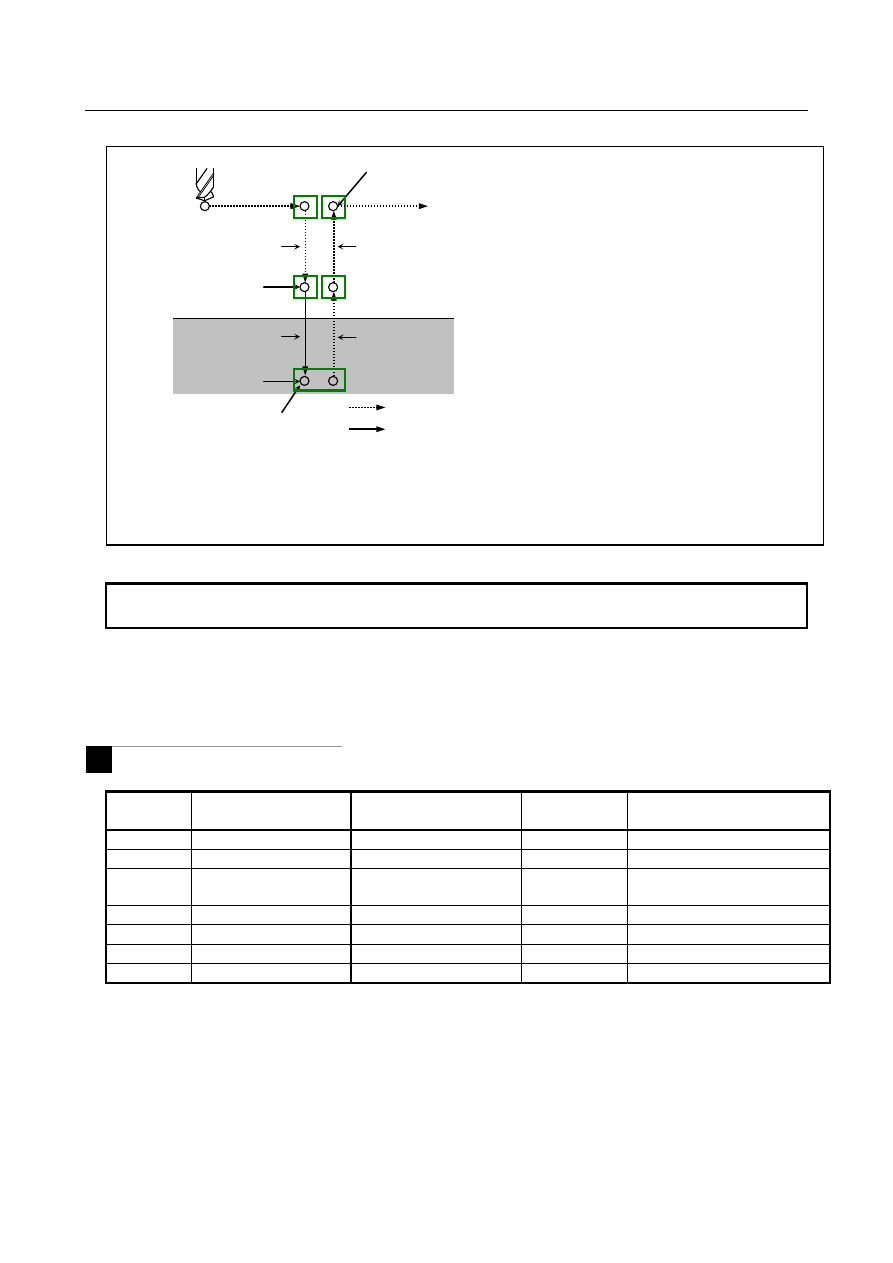

Fig. 12.7.2 (a) Operations in which overlap is valid

NOTE

When overlap is done, in-position check is invalid.

Supported canned cycle for drilling

Table 12.7.2 (a), Table 12.7.2 (b) Canned cycle for drilling (Lathe system), Table 12.7.2 (c) Canned cycle
for drilling in series 15 program format (Lathe system) shows canned cycle for drilling supported by this
function.

Table 12.7.2 (a) Canned cycle for drilling (Machining center system)

G code

Drilling

Operation at the bottom

of a hole

Retraction

Application

G73

Intermittent feed

Rapid traverse High-speed peck drilling cycle

G81

Cutting feed

Rapid traverse Drilling cycle, spot drilling cycle

G82

Cutting feed

Dwell

Rapid traverse

Drilling cycle,
counter boring cycle

G83

Intermittent feed

Rapid traverse Peck drilling cycle

G85

Cutting feed

Boring cycle

G86

Cutting feed

Spindle stop

Rapid traverse Boring cycle

G89

Cutting feed

Dwell

Cutting feed

Boring cycle

Initial level

Operation 1

Operation 2

Operation 3

Point R level

Operation 4

Operation 6

Operation 5

Bottom of a hole
(Point Z)

Rapid traverse

Cutting feed

When canned cycle for drilling is canceled at point E, no overlap is done at point E.
Also, since the operation varies slightly depending on the type of cycle, please refer to “Canned
Cycle Overlap for Drilling” of OPERATOR’S MANUAL (B-64694EN) for details.

Operation 1

Operation 1 : Positioning

Operation 2 : Rapid traverse up to point R level

Operation 3 : Hole machining

Operation 4 : Operation at the bottom of a hole

Operation 5 : Retraction to point R level

Operation 6 : Rapid traverse up to the initial point

Point A - Point E : Overlap is valid.

12. PROGRAM COMMAND

B-64693EN-1/01

- 2108 -

Table 12.7.2 (b) Canned cycle for drilling (Lathe system)

G code

Drilling

axis

Drilling

Operation at the bottom

of a hole

Retraction

Application

G83

Z axis

Intermittent

feed

Cutting feed

Dwell

Rapid traverse

Front drilling cycle

G85

Z axis

Cutting feed

Dwell

Cutting feed

Front boring cycle

G87

X axis

Intermittent

feed

Cutting feed

Dwell

Rapid traverse

Side drilling cycle

G89

X axis

Cutting feed

Dwell

Cutting feed

Side boring cycle

Table 12.7.2 (c) Canned cycle for drilling in series 15 program format (Lathe system)

G code

Drilling

Operation at the bottom

of a hole

Retraction

Application

G83.1

Intermittent feed

Rapid traverse High-speed peck drilling cycle

G81

Cutting feed

Rapid traverse Drilling cycle, spot drilling cycle

G82

Cutting feed

Dwell

Rapid traverse

Drilling cycle,
counter boring cycle

G83

Intermittent feed

Rapid traverse Peck drilling cycle

G85

Cutting feed

Boring cycle

G89

Cutting feed

Dwell

Cutting feed

Boring cycle

Overlap time

Set the overlap time of this function to the parameters No.1686 and No.1687.
Parameters No.1686 and No.1687 are used as the time constant of the acceleration/deceleration after
interpolation common to both cutting feed and rapid traverse in canned cycle for drilling in which this
function is valid.
The command can overlap with the next block for the overlap time set within the time constant of the
acceleration/deceleration after interpolation. (Fig.12.7.2 (b))

Fig.12.7.2 (b) Overlap time

Parameters No.11248 and No.11249 are valid for axes whose parameters No.1686 and No.1687 are both
set to 0. (Table 12.7.2 (d))
Parameters No.11248 and No.11249 are the overlap time of Smart overlap. For Smart overlap, refer to
“Smart Overlap” in this manual.

Overlap time = Parameter No.1686 + Parameter No.1687

Feedrate

Time

Current block

Next block

B-64693EN-1/01

12. PROGRAM COMMAND

- 2109 -

Table 12.7.2 (d) Relationship between parameter setting and time constant of

acceleration/deceleration after interpolation for Canned cycle overlap for drilling

Parameter

No.1686

Parameter

No.1687

Time constant 1 of

acceleration/deceleration in Canned

cycle overlap for drilling

Time constant 2 of

acceleration/deceleration in Canned

cycle overlap for drilling

Parameter No.11248 is valid.

Parameter No.11249 is valid.

Other than 0

Parameter No.1686 is valid.

Parameter No.1687 is valid.

Other than 0

Parameter No.1686 is valid.

Parameter No.1687 is valid.

Other than 0

Parameter No.1686 is valid.

Parameter No.1687 is valid.

This function has the following features, so usually the overlap amount can be increased compared to
Smart overlap.

- Since it is limited to operation within a cycle, interference due to overlap is less likely to be a

problem.

- Overlap can be invalidated for each cycle operation.

To reduce the cycle time, it is recommended that the overlap time of this function is set to the parameters
No.1686 and No.1687 separately from Smart overlap.

Normally, the overlap time constant 2 is not used. Set the parameters No.1687 and No.11249 to 0.

Acceleration/deceleration after interpolation during canned cycle for drilling

The following parameters are used as the time constant of the acceleration/deceleration after interpolation
in canned cycle for drilling in which this function is valid.
The relationship between the parameters and the time constant of the acceleration/deceleration is shown
in Table 12.7.2 (e)and Fig. 12.7.2 (c).

Table 12.7.2 (e) Acceleration/deceleration after interpolation during canned cycle for drilling

Move command

Time constant of the acceleration/deceleration

Rapid traverse

T1 : Parameter No.1620
T2 : Parameter No.1682
T3 : Parameter No.1686(Overlap time)

Cutting feed

T1 : Parameter No.1683
T2 : None
T3 : Parameter No.1687 (Overlap time)

12. PROGRAM COMMAND

B-64693EN-1/01

- 2110 -

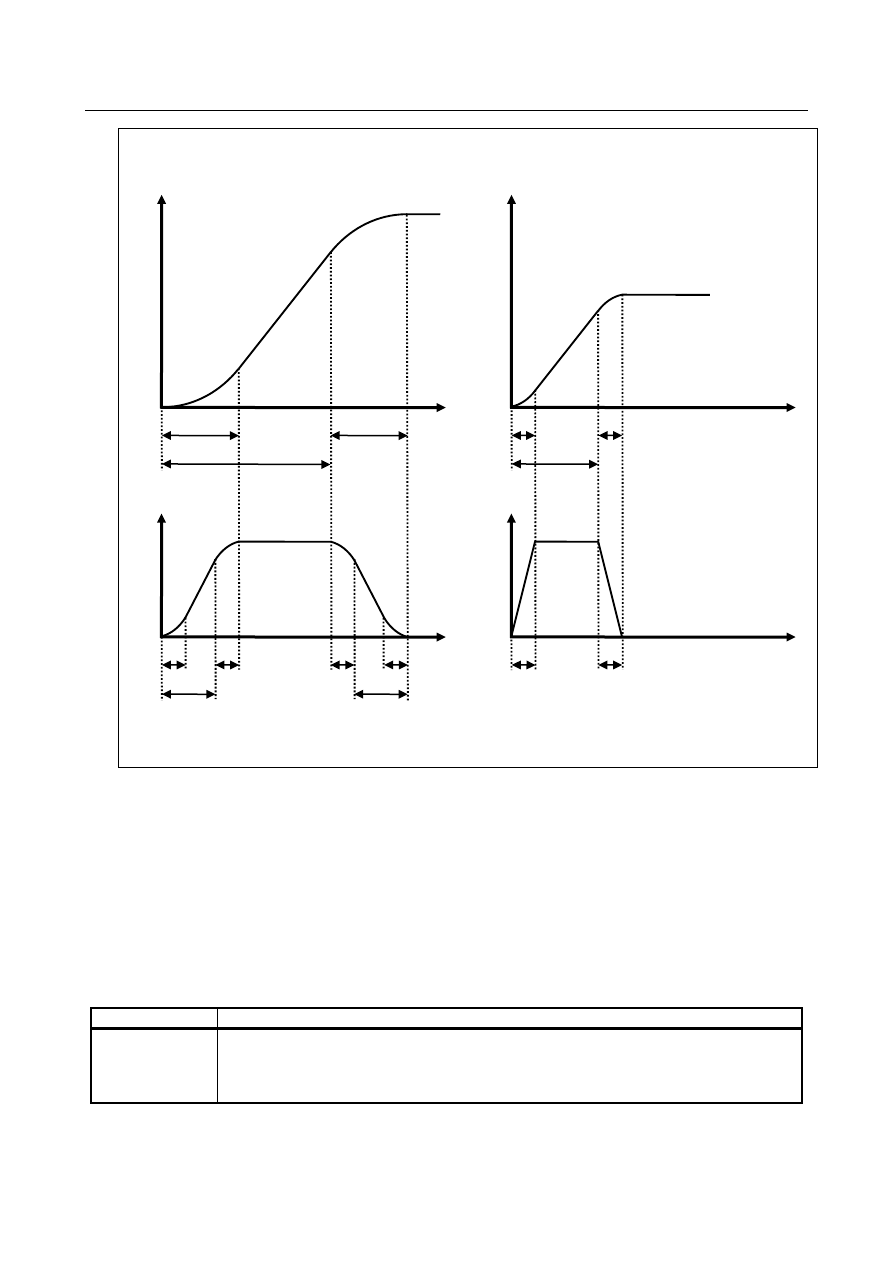

Fig. 12.7.2 (c) Acceleration/deceleration after interpolation during canned cycle for drilling

Acceleration/deceleration during canned cycle for drilling

(When the acceleration/deceleration before interpolation is valid)

The following parameters are used as the time constant of the acceleration/deceleration after interpolation
in canned cycle for drilling in which this function is valid.
When the acceleration/deceleration before interpolation is valid, such as AI contour control I and AI
contour control II, the relationship between the parameters and the time constant of the
acceleration/deceleration is shown in Table 12.7.2 (f).

Table 12.7.2 (f) Acceleration/deceleration during canned cycle for drilling

(When the acceleration/deceleration before interpolation is valid)

Move command

Time constant of the acceleration/deceleration

Rapid traverse

T1 : Parameter No.1671 (Acc/dec before interpolation) (Maximum allowable acceleration rate)
T2 : Parameter No.1672 (Acc/dec before interpolation)

Parameter No.1684 (Acc/dec after interpolation)

T3 : Parameter No.1686 (Acc/dec after interpolation) (Overlap time)

Speed

Time

Acceleration

T2+T3

(Rapid traverse)

Speed

Time

Acceleration

(Cutting feed)

≥

B-64693EN-1/01

12. PROGRAM COMMAND

- 2111 -

Move command

Time constant of the acceleration/deceleration

Cutting feed

T1 : Parameter No.1660 (Acc/dec before interpolation) (Maximum permissible acceleration)
T2 : Parameter No.1772 (Acc/dec before interpolation)

Parameter No.1685 (Acc/dec after interpolation)

T3 : Parameter No.1686 (Acc/dec after interpolation) (Overlap time)

Tool path error at corner by overlap

When overlap is done where the movement direction changes, the overlapped path passes inward
compared to the programmed path. (Fig. 12.7.2 (d))

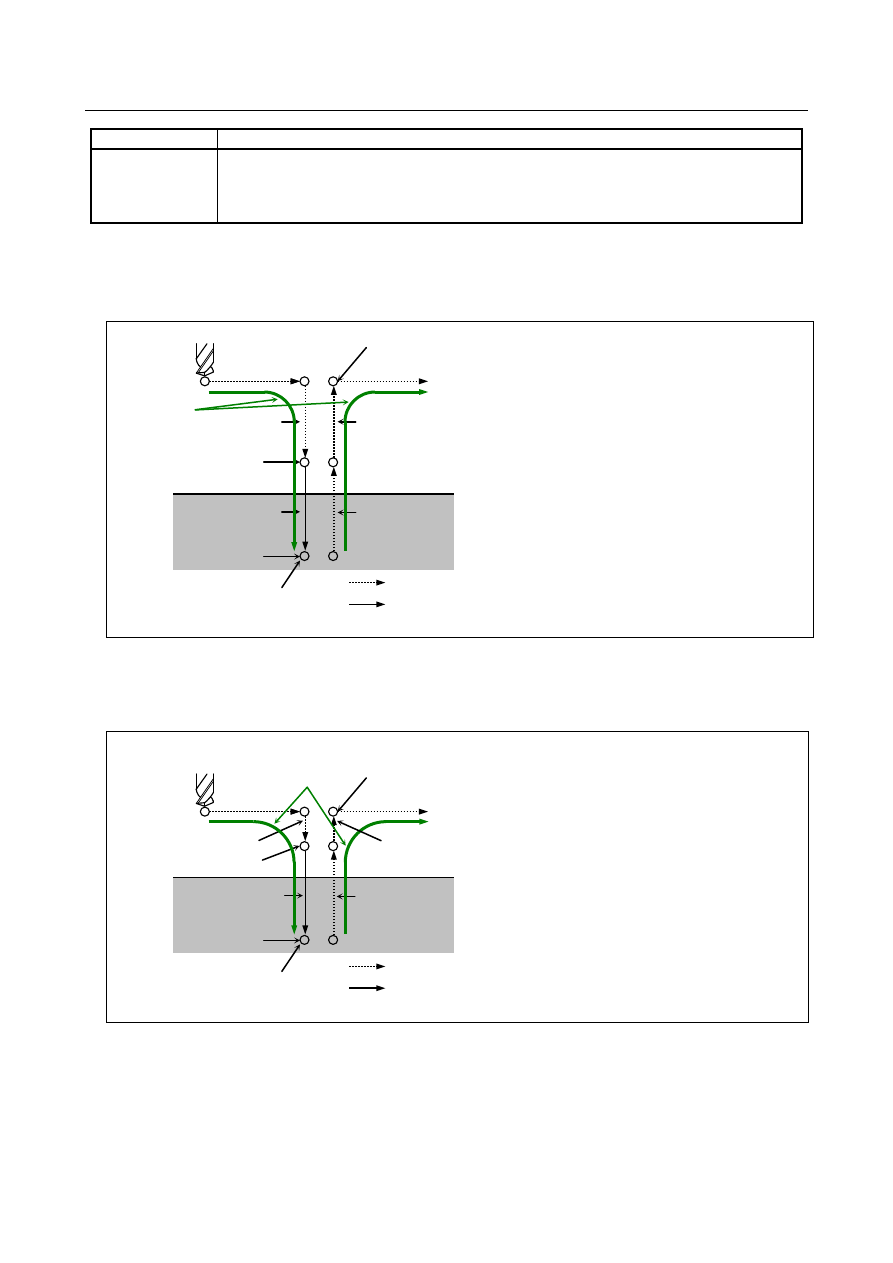

Fig. 12.7.2 (d) Tool path error at corner by overlap

When the overlap operations are continuous, overlap is performed not only between two blocks, but also
over two or more blocks. (Fig. 12.7.2 (e))

Fig. 12.7.2 (e) Tool path error at corner by overlap (2)

Initial level

Operation 1

Operation 2

Operation 3

Operation 4

Operation 6

Operation 5

Rapid traverse

Cutting feed

Operation 1

Initial level

Operation 1

Operation 2

Operation 3

Point R level

Operation 4

Operation 6

Operation 5

Bottom of a hole
(Point Z)

Rapid traverse

Cutting feed

Operation 1

Operation 1 : Positioning

Operation 2 : Rapid traverse up to point R level

Operation 3 : Hole machining

Operation 4 : Operation at the bottom of a hole

Operation 5 : Retraction to point R level

Operation 6 : Rapid traverse up to the initial point

Tool path error
at corner

Operation 1 : Positioning

Operation 2 : Rapid traverse up to point R level

Operation 3 : Hole machining

Operation 4 : Operation at the bottom of a hole

Operation 5 : Retraction to point R level

Operation 6 : Rapid traverse up to the initial point

Bottom of a hole
(Point Z)

Point R level

Tool path
error at
corner

12. PROGRAM COMMAND

B-64693EN-1/01

- 2112 -

NOTE

It is necessary to care that tool does not interfere with workpiece by tool path
error at corner.

When bit 0 (DPS) of parameter No.1681 is set to 1, overlap is invalid at corner. If
it is required to avoid tool path error at corner, please set DPS to 1.

Tool path error at bottom of a hole by overlap

When dwell is not commanded at the bottom of a hole, overlap is done at the bottom of the hole.
In this case, the tool does not reach the programmed hole bottom because the direction of movement is
reversed before the programmed hole bottom. (Fig. 12.7.2 (f))

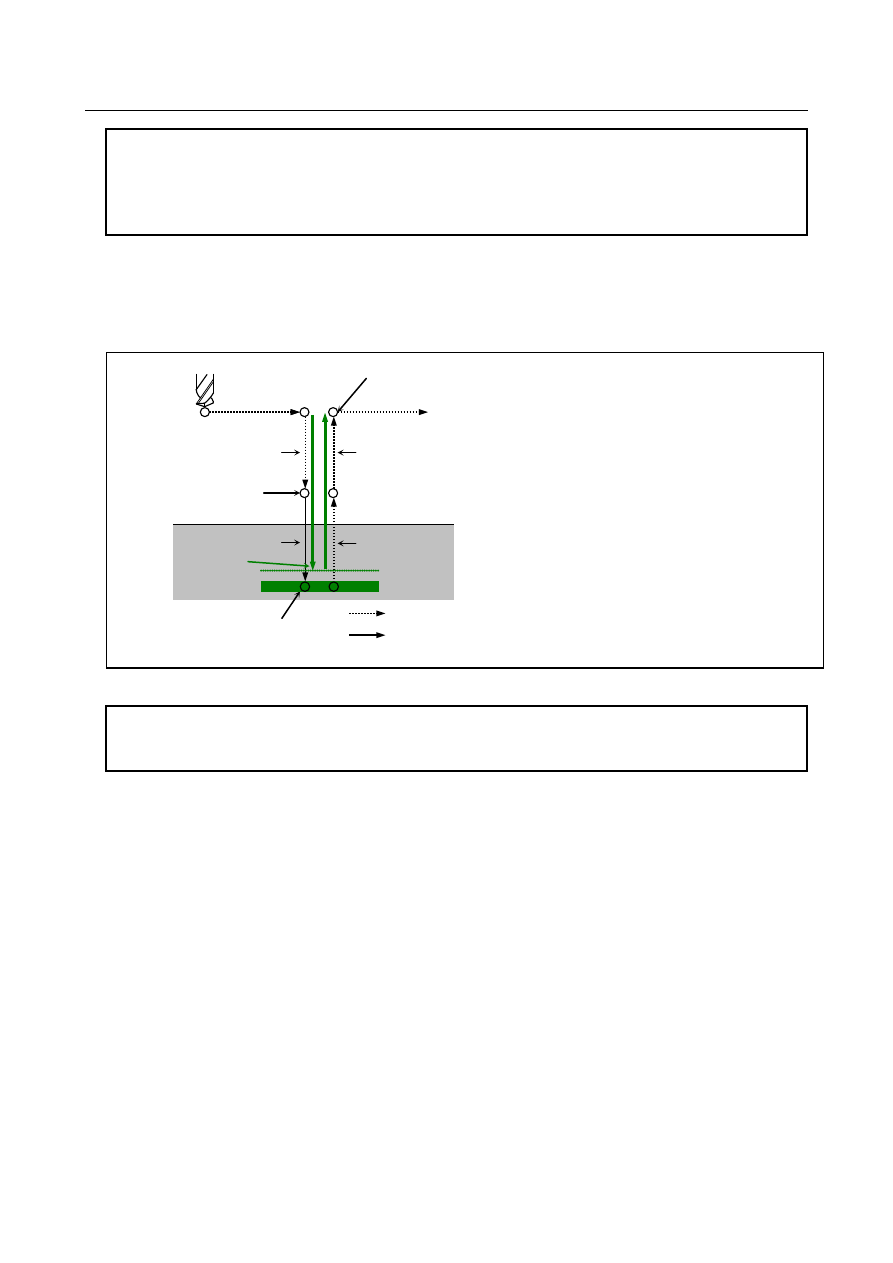

Fig. 12.7.2 (f) Tool path error at bottom of a hole by overlap

NOTE

When bit 5 (DZL) of parameter No.1681 is set to 1, overlap is invalid at bottom of
a hole. If accuracy at bottom of a hole is required, please set DZL to 1.

- Relationships with other functions

The relationships with other functions are as follows.

- Rapid traverse block overlap

This function can be used with rapid traverse block overlap.
When these functions are used at the same time, overlap is done at the earlier timing of this function
and rapid traverse block overlap.

- Cs contour control

When positioning is executed with the Cs contour control axis, the in-position check of the Cs
contour control axis is done even when the overlap is valid.

- Limitation

This function cannot be used with the following functions.

- Small-hole peck drilling cycle (G83) (Machining center system)
- 3-dimensional coordinate system conversion
- Tilted working plane indexing (Machining center system)
- Angular axis control
- Retrace (Machining center system)
- Manual handle retrace

Initial level

Operation 1

Operation 2

Operation 3

Point R level

Operation 4

Operation 6

Operation 5

Bottom of a hole
(Point Z)

Rapid traverse

Cutting feed

Operation 1

Operation 1 : Positioning

Operation 2 : Rapid traverse up to point R level

Operation 3 : Hole machining

Operation 4 : Operation at the bottom of a hole

Operation 5 : Retraction to point R level

Operation 6 : Rapid traverse up to the initial point

Tool path error at
bottom of a hole

B-64693EN-1/01

12. PROGRAM COMMAND

- 2113 -

- Synchronous/Composite control (Lathe system)
- Superimposed control (Lathe system)
- Index table indexing (Machining center system)

Note

NOTE

1 When overlap is done between the rapid traverse block and the cutting feed

block, the feedrate might be higher than the cutting feedrate at the start position
of the cutting feed block. This is more likely to occur when the overlap time
(parameter No.1686 and No.1687) is too large againstthe time constant of the
acceleration/deceleration. In such a case, please adjust to reduce the overlap
time.

2 When the feed-forward function is used at the same time, shock may occur

between the rapid traverse block and the cutting feed block. In such a case,
please use the following servo software and validate the cutting/rapid
feed-forward switching function (bit 4 of parameter No.2214 is 1).

[Series and editions of applicable servo software]

- Series 90J0 / 04.0 and subsequent editions

- Series 90K0 / 04.0 and subsequent editions

Parameter

1680

HDCx

[Input type] Parameter input

[Data type] Bit axis

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

#0 HDCx

Canned cycle overlap for drilling is :

Invalid.

valid.

1681

DZL

DQL

DFW

DRV

DRL

DPS

[Input type] Parameter input

[Data type] Bit path

#0 DPS

In canned cycle overlap for drilling, for "between the rapid traverse block to the hole

position and the rapid traverse block to point R level" and "between the return block to
point R level / initial level and the rapid traverse block to the next hole position", the
overlap is:
0:

Valid.

Invalid.

#1 DRL

In canned cycle overlap for drilling, for "between the rapid traverse block to point R level

and the hole machining block" and "between the retraction block to point R level and the
return block to initial level", overlap is:

Content .. 267 268 269 270 ..
