Canned cycles for drilling make it easier for the programmer to create programs. With a canned cycle for
drilling, a frequently-used machining operation can be specified in a single block with a G code; without
canned cycles for drilling, normally more than one block is required. In addition, the use of canned cycles
for drilling can shorten the program to save memory.

Explanation

A canned cycle for drilling consists of a sequence of six operations.
Operation 1

Positioning a hole position

Operation 2

Rapid traverse up to point R level

Operation 3

Hole machining

B-64693EN-1/01

12. PROGRAM COMMAND

- 2091 -

Operation 4

Operation at the bottom of a hole

Operation 5

Retraction to point R level

Operation 6

Rapid traverse up to the initial point

Operation 1

Operation 2

Point R level

Initial level

Operation 6

Operation 5

Operation 3

Operation 4

Rapid traverse

Cutting feed

Fig. 12.7.1 (a) Canned cycle for drilling operation sequence

Spindle control

In some canned cycles for drilling, a spindle command to rotate the spindle in reverse direction may be
output automatically.

The following canned cycles for drilling require spindle control:

<Machining center system>

<Lathe system>

Counter tapping cycle

G74

Face tapping cycle

G84

Fine boring cycle

G76

Side tapping cycle

G88

Tapping cycle

G84

Boring cycle

G86

Back boring cycle

G87

Boring cycle

G88

For spindle control, the following normal miscellaneous functions are used:
See the description of the miscellaneous functions.

M03 CW spindle rotation

M04 CCW spindle rotation

M05 Spindle stop

M19 Spindle orientation (machining center system)

When the rotation direction of the spindle is to be switched from one direction to the other (for example,
when M04 is output during M03 operation), a parameter can specify whether to send M05 at the time
switching.

12. PROGRAM COMMAND

B-64693EN-1/01

- 2092 -

Timing charts are described in the following page:

G74 (Counter tapping cycle)

G76 (Fine boring cycle)

G84 (Tapping cycle)

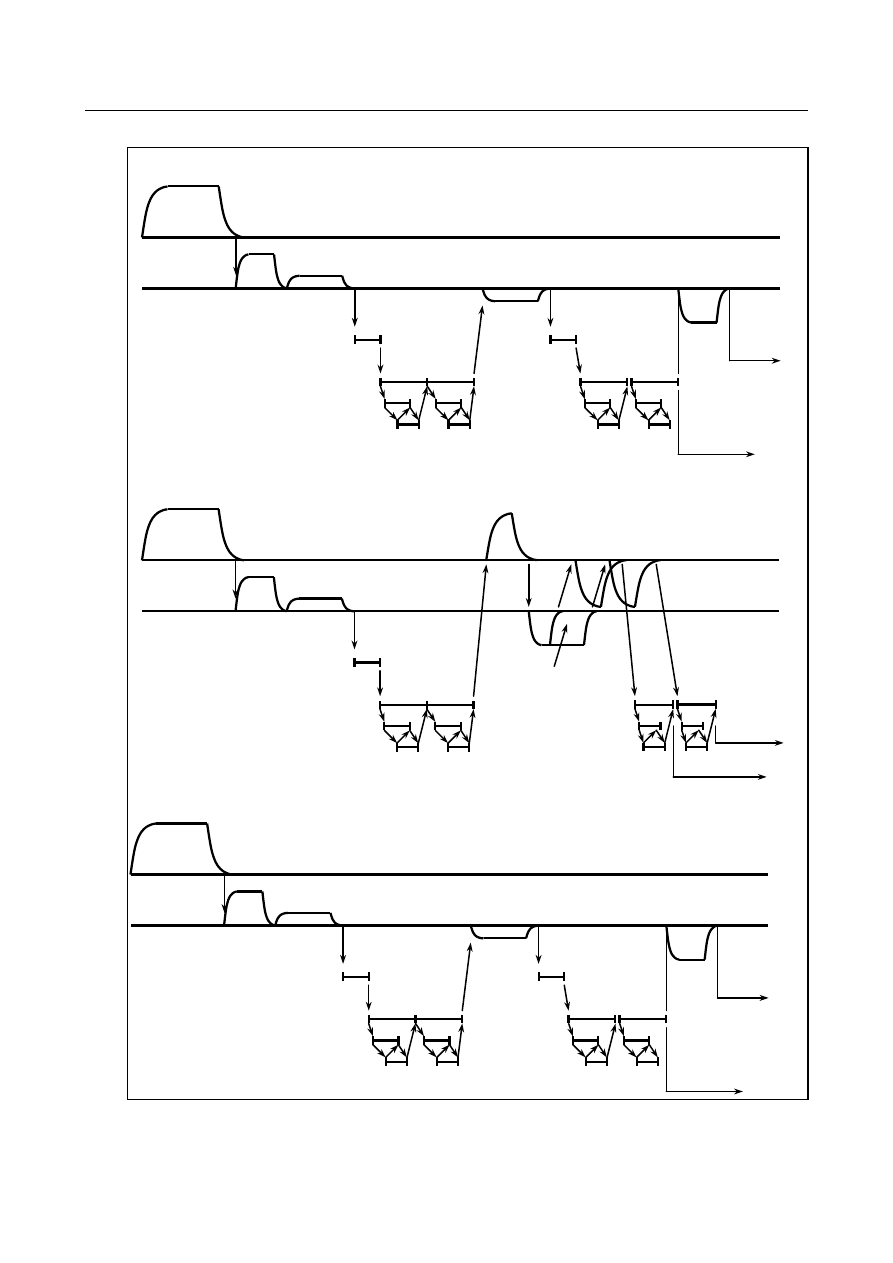

Fig. 12.7.1 (b) Machining of canned cycle for machining center system (1/2)

(Note)

It is possible to not output

M05 code by using parameter M5T
(No. 5105#3).

To next block
(G99 mode)

FIN

Dwell

FIN

M05

M03

Dwell

(Note)

X,Y

M04

(Note)

To next block
(G98 mode)

(Note) It is possible to not output M05

code by using parameter M5T
(No. 5105#3).

To next block
(G99 mode)

FIN

Dwell

FIN

M05

M04

Dwell

(Note)

X,Y

M03

(Note)

To next block
(G98 mode)

(Note)

It is possible to not output

M05 code by using parameter M5B
(No. 5101#7).

FIN

M03

Return to initial
level in G98
mode

To next block
(G99 mode)

FIN

M05

Dwell

(Note)

X,Y

M19

To next block
(G98 mode)

(’

)

X or Y

B-64693EN-1/01

12. PROGRAM COMMAND

- 2093 -

FIN

M03

X,Y

FIN

M05

FIN

M03

To next block
(G99 mode)

To next block
(G98 mode)

Return to initial level in G98 mode

G86 (Boring cycle)

G87 (Back boring cycle)

G88 (Boring cycle)

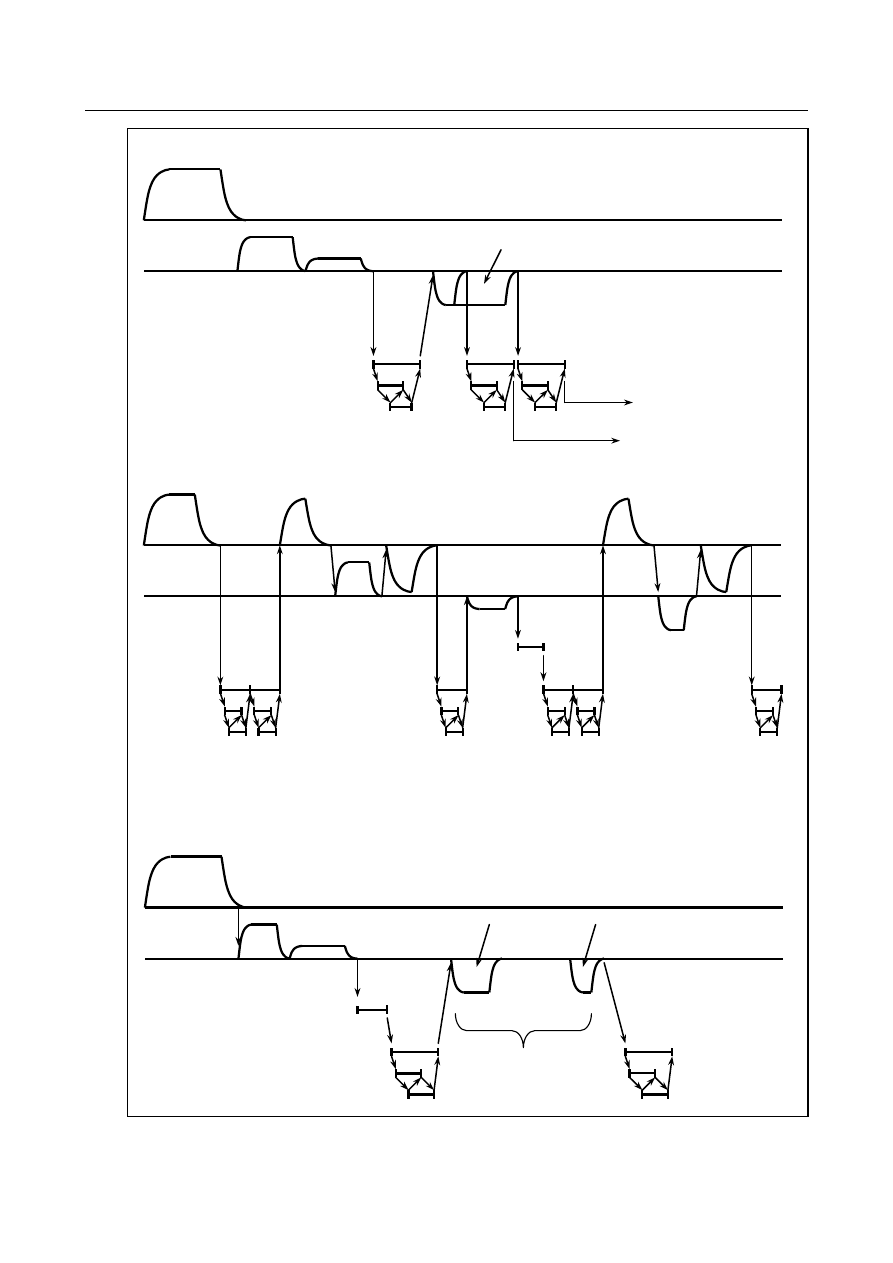

Fig. 12.7.1 (c) Machining of canned cycle for machining center system (2/2)

Manual feed

Return to initial level in G98
mode or R point level in G99
mode.

Dwell

X,Y

FIN

M05

Cycle start

FIN

M03

FIN FIN

M05 M19

(Note) It is possible to not output M05 code using

parameter M5B (No. 5101#7).

Back boring cycle is not used in G99 mode but in
G98 mode.

X,Y

X or Y

FIN

M03

Dwell

(Note)

FIN FIN

M05 M19

X or Y

FIN

M03

(Note)

12. PROGRAM COMMAND

B-64693EN-1/01

- 2094 -

G84 (Face tapping cycle)
G88 (Side tapping cycle)

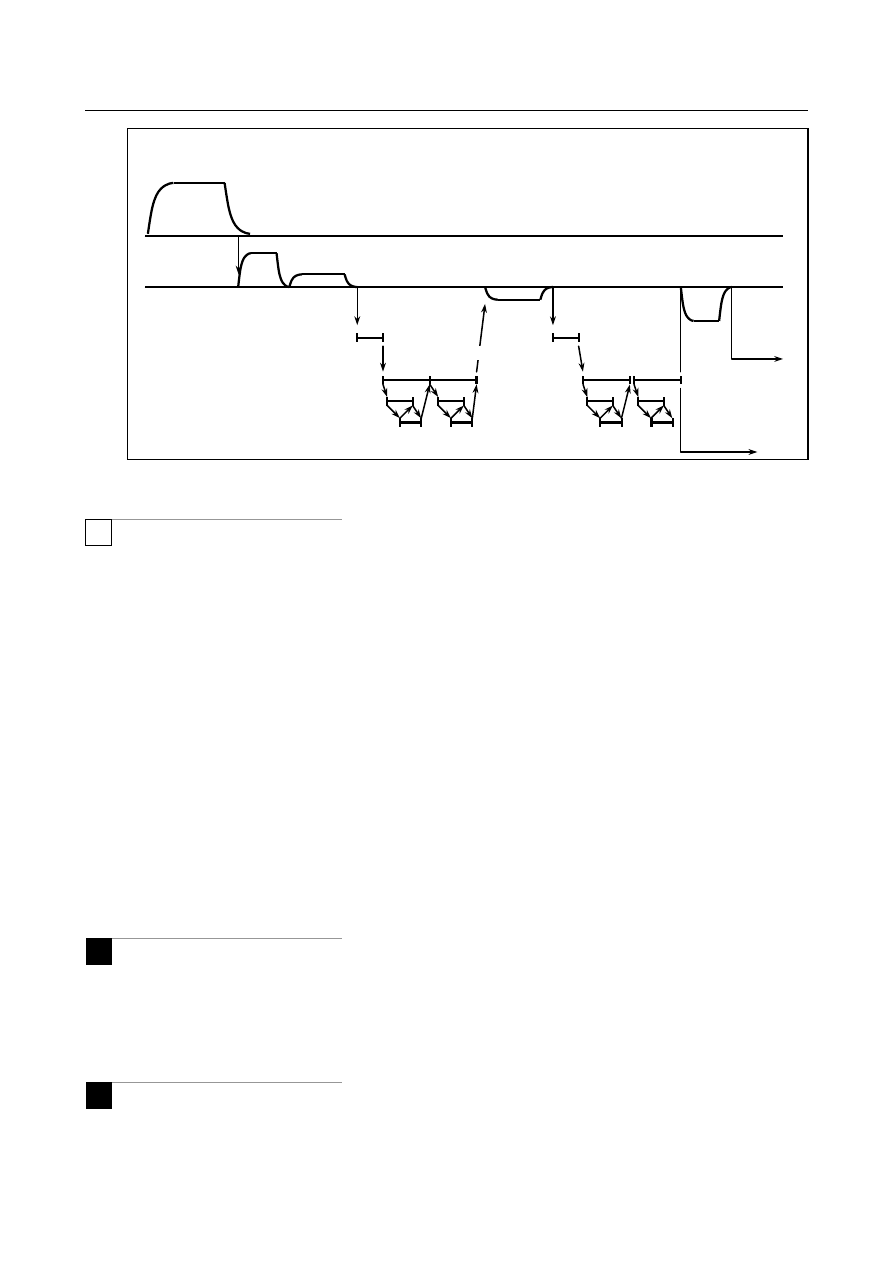

Fig. 12.7.1 (d) Machining of canned cycle for lathe system

M code used for C-axis clamp/unclamp

When an M code specified in parameter No. 5110 for C-axis clamp is commanded, the CNC issues the M
code for C-axis clamp after the tool is positioned and before the tool is fed in rapid traverse to the point-R
level. The CNC also issues the M code (M code C-axis clamp +1) for C-axis unclamp after the tool
retracts to the point-R level. The tool dwells for the time specified in parameter No. 5111.

Tapping signal

During a tapping cycle, the tapping signal TAP <Fn001.5> is output. The tapping signal is output not
only during the tapping machining but also during the G code of the tapping cycle is valid.

Override

During tapping, cutting feedrate override is always set to 100%.

Feed hold

When the feed hold key is pressed during tapping, the movement is not stopped immediately but the
movement is stopped when the tool is returned to level R.

Dry run

The bit 5 (TDR) of parameter No. 1401 specifies whether dry run is valid during tapping.

Small-hole peck drilling cycle execution signal

In the small-hole peck drilling cycle mode, the small-hole peck drilling cycle execution signal PECK2
<Fn066.5> is output when positioning at point R on the drilling direction axis is started after positioning
at a specified hole position is performed with G83 specified. This signal is not output if another canned
cycle is specified or this mode is canceled by G80, a reset, or an emergency stop.

Overload torque detection signal

For the overload torque detection signal in the small-hole peck drilling cycle, a skip signal SKIP

<X004.7>, SKIP

<X013.7>, or SKIP

<X011.7> is used. The skip signal is valid (a retract operation is

(Note 1) When parameter M5T (No.

5105#3)=0, M05 is not output.

(Note 2) Another M code can be used by

parameter No. 5112 and 5113.

To next block
(G99 mode)

FIN

Dwell

FIN

M05

M03

Dwell

(Note 1)

X,C

(Z,C)

(X)

Z(X)

M04

To next block
(G98 mode)

(Note 2)

Z(X)

(X)

(Note 1) (Note 2)

B-64693EN-1/01

12. PROGRAM COMMAND

- 2095 -

performed) only when the tool on the drilling direction axis is located between point R and point Z and
the tool is moving forward or performing a cutting operation.

Signal

Tapping signal TAP<Fn001.5>

[Classification] Output signal

[Function] Reports that the system is in tapping mode.

[Output cond.] The signal is set to “1” when:

The system is in tapping cycle mode.

(G74,G84 : for M series)

(G84,G88 : for T series)

The system is in tapping mode.

(G63 : for M series)

The signal is set to “0” when:
-

The system is in neither tapping cycle mode nor tapping mode.

A reset or emergency stop is specified.

Overload torque detection signal SKIP

<X004.7>, SKIP

<X013.7>, SKIP

<X011.7>

[Classification] Input signal

[Function] Refracts the tool on which an overload torque is imposed.

[Operation] When this signal is set to “1”, the control unit performs the following operation:

When an overload torque is imposed, the tool is retracted to point R then machining
is repeated after changing the spindle speed and cutting feedrate.

This signal is valid (a retract operation is performed) only when the tool on the
drilling axis is located between point R and point Z and the tool is moving forward
or performing a cutting operation.

NOTE

This signal is used also as a skip signal.

Small-hole peck drilling cycle execution signal PECK2<Fn066.5>

[Classification] Output signal

[Function] Posts whether the small-hole peck drilling cycle is being executed.

[Output cond.] This signal is set to “1” for the following period:

Period from the start time of positioning at point R on the drilling direction axis after
positioning at a hole position is performed with G83 specified in this cycle mode
until another canned cycle, which may be G80, or a G code of group 01 is specified
or until this mode is canceled by a reset or emergency stop.

This signal is not set to “1” in a state other than the above.

12. PROGRAM COMMAND

B-64693EN-1/01

- 2096 -

Signal address

X004

SKIP

X011

SKIP

X013

SKIP

Fn001

TAP

Fn066

PECK2

Parameter

0001

FCV

[Input type] Setting input

[Data type] Bit path

#1 FCV

Program format

FANUC Series 16 program format

FANUC Series 15 program format

NOTE

1 Programs created in the FANUC Series 15 program format can be

used for operation on the following functions:
1  Subprogram call M98
2  Thread cutting G32 (T series)
3  Canned cycle G90, G92, G94 (T series)
4  Multiple repetitive canned cycle

G71 to G76 (T series)

5 Drilling canned cycle

G83.1, G80 to G89 (T series) / G73, G74, G76, G80 to G89 (M
series)

2 When the FANUC Series 15 program format is used for this CNC,

some limits may add. Refer to the Operator’s Manual.

1401

TDR

[Input type] Parameter input

[Data type] Bit path

#5 TDR

Dry run during threading or tapping (tapping cycle G74 or G84, rigid tapping)

Enabled

Disabled

3708

TSO

[Input type] Parameter input

[Data type] Bit path

B-64693EN-1/01

12. PROGRAM COMMAND

- 2097 -

#6 TSO

During a threading or tapping cycle, the spindle override is:

Disabled (tied to 100%).

Enabled.

NOTE

During rigid tapping, the override is tied to 100%, irrespective of the
setting of this parameter.

5101

RTR

EXC

FXY

M5B

EXC

FXY

[Input type] Parameter input

[Data type] Bit path

#0 FXY

The drilling axis in the drilling canned cycle, or cutting axis in the grinding canned cycle

is:
0:

Z-axis at all times.

Axis selected by the program

NOTE

In the case of the T series, this parameter is valid only for the
drilling canned cycle in the FANUC Series 15 program format.

#1 EXC

G81

Specifies a drilling canned cycle

Specifies an external operation command

#2 RTR

G83 and G87

Specify a high-speed peck drilling cycle

Specify a peck drilling cycle

#7 M5B

In drilling canned cycles G76 and G87:

Outputs M05 before an oriented spindle stops

Not output M05 before an oriented spindle stops

5102

RDI

RAB

F16

[Input type] Parameter input

[Data type] Bit path

#3 F16

When the FANUC Series 15 program format is used (with bit 1 (FCV) of parameter No.

0001 set to 1), a canned drilling cycle is specified using :
0:

FANUC Series 15 program format

FANUC Series 16 program format. However, the number of repetitions is specified
using address L.
