11. TOOL FUNCTIONS





B-64693EN-1/01



- 1970 -

Total remaining life

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
Time specifications: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to2,147,483,647 times

When time is specified:

0 to 359,999,999 s (99999 hours 59 minutes 59 seconds)
0 to 359,999,999 milliseconds (99 hours 59 minutes 59 seconds 999 milliseconds)



The remaining lives of tools with the same tool type number, as determined by subtracting the life
counter value from the maximum life, are totaled for each number of times or for each time and
displayed.



Total life counter

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Time
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 2,147,483,647 times

When time is specified:

0 to 359,999,999 s (99999 hours 59 minutes 59 seconds)
0 to 359,999,999 milliseconds (99 hours 59 minutes 59 seconds 999 milliseconds)



The life counter values of the same-type tools set on the tool management data screen (for each tool
type number) are totaled for each number of times or for each time and displayed.



Total maximum life

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Time
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 2,147,483,647 time

When time is specified:

0 to 359,999,999 s (99999 hours 59 minutes 59 seconds)
0 to 359,999,999 milliseconds (99 hours 59 minutes 59 seconds 999 milliseconds)



The maximum lives of the same-type tools set on the tool management data screen (for each tool
type number) are totaled for each number of times or for each time and displayed.



Number (number of tools)

Item

Description

Data length

2byte

Valid data range

1 to maximum number of tools (64, 240, or 1,000)



The numbers of tools of the same types are totaled and displayed. The maximum number of tools
change depending on the options used.



B-64693EN-1/01





11. TOOL FUNCTIONS



- 1971 -

Total notice life

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 2,147,483,647 times

When time is specified:

0 to 359,999,999 s (99999 hours 59 minutes 59 seconds)
0 to 359,999,999 milliseconds (99 hours 59 minutes 59 seconds 999 milliseconds)



The notice lives of same-type tools set on the tool management data screen (for each tool type
number) are totaled for each number of times or for each time and displayed.



Status

Item

Description

Data length

1byte

Data details

0:  --
1: Notice



The status indicating whether the tool life arrival signal has been output is displayed.



Sort function



On the total life data screen, sorting in either ascending or descending order is possible with the
following data:

Tool type number

Total remaining life

Data to be totaled



The data to be totaled on the total life data screen is that for those tools that satisfy the
following conditions.



11. TOOL FUNCTIONS





B-64693EN-1/01



- 1972 -



No (disabled)

Is tool management data enabled?

(Is RGS, bit 0 of tool information, set?)



Yes (enabled)

Yes (not performed)

No (performed)



Yes (breakage)

Is the tool life status "tool breakage (4)"?

No (not breakage)



Check the next data



End



Data to be totaled (addition)

Tool management data with same tool type number



Is the tool life status "Life management is not

performed (0)"?





NOTE

1  If data is with the same tool type number and both time and number of times are

specified as life count types, and the data is to be totaled, the data is totaled for
both each time and each number of times and displayed in the time and number
of times fields.

2  In the number column, the number of all tools with the same tool type number is

displayed regardless of the tool life status.

3  The total life counter, total remaining live, total maximum life, and total notice life

are displayed in time display in sec units if data in sec and in ms exist in the
same tool. Any fractional part of ms data is truncated.

4  If the total remaining life is negative, zero is displayed.
5  If the total life counter, total remaining live, total maximum life, or total notice life

is larger than the display maximum, an asterisk "*" is displayed.



Number of times:**********



Time:*****H**M**S (in sec. units)/ **H**M**S*** (in msec. units)

B-64693EN-1/01





11. TOOL FUNCTIONS



- 1973 -

NOTE

6  If one of the following operation is performed, total life data is updated:

(a) Pressing of the soft key [UPDATE] or [SWITCH]
(b) Pressing of the soft key [T-ASCE-SORT], [T-DESC-SORT], [R-ASCE-SORT],

or [R-DESC-SORT]

(c) Switching to another screen and return to the total life data screen



  -

Detailed life data display

The detailed life data screen displays the tool information specific to the same-type tools displayed on the
total life data screen.


Data details



The details of the data displayed on the detailed life data screen are as follows:



Tool type number (T code)

Item

Description

Data length

4byte

Valid data range

1 to 99,999,999



The tool type number (T code) set on the tool management data screen is displayed.



Order

Item

Description

Data length

2byte

Valid data range

1 to maximum number of tools (64, 240, or 1,000)



Those tools whose tool life status is "enabled" are displayed in either of the following orders:

If bit 6 (SWC) of parameter No. 13203 is 0, the order starting with the one with the shortest
remaining life.

If bit 6 (SWC) of parameter No. 13203 is 1, the order starting with the smallest customize data
number set in parameter No. 13260.




For those tools whose tool life status is not "Tool not yet used (1)" or "Life remains (2)", the order
item is displayed as an "-" (hyphen), and those tools are displayed in order by tool management data
number, after ordered tools.



The maximum for the valid data range differs depending on the option used.



Remaining tool life value

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
When time is specified: Seconds/milliseconds



Valid data range

When the number of use times is specified:

0 to 99,999,999 times

When time is specified:

0 to 3,599,999 s (999 hours 59 minutes 59 seconds)
0 to 3,599,999 milliseconds (59 minutes 59 seconds 999 milliseconds)

The  remaining life value is equal to [Maximum tool life value -  Tool life counter value]. If the
maximum tool life value is less than the tool life counter (resulting in a negative value), 0 is
displayed.



11. TOOL FUNCTIONS





B-64693EN-1/01



- 1974 -

Tool life counter

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 99,999,999 times

When time is specified:

0 to 3,599,999 s (999 hours 59 minutes 59 seconds)
0 to 3,599,999 milliseconds (59 minutes 59 seconds 999 milliseconds)



Maximum tool life value

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 99,999,999 times

When time is specified:

0 to 3,599,999 s (999 hours 59 minutes 59 seconds)
0 to 3,599,999 milliseconds (59 minutes 59 seconds 999 milliseconds)



Notice life value

Item

Description

Data length

4byte

Unit of data

When the number of use times is specified: Times
When time is specified: Seconds/milliseconds

Valid data range

When the number of use times is specified:

0 to 99,999,999 times

When time is specified:

0 to 3,599,999 s (999 hours 59 minutes 59 seconds)
0 to 3,599,999 milliseconds (59 minutes 59 seconds 999 milliseconds)



Tool life status

Item

Description

Data length

1byte

Data details

0: Life management is not performed.
1: Tool not yet used
2: Life remains.
3: Life expired.
4: Tool breakage (skip)



NOTE

1  If, in a multi-path system, customize data number is specified for the order

specification (bit 6 (SWC) of parameter No. 13203 =1), the order indicated is
based on the customize data number specified in parameter No. 13260 of the
path currently displayed.

2  Detailed life data is updated if either of the following operation is performed:

(a) Pressing of the soft key [UPDATE]
(b) Switching to another screen and return to the total life data details screen



B-64693EN-1/01





11. TOOL FUNCTIONS



- 1975 -

Signal

Tool management data protection signals TKEY0 to TKEY5<G330.0 to G330.5>

  [Classification]  Input signal


[Function]  These signals permit those operations from the MDI unit that will change the memory

description. Six signals are available, as described below, which protect different tool
information.
If TDL, bit 0 (TDL) of parameter No. 13204, is 0

The tool management data protection signals are invalid.

If TDL is 1

TKEY0  : Permits the input of tool type numbers.

TKEY1  : Permits the input of tool information. (If tool management function

oversize tool support is used, permits the input of tool shape numbers.)

TKEY2  : Permits the input of the tool life counter value, maximum tool life value,

notice life value, tool life status.

TKEY3  : Permits the input of tool compensation-related information (such as tool

length compensation number and cutter compensation number).

TKEY4  : Permits the input of the spindle speed (S)/feedrate (F).

TKEY5  : Permits the input of  customize data-related data (customize data items

0, ..., 40).



[Operation]  If a signal is 0, the corresponding operation is prohibited.

If a signal is 1, the corresponding operation is permitted.



Signal address





#7

#6

#5

#4

#3

#2

#1

#0

G330







TKEY5

TKEY4

TKEY3

TKEY2

TKEY1

TKEY0



Parameter





#7

#6

#5

#4

#3

#2

#1

#0

13200











ETE

TRT









[Input type]  Parameter input



[Data type]  Bit path





#2  TRT

  As the remaining lifetime value for outputting the tool life arrival notice signal:

0:

The remaining lifetime of the last tool is used.

1:

The sum of the remaining lifetimes of the tools with the same type number is used.



NOTE



This parameter is valid when bit 3 (ETE) of parameter No. 13200 is
set to 0 (arrival notice for each type number).





#3  ETE

  The tool life arrival notice signal is output:

0:

For each tool type.

1:

For each tool.







#7

#6

#5

#4

#3

#2

#1

#0

13201













TDB



TDC





[Input type]  Parameter input



[Data type]  Bit



11. TOOL FUNCTIONS





B-64693EN-1/01



- 1976 -

NOTE



When at least one of these parameters is set, the power must be
turned off before operation is continued.





#0  TDC

  The function of customizing the tool management data screen of the tool management

function is:
0:

Disabled.

1:

Enabled.





#2  TDB

  The tool management function displays tool information in the:

0:

Conventional mode.

1:

1/0 mode.







#7

#6

#5

#4

#3

#2

#1

#0

13204

















TDL





[Input type]  Parameter input



[Data type]  Bit





#0  TDL

  The protection function for tool management data using a key is:

0:

Disabled.

1:

Enabled.



Alarm and message

Number

Message

Description

PS5312

ILLEGAL COMMAND IN
G10 L75/76/77

In commands from G10 L75/L76/L77 to G11, there is a format error, or
a value beyond the specifiable range is specified. Correct the program.



Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Tool Management Extension Function



11.3.3

Tool Management Function Oversize Tools Support

Overview

Tool management function oversize tools support is added to the tool management function.
The figure of an oversize tool can be defined freely,  and the figure of each oversize tool is registered.
When an oversize tool is stored in a cartridge, interference with tools stored in other pots is considered.
This function is usable with cartridges of chain type and matrix type.


Explanation

Usually, a tool, when stored in a cartridge, occupies one pot only. An oversize tool occupies pots other
than the position where the tool is stored. This point is taken into consideration for tool management.
When the tool information #2 of the tool management data is set to 1, the tool is set as an oversize tool.
- Tool information

Item

Description

Data length

1byte (Flag data)

#2 BDT

0: Normal tool (N)
1: Oversize tool (B)



B-64693EN-1/01





11. TOOL FUNCTIONS



- 1977 -

Oversize tools each having a different figure can be freely defined to form oversize tool patterns through
MDI input on the tool figure setting screen, G10 data input, or inputting a file. Up to 20 patterns can be
registered. An identification number (hereinafter referred to as a tool figure number) is assigned to each
patterned figure, and a tool figure number suitable for each tool figure is set in the tool management data.
- Tool geometry number (GNO)

Item

Description

Data length

2byte

Valid data range

0 to 20


When a tool is registered in the cartridge management table, the figure of the tool is determined from the
tool figure number of the tool so that the tool can be registered only if the tool does not interfere with
other tools.
When using this function, set the type of cartridge with parameters. For the chain type, set a pot start
number and the number of pots with the conventional parameters. When using the matrix type, use the
same parameter as for the chain type to specify a pot start number, and use the parameters for specifying
the number of pots in the vertical direction (hereinafter referred to as the number of rows) and the
parameter for specifying the number of pots in the horizontal direction (hereinafter referred to as the
number of columns) to specify the number of pots. As shown in the figure below, processing is performed,
assuming that pot numbers are assigned from the upper-left corner to the lower-right corner of the
cartridge as viewed when you face the front of the cartridge.
No tool can be stored in a way that causes interference with the outer frame of the cartridge.



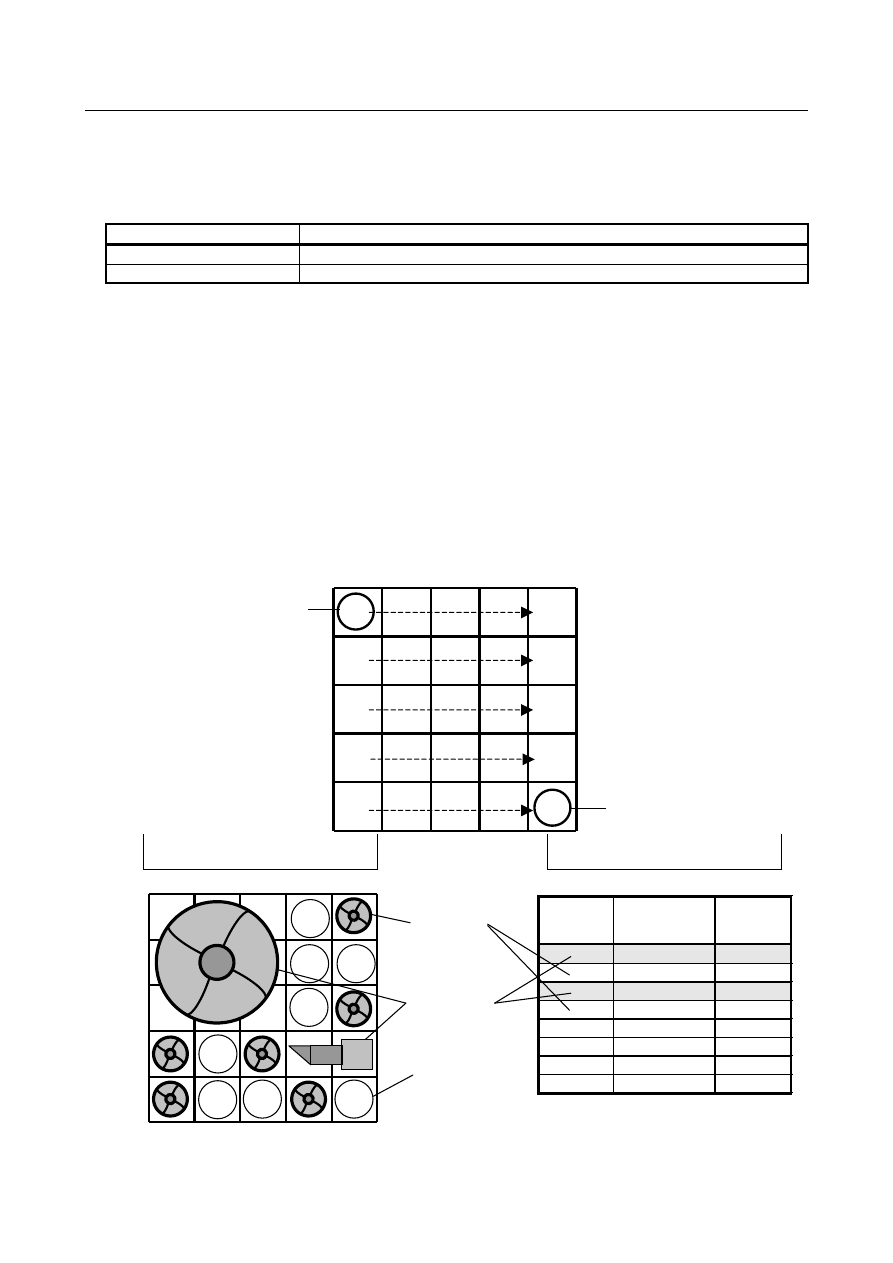

21

2

  2

  2

  2



26

2



2

  30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

Pot start number

Pot end number

When pattern start number is 21

28









Normal tool

Oversize tool

Free pot

Cartridge

Tool

manage-

ment No.

Tool

information



Tool

figure No.

0000UBCR

0000UNCR

0000UBCR

0000UNCR

0000UNCR

0000UNCR

0000UNCR

0000UNCR



Tool management table

















Content      ..     250      251      252      253     ..
