10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1906 -

25803

M code for Cs contour control OFF

NOTE

1 When this parameter is set, the power must be turned off before

operation is continued.

2 Don’t set M code used for any other function.
3 Auxiliary function code signals M00 to M31<Fn010 to Fn013> and

auxiliary function strobe signal MF<Fn007.0> are not output.

4 If this parameter is set to 0, the spindle cannot use Cs contour

control by program command.

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 0 to 99999999

Set M code for Cs contour control OFF.

25804

M code for spindle control mode OFF 1

25805

M code for spindle control mode OFF 2

25806

M code for spindle control mode OFF 3

NOTE

1 When this parameter is set, the power must be turned off before

operation is continued.

2 Don’t set M code used for any other function.
3 If this parameter is set to 0, the spindle cannot use M code for

spindle control mode OFF.

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 0 to 99999999

Set M code for spindle control mode OFF.

25807

ADP

[Input type] Parameter input

[Data type] Bit

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

#0 ADP

In Spindle control mode changing by program command, when spindle selection by
address P of Multi-spindle control is enabled, multi-spindle address P signals MSP00 to
MSP15<Fn160.0 to Fn161.7> (the value is address P commanded with M code for
spindle control mode changing) is:
0:

Not output.

Output.

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1907 -

3703

MPP

[Input type] Parameter input

[Data type] Bit

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

#3 MPP

In multi-spindle control, a spindle selection using a programmed command instead of
using the signals (SWS1 to SWS4<Gn027.0 to Gn027.2, Gn026.3>) is:
0:

Not made.

Made.

NOTE

When this parameter is set to 1, set parameter No.3781 at the
same time.

3712

CSF

[Input type] Parameter input

[Data type] Bit

#2 CSF

In the Cs contour control mode, the function for setting machine coordinates and absolute
coordinates based on the machine position of the spindle if the origin is already set up is:
0:

Disabled.

Enabled.

3729

NCSs

ORTs

[Input type] Parameter input

[Data type] Bit spindle

#0 ORTs

When a serial spindle is used, the spindle orientation function of stop position external
setting type based on the position coder is:
0:

Not performed.

Performed.

NOTE

When bit 0 (ORPUNT) of No.4542 is set to 1, if bit 0 (ORTs) of
parameter No.3729 is changed, the power must be turned off
before operation is continued.

#3 NCSs

When the Cs contour control mode is set:
0:

Switching to Cs contour control is completed when the spindle activating current is
on (the spindle amplifier is ready for operation in the Cs contour control mode).

Switching to Cs contour control is completed even when the spindle activating
current is off (the spindle amplifier is not ready for operation in the Cs contour
control mode).

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1908 -

If this parameter is set to 1, the Cs contour control switch end signal is output without
waiting for the spindle to decelerate to a stop.

3781

P code for selecting the spindle in multi-spindle control

[Input type] Parameter input

[Data type] Word spindle

[Valid data range] 0 to 32767

If bit 3 (MPP) of parameter No. 3703 is set to 1, set the P code to select each spindle
under multi-spindle control. Specify the P code in a block containing the S command.

[Example] If the P code value for selecting the second spindle is set to 2,

S1000 P2;
Causes the second spindle to rotate at S1000.

NOTE

1 This parameter is valid if bit 3 (MPP) of parameter No. 3703 is set

to 1.

2 If this parameter is set to 0, the corresponding spindle cannot be

selected by a P code.

3 Under multi-path control, the P code specified here is valid for each

path.

For instance, if the P code to select the first spindle of path 2 is set
to 21, specifying S1000 P21; in path 1 causes the first spindle of
path 2 to be rotated at S1000.

4 Identical P code values cannot be used for different spindles.

(Identical P code values cannot be used even if the paths are
different.)

5 When this parameter is used (when bit 3 (MPP) of parameter No.

3703 is set to 1), the spindle command selection signal is invalid.

6 To use this parameter, enabling the multi-spindle control (bit 3

(MSP) of parameter No.8133 is 1) is needed.

4031

Stop position in orientation by a position coder (MAIN spindle)

4204

Stop position in orientation by a position coder (SUB spindle)

[Input type] Parameter input

[Data type] Word spindle

[Unit of data] Detection unit

[Valid data range] Depend on the bit 0 (ORPUNT) of No.4542 setting (Refer to the table below)

Bit 0 (ORPUNT) of No.4542

Least input increment

Valid data range

360/4096= 0.08789

0 to 4095

360/32768= 0.01098

0 to 32767

Each of these parameters specifies a stop position in orientation by a position coder.
These parameters are valid when bit 0 (ORT) of parameter No.3729 is set to 0.

4075

Orientation completion signal detection level (limits of in-position)

（

MAIN spindle

）

4226

Orientation completion signal detection level (limits of in-position)

（

SUB spindle

）

[Input type] Parameter input

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1909 -

[Data type] Word spindle

[Unit of data] Detection unit

[Valid data range] Depend on the bit 0 (ORPUNT) of No.4542 setting (Refer to the table below)

Bit 0 (ORPUNT) of No.4542

Least input increment

Valid data range

360/4096= 0.08789

0 to 100

360/32768= 0.01098

0 to 1000

This data is used to set the detecting level of orientation completion signal (ORARA).
ORARA is assumed to be 1 if the position error is within the setting.

4077

Stop position shift amount in orientation by a position coder(MAIN spindle)

4228

Stop position shift amount in orientation by a position coder(SUB spindle)

[Input type] Parameter input

[Data type] Word spindle

[Unit of data] Detection unit

[Valid data range] Depend on the bit 0 (ORPUNT) of No.4542 setting (Refer to the table below)

Bit 0 (ORPUNT) of No.4542

Least input increment

Valid data range

360/4096= 0.08789

-4095 to 4095

360/32768= 0.01098

-32767 to 32767

Each of these parameters specifies a stop position shift amount in orientation by a
position coder.
This parameter is valid no matter what the setting of bit 0 (ORT) of parameter No.3729
is.

4353

CSPTRE

[Input type] Parameter input

[Data type] Bit spindle

#5 CSPTRE

Specifies whether to enable Cs axis positional data transfer, as follows:
0:

Disable.

Enable.

To use this function, reset bit 7 (RFCHK3) of parameter No. 4016 to 0.

4542

ORPUNT

[Input type] Parameter input

[Data type] Bit spindle

#0 ORPUNT

Least input increment for Stop position of spindle orientation, Stop position shift amount,
In-position width
0:

360/4096 = 0.08789 [deg]

360/32768 = 0.01098 [deg]

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1910 -

CAUTION

In the

position coder, the effect is not achieved by the fine

resolution application of stop position because the sensor
resolution is 4096p/rev.

NOTE

To use this function, the corresponding serial spindle software is
required.

Alarm and message

Number

Message

Description

PS0552

SP-MODE CHANGE COMMAND
ERROR

Spindle control mode changing command is illegal. Causes
of the alarm are as follows.
- Spindle control mode changing is commanded for

disabling spindle.

- Multiple M commands are commanded in spindle

orientation ON/OFF command or Cs contour control
ON/OFF command.

- Illegal G code (G53, G54) is commanded at spindle

control mode changing block.

PS0553

SP-MODE CHANGE IMPOSSIBLE

Spindle control mode changing command cannot execute.
Causes of the alarm are as follows.
- Spindle control mode changing by program command is

commanded during spindle orientation or Cs contour
control by DI signal.

- During spindle control mode changing, spindle control

mode changing is commanded from the other path.

- Spindle control mode changing is commanded when

spindle control mode off signal MDOFF1 to
MDOFF4<Gn586.4 to Gn586.7> is "1".

PS0554

S-CODE IS NOT COMMANDED

M03/M04 is commanded alone without S code.

PW0053

SP-MODE CHANGE SETTING ERROR

The setting of parameters Nos.25800 to 25806 is illegal.
Causes of the alarm are as follows.
- The setting value is out of range.
- The same value is set when spindle selection by address

P is not used.

- The same value is not set to all spindles when spindle

selection by address P is used.

- The value except for 0 is set when spindle orientation or

Cs contour control is not enabled (bit 4 (NOR) of
parameter No.8135 is 1 or bit 2 (SCS) of parameter
No.8133 is 0).

- One of M code of spindle orientation ON/OFF is set.
- One of M code of Cs contour control ON/OFF is set.

B-64693EN-1/01

11. TOOL FUNCTIONS

- 1911 -

TOOL FUNCTIONS

11.1

TOOL FUNCTIONS OF LATHE SYSTEM

Overview

When address T followed by a numeric value is specified, the code signal and strobe signal are sent to the
machine and are used to select a tool on the machine side. Just one T code can be specified in a block.
When a move command and T code are specified within the same block, these commands are executed in
one of the following two ways:
(1) The move command and tool function command are started at the same time.
(2) After the move command ends, the tool function command is started.

Explanation

A numeric value following the T code specifies selection of a tool. Part of the numeric value is also used
as a tool offset number for specifying an offset value such as a tool offset value. Tools are selected
according to the specification method and parameter setting as Table 11.1 (a):

Table 11.1 (a)

Meaning of T code (Note 1)

Parameter setting and offset No.

specification method (Note 2)

Bit 1 (LGN) of parameter No.

5002 =0

Bit 1 (LGN) of parameter No.

5002 =1

T X X X X X X X X

↑

Tool selection Tool geometry/
tool wear offset

T X X X X X X X X

↑

Tool selection Tool wear offset
Tool geometry offset

Tool wear offset No. is specified by

lowest 1 digit of T code.

When parameter No. 5028 is set to 1

T X X X X X X X X

↑

Tool selection Tool geometry/
tool wear offset

T X X X X X X X X

↑

Tool selection Tool wear offset
Tool geometry offset

Tool wear offset No. is specified by

lowest 2 digits of T code.

When parameter No. 5028 is set to 2

T X X X X X X X X

↑

Tool selection Tool geometry/
tool wear offset

T X X X X X X X X

↑

Tool selection Tool wear offset
Tool geometry offset

Tool wear offset No. is specified by

lowest 3 digits of T code

When parameter No. 5028 is set to 3

NOTE

1 The maximum number of digits of the T code can be specified in parameter No.

3032. (1 to 8 digits)

2 If 0 is set in parameter No. 5028, the length of the offset number specified in the T

code depends on the number of tool offsets.
Example: When the number of tool offsets ranges from 1 to 9:

Lowest 1 digit

When the number of tool offsets ranges from 10 to 99:

Lowest 2 digits

When the number of tool offsets ranges from 100 to 999: Lowest 3 digits

11. TOOL FUNCTIONS

B-64693EN-1/01

- 1912 -

11.1.1

Tool Offset

Overview

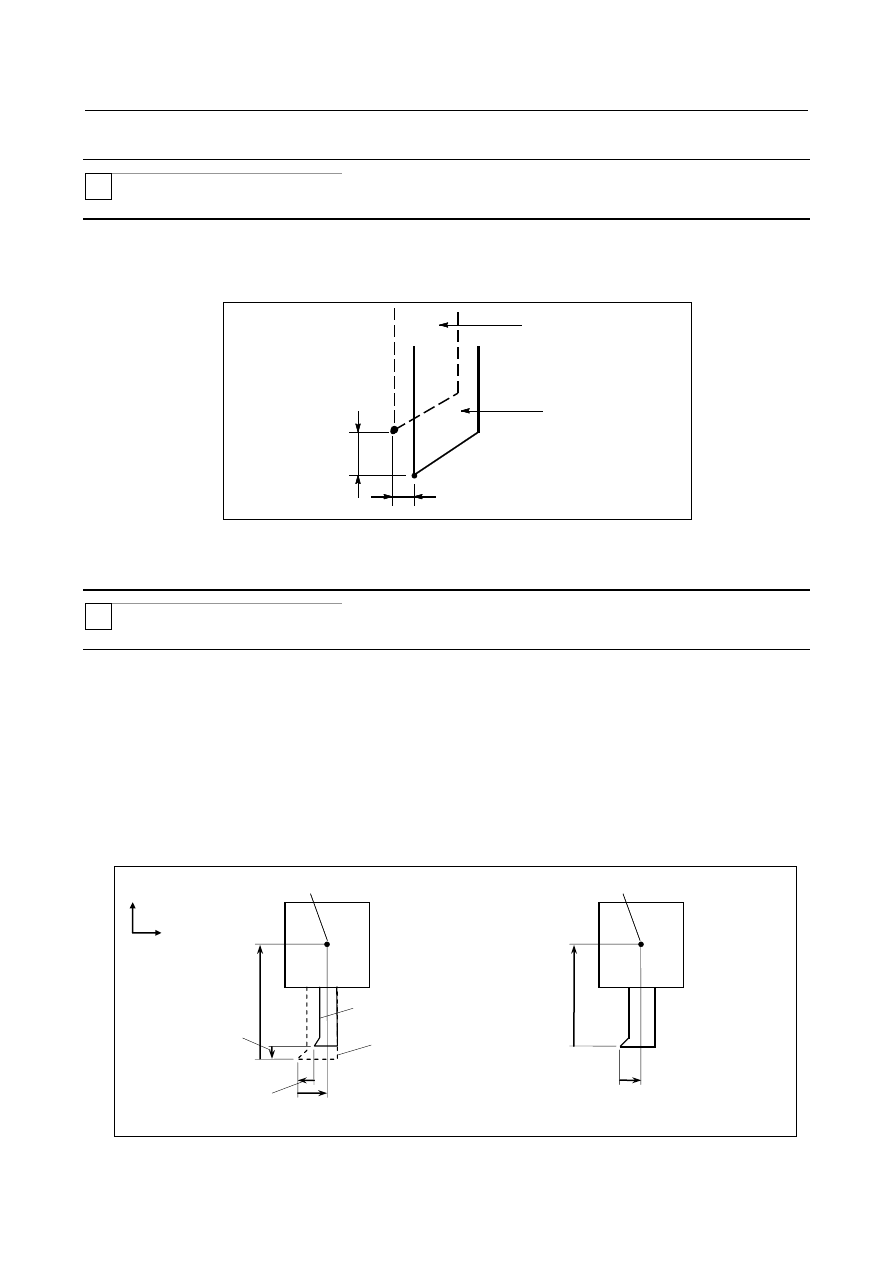

Tool offset is used to compensate for the difference when the tool actually used differs from the imagined
tool used in programming (usually, standard tool).Tool nose moves on the programmed path by this
compensation.

Offset amount
on X axis

Standard tool

Actual tool

Offset amount on Z axis

Fig. 11.1.1 (a) Tool offset

11.1.2

Tool Geometry Offset and Tool Wear Offset

Overview

Tool geometry offset and tool wear offset are possible to divide the tool offset to the tool geometry offset
for compensating the tool shape or tool mounting position and the tool wear offset for compensating the
tool nose wear. When these values are not distinguished from each other, the total of the values is set as
the tool offset value.
By setting the bit 0 (WOF) of parameter No.3290, the modification of tool wear offset values or tool
position offset values by MDI key input can be disabled.
By setting the bit 1 (GOF) of parameter No.3290, the modification of tool geometry offset values by MDI
key input can be disabled. In order to permit an operator only to modify tool wear offset values, set the bit
1 (GOF) of parameter No.3290 to 1.

Fig. 11.1.2 (a) If tool geometry compensation and tool wear compensation are

distinguished from each other (left) and if they are not (right)

Point on the program

X axis geometry
offset value

X axis wear offset value

Z axis geometry offset value

Z axis wear offset value

Offset amount
on X axis

Offset amount on Z axis

Point on the program

Imaginary tool

Actual tool

B-64693EN-1/01

11. TOOL FUNCTIONS

- 1913 -

Set the distance from tool nose to the point on the program ( tool nose of standard tool, or tool mounting
position ) to a tool geometry offset value.

Generally, a sign of tool wear offset value is the opposite to a sign of tool geometry offset value. In the
example of the above figure, the geometry offset value is a positive and the wear offset value is a
negative.

11.1.3

Offset

Explanation

Compensation methods

Two methods are available to geometry compensation and wear compensation, compensation with tool
movement and compensation with coordinate shift. Which compensation method to select can be
specified with bits 2 (LWT) and 4 (LGT) of parameter No. 5002. When the tool geometry/wear
compensation is not enabled (bit 6 (NGW) of parameter No. 8136 is set to 1), however, compensation
with tool movement is assumed unconditionally.

Table 11.1.3 (a)

Tool geometry

and wear

compensation

NGW(No.8136#6)

Compensation element

Parameter

LWT=0

LGT=0

LWT=1

LGT=0

LWT=0

LGT=1

LWT=1

LGT=1

Disable (NGW=1)

Wear and geometry not
distinguished

Tool movement

Enable (NGW=0)

Wear compensation

Tool movement Coordinate shift Tool movement Coordinate shift

Geometry compensation Coordinate shift Coordinate shift Tool movement Tool movement

Compensation with tool movement

The tool path is offset by the X, Y, and Z tool offset values for the programmed path. The tool offset
distance corresponding to the number specified by the T code is added to or subtracted from the end
position of each programmed block.
The vector with tool offset X, Y, and Z is called the offset vector. Compensation is the same as the offset
vector.

This move command block
contains the offset command
with T code

Tool path after offset

Programmed path

Compensation by tool offset X, Z (offset vector)

Fig. 11.1.3 (a) Offset operation with tool movement

Content .. 242 243 244 245 ..
