10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1858 -

Controlled

axis

Connector to which each separate

detector interface unit is attached

Parameter setting

1st

connector

2nd

connector

5th

connector

6th

connector

No.

24096

No.

24097

No.

24100

No.

24101

－

JF101

－

JF101

－

JF101

－

JF102

－

JF104

－

JF102

－

JF103

－

JF103

NOTE

1 Specify these parameters when separate detector interface units

are used.

2 Parameters Nos. 24096 to 24103 are specified automatically when

data is entered on the FSSB setting screen if the FSSB setting mode
in use is the automatic setting mode (bit 0 (FMD) of parameter No.
1902 = 0). If the manual setting 2 mode (bit 0 (FMD) of parameter
No. 1902) = 1), specify the parameters directly.

Alarm and message

Number

Message

Description

PS5211

ILLEGAL AXIS
OPERATION

- A move command is commanded from the CNC on the servo motor in

servo motor spindle control mode.

- A move command is commanded from the CNC on the servo motor in

acceleration/deceleration of servo motor spindle synchronization mode.

- A move command is commanded from the CNC on the servo motor in

servo motor spindle synchronization mode when differential speed
synchronization command signal DFSYC and the servo motor spindle
switching signal SVSP set to “1”.

Notes

Servo/Spindle synchronous control (FSSB type)

The separate detector interface unit becomes unnecessary by the FSSB communication between a CNC
and a spindle amplifier.
However, if the separate detector interface unit is used, do not set the setting (the parameters FHRSV (bit
2 of No.2429) and FHESP (bit 2 of No.4549) of Servo/Spindle synchronous control (FSSB type).
Refer to "11.22.2 Servo/Spindle synchronous control (FSSB type)" for details.

Servo alarm

If a servo alarm occurs, servo spindle control and servo spindle synchronization mode are canceled. If this
occurs, SVSPM, SYSSM, SVAR, and SYAR (<Fn090> signals) are all cleared.
After the servo alarm is canceled, servo spindle control and servo spindle synchronization will be enabled
again.

Servo off

If follow-up is performed (bit 0 (FUPx) of parameter No. 1819 = 0), servo spindle control and servo
spindle synchronization mode are canceled. If this occurs, SVSPM, SYSSM, SVAR, and SYAR
(<Fn090> signals) are all cleared.

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1859 -

If follow-up is not performed (bit 0 (FUPx) of parameter No. 1819 = 1), servo spindle control and servo
spindle synchronization mode are not canceled. Commands are accumulated as servo errors.

Emergency stop

In the event of an emergency stop, servo spindle control and servo spindle synchronization mode are
canceled. If this occurs, SVSPM, SYSSM, SVAR, and SYAR (<Fn090> signals) are all cleared.
After the emergency stop is canceled, servo spindle control and servo spindle synchronization will be
enabled again.

Multi-path
-

Number of axes

Only a single servo axis per path can be used with this function.

Signal address

If the servo motor on the second path is used, the addresses of all control signals are the original ones plus
1000.
Similarly, for the third path, the addresses are the original ones plus 2000.

Synchronization between paths

It is possible to synchronize between paths. To do this, input the signal for the path to which the servo
axis belongs.
For example, to synchronize the spindle on path 1 with the servo axis on path 2, input the signal on path 2
(G1000 to G1999).

Synchronization of multiple axes

It is possible to synchronize multiple servo axes to a single main-spindle. To do this, input the signals on
the multiple paths to which the servo axes belong.
It is necessary to connect multiple position coders to the same main-spindle and input them to the
connectors of the respective pulse modules.

10.22.2

Servo/Spindle Synchronous Control (FSSB Type)

Outline

By the FSSB communication between a CNC and a spindle amplifier, rotational position information of a
spindle can be transmitted from a spindle amplifier to a servo control on CNC. Servo/Spindle
synchronous control (FSSB type) is a function that a servo axis follows a spindle axis by utilizing this
FSSB communication. And it is a feature of this function that the separate detector interface unit becomes
unnecessary compared with the ordinary function.

Explanation

The amplifier of main-spindle (spindle motor) and the amplifier of sub-spindle (servo motor) used for
Servo/Spindle synchronous control (FSSB type) need to be connected to the main servo card. The spindle
amplifier and the servo amplifier used for Servo/Spindle synchronous control (FSSB type) can be
connected to both the first FSSB line and the second FSSB line. (This function can be executed between
two motors connected to another line.)

Ex.1) Servo/Spindle synchronous control (FSSB type) with A axis and S1 spindle axis in the one path
system.

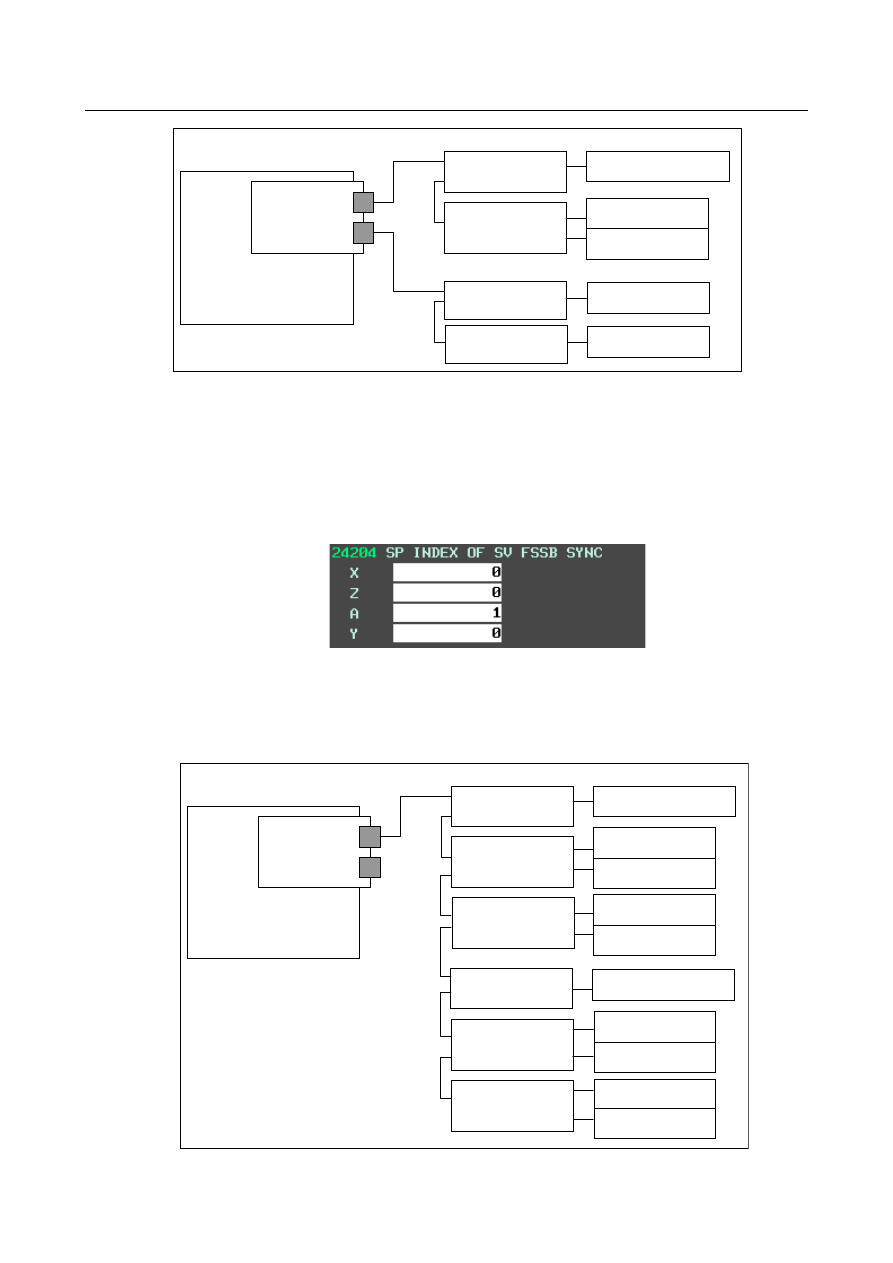

[Example of connection of FSSB]

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1860 -

CNC

Servo card

(Main)

Spindle amplifier

Servo amplifier

Servo motor: X

Servo motor: Z

Spindle motor: S1

First FSSB line

Second FSSB line

Servo motor: A

Servo amplifier

Servo motor: Y

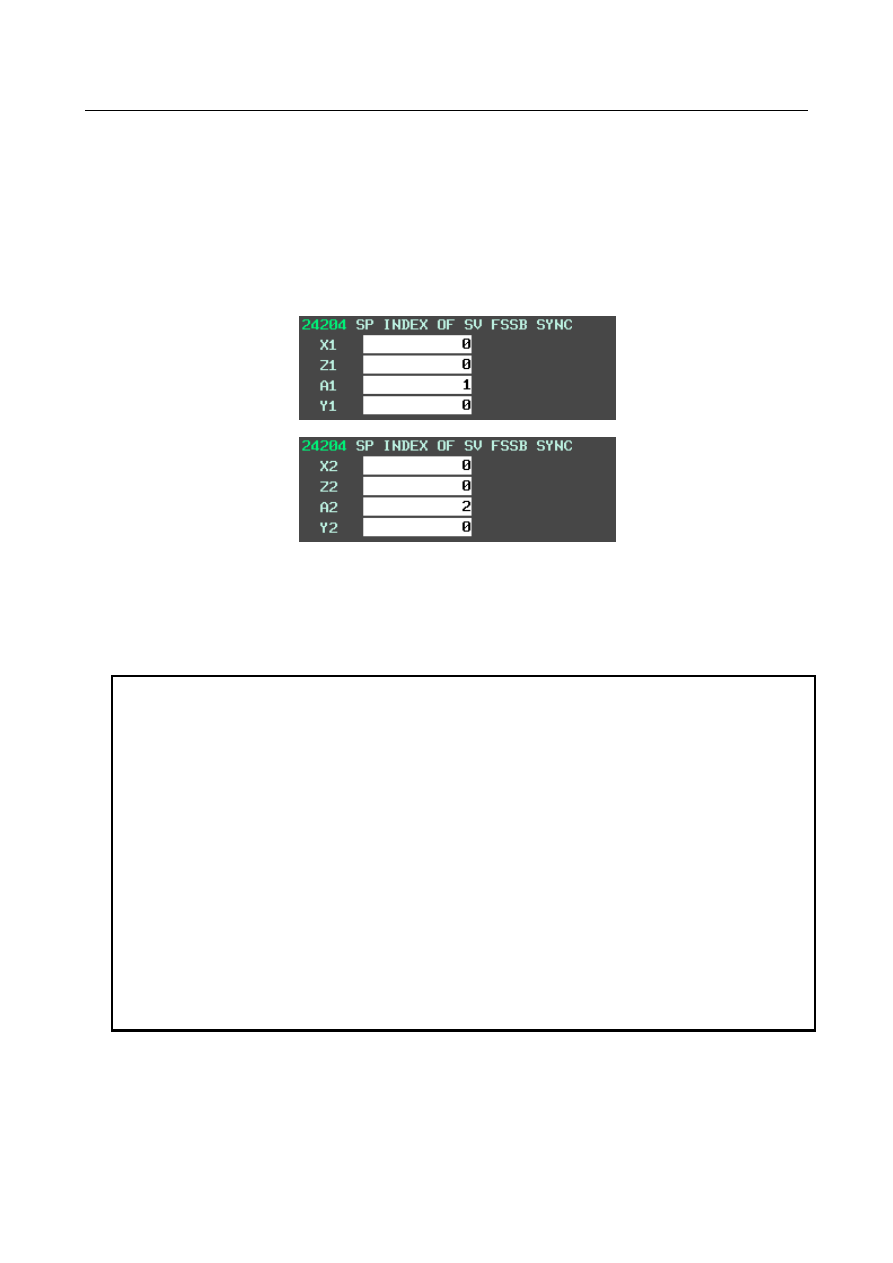

[Example of parameter setting]

The following setting are necessary in addition to setting of existing parameters related to
Servo/Spindle synchronous control.

When the parameter FHR (Bit 0 of No.24203) is set to 1, position data transmission by FSSB is
enabled.
And, the index number of the spindle axis (S1) that synchronizes with the servo axis (A) used by
Servo/Spindle synchronous control (FSSB type) is set to the parameter (No.24204) as follows.

In addition, set the parameter FSBSYN (bit2 of No.2429) of A axis and the parameter FHESP (bit2 of
No.4549) of S1 spindle axis to 1.

Ex.2) Servo/Spindle synchronous control (FSSB type) with A1 - S1 and A2 - S2 in two path system.
[Example of connection of FSSB]

CNC

Servo card

(main)

Spindle amplifier

Servo amplifier

Servo motor: X1

Servo motor: Z1

Servo motor: X2

Spindle motor: S1

Spindle amplifier

Spindle motor: S2

First FSSB line

Servo motor: Z2

Servo motor: A1

Servo motor: A2

Servo motor: Y1

Servo motor: Y2

Servo amplifier

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1861 -

[Example of parameter setting]

The following setting are necessary in addition to setting of existing parameters related to
Servo/Spindle synchronous control.

When the parameter FHR (Bit 0 of No.24203) is set to 1, position data transmission by FSSB is
enabled.
And, the index number of the spindle axes (S1, S2) that synchronizes with the servo axes (A1, A2)
used by Servo/Spindle synchronous control (FSSB type) is set to the parameter (No.24204) as follows.

Path1

Path2

In addition, set the parameter FSBSYN (bit2 of No.2429) of A1 and A2 axes and the parameter FHESP
(bit2 of No.4549) of S1 and S2 spindle axes to 1.

Eight or less index numbers of the spindle axis can be set in all system. If nine or more index numbers
of the spindle axis or illegal index number of spindle axis is set, the alarm (PW0037) "SV/SP
COMBINATION ERROR" is issued.

NOTE

1 When the parameter is changed, the power must be turned off before an

operation is continued.

2 Servo/Spindle synchronous control (FSSB type) cannot be used with analog

spindle or the spindle control with servo motor. If the above setting is set the
parameter No.24204, the alarm (PW0037) “SV/SP COMBINATION ERROR” is
issued.

3 The setting of the arbitrary gear ratio (DMR function) for main-spindle (spindle

motor) cannot be used.

4 With sub-spindle (servo motor) used by Servo/Spindle synchronous control

(FSSB type), the following servo software functions cannot be used.

  - FSSB high-speed rigid tapping
  - Electronic Gear Box
  - Full-closed control
If these functions are used, the alarm SV0417, “ILL DGTL SERVO

PARAMETER” is issued.

5 Others follow notes of Servo/Spindle synchronous control.

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1862 -

Parameter

24203

FHR

NOTE

When the parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Bit

#0 FHR

Position data transmission by FSSB is:

Disabled.

Enabled.

NOTE

1 In addition, it is necessary to set parameter No.24204.
2 When Servo/Spindle synchronous control (FSSB type) is used, set

this parameter to 1.

24204

The index number of the spindle axis that synchronizes to each servo axis

NOTE

When the parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Byte axis

[Valid data range] 0 to the maximum number of spindles

Set the index number of the spindle motor (main-spindle) that synchronizes with the
servo axis (sub-spindle) by Servo/Spindle synchronous control (FSSB type).

NOTE

1 When the parameter FHR (Bit 0 of No.24203) is 1, this parameter

is enabled.

2 Eight or less index numbers of the spindle axis can be set in the

system. If nine or more index numbers of the spindle axis are set,
alarm (PW0037) “SV/SP COMBINATION ERROR” is issued.

2429

FSBSYN

[Input type] Parameter input

[Data type] Bit axis

#2 FSBSYN

Servo control by Servo/Spindle synchronous control (FSSB type) is:

Disabled.

Enabled.

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1863 -

NOTE

1 When using Servo/Spindle synchronous control (FSSB type), set

this parameter to 1.

2 In the servo axis, in which this parameter is 1, the following function

cannot be used. If using with either of the following functions, the
alarm (SV0417) “ILL DGTL SERVO PARAMETER” is issued.
(Detail number of diagnosis data No.352 becomes 4292 or 4291)
  - FSSB high-speed rigid tapping (Bit 1 of No.2429)
  - Electronic gear box (Bit 0 of No.2011)
  - Full-closed control (Bit 1 of No.1815)

3 When the parameter is set, the power must be turned off before

operation is continued.

4549

FHESP

[Input type] Parameter input

[Data type] Bit spindle

#2 FHESP

Spindle control by Servo/Spindle synchronous control (FSSB type) is:

Disabled.

Enabled.

NOTE

1 When using Servo/Spindle synchronous control (FSSB type), set

this parameter to 1.

2 In the spindle axis, in which this parameter is 1, FSSB high-speed

rigid tapping cannot be used. If using with FSSB high-speed rigid
tapping, the alarm (SP9068) “ILLEGAL SPINDLE PARAMETER” is
issued.

Alarm and message

Number

Message

Description

PW0037

SV/SP COMBINATION ERROR

- The servo axis has dummy axis setting. Please check

parameters (No.1023, bit 0 of No.2009, and bit 4 of
No.11802).

- The setting for the function for spindle axis number to

synchronize with servo axis is illegal. Please check
parameters (bit 0 of No.3716, No.3717, and No.24204).

SV0417

ILLEGAL SERVO PARAMETER

- The setting for the function, which is not available with

Servo/Spindle synchronous control (FSSB type)
together, is done. Please turn it off.

SP9068

ILLEGAL SPINDLE PARAMETER

- Servo/Spindle synchronous control (FSSB type) and

FSSB high-speed rigid tapping cannot be used
together. Please check the parameter (bit 1 and bit2 of
No.4549).

- In the case of Servo/Spindle synchronous control

(FSSB type) using, please turn off FSSB high-speed
rigid tapping.

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1864 -

Diagnose

1612

The index number of the spindle axis that synchronizes with each servo axis

[Data Type] Byte axis

The index number of the spindle axis that can use direct communication between a
spindle amplifier and a servo amplifier on FSSB connection is displayed.

10.22.3

Phase Synchronization for Servo/Spindle Synchronous
Control

Outline

There are three functions on Servo/Spindle synchronous control.
(a) Servo motor spindle control

Can rotate the servo motor at the rotation speed specified with an input signal.

(b) Servo motor spindle synchronization

Can rotate the servo motor in synchronization with the feedback pulses from the spindle sensor.

(i) Can superimpose a command from the CNC on the servo motor in servo motor spindle

synchronization.

(ii) Can superimpose the rotation speed specified with an input signal on the servo motor in servo

motor spindle synchronization.

By this function, the phase of sub-spindle (the servo motor machine coordinate zero point in the status of
reference position establishment) can match the phase of main-spindle (the spindle sensor position
determined by the one-rotation signal) on (b) Servo motor spindle synchronization.
Addition, the phase can be shifted by the parameter.

Refer to the manual CONNECTION MANUAL (FUNCTION) (B-64693EN-1) "11.22.1  Servo/Spindle
synchronous control" for the basic specification of Servo/Spindle synchronous control.

It is necessary to set Servo/Spindle synchronous control (FSSB type).  Refer to the manual
CONNECTION MANUAL (FUNCTION) (B-64693EN-1) "11.22.2  Servo/Spindle synchronous control
(FSSB type)" for details.

Enable spindle synchronous control (bit 4 (SYC) of parameter No.8133 is 1) for this function.

Explanation

The phase of sub-spindle (the servo motor machine coordinate zero point in the status of reference
position establishment) can match the phase of main-spindle (the spindle sensor position determined by
the one-rotation signal). Addition, the phase can be shifted by the parameter No.3845.
The method of phase synchronization is shown as follows.

(1) Establish the reference position of sub-spindle (servo motor) by Reference position establishment.

(Reference position establishment signals ZRFx <Fn120.x> is "1")

(2) Execute spindle orientation of main-spindle (spindle motor).
(3) When Servo motor spindle synchronization start signal SYSS <Gn061.2> is set "1", it becomes

servo motor spindle synchronization mode.

(4) When it becomes servo motor spindle synchronization mode, Servo motor spindle synchronization

mode signal SYSSM <Fn090.5> becomes "1".

(5) When it becomes servo motor spindle synchronization mode, sub-spindle accelerates or decelerates

to the rotation speed of main-spindle.

(6) When the acceleration/deceleration of sub-spindle is completed, Servo motor spindle

synchronization mode acceleration/deceleration completion signal SYAR <Fn090.4> becomes "1".

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1865 -

(7) When Phase synchronization for Servo/Spindle synchronous start signal SYPST <Gn517.7> is set

"1" after the acceleration/deceleration of sub-spindle is completed, phase synchronization starts.

(8) The shift value between main-spindle and sub-spindle can be set by parameter No.3845.
(9) It accelerates or decelerates from the current spindle motor speed to the setting speed of parameter

No.3846 by Linear acceleration/deceleration with the acceleration rate based on parameter No.3843.

(10) When the synchronization error pulse value become small value more than allowable error pulse

value set by parameter No.3847, Phase synchronization for Servo/Spindle synchronous finished
signal SYPFN <Fn527.6> becomes "1".

(11) After Phase synchronization for Servo/Spindle synchronous finished signal SYPFN <Fn527.6>

becomes "1", set "0" to Phase synchronization for Servo/Spindle synchronous start signal SYPST
<Gn517.7>.

(12) When Servo motor spindle synchronization start signal SYSS <Gn061.2> is set "0", servo motor

spindle synchronization mode is canceled.

(13) Servo motor spindle synchronization mode acceleration/deceleration completion signal SYAR

<Fn090.4> and Phase synchronization for Servo/Spindle synchronous finished signal SYPFN
<Fn527.6> become "0".

(14) Sub-spindle decelerates and stops.
(15) When the acceleration/deceleration of sub-spindle is completed, Servo motor spindle

synchronization mode signal SYSSM <Fn090.5> becomes "0".

SYPST<Gn517.7>

SYPFN<Fn527.6>

SYSS<Gn061.2>

SYSSM<Fn090.5>

SYAR<Fn090.4>

サーボモータ主軸同期起動信号

SYSS<Gn061.2>

サーボモータ主軸同期モード信号

SYSSM<Fn090.5>

サーボモータ主軸同期モード

加減速完了信号

SYAR<Fn090.4>

サーボモータ主軸同期

位相合わせ開始信号

SYPST<Gnxxx.x>

サーボモータ主軸同期

位相合わせ完了信号

SYPFN<Fnyyy.y>

サブ主軸の回転数

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

<Gn517.7>

<Fn527.6>

<Fn090.5>

<Gn061.2>

(4)

(5)

(6)

(7)

(8)

(10)

(11)

(12)

(13)

(14)

(15)

(9) Acceleration or Deceleration

Phase synchronization start signal

Phase synchronization finished signal

Servo motor spindle
synchronization start signal

(3)

Servo motor spindle
synchronization mode signal

Servo motor spindle synchronization
mode acceleration/deceleration
completion signal

SYAR<Fn090.4>

Rotation speed of Sub-spindle

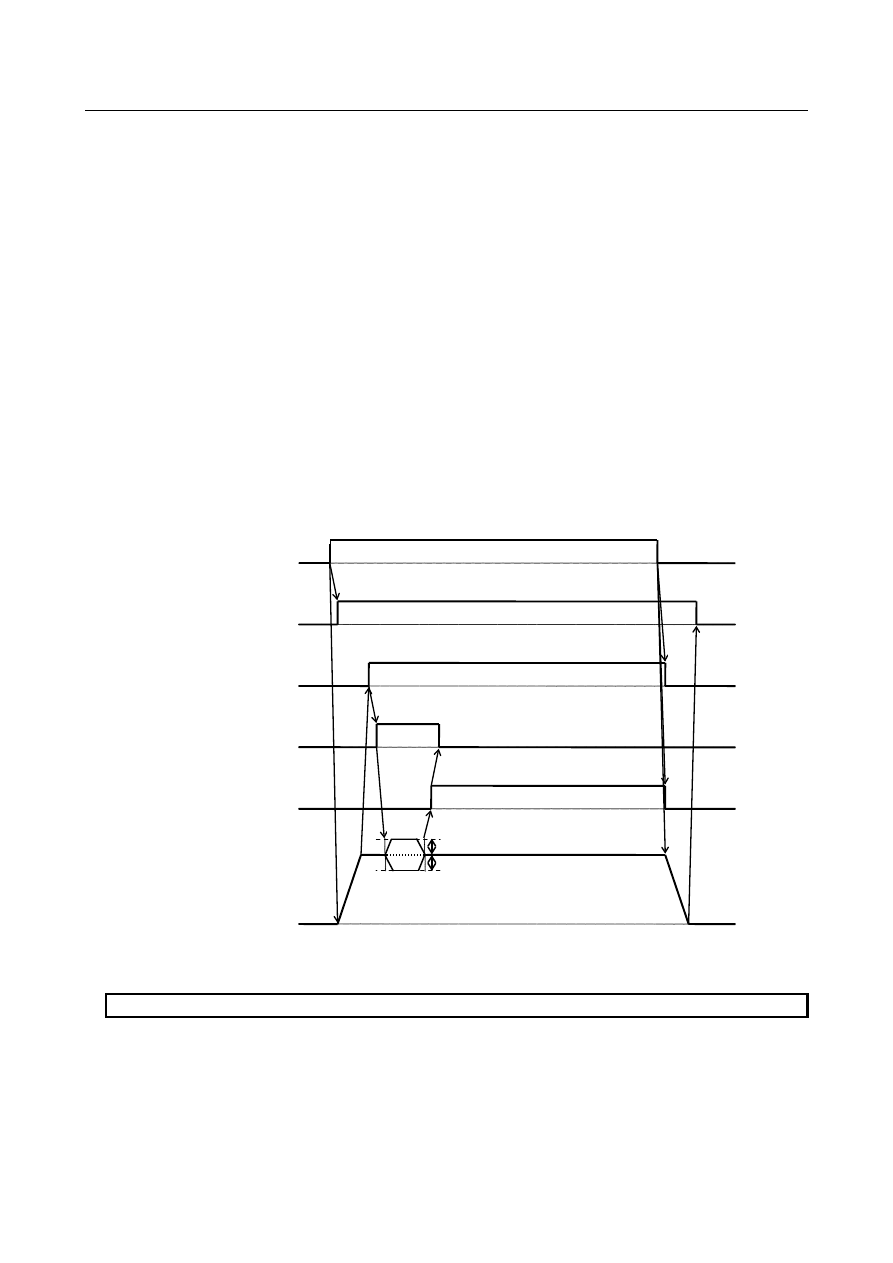

Fig. 10.22.3 Signal sequence of phase synchronization on Servo/Spindle synchronous control

NOTE

Content .. 236 237 238 239 ..
