10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1842 -

[Data type] Byte spindle

[Valid data range]

0 to Maximum number of controlled axes (common to the system)

NOTE

When this parameter is set, the power must be turned off Before
operation is continued.

When a spindle is set as a slave spindle in spindle synchronization control on each

spindle, set which spindle (master spindle) the slave spindle is to be synchronized with.

NOTE

1 This parameter is valid if bit 4 (SSS) of parameter No. 3704 is set

to 1 (to enable spindle synchronization based on arbitrary spindles)
for the path to which a slave spindle belongs and for the path to
which a master spindle belongs.

2 The setting of a slave spindle as a master spindle is invalid. Be

sure to set 0 for a spindle that is to function as a master spindle.

3 In this parameter, set a spindle number common to the system.

When this parameter is used, parameter No.4831 is set to 0.

Notes

NOTE

1 Output signal SYCAL<Fn044.4> is used for monitoring a phase shift in

synchronous control. Whether the processing is performed when a phase shift is
detected depends on the specifications determined by the machine tool builder.

2  A gear ratio of 1 : 1 only is allowed between the spindle and position coder.
3  A CNC system restriction is imposed on the maximum number of spindles.
4  If the speed at the spindle synchronous mode exceeds maximum speed of slave

spindle, an alarm PS0447 “ILLEGAL SETTING DATA” occurs.

5 Master spindle and slave spindle stop rotating due to a servo alarm, emergency

stop, machine lock, etc.

6 When using this function, enable the spindle synchronous control function (bit 4

(SYC) of parameter No,8133 is 1).

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1843 -

10.20.10

Improvement of Spindle Stop Motion for Spindle Control with
Servo Motor

Overview

If SV speed control mode is canceled during spindle rotation, spindle indexing is executed and spindle is
stopped at specified position so far. When bit 0 (NSP) of parameter No.11002 is set to 1, If SV speed
control mode is canceled during spindle rotation, spindle indexing is not executed and spindle is
decelerated and stopped. When spindle indexing is unnecessary, machining cycle time can be reduced.

Format

When bit 0 (NSP) of parameter No.11002 is set to 1:

G96.1 P_ ; The operation of the next block is started after deceleration

stop of spindle.

G96.2 P_ ; The operation of the next block is started before deceleration

stop of spindle.

G96.1 P_ R_ ; The operation of the next block is started after completing

spindle indexing.

G96.2 P_ R_ ; The operation of the next block is started before completing

spindle indexing.

G96.3 P_ ; The operation of the next block is started after confirming

completion of spindle indexing.

P : Spindle selection with multi-spindle control
R : Stoppage angle [deg] (0 to (parameter No.1260))

NOTE

1 When using G96.2, issue G96.3 before another spindle move command, to

make sure that the spindle is at a complete halt.

2 To issue G96.1, G96.2, or G96.3, use an independent block.

Explanation

When bit 0 (NSP) of parameter No.11002 is set to 1, if SV speed is canceled during spindle rotation,
spindle indexing is not executed and spindle is decelerated and stopped.

Command with a program

When R address is not commanded at G96.1 block, spindle indexing is not executed and spindle is
decelerated and stopped. SV speed control mode in-progress signal SVREV<Fn521> becomes “0” after
deceleration stop of spindle, and SV speed control mode is canceled. Then, the next block is started.
When also R address is not commanded at G96.2 block as well, spindle indexing is not executed and
spindle is decelerated and stopped. If G96.2 is commanded, the next block is started without waiting
deceleration stop of spindle. If G96.3 is commanded, SV speed control mode in-progress signal
SVREV<Fn521> becomes “0”, and SV speed control mode is canceled. When R address is commanded
at G96.1 or G96.2 block, spindle indexing is executed and spindle is stopped at specified position.

Command with a signal

When SV speed control mode signal SRVON<Gn521> is set to “0”, spindle indexing is not executed and
spindle is decelerated and stopped. SV speed control mode in-progress signal SVREV<Fn521> becomes
“0” after deceleration stop of spindle, and SV speed control mode is canceled.

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1844 -

Acceleration up to deceleration stop of spindle

When SV speed control mode is canceled, parameter (No.11020, No.11021, No.11030, No.11031,
No.11032) is applied to deceleration stop of spindle as well as acceleration of spindle.

Rotation speed
[min

-1

]

Time[sec]

SV speed control mode OFF

Fig. 10.20.10 Acceleration up to deceleration stop

Table 10.20.10 Parameters for acceleration up to deceleration stop

Specified rotation speed[min

-1

]

Acceleration switching speed (S

) [min

-1

] (parameter No.11020)

Acceleration switching speed (S

) [min

-1

] (parameter No.11021)

Acceleration 1 [min

-1

/s] (parameter No.11030)

Acceleration 2 [min

-1

/s] (parameter No.11031)

Acceleration 3 [min

-1

/s] (parameter No.11032)

Notes

Specify an M code not involved in buffering as an M code to be used as a command for switching the
SV speed control mode (parameters Nos.3411 to 3420 and 11290 to 11299).

M code for switching the SV speed control mode must be specified in an independent block. When
using multiple M commands in a single block, the M code must be specified as the first M command.

G96.1, G96.2, G96.3, G96.4, and M code for switching the SV speed control mode must be specified
in the path to which the spindle of interest belongs.

After G96.2 command, command G96.3 before commanding move command such as rapid traverse
(G00) or cutting feed (G01) to rotation axis. Move command is specified without commanding G96.3,
alarm PS0445 “ILLEGAL AXIS OPERATION” is issued.

If G96.3 is not commanded after G96.2 command, SV speed control mode is not canceled. For
example, reset before G96.2 command.

G96.1, G96.2 G96.3, G96.4 cannot be commanded for settings other than multi-spindle control type
P.

Parameter

11002

NSP

[Input type] Parameter input

[Data type] Bit axis

#0 NSP

When SV speed control mode is canceled, spindle indexing is:

0: executed.
1: not executed.

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1845 -

10.20.11

Alarm and Message

Number

Message

Description

PS0003

TOO MANY DIGIT

Data entered with more digits than permitted in the NC
instruction word.
The number of permissible digits varies according to the
function and the word.

PS0445

ILLEGAL AXIS OPERATION

The positioning command was issued in the speed control
mode. Check the SV speed control mode signal.

PS0446

ILLEGAL COMMAND IN
G96.1/G96.2/G96.3/G96.4

G96.1, G96.2, G96.3, and G96.4 are specified in the block
that includes other commands. Modify the program.

PS0447

ILLEGAL SETTING DATA

The spindle controlled axis is incorrectly set. Check the
parameter for the live tool control function by a servo motor.

PS0601

ILLEGAL AXIS COMMAND FOR
SERVO MOTOR SPINDLE

The move command was executed to the servo axes for
spindle use of the spindle control with servo motor. Modify
the program.

SV0410

EXCESS ERROR (STOP)

The amount of positional deviation during stopping
exceeded the parameter No. 1829 setting value.

SV0411

EXCESS ERROR (MOVING)

The amount of positional deviation during traveling
became excessive than the parameter setting value.

SV0417

ILL DGTL SERVO PARAMETER

A digital serve parameter setting is incorrect.

DS2003

ILLEGAL USE FOR SERVO MOTOR
SPINDLE

The servo axes for spindle use of the spindle control with
servo motor was used by the following functions.
-

PMC axis control

Chopping

PW0036 ILLEGAL SETTING FOR SERVO

MOTOR SPINDLE

The parameter setting for the servo axes for spindle use of
the spindle control with servo motor is illegal.
-

The servo axes number for spindle use has exceeded 4
axes.

Servo axes number for spindle use are fewer than the
axes number of designation of servo axes for spindle
use.

The servo axes for spindle use is not set as a spindle
control with servo motor axis.

The servo axes for spindle use is not set as a rotation
axis..

The servo axis number (parameter No.1023) is a
negative value.

10.21

SPINDLE REVOLUTION NUMBER HISTORY FUNCTION

Overview

This function counts the spindle revolution number and displays the total revolution number as diagnosis
data.
Total revolution number data as diagnosis data can be read with the PMC window function, and can be
used for spindle unit life management on the PMC ladder.

Explanation

This function is enabled by setting bit 5 (SSH) of parameter No. 3799, to 1.

Two total revolution number displays are provided, which are shown as diagnosis data Nos. 1520 and
1521, respectively.

Total revolution number data as diagnosis data can be read with the PMC window function.

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1846 -

For details, refer to "Reading diagnosis data (function code 33) in Chapter 5, "Window Functions", in the
PMC Programming Manual (B-64513EN).

As for total revolution number display data, the total revolution number data for a specified diagnosis
data number can be cleared for a specific spindle, using the signals below.
-

Using the total spindle revolution number reset selection signal SSRS <Gn533.4>, select the
diagnosis data number of the total revolution number data to be cleared.

Using an appropriate total spindle revolution number reset signals SSR1 to SSR4 <Gn533.0 to
Gn533.3>, clear the total revolution number data for a specific spindle.

NOTE

1 When using this function, enable the spindle serial output (bit 5 (SSN) of

parameter No,8133 is 0).

2 Storage of spindle revolution number data in data-retention memory is

performed at intervals of about one second. If the power is turned off while a
spindle is revolving, revolution number data is not stored for about one second
before the power is turned off.

3 This function is effective to a built-in spindle motor and to a spindle configuration

in which a spindle and a spindle motor is connected together at a gear ratio of
1:1.

4 If the spindle switching function (a configuration in which one set of

main/sub-spindle motors are connected to a single spindle amplifier) is used,
total revolution number data is counted as an integrated value of two spindles.

Signal

Total spindle revolution number reset signals

SSR1 to SSR4 <Gn533.0 to Gn533.3>

[Classification] Input signal

[Function] Each of these signals resets the total revolution number for its corresponding spindle,

returning diagnosis data No. 1520, total revolution number display, to zero.
If SSRS is “1”, each of these signals resets diagnosis data No. 1521, total revolution
number display, returning it to zero.

[Operation] When set to “1”, each signal performs the operation below.

Reset the total revolution number for its corresponding spindle. SSR1 corresponds to
the first spindle, SSR2 the second spindle, SSR3 the third, and SSR4 the fourth.

Total spindle revolution number reset selection signal SSRS <Gn533.4>

[Classification]

Input signal

[Function] Used to select between diagnosis data Nos. 1520 and 1521; the total spindle revolution

number for the selected item No. will be reset.

[Operation]

When set to “1”, it performs the operation below.

The total spindle revolution number for diagnosis data No. 1521 can be reset.

When set to “0”, it performs the operation below.

The total spindle revolution number for diagnosis data No. 1520 can be reset.

Signal address

Gn533

SSRS

SSR4

SSR3

SSR2

SSR1

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1847 -

Parameter

3799

SSH

[Input type] Parameter input

[Data type] Bit spindle

#5 SSH

On the diagnosis screen, total spindle speed data is:

Not displayed.

Displayed.

Diagnosis data

1520

Total spindle revolution number 1

[Data type] 2-word spindle

[Unit of data] 1000 min

-1

[Valid data range] 0 to 999999999

The spindle revolution number is counted, and the total revolution number is displayed.

1521

Total spindle revolution number 2

[Data type] 2-word spindle

[Unit of data] 1000 min

-1

[Valid data range] 0 to 999999999

The spindle revolution number is counted, and the total revolution number is displayed.

10.22

SERVO/SPINDLE SYNCHRONOUS CONTROL

10.22.1

Servo/Spindle Synchronous Control

Overview

This function provides the following functions to use a servo motor as a spindle:
(a) Servo motor spindle control

Can rotate the servo motor at the rotation speed specified with an input signal.

(b) Servo motor spindle synchronization

Can rotate the servo motor in synchronization with the feedback pulses from the position coder of
the spindle.

(i) Can superimpose a command from the CNC on the servo motor in servo motor spindle

synchronization.

(ii) Can superimpose the rotation speed specified with an input signal on the servo motor in servo

motor spindle synchronization.

NOTE

When using this function, enable the spindle synchronous control (bit 4 (SYC) of
parameter No,8133 is 1).

10. SPINDLE SPEED FUNCTION

B-64693EN-1/01

- 1848 -

Explanation

Connection

Input feedback pulses from the position coder to the pulse module.
To make effective the feedback pulses input to the pulse module, set parameters Nos. 24096 to 24103.
This causes the spindle (position coder) and the servo motor to synchronize with each other.

Example) Connection example

Parameter No. 24096 = 1:

Uses connector number 1 (JF101).

Servo motor

SVM

COP10B

COP10A

CNC

COP10A

JA41

SPM

JA7B

Spindle
motor

Position coder

JX4

Pulse module

COP10B

JF101

Fig. 10.22.1 (a) Connection example for servo/spindle synchronous control

NOTE

During operation, the combination of spindle and servo motor to synchronize
cannot be changed.

Configuration

To use this function, the detection unit must be specified by setting the flexible feed gear (M/N)
(parameter No.2084 and 2085) in such a way that the number of pulses per rotation of the spindle will be
4096. Thus, it is necessary to select a servo motor-to-spindle gear ratio a:b so that the M and N values of
the flexible feed gear as determined from the expression below will be equal to or less than 32767.

= ×

4 096

1 000 000

To perform servo motor and spindle synchronous control, set a magnification (integral multiple or R) so
that the number of feedback pulses from the position coder will be 4096 per rotation of the spindle. That
is, the gear ratio of the position coder to the spindle must be one to an integer.

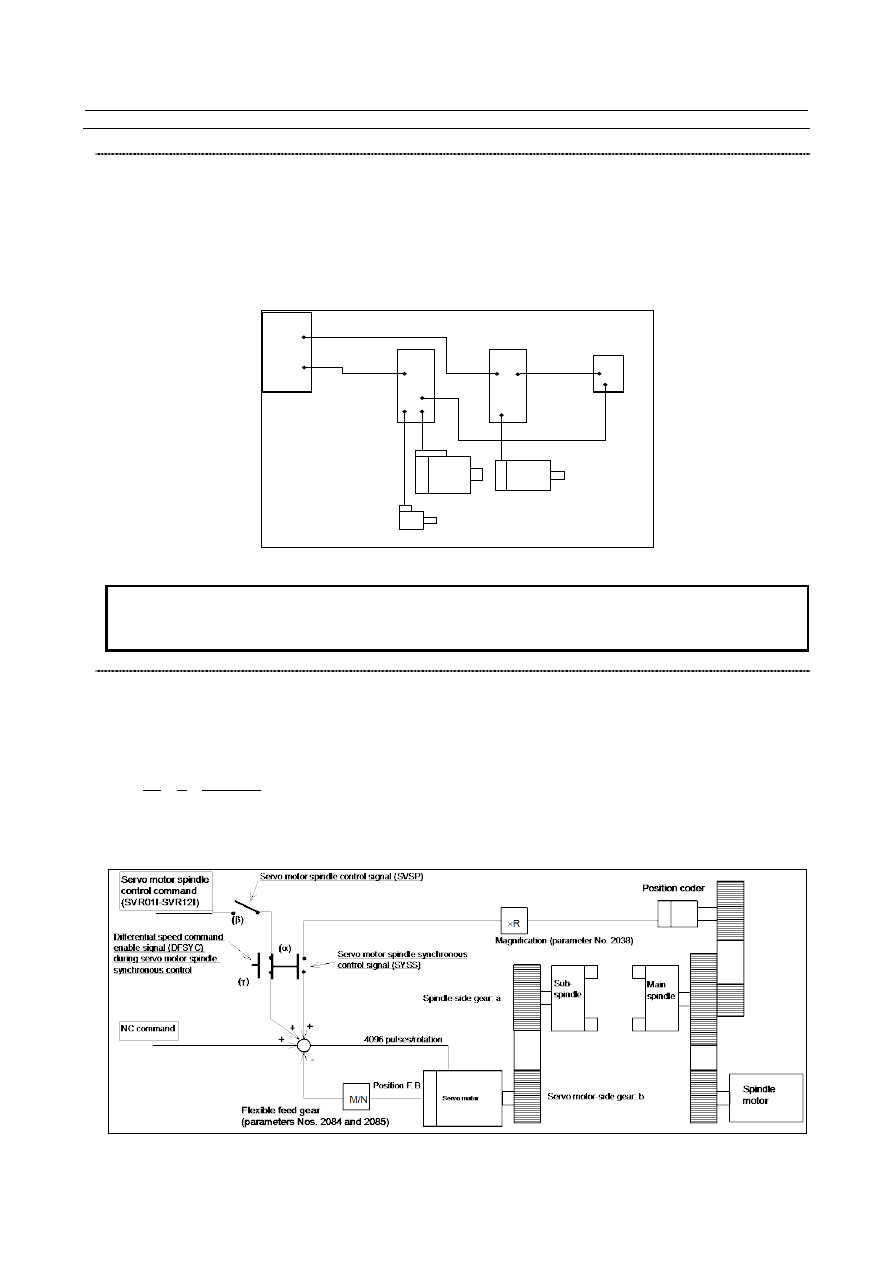

Fig. 10.22.1 (b) System configuration example

B-64693EN-1/01

10. SPINDLE SPEED FUNCTION

- 1849 -

Setting example

If using the A-axis (rotation axis) of the servo motor as the sub-spindle
Conditions

Detector

: 1,000,000 (pulses/rotation)

Spindle-side gear

: 8,000

Servo motor-side gear

: 3,600

CMR

: 1 (setting: 2)

Gear ratio of the position coder to the main-spindle: 1 to 2

The flexible feed gear can be determined from the formula below.

4 096

1 000 000

8 000

3 600

4 096

1 000 000

256

28 125

If these settings are made, a normal move command for the A-axis will be A4.096 per rotation of the
spindle, and the speed command will be a feed per minute command per rpm, F4.096.

The magnification (R) for servo motor and spindle synchronous control will be set to 2 because the gear
ratio of the position coder to the main-spindle is 1:2.

Servo motor spindle control

Can rotate the servo motor at the rotation speed specified with an input signal.

Servo motor spindle control mode

By setting the servo motor spindle switching signal SVSP <Gn022.7> to “1”, the system enters servo
motor spindle control mode, so that the servo motor can be rotated at the rotation speed specified with a
signal.
In servo motor spindle control mode, the servo motor spindle control mode signal SVSPM <Fn090.7> is
set to “1”.
By setting SVSP to “0”, servo motor spindle control mode is canceled. If this occurs, SVSPM is set to
“0”.

NOTE

1 In servo motor spindle control mode, coordinates will not be updated. Thus, the

relationships between coordinates and actual machine position will be lost.

2 If a move command is commanded from the CNC on the servo motor in servo

motor spindle control mode, alarm PS5211 “ILLEGAL AXIS OPERATION” is
issued.

Specifying a motor rotation speed

The rotation speed of the servo motor in servo motor spindle control mode can be specified with the servo
motor rotation speed specification signals SVR01I to SVR12I <Gn021.0 to Gn022.3>. Set the setting
determined from the formula below, in binary notation.

4095

No.3842)

meter

motor(para

spindle

speed

Maximum

motor

spindle

Speed

Setting

The rotation direction of the motor can be specified with the servo motor rotation polarity specification
signal SVGN <Gn022.5>.

Acceleration/deceleration

If servo motor spindle control mode is turned on or off or if the rotation speed specified with SVR01I to
SVR12I changes, acceleration/deceleration is performed with the time constant set in parameter No. 3843.
When a steady state is attained after the completion of acceleration/deceleration, the servo motor spindle
control mode acceleration/deceleration completion signal SVAR <Fn090.6> is set to “1”.

Content .. 234 235 236 237 ..
