FANUC Series 0i-MODEL F Plus. CONNECTION MANUAL (FUNCTION)

1. AXIS CONTROL

B-64693EN-1/01

- 2 -

Table1.1 (b) How to count axis/spindle

Item

Number of

Feed Axes

Number of

Spindle Axes

Total Number of

Control Axes

(Number of

Feed Axes +

Number of

Spindle Axes)

Number of

Connected

Servo Motors

Servo Axis(including PMC Axis)

Analog Spindle

Serial Spindle

Cs Contour

Control

Cs Axis

Virtual Cs Axis

*2*3

Axis that is controlled by

“Spindle Control with Servo Motor”

EGB Dummy Axis

Serial Feedback Dummy Axis

*1: Up to 1 axis in the total.

*2: Up to 2 axes in the total. Up to 1 axes in each path.

*3: The total of the following numbers of axes is up to 3 axes in the total.

- Virtual Cs axis

- EGB dummy axis

- Serial feedback dummy axis

*4: It is counted by the number of connected servo motors though the motor is not connected.

Loader Path

When the loader control function is used, the loader path can be used.

In the loader path, the servo axis can be used up to 3 axes. Other axis/spindle cannot be used.

The axis in the loader path is contained in the number of connected servo motors. Refer to Table1.1 (a)

for the maximum number of connected servo motors.

The axis in the loader path is not contained in the “Total number of control axes” and “Number of feed

axes”.

NOTE

"Function for loader control" is optional function. The number of the usable loader

path is different depending on the option composition.

Alarm and message

Number

Message

Description

PS0015

TOO MANY
SIMULTANEOUS AXES

A move command was specified for more axes than can be controlled by
simultaneous axis control.
Either add on the simultaneous axis control extension option, or divide
the number of programmed move axes into two blocks.

DS0050

TOO MANY
SIMULTANEOUS AXES

A movement was performed along more axes than can be controlled by
simultaneous axis control.
Check whether a command in the program is specified for more axes
than can be controlled by simultaneous axis control.

Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Number of controlled axes

CONNECTION MANUAL (FUNCTION)
(This manual)

Multipath control

B-64693EN-1/01

1. AXIS CONTROL

- 3 -

1.2

SETTING EACH AXIS

1.2.1

Name of Axes

Overview

Each axis that is controlled by the CNC (including those controlled by the PMC) must be named.

To name an axis, select a desired character from among A, B, C, U, V, W, X, Y, and Z and set the

character as the first axis name character (parameter No. 1020).

NOTE

1 The same axis name cannot be assigned to more than one axis. (The same axis

name can be used on different paths.)

2 With the lathe system, when G code system A is used, neither U, V, nor W can be

used as an axis name. Only when G code system B or C is used, U, V, and W

can be used as axis names.

3 When a multiple repetitive canned cycle is used, only X, Y, or Z can be used as

the address of a target axis.

- Extended axis name

The extended axis name function can be used to use an axis name consisting of up to three characters.

To use an extended axis name:

<1> Enables the extended axis name function (bit 0 (EEA) of parameter No. 1000 is set to 1).

<2> Set the first character (A, B, C, U, V, W, X, Y, or Z) in parameter No. 1020 (first axis name

character).

<3> Set the second character (’0’ to ’9’ and ’A’ to ’Z’) in parameter No. 1025 (second axis name

character).

<4> Set the third character (’0’ to ’9’ and ’A’ to ’Z’) in parameter No. 1026 (third axis name character).

NOTE

1 If the second axis name character is not set for an axis, the third axis name

character is invalid.

2 When setting 0 to 9 for the second axis name character, do not set A to Z for the

third axis name character.

3 When an axis name ends with a numeric character, an equal sign (=) is required

to be specified between the axis name and the command value.

4 In a macro call, no extended axis name can be used as an argument.

5 If at least one axis in a path uses an extended axis name when bit 2 (EAS) of

parameter No.11308 is set to 0, subscripts (parameter No. 3131) cannot be used

for axis names in the path.

6 When G code system A is used for a lathe system, X, Y, Z, or C may be used for

the first axis name character of an axis. In this case, when a command containing

U, V, W, or H as the first axis name character is specified, it is used as the

incremental command for the corresponding axis.

7 In a multipath system, if an extended axis name is not used on a path or if bit 2

(EAS) of parameter No. No.11308 is set to 1 and subscripts (parameter No.

3131) are not set for axis names, the path number will automatically be the

subscript for axis names. To disable the display of axis name subscripts, set a

blank (32) of ASCII code in the parameter for specifying an axis name subscript.

1. AXIS CONTROL

B-64693EN-1/01

- 4 -

NOTE

8 If the custom macro function is enabled, the same extended axis name as a

reserved word cannot be used. Such an extended axis name is regarded as a

reserved word.

Because of reserved words of custom macros, extended axis names that start

with the following combinations of two characters cannot be used:

AB, AC, AD, AN, AS, AT, AX, BC, BI, BP, CA, CL, CO, US, WH, WR, XO, ZD,

ZE, ZO, ZW

First axis name

character (No. 1020)

Second axis name

character (No. 1025)

Third axis name

character (No. 1026)

Setting

A, B, C,

U, V, W,

X, Y, Z

0 to 9

A to Z

0 to 9

A to Z

Correct example <1>

Correct example <2>

Correct example <3>

Incorrect example

Parameter

1000

EEA

[Input type] Parameter input

[Data type] Bit

#0 EEA

An extended axis name and extended spindle name are:

0: Invalid

1: Valid

1020

Program axis name for each axis

[Input type] Parameter input

[Data type] Byte axis

[Valid data range] 65 to 67 ,85 to 90

An axis name (axis name 1: parameter No. 1020) can be arbitrarily selected from 'A', 'B',

'C', 'U', 'V', 'W', 'X', 'Y', and 'Z'. (When G code system A is used with the lathe system,

however, 'U', 'V', and 'W' are not selectable.) When bit 0 (EEA) of parameter No. 1000 is

set to 1, the length of an axis name can be extended to three characters by setting axis

name 2 (parameter No. 1025) and axis name 3 (parameter No. 1026) (extended axis

name).

For axis names 2 and 3, a character from '0' to '9' and 'A' to 'Z' of ASCII code can be

arbitrarily selected. However, the setting of axis name 3 for each axis is invalid if axis

name 2 is not set. Moreover, if a character from '0' to '9' is set as axis name 2, do not use a

character from 'A' to 'Z' as axis name 3.

(Tip) ASCII code

Axis name

Setting

When G code system A is used with the lathe system, and the character 'X','Y','Z', or 'C' is

used as axis name 1 of an axis, a command with 'U','V','W', or 'H' specified for axis name

1 represents an incremental command for the axis.

B-64693EN-1/01

1. AXIS CONTROL

- 5 -

NOTE

1 When the setting value is out of range, it can not be recognized as

an axis name.

2 When a multiple repetitive canned cycle is used, no character other

than 'X','Y', and 'Z' can be used as the address of the target axis.

3 When the custom macro function is enabled, the same extended

axis name as a reserved word cannot be used. Such an extended

axis name is regarded as a reserved word.

Because of reserved words of custom macros, extended axis

names that start with the following two characters cannot be used:

AB, AC, AD, AN, AS, AT, AX, BC, BI, BP, CA, CL, CO, US, WH,

WR, XO, ZD, ZE, ZO, ZW

4 In a macro call, no extended axis name can be used as an

argument.

1025

Program axis name 2 for each axis

1026

Program axis name 3 for each axis

[Input type] Parameter input

[Data type] Byte axis

[Valid data range] 48 to 57, 65 to 90

When axis name extension is enabled (when bit 0 (EEA) of parameter No. 1000 is set to

1), the length of an axis name can be extended to a maximum of three characters by

setting axis name 2 and axis name 3. For axis names 2 and 3, a character from '0' to '9'

and 'A' to 'Z' of ASCII code can be arbitrarily selected. However, the setting of axis name

3 for each axis is invalid if axis name 2 is not set. Moreover, if a character from '0' to '9' is

set as axis name 2, do not use a character from 'A' to 'Z' as axis name 3.

3131

Subscript of axis name

[Input type] Parameter input

[Data type] Byte axis

[Valid data range] 0 to 9, 65 to 90

In order to distinguish axes under synchronization control and tandem control, specify a

subscript for each axis name.

Setting value

Meaning

Each axis is set as an axis other than a synchronization control axis and
tandem control axis.

1 to 9

A set value is used as a subscript.

65 to 90

A set letter (ASCII code) is used as a subscript.

[Example] When the axis name is X, a subscript is added as indicated below.

Setting value

Axis name displayed on a screen such as the position display screen

1. AXIS CONTROL

B-64693EN-1/01

- 6 -

If a multi-path system is used, no extended axis name is used within a path, or bit 2

(EAS) of parameter No. 11308 is set to 1 and no subscript is set for the axis names, then

the path number is automatically used as the subscript for the axis names. To disable the

display of axis name subscripts, set a blank (32) of ASCII code in the parameter for

specifying an axis name subscript.

NOTE

If even one axis in a path uses an extended axis name when bit 2

(EAS) of parameter No. 11308 is set to 0, subscripts cannot be

used for axis names in the path.

[Example] -

Example of setting an axis name

When No. 1020 = 88, No. 1025 = 0, and No. 1026 = 0, the axis name is set to X.

When No. 1020 = 88, No. 1025 = 65, and No. 1026 = 0, the axis name is set to XA.

When No. 1020 = 88, No. 1025 = 66, and No. 1026 = 65, the axis name is set to

XBA.

When No. 1020 = 89, No. 1025 = 49, and No. 1026 = 0, the axis name is set to Y1.

When No. 1020 = 90, No. 1025 = 49, and No. 1026 = 48, the axis name is set to

Z10.

When No. 1020 = 90, No. 1025 = 0, and No. 1026 = 65, the axis name is set to Z.

Commands having a number at the end of the axis name

Y1=100.

Z10=200.

Commands having an alphabet at the end of the axis name

X100. or X=100.

XA200. or XA=200.

XBA300. or XBA=300.

Incremental commands of lathe system G-code system A

Absolute command

Incremental command

XA100.

UA100.

Y1=200.

V1=200.

ZC300.

WC300.

C10=400.

H10=400.

Relationship between the axis names and their settings

Axis name Setting Axis name Setting Axis name Setting Axis name Setting

Alarm and message

Number

Message

Description

PS0009

IMPROPER NC-ADDRESS

An illegal address was specified, or parameter 1020 is not set.

B-64693EN-1/01

1. AXIS CONTROL

- 7 -

Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Axis name

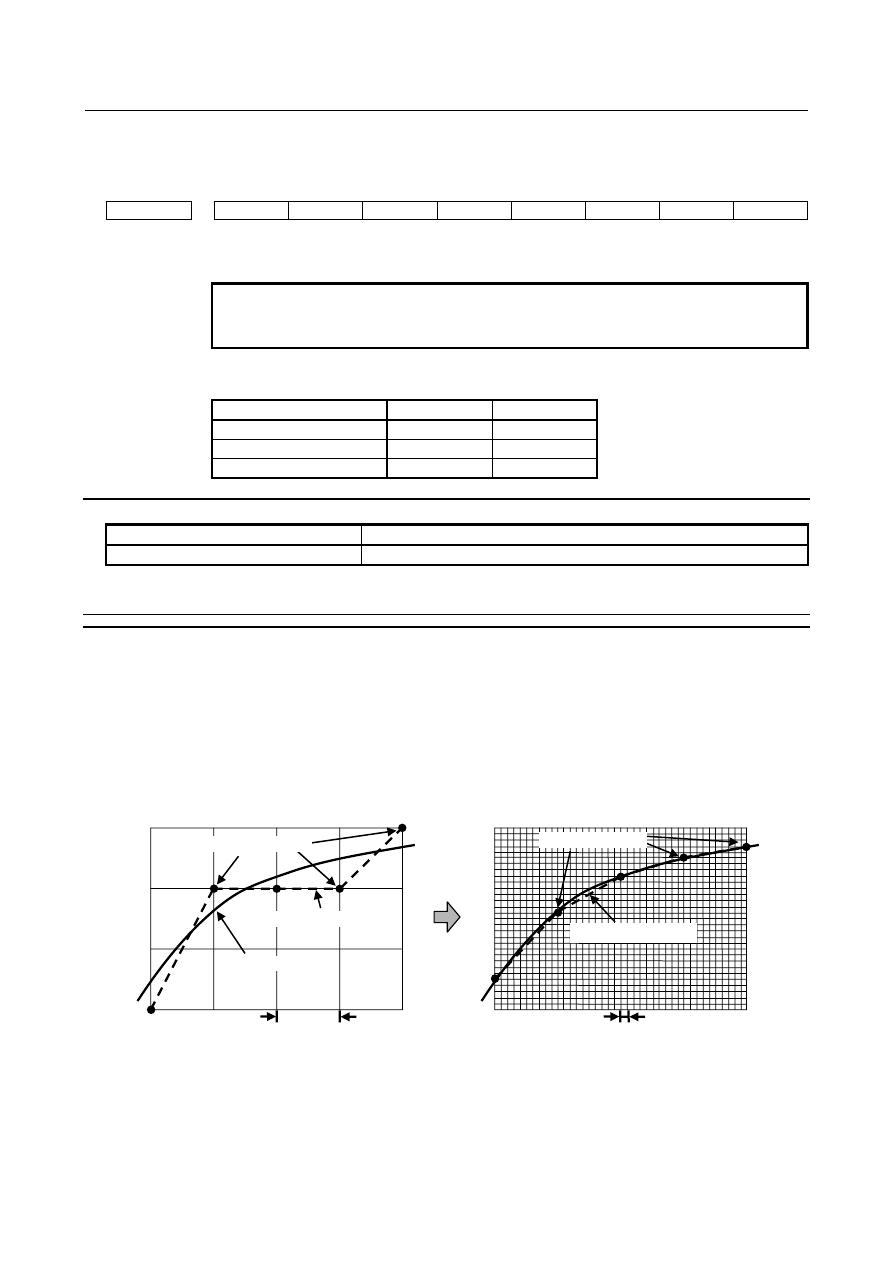

1.2.2

Increment System

Overview

The increment system consists of the least input increment (for input unit) and least command increment

(for output unit, machine unit). The least input increment is the least increment for programming the

travel distance. The least command increment is the least increment for moving the tool on the machine.

Both increments are represented in mm, inches, or degrees.

There are three types of increment systems as listed in Table 1.2.2 (a). A desired type can be set for each

axis using the corresponding bit 0 (ISA), or 1 (ISC) of parameter No. 1013.

The least input increment can be set to metric input or inch input using the G code (G20 or G21) or

setting parameter (bit 2 (INI) of parameter No. 0000).

The least command increment is set to either metric or inch system depending on the machine tool in

advance. Select the metric or inch system using bit 0 (INM) of parameter No. 1001 in advance.

Any combined use of the inch and metric systems is not allowed. There are functions that cannot be used

across axes with different increment systems (such as circular interpolation and cutter compensation).

NOTE

1 The unit (mm or inch) in the table is used for indicating a diameter value for

diameter programming (when bit 3 (DIA) of parameter No. 1006 is set to 1) or a

radius value for radius programming.

2 Even if the parameters bit 0 (ISA), or 1 (ISC) of parameter No.1013 is changed,

the tool offset unit is not changed. Set the tool offset unit by parameters bit 0

(OFA), or 1 (OFC) of parameter No.5042.

3 Some increment systems are unavailable depending on the model. For details,

refer to “DESCRIPTIONS” (B-64692EN).

Table 1.2.2 (a) Increment system

Name of an

increment system

Least input increment

Least command increment

Maximum stroke

IS-A

0.01

999999.99

0.001

inch

0.001

inch

99999.999

inch

0.01

deg

0.01

deg

999999.99

deg

IS-B

0.001

999999.999

0.0001

inch

0.0001

inch

99999.9999

inch

0.001

deg

0.001

deg

999999.999

deg

IS-C

0.0001

99999.9999

0.00001 inch

9999.99999

inch

0.0001

deg

0.0001

deg

99999.9999

deg

When bit 7 (IPR) of parameter No. 1004, which multiplies the input increment by 10, is set to 1 and a

value is specified with no decimal point, the specifications of each increment system are changed as listed

in Table1.2.2 (b).

Table1.2.2 (b)

Name of an

increment system

Least input increment

Least command increment

Maximum stroke

IS-B

0.01

0.001

999999.999

0.001

inch

0.0001

inch

99999.9999

inch

0.01

deg

0.001

deg

999999.999

deg

1. AXIS CONTROL

B-64693EN-1/01

- 8 -

Name of an

increment system

Least input increment

Least command increment

Maximum stroke

IS-C

0.001

0.0001

99999.9999

0.0001 inch

0.00001 inch

9999.99999

inch

0.001

deg

0.0001

deg

99999.9999

deg

Parameter

0000

INI

[Input type] Setting input

[Data type] Bit path

#2 INI

Unit of input

0: In metrics

1: In inches

1001

INM

[Input type] Parameter input

[Data type] Bit path

NOTE

When this parameter is set, the power must be turned off before

operation is continued.

#0 INM

Least command increment on the linear axis

0: In mm (metric system machine)

1: In inches (inch system machine)

1004

IPR

[Input type] Parameter input

[Data type] Bit path

#7 IPR

When a number with no decimal point is specified, the least input increment of each axis

is:

0: Not 10 times greater than the least command increment

1: 10 times greater than the least command increment

When the increment system is IS-A, and bit 0 (DPI) of parameter No. 3401 is set to 1

(fixed-point format), the least input increment cannot be 10 times greater than the least

command increment.

1006

DIAx

[Input type] Parameter input

[Data type] Bit axis

NOTE

When this parameter is set, the power must be turned off before

operation is continued.

#3 DIAx

The move command for each axis is based on:

B-64693EN-1/01

1. AXIS CONTROL

- 9 -

0: Radius specification

1: Diameter specification

1013

ISCx

ISAx

[Input type] Parameter input

[Data type] Bit axis

NOTE

When this parameter is set, the power must be turned off before

operation is continued.

#0 ISAx

#1 ISCx

Increment system of each axis

Increment system

#1 ISC

#0 ISA

IS-A

IS-B

IS-C

Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Increment system

1.2.2.1

High precision program command

Overview

In the program command to the axis address, the value that is one digit smaller than incremental system is

enabled to command and analysis.

Features) Workpiece composed of free-form surface can be reproduced in high precision

- Incremental system is not changed, but program command unit is distributed to high precision

- The high precision machining can be achieved with keeping the usage of the machine

In the machine of incremental system 1μm, the machining program 0.1μm is executable

Fig. 1.2.2.1 (a) Example in incremental system B

This function is enabled in all increment system (IS-A to C).

This function is activated when bit 0 (HPC) of parameter No.10478 is set to 1.

1μm

Incremental system B (1

Resolution of program command 0.1μm

(Incremental system C equally)

-> It becomes near expected curve.

Command point

Interpolated path

Expected curve

Interpolated path

Command point

FANUC Series 0i-MODEL F Plus. CONNECTION MANUAL (FUNCTION) - page 6
