Cisco IE 4010 Switch Hardware Installation Guide (2019)

Power Supply Installation

Power-Supply Module Installation

Installation Guidelines, page 35

Installing a Power-Supply Module, page 35

Wiring the Power Source, page 39

Removing the Power-Supply Module, page 44

Installation Guidelines

Observe these guidelines when removing or installing a power-supply module:

A power-supply module that is only partially connected to the switch disrupts the system operation.

Warning: Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous

voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other

equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards,

faceplates, front covers, and rear covers are in place.

Statement 1029

Warning: Do not reach into a vacant slot while installing or removing a module. Exposed circuitry is an energy

hazard. Statement 206

Warning: Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning: Avoid using or servicing any equipment that has outdoor connections during an electrical storm. There

may be a risk of electric shock from lightning. Statement 1088

Installing a Power-Supply Module

This procedure is for installing a power-supply module in the PSU1 or PSU2 slot.

Warning: The covers are an integral part of the safety design of the product. Do not operate the unit without the

covers installed. Statement 1077

Warning: This unit might have more than one power supply connection. All connections must be removed to

de-energize the unit. Statement 1028

Caution: Equipment installation must comply with local and national electrical codes.

Equipment That You Need

Torque driver(s) capable of 5 to 35 in-lbs

Ring, spade, or flanged spade terminal (terminals should be insulated)

— Ring terminal (such as Tyco part number 2-34158-1 for 16-14 AWG or 2-34852-1 for 12-10 AWG wire)

— Spade terminal (such as Tyco part number 54367-2 for 16-14 AWG wire)

— Flanged spade terminal (such as Tyco part number 2-324165-1 for 16-14 AWG wire or 1-324581-1 for 12-10

AWG wire)

Use the 16-14 AWG wire and appropriate terminals for the AC or high-voltage DC power supply

Power Supply Installation

Power-Supply Module Installation

Use the12-10 AWG wire and appropriate terminals for the low-voltage DC power supply

Crimping tool (such as Thomas & Bett part number WT2000, ERG-2001)

6-gauge copper ground wire

12-AWG wire (minimum) for the low-voltage power-supply module and 16-AWG (minimum) wire for the

high-voltage power-supply module

For power source connections, use wires rated for at least 194°F (90°C).

UL- and CSA-rated style 1007 or 1569 twisted-pair copper wire

Wire-stripping tools for stripping 6-, 10-, 12-, 14-, and 16-gauge wires.

Number-2 Phillips screwdriver

Flat-blade screwdriver

Obtain these necessary tools and equipment:

Ratcheting torque screwdriver with a number-2 and a number-1 Phillips head that exerts up to 15 pound-force

inches (lbf-in.) or 240 ounce-force inches (ozf-in.) of pressure.

Panduit crimping tool with optional controlled-cycle mechanism (model CT-720, CT-920, CT-920CH, CT-930, or

CT-940CH).

Wire-stripping tools.

12-gauge copper ground wire (insulated or noninsulated) when using the single-ground connection.

6-gauge copper ground wire (insulated or noninsulated) when using the dual-ground connection.

For the dual ground connection, also use the supplied dual-hole lug from the accessory kit.

Four leads of 16-gauge copper wire.

Grounding the Switch

Follow the grounding procedures at your site and observe these warnings:

Warning: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an

electrician if you are uncertain that suitable grounding is available. Statement 1024

Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected

last. Statement 1046

Caution: Follow the grounding procedure instructions, and use an appropriately Listed or certified lug (included

with the switch) for number-6 AWG wire and 10-32 ground-lug screws.

Note: You can use the grounding lug to attach a wrist strap for ESD protection during servicing.

Follow these steps to install a dual-hole lug on the switch. Be sure to follow any grounding requirements at your site.

1. Use a Phillips screwdriver or a ratcheting torque screwdriver with a Phillips head to remove the ground screw from

the cable side of the switch. You need the screw in Step 4.

2. Strip the 6-gauge ground wire to 0.5 inch (12.7 mm) ± 0.02 inch (0.5 mm). See Figure 22 on page 37. Stripping

more than the recommended amount of wire can leave exposed wire from the connector.

Power Supply Installation

Power-Supply Module Installation

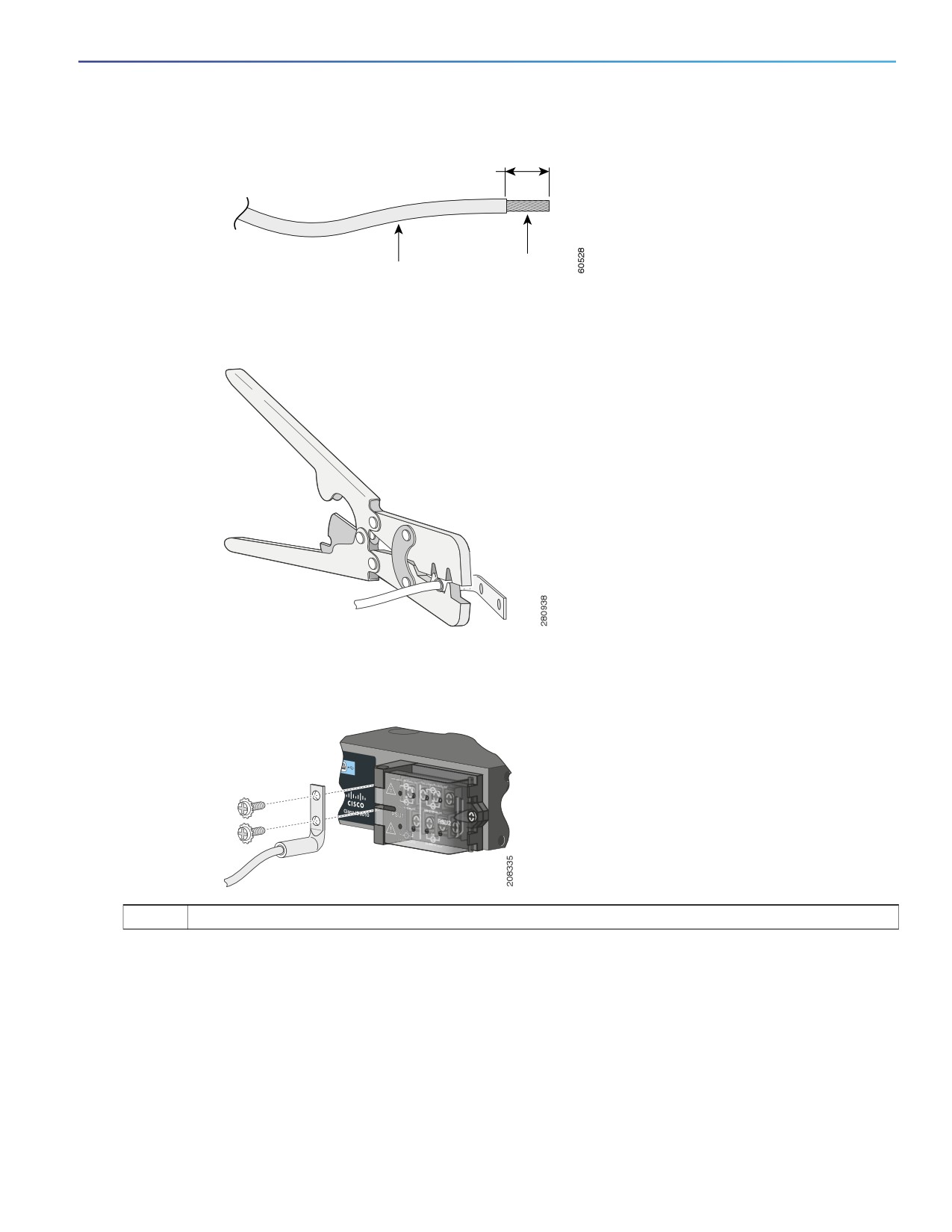

Figure 22

Stripping the Ground Wire

0.5 in. (12.7 mm) ± 0.02 in. (0.5 mm)

Wire lead

Insulation

3. Insert the ground wire into the terminal lug, and crimp the terminal to the wire. (see Figure 23 on page 37).

Figure 23

Crimping the Terminal Lug

4. Slide the ground screw from Step 1 through the terminal lug. Insert the ground screws into the opening on the cable

side.

Figure 24

Attaching the Terminal Lug

Dual-hole terminal lug

5. Use a ratcheting torque screwdriver to tighten the ground screws to 30 in-lb (± 2 in-lb).

6. Attach the other end of the ground wire to an appropriate ground.

Installing the Power-Supply Module in the Switch

1. Ensure that the power is off at the AC or DC circuits.

Power Supply Installation

Power-Supply Module Installation

Locate the circuit breakers, turn them OFF, and lock out the circuit.

Warning: If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.

2. Use a Phillips screwdriver to loosen the two captive screws of the blank power-supply module and gently pull it out.

See Figure 25 on page 38 and Figure 26 on page 38.

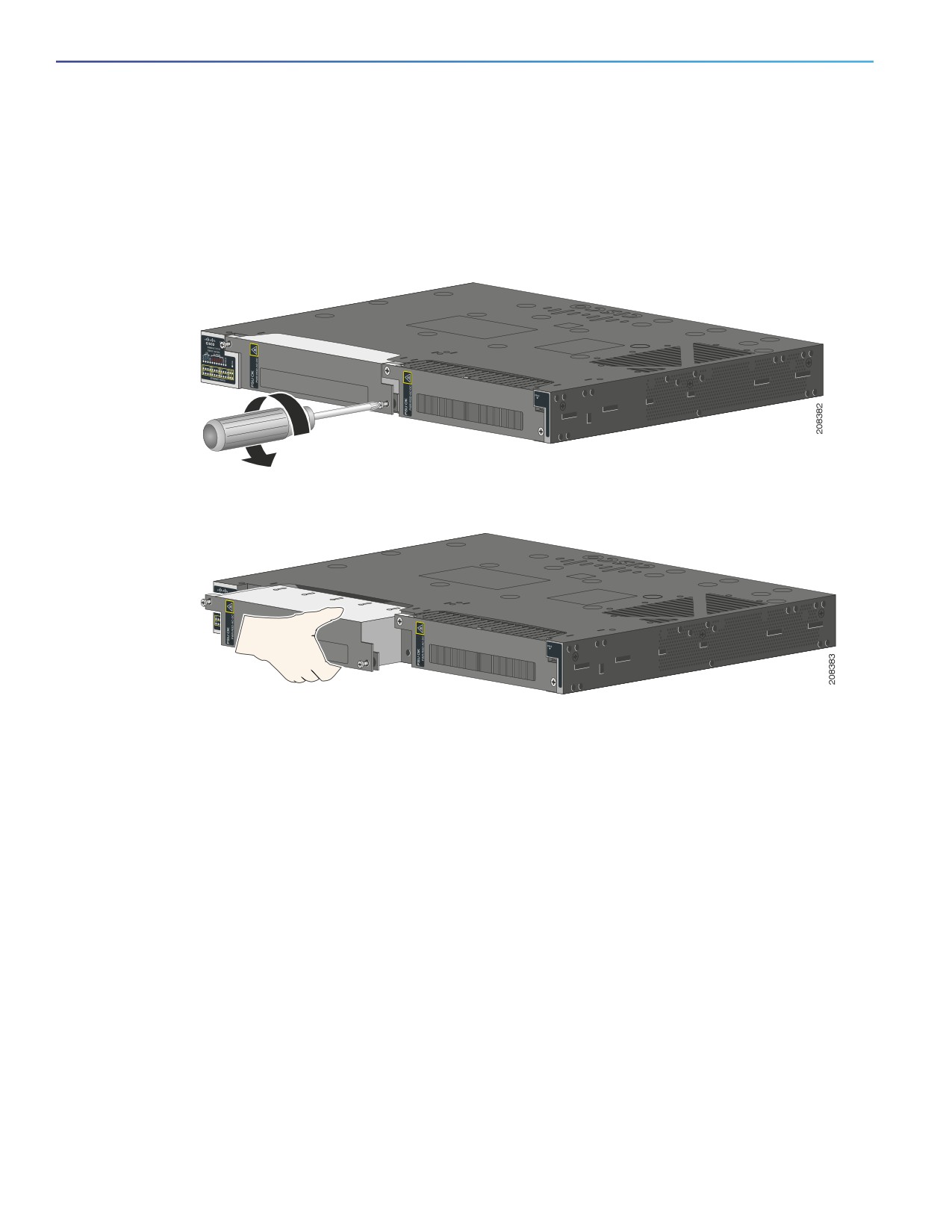

Figure 25

Loosen the Screws on the Power Supply Blank

Figure 26

Remove the Power Supply Blank

3. Insert the power-supply module into the slot, and gently push it in. See Figure 27 on page 39.

Note: Ensure that the power supply module is flush with the switch.

Installing the DC Power Supply in the Switch

To remove and install a DC-powered power supply module, follow these steps:

1. Turn off power at the DC circuits. To ensure that power is removed from the DC circuits, locate the circuit breakers

for the DC circuits, switch the circuit breakers to the OFF position, and tape the circuit-breaker switches in the OFF

position.

2. Use a number-2 Phillips screwdriver to remove the plastic safety cover from the power supply terminal blocks.

3. Use a number-1 Phillips screwdriver to remove the DC-input power wires from the power terminals.

Use a Phillips screwdriver to loosen the two captive screws at the lower edge that secure the power supply module to

the switch chassis (Figure 27 on page 39).

4. Remove the power supply module from the power slot by pulling on the extraction handle.

5. Insert the new power supply into the power supply slot, and gently apply pressure while pushing the module into the

slot (Figure 27 on page 39). When correctly inserted, the power supply is flush with the switch rear panel.

Power Supply Installation

Power-Supply Module Installation

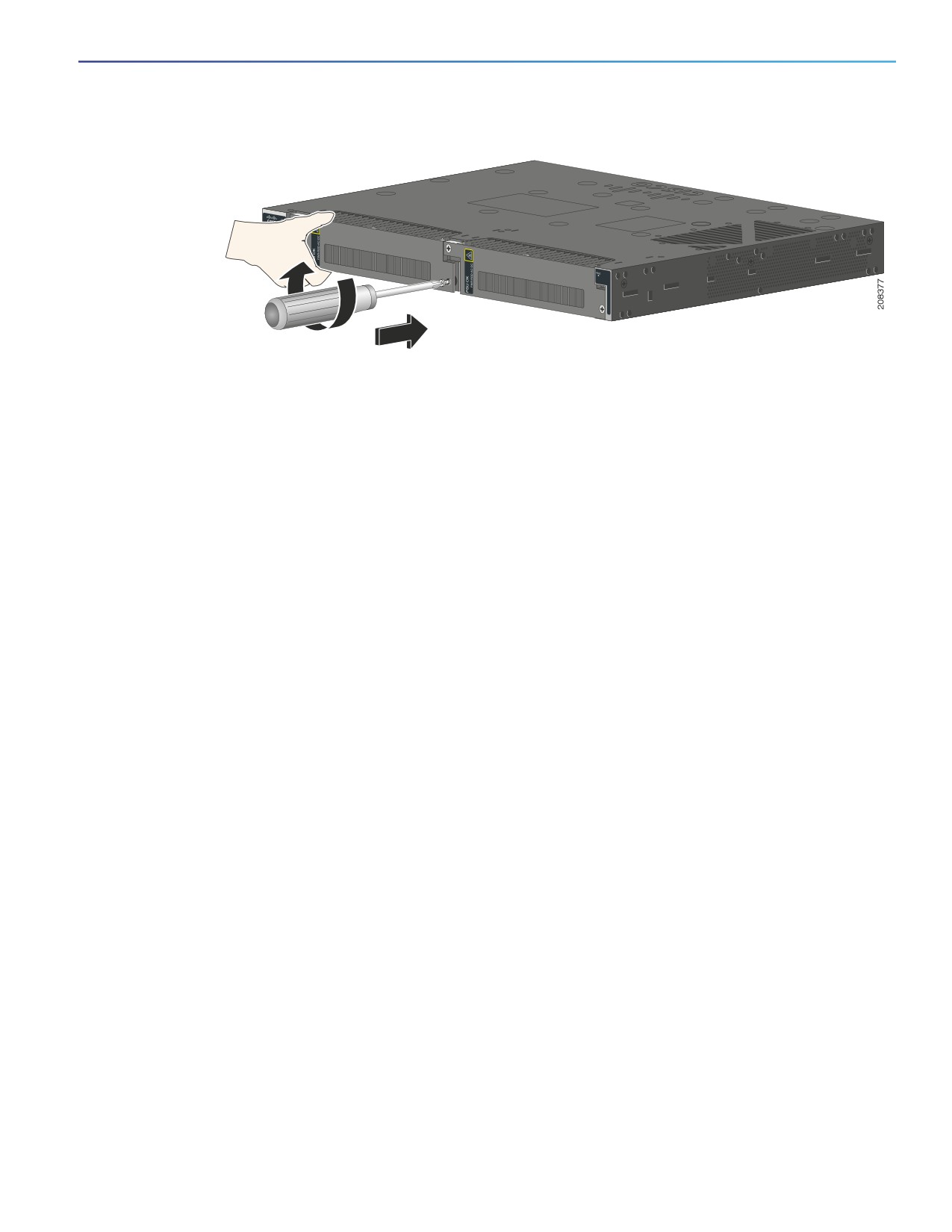

Figure 27

Insert the Power-Supply Module

6. Use a ratcheting torque screwdriver to torque each screw to 8-10 in-lb.

Wiring the Power Source

Before you wire the power source, review these warnings:

Warning: This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the

protective device is rated not greater than:

AC: 20 A, DC: 15 A Statement 1005

Warning: A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Warning: Only trained and qualified personnel should be allowed to install or replace this equipment.

Statement 1030

Warning: Hazardous voltage or energy may be present on power terminals. Always replace cover when terminals

are not in service. Be sure uninsulated conductors are not accessible when cover is in place. Statement 1086

1. Ensure that the power is off at the AC or DC circuits.

Locate the circuit breakers, turn them OFF, and lock out the circuit.

Warning: If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.

2. Use a Phillips screwdriver to loosen the captive screw on the power-input terminal, and open the cover.

Power Supply Installation

Power-Supply Module Installation

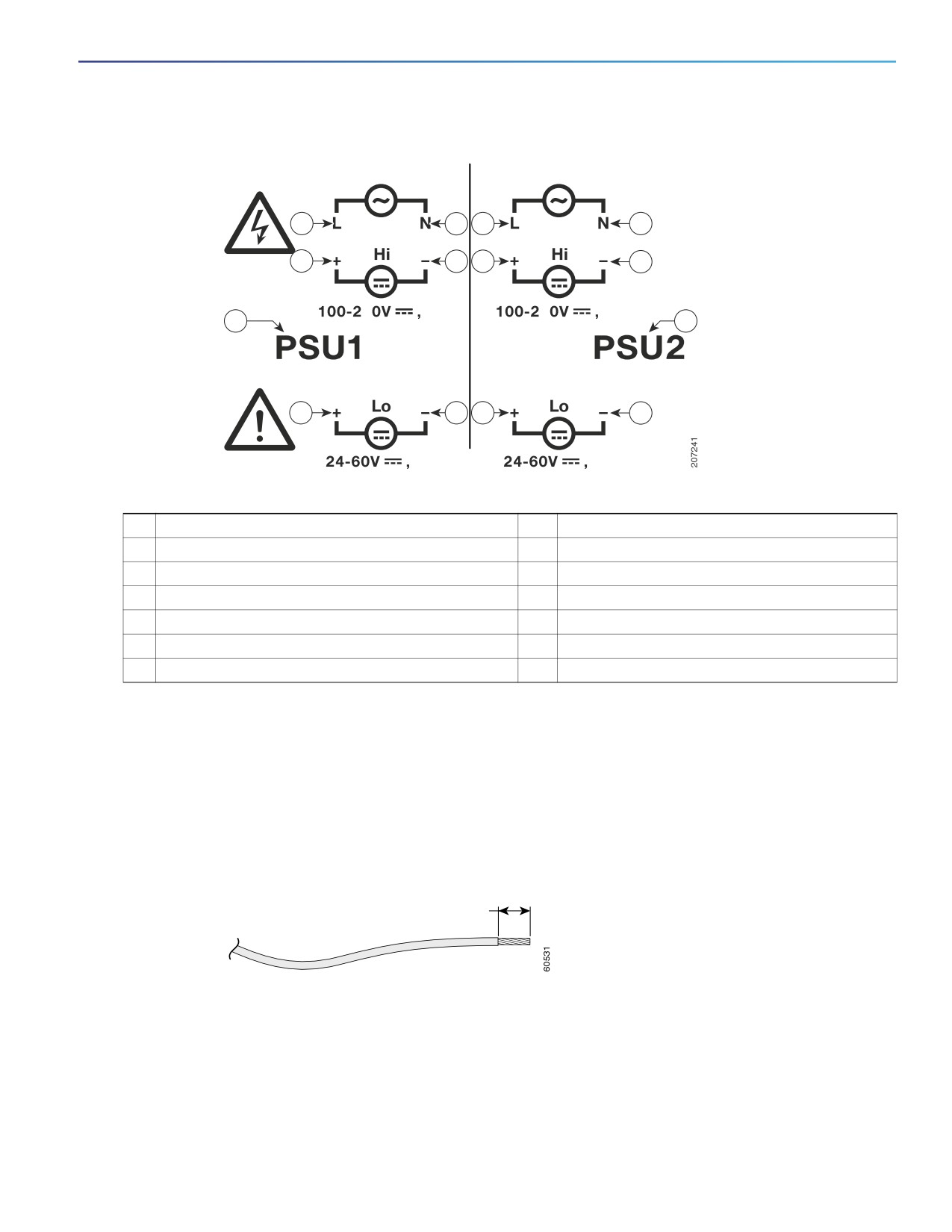

Figure 29

Power-Input Terminal

100-240V~, 50-60Hz, 2A

10A

Line connection for high-voltage AC (PSU1)

Line connection for high-voltage AC (for PSU2)

Neutral connection for high-voltage AC (PSU1)

Neutral connection for high-voltage AC (PSU2)

Positive connection for high-voltage DC (PSU1)

Positive connection for high-voltage DC (PSU2)

Negative connection for high-voltage DC (PSU1)

Negative connection for high-voltage DC (PSU2)

PSU1 (power-supply module 1)

PSU2 (power-supply module 2)

Positive connection for low-voltage DC (PSU1)

Positive connection for low-voltage DC (PSU2)

Negative connection for low-voltage DC (PSU1)

Negative connection for low-voltage DC (PSU2)

Note: The power-supply module 1 connection is labeled PSU1, and the power-supply module 2 connection is labeled

PSU2. Make sure that you connect the wires to the correct terminal screws.

3. Use twisted-pair copper wire (12- to 18-AWG) to connect from the power-input terminal to the power source.

4. Strip each of the two wires to 0.25 inch (6.3 mm) ± 0.02 inch (0.5 mm).

Note: Do not strip more than 0.27 inch (6.8 mm) of insulation from the wire. Stripping more than the recommended

amount of wire can leave exposed wire from the connector after installation.

Figure 30

Stripping the Input Power Source Wire

0.25 in. (6.3 mm) ± 0.02 in. (0.5 mm)

5. Insert the wire into a spade terminal, and crimp it to the wire.

You can also use a ring or flanged spade terminal as listed in Equipment That You Need, page 35.

Power Supply Installation

Power-Supply Module Installation

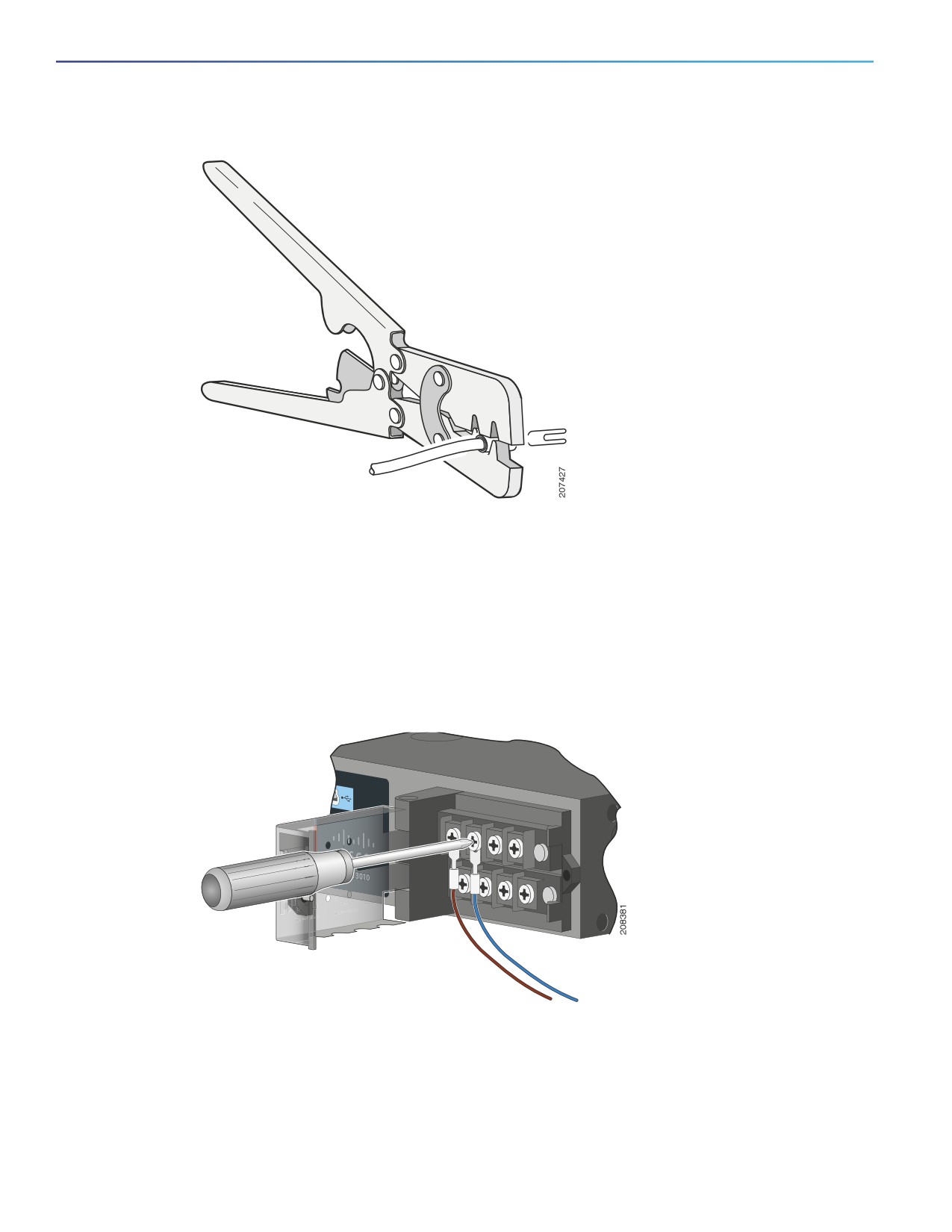

Figure 31

Crimping the Spade Terminal Lug

6. Loosen the terminal screw, and slide the terminal under the screw and washer. See Figure 33 on page 43.

Note: Use the appropriate terminal screws based on power supply type: high-voltage (AC or DC) or low-voltage

(DC).

7. Make the power connection:

AC Power Connection

Connect the line wire into the terminal screw labeled L and the neutral wire into the terminal screw labeled N to

complete the AC connection.

Figure 32

Connecting the Wires to the High-Voltage AC Power (PSU1)

2-001

22, zH

50 -0 , V 4

V 4 -0

2001

DC Power Connection

Connect the positive wire into the terminal screw labeled “+”, and the negative wire into the terminal screw labeled

“-”.

Power Supply Installation

Power-Supply Module Installation

Low-voltage DC Power-Supply Module

Connect the wires to the terminals labeled Lo.

High-voltage DC Power-Supply Module

Connect the wires to the terminals labeled Hi.

Note: Ensure that you cannot see any wire lead. Only wire with insulation should extend from the terminal screw.

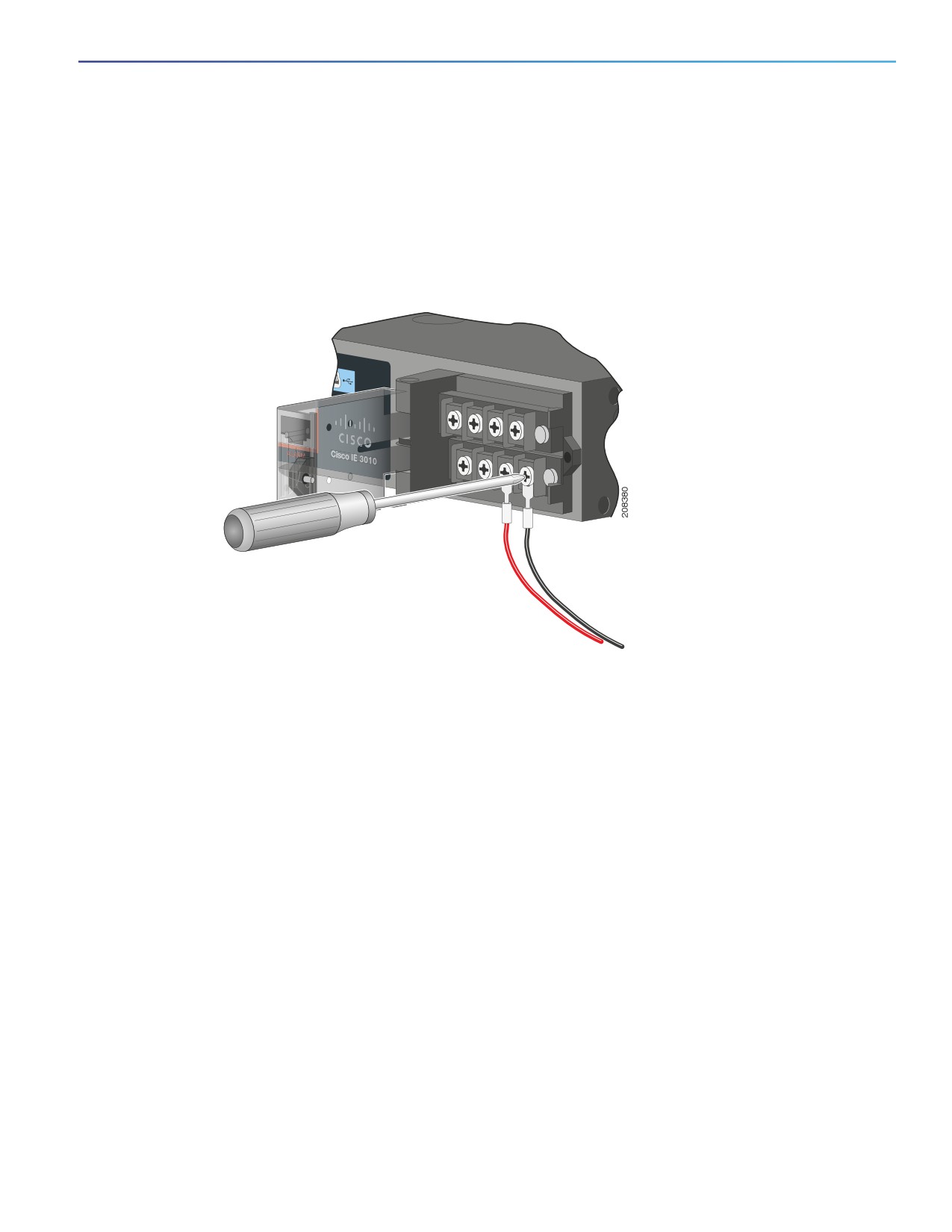

Figure 33

Connecting the Wires to the Low-Voltage DC Power (PSU2)

8. Torque the captive screws (above the wires) to 8.5 in-lb (± 0.5 in-lb).

9. Complete the power connection:

AC Power Connection

Connect the other end of the line wire (the one connected to L) to the line terminal on the AC-power source, and

connect the other end of the neutral wire (the one connected to N) to the neutral terminal on the AC power source.

DC Power Connection

Connect the other end of the positive wire (the one connected to “+”) to the positive terminal on the DC-power

source, and connect the other end of the negative wire (the one connected to “-”) to the negative terminal on the

DC power source.

Note: Ensure that you cannot see any wire lead. Only wire with insulation should extend from the terminal screw.

If you have two power supplies, repeat steps 1 through 10.

10. Close the power-input terminal cover.

11. Use a ratcheting torque screwdriver to torque the screw to 7 in-lb (± 1 in-lb).

12. Turn on the power at the AC or DC circuit.

13. Verify that the PSU1 or PSU2 LED on the switch and PSU OK LED on the power-supply module are green.

See the switch software guide for information on how to configure the power supply settings.

Power Supply Installation

Removing the Power-Supply Module

The power-supply modules are hot-swappable. By removing the power-supply modules, you can power off the switch

without disconnecting the wiring from the power-input terminal.

1. Ensure that the power is off at the AC or DC circuits.

Locate the circuit breakers, turn them OFF, and lock out the circuit.

Warning: If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.

2. Verify that the PSU LED and PSU OK LED is blinking red or is off.

3. Use a Phillips screwdriver to loosen the captive screws that secure the power-supply module to the switch. See

Figure 34 on page 44.

Warning: Hot surface. Statement 1079

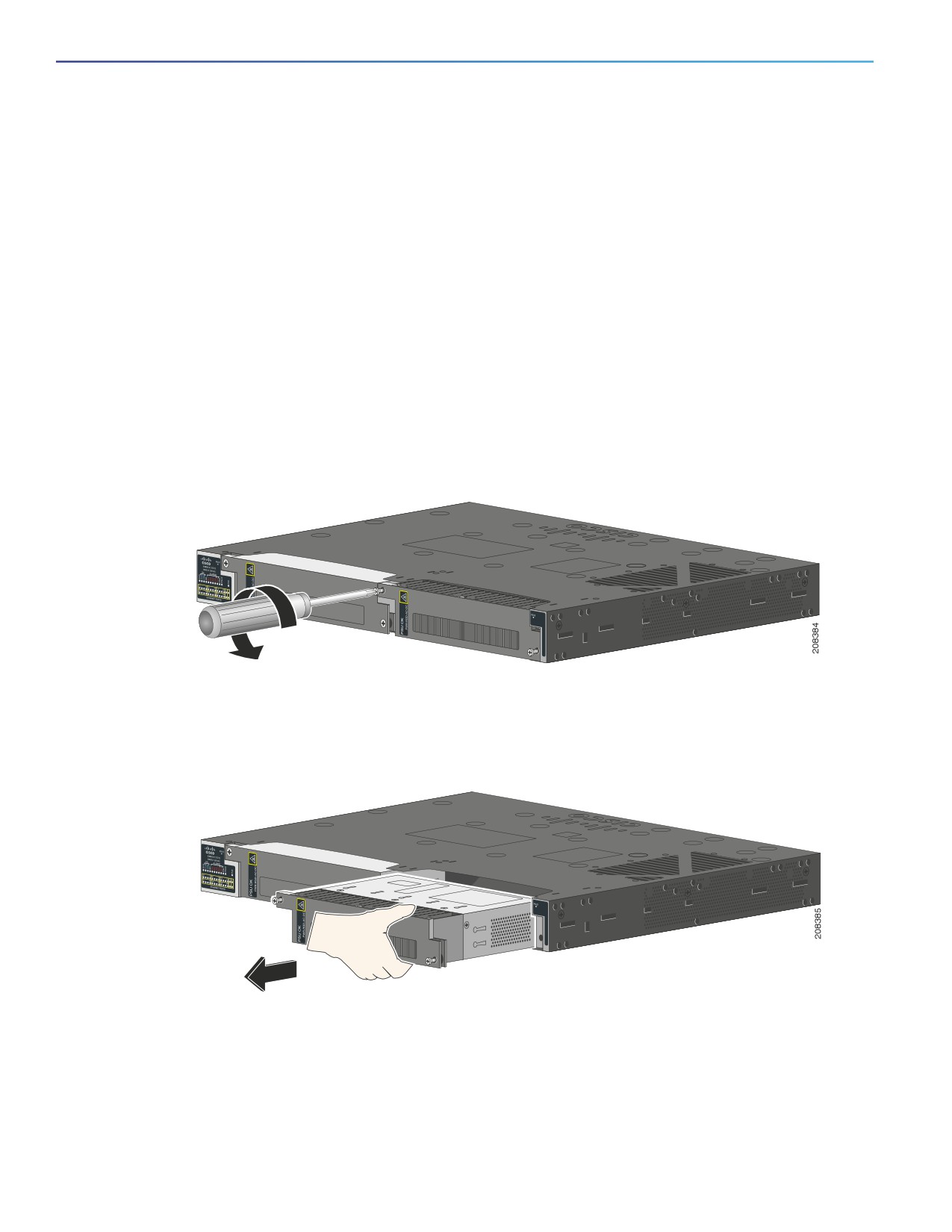

Figure 34

Removing the Screws

4. Remove the power-supply module from the power slot. The power-supply module might be hot. See Figure 35 on

page 44.

5. Install a new power-supply module or a blank cover.

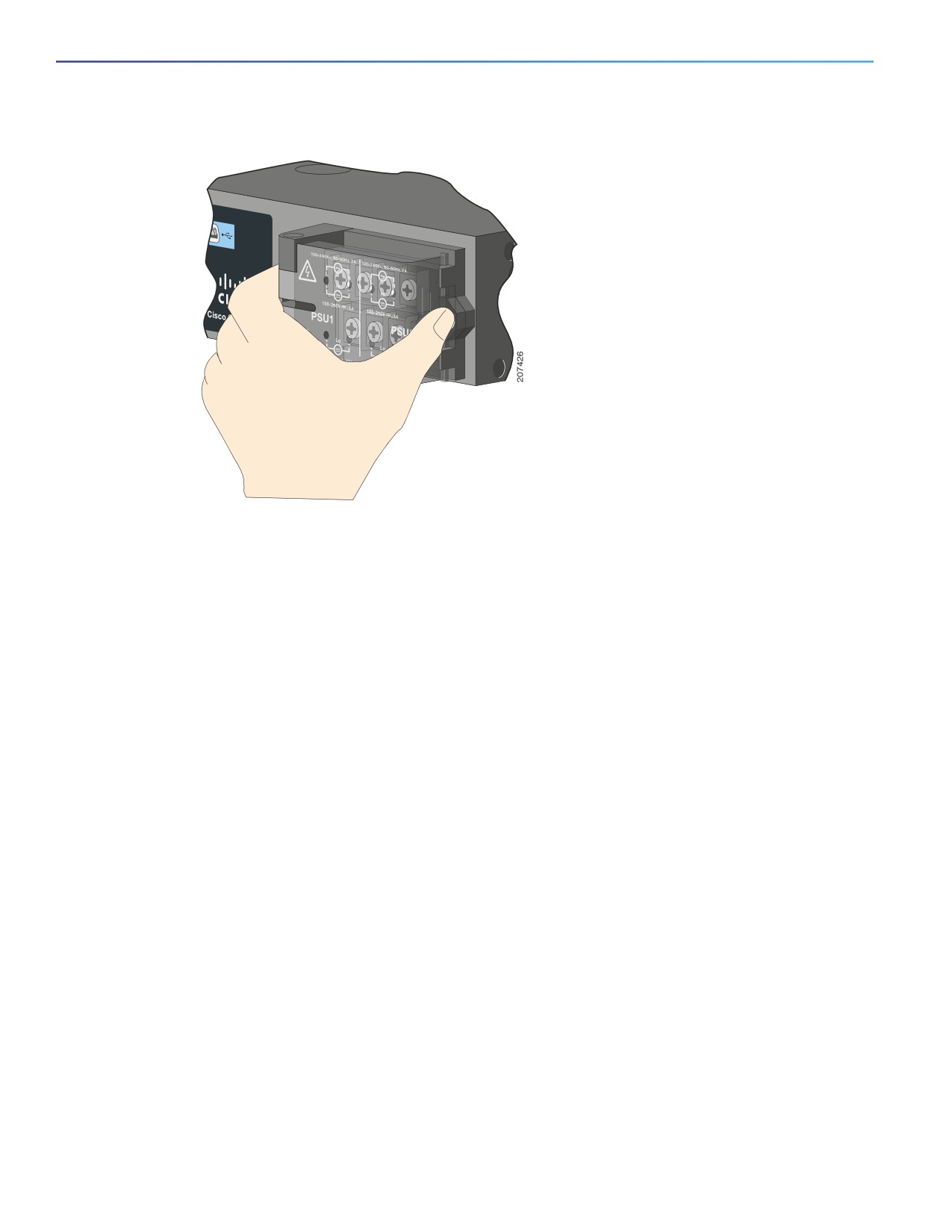

Figure 35

Removing the Power-Supply Module

Caution: To prevent exposure to hazardous voltages and to contain electromagnetic interference (EMI), either

a power-supply module or a blank cover must be in each power-supply module slot at all times.

Troubleshooting

This chapter provides these topics for troubleshooting problems:

Diagnosing Problems, page 45

How to Recover Passwords, page 48

Finding the Switch Serial Number, page 48

Diagnosing Problems

The switch LEDs provide troubleshooting information about the switch. They show boot errors, port-connectivity

problems, and overall switch performance. You can also get statistics from Device Manager, the CLI, or an SNMP

workstation.

Switch Boot Fast

Note: Contact your Cisco TAC representative if your switch does not successfully boot.

Note: You can disable boot fast and run POST by using the Cisco IOS CLI.

Switch LEDs

Look at the port LEDs information when troubleshooting the switch. See LEDs, page 5 for a description of the LED colors

and their meanings.

Switch Connections

Bad or Damaged Cable

Always examine the cable for marginal damage or failure. A cable might be just good enough to connect at the physical

layer, but it could corrupt packets as a result of subtle damage to the wiring or connectors. You can identify this problem

because the port has many packet errors or it constantly flaps (loses and regains link).

Exchange the copper or fiber-optic cable with a known good cable.

Look for broken or missing pins on cable connectors.

Rule out any bad patch panel connections or media converters between the source and the destination. If possible,

bypass the patch panel, or eliminate media converters (fiber-optic-to-copper).

Try the cable in another port to see if the problem follows the cable.

Ethernet and Fiber-Optic Cables

Make sure that you have the correct cable:

Troubleshooting

Diagnosing Problems

For Ethernet, use Category 3 or better copper cable for 10 Mb/s UTP connections. Use either Category 5, Category

5e, or Category 6 UTP for 10/100/1000 Mb/s, and PoE connections.

Verify that you have the correct fiber-optic cable for the distance and port type. Make sure that the connected device

ports match and use the same type encoding, optical frequency, and fiber type.

Determine if a copper crossover cable was used when a straight-through was required or the reverse. Enable

auto-MDIX on the switch, or replace the cable.

Link Status

Verify that both sides have a link. A broken wire or a shutdown port can cause one side to show a link even though the

other side does not have a link.

A port LED that is on does not guarantee that the cable is functional. It might have encountered physical stress, causing

it to function at a marginal level. If the port LED does not turn on:

Connect the cable from the switch to a known good device.

Make sure that both ends of the cable are connected to the correct ports.

Verify that both devices have power.

Verify that you are using the correct cable type. See Cable and Connectors, page 53 for information.

Look for loose connections. Sometimes a cable appears to be seated but is not. Disconnect the cable, and then

reconnect it.

10/100/1000 Port Connections

If a port appears to malfunction:

Verify the status of all ports by checking the LEDs. For more information, see Switch LEDs, page 45.

Use the show interfaces command to see if the port is error-disabled, disabled, or shut down. Reenable the port if

necessary.

Verify the cable type. See Cable and Connectors, page 53.

SFP Module

Use only Cisco SFP modules. Each Cisco module has an internal serial EEPROM that is encoded with security information.

This encoding verifies that the module meets the requirements for the switch.

Inspect the SFP module. Exchange the suspect module with a known good module.

Verify that the module is supported on this platform. (The switch release notes on Cisco.com list the SFP modules

that the switch supports.)

Use the show interfaces command to see if the port or module is error-disabled, disabled, or shutdown. Reenable

the port if needed.

Make sure that all fiber-optic connections are clean and securely connected.

Interface Settings

Verify that the interface is not disabled or powered off. If an interface is manually shut down on either side of the link, it

does not come up until you reenable the interface. Use the show interfaces command to see if the interface is

error-disabled, disabled, or shut down on either side of the connection. If needed, reenable the interface.

Troubleshooting

Diagnosing Problems

Ping End Device

Ping from the directly connected switch first, and then work your way back port by port, interface by interface, trunk by

trunk, until you find the source of the connectivity issue. Make sure that each switch can identify the end device MAC

address in its Content-Addressable Memory (CAM) table.

Spanning Tree Loops

STP loops can cause serious performance issues that look like port or interface problems.

A unidirectional link can cause loops. It occurs when the traffic sent by the switch is received by the neighbor, but the

traffic from the neighbor is not received by the switch. A broken cable, other cabling problems, or a port issue can cause

this one-way communication.

You can enable UniDirectional Link Detection (UDLD) on the switch to help identify unidirectional link problems. For

information about enabling UDLD on the switch, see the “Understanding UDLD” section in the switch software

configuration guide on Cisco.com.

Switch Performance

Speed, Duplex, and Autonegotiation

Port statistics that show a large number of alignment errors, frame check sequence (FCS), or late-collisions errors, might

mean a speed or duplex mismatch.

A common issue occurs when duplex and speed settings are mismatched between two switches, between a switch and

a router, or between the switch and a workstation or server. Mismatches can happen when manually setting the speed

and duplex or from autonegotiation issues between the two devices.

To maximize switch performance and to ensure a link, follow one of these guidelines when changing the duplex or the

speed settings.

Let both ports autonegotiate both speed and duplex.

Manually set the speed and duplex parameters for the interfaces on both ends of the connection.

If a remote device does not autonegotiate, use the same duplex settings on the two ports. The speed parameter

adjusts itself even if the connected port does not autonegotiate.

Autonegotiation and Network Interface Cards

Problems sometimes occur between the switch and third-party network interface cards (NICs). By default, the switch

ports and interfaces autonegotiate. Laptops or other devices are commonly set to autonegotiate, yet sometimes issues

occur.

To troubleshoot autonegotiation problems, try manually setting both sides of the connection. If this does not solve the

problem, there could be a problem with the firmware or software on the NIC. You can resolve this by upgrading the NIC

driver to the latest version.

Cabling Distance

If the port statistics show excessive FCS, late-collision, or alignment errors, verify that the cable distance from the switch

to the connected device meets the recommended guidelines. See the Cable and Connectors, page 53.

Troubleshooting

Resetting the Switch

These are reasons why you might want to reset the switch to the factory default settings:

You installed the switch in your network and cannot connect to it because you assigned the wrong IP address.

You want to reset the password on the switch.

Note: Resetting the switch deletes the configuration and reboots the switch.

Caution: If you press the Express Setup button when you power on, the automatic boot sequence stops, and the

switch enters bootloader mode.

To reset the switch:

1. Press and hold the Express Setup button (recessed behind a small hole in the faceplate) for about 10 seconds with

a paper clip or similar object. The switch reboots. The system LED turns green after the switch completes rebooting.

2. Press the Express Setup button again for 3 seconds. A switch 10/100/1000 Ethernet port blinks green.

The switch now behaves like an unconfigured switch. You can configure the switch by using the CLI setup procedure

described in Configuring the Switch with the CLI Setup Program, page 57

How to Recover Passwords

Password recovery is a feature that a system administrator can enable or disable. If password recovery is disabled, the

only way to recover from a lost or forgotten password is to clear the switch configuration entirely. For this procedure, see

the How to Recover Passwords, page 48.

The Cisco IE 4010 Switch Software Configuration Guide provides details about enabling and disabling the password

recovery feature and the procedure for recovering passwords.

Finding the Switch Serial Number

If you contact Cisco Technical Assistance, you need to know the serial number of your switch. The serial number is on

the top of the switch. You can also use the show version command to obtain the switch serial number.

Hazardous Location Installation Information

This appendix provides hazardous location installation information for the Cisco IE 4010 Switches.

Hazardous Area Installation Warnings

Caution: When installed in a Class I. Div/Zone 2 hazardous location environment, this equipment must be installed

in a min. IP54, ATEX certified enclosure.

Caution: Airflow around the switch must be unrestricted. To prevent the switch from overheating, there must be the

following minimum clearances:

- Top and bottom: 2.0 in. (50.8 mm)

- Sides: 2.0 in. (50.8 mm)

- Front: 2.0 in. (50.8 mm)

Contact your Cisco Technical Assistance Centre (TAC) if tighter spacings are required.

Caution: When installed in a Class I. Div/Zone 2 hazardous location environment. this equipment must be installed

in a pollution degree 2 environment per IEC 60664-1)

Caution: This equipment is suitable for use in Class I. Division 2 . Groups A, B . C. D. or only nonhazardous locations.

Caution: Do not install or remove SFP modules when an explosive atmosphere may be present.

Caution: Do not install or remove power supplies when an explosive atmosphere may be present.

Caution: Do not use the USB Console Service Port when an explosive atmosphere may be present.

Warning: Exposure to some chemicals could degrade the sealing properties of materials used in the sealed relay

device. Statement 381

Warning: This unit is intended for installation in restricted access areas. A restricted access area can be accessed

only through the use of a special tool, lock and key, or other means of security. Statement 1017

Warning: To prevent the system from overheating, do not operate it in an area that exceeds the

maximum recommended ambient temperature of : 140°F (60°C) Statement 1047

Warning: When you connect or disconnect the power and/or alarm connector with power applied, an electrical arc

can occur. This could cause an explosion in hazardous area installations. Be sure that all power is removed from the

switch and any other circuits. Be sure that power cannot be accidentally turned on or verify that the area is

nonhazardous before proceeding. Statement 1058

Warning: In switch installations in a hazardous location, the DC power source could be located away from the

vicinity of the switch. Before performing any of the following procedures, locate the DC circuit to ensure that the

power is removed and cannot be turned on accidentally, or verify that the area is nonhazardous before proceeding.

Statement 1059

Warning: This equipment is supplied as “open type” equipment. It must be mounted within an enclosure that is

suitably designed for those specific environmental conditions that will be present and appropriately designed to

prevent personal injury resulting from accessibility to live parts. The interior of the enclosure must be accessible

only by the use of a tool.

The enclosure must meet IP 54 or NEMA type 4 minimum enclosure rating standards. Statement 1063

Hazardous Location Installation Information

Hazardous Area Installation Warnings

Warning: Use twisted-pair supply wires suitable for 86°F (30°C) above surrounding ambient temperature outside

the enclosure. Statement 1067

Warning: When used in a Class I, Division 2, hazardous location, this equipment must be mounted in a suitable

enclosure with a proper wiring method that complies with the governing electrical codes. Statement 1069

Warning: Explosion Hazard—The area must be known to be nonhazardous before installing, servicing, or replacing

the unit. Statement 1082

Note: This equipment has been tested by UL for the explosion, fire, shock and casualty hazards required by the

applicable hazardous locations standards. UL certification does not cover the performance or reliability of any GPS

hardware, GPS operating software, or other GPS-related aspects of equipment covered under this category.

Accordingly, UL makes no representations, warranties or certifications regarding the performance or reliability of any

GPS-related functions of equipment covered under this category.

North American Hazardous Location Approval

The following information applies when operating this equipment in hazardous locations:

English:

Products marked "Class I, Div 2, GP A, B, C, D" are suitable for use in Class I Division 2 Groups A,

B, C, D, Hazardous Locations and nonhazardous locations only. Each product is supplied with

markings on the rating nameplate indicating the hazardous location temperature code. When

combining products within a system, the most adverse temperature code (lowest "T" number)

may be used to help determine the overall temperature code of the system. Combinations of

equipment in your system are subject to investigation by the local Authority Having Jurisdiction at

the time of installation.

Français:

Informations sur l'utilisation de cet équipement en environnements dangereux:

Les produits marqués "Class I, Div 2, GP A, B, C, D" ne conviennent qu'à une utilisation en

environnements de Classe I Division 2 Groupes A, B, C, D dangereux et non dangereux. Chaque

produit est livré avec des marquages sur sa plaque d'identification qui indiquent le code de

température pour les environnements dangereux. Lorsque plusieurs produits sont combinés dans

un système, le code de température le plus défavorable (code de température le plus faible) peut

être utilisé pour déterminer le code de température global du système. Les combinaisons

d'équipements dans le système sont sujettes à inspection par les autorités locales qualifiées au

moment de l'installation.

EMC Environmental Conditions for Products Installed in the European Union

This section applies to products to be installed in the European Union.

The equipment is intended to operate under the following environmental conditions with respect to EMC:

A separate defined location under the user’s control.

Earthing and bonding shall meet the requirements of ETS 300 253 or CCITT K27.

AC-power distribution shall be one of the following types, where applicable: TN-S and TN-C as defined in IEC

364-3.

In addition, if equipment is operated in a domestic environment, interference could occur.

Hazardous Location Installation Information

Hazardous Locations Standards

The following standards were used for the hazardous

Les normes suivantes ont été appliquées pour les

locations approvals and certifications:

approbations et les certifications dans le cadre

d'environnements dangereux :

ANSI/ASA 12.12.01-2013

CAN/CSA C22.2 No. 60079-0-11 Ed. 2

CAN/CSA C22.2 n° 60079-0-11 Éd. 2

CAN/CSA C22.2 No. 60079-15-12 Ed. 1

CAN/CSA C22.2 n° 60079-15-12 Éd. 1

CSA C22.2 No. 213-M1987

CSA C22.2 n° 213-M1987

EN 60079-0:2012+A11:2013

EN 60079-15:2010

IEC 60079-0 6th Edition

IEC 60079-0, 6e édition

IEC 60079-15 4th Edition

IEC 60079-15, 4e édition

UL 60079-0, 5th Ed, 2009-10-21

UL 60079-0, 5e éd., 21-10-2009

UL 60079-15, 3rd Ed, 2009-7-17

UL 60079-15, 3e éd., 17-07-2009

The following hazardous locations strings are provided on

Les marques d'homologation relatives aux

the access point:

environnements dangereux suivantes sont apposées sur

le point d'accès :

Class 1, Div 2, Groups A B C D

Classe 1, Div 2, Groupes A B C D

Class 1, Zone 2, Ex nA nC IIC T4 Gc X

Classe 1, Zone 2, Ex nA nC IIC T4 Gc X

II 3 G, Ex nA nC IIC T4 Gc

DEMKO 14 ATEX 1435X

Class 1, Zone 2, AEx nA nC IIC T4 Gc

Classe 1, Zone 2, AEx nA nC IIC T4 Gc

Cable and Connectors

Connector Specifications, page 53

Cables and Adapters, page 55

Connector Specifications

10/100/1000 Ports, page 53

SFP Module Connectors, page 53

Alarm Port, page 54

10/100/1000 Ports

The 10/100/1000 Ethernet ports on the switches use RJ-45 connectors. Figure 36 on page

53 shows the pinouts.

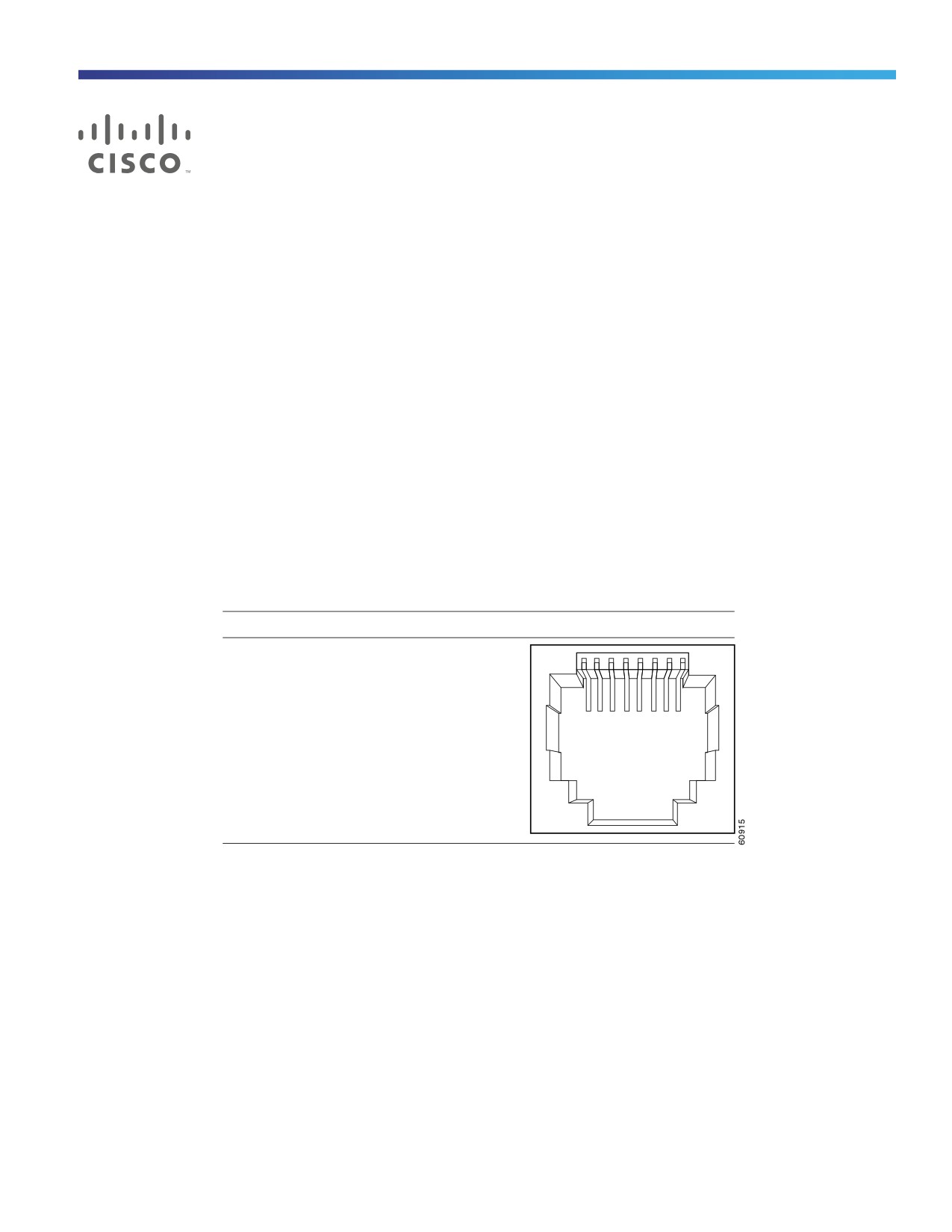

Figure 36

10/100/1000 Port Pinouts

Label

1 2 3 4 5 6 7 8

TP0+

TP0-

TP1+

TP2+

TP2-

TP1-

TP3+

TP3-

Connector pins 1, 2, 3, and 6 are used for PoE.

SFP Module Connectors

Figure 37 on page 54 shows a LC style connector that is used with the SFP Module slots. It is a fiber-optic cable

connector.

Cable and Connectors

Connector Specifications

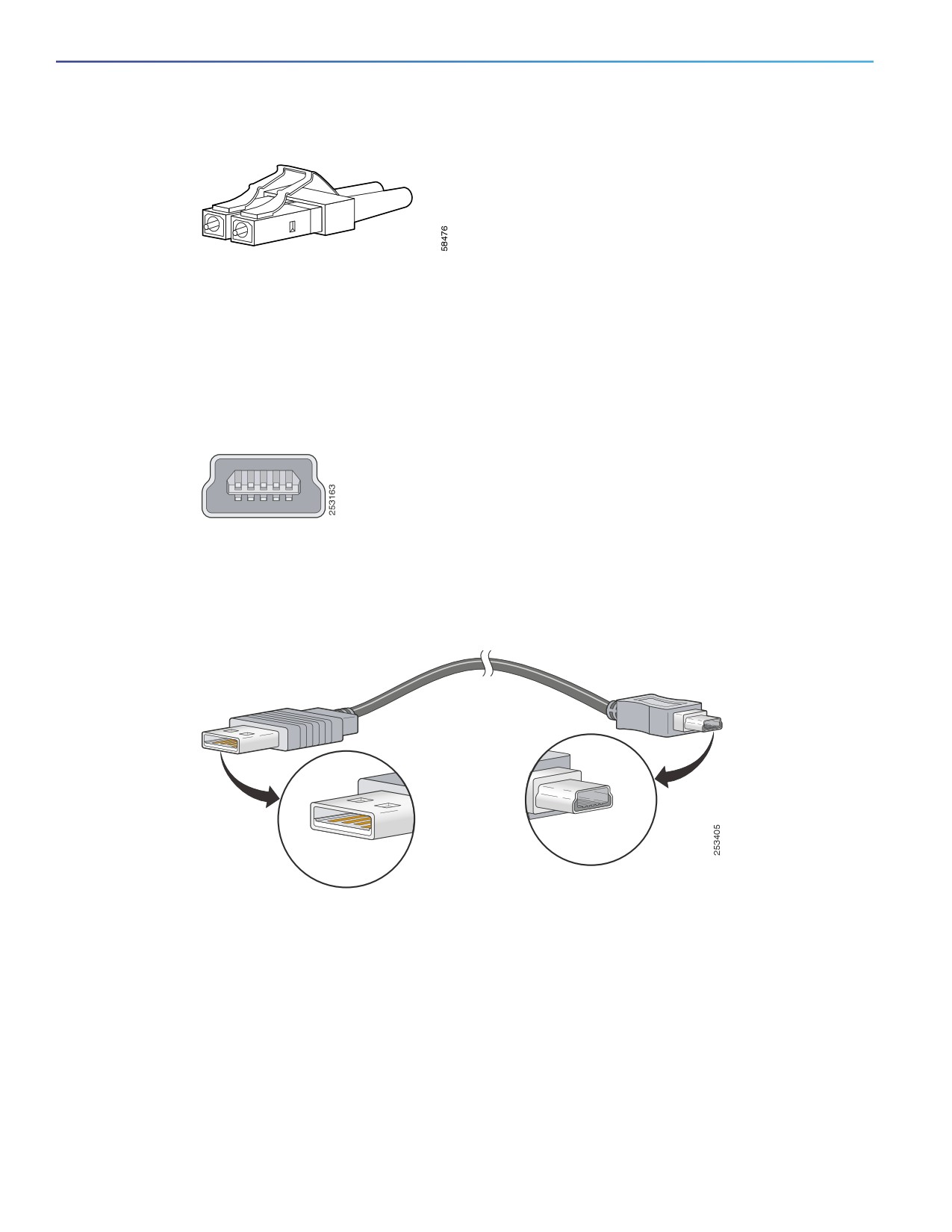

Figure 37

Fiber-Optic SFP Module LC Connector

Warning: Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams

or view directly with optical instruments. Statement 1051

Console Port

The switch has two console ports: a USB 5-pin mini-Type B port (see Figure 38 on page 54) and an RJ-45 (RS-232)

console port.

Figure 38

USB Mini-Type B Port

The USB console port uses a USB Type A to 5-pin mini-Type B cable, shown in Figure 39 on page 54. The USB Type

A-to-USB mini-Type B cable is not supplied. You can order an accessory kit that contains this cable.

Note: When running Linux, access the USB Console using Minicom instead of Screen.

Figure 39

USB Type A-to-USB 5-Pin Mini-Type B Cable

The RJ-45 console port uses an 8-pin RJ-45 connector . An RJ-45-to-DB-9 adapter cable is used to connect the

console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter if you want to

connect the switch console port to a terminal. You can order a kit (part number ACS-DSBUASYN=) containing that

adapter. For console port and adapter pinout information, see Console Port, page 54.

Alarm Port

The alarm port uses an RJ-45 connector. See 100/1000 SFP Ports, page 4 for more information. For information on alarm

ratings, see the Alarm Ratings, page 72.

Cable and Connectors

Cables and Adapters

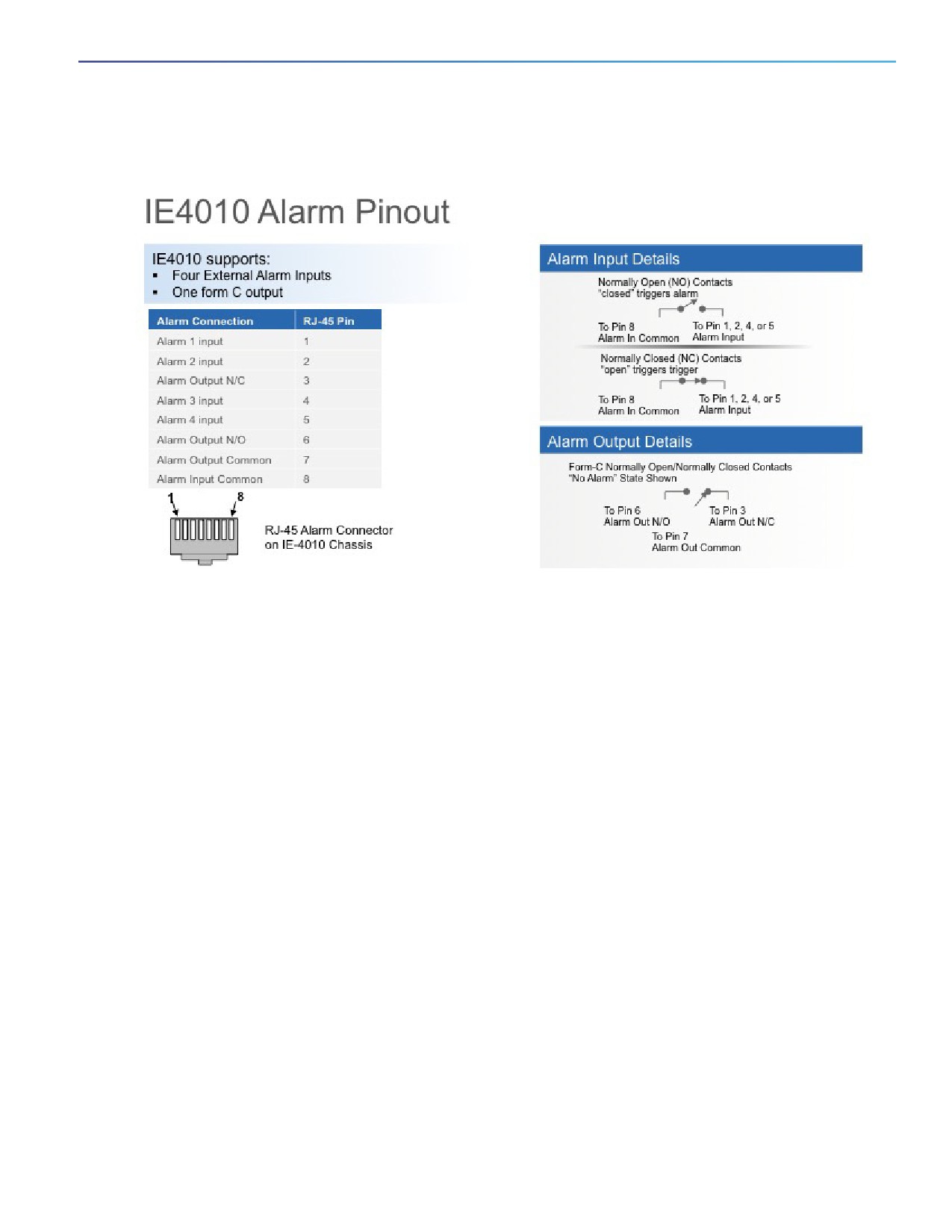

Figure 40

Alarm Port Details

Cables and Adapters

SFP Module Cables, page 55

Console Port Adapter Pinouts, page 55

SFP Module Cables

Each port must match the wave-length specifications on each end of the cable, and for reliable communications, the

cable must not exceed the allowable length.

For more information about SFP/SFP+ modules and cables, see Transceiver Modules.

Console Port Adapter Pinouts

The console port uses an 8-pin RJ-45 connector. If you did not order a console cable, you need to provide an

RJ-45-to-DB-9 adapter cable to connect the switch console port to a PC console port. You need to provide an

RJ-45-to-DB-25 female DTE adapter if you want to connect the switch console port to a terminal. You can order an

adapter (part number ACS-DSBUASYN=).

Table 11 on page 56 lists the pinouts for the console port, the RJ-45-to-DB-9 adapter cable, and the console device.

Cable and Connectors

Cables and Adapters

Table 11

Console Port Adapter Pinouts (RJ-45-to-DB-9)

Switch Console

RJ-45-to-DB-9

Console

Port (DTE)

Terminal Adapter

Device

Signal

DB-9 Pin

Signal

RTS

CTS

DTR

DSR

TxD

RxD

GND

RxD

TxD

DSR

DTR

CTS

RTS

Note: The RJ-45-to-DB-25 female DTE adapter is not supplied with the switch. You can order this adapter from Cisco

(part number ACS-DSBUASYN=).

Table 12

Console Port Adapter Pinouts (RJ-45-to-DB-25)

Switch

RJ-45-to-DB-25

Console

Adapter

Device

Port (DTE)

Signal

DB-25 Pin

Signal

RTS

CTS

DTR

DSR

TxD

RxD

GND

RxD

TxD

DSR

DTR

CTS

RTS

Configuring the Switch with the CLI Setup

Program

This appendix provides a command-line interface (CLI) setup procedure for a standalone switch. Before connecting the

switch to a power source, review the safety warnings in Warnings, page 13 and Installation Guidelines, page 35

Accessing the CLI Through Express Setup

When you first set up the switch, you should use Express Setup to enter the initial IP information. This process enables

the switch to connect to local routers and the Internet. You can then access the switch through the IP address for

additional configuration.

Required Equipment

You need this equipment to set up the switch:

Computer with Windows 2000/Vista/2003/XP/Window7/Mac.

A Web browser (IE, Firefox) with JavaScript enabled.

A straight-through or crossover Category 5 Ethernet cable to connect your computer to the switch port.

Do not use the RS232 serial console port for express setup.

A small paper clip to reach to button.

Note: Before running Express Setup, disable any pop-up blockers or proxy settings on your browser and any wireless

client running on your computer.

Express Setup Procedure

To run Express Setup:

1. Make sure that nothing is connected to the switch.

2. Ensure the switch is in default factory mode.

Skip to next step if freshly out of the box.

a. If not freshly out of the package, use a paper clip to reset the switch for 10 seconds until the SYS LED light turns

red; then release the paper clip.

Switch will automatically reboot once the SYS led goes red.

3. Ensure no data port is connected to the switch.

Note: During Express Setup, the switch acts as a DHCP server.

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through Express Setup

— You can add a serial console cable to monitor the booting sequence. Do not hit [return key] on console screen.

— Ensure the computer connected to switch is configured with DHCP.

Web Browser: disable pop-up blockers and proxy settings.

Connect power to the switch.

See the wiring instructions in Grounding the Switch, page 36 and Wiring the Power Source, page

39.

Power on or reset the switch.

Use LEDs to monitor boot progress:

— Sys blinking: bootloader

— Sysl Blank: POST

— Sys solid: exit post, IOS initializing

— Sys and alarm LEDs green: IOS init done

—

~90 - 100 seconds after power on

— EXP blinking: ready for express setup process

Insert paper clip into express setup button (see Figure 4 on page 6) for 1-2 seconds.

When released, port Gig1/1 LED starts flashing green.

Connect computer to port Gig1/1.

LED continues to blink.

After computer has IP address (169.254.0.2), point browser to http://169.254.0.1.

10. Leave the username blank and enter the default password, cisco.

Note: The switch ignores text in the username field. The Express Setup window appears.

Troubleshooting: If the Express Setup window does not appear, make sure that any pop-up blockers or proxy

settings on your browser are disabled and that any wireless client is disabled on your computer.

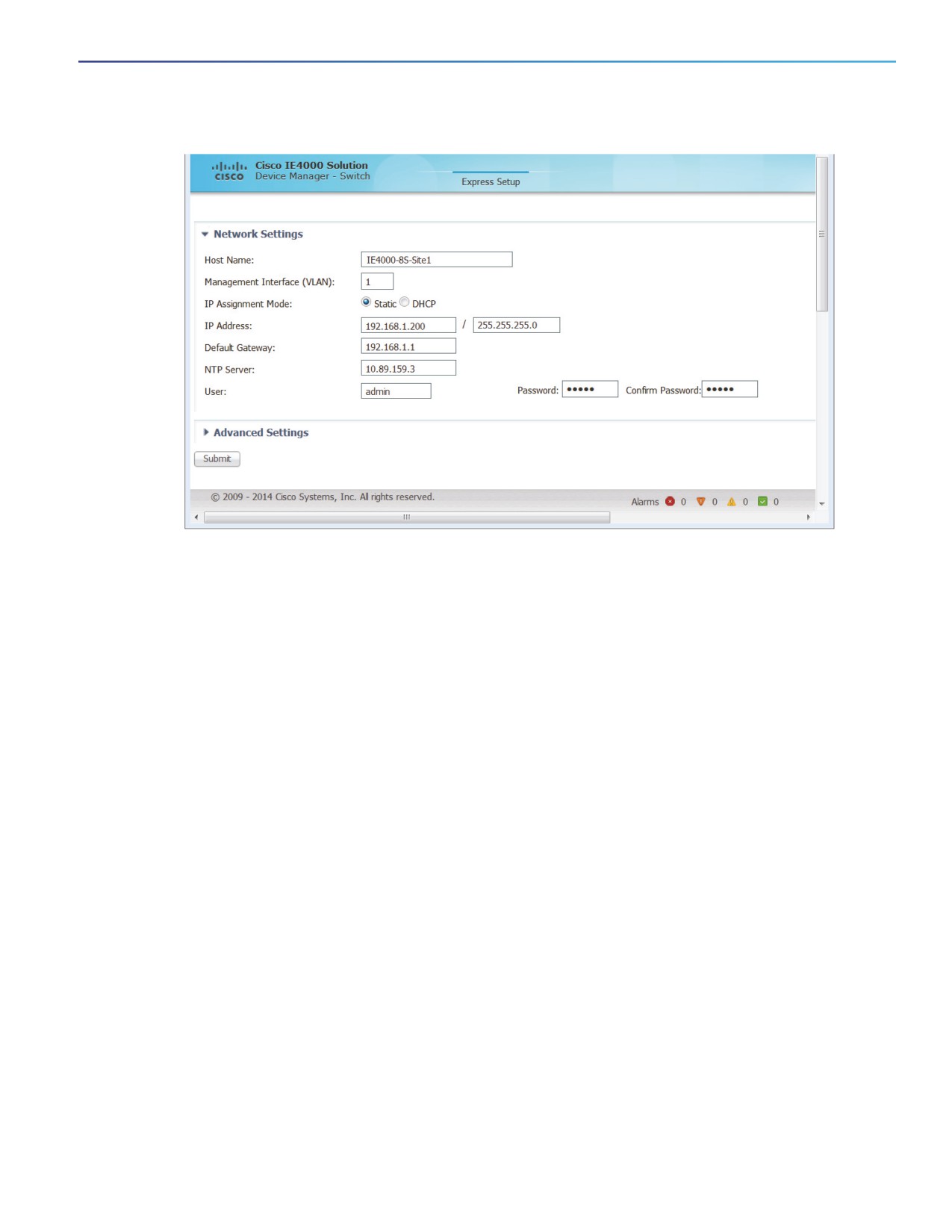

Note: The screen capture below shows an IE 4000 series switch, but the functionality is identical for the IE 4010.

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through Express Setup

11. Enter all entries in English letters and Arabic numbers.

In the Network Settings (Required for Static IP):

— IP Address: Enter a valid IP address for the switch.

You can later use the IP address to access the switch through Device Manager.

— Switch Username and Password: Enter a password. The password can be from 1 to 25 alphanumeric

characters, can start with a number, is case sensitive, allows embedded spaces, but does not allow spaces at

the beginning or end. In the Confirm Password field, enter the password again.

Note: You must change the password from the default password, cisco.

— Default Gateway: Enter the IP address of the router.

12. Enter the Control Industrial Protocol (CIP) VLAN settings (optional):

— CIP VLAN: Enter the VLAN on which CIP will be enabled. The CIP VLAN can be the same as the management

VLAN, or you can isolate CIP traffic on another VLAN that is already configured on the switch. The default CIP

VLAN is VLAN 1. Only one VLAN on a switch can have CIP enabled.

— IP Address: Enter the IP address for the CIP VLAN. If the CIP VLAN is different from the management VLAN, you

must specify an IP address for the CIP VLAN. Make sure that the IP address that you assign to the switch is not

being used by another device in your network.

— Subnet Mask: Select a mask from the drop-down list.

For more information about the CIP VLAN settings, click Help on the tool-bar.

13. Optional Settings:

You can enter the optional information now, or enter it later by using Device Manager. For more information about

the Express Setup fields, see the on-line help for the Express Setup window.

Click Submit to save your changes and to complete the initial setup.

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through Express Setup

For more information about the optional settings, click Help on the tool-bar.

After you click Submit, these events occur:

— The switch is configured and exits Express Setup mode.

— The browser displays a warning message and tries to connect with the earlier switch IP address.

— Typically, connectivity between the computer and the switch is lost because the configured switch IP address

is in a different subnet from the IP address on the computer.

14. Turn off DC power at the source, disconnect all cables to the switch, and install the switch in your network. See

Management Options, page 12 for information about configuring and managing the switch.

15. If you changed the static IP address on your computer in Step 1, change it to the previously configured static IP

address.

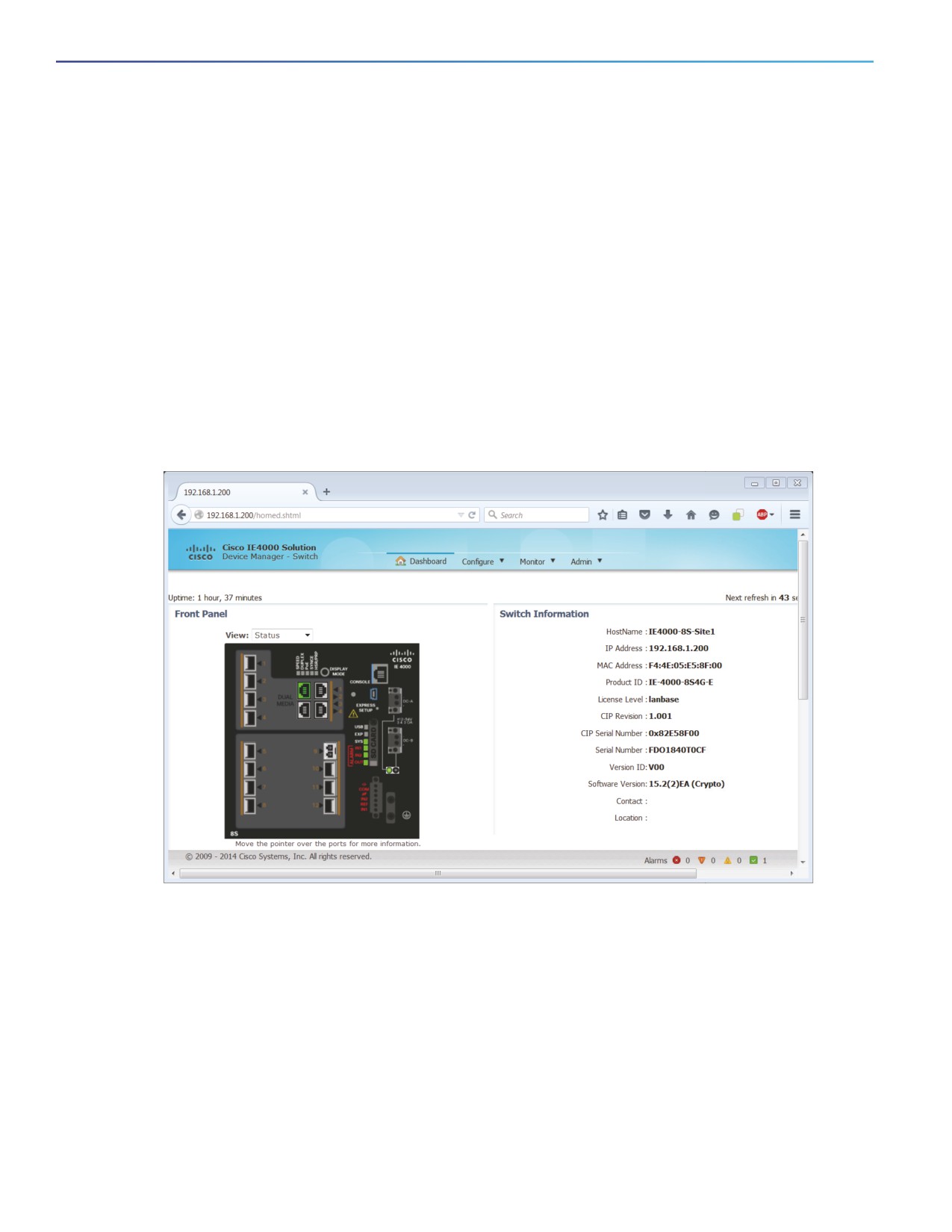

Note: The screen capture below shows an IE 4000 series switch, but the functionality is identical for the IE 4010.

16. You can now manage the switch by using the Device Manager. See Management Options, page 12 for information

about configuring and managing the switch.

You can display Device Manager by following these steps:

a. Start a web browser on your computer.

b. Enter the switch IP address, username, and password in the web browser, and press Enter. The Device

Manager page appears.

Troubleshooting:

If the Device Manager page does not appear:

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through the Console Port

— Confirm that the port LED for the switch port connected to your network is green.

— Confirm that the computer that you are using to access the switch has network connectivity by connecting it to

a well known web server in your network. If there is no network connection, troubleshoot the network settings

on the computer.

— Make sure that the switch IP address in the browser is correct.

— If the switch IP address in the browser is correct, the switch port LED is green, and the computer has network

connectivity, continue troubleshooting by reconnecting the computer to the switch. Configure a static IP address

on the computer that is in the same subnet as the switch IP address.

When the LED on the switch port connected to the computer is green, reenter the switch IP address in a web browser

to display the Device Manager. When Device Manager appears, you can continue with the switch configuration.

Accessing the CLI Through the Console Port

You can enter Cisco IOS commands and parameters through the CLI. Use one of these options to access the CLI:

RJ-45 Console Port, page 61

USB Console Port, page 62

RJ-45 Console Port

1. Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC. Connect the other end of the cable to

the switch console port.

2. Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application such as

HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through the Console Port

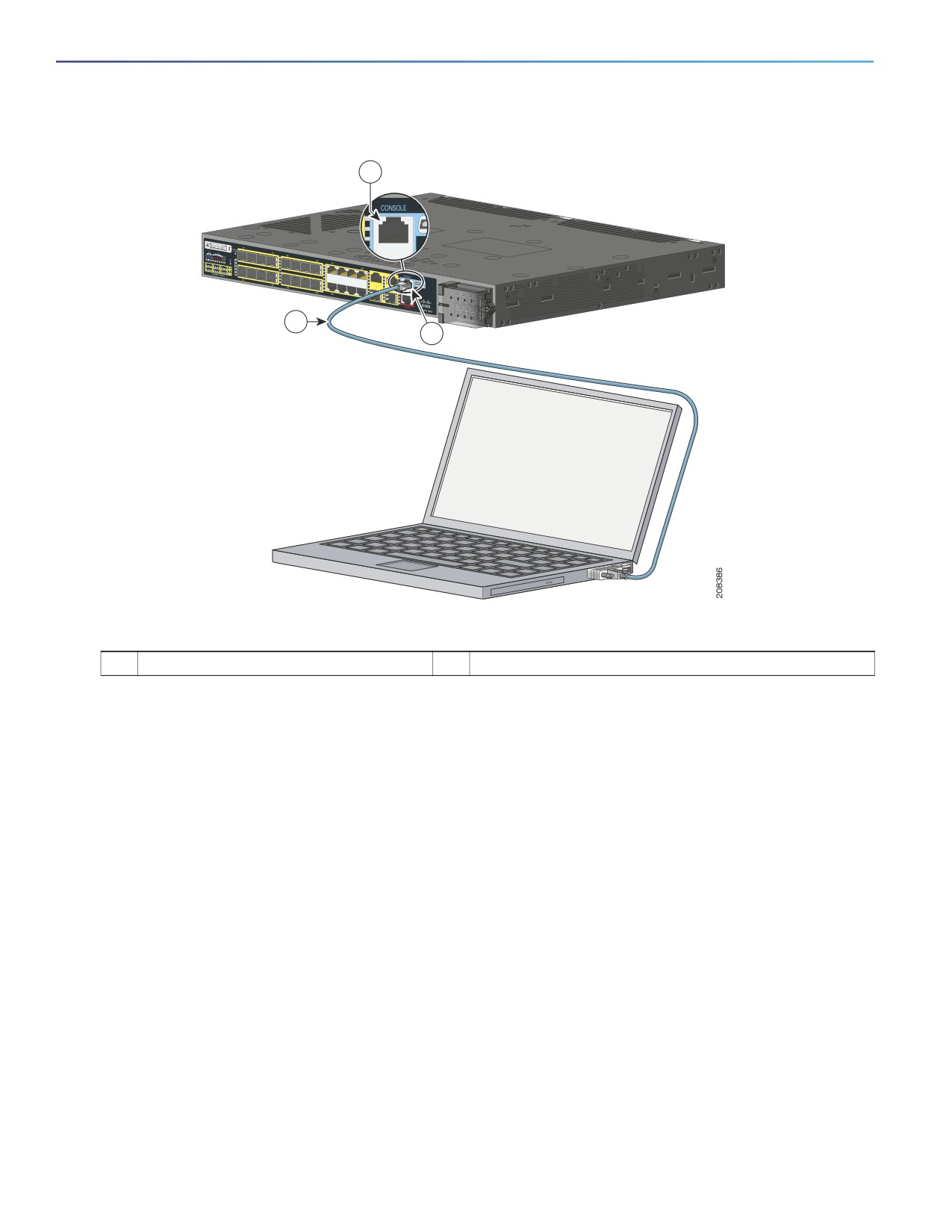

Figure 41

Connecting the Console Cable

RJ-45 console port

Console cable (RJ-45-to-DB-9 adapter cable)

3. Configure the baud rate and character format of the PC or terminal to match the console port characteristics:

—

9600 baud

—

8 data bits

—

1 stop bit

— No parity

— None (flow control)

4. Connect power to the switch as described in Wiring the Power Source, page 39.

5. The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow the steps in

the Completing the Setup Program, page 65.

USB Console Port

1. If you are connecting the switch USB console port to a Windows-based PC for the first time, install a USB driver. See

Installing the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Device Driver, page 64 for more

information.

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through the Console Port

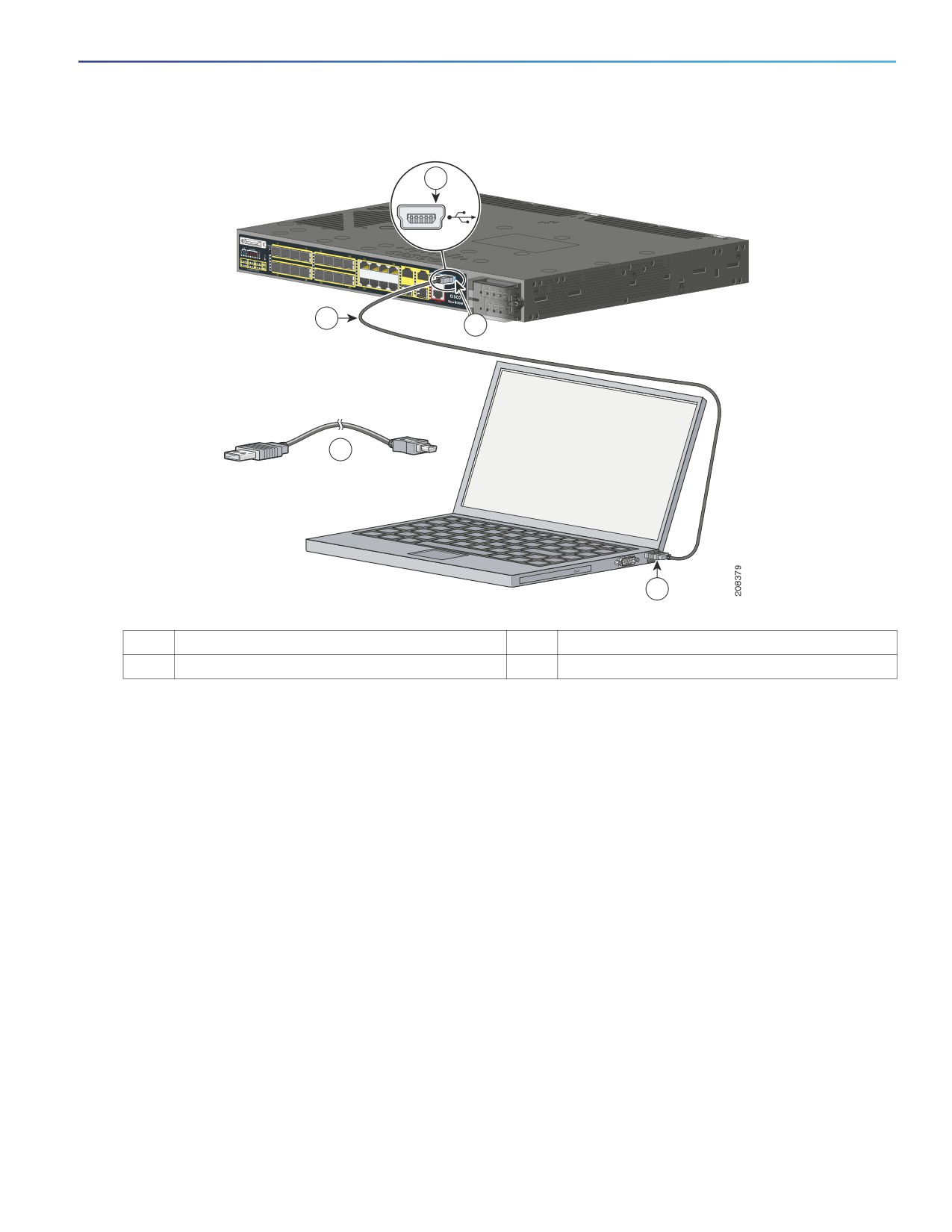

Figure 42

Connecting the USB Console Cable

USB console port

USB port on the PC

USB cable

2. Connect an USB cable to the PC USB port, and connect the other end of the cable to the switch mini-B

(5-pin-connector) USB console port. See Figure 42 on page 63.

3. To identify the COM port assigned to the USB console port:

a. Choose Start > Control Panel > Systems

b. Click the Hardware tab and choose Device Manager.

c. Expand the Ports section.

The assigned COM port appears in parenthesis at the end of the line with this entry: Cisco USB System Management

Console.

4. Start the terminal-emulation program on the PC or the terminal.

The program, frequently a PC application such as HyperTerminal or ProcommPlus, makes communication possible

between the switch and your PC or terminal.

5. Configure the COM port.

6. Configure the baud rate and character format of the PC or terminal to match the console port characteristics:

—

9600 baud

—

8 data bits

Configuring the Switch with the CLI Setup Program

Accessing the CLI Through the Console Port

—

1 stop bit

— No parity

— None (flow control)

7. Connect power to the switch as described in Wiring the Power Source, page 39

The PC or terminal displays the bootloader sequence.

8. Press Enter to display the setup prompt.

9. Follow the steps in the Completing the Setup Program, page 65.

Installing the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Device

Driver

A USB device driver must be installed the first time a Microsoft Windows-based PC is connected to the USB console

port on the switch. Use this procedure to install the USB driver on Windows XP, Windows 2000, Windows Vista,

Windows 7, Windows 8, and Windows 10.

Obtain the file Cisco_usbconsole_driver_3_1.zip from the Cisco.com website

https://software.cisco.com/download/release.html?mdfid=282979369&softwareid=282855122&release=3.1

The file details are as follows:

— Description: Cisco_usbconsole_driver_3_1.zip

— Release: 3.1

— Release Date: 27/Nov/2014

— File Name: Cisco_usbconsole_driver_3_1.zip

— Size: 14.35 MB (15045453 bytes)

— MD5 Checksum: eff2e955edcdc70209e6f9c8f6bd59cd

Unzip the file and install the corresponding exe file.

Navigate to the Device Manager window by performing a search in WIndows for Device Manager and opening it.

Connect the USB cable from the Windows PC to the Cisco switch.

From the Device Manager page, expand Ports (COM & LPT). Select USB Serial Port. Right-click and select Update

Driver Software ...

In the Update Driver Software window, select Browse my computer for driver software. Then choose Let me pick

from a list of device drivers on my computer and click Next.

Enable Show compatible hardware and choose Cisco Serial as the model. Click Next.

After the update is completed, Windows displays Windows has successfully updated your driver software.

Click Close.

Uninstalling the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Driver

Note: Disconnect the switch console terminal before uninstalling the driver.

1. Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit.

Configuring the Switch with the CLI Setup Program

Entering the Initial Configuration Information

2. Click Next.

3. When the InstallShield Wizard for Cisco Virtual Com appears, click Next.

4. When the Program Maintenance window appears, select the Remove radio button.

5. Click Next.

6. When the Remove the Program window appears, click Remove.

If a User Account Control warning appears, click Allow - I trust this program to proceed.

7. When the InstallShield Wizard Completed window appears, click Finish.

Entering the Initial Configuration Information

To set up the switch, you need to complete the setup program, which runs automatically after the switch powers on. You

must assign an IP address and other configuration information necessary for the switch to communicate with the local

routers and the Internet.

IP Settings

You need this information:

Switch IP address

Subnet mask (IP netmask)

Default gateway (router)

Enable secret password

Enable password

Telnet password

Completing the Setup Program

Follow these steps to complete the setup program and to create an initial configuration for the switch:

1. Enter Yes at these two prompts.

Would you like to enter the initial configuration dialog? [yes/no]: yes

At any point you may enter a question mark '?' for help.

Use ctrl-c to abort configuration dialog at any prompt.

Default settings are in square brackets '[]'.

Basic management setup configures only enough connectivity

for management of the system, extended setup will ask you

to configure each interface on the system.

Would you like to enter basic management setup? [yes/no]: yes

2. Enter a host name for the switch, and press Return.

Configuring the Switch with the CLI Setup Program

Entering the Initial Configuration Information

On a command switch, the host name is limited to 28 characters and on a member switch to 31 characters. Do not use

-n, where n is a number, as the last character in a host name for any switch.

Enter host name [Switch]: host_name

3. Enter an enable secret password, and press Return.

The password can be from 1 to 25 alphanumeric characters, can start with a number, is case sensitive, allows spaces,

but ignores leading spaces. The secret password is encrypted, and the enable password is in plain text.

Enter enable secret: secret_password

4. Enter an enable password, and press Return.

Enter enable password: enable_password

5. Enter a virtual terminal (Telnet) password, and press Return.

The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading spaces.

Enter virtual terminal password: terminal-password

6. (Optional) Configure Simple Network Management Protocol (SNMP) by responding to the prompts. You can also

configure SNMP later through the CLI. To configure SNMP later, enter no.

Configure SNMP Network Management? [no]: no

7. Enter the interface name (physical interface or VLAN name) of the interface that connects to the management

network, and press Return. For this release, always use vlan1 as that interface.

Enter interface name used to connect to the

management network from the above interface summary: vlan1

8. Configure the interface by entering the switch IP address and subnet mask and pressing Return. The IP address and

subnet masks shown below are examples.

Configuring interface vlan1:

Configure IP on this interface? [yes]: yes

IP address for this interface: 10.4.120.106

Subnet mask for this interface [255.0.0.0]: 255.0.0.0

9. Enter Y to configure the switch as the cluster command switch. Enter N to configure it as a member switch or

as a standalone switch.

If you enter N, you can configure the switch as a command switch later through the CLI. To configure it later, enter no.

Would you like to enable as a cluster command switch? [yes/no]: no

You have completed the initial configuration of the switch, and the switch displays its configuration. This is an example

of the configuration output:

The following configuration command script was created:

hostname switch1

enable secret 5

$1$Ulq8

$DlA/OiaEbl90WcBPd9cOn1

enable password enable_password

line vty 0 15

password terminal-password

no snmp-server

no ip routing

interface Vlan1

no shutdown

Configuring the Switch with the CLI Setup Program

Entering the Initial Configuration Information

ip address 10.4.120.106 255.0.0.0

interface FastEthernet1/0/1

interface FastEthernet1/0/2

interface FastEthernet1/0/3

...<output abbreviated>

end

10. These choices appear:

[0] Go to the IOS command prompt without saving this config.

[1] Return back to the setup without saving this config.

[2] Save this configuration to nvram and exit.

If you want to save the configuration and use it the next time the switch reboots, select option 2 to

save it in NVRAM.

Enter your selection [2]:2

Make your selection, and press Return.

After you complete the setup program, the switch can run the default configuration that you created. To change this

configuration or to perform other management tasks, enter commands at the Switch> prompt.

Technical Specifications

Switch Specifications

Table 13

Cisco IE 4010 Switch Specifications

Environmental Ranges

Operating temperature¹

-40°C to +74°C

-40°C to +75°C (Vented Enclosure Operating- 40 LFM Air Flow)

-40°C to +60°C (Sealed Enclosure Operating- 0 LFM Air Flow)

-34°C to +75°C (Fan or Blower equipped Enclosure Operating- 200

LFM Air Flow)

-40°C to +85°C (IEC 60068-2-2 Environmental Type Tested to

+85°C for 16 hours) ²

Storage temperature

-40 to 185°F (-40 to 85°C)

Relative humidity

5 to 95% (noncondensing)

Operating altitude

Up to 13,800 ft (3049 m)

Storage altitude

Up to 15,000 ft (4570 m)

Thermal spacing

1.75 in. (4.4 cm)

Operational shock

50G at 11ms, half sine and 200G ar 2.11ms, half sine.

Non-Operational Shock

65-80G at 9ms, Trapezoidal

Physical Specifications

Weight

Without power supply: IE-4010-4S24P; 12.1 lbs (5.46 kg,

IE-4010-16S12P: 12.7 lbs (5.78 kg)

PWR-RGD-AC-DC-H:2.55 lb (1.16 kg)

PWR-RGD-LOW-DC-H:2.5 lb (1.13 kg)

Dimensions (H x W x D)

1.75 x 17.5 x 15.0 in. (4.45 x 44.5 x 38.1 cm)

1. Operating temperatures exceeding 60°C are not covered by the product safety certifications and approvals. However, the

switch can function in the installations under the environmental conditions listed.

2. The maximum operating temperature of the switch varies depending on the type of SFP module that you use.

Technical Specifications

Power-Supply Module Specifications

Table 14

Cisco IE 4010 Switch Power Requirements

Power Requirements

Nominal input voltage

PWR-RGD-AC-DC-H:

100 to 240 VAC, 50 to 60 Hz

100 to 250 VDC

PWR-RGD-LOW-DC-H:

24 to 60 VDC

Absolute maximum (short term) input voltage

PWR-RGD-AC-DC-H:

85 to 265 VAC, 47 to 63 Hz

88 to 300 VDC

PWR-RGD-LOW-DC-H:

18 to 75 VDC

Maximum PoE power available to Powered Devices (PD), with one

80W

power supply module installed

Maximum PoE power available to Powered Devices (PD), with two

200W

power supply modules installed

Table 15

Cisco IE 4010 Switch Power Consumption

Max Power at 60C

FRU Configuration

FRU Mode

IE-4010-4S24P

IE-4010-16S12P

Watts

BTU/hr

Watts

BTU/hr

With 2 power supplies(150W

Redundant

222

239

or 250W), PoE not enabled

With 1 power supply (150W or

-NA-

208

222

250W), PoE not enabled

With 2 150W power supplies,

Load Shared

112

382

117

399

PoE enabled

With 2 250W power supplies,

Load Shared

157

535

156

532

PoE enabled

With 2 power supplies(150W

Load Shared

133

454

138

471

and 250W), PoE enabled

Power-Supply Module Specifications

Technical Specifications

Alarm Ratings

Table 16

Power Supply Module Specifications

Physical Specifications

Weight

PWR-RGD-AC-DC-H

2.55 lb (1.15 kg)

PWR-RGD-LOW-DC-H

2.5 lb (1.13 kg)

Dimensions (H x W x D)

1.58 x 7 x 5 in. (4 x 17.8 x 12.7 cm) (without mounting

PWR-RGD-AC-DC-H and PWR-RGD-LOW-DC-H

flanges)

1.58 x 8.15 x 5 in. (4 x 20.7 x 12.7 cm) (with mounting

flanges)

Alarm Ratings

Table 17

Alarm Input and Output Ratings

Alarm Ratings

Alarm input electrical

No external voltage needed to activate alarm inputs. The open circuit voltage

specification

between any Alarm input (1 to 4) and Alarm input Common is 5VDC and the loop

current is 2 mA max per input.

Alarm output electrical

30VDC @ 1A, 48VDC @ 0.5A

specification

Cisco IE 4010 Switch Hardware Installation Guide (2019) - page 2
