STEAM LOCOMOTIVE ENGINEMAN’S. Manual - part 34

QUEENSLAND PIONEER STEAM RAILWAY CO-OP LTD

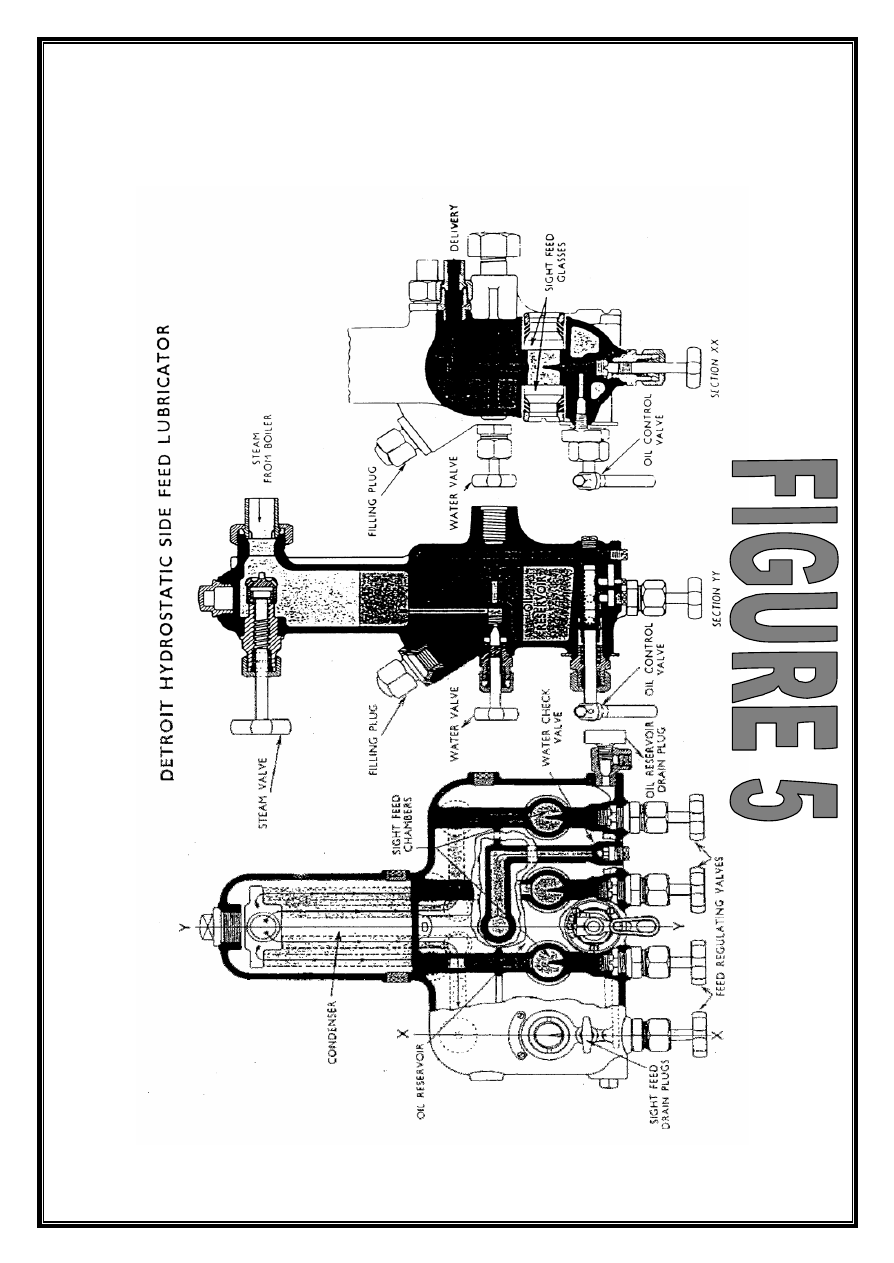

HYDROSTATIC LUBRICATOR



QUEENSLAND PIONEER STEAM RAILWAY CO-OP LTD

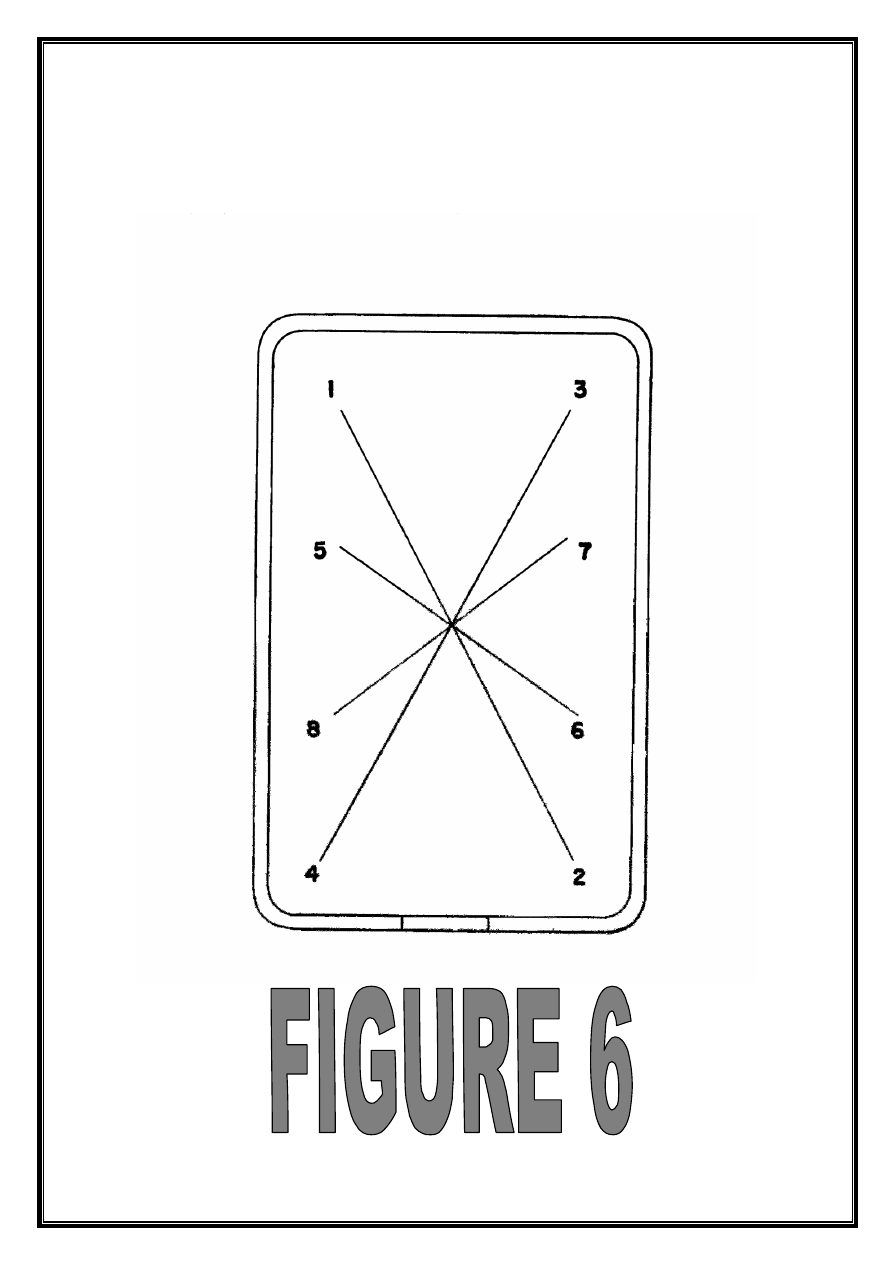

FIRING SEQUENCE





.

QUEENSLAND PIONEER STEAM RAILWAY

                              CO-OPERATIVE LIMITED


STEAM LOCOMOTIVE INSPECTIONS

WHEN STABLING AFTER TRIP

To be carried out by the Driver



EXAMINATIONS INSIDE CAB: -



1.  Fire Burnt Through

[  ]

2.  Full Glass of Water Maintained.

[  ]

3.  Boiler Blown Down if Dirty.

[  ]

4.  Fire Cleaned.

[  ]

5.  Smoke Box Cleaned.

[  ]


WITH HANDBRAKE HARD ON, REVERSING LEVER CENTRE
AND CYLINDER COCKS OPENED THOROUGHLY EXAMINE: -



1.  Tubes

[  ]

2.  Flues.

[  ]

3.  Wall Stays.

[  ]

4.  Lead Plugs.

[  ]

5.  Brick Arch.

[  ]

6.  Boiler Mounts.

[  ]

7.  Injector Spindles.

[  ]

8.  Steam and Water Passage Cocks.

[  ]

9.  Injector Pipe Connections and Lubricator.

[  ]

10. Westinghouse Pump.

[  ]

11. Sand Gear.

[  ]

12. Blow Off and Scum Cocks.

[  ]

13. Tool Box and Other Equipment.

[  ]

14. Foot Boards, Seats Clean and in Good Condition.

[  ]

15. First Aid Box Present.

[  ]







Driver: -_________________DAF: -_________________



(Optional)

                Date: -___________________









PTO.



Cont.





QUEENSLAND PIONEER STEAM RAILWAY

                         CO-OPERATIVE LIMITED



STEAM LOCOMOTIVE INSPECTIONS

WHEN STABLING AFTER TRIP



OUTSIDE EXAMINATIONS: - to be carried out both sides and underneath



Tender



1.  Operate both injectors and try heater cocks.

[  ]

2.  Brake Blocks and Shoes.

[  ]

3.  Brake Hangers.

[  ]

4.  Spring and Pins.

[  ]

5.  Bogie Frame.

[  ]

6.  Centre Castings.

[  ]

7.  Axle Box Bearings.

[  ]

8.  Other Bearings.

[  ]



Engine (with side rods and crank on the bottom angle Examine: -


1.  Axle Boxes.

[  ]



2.  Crank Pins.

[  ]

3.  Small End Pins.

[  ]

4.  Saddle Cotters in Place.

[  ]

5.  Centre  Bearings.

[  ]

6.  Slide Bars.

[  ]

7.  Rocking Shaft Bearings.

[  ]

8.  Rocking Arm Pins.

[  ]

9.  Valve Spindles.

[  ]

10.  Knuckle Joint Pins.

[  ]

11.  All Valve Motion.

[  ]

12.  Bogie Bearings.

[  ]

13.  Centre Castings.

[  ]

14.  Brake Gear.

[  ]

15.  Wheels And Tyres.

[  ]

16.  Springs and Spring Pins.

[  ]

17.  Compensating Gear and Pins.

[  ]

18.  Side Rods, Brasses and Cotters.

[  ]

19.  Knuckle Joints.

[  ]

20.  Small End Pins and Check Nuts

[  ]

21.  Side Bar Bolts and Studs

[  ]

22.  Crosshead Shoes

[  ]

23.  Piston and Valve Spindle Rods, Cotters, Glands and Studs

[  ]




Driver: -_________________DAF: -_________________



(Optional)

                Date: -___________________

P.T.O.
