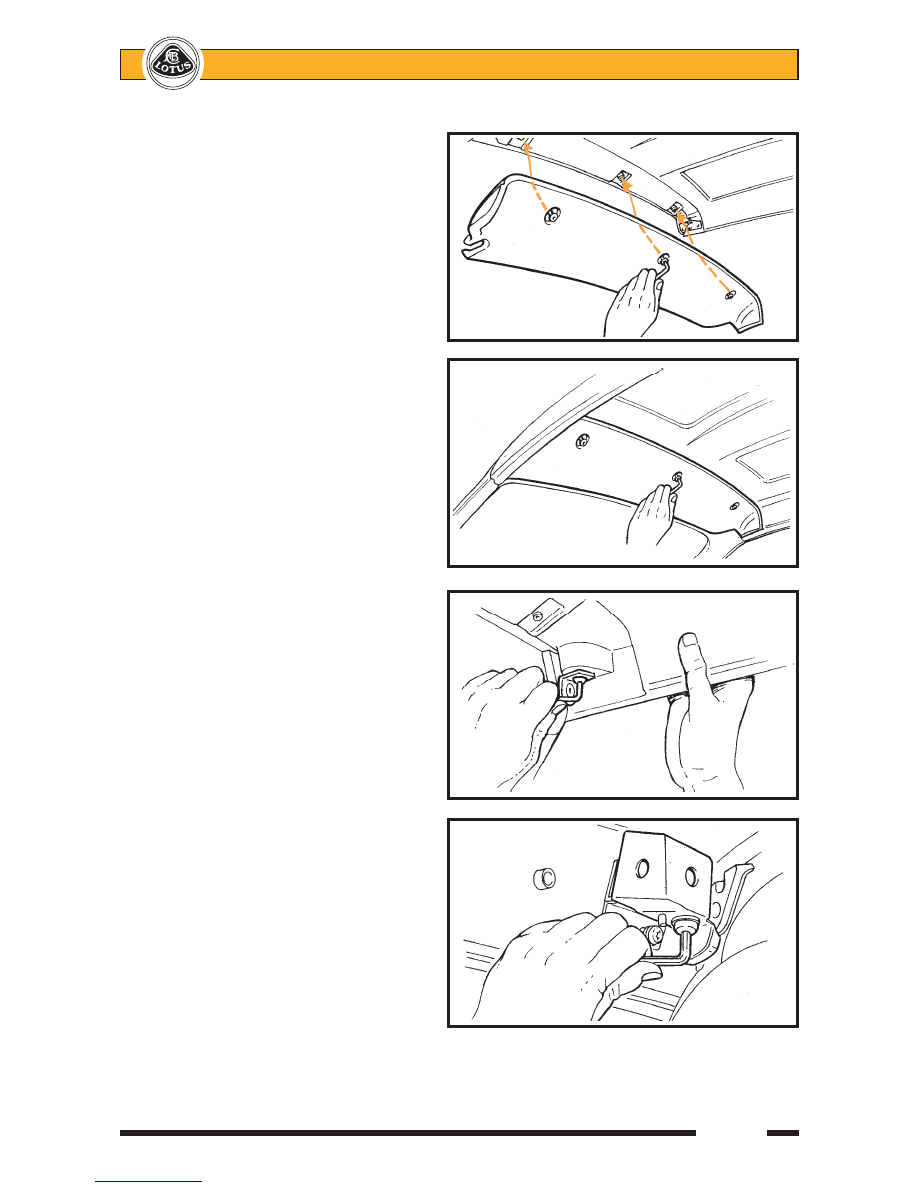

Lotus Service Notes Section BR Page 5 8. Using the special tool provided, install the windscreen header cover panel by locating first 9. Check that the roof is secure by pulling up- wards on each corner in turn. If any upward move- Hard Top - Removal WARNING: The hard top roof should be re- 1. Open both doors. 2. Using the special tool supplied, release the three Torx screws securing the windscreen header 3. Using the special tool supplied, slacken the Torx screw securing each front corner spigot 4. Pull off the trim cover from each rear cor- ner of the roof panel and remove the screw se- 5. Remove the two front corner bracket fixing screws and lift the front edge of the roof slightly 6. With the aid of an assistant, lift the roof from the car taking care to restrain the tethered brack- 7. If storing the roof vertically, take care to avoid damaging the panel corners by using a protective floor covering. WINDSCREEN WINDSCREEN b331 HEADER TRIM FRONT CORNER b330 REAR CUP BRACKET |
