General notes on the technical data

Vehicle identification data

Vehicle data

The data sticker is placed on the inside of the spare wheel recess in the

The most important data are given on the type plate and the

luggage compartment.

vehicle data sticker.

The following information is provided on the vehicle data sticker: ⇒ fig. 227.

These data are also provided in the Maintenance Program.

1

Production control number

2

Vehicle identification number (chassis number)

3

Model code number

4

Model designation / engine power output

5

Engine and gearbox code letters

6

Paintwork number / interior trim code

7

Optional equipment codes

8

Consumption values

9

CO₂ emissions values

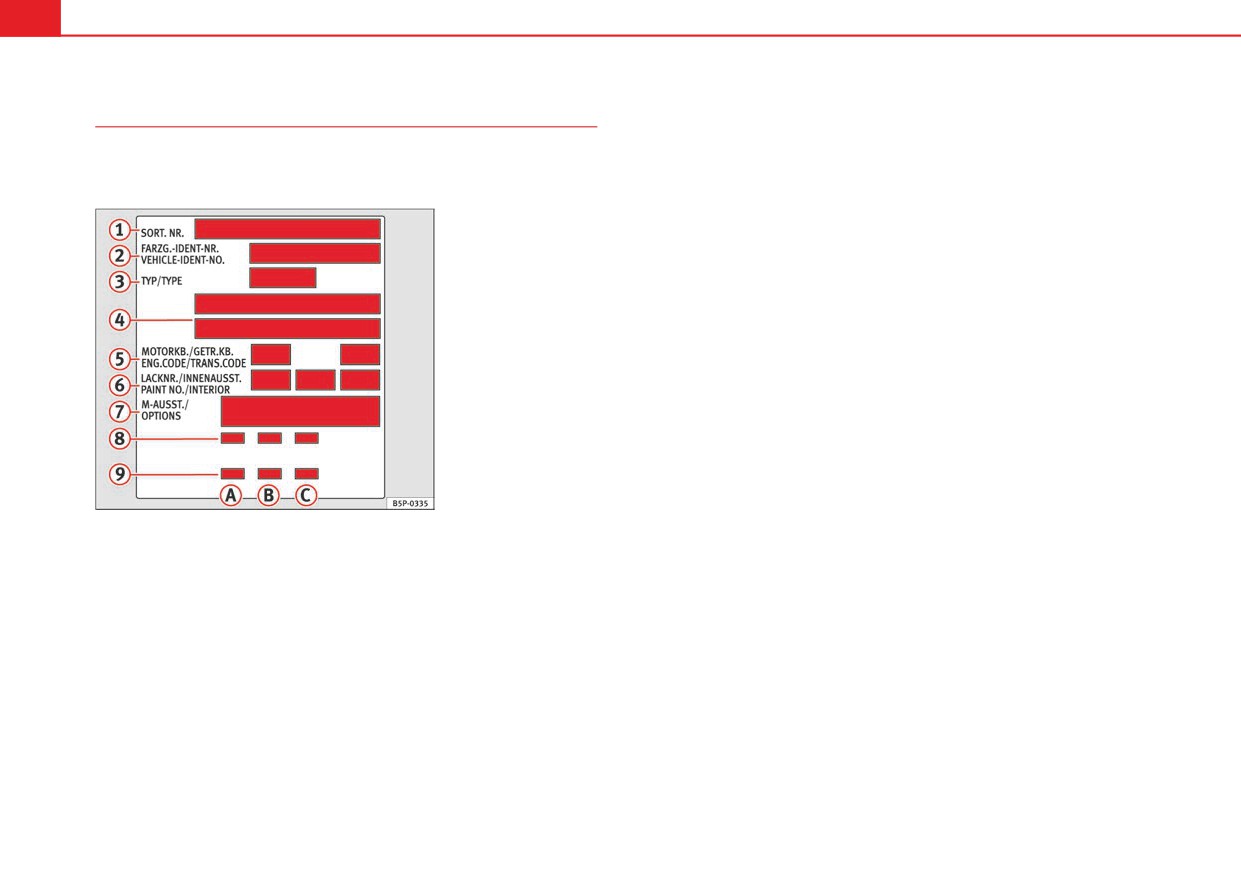

Fig. 227 Vehicle data

Data from 2 to 9 are also provided in the Maintenance Program.

sticker - boot

Consumption figures and CO₂

A

Consumption (litres/100 km) / CO₂ emissions (g/km) urban

Vehicles for certain export countries do not have a type plate.

B

Consumption (litres/100 km) / CO₂ emissions (g/km) motorway

Type plate

C

Consumption (l/100 km) / CO₂ Emissions (g/km) mixed

The type plate is located on the left rib inside the engine compartment.

Vehicle identification number

The vehicle identification number (chassis number) can be read from outside

the vehicle through a viewer in the windscreen. This is located on the left-

hand side of the vehicle in the lower area of the windscreen. It is also located

on the right hand side of the engine compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

General notes on the technical data

279

Data on fuel consumption

Fuel consumption

The consumption and emission details shown on the vehicle data sticker differ from one vehicle to another.

The fuel consumption and CO₂ emissions of the vehicle can be found on the

The consumption and emission figures are calculated in accordance with the

vehicle data sticker.

EC test requirements 1999/100/EC. These test requirements specify a real-

istic test method based on normal everyday driving.

The fuel consumption and emissions figures given are based on the vehicle

weight category, which is determined according to the engine/gearbox

The following test conditions are applied:

combination and the equipment fitted.

Urban cycle

The urban cycle starts with an engine cold start. City driving is then simulated.

In the extra urban cycle simulation the vehicle frequently accelerates and brakes in all gears, as in normal everyday driving. The

Extra urban cycle

road speed ranges from 0 to 120 km/h.

The average total consumption is calculated with a weighting of around 37% for the urban cycle and 63% for the extra urban

Total consumption

cycle.

The exhaust gases are collected during both driving cycles to calculate carbon dioxide emissions. The gas composition is then

CO₂ emissions

analysed to evaluate the CO

2 content and other emissions.

Note

• Actual consumption may vary from quoted test values, depending on

personal driving style, road and traffic conditions, the weather and the

vehicle condition.

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

280

General notes on the technical data

Weights

Drawbar load

The maximum permitted weight exerted by the trailer drawbar on the ball joint

Kerb weight refers to the basic model with a fuel tank filled to 90% capacity

of the towing bracket must not exceed 75 kg.

and without optional extras. The figure quoted includes 75 kg to allow for the

In the interest of road safety, we recommend that you always tow

weight of the driver.

approaching the maximum drawbar load. The response of the trailer on the

For special versions and optional equipment fittings or for the addition of

road will be poor if the drawbar load is too small.

accessories, the weight of the vehicle will increase ⇒

If the maximum permissible drawbar load cannot be met (e.g. with small,

empty and light-weight single axle trailers or tandem axle trailers with an axle

base of less than 1 metre), at least 4% of the actual trailer weight is a legal

WARNING

stipulation for a drawbar load.

• Please note that the centre of gravity may shift when transporting

heavy objects; this may affect the vehicle's handling and lead to an acci-

dent. Always adjust your speed and driving style to suit road conditions

WARNING

and requirements.

• For safety reasons, do not exceed the 80 km/h limit. This is also valid in

• Never exceed the gross axle weight rating or the gross vehicle weight

countries where higher speeds are permitted.

rating. If the allowed axle load or the allowed total weight is exceeded, the

• Never exceed the maximum trailer weights or the draw bar loading. If

driving characteristics of the vehicle may change, leading to accidents,

the permissible axle load or the permissible total weight is exceeded, the

injuries and damage to the vehicle.

driving characteristics of the vehicle may change, leading to accidents,

injuries and damage to the vehicle.

Towing a trailer

Wheels

Trailer weights

Tyre pressure, snow chains, wheel bolts

Trailer weights

The trailer weights and drawbar loads approved are selected in intensive

Tyre pressures

trials according to precisely defined criteria. The approved trailer weights are

The sticker with the tyre pressure values can be found on the inside of the

valid for vehicles in the EU for maximum speeds of 80 km/h (in certain

tank flap. The tyre pressure values given there are for cold tyres. The slightly

circumstances up to 100 km/h). The figures may be different in other coun-

raised pressures of warm tyres must not be reduced ⇒

tries. All data in the official vehicle documents take precedence over these

data ⇒

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

282

Technical Data

Technical Data

1

Vehicle battery

Checking fluid levels

2

Engine oil filler cap

From time to time, the levels of the different fluids in the

3

Brake fluid reservoir

vehicle must be checked. Never fill with incorrect fluids,

4

Engine oil dipstick.

5

Coolant expansion tank

otherwise serious damage to the engine may be caused.

6

Windscreen washer fluid container

7

Hydraulic fluid reservoir for power steering

The checking and refilling of service fluids are carried out on the components

mentioned above. These operations are described in the ⇒ page 213.

Overview

Further explanations, instructions and restrictions on the technical data are

contained as of ⇒ page 277.

Note

The layout of parts may vary depending on the engine.

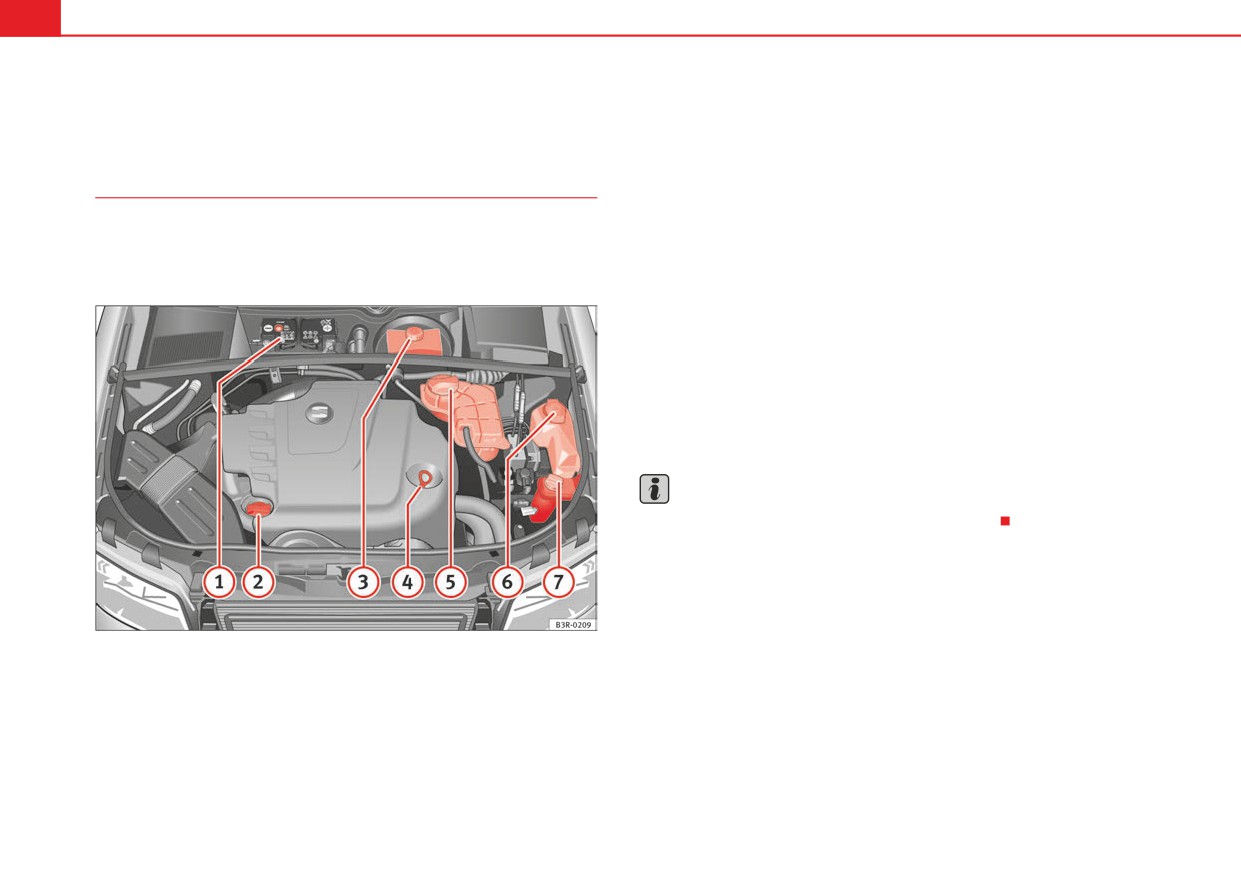

Fig. 228 Diagram for the location of the various elements

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical Data

283

Petrol engine 1.6l 75 kW (102 HP)

General engine data

Power output in kW (bhp)

rpm

75 (102) / 5600

Maximum torque

in Nm at 1/min

148 / 3800

No. of cylinders/ cubic capacity

in cm ³

4 / 1595

Compression

10,3 +/- 0,3

Fuel

Super 95 RON^a)/Normal 91 RON^b)

^a) Research-Octane-Number = Measure of the antidetonator petrol power.

^b) Slight power loss

Performance figures

Maximum speed

in km/h

190

Acceleration from 0-80 km/h

in sec.

8,6

Acceleration from 0-100 km/h

in sec.

12,6

Weights

Gross vehicle weight

in kg

1870

Weight in working order (with driver)

in kg

1385

Front gross axle weight

in kg

990

Rear gross axle weight

in kg

1010

Permitted roof load

in kg

75

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

284

Technical Data

Trailer weights

Trailer without brakes

690

Trailer with brakes, gradients up to 8%

1400

Trailer with brakes, gradients up to 12%

1200

Engine oil capacity

Approximate engine oil capacity with oil filter change

3.6 litres

Petrol engine 1.8l 110 kW (150 HP)

General engine data

Power output in kW (HP)

rpm

110 (150) / 5700

Maximum torque

in Nm at rpm

220 / 1800

No. of cylinders/ cubic capacity

in cm ³

4 / 1781

Compression

9,5 +/- 0,3

Fuel

Super 98 RON^a)/Super 95 RON^b)

^a) Research-Octane-Number = Measure of the antidetonator petrol power.

^b) Slight power loss.

Performance figures

Maximum speed

in km/h

217

Acceleration from 0-80 km/h

in sec.

6,3

Acceleration from 0-100 km/h

in sec.

9,3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical Data

285

Weights

Gross vehicle weight

in kg

1960

Weight in working order (with driver)

in kg

1475

Front gross axle weight

in kg

1065

Rear gross axle weight

in kg

1025

Permitted roof load

in kg

75

Trailer weights

Trailer without brakes

730

Trailer with brakes, gradients up to 8%

1600

Trailer with brakes, gradients up to 12%

1400

Engine oil capacity

Approximate engine oil capacity with oil filter change

4.4 litres

Petrol engine 2.0l 147 kW (200 HP)

General engine data

Power output in kW (HP)

rpm

147 (200) / 5100

Maximum torque

in Nm at rpm

280 / 1800

No. of cylinders/ cubic capacity

in cm ³

4 / 1984

Compression

10,3 +/- 0,3

Fuel

Super 98 RON^a)/Super 95 RON^b)

^a) Research-Octane-Number = Measure of the antidetonator petrol power.

^b) Slight power loss.

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

286

Technical Data

Performance figures

Maximum speed

in km/h

241

Acceleration from 0-80 km/h

in sec.

5,4

Acceleration from 0-100 km/h

in sec.

7,3

Weights

Gross vehicle weight

in kg

1990

Weight in working order (with driver)

in kg

1505

Front gross axle weight

in kg

1090

Rear gross axle weight

in kg

1030

Permitted roof load

in kg

75

Trailer weights

Trailer without brakes

750

Trailer with brakes, gradients up to 8%

1600

Trailer with brakes, gradients up to 12%

1400

Engine oil capacity

Approximate engine oil capacity with oil filter change

4.5 litres

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical Data

287

Diesel engine 2.0l 105 kW (143 hp)

Engine specifications

Power output in kW (bhp)

rpm

105 (143) / 4200

Maximum torque

in Nm at rpm

320 / 1750-2500

No. of cylinders/ cubic capacity

in cm ³

4 / 1968

Compression

16,5 +/- 0,3

Fuel

Min. 51 CN^a)

^a) Cetane-Number (cetane index) = Measure of the combustion power of the diesel

Performance figures

Maximum speed

in km/h

214

Acceleration from 0-80 km/h

in sec.

6,3

Acceleration from 0-100 km/h

in sec.

9,2

Weights

Gross vehicle weight

in kg

1990

Weight in working order (with driver)

in kg

1505

Front gross axle weight

in kg

1100

Rear gross axle weight

in kg

1015

Permitted roof load

in kg

75

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

288

Technical Data

Trailer weights

Trailer without brakes

750

Trailer with brakes, gradients up to 8%

1800

Trailer with brakes, gradients up to 12%

1600

Engine oil capacity

Approximate engine oil capacity with oil filter change

4.6 litres

Diesel engine 2.0l 125 kW (170 hp)

Engine specifications

Power output in kW (bhp)

rpm

125 (170) / 4200

Maximum torque

in Nm at rpm

350 / 1750-2500

No. of cylinders/ cubic capacity

in cm ³

4 / 1968

Compression

16,5 +/- 0,3

Fuel

Min. 51 CN^a)

^a) Cetane-Number (cetane index) = Measure of the combustion power of the diesel

Performance figures

Maximum speed

in km/h

229

Acceleration from 0-80 km/h

in sec.

5,9

Acceleration from 0-100 km/h

in sec.

8,4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical Data

289

Weights

Vehicle maximum gross weight

in kg

2015

Weight in working order (with driver)

in kg

1530

Front gross axle weight

in kg

1115

Rear gross axle weight

in kg

1030

Permitted roof load

in kg

75

Trailer weights

Trailer without brakes

750

Trailer with brakes, gradients up to 8%

1800

Trailer with brakes, gradients up to 12%

1600

Engine oil capacity

Approximate engine oil capacity with oil filter change

4.6 litres

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

290

Technical Data

Dimensions and capacities

Dimensions

Length, width

4,661 mm/ 1,772 mm

Height at kerb weight

1,430 mm

Front and rear projection

976 mm/ 1,043 mm

Wheelbase

2,642 mm

Turning circle

11.2 m

Front

Rear

Track width^a)

1,522 mm

1,523 mm

Capacities

Fuel tank

70 l. Reserve 10 l.

Windscreen washer fluid container with headlight washer

4.8 l.

Tyre pressure

Summer-grade tyres:

The correct tyre pressure can be seen on the sticker on the inside of the tank flap.

Winter tyres:

The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.

^a) This data will change depending on the type of wheel rim.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content      ..     16      17      18
