If and when

247

- Switch off the ignition and its failed electrical component.

Fuses

- Remove the fuse cover using a screwdriver ⇒ fig. 185.

Changing fuses

- Identify the fuse for the failed component ⇒ page 248, “Fuse

If a fuse has blown, it must be replaced.

assignment”.

- Take the plastic clip from inside the fuse cover, fit it onto the

blown fuse, and pull the fuse out.

- Replace the blown fuse (which will have a melted metal strip)

with a new fuse of the same amp rating.

- Fit the fuse cover back on.

The individual electrical circuits are protected by fuses. The fuses are located

behind a cover at the left-hand end of the instrument panel.

Two spare fuses and a sticker identifying the fuses are provided on the inside

of the fuse cover. There is also a crank handle for operating the sun roof* by

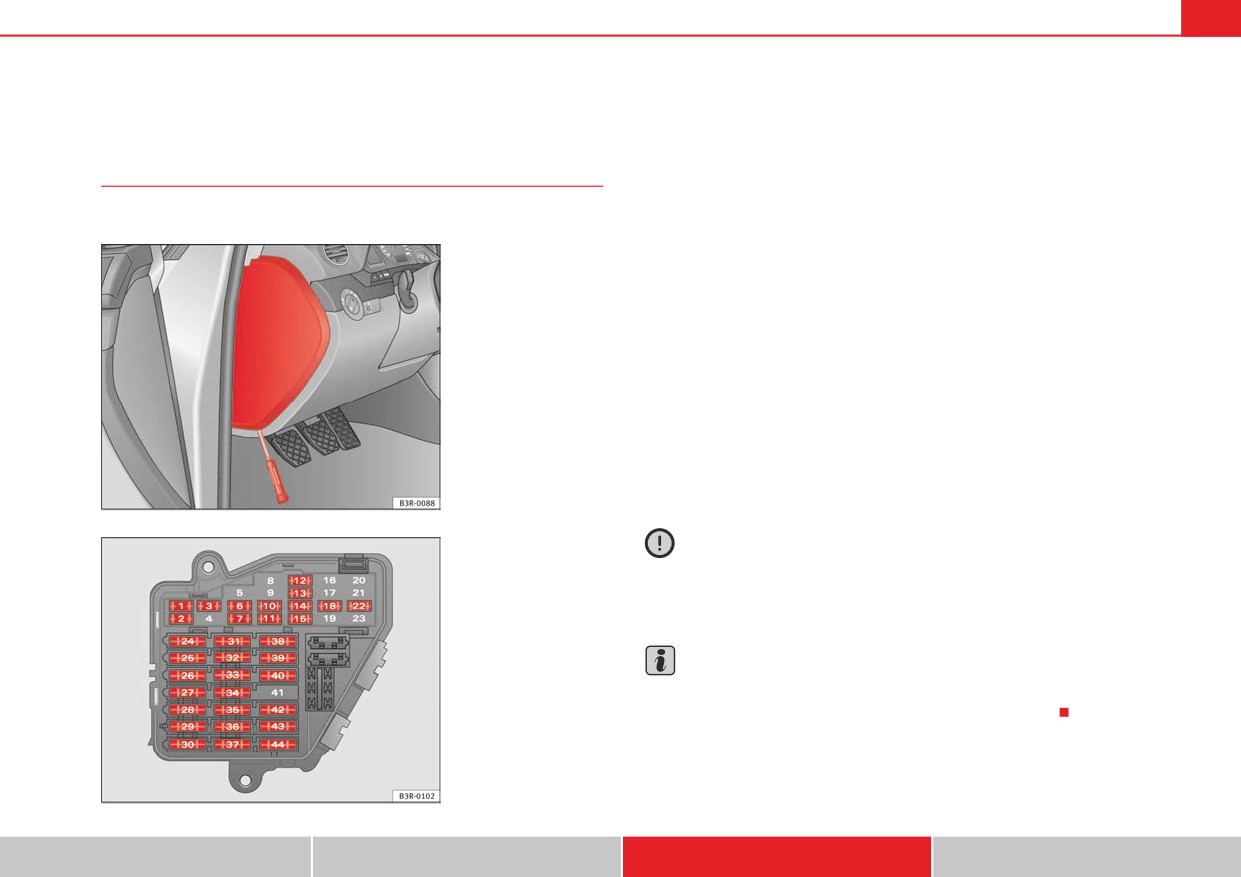

Fig. 185 Left side of dash

panel: Fuse box cover

hand (if the electrical system fails).

Caution

Never “repair” damaged fuses and never replace them with fuses with a

higher rating. Failure to comply could result in fire. It could also cause

damage to other parts of the electrical system.

Note

If a newly replaced fuse blows again after a short time, the electrical system

must be checked by a qualified workshop as soon as possible.

Fig. 186 Schematic

drawing of fuse box at the

left-hand end of instru-

ment panel: Fuses

(without fuse cover)

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

248

If and when

Fuse assignment

No.

Consumer

Amps

This list shows the fuses which can be replaced relatively

19

Fog lights

15

easily by the owner.

20

Vacant

21

Vacant

No.

Consumer

Amps

22

Driver's door / front passenger's door

15

1

Climate control

10

23

Rear doors

15

2

Footwell lamps

5

24

Central electrics unit for convenience equipment

20

3

Heated washer jets

5

25

Heater blower

30

4

Radiator fan

5

26

Rear window heater

30

Telephone, multifunction switch, rear window sun

5

10

27

Electrical socket for trailer (control unit)

30

blind

28

Fuel pump, auxiliary pump for diesel

20

6

Air conditioner (air purity sensor), pressure sensor

5

29

Vacant

Electronic Stabilisation Program (ESP), brake light

7

10

switch, clutch pedal switch, steering angle sensor

30

Sliding/tilting sunroof

20

8

Telephone

5

Diagnosis connection, automatic anti-dazzle interior

31

15

mirror with automatic adjustment

9

Brake servo (vacuum pump)

15

32

Towing socket

15

10

Self-directing headlights (adaptive light) right

5

33

Lighter

20

11

Tyre pressure monitoring

34

Vacant

12

Diagnostic socket

10

35

Luggage compartment power point*

20

13

Steering column unit

10

36

Wiper system

30

14

Brake lights

10

Pump for windscreen washer and headlight washer

15

instrument panel

10

37

30

system

16

Vacant

5

Central electrics unit for convenience equipment, bon-

38

15

Parking aid, self-levelling suspension, tyre pressure

net unlocking

17

10

monitoring system, rain/ light sensor

39

Radio

20

18

Self-directing headlights (adaptive light) left

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

249

The following bulbs can only be changed by a qualified workshop:

No.

Consumer

Amps

• Main headlights: Xenon* bulb ⇒ page 256

40

Horn

25

• Front fog lights: Bulb

41

Vacant

30

As a rule, you require a certain degree of practical skill to change defective

42

Electronic stabilisation programme (ESP)

25

bulbs. This applies in particular to those bulbs which are only accessible from

43

Engine management

15

the engine compartment.

44

Seat heating

35

If in doubt, we recommend that you have defective bulbs changed by a qual-

ified workshop or qualified mechanic.

Some of the electrical items listed in the table are only fitted on certain

models or are optional extras.

If you do decide to change bulbs in the engine compartment yourself, be

aware of the safety risks involved ⇒ page 213 ⇒

in “Types of bulbs”.

The electric windows and electric seat adjusters are protected by circuit

breakers. These reset automatically after a few seconds when the overload

(caused for example by frozen windows) has been corrected.

Changing bulbs Halogen headlights

Note

Please note that the above list contains all data at the time of going to press,

Types of bulbs

so it is subject to modifications. If discrepancies should occur, please refer to

the sticker on the inside of the fuse cover for the correct information for your

You must only replace a bulb with a bulb of the same type. The name can be

model.

found on the base of the bulb.

Bulb

Type

Bulbs

Dipped-beam headlights (halogen)

12 V/55 W (H7, H7 LL)

Main beam headlights

12 V/55 W (H1)

General notes

Indicator light

12 V/21 W (PY21W)

Side lights

12 V/5 W (W5W LL)

You can change the following bulbs for exterior lights yourself:

• Main headlights: all (except for xenon headlights)

WARNING

• Rear lights: All bulbs

• Take particular care when working on components in the engine

• Bulb for side indicator

compartment if the engine is warm - risk of burns!

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

250

If and when

vaporise as a result of the heat generated by the bulb, be deposited on the

WARNING (continued)

reflector and impair its surface.

• Bulbs are highly sensitive to pressure. The glass can break when you

touch the bulb, causing injury.

• The high voltage element of gas discharge lamps* (xenon light) must

Removing the air duct

be handled correctly. Otherwise, there is a risk of death.

• When changing bulbs, please take care not to injure yourself on sharp

The air duct has to be removed to gain access to the bulbs for

parts in the headlight housing.

the right-side headlight.

Caution

• Remove the ignition key before working on the electric system. If not, a

short circuit could occur.

• Switch off the lights or parking lights before you change a bulb.

For the sake of the environment

Please ask your specialist retailer how to dispose of used bulbs in the proper

manner.

Note

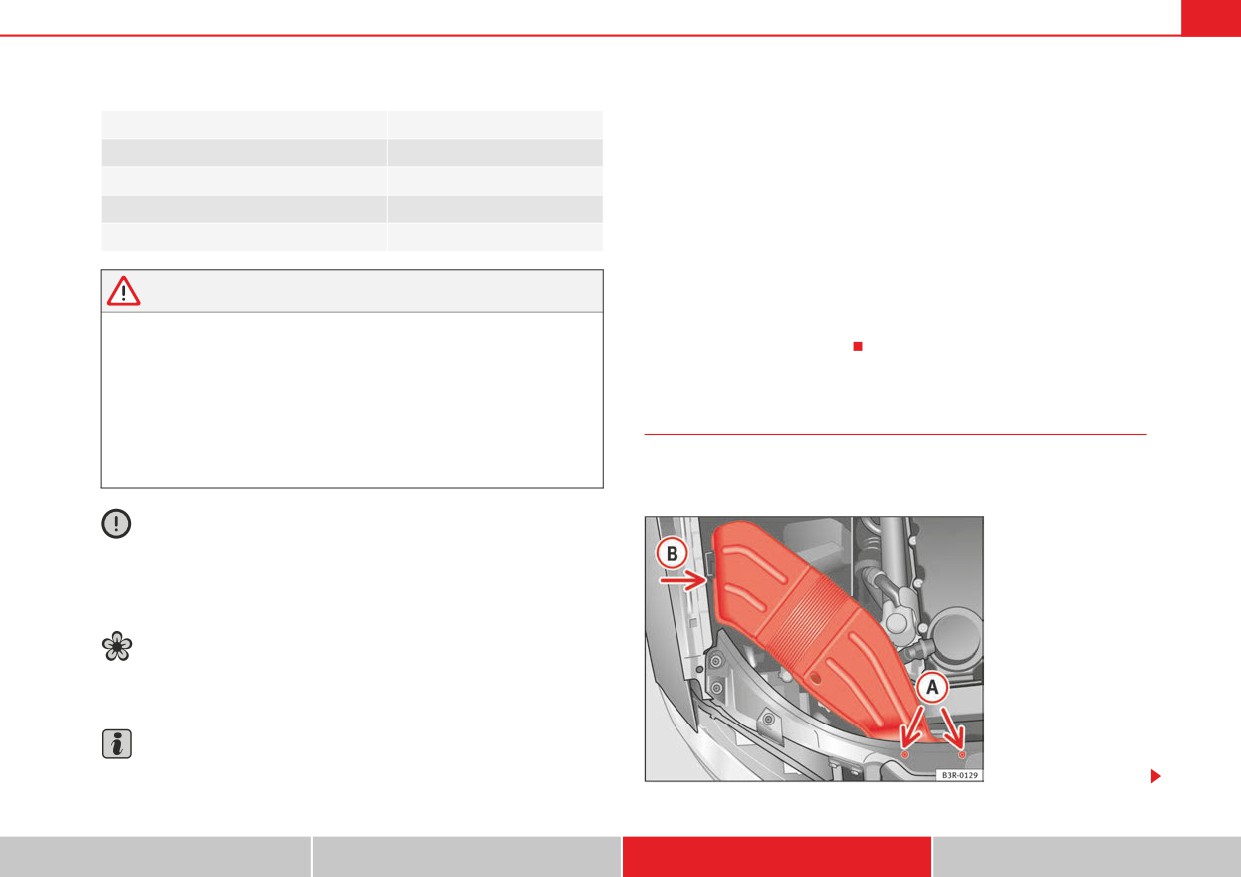

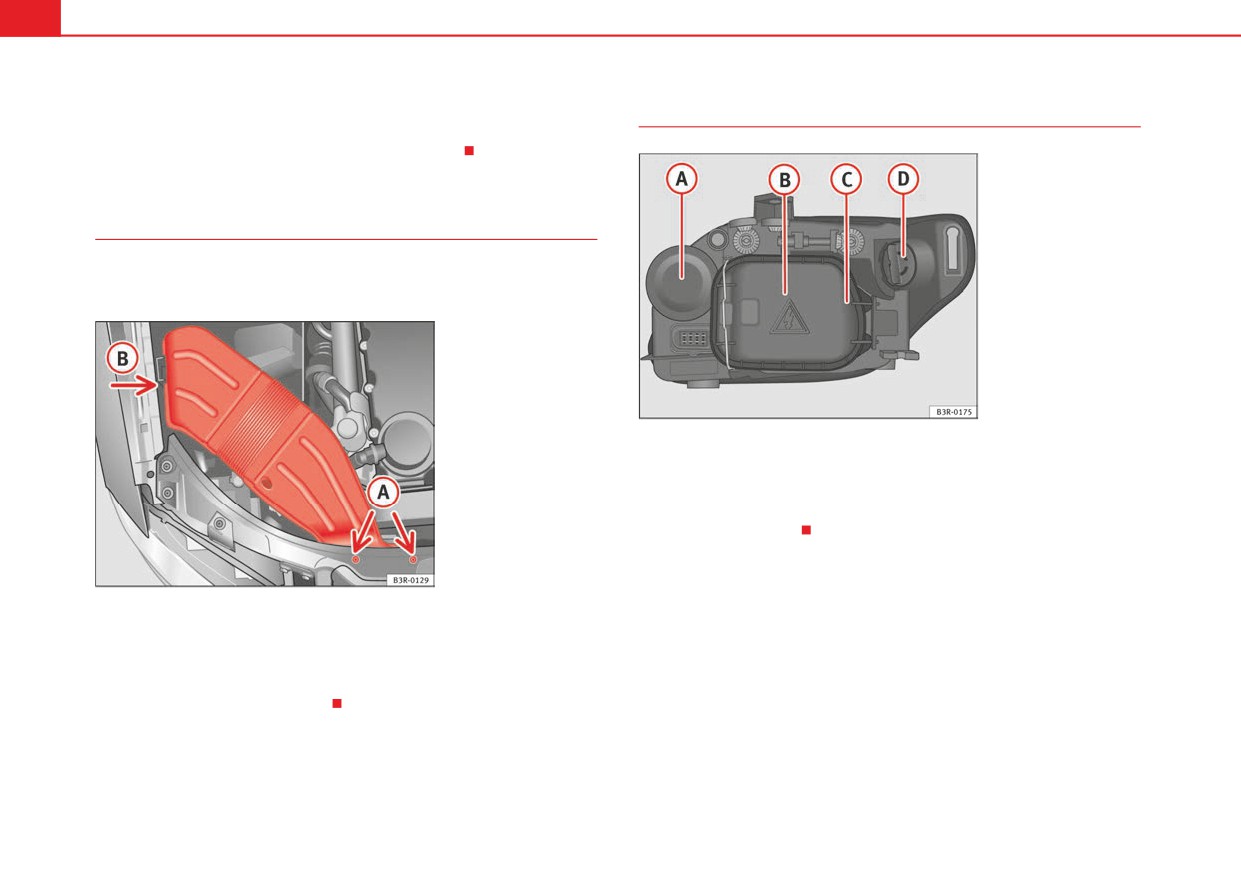

Fig. 187 Air duct on right

• Depending on weather conditions (cold or wet), the front lights, the fog

side of vehicle

lights, the rear lights and the indicators may be temporarily misted. This has

no influence on the life expectancy of the lighting system. By switching on the

- Unscrew bolts

A

⇒ fig. 187.

lights, the area through which the beam of light is projected will quickly be

demisted. However, the edges may continue to be misted.

– Detach air duct from guide

B

and take it out.

• Please check at regular intervals that all lighting (especially the exterior

lighting) on your vehicle is functioning properly. This is not only in the interest

of your own safety, but also in that of all other road users.

• Before changing a bulb, make sure you have the correct new bulb.

• Do not touch the glass part of the bulb with your bare hands, use a cloth

or paper towel instead. Otherwise, the fingerprints left on the glass will

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

251

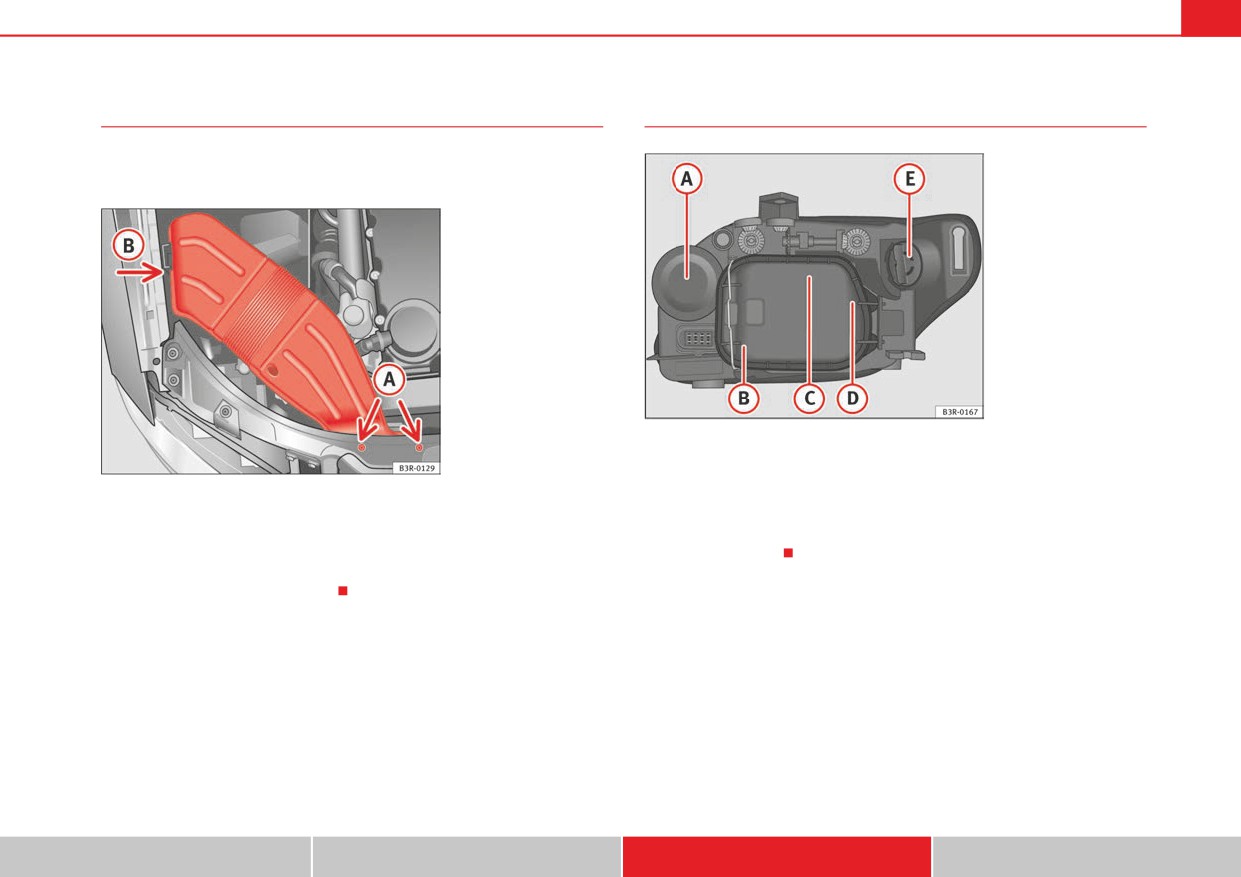

Fitting the air duct

Halogen headlight bulbs

Once the bulb(s) for the right-side headlight have been

changed, the air duct must be re-installed.

Fig. 189 Halogen bulbs

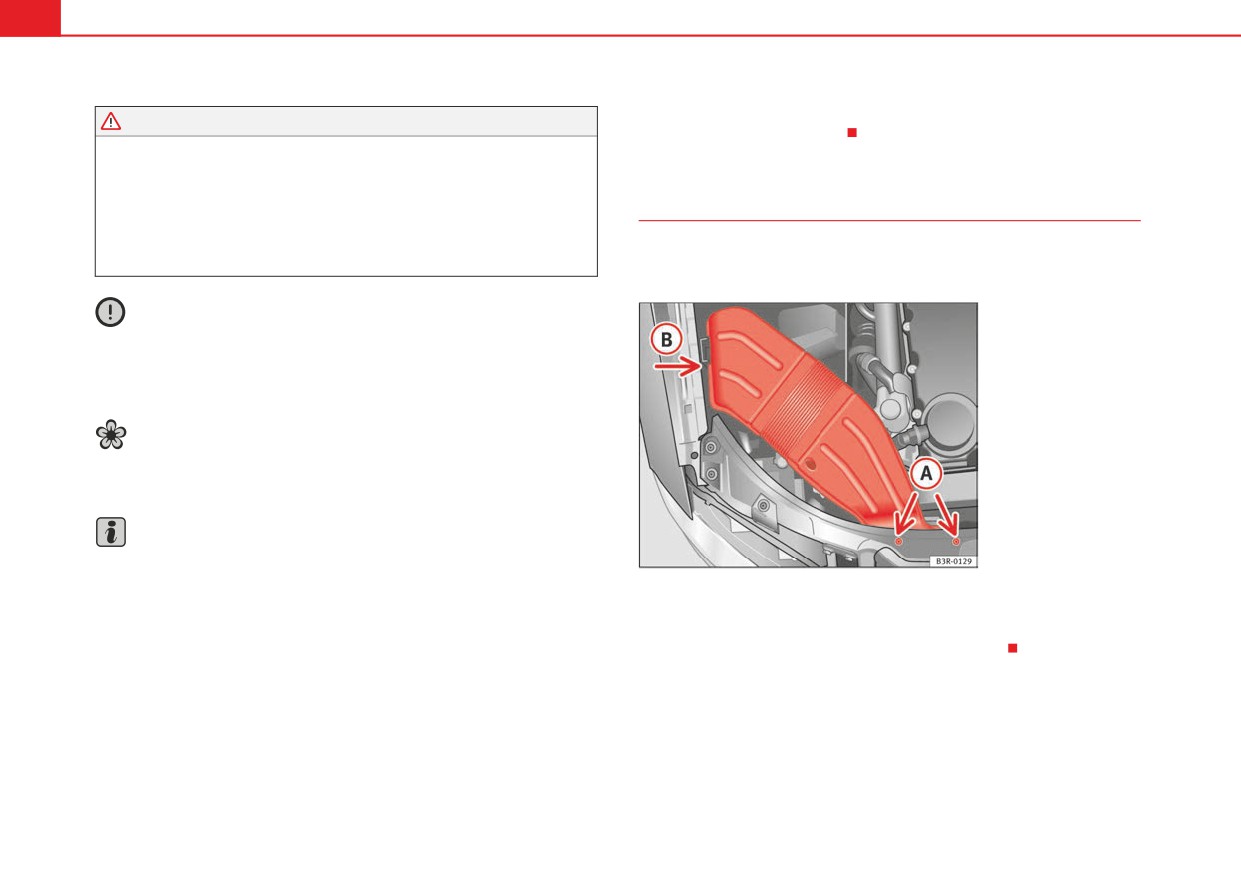

Fig. 188 Air duct on right

A

Main beam headlights

side of vehicle

B

Side lights

C

Dipped headlights

- Place the air duct in the correct position.

D

Side lights

- First turn the two screws

A

in lightly, then tighten both screws.

E

Turn signal light

– Push air duct into guide

B

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

252

If and when

Changing the turn signal bulb

Note

The procedure for changing the bulbs on the front

Although it is not necessary, previously remove the rigid cover ⇒ page 254,

passenger's side is the same as on the driver's side.

fig. 193 for easier turn signal bulb changes.

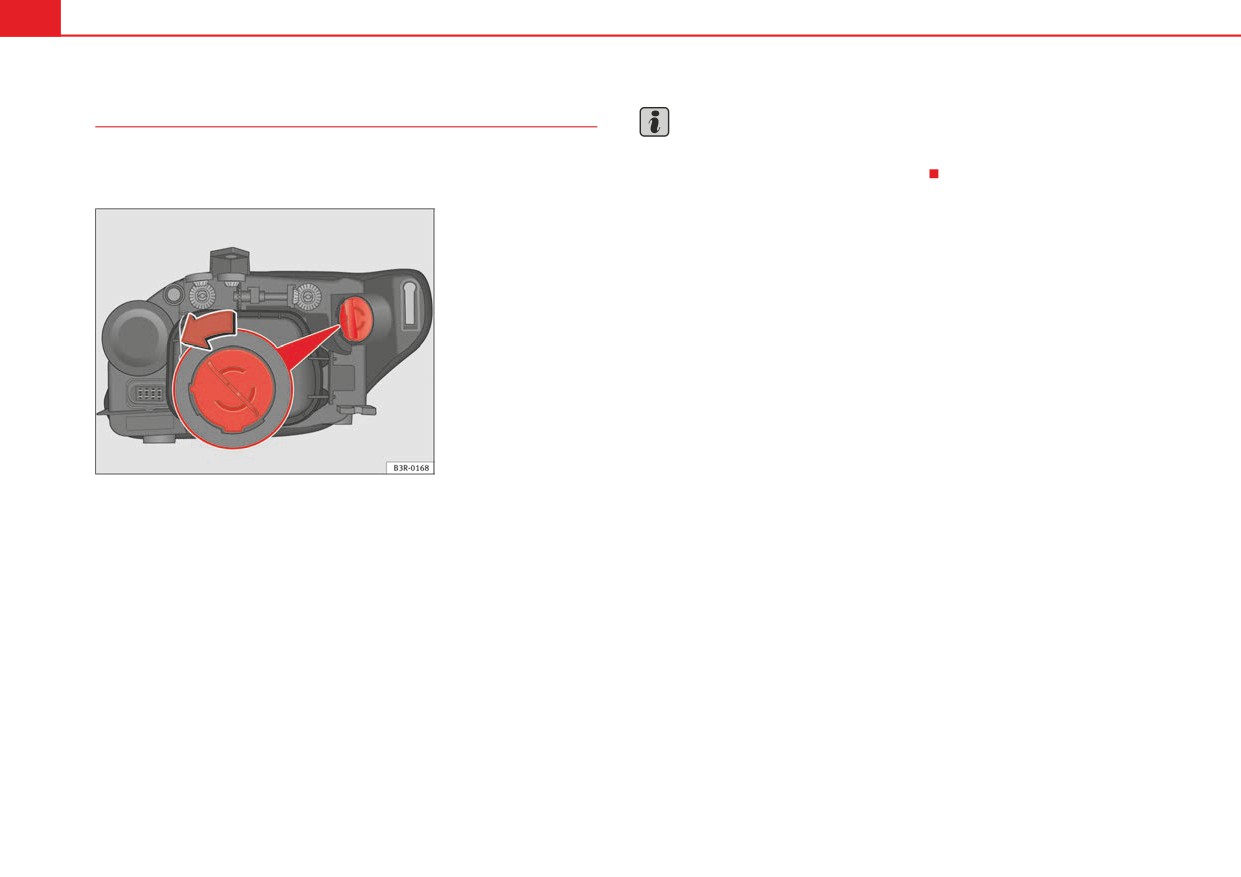

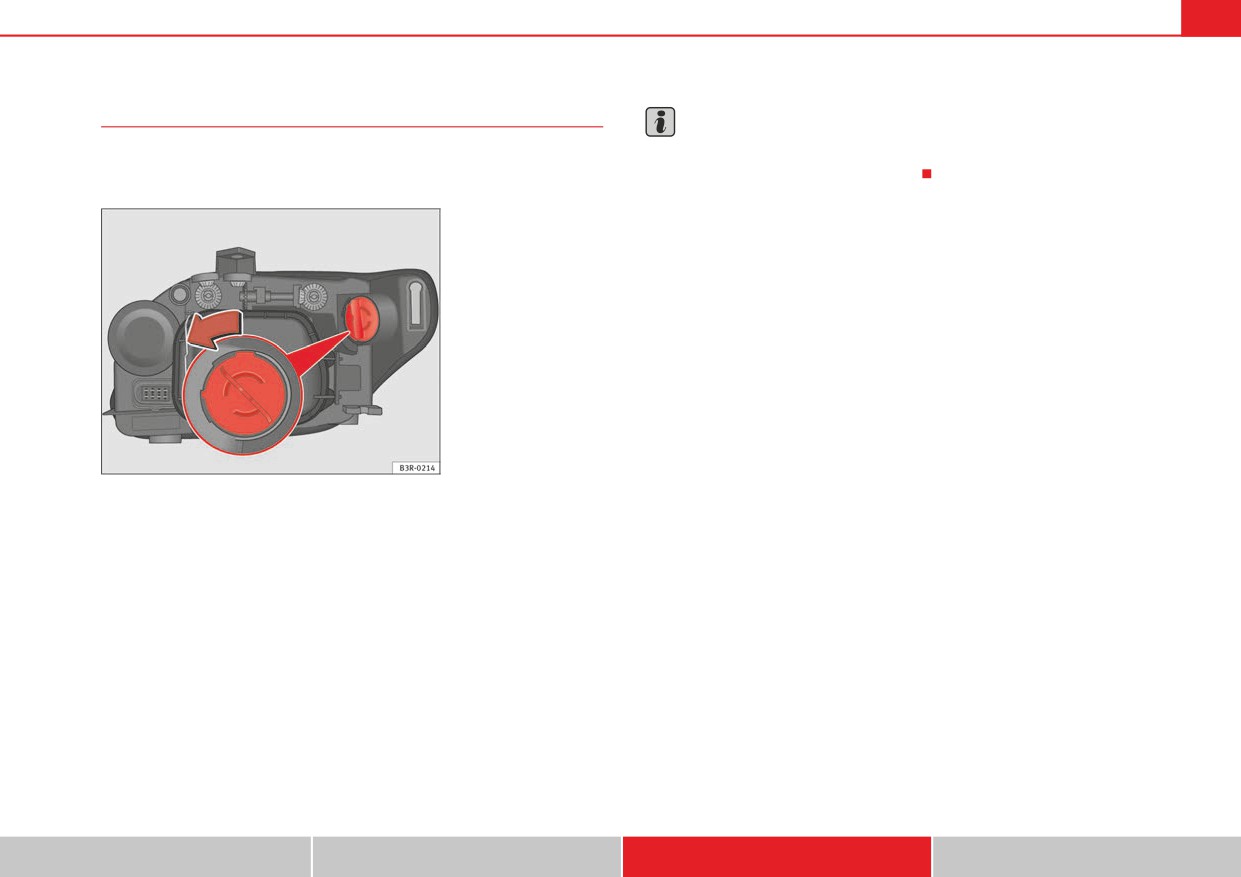

Fig. 190 Turn signal bulb

- Switch off the ignition and the lights.

- Raise the bonnet.

- Turn the bulb holder anti-clockwise, pulling it by the grip

⇒ fig. 190 and removing the bulb holder and the bulb.

- Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

- Installation is in the reverse order.

– Check whether the new bulb is working.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

253

Changing the main headlight bulb

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Remove the rubber cover

A

⇒ fig. 191 by pulling it.

–

Remove the connector ⇒ fig. 192 from the bulb.

1

–

Press the spring ⇒ fig. 192

2

inwards and to the right.

–

Remove the bulb. pulling it from the connection terminal and

fitting fit the replacement so that it sits correctly in the cut-out on

the reflector. To ensure correct lighting, the filament must be

vertical. When changing the bulb, you can check the position of

the bulb through the headlight glass.

-

Installation is in reverse order, ensuring that the rubber cover is

well fitted to the housing.

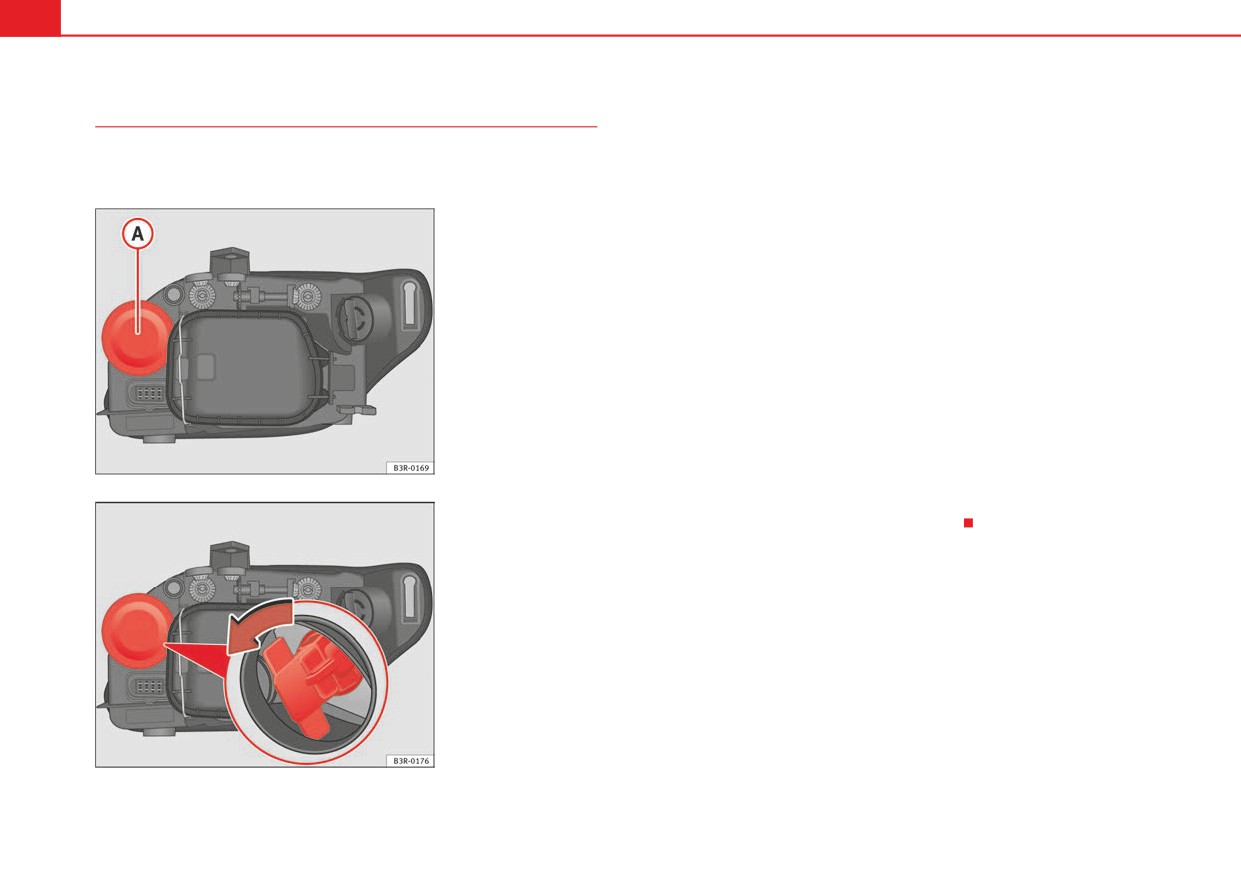

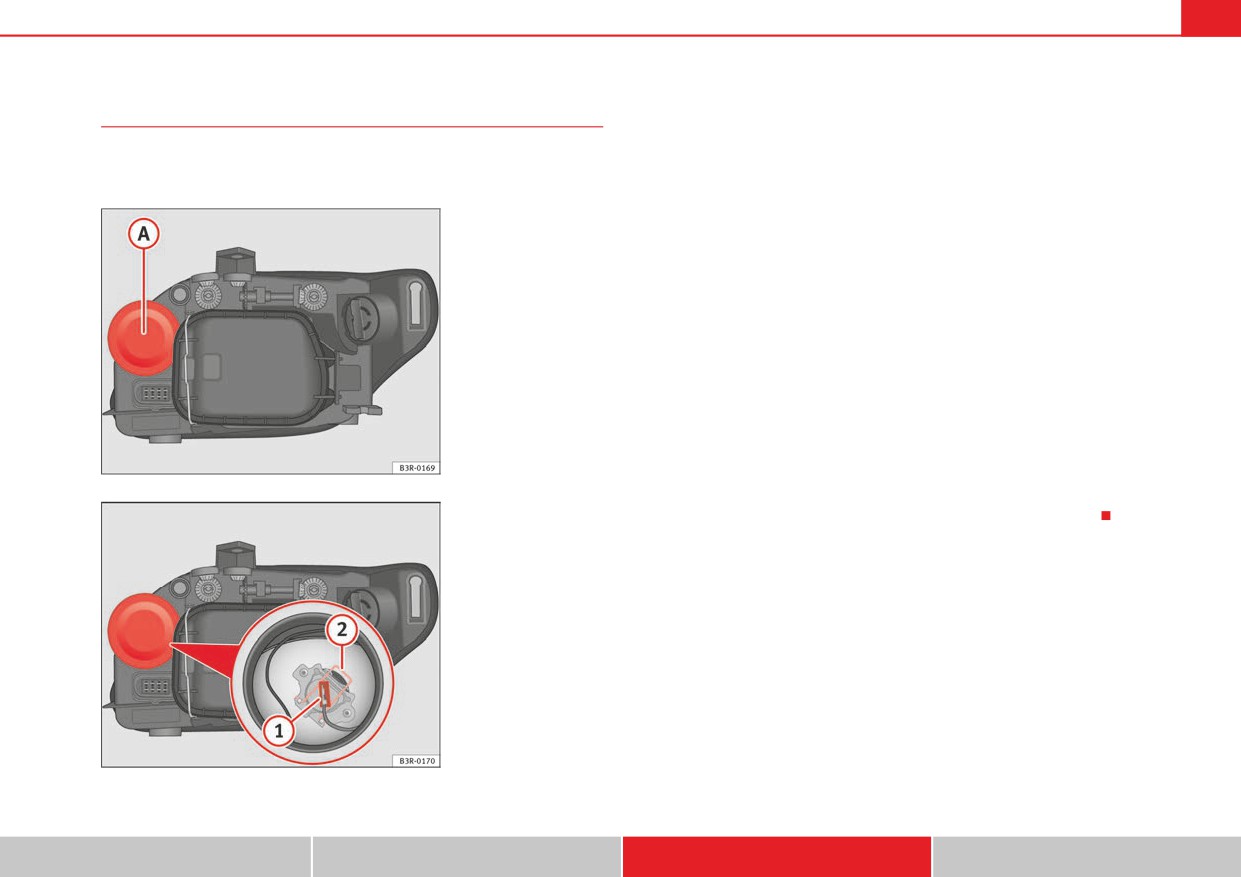

Fig. 191 Main beam

headlights

-

Check whether the new bulb is working.

-

Have the headlight settings checked as soon as possible.

Fig. 192 Main beam

headlights

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

254

If and when

Changing the dipped beam headlight bulb

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 193 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Pull the connector ⇒ fig. 194

2

from the bulb.

–

Unclip the retainer spring ⇒ fig. 194

3

pressing inwards to the

right.

-

Remove the bulb and fit the new one in the headlight casing with

the tab upwards, starting to position it from below.

-

Clip on the spring, raising it and pressing it slightly while turning

it anti-clockwise. To ensure correct lighting, the filament must be

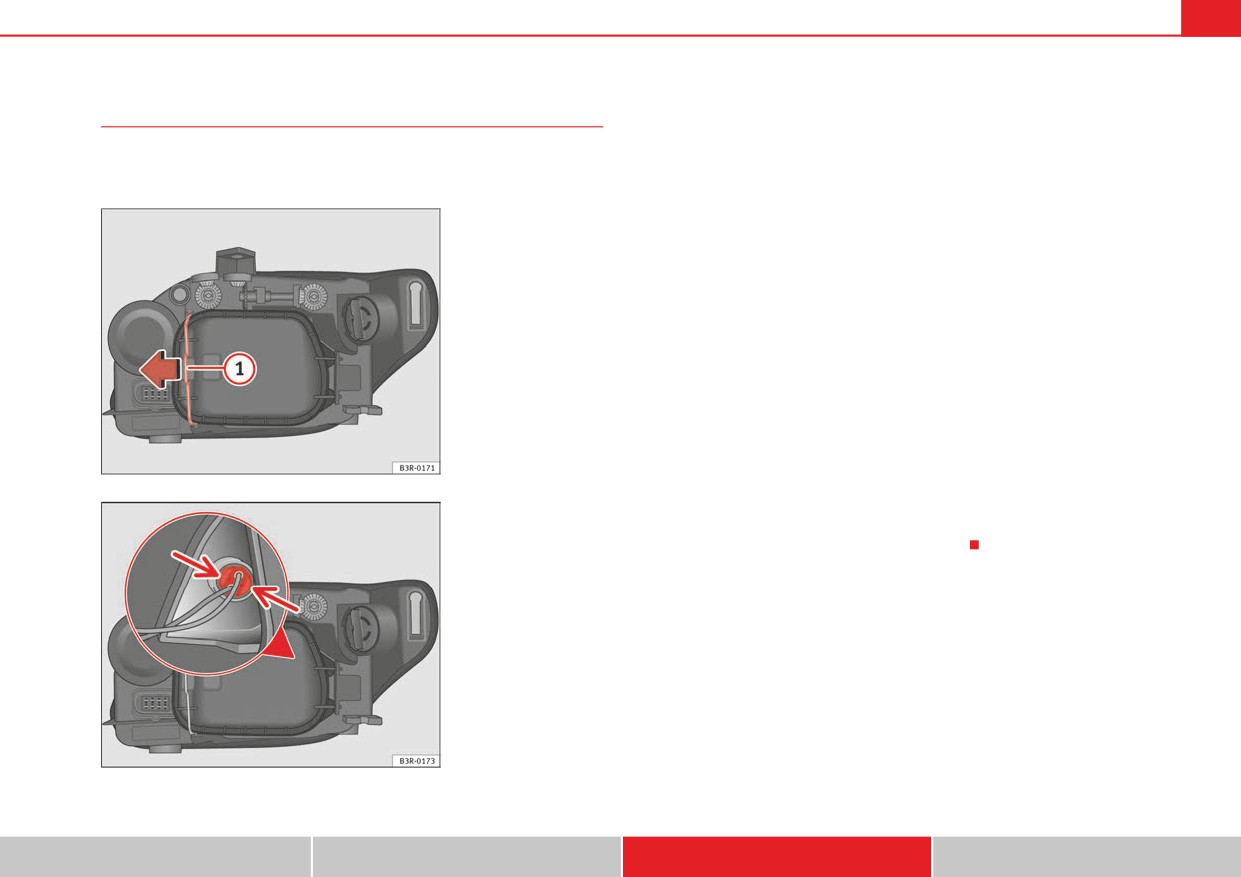

Fig. 193

Dipped head-

lights

vertical. When changing the bulb, you can check the position of

the bulb through the headlight glass.

-

Connect the connector to the bulb.

–

Fit the cover, first inserting the side tabs and then closing the

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

-

Check whether the new bulb is working.

-

Have the headlight settings checked as soon as possible.

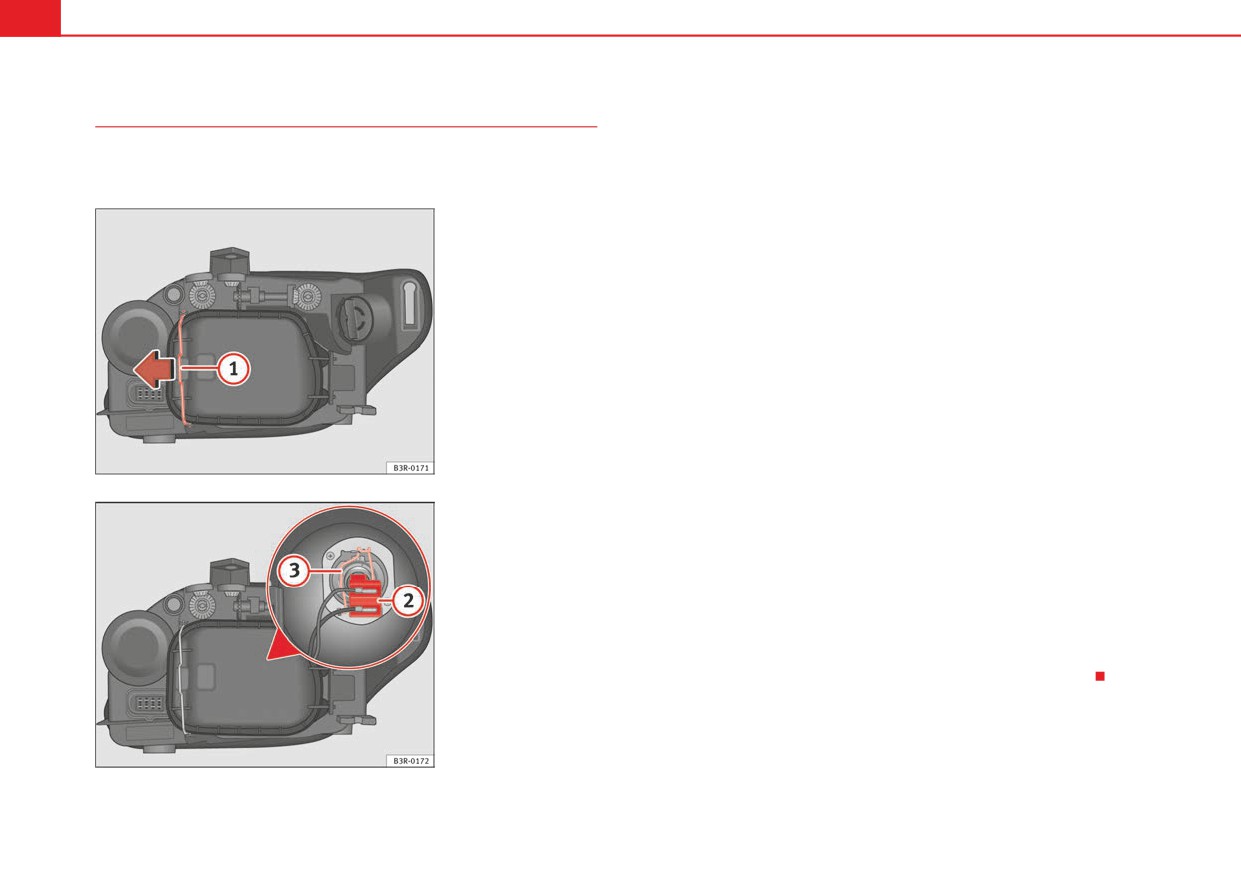

Fig. 194 Dipped head-

lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

255

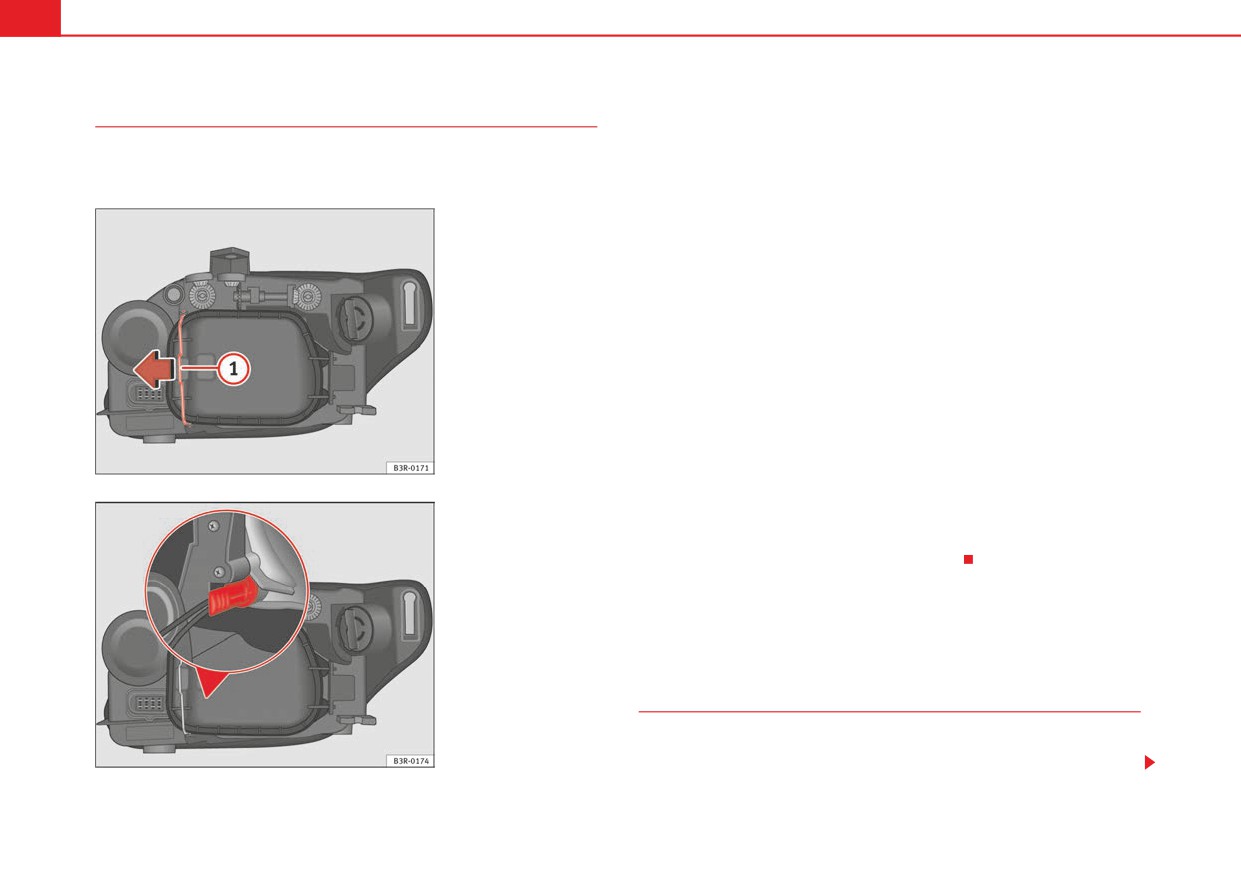

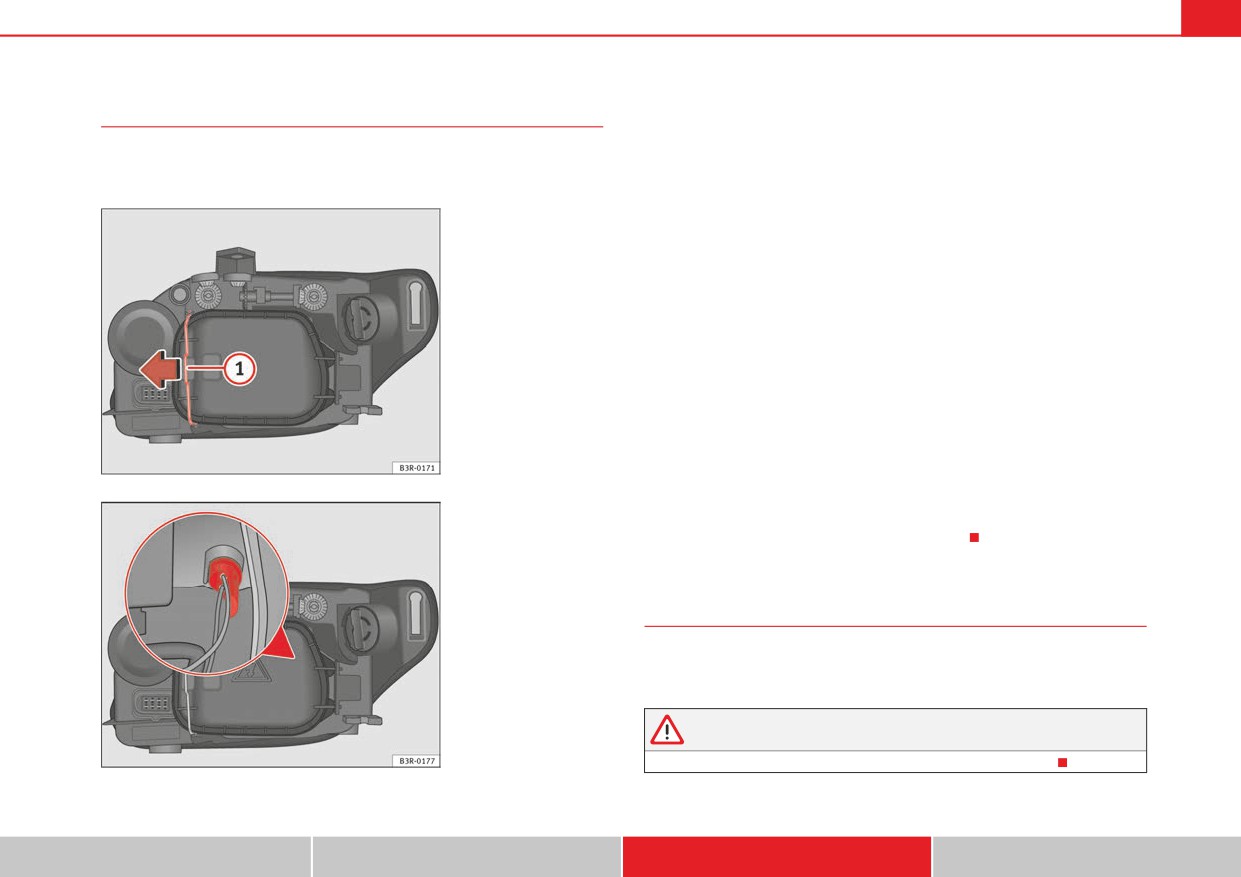

Changing side light bulb (outside of vehicle)

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 195 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Gently press on the bulb holder tabs ⇒ fig. 196 and pull the

cover upwards (it can also be removed by pulling on the bulb

holder wires).

-

Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

-

Fit the new bulb by pressing on the bulb holder.

–

Insert the bulb into the socket and press on the bulb holder. Fit

Fig. 195 Side light bulb

(outside of vehicle)

the cover, first inserting the side tabs and then closing the cover

and the brace. Make sure that the gasket sits well on the casing

cover during the operation.

-

Check whether the new bulb is working.

Fig. 196 Side light bulb

(outside of vehicle)

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

256

If and when

Changing the side light bulb (inside of vehicle)

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 197 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Remove the bulb and the bulb holder by pulling on the bulb

holder wiring.

-

Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

-

Fit the new bulb by pressing on the bulb holder.

–

Insert the bulb into the socket so that the side of the bulb holder

grip is vertical ⇒ fig. 198 and press on it.

Fig. 197 Side light bulb

(inside of vehicle)

-

Fit the cover, first inserting the side tabs and then closing the

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

-

Check whether the new bulb is working.

Changing bulbs. Bi-Xenon AFS headlights

Types of bulbs

Fig. 198 Side lights. Bulb

holder grip in vertical

You must only replace a bulb with a bulb of the same type. The name can be

position

found on the base of the bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

257

phenomenon has no influence on the life expectancy of the vehicle lights. If

Bulb

Type

headlamps are switched on, the area where the light shaft is projected, is

Xenon bulbs

12 V/35 W (D1S)

demisted in little time. However, the edges may be steamed up on the inte-

rior.

DRL (day light)

12 V/21 W (P21W SLL)

• Please check at regular intervals that all lighting (especially the exterior

Indicator light

12 V/21 W (PY21W)

lighting) on your vehicle is functioning properly. This is not only in the interest

Side lights

12 V/5 W (W5W blue LL)

of your own safety, but also in that of all other road users.

• Before changing a bulb, make sure you have the correct new bulb.

• Do not touch the glass part of the bulb with your bare hands, use a cloth

WARNING

or paper towel instead. Otherwise, the fingerprints left on the glass will

• Take particular care when working on components in the engine

vaporise as a result of the heat generated by the bulb, be deposited on the

compartment if the engine is warm - risk of burns!

reflector and impair its surface.

• Bulbs are highly sensitive to pressure. The glass can break when you

touch the bulb, causing injury.

• The high voltage element of gas discharge lamps* (xenon light) must

Removing the air duct

be handled correctly. Otherwise, there is a risk of death.

• When changing bulbs, please take care not to injure yourself on sharp

The air duct has to be removed to gain access to the bulbs for

parts in the headlight housing.

the right-side headlight.

Caution

• Remove the ignition key before working on the electric system. If not, a

short circuit could occur.

• Switch off the lights or parking lights before you change a bulb.

For the sake of the environment

Please ask your specialist retailer how to dispose of used bulbs in the proper

manner.

Note

Fig. 199 Air duct on right

• Depending on the weather conditions (cold, humidity), the front head-

side of vehicle

lights and front lights, the rear pilots and the indicators could steam up. This

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

258

If and when

– Unscrew bolts

A

⇒ page 257, fig. 199.

Bi-Xenon AFS headlight bulbs

– Detach air duct from guide

B

and take it out.

Fitting the air duct

Once the bulb(s) for the right-side headlight have been

changed, the air duct must be re-installed.

Fig. 201 Bi-Xenon AFS

headlight bulbs

A

Indicator light

B

Xenon headlight (dipped beam/main beam)

C

Side lights

D

DRL light (day light)

Fig. 200 Air duct on right

side of vehicle

- Place the air duct in the correct position.

- First turn the two screws

A

in lightly, then tighten both screws.

- Push air duct into guide

B

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

259

Changing the DRL light bulb (day light)

Note

The procedure for changing the bulbs on the front

Although it is not necessary, previously remove the rigid cover ⇒ page 261,

passenger's side is the same as on the driver's side.

fig. 205 for easier day light bulb changes.

Fig. 202 DRL light (day

light)

- Switch off the ignition and the lights.

- Raise the bonnet.

- Turn the bulb holder anti-clockwise, pulling it by the grip

⇒ fig. 202 and removing the bulb holder and the bulb.

- Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

– Installation is in the reverse order.

Safety First

Operating instructions

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

260

If and when

Changing the turn signal bulb

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Pull the rubber cap ⇒ fig. 203 to remove it.

–

Remove the bulb holder by pulling on the grip and turning it anti-

clockwise ⇒ fig. 204.

-

Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

-

Insert the bulb holder into the socket with the tab facing upwards

and the grip horizontal. Press it against the socket and turn

clockwise. When changing the bulb, you can check the position

of the bulb through the headlight glass.

Fig. 203 Turn signal

-

Fit the rubber cap and tighten, making sure it fit properly into the

headlight casing.

–

Check whether the new bulb is working.

Fig. 204 Turn signal

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

261

Changing the side light bulb

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 205 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Remove the bulb holder by pulling on the grip ⇒ fig. 206 (it can

also be removed by pulling on the bulb holder wires).

-

Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

-

Fit the new bulb by pressing on the bulb holder.

–

Insert the bulb into the socket and press on the bulb holder grip.

–

Fit the cover, first inserting the side tabs and then closing the

Fig. 205 Side light

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

-

Check whether the new bulb is working.

Changing the xenon bulb

The procedure for changing the bulbs on the front passenger's side is the

same as on the driver's side.

WARNING

Fig. 206 Side light

This type of bulb should be changed at a qualified workshop.

Safety First

Operating instructions

Practical tips

Technical Data

Content      ..     14      15      16      17     ..
