6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Light bulbs

A: H11 halogen bulbs

B: HB3 halogen bulbs

C: Single end bulbs (amber)

D: Single end bulbs (clear)

E: Wedge base bulbs (clear)

F: Wedge base bulbs (amber)

G: Double end bulbs

Light Bulbs

Bulb No.

W

Type

Exterior

Headlights

Low beam
High beam

9704
9005

55
60

A
B

Front turn signal lights



21

C

Parking lights



5

D

Front side marker
lights



5

E

Rear turn signal lights



21

F

Stop/tail lights and
rear side marker lights

7443

21/5

E

Back-up lights

921

16

E

Licence plate lights



5

E

Interior

Personal lights



8

E

Interior lights



8

G

Luggage compart-
ment lights



5

G

342

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Fuel information

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your Scion has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.

■

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.

■

Gasoline quality standards

●

Automotive manufacturers in the U.S.A., the Europe and Japan have
developed a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.

●

The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.

●

The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.

You must only use unleaded gasoline in your vehicle.

Select octane rating 87 (Research Octane Number 91) or higher. Use

of unleaded gasoline with an octane rating lower than 87 may result

in engine knocking. Persistent knocking can lead to engine damage.

At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A..

343

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

■

Recommendation of the use of gasoline containing detergent additives

●

Scion recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.

●

Scion strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

■

Recommendation of the use of cleaner burning gasoline

Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.

Scion recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Scion does not recommend the use of gasoline containing methanol.

●

Use only gasoline containing a maxi-
mum of 10% ethanol.

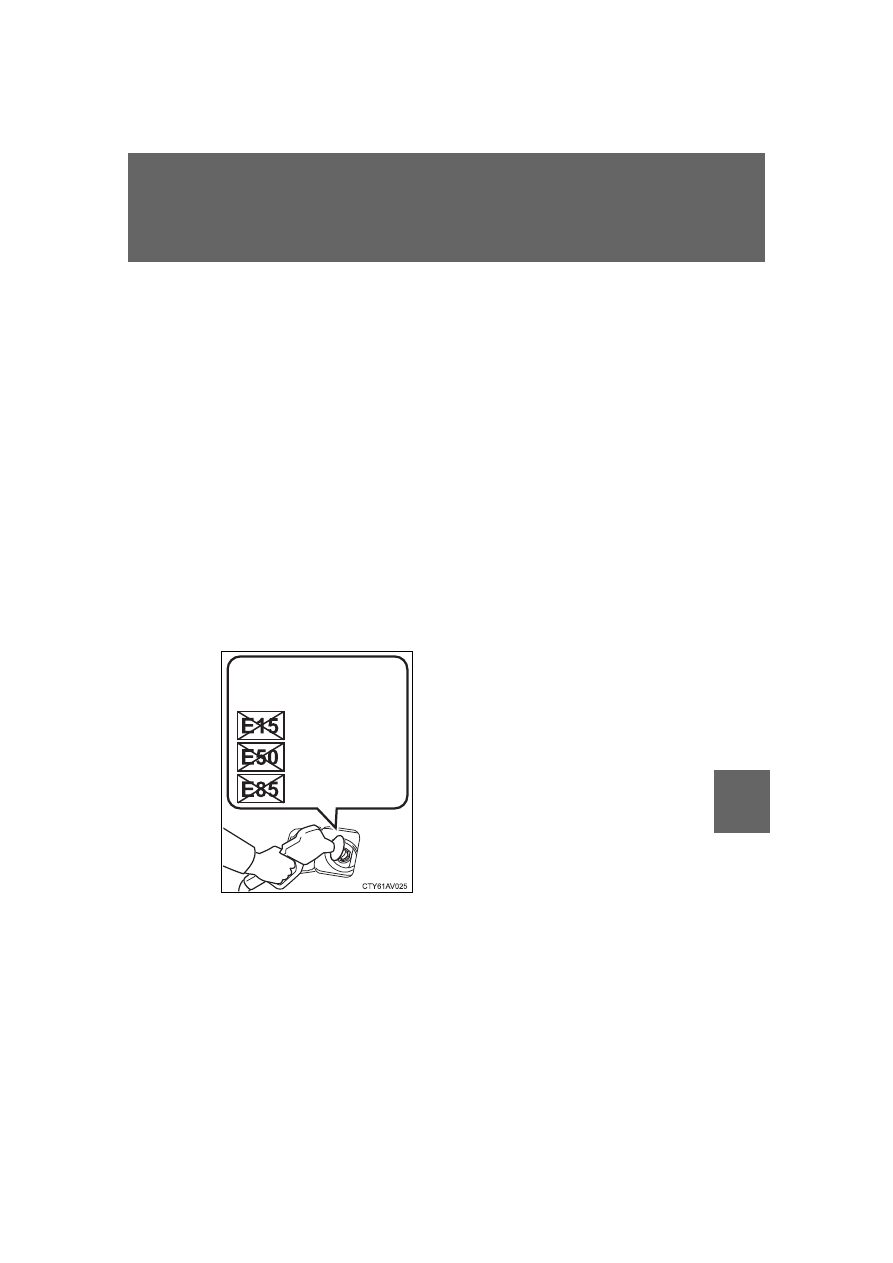

DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).

DO NOT use gasoline

containing more than

10% ethanol.

(15% ethanol)

(50% ethanol)

(85% ethanol)

344

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).

Scion does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.

The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Scion dealer for service.

■

If your engine knocks

●

Consult your Scion dealer.

●

You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability is encountered after using a different type of fuel (poor hot
starting, vaporization, engine knocking, etc.), discontinue the use of that type
of fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.

345

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Tire information

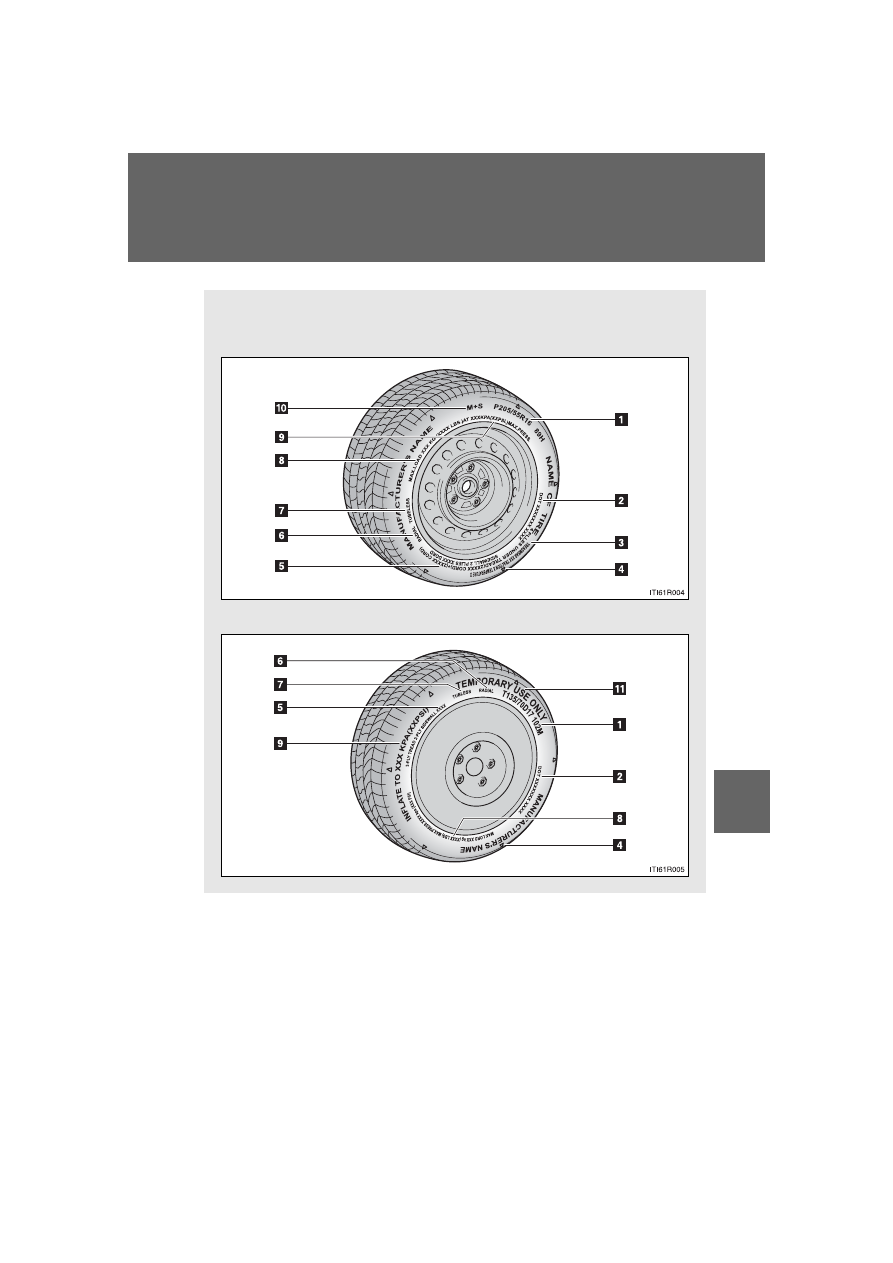

Typical tire symbols

Full-size tire

Compact spare tire

346

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Tire size

(

P. 348)

DOT and Tire Identification Number (TIN)

(

P. 347)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators

(

P. 238)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.

Load limit at maximum cold tire inflation pressure

(

P. 241)

Maximum cold tire inflation pressure

(

P. 340)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires

 (

P. 242)

An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.

“TEMPORARY USE ONLY”

 (

P. 311)

A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.

347

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Typical DOT and Tire Identification Number (TIN)

DOT symbol

*

Tire Identification Number
(TIN)

Tire manufacturer’s identifica-
tion mark

Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that

the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.

348

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Tire size

■

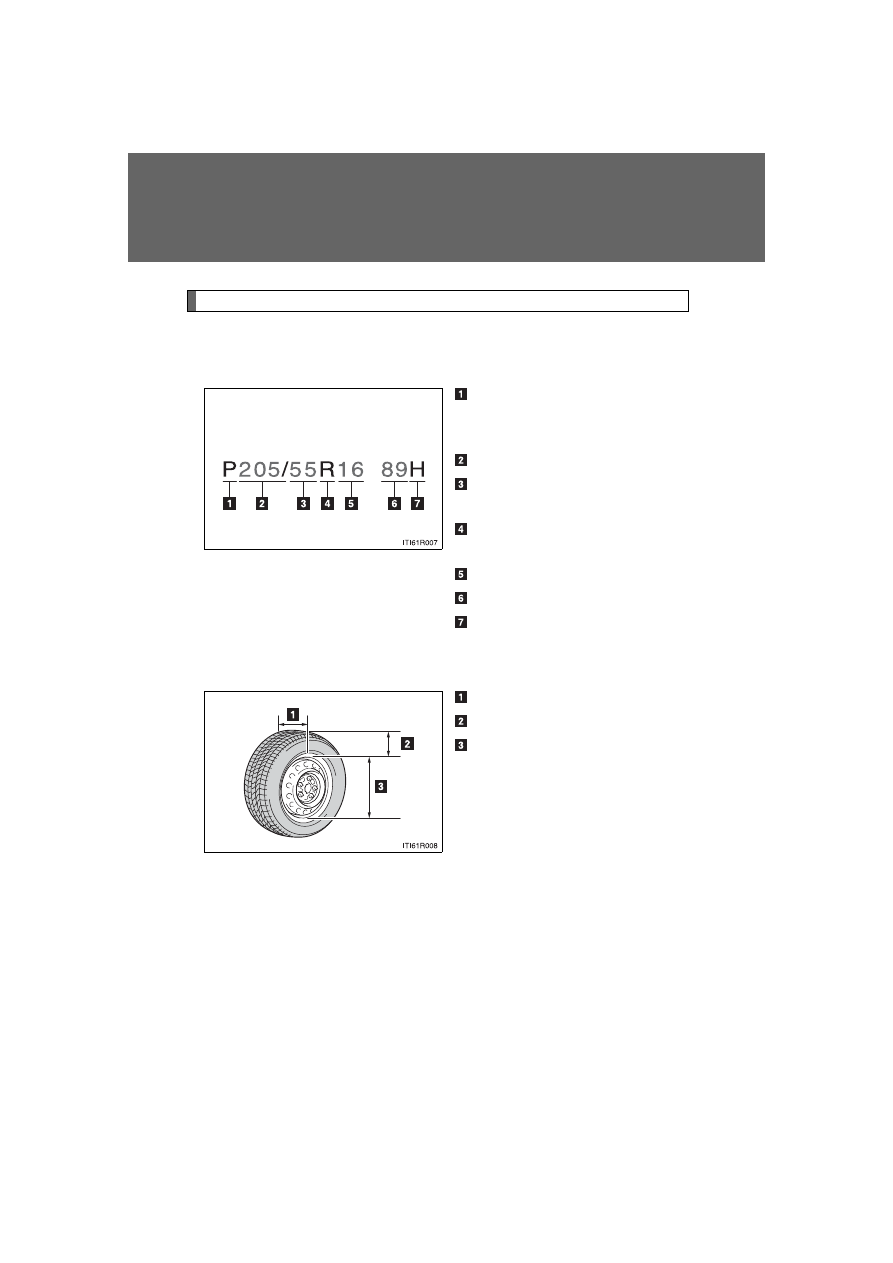

Typical tire size information

The illustration indicates typical tire size.

Tire use
(P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 or 3 digits)

Speed symbol
(alphabet with one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

349

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

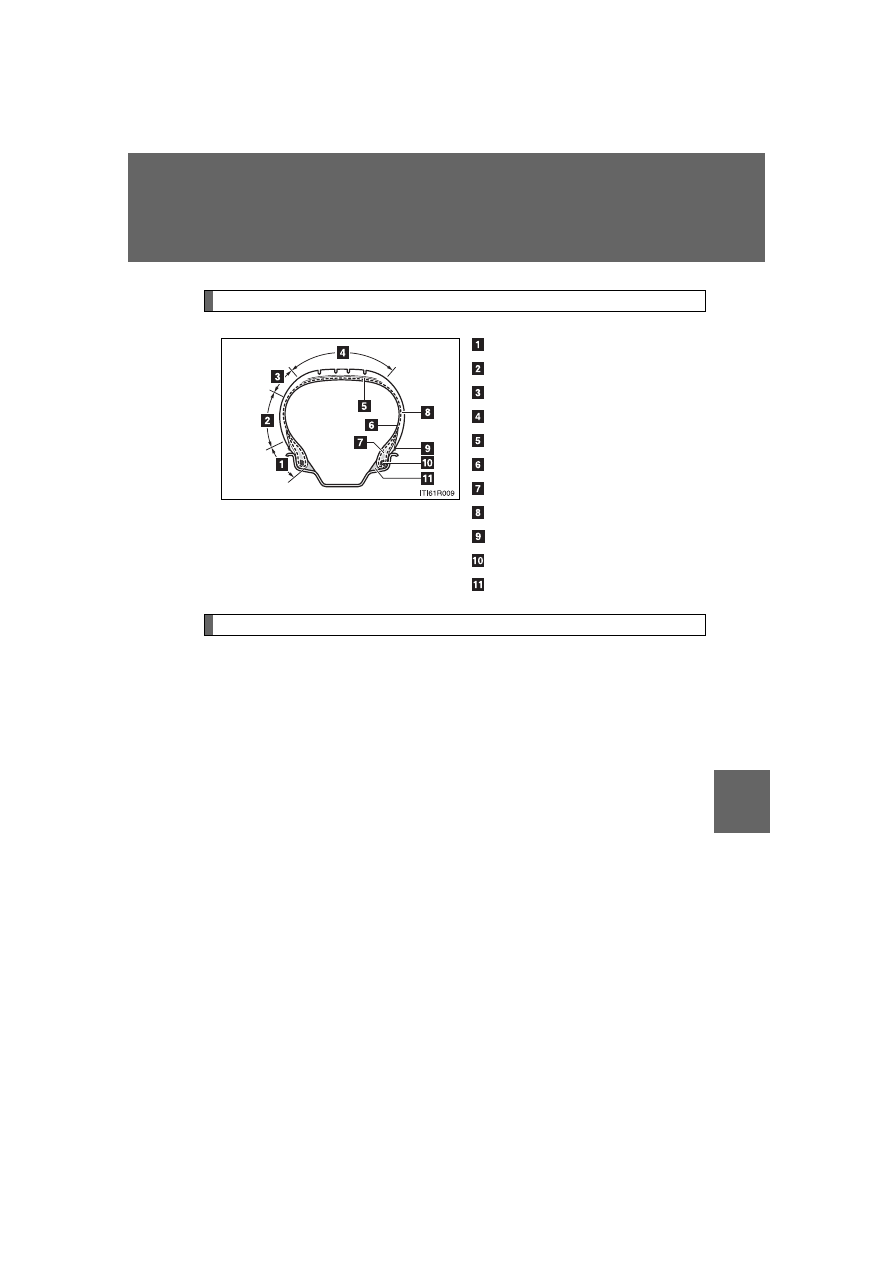

Tire section names

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

Uniform Tire Quality Grading

This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Scion
vehicles with information on uniform tire quality grading.

Your Scion dealer will help answer any questions you may have as
you read this information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety
Requirements in addition to these grades. Quality grades can be
found where applicable on the tire sidewall between tread shoulder
and maximum section width.

For example: Treadwear 200 Traction AA Temperature A

350

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

■

Treadwear

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1-1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use. Performance may differ significantly from the norm due
to variations in driving habits, service practices and differences in
road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government
test surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.

■

Temperature A, B, C

The temperature grades are A (the highest), B, and C, represent-
ing the tire’s resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions on a speci-
fied indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.

Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Standard
No.109.

351

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.

Warning: The temperature grades of a tire assume that is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition

Maximum inflation
pressure

The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire

Recommended infla-
tion pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine

352

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Tire related term

Meaning

Maximum loaded vehi-
cle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant
weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

*

 that

follows

Occupant distribution

Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1

*

 below

Production options
weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

353

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Tire related term

Meaning

Vehicle capacity
weight (Total load
capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load
on the tire

The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two

Vehicle normal load
on the tire

The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occu-
pant weight (distributed in accordance with
Table 1

*

 below), and dividing by two

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between components
in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the cen-
terline of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber com-
pounds

354

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Tire related term

Meaning

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

CT

A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the
rim in a manner that encloses the rim flanges
inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Intended outboard
sidewall

(a) The sidewall that contains a whitewall,

bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or

(b) The outward facing sidewall of an asym-

metrical tire that has a particular side that
must always face outward when mounted
on a vehicle

Light truck (LT) tire

A tire designated by its manufacturer as prima-
rily intended for use on lightweight trucks or
multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

355

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xB_OM_OM12F03U_(U)

Tire related term

Meaning

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which
a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of
the sidewalls of an inflated tire, including eleva-
tions due to labeling, decorations, or protective
bands or ribs

Passenger car tire

A tire intended for use on passenger cars, mul-
tipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adja-
cent plies

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

356

6-1. Specifications

Scion_xB_OM_OM12F03U_(U)

Tire related term

Meaning

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Section width

The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater than 110, compared to the ASTM
E-1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight Line
on Snow-and Ice-Covered Surfaces, and which

is marked with an Alpine Symbol (

) on at

least one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road
