1-3. Adjustable components (seats, mirrors, steering wheel)

1

Be
fo

re driving

tC_OM_OM21056U_(U)

CAUTION

■

Pregnant women

■

People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (

P. 77)

■

When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

Obtain medical advice and wear the seat
belt in the proper way. (

P. 77)

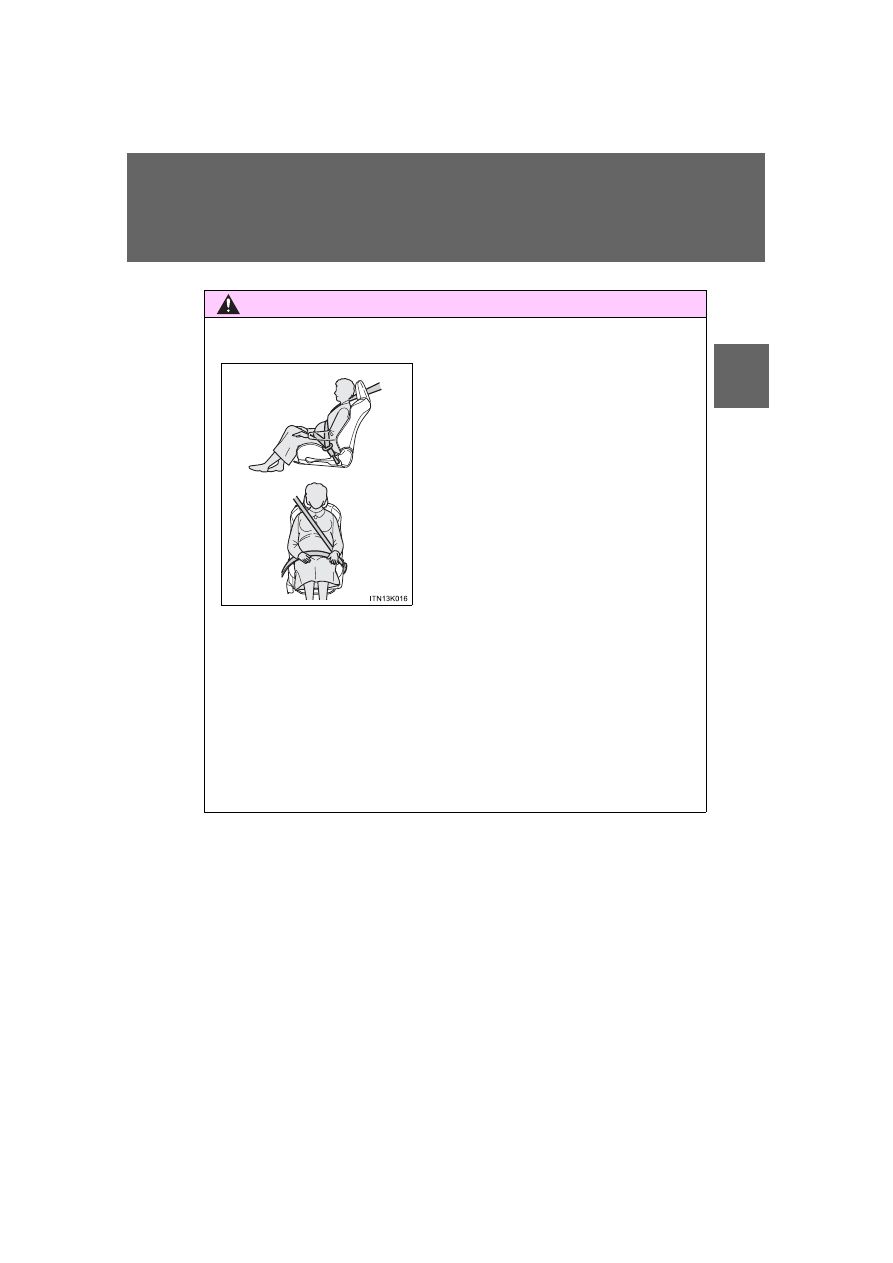

Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.

If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

82

1-3. Adjustable components (seats, mirrors, steering wheel)

tC_OM_OM21056U_(U)

CAUTION

■

Seat belt pretensioners

●

Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.

●

If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Scion dealer.

■

Seat belt damage and wear

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.

●

Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Scion
dealer.

●

Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there’s no obvious damage.

●

Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Scion dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.

83

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Be
fo

re driving

tC_OM_OM21056U_(U)

CAUTION

■

Using a seat belt extender

●

Do not wear the seat belt extender if you can fasten the seat belt without
the extender.

●

Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.

●

The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.

NOTICE

■

When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

84

1-3. Adjustable components (seats, mirrors, steering wheel)

tC_OM_OM21056U_(U)

Steering wheel

CAUTION

■

Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

■

After adjusting the steering wheel

Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

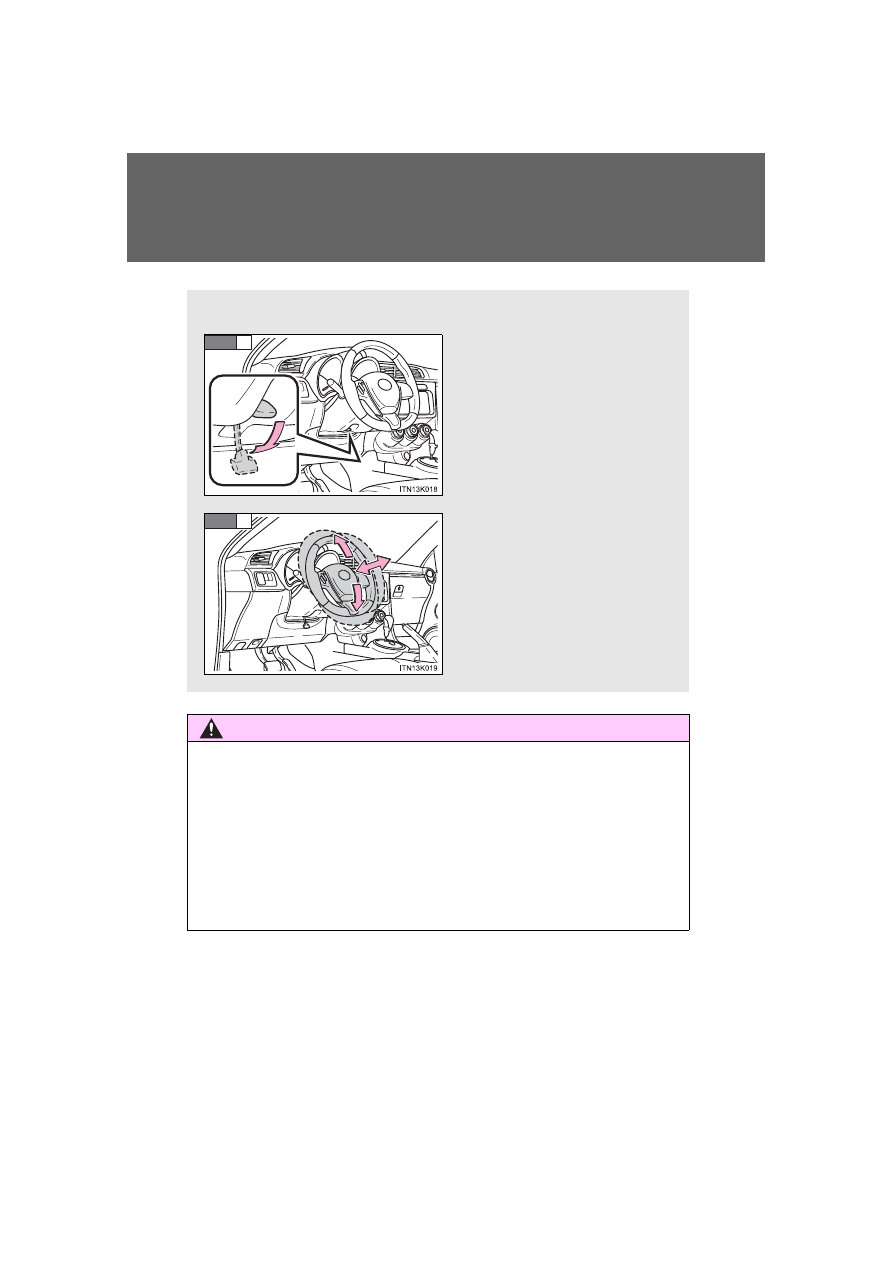

The steering wheel can be adjusted to a comfortable position.

Hold the steering wheel and
push the lever down.

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever
up to secure the steering
wheel.

STEP

1

STEP

2

85

1

1-3. Adjustable components (seats, mirrors, steering wheel)

Be
fo

re driving

tC_OM_OM21056U_(U)

Anti-glare inside rear view mirror

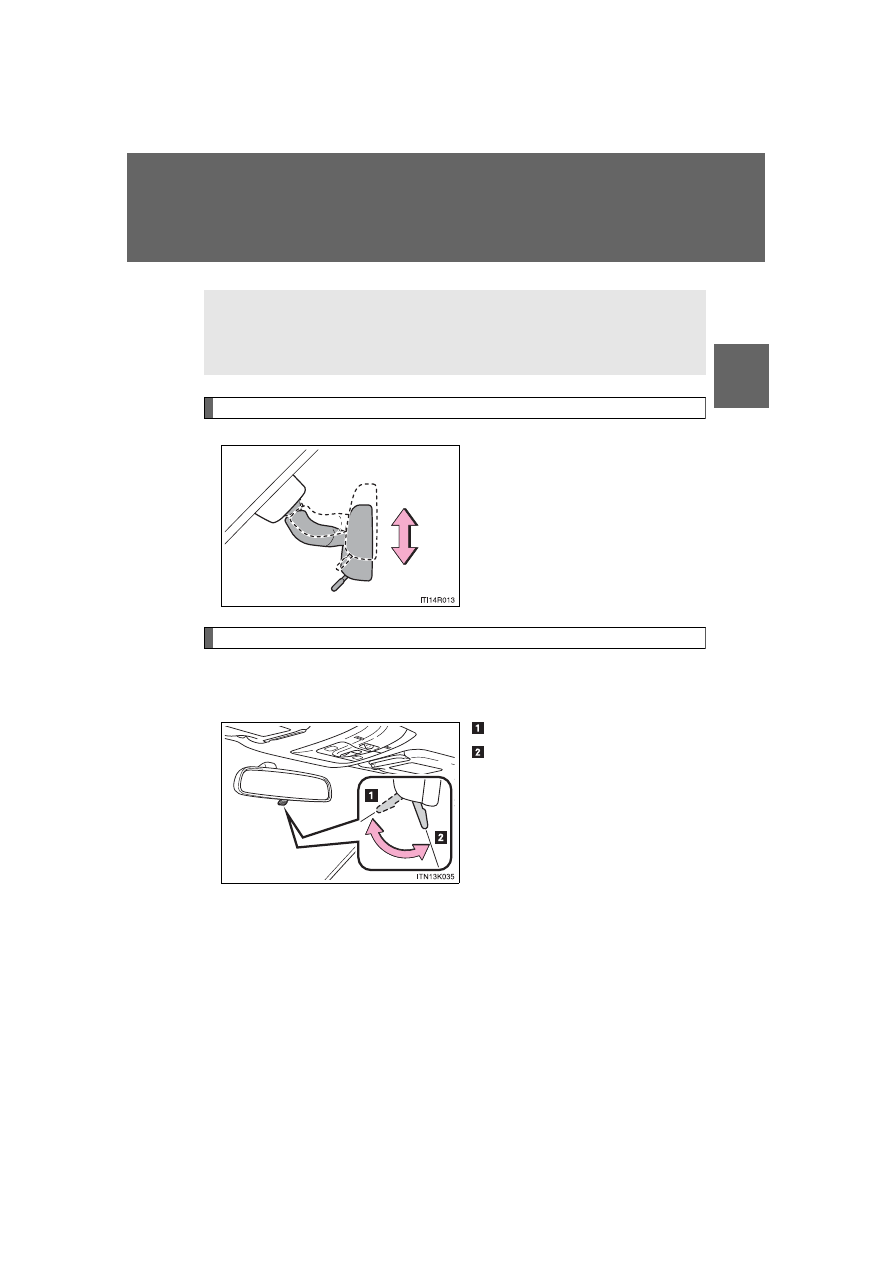

Adjusting the height of rear view mirror

Adjust the height of the rear view
mirror by moving it up and down.

Anti-glare function

Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.

Normal position

Anti-glare position

The rear view mirror’s position can be adjusted to enable sufficient

confirmation of the rear view in accordance with the driver’s seating

posture.

86

1-3. Adjustable components (seats, mirrors, steering wheel)

tC_OM_OM21056U_(U)

CAUTION

■

Caution while driving

Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

87

1

1-3. Adjustable components (seats, mirrors, steering wheel)

Be
fo

re driving

tC_OM_OM21056U_(U)

Outside rear view mirrors

Folding the mirrors

Push the mirror back in the direc-
tion of the vehicle’s rear.

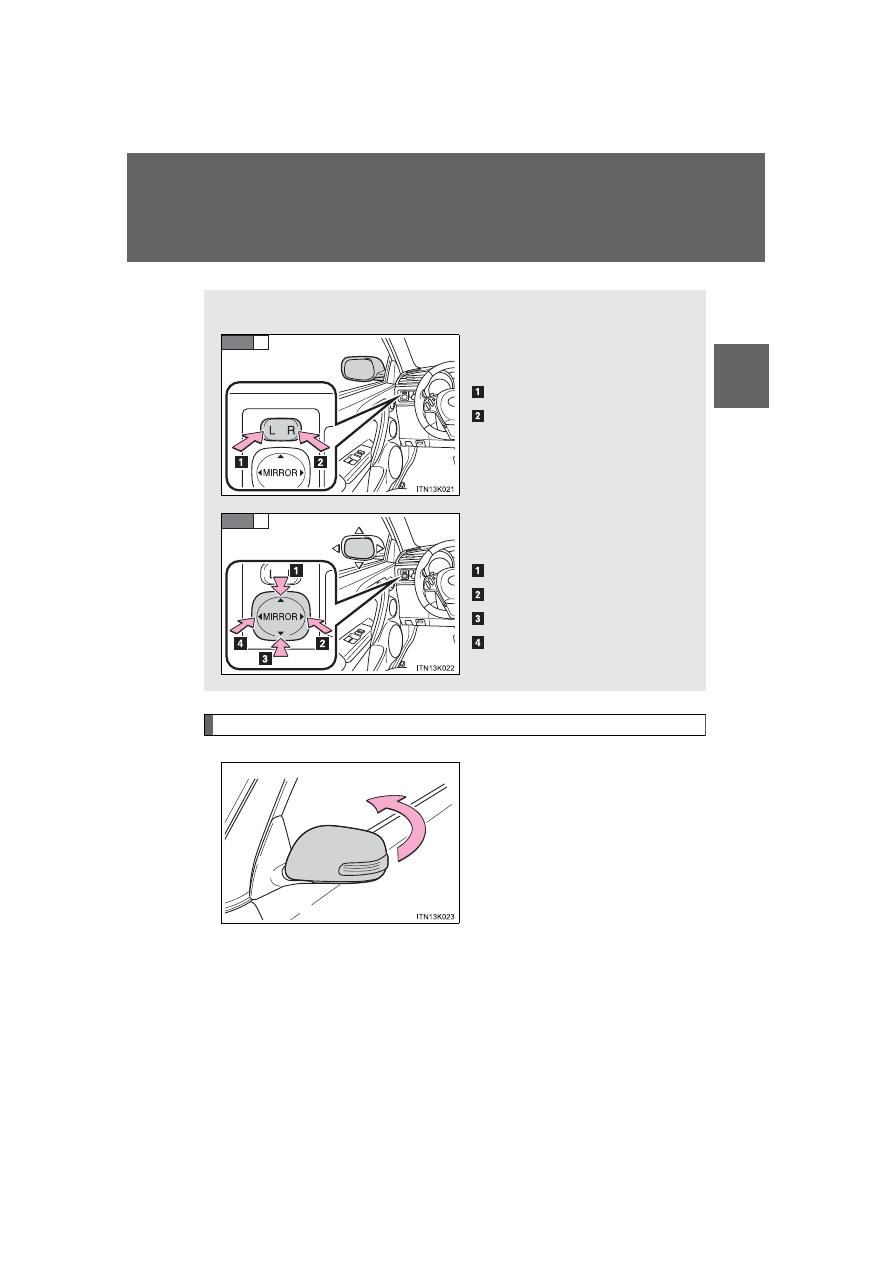

Mirror angle can be adjusted using the switch.

To select a mirror to adjust,
press the switch.

Left

Right

To adjust the mirror, press the
switch.

Up

Right

Down

Left

STEP

1

STEP

2

88

1-3. Adjustable components (seats, mirrors, steering wheel)

tC_OM_OM21056U_(U)

■

Mirror angle can be adjusted when

Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.

Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.

■

When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)

The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. (

P. 245)

CAUTION

■

When driving the vehicle

Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.

■

When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.

■

When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

89

1

Be
fo

re driving

tC_OM_OM21056U_(U)

1-4. Opening and closing the windows and moon roof

Power windows

Window lock switch

Press the switch down to lock
the passenger window switch.

Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.

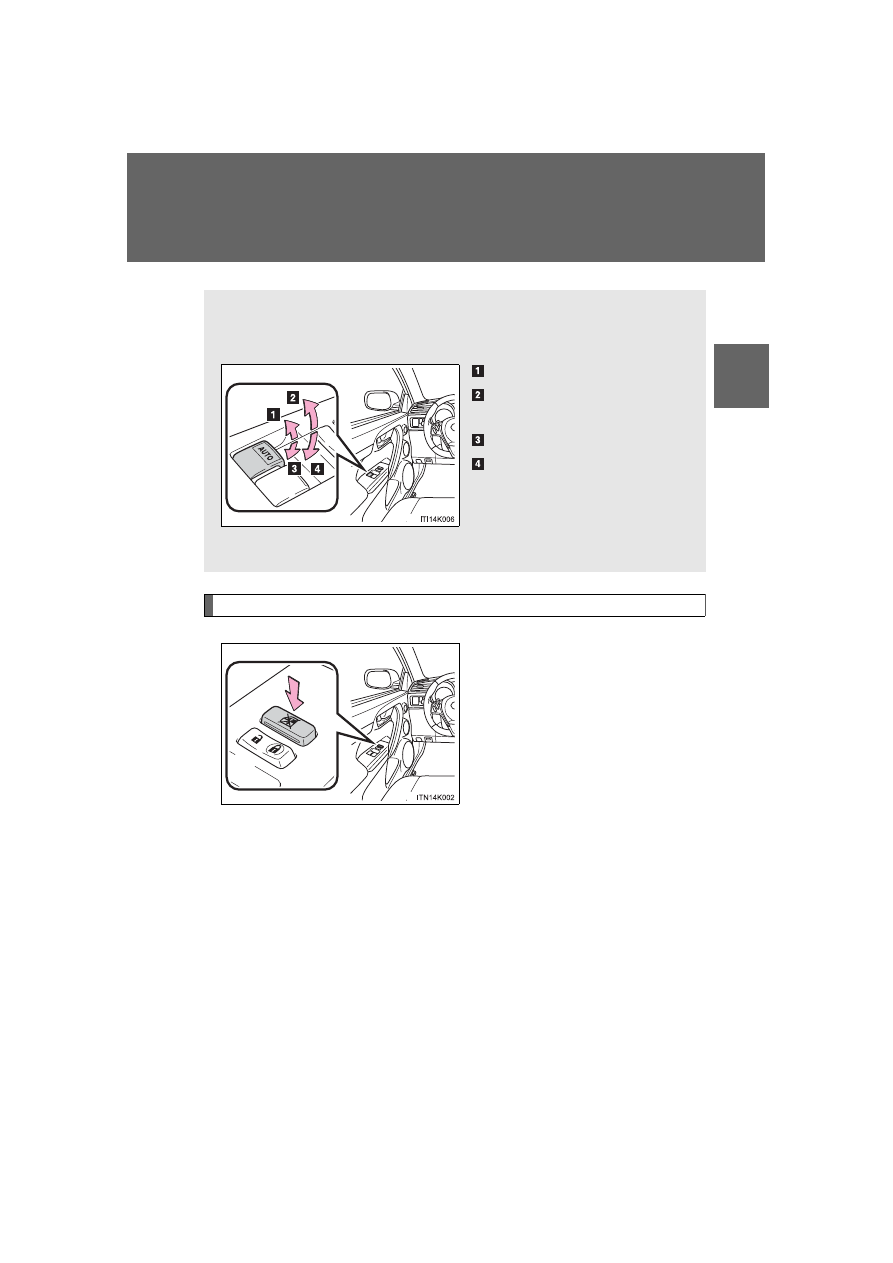

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

Closing

One-touch closing (driver’s
window only)

*

Opening

One-touch opening (driver’s
window only)

*

*

: To stop the window partway,

operate the switch in the oppo-
site direction.

90

1-4. Opening and closing the windows and moon roof

tC_OM_OM21056U_(U)

■

The power windows can be operated when

Vehicles without a smart key system
The engine switch is in the “ON” position.

Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.

■

Operating the power windows after turning the engine off

Vehicles without a smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either side door is opened.

Vehicles with a smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off. They cannot, however, be operated once either side door is
opened.

■

Jam protection function (driver’s window only)

If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

91

1-4. Opening and closing the windows and moon roof

1

Be
fo

re driving

tC_OM_OM21056U_(U)

■

When the power window does not close normally (driver’s window
only)

If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the driver’s door.

●

After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the engine
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or the “ENGINE START STOP” switch is turned to IGNITION ON
mode (vehicles with a smart key system).

●

If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.

Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.

Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.

Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.

If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Scion dealer.

STEP

1

STEP

2

STEP

3

92

1-4. Opening and closing the windows and moon roof

tC_OM_OM21056U_(U)

CAUTION

■

Closing the windows

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.

●

Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

■

Jam protection function (driver’s window only)

●

Never use any part of your body to intentionally activate the jam protection
function.

●

The jam protection function may not work if something gets caught just
before the window fully closes.

93

1

1-4. Opening and closing the windows and moon roof

Be
fo

re driving

tC_OM_OM21056U_(U)

Moon roof

■

The moon roof can be operated when

Vehicles without a smart key system
The engine switch is in the “ON” position.

Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.

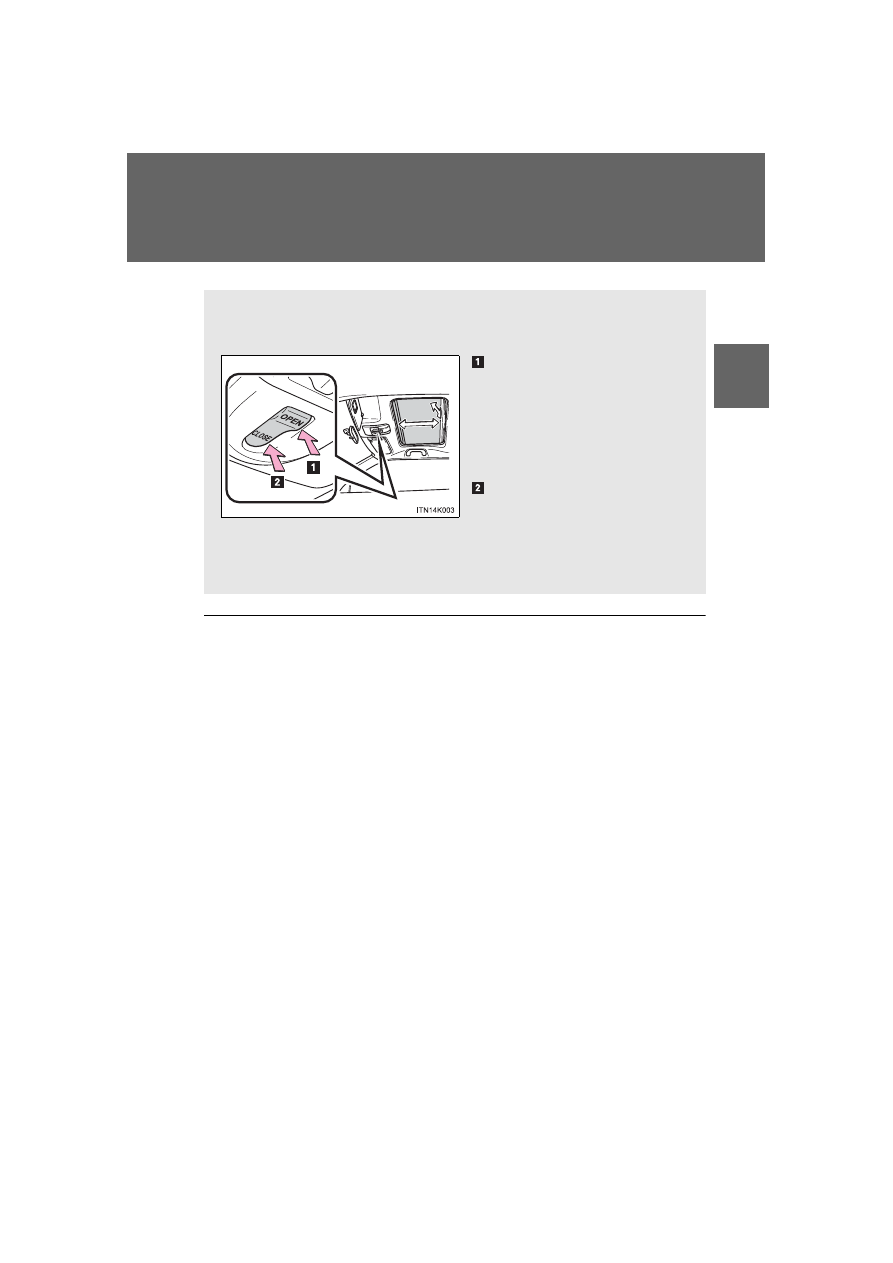

Use the overhead switches to open, close, and tilt the moon roof up

and down.

Open

Push “OPEN” to tilt up.
To tilt down, push and hold
“CLOSE”.
To fully open, push “OPEN”
again at the tilt up position.

Close

Push and hold “CLOSE”.
The moon roof stops once.
Push and hold the switch again
to fully close.

94

1-4. Opening and closing the windows and moon roof

tC_OM_OM21056U_(U)

■

Operating the moon roof after turning the engine off

Vehicles without a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, however,
be operated once either side door is opened.

Vehicles with a smart key system
The moon roof can be operated for approximately 45 seconds after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either side door is opened.

■

Jam protection function

If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.

■

If the moon roof cannot be closed

If the moon roof cannot be closed, such as when the jam protection function
activates accidentally due to a malfunction, pressing and holding the
“CLOSE” switch closes the moon roof.
After this, to make the automatic opening function and jam protection func-
tion available again, press and hold the “CLOSE” switch until the moon roof
closes fully and then opens slightly.
If the functions do not activate, contact your Scion dealer.

■

To reduce moon roof wind noise

Drive with the moon roof opened to slightly before the fully open position as
driving with the moon roof opened fully will cause wind noise.

■

Sunshade

The sunshade can be opened and closed manually. (

P. 264)

95

1-4. Opening and closing the windows and moon roof

1

Be
fo

re driving

tC_OM_OM21056U_(U)

CAUTION

■

Opening the moon roof

Observe the following precautions.
Failing to do so may cause death or serious injury.

●

Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.

●

Do not sit on top of the moon roof.

■

Closing the moon roof

Observe the following precautions.
Failing to do so may result in death or serious injury.

●

Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.

●

Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.

■

Jam protection function

●

Never try jamming any part of your body to activate the jam protection
function intentionally.

●

The jam protection function may not work if something gets caught just
before the moon roof fully closes.

96

1-4. Opening and closing the windows and moon roof

tC_OM_OM21056U_(U)

NOTICE

■

Operating the moon roof

●

There is the possibility that water or rain will get into the vehicle if you
operate the moon roof after a rainfall, snowfall or car wash. Wipe the moon
roof dry with a cloth before operating it.

●

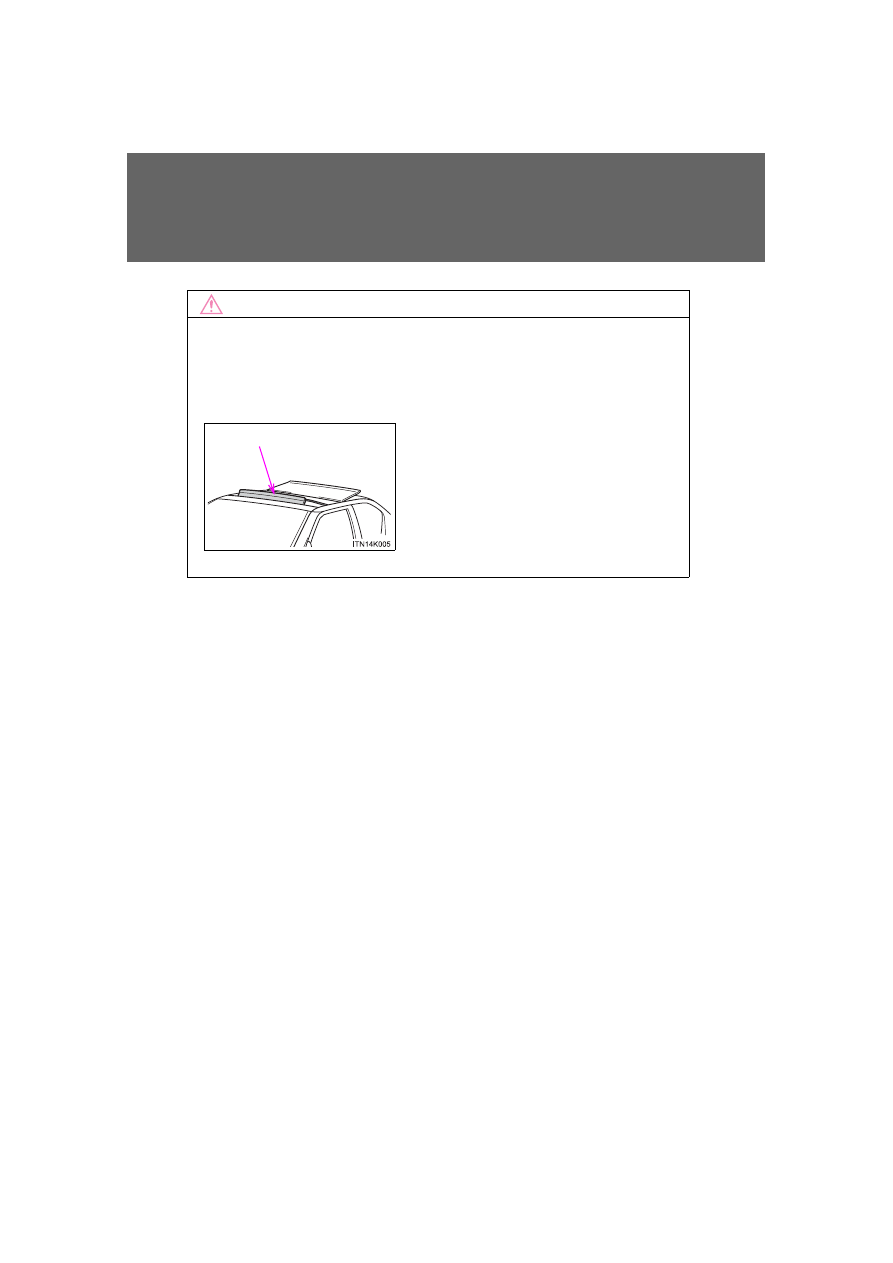

When the deflector is dirty, wipe it with
the brush etc.

Deflector
