8-2. Steps to take in an emergency

If a warning message is displayed
when the power switch is turned
to ON mode after charging, com-
ply with the contents of the mes-
sage and take any necessary
actions. (

P. 355)

■

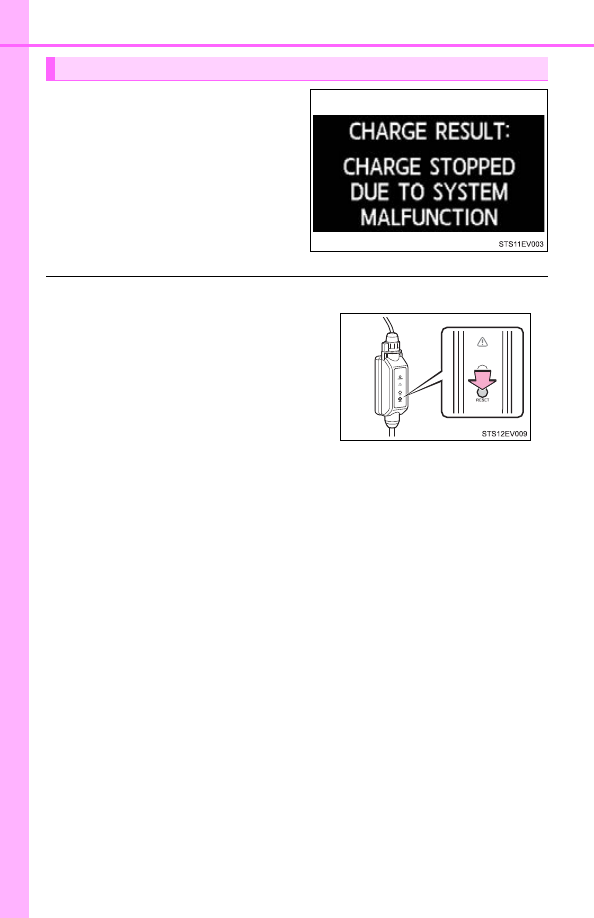

Resetting the CCID (Charging Circuit Interrupting Device)

If the warning message is displayed after charging

If the error warning indicator of the CCID
(Charging Circuit Interrupting Device) illu-
minates during charging, conduct either of
the following procedures.

●

Press the reset button on the CCID
(Charging Circuit Interrupting Device).

●

Disconnect the plug, and wait for at least
6 seconds and then reconnect the plug.

The error warning indicator will go out and
the power source will reconnect.

●

If the error warning indicator does not
illuminate again, charging can continue.

●

If the error warning indicator illuminates
again, there may be a problem with the
charging cable or the power source.
Stop charging immediately and contact
your Scion dealer.

383

8

W
hen

 troub

le
arises

8-2. Steps to take in an emergency

If the shift lever cannot be shifted from P

Set the parking brake.

Turn the power switch to ACCESSORY mode.

Depress the brake pedal.

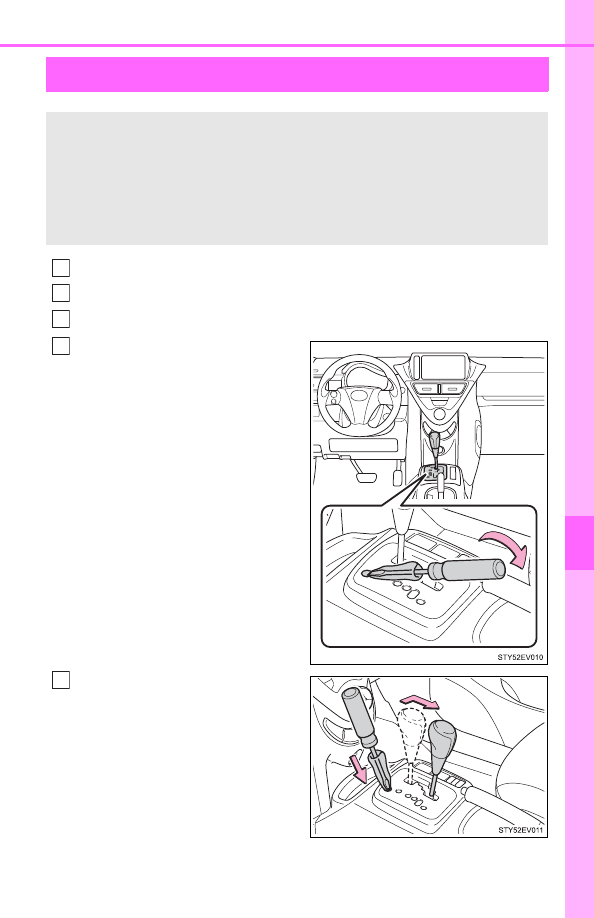

Pry the cover up with a flathead
screwdriver or equivalent tool.

To prevent damage to the cover,
cover the tip of the screwdriver with
a rag.

Press the shift lock override
button.

The shift lever can be shifted while
the button is pressed.

If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:

1
2
3

4

5

384

8-2. Steps to take in an emergency

If the electronic key does not operate

properly

Use the mechanical key
(

P. 118) in order to perform the

following operations:

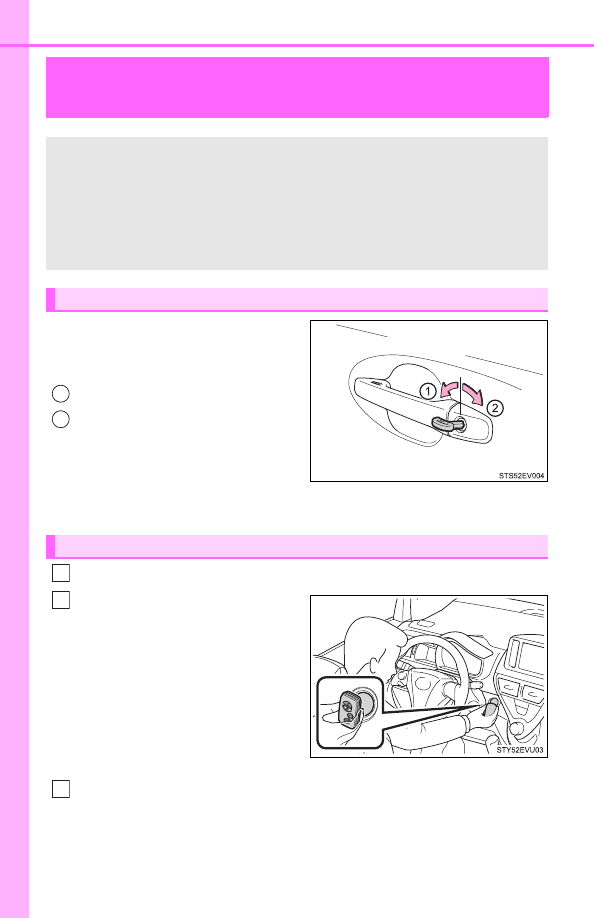

Locks all the doors

Unlocks all the doors

Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.

Ensure that the shift lever is in P and depress the brake pedal.

Touch the Scion emblem side of
the electronic key to the power
switch.

If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.

Press the power switch within 10 seconds of the buzzer sounding,
keeping the brake pedal depressed.

In the event that the EV system still cannot be operated, contact your
Scion dealer.

If communication between the electronic key and vehicle is
interrupted (

P. 125) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the EV system can be started by following
the procedure below.

Locking and unlocking the doors

1
2

Starting the EV system

1

2

3

385

8-2. Steps to take in an emergency

8

W
hen

 troub

le
arises

■

Stopping the EV system

Set the parking brake, shift the shift lever to P and press the power switch as
you normally do when stopping the EV system.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(

P. 299)

■

Changing power switch modes

Within 10 seconds of the buzzer sounding, release the brake pedal and press
the power switch.
The EV system does not start and modes will be changed each time the
switch is pressed.(

P. 166)

■

When the electronic key does not work properly

Make sure that the smart key system has not been deactivated in the custom-
ization setting. If it is off, turn the function on.
(Customizable features:

P. 414)

386

8-2. Steps to take in an emergency

If the 12-volt battery is discharged

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

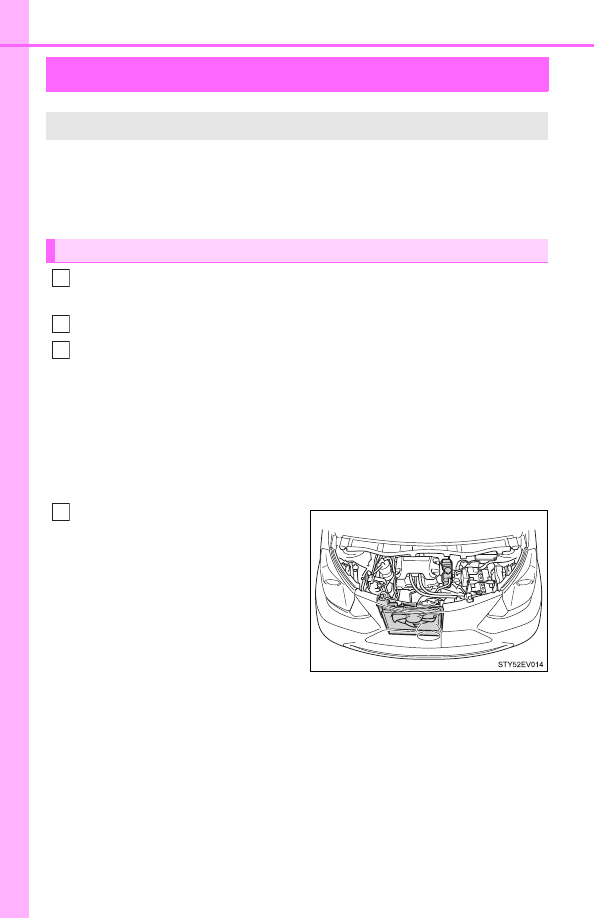

Open the hood. (

P. 264)

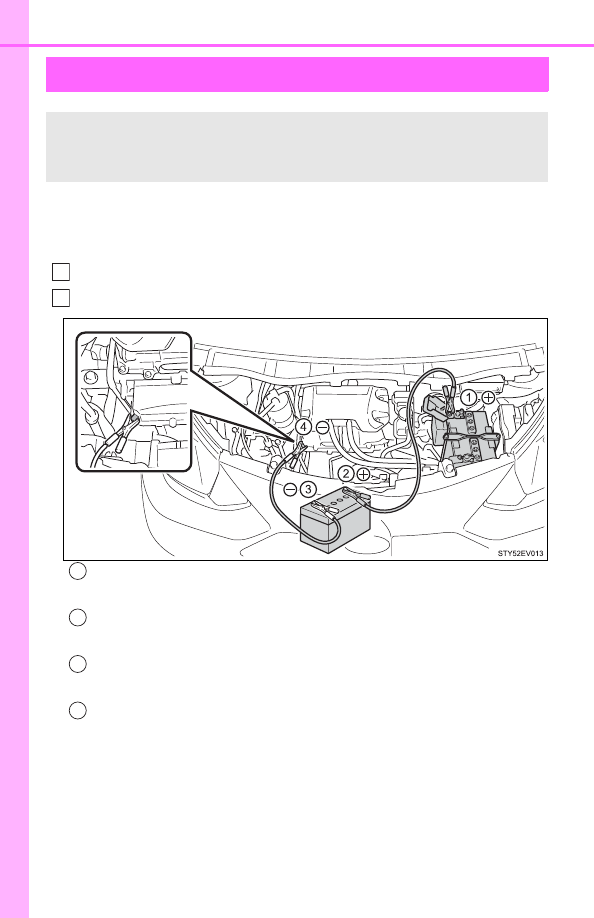

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

The following procedures may be used to start the EV system if
the 12-volt battery is discharged.
You can also call your Scion dealer or a qualified repair shop.

1
2

1

2

3

4

387

8-2. Steps to take in an emergency

8

W
hen

 troub

le
arises

Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.

Open and close any of the doors of your vehicle with the power
switch off.

Maintain the engine speed of the second vehicle and start the EV
system of your vehicle by turning the power switch to ON mode.

Make sure the “READY” indicator comes on. If the indicator does
not come on, contact your Scion dealer.

Once the EV system has started, remove the jumper cables in the
exact reverse order from which they were connected.

Once the EV system starts, have the vehicle inspected at your Scion
dealer as soon as possible.

■

Starting the EV system when the 12-volt battery is discharged

The EV system cannot be started by push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the air conditioning system while the EV system
is off.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the EV system may be unable to start. (The 12-
volt battery recharges automatically while the EV system is operating.)

3

4

5

6

7

388

8-2. Steps to take in an emergency

■

When recharging or replacing the 12-volt battery

●

In some cases, it may not be possible to unlock the doors using the smart
key system when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.

●

The EV system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a mal-
function.

●

The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12-volt battery.

CAUTION

■

Avoiding 12-volt battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:

●

Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact
with each other.

●

Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.

389

8-2. Steps to take in an emergency

8

W
hen

 troub

le
arises

CAUTION

■

12-volt battery precautions

The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:

●

When working with the 12-volt battery, always wear safety glasses and
take care not to allow any 12-volt battery fluids (acid) to come into contact
with skin, clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that 12-volt battery fluid comes into contact with the skin or
eyes, immediately wash the affected area with water and seek medical
attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.

●

Always wash your hands after handling the 12-volt battery support, termi-
nals, and other battery-related parts.

●

Do not allow children near the 12-volt battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan.

390

8-2. Steps to take in an emergency

If your vehicle overheats

When the “EV SYSTEM OVERHEAT” is shown on the multi-informa-
tion display, the power control unit may be overheating. Follow the
correction procedure as described below.

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem.

Leave the EV system operating and carefully lift the hood.

Check if the cooling fan is operating.

If the fan is operating:

Wait until the “EV SYSTEM OVERHEAT” message disappears
and then stop the EV system.
If the message does not disappear, call your Scion dealer.

If the fan is not operating:

Stop the EV system immediately and call your Scion dealer.

After the EV system has cooled
down, check the inverter cool-
ant level and inspect the cool-
ing system for leaks.

The following may indicate that your vehicle is overheating:

Correction procedures

1

2
3

4

391

8-2. Steps to take in an emergency

8

W
hen

 troub

le
arises

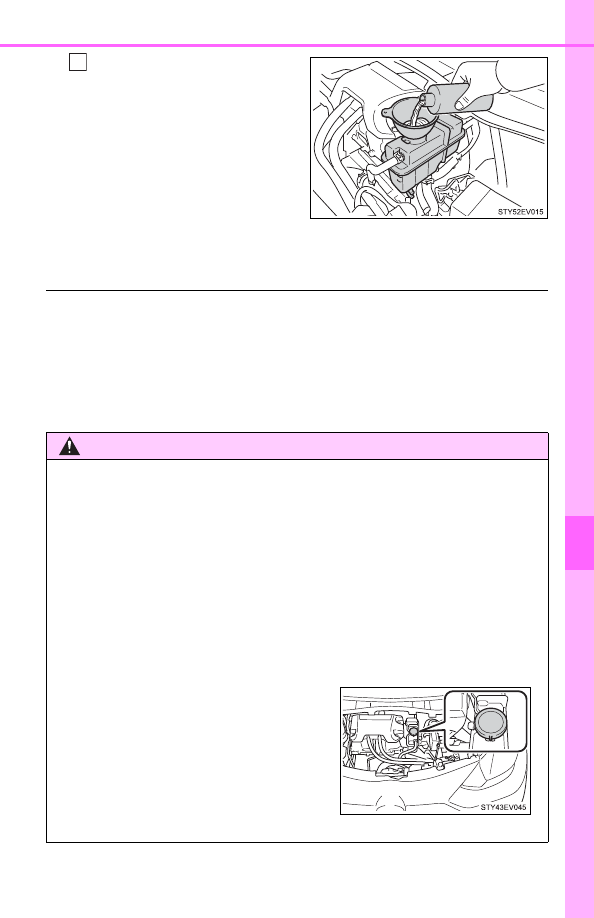

Add inverter coolant if nec-
essary. (

P. 398)

Water can be used in an emer-
gency if inverter coolant is
unavailable.

Have the vehicle inspected at the nearest Scion dealer as soon as
possible.

■

Overheating

If you observe the following, your vehicle may be overheating:

●

“EV SYSTEM OVERHEAT” is shown on the multi-information display.

●

EV system output decreases.

●

Steam comes out from under the hood.

5

CAUTION

■

When inspecting under the hood of your vehicle

Observe the following precautions.
Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The motor compartment will be very hot.

●

Keep hands and clothing away from the fan, etc. while the EV system is
operating.

●

Even if EV system has stopped, the cooling fan may begin to move sud-
denly. Do not touch or approach the rotating parts of the fan. Doing so may
lead to fingers, clothes or tools getting caught, resulting in injury.

●

Do not loosen the coolant reservoir cap
while the EV system and radiator are
hot.
High temperature steam or coolant
could spray out.

392

8-2. Steps to take in an emergency

NOTICE

■

When adding inverter coolant

Add coolant slowly after the EV system has cooled down sufficiently. Adding
cool coolant to a hot EV system too quickly can cause damage to the EV
system.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

●

Do not use any coolant additives other than the Scion genuine or similar
coolant additives.

393

8

W
hen

 troub

le
arises

8-2. Steps to take in an emergency

If the vehicle becomes stuck

Set the parking brake, shift the shift lever to P and stop the EV sys-
tem.

Remove the mud, snow or sand from around the front wheels.

Place wood, stones or some other material under the front wheels
to help provide traction.

Restart the EV system.

Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.

Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

CAUTION

■

When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.

NOTICE

■

To avoid damage to the transmission and other components

●

Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.

●

If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

1

2
3

4
5

395

9

Vehicle specifications

9-1. Specifications

Maintenance data ............. 396

Tire information ................. 402

9-2. Customization

Customizable features ...... 414

9-3. Items to initialize

Items to initialize ............... 420

396

9-1. Specifications

Maintenance data

*

: Unladen vehicle

Dimensions and weights

Overall length

122.6 in. (3115 mm)

Overall width

66.1 in. (1680 mm)

Overall height

*

59.3 in. (1505 mm)

Wheelbase

78.7 in. (2000 mm)

Tread

Front

58.1 in. (1475 mm)

Rear

57.5 in. (1460 mm)

Vehicle capacity weight
(Occupants + luggage)

665 lb. (300 kg)

397

9-1. Specifications

9

Ve
hicle

 spe

c

ifi

c

ations

■

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Scion. It is used in registering the ownership of your vehicle.

This number is stamped on the
top left of the instrument panel.

This number is stamped under
the front passenger’s seat.

This number is also on the Cer-
tification Label on the driver’s
side center pillar.

Vehicle identification

398

9-1. Specifications

*

: The capacity is a reference quantity.

If replacement is necessary, contact your Scion dealer.

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

47 kW

Maximum torque

120 ft

·lbf (163 N·m, 16.6 kgf·m)

Traction battery

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

21.5 Ah

Quantity

150 cells

Overall voltage

277.5 V

Cooling system

Capacity (Reference)

*

2.2 qt. (2.1 L, 1.8 Imp.qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.
