Scion Q EV. Service Manual - part 7

110

3. Instrument cluster

Average power consumption/Current power consumption

Displays average power consumption and current power con-
sumption.
Average power consumption: Displays the average power con-
sumption since the function was reset.

• The function can be reset by pressing the “DISP” knob for longer than

1 second when the average power consumption is displayed. Reset-
ting the average power consumption will also reset the previous
power consumption averages, that are used to calculate the possible
driving range. In addition, the information displayed on the past
record screen of the navigation system will be updated.

• Use the displayed average power consumption as a reference.

Current power consumption: Displays current power consump-
tion.

After charge

Every time the battery is charged the last two records of power
consumption and the current power consumption are displayed.

Electric component usage status

The usage status of primary electric components, such as the air
conditioning system, is displayed.

Driving range (Highway, City)

From the current traction battery’s remaining charge, the approx-
imate driving distance via highway driving and city driving,
respectively, are displayed.

• These displayed driving ranges are only an estimate, which have

been calculated from a preset power consumption value and an aver-
age energy consumption of the air conditioning system. The actual
driving ranges may differ.

2

3

4

5

111

3. Instrument cluster

3

Instrument cluster

Average vehicle speed/Elapsed time

Displays average vehicle speed and elapsed time.
Average vehicle speed: Displays the average vehicle speed
when the function is reset.
Elapsed time: Displays the elapsed time since it was last reset.

• The function can be reset by pressing the “DISP” knob for longer than

1 second when the average vehicle speed/elapsed time is displayed.

Traction battery information

The battery temperature, motor regenerative performance and
motor output performance are displayed. (

P. 115)

Screen settings

The meter settings can be changed.

• Eco Driving Indicator Light settings

Eco Driving Indicator Light can be activated or deactivated.

• Clock settings

The clock can be adjusted.

• Ambient Light settings

The speedometer illumination color can be changed or turned off.
The light color will change in sync with the EV system indicator.

Timer charging set (start/finish) time

A timer charging start or finish time will be displayed.

A timer charging set time will be displayed only when the timer charging
has been scheduled. Timer charging set time will not be displayed when
the charging timer function has not been scheduled.

6

7

8

9

112

3. Instrument cluster

The meter settings can be changed by using the “DISP” knob. Park
the vehicle in a safe place where setting changes can be operated,
apply the parking brake and then shift the shift lever in P.

■

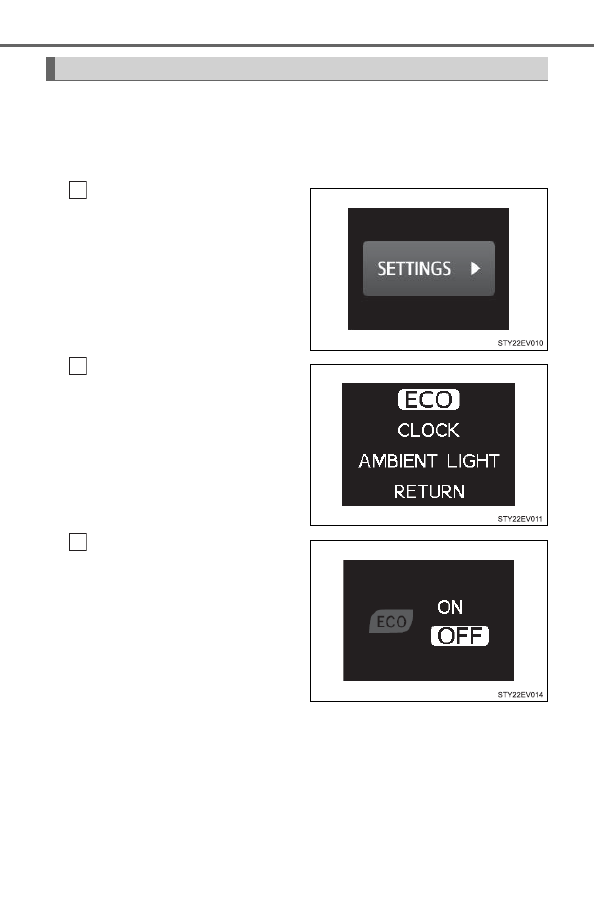

Setting Eco Driving Indicator Light

Turn the “DISP” knob to turn
on the setting screen, and
then push the knob.

Turn the knob to select the
item to be changed, and then
push the knob.

Turn the knob to select the
item to be set, and then push
the knob.

Screen settings

1

2

3

113

3. Instrument cluster

3

Instrument cluster

■

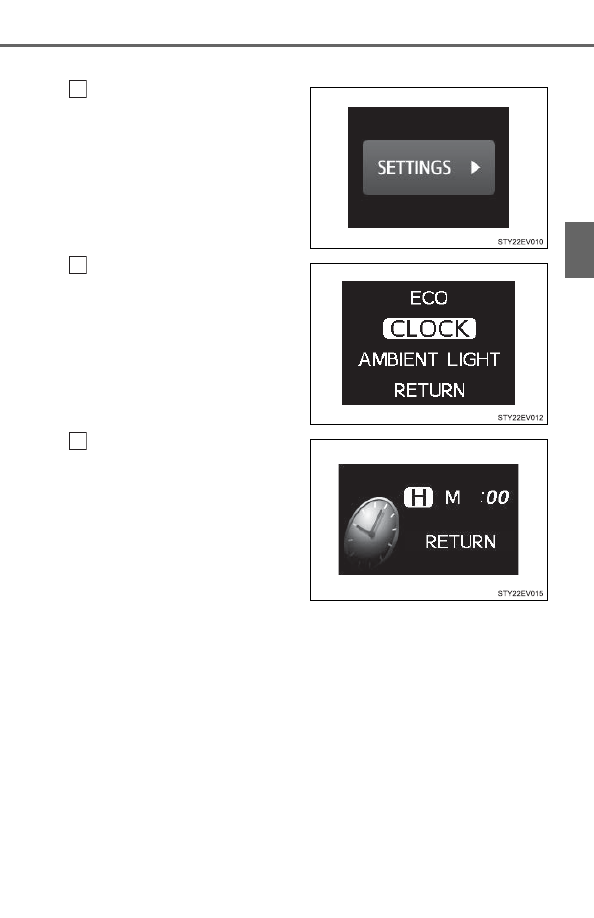

Setting the clock

Turn the “DISP” knob to turn
on the setting screen, and
then push the knob.

Turn the knob to select the
item to be changed, and then
push the knob.

Turn the knob to select the
item to be set, and then push
the knob.

H: Hour
M: Minute
:00: Set to the hour (

P. 116)

1

2

3

114

3. Instrument cluster

■

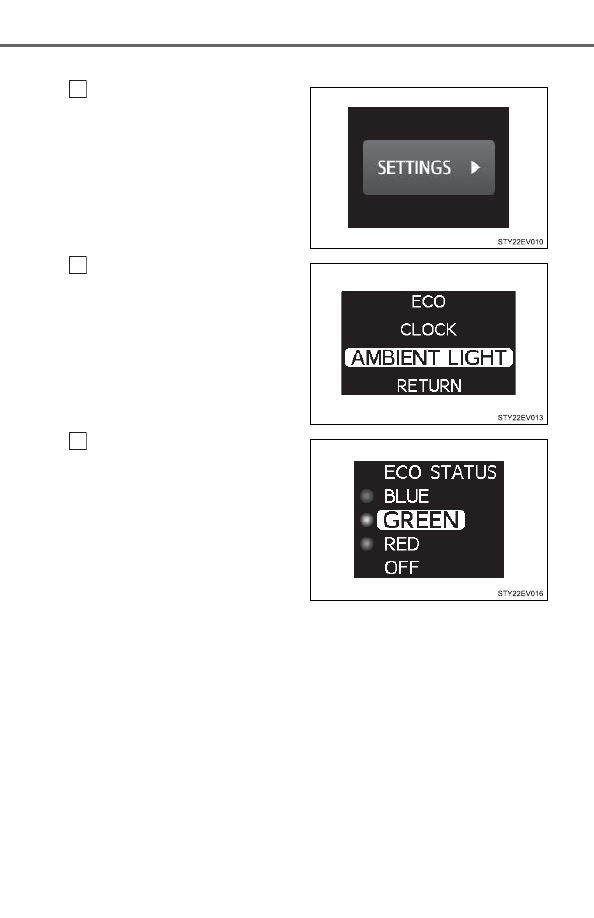

Setting the ambient light

Turn the “DISP” knob to turn
on the setting screen, and
then push the knob.

Turn the knob to select the
item to be changed, and then
push the knob.

Turn the knob to select the
item to be set, and then push
the knob.

When the “ECO STATUS” is
selected, the speedometer illu-
mination color will change in
sync with the EV system indica-
tor.

1

2

3

115

3. Instrument cluster

3

Instrument cluster

■

Traction battery information

High or low temperatures of the traction battery, or traction battery’s remain-
ing charge being low may affect the motor performance.

Output performance: If the motor output performance has reduced, the maxi-

mum vehicle speed may be limited.

Regenerative performance: If the regenerative performance has reduced,

the regenerative braking ability will be reduced.
Firmly depress the brake pedal.

■

Changes in possible driving range

●

When the traction battery capacity has reduced, the possible driving range
will be calculated in accordance with such capacity. Therefore, the possible
driving ranges (highway, city) with the battery fully charged will be different
from those when the vehicle was new. (

P. 190)

●

Estimated possible driving ranges are calculated based on power consump-
tion averages. Power-efficient driving manners (

P. 94) may increase the

estimated driving ranges.

●

Air conditioning on or off affects possible driving ranges. Variation in possi-
ble driving ranges significantly varies depending on the previous energy
consumption of the air conditioning system, driving manners and weather.

■

Welcome onboard display

■

When the 12-volt battery is disconnected

The following data will be reset:

●

Trip meter

●

Driving range

*

●

Average power consumption/Current power consumption

●

After charge

●

Driving range (highway, city)

●

Average vehicle speed/Elapsed time

●

Timer charging set time (start/finish time will be 0:00, start time setting mode
will be activated)

When the power switch is turned to ON
mode, the multi-information display will
show the vehicle name and the 3 differ-
ent types of driving ranges, and then dis-
play the screen at the time the power
switch was turned to off.
After battery charging, the charging result
will be displayed. (

P. 187, 198, 206)

116

3. Instrument cluster

●

Clock

●

Instrument panel brightness levels (light intensity will become the maximum
level both when the tail lights are turned on and off)

*

: Estimated driving ranges are calculated based on the previous power con-

sumption, which is leaned by the computer. When the 12-volt battery is dis-
connected, the previous power consumption averages will be reset. This
will result in different estimated driving ranges prior to the battery discon-
nection.

■

Adjusting to a full hour

The minute values will be rounded to the nearest hour. So, minute values
from “:00” to “:29” are rounded down, and values from “:30” to “:59” are
rounded up

*

.

*

: e.g.

1:00 to 1:29

 1:00

1:30 to 1:59

 2:00

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge, ensure that the EV system is operating
while setting up the display features.

■

The multi-information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

117

4

Operation of

each component

4-1. Key information

Keys .................................. 118

4-2. Opening, closing and

locking the doors

Smart key system ............. 120

Wireless remote control .... 130

Side doors......................... 132

Back door.......................... 134

4-3. Adjusting the seats

Front seats ........................ 138

Rear seats......................... 140

4-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 143

Inside rear view mirror ...... 144

Outside rear view

mirrors............................. 145

4-5. Opening, closing the

windows

Power windows ................. 147

118

4-1. Key information

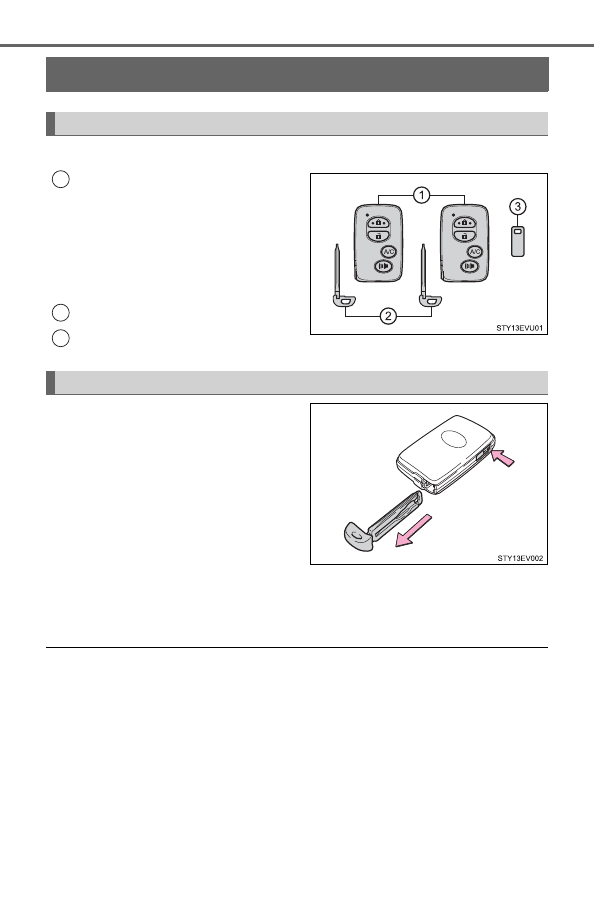

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(

P. 120)

• Operating the wireless remote

control function (

P. 130)

• Operating the Remote Climate

Control (

P. 228)

Mechanical keys

Key number plate

To take out the mechanical key,
push the release button and take
the key out.

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(

P. 384)

■

If you lose your mechanical keys

New genuine mechanical keys can be made by your Scion dealer using the
other mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

The keys

1

2
3

Using the mechanical key

119

4-1. Key information

4

Opera

tion of

e

a

ch compon

ent

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.

■

Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems

Take your vehicle with all the electronic keys provided with your vehicle to
your Scion dealer.

■

When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Scion dealer immediately with all remaining electronic keys
that was provided with your vehicle.

120

4-2. Opening, closing and locking the doors

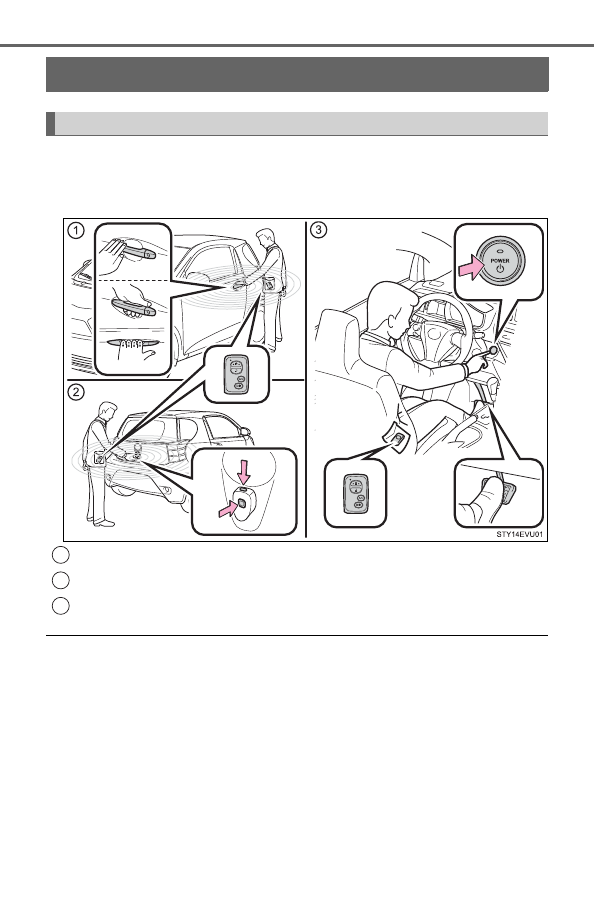

Smart key system

The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket. (The driver
should always carry the electronic key.)

■

Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

Function summary

Unlocks and locks the side doors (

P. 121)

Unlocks and locks the back door (

P. 121)

Starts the EV system (

P. 165)

1
2
3

121

4-2. Opening, closing and locking the doors

4

Opera

tion of

e

a

ch compon

ent

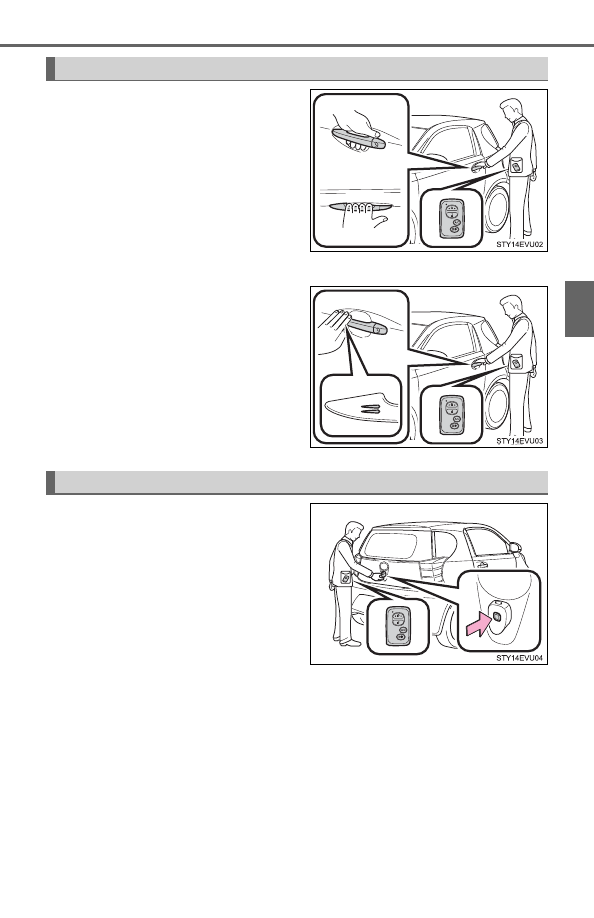

Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all the
doors.

Make sure to touch the sensor on
the back of the handle.

The doors cannot be unlocked for
3 seconds after the doors are
locked.

Touch the lock sensor (the inden-
tation on the upper part of the
door handle) to lock all the doors.

Press the unlock button to unlock
all the doors.

Press and hold the button for 1
second to open the back door.

The door cannot be unlocked for 3
seconds after the door is locked.

Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.

Unlocking and locking the doors

Unlocking and locking the back door

122

4-2. Opening, closing and locking the doors

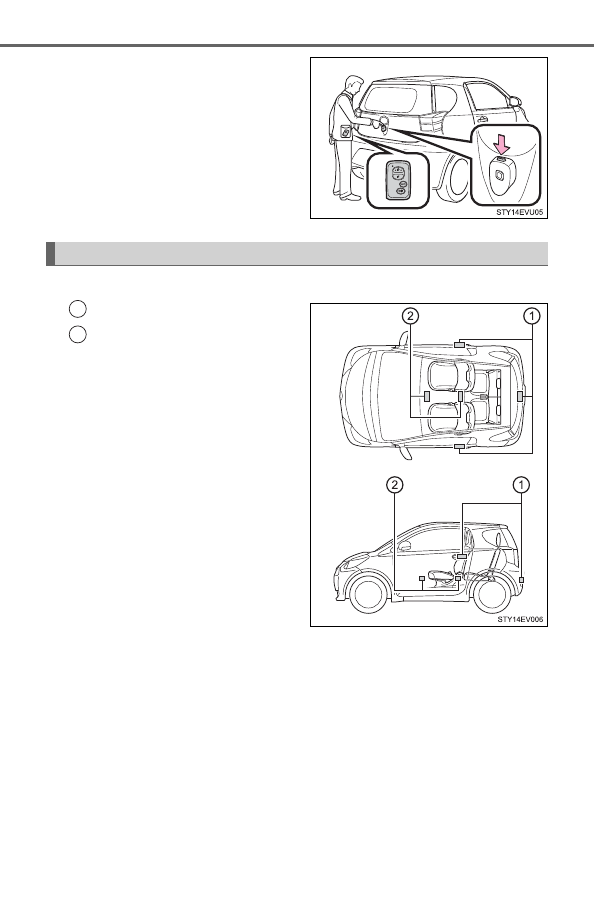

Press the lock button to lock all
the doors.

■

Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna location and effective range

1
2

123

4-2. Opening, closing and locking the doors

4

Opera

tion of

e

a

ch compon

ent

■

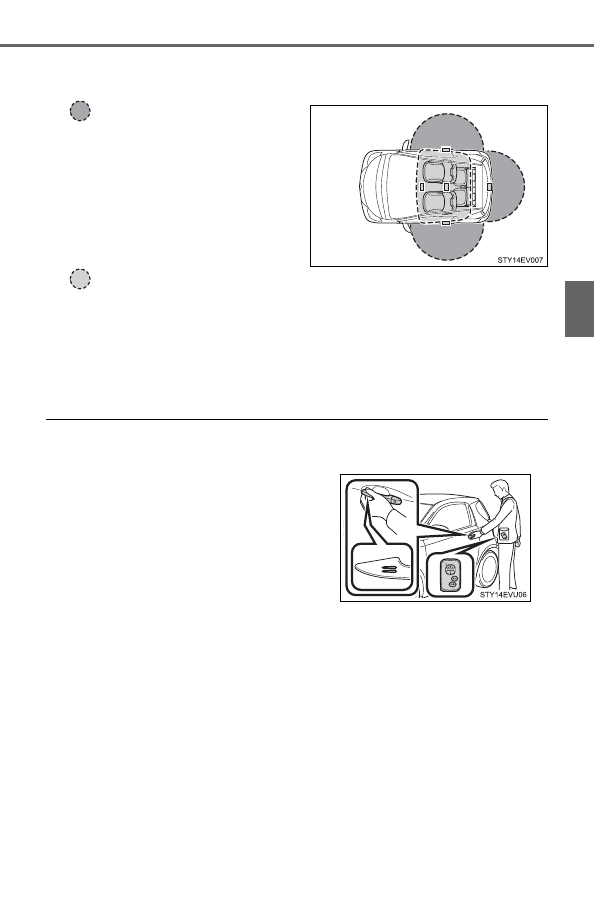

Effective range (areas within which the electronic key is
detected)

When locking or unlocking
the doors

The system can be operated
when the electronic key is within
about 2.3 ft. (0.7 m) of an out-
side door handle. (Only the
doors detecting the key can be
operated.)

When starting the EV system
or changing power switch
modes

The system can be operated
when the electronic key is inside
the vehicle.

■

When the door cannot be locked by the lock sensor on the upper part of
the door handle

If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.

124

4-2. Opening, closing and locking the doors

■

Alarms and warning messages

A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display is used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(

P. 350)

The following table describes circumstances and correction procedures when
only alarms are sounded.

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.

●

In the following situations, the smart key system may take some time to
unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

Alarm

Situation

Correction procedure

Exterior alarm sounds
once for 5 seconds

An attempt was made
to lock the vehicle while
a door is open.

Close all of the doors
and lock the doors
again.

Interior alarm pings
continuously

The power switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was
opened while the
power switch was in
ACCESSORY mode).

Turn the power switch
off and close the
driver’s door.

Turn the power switch
off while the driver’s
door is open.

Close the driver’s door.

125

4-2. Opening, closing and locking the doors

4

Opera

tion of

e

a

ch compon

ent

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and immobilizer
system from operating properly. (Ways of coping:

P. 384)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device

●

When the electronic key is in contact with, or is covered by the following
metallic objects

• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

●

When carrying the electronic key together with the following devices that
emit radio waves

• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
rear window
