Scion iM. Service Manual - part 5

79

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

*

1

: To reset, display the desired item and press and hold

 switch. If both

displayed items are resettable, a reset selection screen will appear.

*

2

: Use the displayed fuel consumption as a reference.

*

3

: When only a small amount of fuel is added to the tank, the display may not

be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without
turning the engine switch off, the display may not be updated.

*

4

: This distance is computed based on your average fuel consumption. As a

result, the actual distance that can be driven may differ from that dis-
played.

n

Eco Driving Indicator (if equipped)
P. 80

n

Blank (No items)

Displays no drive information items.

Average vehicle speed
(after reset)

Displays average vehicle speed since display

reset

*

1

Average vehicle speed
(after start)

Displays average vehicle speed since engine
start

Elapsed time
(after reset)

Displays elapsed time since display reset

*

1

Elapsed time
(after start)

Displays elapsed time since engine start

Distance
(driving range)

Displays driving range with remaining fuel

*

3, 4

Distance
(after start)

Displays drive distance since vehicle start

Blank

No item

Item

Content

80

2. Instrument cluster

Scion iM_U (12J49U)

u

Settings display

n

Eco Driving Indicator Light (if equipped)

Select to activate/deactivate the Eco Driving Indicator Light.

n

Language

Select to change the language on the display.

n

Units

Select to change the units of measure displayed on the multi-infor-
mation display.

n

Drive information 1/Drive information 2

Select to select up to 2 items that will be displayed on the Drive
information 1 screen and Drive information 2 screen respectively.
(

P. 78)

n

Scheduled Maintenance (U.S.A. only)

Select to reset the message indicating maintenance is required
after the required maintenance is performed. (

P. 197)

n

Initialize Display

Select to reset the meter display settings. (

P. 320)

n

Eco Driving Indicator (if equipped)

Eco Driving Indicator will not operate under the following conditions:

l

The shift lever is in any position other than D.

l

Sport mode is selected.

l

The vehicle speed is approximately 80 mph (130 km/h) or higher.

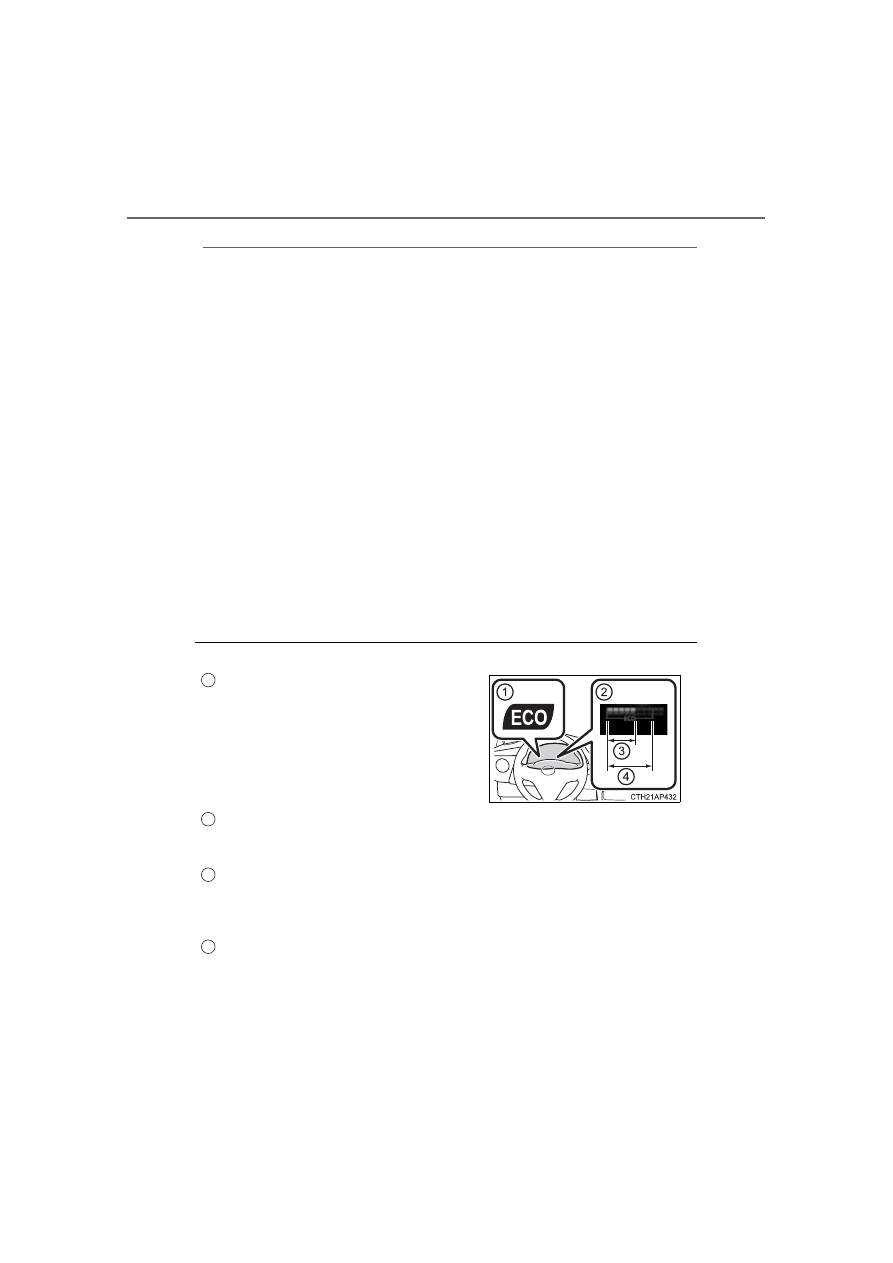

Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.

Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on
acceleration.

Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco driving, the right side of the
Eco Driving Indicator Zone Display illuminate and the Eco Driving Indica-
tor light will turn off.

Zone of Eco driving

1

2

3

4

81

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

n

Brightness of the meters (day mode and night mode)

l

The brightness of the meters are changed between day mode and night
mode.

• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

l

When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.

n

Suspension of the settings display

l

While driving, the multi-information display cannot be changed to setting
mode. Before changing the settings, stop the vehicle in a safe place.

l

In the following situations, operation of some of the settings display may be
temporarily suspended.

• When a warning message appears on the multi-information display
• When the vehicle begins to move

n

When disconnecting and reconnecting battery terminals
The drive information data will be reset.

n

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

WARNING

n

Caution for use while driving

l

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

l

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

n

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

n

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

82

2. Instrument cluster

Scion iM_U (12J49U)

NOTICE

n

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

83

3

Operation of

each component

Scion iM_U (12J49U)

3-1. Key information

Keys .................................... 84

3-2. Opening, closing and

locking the doors

Side doors........................... 88

Back door............................ 91

3-3. Adjusting the seats

Front seats .......................... 95

Rear seats........................... 96

Head restraints.................... 98

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 101

Inside rear view mirror ...... 103

Outside rear view

mirrors............................. 104

3-5.  Opening and closing

the windows

Power windows ................. 106

84

Scion iM_U (12J49U)

3-1. Key information

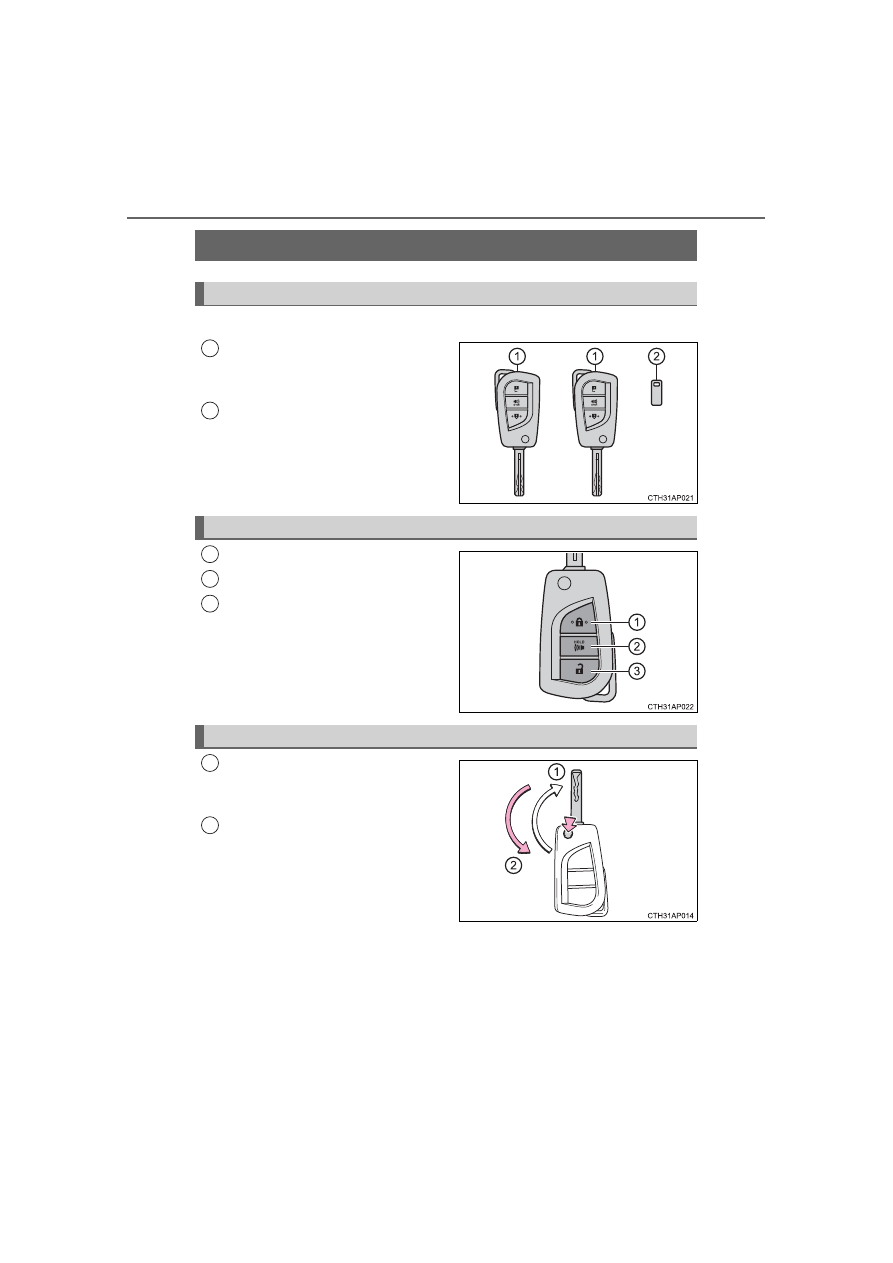

The following keys are provided with the vehicle.

Keys

Operating the wireless remote con-
trol function

Key number plate

Locks all the doors (

P. 88)

Sounds the alarm (

P. 85)

Unlocks all the doors (

P. 88)

Releasing

To release the key, press the but-
ton

Folding

To stow the key, press the button
then fold the key.

Keys

The keys

1

2

Wireless remote control

1
2
3

Using the key

1

2

85

3-1. Key information

3

Op
eration

 o

f each

 compo

nen

t

Scion iM_U (12J49U)

n

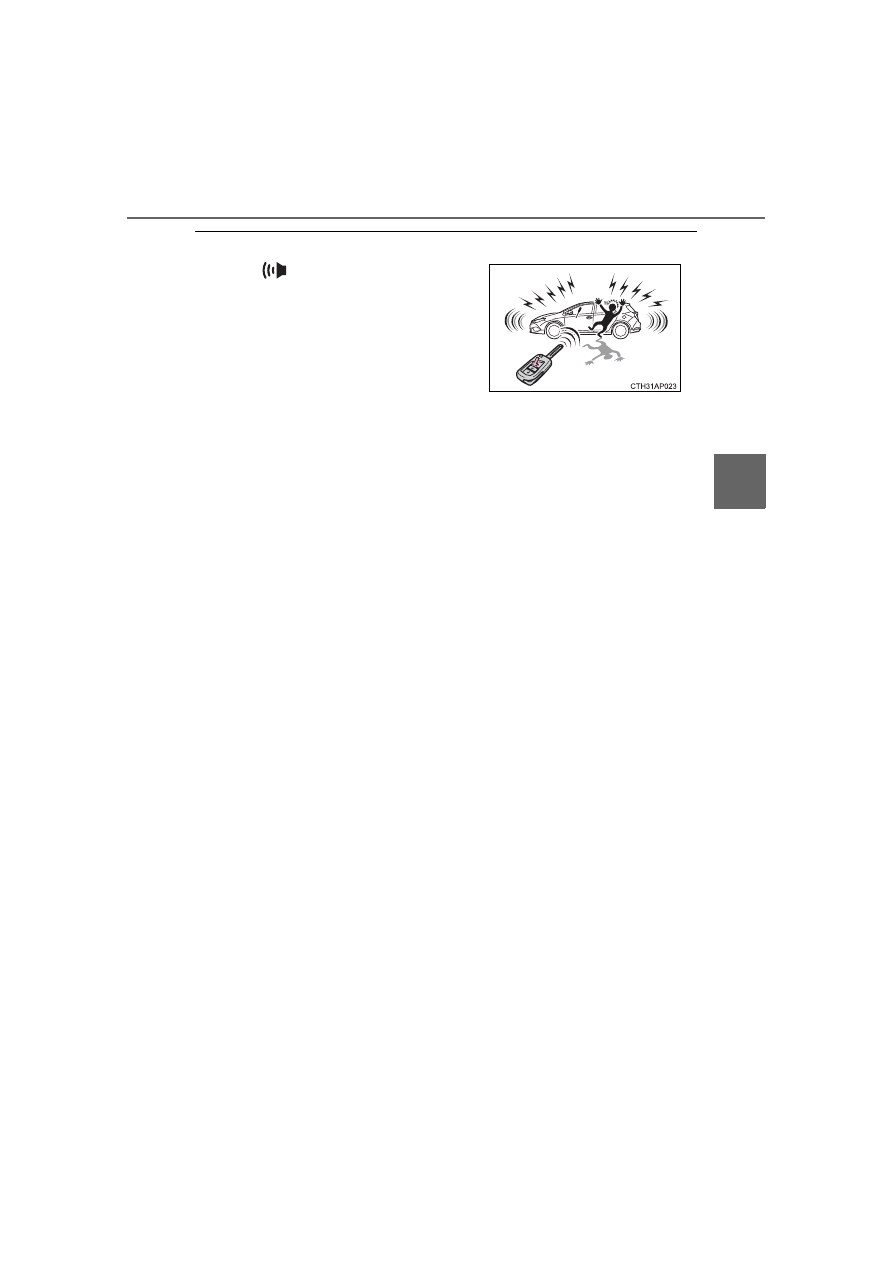

Panic mode

n

If you lose your keys
New genuine keys can be made by your Scion dealer using the other key and
the key number stamped on your key number plate. Keep the plate in a safe
place such as your wallet, not in the vehicle.

n

When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

n

Conditions affecting the operation of the wireless remote control
The wireless remote control function may not operate normally in the follow-
ing situations:

l

When the wireless key battery is depleted

l

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

l

When carrying a portable radio, cellular phone or other wireless communi-
cation devices

l

When multiple wireless keys are in the vicinity

l

When the wireless key is in contact with, or is covered by a metallic object

l

When a wireless key (that emits radio waves) is being used nearby

l

When the wireless key has been left near an electrical appliance such as a
personal computer

l

If window tint with a metallic content or metallic objects are attached to the
rear window

When

 is pressed for longer than

about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.

To stop the alarm, press any button on the
wireless remote control.

86

3-1. Key information

Scion iM_U (12J49U)

n

Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (

P. 237)

n

When the key battery is fully depleted
P. 237

n

If a wrong key is used
The key cylinder rotates freely, isolated from the internal mechanism.

n

Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features:

P. 319)

n

Certification for the wireless remote control



For vehicles sold in the U.S.A.

FCC ID: HYQ23AAH

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

87

3-1. Key information

3

Op
eration

 o

f each

 compo

nen

t

Scion iM_U (12J49U)



For vehicles sold in the U.S.A.

FCC ID: HYQ12BFA

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.



For vehicles sold in Canada

NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.

NOTICE

n

To prevent key damage

l

Do not drop the keys, subject them to strong shocks or bend them.

l

Do not expose the keys to high temperatures for long periods of time.

l

Do not get the keys wet or wash them in an ultrasonic washer etc.

l

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

l

Do not disassemble the keys.

l

Do not attach a sticker or anything else to the surface of the key.

88

Scion iM_U (12J49U)

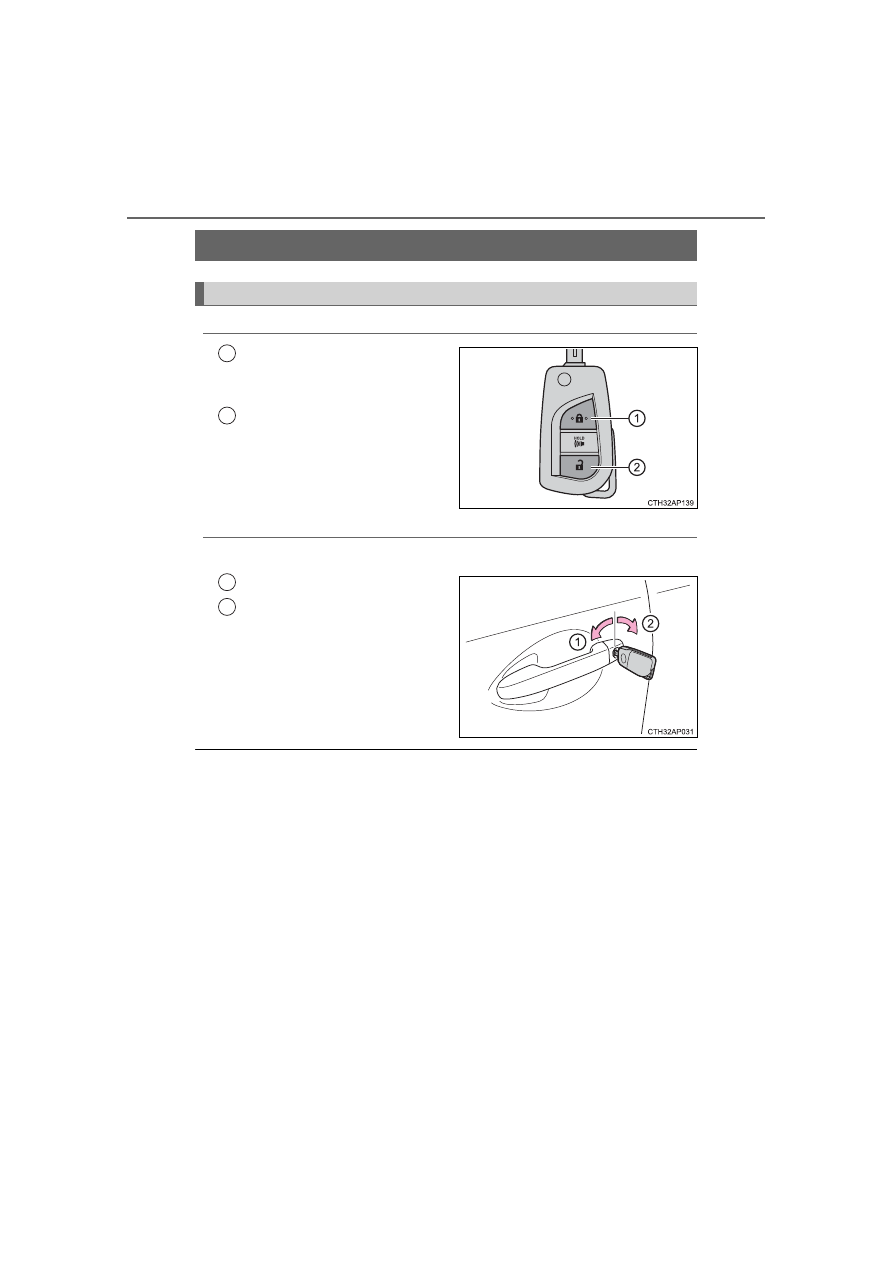

3-2. Opening, closing and locking the doors

u

Wireless remote control

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.

u

Key

Turning the key operates the doors as follows:

Locks all the doors

Unlocks all the doors

Turning the key unlocks the
driver's door. Turning the key
again unlocks the other doors.

n

Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the wireless remote control. (Locked: once;
Unlocked: twice)

n

Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.

n

Door lock buzzer
If an attempt to lock the doors using the wireless remote control is made
when a door is not fully closed, a buzzer will sound continuously for 5 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.

n

If the wireless remote control does not operate properly
Replace the battery with a new one if it is depleted. (

P. 237)

Side doors

Unlocking and locking the doors from the outside

1

2

1
2

89

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen

t

Scion iM_U (12J49U)

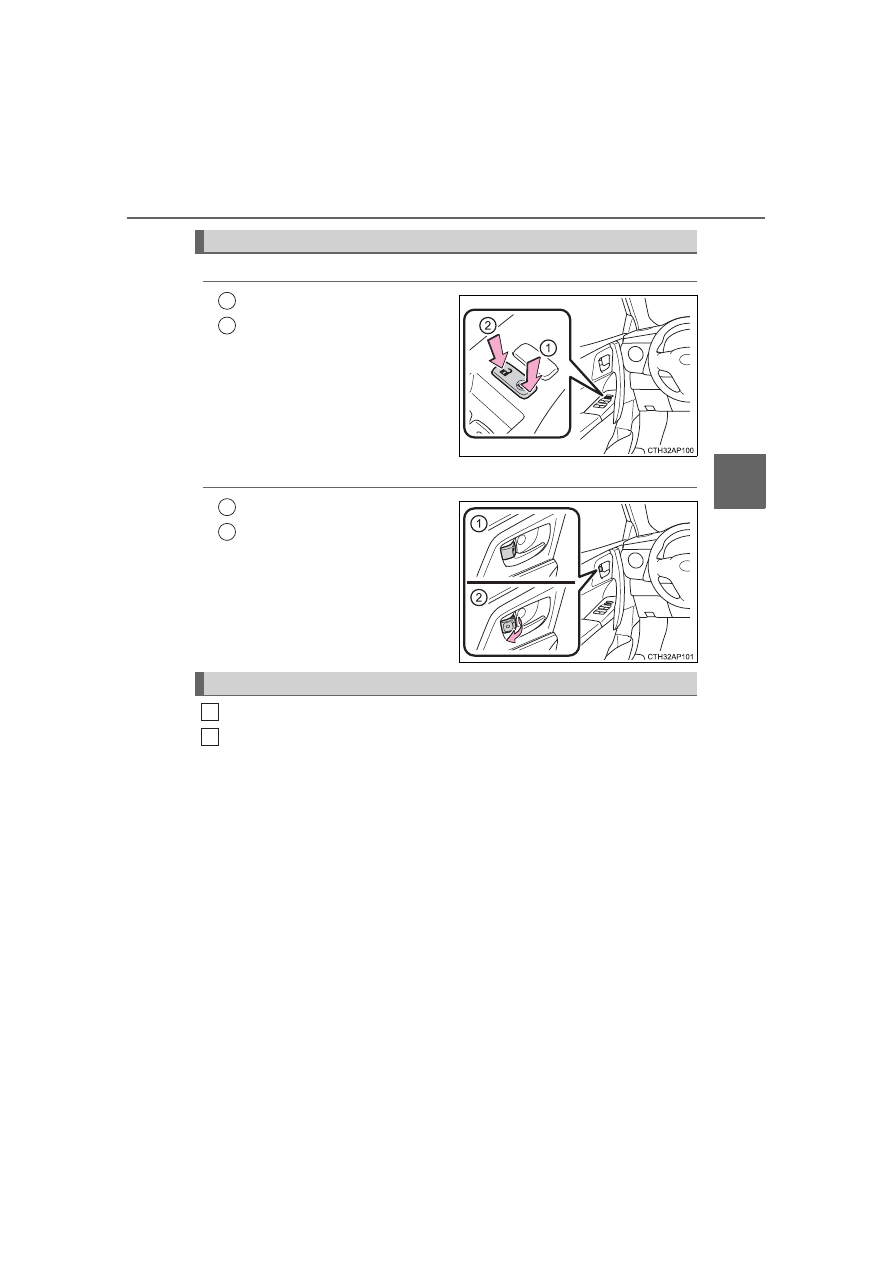

u

Door lock switches

Locks all the doors

Unlocks all the doors

u

Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

Move the inside lock button to the lock position.

Close the door.

The door cannot be locked if either of the front doors is open and the
key is in the engine switch.

Unlocking and locking the doors from the inside

1
2

1
2

Locking the doors from the outside without a key

1
2

90

3-2. Opening, closing and locking the doors

Scion iM_U (12J49U)

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

n

Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).

The open door(s) or back door is indicated on the multi-information display.

n

Conditions affecting the operation of the wireless remote control
P. 85

n

Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:

P. 319)

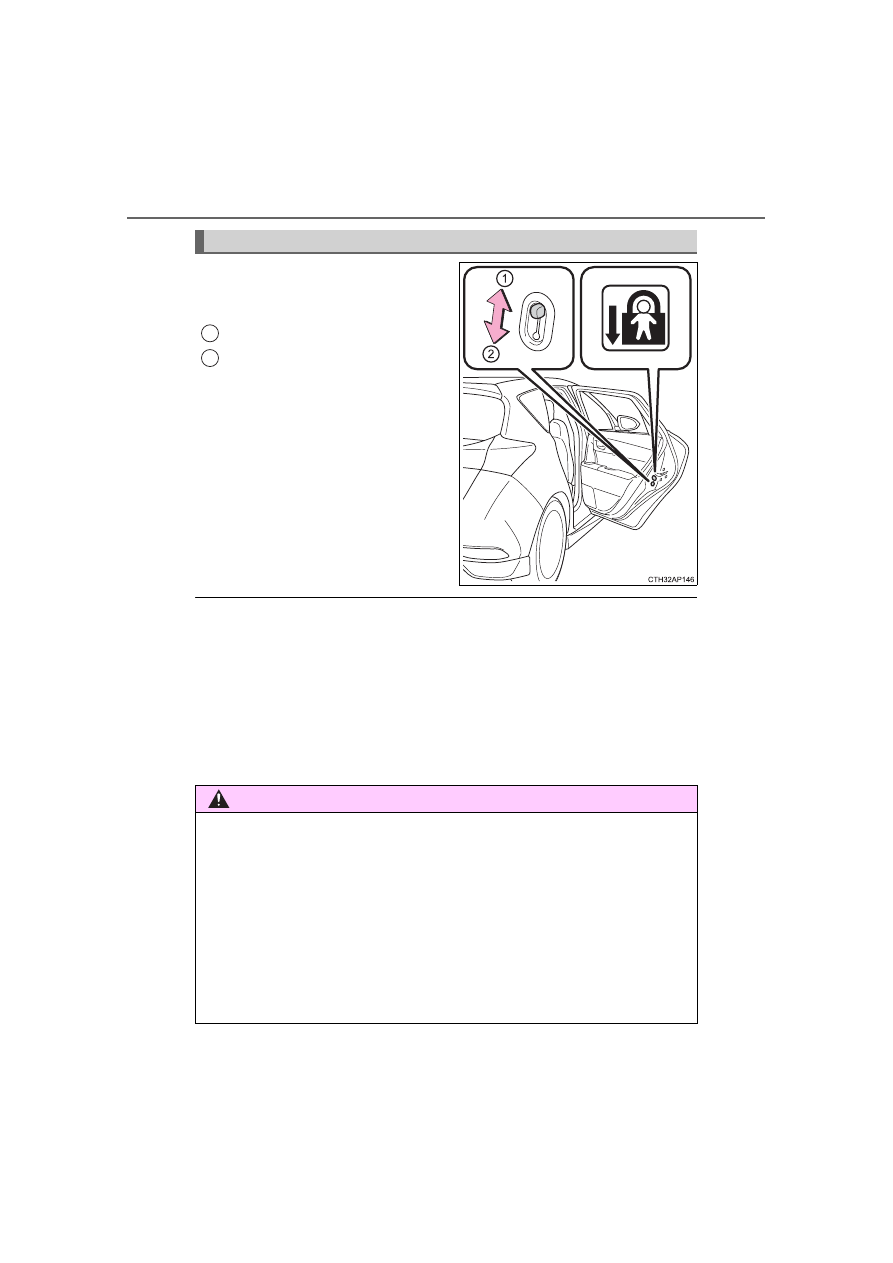

Rear door child-protector lock

1
2

WARNING

n

To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

l

Ensure that all doors are properly closed and locked.

l

Do not pull the inside handle of the doors while driving.

Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.

l

Set the rear door child-protector locks when children are seated in the rear
seats.

91

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen

t

Scion iM_U (12J49U)

n

Door lock switch
P. 89

n

Wireless remote control
P. 88

n

Key
P. 88

Raise the back door while pushing
up the back door opener switch.

The back door cannot be closed
immediately after the back door
opener switch is pushed.

n

Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the wireless remote control. (Locked: once;
Unlocked: twice)

n

Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).

The open door(s) or back door is indicated on the multi-information display.

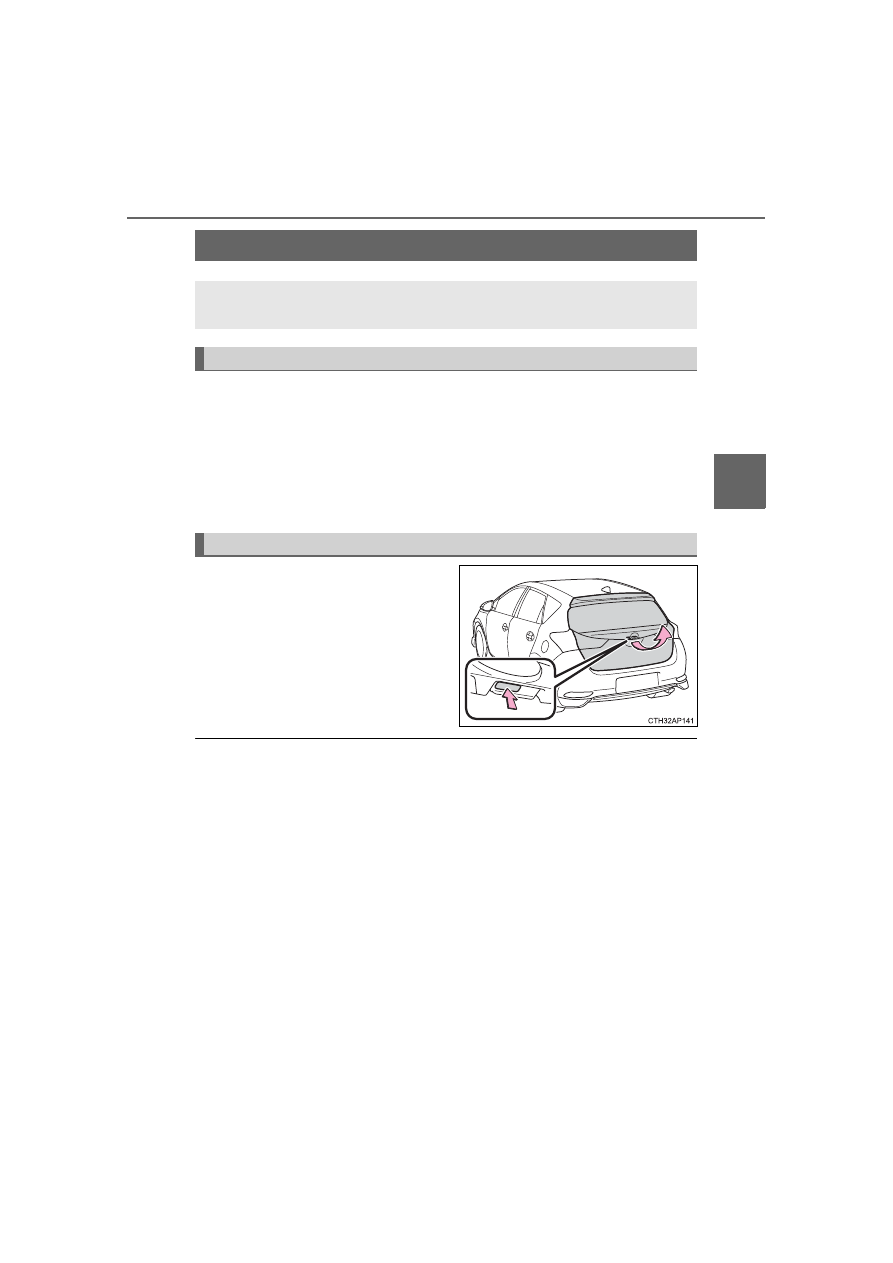

Back door

The back door can be locked/unlocked and opened by the fol-
lowing procedures.

Unlocking and locking the back door

Opening the back door

92

3-2. Opening, closing and locking the doors

Scion iM_U (12J49U)

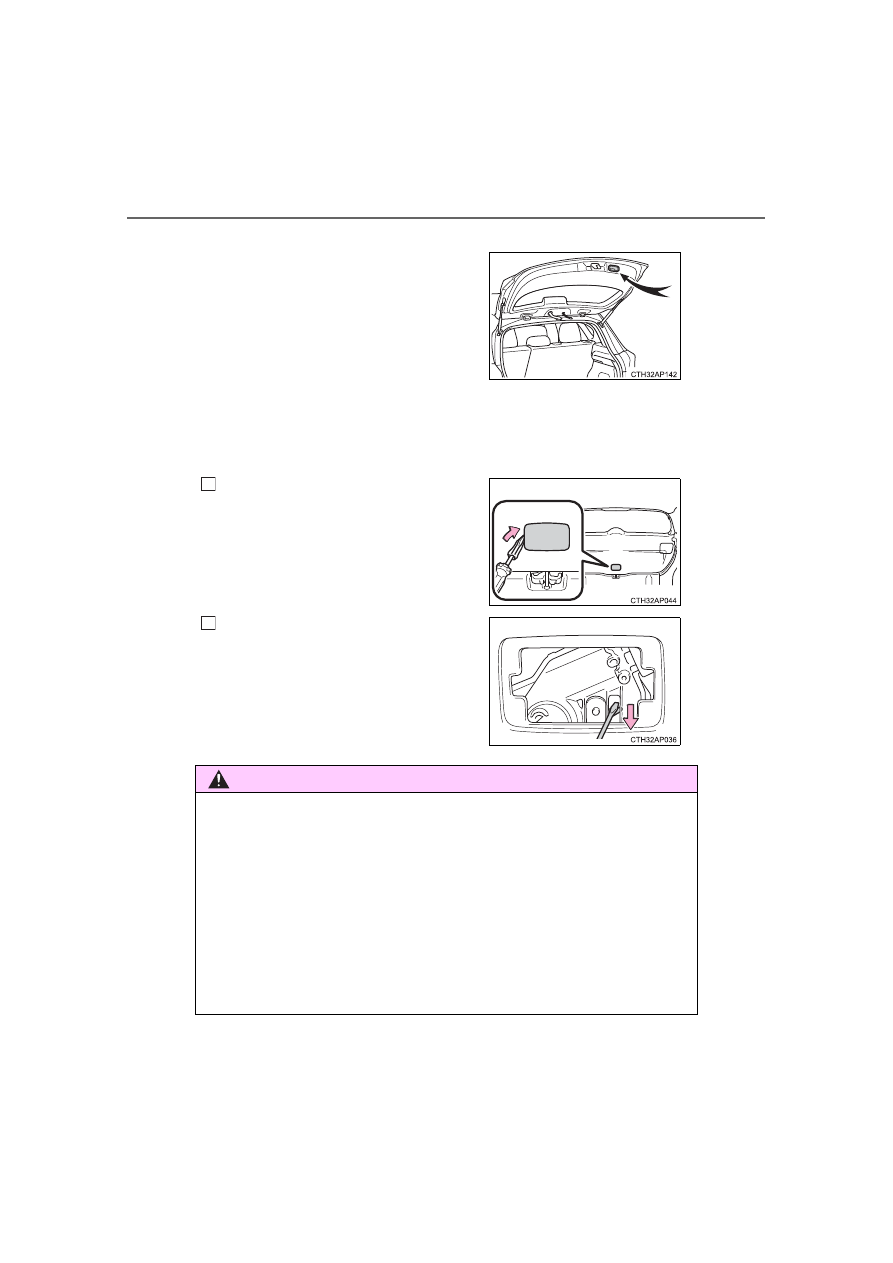

n

When closing the back door

n

Luggage compartment light
The luggage compartment light turns on when the back door is opened.

n

If the back door opener is inoperative
The back door can be operated from the inside.

Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.

Be careful not to pull the back door
sideways when closing the back door
with the handle.

Using a screwdriver, remove the cover.

To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.

Move the lever.

WARNING

n

Caution while driving

l

Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.

l

Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.

l

Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.

1

2

93

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen

t

Scion iM_U (12J49U)

WARNING

n

When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.

l

Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.

l

Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

n

Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

l

Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.

l

When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.

l

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

l

Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

l

The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.

94

3-2. Opening, closing and locking the doors

Scion iM_U (12J49U)

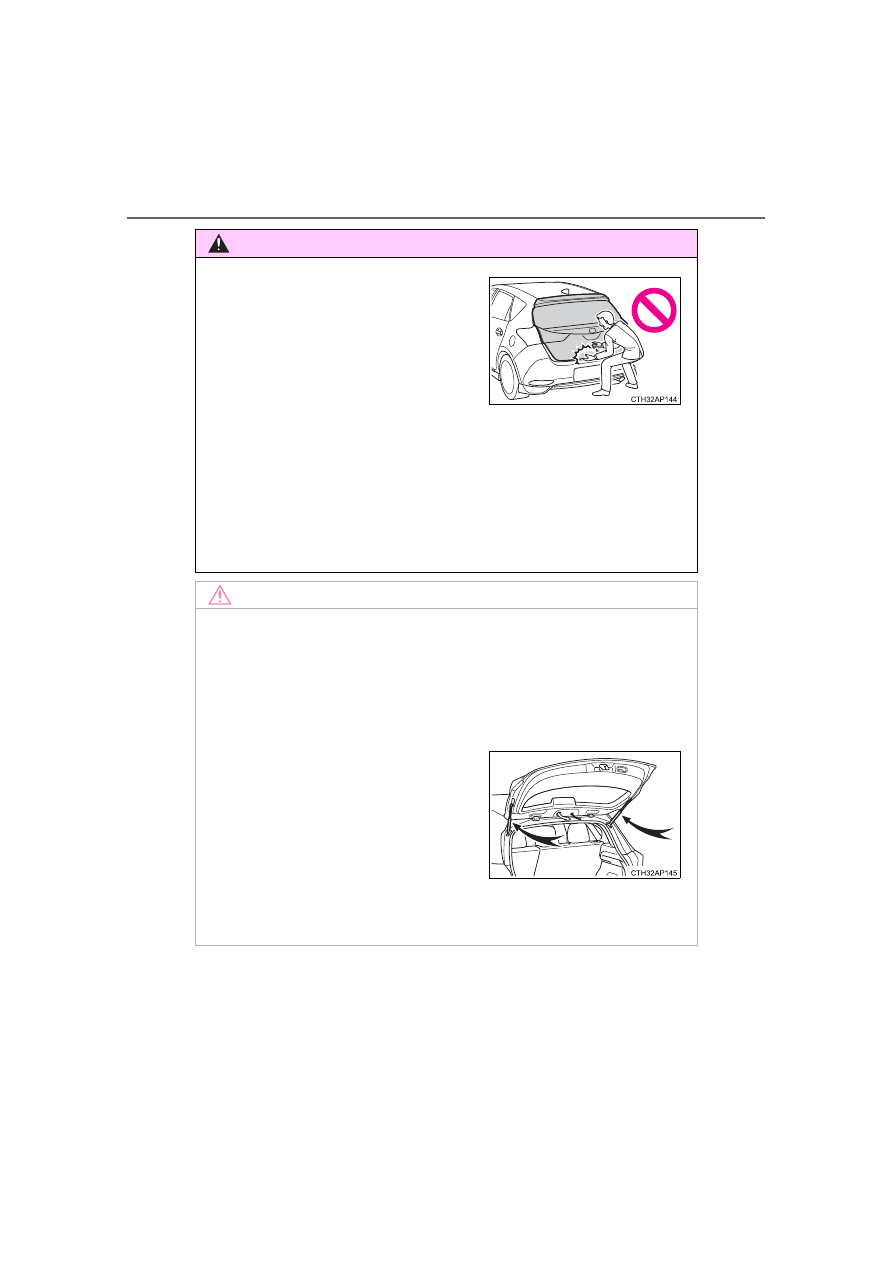

WARNING

l

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.

l

If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Scion part is recommended.

NOTICE

n

Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.

Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.

l

Do not place your hand on the damper stay or apply lateral forces to it.

l

When closing the back door, take extra
care to prevent your fingers etc. from
being caught.

l

When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

l

Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.

l

Do not touch the damper stay rod with
gloves or other fabric items.

l

Do not attach any accessories other
than genuine Scion parts to the back
door.

l

Do not place your hand on the damper
stay or apply lateral forces to it.
