1-1. For safe use

1

Fo
r

safety and securi

ty

Scion iM_U (12J49U)

n

Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

WARNING

n

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (

P. 28)

n

When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.

l

If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.

l

Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

l

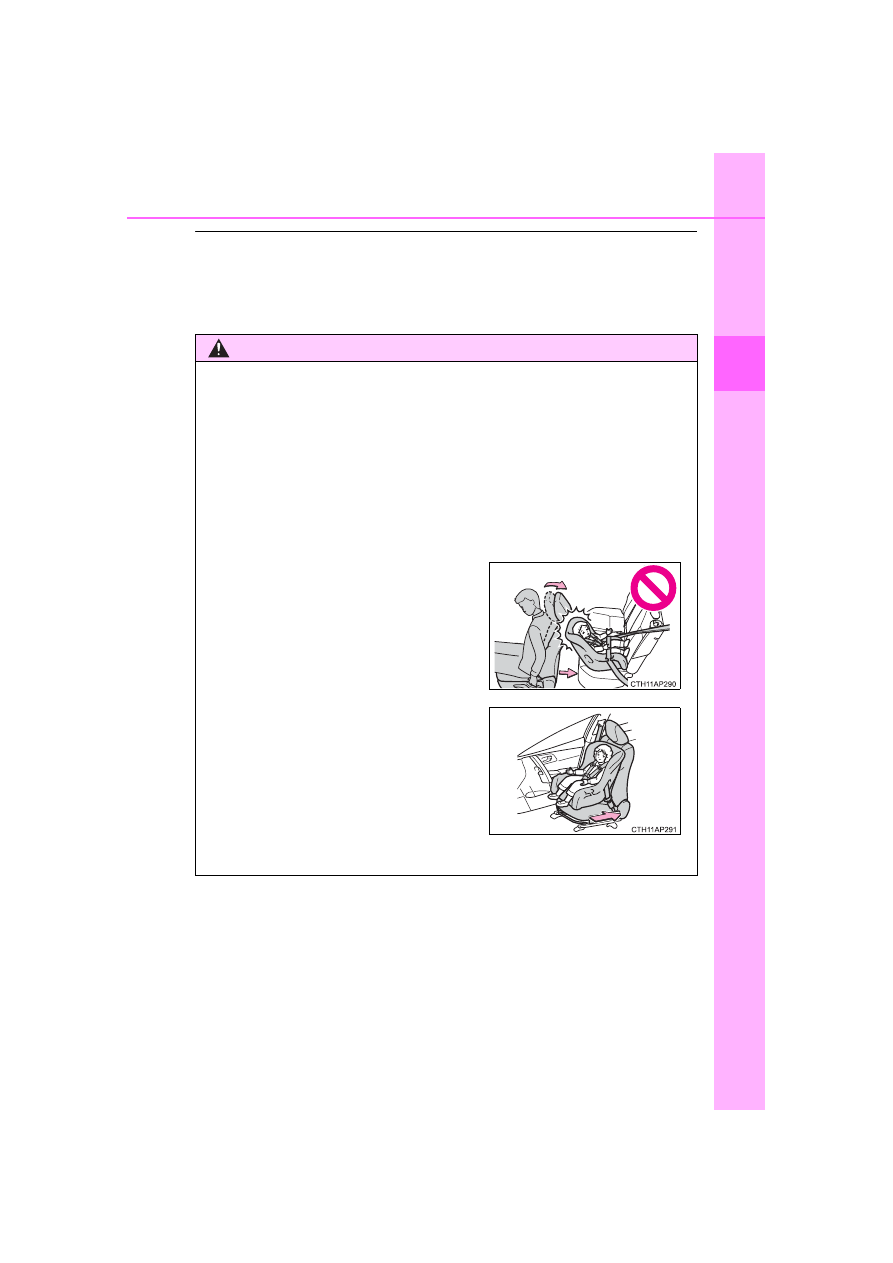

Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).

64

1-1. For safe use

Scion iM_U (12J49U)

WARNING

n

When installing a child restraint system

l

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.

l

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

l

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

l

After securing a child restraint system, never adjust the seat.

l

Follow all installation instructions provided by the child restraint system
manufacturer.

n

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

n

To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking, sudden swerve or an accident.

65

1-1. For safe use

1

Fo
r

safety and securi

ty

Scion iM_U (12J49U)

Exhaust gas precautions

Harmful substance to the human body is included in exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.

n

Important points while driving

l

Keep the back door closed.

l

If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at your Scion
dealer as soon as possible.

n

When parking

l

If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.

l

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

l

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

n

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Scion dealer.

66

Scion iM_U (12J49U)

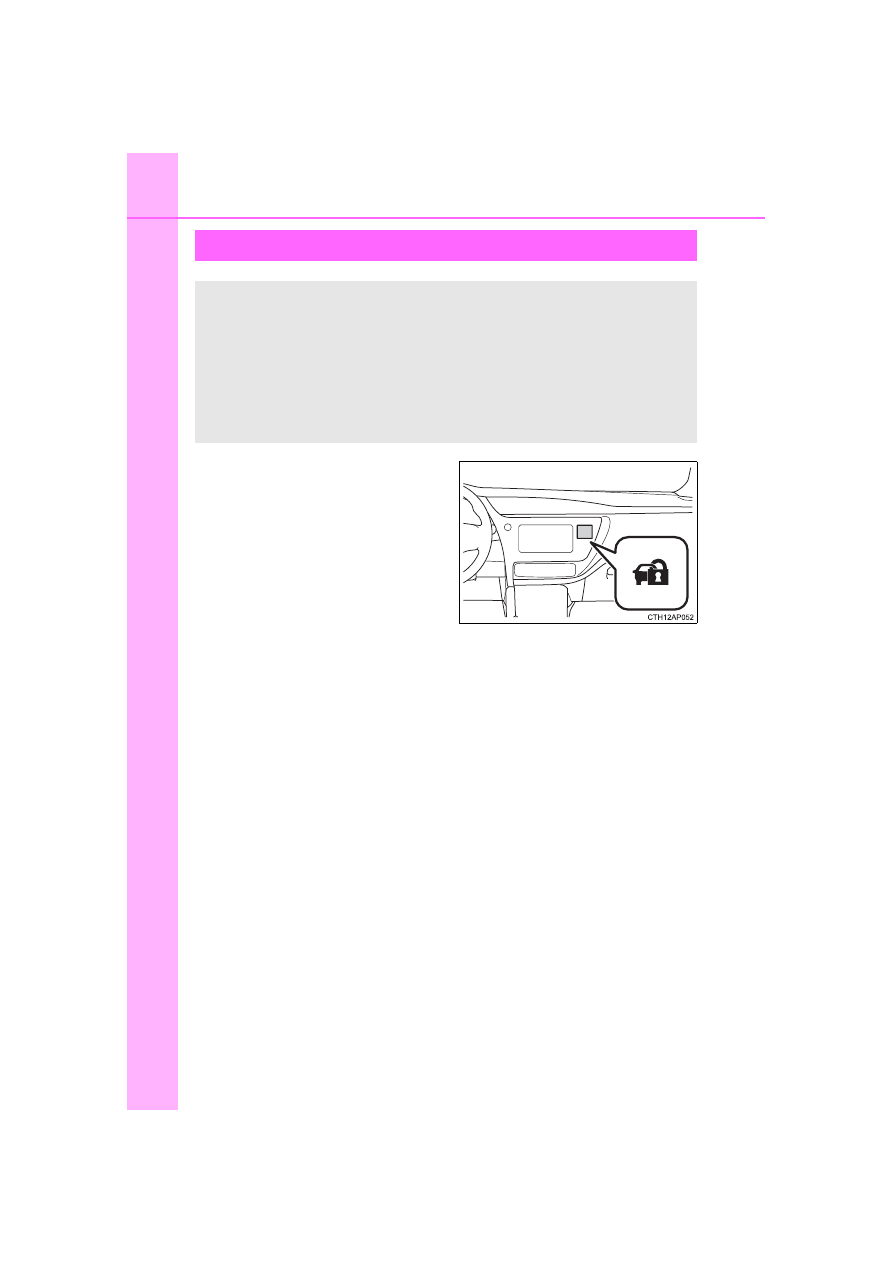

1-2. Theft deterrent system

The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.

The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehi-
cle.

This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

67

1-2. Theft deterrent system

1

Fo
r

safety and securi

ty

Scion iM_U (12J49U)

n

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

n

Conditions that may cause the system to malfunction

l

If the grip portion of the key is in contact with a metallic object

l

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

n

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

FCC ID: MOZRI-42BTY

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.



For vehicles sold in Canada

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

NOTICE

n

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

68

1-2. Theft deterrent system

Scion iM_U (12J49U)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under the penalty
of law.

Theft prevention labels (U.S.A.)

69

Instrument cluster

2

Scion iM_U (12J49U)

2. Instrument

cluster

Warning lights and

indicators .......................... 70

Gauges and meters ............ 74

Multi-information display ..... 76

70

Scion iM_U (12J49U)

2. Instrument cluster

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

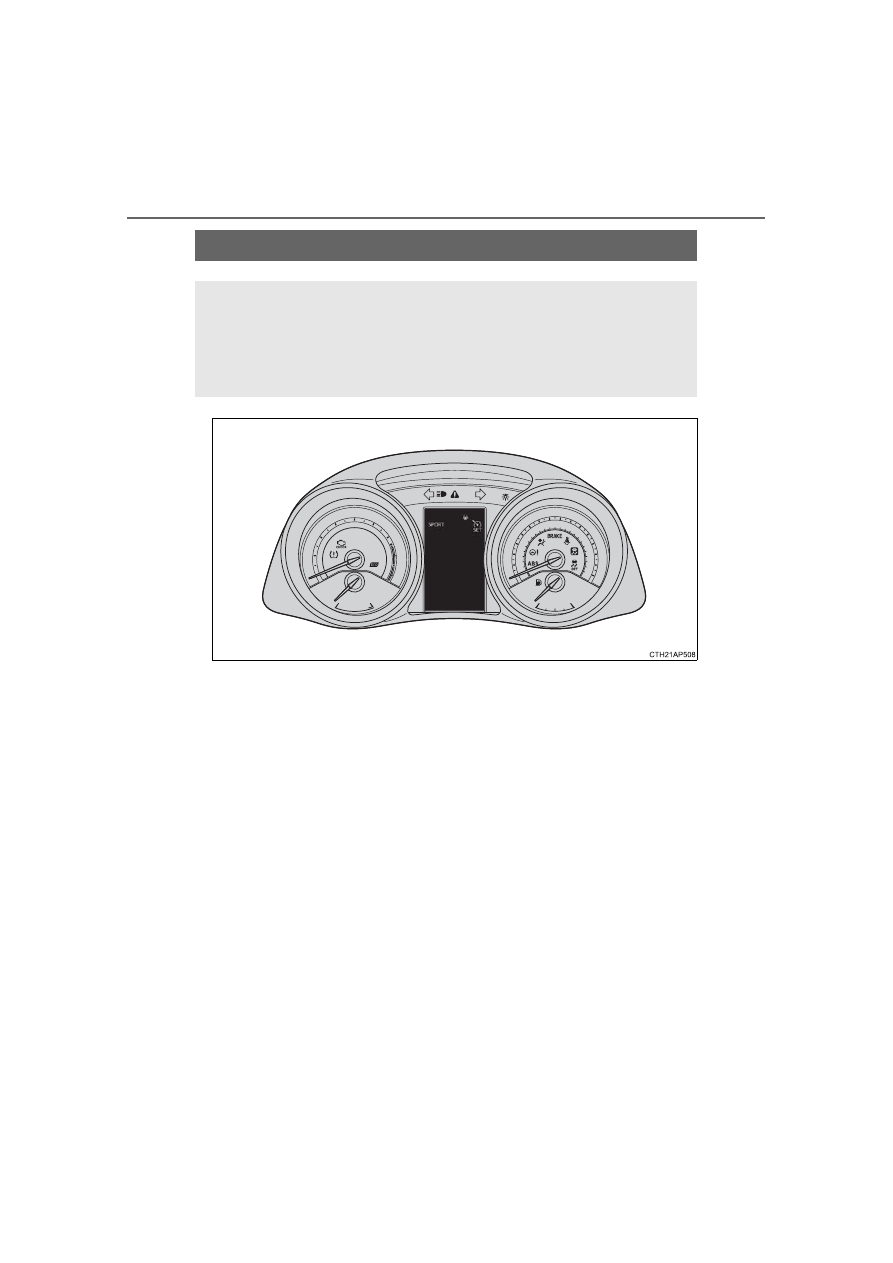

For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

71

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

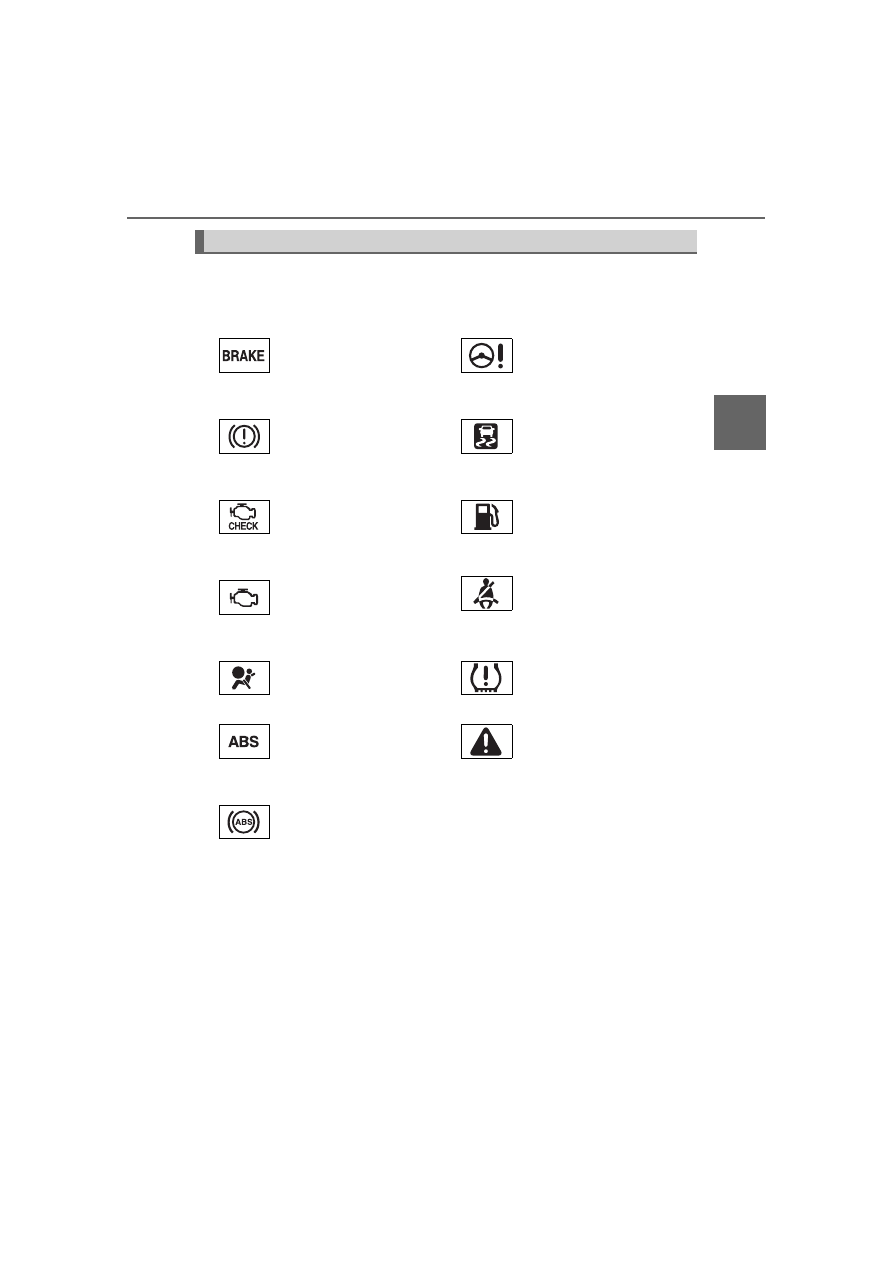

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

*

: These lights turn on when the engine switch is turned to the “ON” position

to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or turn off. Have the vehicle
inspected by your Scion dealer.

Warning lights

*

(U.S.A.)

Brake system warning
light (

P. 262)

*

Electric power steering
system warning light
(

P. 263)

*

(Canada)

Brake system warning
light (

P. 262)

*

Slip indicator (

P. 263)

*

(U.S.A.)

Malfunction indicator
lamp (

P. 262)

Low fuel level warning
light (

P. 263)

*

(Canada)

Malfunction indicator
lamp (

P. 262)

Seat belt reminder light
(

P. 263)

*

SRS warning light
(

P. 262)

*

Tire pressure warning
light (

P. 263)

*

(U.S.A.)

ABS warning light
(

P. 263)

*

Master warning light
(

P. 264)

*

(Canada)

ABS warning light
(

P. 263)

72

2. Instrument cluster

Scion iM_U (12J49U)

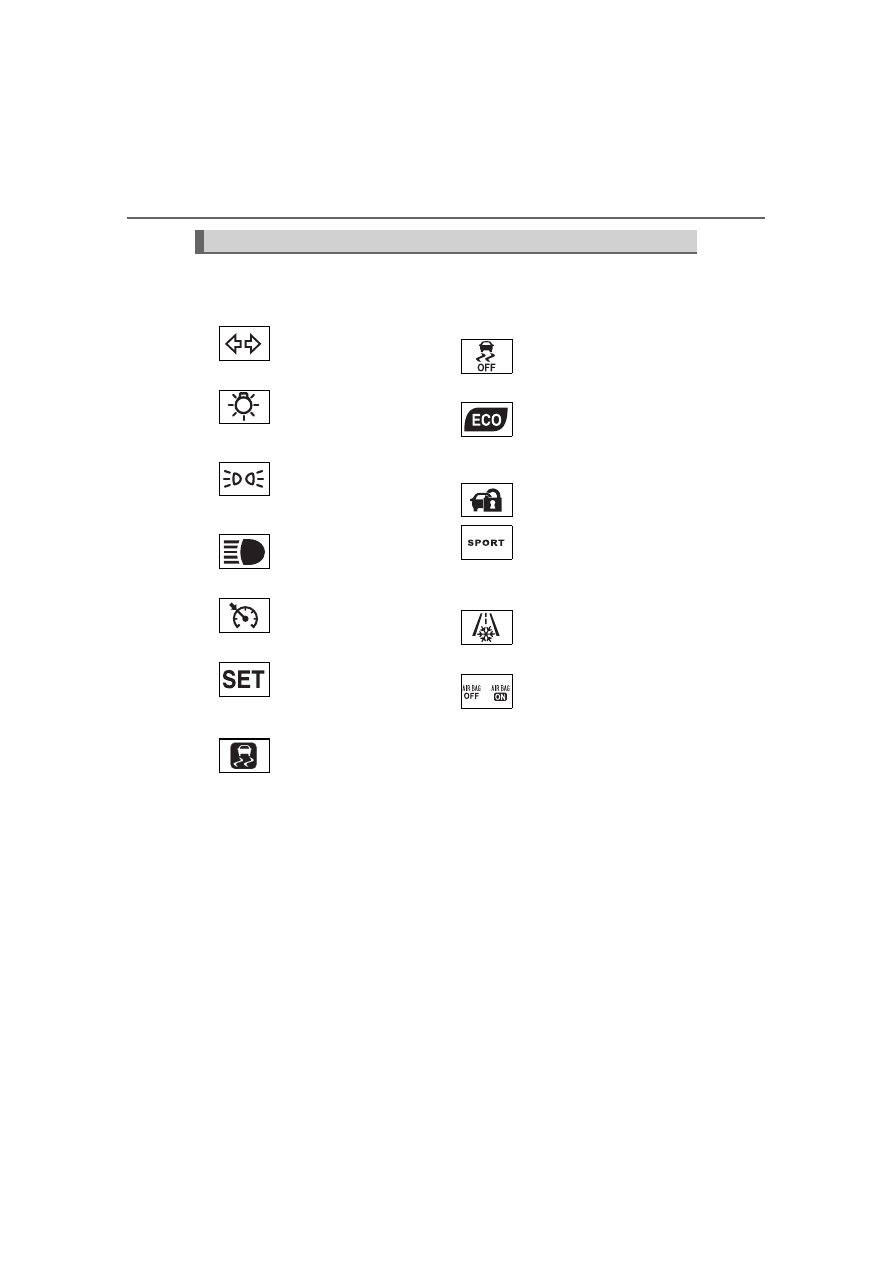

The indicators inform the driver of the operating state of the vehicle’s
various systems.

*

1

: These lights turn on when the engine switch is turned to the “ON” position

to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or turn off. Have the vehicle
inspected by your Scion dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light does not turn on when the system is disabled.

*

4

: This light illuminates on the center panel.

*

5

: When the outside temperature is approximately 37°F (3°C) or lower, the

indicator will flash for approximately 10 seconds, then stay on.

Indicators

Turn signal indicator
(

P. 137)

*

1

VSC OFF indicator
(

P. 158)

(U.S.A.)

Headlight indicator
(

P. 139)

*

1, 3

(if equipped)

Eco Driving Indicator
Light (

P. 80)

(Canada)

Tail light indicator
(

P. 139)

*

4

Security indicator
(

P. 66)

Headlight high beam
indicator (

P. 139)

(if equipped)

Sport mode indicator
(

P. 132)

Cruise control indicator
(

P. 151)

*

5

Low outside tempera-
ture indicator (

P. 74)

Cruise control “SET”
indicator (

P. 151)

*

1, 4

“AIR BAG ON/OFF” indi-
cator (

P. 45)

*

1, 2

Slip indicator (

P. 157)

73

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

WARNING

n

If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Scion dealer immedi-
ately if this occurs.

74

2. Instrument cluster

Scion iM_U (12J49U)

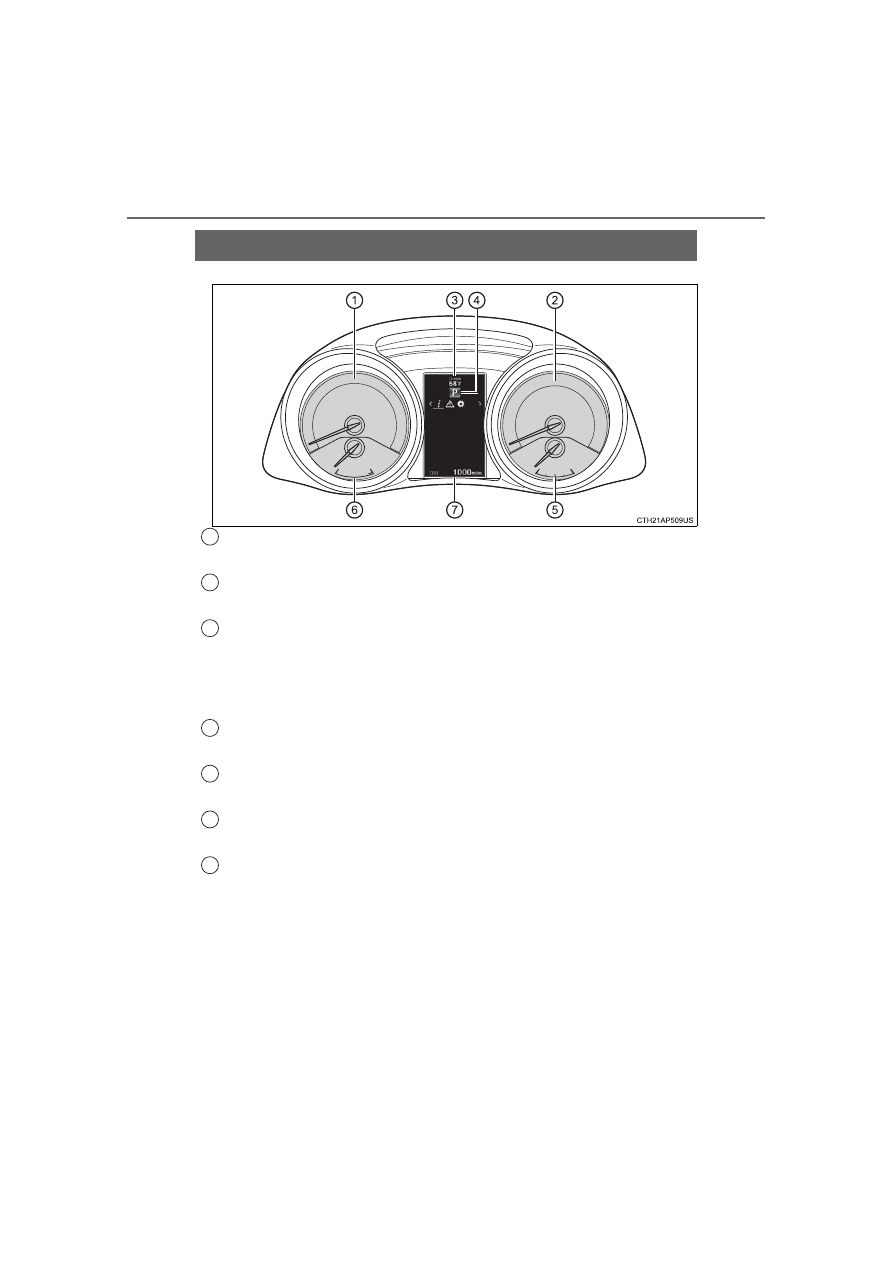

Tachometer

Displays the engine speed in revolutions per minute.

Speedometer

Displays the vehicle speed.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).

Low outside temperature indicator comes on when the ambient tempera-
ture is 37°F (3°C) or lower.

Shift position and gear position indicator (if equipped)

P. 131

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Engine coolant temperature gauge

Displays the engine coolant temperature.

Multi-information display

P. 76

Gauges and meters

1

2

3

4

5

6

7

75

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

n

The meters and display illuminate when
The engine switch is in the “ON” position.

n

Outside temperature display

l

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 9 mph [15 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

l

If “

” is displayed continuously, the system may be malfunctioning. Take

your vehicle to your Scion dealer.

NOTICE

n

To prevent damage to the engine and its components

l

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

l

The engine may be overheating if the engine coolant temperature gauge
enters the red zone. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (

P. 288)

76

2. Instrument cluster

Scion iM_U (12J49U)

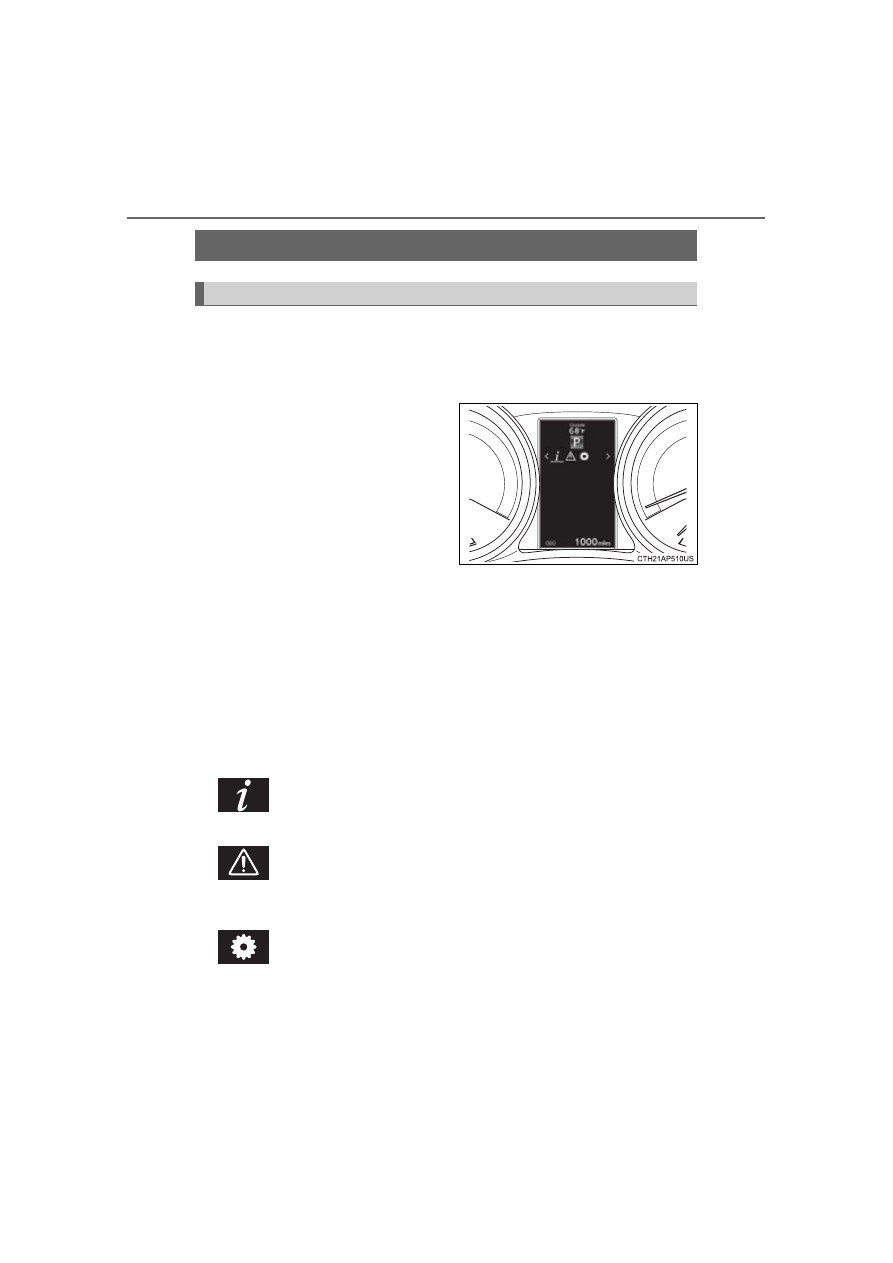

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.

l Outside temperature (

P. 74)

l Shift position and gear position

indicator (if equipped)
(

P. 131)

l Pop-up display

In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.

l Trip information/Meter light control (

P. 77)

Displays the following items:

• Odometer
• Trip  meter
• Meter light control

l Menu icons (

P. 78)

Select a menu icon to display its content.

Drive information (

P. 78)

Select to display various drive data.

Warning message display (

P. 269)

Select to display warning messages and measures to be taken if a
malfunction is detected.

Settings display (

P. 80)

Select to change the meter display settings and other settings.

Multi-information display

Display content

77

2. Instrument cluster

2

Instrum

e

nt clus

ter

Scion iM_U (12J49U)

u

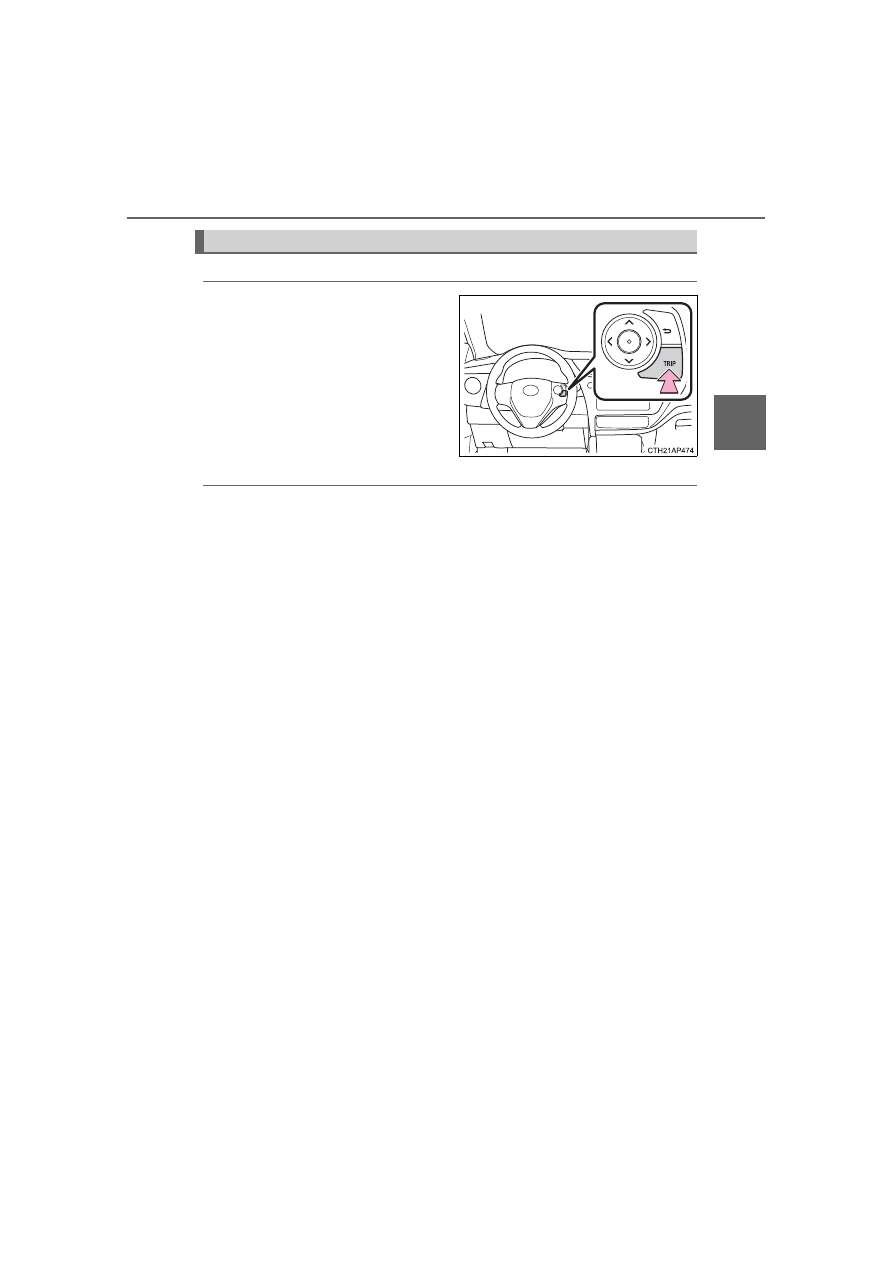

Changing the display

To change the displayed item,
press the “TRIP” switch.

Each time the switch is pressed,
the displayed item will be
changed.

u

Display items

n

Odometer

Displays the total distance the vehicle has been driven.

n

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “TRIP”
switch.

n

Meter light control

Displays the meter light control display.

• The brightness of the meters can be adjusted individually for day mode

and night mode

*

.

• If the brightness of the meters is adjusted when the tail lights are on, the

brightness of the clock and other items will also be adjusted.

• To adjust the brightness, display the meter light control display and

press and hold the “TRIP” switch.

*

: Day mode and night mode:

P. 81

Trip information/Meter light control

78

2. Instrument cluster

Scion iM_U (12J49U)

u

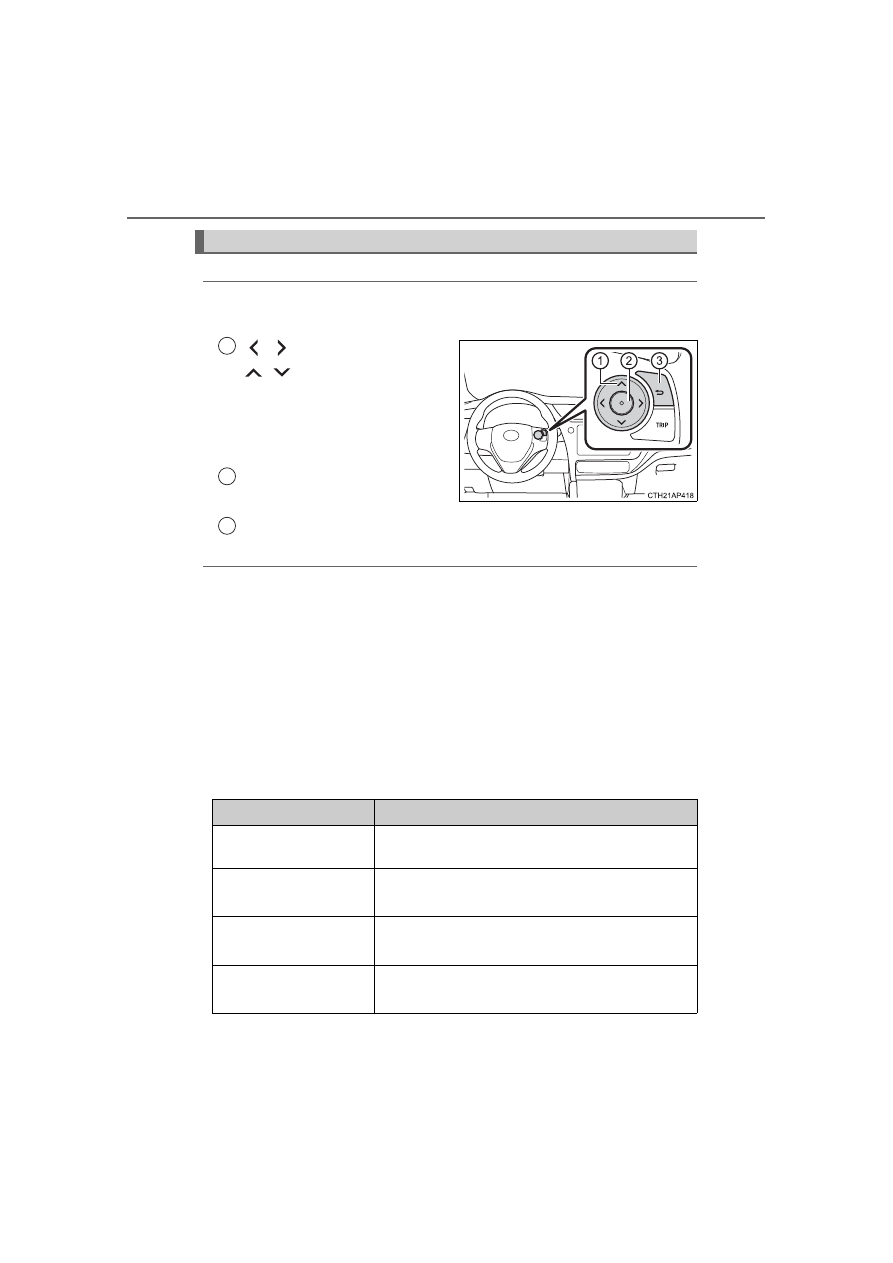

Operating the meter control switches

The multi-information display is operated using the meter control
switches.

: Select menu icons

: Change displayed

item, scroll up/down
the screen and
move the cursor up/
down

Press: Enter/Set

Press and hold: Reset

Return to the previous screen

u

Drive information

n

Drive information 1/Drive information 2

Displays drive information such as the following:

l Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)

l Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be changed on the settings dis-
play. (

P. 80)

Menu icons

1

2

3

Item

Content

Current fuel
consumption

Displays instantaneous current fuel consumption

Average fuel economy
(after reset)

Displays average fuel consumption since display

reset

*

1, 2

Average fuel economy
(after start)

Displays average fuel consumption since engine

start

*

2

Average fuel economy
(after refuel)

Displays average fuel consumption since

refuel

*

2, 3
