6-7. Warning/Indicator Lights and Warning Sounds

iA_OM_OM99M17z_(U)

Check Engine Light

If this light illuminates while driving, the vehicle may have
a problem. It is important to note the driving conditions
when the light illuminated and consult your Scion dealer.
The check engine light may illuminate in the following
cases:
• The fuel tank level being very low or approaching empty.
• The engine’s electrical system has a problem.
• The emission control system has a problem.
• The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continu-
ously, do not drive at high speeds and consult your Scion
dealer as soon as possible.

(if equipped)

Automatic Transaxle Warning Light

The light illuminates when the transaxle has a problem.
If the automatic transaxle warning light illuminates, the
transaxle has an electrical problem. Continuing to drive
your Scion in this condition could cause damage to your
transaxle. Consult your Scion dealer as soon as possible.

Air Bag/Front Seat Belt Pretensioner System Warning
Light

A system malfunction is indicated if the warning light con-
stantly flashes, constantly illuminates or does not illumi-
nate at all when the ignition is switched ON. If any of these
occur, consult your Scion dealer as soon as possible. The
system may not operate in an accident.

(Flashing)

(if equipped)

Tire Pressure Monitoring System Warning Light

If the tire pressure monitoring system has a malfunc-
tion, the tire pressure warning light flashes for about 1
minute when the ignition is switched ON and then con-
tinues illuminating. Have your vehicle checked by your
Scion dealer as soon as possible.

(Red)

(Illuminate)

KEY Warning Light

If any malfunction occurs in the keyless entry system, it
illuminates continuously.
If the key warning indicator light illuminates or the push
button start indicator light (amber) flashes, the engine may
not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and
have the vehicle inspected at your Scion dealer as soon
as possible.
Refer to Emergency Operation for Starting the Engine on
P. 146.

Signal

Warning

iA_OM_OM99M17z_(U)

513

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

WARNING

■

Never tamper with the air bag/pretensioner systems and always have
your Scion dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pre-
tensioner could accidentally activate or become disabled causing serious
injury or death.

■

If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, decrease
vehicle speed immediately and avoid sudden maneuvering and brak-
ing:
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, it is danger-
ous to drive the vehicle at high speeds, or perform sudden maneuvering
or braking. Vehicle drivability could worsen and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determine if you
have enough air to proceed to a place where air may be added and the sys-
tem monitored again by your Scion dealer or a tire repair station.

■

Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is
illuminated. Have the problem taken care of as soon as possible before it
develops into a more serious situation that could lead to tire failure and a
dangerous accident.

514

6-7. Warning/Indicator Lights and Warning Sounds

iA_OM_OM99M17z_(U)

Take the appropriate action and verify that the warning light turns off.

Taking Action

Signal

Warning

Action to be taken

Low Fuel Warning Light

The light turns on when the
remaining fuel is about 2.3
gal. (9.0 L, 1.9 Imp.gal.).
The light illumination timing
may vary because fuel inside
the fuel tank moves around
according to the driving con-
ditions and the vehicle pos-
ture.

Add fuel.

Check Fuel Cap Warning
Light

If the check fuel cap warning
light illuminates while driving,
the fuel-filler cap may not be
installed properly.

Stop the engine and rein-
stall the fuel- filler cap.
Refer to Fuel-Filler Cap
on P. 111

iA_OM_OM99M17z_(U)

515

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

Seat Belt Warning Light

The seat belt warning light
turns on if the driver or front
passenger’s seat is occupied
and the seat belt is not fas-
tened with the ignition
switched ON.
If the driver or front passen-
ger’s seat belt is unfastened
(only when the front passen-
ger’s seat is occupied) and
the vehicle is driven at a
speed faster than about 12
mph (20 km/h), the warning
light flashes. After a short
time, the warning light stops
flashing, but remains illumi-
nated.
• The warning light flashes

for about 6 seconds if the
driver’s seat belt is not fas-
tened when the ignition is
switched ON.

• To allow the front passen-

ger occupant classification
sensor to function properly,
do not place and sit on an
additional seat cushion on
the front passenger’s seat.
The sensor may not func-
tion properly because the
additional seat cushion
could cause sensor inter-
ference.

• If a small child is seated on

the front passenger’s seat,
the warning light may not
operate.

Fasten the seat belts.

Door-Ajar Warning Light

The light turns on if any door
is not closed securely.

Close the door securely.

(if equipped)

Low Washer Fluid Level
Warning Light

This warning light indicates
that little washer fluid
remains.

Add washer fluid
(

P. 435).

Signal

Warning

Action to be taken

516

6-7. Warning/Indicator Lights and Warning Sounds

iA_OM_OM99M17z_(U)

(Illuminate)

(if equipped)

Tire Pressure Monitoring
System Warning Light

When the warning light illu-
minates, and the warning
beep sound is heard (about
3 seconds), tire pressure is
too low in one or more tires.

Inspect the tires and
adjust to the specified
inflation pressure
(

P. 446).

• Perform tire pressure

adjustment when the
tires are cold. Tire
pressure will vary
according to the tire
temperature, there-
fore let the vehicle
stand for 1 hour or
only drive it 1 mile
(1.6 km) or less
before adjusting the
tire pressures. When
pressure is adjusted
on hot tires to the
cold inflation pres-
sure, the TPMS
warning light/beep
may turn on after the
tires cool and pres-
sure drops below
specification.

Signal

Warning

Action to be taken

iA_OM_OM99M17z_(U)

517

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

(Illuminate)

(if equipped)

Also, an illuminated
TPMS warning light,
resulting from the tire air
pressure dropping due to
cold ambient temperature
will remain illuminated
even if the ambient tem-
perature rises. In this
case, it will also be nec-
essary to adjust the tire
air pressures. If the
TPMS warning light illu-
minates due to a drop in
tire air pressure, make
sure to check and adjust
the tire air pressures.

• Tires lose air natu-

rally over time and
the TPMS cannot tell
if the tires are getting
too soft over time or
you have a fl at.
However, when you
find one low tire in a
set of four-that is an
indication of trouble;
you should have
someone drive the
vehicle slowly for-
ward so you can
inspect any low tire
for cuts and any
metal objects stick-
ing through tread or
sidewall. Put a few
drops of water in the
valve stem to see if it
bubbles indicating a
bad valve. Leaks
need to be
addressed by more
than simply reinflat-
ing the tire as leaks
are dangerous —
take it to your Scion
dealer.

Signal

Warning

Action to be taken

518

6-7. Warning/Indicator Lights and Warning Sounds

iA_OM_OM99M17z_(U)

(Amber)

(if equipped)

Smart City Brake Support
(SCBS) Warning Light

The light turns on if the wind-
shield is dirty or there is a
malfunction in the system.

Vehicles with type B
audio:

Verify the reason why
the warning light is illu-
minated on the center
display (

P. 507).

If the reason why the
warning light is illumi-
nated is due to a dirty
windshield, clean the
windshield.
For any other reasons,
have the vehicle
inspected at your Scion
dealer.

Vehicles without type B
audio:

If the reason why the
warning light is illumi-
nated is due to a dirty
windshield, clean the
windshield. For any
other reasons, have the
vehicle inspected at
your Scion dealer.

WARNING

■

If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, decrease
vehicle speed immediately and avoid sudden maneuvering and brak-
ing:
If the tire pressure monitoring system warning light illuminates or flashes, or
the tire pressure warning beep sound is heard, it is dangerous to drive the
vehicle at high speeds, or perform sudden maneuvering or braking. Vehicle
drivability could worsen and result in an accident.

To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determine if you
have enough air to proceed to a place where air may be added and the sys-
tem monitored again by your Scion dealer or a tire repair station.

■

Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is
illuminated. Have the problem taken care of as soon as possible before it
develops into a more serious situation that could lead to tire failure and a
dangerous accident.

Signal

Warning

Action to be taken

iA_OM_OM99M17z_(U)

519

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

■

KEY Warning Light

Take the appropriate action and verify that the warning light turns
off.

Signal

Cause

Action to be taken

(Red)

(Flashing)

The smart key battery is
dead.

Replace the key battery
(

P. 443).

The smart key is not within
the operation range.

Bring the smart key into
the operation range
(

P. 93).

The smart key is placed in
areas inside the cabin where
it is difficult for the key to be
detected.

A key from another manufac-
turer similar to the smart key
is in the operation range.

Take the key from
another manufacturer
similar to the smart key
out of the operation
range.

Without the ignition switched
off, the smart key is taken out
of the cabin, and then all the
doors are closed.

Bring the smart key
back into the cabin.

520

iA_OM_OM99M17z_(U)

6-7. Warning/Indicator Lights and Warning Sounds

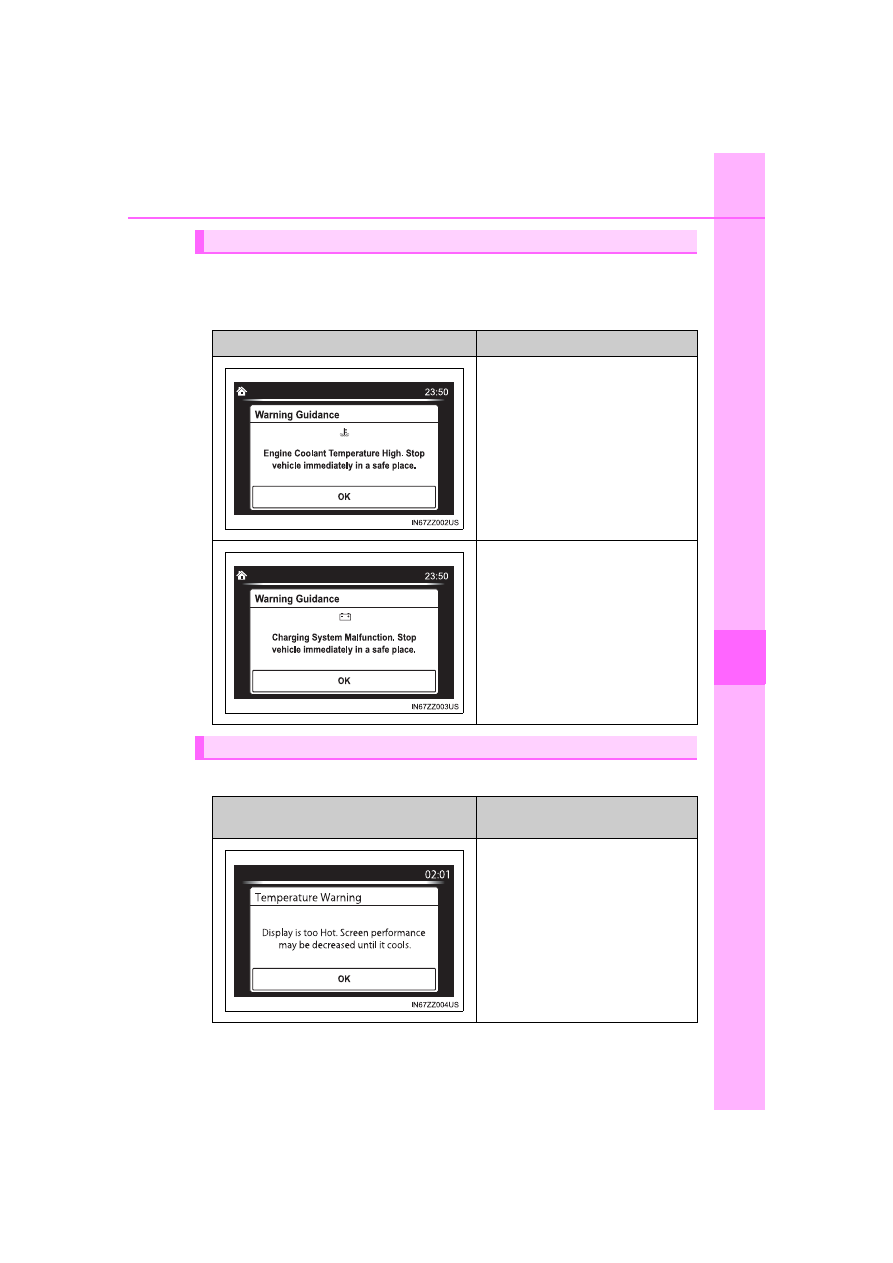

Message Indicated on Display



■

Display example



: If equipped.

If a message is displayed in the center display (Type B audio),
take appropriate action (in a calm manner) according to the dis-
played message.

iA_OM_OM99M17z_(U)

521

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

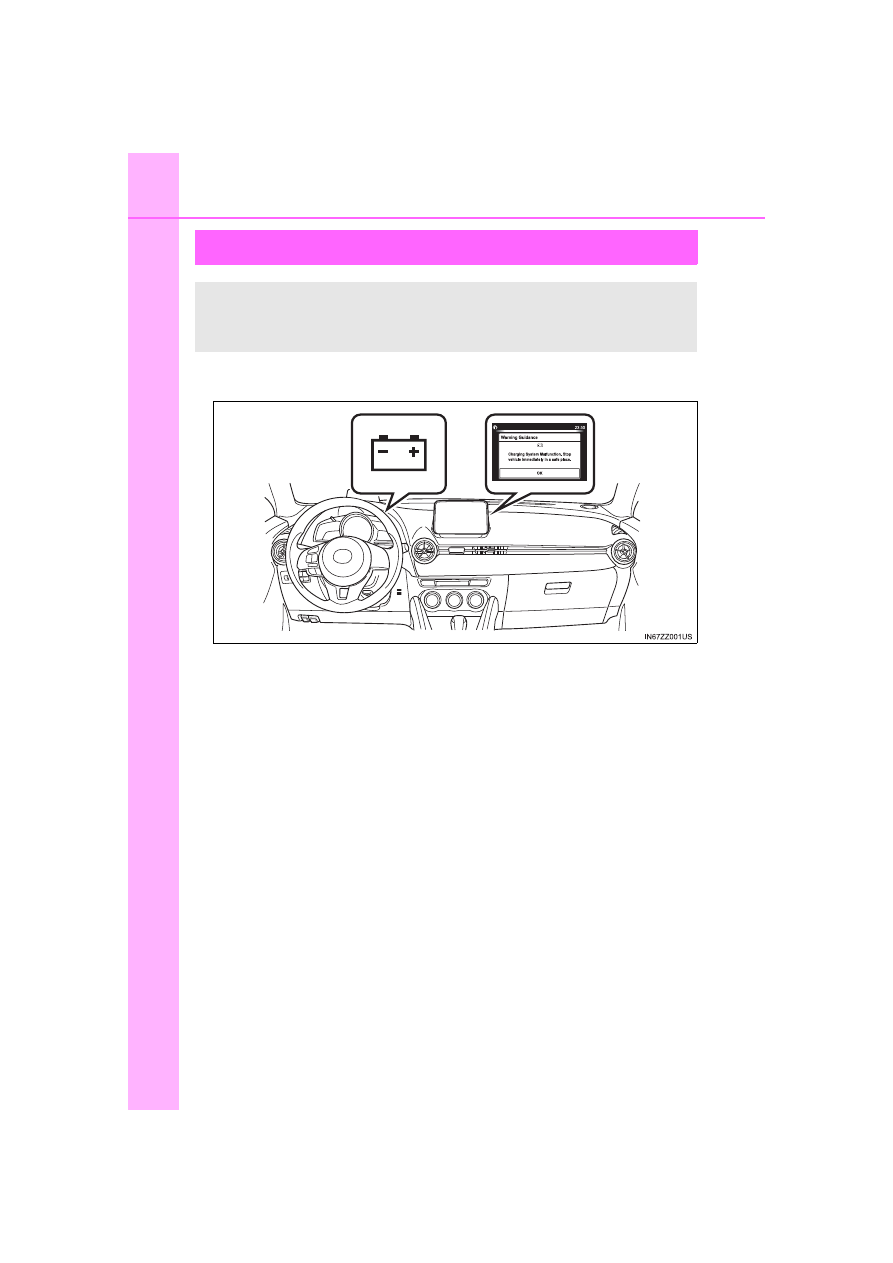

If the following messages are displayed in the center display (Type B
audio), a vehicle system may be malfunctioning. Stop the vehicle in a
safe place and contact your Scion dealer.

Displays in the following cases:

Stop Vehicle in Safe Place Immediately

Display

Indicated Condition

Displays if the engine coolant
temperature has increased
excessively.

Displays if the charging system
has a malfunction.

Verify Display Content

Display

Indicated Condition/

Action to be taken

The following message is dis-
played when the temperature
around the center display is high.
Lowering the temperature in the
cabin or the temperature around
the center display by avoiding
direct sunlight is recommended.

522

iA_OM_OM99M17z_(U)

6-7. Warning/Indicator Lights and Warning Sounds

Warning Sound is Activated

The lights-on reminder is operable when the time setting

*

1

 of the auto

headlight off function is off.

If lights are on and the ignition is switched to ACC or the ignition is
switched off, a continuous beep sound will be heard when the driver’s
door is opened.

*

1

: If the light switch is left on, the auto headlight off function automatically

turns off the lights about 30 seconds after switching the ignition off. The
time setting can be changed.
Refer to Customizable Features on P. 572.

●

When the ignition is switched to ACC, the “Ignition Not Switched Off (STOP)
Warning Beep” (

P. 524) overrides the lights-on reminder.

●

A personalized function is available to change the sound volume for the
lights- on reminder.
Refer to Customizable Features on P. 572.

If there is a problem with the air bag/seat belt pretensioner systems
and the warning light illumination, a warning beep sound will be heard
for about 5 seconds every minute.

The air bag and seat belt pretensioner system warning beep sound
will continue to be heard for approximately 35 minutes. Have your
vehicle inspected at your Scion dealer as soon as possible.

Lights-On Reminder

Air Bag/Front Seat Belt Pretensioner System Warning Beep

WARNING

■

Do not drive the vehicle with the air bag/seat belt pretensioner system
warning beep sounding
Driving the vehicle with the air bag/ seat belt pretensioner system warning
beep sounding is dangerous. In a collision, the air bags and the seat belt
pretensioner system will not deploy and this could result in death or serious
injury. Contact your Scion dealer to have the vehicle inspected as soon as
possible.

iA_OM_OM99M17z_(U)

523

6-7. Warning/Indicator Lights and Warning Sounds

6

If Trou

ble
 Arises

If the driver’s seat belt is not fastened when the ignition is switched
ON, a beep sound will be heard for about 6 seconds. If the driver or
the front passenger’s seat belt is not fastened and the vehicle is
driven at a speed faster than about 12 mph (20 km/h), a beep sound
will be heard again for a specified period of time.

Until a seat belt is fastened or a given period of time has elapsed, the
beep sound will not stop even if the vehicle speed falls below 12 mph
(20 km/h).

■

Seat Belt Warning Beep

●

To allow the front passenger occupant classification sensor to function prop-
erly, do not place and sit on an additional seat cushion on the front passen-
ger’s seat. The sensor may not function properly because the additional
seat cushion could cause sensor interference.

●

If a small child is seated on the front passenger’s seat, the warning beep
may not operate.

Seat Belt Warning Beep

524

6-7. Warning/Indicator Lights and Warning Sounds

iA_OM_OM99M17z_(U)

If the driver’s door is opened while the ignition is switched to ACC, a

continuous beep sound will be heard to notify the driver that the igni-
tion has not been switched off (STOP). Left in this condition, the key-
less entry system will not operate, the car cannot be locked, and the
battery power will be depleted.

A beep sound will be heard 6 times and the KEY warning light (red)
will flash continuously if the ignition has not been switched off, all the
doors are closed, and the key is removed from the vehicle. This is to
notify the driver that the key has been removed from the vehicle and
the ignition has not been switched off.

Because the key utilizes low-intensity radio waves, the Key Removed From
Vehicle Warning may activate if the key is carried together with a metal object
or it is placed in a poor signal reception area.

The warning beep sound will be heard for about 3 seconds when
there is any abnormality in tire inflation pressures (

P. 218).

If there is the possibility of a collision with a vehicle ahead, the beep
sounds continuously and a warning is indicated in the display.

If the power steering system has a malfunction, the power steering
malfunction light turns on or flashes and the buzzer operates at the
same time.

Refer to Warning/Indicator Lights on P. 156.

Ignition Not Switched Off (STOP) Warning Beep

Key Removed from Vehicle Warning Beep

Tire Inflation Pressure Warning Beep (if equipped)

Collision warning (if equipped)

Power Steering Warning Buzzer

525

iA_OM_OM99M17z_(U)

6-8. When Trunk Lid Cannot be Opened

6

If Trou

ble
 Arises

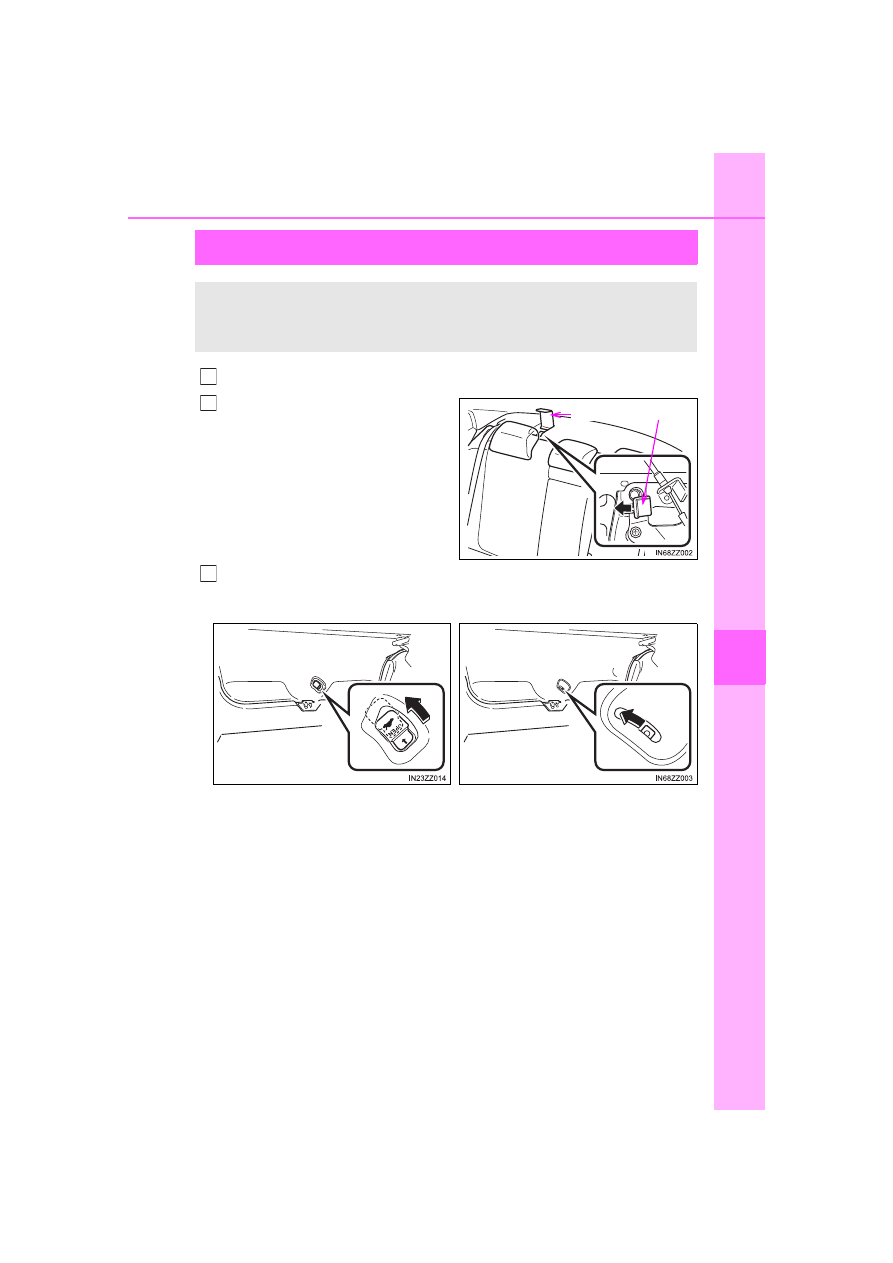

When Trunk Lid Cannot be Opened

Open the cover.

Move the lever to the left to fold
the seatback.

Move the lever to the left to open the trunk lid.

After performing this emergency measure, have the vehicle inspected
at your Scion dealer as soon as possible.

If the vehicle battery is dead or there is a malfunction in the elec-
trical system and the trunk lid cannot be opened, perform the
following procedure as an emergency measure to open it:

1

Lever

Cover

2

3



Type A



Type B

527

iA_OM_OM99M17z_(U)

7

Customer Information and

Reporting Safety Defects

7-1. Reporting Safety Defects

Reporting Safety

Defects (U.S.A.) .............. 528

Reporting Safety

Defects (Canada)............ 529

7-2. Warranty

Warranties for Your

Scion ............................... 530

Outside the United

States/Canada ................ 531

Registering Your Vehicle

in A Foreign Country
(Except United States
and Canada) ................... 532

Add-On Non-Genuine

Parts and
Accessories..................... 533

7-3. Cell Phones

Cell Phones Warning ........ 534

7-4. Event Data Recorder

Event Data Recorder

(U.S.A. and Canada) ...... 535

7-5. Recording of Vehicle Data

Recording of Vehicle

Data ................................ 537

7-6. Uniform Tire Quality Grading

System (UTQGS)

Uniform Tire Quality

Grading System
(UTQGS)......................... 538

7-7. Tire Information (U.S.A.)

Tire Labeling ..................... 541

Location of the Tire

Label (Placard) ............... 547

Tire Maintenance .............. 550

Vehicle Loading ................ 553

Steps for Determining the

Correct Load Limit .......... 558

7-8. Declaration of Conformity

Declaration of

Conformity ...................... 559

528

iA_OM_OM99M17z_(U)

7-1. Reporting Safety Defects

Reporting Safety Defects (U.S.A.)

If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Scion, a marque of Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-866-707-2466).

If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Scion, a marque of Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov.
