5-4. Appearance Care

5

Mainten

ance an

d Care

Clean the webbing with a mild soap solution recommended for uphol-
stery or carpets. Follow instructions. Do not bleach or dye the web-
bing; this may weaken it.

After cleaning the belts, thoroughly dry the belt webbing and make
sure there is no remaining moisture before retracting them.

If the windows become covered with an oily, greasy, or waxy film,
clean them with glass cleaner. Follow the directions on the container.

Rubber floor mats should be cleaned with mild soap and water only.

After removing the floor mats for cleaning, always reinstall them
securely. (

P. 129)

Cleaning the Lap/Shoulder Belt Webbing

WARNING

■

Have your Scion dealer replace damaged seat belts immediately
Using damaged seat belts is dangerous. In a collision, damaged belts can-
not provide adequate protection.

Cleaning the Window Interiors

NOTICE

●

Do not scrape or scratch the inside of the window glass. It could damage
the thermal filaments.

●

When washing the inside of the window glass, use a soft cloth dampened
in lukewarm water, gently wiping the thermal filaments.
Use of glass cleaning products could damage the thermal filaments.

Cleaning the Floor Mats

WARNING

■

Do not use rubber cleaners, such as tire cleaner or tire shine, when
cleaning rubber floor mats
Cleaning the rubber floor mats with rubber cleaning products makes the
floor mats slippery.

This may cause an accident when depressing the accelerator, brake, or
clutch (Manual transaxle) pedal or when getting in or out of the vehicle.

481

iA_OM_OM99M17z_(U)

6

If Trouble Arises

6-1. Parking in an Emergency

Parking in an

Emergency...................... 482

6-2. Flat Tire

Spare Tire and Tool

Storage ........................... 483

Changing a Flat Tire.......... 487

6-3. Battery Runs Out

Jump-Starting.................... 497

6-4. Emergency Starting

Starting a Flooded

Engine............................. 500

Push-Starting .................... 501

6-5. Overheating

Overheating ...................... 502

6-6. Emergency Towing

Towing Description ........... 504

Tiedown Hooks ................. 505

6-7. Warning/Indicator Lights and

Warning Sounds

If a Warning Light Turns

On or Flashes ................. 507

Message Indicated on

Display ............................ 520

Warning Sound is

Activated ......................... 522

6-8. When Trunk Lid Cannot be

Opened

When Trunk Lid Cannot

be Opened ...................... 525

482

iA_OM_OM99M17z_(U)

6-1. Parking in an Emergency

Parking in an Emergency

The hazard warning lights should
always be used when you stop on
or near a roadway in an emer-
gency.

The hazard warning lights warn
other drivers that your vehicle is a
traffic hazard and that they must
take extreme caution when near
it.

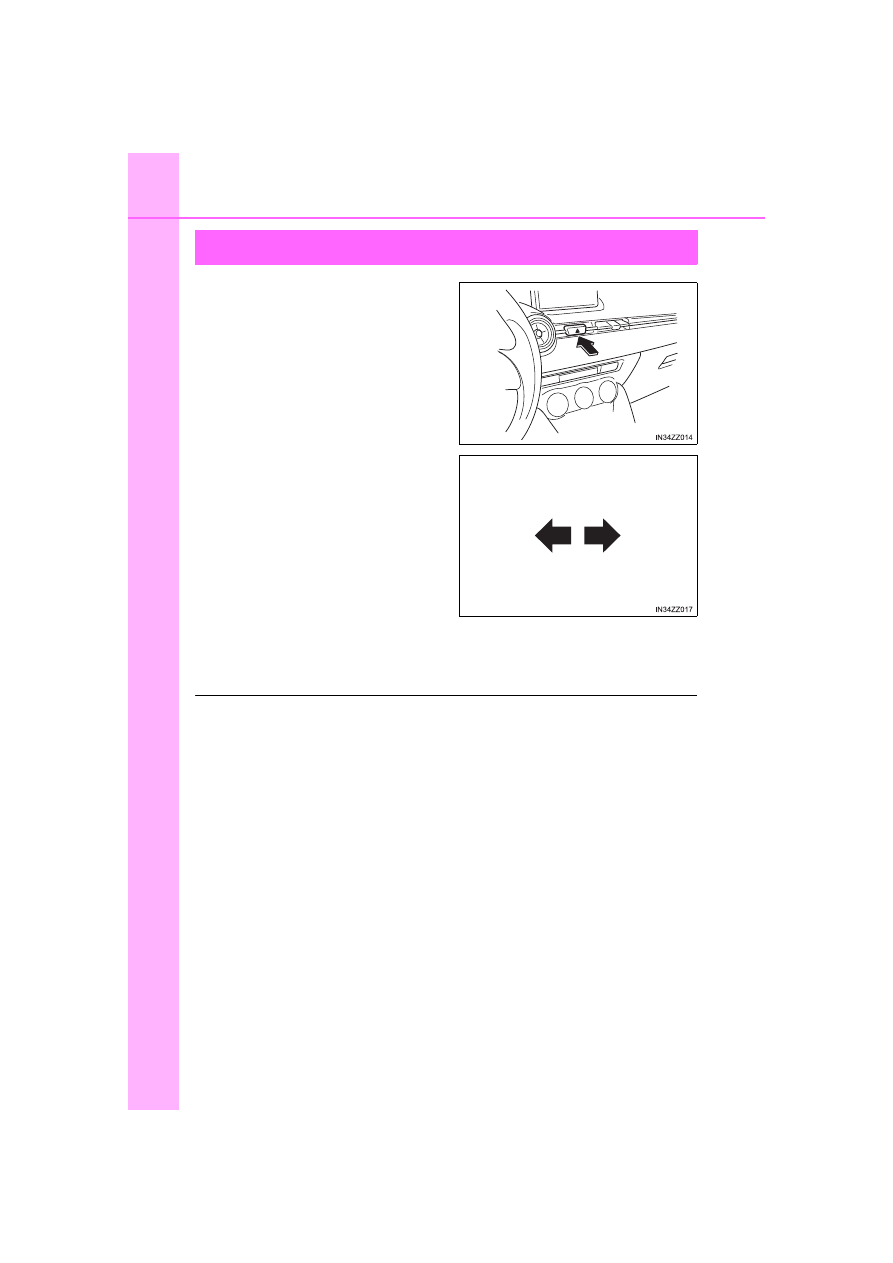

Depress the hazard warning flasher and all the turn signals will flash.
The hazard warning indicator lights in the instrument cluster flash
simultaneously.

●

The turn signals do not work when the hazard warning lights are on.

●

Check local regulations about the use of hazard warning lights while the
vehicle is being towed to verify that it is not in violation of the law.

483

iA_OM_OM99M17z_(U)

6-2. Flat Tire

6

If Trou

ble
 Arises

Spare Tire and Tool Storage

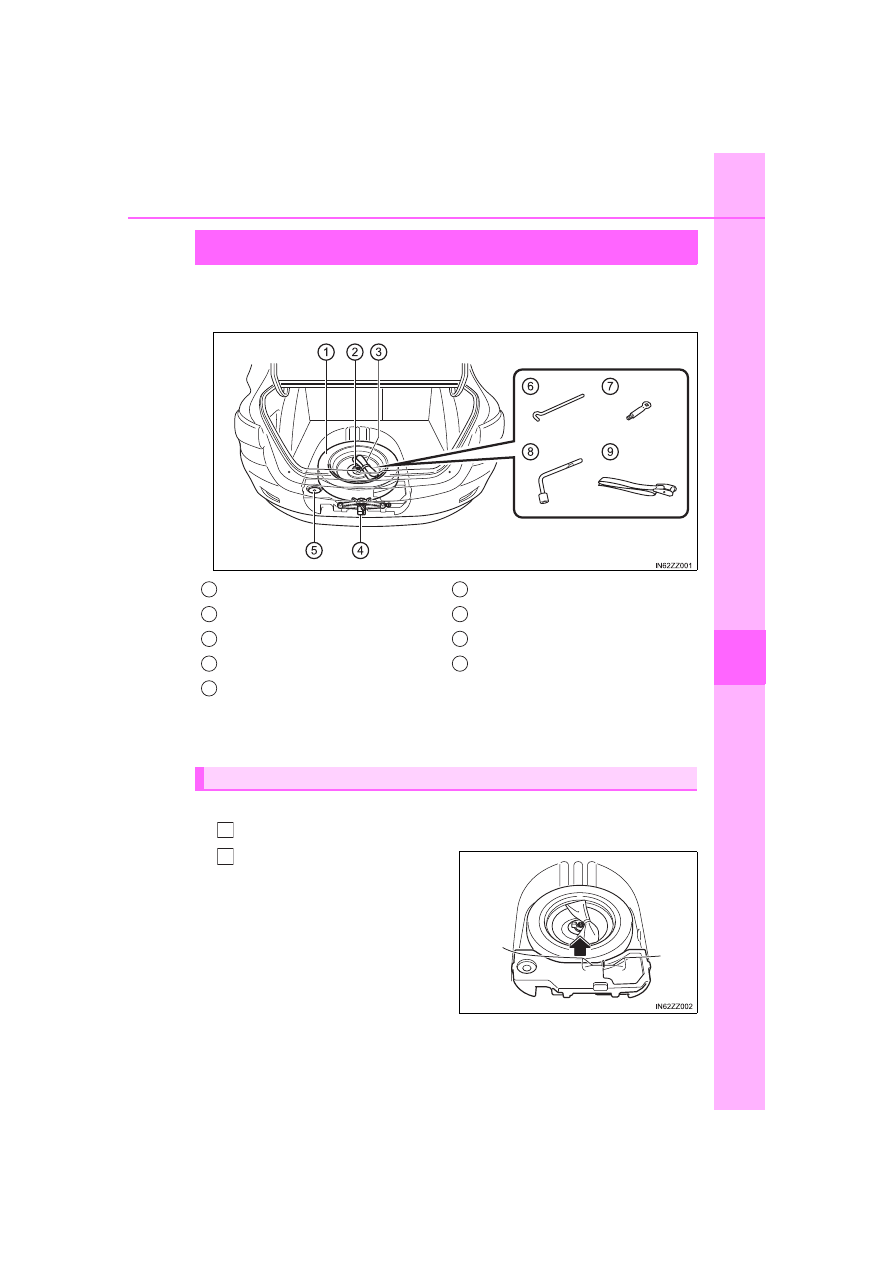

Spare tire and tools are stored in the locations illustrated in the dia-
gram.

*

1

: The jack point attachment can be used by vehicle repair shops and

road assistance services. Consult an authorized Scion dealer for
details.

■

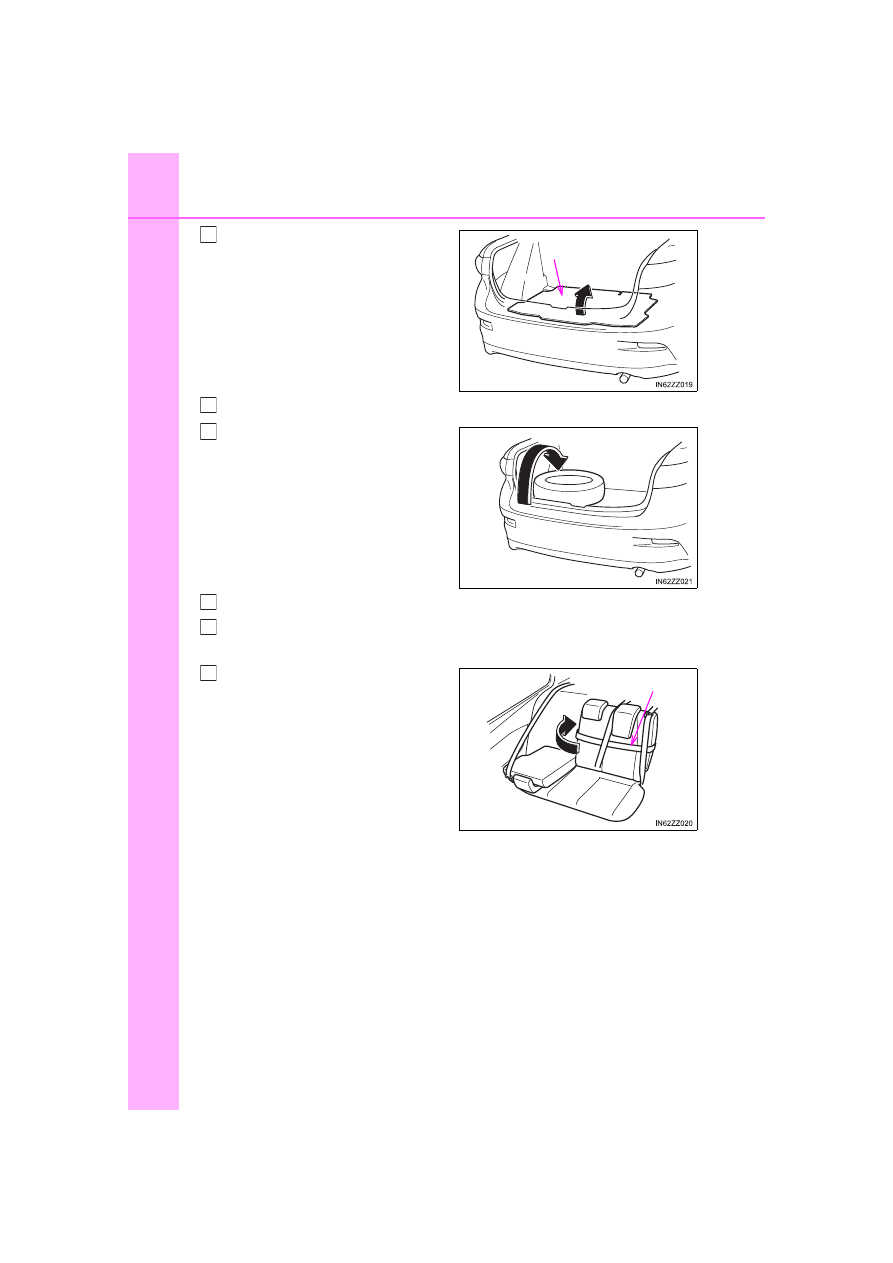

To remove the jack

Lift the trunk mat.

Remove trunk board.

Spare tire

Spare tire hold-down bolt

Tool bag

Jack

Jack point attachment

*

1

Jack lever

Tiedown eyelet (if equipped)

Lug wrench

Flat tire belt

Jack

1
2
3
4
5

6
7
8
9

1

2

484

6-2. Flat Tire

iA_OM_OM99M17z_(U)

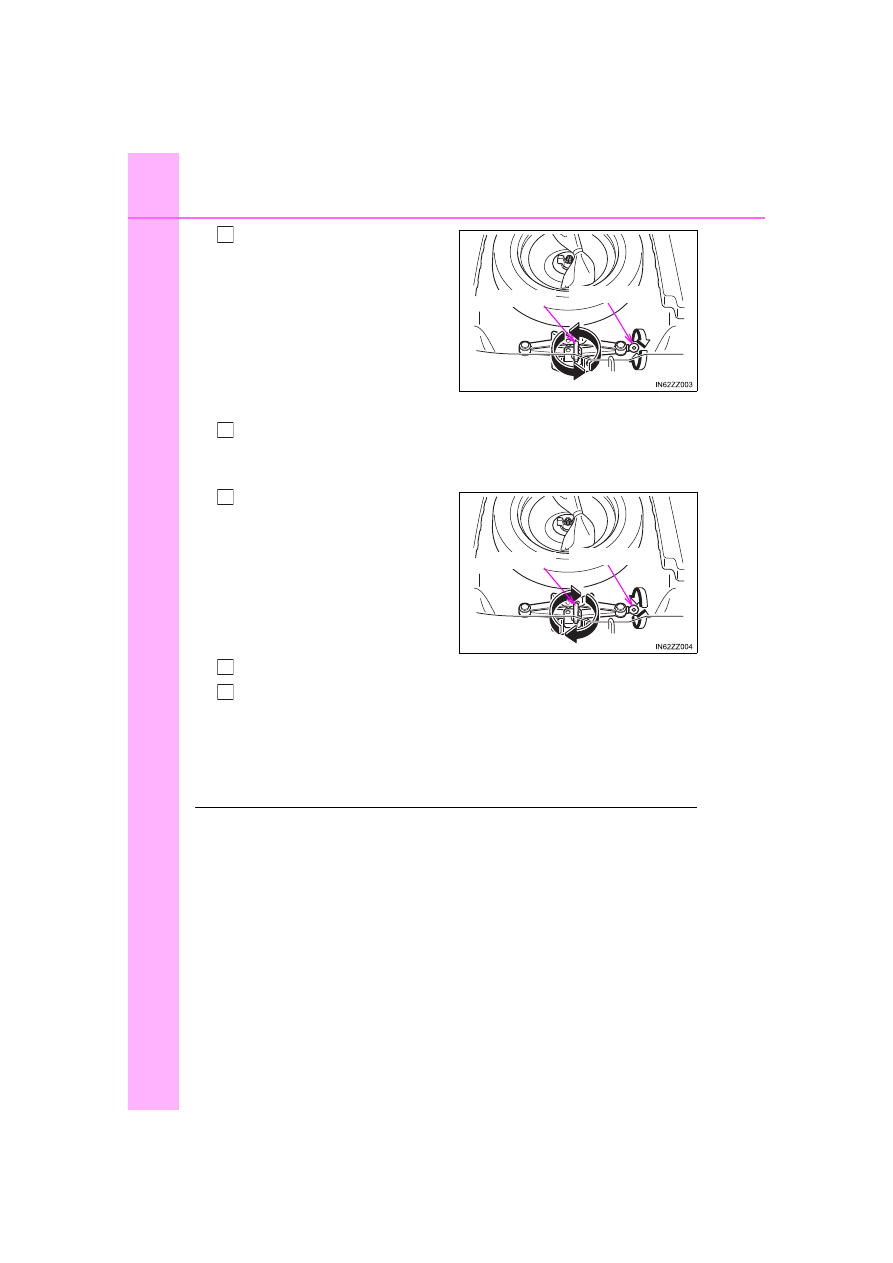

Turn the wing bolt and jack
screw counterclockwise.

■

To secure the jack

Insert the wing bolt into the jack with the jack screw pointing to
the right side and turn the wing bolt clockwise to temporarily
tighten it.

Turn the jack screw in the
direction shown in the figure.

Turn the wing bolt completely to secure the jack.

Return the trunk board to its original position.

■

Maintenance
● Always keep the jack clean.
● Make sure the moving parts are kept free from dirt or rust.
● Make sure the screw thread is adequately lubricated.

●

If the jack is not completely secured, it could rattle while driving. Make
sure the jack screw is sufficiently tightened.

●

Verify that the cover is securely installed.

Wing bolt

Jack screw

3

1

Wing bolt

Jack screw

2

3

4

iA_OM_OM99M17z_(U)

485

6-2. Flat Tire

6

If Trou

ble
 Arises

Your Scion has a temporary spare tire. The temporary spare tire is
lighter and smaller than a conventional tire, and is designed only for
emergency use and should be used only for VERY short periods.
Temporary spare tires should NEVER be used for long drives or
extended periods.

■

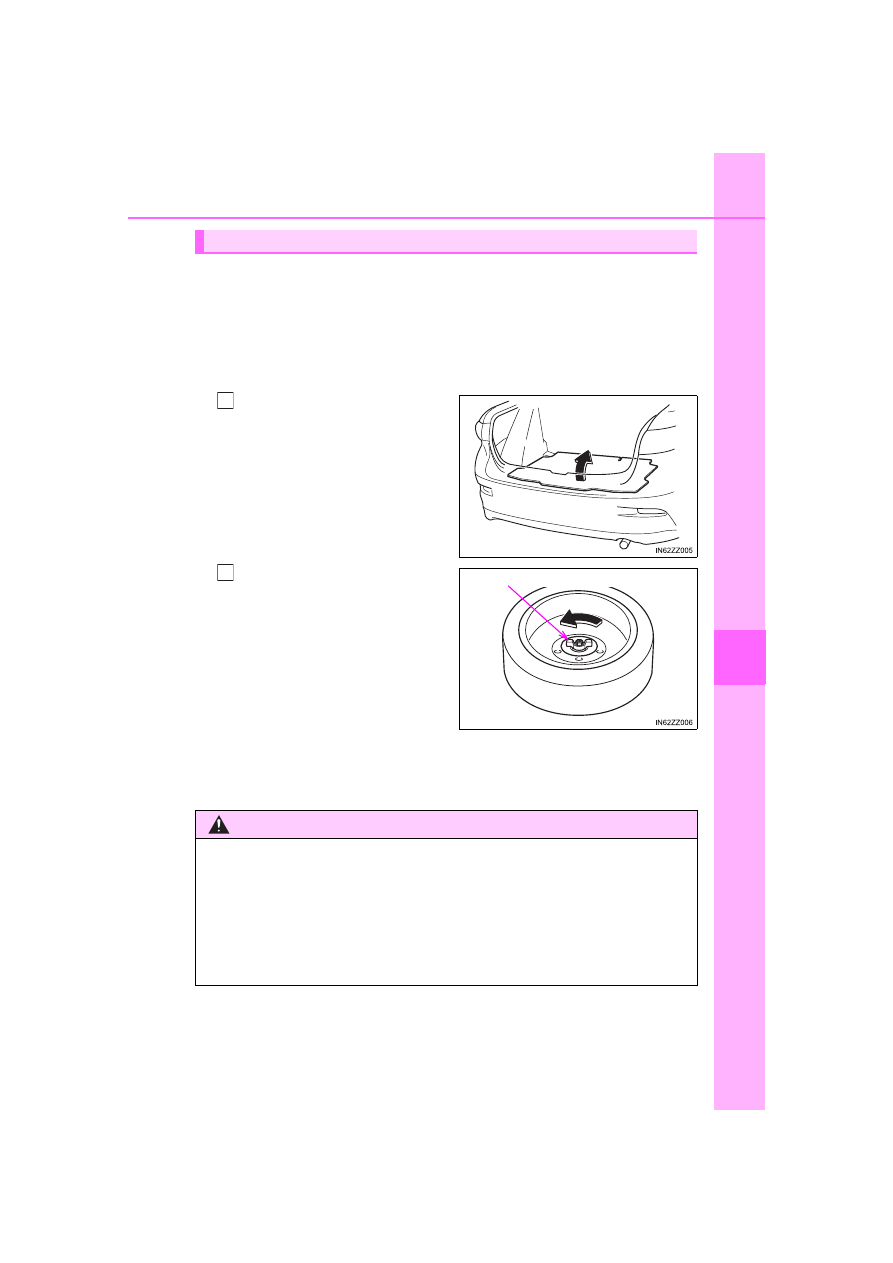

To remove the spare tire

Lift the Trunk mat.

Turn the spare tire hold-down
bolt counterclockwise.

■

To secure the spare tire

Store the spare tire in the reverse order of removal. After storing,
verify that the spare tire is stored securely.

Spare Tire

1

Spare tire hold-down bolt

2

WARNING

■

Do not install the temporary spare tire on the front wheels (driving
wheels)
Driving with the temporary spare tire on one of the front driving wheels
is dangerous. Handling will be affected. You could lose control of the
vehicle, especially on ice or snow bound roads, and have an accident.
Move a regular tire to the front wheel and install the temporary spare tire
to the rear.

486

6-2. Flat Tire

iA_OM_OM99M17z_(U)

NOTICE

●

When using the temporary spare tire, driving stability may decrease
compared to when using only the conventional tire. Drive carefully.

●

To avoid damage to the temporary spare tire or to the vehicle, observe
the following precautions:

• Do not exceed 50 mph (80 km/h).
• Avoid driving over obstacles. Also, do not drive through an auto-

matic car wash. This tire’s diameter is smaller than a conventional
tire, so the ground clearance is reduced.

• Do not use a tire chain on this tire because it will not fit properly.
• Do not use your temporary spare tire on any other vehicle, it has

been designed only for your Scion.

• Use only one temporary spare tire on your vehicle at the same time.

487

iA_OM_OM99M17z_(U)

6-2. Flat Tire

6

If Trou

ble
 Arises

Changing a Flat Tire

Park on a level surface off the right-of-way and firmly set the park-
ing brake.

Put a vehicle with an automatic transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn off the engine.

Turn on the hazard warning flasher.

Have everyone get out of the vehicle and away from the vehicle
and traffic.

Remove the jack, tool, and spare tire (

P. 483).

Block the wheel diagonally
opposite the flat tire. When
blocking a wheel, place a tire
block both in front and behind
the tire.

●

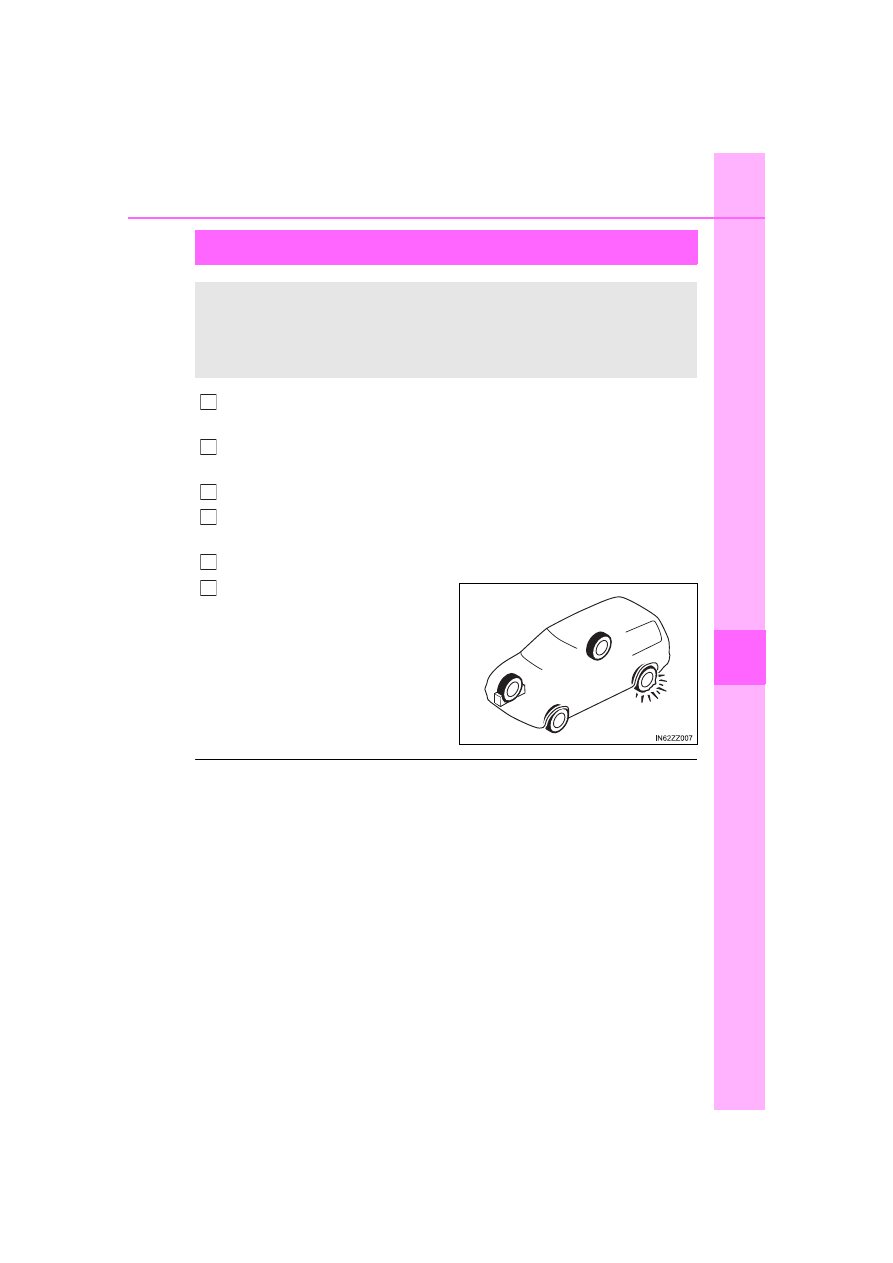

If the following occurs while driving, it could indicate a flat tire.

• Steering becomes difficult.
• The vehicle begins to vibrate excessively.
• The vehicle pulls in one direction.

●

Make sure the jack is well lubricated before using it.

●

When blocking a tire, use rocks or wood blocks of sufficient size if possi-
ble to hold the tire in place.

If you have a flat tire, drive slowly to a level spot that is well off
the road and out of the way of traffic to change the tire.

Stopping in traffic or on the shoulder of a busy road is danger-
ous.

1

2

3

4

5

6

488

6-2. Flat Tire

iA_OM_OM99M17z_(U)

WARNING

■

Be sure to follow the directions for changing a tire
Changing a tire is dangerous if not done properly. The vehicle can slip
off the jack and seriously injure someone. No person should place any
portion of their body under a vehicle that is supported by a jack.

■

Never allow anyone inside a vehicle supported by a jack
Allowing someone to remain in a vehicle supported by a jack is danger-
ous. The occupant could cause the vehicle to fall resulting in serious
injury.

iA_OM_OM99M17z_(U)

489

6-2. Flat Tire

6

If Trou

ble
 Arises

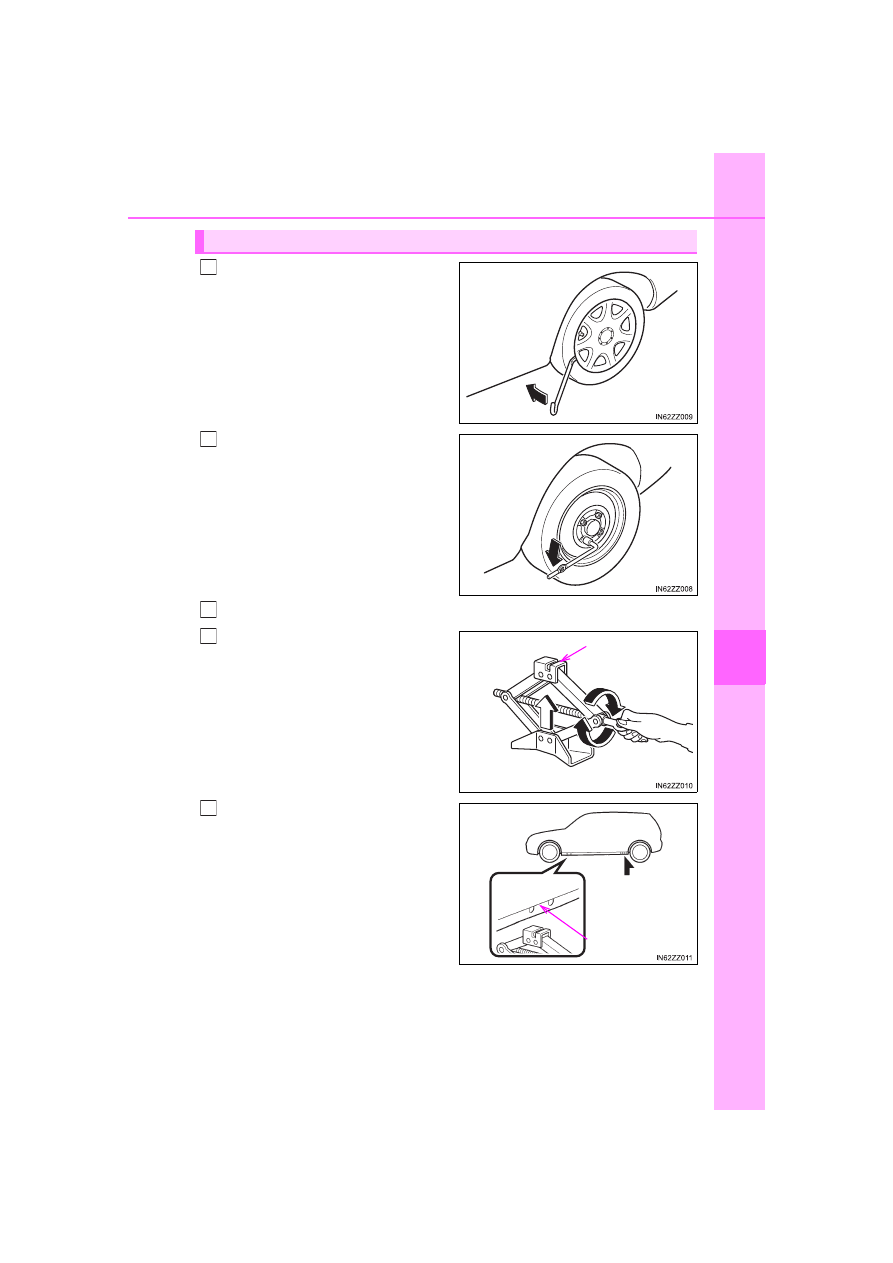

If your vehicle is equipped with
a wheel cover, pry off the wheel
cover with the beveled end of
the jack lever.

Loosen the lug nuts by turning
them counterclockwise one turn
each, but do not remove any
lug nuts until the tire has been
raised off the ground.

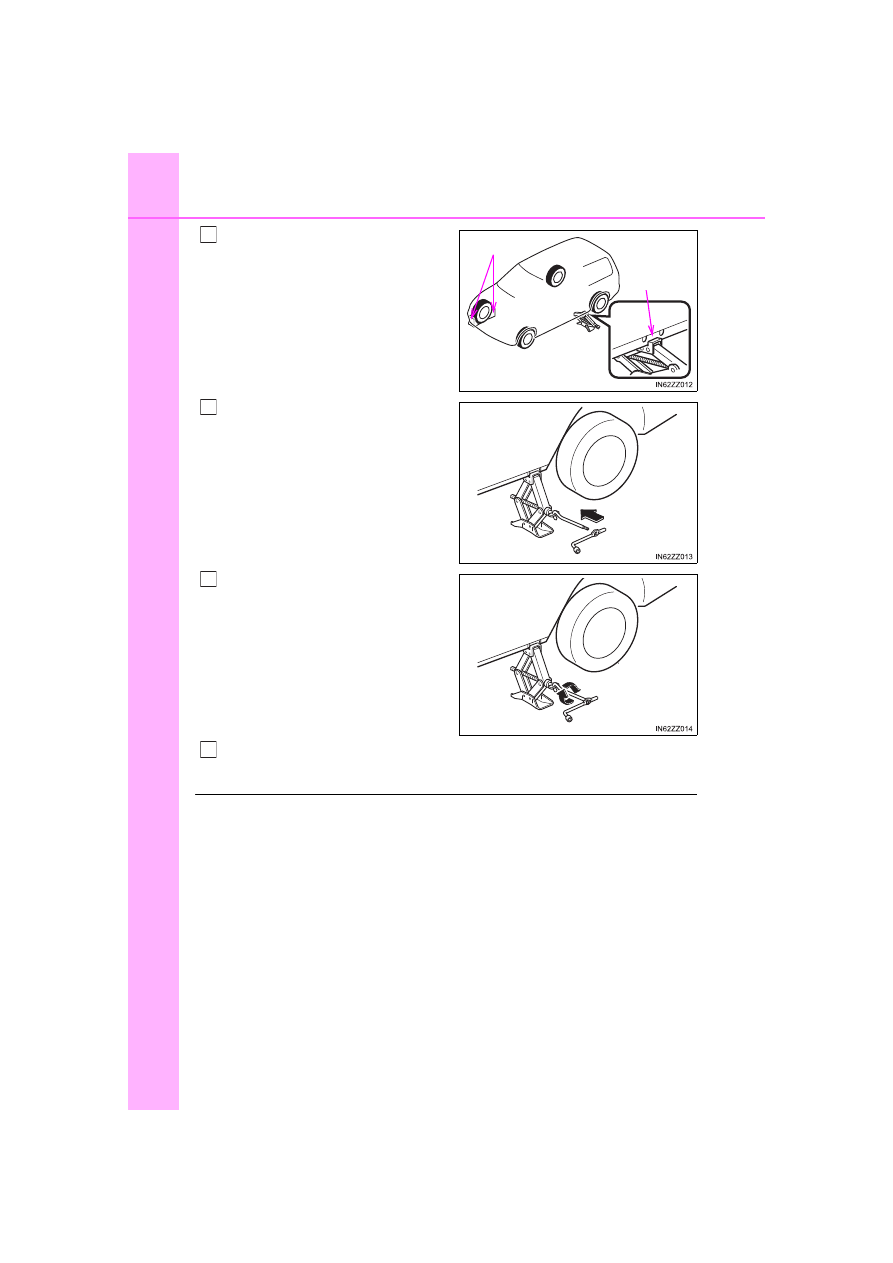

Place the jack on the ground.

Turn the jack screw in the direc-
tion shown in the figure and
adjust the jack head so that it is
close to the jack-up position.

Place the jack under the jack-
up position closest to the tire
being changed with the jack
head squarely under the jack-
up point.

Removing a Flat Tire

1

2

3

Jack head

4

Jacking position

5

490

6-2. Flat Tire

iA_OM_OM99M17z_(U)

Continue raising the jack head
gradually by rotating the screw
with your hand until the jack
head is inserted into the jack-up
position.

Insert the jack lever and attach
the lug wrench to tire jack.

Turn the jack handle clockwise
and raise the vehicle high
enough so that the spare tire
can be installed. Before remov-
ing the lug nuts, make sure
your Scion is firmly in position
and that it cannot slip or move.

Remove the lug nuts by turning them counterclockwise; then
remove the wheel and center cap.

Force the end of the jack lever firmly between wheel and cover, or
removal will be difficult.

Tire blocks

Jacking
position

6

7

8

9

iA_OM_OM99M17z_(U)

491

6-2. Flat Tire

6

If Trou

ble
 Arises

WARNING

■

Use only the front and rear jacking positions recommended in this
manual
Attempting to jack the vehicle in positions other than those recom-
mended in this manual is dangerous. The vehicle could slip off the jack
and seriously injure or even kill someone. Use only the front and rear
jacking positions recommended in this manual.

■

Do not jack up the vehicle in a position other than the designated
jack-up position or place any objects on or under the jack
Jacking up the vehicle in a position other than the designated jack-up
position or placing objects on or under the jack is dangerous as it could
deform the vehicle body or the vehicle could fall off the jack resulting in
an accident.

■

Use only the jack provided with your Scion
Using a jack that is not designed for your Scion is dangerous. The vehi-
cle could slip off the jack and seriously injure someone.

■

Never place objects under the jack
Jacking the vehicle with an object under the jack is dangerous. The jack
could slip and someone could be seriously injured by the jack or the fall-
ing vehicle.

■

Do not jack up the vehicle higher than is necessary
Jacking up the vehicle higher than is necessary is dangerous as it could

destabilize the vehicle resulting in an accident.

■

Do not start the engine or shake the vehicle while it is jacked up
Starting the engine or shaking the vehicle while it is jacked up is danger-
ous as it could cause the vehicle to fall off the jack resulting in an acci-
dent.

■

Never go under the vehicle while it is jacked up
Going under the vehicle while it is jacked up is dangerous as it could
result in death or serious injury if the vehicle were to fall off the jack.

NOTICE

Align the notch on the wheel cover with
the valve stem when installing it. Dam-
age could occur during installation if
the wheel cover is not properly aligned.

IN62ZZ027

Notch

Tire valve

492

6-2. Flat Tire

iA_OM_OM99M17z_(U)

If your vehicle has Scion optional antitheft wheel lug nuts, one on
each wheel will lock the tires and you must use a special key to unlock
them. This key will attach to the lug wrench. Register them with the
lock manufacturer by filling out the card provided in the glove com-
partment and mailing it in the accompanying envelope. If you lose this
key, consult your Scion dealer or use the lock manufacturer’s order
form, which is with the registration card.

Accessory wheel locks cannot be used on steel wheels. This includes
situations when the spare tire is installed. If the spare tire is installed,
one of the original lug nuts (which should still be in the vehicle) must
be installed in place of the wheel lock.

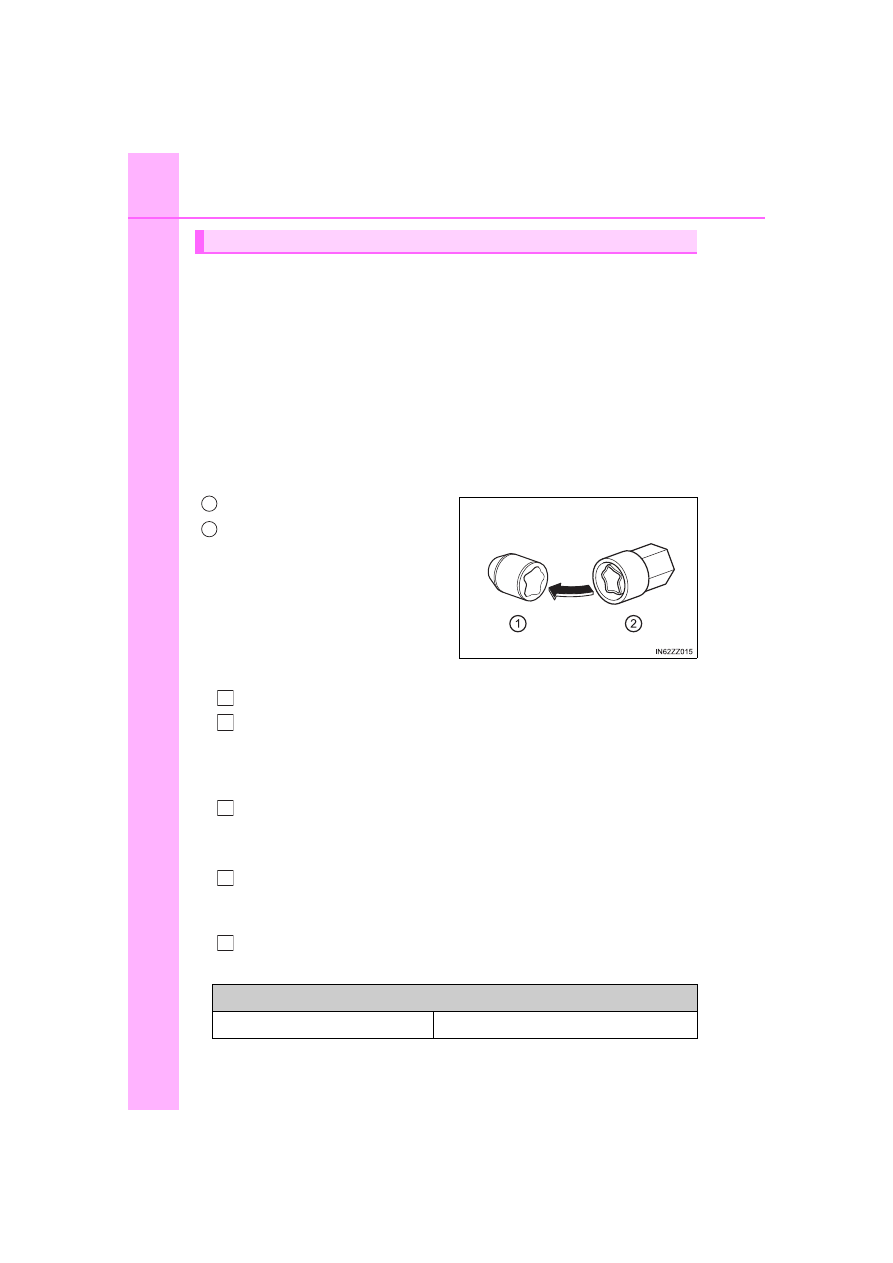

Antitheft lug nut

Special key

■

To remove an antitheft lug nut

Obtain the special key for the antitheft lug nut.

Place the special key on top of the antitheft lug nut, and be sure
to hold the key square to it. If you hold the key at an angle, you
may damage both key and nut. Do not use a power impact
wrench.

Place the lug wrench on top of the key and apply pressure. Turn
the wrench counterclockwise.

■

To install the antitheft lug nut

Place the special key on top of the nut, and be sure to hold the
key square to it. If you hold the key at an angle, you may damage
both key and nut. Do not use a power impact wrench.

Place the lug wrench on top of the special key, apply pressure,
and turn it clockwise.

Locking Lug Nuts (if equipped)

1
2

1

2

3

1

2

Nut tightening torque

ft•lbf (N•m, kgf•m)

80-108 (108-147, 12-14)

iA_OM_OM99M17z_(U)

493

6-2. Flat Tire

6

If Trou

ble
 Arises

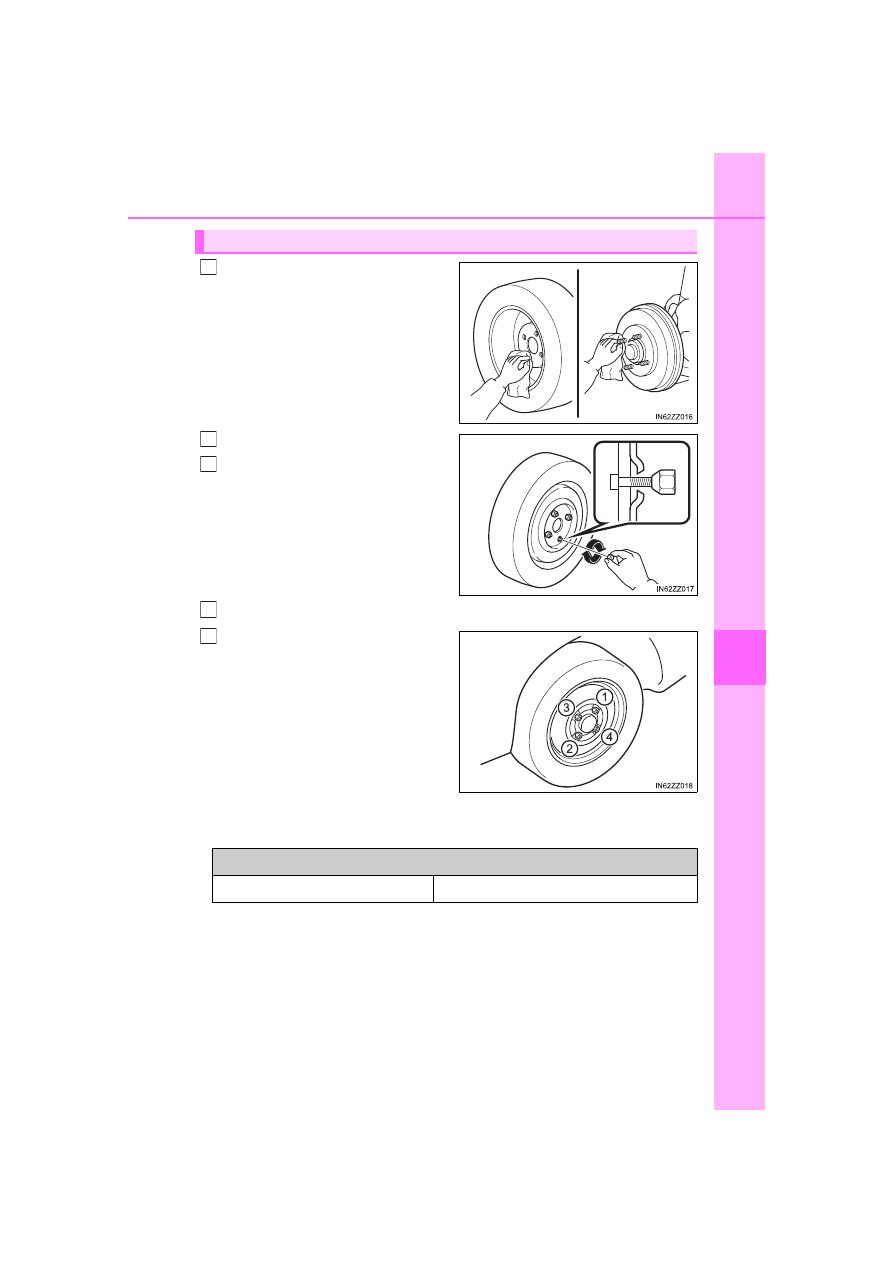

Remove dirt and grime from the
mounting surfaces of the wheel
and hub, including the hub
bolts, with a cloth.

Mount the spare tire.

Install the lug nuts with the bev-
eled edge inward; tighten them
by hand.

Turn the lug wrench counterclockwise and lower the vehicle.

Use the lug wrench to tighten
the nuts in the order shown.

If you are unsure of how tight the nuts should be, have them
inspected at your Scion dealer.

Mounting the Spare Tire

1

2

3

4

5

Nut tightening torque

ft•lbf (N•m, kgf•m)

80-108 (108-147, 12-14)

494

6-2. Flat Tire

iA_OM_OM99M17z_(U)

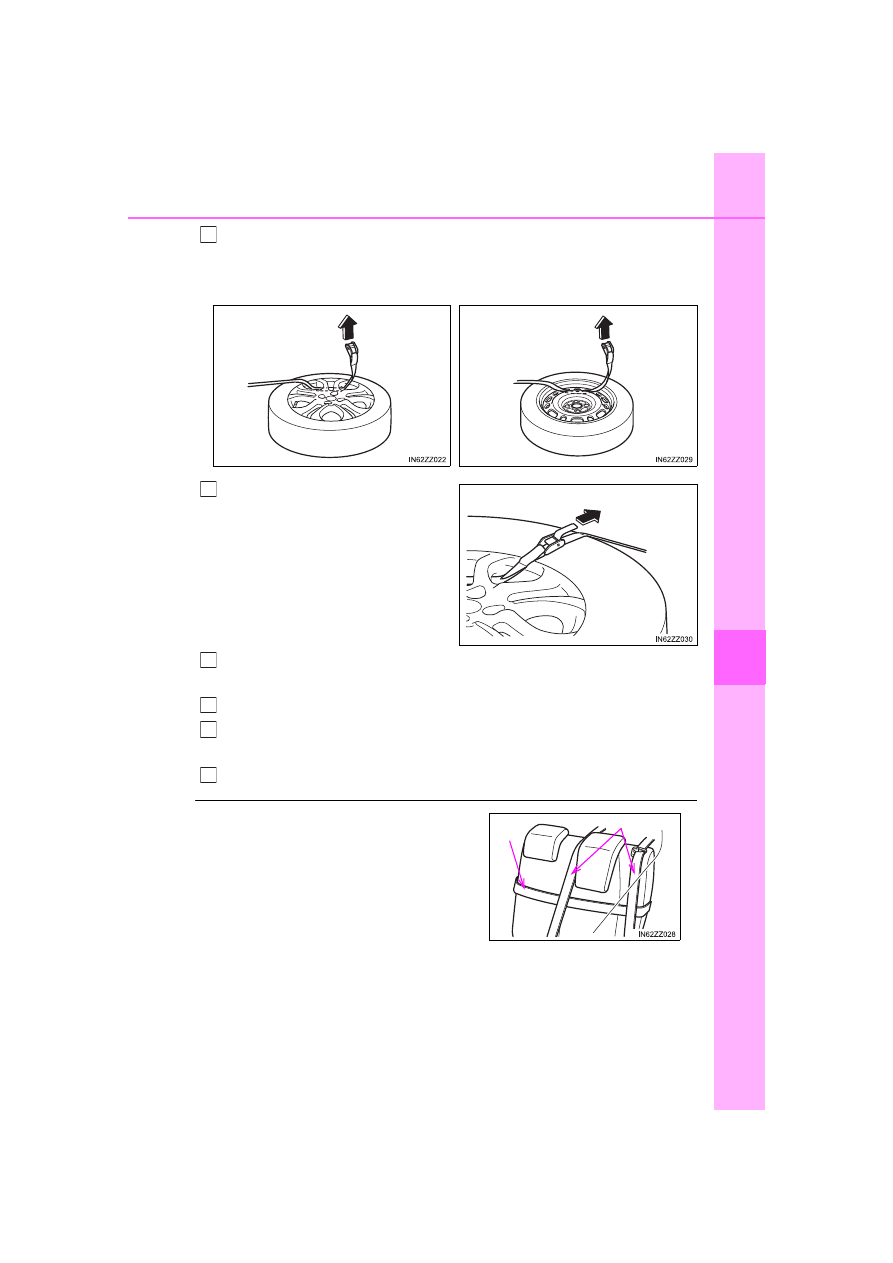

Open the trunk mat.

Remove the belt for securing the flat tire.

Put the flat tire into the trunk on
the left and toward the back.

Fold the rear seatback forward on the right side of the rear seat.

Unlock the rear seatback on the left side and assure a clearance to
pass the belt.

Pass the belt through the rear
seatback as shown in the fig-
ure.

After passing the belt through,
return the rear seatback to the
original position.

Trunk mat

6

7

8

9

10

Belt

11

iA_OM_OM99M17z_(U)

495

6-2. Flat Tire

6

If Trou

ble
 Arises

Pass the buckle through the wheel as shown in the figure and
secure it so that the buckle does not contact the wheel.

Pass the belt through the
buckle, then pull the belt end to
secure the flat tire.

Return the rear seatback on the right side of the rear seatback to its
original position.

Remove the tire blocks and store the tools and jack.

Check the inflation pressure.

Refer to Tires on P. 570.

Have the flat tire repaired or replaced as soon as possible.

●

Do not press the tire pressure monitoring system set switch after install-
ing the spare tire. The switch is only to be pressed after installing the
repaired flat tire or installing a replacement tire (

P. 148).

●

To prevent the jack and tool from rattling, store them properly.

12



Vehicles with Aluminum wheel



Vehicles with Steel wheel

13

●

Pass the belt underneath the seat-
belts.

1

14

15

16

17

Seat belt

Belt
