4-3. Bluetooth

®

Select the

 icon on the home screen and display the Communi-

cation screen. Select

 to change the setting.

Communication Settings

Item

Setting

Function

Bluetooth

®

-

Go to Bluetooth

®

 setting menu.

Refer to Bluetooth

®

 Preparation (Type B) on

P. 351.

Incoming
Call Notifica-
tions

On/Off

Notifies when an incoming call is received.

Auto Down-
load Text
Message

On/Off

Downloads SMS automatically when the
Bluetooth

®

 unit is connected to the device.

Text Notifi-
cations

On/Off

Notifies when a new SMS is received.

Auto Down-
load Email

*

1

On/Off

Downloads E-mail automatically when the
Bluetooth

®

 unit is connected to the device.

Email Notifi-
cations

On/Off

Notifies when a new Email is received.

Auto Down-
load Call
History

On/Off

Downloads Call History automatically when
the Bluetooth

®

 unit is connected to the

device.

Auto Down-
load Con-
tacts

*

1

On/Off

Downloads the phonebook automatically
when the Bluetooth

®

 unit is connected to the

device.

Ringtone

Car/Phone/

Off

Changes the ringtone setting.

Phone Vol-
ume

Adjusts using

the slider.

Adjusts the conversation volume.

VR and
Ringtone

Adjusts using

the slider.

Adjusts the voice guidance and ringtone vol-
ume.

Contacts
Display
Order

First Name,

Last Name

Displays the contact information in alphabeti-
cal order of the first name.

Last Name,

First Name

Displays the contact information in alphabeti-
cal order of the last name.

iA_OM_OM99M17z_(U)

383

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

*

1

Depending on the device, it may be necessary to acquire download per-
mission on the device side.

Edit Preset
Messages

-

Edits the preset message.
Refer to Receiving and Replying to Mes-
sages (available only with E-mail/SMS com-
patible phones) on P. 378.

Emergency
Assistance
Call

On/Off

Mobile Utilizes the Mobile 911 function.

Restore
Factory set-
tings

-

Initializes all Communication Settings.

Item

Setting

Function

384

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

Bluetooth

®

 Audio (Type A)

■

Applicable Bluetooth

®

 specification (Recommended)

Ver. 2.0

■

Response profile
● A2DP (Advanced Audio Distribution Profile) Ver. 1.0/1.2
● AVRCP (Audio/Video Remote Control Profile) Ver. 1.0/1.3
A2DP is a profile which transmits only audio to the Bluetooth

®

 unit.

If your Bluetooth

®

 audio device corresponds only to A2DP, but not

AVRCP, you cannot operate it using the control panel of the vehi-
cle’s audio system. In this case, only the operations on the mobile
device are available the same as when a portable audio device for
a non-compliant Bluetooth

®

 device is connected to the AUX termi-

nal.

X: Available

-: Not available

●

The battery consumption of Bluetooth

®

 audio devices increases while Blue-

tooth

®

 is connected.

●

If a general mobile phone device is USB connected during music playback
over the Bluetooth

®

 connection, the Bluetooth

®

 connection is disconnected.

For this reason, you cannot have music playback over a Bluetooth

®

 connec-

tion and music playback using a USB connection at the same time.

●

The system may not operate normally depending on the Bluetooth

®

 audio

device.

Function

A2DP

AVRCP

Ver. 1.0

Ver. 1.3

Playback

-

X

X

Pause

-

X

X

File (Track) up/down

-

X

X

Reverse

-

-

X

Fast-forward

-

-

X

Text display

-

-

X

iA_OM_OM99M17z_(U)

385

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

■

Switching to Bluetooth

®

 audio mode

To listen to music or voice audio recorded to a Bluetooth

®

 audio

device, switch to the Bluetooth

®

 audio mode to operate the audio

device using the audio system control panel. Any Bluetooth

®

 audio

device must be paired to the vehicle’s Bluetooth unit before it can
be used.

Refer to Bluetooth

®

 Preparation (Type A) on P. 327.

Turn on the Bluetooth

®

 audio device’s power.

Switch the ignition to ACC or ON. Make sure that the “

”

symbol is displayed in the audio display. The symbol is not dis-

played if an un-paired Bluetooth

®

 audio device is being used or

the vehicle’s Bluetooth

®

 unit has a malfunction.

Press the media button (

) to switch to the Bluetooth

®

audio mode and start playback.



If the current device version is lower than AVRCP Ver. 1.3: “BT
Audio” is displayed.



If the current device is AVRCP Ver. 1.3: The playback time is
displayed.

■

Playback

To listen to a Bluetooth

®

 audio device over the vehicle’s speaker

system, switch the mode to Bluetooth

®

 audio mode. (Refer to

“Switching to Bluetooth

®

 audio mode”)

To stop playback, press the Play/Pause button (4).

Press the button again to resume playback.

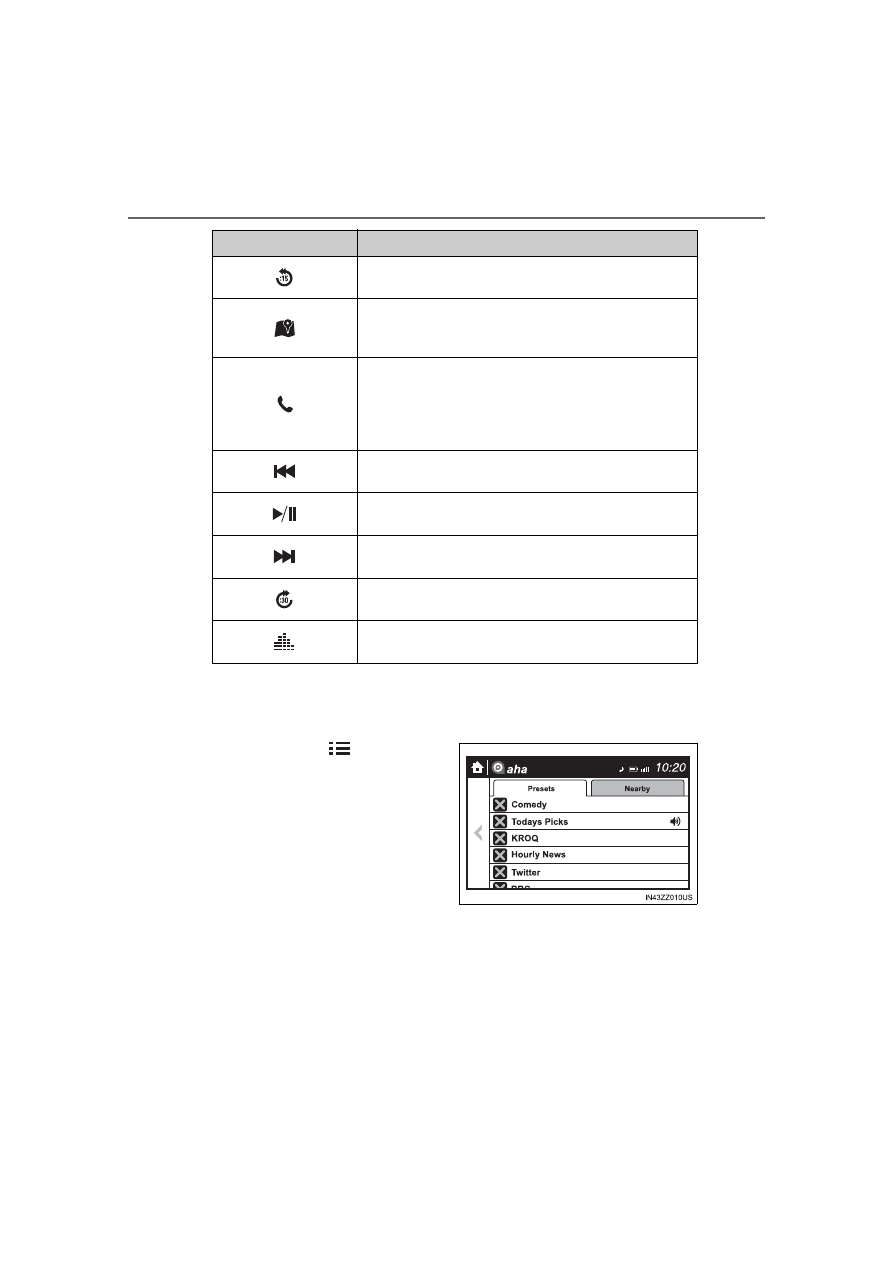

How to Use the Bluetooth

®

 Audio System

1

2

3

1

2

3

386

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

■

Selecting a file (track)
● Selects the next file (track)

Short-press the track up button (

).

● Selects the beginning of the current file (track)

Short-press the track down button (

).

■

Fast-forward/Reverse (AVRCP Ver. 1.3)
● Fast-forward

Press and hold the fast-forward button (

).

● Reverse

Press and hold the reverse down button (

).

■

Switching the display (only AVRCP Ver. 1.3)

The information displayed on the audio display changes as follows
each time the text button (3) is pressed during playback.

■

Display scroll

Only 13 characters can be displayed at one time. To display the rest
of the characters of a long title, press and hold the text button (3).
The display scrolls the next 13 characters. Press and hold the text
button (3) again after the last 13 characters have been displayed to
return to the beginning of the title.

Button

Information displayed on audio

display

Elapsed time

Album name

Song name

Artist name

iA_OM_OM99M17z_(U)

387

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

■

How to Use the Bluetooth

®

 Audio System

●

Some Bluetooth

®

 audio devices need a certain amount of time before the

“

” symbol is displayed.

●

If the Bluetooth

®

 audio device does not begin playback, press the Play/

Pause button (4).

●

If a call is received on a hands-free mobile phone during playback from the
Bluetooth

®

 audio device, the playback is stopped. Playback from the

Bluetooth

®

 audio device resumes after the call ends.

●

If title information is not available, “NO TITLE” is displayed.

●

This unit cannot display some characters. Characters which cannot be dis-
played are indicated by an asterisk (

).

If a Bluetooth

®

 audio device is connected, the following information is

displayed in the audio display.

X: Available

-: Not available

Some information may not display depending on the device, and if the infor-
mation cannot be displayed, “NO TITLE” is indicated.

Bluetooth

®

 Audio Device Information Display

AVRCP Ver.

lower than 1.3

AVRCP Ver. 1.3

Device name

X

X

Title

-

X

Artist name

-

X

Album name

-

X

File number

-

X

Playback time

-

X

Folder number

-

-

388

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

Bluetooth

®

 Audio (Type B)

■

Applicable Bluetooth

®

 specification (Recommended)

Ver. 1.1/1.2/2.0 + EDR/2.1 + EDR/3.0 (conformity)
● Response profile

• A2DP (Advanced Audio Distribution Profile) Ver. 1.0/1.2
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0/1.3/1.4

A2DP is a profile which transmits only audio to the Bluetooth

®

 unit. If

your Bluetooth audio device corresponds only to A2DP, but not
AVRCP, you cannot operate it using the control panel of the vehicle’s
audio system. In this case, only the operations on the mobile device
are available the same as when a portable audio device for a non-
compliant Bluetooth

®

 device is connected to the AUX terminal.

X: Available

-: Not available

Function

A2DP

AVRCP

Ver. 1.0

Ver. 1.3

Ver. 1.4

Playback

X

X

X

X

Pause

X

X

X

X

File (Track) up/down

-

X

X

X

Reverse

-

-

X

X

Fast-forward

-

-

X

X

Text display

-

-

X

X

Repeat

-

-

Depends

on device

Depends

on device

Shuffle

-

-

Depends

on device

Depends

on device

Scan

-

-

Depends

on device

Depends

on device

Folder up/down

-

-

-

Depends

on device

iA_OM_OM99M17z_(U)

389

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

●

The battery consumption of Bluetooth

®

 audio devices increases while Blue-

tooth

®

 is connected.

●

If a general mobile phone device is USB connected during music playback
over the Bluetooth

®

 connection, the Bluetooth

®

 connection is disconnected.

For this reason, you cannot have music playback over a Bluetooth

®

 connec-

tion and music playback using a USB connection at the same time.

●

The system may not operate normally depending on the Bluetooth

®

 audio

device.

■

Switching to Bluetooth

®

 audio mode

To listen to music or voice audio recorded to a Bluetooth

®

 audio

device, switch to the Bluetooth

®

 audio mode to operate the audio

device using the audio system control panel. Any Bluetooth

®

 audio

device must be paired to the vehicle’s Bluetooth

®

 unit before it can

be used.

Refer to Bluetooth

®

 Preparation (Type B) on P. 351.

Turn on the Bluetooth

®

 audio device’s power.

Switch the ignition to ACC or ON.

Select the

 icon on the home screen to display the Enter-

tainment screen.

When

 is selected, switches to the Bluetooth

®

 audio

mode to begin playback.

■

Playback

To listen to a Bluetooth

®

 audio device over the vehicle’s speaker

system, switch the mode to Bluetooth

®

 audio mode. (Refer to

“Switching to Bluetooth

®

 audio mode”)

After switching to the Bluetooth

®

 audio mode, the following icons

are displayed in the lower part of the display. Icons which can be
used differ depending on the version of the Bluetooth

®

 audio device

which you are currently using.

How to Use the Bluetooth

®

 Audio System

1

2

3

4

390

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

Icon

Function

Displays the Entertainment menu. Use to switch to a
different audio source.

(AVRCP Ver. 1.4 only)
Displays the top level folder/file list. Select the folder
which you want to select.
The files in the selected folder are displayed. Select
the file you want to play.

(AVRCP Ver. 1.3 or higher)
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are
played repeatedly. Select it again to cancel.
Icons change when the song is repeated or the
folder is repeated.

(AVRCP Ver. 1.3 or higher)
Plays songs in the folder in random order.
When selected again, the songs on the device are
played in random order. Select it again to cancel.
Icons change during folder shuffle or device shuffle.

Scans the titles in a folder and plays the beginning
of each song to aid in finding a desired song.
When selected again, the beginning of each song
on the device is played.
When selected again, the operation is canceled and
the song currently being played continues.

Returns to the beginning of the previous song.
Long-press to fast reverse. It stops when you
remove your hand from the icon or the commander
knob.

Plays the Bluetooth

®

 audio. When selected again,

playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you
remove your hand from the icon or the commander
knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.

iA_OM_OM99M17z_(U)

391

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

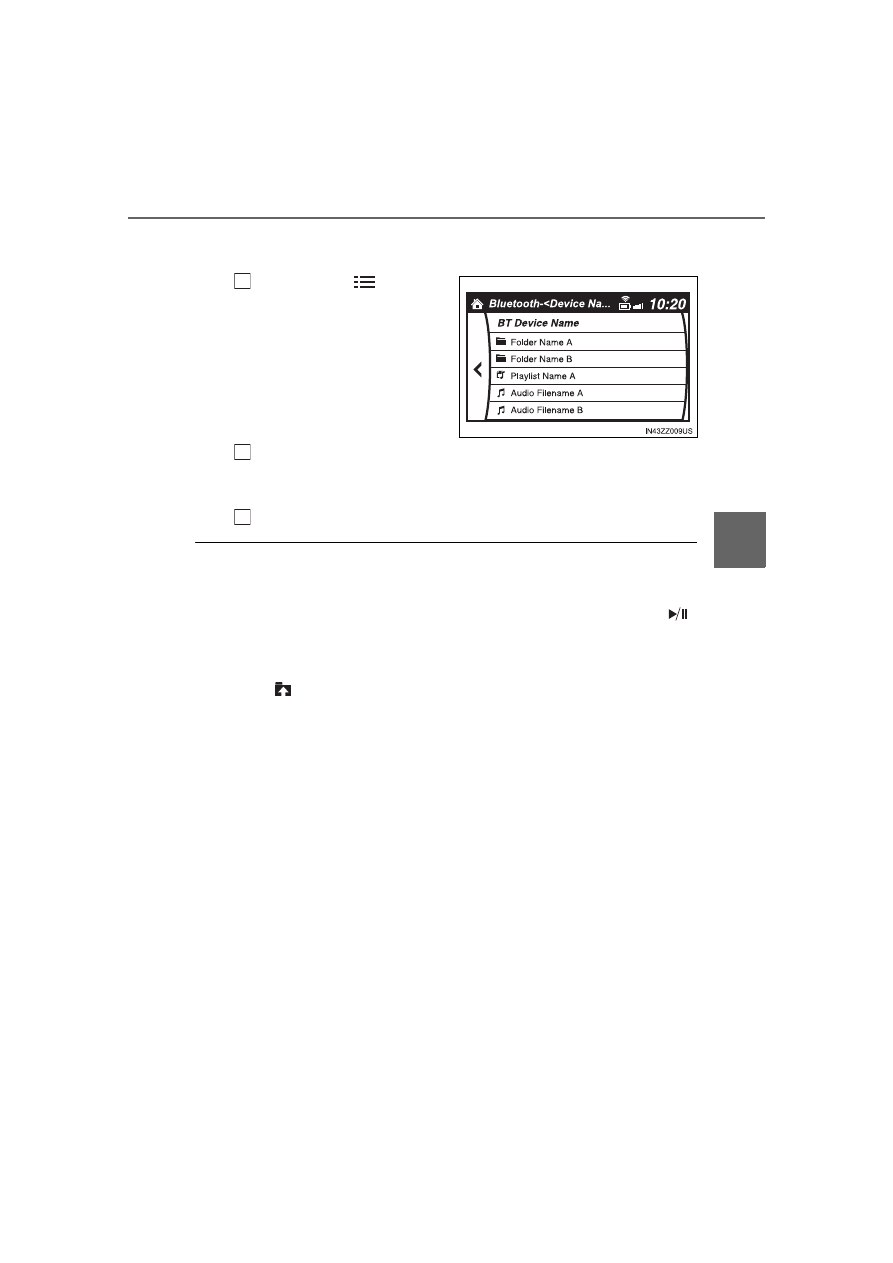

● Example of use (When searching for a song from the top level of

a device)

Select the

 icon to

display the folder/file list at
the top level.

When the folder is selected, folders/file lists in the folder are
displayed.
When the playlist is selected, the file list is displayed.

Select the desired song.

■

How to Use the Bluetooth

®

 Audio System

●

If Bluetooth

®

 audio is used after using Pandora

®

, Aha™ or Stitcher™ radio,

the application on the mobile device has to be closed first.

●

If the Bluetooth

®

 audio device does not begin playback, select the

icon.

●

If the mode is switched from Bluetooth

®

 audio mode to another mode (radio

mode), audio playback from the Bluetooth

®

 audio device stops.

●

Select

 to move to a folder one level higher.

1

2

3

392

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

If a Bluetooth

®

 audio device is connected, the following information is

displayed in the center display.

X: Available

-: Not available

Some information may not display depending on the device, and if the infor-
mation cannot be displayed, “Unknown - - -” is indicated.

■

What is Pandora

®

Pandora

®

 is free personalized Internet radio. Simply enter a favor-

ite artist, track, genre, and Pandora

®

 will create a personalized sta-

tion that plays their music and more like it. Rate songs by giving
thumbs-up and thumbs-down feedback to further refine your sta-
tion, discover new music and help Pandora

®

 play only music you

like.

*

Pandora

®

, the Pandora

®

 logo, and the Pandora

®

 trade dress are trade-

marks or registered trademarks of Pandora Media, Inc., used with permis-
sion.

To operate Pandora

®

 from your Bluetooth

®

 device, perform the following in

advance:

• Create Pandora

®

 account on the Web.

• Create Pandora

®

 station using Pandora

®

 application.

• Install Pandora

®

 application on your device.

Bluetooth

®

 Audio Device Information Display

AVRCP Ver.

lower than 1.3

AVRCP Ver.

1.3

AVRCP Ver.

1.4 or higher

Device name

X

X

X

Remaining battery charge
of device

X

X

X

Song name

-

X

X

Artist name

-

X

X

Album name

-

X

X

Playback time

-

X

X

Genre name

-

X

X

Album art image

-

-

-

How to Use Pandora

®

 (if equipped)

iA_OM_OM99M17z_(U)

393

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

■

Playback

Select the

 icon on the home screen and display the Enter-

tainment screen. When

 is selected, the following icons are

indicated in the bottom part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a
different audio source.

Displays the station list.
Use to switch to other stations.

Thumbs-Down
Press the

 icon to tell Pandora

®

 not to play

this track.

Thumbs-Up
Press the

 icon to tell Pandora

®

 “you like this

track” and it helps to bring in more tracks like it to
your station.

Bookmarking
Bookmarks the song or artist currently being played.

Plays the track. When selected again, playback is
temporarily stopped.

Goes to the next song.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.

394

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

■

Selection from station list

Selection can be made from a programmed radio station list.

Select the

 icon.

Select the desired radio station.

When

 is selected, songs randomly selected from the radio sta-

tion list are played.

● Selecting the sort method

The displayed order of the station list can be changed.

Select the

 icon.

Select .

Select

 to display in the order starting from the newly cre-

ated station.

Select

 to display in alphabetical order.

The displayed order of

 cannot be changed.

■

Bookmarking

You can bookmark song or artist to check out later on the Web.

Select the

 icon.

Select

 to bookmark the song.

Select

 to bookmark the artist.

■

How to Use Pandora

®

 (if equipped)

●

The skip function may not be available depending on the device.

●

The number of skips is limited by Pandora

®

.

●

If the

 icon is selected when the skip song function is running, the next

song is skipped.

1

2

1

2

3

4

1

2

3

iA_OM_OM99M17z_(U)

395

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

Aha is an application which can be used to enjoy various Internet con-
tent such as Internet radio and podcasts.

Stay connected to your friends activities by getting updates from
Facebook and Twitter. Using the location-based service, nearby ser-
vices and destinations can be searched or real- time local information
can be obtained.

For details on Aha, refer to “http://www.aharadio.com/”.

*

Aha, the Aha logo, and the Aha trade dress are trademarks or registered
trademarks of Harman International Industries, Inc., used with permission.

To operate Aha from your Bluetooth

®

 device, perform the following in

advance:

• Install the Aha application to your device.
• Create an Aha account for your device.
• Log onto Aha using your device.
• Select the preset station on your device.

■

Playback

Select the

 icon on the home screen and display the Enter-

tainment screen. When

 is selected, the following icons are dis-

played at the bottom of the center display. The displayed icon
differs depending on the selected station.

In addition, icons other than the following icons may be displayed.

How to Use Aha™

*

Icon

Function

Displays the Entertainment menu. Use to switch to a
different audio source.

Displays the main menu.
Use to switch to other stations.

Displays the content list.
Use to switch to other desired content on the sta-
tion.

Shout
Records voice.
Records voice and posts it as playable audio to
Facebook and other social stations.

Like

*

1

Evaluates the current content as “Like”.

Dislike

*

1

Evaluates the current content as “Dislike”.

396

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

*

1

Some stations may use alternate variations of Like and Dislike, based on
station type or provider.

● Main menu

Select the

 icon.

Reverses for 15 seconds.

Map (vehicles with navigation system)
Displays the destination searched by the location
based services on the navigation system.

Call
A call can be made to the telephone number of a
shop searched using the Location Based Services.
Available when a device is connected as a Hands-
Free.

Returns to the previous content.

Pauses playback of the content. When selected
again, playback resumes.

Goes to the next content.

Fast-forwards for 30 seconds.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.

Icon

Function

iA_OM_OM99M17z_(U)

397

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

Switch the tab and select the station category.

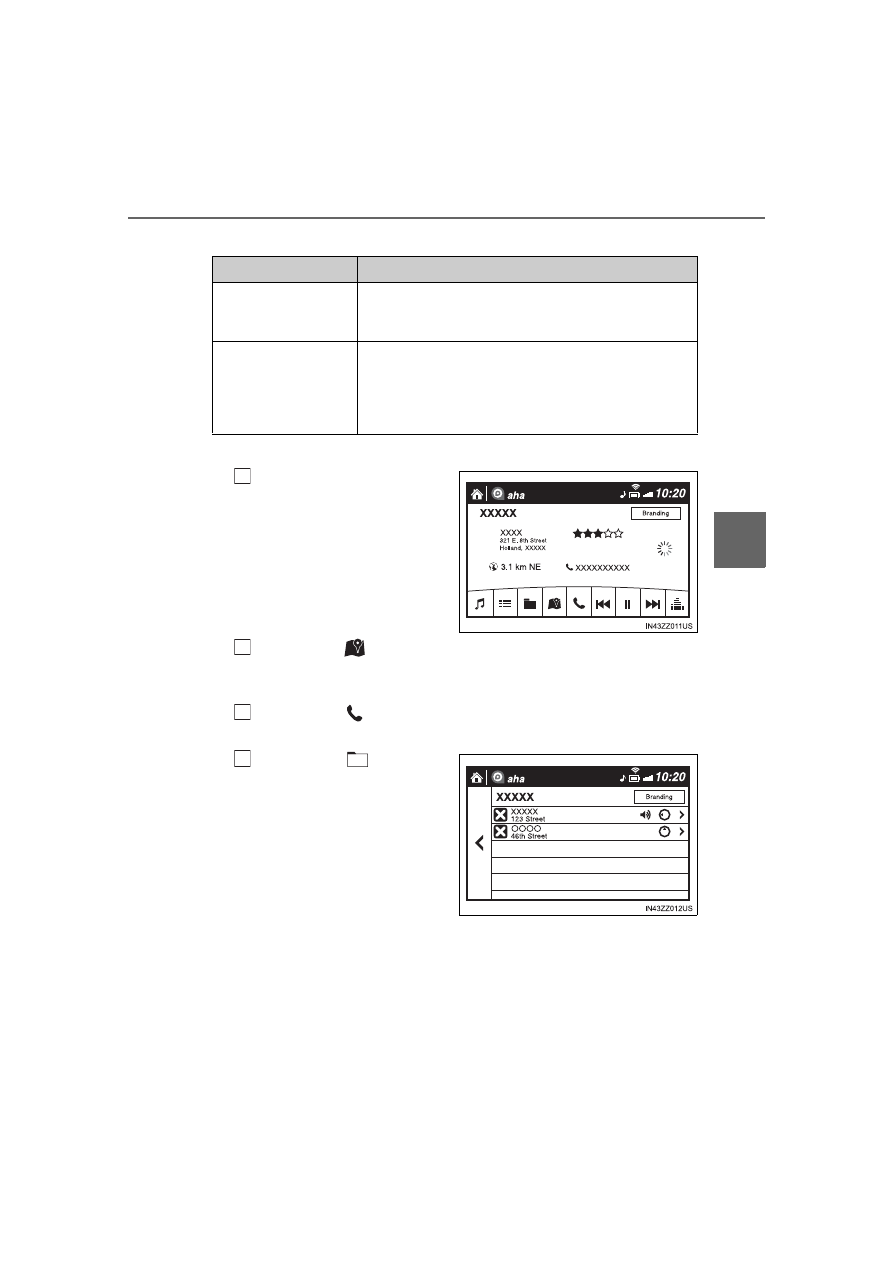

● Example of use (Location Based Services)

Select the desired station
from the Nearby tab on the
main menu. The destina-
tion name or address play-
back starts in the order of
the destination name list.

When the

 icon is selected, the currently displayed des-

tination is displayed on the navigation system (vehicles with
navigation system).

When the

 icon is selected, a phone call is placed to the

currently displayed destination.

Select the

 icon and

display the content list.
Selection of other destina-
tions from the list can be
made.

Tab

Function

Presets

Displays the preset station list set on the device.
Select the preset station name to play the station
content.

Nearby

Select the desired station.
Guidance is provided to the searched destination
near the vehicle’s position. You can designate
desired categories previously set using the filter set-
ting on your device.

1

2

3

4
