EMERGENCY
STARTUP

If the ignition key fails to deactivate

the engine immobiliser, the warning
light

¢ will remain lit and the engine

will not start. In this case, you should
contact your LANCIA Dealership
and get them to carry out the emer-
gency startup using the code given on
the CODE card. Alternatively, you
can perform the emergency startup
procedure yourself by following the
procedure given below.

Read the whole procedure care-

fully before trying to carry it out. If
you make a mistake in the emergency
procedure you must turn the ignition
key back to STOP and repeat the
whole operation from the beginning
step 1.

1) Read the 5-figure electronic code

given on the CODE card.

2) Turn the ignition key to MAR.

3) Press the accelerator pedal to the

floor and keep it there. The warning
lamp

will light up for about 8

seconds, and then go out. At this point
release the accelerator pedal and pre-
pare to count the number of flashes of
the warning lamp

.

4) The warning lamp

starts

flashing: when it has
flashed the number of times that cor-
responds to the first figure of the code
on the CODE card, press the acceler-
ator pedal and keep it there until the
warning lamp

lights up for four

seconds and then

goes out again. Release the accelera-
tor pedal.

5) The warning lamp

will start

flashing again: when
the lamp has flashed the number of
times that corresponds to the second
figure on the CODE card, press the
accelerator pedal to the floor and keep
it there.

6) Do the same for the remaining

figures on the CODE card.

7) Once the final figure has been en-

tered, keep the accelerator pedal
pressed. The warning lamp

will

light up for 4 seconds and

then go out. Release the accelerator
pedal.

4C090-119 ING  11-03-2008  12:00  Pagina 91

92

G

8) The warning lamp

will flash

rapidly for about 4 seconds to indicate
that the operation has been completed
correctly.

9) Start the engine by turning the ig-

nition key from MAR to AVV (with-
out turning it to STOP).

If, however, the warning lamp

remains lit, turn the ignition key
to STOP and repeat the procedure
from step 1.

IMPORTANT After an emergency

start, you should contact a LANCIA
Dealership immediately, otherwise
you will have to repeat the procedure
described each time you want to start
the engine.

JUMP STARTING

If the battery is flat, you can use an-

other battery to start the engine. Its
capacity must be the same or slightly
greater than the flat battery (see the
section “Technical Specifications”).

Do the following, (fig. 1):

1) Lift the protective cover on the

positive pole, then connect the posi-
tive terminals (+) of the two batteries
A and B with a jump lead, which is
usually red.

2) With a second lead (usually

black), connect the negative terminal
C (–) of the auxiliary battery to an
earth point

D on the engine or

gearbox of the car to be started.

IMPORTANT Do not connect the

black lead to the negative pole of the
flat battery; any sparks could set the
gas coming out of the battery on fire.
If the other battery is fitted in a vehi-
cle, prevent accidental contacts be-
tween the metal parts of the two ve-

hicles.

3) Start the engine.

4) When the engine has

started, remove the leads in
the reverse order to before:

D, C, B and finally A.

If the engine fails to start after a few

attempts, do not keep turning the key
but have the car seen to at a LANCIA
Dealership.

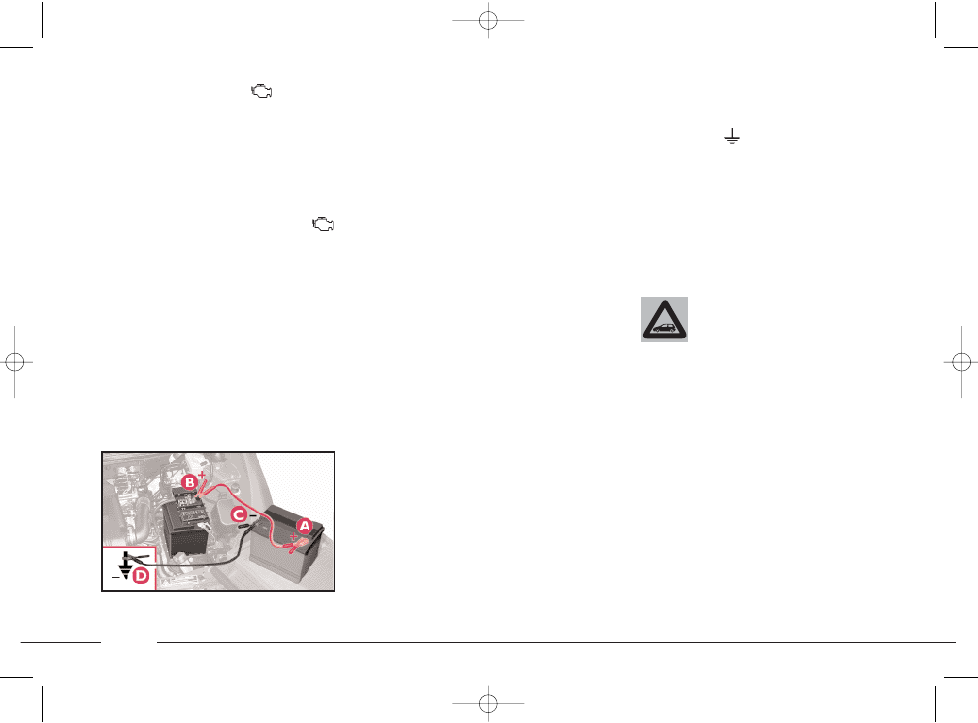

fig. 1

P4C00411

4C090-119 ING  11-03-2008  12:00  Pagina 92

93

G

Under no circumstances

should a battery charger
be used to start the engine:

it could damage the electronic sys-
tems and in particular the control
units governing ignition and fuel
feed.

Do not carry out this pro-

cedure if you lack experi-
ence; if it is not done cor-

rectly it can cause very intense
electrical discharges and the bat-
tery might even explode. In addi-
tion, the fluid contained in the bat-
tery is poisonous and corrosive.
Avoid contact with skin and eyes.
You are also advised not to put

naked flames or lighted cigarettes
near the battery and not to cause
sparks: risk of fire and explosion.

To avoid damage to the

electrical system, scrupu-
lously follow the cable

manufacturer’s instructions. Make
sure the cables have an adequate
cross section and are long enough
to avoid the two car touching.

4C090-119 ING  11-03-2008  12:00  Pagina 93

94

G

into the catalytic exhaust
pipe and damage it beyond
repair.

BUMP
STARTING

Bump starting by pushing, towing

or rolling downhill must be
avoided at all costs. This way of
starting could cause a rush of fuel

Remember that as long as

the engine is not running,
the brake booster and

power steering do not work. You
therefore have to use considerably
more effort on both the brake
pedal and the steering wheel.

IF A TYRE
IS

PUNCTURED

GENERAL INDICATIONS

The following precautions must be

observed when changing a wheel and
using the jack and the space-saver
spare wheel.

4C090-119 ING  11-03-2008  12:00  Pagina 94

95

G

Signal that the car is sta-

tionary as per the highway
code: hazard lights, warn-

ing triangle, etc.

Any passengers must get out of

the car, especially if it is heavily
laden, and keep out of the way of
traffic while the wheel is being
changed.

If the ground is sloping or

bumpy, place wedges or other suit-
able material under the wheels to
stop the car from moving.

The space-saver spare

wheel is specific to the ve-
hicle; do not use it on other

models and do not use spare
wheels designed for other models
on your car.

If you change the type of wheels

fitted (alloy rims instead of steel
ones), you must also change the se-
curing bolts for others of suitable
dimensions.

The space-saver spare wheel

must only be used in the event of
an emergency, and then only for as
little as possible and at no more
than 80 km/h. Driving will feel dif-
ferent with the space-saver spare
wheel fitted. Avoid sharp braking
and acceleration, sudden swerving
and fast cornering.

The space-saver spare wheel has

a life-span of about 3000 km after
which the tyre should be replaced
with another of the same type.

4C090-119 ING  11-03-2008  12:00  Pagina 95

96

G

Never fit a standard tyre to a rim

to be used for the space-saver
spare wheel. Have the punctured
tyre repaired and fitted back on as
soon as possible.

No more than one space-saver

spare wheel must be used at the
same time.

Do not grease the bolt threads be-

fore fitting them, they could un-
screw themselves.

The jack must only be used to

change wheels on the vehicle with
which it is supplied or on vehicles
of the same model. All other uses,
for example raising other vehicles,
must be excluded. Under no cir-
cumstances use the jack to carry
out repairs under the vehicle.

If the jack is not used correctly,

the raised vehicle may fall.

Do not use the jack to lift weights

above that indicated on the label
attached to the jack itself.

Never start the engine while the

car is raised by the jack. If travel-
ling with a trailer, detach the
trailer before raising the car.

Snow chains cannot be fitted to

the spare wheel, consequently if a
front tyre is punctured (front drive)
and snow chains need to be fitted,
a standard wheel must be removed
from the back axle and the space-
saver spare wheel fitted in its
place. In this way there will be two
standard wheels on the front and
the snow chains can be fitted.

Incorrect fitting of the wheel hub

could result in the hub coming off
when the vehicle is travelling.

Never tamper with the inflation

valve.

Do not insert any type of tool be-

tween the rim and the tyre.

Periodically check the tyre pres-

sure including that of the spare-
saver spare wheel as per the val-
ues given in “Technical Specifica-
tions”.

fig. 3

P4C00401

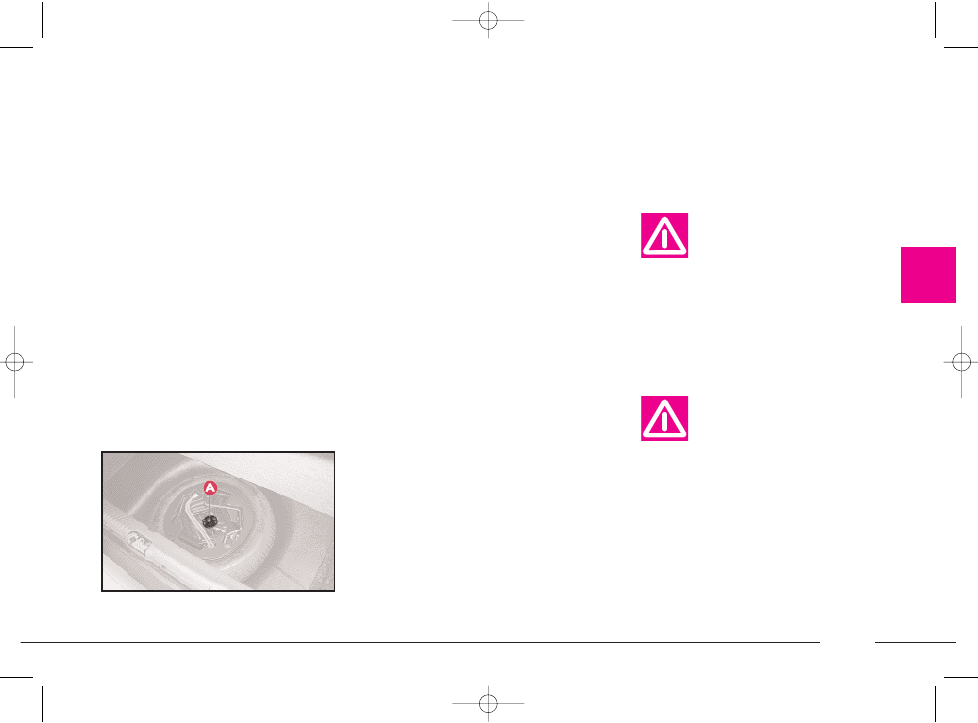

fig. 2

P4C00400

4C090-119 ING  11-03-2008  12:00  Pagina 96

97

G

1. STOP THE CAR

– Stop the car so it is not a danger

for on-coming traffic and in such a
position that the tyre can be changed
in safety. The ground must be flat and
adequately firm. During the night,
chose a lit area, if possible.

– Turn engine off and engage the

handbrake.

– Engage first or reverse gear.

– Signal that the car is stopped ac-

cording to traffic regulations: hazard
lights, warning triangle, etc.

Any passengers must leave the car

and watch out for traffic while the
tyre is being changed.

If the ground is sloping or bumpy,

place wedges or other suitable mate-
rial for stopping the car under the
wheels.

2. TAKE OUT THE TOOLS,
JACK AND SPARE WHEEL
(space-saver wheel)

They are in the boot.

– Lift the carpeting.

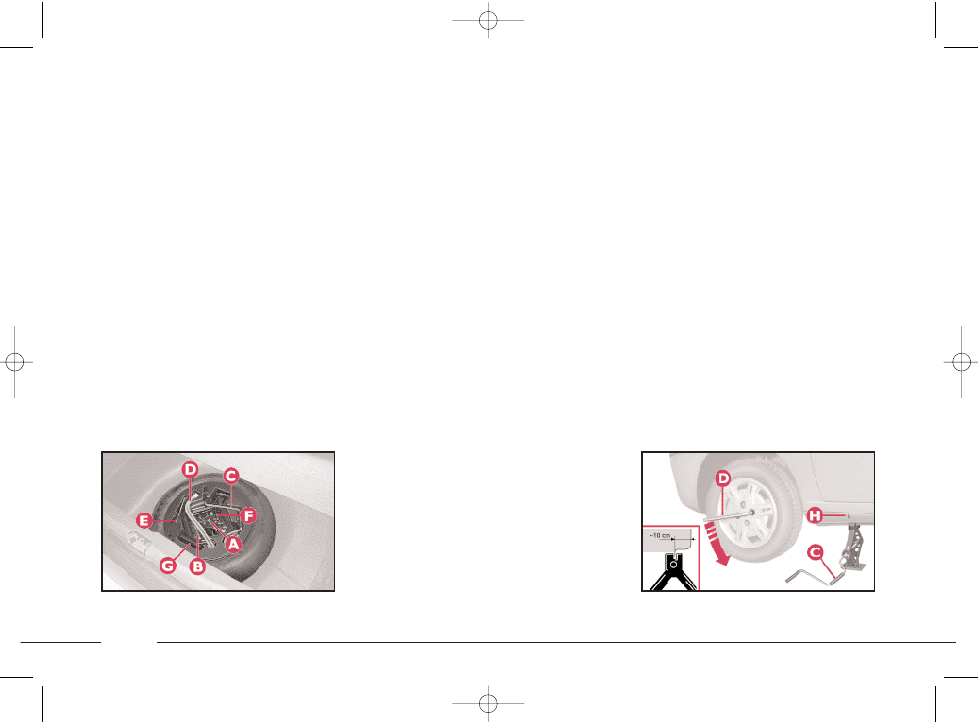

– Unscrew the fastener A (fig. 2)

and take out the tool holder.

The tool holder contains:
B - vehicle tow ring;
C - jack handle;
D - wheel bolt wrench;
E - screwdriver;

F - extension for screwing wheel

bolts and inflation valve cap;

G - jack.

fig. 4

P4C00402

fig. 5

P4C00045

4C090-119 ING  11-03-2008  12:00  Pagina 97

98

G

– Take out the tools and remove the

space-saver spare wheel.

IMPORTANT

The indications

which follow must be complied with
to ensure that the jack and the spare
wheel are used correctly.

It must be remembered that:

– the jack weighs 1.85 kg;

– the jack does not require adjust-

ments;

– the jack cannot be repaired. If it

breaks, it must be changed with an-
other new jack;

– only the jack handle described in

this chapter can be fitted onto the
jack.

3. CHANGING THE WHEEL

1) Remove the wheel cup with a

screwdriver (LS versions).

2) Loosen the wheel bolts of the

wheel to be changed by about 1 turn.

3) If the car is fitted with alloy rims,

shake the car to facilitate removing
the rim from the wheel hub.

4) Turn the jack handle C so that

the jack opens partially.

5) Place the jack at the point marked

by a notch H (fig. 3) near the wheel to
be changed at approximately 10 cm
towards the centre of the car (fig. 3).

6) Turn the handle C to open the

jack until the jack groove is correctly
inserted in the sidemember ribbing.

7) Warn any other people present

that the car is going to be lifted. Other
people must stay clear and not touch
the car until it is back on the ground.

8) Turn jack handle and lift the ve-

hicle until the tyre is a few centime-
tres above the ground.

The jack handle must turn freely,

without touching the ground to avoid
scraping your hand.

Do not touch moving parts of the

jack (screws and joints) as they can
cause injuries. If you dirty your hands
with grease, clean them carefully.

9) Undo the 4 bolts completely and

remove the wheel cover (

N

version)

and wheel.

fig. 6

P4C00161

fig. 7

P4C00403

4C090-119 ING  11-03-2008  12:00  Pagina 98

99

G

10) Ensure that the support surfaces

of the spare wheel are clean and free
from impurities which could succes-
sively cause the wheel bolts to loosen.

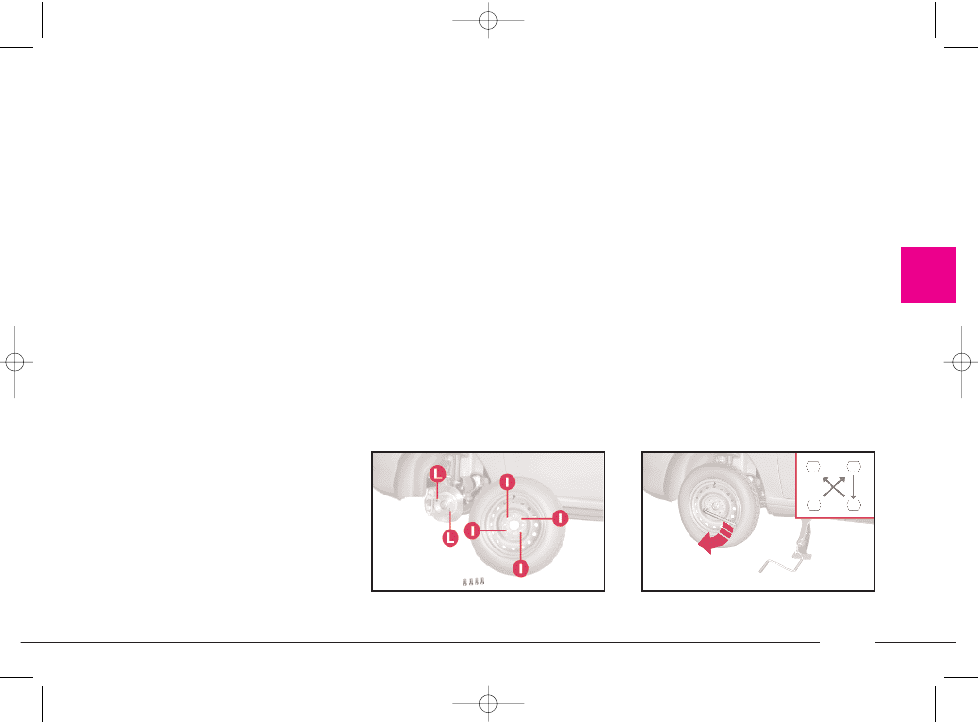

Mount the spare wheel so that the
holes I (fig. 4) coincide with the rela-
tive pins L.

IMPORTANT Do not fit the wheel

cover on the space-saver spare wheel.

11) Tighten the 4 securing bolts.

12) Turn the jack handle to lower

the car, and remove the jack.

13) Tighten up the wheel bolts com-

pletely in criss-cross fashion following
the order shown in (fig. 5).

14) Put the punctured wheel in the

spare wheel compartment.

The spare wheel is narrower than

normal wheels and must only be used
to travel to the nearest service station
so that the original tyre can be re-
paired.

Depending on whether the type of

wheels normally fitted to the car are
alloy or steel, the spare wheel (which
always has a steel rim) will differ in
construction so that it is compatible
with the wheel bolts which are specific
to each type of wheel.

If you wish to change the type of

wheel (alloy instead of steel and vice-
versa) the wheel bolts and a new
spare wheel must be employed.

Modifications or repairs

to the electrical system
carried out incorrectly and

without bearing the features of the
system in mind can cause mal-
functions with the risk of fire.

REFITTING THE STANDARD
WHEEL

1) Following the above procedure,

raise the car and take off the space-
saver wheel.

4) Fit the wheel cover (1.2

16V

M

N

blue

version), mak-

ing sure that slit C (fig. 6)

corresponds with the inflation valve.

5) Insert the other three bolts, using

extension F (fig. 2) (1.2

16V

M

N

blue

version).

6) Tighten the bolts using the spe-

cial wrench D (fig. 2).

fig. 8

P4C00404

4C090-119 ING  11-03-2008  12:00  Pagina 99

100

G

7) Lower the car and re-

move the jack.

8) Tighten up the bolts com-

pletely in the order given previously in
(fig. 5).

9) Fit the wheel cover (LS version)

making sure that the inflation valve
seat is positioned correctly; press the
cover with the palm of your hands (do
not bang) against the rim shoulder
and ensure that all the retaining flaps
are inserted into the rim.

When you have finished:

– Put the space-saver spare

wheel into its special recess in
the boot.

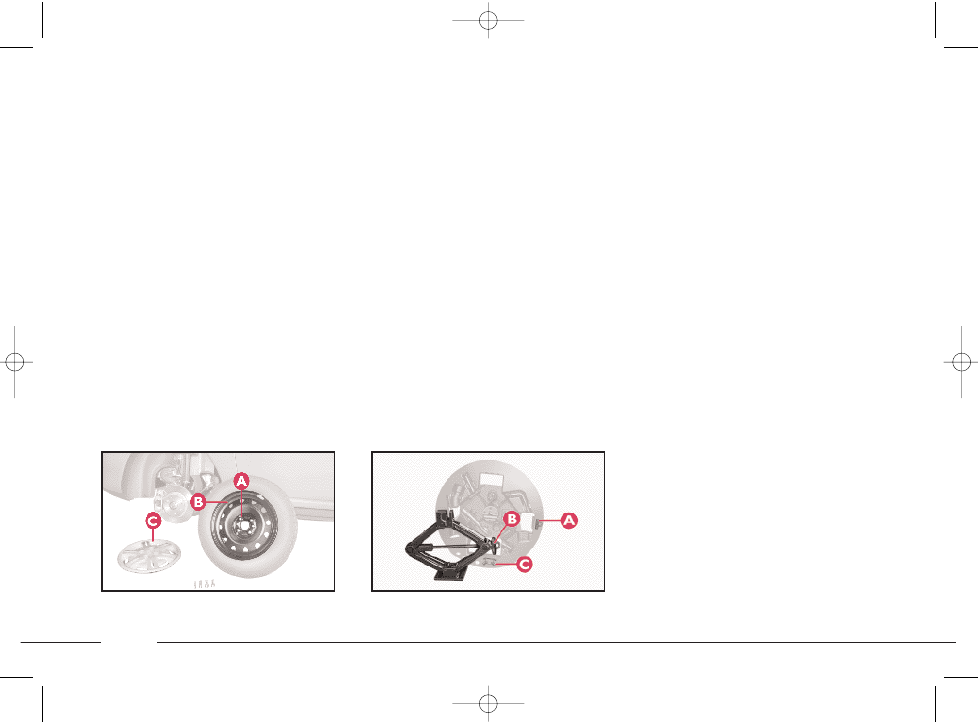

– Refit the jack in its support mak-

ing A (fig. 7) coincide with the ring B
on the jack and positioning the base
of the jack to match C.

– Refit the tools you used on the sup-

port.

– Arrange the support and close the

fastener A (fig. 8).

IMPORTANT Check the inflation

pressure of the tyres and the spare
wheel regularly.

fig. 9

P4C00301

IMPORTANT If the type of wheel is

to be changed (alloy wheels in place
of steel wheels and vice-versa) all the
wheel bolts must be replaced with
others of a suitable length and a spe-
cific spare wheel employed with dif-
ferent construction characteristics.

The original wheel bolts though,

should be kept in case you wish to
change back to the original wheels at
a later date.

To unscrew/screw the inflation valve

cap, use extension F (fig. 2).

4C090-119 ING  11-03-2008  12:00  Pagina 100

101

f

G

C

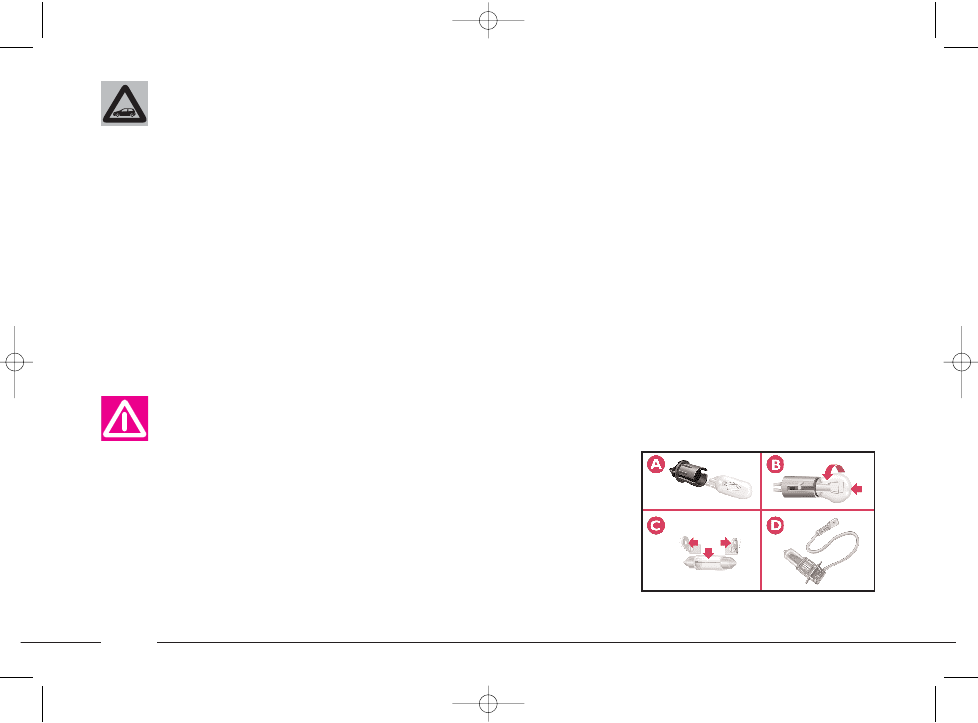

Tubular bulbs
Release these bulbs from rela-
tive contacts to remove them.

D

Halogen bulbs
Release the securing spring
from its seat to remove the
bulb.

BULB

Fig. 9

TYPE

POWER

Main beam headlights

Dipped beam headlights

Front side lights

Front direction indicators

Side direction indicators

Rear direction indicators

Foglights

Reverse lights

Rear brake and side lights

Rear side lights

Rear fog lights

Third brake light

Number plate

Ceiling light (1.2

16V

M

N

blue

- LS versions)

Ceiling light:
– with courtesy light
– with map light

Boot

D

H3

12V-55W

D

H7

12V-55W

A

W5W

12V-5W

B

PY21W

12V-21W

A

W5W

12V-5W

B

PY21W

12V-21W

D

H1

12V-55W

B

P21W

12V-21W

B

R5W

12V-21/5W

B

R5W

12V-21W

B

P21W

12V-21W

A

W5W

12V-5W

C

C5W

12V-5W

C

–

12V-10W

C

–

12V-10W

A

–

12V-6W

C

C5W

12V-5W

4C090-119 ING  13-03-2008  12:51  Pagina 101

102

f

G

FRONT SIDE LIGHTS

To replace the 12V-5W bulb (type

W5W):

1) Remove the cover B (fig.10) by

turning partially in an anti-clockwise
direction.

2) Slide out bulb holder C (fig. 12)

by turning it slightly to make it easier
to release.

3) Remove the bulb.

4) Replace the press-fit bulb and re-

fit the bulb holder and cover.

fig. 12

P4C00025

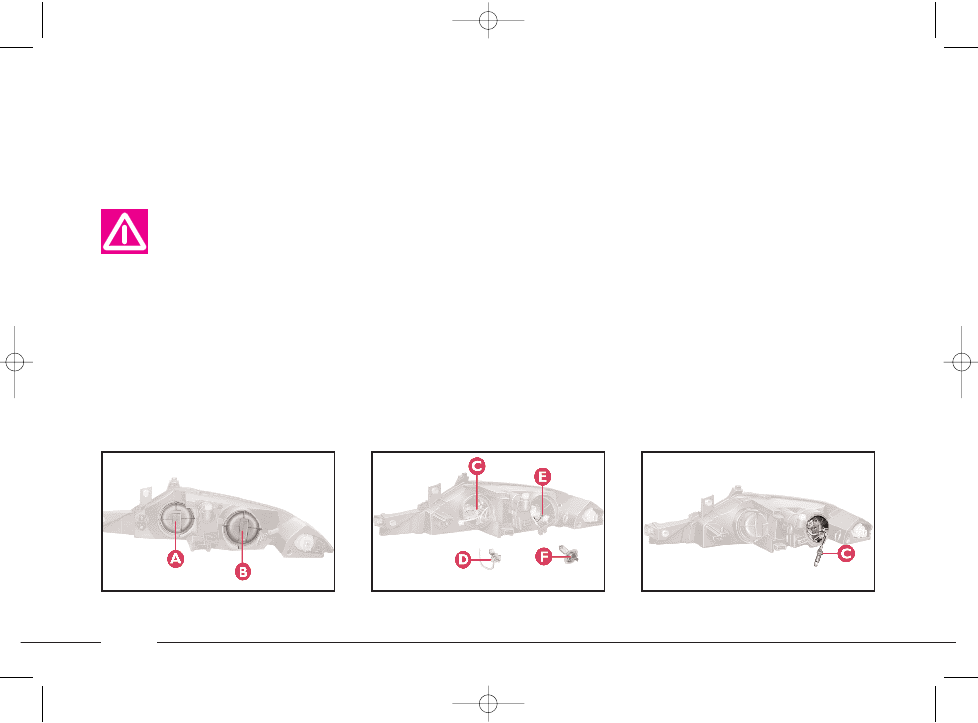

HEADLIGHTS

To replace the halogen lights (12V-

55W):

1) Remove covers A and B (fig. 10)

by turning them partially in an anti-
clockwise direction.

2) Release the clips C-E (fig. 11)

and remove the burnt-out bulb D
(mainbeam headlight of type H3 with
printed wire already attached) or F
(dippedbeam headlight, type H7).

3) Insert the new bulb, making sure

it is positioned properly.

4) Reattach the securing clips and

close the covers.

IF AN EXTERIOR
LIGHT BURNS OUT

fig. 10

P4C00027

fig. 11

P4C00026

Modifications or repairs

to the electrical system
carried out incorrectly and

without bearing the features of the
system in mind can cause mal-
functions with the risk of fire.

4C090-119 ING  13-03-2008  12:51  Pagina 102

103

f

G

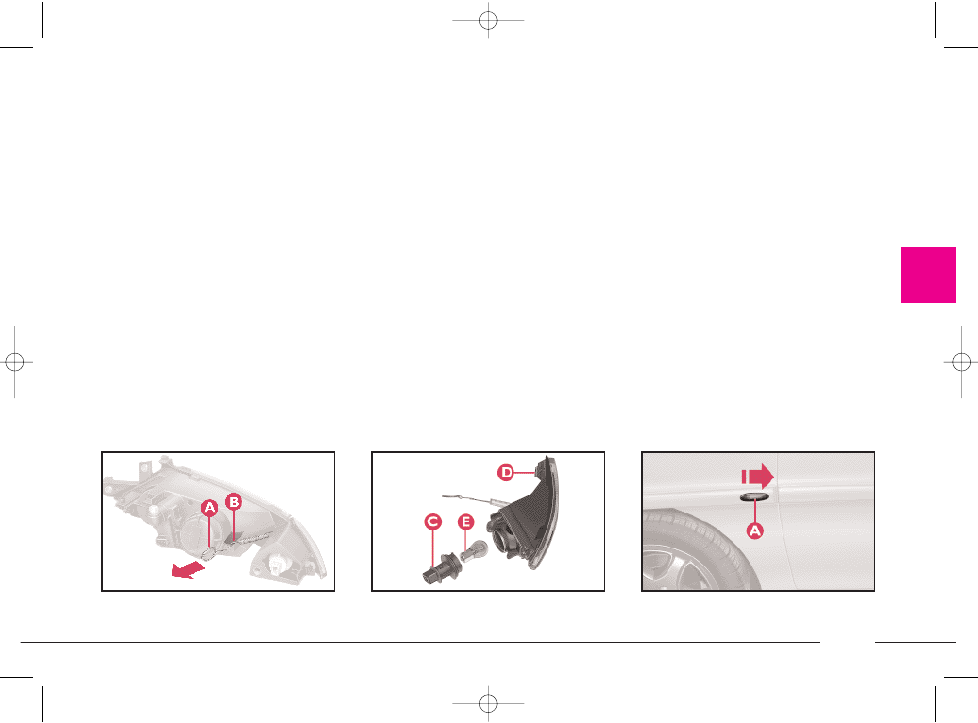

FRONT DIRECTION
INDICATORS

To replace the 12V-21W bulb (type

PY21W):

1) Release spring clip A (fig. 13)

from support B by turning in the di-
rection of the arrow.

2) Pull out the lens unit from the

front.

3) The bulb holder C is connected to

the lens unit. To remove it, turn it
slightly.

4) Remove bulb E (fig. 14), by push-

ing it gently and turning it in an an-
ticlockwise direction.

5) Replace the bulb, then refit the

bulb holder to the lens unit.

6) Reposition the lens unit, by intro-

ducing the two tabs D into the guides
at the side of the headlamp.

7) Reattach spring clip A.

DIRECTION INDICATOR
REPEATERS

To replace the 12V-5W bulb (type

W5W):

1) Push the lens A (fig. 15) in the di-

rection of the arrow to release the fas-
tening tab. Be careful not to damage
the bodywork.

2) Take the unit out.

fig. 13

P4C00029

fig. 14

P4C00405

fig. 15

P4C00382

4C090-119 ING  13-03-2008  12:51  Pagina 103

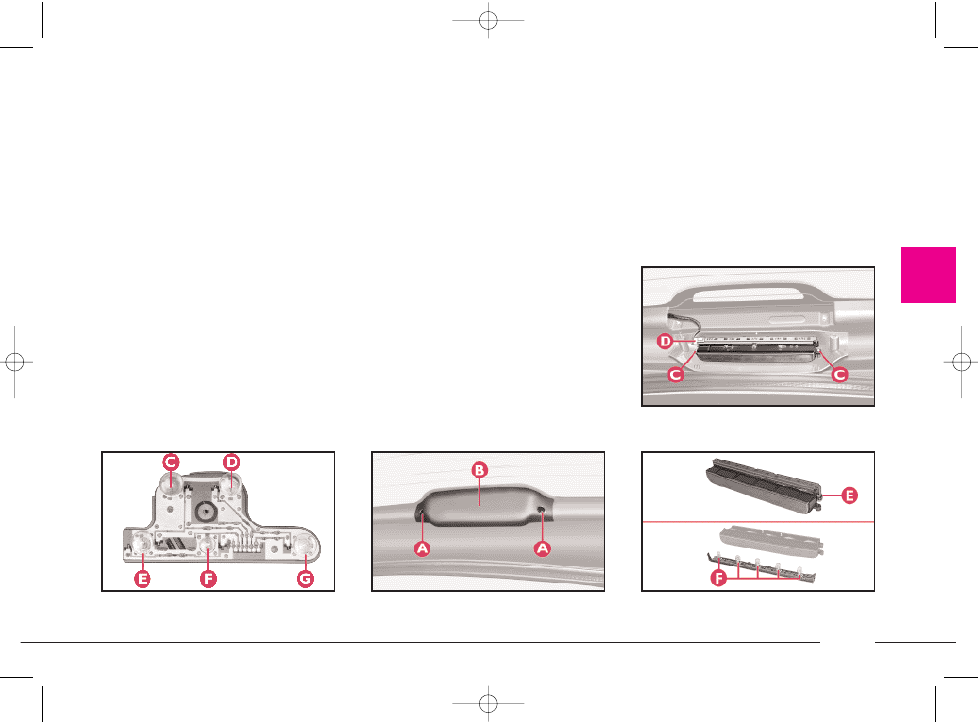

REAR LIGHT CLUSTER

1) From inside the car boot, lift the

carpeting and undo screw A (fig. 19)
securing the light cluster.

2) Remove the light cluster B.

3) Replace the burnt-out bulb by

pushing it slightly and turning anti-
clockwise.

Bulbs in (fig. 20):

C - 12V-21W (orange) (type PY21W)

for the direction indicators.

D - 12-21W (type P21W) for the re-

versing lights.

104

f

G

3) Remove the bulb holder B

(fig. 16) from C in the lens.

4) Remove press-fit bulb D and re-

place it.

5) Refit the bulb holder into C and

then fit the lens.

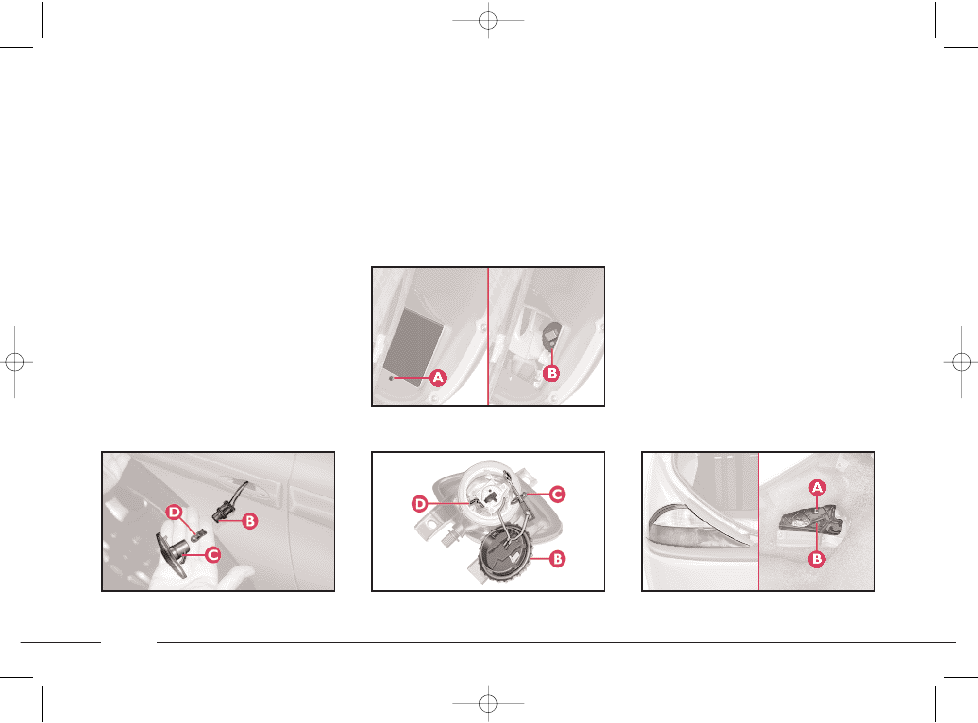

FRONT FOGLIGHTS

To replace the halogen bulb 12V-

55W (type H1):

1) Turn the wheels to the right to get

at the left light, and to the left to get
at the right light.

2) Unscrew screw A (fig. 17) in the

cover on the wheelarch.

3) Turn cover B in an anticlockwise

direction.

4) Release clip D (fig. 18) and re-

move bulb C.

5) Release the clip D and screw

cover B back in.

fig. 16

P4C00383

fig. 17

P4C00152

fig. 18

P4C00406

fig. 19

P4C00038

4C090-119 ING  13-03-2008  12:51  Pagina 104

105

f

G

E - 12V-21/5W (type R5W) for the

brake and taillights.

F - 12V-5W (type R5W) for the tail-

lights.

G - 12V-21W (type P21W) for the

rear foglights.

5) Refit the lighting cluster, and

tighten screw A (fig. 19), without
forcing it.

THIRD BRAKE LIGHT

To change one or more 12V-5W

(type W5W) bulbs:

1) Unscrew the two screws A (fig. 21)

and remove trim B.

2) Loosen the two screws C (fig. 22),

disconnect the connector D and sep-
arate the lens from the cover B.

3) Loosen the tab E (fig. 23) and

separate the bulbs from the lens.

4) Replace the burnt-out bulb F

(fig. 23).

5) Refit the unit by reversing the

various operations.

fig. 20

P4C00039

fig. 21

P4C00407

fig. 22

P4C00408

fig. 23

P4C00409

4C090-119 ING  13-03-2008  12:51  Pagina 105

106

f

G

IF AN INTERIOR
LIGHT BURNS OUT

rounding it, by inserting the tip of a
screwdriver between the cover frame
and the second frame as illustrated in
(fig. 25).

CEILING LIGHT
(all other versions)

To replace a bulb:

1) Remove the 2 plastic caps A and

release cover B (fig. 26).

2) Unscrew the 4 screws securing the

ceiling light unit that can be seen.

3) Press tab A (fig. 27) to open the

bulb holder.

4) Replace the burnt-out bulb.
B - 12V-10W bulb for courtesy light.
C - 12V-6W bulb for map-reading

light.

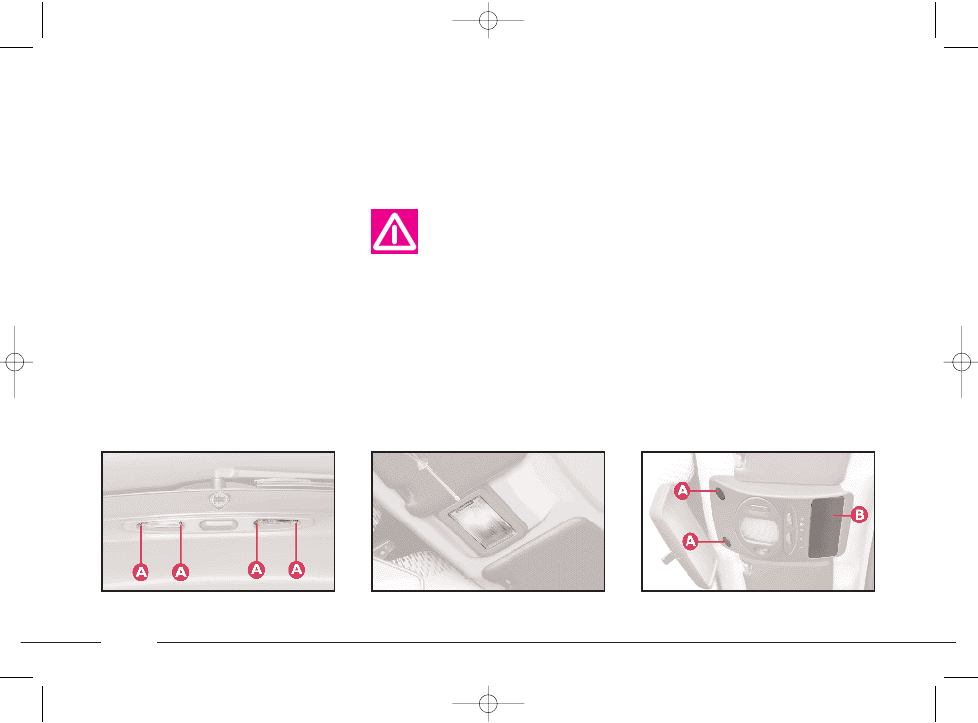

NUMBER PLATE LIGHTS

To replace the 12V-5W (type C5W)

bulb, unscrew the securing screws A
(fig. 24) and remove the lens.

CEILING LIGHT (1.2

16V

M

N

blue

- LS)

To replace the 12V-10W bulb in the

ceiling lamp, remove the transparent
cover, together with the frame sur-

Modifications or repairs

to the electrical system
carried out incorrectly and

without bearing the features of the
system in mind can cause mal-
functions with the risk of fire.

fig. 24

P4C00147

fig. 25

P4C00164

fig. 26

P4C00064

4C090-119 ING  13-03-2008  12:51  Pagina 106
