Lancia THESIS. Service Manual - part 14

220

POWER SOCKET

It is located inside the rear armrest.

The power socket can be accessed

by lifting the armrest from handgrip
A (fig. 180). To close the compart-
ment, lower the armrest.

To use the socket, lift cover C

(fig. 179).

Certain versions are fitted with a

power socket inside the glove com-
partment.

The socket is powered when the

key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).

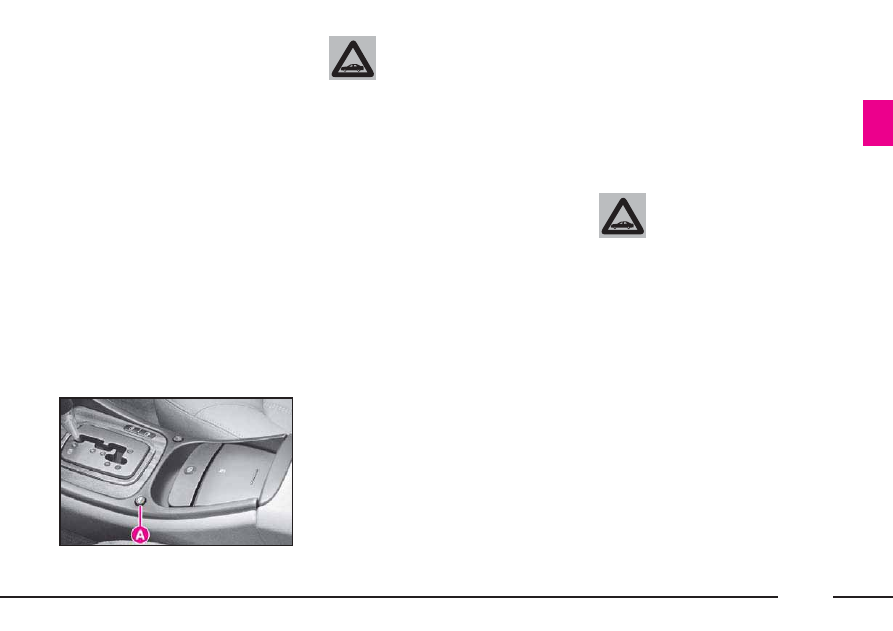

ELECTRIC SUNSHADE (fig. 181)

The electric sunshade works with

ignition key at MAR.

The buttons for operating it are

located on the central console, near
the gearshift lever and inside the
rear armrest.

To operate the electric sunshade

from the front seats: press button A
to open it and button B to close it.

To operate the electric sunshade

from the rear seats: press the front
part of button C to open it and press
the rear part to close it.

Do not use the socket for

power devices with a
higher intake than that

shown.

Prolonged current intake can

drain the battery and lead to
problems when starting the
engine.

– the power socket

– the remote control used for the

CONNECT HI-FI and TV functions

– the additional phone handset.

IMPORTANT To use the power

socket, read the instructions of the
relevant paragraph in this chapter.

The compartment can be accessed

by lifting the armrest from handgrip
A (fig. 180).

To close the compartment, lower

the armrest.

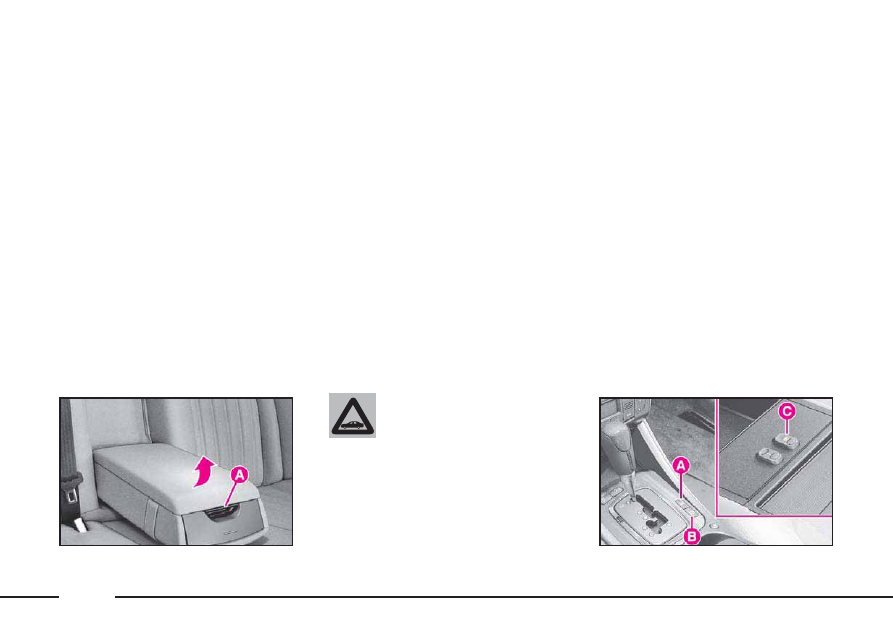

fig. 180

L0A0074b

fig. 181

L0A0280b

221

INSTALLATION OF ELECTRIC/
ELECTRONIC DEVICES

Electric/electronic devices installed

after buying the car or in aftermarket
shall bear the and marking:

Fiat Auto S.p.A. authorizes the in-

stallation of transceivers provided that
installation is carried out at a special-
ized shop, workmanlike performed
and in compliance with manufac-
turer's specifications.

IMPORTANT Installation of devices

resulting in modifications of car char-
acteristics may cause driving license
seizing by traffic agents and also the
lapse of the warranty as concerns de-
fects due to the abovementioned mod-
ification or traceable back to it di-
rectly or indirectly.

Fiat Auto S.p.A. declines all respon-

sibility for damages caused by the in-
stallation of non-genuine accessories
or not recommended by Fiat Auto
S.p.A. and installed not in compliance
with the specified requirements.

ACCESSORIES PURCHASED BY
THE USER

If after buying the car, you decide

to install electrical accessories that
require a permanent power supply
(e.g. satellite antitheft device), or
any other accessory that burden the
electric supply, contact your Lancia
Dealership whose qualified person-
nel, besides suggesting the most suit-
able devices belonging to the
Lineaccessori Lancia, will also eval-
uate the total electrical absorption,
checking whether the car’s electric
system is able to withstand the
required load or whether it must be
integrated with a more powerful
battery.

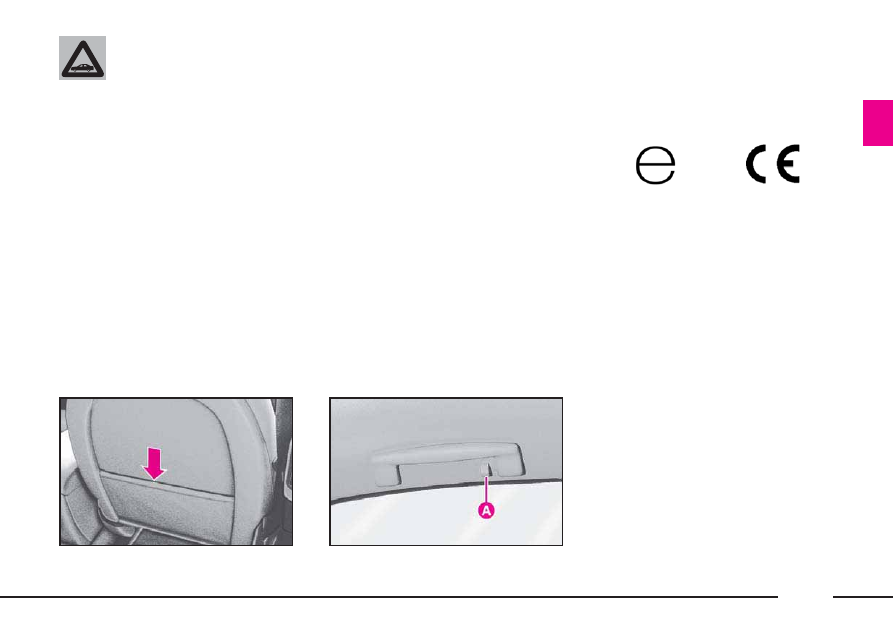

fig. 182

L0A0147b

fig. 183

L0A0222b

Before actuating the

sunshade, make sure that
no object is placed on the

rear parcel shelf.

MAP POCKETS (fig. 182)
(where provided)

Paper pockets are located on the

back of the front seats.

HANDLES (fig. 183)

They are placed just next to the

doors.

Each rear handle includes a clothes

hook A.

222

SOLAR CELL
OPERATED
SUNROOF

The sunroof is electrically con-

trolled and its operation is possible
only with the ignition key at MAR.
The sunroof can slide lenghtwise,
with various opening positions, until
it fully retracts into the special hous-
ing, or can lift at the front (by pivot-
ing) to allow passenger compart-
ment aeration.

The upper part of the sunroof

incorporates a set of solar cells that
feed the climate control system fan
at first speed when the car is parked
to reduce the temperature inside the
passenger compartment.

IMPORTANT Best operation of

the fan when the car is parked is
obtained by closing completely the
windows and sunroof. Furthermore,
to check operation at first speed of
the fan, disengage air vents and set
air distribution from central dash-
board vents only before leaving the
car.

The sunroof is equipped with an

anti-trap safety system, which con-
trols the closing lenghtwise sliding as
well as pivoting.

The electronic control unit that

controls the system is able to detect
the presence of obstacles when the
roof is closing or pivoting at the rear;
in this case, the system will interrupt
the sunroof travel and immediately
reverse it for a short stretch.

RADIO TRANSMITTERS AND
CELLULAR TELEPHONES

Radio transceiver equipment (e.g.:

e-tacs mobile phones, HAM radio
systems and the like) shall not be
used inside the car unless a separate
aerial is mounted outside the car.

The use of these devices inside the

passenger compartment (without
external aerial) may cause electrical
systems equipping the car to mal-
function. This could compromise car
safety in addition to constituting a
potential hazard for the passengers.

In addition, transmission and

reception of these devices may be
affected by the shielding effect of the
car body.

As concerns the use of mobile

phones (GSM, GPRS, UMTS) pro-
vided with official EC approval,
strictly comply with the instructions
given by the mobile phone manufac-
turer.

223

The sunroof must not be

opened in the presence of
snow or ice; otherwise, it

could be damaged.

IMPORTANT On versions fitted

with the Keyless System, do not lay
the CID device outside the car on the
sunroof, to avoid a fake identifica-
tion of the CID itself as if inside the
car.

SUNROOF OPENING/CLOSING
AND PIVOTING

All the sunroof functions (opening,

closing and rear pivoting) are con-

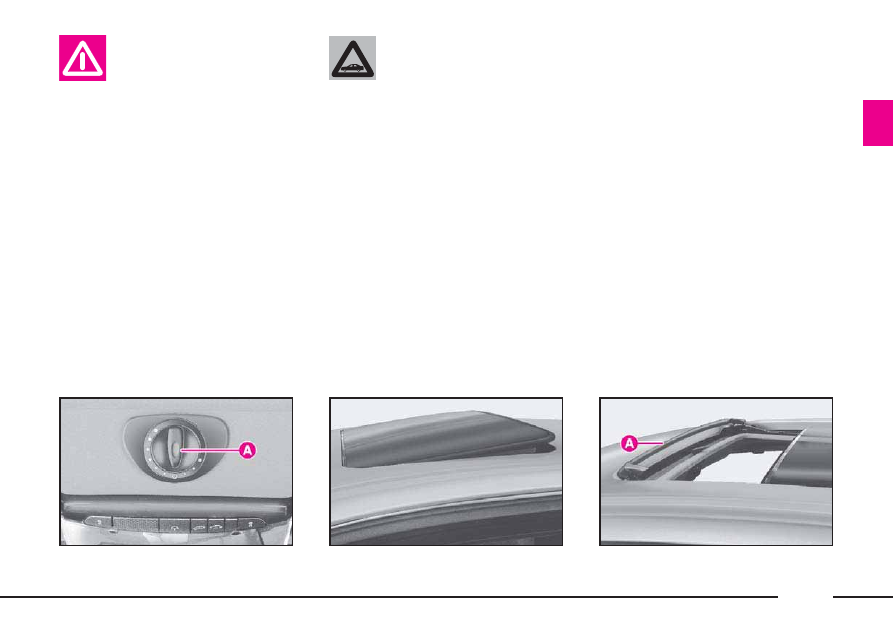

trolled by selector A (fig. 184).

Six positions for lenghtwise open-

ing and three for pivoting are pro-
vided (fig. 185).

After rotating the selector, the sun-

roof will move and stop automatical-
ly in the required position.

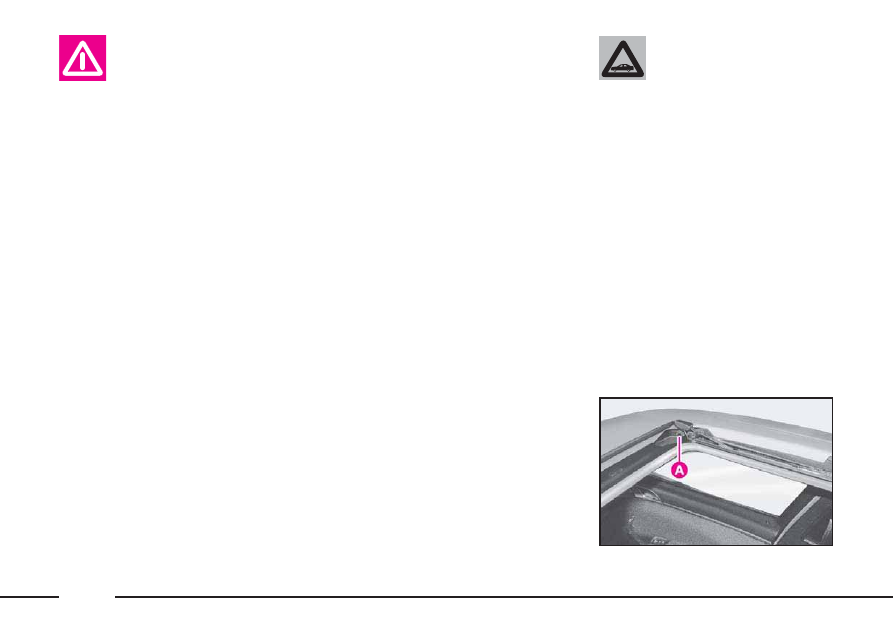

When the sunroof is opened, a

deflector A (fig. 186) will automati-
cally lift in the front part, which
deviates the air flow.

fig. 184

L0A0281b

fig. 186

L0A0282b

fig. 185

L0A0284b

Improper use of the sun-

roof can in any case be
dangerous, even if the

anti-trap safety system is avail-
able. Before and during sunroof
actuation, make sure that pas-
sengers are not exposed to the
risk of injuries caused by the
moving roof or by objects pulled
or hit by the roof itself. Always
remove the ignition key when you
leave your car, to prevent the
sunroof from being unintention-
ally actuated, which could be
dangerous for the passengers
inside the car.

224

After battery disconnec-

tion or fuse interruption,
the anti-trap system must

be initialized again as follows:

1) turn selector A clockwise and

fully to its stop, to position 3 cor-
responding to maximum pivoting
(fig. 184)

2) keep selector A depressed

until the sunroof jolts along to the
maximum pivoting position

3) release the selector after the

sunroof has stopped for at least 2
seconds

4) press, within 5 seconds, the

selector again and keep it
depressed

5) the sunroof will start moving

within 5 further seconds and will
perform a complete opening and
closing cycle, after which it will
stop in the closed position

6) release the selector after the

sunroof has stopped for at least 2
seconds.

The system is thus initialized

and resumes its normal opera-
tion. If this does not occur, con-
tact your Lancia Dealership.

If the operation is interrupted

before it is completed, repeat the
procedure from the start.

Regularly check that the

water draining holes A
(fig. 187 set at the corners

of the sunroof housing, are not
obstructed.

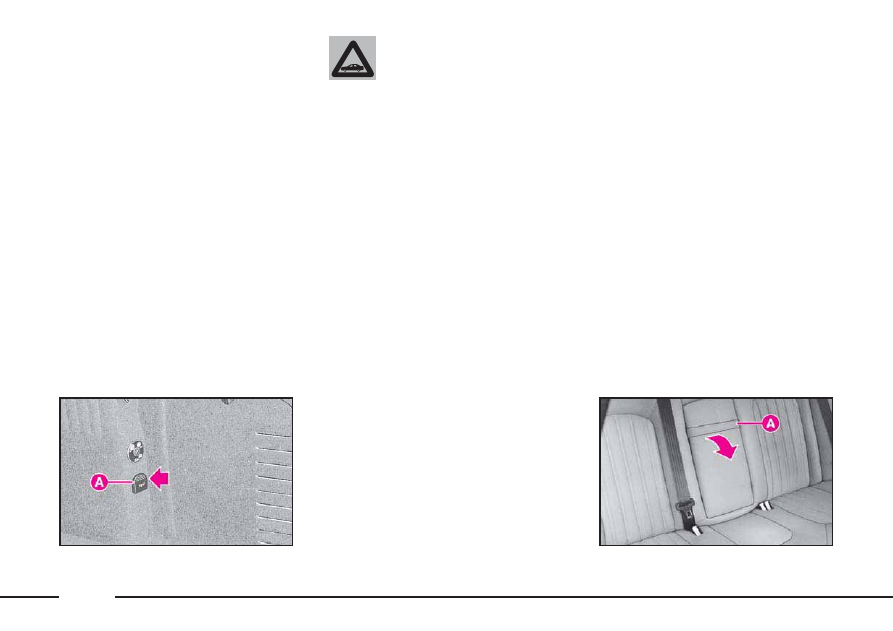

fig. 187

L0A0283b

225

CENTRAL SUNROOF AND
WINDOW LOCKING SYSTEM

Central locking/opening of sunroof

and windows can be actuated at the
following conditions:

– ignition key removed

– all doors closed correctly.

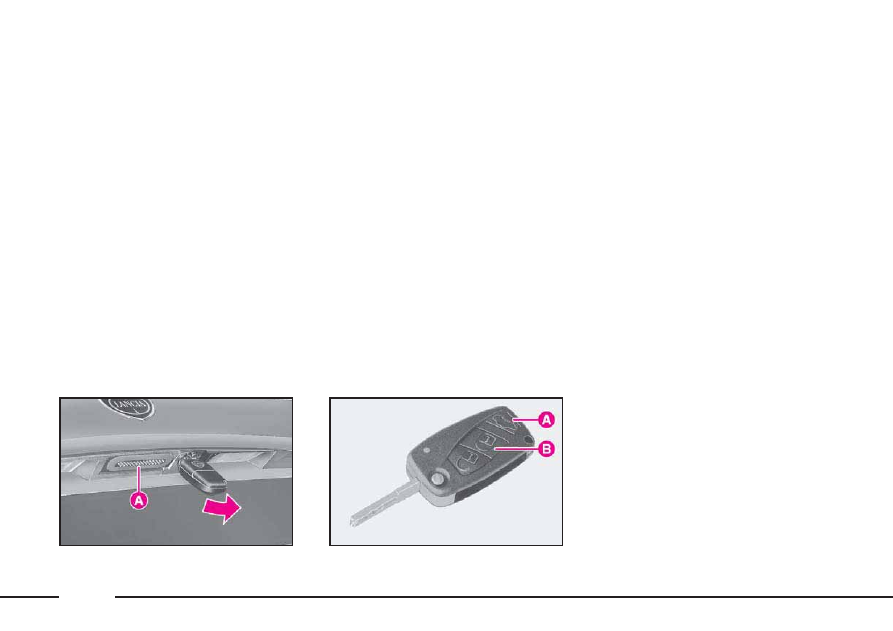

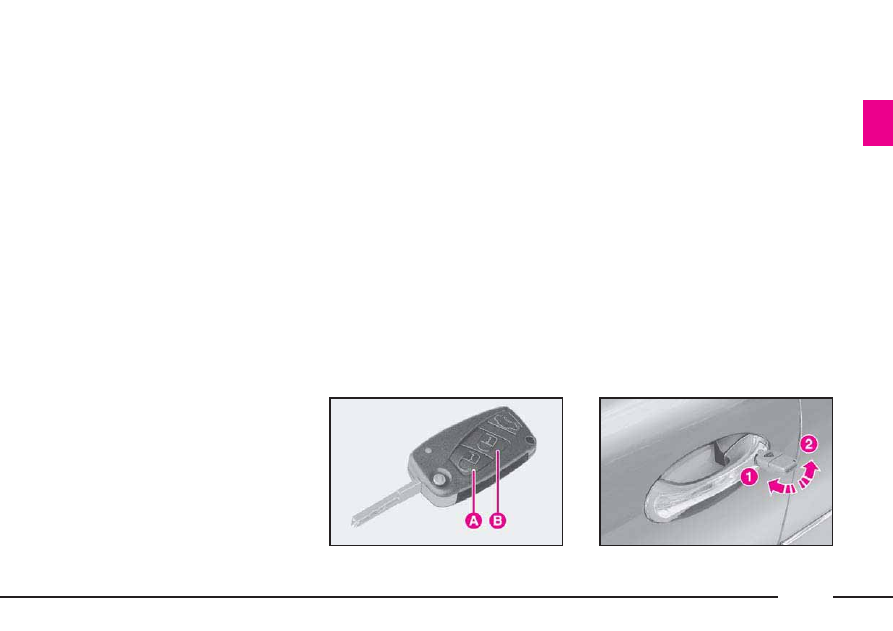

To actuate central locking by

means of the remote control, keep
button B (fig. 188) depressed for
more than 3 seconds after closing
the doors: the sunroof and window
winders will be actuated until they
are completely closed or the button
is released.

To actuate central locking by

means of the remote control, keep
button A (fig. 188) depressed for
more than 3 seconds after opening
the doors: the sunroof and windows
winders will be actuated until they
are completely open or the button is
released.

This function can be used before

getting into the car when it has been
parked in the sun, in order to aerate
the passenger compartment.

Central locking can also be actuat-

ed by turning the key in the lock of
one of the front doors: keep the key
turned to 2 (fig. 189) for more than
3 seconds. The sunroof and window
winders are actuated until they are
completely closed or the key is
released.

By keeping the key turned to 1

(fig. 189) for more than 3 seconds,
both the sunroof and all the win-
dows will open. The sunroof and
window winders are actuated until
they are completely open or the key
is released.

fig. 188

L0A0174b

fig. 189

L0A6099b

226

SOLAR CELLS

The upper part of the sunroof

incorporates 21 solar cells that pro-
duce a maximum power of 24 W to
feed the climate control system fan,
when the car is parked with the sun-
roof closed or in pivoting position.

Fan actuation is automatic and air

distribution corresponds to the latest
setting made before switching the
car off.

This function is useful especially on

summer days, since it greatly
reduces the temperature inside the
passenger compartment as well as
the duration of the cooling cycle
after car start-up, thus avoiding the
accumulation of warm air in the air-
conditioning unit lines.

In winter, the ventilation function

reduces dampness inside the passen-
ger compartment.

EMERGENCY MANOEUVRE

In case the electric actuation device

fails to operate, the sunroof can be
actuated manually, proceeding as
follows:

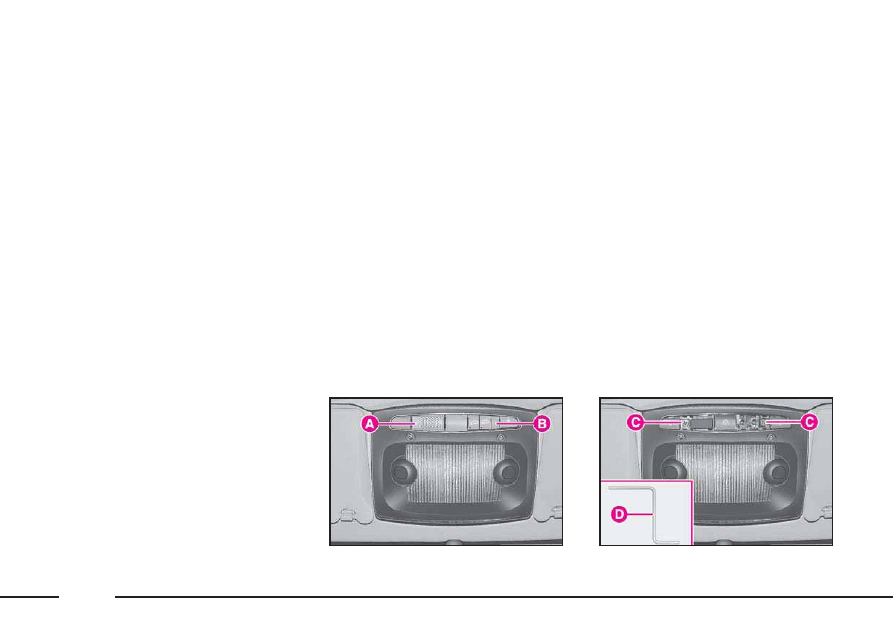

1) Take the Allen screw wrench D

(fig. 191) out of the tool kit and use
it to actuate the sunroof in an emer-
gency.

2) Remove front ceiling light caps

A and B (fig. 190) by levering with
a screwdriver on the outer side (the
caps are press-fitted).

3) Take out screws C (fig. 191)

and remove the ceiling light by
releasing it from the front clamps.

IMPORTANT Do not disconnect

the ceiling light connectors.

4) Insert the Allen screw wrench D

into the hexagonal seat of the sun-
roof starter motor, then turn it:

– clockwise to open the sunroof

– counterclockwise to close the

sunroof.

5) After completing the closing or

opening operation, put the ceiling
light back to its place by fitting in
the front clamps first and then fixing
the rear screws.

IMPORTANT When refitting the

ceiling light, check that the electric
cables are positioned correctly.

6) Press-fit the screw cover caps.

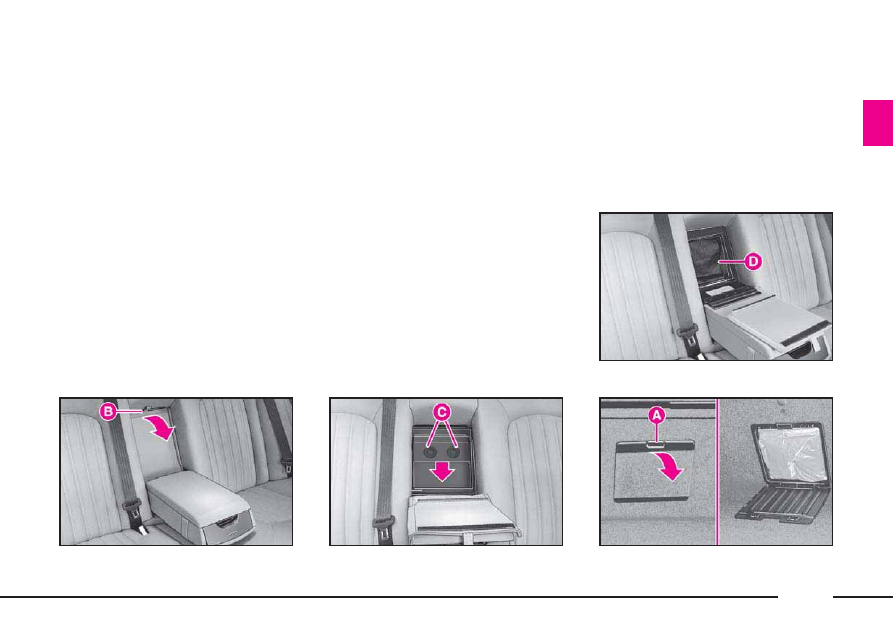

fig. 190

L0A0129b

fig. 191

L0A0329b

227

BOOT

The boot can be opened both from

the outside and the inside of the car.

IMPORTANT Faulty closing of the

boot is signalled by the lighting of
the relevant symbol on the multi-
function display, together with mes-
sage “BOOT OPEN”

With the battery flat, or

after the interruption of
one of the protection

fuses, or if you want to disconnect
a loaded battery (e.g. for a car
stop period), before opening the
luggage compartment bonnet
carefully read and comply with
the instructions contained in the
paragraph “If battery is to be dis-
connected” in the chapter “In an
emergency”.

OPENING FROM THE INSIDE

Boot tailgate is opened electrically.

It can be opened only when the igni-
tion key is at MAR and the car is
stopped, or for 3 minutes after turn-
ing the key to STOP without open-
ing or closing a door.

To open the boot, press button A

(fig. 192), placed on the central con-
sole, as follows:

– a short pressure of the button will

release the boot lock

– a prolonged pressure of the but-

ton will release the lock and open
the boot.

Boot lifting is facilitated by the

action of gas dampers.

The dampers are cali-

brated so as to ensure
correct lifting of the boot

tailgate with the weights estab-
lished by the manufacturer.
Addition of extra equipment (e.g.
spoiler, etc.) can adversely affect
operation and safety of use.

fig. 192

L0A0167b

228

OPENING FROM THE OUTSIDE
WITH THE KEY (fig. 193)

The boot lock is electrified: press

button A on the tailgate to open it.

In an emergency (battery run down

or electrical system failure), the tail-
gate can be opened by fully turning
counterclockwise the key in the lock
and exerting at the same time a
slight pressure on the lower edge of
the number plate holder to reduce
the opening effort.

IMPORTANT If the boot was

opened using the key, at closing the
automatic function will be deacti-
vated. To restore the automatic
function press button A.

OPENING BY MEANS OF THE
REMOTE CONTROL

The tailgate can be opened from

the outside by pressing button A
(fig. 194) on the remote control,
even when the electronic alarm is on.

When the electronic alarm is on,

boot opening is accompanied by
double flashing of direction indica-
tors; boot closing is accompanied by
one flashing.

IMPORTANT If the boot is opened

with the key when the electronic
alarm is on, the latter will not be
deactivated.

If the electronic alarm is on, both

the volumetric protection and the
boot control sensor will be switched
off, and the system will emit (except
for versions of certain markets) two
beeps.

fig. 193

L0A06022b

fig. 194

L0A0179b

229

Boot lock opening/closing by remote control

Central door
locking system condition

To open the
boot tailgate

To close
the boot tailgate

Off

Press tailgate button

When the boot is

closed, the lock

remains

unlocked

Bound to central door locking

Not bound to central door locking

On

Press remote control

button

A (fig. 194),

then press the tailgate

button

or keep remote

control button

depressed

(more than 1 second)

When the boot is

closed, the lock

remains unlocked.

To lock the

tailgate lock, press

remote control button

B (fig. 194)

On

Press remote control

button

A (fig. 194),

then press the tailgate

button

or keep remote

control button

depressed

(more than 1 second)

When the boot is

closed, the lock

remains unlocked.

To lock the

tailgate lock, press

remote control button

B (fig. 194)

Off

Press remote control

button

A (fig. 194),

then press the tailgate

button

or keep remote

control button

depressed

(more than 1 second)

When the boot is

closed, the lock

remains unlocked.

The lock will automat-

ically lock when the

car speed

exceeds 20 km/h

FUNCTIONS THAT CAN BE
MODIFIED BY THE CONNECT
MENU

The CONNECT enables to switch

on/off the following functions:

– locking/unlocking the boot

together with central door
locking/opening

– automatic locking of the boot,

door locks and fuel filler cap, when
the car speed exceeds 20 km/h.

To actuate these settings, refer to

the CONNECT supplement provid-
ed with the car.

The following tables summarize

the operation logic of the boot lock,
depending on the functions that
have been actuated.

230

Boot lock opening/closing by metal insert of the key

Central door
locking system condition

To open the
boot tailgate

To close
the boot tailgate

On

Turn the key clock-

wise in the

lock latch

When the boot is

closed, the lock

remains

unlocked.

To lock the

tailgate lock, turn the

key counterclockwise

in the lock latch

Off

Turn the key clock-

wise in the

lock latch

When the boot is

closed, the lock

remains

unlocked.

To lock the

tailgate lock, turn the

key counterclockwise

in the lock latch.

In any case, the lock

will automatically
lock when the car

speed exceeds 20

km/h

On

Turn the key clock-

wise in the

lock latch

When the boot is

closed, the lock

remains

unlocked.

To lock the

tailgate lock, turn the

key counterclockwise

in the lock latch

Off

Press the tailgate but-

ton

When the boot is

closed, the lock

remains

unlocked

Not bound to central door locking

Bound to central door locking

231

CLOSING THE BOOT

To close the bonnet,

lower it down until you lay
it on the lock, without

however slamming it. The lock is
electric and the bonnet will close
automatically.

BOOT CEILING LIGHT (fig. 195)

The boot is lit by ceiling light A,

which switches on automatically
when the tailgate is opened.

The light switches off automatical-

ly when the tailgate is closed.

If the tailgate is left open, the ceil-

ing light will switch off after about
20 minutes: to switch it on again,
close and then open again the tail-
gate.

LUGGAGE NETS

The boot is equipped with a fixed

net (fig. 196) set on the left side,
and (optional for versions/markets
where applicable) a mobile net.

fig. 195

L0A0180b

fig. 196

L0A0049b

232

The mobile net can be secured to

one of the two positions provided in
the front part of the boot (fig. 197-
198), by hooking it onto seats A and
B (fig. 199).

To secure the net, insert hooks A

(fig. 200) in seats B then push
downwards.

The net can be unhooked by slip-

ping it off upwards, by pressing
down button C on the attachment.

ANCHORING THE LOAD

The loads can be secured with belts

(not provided), attached to the spe-
cific rings (fig. 201-202) in the boot
corners.

fig. 197

L0A0046b

fig. 198

L0A0047b

fig. 199

L0A0099b

fig. 200

L0A0048b

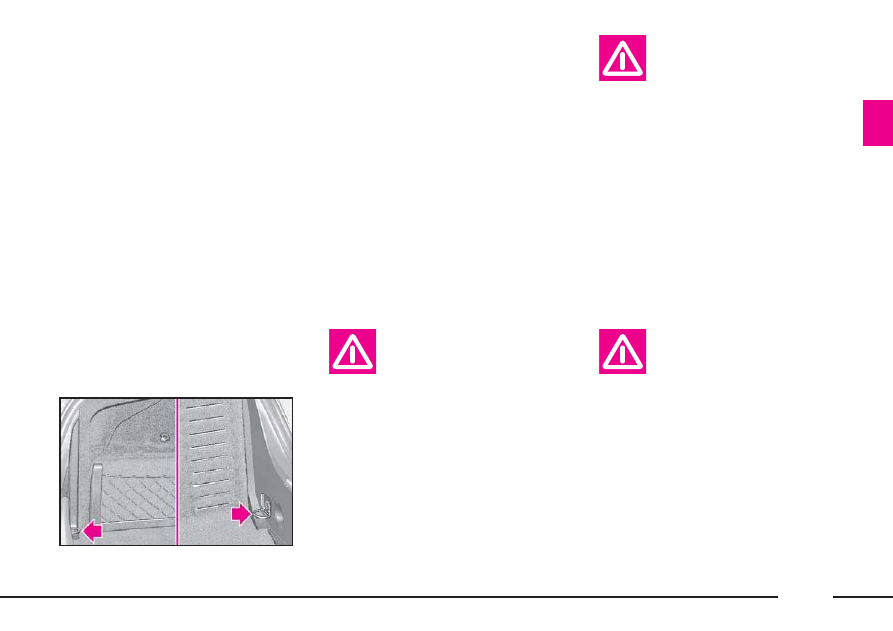

fig. 201

L0A0219b

233

These rings can also be used to fas-

ten the luggage net (optional, can be
purchased at a Lancia Dealership).

LUGGAGE TRANSPORT -
IMPORTANT

The car is equipped with a system

that automatically keeps headlight
height steady on different loading
conditions. The adjusting system
works properly with the maximum
allowed loads: always make sure
that the load you are carrying does
not exceed the values specified in
chapter “Technical Specifications”.

When using the boot,

make sure the load you
are carrying does not

exceed the maximum allowed
weight (see the “Technical
Specifications” chapter). Also
ensure the items in the boot are
arranged properly and fastened
with straps to the specific hooks
to prevent them being thrown for-
wards and injuring passengers
should you brake sharply.

Heavy loads which are

not securely anchored
could seriously injure

passengers in the event of an
accident.

If you need to carry

petrol in a jerry-can,
always comply with the

law regulations and use a certi-
fied can, which must be properly
secured to the fastening rings. In
any case, the risk of fire in case of
accident is high.

fig. 202

L0A0220b

234

POWER SOCKET (fig. 203)
(where provided)

It is located on the right-hand side

of the boot.

Open cover A to use the socket.

The socket is powered when the

key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).

Do not use the socket for

power devices with a
higher intake than that

shown.

Prolonged current intake can

drain the battery and lead to
problems when starting the
engine.

SKI TUNNEL (where provided)

The tunnel can be used to trans-

port long objects (e.g. skis).
Introduce objects into the tunnel
from the boot.

Proceed as follows:

1) From the rear seat, lower the

armrest using handle A (fig. 204).

fig. 203

L0A0218b

fig. 204

L0A0076b

235

2) Lower the coating by pulling

handgrip B (fig. 205).

3) Open the flap by pressing but-

tons C (fig. 206).

4) Take protection D (fig. 207) out

and lay it on the armrest.

5) From the boot, lower the flap by

pressing handle A (fig. 208).

fig. 206

L0A0078b

fig. 205

L0A0077b

fig. 208

L0A0080b

fig. 207

L0A0079b
