204

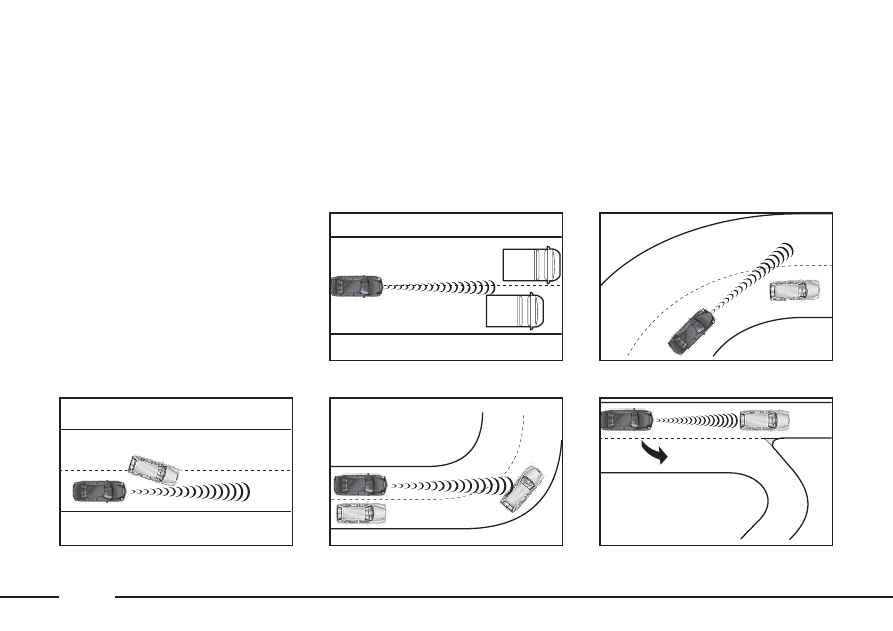

If a vehicle enters the same running

path as that of the car fitted with
Radar Cruise Control and sets too
close to it (fig. 147), the system could
not be able to detect it.

If two heavy-duty vehicles (e.g.:

trucks) overtake at low speed (fig.
148), the car fitted with Radar Cruise
Control could temporarily detect the
road as free.

When entering or leaving a curve

(fig. 149), a vehicle running ahead
could temporarily get out of the radar
detection range, or another vehicle
running in the adjacent lane could be
detected.

When cornering (average-sharp

curve), any vehicle picked by the
Radar Cruise Control could get out of
the radar detection range (fig. 150)
thus missing "picking".

At a slip-road (fig. 151-152), if fol-

lowing a vehicle running at a speed
lower than that set on the car fitted
with Radar Cruise Control, when
changing lane the path will result free
and therefore the system will acceler-
ate to restore the set speed.

fig. 147

L0A0350b

fig. 149

L0A0352b

fig. 148

L0A0351b

fig. 150

L0A0353b

fig. 151

L0A0354b

205

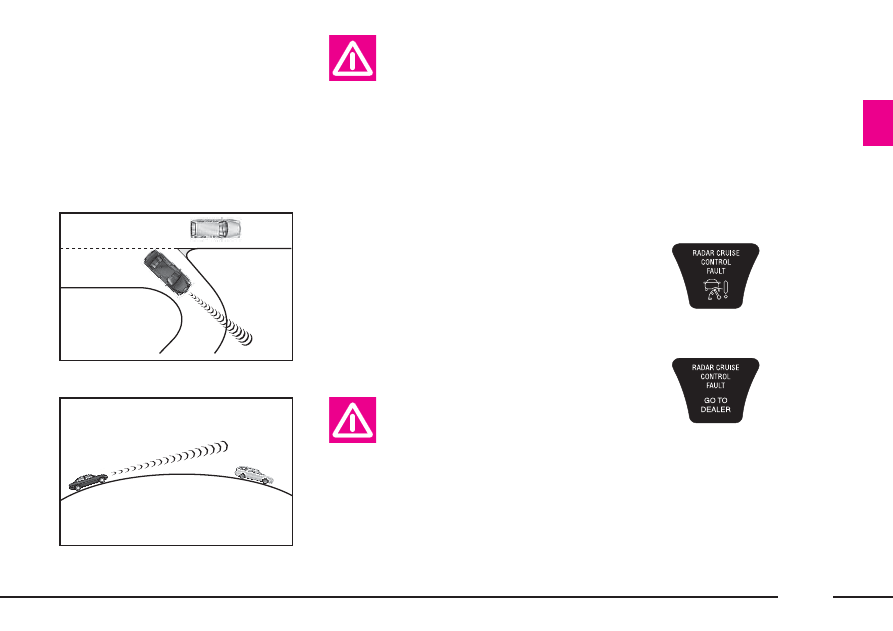

When reaching a steep cat's back

(fig. 153), the picked vehicle could
get out of the radar detection range
(thus missing "picking").

The Radar Cruise Control

features proper strategies
to keep adequate comfort

level when travelling on a road
with curves, e.g.: reducing the
cruising speed if required. The
Radar Cruise Control however
cannot detect the road turn; the
driver is therefore the only re-
sponsible for adjusting the car
speed to curves, slip-road or
sharp-curves, not necessarily on
highway sections.

Whenever the picked ve-

hicle gets out of the radar
detection range, the car

will accelerate to return to the set
cruising speed.

FAULT INDICATION

System anomalies are signalled by

the lighting of symbol à on the mul-
tifunction display, together with mes-
sage “RADAR CRUISE CONTROL
FAULT”. The fault indication re-
mains on even when system ring A is
turned to OFF.

Whatever the system's fault, the

Radar Cruise Control is fully switched
off.

fig. 152

L0A0355b

fig. 153

L0A0356b

206

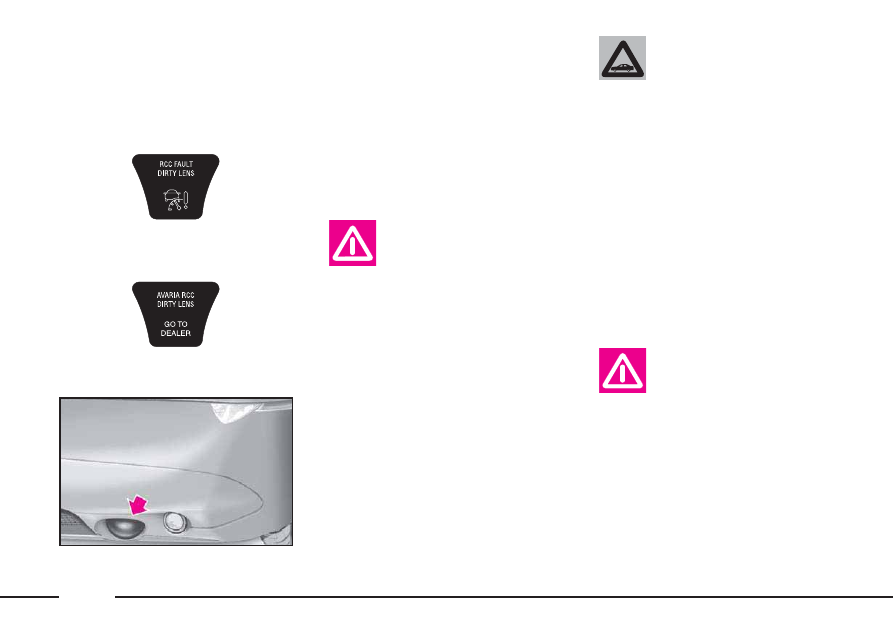

The driver will be warned by a spe-

cial display message when the system
is deactivated because the lens is
dirty.

In this case, clean the sensor protec-

tion lens, shown in fig. 150 with a wet
cloth; do not use dry, rough or hard
cloths. Should the dirty lens message
stay on after cleaning, contact a Lan-
cia Dealership.

If the Radar Cruise Con-

trol went off due to exces-
sive lens dirt, when

restarting the car a few km shall
be covered before switching the
system on again in order to let the
system check if previous condi-
tions (causing Radar Cruise Con-
trol turn off) have been removed.

The sensor is built into

the front bumper: impacts
can therefore damage it.

IMPORTANT Failure to one of the

safety systems connected to the Radar
Cruise Control (ABS or ESP system)
will cause Radar Cruise Control fail-
ure indication.

The Radar Cruise Control

should be switched on
only when road and traffic

conditions allow the driver to drive
safely, that is, when the road is
straight and the surface is not slip-
pery, when the car is driven on a
freeway or motorway, and when
traffic flows smoothly. Do not use
the device when driving in urban
areas or when traffic is heavy.

fig. 154

L0A0330b

207

Do not use the Radar

Cruise Control under poor
visibility conditions (e.g.:

fog, heavy rain, snow, etc.), since
the system performance could be
badly affected.

IMPORTANT As you approach a

bend, it may be necessary to reduce
the stored speed or switch the system
off by pressing the brake pedal.

The brake pedal is oper-

ated by the Radar Cruise
Control system: do not po-

sition your foot under the brake
pedal.

IMPORTANT The Radar Cruise

Control can only be switched on when
the car speed ranges from 30 and 160
km/h. The Radar Cruise Control is
automatically switched off when any
of the ABS, ASR, MSR and ESP sys-
tems comes into operation. Moreover,
it is switched off when engaging re-
verse gear, neutral or the electronic
parking brake (EPB).

IMPORTANT The Radar Cruise

Control cannot be activated when the
driver has switched the ASR system
off.

In the device is faulty or

does not work, turn ring A
to OFF and contact a Lan-

cia Dealership

IMPORTANT Ring A can be con-

stantly left in a position other than
OFF without damaging the Radar
Cruise Control. The device should
however be switched off when not in
use by turning ring A to OFF to pre-
vent storing speeds accidentally.

PARKING SENSOR

The parking sensor provides dis-

tance information to the driver when
the car moves near obstacles placed
in front of and behind it.

The information on the presence

and distance of obstacles is sent to
the driver by means of sound sig-
nals, the frequency of which
depends on the obstacle distance.

By integrating the direct visual

information with the sound signal
emitted by the system, the driver can
therefore avoid possible collisions.

208

The responsibility for

parking manoeuvres and
other dangerous manoeu-

vres always rests with the driver.
When performing such manoeu-
vres, always make sure that no
persons or animals stand in the
area where the car is to be
parked. The parking assist sys-
tem should be considered as an
aid to the driver; in any case,
greatest attention must be paid
when performing dangerous
manoeuvres, even at low speed.

The system front and rear sensors

are activated automatically when
engaging reverse with the ignition
key at MAR. Disengaging the
reverse gear will turn the rear sen-
sors off; front sensors will stay on
until 15 km/h speed is exceeded to
allow concluding the parking
manoeuvre.

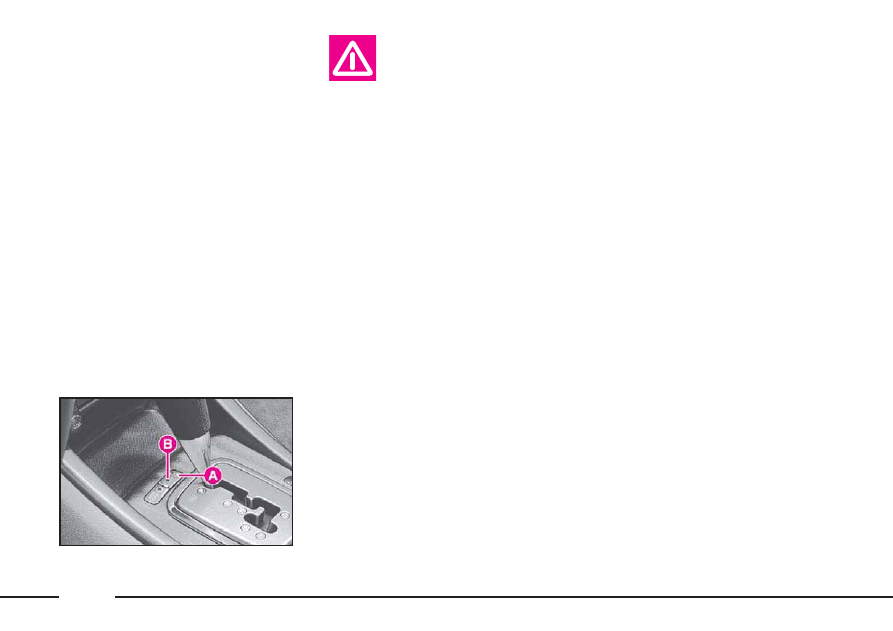

Front sensors can be switched on

by pressing button A (fig. 155)
placed on the central console in
front of the gear lever; when the
front sensors are on, warning light
B lights up on the button. To
switch the sensors off, press button
A again.

When the sensors are on, the sys-

tem starts sending out sound sig-
nals from the front or rear buzzers
as soon as an obstacle is detected;
the signal frequency increases as
the obstacle gets nearer. When the
obstacle is at a distance of less than
30 cm, a continuous sound is emit-
ted. Depending on the position of
the obstacle (in front or behind),
the sound will be emitted from the
corresponding buzzer (front or
rear). The sound signal will imme-
diately stop if the distance from the
obstacles increases. The tone cycle
remains the same if the distance
measured by the central sensors
does not change; however, if this
condition occurs with side sensors,
the signal will be interrupted after
about 3 seconds, to avoid, for
instance, sending out signals in
case of parking manoeuvres along
walls.

fig. 155

L0A0016b

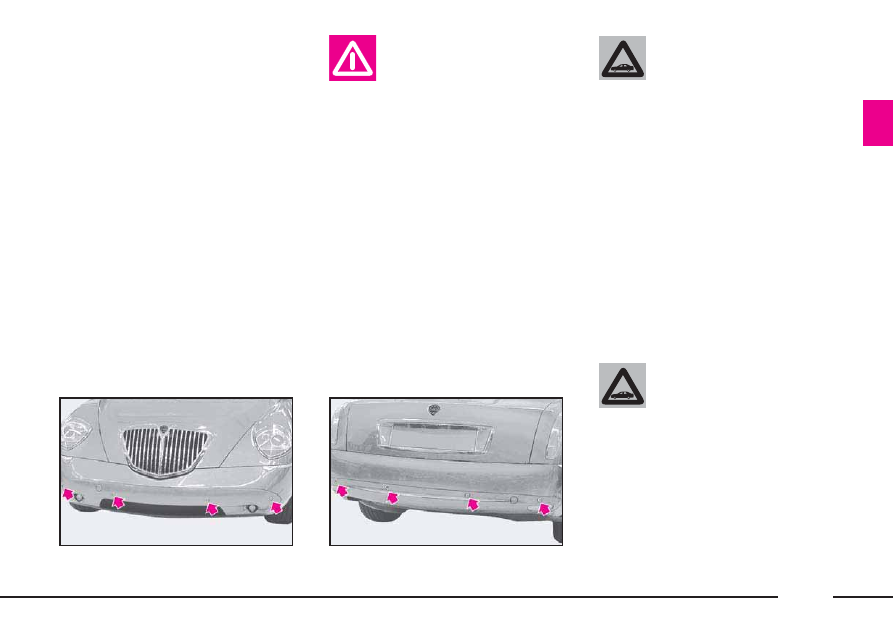

SENSORS

The system detecting the distance

from obstacles uses 4 sensors housed
in the front bumper (fig. 156) and 4
sensors housed in the rear bumper
(fig. 157).

To ensure proper opera-

tion of the parking assist
system, it is essential that

the sensors placed on bumpers
are always free from mud, dirt,
snow or ice.

When cleaning the sen-

sors, take the greatest
care not to scratch or

damage them; to this regard, do
not use dry, rough or hard cloths.
Sensors must be washed with
clean water, to which car sham-
poo can be added, if necessary. In
car-wash stations that use high-
pressure or steam-jet hydraulic
cleaning machines, clean the sen-
sors fast by keeping the nozzle at
a distance of at least 10 cm.

fig. 156

L0A6019b

fig. 157

L0A6020b

When the bumper needs

re-painting or the sensor
area needs touching-up

with paint, contact a Lancia
Dealership only. Incorrect appli-
cation of paint could adversely
affect the parking sensor opera-
tion.

209

210

fig. 158

LOA6021b

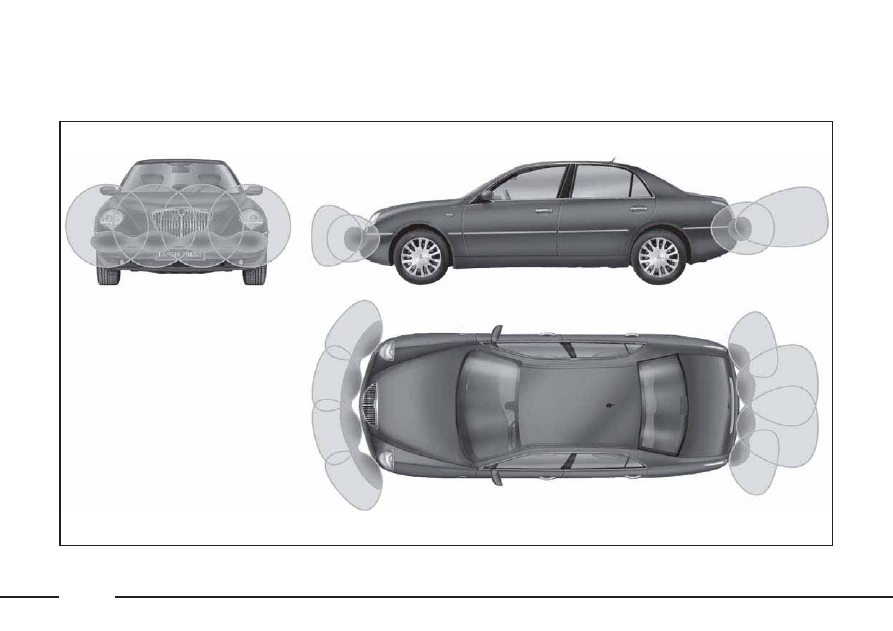

Sensor operating range

The sensors allow the system to

monitor the car’s front and rear
parts.

Their position covers the middle

and side areas of the car’s front and
back (fig. 158).

Obstacles placed in the middle area

are detected at a distance of less
than approx. 0.9 m (front) and 1.50
m (rear).

211

Obstacles placed in side areas are

detected at a distance of less than
0.6 m.

Rear sensors are automatically

switched on by removing the trailer
cable plug.

FAULT INDICATIONS

The system control unit checks all

the system components every time
the ignition key is turned to MAR.
Then, the sensors and their respec-
tive electrical connections are con-
stantly monitored during system
operation.

Parking assist system faults are sig-

nalled by the lighting of symbol

t

on the multifunction display, togeth-
er with message “PARKING SEN-
SOR FAULT”.

In case of fault signals, stop the

car, shut the engine off, then try to
clean the sensors, making sure that
you are not close to ultrasound-
emitting sources (e.g. truck air
brakes or pneumatic hammers). If
the cause of the operation anomaly
has been remedied, the system fully
resumes its functions and the fault
symbol on the multifunction display
goes out, together with its respective
warning message.

Rear sensors are auto-

matically switched off
when the trailer’s electric

cable plug is inserted into the car
tow hitch socket.

TOWING A TRAILER

212

If, on the contrary, the warning

lamp remains on, go to a Lancia
Dealership to have the system
checked even if the system keeps on
working. In fact, if the fault detected
by the control unit does not affect
the operation of the system, the lat-
ter keeps on working and the mal-
function is stored in the memory so
as to be detected by the Lancia
Dealership during a subsequent
check.

GENERAL NOTES

When parking your car, always pay

the greatest attention to the obsta-
cles that could be situated above or
below the sensors. In fact, objects
situated at close range in the car’s
front or rear parts could, under cer-
tain circumstances, not be detected
by the system and, therefore, dam-
age your car or be damaged them-
selves.

Moreover, signals sent by the sen-

sors can be altered by damaged sen-
sors, by accumulation of dirt, snow
or ice on the sensors, or by ultra-
sound systems (e.g. truck air brakes
or pneumatic hammers) being oper-
ated nearby.

INTERIOR
EQUIPMENT

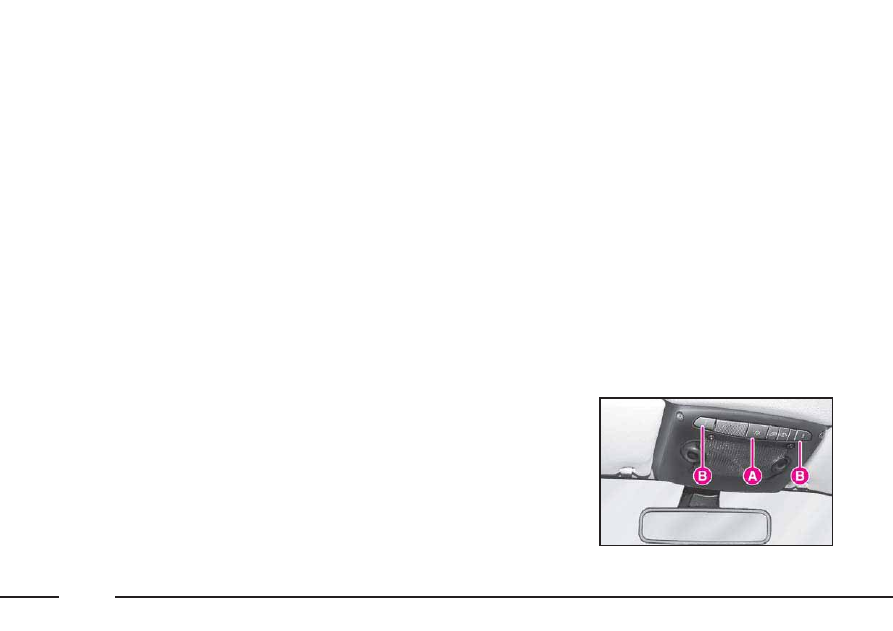

FRONT CEILING LIGHT
(fig. 159)

This ceiling light includes a central

light and two courtesy lights.

To switch the central light on man-

ually, press button A; to switch it
off, press the same button again.
The light will light up and go out
gradually. If the ceiling light has
been switched on by means of the
button, it will automatically go out
after about 15 minutes after the
engine has been shut off (by turning
key to STOP).

fig. 159

L0A0098b

213

To switch the courtesy lights on

and off, press the respective buttons
B. The courtesy lights will automat-
ically go out after about 15 minutes
after shutting the engine off (by
turning the key to STOP).

The central ceiling light will switch

on automatically, together with the
rear ceiling light, when a door is
opened. The ceiling lights will go out
after about 3 minutes if one or sever-
al doors remain open or if the doors
are closed beforehand, after about 10
seconds after the last door has been
closed or at doors locking.

If a door is left open, the ceiling

lights will automatically go out
after about 3 minutes. To switch
them on again, it is enough to open
and close a door.

Ceiling lights come on (for about 10

seconds) when removing the ignition
key (knob to STOP on cars fitted
with Keyless System) and operating
the central door opening with the
remote control.

In case of collision with actuation

of the inertial switch, the ceiling
lights will automatically light up for
about 15 minutes.

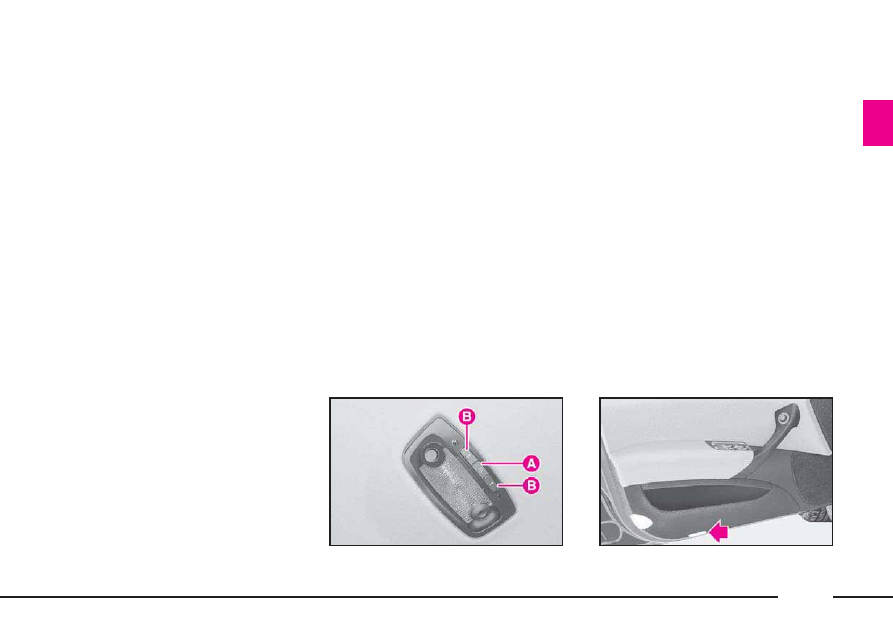

REAR CEILING LIGHT
(fig. 160)

This ceiling light includes a central

light and two courtesy lights.

The central light will switch on and

off gradually, together with the front
ceiling light.

To switch the central light on man-

ually, press button A; to switch it
off, press the same button again.

To switch the courtesy lights on

and off, press the respective buttons
B. The courtesy lights will automat-
ically go out after about 15 minutes
after the engine has been shut off
(by turning the key to STOP).

DOOR PUDDLE LIGHTS
(fig. 161)

A light is provided in the lower part

of the door panel, to illuminate the
area through which passengers get
into and out of the car.

This light will automatically light

up when the door is opened, regard-
less of the ignition key position.

With the door open, the light stays

on for about 3 minutes, then it goes
off automatically.

fig. 160

L0A0279b

fig. 161

L0A0214b

214

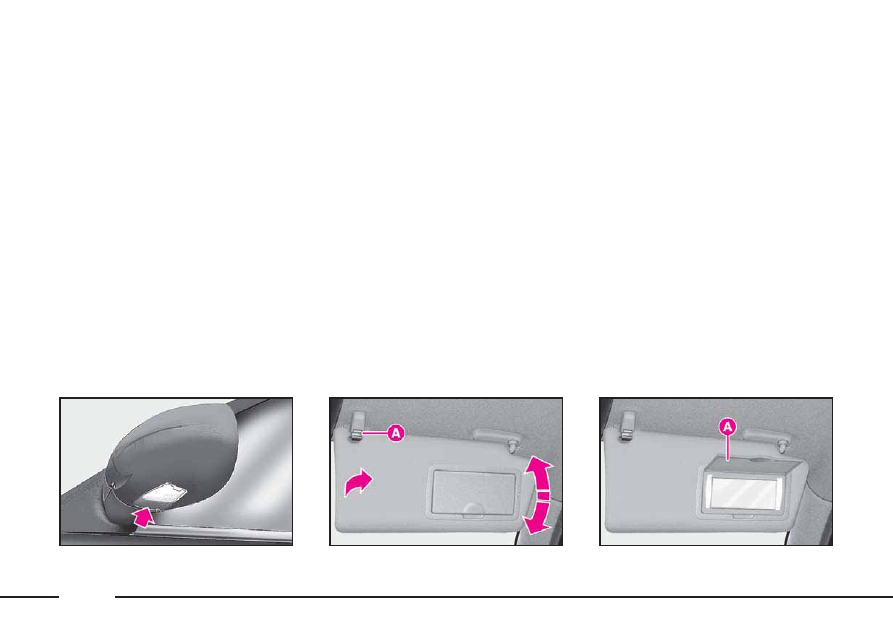

REARVIEW MIRROR LIGHTS
(fig. 162)

The lower part of the external

rearview mirrors incorporate a light
to illuminate the area through which
passengers get into and out of the
car.

This light will automatically switch

on, for about 3 minutes, when the
door is opened or when the door lock
is released by means of the remote
control.

SUN VISORS (fig. 163)

The sun visors can swing up or

down or be pivoted sideways.

Release the visors from hooks A to

move them sideways.

COURTESY MIRRORS (fig. 164)

They are fitted on the back of the

sun visors: they can be accessed by
rotating the visors and lifting the
cover A.

The mirrors are fitted with lights

that will come on automatically
when lifting the cover and will go
out when lowering it again or auto-
matically after 15 minutes after
switching the engine off (ignition
key at STOP).

fig. 162

L0A0195b

fig. 163

L0A0192b

fig. 164

L0A0193b

215

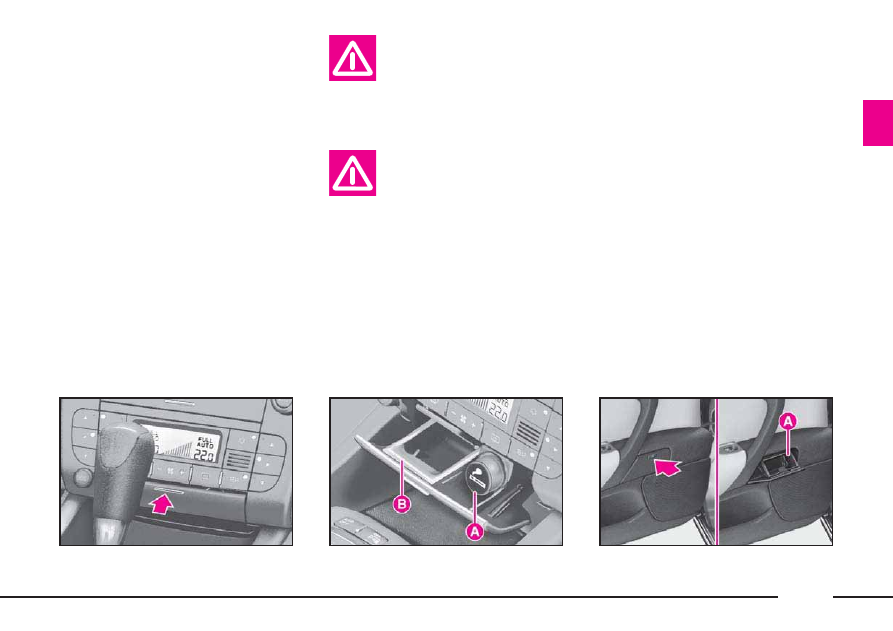

FRONT ASHTRAY AND CIGAR
LIGHTER

The ashtray and cigar lighter are

protected by a single flap. Press the
flap in the point shown (fig. 165).

Press button A (fig. 166) to work

the cigar lighter. After a few seconds
it will return to its initial position
and be ready for use.

The cigar lighter will only work

when the ignition key is at MAR.

Remove tray B to empty the ash-

tray.

Always verify that the

cigar lighter has been
switched off.

The cigar lighter gets

very hot. Be careful how
you handle it and make

sure it is not used by children:
danger of fire or burns.

REAR ASHTRAYS (fig. 167)

Two ashtrays are provided for rear

seats: they are incorporated into rear
door panels.

To open the ashtray, press on the

point specified by the arrow.

To empty the ashtray, remove tray

A.

fig. 165

L0A0189b

fig. 166

L0A0188b

fig. 167

L0A0053b

216

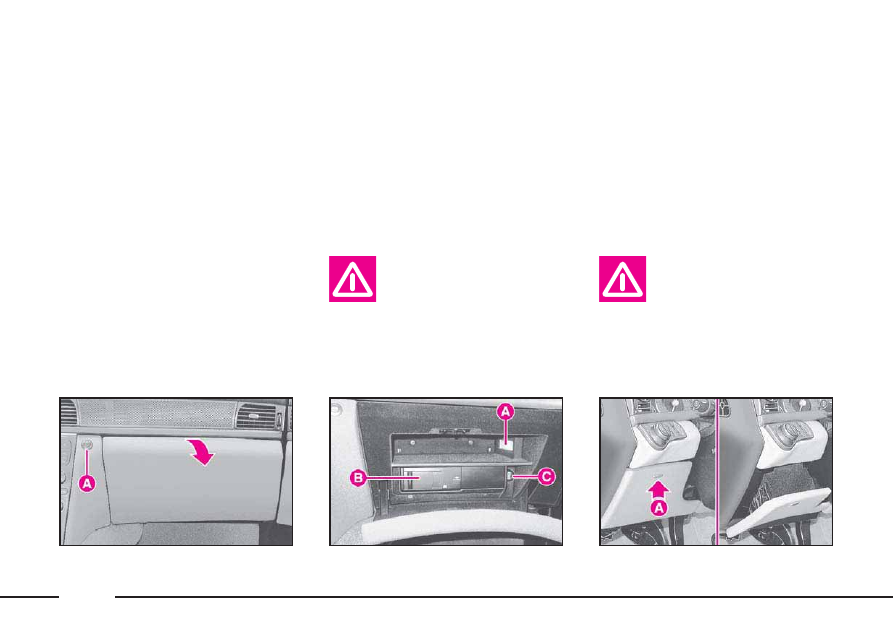

GLOVE COMPARTMENT

A glove compartment with light is

located on the dashboard. The com-
partment has a flap and lock.

To open the glove compartment,

press button A (fig. 168); the button
works only when the key is at MAR
and for about 1 minute after remov-
ing the key or turning it to STOP.

Glove compartment opening can be

disabled and enabled again by
means of the CONNECT menu.

When the glove compartment is

opened, ceiling light A (fig. 169) will
light up. The ceiling light can be
switched off by closing the compart-
ment, or automatically, after about
15 minutes after shutting the engine
off (turning the key to STOP).

The lower part of the glove com-

partment houses the Compact Disc
player B (CD-changer, where fitted)
and, on certain versions, the power
socket C.

IMPORTANT To use the power

socket, read the instructions of the
relevant paragraph in this chapter.

Always close the glove

compartment when the
car is running: it could

hurt the passenger in the event of
an accident.

ODDMENT COMPARTMENT
(fig. 170)

A pivoting oddment compartment

is incorporated on the left side of the
dashboard. To open the compart-
ment, press on point A, then release
it.

To close the compartment again,

push it into its seat.

Do not drive with the

compartment open: it
could hurt you in the

event of an accident.

fig. 168

L0A0191b

fig. 169

L0A0325b

fig. 170

L0A0190b

217

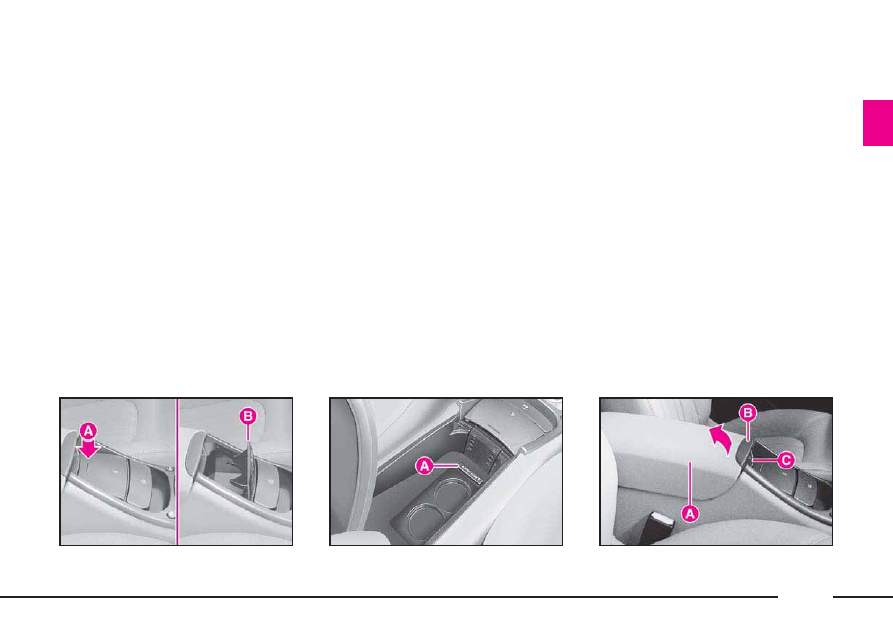

FRONT BOTTLE/CAN HOLDER
(fig. 171)

It is incorporated into the front

part of the central console.

To open the holder, press on point

A then release it: the bottle/can
holder will automatically open.

To close it, push cover B into its

seat.

CLIMATE-CONTROLLED
DRINK COMPARTMENT

The front armrest incorporates a

climate-controlled drink compart-
ment (fig. 172) fitted with a light,
which receives air directly from the
climate control system.

This compartment allows drinks to

be kept as long as possible at the
temperature they had when they
were put inside the compartment.

The compartment can be accessed

by lifting armrest A (fig. 173) by
pulling it from handgrip B.

To open the compartment air vent,

lift control A (fig. 173). To close the
vent, lower control A.

To close the compartment, lower

the armrest until it is locked; to
lower it further, press handgrip C.

IMPORTANT This compartment

is not a fridge or a drink warmer; it
is used to maintain the temperature
of the drinks put inside it. For this
reason, the drinks must be warmed
or cooled before being put inside the
compartment.

fig. 171

L0A0186b

fig. 172

L0A0251b

fig. 173

L0A0169b

218

Take care not to spill the

drinks. In any case, the
compartment is provided

with a hole on its bottom, through
which any spilled liquid can be
discharged.

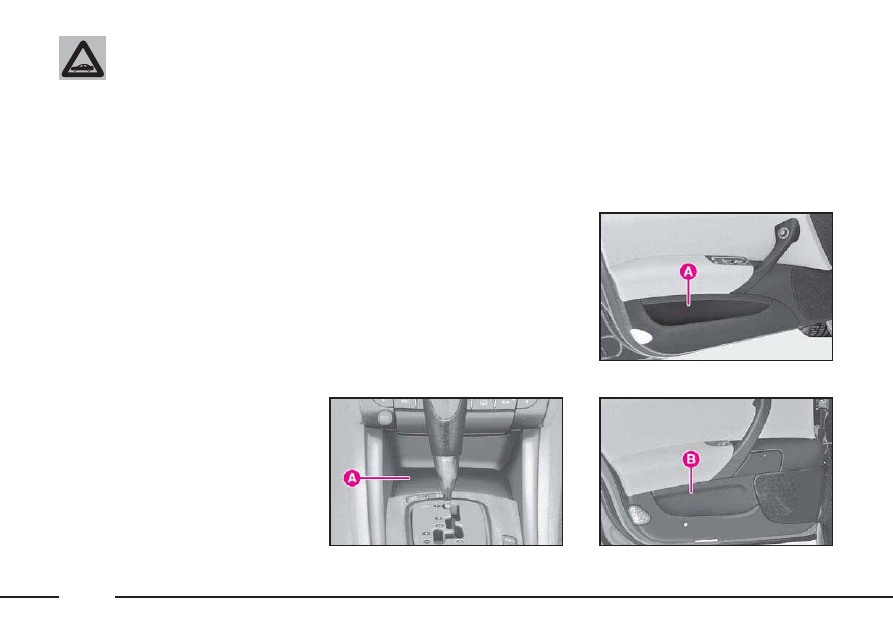

ODDMENT COMPARTMENT ON
THE DASHBOARD (fig. 174)

Oddment compartment A is placed

in front of the gear lever.

DOOR POCKETS

Door pockets are located on the

door panels:

– A (fig. 175) on front door panels

– B (fig. 176) on rear door panels.

fig. 174

L0A0182b

fig. 176

L0A0212b

fig. 175

L0A0194b

219

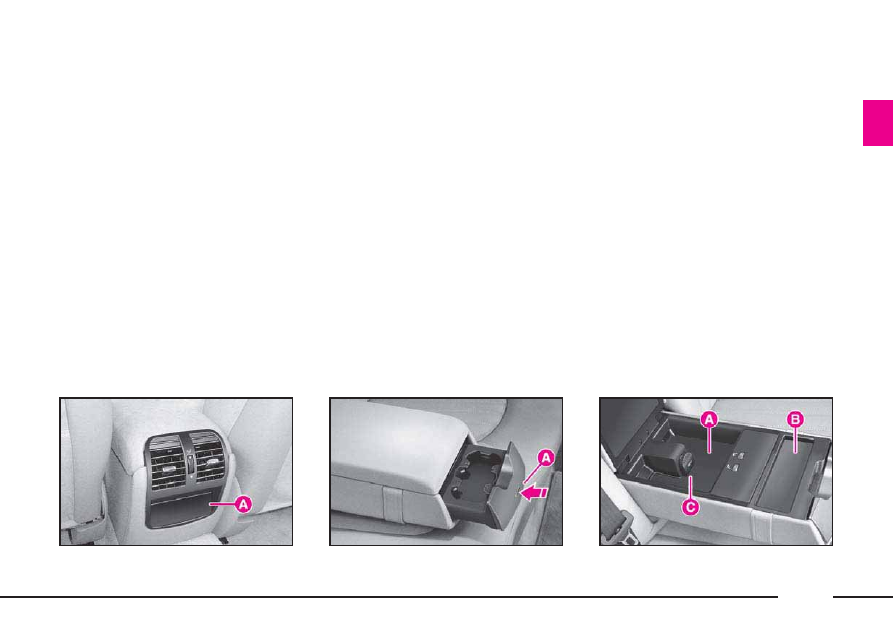

REAR BOTTLE/CAN HOLDER
(fig. 178)

Bottle/can holder A is incorporated

in the rear armrest.

To open it, press on the point spec-

ified by the arrow, then release it:
the bottle/can holder will automati-
cally open.

To close the bottle/can holder,

push it into its seat.

REAR ARMREST
COMPARTMENT

Inside the rear armrest is an odd-

ment compartment A (fig. 179), a
card holder B and a power socket C.

Depending on versions, the armrest

can also include:

– the control buttons for heating,

massage, lumbar adjustment and for
adaptation of rear side seats

– the button to shift the front pas-

senger’s seat

– the button to actuate the electric

window shades

fig. 178

L0A0073b

fig. 179

L0A0075b

fig. 177

L0A0252b

CENTRAL CONSOLE
COMPARTMENT (fig. 177)

Versions with automatic, two-zone

climate control system are provided
with an oddment compartment A,
placed on the rear part of the central
console.
