To correctly wash the car:
❒ remove the aerial from the roof to

prevent damage to it if the car is

washed in an automatic system;

❒ wash the body using a low pres-

sure jet of water;

❒ wipe a sponge with a slightly soapy

solution over the bodywork, fre-

quently rinsing with the sponge;

❒ rinse well with water and dry with

a jet of air or a chamois leather.

Dry the parts less in sight particularly

carefully, such as the door frames and

the headlight frames, where water

may stagnate more easily. It is a good

idea to leave the car in the open for a

while after washing it to give time for

the water to evaporate.

Do not wash the car after it has been

parked in the sun or when the engine

is bonnet is hot: this could take the

shine off the paint.

Exterior plastic parts must be cleaned

in the same way as the rest of the car.

Where possible, do not park under

trees; the resinous substance many

species release give the paint a dull

appearance and increase the possibil-

ity of triggering rust processes.

IMPORTANT Bird droppings must be

washed off immediately and thor-

oughly as the acid they contain is par-

ticularly aggressive.

Windows

Use specific window cleaner products.

Also use clean cloths to avoid scratch-

ing the glass or damaging the trans-

parency.

IMPORTANT Wipe the rear window

inside gently with a cloth in the di-

rection of the filaments to avoid dam-

aging the heating device.

Front headlights

IMPORTANT Never use aromatic

substances (e.g.: petrol) or ketenes

(e.g.: acetone) for cleaning front

headlight plastic lens.

Detergents pollute the envi-
ronment. The vehicle
should be washed in areas
equipped for collecting and

purifying the liquid used in the
washing process.

185

W

A

RNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

Engine compartment

At the end of every winter, wash the

engine compartment thoroughly, tak-

ing care not to aim the jet of water di-

rectly at the electronic control units or

at the windscreen wiper motors. Have

this operation performed at a spe-

cialised workshop.

IMPORTANT Perform this operation

on a cold engine and with the key at

STOP. After the washing operation,

make sure that the various protections

(e.g. rubber caps and guards) have

not removed or damaged.

Never use flammable
products, such as petrol

ether or rectified petrol to clean in-
side the car. The electrostatic
charges which are generated by
rubbing during the cleaning oper-
ation may cause a fire.

WARNING

INTERIOR PLASTIC PARTS

It is advisable to clean interior parts

with a moist cloth and a solution of

water and mild soap. Use specific

products for cleaning plastic, without

solvents and specifically designed to

prevent damage to the appearance

and colour of the treated parts to re-

move grease and tough stains.

IMPORTANT Never use spirit or pe-

troleum to clean the instrument panel.

INTERIORS

Periodically check that water is not

trapped under the mats (due to water

dripping off shoes, umbrellas, etc.)

which could cause oxidisation of the

sheet metal.

CLEANING SEATS AND FABRIC
PARTS

Remove dust with a soft brush or a

vacuum cleaner. It is advisable to use

a moist brush on velvet upholstery.

Rub the seats with a sponge moist-

ened with a solution of water and

neutral detergent.

186

W

A

RNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN

EMERGENZA

MAINTENANCE

AND CARE

Do not keep aerosol cans
in the car: risk of explo-

sion. Aerosol cans must not be ex-
posed to a temperature exceeding
50°C. When the vehicle is exposed
to sunlight, inner temperature can
greatly exceed this value.

WARNING

LEATHER STEERING
WHEEL/GEAR KNOB

These components must be cleaned

with mild soap and water only. Never

use spirit and/or alcohol based prod-

ucts.

Read the product label carefully be-

fore using specific products for clean-

ing the interiors: make sure the prod-

uct does not contain alcohol or alco-

hol based substances.

If window cleaner accidentally drips

onto the steering wheel or gear lever

knob, wipe away immediately and

then wash the concerned area with

mild soap and water.

IMPORTANT Be careful when ar-

ranging a steering wheel lock device,

where applicable, to prevent damag-

ing the leather upholstery by rubbing.

TECHNICAL SPECIFICATIONS

IDENTIFICATION DATA .................................. 188

ENGINE CODES -

BODYWORK VERSIONS .................................. 190

ENGINE ........................................................... 191

FUEL FEED   .................................................... 192

TRANSMISSION  .............................................. 192

BRAKES ........................................................... 193

SUSPENSIONS  ................................................. 193

STEERING SYSTEM  ........................................ 193

WHEELS .......................................................... 194

DIMENSIONS  ................................................... 198

PERFORMANCE .............................................. 199

WEIGHTS ........................................................ 200

CAPACITIES  .................................................... 201

FLUIDS AND LUBRICANTS  ............................ 202

FUEL CONSUMPTION .................................... 204

CO

2

EMISSIONS  ............................................... 205

187

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

IDENTIFICATION
DATA

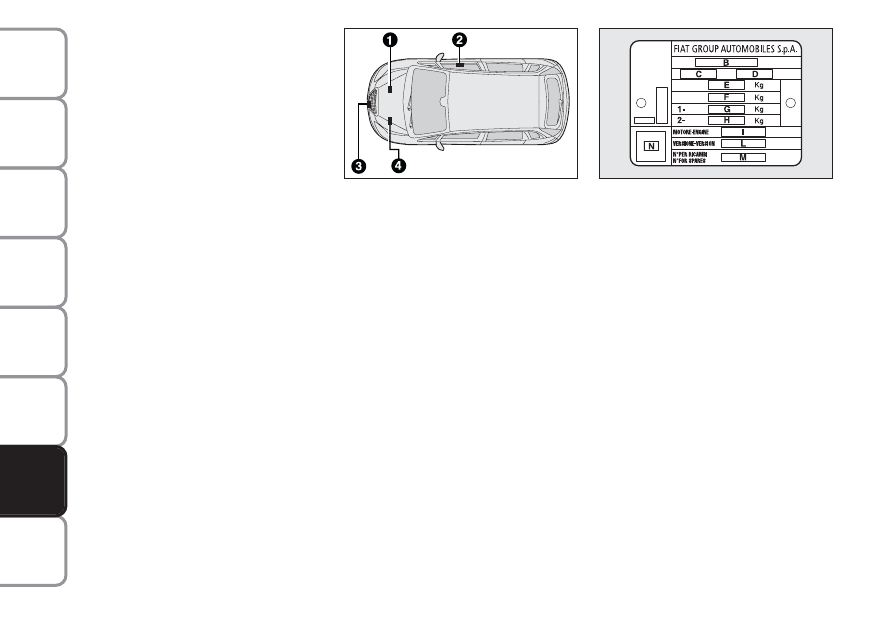

Take note of the identification codes.

The identification data are printed on

labels fig. 1 in the following positions:

1 - Model plate

2 - Chassis marking.

3 -

Bodywork paint identification

plate.

4 - Engine marking.

MODEL PLATE fig. 2

This plate is fitted to the engine com-

partment front crossmember and con-

tains the following data:

B - Type approval number.

C - Vehicle type code.

D - Chassis number.

E - Maximum vehicle weight fully

loaded.

F -  Maximum vehicle weight fully

loaded with trailer.

G - Maximum vehicle weight on front

axle.

H - Maximum vehicle weight on rear

axle.

I - Engine type.

L - Body version code.

M - Spare part code.

N - Smoke opacity index (for diesel

engines).

fig. 1

L0D0450m

fig. 2

L0D0415m

188

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

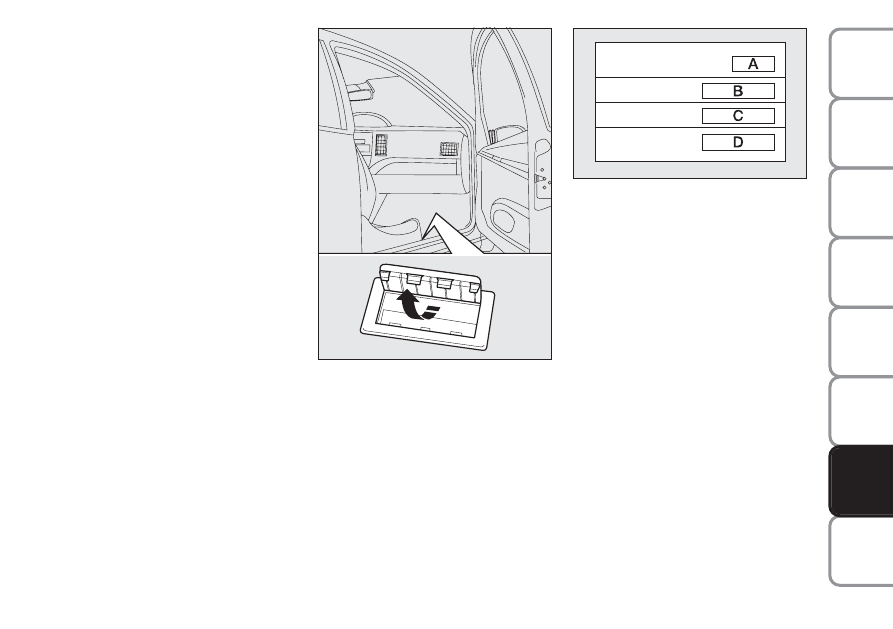

CHASSIS MARKING fig. 3

This is printed on the passenger com-

partment floor bed near the front

right seat.

The label can be accessed by lifting

the window in the mat and comprises:
❒ vehicle model;
❒ the chassis progressive number.

BODYWORK PAINT
IDENTIFICATION PLATE fig. 4

This plate is applied to the bonnet

and shows the following data:

A - Paint manufacturer.

B - Colour name.

C - Lancia colour code.

D - Respray and touch up code.

ENGINE MARKING

It is stamped onto the cylinder block

(passenger compartment side) and

shows the type and the serial number.

fig. 3

L0D0227m

fig. 4

L0D0228m

189

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

Engine type code

350A1000

843A1000

192B2000

188A9000

199A3000

199B1000

350A2000

350A3000

Bodywork code

350 AXF1A08 VL (5 seats) (

❍)

350 AXA1B 07RL (5 seats) (

❒)

350 AXE1A06EL (5 seats) (

❍)

350 AXB1A01UL (5 seats) (

❍)

350 AXG1A09ASL (5 seats) (

❍)

350 AXG1A09ATL (5 seats) (*) (

❍)

350AXM1A 13DL (5 seats) (*) (

❒)

350 AXH1A 11PL (5 seats) (*) (

❍)

350 AXH1A 11RL (5 seats) (*) (

❒)

350 AXL1A12 PL (5 seats) (*) (

❍)

350 AXL1A12 RL (5 seats) (*) (

❒)

190

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

ENGINE CODES - BODYWORK VERSIONS

Versions

1.4

8V

(

▲)

1.4

16V

1.4

16V

90 HP (

▲)

1.3 Multijet 70 HP

1.3 Multijet 90 HP

1.3 Multijet 95 HP

1.6 Multijet

1.6 Multijet 115 HP (

▲)

(

▲) Engine version for some versions/markets only

(*) DPF version

(

❍

) EURO 4

(

❒

) EURO 5

1.4

8V

(

▲)

350A1000

Otto

4 in line

2

72 x 84

1368

11±0,2

57
77

6000

115

11,7

3000

NGK ZKR7A-10

Unleaded petrol

95 RON

(EN228

specifications)

1.6 Multijet

350A2000

Diesel

4 in line

4

79.5 x 80.5

1598

16,5±1

88

120

3500

300

30.5

1500

–

Diesel fuel for

motor vehicles

(EN590

specifications)

1.4

16V

843A1000

Otto

4 in line

4

72 x 84

1368

11±0,2

70
95

5800

128

13

4500

NGK ZKR7A-10

Unleaded petrol

95 RON

(EN228

specifications)

1.3 Multijet

70 HP

188A9000

Diesel

4 in line

4

69.6 x 82

1248

18±0.4

51
70

4000

180

18,3

1750

–

Diesel fuel for

motor vehicles

(EN590

specifications)

1.3 Multijet

95 HP

199B1000

Diesel

4 in line

4

69.6 x 82

1248

16,8 + 0.2/- 0.4

70
95

4000

200

20

1500

–

Diesel fuel for

motor vehicles

(EN590

specifications)

1.3 Multijet

90 HP

199A3000

Diesel

4 in line

4

69.6 x 82

1248

17,6±0,4

66
90

4000

200

20

1750

–

Diesel fuel for

motor vehicles

(EN590

specifications)

191

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

ENGINE

INTRODUCTION

Type code:

Cycle:

Cylinder number and position:

Number of valves per cylinder:

Piston bore and stroke

mm

Total displacement

cm

3

Compression ratio

Max. EEC power

kW

HP

corresponding rpm:

rpm

Max. EEC torque

Nm

kgm

corresponding rpm:

rpm

Spark plugs:

Fuel:

(

▲

)

Engine version for some versions/markets only

Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.

(

▲) Engine version for some versions/markets only

FUEL FEED

Fuel

feed

1.4

8V

(

▲)

-

1.4

16V

Multipoint sequential phased injection,

integrated with ignition,

returnless system

1.3 Multijet - 1.6 Multijet

Common Rail Multijet direct injection

electronically controlled with

turbo and intercooler

TRANSMISSION

Gearbox

Clutch

Traction

1.4

16V

Five forward gears plus reverse

with synchronisers for forward gears

Hydraulic control and play-less pedal

Front

1.4

8V

(

▲)

-

1.3 Multijet - 1.6 Multijet

Five forward gears plus reverse

with synchronisers for forward gears

Hydraulic control and play-less pedal

Front

192

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

BRAKES

Service brakes:

– front

– rear

Parking brake

IMPORTANT Water, ice and salt sprinkled on the roads may deposit on the brake disks reducing braking efficiency the first time the

brakes are applied.

(

▲) Engine version for some versions/markets only

1.4

8V

(

▲)

-

1.4

16V

- 1.3 Multijet 70 HP

Self-ventilating discs (257 mm x 22 mm)

Drum (203 mm x 38 mm)

Operated by hand lever, acting on

rear brakes

SUSPENSIONS

Front

Rear

(

▲) Engine version for some versions/markets only

1.4

8V

(

▲)

-

1.4

16V

- 1.3 Multijet - 1.6 Multijet

McPherson independent wheels

Semi-independent wheels interconnected by means of torque axle

STEERING SYSTEM

Type

Steering circle
(kerb to kerb)

m

(

▲) Engine version for some versions/markets only

1.4

8V

(

▲)

-

1.4

16V

- 1.3 Multijet - 1.6 Multijet

Rack and pinion with electric power steering

10,0

1.3 Multijet 90 HP - 1.3 Multijet 95 HP

1.6 Multijet

Self-ventilating discs (284 mm x 22 mm)

1.3 Multijet 90 HP -1.3 Multijet 95 HP: drum

(228 mm x 40 mm)

1.6 Multijet: disc (240 mm x 11 mm)

Operated by hand lever, acting on

rear brakes

193

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

WHEELS

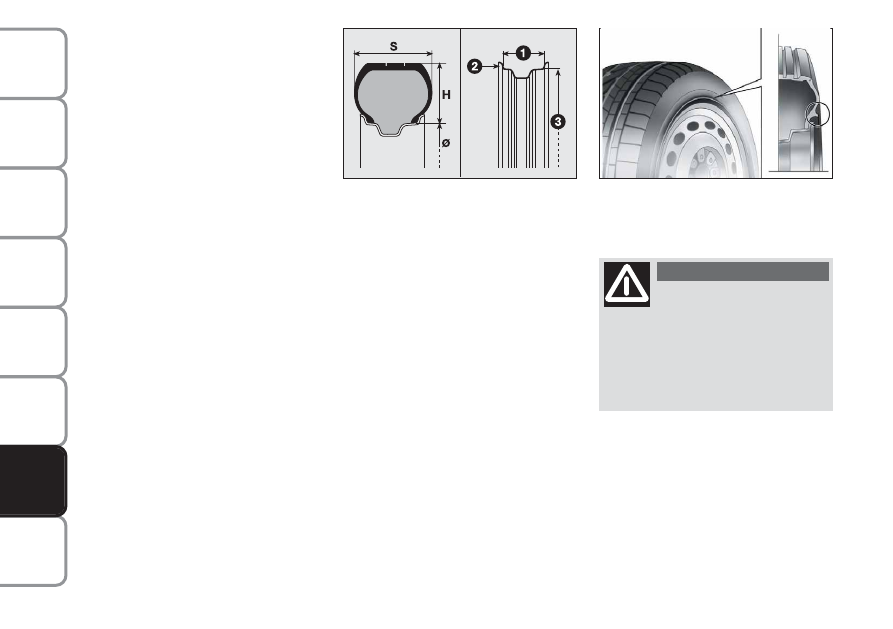

RIMS AND TYRES fig. 5

Pressed steel or alloy rims. Tubeless

radial carcass tyres. All approved

tyres are listed in the Log Book.

IMPORTANT In the event of discrep-

ancies between the information pro-

vided on this “Owner’s handbook”

and the “Log book”, consider the

specifications shown in the log book

only.

Respect the prescribed size to ensure

safety of the car in movement. Fit

tyres of the same make and type on

all wheels.

IMPORTANT Do not use inner tubes

with Tubeless tyres.

SPACE SAVER SPARE WHEEL

Pressed steel rim Tubeless tyre.

WHEEL GEOMETRY

Front wheel toe-in measured between

rims: 0 ±1 mm.

The values refer to the car in running

order.

HOW TO READ TYRE DATA

Example: 185/65 R 14 86 T

185 = Nominal width (S, distance in

mm between sidewalls).

65 = Percentage height/width ratio

(H/ S).

R

= Radial tyre.

14 = Rim diameter in inches (Ø).

86 = Load rate (capacity).

T

= Maximum speed rating.

fig. 5

L0D0229m

194

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

If after-sale tyres with rim
protector are used (fig. 6)

and the car has integral caps fixed
(by springs) to the sheet wheel, DO
NOT fit wheel caps. The use of un-
suitable tyres and wheel caps could
cause a sudden pressure loss of the
tyre.

WARNING

fig. 6

L0D0502m

RIM PROTECTOR TYRES fig. 6

Load rating (capacity)
60 = 250 kg

84 = 500 kg

61 = 257 kg

85 = 515 kg

62 = 265 kg

86 = 530 kg

63 = 272 kg

87 = 545 kg

64 = 280 kg

88 = 560 kg

65 = 290 kg

89 = 580 kg

66 = 300 kg

90 = 600 kg

67 = 307 kg

91 = 615 kg

68 = 315 kg

92 = 630 kg

69 = 325 kg

93 = 650 kg

70 = 335 kg

94 = 670 kg

71 = 345 kg

95 = 690 kg

72 = 355 kg

96 = 710 kg

73 = 365 kg

97 = 730 kg

74 = 375 kg

98 = 750 kg

75 = 387 kg

99 = 775 kg

76 = 400 kg

100 = 800 kg

77 = 412 kg

101 = 825 kg

78 = 425 kg

102 = 850 kg

79 = 437 kg

103 = 875 kg

80 = 450 kg

104 = 900 kg

81 = 462 kg

105 = 925 kg

82 = 475 kg

106 = 950 kg

83 = 487 kg

Maximum speed rating

Q = up to 160 km/h.

R = up to 170 km/h.

S = up to 180 km/h.

T = up to 190 km/h.

U = up to 200 km/h.

H = up to 210 km/h.

V = up to 240 km/h.

W = up to 270 km/h.

Y = up to 300 km/h.

HOW TO READ THE RIM DATA

Example: 6 J x 14 ET 40

6

= rim diameter in inches (1).

J

= rim drop centre outline (side

projection where the tyre bead

rests) (2).

14 = rim nominal diameter in

inches (corresponds to diame-

ter of the tyre to be mounted)

(3 = Ø).

ET = shape and number of humps

(used for withholding tubeless

tyre beads on the rim).

40 = wheel camber angle (distance

between the disc/rim support-

ing plane and the wheel rim

centre line).

195

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

185/65 R14 86T

195/60 R15 88H

205/50 R16 87V (**)

195/60 R15 88H

205/50 R16 87V (**)

185/65 R14 86Q (M+S)

195/60 R15 88Q (M+S)

–

195/60 R15 88Q (M+S)

–

4Bx14” (***)

135/80 B14 84M (***)

1.3 Multijet 90 HP
1.3 Multijet 95 HP
1.6 Multijet

4Bx15”

125/80 R15 95M (***)

4Bx15”

125/80 R15 95M

RIMS AND TYRES

(*)

Optional alloy rim

(**) Tyres to which chains cannot be fitted

(***) IMPORTANT The  14” space saver spare wheel can only be used on 1.4 petrol and  1.3 Multijet 70HP versions with chassis

number higher than 1012200.

VERSIONS

RIMS

TYRES

SPACE SAVER SPARE

Provided

Winter

Rim

Tyre

alternatively

1.4 petrol -
1.3 Multijet
70 HP

6 Jx14” ET 40

6 Jx15” ET 40 (*)

6 1/2 Jx16” ET 40 (alloy)

6Jx15” ET 40 (*)

6 1/2 Jx16” ET 40 (alloy)

196

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

135/80 B14 84M

2.8

SPACE SAVER SPARE WHEEL

125/80 R15 95M

4.2

TYRES PROVIDED

Tyre size

Medium load

Full load

Front

Rear

Front

Rear

Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.

With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.

COLD TYRE INFLATION PRESSURES (bar)

185/65 R14 86T

2.2

2.1

2.3

2.3

195/60 R15 88T

2.2

2.1

2.3 (2.4

▲)

2.3

205/50 R16 87V

2.2

2.1

2.3 (2.5

▲)

2.3

▲ 1.6 Multijet versions only

197

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

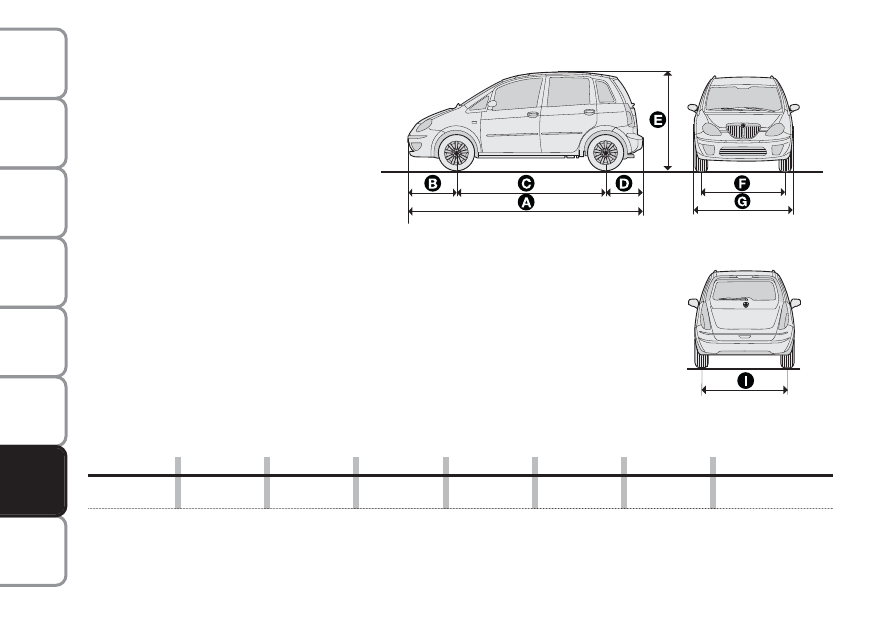

DIMENSIONS

Dimensions are expressed in mm and

refer to the vehicle equipped with its

original tyres.

The height refers to the unladen vehi-

cle.

Luggage compartment volume

Capacity with vehicle unladen

(V.D.A. standards): ............ 390 dm

3

A

B

C

D

E

F  (*)

G

I

4035

848

2508

679

1660

1444

1698

1431

(*) Minor variations in size are possible depending on the dimensions of the rims

L0D0451m

198

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

fig. 7

PERFORMANCE

With mechanical gearbox

Top permissible speed after initial car use in km/h.

1.4

8V

(

▲)

1.4

16V

1.3 Multijet 70HP

1.3 Multijet 90HP

1.3 Multijet 95HP

1.6 Multijet

163

175

159

173

175

190

(

▲) Engine version for some versions/markets only

199

W

A

RNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS
