The weight of the trailer on the car’s

tow hitch will reduce the loading ca-

pacity of the car by the same amount.

Consider the weight of the car at full

load, including accessories and luggage

to make sure you do not exceed the

maximum towable weight (shown on

the log book).

Respect the speed limits specific for

each country for vehicles towing trail-

ers. In all cases, the top speed must

not exceed 100 km/h.

The ABS with which the
car may be equipped will

not control the braking system of
the trailer. Particular caution is
required on slippery roads.

WARNING

Never modify the braking
system of the car to control

the trailer brake. The trailer brak-
ing system must be fully indepen-
dent from the hydraulic system of
the car.

WARNING

INSTALLING THE TOW HOOK

The towing device should be fastened

to the body by specialised personnel

according to any additional and/or in-

tegrative information supplied by the

Manufacturer of the device.

The towing device must meet current

regulations with reference to

94/20/EC Directive and subsequent

amendments.

For any version the towing device

used must match the towable weight

of the car on which it is to be in-

stalled.

For the electric connection a unified

connector should be used which is

generally placed on a special bracket

normally fastened to the towing de-

vice, and a special ECU for external

trailer light control shall be installed

on the car.

For the electric connection, 7 or 13

pin 12VDC connection is to be used

(CUNA/UNI and ISO/DIN Stan-

dards). Follow the instructions pro-

vided by the car manufacturer and/or

the tow hitch manufacturer.

An electric brake should be supplied

directly by the battery through a ca-

ble with a cross section of no less than

2.5 mm2,5.

IMPORTANT Electric brake or other

device shall be used with running en-

gine.

In addition to the electric branches,

the car’s electric system can only be

connected to the supply cable for an

electric brake and to the cable for an

internal light, though not above 15W.

For connections use the preset control

unit with battery cable no less than

2.5 mm

2

.

121

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

holes

load

Existing

Standard ball

fig. 4

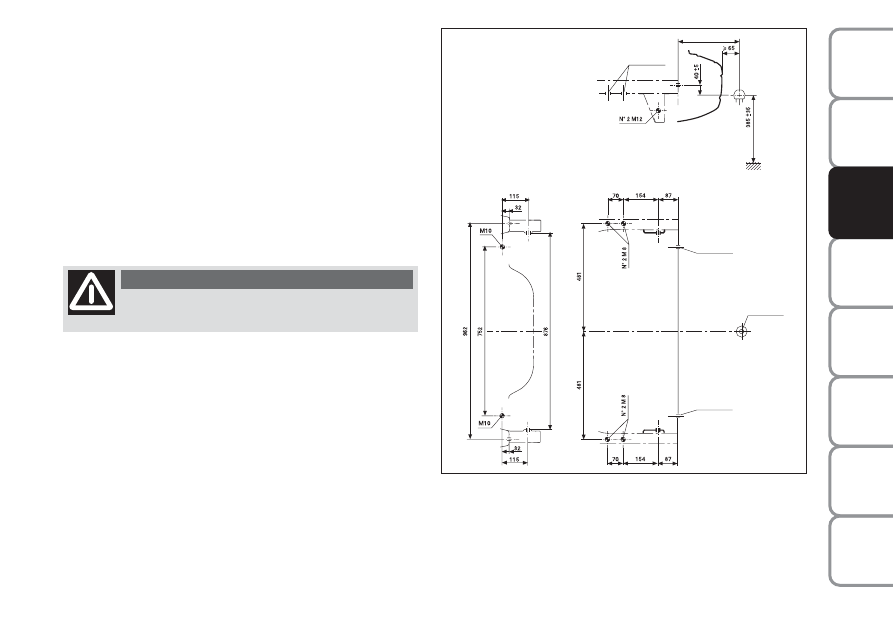

ASSEMBLY DIAGRAM fig. 4

The tow hook structure must be fastened in the points

shown by the symbol

Ø

using a total of 4 M8 screws, 2

M10 screws and  2 M12 screws.

The hook should be fastened to the body avoiding any

type of drilling and trimming of the rear bumpers that re-

mains visible when the hook is removed.

IMPORTANT It is compulsory to fasten a label (plainly

visible) of suitable size and material with the following

wording:

MAX LOAD ON BALL 60 kg

After fitting, screw holes shall be sealed to
prevent exhaust gas inlet.

WARNING

L0D0256m

> 318 ± 5

122

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

SNOW TYRES

Use snow tyres of the same size as the

normal tyres provided with the car.

Lancia Dealership will be happy to

provide advice concerning the most

suitable type of tyre for the customer’s

requirements.

For the type of tyre to be used, infla-

tion pressures and the specifications

of snow tyres, follow the instructions

given in paragraph “Wheels” in sec-

tion “Technical specifications”.

The performance of these tyres is con-

siderably reduced when the tread

depth is less than 4 mm. Replace

them in this case.

Due to their specific features, the per-

formance of snow tyres is much lower

than that of normal types in normal

conditions or long motorway

stretches. Limit performance accord-

ing the use for which they were ap-

proved.

IMPORTANT When snow tyres are

used with a max speed index below

the one that can be reached by the car

(increased by 5%), place a notice in

the passenger’s compartment, plainly

in the driver’s view which states the

max permissible speed of the snow

tyres (as per EC Directive).

All four tyres should be the same

(brand and track) to ensure greater

safety when driving and braking and

better driveability.

Remember that it is inappropriate to

change the direction of rotation of

tyres.

The top speed of a “T”
type snow tyre is 190

km/h. Respect the highway code in
all cases.

WARNING

123

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

SNOW CHAINS

Use of snow chains should be in com-

pliance with local regulations.

The snow chains may be applied only

onto the front wheel tyres (drive

wheels). Use of Lineaccessori Lancia

snow chains is recommended.

Check the tension of the chains after

the first few metres have been driven.

IMPORTANT Snow chains cannot be

fitted on the space saver wheel. In

case of puncture to a front tyre, re-

place a rear wheel using the space

saver spare and fit the normal size

wheel on the front axle. In this way,

you can fit snow chains on the two

front wheels.

The tyres which are suitable for fitting snow chains and the type
of chain which can be used are shown in the table above. Follow
indications carefully.

Keep your speed down when snow chains are fitted. Do not
exceed 50 km/h. Avoid potholes, steps and pavements and
also avoid driving long distances on roads not covered with
snow in order to prevent damaging the car and the roadbed.

Tyres suitable for fitting

Chain type

snow chains to be used

185/65 R14 86T

195/60 R15 88T

Chains cannot be fitted on
205/50 R16 87V tyres.

WARNING

Normal size snow chains

with maximum protrusion beyond tyre

profile equal to 12 mm.

124

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

SAFETY

ST

AR

TING

AND DRIVING

CAR INACTIVITY

If the car is to be left inactive for

longer than a month, the following

precautions should be noted:
❒ park the car in covered, dry and if

possible well-ventilated premises;

❒ engage a gear;
❒ check that the handbrake is not

engaged;

❒ disconnect the negative battery

terminal and check battery charge.

Repeat this check once every three

months during storage. Recharge

the battery if the optical indicator

shows a dark colour without the

central green area;

❒ clean and protect the painted parts

using protective wax;

❒ clean and protect the shiny metal

parts using special compounds

readily available;

❒ sprinkle talcum powder on the rub-

ber windscreen and rear window

wiper blades and lift them off the

glass;

❒ slightly open the windows;
❒ cover the car with a fabric or per-

forated plastic terrapin. Do not use

compact plastic sheets which do not

allow humidity to evaporate from

the surface of the car.

❒ inflate tyres to a pressure of +0,5

bar above the normal specified

pressure and check it at intervals;

❒ if you don’t disconnect the battery

from the electric system, check its

charge every month and recharge it

if the optical indicator shows a dark

colour without the central green

area;

❒ do not drain the engine cooling sys-

tem.
