264

TECHNICAL SPECIFICATIONS

WHEELS

RIMS AND TYRES

Pressed steel or alloy rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Vehicle Registration
Document.

IMPORTANT In the event of discrepancies between the
information provided in this “Owner’s handbook” and the
“Registration Document”, consider the specifications
shown in the log book only. For safe driving, the car must
be fitted with tyres of the same make and type on all
wheels.

IMPORTANT Do not use air chambers with Tubeless tyres.

SPACE-SAVER WHEEL

Pressed steel rim. Tubeless tyre.

WHEEL GEOMETRY

Total front toe in:

–1 ±1 mm

Total rear toe in:

2 ± 2 mm

The figures refer to the car in running order.

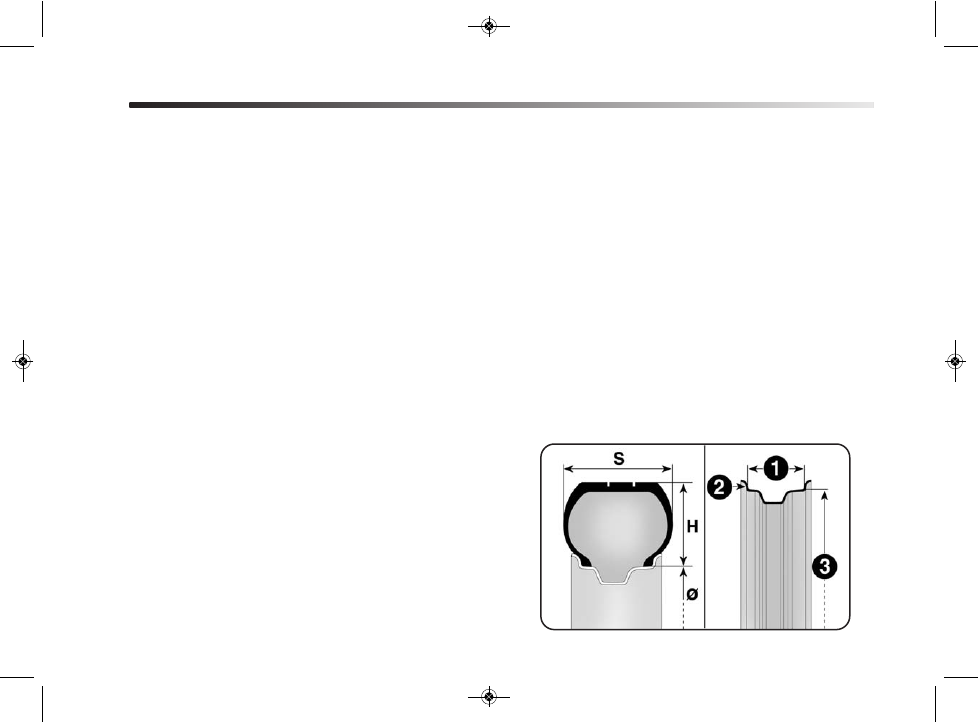

UNDERSTANDING TYRE MARKING fig. 5

Example: 195/55 R 16 91 V
195 = Nominal width (S, distance in mm between

sidewalls).

55  = Height/width ratio (H/S) as a percentage.
R = Radial

tyre.

16  = Rim diameter in inches (Ø).
91  = Load index (capacity).
V  = Maximum speed index.

fig. 5

L0E0120m

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 264

TECHNICAL SPECIFICATIONS

265

6

Load index (capacity)

60 = 250 kg

84 = 500 kg

61 = 257 kg

85 = 515 kg

62 = 265 kg

86 = 530 kg

63 = 272 kg

87 = 545 kg

64 = 280 kg

88 = 560 kg

65 = 290 kg

89 = 580 kg

66 = 300 kg

90 = 600 kg

67 = 307 kg

91 = 615 kg

68 = 315 kg

92 = 630 kg

69 = 325 kg

93 = 650 kg

70 = 335 kg

94 = 670 kg

71 = 345 kg

95 = 690 kg

72 = 355 kg

96 = 710 kg

73 = 365 kg

97 = 730 kg

74 = 375 kg

98 = 750 kg

75 = 387 kg

99 = 775 kg

76 = 400 kg

100 = 800 kg

77 = 412 kg

101 = 825 kg

78 = 425 kg

102 = 850 kg

79 = 437 kg

103 = 875 kg

80 = 450 kg

104 = 900 kg

81 = 462 kg

105 = 925 kg

82 = 475 kg

106 = 950 kg

83 = 487 kg

Maximum speed index

Q = up to 160 km/h.

H = up to 210 km/h.

R = up to 170 km/h.

V = up to 240 km/h.

S = up to 180 km/h.

W= up to 270 km/h.

T = up to 190 km/h.

Y = up to 300 km/h.

U = up to 200 km/h.

Maximum speed index
for snow tyres

QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 265

266

TECHNICAL SPECIFICATIONS

UNDERSTANDING RIM MARKING fig. 5

Example: 7J x 16 H2 ET 31

7  = rim width in inches (1).

J

= rim drop centre outline (side projection where the

tyre bead rests) (2).

16 = rim nominal diameter in inches (corresponds to the

diameter of the tyre to be mounted) (3 = Ø).

H2= shape and number of humps (circumference pro-

jection which holds tubeless tyre beads on the rim).

ET 31 = wheel camber angle (distance between the

disc/rim supporting plane and the wheel rim cen-
tre line).

fig. 6

L0E0193m

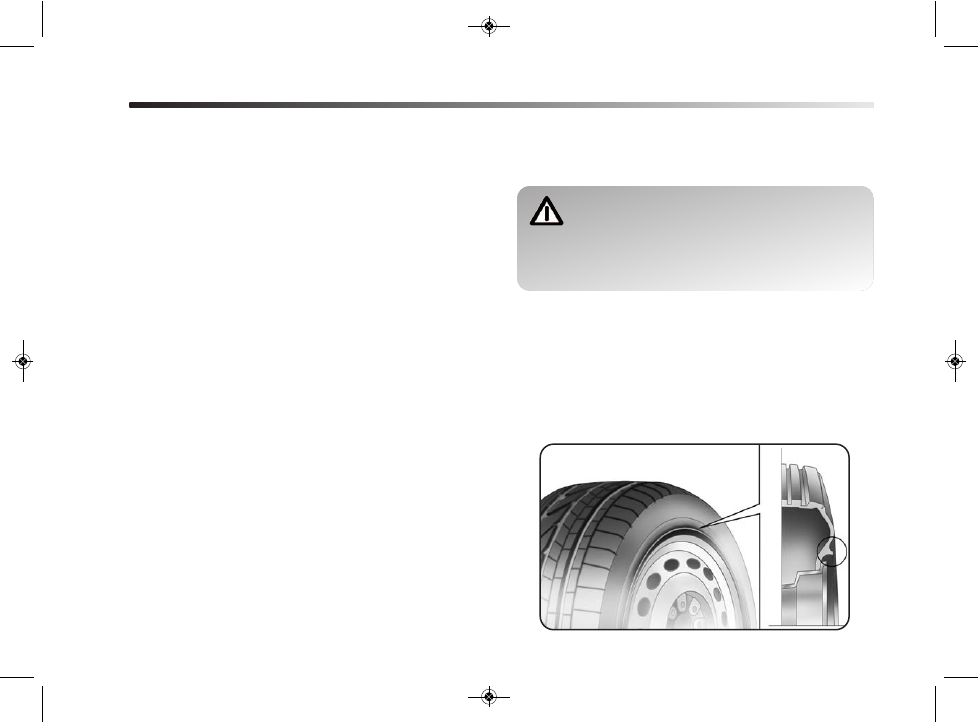

RIM PROTECTOR TYRES fig. 6

Do NOT fit wheel caps when using integral
wheel caps fixed (with springs) to the steel
rim and after-sale tyres provided with Rim

Protector (fig. 5a). The use of unsuitable tyres and
wheel caps may cause sudden loss of tyre pressure.

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 266

TECHNICAL SPECIFICATIONS

267

6

7Jx16”- ET31
7Jx16”- ET31
7Jx17”- ET31

7,5Jx18”- ET35 (**)

4Bx15” H-ET 35 (*)

125/90 R15-96M (*)

(

■

)  1.6 Multijet 120 HP versions

(*) Depending on the trim level, the space-saver wheel for the 1.6 Multijet 120 HP version has a 205/55 R16-91V tyre and a

7Jx16” - ET31 rim. In this case the 205/55 R16 91V tyre has the same specifications as the space-saver wheel: the informa-
tion in “Replacing a wheel” paragraph therefore refers to the 205/55 R16 91V tyre.

(**) For versions/markets, where provided

(

❏

)  Tyre not suitable for fitting snow chains.

Rims

Tyres

Tyres

Space-saver wheel

for snow

(for versions/markets, where provided)

Rim

Tyre

On 205/55 R16-91V tyres, use reduced size snow chains with a maximum projection of 9 mm beyond
the tyre profile. On 225/45 R17-91W tyres, use reduced size snow chains with a maximum projection
of 7 mm beyond the tyre profile.

IMPORTANT Special techniques need to be adopted for 225/40 R18 92W tyres. For this reason, these tyres can only
be requested when the vehicle is purchased. Do not fit this tyre after vehicle has been purchased !

195/155R16-91V (

■)

205/55 R16-91V

225/45 R17-91W

225/40 R18-92W

(

❏

) (**)

REINFORCED

195/55R16-91T (

■) (M+S)

205/55 R16-91T (M+S)
225/45 R17-91T (M+S)
225/40 R18-92T (M+S)

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 267

2.7

2.5

2.7

2.5

2.7

2.5

2.9

2.7

195/55 R16-91V

205/55 R16-91V

225/45 R17-91W

225/40 R18-92W

268

TECHNICAL SPECIFICATIONS

205/55 R16-91V

125/90 R15-96

2.4

2.2

2.4

2.2

2.4

2.2

2.6

2.4

Add +0.3 bar to the prescribed pressure when the tyres are warm. Check correct pressure when the tyres are cold.
With snow tyres, add +0.2 bar to the prescribed pressure for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
The TPMS is not fitted with 195/55 R16 91V tyres.

COLD TYRE INFLATION PRESSURES (bar)

2.2

4.2

Size

Inflation pressure

SPACE-SAVER/SPARE WHEEL

TYRES PROVIDED

Size

Medium load

Full load

Front

Rear

Front

Rear

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 268

TECHNICAL SPECIFICATIONS

269

6

fig. 7

L0E0299m

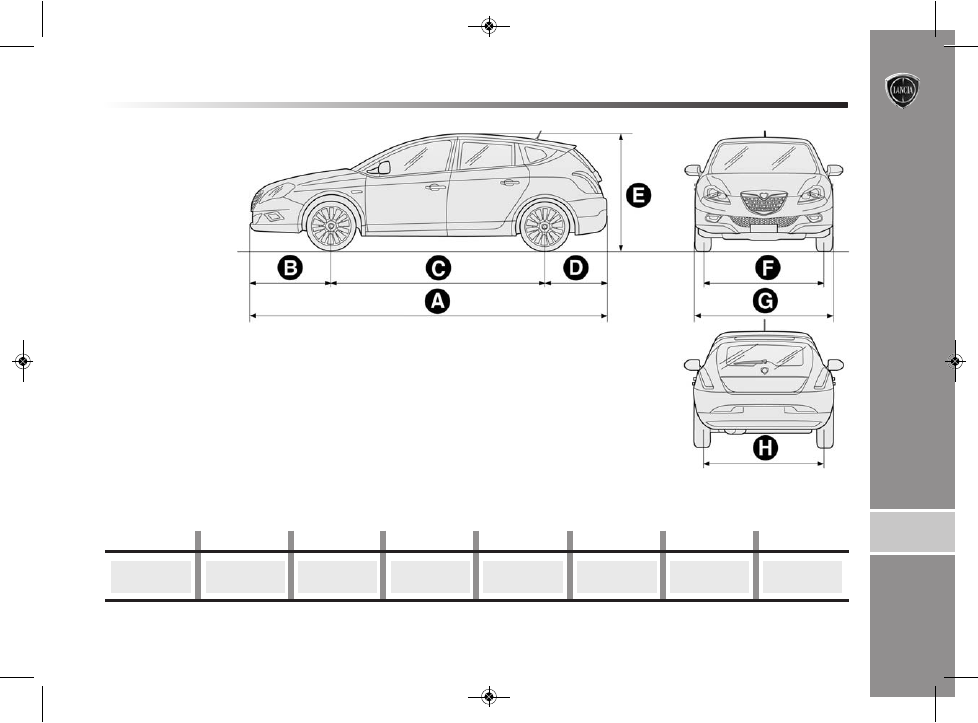

DIMENSIONS

4520

1017

2700

(*) Small variations in size are possible depending on the dimensions of the rims

1499 (*)

1538

1531

Luggage compartment capacity

Capacity with vehicle unladen (VDA standards) ............................... 380 dm

3

Maximum capacity ............................................................................465 dm

3

Dimensions are expressed in mm and refer to the car equipped with its stan-
dard-supplied tyres. Height is measured with the car unladen.

1797

A

B

C

D

E

F

G

H

803

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 269

270

TECHNICAL SPECIFICATIONS

PERFORMANCE

Max. allowed speeds during the initial period of usage of the car.

1.6 Multijet 105 HP: 186 km/h.

1.6 Multijet 120 HP: 194 km/h.

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 270

TECHNICAL SPECIFICATIONS

271

6

1410

570

1090

950

1980

1300

500

80

60

WEIGHTS

Weights (kg)

1.6 Multijet 105/120 HP

Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)

Payload (*) including the driver:

Maximum permitted loads (**)
–– front axle:
–– rear axle:
–– total:

Towable loads
– braked trailer:
– non-braked trailer:

Maximum load on roof:

Maximum load on the ball joint
(braked trailer):

(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will de-

crease, still complying with the maximum allowed loads.

(**)  Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform with-

in the maximum permitted loads.

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 271

58

–

8/10

–

7.1

–

4.3

3.6

4.9

4.1

1.87 1.7

–

0.8

6

–

CAPACITIES

272

TECHNICAL SPECIFICATIONS

(

▲) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLU

UP

and

40% distilled water.

Diesel fuel for motor vehicles
(EN590 specification)

Mixture of demineralised water
and PARAFLU

UP

in 50-50 proportion (

▲)

SELENIA WR FORWARD

TUTELA TRANSMISSION GEARFORCE

TUTELA TOP 4

Water and fluid mixture
TUTELA PROFESSIONAL SC 35

1.6 MultiJet 105/120 HP

Prescribed fuels

and original lubricants

litres

kg

Fuel tank:
including a reserve of:

Engine cooling
system:

Engine sump:
Engine sump and filter:

Gearbox/differential
casing:

Hydraulic brake circuit
with ABS:

Windscreen/rear window
washer fluid reservoir:

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 272

TECHNICAL SPECIFICATIONS

273

6

In case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated ACEA

performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.

FLUIDS AND LUBRICANTS

Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements
of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emis-
sion specifications. Lubricant quality is crucial for engine operation and duration.

PRODUCT SPECIFICATIONS

Usage

Fluid and lubricant specifications

Genuine fluids and

Replacement

for a correct use of the car

lubricants

interval

Lubricant for
diesel engines

Synthetic based lubricant SAE 0W-30 grade.
FIAT 9.55535-DS1, ACEA C2 classification.

SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13

As per the
Scheduled
Servicing Plan

The use of products with specifications other than those indicated above could cause damage to the
engine not covered by the warranty.

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 273

Gearboxes and

differentials

CV joints

differential side

CV joints

wheel side

Hydraulic brakes and

hydraulic clutch controls

windscreen/rear window

washer/wiper

Cooling circuits

Percentage of use:

50% water

50% PARAFLU

UP

(

❑)

To be mixed with diesel

(25 cc per 10 litres)

To be used undiluted or

diluted in windscreen/rear

window washer/wiper

systems

TUTELA TRANSMISSION

GEARFORCE

Contractual Technical

Reference No. F002.F10

TUTELA STAR 700

Contractual Technical

Reference No. F701.C07

TUTELA ALL STAR

Contractual Technical

Reference No. F702.G07

TUTELA TOP 4

Contractual Technical

Reference No. F001.A93

PARAFLU

UP

(

●)

Contractual Technical

Reference No. F101.M01

TUTELA DIESEL ART

Contractual Technical

Reference No. F601.L06

TUTELA

PROFESSIONAL SC 35

Contractual Technical

Reference No. F201.D02

SAE 75W grade synthetic base lubricant.

FIAT 9.55550-MZ6 classification

Grease for constant velocity joints with low friction

coefficient. NL.GI. 0-1 consistency.

FIAT 9.55580 classification

Molybdenum disulphide grease, for use at

high operating temperatures. NL.GI. 1-2 consistency

FIAT 9.55580 classification

Synthetic fluid for brake and clutch systems.

It exceeds the specifications: FMVSS no. 116 DOT 4,

ISO 4925, SAE J 1704. FIAT 9.55597 classification

Red protective agent with antifreeze action, based on

inhibited monoethylene glycol with organic formula.

Exceeds CUNA NC 956-16, ASTM D 3306 specifications.

Additive for diesel fuel, protecting Diesel engines.

Mixture of spirits and surfactants.

Exceeds CUNA NC 956-11 specifications.

FIAT 9.55522 classification

274

TECHNICAL SPECIFICATIONS

Brake fluid

Protective

agent

for radiators

Diesel

fuel additive

Windscreen

and rear

window

washer fluid

(

●) IMPORTANT Do not top up or mix using fluids with different specifications.

(

❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLU

UP

and

40% demineralised water.

Lubricants

and greases

for drive

transmission

Usage

Fluid and lubricant specifications

Fluids and lubricants

Applications

for a correct use of the car

genuine

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 274

TECHNICAL SPECIFICATIONS

275

6

FUEL CONSUMPTION

The fuel consumption values given in the table below are
determined on the basis of the type-approval tests laid
down by specific European Directives.
The procedures below are followed for measuring con-
sumption:
❍ urban cycle: cold starting followed by driving that sim-

ulates urban use of the car;

❍ extra-urban cycle: frequent accelerating in all gears,

simulating extra-urban use of the car; speed varies be-
tween 0 and 120 km/h;

❍ combined consumption: the weighting is around 37%

urban cycle and 63% extra-urban cycle.

IMPORTANT The type of route, traffic situations, weath-
er conditions, driving style, general conditions of the car,
trim level/equipment/accessories, climate control system
use, load, roof rack, other situations that affect air drag
may lead to different fuel consumption levels than those
measured.

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres x 100 km)

1.6 Multijet

105 HP

1.6 Multijet

120 HP

Urban

5.5

5.6

Extra-urban

3.7

3.8

Combined

4.4

4.5

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 275

276

TECHNICAL SPECIFICATIONS

CO

2

EMISSIONS

The CO

2

emission refer to combined consumption.

CO

2

EMISSIONS ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE

1.6 Multijet 105 HP: 115 km/h

1.6 Multijet 120 HP: 117 km/h

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 276

TECHNICAL SPECIFICATIONS

277

6

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END
OF ITS LIFE

Lancia has been committed for many years to safeguarding the environment through the constant improvement of its

production processes and manufacturing products that are increasingly compatible with the ecosystem. To assure cus-

tomers of the best possible service in terms of respecting environmental laws and in response to European Directive

2000/53/EC governing vehicles at the end of their life, Lancia is offering their customers the opportunity of handing

over their vehicle* at the end of its life without incurring any additional costs.

The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any

expenses as a result of it having a zero or negative market value. In particular, in almost all European Union countries,

until 1 January 2007, vehicles registered after 1 July 2002 will be collected free of charge, whilst from 2007 collection

will be free of charge irrespective of the year of registration as long as the vehicle contains its basic components (in

particular, the engine and bodywork) and has no additional waste.

To hand your vehicle over at the end of its life without extra cost, go to one of our Lancia Dealerships or authorised

collection and scrapping centres. These centres have been carefully chosen to offer high quality service for the collec-

tion, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.

You can find further information on these collection and scrapping centres either from a Lancia Dealership or by call-

ing the freephone number 00800 526242 00 or on the Lancia website.

* Vehicle for transporting passengers with a maximum of nine seats with a total permitted weight of 3.5 t

257-280 Delta GB 1ed  02/09/13  09.37  Pagina 277

LIST OF CONTENTS

283

7

B

attery recharging.................. 230

Battery

– jump starting ....................... 196

– recharging ........................... 230

– replacement ......................... 244

Bodywork ............................... 252

– bodywork versions ............... 260

Bonnet.................................... 102

Brakes  ................................... 263

Bulb (replacement) ................. 210

C

apacities .............................. 272

Car inactivity.......................... 193

Carrying children safely.......... 161

Central locking ....................... 90

Changing a wheel ................... 203

Checking levels....................... 239

Child restraint systems

(suitability for use) ............... 167

Child safety lock .................... 90

Cigar lighter ........................... 85

Climate comfort...................... 58

CO

2

emissions ........................ 276

Code Card .............................. 44

Control panel and on-board

instruments .........................

9

Controls.................................. 77

Cornering lights...................... 68

Courtesy lights........................ 75

Courtesy mirror light

(bulb replacement) ............... 222

Cruise Control ........................ 73

D

imensions ............................ 269

Dipped beam headlights

(control) ............................... 69

– bulb replacement ................. 214

Direction indicators

– bulb replacement ................. 216

– control ................................. 69

A

BS ....................................... 121

Accessories purchased by

the owner ............................. 149

Advanced ESP system............. 117

AFS (adaptive lights) ....... 79-106

Air cleaner/Pollen filter/

Diesel filter ........................... 243

Airbag

– front .................................... 173

– side...................................... 178

Alarm..................................... 48

Ashtray................................... 86

ASR (system) ......................... 119

Assisted parking

(Magic Parking) ................... 134

Automatic dual zone climate

control system....................... 61

Automatic Fix&Go kit ........... 198

Automatic headlight sensor

(dusk sensor)........................ 68

281-288 Delta GB 1ed  03/03/14  09.32  Pagina 283

284

LIST OF CONTENTS

Engine codes/

Bodywork versions................ 260

Engine compartment

(washing) ............................. 255

Engine.................................... 261

EOBD (system)....................... 124

External lights ........................ 67

F

itting the “Universal” child

restraint system .................... 163

Fix&Go Automatic (kit).......... 198

Flashing ................................. 69

Fluids and lubricants .............. 273

Fog lights.........................

68-79

- bulb replacement................ 217

Follow Me Home (device) ....... 70

Front headlights (cleaning) ..... 255

Front roof lights

(bulb replacement) ............... 219

Front/rear armrest ...........

81-83

Fuel cap ................................. 151

Fuel consumption ................... 275

Fuel cut-off ............................ 80

Fuel supply system ................. 262

Fuses (replacement)................ 223

G

ear Shift Indicator (GSI) ..... 28

Gearbox (use)......................... 188

Glove compartment light

(bulb replacement) ............... 222

Glove compartment ................ 84

H

andbrake............................. 187

Hazard warning lights ............ 78

Head restraints ....................... 55

Headlights .............................. 105

Hill Holder (system) .............. 118

I

dentification data.................. 258

Ignition device ........................ 51

Display .................................. 26

Door locking........................... 89

Doors ..................................... 89

– child safety lock  .................. 90

– passenger side front door and

rear door emergency locking
device ................................... 91

Driving Advisor (system) ........ 110

Driving Advisor ...................... 110

DRL

(Daytime Running Lights) .... 67

DST

(Dynamic Steering Torque)... 107

Dualdrive (electric power

steering system) ............. 77-125

E

lectric windows .................... 91

End of vehicle life................... 277

281-288 Delta GB 1ed  03/03/14  09.32  Pagina 284
