Lancia DELTA. Service Manual - part 14

216

IN AN EMERGENCY

SIDE LIGHTS/DAYTIME RUNNING LIGHTS

The side lights/daytime running lights are LED-type.
Contact a Lancia Dealership to have these lights replaced.

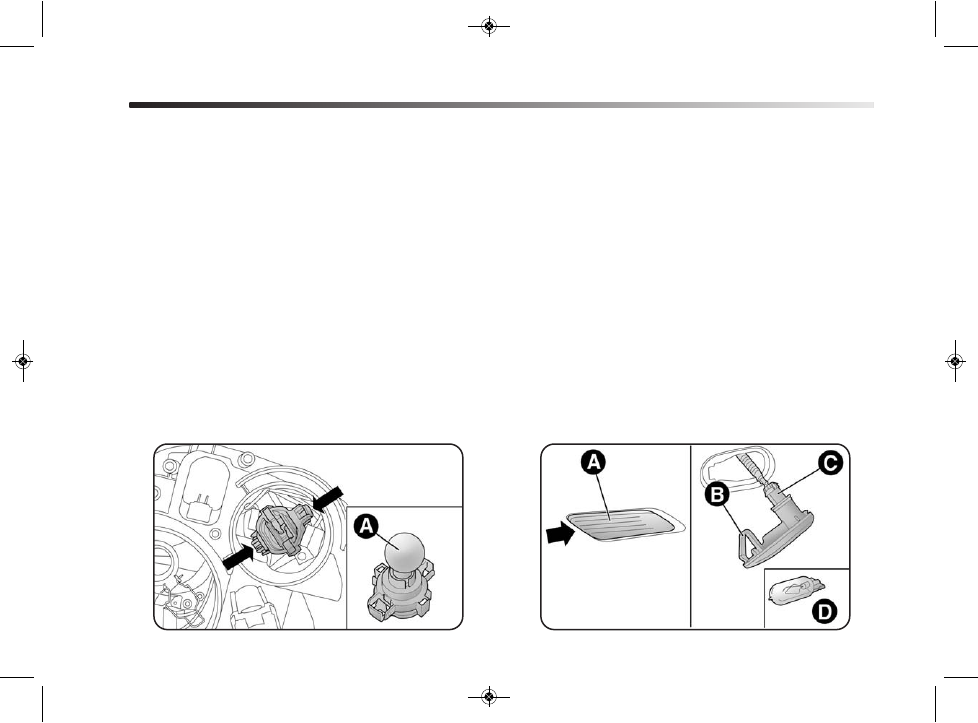

DIRECTION INDICATORS

Front

To replace the bulb, proceed as follows:
❍ remove the protective cover C - fig. 15;
❍ press down near the bulb holder locking tabs (shown

in fig. 18 by the arrows) and simultaneously pull the
unit;

❍ remove the bulb A and replace it;
❍ refit the protective cover C.

Side

To replace the bulb, proceed as follows:
❍ work on the lens cover A - fig. 19 to compress inter-

nal clip B, then pull the unit outwards;

❍ turn the bulb holder C anticlockwise, extract the press-

fitted bulb D and replace it;

❍ refit the bulb holder C in the lens cover and turn it

clockwise;

❍ refit the unit making sure that the internal clip B clicks

into place.

fig. 18

L0E0157m

fig. 19

L0E0158m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 216

IN AN EMERGENCY

217

4

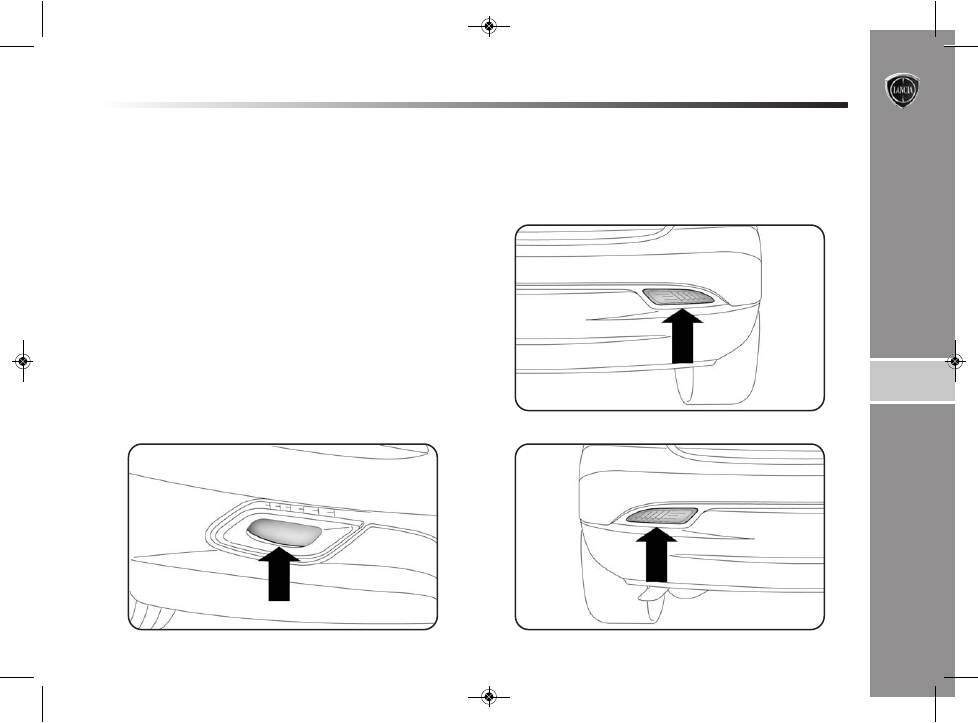

FOG LIGHTS fig. 20
(for versions/markets, where provided)

To replace the front fog light bulbs contact a Lancia Deal-
ership.

REAR LIGHT CLUSTERS

Contact a Lancia Dealership to replace the LED lights in
the rear light clusters.

REVERSING LIGHT fig. 21

Go to a Lancia Dealership to replace the bulb.

REAR FOG LIGHT fig. 22

Go to a Lancia Dealership to replace the bulb.

fig. 20

L0E0159m

fig. 22

L0E0161m

fig. 21

L0E0160m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 217

218

IN AN EMERGENCY

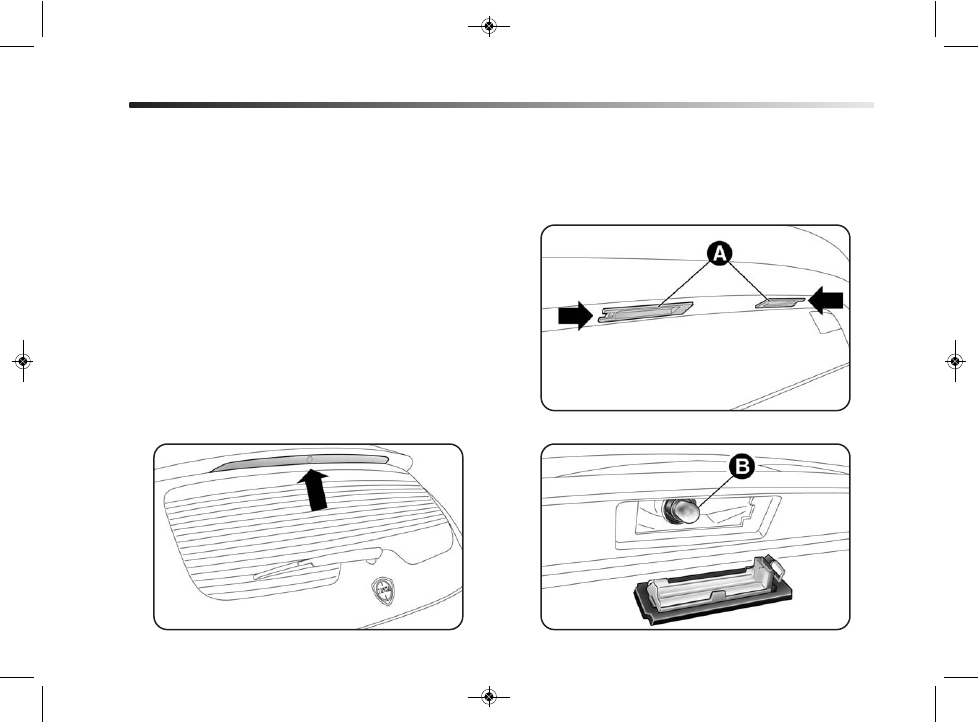

THIRD BRAKE LIGHT fig. 23

Contact a Lancia Dealership to replace the third brake
LED lights.

NUMBER PLATE LIGHTS

To replace the bulb proceed as follows:
❍ remove the lens units A - fig. 24 by acting on the points

shown by the arrows;

❍ remove the bulb B and replace it.

fig. 23

L0E0162m

fig. 25

L0E0282m

fig. 24

L0E0163m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 218

IN AN EMERGENCY

219

4

fig. 27

L0E0166m

fig. 26

L0E0165m

REPLACING AN INTERIOR BULB

For the type of bulb and power rating, see the “Bulb types”
paragraph.

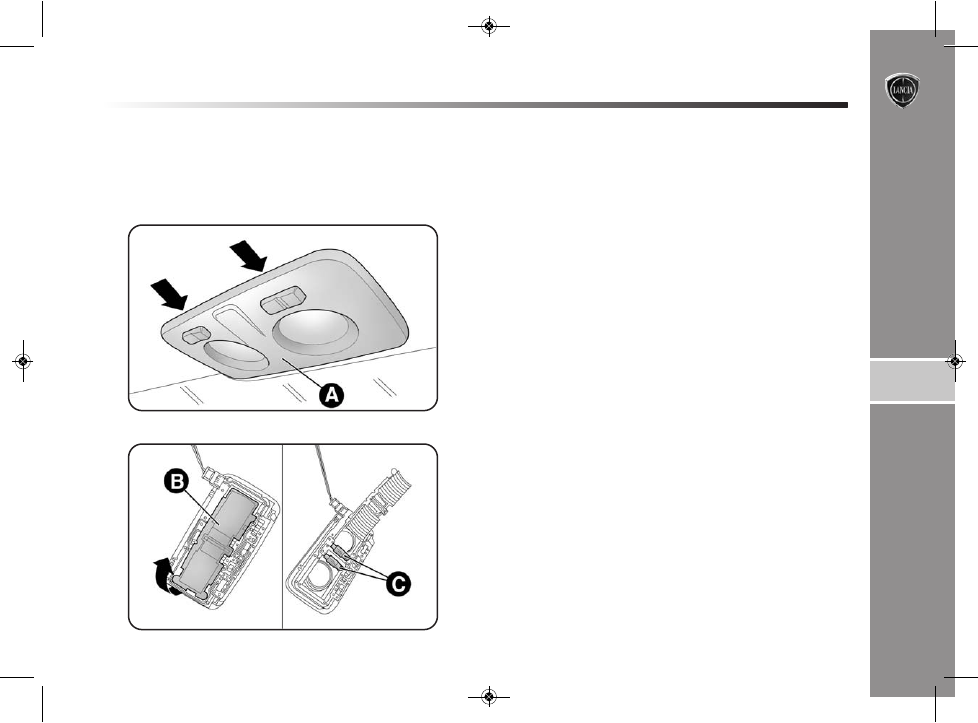

FRONT ROOF LIGHT

Proceed as follows to replace the bulbs:
❍ remove the roof light A - fig. 26 by acting on the points

shown by the arrows;

❍ open the protective flap B - fig. 27;
❍ replace the bulbs C releasing them from the side con-

tacts and making sure that the new bulbs are correct-
ly secured between the contacts;

❍ close flap B - fig. 27 and fasten the roof light A - fig.

26 in its housing, making sure it is locked correctly.

IMPORTANT In some versions, the roof light in fig. 26 is
at the back (electric sun roof version). To replace the rel-
evant bulbs, refer to the procedure described in paragraph
“Rear roof light” in this chapter.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 219

220

IN AN EMERGENCY

fig. 28

L0E0167m

fig. 30

L0E0169m

fig. 29

L0E0168m

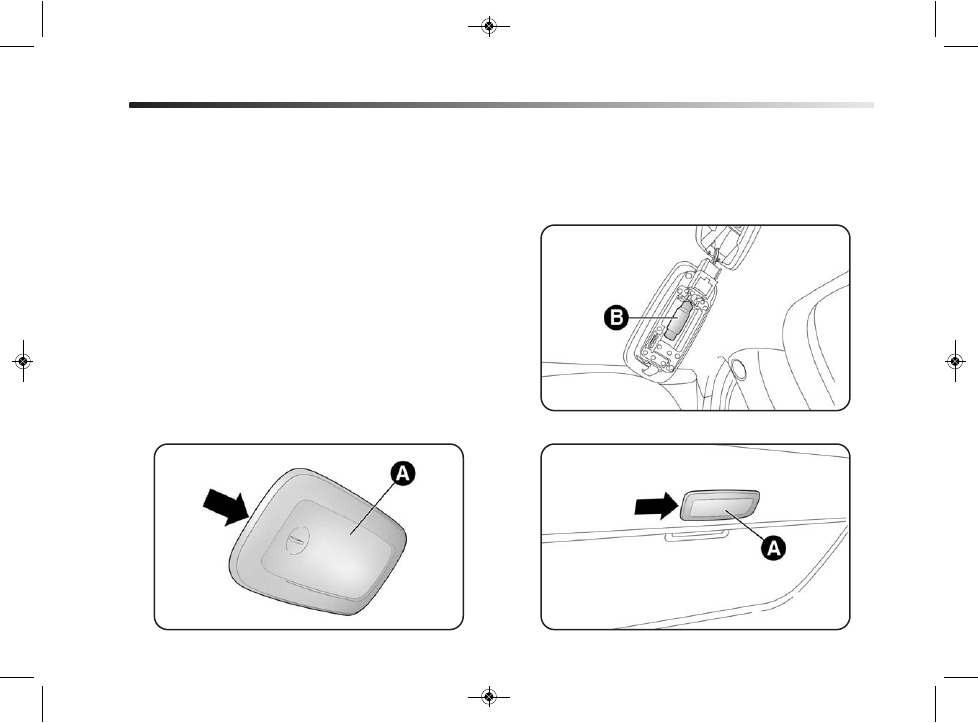

REAR ROOF LIGHT

Versions without sun roof

Proceed as follows to replace the bulbs:
❍ work at the point shown by the arrow and remove roof

light A - fig. 28;

❍ replace bulb B - fig. 29 releasing it from the side con-

tacts and making sure the new bulb is correctly fas-
tened between the contacts.

Versions with sun roof

To replace the bulb, proceed as follows:
❍ work at the point shown by the arrow and remove roof

light A - fig. 30;

❍ replace bulb B - fig. 29 releasing it from the side con-

tacts and making sure the new bulb is correctly fas-
tened between the contacts.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 220

IN AN EMERGENCY

221

4

fig. 32

L0E0171m

fig. 33

L0E0172m

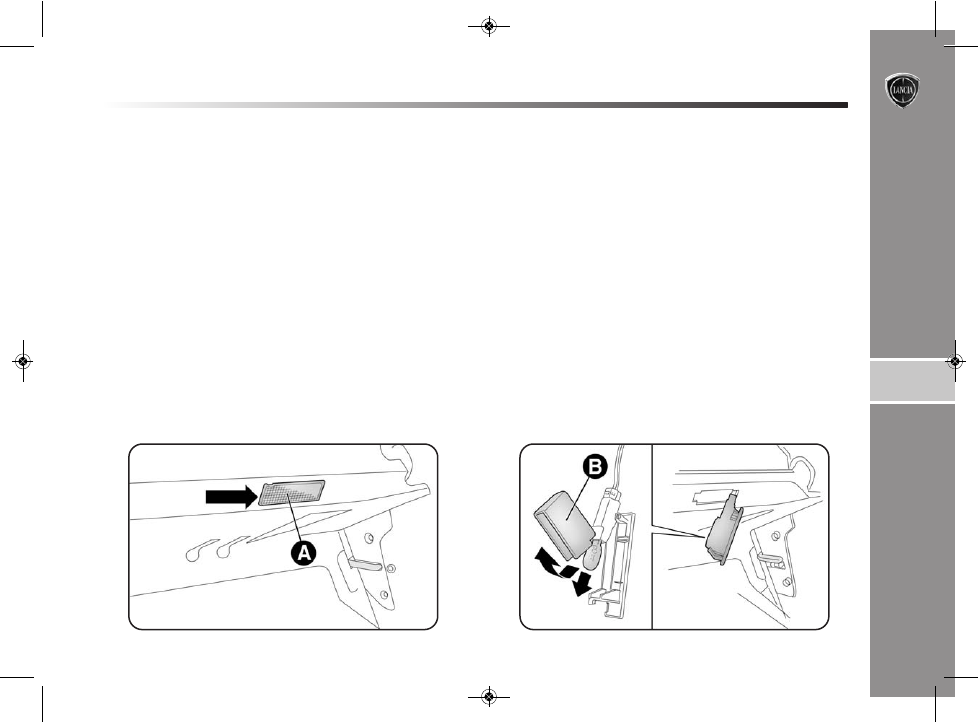

LUGGAGE COMPARTMENT LIGHT

To replace the bulb, proceed as follows:
❍ open the luggage compartment;
❍ remove the light A - fig. 32 applying leverage at the

point shown by the arrow;

❍ open protection B - fig. 33 and replace the press-fitted

bulb;

❍ close protection B onto the lens cover;
❍ refit the light A by inserting it in its correct position

firstly on one side and then on the other until it clicks
into place.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 221

222

IN AN EMERGENCY

fig. 34

L0E0173m

fig. 36

L0E0175m

fig. 35

L0E0174m

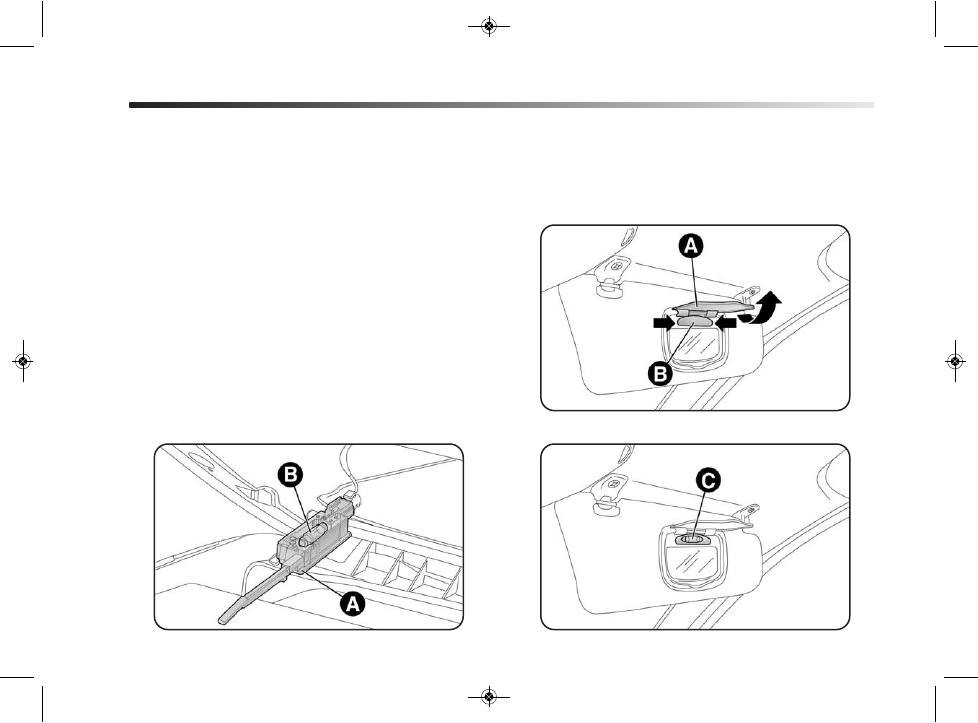

GLOVE COMPARTMENT LIGHT

To replace the bulb, proceed as follows:
❍ open the glove compartment, and remove the light

A - fig. 34;

❍ replace bulb B releasing it from the side contacts and

making sure the new bulb is correctly fastened between
the contacts.

COURTESY MIRROR LIGHT
(for versions/markets, where provided)

To replace the bulb, proceed as follows:
❍ open the cover A - fig. 35 on the mirror;
❍ applying leverage at the points shown by the arrows,

remove light B;

❍ replace bulb C - fig. 36 releasing it from the side con-

tacts and making sure the new bulb is correctly fas-
tened between the contacts.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 222

IN AN EMERGENCY

223

4

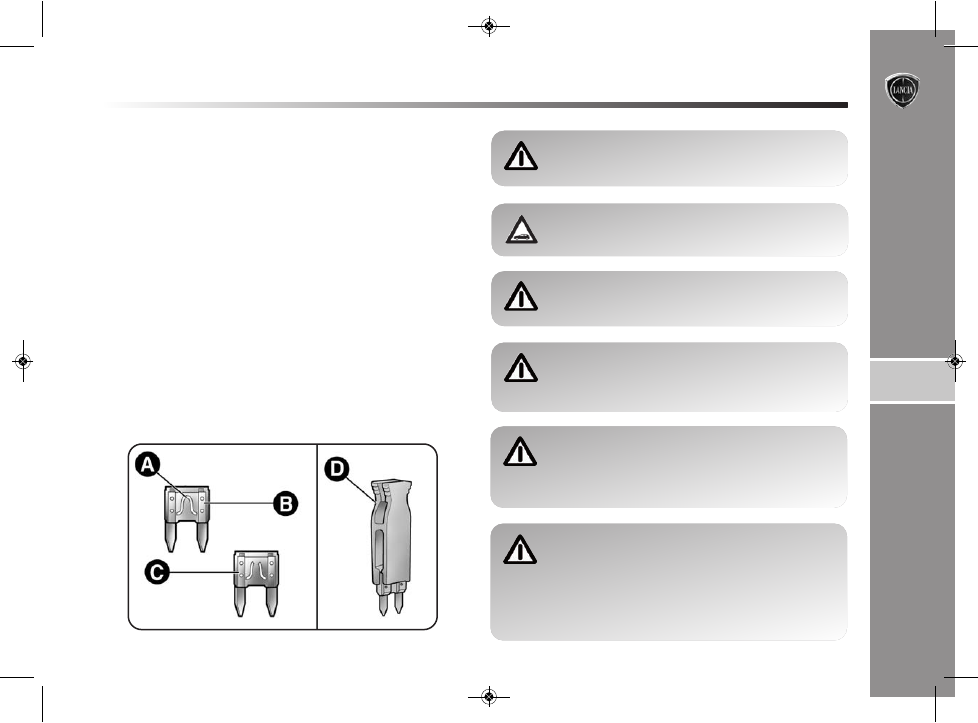

REPLACING FUSES

GENERAL INFORMATION

Fuses protect the electric system: they blow in the event
of a failure or improper action on the system. Check the
condition of the corresponding fuse when a device does
not work: the filament A - fig. 37 must be intact. If it is
not, replace the blown fuse with another having the same
amperage (same colour).
B intact fuse
C fuse with damaged filament.
To replace a fuse, use the pliers D - fig. 37 attached to
the dashboard fuse box.
Refer to the tables on the following pages to identify the
protection fuse.

fig. 37

L0E0085m

If the fuse blows again contact a Lancia
Dealership.

Never replace a blown fuse with metal wires
or other materials.

Never replace a fuse with another with a
higher amp rating; FIRE RISK.

If a general protection fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact a Lancia Dealership.

Before changing a fuse, check that the igni-
tion key has been removed and that all the
other electric devices have been turned

off/disabled.

If a general protection fuse for safety systems
(airbag system, braking system), power unit
systems (engine system, gearbox system) ac-

tive suspension system (for versions/markets, where
provided) or steering system blows, contact a Lan-
cia Dealership.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 223

224

IN AN EMERGENCY

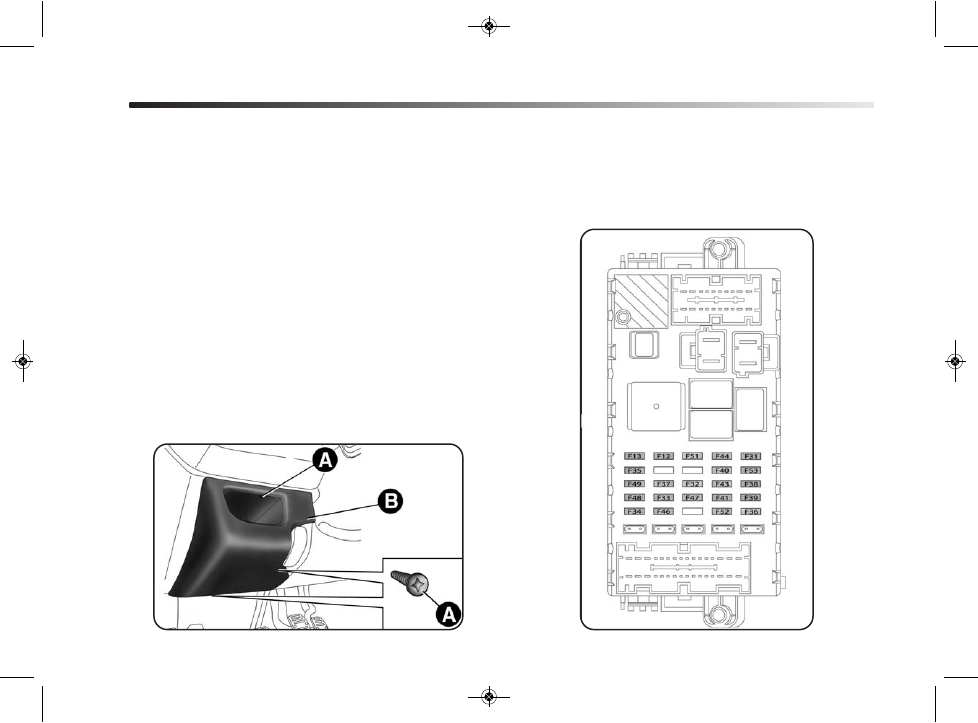

FUSE LOCATION

Dashboard fuse box

To access the dashboard fuse box, loosen the three screws A - fig. 38 and remove flap B.

fig. 38

L0E0208m

fig. 39

L0E0209m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 224

IN AN EMERGENCY

225

4

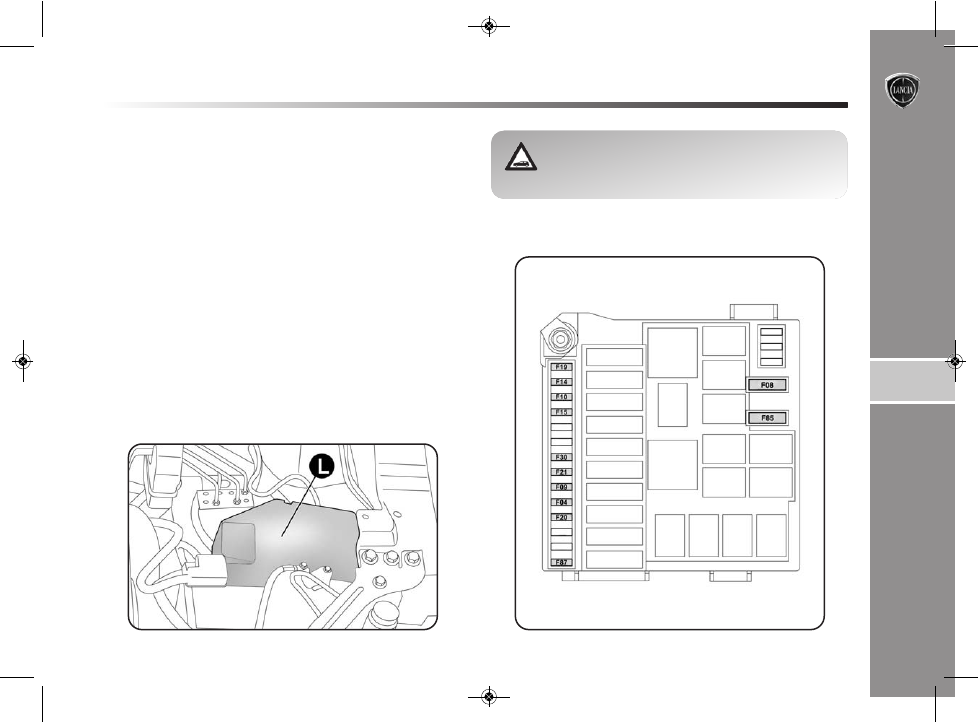

Engine compartment fuse box fig. 40 and 41

A second fuse box is located on the right side of the en-
gine compartment, next to the battery. To access this fuse
box release the side tabs and remove cover L. The ID num-
ber of the electrical component corresponding to each fuse
can be found on the back of the cover.

fig. 40

L0E0088m

If you need to wash the engine compartment,
take care not to directly aim for the engine
compartment fuse box with the jet of water.

fig. 41

L0E0210m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 225

226

IN AN EMERGENCY

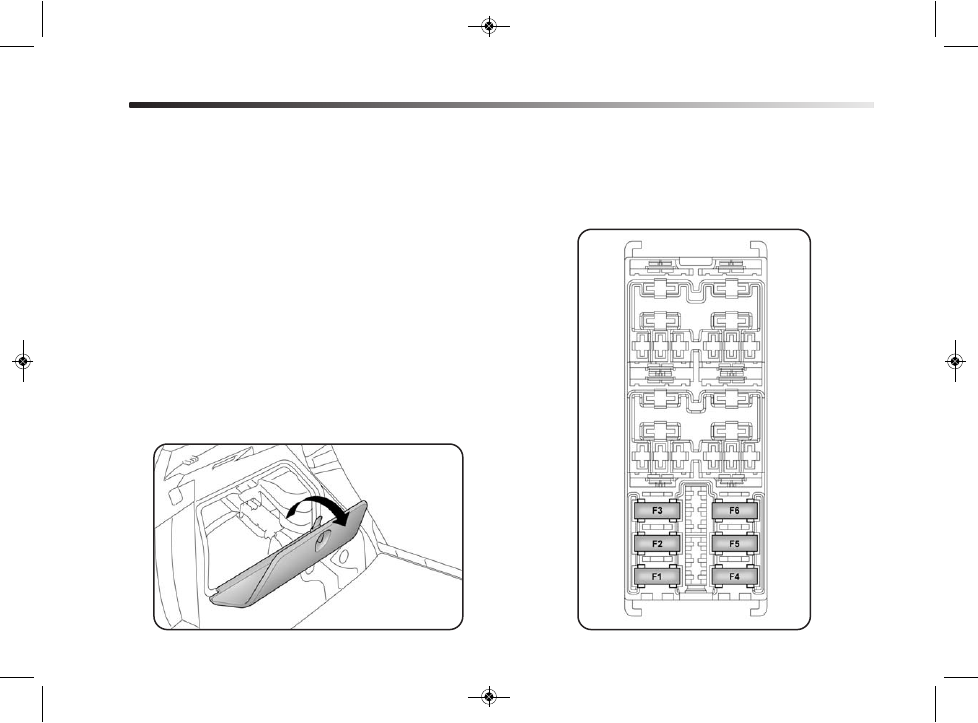

Luggage compartment fuse box fig. 42 and 43

To gain access to the fuse box located on the left side of
luggage compartment open the relevant inspection flap
fig. 42.

fig. 43

L0E0115m

fig. 42

L0E0114m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 226

IN AN EMERGENCY

227

4

F12

F12

F13

F13

F31

F33

F34

F35

F36

F37

F38

F39

F40

F41

7.5

15

7.5

15

5

20

20

5

20

7,5

10

10

30

7.5

39

39

39

39

39

39

39

39

39

39

39

39

39

39

FUSE SUMMARY TABLE

ELECTRIC DEVICES

FUSE

AMPERE

FIGURE

Right dipped beam headlight

Right dipped beam headlight (Xenon gas discharge bulb)

Left dipped beam headlight, headlight alignment corrector

Left dipped beam headlight (Xenon gas discharge bulb)

Climate control system fan relay coil, Body Computer

Rear left electric window

Rear right electric window

Reversing lights, engine compartment junction unit relay coils,

brake light pedal control (normally closed contact), water in diesel sensor,

flow meter

Central locking system control unit, fuel flap, dead lock, tailgate release

Third brake light, instrument panel, Adaptive Headlights Node,

control unit on left-hand gas discharge headlight

Front roof lights, rear central roof light,

driver side and passenger side sun visor lights, luggage compartment light,

glove compartment light (Platinum trim level with optional sun roof)

Radio setup/Radio/Radio Navigator, Blue&Me

TM

node, alarm siren, alarm

system on roof light, climate control unit, tyre pressure monitoring control

unit, diagnosis socket connector, rear roof lights

Heated rear window

Electric door mirror demisters, demisters on windscreen jets

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 227

39

39

39

39

39

39

39

39

39

228

IN AN EMERGENCY

F43

F44

F46

F47

F48

F49

F51

F52

F53

30

15

20

20

20

5

5/7.5 (*)

15

7.5

ELECTRIC DEVICES

FUSE

AMPERE

FIGURE

Windscreen wiper system on steering column stalk, bi-directional windscreen/
rear window washer electrical pump system on steering column stalk

Cigar lighter/power socket on tunnel,
luggage compartment power socket

Sun roof motor

Driver’s front electric window

Passenger side front electric window

Hazard, right, left and central control panels (lighting),
steering wheel controls (lighting), controls on front roof light

(lighting), volumetric alarm system control unit,

electric sun roof system (control unit, control lighting),
rain/dusk sensor, electro-chromic mirror,
front seat heating controls, AUX socket (lighting)

Cigar lighter (lighting), radio setup,
Cruise Control system control, Blue&Me

TM

node, parking sensor node,

AQS sensor, climate control system, electric door mirror
adjustment, tyre pressure monitoring control unit, Lane assistance
node, Controlled damping suspension node, Eco button
(versions with automatic transmission), automatic transmission control
light guide, control unit on right-hand gas discharge headlight

Rear window wiper system on steering column stalk

Instrument panel, rear direction indicators

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 228

IN AN EMERGENCY

229

4

F08

F09

F10

F14

F15

F19

F30

F85

F1

F2

F3

F6

F4

F5

40

30

15

15

30

7.5

15

15

30

30

10

10

15

10

41

41

41

41

41

41

41

41

43

43

43

43

43

43

ELECTRIC DEVICES

FUSE

AMPERE

FIGURE

Climate control fan

Headlight washer pump

Horns

Main beam headlights

PTC1 additional heater

Air conditioning compressor

Fog/cornering lights

Fuel pump

Front right seat adjustment node

Front left seat adjustment node

Front left seat heating

Front right seat heating

Audio HI-FI control unit

BASSBOX speaker (HI-FI system)

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 229

230

IN AN EMERGENCY

BATTERY RECHARGING

IMPORTANT The battery recharging procedure is given
as information only. You are advised to go to a Lancia
Dealership to have this operation performed.

IMPORTANT After turning the ignition key to STOP and
having closed the driver's side door, wait at least one
minute before disconnecting and then reconnecting the
battery electrical supply.

Charging should be slow at a low ampere rating for ap-
proximately 24 hours. Charging for a longer time may
damage the battery.

To recharge, proceed as follows:
❍ disconnect the negative battery terminal;
❍ connect the charger leads to the battery terminals, ob-

serving the polarity;

❍ turn on the charger;
❍ when it is recharged, turn the charger off before dis-

connecting it from the battery;

❍ reconnect the negative battery terminal.

Battery fluid is poisonous and corrosive: avoid
contact with skin and eyes. The battery
recharging operation must be performed in a

ventilated place, away from naked flames or pos-
sible sources of sparks to avoid the risk of explosion
and fire.

Don’t try to recharge a frozen battery: it must
be thawed first, otherwise it may explode. If
the battery was frozen, have it inspected by

specialised personnel before recharging to check that
the internal elements are not damaged and that the
casing is not cracked, which causes the risk of leak-
age of poisonous, corrosive acid.

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 230

IN AN EMERGENCY

231

4

LIFTING THE CAR

If the car is to be lifted, go to a Lancia Dealership which
is equipped with arm hoists or workshop lifts.

IMPORTANT Be careful when positioning the arm of the
lift for versions with side skirts.

TOWING THE CAR

The tow hook, which is provided with the car, is housed
in the tool box, under the luggage compartment mat.

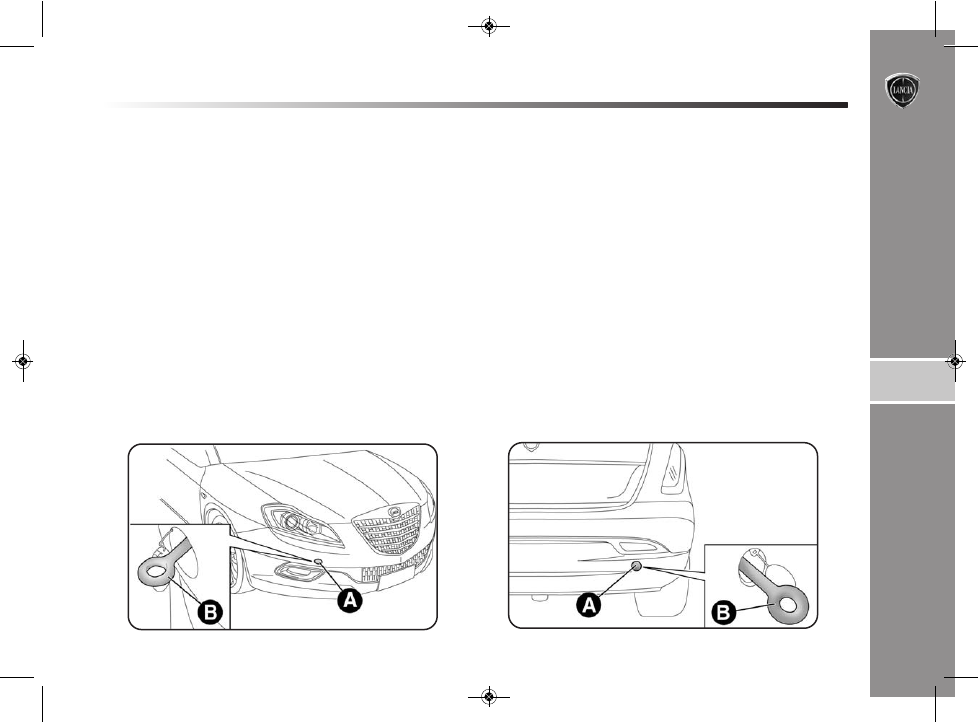

FASTENING THE TOW RING fig. 44-45

Proceed as follows:
❍ release cap A;
❍ take the tow ring B from its housing in the tool box;
❍ screw the ring onto the rear or front threaded pin.

fig. 44

L0E0297m

fig. 45

L0E0091m

195-232 Delta GB 1ed  03/03/14  09.15  Pagina 231
