New MG3. Service Manual - part 1





PREFACE

Introduction

The Owner's Handbook

This handbook describes all of the vehicles and standard
equipment specification within the model range. Some of
the information therefore, may not apply to your particular
car.

Always remember that if you have any queries concerning
the operation or specification of your car, your MG
Authorised Repairer will be glad to advise you.

Status at Time of Printing

MG operates a policy of constant product improvement
and therefore reserves the right to change specifications
without notice at any time.

Whilst every effort is made to ensure complete accuracy
of the information in this publication, no liabilities for
inaccuracies or the consequences thereof, including loss or
damage to property, or injury to persons, can be accepted
by the manufacturer or MG Authorised Repairer who
supplied the publication, except in respect of personal
injury caused by the negligence of the manufacturer or
MG Authorised Repairer.

Symbols Used

The following symbols used within the handbook call your
attention to specific types of information.

Warning

This warning symbol identifies procedures
that

must

be

followed

precisely,

or

information that must be considered with
great care, in order to reduce the risk of
personal injury or serious damage to the car.

Important

IMPORTANT

The statements stated here must be followed strictly,
otherwise your car could be damaged.

Note

Note: This describes helpful information.

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

This symbol indicates that parts described must be
disposed of by authorised persons or bodies to protect
the environment.

Asterisk

An asterisk (*) appearing within the text, identifies features
or items of equipment that are either optional, or are only
fitted to some vehicles in the model range.

Illustration Information

Identifies components being explained.

Identifies movement of components being
explained.

All illustrations in this handbook are based on a RHD
vehicle except where LHD model is stated.

In an Emergency

IMPORTANT

Remember the breakdown safety code

If a breakdown occurs while travelling:

• Wherever possible, consistent with road safety and

traffic conditions, the car should be moved off the
main thoroughfare, preferably into a lay-by.

If a

breakdown occurs on a motorway, pull well over to
the inside of the hard shoulder.

• Switch on hazard lights.

• If available, position a warning triangle or a flashing

amber light 50 to 150 metres (150 to 500 ft) behind
your vehicle to warn approaching traffic. Note it is a
legal requirement of some countries that a warning
triangle is carried in the vehicle, if in doubt consult
the local highways agency for further information.

• Consider evacuating passengers through nearside

doors onto the verge to reduce risk of injury in the
event of collision.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Vehicle Identification Information

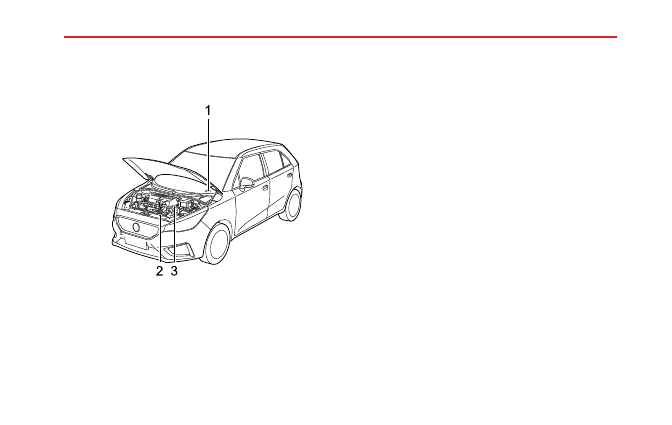

Vehicle Identification

1

2 3

1 Vehicle Identification Number (VIN)

2 Engine Number

3 Transmission Number

Always quote the Vehicle Identification Number (VIN)
when communicating with the MG Authorised Repairer. If

your communication concerns the engine or transmission,
it may be necessary to quote these numbers too.

Vehicle Identification Location

VIN Location

• Stamped on a plate visible through the bottom left hand

corner of the windscreen.

• On the vehicle identification plate.

• On the right dash panel of the engine compartment.

• Attached above the inner side of the tailgate visible by

opening the tailgate.

Note: The vehicle diagnostic socket is located under
the RH side of the fascia panel. The VIN information
can be accessed using the SAIC Diagnostic Scan Tool.

Engine Number Location

Stamped on the front - right of the cylinder block. (View
from the front end of the vehicle)

Transmission Number Location

Stamped on the surface of the transmission housing in the
engine compartment. The transmission number of some

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

vehicles can be seen when the vehicle is lifted. Please
contact an MG Authorised Repairer.

Vehicle Identification Label

The vehicle identification label contains the following
information.

• Type Approval Number

• Vehicle Identification Number (VIN)

• Gross Vehicle Weight

• Gross Tracking Weight

• Max Front Axle Weight

• Max Rear Axle Weight

• Paint Code

• Trim Code

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Location of Vehicle Identification Label

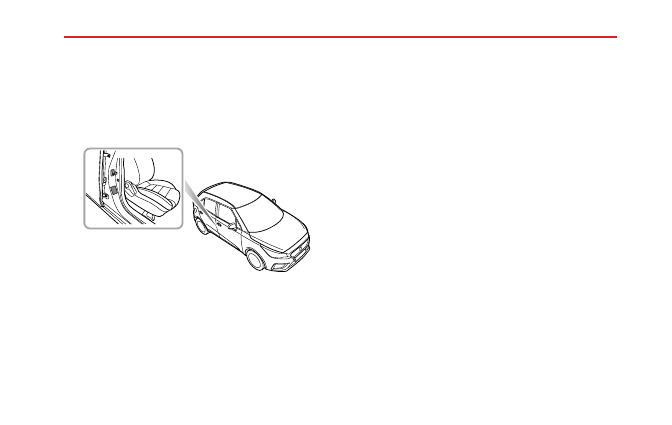

The identification label is located at the lower side of the
right B pillar.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instruments and Controls

5

3

6

7

9

1 1

10

8

4

1

2

16

15

18

17

14

13

12

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

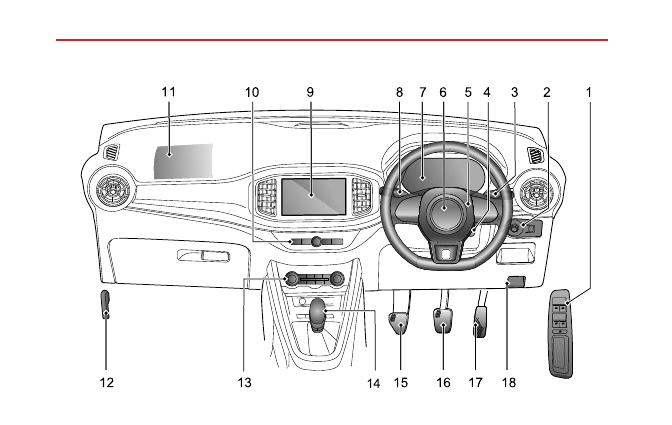

1 Power Window Switch

2 Exterior Rearview Mirrors and Headlamp Levelling

Adjustment Switch

3 Wiper/Washer Control

4 Ignition Switch

5 Horn Button

6 Driver Airbag

7 Instrument Pack

8 Indicator and Main Beam Stalk Switch

9 Entertainment System

10 Entertainment Controls

*

11 Front Passenger Airbag

12 Bonnet Release Handle

13 Heating/Air Conditioning Controls

14 Gear Shift Lever

15 Clutch Pedal

16 Brake Pedal

17 Accelerator Pedal

18 Fuel Filler Flap Release Handle

9

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instrument Pack

1

2

3

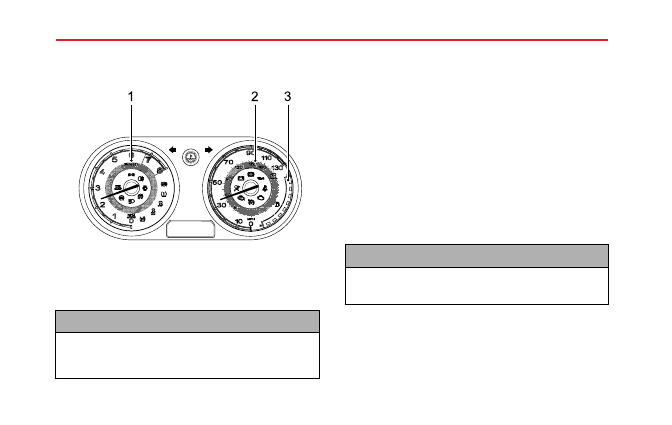

Tachometer

Indicates the engine speed (1), in ×1000 rpm.

IMPORTANT

To protect the engine from damage, never allow the
pointer to remain in the red sector of the gauge for
prolonged periods.

Speedometer

Indicates the vehicle speed (2), in km/h and MPH.

Fuel Gauge

The quantity of fuel in the tank is indicated by the number of
segments illuminated and color. There are eight segments
in total (3). When the fuel is at full level, all segments
are illuminated white. When the fuel quantity is low, the
lowest segment remains illuminated from white to yellow,
accompanied with an audible warning. As the fuel level
drops, the lowest yellow segment will flash, accompanied
with an audible warning.

IMPORTANT

When the fuel level is low, refuel at the earliest
opportunity.

The arrow on the left of fuel gauge symbol indicates that
the fuel filler is located on the right of the vehicle.

10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Information Centre

ABMPHMPGMile

s

0

2

1

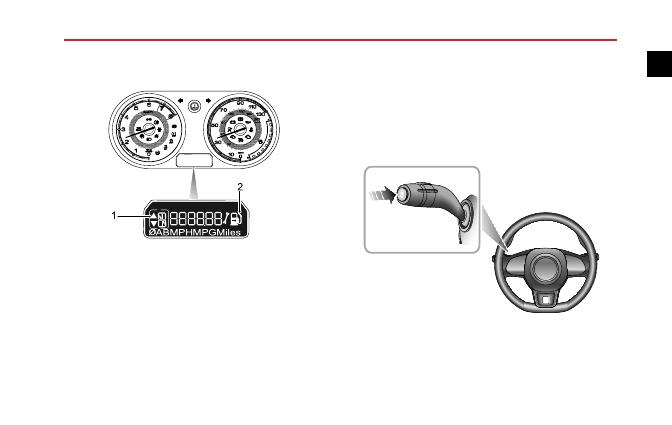

The information centre display is located at the bottom of
the instrument pack. It provides the following information:

1 Gear Display and Gear Shift Indication

2 Vehicle Information Display

Gear Display and Gear Shift Indication

Displays the current gear position of the transmission (R、
N、1、2、3、4、5). When the Up or Down arrow is
displayed at the left side of the gear position, it indicates

the driver to upshift or downshift when the conditions
permit.

Refer to "Manual Transmission" in "Starting &

Driving" section.

Vehicle Information Display

11

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

The vehicle information display screen provides the
following information:

• Odometer

• Trip A

• Trip B

• Ambient Temperature

• Fuel Range to Empty

• Instantaneous Fuel Consumption

• Average Fuel Consumption

• Average Speed

• Next Service

Short press (less than 2s) the button at the end of steering
wheel stalk (as arrowed) repeatedly to display above
information in cycle.

When Trip A, Trip B, Average Fuel Consumption or
Average Speed is selected for display, long press (longer
than 2s) the button at the end of the steering wheel stalk,
the selected item can be reset.

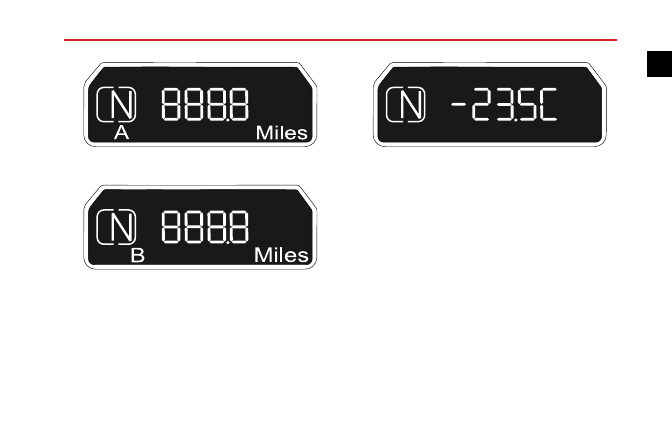

Odometer

Displays the total distance the car has travelled.

Trip A and Trip B

Displays the distance the car has travelled since last reset.

Trip A and Trip B are two independent mileage records with
the range of 0~999.9 miles, and they will automatically
reset when the distance exceeds 999.9 miles. Trip A and
Trip B can be reset independently to allow the car to record
each trip distance separately.

12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Ambient Temperature

Displays the ambient temperature outside of the vehicle.

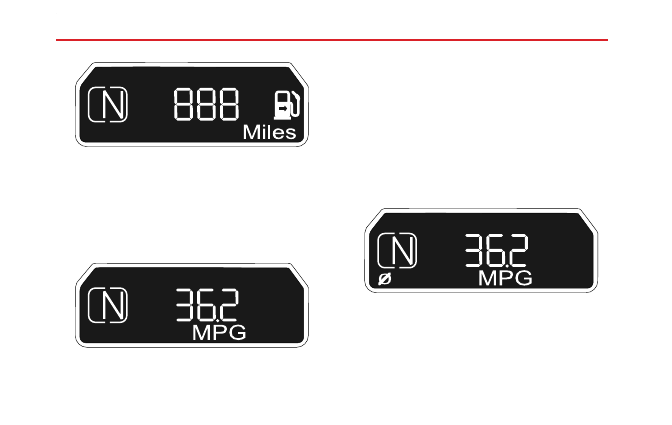

Fuel Range to Empty

Displays the remaining distance you can travel before the
fuel gauge reads empty. The distance will change when the
vehicle is refuelled.

The 'fuel range to empty' calculation is based on a
combination of average fuel consumption and remaining
fuel quantity recorded by the computer for last journey.

13

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instantaneous Fuel Consumption

Instantaneous fuel consumption is automatically calculated
by the car. When the car is stationary or the vehicle speed
is very low, 'Instantaneous Fuel Consumption' will display
"—MPG".

Average Fuel Consumption

Displays the average fuel consumption of the distance
travelled since last reset (the average fuel consumption
is calculated by dividing the amount of fuel used by the
distance travelled). The consumption value can be reset
at any time to record the average fuel consumption for a
particular journey or driving conditions. The average fuel
consumption shall be calculated after the engine starts
when the vehicle speed exceeds 3 MPH.

0

Note: The fuel consumption is related to driving style,
road conditions, load, tyre pressures, vehicle electrical
appliance application and maintenance levels etc.

14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Average Speed

Displays the average speed from the current journey or
since last reset. The average speed can be reset at any
time to record the average speed for a particular journey
or driving conditions.

Next Service

Displays the service interval announcement symbol, the
estimated distance of the next service remaining before it
should be carried out.

Note:

The

Service

Interval

Announcement

information can only be reset by an MG Authorised
Repairer.

15

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Warning Lights and Indicators

Note: Some warning lamps may be accompanied by
an audible warning when they illuminate or flash.

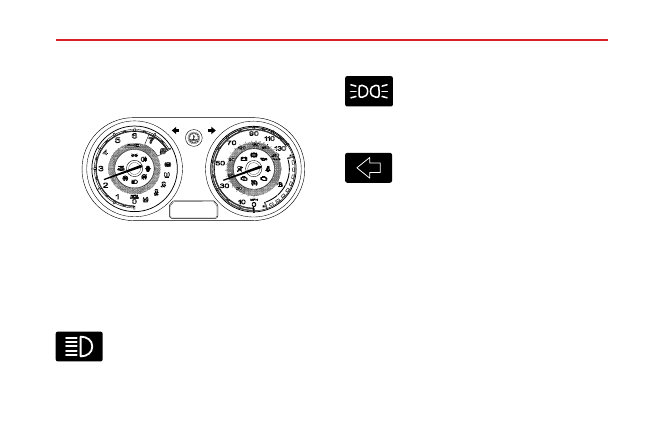

Main Beam Indicator - Blue

Illuminates when the headlights are switched to

main beam.

Side Lamp Indicator - Green

Illuminates when the side or headlights are

switched on.

Direction Indicator - Green

The left and right direction indicators are

represented by directional arrows located at the top of the
instrument display. The warning lights flash synchronised
with the exterior left or right direction indicator lights
whenever they are operating.

If the hazard warning lights are operated, both warning
lights will flash together.

If either warning light flashes very rapidly, this means that
one of the front or rear direction indicator lights is not
operating.

Note: Failure of a side repeater lamp will have no
effect on the flash frequency of direction indicator
lamp.

16

-------------------------------------------------------------------------------------------------------------------------------------------------------------
